Model Maytag JDRP430WP02 RANGE/OVEN, COMMERCIAL-STYLE, 30 INCH – Common Parts & Diagrams

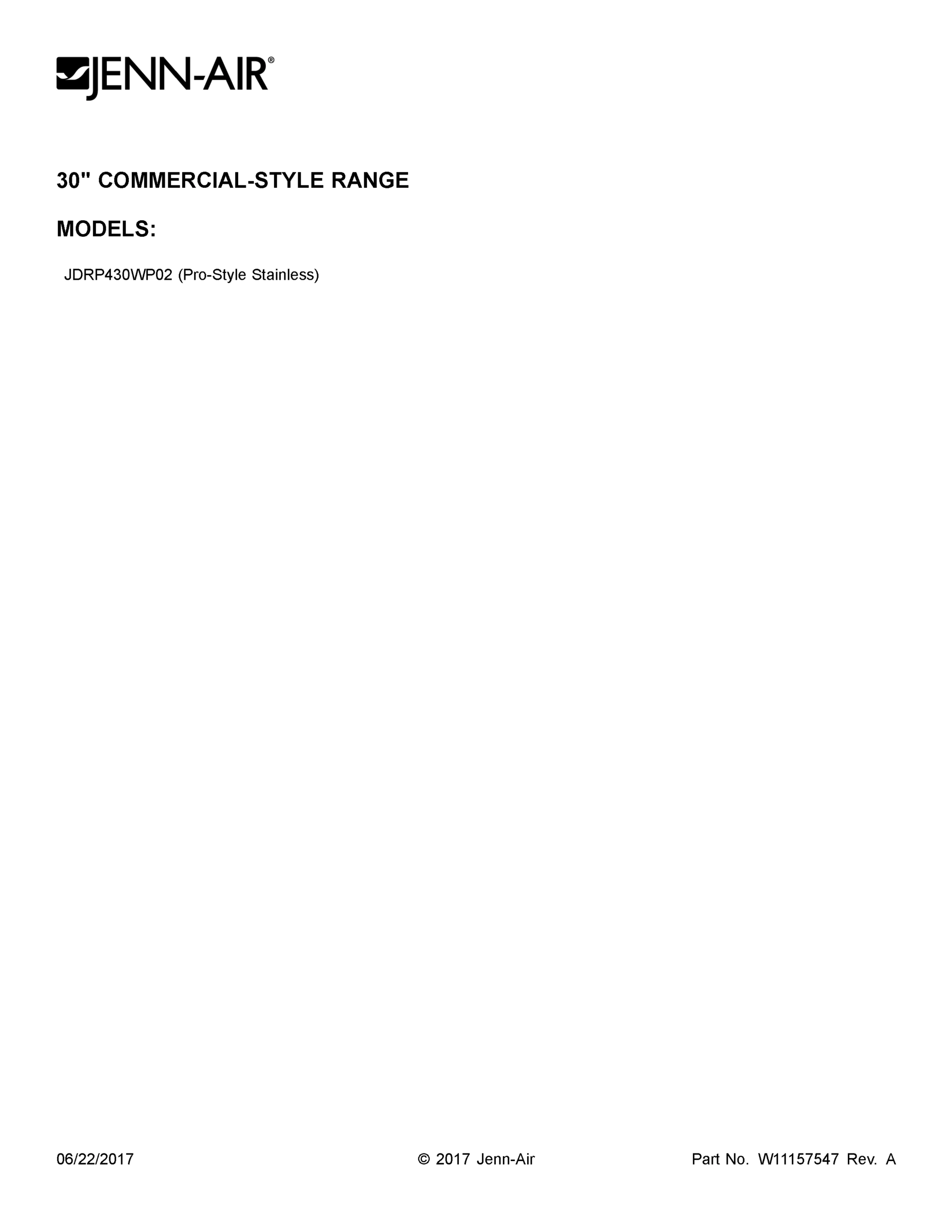

01 - COVER SHEET

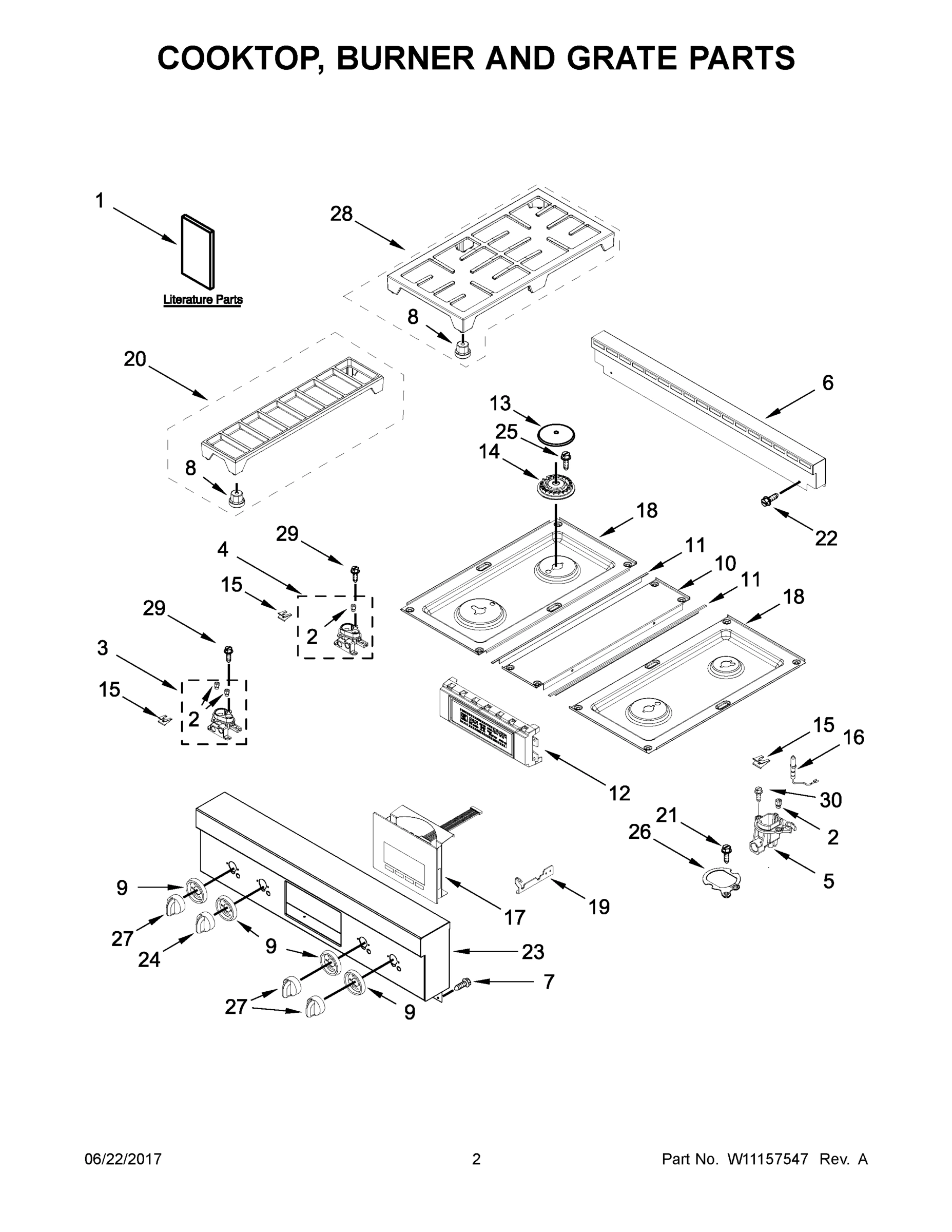

02 - COOKTOP, BURNER AND GRATE PARTS
03 - BURNER BOX, GAS VALVES AND SWITCH PARTS
04 - CHASSIS PARTS
05 - OVEN PARTS
06 - TOP VENTING PARTS
07 - OVEN DOOR PARTS
08 - INTERNAL OVEN PARTS
09 - OPTIONAL PARTS
Common parts from model Maytag JDRP430WP02 RANGE/OVEN, COMMERCIAL-STYLE, 30 INCH
1
SHEET, TECH (ENGLISH) MAY W10403301 Contact Us For Availability
1
VALVE, DUAL MAY W10371235 Contact Us For Availability
1
KICKPLATE MAY W10145765 Contact Us For Availability
1
SEAL, CHIMNEY MAY W10270396 Contact Us For Availability
1
LINER, DOOR MAY 9759413 Contact Us For Availability
1
INSULATION, CONVECTION COVER MAY W10282821 Contact Us For Availability
1A
SHEET, TECH (FRENCH) MAY W10403302 Contact Us For Availability
1B
GUIDE, USE & CARE MAY W11090434 Contact Us For Availability
1C
INSTRUCTIONS, INSTALLATION MAY W11090454 Contact Us For Availability
1D
TIPS, SAFE COOKING (ENGLISH) MAY 9762761 Contact Us For Availability
1E
TIPS, SAFE COOKING (FRENCH) MAY W10065852 Contact Us For Availability
2
ORIFICE (20K) (LEFT FRONT, HIGH) MAY W10657945 Contact Us For Availability
2
SCREW MAY W10129030 Contact Us For Availability
2
SCREW MAY 4449748 Contact Us For Availability
2
VENT, COOLING TOP (30") MAY W10160896 Contact Us For Availability
2
HINGE, DOOR (LEFT) MAY W10774095 Contact Us For Availability
2
TRAY, HIDDEN BAKE MAY W10160845 Contact Us For Availability
2A
ORIFICE (1.2K) (LEFT FRONT, LOW) MAY W10256132 Contact Us For Availability
2A
HINGE, DOOR (RIGHT) MAY W10774094 Contact Us For Availability
2B
ORIFICE (15K) (LEFT REAR & RIGHT FRONT) MAY W10364221 Contact Us For Availability
2C
ORIFICE (5K) (RIGHT REAR) MAY W10282663 Contact Us For Availability
3
ASSEMBLY, ORIFICE HOLDER (LEFT FRONT) MAY W10846622 Contact Us For Availability
3
INSULATION, BURNER BOX MAY W10276534 Contact Us For Availability
3
ASSEMBLY, ROLLER MAY W10138054 Contact Us For Availability
3
BUMPER & SCREW MAY W10105790 Contact Us For Availability
3
BLOWER 60MM MAY W10245511 Contact Us For Availability
3
GLASS, INNER (SINGLE COATED) MAY 4449259 Contact Us For Availability
3
RACK, OVEN MAY W10570887 Contact Us For Availability
4
ASSEMBLY, ORIFICE HOLDER (LEFT REAR & RIGHT F MAY W10846623 Contact Us For Availability
4
BRACKET, VALVE MAY W10432260 Contact Us For Availability
4
DUCT, BOTTOM MAY W10145380 Contact Us For Availability
4
MANAGER, APPLIANCE (GOC) MAY W10859105 Contact Us For Availability
4
VENT, COOLING BOTTOM (30") MAY W10246078 Contact Us For Availability
4
INSULATION, DOOR MAY 4451722 Contact Us For Availability
4
RACK, OVEN (SLIDING) MAY W10570865 Contact Us For Availability
5
HOLDER, ORIFICE (AUX) (RIGHT REAR) MAY W10883622 Contact Us For Availability
5
BRACKET, PRESSURE REGULATOR MAY W10115850 Contact Us For Availability
5
TUBE, VENT MAY W10288061 Contact Us For Availability
5
PLATE, COOLING LATCH MAY W10160875 Contact Us For Availability
5
RETAINER, GLASS MAY 4457132 Contact Us For Availability
5
ELEMENT, HIDDEN BAKE MAY W10115995 Contact Us For Availability
6
TRIM, ISLAND MAY W10269218 Contact Us For Availability
6
ADAPTER, FEMALE MAY 4453115 Contact Us For Availability
6
LEVELER MAY 9760860 Contact Us For Availability
6
ASSEMBLY, OVEN LIGHT MAY W10307114 Contact Us For Availability
6
SEAL, VENT SLOPE (30") MAY W10270397 Contact Us For Availability
6
COVER, HINGE (LEFT) MAY W10115876 Contact Us For Availability
6
BAFFLE, CONVECTION MAY W10246060 Contact Us For Availability
6A
COVER, HINGE (RIGHT) MAY W10115877 Contact Us For Availability
7
SCREW MAY 3400099 Contact Us For Availability
7
ASSEMBLY, MANIFOLD MAY W10402605 Contact Us For Availability
7
BASE, LEVELING LEG MAY W10249333 Contact Us For Availability
7
LENS, LIGHT MAY W10169756 Contact Us For Availability
7
GLASS, INNER (DOUBLE COATED) MAY 9759225 Contact Us For Availability
7
FAN, CONVECTION MAY W10722667 Contact Us For Availability
8
BUMPER, GRATE MAY 9760219 Contact Us For Availability
8
VALVE, SINGLE MAY W10385582 Contact Us For Availability
8
SCREW MAY W10292297 Contact Us For Availability
8
BULB, LIGHT MAY W10169757 Contact Us For Availability
8
INSULATOR, TERMINAL BOX MAY 9759721 Contact Us For Availability
8
BLADE, FAN MAY W10631503 Contact Us For Availability
9
BEZEL MAY W10276494 Contact Us For Availability
9
BUSHING, BURNER BOX MAY W10189097 Contact Us For Availability
9
PANEL, SIDE (LEFT) MAY W10250465 Contact Us For Availability
9
RECEIVER, HINGE (LEFT) MAY 4455605 Contact Us For Availability
9
COVER, LATCH MAY W10160858 Contact Us For Availability
9
BADGE (STAINLESS) MAY W10159578 Contact Us For Availability
9
PLATE, FAN MAY W10261523 Contact Us For Availability
9A
PANEL, SIDE (RIGHT) MAY W10250464 Contact Us For Availability
9A
RECEIVER, HINGE (RIGHT) MAY 4455606 Contact Us For Availability
10
FILLER, COOKTOP MAY W10189105 Contact Us For Availability
10
SCREW MAY W10189140 Contact Us For Availability
10
SHAFT, LONG MAY W10115869 Contact Us For Availability
10
FRAME, FRONT MAY W10115831 Contact Us For Availability
10
LATCH, MOTORIZED MAY W10830016 Contact Us For Availability
10
PANEL, EXTERIOR MAY W10145759 Contact Us For Availability
10
NUT, ACORN MAY W10631504 Contact Us For Availability
11
T-STRIP MAY W10271524 Contact Us For Availability
11
REGULATOR, PRESSURE MAY W10449141 Contact Us For Availability
11
SHAFT, SHORT MAY W10115793 Contact Us For Availability
11
PANEL, BACK BOTTOM MAY W10145392 Contact Us For Availability
11
BRACKET, BLOWER (18") MAY W10160844 Contact Us For Availability
11
SCREW MAY W10276043 Contact Us For Availability
11
ELEMENT, CONVECTION MAY W10116434 Contact Us For Availability
12
ASSEMBLY, KEYPAD MAY W10464535 Contact Us For Availability
12
BOX, BURNER MAY W10371508 Contact Us For Availability
12
E-RING MAY 489504 Contact Us For Availability
12
GASKET, OVEN (30") MAY W10850858 Contact Us For Availability
12
BOX, TERMINAL MAY W10467022 Contact Us For Availability
12
GLASS, OUTER DOOR MAY W10145850 Contact Us For Availability
12
ELEMENT, BROIL MAY W10115994 Contact Us For Availability
13
CAP, BURNER (BLACK) (LEFT FRONT) MAY W10256034 Contact Us For Availability
13
BRACKET, BURNER MAY W10560553 Contact Us For Availability
13
SUPPORT, CHANNEL MAY W10145377 Contact Us For Availability
13
SCREW, GROUNDING MAY 3400015 Contact Us For Availability
13
HANDLE, DOOR MAY 7701P475-60 Contact Us For Availability
13
PROBE, TEMPERATURE MAY 9755542 Contact Us For Availability
13A
CAP, BURNER (BLACK) (LEFT REAR & RIGHT FRONT) MAY W10256032 Contact Us For Availability
13B
CAP, BURNER (BLACK) (RIGHT REAR) MAY W10364463 Contact Us For Availability
14
SPREADER, FLAME (LEFT FRONT) MAY W10879806 Contact Us For Availability
14
VALVE, SIMMER MAY W10385583 Contact Us For Availability
14
CHASSIS, TOP MAY W10267897 Contact Us For Availability
14
BLOCK, TERMINAL MAY 9761958 Contact Us For Availability
14
BRACKET, SIDE MAY 9759229 Contact Us For Availability
14
SCREW MAY 7101P500-60 Contact Us For Availability
14A
SPREADER, FLAME (LEFT REAR & RIGHT FRONT) MAY W10256027 Contact Us For Availability
14B
SPREADER, FLAME (RIGHT REAR) MAY W10282515 Contact Us For Availability
15
SPRING, ELECTRODE (LEFT FRONT, LEFT REAR, RIG MAY W10827923 Contact Us For Availability
15
COVER, IGNITION MAY W10115843 Contact Us For Availability
15
CHASSIS, BACK MAY W10324086 Contact Us For Availability
15
SENSOR MAY W10131825 Contact Us For Availability
15
COVER, CHANNEL MAY W10145382 Contact Us For Availability
15
BRACKET, CENTER OUTER GLASS MAY W10145763 Contact Us For Availability
15
JACK, MEAT PROBE MAY 9755543 Contact Us For Availability
15A
SPRING, ELECTRODE (RIGHT REAR) MAY 8286863 Contact Us For Availability
16
ELECTRODE, BURNER (RIGHT REAR) MAY 8286725 Contact Us For Availability
16
MODULE, SPARK MAY W10475147 Contact Us For Availability
16
BOTTOM, CHASSIS MAY W10235537 Contact Us For Availability
16
SCREW MAY 4449154 Contact Us For Availability
16
SUPPORT, CONTROL MAY W10853036 Contact Us For Availability
16
SHIELD, HEAT TOP MAY 4457104 Contact Us For Availability
16
NUT, HIDDEN MAY 9755546 Contact Us For Availability
17
ASSEMBLY, POWER SUPPLY MAY W10145531 Contact Us For Availability
17
SEAL, SWITCH COVER MAY W10189177 Contact Us For Availability
17
SCREW MAY 3196537 Contact Us For Availability
17
CHASSIS, SIDE (LEFT) MAY W10269206 Contact Us For Availability
17
SCREW MAY 4449040 Contact Us For Availability
17
SEAL, CONTROL MAY W10239444 Contact Us For Availability
17
WASHER, LOCK MAY 9755547 Contact Us For Availability
17A
CHASSIS, SIDE (RIGHT) MAY W10269205 Contact Us For Availability
18
COOKTOP (BLACK (LEFT)) MAY W10352969 Contact Us For Availability
18
SCREW MAY 7101P426-60 Contact Us For Availability
18
TUBE, PRESSURE REGULATOR MAY W10452066 Contact Us For Availability
18
SCREW MAY 3196176 Contact Us For Availability
18
BUSHING, SNAP SPLIT MAY 9757778 Contact Us For Availability
18
SHIELD, ELEMENT BROIL MAY W10160856 Contact Us For Availability
18A
COOKTOP (BLACK (RIGHT)) MAY W10352968 Contact Us For Availability
19
BRACKET, MOVING CONSOLE (LEFT) MAY W10130760 Contact Us For Availability
19
BRACKET, SPARK MODULE MAY W10498407 Contact Us For Availability
19
THERMOSTAT (TOD) MAY 4449751 Contact Us For Availability
19
SLOPE, EXHAUST VENT (30") MAY W10818234 Contact Us For Availability
19
SHIELD, HEAT BOTTOM MAY 4457114 Contact Us For Availability
19A
BRACKET, MOVING CONSOLE (RIGHT) MAY W10130759 Contact Us For Availability
20
GRATE, FILLER MAY W10276495 Contact Us For Availability
20
ADAPTER, MALE MAY 4453116 Contact Us For Availability
20
ASSEMBLY, DRAWER MAY W10235557 Contact Us For Availability
20
NUT, HEX MAY 112432 Contact Us For Availability
20
BRACKET, DOOR TOP MAY W10115715 Contact Us For Availability
21
SCREW MAY 3196160 Contact Us For Availability
21
RETAINER, GASKET (30") MAY W10157511 Contact Us For Availability
21
SCREW MAY 3196163 Contact Us For Availability
21
BRACKET, CENTRAL MAY 9759230 Contact Us For Availability
22
SCREW MAY 7101P338-60 Contact Us For Availability
22
PANEL, BACK TOP MAY W10269207 Contact Us For Availability
22
BRACKET, OUTER GLASS SIDE MAY W10145761 Contact Us For Availability
23
PANEL, CONTROL MAY W10789952 Contact Us For Availability
23
SCREW MAY 4449743 Contact Us For Availability
24
KNOB, DUAL (STAINLESS) MAY W10145568 Contact Us For Availability
24
NUT MAY 3400968 Contact Us For Availability
25
SCREW MAY W10673618 Contact Us For Availability
26
GASKET, ORI MAY 8286930 Contact Us For Availability
27
MAY W10145454 MAY W10145454 Contact Us For Availability
28
MAY W10276551 MAY W10276551 Contact Us For Availability
29
MAY 3177991 MAY 3177991 Contact Us For Availability
30
MAY 8286921 MAY 8286921 Contact Us For Availability
NI
MAY 313438 MAY 313438 Contact Us For Availability
NI
MAY 4450800 MAY 4450800 Contact Us For Availability
NI
MAY 7101P485-60 MAY 7101P485-60 Contact Us For Availability
NI
MAY 8019P013-60 MAY 8019P013-60 Contact Us For Availability
NI
MAY 9759877 MAY 9759877 Contact Us For Availability
NI
FOLLOWING PARTS NOT ILLUSTRATED MAY N/P Contact Us For Availability
NI
MAY W10116142 MAY W10116142 Contact Us For Availability
NI
MAY W10145988 MAY W10145988 Contact Us For Availability
NI
MAY W10177363 MAY W10177363 Contact Us For Availability
NI
MAY W10183556 MAY W10183556 Contact Us For Availability
NI
MAY W10253333 MAY W10253333 Contact Us For Availability
NI
MAY W10340850 MAY W10340850 Contact Us For Availability
NI
MAY W10344051 MAY W10344051 Contact Us For Availability
NI
MAY W10368807 MAY W10368807 Contact Us For Availability
NI
MAY W10624586 MAY W10624586 Contact Us For Availability
NI
MAY W10763500 MAY W10763500 Contact Us For Availability
NI
MAY W10766100 MAY W10766100 Contact Us For Availability
NI
MAY W10780278 MAY W10780278 Contact Us For Availability
NI
MAY W10830809 MAY W10830809 Contact Us For Availability
NI
TUBE (RIGHT REAR) MAY W10276501 Contact Us For Availability
NI
TUBE (LEFT REAR) MAY W10368165 Contact Us For Availability
NI
TUBE (LEFT FRONT, LOW) MAY W10368166 Contact Us For Availability
NI
TUBE (LEFT FRONT, HIGH) MAY W10368167 Contact Us For Availability
NI
TUBE (RIGHT FRONT) MAY W10368335 Contact Us For Availability
NI
INSULATION, WRAP, 30" MAY W10282810 Contact Us For Availability
NI
INSULATION, BACK, 30" MAY W10282816 Contact Us For Availability
NI
MISCELLANEOUS, CLEANER, STAINLESS STEEL MAY 31462 Contact Us For Availability
NI
MISCELLANEOUS, APPLIANCE CLEANER MAY 31682 Contact Us For Availability
NI
ADHESIVE, SEAL, ACCESS PANEL MAY 4453191 Contact Us For Availability
NI
ADHESIVE, SEAL, RIBBON CABLE MAY 4453192 Contact Us For Availability
NI
ADHESIVE, SEALER, SILASTIC MAY 482338 Contact Us For Availability
NI
ADHESIVE, LOCTITE MAY 591014 Contact Us For Availability
NI
MISCELLANEOUS, 30" WITHOUT SHELVES MAY 8285148 Contact Us For Availability
NI
MISCELLANEOUS, STAINLESS STEEL WALLSPLASH MAY JXA9003CDP Contact Us For Availability
NI
MISCELLANEOUS, RACK, BROILER PAN & ROASTING MAY W10123240 Contact Us For Availability
NI
MISCELLANEOUS, COVER, GRILL/GRIDDLE MAY W10160195 Contact Us For Availability
NI
MISCELLANEOUS, RACK, OVEN (SLIDING) MAY W10208155 Contact Us For Availability
NI
MISCELLANEOUS, RING, WOK MAY W10216179 Contact Us For Availability
× ![]()
