Model Maytag JDRP430WP00 GAS RANGE – Common Parts & Diagrams

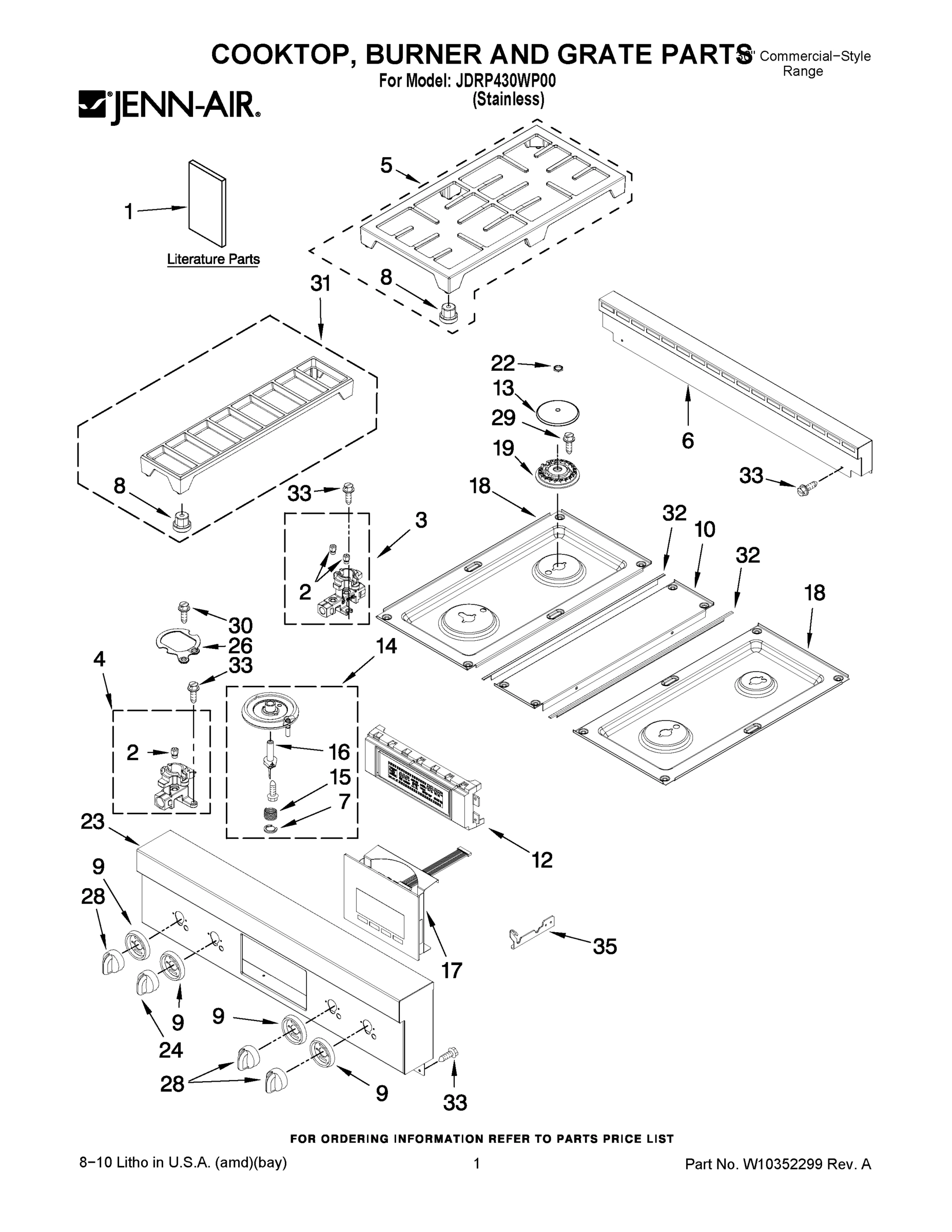

01 - COOKTOP, BURNER AND GRATE PARTS

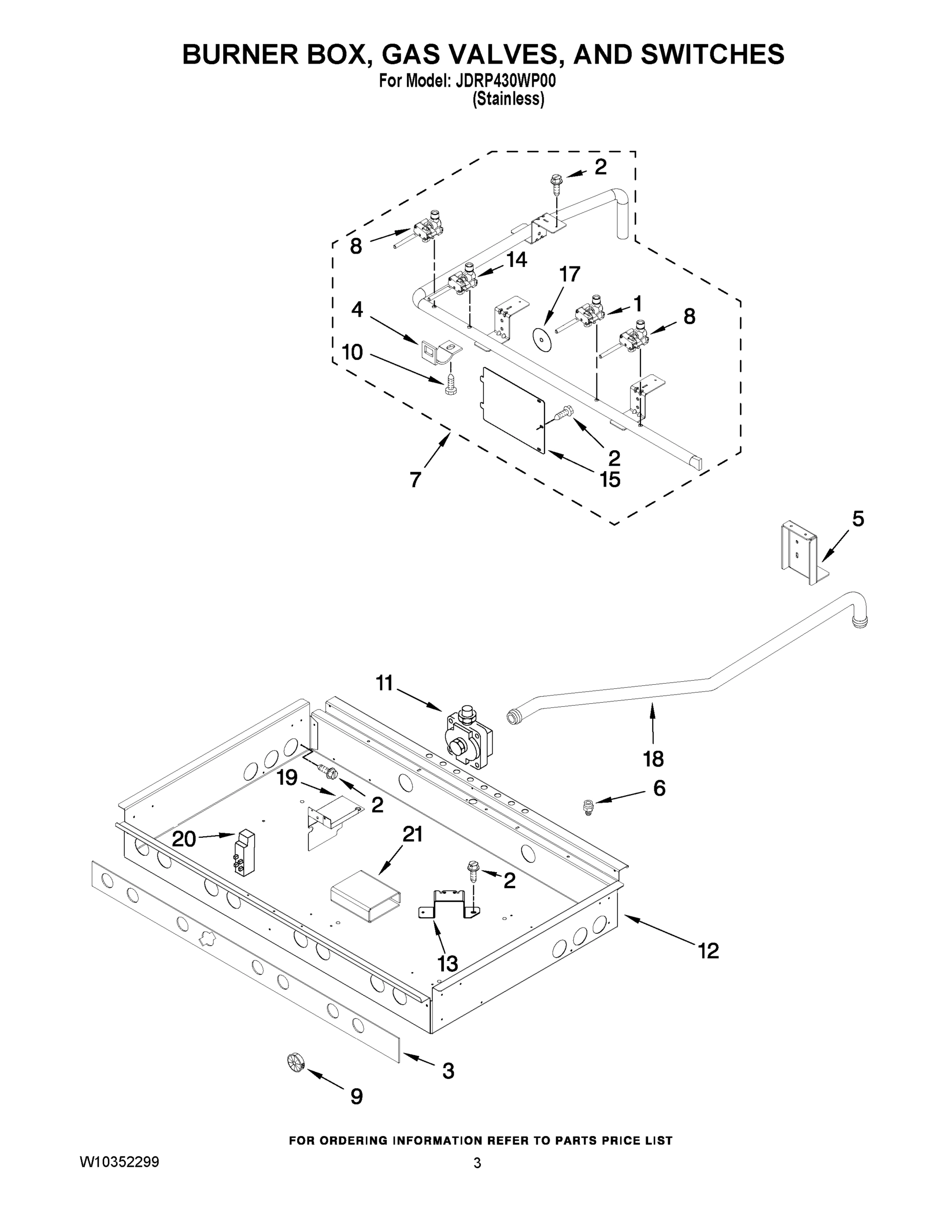

02 - BURNER BOX, GAS VALVES, AND SWITCHES

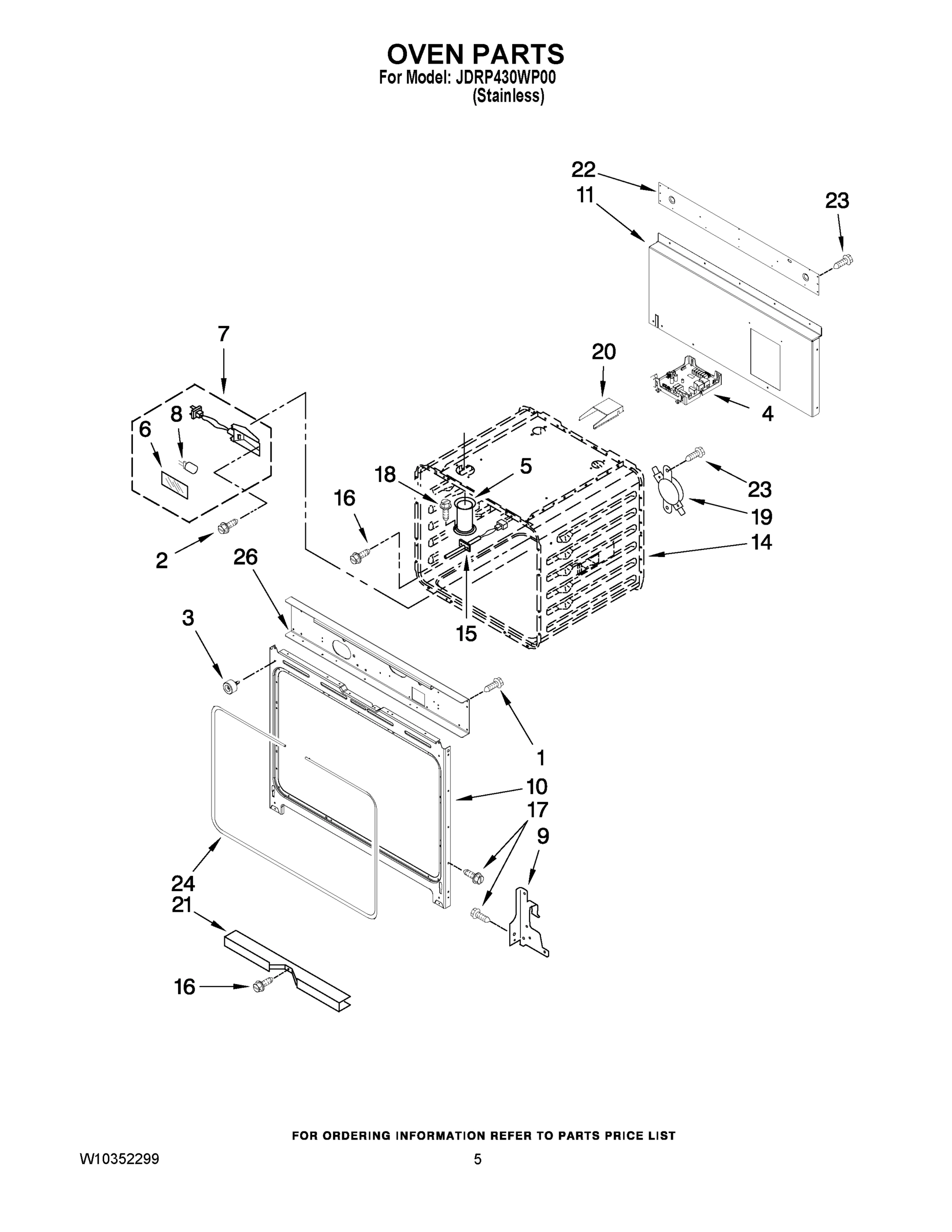

03 - OVEN PARTS

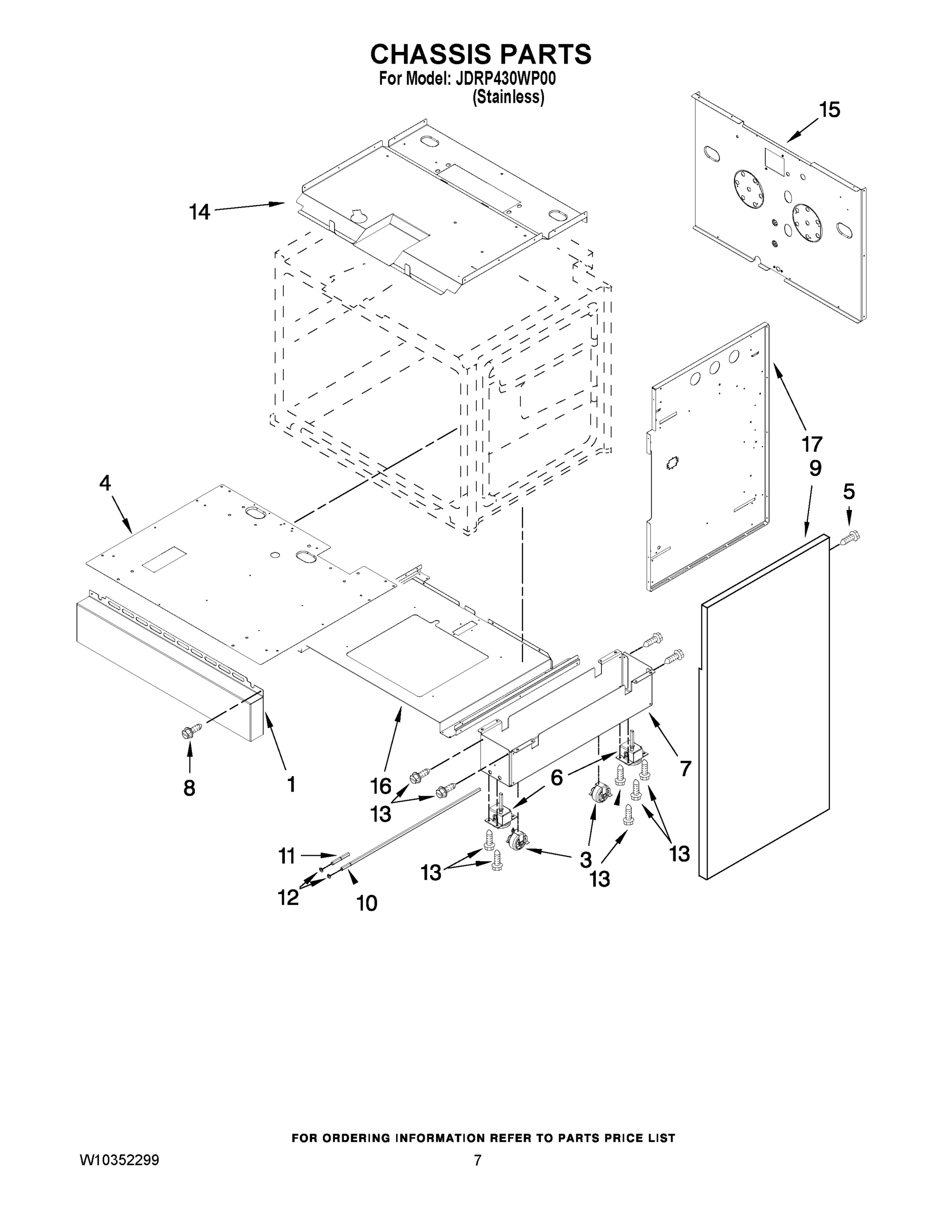

04 - CHASSIS PARTS

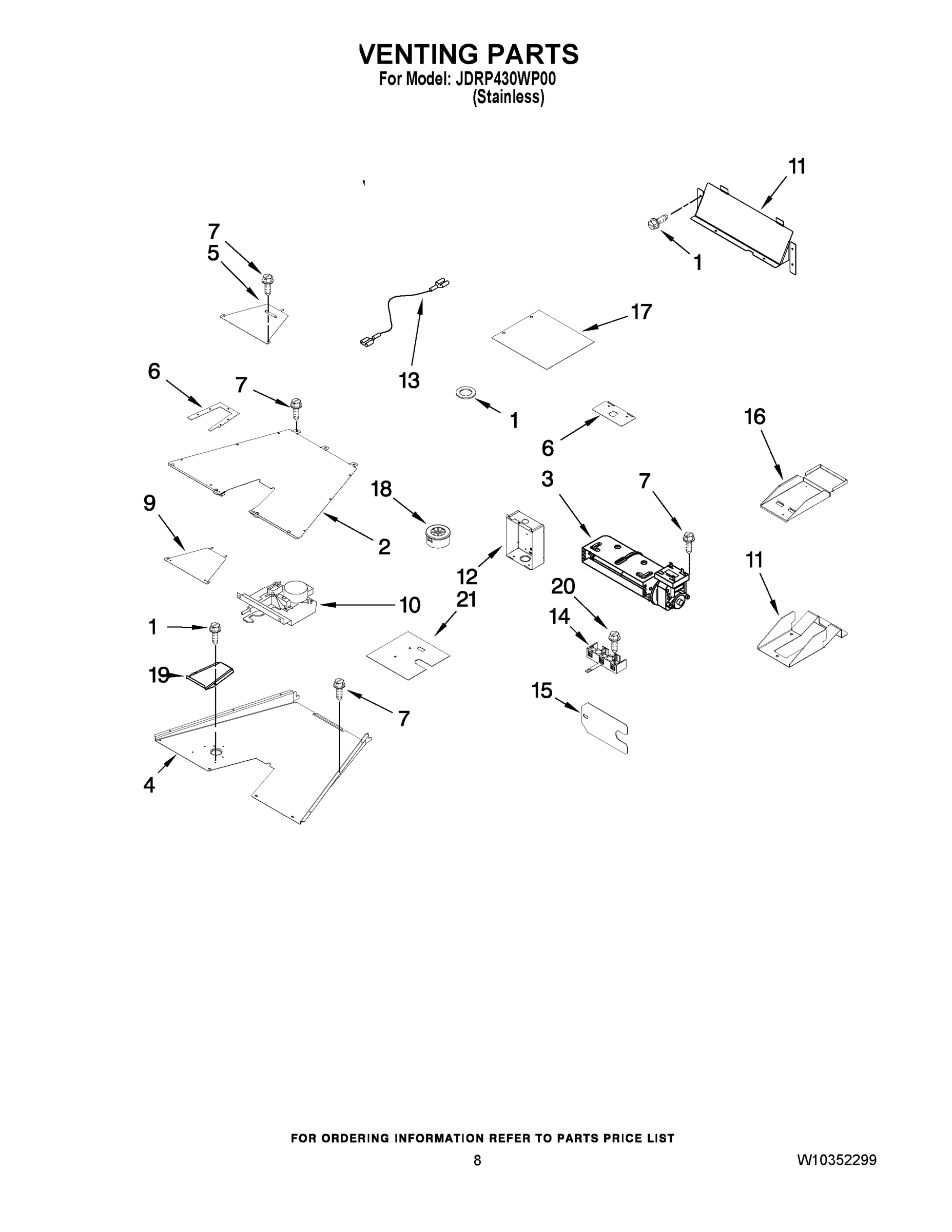

05 - VENTING PARTS

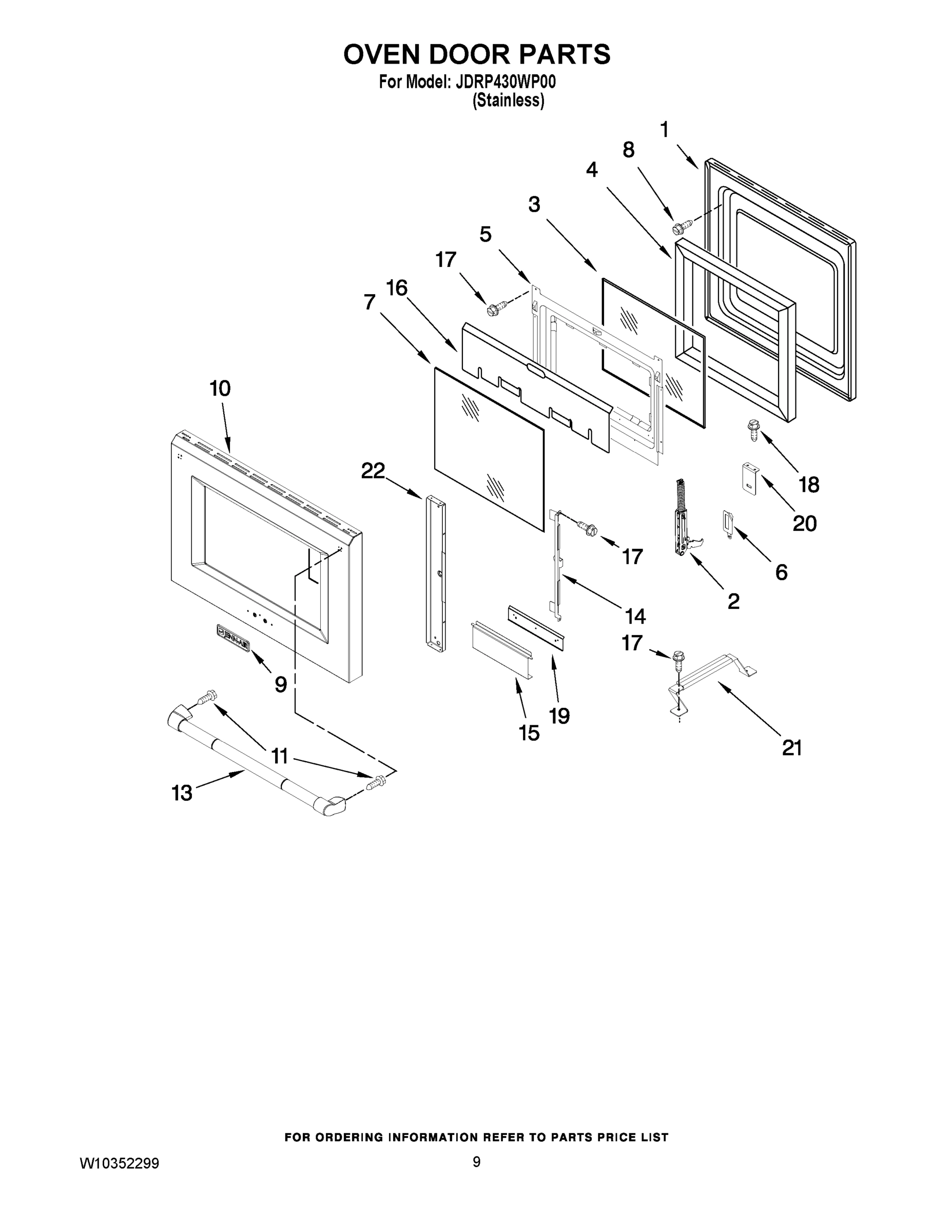

06 - OVEN DOOR PARTS

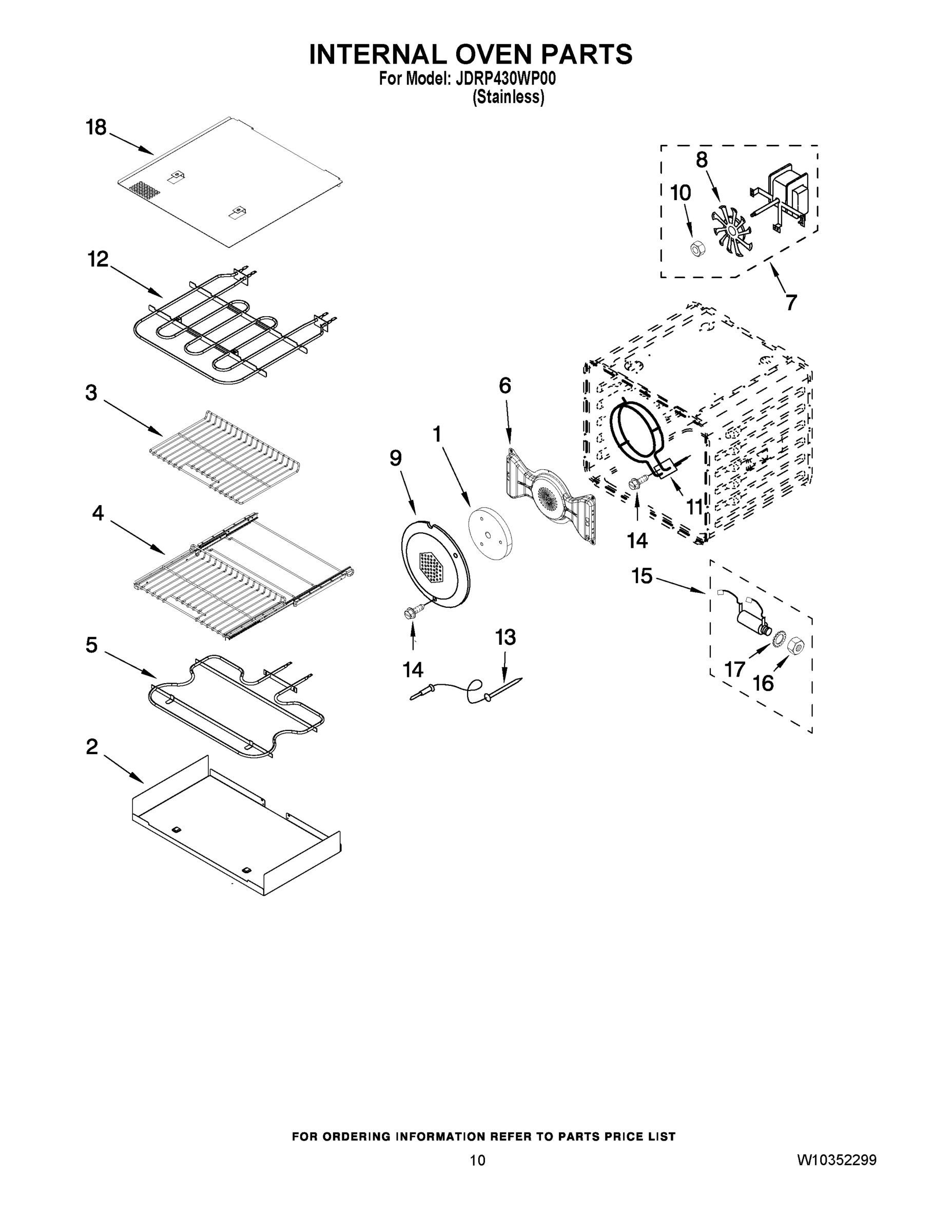

07 - INTERNAL OVEN PARTS
08 - OPTIONAL PARTS
Common parts from model Maytag JDRP430WP00 GAS RANGE
1
Safer Cooking Tips (English) MAY 9762761 Contact Us For Availability
1
MAY W10065852 MAY W10065852 Contact Us For Availability
1
MAY W10145393 MAY W10145393 Contact Us For Availability
1
MAY W10294839 MAY W10294839 Contact Us For Availability
1
MAY W10294843 MAY W10294843 Contact Us For Availability
1
MAY W10295367 MAY W10295367 Contact Us For Availability
1
VALVE, DUAL (LF) MAY W10305287 Contact Us For Availability
1
MAY W10145765 MAY W10145765 Contact Us For Availability
1
MAY W10270396 MAY W10270396 Contact Us For Availability
1
DOOR LINER MAY W10226001 Contact Us For Availability
1
MAY W10282821 MAY W10282821 Contact Us For Availability
2
ORIFICE (LF - HIGH) MAY W10160179 Contact Us For Availability
2
ORIFICE (LF - LOW) MAY W10160185 Contact Us For Availability
2
ORIFICE (LR & RF) MAY W10160232 Contact Us For Availability
2
ORIFICE (RR) MAY W10282663 Contact Us For Availability
2
MAY 4449748 MAY 4449748 Contact Us For Availability
2
MAY W10160896 MAY W10160896 Contact Us For Availability
2
MAY W10269201 MAY W10269201 Contact Us For Availability
2
MAY W10269202 MAY W10269202 Contact Us For Availability
2
MAY W10160845 MAY W10160845 Contact Us For Availability
3
ORIFICE HOLDER DUAL - LF) MAY W10160187 Contact Us For Availability
3
MAY W10276534 MAY W10276534 Contact Us For Availability
3
ASSEMBLY, BUMPER MAY W10105790 Contact Us For Availability
3
ROLLER, ASSEMBLY MAY W10138054 Contact Us For Availability
3
BLOWER MAY W10245511 Contact Us For Availability
3
MAY 4449259 MAY 4449259 Contact Us For Availability
3
URSO, WIRE RACK MAY W10284950 Contact Us For Availability
4
ORIFICE HOLDER (LR & RF) MAY W10160234 Contact Us For Availability
4
ORIFICE HOLDER (RR) MAY W10282659 Contact Us For Availability
4
MAY W10189107 MAY W10189107 Contact Us For Availability
4
MAY W10146048 MAY W10146048 Contact Us For Availability
4
MAY W10145380 MAY W10145380 Contact Us For Availability
4
MAY W10246078 MAY W10246078 Contact Us For Availability
4
MAY 4451722 MAY 4451722 Contact Us For Availability
5
MAY W10276551 MAY W10276551 Contact Us For Availability
5
MAY W10115850 MAY W10115850 Contact Us For Availability
5
MAY W10288061 MAY W10288061 Contact Us For Availability
5
MAY W10160875 MAY W10160875 Contact Us For Availability
5
MAY W10226002 MAY W10226002 Contact Us For Availability
5
MAY W10115995 MAY W10115995 Contact Us For Availability
6
MAY W10269218 MAY W10269218 Contact Us For Availability
6
ADAPTER, 1/2`` FEMALE MAY 4453115 Contact Us For Availability
6
MAY W10169756 MAY W10169756 Contact Us For Availability
6
FOOT MAY 9760860 Contact Us For Availability
6
MAY W10270397 MAY W10270397 Contact Us For Availability
6
MAY W10115876 MAY W10115876 Contact Us For Availability
6
MAY W10115877 MAY W10115877 Contact Us For Availability
6
MAY W10246060 MAY W10246060 Contact Us For Availability
7
CLIP, ELECTRODE MAY W10160825 Contact Us For Availability
7
MAY W10145506 MAY W10145506 Contact Us For Availability
7
OVEN LIGHT ASSY MAY W10307114 Contact Us For Availability
7
MAY W10249333 MAY W10249333 Contact Us For Availability
7
MAY 9759225 MAY 9759225 Contact Us For Availability
7
MOTOR, CONVECTION MAY W10116228 Contact Us For Availability
8
MAY 8286695 MAY 8286695 Contact Us For Availability
8
VALVE, SINGLE (LR & RF) MAY W10326645 Contact Us For Availability
8
MAY W10169757 MAY W10169757 Contact Us For Availability
8
MAY W10292297 MAY W10292297 Contact Us For Availability
8
MAY W10116351 MAY W10116351 Contact Us For Availability
9
MAY W10276494 MAY W10276494 Contact Us For Availability
9
MAY W10189097 MAY W10189097 Contact Us For Availability
9
MAY 4455605 MAY 4455605 Contact Us For Availability
9
MAY 4455606 MAY 4455606 Contact Us For Availability
9
MAY W10250464 MAY W10250464 Contact Us For Availability
9
MAY W10250465 MAY W10250465 Contact Us For Availability
9
MAY W10160858 MAY W10160858 Contact Us For Availability
9
MAY W10159578 MAY W10159578 Contact Us For Availability
9
COVER, FAN MAY W10261523 Contact Us For Availability
10
MAY W10189105 MAY W10189105 Contact Us For Availability
10
SCREW, VALVE MTG MAY W10189140 Contact Us For Availability
10
MAY W10160866 MAY W10160866 Contact Us For Availability
10
MAY W10115869 MAY W10115869 Contact Us For Availability
10
MAY W10195935 MAY W10195935 Contact Us For Availability
10
MAY W10322618 MAY W10322618 Contact Us For Availability
10
MAY W10116349 MAY W10116349 Contact Us For Availability
11
MAY W10293267 MAY W10293267 Contact Us For Availability
11
MAY W10145392 MAY W10145392 Contact Us For Availability
11
MAY W10115793 MAY W10115793 Contact Us For Availability
11
BRACKET, MOUNTING COOLING FAN MAY W10160844 Contact Us For Availability
11
MAY W10276043 MAY W10276043 Contact Us For Availability
11
MAY W10116434 MAY W10116434 Contact Us For Availability
12
MAY W10344181 MAY W10344181 Contact Us For Availability
12
MAY W10276535 MAY W10276535 Contact Us For Availability
12
MAY 489504 MAY 489504 Contact Us For Availability
12
MAY W10115858 MAY W10115858 Contact Us For Availability
12
MAY W10115994 MAY W10115994 Contact Us For Availability
13
CAP, BURNER (RR) MAY 8286816 Contact Us For Availability
13
CAP, BURNER (LF) MAY W10115952 Contact Us For Availability
13
CAP, BURNER (LR & RF) MAY W10160229 Contact Us For Availability
13
BRACKET, BURNER (LF, LR & RF) MAY W10115929 Contact Us For Availability
13
BRACKET, BURNER (RR) MAY W10280796 Contact Us For Availability
13
MAY 4449743 MAY 4449743 Contact Us For Availability
13
WIRE, ELECTRODE MAY 8286725 Contact Us For Availability
13
MAY 7701P475-60 MAY 7701P475-60 Contact Us For Availability
13
MAY 9755542 MAY 9755542 Contact Us For Availability
14
BASE, BURNER (LR & RF) MAY W10189082 Contact Us For Availability
14
BASE, BURNER (RR) MAY W10250405 Contact Us For Availability
14
BASE, BURNER (LF) MAY W10320937 Contact Us For Availability
14
VALVE, AUX (RR) MAY W10305286 Contact Us For Availability
14
LINER, OVEN (NOT SERVICED) MAY N/P Contact Us For Availability
14
MAY W10267897 MAY W10267897 Contact Us For Availability
14
Block, Terminal MAY 9761958 Contact Us For Availability
14
MAY 9759229 MAY 9759229 Contact Us For Availability
14
MAY 7101P500-60 MAY 7101P500-60 Contact Us For Availability
15
SPRING, ELECTRODE (RR) MAY 8286863 Contact Us For Availability
15
SPRING, ELECTRODE (LF, LR & RF) MAY W10160826 Contact Us For Availability
15
MAY W10115843 MAY W10115843 Contact Us For Availability
15
MAY W10131825 MAY W10131825 Contact Us For Availability
15
MAY W10324086 MAY W10324086 Contact Us For Availability
15
MAY W10145382 MAY W10145382 Contact Us For Availability
15
MAY W10145763 MAY W10145763 Contact Us For Availability
15
MAY 9755543 MAY 9755543 Contact Us For Availability
16
ELECTRODE (RR) MAY W10145991 Contact Us For Availability
16
ELECTRODE (LR & RF) MAY W10160235 Contact Us For Availability
16
ELECTRODE (LF (DUAL)) MAY W10250406 Contact Us For Availability
16
MAY 4449154 MAY 4449154 Contact Us For Availability
16
CHASSIS, BOTTOM MAY W10235537 Contact Us For Availability
16
MAY W10249337 MAY W10249337 Contact Us For Availability
16
SHIELD, HEAT TOP MAY 4457104 Contact Us For Availability
16
LOCKNUT, HEX MAY 9755546 Contact Us For Availability
17
MAY W10145531 MAY W10145531 Contact Us For Availability
17
MAY W10189177 MAY W10189177 Contact Us For Availability
17
MAY 4449040 MAY 4449040 Contact Us For Availability
17
Screw MAY 3196537 Contact Us For Availability
17
MAY W10269205 MAY W10269205 Contact Us For Availability
17
MAY W10269206 MAY W10269206 Contact Us For Availability
17
MAY W10239444 MAY W10239444 Contact Us For Availability
17
LOCK, WASHER EXTERNAL MAY 9755547 Contact Us For Availability
18
MAY W10189104 MAY W10189104 Contact Us For Availability
18
MAY W10282192 MAY W10282192 Contact Us For Availability
18
MAY 7101P426-60 MAY 7101P426-60 Contact Us For Availability
18
MAY W10269191 MAY W10269191 Contact Us For Availability
18
Screw MAY 3196176 Contact Us For Availability
18
BUSHING, SNAP SPLIT MAY 9757778 Contact Us For Availability
18
MAY W10160856 MAY W10160856 Contact Us For Availability
19
BURNER HEAD (LR & RF) MAY W10250458 Contact Us For Availability
19
BURNER HEAD (LF) MAY W10250459 Contact Us For Availability
19
BURNER HEAD (RR) MAY W10282515 Contact Us For Availability
19
MAY W10137323 MAY W10137323 Contact Us For Availability
19
THERMOSTAT MAY 4449751 Contact Us For Availability
19
MAY W10246075 MAY W10246075 Contact Us For Availability
19
SHIELD, HEAT BOTTOM MAY 4457114 Contact Us For Availability
20
SPARK MODULE MAY 7431P038-60 Contact Us For Availability
20
DRAWER ASSEMBLY MAY W10235557 Contact Us For Availability
20
SCREW MAY 112432 Contact Us For Availability
20
MAY W10115715 MAY W10115715 Contact Us For Availability
21
ADAPTER, MALE MAY 4453116 Contact Us For Availability
21
MAY W10157511 MAY W10157511 Contact Us For Availability
21
INSULATOR, TERMINAL BLOCK MAY 9759721 Contact Us For Availability
21
MAY 9759230 MAY 9759230 Contact Us For Availability
22
MAY W10115953 MAY W10115953 Contact Us For Availability
22
MAY W10269207 MAY W10269207 Contact Us For Availability
22
MAY W10145761 MAY W10145761 Contact Us For Availability
23
MAY W10295784 MAY W10295784 Contact Us For Availability
24
MAY W10145568 MAY W10145568 Contact Us For Availability
24
GASKET, OVEN MAY W10160890 Contact Us For Availability
26
GASKET, ORIFICE HOLDER MAY 8286930 Contact Us For Availability
26
MAY W10145377 MAY W10145377 Contact Us For Availability
28
MAY W10145454 MAY W10145454 Contact Us For Availability
29
SCREW MAY W10078270 Contact Us For Availability
30
MAY 3196160 MAY 3196160 Contact Us For Availability
31
MAY W10276495 MAY W10276495 Contact Us For Availability
32
TRIM MAY W10271524 Contact Us For Availability
33
MAY 7101P338-60 MAY 7101P338-60 Contact Us For Availability
35
MAY W10130759 MAY W10130759 Contact Us For Availability
35
MAY W10130760 MAY W10130760 Contact Us For Availability
NI
MAY W10145479 MAY W10145479 Contact Us For Availability
NI
MAY W10145480 MAY W10145480 Contact Us For Availability
NI
MAY W10145481 MAY W10145481 Contact Us For Availability
NI
MAY W10145484 MAY W10145484 Contact Us For Availability
NI
MAY W10276501 MAY W10276501 Contact Us For Availability
NI
MAY W10282810 MAY W10282810 Contact Us For Availability
NI
MAY W10282816 MAY W10282816 Contact Us For Availability
NI
EXTENABLE ROLLER RACK W/ HANDLE MAY W10208155 Contact Us For Availability
NI
STAINLESS STEEL CLEANER AND POLISH MAY 31462 Contact Us For Availability
NI
COOKTOP CLEANER MAY 31682 Contact Us For Availability
NI
MAY 4450800 MAY 4450800 Contact Us For Availability
NI
ADHESIVE (SEAL, ACCESS PANEL) MAY 4453191 Contact Us For Availability
NI
ADHESIVE (SEAL, RIBBON CABLE) MAY 4453192 Contact Us For Availability
NI
ADHESIVE (SEALER, SILASTIC (3 OZ.) MAY 482338 Contact Us For Availability
NI
ADHESIVE LOCTITE (1/3 OZ.)) MAY 591014 Contact Us For Availability
NI
ADJUSTABLE BACKSPLASH MAY 8285148 Contact Us For Availability
NI
MAY JXA9003CDP MAY JXA9003CDP Contact Us For Availability
NI
MAY W10116142 MAY W10116142 Contact Us For Availability
NI
BROILER PAN KIT MAY W10123240 Contact Us For Availability
NI
MAY W10145988 MAY W10145988 Contact Us For Availability
NI
MAY W10145989 MAY W10145989 Contact Us For Availability
NI
MAY W10146038 MAY W10146038 Contact Us For Availability
NI
STAINLESS STEEL GRIDDLE COVER MAY W10160195 Contact Us For Availability
NI
GROMMET, FLEX MAY W10177363 Contact Us For Availability
NI
MAY W10216179 MAY W10216179 Contact Us For Availability
NI
LP CONVERSION KIT MAY W10221288 Contact Us For Availability
NI
BRACKET, ANTI-TIP MAY W10253333 Contact Us For Availability
NI
MAY W10344051 MAY W10344051 Contact Us For Availability
NI
HARNESS, DOOR LOCK MAY W10345322 Contact Us For Availability
× ![]()
