Model Maytag JDB9800CWS2 DISHWASHER – Common Parts & Diagrams
01 - COVER SHEET
02 - DOOR AND PANEL PARTS

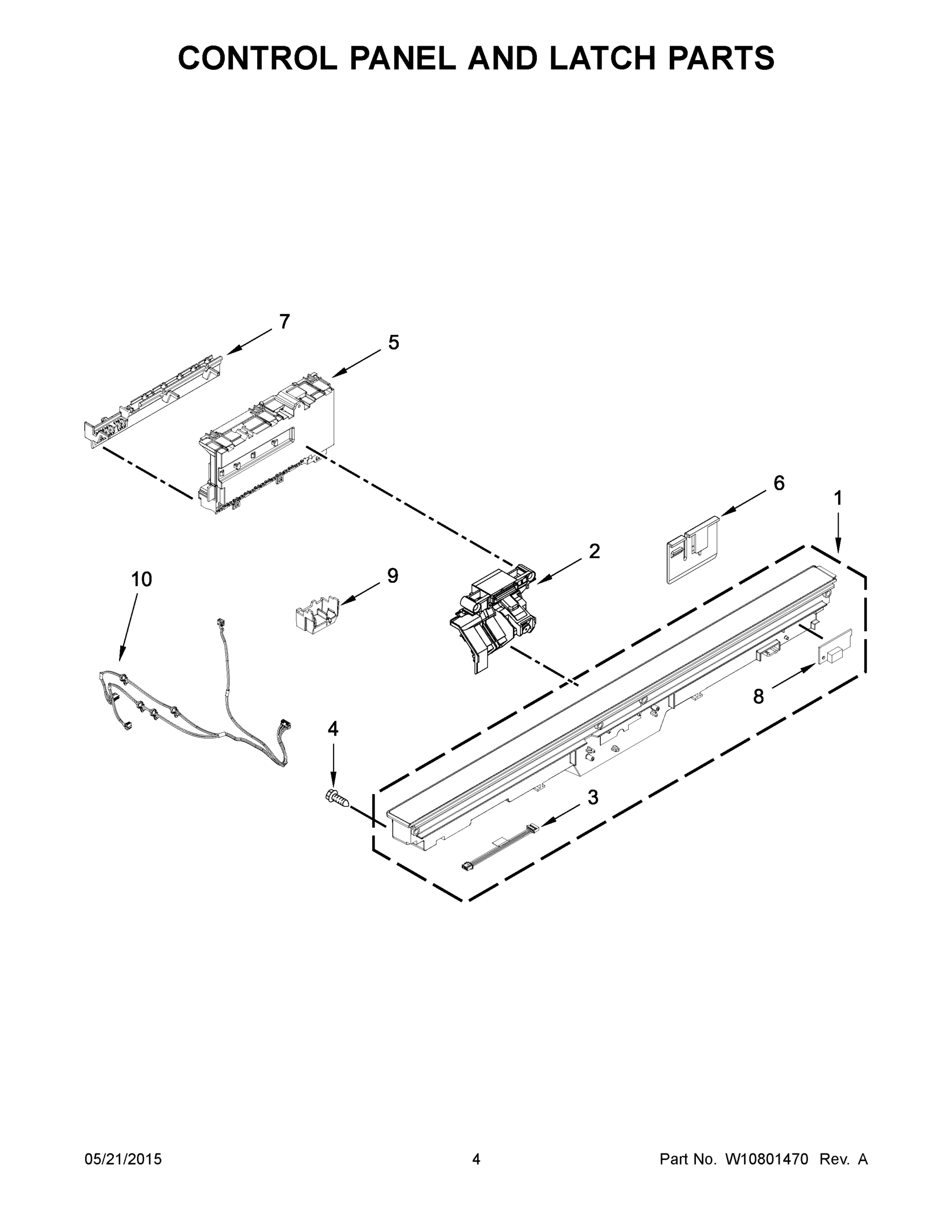

03 - CONTROL PANEL AND LATCH PARTS

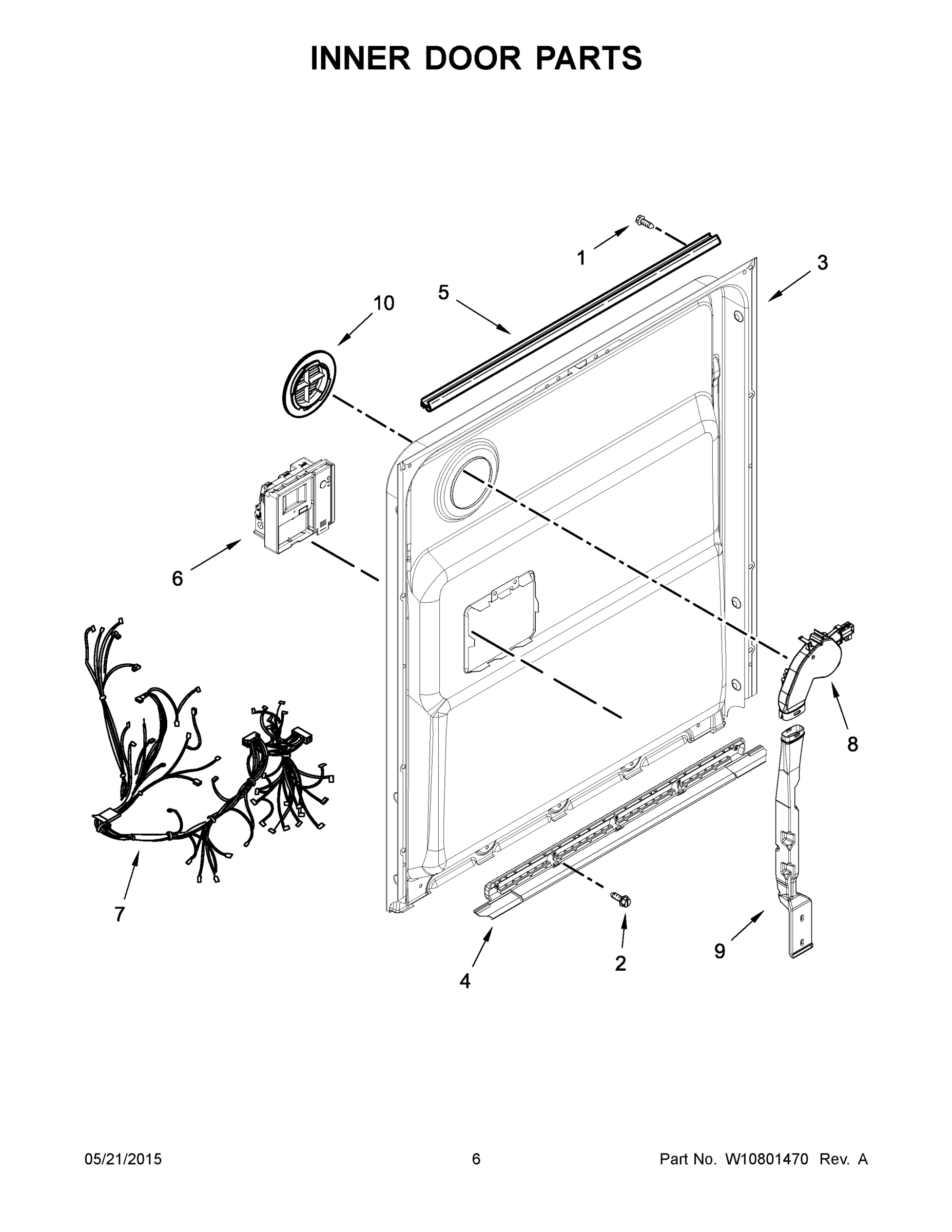

04 - INNER DOOR PARTS

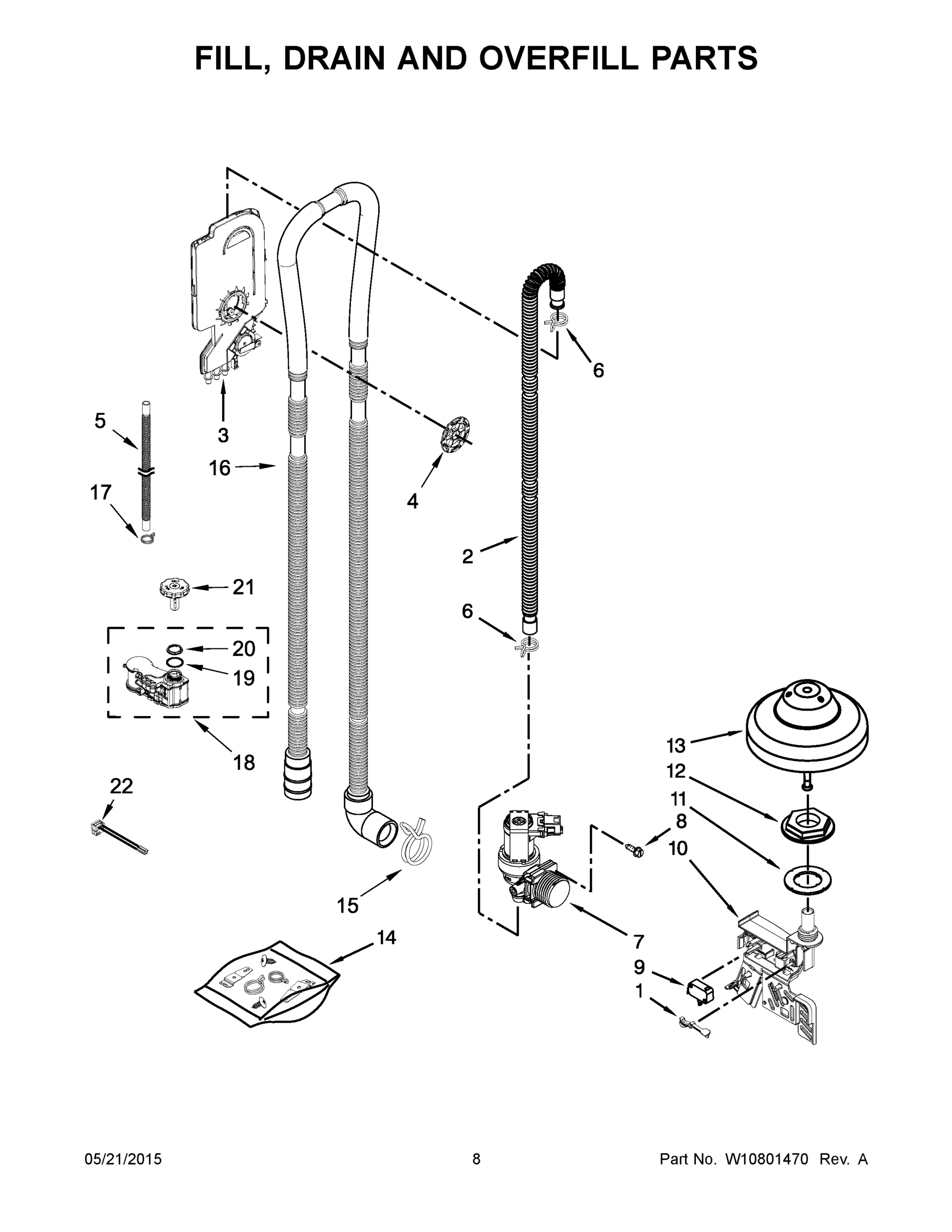

05 - FILL, DRAIN AND OVERFILL PARTS

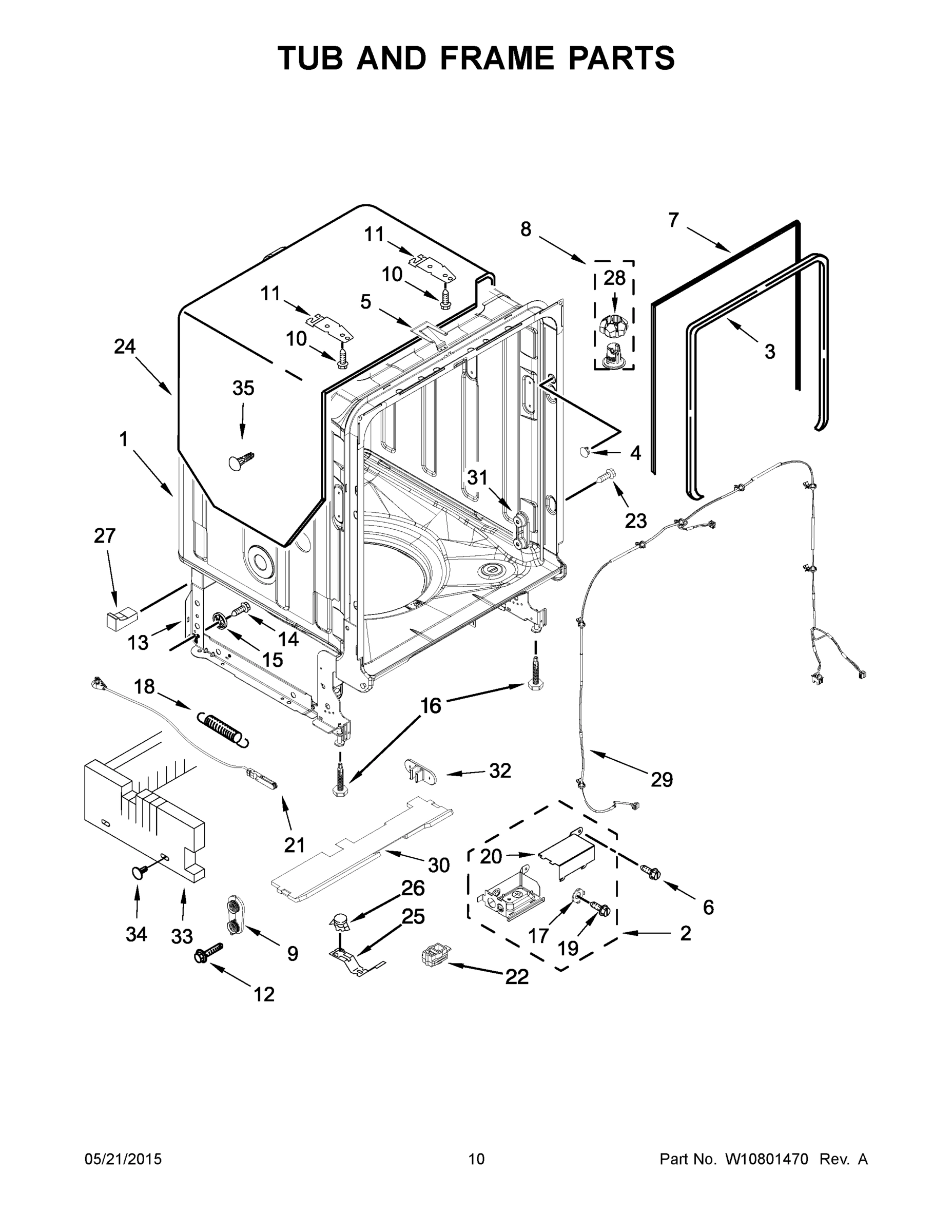

06 - TUB AND FRAME PARTS

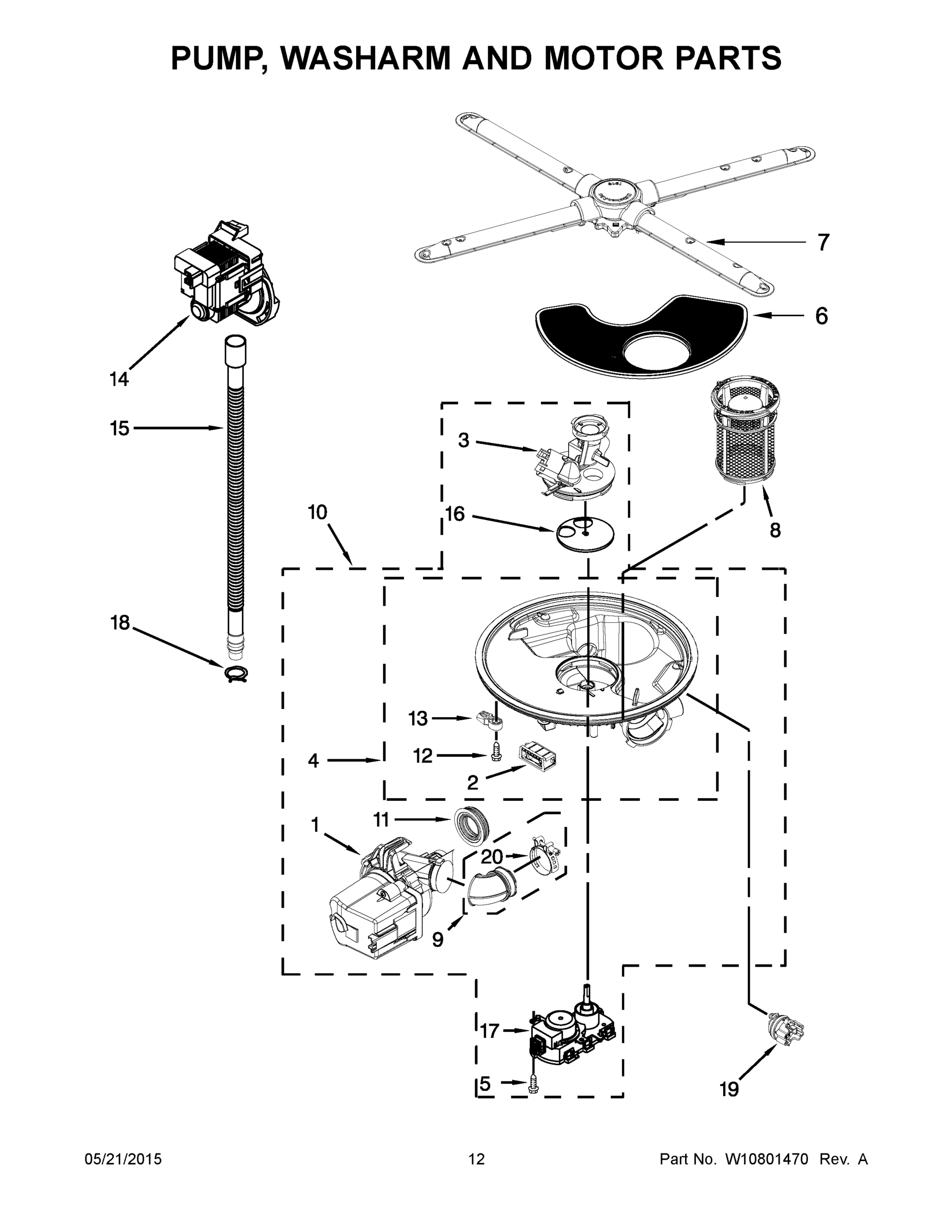

07 - PUMP, WASHARM AND MOTOR PARTS

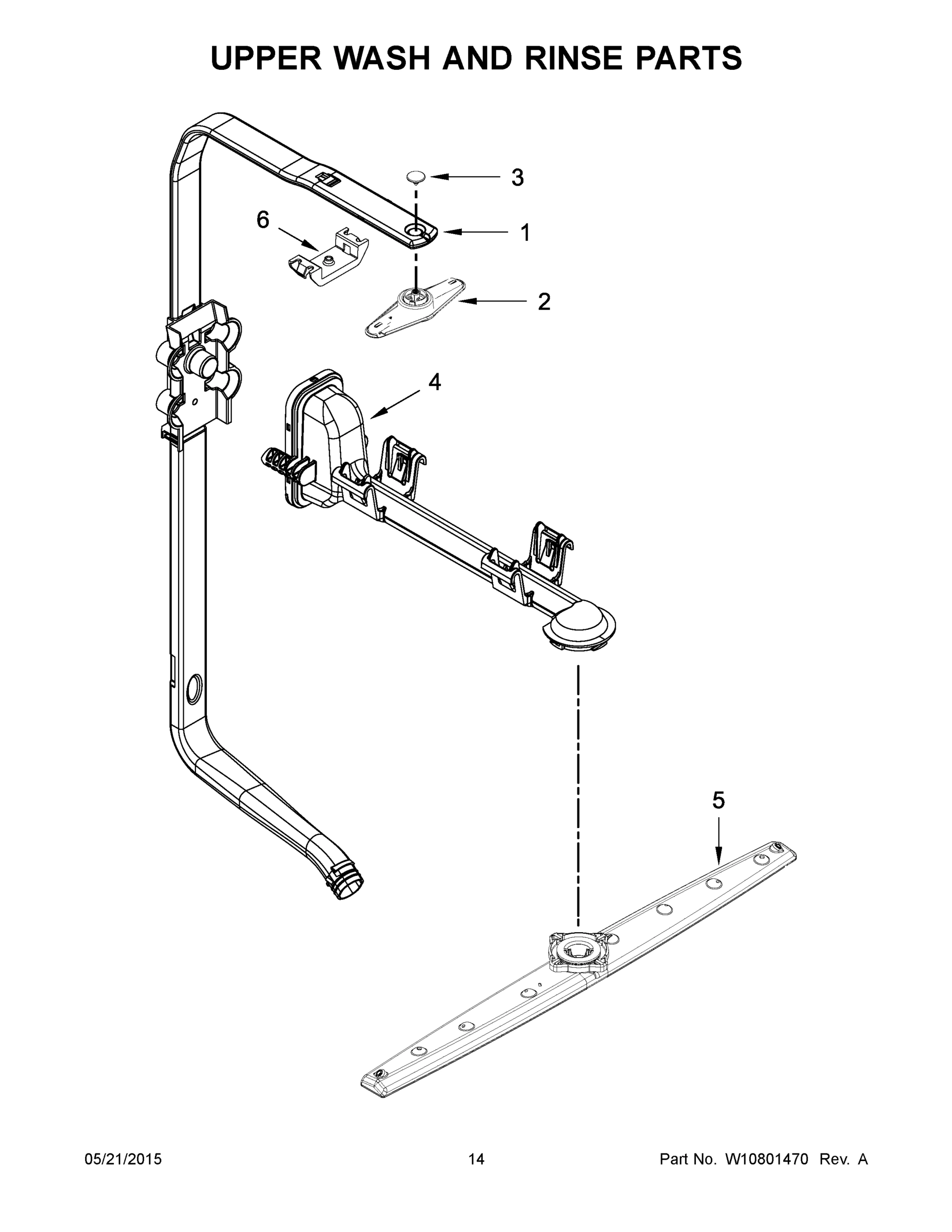

08 - UPPER WASH AND RINSE PARTS

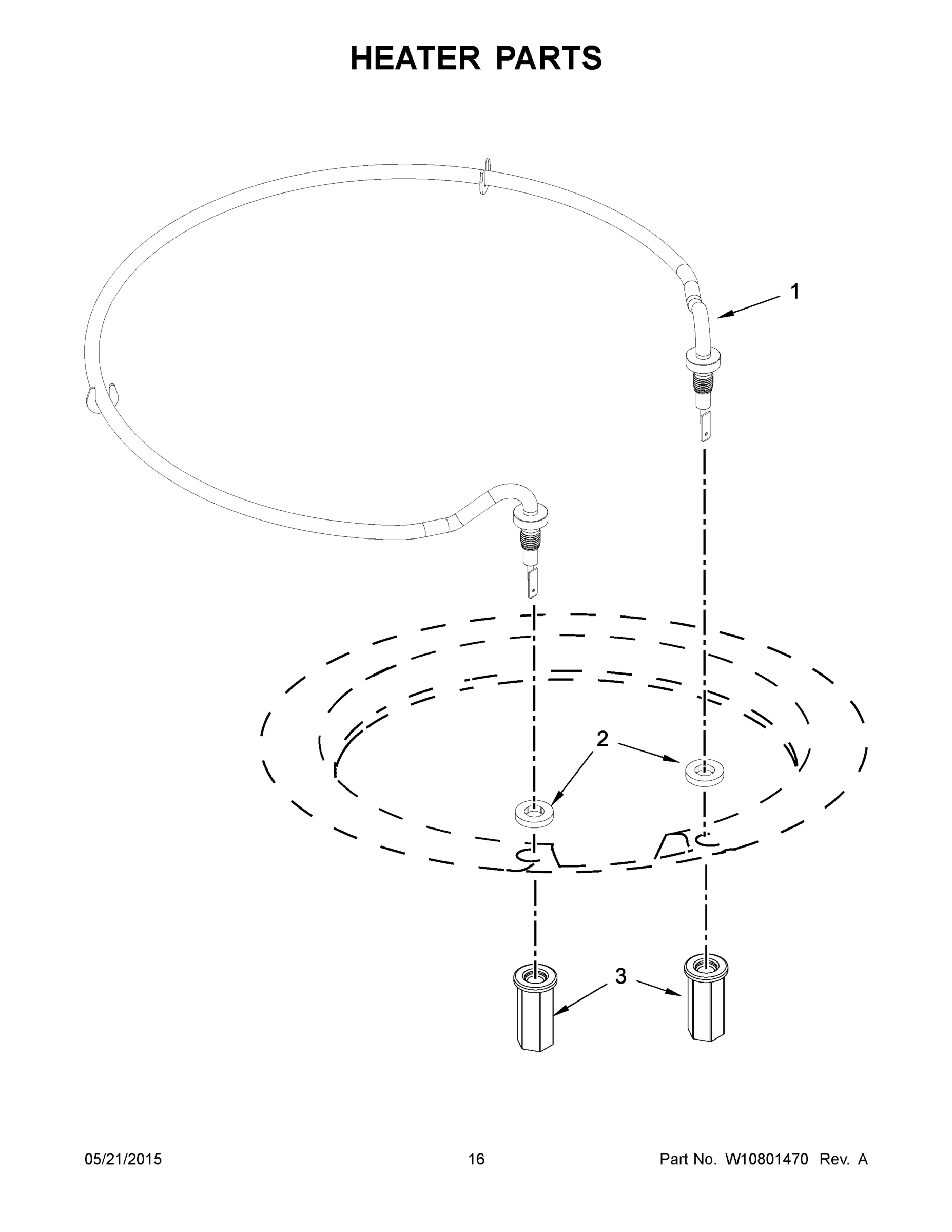

09 - HEATER PARTS

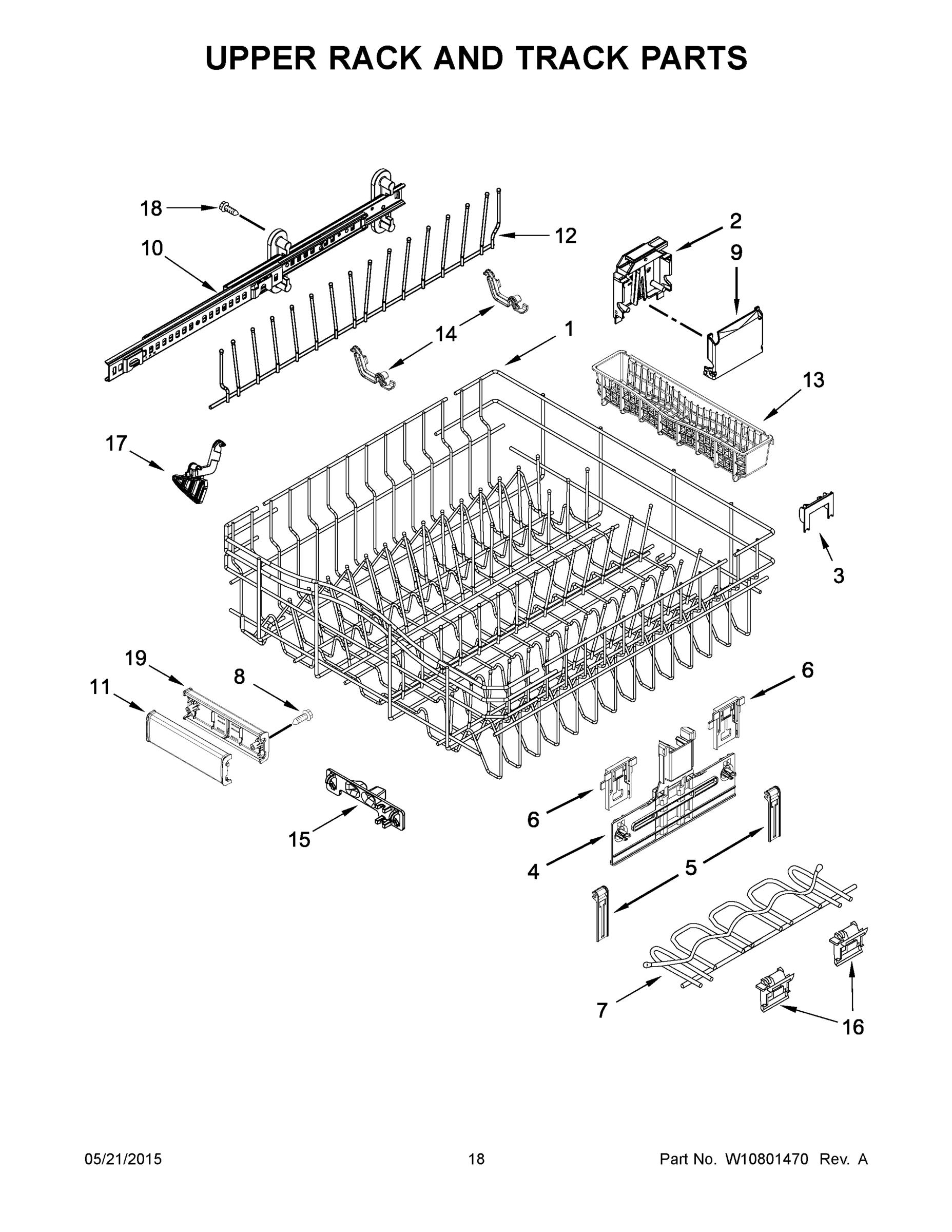

10 - UPPER RACK AND TRACK PARTS

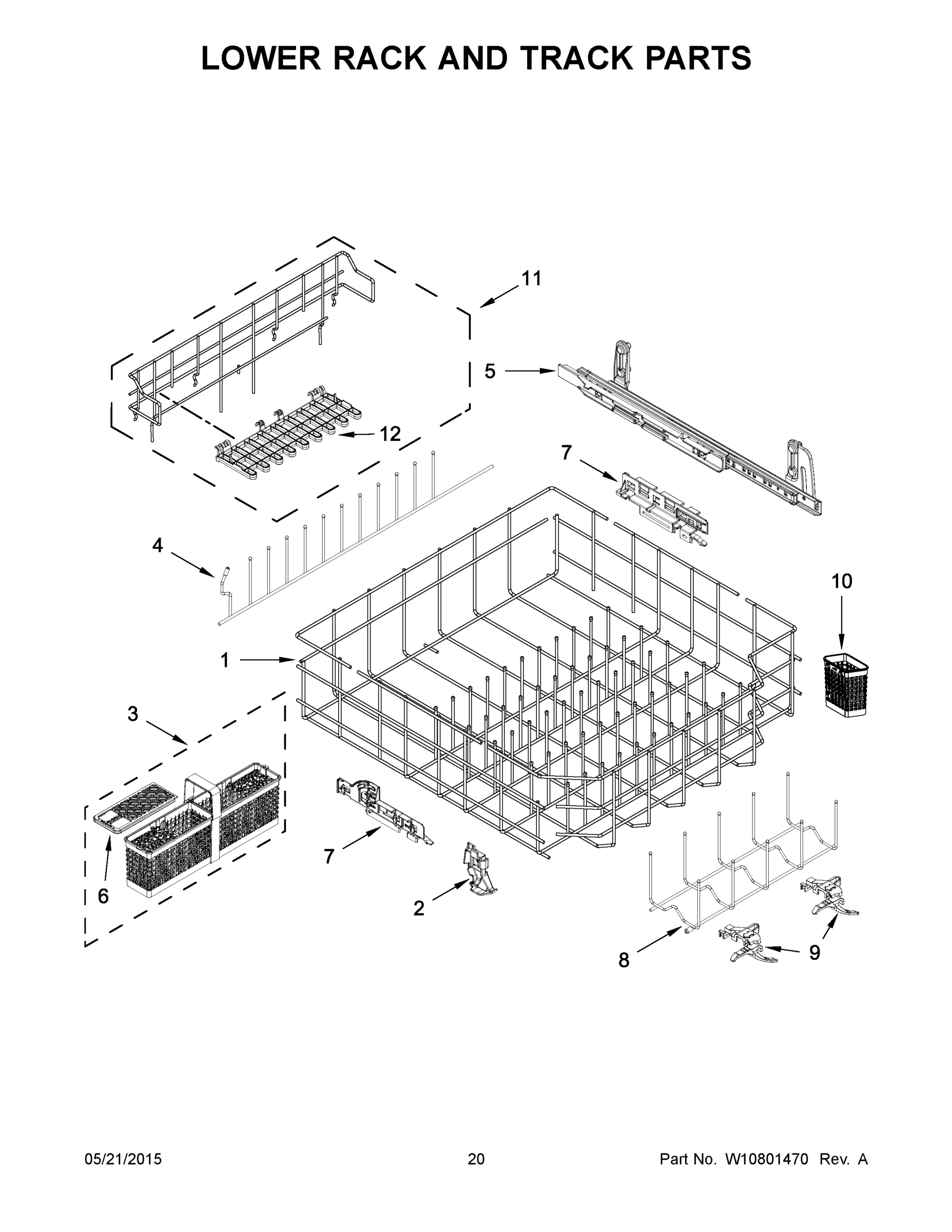

11 - LOWER RACK AND TRACK PARTS

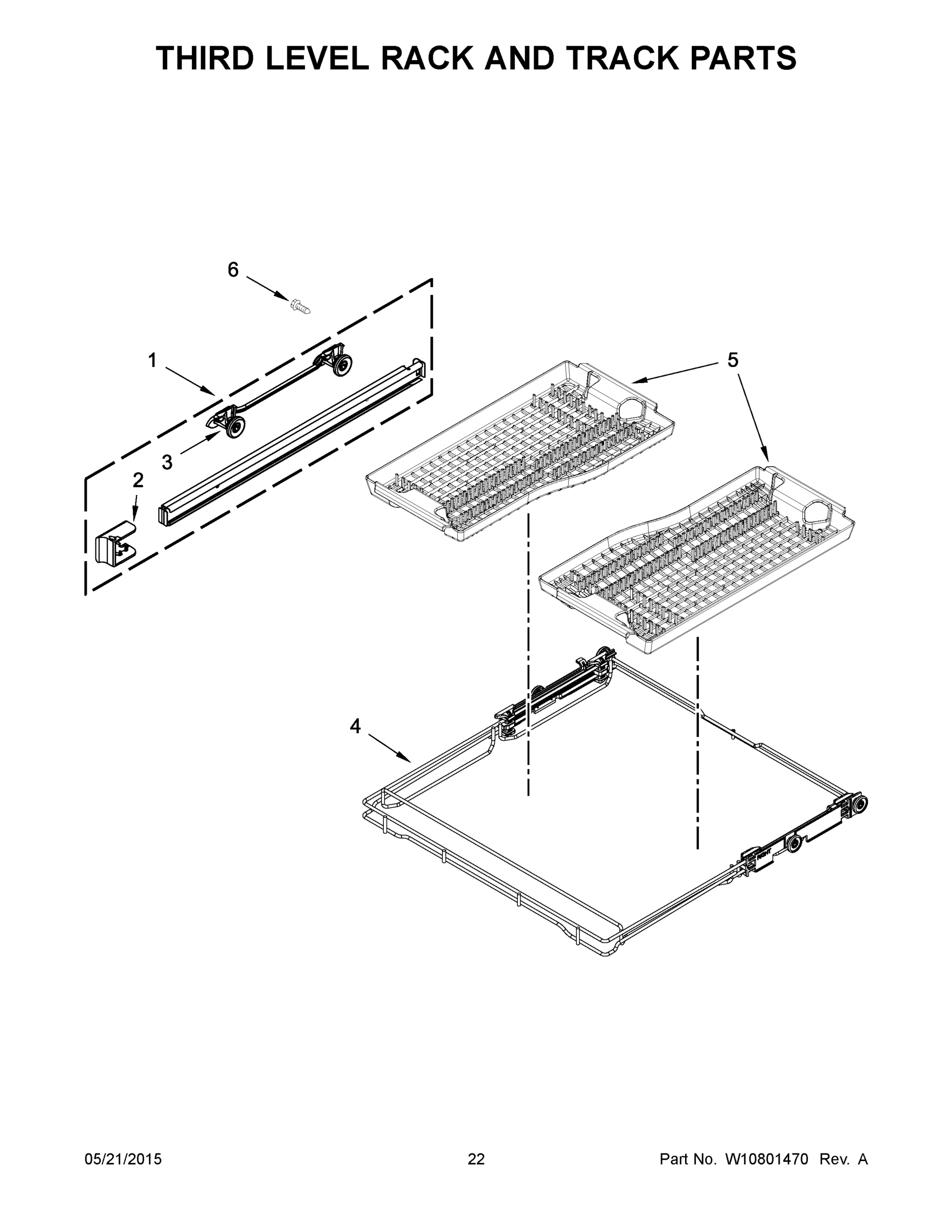

12 - THIRD LEVEL RACK AND TRACK PARTS
13 - OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Maytag JDB9800CWS2 DISHWASHER
1
MAY W10741197 MAY W10741197 Contact Us For Availability
1
MAY W10610934 MAY W10610934 Contact Us For Availability
1
SCREW MAY W10348409 Contact Us For Availability
1
LEVER, OVERFILL SWITCH MAY W10195037 Contact Us For Availability
1
MAY W10713319 MAY W10713319 Contact Us For Availability
1
MAY W10314568 MAY W10314568 Contact Us For Availability
1
MAY W10340745 MAY W10340745 Contact Us For Availability
1
MAY W10696509 MAY W10696509 Contact Us For Availability
1
MAY W10194861 MAY W10194861 Contact Us For Availability
1
MAY W10665650 MAY W10665650 Contact Us For Availability
1
MAY W10195240 MAY W10195240 Contact Us For Availability
1A
MAY W10665625 MAY W10665625 Contact Us For Availability
1A
MAY W10195238 MAY W10195238 Contact Us For Availability
1B
MAY W10665639 MAY W10665639 Contact Us For Availability
1C
MAY W10750900 MAY W10750900 Contact Us For Availability
1D
MAY W10754472 MAY W10754472 Contact Us For Availability
2
ARM, HINGE (LEFT HAND) MAY 8534854 Contact Us For Availability
2
MAY W10653840 MAY W10653840 Contact Us For Availability
2
MAY 8281217 MAY 8281217 Contact Us For Availability
2
MAY W10321919 MAY W10321919 Contact Us For Availability
2
MAY W10713315 MAY W10713315 Contact Us For Availability
2
MAY W10195086 MAY W10195086 Contact Us For Availability
2
SPRAYARM, THIRD LEVEL MAY W10327455 Contact Us For Availability
2
WASHER, HEATER MAY W10446558 Contact Us For Availability
2
HOUSING, ADJUSTER (INCLUDES SPRING AND LEVER) MAY W10588164 Contact Us For Availability
2
MAY W10473813 MAY W10473813 Contact Us For Availability
2
MAY 8564852 MAY 8564852 Contact Us For Availability
2A
ARM, HINGE (RIGHT HAND) MAY 8534853 Contact Us For Availability
2A
HOUSING, ADJUSTER (INCLUDES SPRING AND LEVER) MAY W10588165 Contact Us For Availability
2A
MAY W10473817 MAY W10473817 Contact Us For Availability
3
MAY W10320859 MAY W10320859 Contact Us For Availability
3
MAY W10528492 MAY W10528492 Contact Us For Availability
3
MAY W10712593 MAY W10712593 Contact Us For Availability
3
MAY W10458714 MAY W10458714 Contact Us For Availability
3
GASKET, TUB MAY W10300924 Contact Us For Availability
3
MAY W10455271 MAY W10455271 Contact Us For Availability
3
MAY 3400918 MAY 3400918 Contact Us For Availability
3
MAY W10687139 MAY W10687139 Contact Us For Availability
3
CLIP, ADJUSTER MAY W10250160 Contact Us For Availability
3
MAY W10473836 MAY W10473836 Contact Us For Availability
3
MAY 8564899 MAY 8564899 Contact Us For Availability
4
MAY W10316572 MAY W10316572 Contact Us For Availability
4
MAY W10348408 MAY W10348408 Contact Us For Availability
4
MAY W10667473 MAY W10667473 Contact Us For Availability
4
NUT, REGEN DOSAGE MAY W10195786 Contact Us For Availability
4
MAY W10623354 MAY W10623354 Contact Us For Availability
4
MAY W10195067 MAY W10195067 Contact Us For Availability
4
MAY W10340542 MAY W10340542 Contact Us For Availability
4
MAY W10546503 MAY W10546503 Contact Us For Availability
4
TINEROW MAY W10056351 Contact Us For Availability
4
MAY W10409522 MAY W10409522 Contact Us For Availability
5
MAY W10195777 MAY W10195777 Contact Us For Availability
5
MAY W10794445 MAY W10794445 Contact Us For Availability
5
MAY W10195007 MAY W10195007 Contact Us For Availability
5
MAY W10346255 MAY W10346255 Contact Us For Availability
5
MAY W10544004 MAY W10544004 Contact Us For Availability
5
MAY W10448645 MAY W10448645 Contact Us For Availability
5
MAY W10195839 MAY W10195839 Contact Us For Availability
5
MAY W10579131 MAY W10579131 Contact Us For Availability
5
MAY W10418356 MAY W10418356 Contact Us For Availability
5A
MAY W10579132 MAY W10579132 Contact Us For Availability
6
MAY W10665631 MAY W10665631 Contact Us For Availability
6
SCREW MAY 304392 Contact Us For Availability
6
CLIP, CONTROL MAY W10195237 Contact Us For Availability
6
MAY W10620299 MAY W10620299 Contact Us For Availability
6
MAY 371505 MAY 371505 Contact Us For Availability
6
MAY W10463906 MAY W10463906 Contact Us For Availability
6
MAY W10195690 MAY W10195690 Contact Us For Availability
6
POSITIONER, ADJUSTER MAY W10195840 Contact Us For Availability
6
MAY W10473835 MAY W10473835 Contact Us For Availability
7
SCREW, SET MAY W10276608 Contact Us For Availability
7
MAY W10462395 MAY W10462395 Contact Us For Availability
7
MAY W10763040 MAY W10763040 Contact Us For Availability
7
MAY W10327247 MAY W10327247 Contact Us For Availability
7
SEAL, CABINET MAY W10179427 Contact Us For Availability
7
SPRAYARM ASSEMBLY, LOWER MAY W10665718 Contact Us For Availability
7
MAY W10669975 MAY W10669975 Contact Us For Availability
7
MAY W10473807 MAY W10473807 Contact Us For Availability
7A
MAY W10473809 MAY W10473809 Contact Us For Availability
8
MAY W10526105 MAY W10526105 Contact Us For Availability
8
MAY W10538035 MAY W10538035 Contact Us For Availability
8
MAY W10469574 MAY W10469574 Contact Us For Availability
8
SCREW MAY 3390631 Contact Us For Availability
8
MAY W10635340 MAY W10635340 Contact Us For Availability
8
MAY 9741232 MAY 9741232 Contact Us For Availability
8
MAY W10693534 MAY W10693534 Contact Us For Availability
8
MAY W10610895 MAY W10610895 Contact Us For Availability
9
MAY W10709335 MAY W10709335 Contact Us For Availability
9
MAY W10462393 MAY W10462393 Contact Us For Availability
9
MAY W10195028 MAY W10195028 Contact Us For Availability
9
MAY W10195039 MAY W10195039 Contact Us For Availability
9
DOOR BALANCE ASSEMBLY MAY W10084086 Contact Us For Availability
9
MAY W10445975 MAY W10445975 Contact Us For Availability
9
MAY W10250162 MAY W10250162 Contact Us For Availability
9
MAY W10713283 MAY W10713283 Contact Us For Availability
10
MAY 8564951 MAY 8564951 Contact Us For Availability
10
MAY W10751782 MAY W10751782 Contact Us For Availability
10
MAY W10195032 MAY W10195032 Contact Us For Availability
10
MAY W10647205 MAY W10647205 Contact Us For Availability
10
MAY 3367670 MAY 3367670 Contact Us For Availability
10
MAY W10456966 MAY W10456966 Contact Us For Availability
10
MAY W10462359 MAY W10462359 Contact Us For Availability
10
MAY W10482109 MAY W10482109 Contact Us For Availability
10A
MAY W10462358 MAY W10462358 Contact Us For Availability
11
LIGHT, PIPE MAY W10319007 Contact Us For Availability
11
MAY 8531743 MAY 8531743 Contact Us For Availability
11
MAY 8269145 MAY 8269145 Contact Us For Availability
11
MAY W10538166 MAY W10538166 Contact Us For Availability
11
MAY W10610898 MAY W10610898 Contact Us For Availability
11
MAY W10610905 MAY W10610905 Contact Us For Availability
12
SCREW (BLACK) MAY 302868 Contact Us For Availability
12
MAY W10195038 MAY W10195038 Contact Us For Availability
12
SCREW MAY 3400074 Contact Us For Availability
12
MAY W10348407 MAY W10348407 Contact Us For Availability
12
MAY W10194862 MAY W10194862 Contact Us For Availability
12
MAY W10630204 MAY W10630204 Contact Us For Availability
13
MAY W10195036 MAY W10195036 Contact Us For Availability
13
MAY W10681564 MAY W10681564 Contact Us For Availability
13
MAY W10372113 MAY W10372113 Contact Us For Availability
13
MAY W10702379 MAY W10702379 Contact Us For Availability
14
MAY W10350242 MAY W10350242 Contact Us For Availability
14
MISCELLANEOUS PARTS BAG (CONTAINS 2 SCREWS, 2 MAY W10292152 Contact Us For Availability
14
MAY W10348411 MAY W10348411 Contact Us For Availability
14
MAY W10531320 MAY W10531320 Contact Us For Availability
14
MAY W10082853 MAY W10082853 Contact Us For Availability
15
SCREW MAY 3400071 Contact Us For Availability
15
MAY 370445 MAY 370445 Contact Us For Availability
15
MAY W10190778 MAY W10190778 Contact Us For Availability
15
MAY 8269144 MAY 8269144 Contact Us For Availability
15
POSITIONER, DUAL DISHRACK MAY 8539102 Contact Us For Availability
16
MAY W10214168 MAY W10214168 Contact Us For Availability
16
MAY W10545279 MAY W10545279 Contact Us For Availability
16
MAY W10619352 MAY W10619352 Contact Us For Availability
16
MAY W10476221 MAY W10476221 Contact Us For Availability
16
MAY 8562026 MAY 8562026 Contact Us For Availability
17
MAY W10620222 MAY W10620222 Contact Us For Availability
17
MAY 9724997 MAY 9724997 Contact Us For Availability
17
WASHER, PRONGED CUP MAY 3378128 Contact Us For Availability
17
MAY W10476222 MAY W10476222 Contact Us For Availability
17
MAY W10752617 MAY W10752617 Contact Us For Availability
18
MAY 8269016 MAY 8269016 Contact Us For Availability
18
MAY W10347358 MAY W10347358 Contact Us For Availability
18
MAY 8270020 MAY 8270020 Contact Us For Availability
18
MAY W10309090 MAY W10309090 Contact Us For Availability
18
MAY 8269146 MAY 8269146 Contact Us For Availability
19
MAY W10586590 MAY W10586590 Contact Us For Availability
19
GASKET, SOFTENER TANK MAY W10195056 Contact Us For Availability
19
SCREW, GROUNDING MAY 3400014 Contact Us For Availability
19
MAY W10705575 MAY W10705575 Contact Us For Availability
19
MAY W10473792 MAY W10473792 Contact Us For Availability
20
NUT, SOFTENER TANK MAY W10195058 Contact Us For Availability
20
MAY W10653292 MAY W10653292 Contact Us For Availability
20
MAY W10763498 MAY W10763498 Contact Us For Availability
21
MAY W10610924 MAY W10610924 Contact Us For Availability
21
CABLE, DOOR MAY W10158291 Contact Us For Availability
22
MAY W10367058 MAY W10367058 Contact Us For Availability
22
SHIELD, THERMOSTAT MAY W10292870 Contact Us For Availability
24
SHIELD, TUB SOUND MAY 8573239 Contact Us For Availability
25
MAY W10300703 MAY W10300703 Contact Us For Availability
26
MAY W10195091 MAY W10195091 Contact Us For Availability
27
SPACER, TUB/BRACE (LEFT HAND) MAY W10195630 Contact Us For Availability
27A
SPACER, TUB/BRACE (RIGHT HAND) MAY W10195631 Contact Us For Availability
28
MAY W10610790 MAY W10610790 Contact Us For Availability
29
MAY W10566911 MAY W10566911 Contact Us For Availability
30
MAY W10746772 MAY W10746772 Contact Us For Availability
31
MAY W10622469 MAY W10622469 Contact Us For Availability
32
HANGER, SOFTENER DRAIN HOSE MAY W10330864 Contact Us For Availability
33
MAY W10666418 MAY W10666418 Contact Us For Availability
34
MAY W10486051 MAY W10486051 Contact Us For Availability
35
RETAINER MAY 304666 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ. BLACK) MAY 285006 Contact Us For Availability
NI
MAY 350930 MAY 350930 Contact Us For Availability
NI
POWER CORD KIT (INCLUDED CORD & MISC. HARDWAR MAY 4317824 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. BISCUIT/BISQUE) MAY 4392899 Contact Us For Availability
NI
PAINT, BULK (1 QT. BISCUIT/BISQUE) MAY 4392900 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ. BISCUIT/BISQ MAY 4392901 Contact Us For Availability
NI
MOISTURE BARRIER KIT MAY 4396277 Contact Us For Availability
NI
MAY 4396603 MAY 4396603 Contact Us For Availability
NI
DISHRACK REPAIR (WHITE) MAY 4396838 Contact Us For Availability
NI
DISHRACK REPAIR (GREY) MAY 4396840 Contact Us For Availability
NI
VINYL TOUCH-UP (4OZ SILVER ATLANTIS) MAY 4396853 Contact Us For Availability
NI
DISHRACK REPAIR (SILVER ATLANTIS) MAY 4396854 Contact Us For Availability
NI
VINYL TOUCH-UP (4OZ WHITE) MAY 676453 Contact Us For Availability
NI
VINYL TOUCH-UP (4OZ GREY) MAY 676455 Contact Us For Availability
NI
MAY 72017 MAY 72017 Contact Us For Availability
NI
MAY 72032 MAY 72032 Contact Us For Availability
NI
PAINT, BULK (1 QT. WHITE (UNCUT)) MAY 799344 Contact Us For Availability
NI
ANTI-TIP KIT, FLOOR MOUNT KIT MAY 8171477 Contact Us For Availability
NI
ANTI-TIP KIT, SIDE MOUNT KIT MAY 8212560 Contact Us For Availability
NI
TOWEL BAR HANDLE (STAINLESS) MAY W10701399 Contact Us For Availability
NI
DRAIN HOSE 12 FT. MAY W10712310 Contact Us For Availability
× ![]()
