Model Whirlpool JDB8910AWQ DISHWASHER – Common Parts & Diagrams

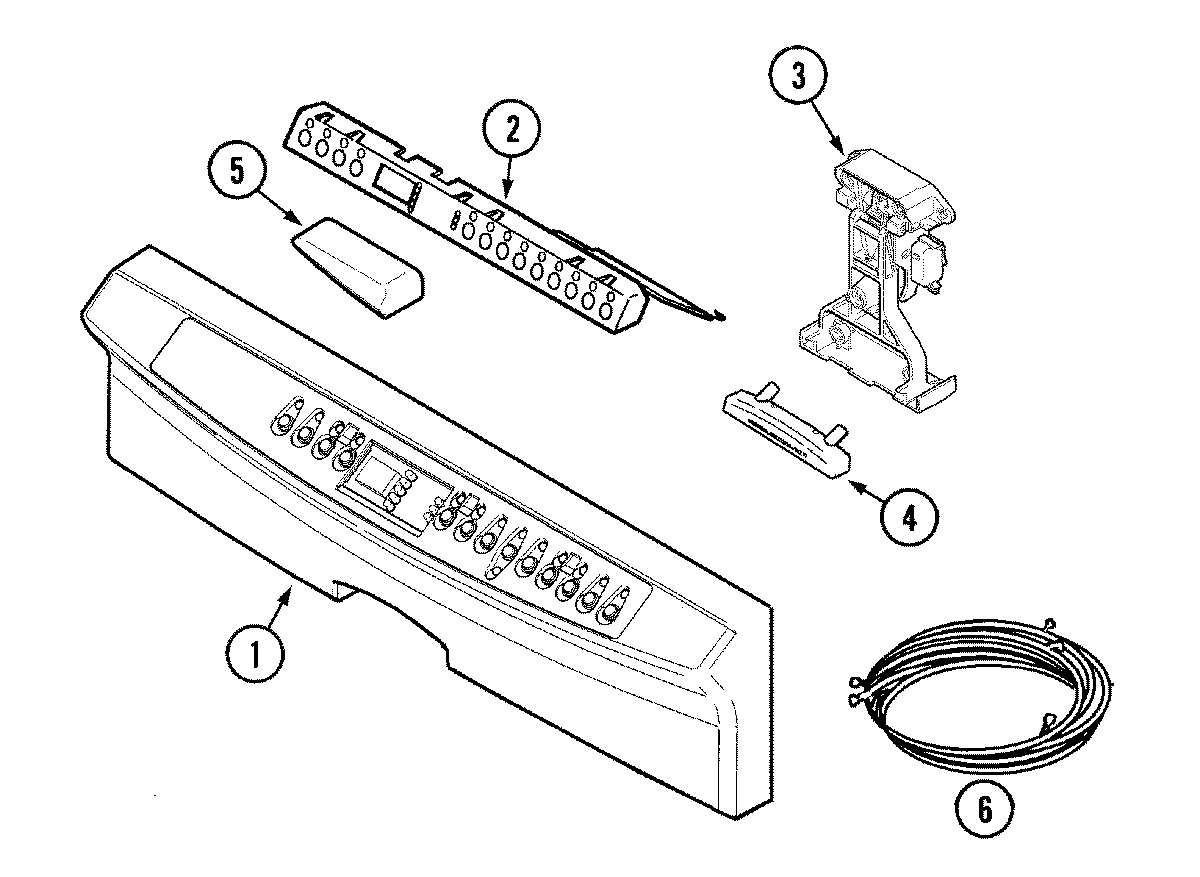

01 - CONTROL PANEL

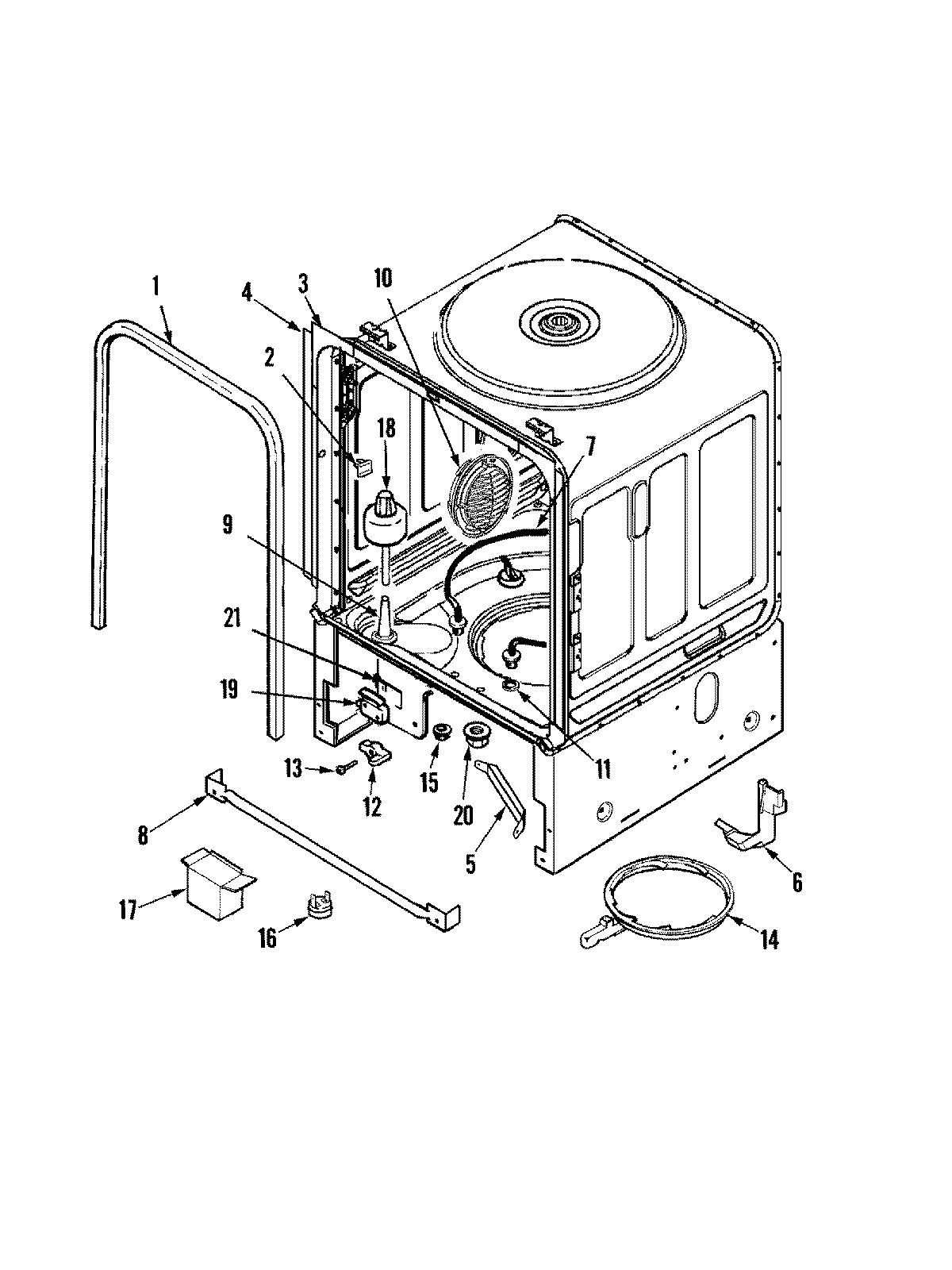

03 - INNER TUB

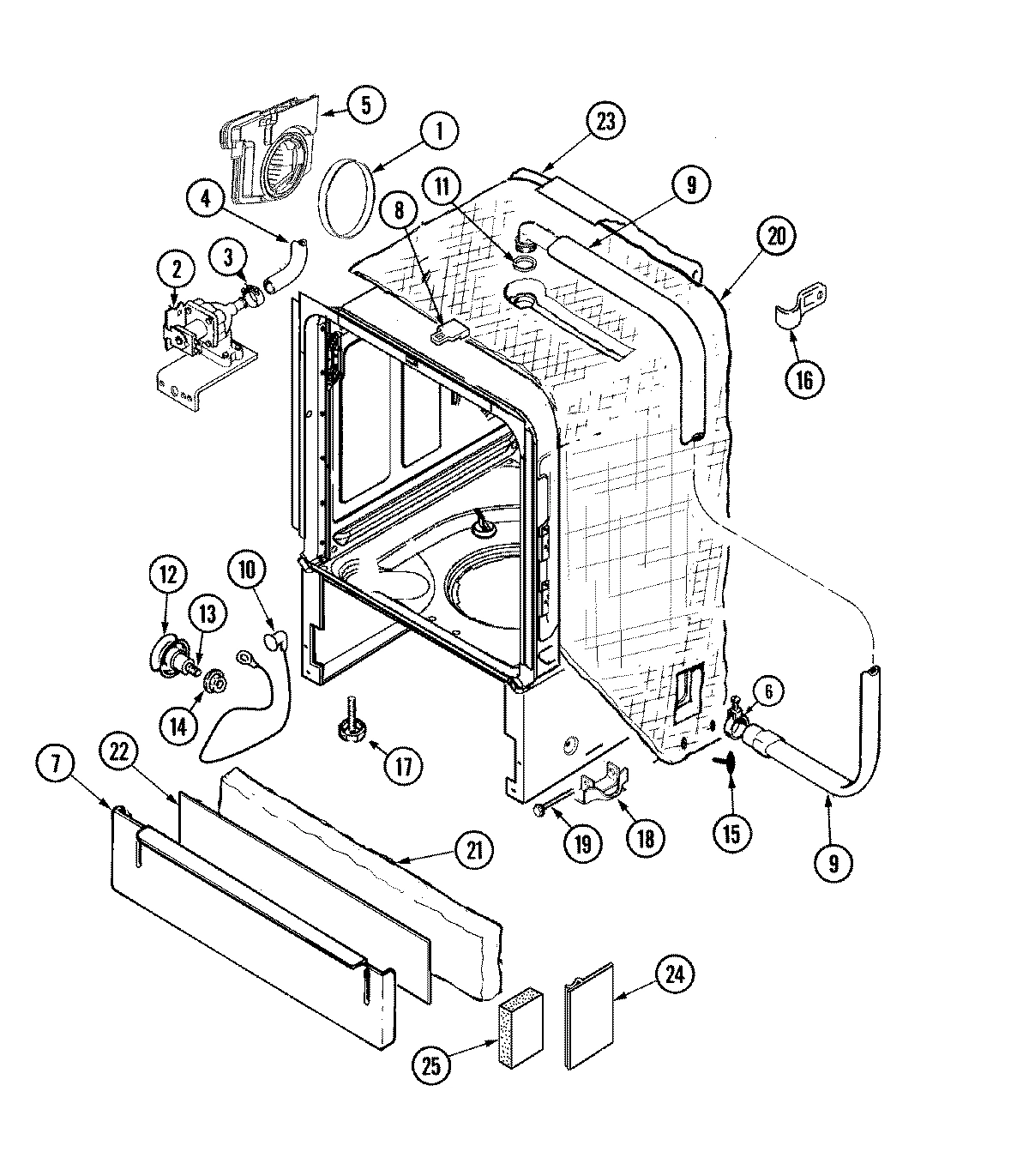

04 - OUTER TUB

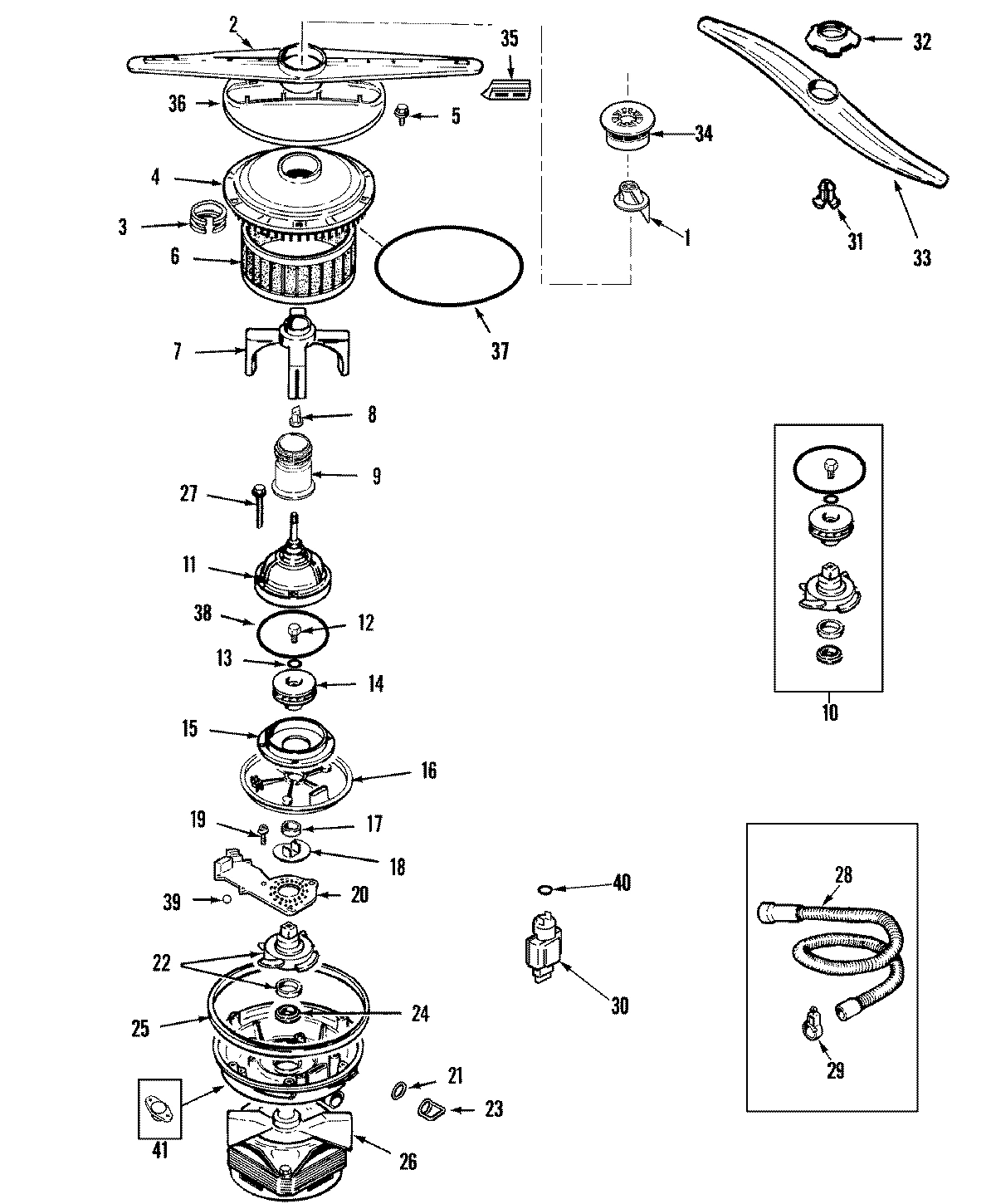

05 - PUMP & MOTOR

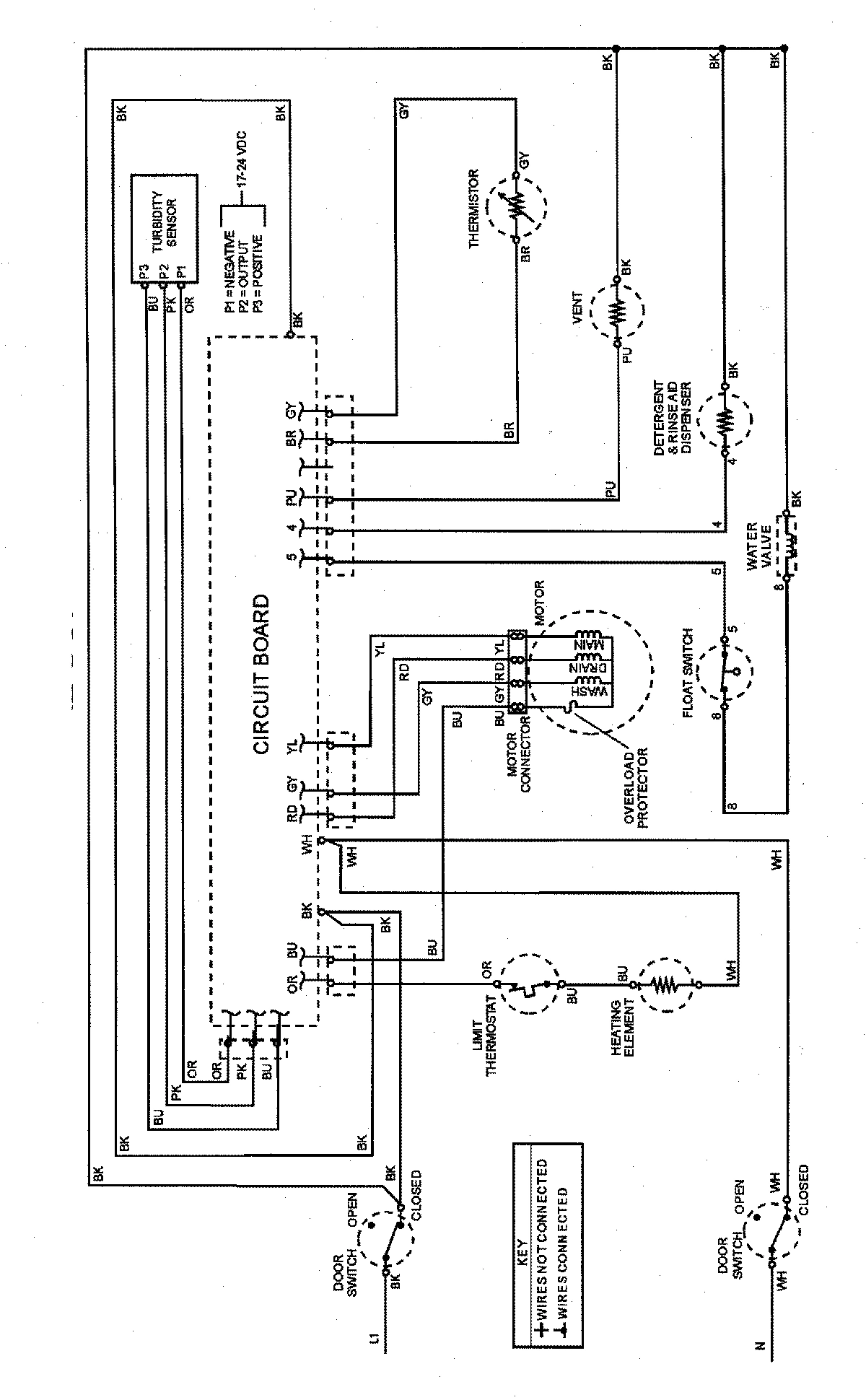

07 - WIRING INFORMATION

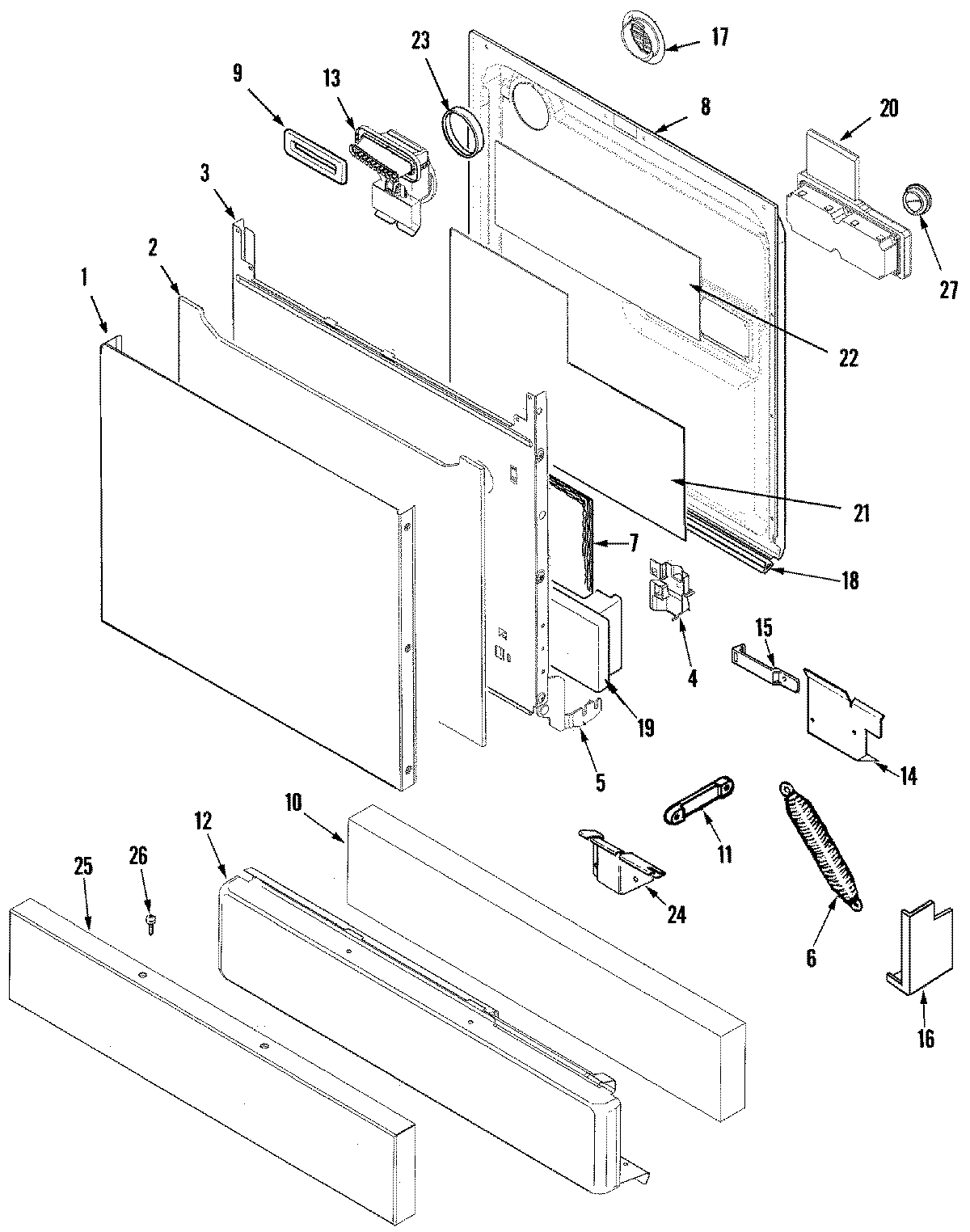

02 - DOOR

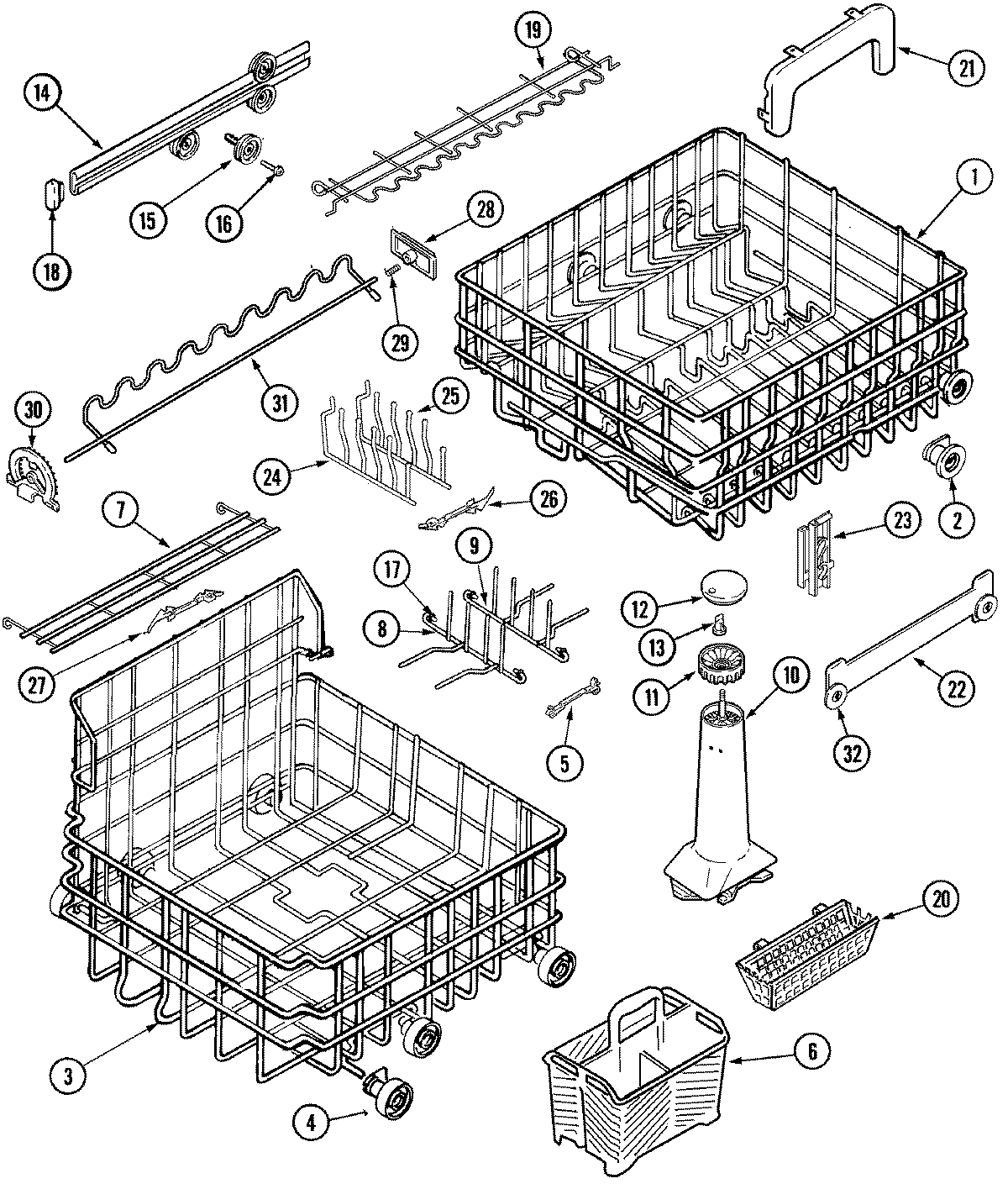

06 - TRACK & RACK ASSEMBLY
Common parts from model Whirlpool JDB8910AWQ DISHWASHER
1
SEAL, DOOR WPL 99002140 Contact Us For Availability
1
PANEL, DECORATOR (BSQ) WPL 99002109 Contact Us For Availability
1
SCREW (BSQ) WPL 99002113 Contact Us For Availability
1
RACK ASSEMBLY (UPR) WPL 99002038 Contact Us For Availability
1
BUMPER, RACK WPL 99002193 Contact Us For Availability
2
PCB ASSEMBLY WPL 99002202 Contact Us For Availability
2
PCB ASSEMBLY WPL 99002235 Contact Us For Availability
2
PCB ASSEMBLY (13-BUTTON) WPL 99002262 Contact Us For Availability
2
PCB ASSEMBLY (12-BUTTON) WPL 99002368 Contact Us For Availability
2
BRACKET, DOOR CENTERING WPL 99002159 Contact Us For Availability
2
FILLER, FRONT PANEL WPL 99001415 Contact Us For Availability
3
TRIM, CORNER (TOP) WPL 99002162 Contact Us For Availability
3
RING, SEAL WPL 912313 Contact Us For Availability
3
DOOR, OUTER WPL 99002176 Contact Us For Availability
4
HANDLE, LATCH (BSQ) WPL 99002144 Contact Us For Availability
4
TRIM, EDGE (TOP/BTM) WPL 99002163 Contact Us For Availability
4
TRIM, EDGE (SIDES) WPL 99002165 Contact Us For Availability
4
HOSE, INJECTOR WPL 99002160 Contact Us For Availability
4
FILTER ASSY., SECONDARY WPL 99001789 Contact Us For Availability
4
RETAINER, WIRE WPL 99002188 Contact Us For Availability
5
INSERT, VENT LINER WPL 99002209 Contact Us For Availability
5
GUSSET, TUB SUPPORT WPL 99002173 Contact Us For Availability
5
AIR/WATER INLET ASSEMBLY WPL 99002148 Contact Us For Availability
5
SCREW, SECONDARY FILTER WPL 99001790 Contact Us For Availability
5
SCREW WPL 99001075 Contact Us For Availability
5
HINGE (LT) WPL 99001898 Contact Us For Availability
5
HINGE (RT) WPL 99001899 Contact Us For Availability
6
HARNESS, WIRE WPL 99002239 Contact Us For Availability
6
HARNESS, WIRE WPL 99002266 Contact Us For Availability
6
HARNESS, WIRE WPL 99002485 Contact Us For Availability
6
EDGE, DRIP (RT) WPL 99002181 Contact Us For Availability
6
EDGE, DRIP (LT) WPL 99002182 Contact Us For Availability
6
COVER, BASKET WPL 99002031 Contact Us For Availability
7
ELEMENT, HEATING WPL 99001995 Contact Us For Availability
7
MANUAL, USE & CARE (ENG & FCH) WPL 99002322 Contact Us For Availability
7
MANUAL, USE & CARE (ENG/FRCH) WPL 99002380 Contact Us For Availability
7
PANEL, TOE (BSQ) WPL 99002111 Contact Us For Availability
7
ASSEMBLY, RINSE ARM WPL 99002043 Contact Us For Availability
7
INSULATION, DOOR WPL 99002166 Contact Us For Availability
7
SHELF, RACK (LWR) WPL 99002139 Contact Us For Availability
8
TAG, ENERGY GUIDE WPL 99002345 Contact Us For Availability
8
GUIDE, ENERGY WPL 99003165 Contact Us For Availability
8
BRACE, BOTTOM WPL 99002190 Contact Us For Availability
8
STRIKER, LATCH WPL 99002141 Contact Us For Availability
8
DOOR, INNER WPL 99002157 Contact Us For Availability
9
STANDPIPE, FLOAT WPL 99002145 Contact Us For Availability
9
SEAL, STANDPIPE WPL 99002146 Contact Us For Availability
9
HOSE, TOP SHOWER WPL 912647 Contact Us For Availability
9
SUPPORT, WASH ARM WPL 99002041 Contact Us For Availability
9
SEAL, VENT WPL 99002185 Contact Us For Availability
10
CABLE, SOFT DROP DOOR WPL 99002172 Contact Us For Availability
10
GRILL, AIR/WATER INLET WPL 99002149 Contact Us For Availability
10
SEAL KIT (MOTOR/PUMP) WPL 99002103 Contact Us For Availability
10
INSULATION, ACCESS PANEL WPL 99001195 Contact Us For Availability
10
TOWER, SPRAY (W/SHAFT-GRAY) WPL 99001533 Contact Us For Availability
11
O-RING, HEATER WPL Y913079 Contact Us For Availability
11
SEAL, SHOWER HOSE WPL 99002170 Contact Us For Availability
11
DISCHARGE HOUSING ASSY (UPR) WPL 99002461 Contact Us For Availability
11
DIVERTER, SPRAY (GRAY) WPL 99001442 Contact Us For Availability
12
LEVER, ACTUATOR WPL 912014 Contact Us For Availability
12
SCREW (BSQ) WPL 99002114 Contact Us For Availability
12
SCREW, IMPELLER WPL 910654 Contact Us For Availability
12
SEAL, ACCESS PANEL WPL 99001205 Contact Us For Availability
12
DAMPER, ACCESS PANEL WPL 99001990 Contact Us For Availability
12
PANEL, ACCESS (BSQ) WPL 99002110 Contact Us For Availability
13
PIN, LEVER PIVOT WPL 912015 Contact Us For Availability
13
BOLT, SOFT DROP DOOR WPL 99002189 Contact Us For Availability
13
NUT, DISCHARGE HOUSING WPL 99001426 Contact Us For Availability
13
VENT ASSEMBLY WPL 99002177 Contact Us For Availability
14
RATCHET, LOCK RING WPL 99002161 Contact Us For Availability
14
RING, LOCKING WPL Y912686 Contact Us For Availability
14
NUT, SOFT DROP DOOR WPL 99002192 Contact Us For Availability
14
SHIELD, TUB WPL 99001414 Contact Us For Availability
15
NUT, STANDPIPE WPL 99002147 Contact Us For Availability
15
WHEEL, TUB WPL 99002183 Contact Us For Availability
15
FASTENER, INSULATION WPL 911917 Contact Us For Availability
15
PLATE, SUCTION WPL 99001793 Contact Us For Availability
15
PLATE, SUCTION WPL 99002279 Contact Us For Availability
15
STRAP, HARNESS WPL 99001444 Contact Us For Availability
16
CLIP, THERMOSTAT WPL 99001008 Contact Us For Availability
16
THERMOSTAT, LIMITING WPL 99001852 Contact Us For Availability
16
HOOK, DRAIN HOSE WPL Y912790 Contact Us For Availability
16
SUPPORT, FILTER WPL 99001794 Contact Us For Availability
16
SUPPORT, FILTER WPL 99002280 Contact Us For Availability
16
SHIELD, ACCESS PANEL (RT) WPL Y912809 Contact Us For Availability
16
SHIELD, ACCESS PANEL (LT) WPL Y912810 Contact Us For Availability
17
SLEEVE, FOLDING TINES WPL WPW10116789 No Longer Available
17
BOX, TERMINAL WPL 912563 Contact Us For Availability
17
O-RING WPL 912510 Contact Us For Availability
17
BEZEL, DOOR VENT WPL 99002178 Contact Us For Availability
18
FLOAT WPL 99002221 Contact Us For Availability
18
BRACKET, ADJUSTING WPL 912651 Contact Us For Availability
18
DISC, CUTTER WPL 912310 Contact Us For Availability
18
SEAL, DOOR (BOTTOM) WPL 99002158 Contact Us For Availability
19
SCREW WPL 912012 Contact Us For Availability
19
SCREW, ADJUSTING BRACKET WPL 912613 Contact Us For Availability
19
BARRIER, CONDENSATION WPL 99002174 Contact Us For Availability
19
SHELF, RACK (UPR) WPL 99001429 Contact Us For Availability
20
SLEEVE, INSULATING WPL 99001333 Contact Us For Availability
20
NUT, HEATING ELEMENT WPL 99002208 Contact Us For Availability
20
COVER, DRAIN WPL 99001795 Contact Us For Availability
20
DETERGENT/RINSE AID ASSEMBLY WPL 99002180 Contact Us For Availability
20
SEAL, BASE WPL 99002270 Contact Us For Availability
20
BRACKET, DISPENSER WPL 99002465 Contact Us For Availability
20
BASKET, AUXILLARY WPL 99002075 Contact Us For Availability
21
BRACKET, WATER LEVEL SWITCH WPL 99001727 Contact Us For Availability
21
FLAPPER, VALVE WPL 99001799 Contact Us For Availability
21
DAMPER, DOOR (CTR) WPL 99002154 Contact Us For Availability
21
HANDLE, RACK (LT) WPL 99002107 Contact Us For Availability
21
HANDLE, RACK (RT) WPL 99002108 Contact Us For Availability
22
DAMPER, TOE PANEL WPL 99001204 Contact Us For Availability
22
DRAIN IMPELLER ASSEMBLY WPL 903304 Contact Us For Availability
22
DAMPER, DOOR (TOP) WPL 99002155 Contact Us For Availability
23
CLIP, RETAINER WPL 99001800 Contact Us For Availability
23
SEAL, DOOR VENT WPL 99002186 Contact Us For Availability
23
PLATE, WHEEL MOUNTING WPL 99002073 Contact Us For Availability
24
BARRIER (BSQ) WPL 99002241 Contact Us For Availability
24
SEAL, PUMP WPL 902882 Contact Us For Availability
25
INSULATION, BARRIER WPL 99001395 Contact Us For Availability
25
GASKET, PUMP WPL 912529 Contact Us For Availability
25
TINE, FOLD-AWAY (REAR) WPL 99002127 Contact Us For Availability
26
MOTOR/PUMP HOUSING ASSEMBLY WPL 99002482 Contact Us For Availability
27
SCREW WPL 912383 Contact Us For Availability
27
KNOB, RINSE AID WPL 99002269 Contact Us For Availability
27
LATCH, PIVOTING TINE WPL 99001746 Contact Us For Availability
28
HOSE, DRAIN WPL 99002175 Contact Us For Availability
28
SUPPORT, CUP HANDLER (REAR) WPL 99001439 Contact Us For Availability
28
SUPPORT CUP, VARILOCK (REAR) WPL 99001461 Contact Us For Availability
29
SPRING, CUP HANDLER SUPPORT WPL 99001440 Contact Us For Availability
30
SENSOR, TURBITITY WPL 99002071 Contact Us For Availability
30
SUPPORT, CUP HANDLER (FRT) WPL 99001438 Contact Us For Availability
31
RETAINER, SNAP SPRAY WPL Y912681 Contact Us For Availability
31
HANDLER, CUP WPL 99002125 Contact Us For Availability
33
ARM, WASH (UPR-GRAY) WPL 99002061 Contact Us For Availability
33
CAP, RACK (LIGHT GRAY) WPL 99002017 Contact Us For Availability
35
SHIELD, RADIANT WPL Y912895 Contact Us For Availability
37
O-RING WPL 99001797 Contact Us For Availability
38
GASKET, DISCHARGE HSNG (UPR) WPL 99001326 Contact Us For Availability
39
BALL, CHECK WPL 99001798 Contact Us For Availability
39
BALL, CHECK WPL 99002281 Contact Us For Availability
40
SEAL, SENSOR WPL 99002123 Contact Us For Availability
41
O-RING, PUMP THERMOSTAT WPL 99001979 Contact Us For Availability
41
FLANGE, THERMOSTAT/THERMISTOR WPL 99001980 Contact Us For Availability
41
THERMISTOR WPL 99002070 Contact Us For Availability
42
WIRE, JUMPER (MOTOR) WPL 99002104 Contact Us For Availability
42
NOT REQUIRED PART OR SEE NOTE WPL W10124350 Contact Us For Availability
NI
WIRING INFORMATION WPL 15002715 Contact Us For Availability
NI
WIRING INFORMATION WPL 15002797 Contact Us For Availability
NI
WIRING INFORMATION WPL 15002858 Contact Us For Availability
× ![]()
