Model Maytag JDB8700AWS1 DISHWASHER, UNDERCOUNTER – Common Parts & Diagrams

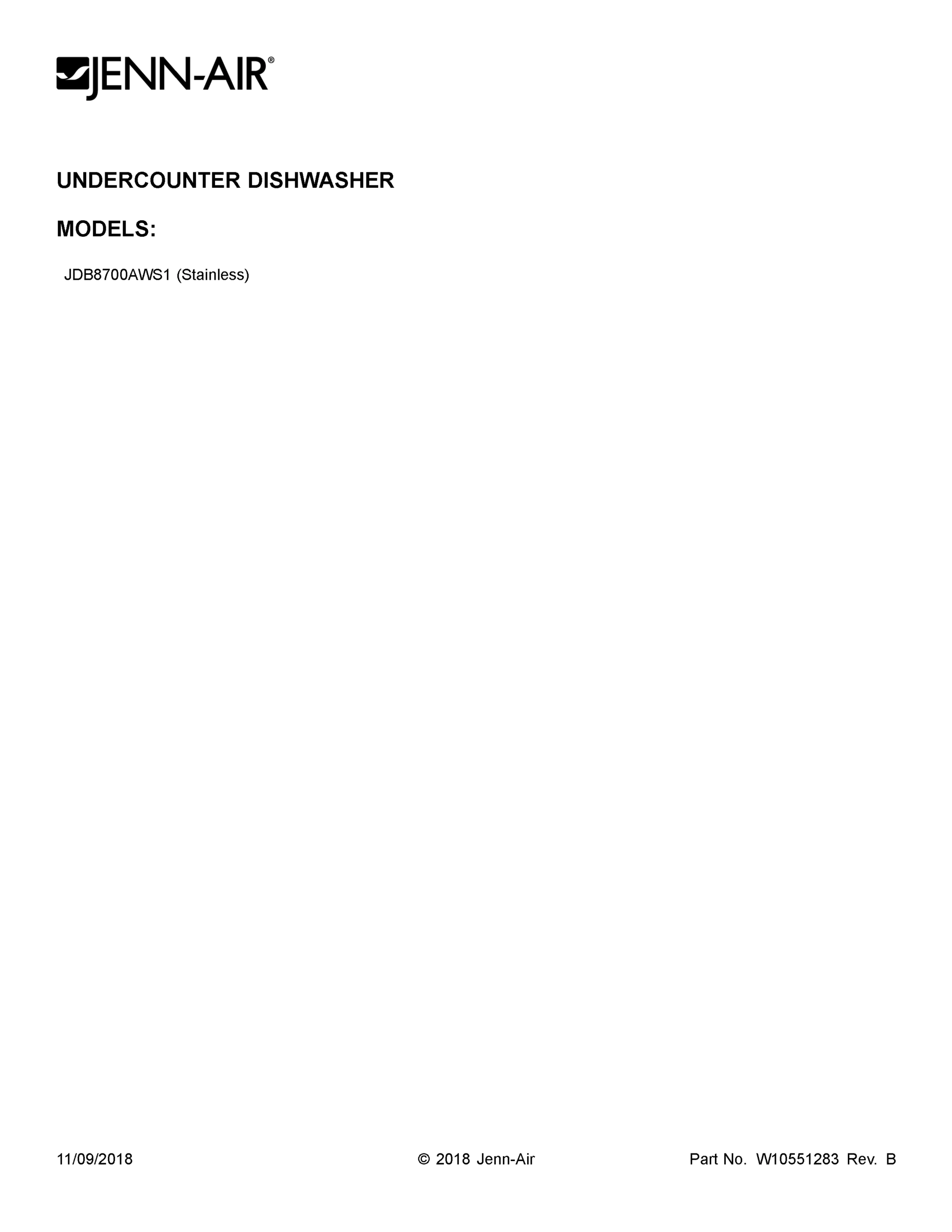

01 - COVER SHEET

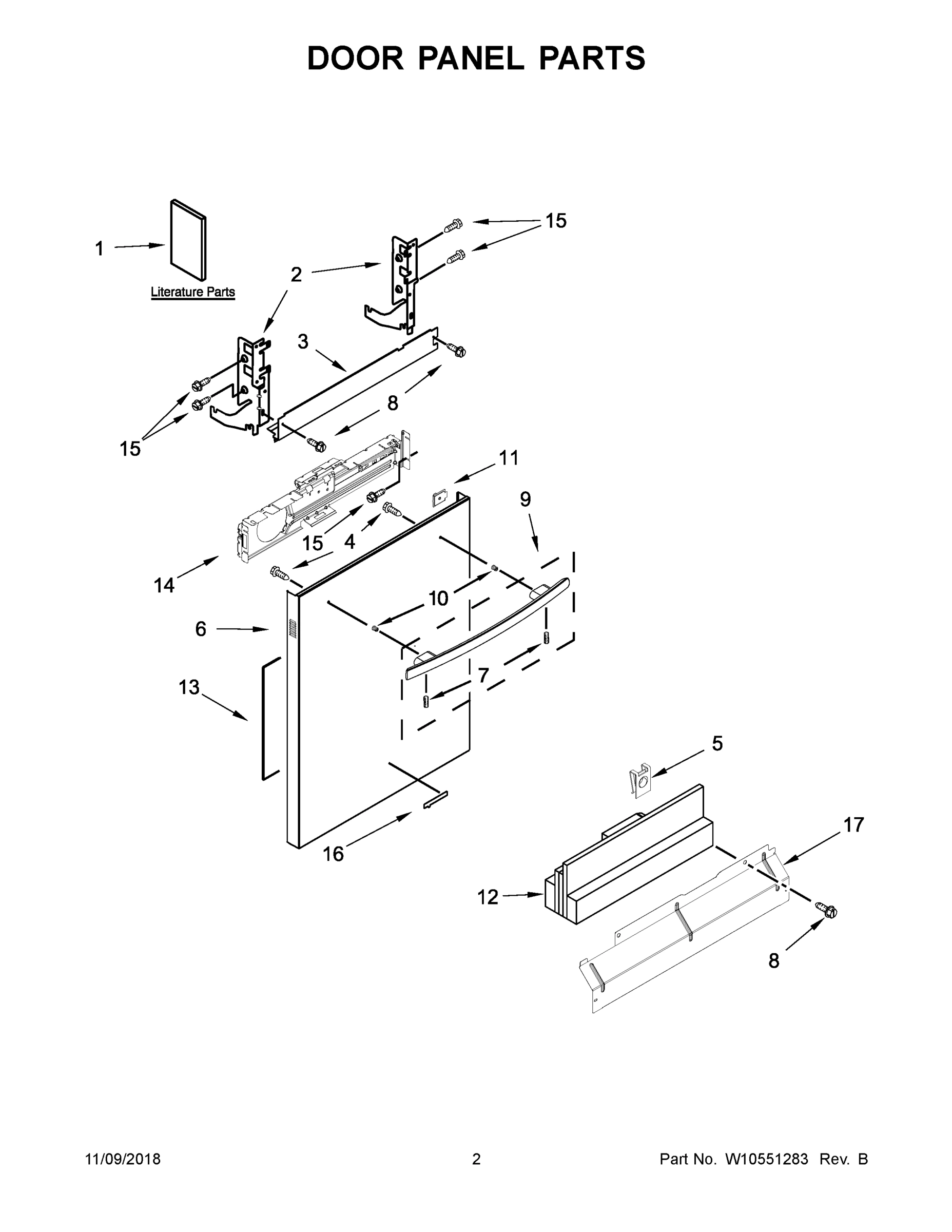

02 - DOOR PANEL PARTS

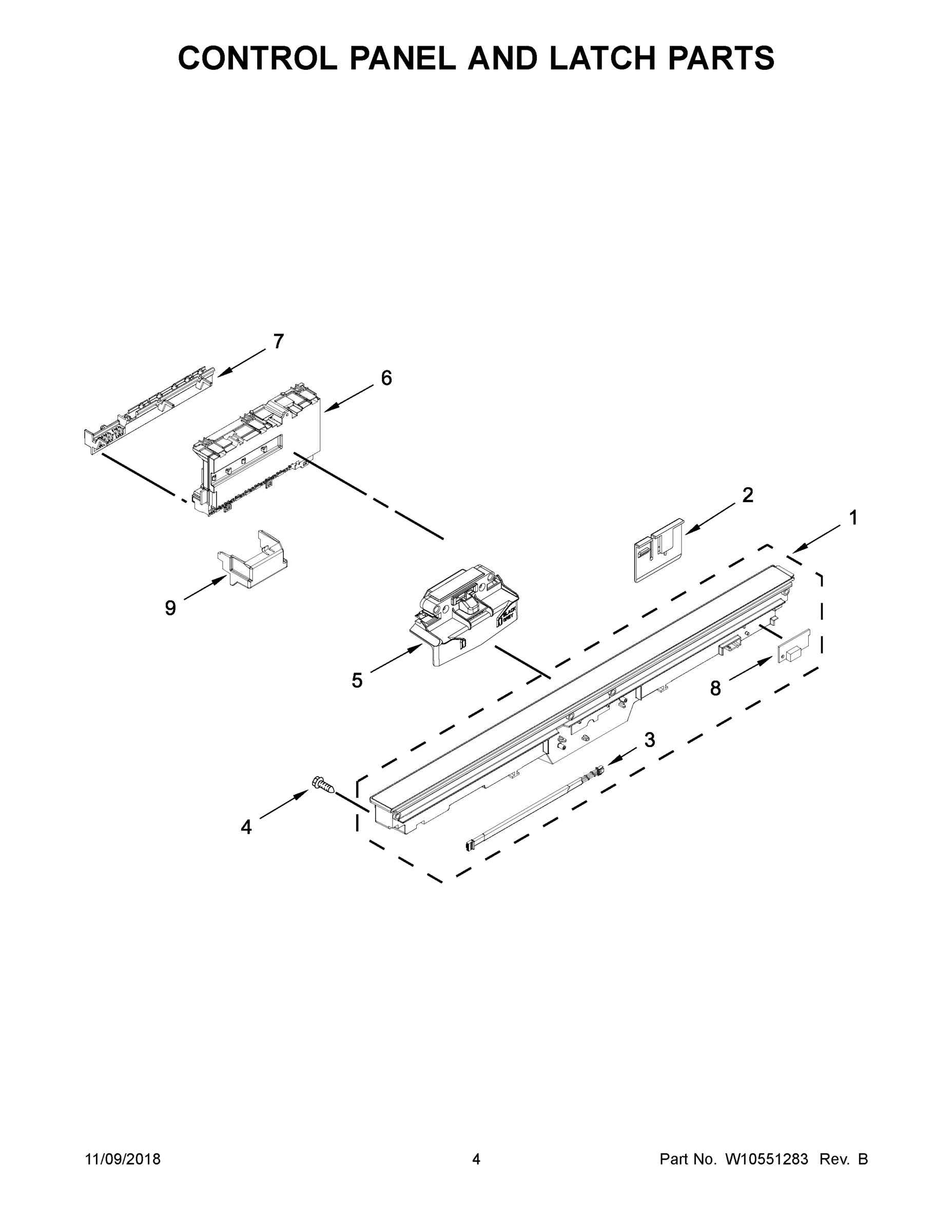

03 - CONTROL PANEL AND LATCH PARTS

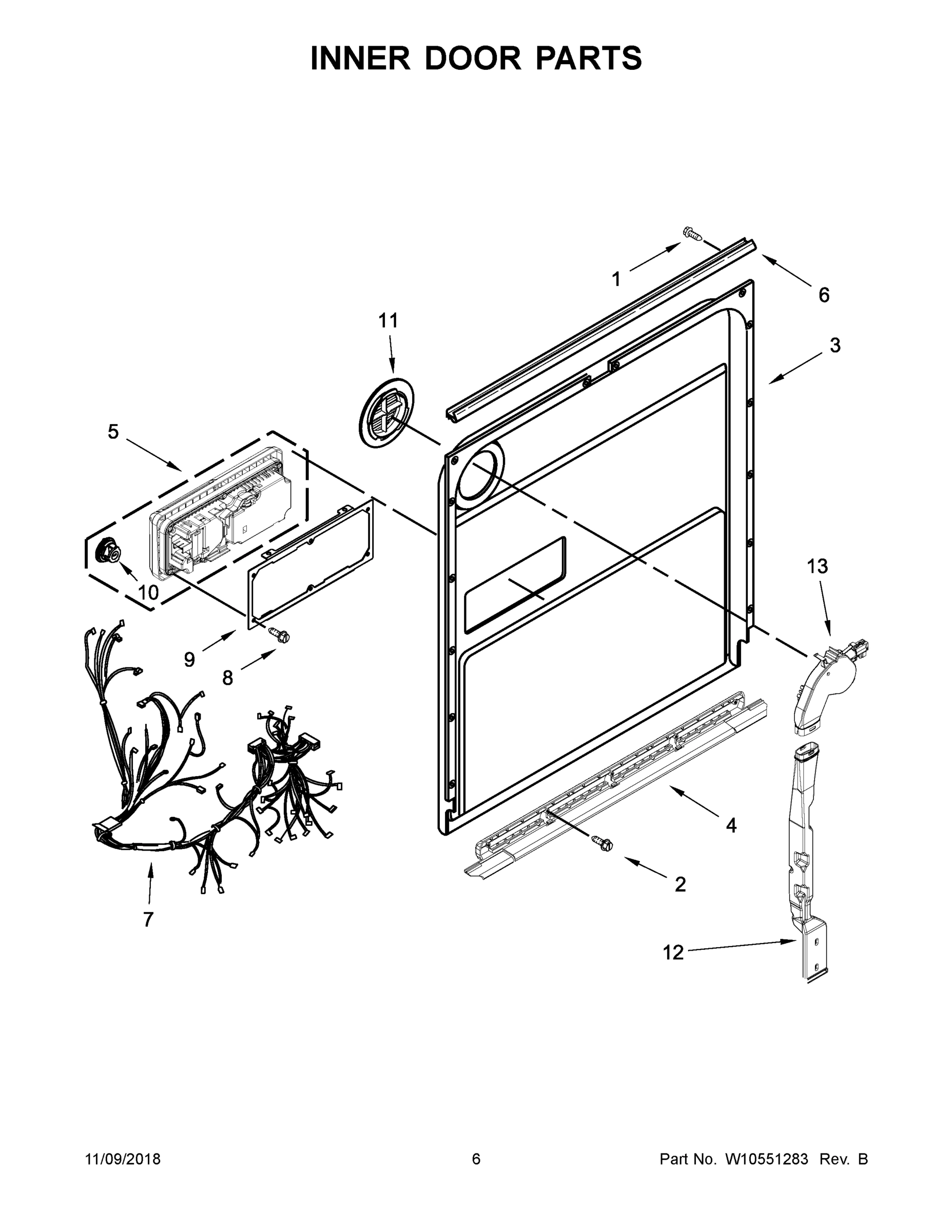

04 - INNER DOOR PARTS

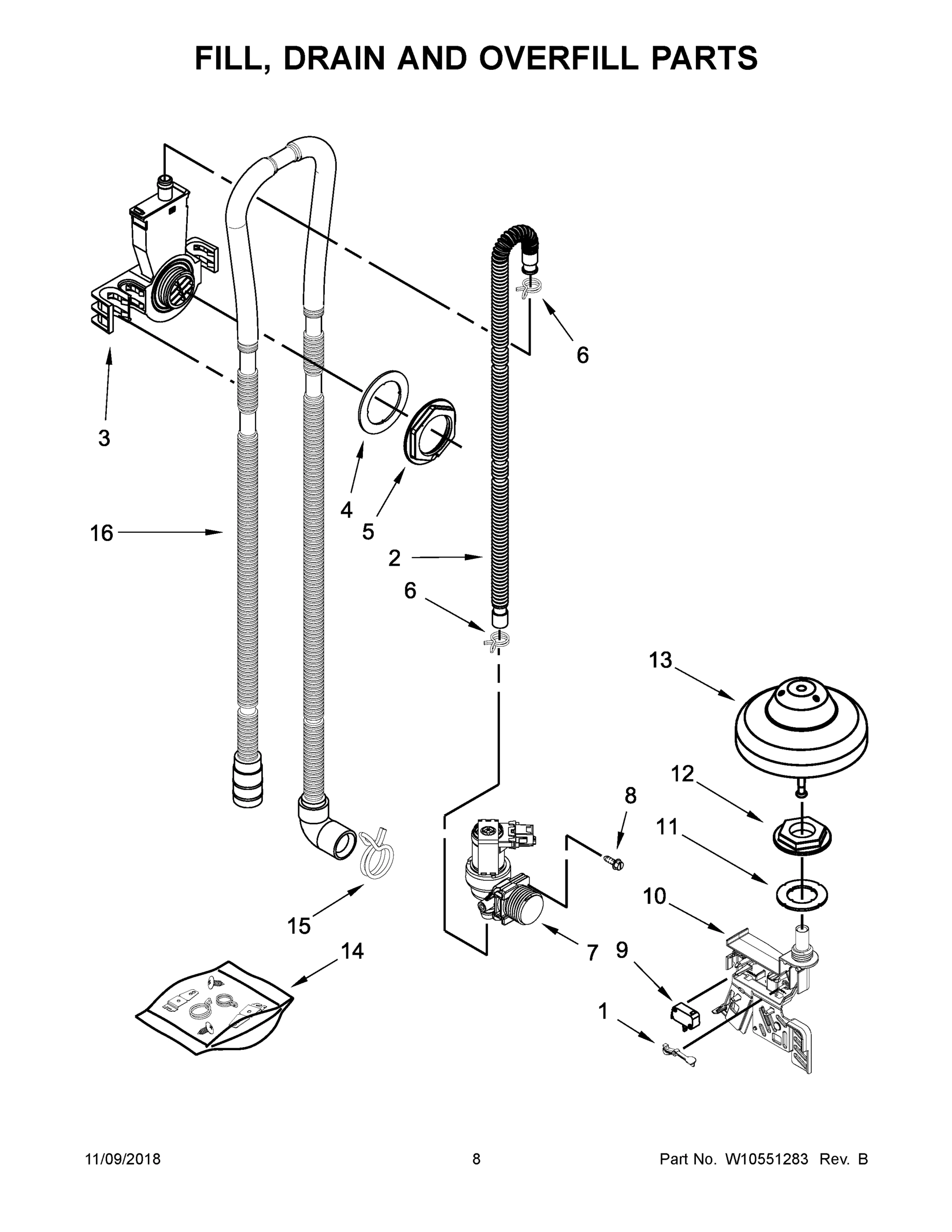

05 - FILL, DRAIN AND OVERFILL PARTS

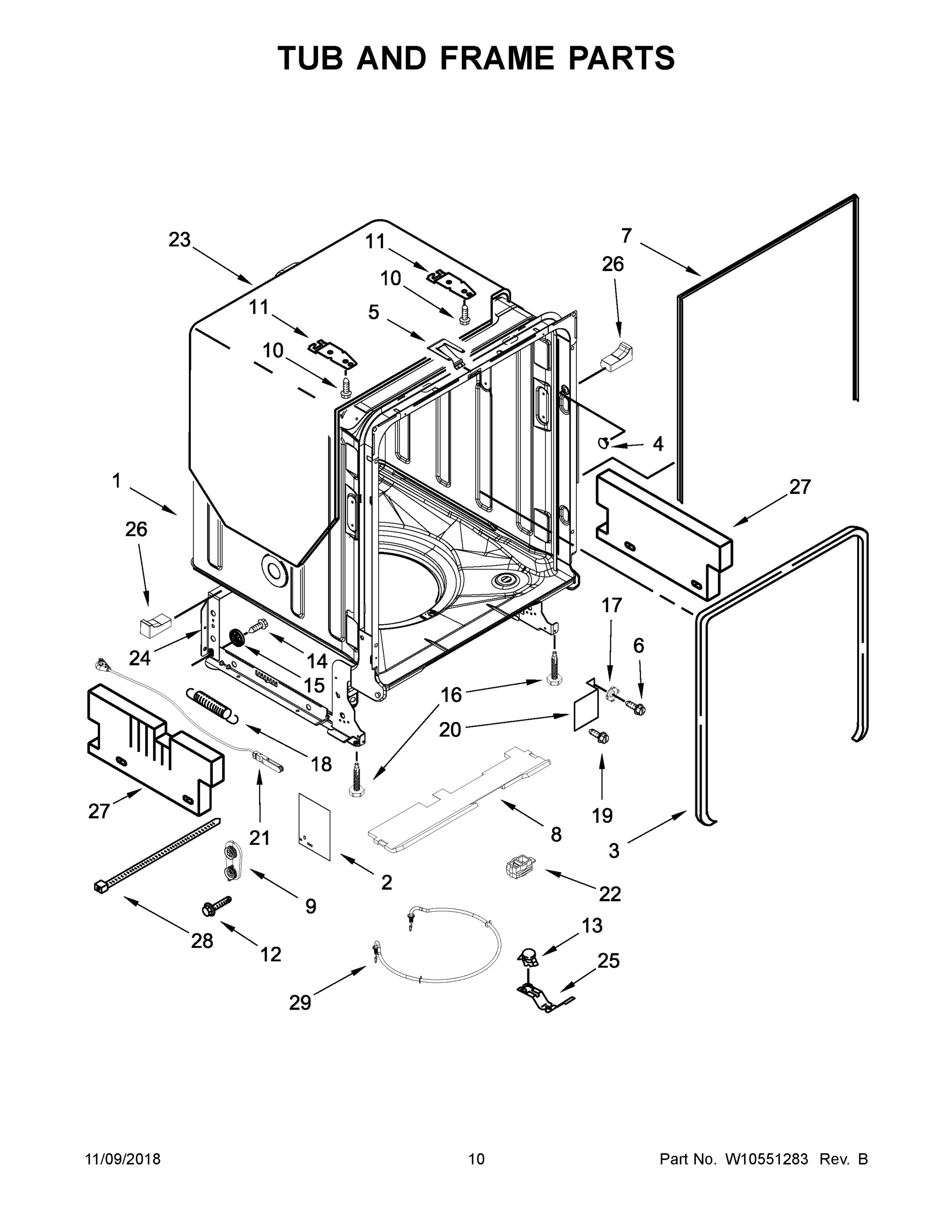

06 - TUB AND FRAME PARTS

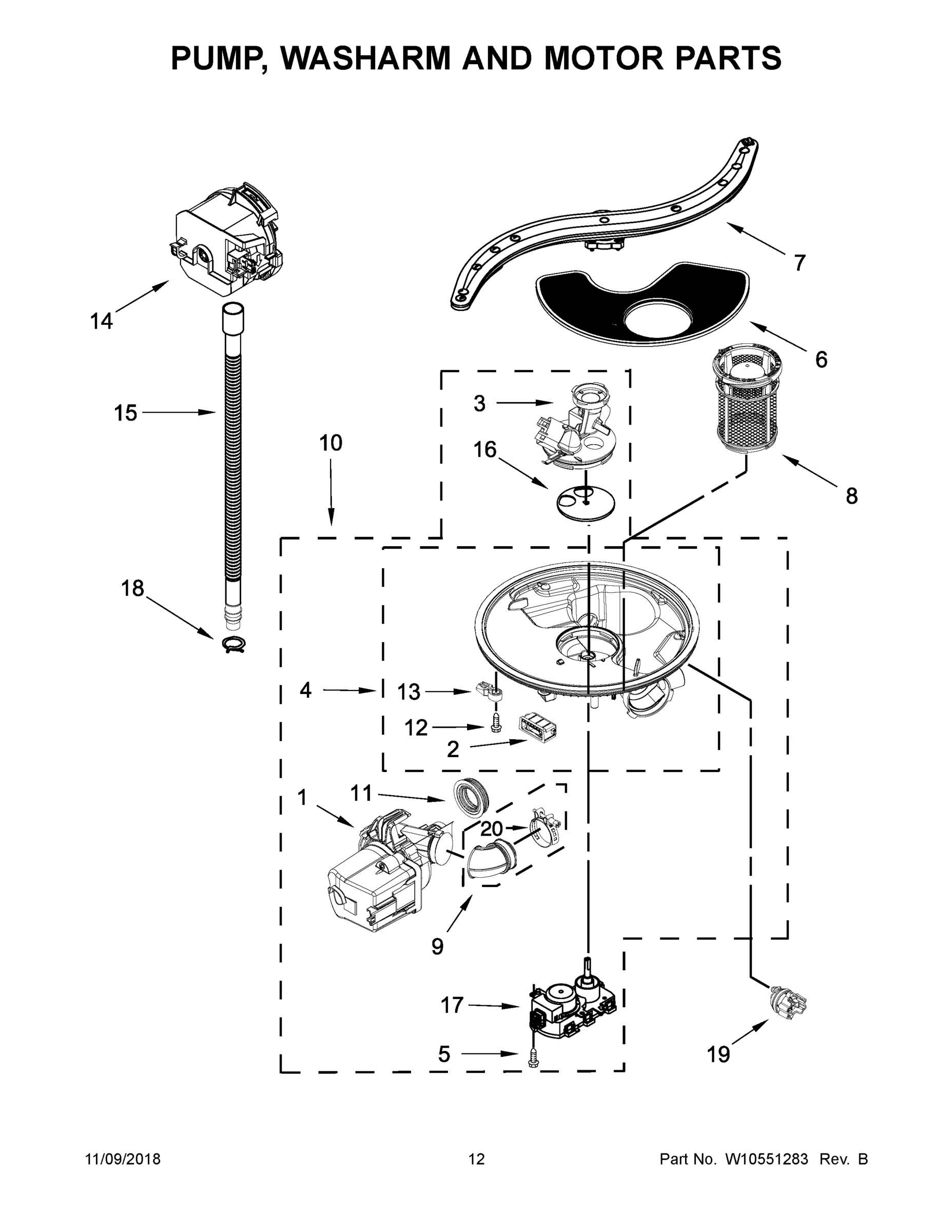

07 - PUMP, WASHARM AND MOTOR PARTS

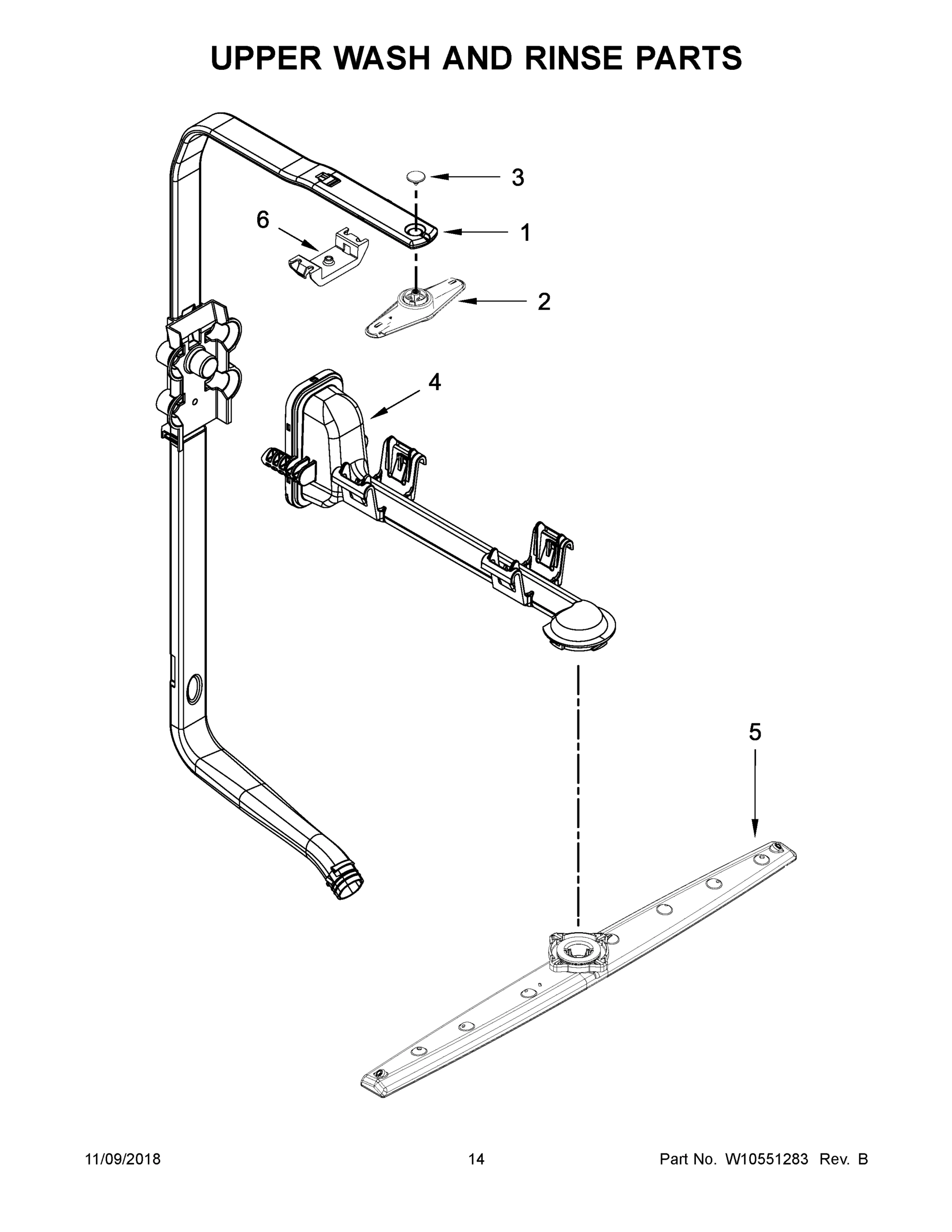

08 - UPPER WASH AND RINSE PARTS

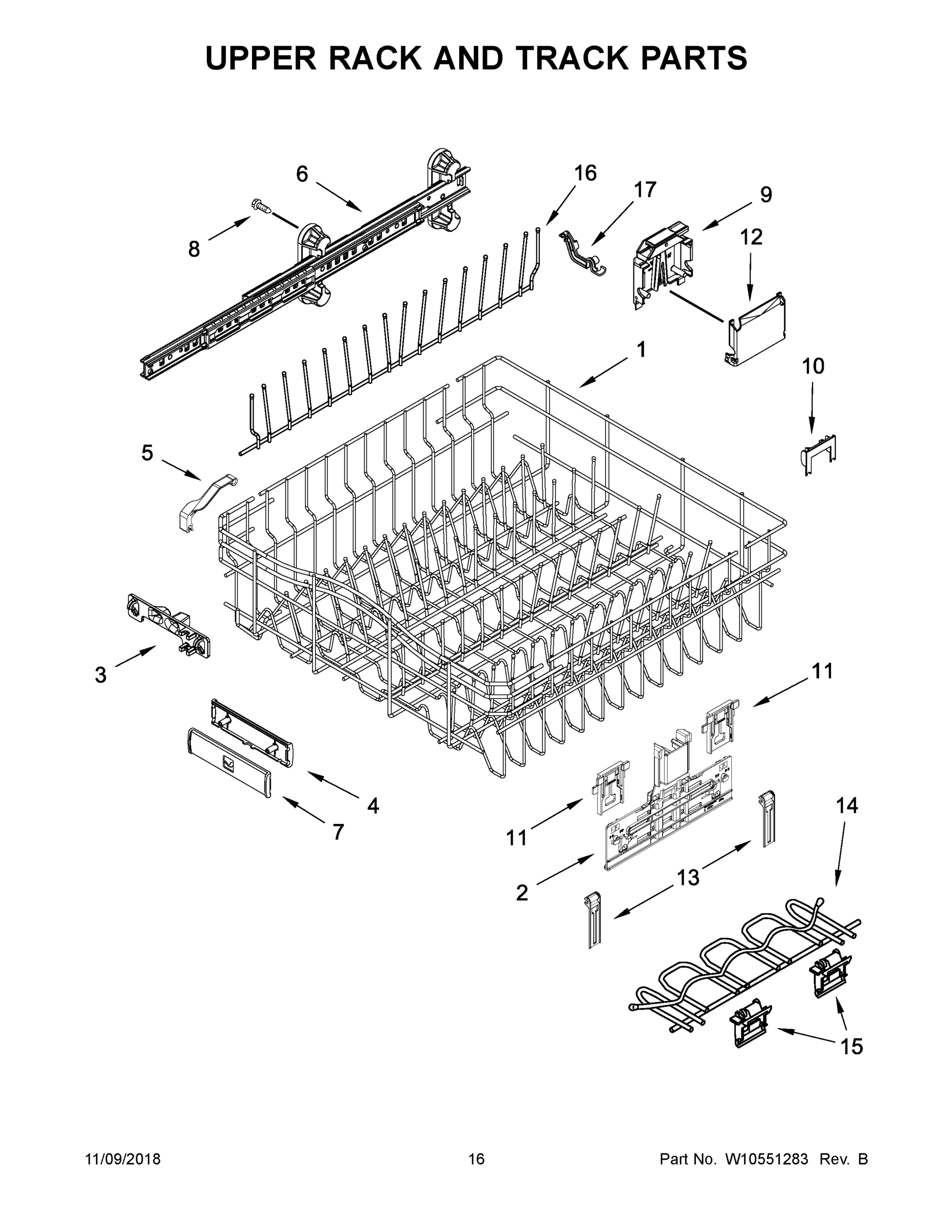

09 - UPPER RACK AND TRACK PARTS

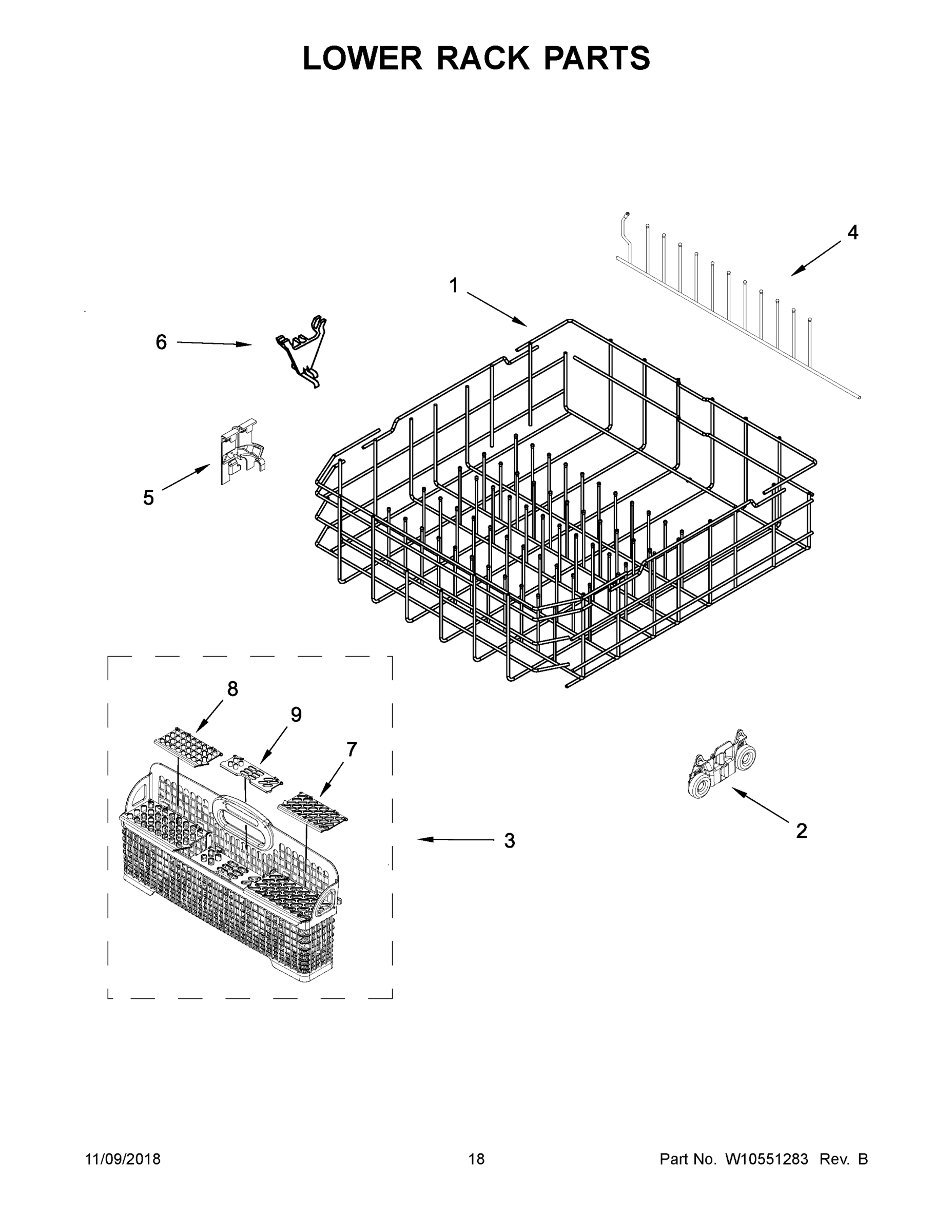

10 - LOWER RACK PARTS

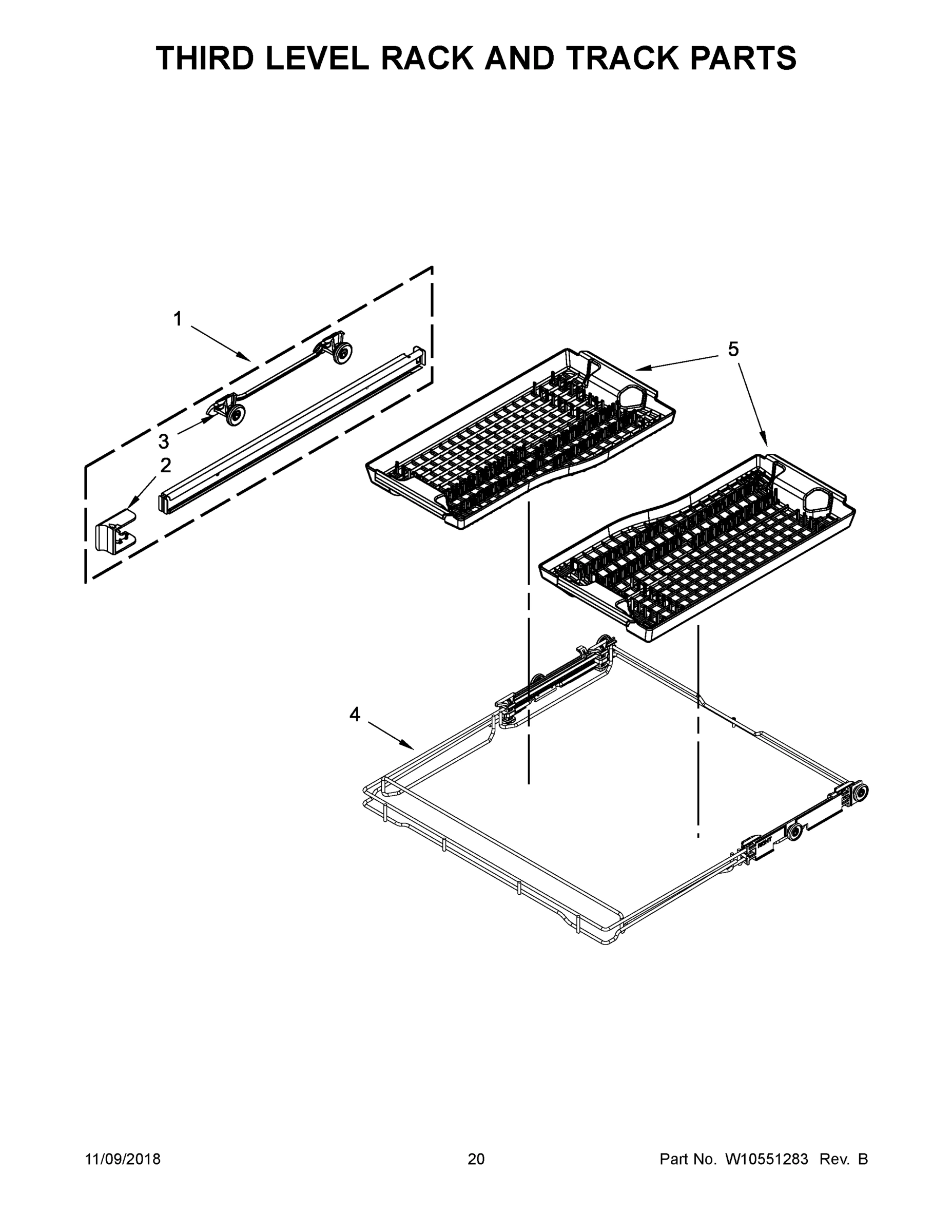

11 - THIRD LEVEL RACK AND TRACK PARTS
12 - OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Maytag JDB8700AWS1 DISHWASHER, UNDERCOUNTER
1
INSTALLATION INSTRUCTIONS MAY W10501738 Contact Us For Availability
1
CONSOLE ASSEMBLY (INCLUDES INSERT) (STAINLESS MAY W10418327 Contact Us For Availability
1
LEVER, OVERFILL SWITCH MAY W10195037 Contact Us For Availability
1
TUB ASSEMBLY (ALSO INCLUDES HEATER ASSEMBLY) MAY W10511186 Contact Us For Availability
1
MOTOR (ALSO ORDER ITEMS 9 & 11) MAY W10314568 Contact Us For Availability
1
FEED TUBE ASSEMBLY (INCLUDES ITEMS 2 & 3) MAY W10340745 Contact Us For Availability
1
DISHRACK, UPPER MAY W10194861 Contact Us For Availability
1
DISHRACK, LOWER MAY W10525649 Contact Us For Availability
1
TRACK ASSEMBLY (RIGHT HAND) MAY W10195240 Contact Us For Availability
1A
ENERGY GUIDE MAY W10638767 Contact Us For Availability
1A
TRACK ASSEMBLY (LEFT HAND) MAY W10195238 Contact Us For Availability
1B
USE & CARE GUIDE, ENGLISH/FRENCH MAY W10596235 Contact Us For Availability
1C
TECH SHEET, ENGLISH MAY W10543820 Contact Us For Availability
1D
TECH SHEET, FRENCH MAY W10543821 Contact Us For Availability
2
ARM, HINGE (LEFT HAND) MAY 8534854 Contact Us For Availability
2
CLIP, CONTROL MAY W10195237 Contact Us For Availability
2
SCREW MAY 8281217 Contact Us For Availability
2
HOSE MAY 8531412 Contact Us For Availability
2
COVER, FILL VALVE MAY W10609495 Contact Us For Availability
2
MOTOR, ISOLATOR MAY W10195086 Contact Us For Availability
2
SPRAYARM, THIRD LEVEL MAY W10327455 Contact Us For Availability
2
ADJUSTER ARM MAY W10546502 Contact Us For Availability
2
WHEEL & TRANSPORT ASSEMBLY MAY W10195416 Contact Us For Availability
2
STOP, TRACK MAY 8564852 Contact Us For Availability
2A
ARM, HINGE (RIGHT HAND) MAY 8534853 Contact Us For Availability
3
VAPOR BARRIER ASSEMBLY MAY W10726647 Contact Us For Availability
3
JUMPER, 4 WIRE MAY W10528492 Contact Us For Availability
3
INNER DOOR & MASTIC ASSEMBLY MAY W10467367 Contact Us For Availability
3
INLET, WATER (ALSO ORDER ITEM 4) MAY W10195536 Contact Us For Availability
3
GASKET, TUB MAY W10300924 Contact Us For Availability
3
COVER, OUTLET MAY W10455271 Contact Us For Availability
3
RETAINER MAY 3400918 Contact Us For Availability
3
POSITIONER, DUAL MAY W10238405 Contact Us For Availability
3
BASKET, SILVERWARE MAY W10311153 Contact Us For Availability
3
MOUNT,TRACK MAY 8564899 Contact Us For Availability
4
SCREW MAY W10316572 Contact Us For Availability
4
SCREW MAY W10348409 Contact Us For Availability
4
SEAL, DOOR BOTTOM MAY W10497235 Contact Us For Availability
4
GASKET MAY 8531323 Contact Us For Availability
4
PLUG, TUB MAY W10082838 Contact Us For Availability
4
SUMP WITH SEAL (ALSO ORDER ITEMS 9 & 11) MAY W10455268 Contact Us For Availability
4
MANIFOLD MAY W10380275 Contact Us For Availability
4
HANDLE, DISHRACK (REAR) MAY W10056298 Contact Us For Availability
4
TINEROW MAY W10056351 Contact Us For Availability
4
RACK ASSEMBLY (THIRD LEVEL) MAY W10409522 Contact Us For Availability
5
U-NUT MAY W10853886 Contact Us For Availability
5
LATCH ASSEMBLY (INCLUDES SWITCH) MAY W10380262 Contact Us For Availability
5
DISPENSER ASSEMBLY MAY W10409521 Contact Us For Availability
5
NUT, WATER INLET (ALSO ORDER ITEM 4) MAY W10213825 Contact Us For Availability
5
STRIKE, LATCH MAY W10300779 Contact Us For Availability
5
SCREW MAY 9741232 Contact Us For Availability
5
SPRAYARM, UPPER MAY W10453933 Contact Us For Availability
5
CLIP, DISPENSER GUARD MAY W10267076 Contact Us For Availability
5
RETAINER, TINEROW MAY W10238411 Contact Us For Availability
5
BASKET, THIRD LEVEL MAY W10418356 Contact Us For Availability
6
PANEL, FRONT (INCLUDES ITEMS 4, 11 & 16) (STA MAY W10409495 Contact Us For Availability
6
CONTROL, ELECTRONIC MAY W10481092 Contact Us For Availability
6
SEAL, CONSOLE/DOOR MAY W10195007 Contact Us For Availability
6
CLAMP, HOSE MAY 371505 Contact Us For Availability
6
SCREW, GROUNDING MAY 3400014 Contact Us For Availability
6
SCREEN MAY W10195360 Contact Us For Availability
6
BRACKET, FEED TUBE MAY W10195690 Contact Us For Availability
6
TRACK, ASSEMBLY (RIGHT HAND) MAY W11192638 Contact Us For Availability
6
PIVOT, TINE ROW MAY W10238412 Contact Us For Availability
6A
TRACK, ASSEMBLY (LEFT HAND) MAY W11192640 Contact Us For Availability
7
SCREW, SET MAY W10276608 Contact Us For Availability
7
BRACE, CONNECTOR MAY W10462395 Contact Us For Availability
7
WIRING HARNESS MAY W10612046 Contact Us For Availability
7
FILL VALVE ASSEMBLY MAY W10327249 Contact Us For Availability
7
SEAL, CABINET MAY W10179427 Contact Us For Availability
7
SPRAYARM, LOWER MAY W10453957 Contact Us For Availability
7
HANDLE, DISHRACK (FRONT) MAY W10056297 Contact Us For Availability
7
LID, BASKET (RIGHT) MAY W10311149 Contact Us For Availability
8
SCREW (BLACK) MAY 302868 Contact Us For Availability
8
LIGHT, STATUS MAY W10195836 Contact Us For Availability
8
SCREW MAY W10309090 Contact Us For Availability
8
SCREW MAY W10177098 Contact Us For Availability
8
SCREW MAY 304392 Contact Us For Availability
8
SOUND INSULATION, BOTTOM MAY W10819539 Contact Us For Availability
8
FILTER CUP, ASSEMBLY MAY W10393351 Contact Us For Availability
8
LID, BASKET (LEFT) MAY W10311150 Contact Us For Availability
9
HANDLE ASSEMBLY (STAINLESS) MAY W10409496 Contact Us For Availability
9
BOX, CONNECTOR MAY W10462393 Contact Us For Availability
9
BRACKET, DISPENSER MAY W10462232 Contact Us For Availability
9
SWITCH, OVERFILL CONTROL MAY W10195039 Contact Us For Availability
9
DOOR BALANCE ASSEMBLY MAY W10084086 Contact Us For Availability
9
HOSE ASSEMBLY (INCLUDES 2 CLAMPS) MAY W10445975 Contact Us For Availability
9
HOUSING ADJUSTER (RIGHT HAND) MAY W10418316 Contact Us For Availability
9
LID, BASKET (CENTER) MAY W10311151 Contact Us For Availability
9A
HOUSING ADJUSTER (LEFT HAND) MAY W10418315 Contact Us For Availability
10
STUD, MOUNTING MAY 8564951 Contact Us For Availability
10
KNOB, RINSE AID MAY W10524919 Contact Us For Availability
10
HOUSING, OVERFILL (ALSO ORDER ITEM 11) MAY W10195035 Contact Us For Availability
10
SCREW MAY 3367670 Contact Us For Availability
10
MOTOR & SUMP ASSEMBLY MAY W10455260 Contact Us For Availability
10
CLIP LOCK MAY W10418320 Contact Us For Availability
11
LIGHT, PIPE MAY W10319007 Contact Us For Availability
11
DEFLECTOR, VENT MAY W10195032 Contact Us For Availability
11
GASKET, FLAT MAY 8531743 Contact Us For Availability
11
BRACKET, UNDERCOUNTER MAY 8269145 Contact Us For Availability
11
GROMMET MAY W10195068 Contact Us For Availability
11
POSITION ADJUSTER MAY W10418323 Contact Us For Availability
12
INSULATION, FOUR LAYER MAY W10518815 Contact Us For Availability
12
DUCT, VENT (BLACK) MAY W10195028 Contact Us For Availability
12
NUT, STANDPIPE MAY W10195038 Contact Us For Availability
12
SCREW MAY 3400074 Contact Us For Availability
12
SCREW MAY W10348407 Contact Us For Availability
12
ADJUSTER COVER MAY W10418321 Contact Us For Availability
13
INSULATION, FRONT PANEL MAY W10315897 Contact Us For Availability
13
VENT ASSEMBLY MAY W10469574 Contact Us For Availability
13
FLOAT & RETAINER ASSEMBLY MAY W10195036 Contact Us For Availability
13
THERMOSTAT MAY W10195091 Contact Us For Availability
13
TAB, SUMP MAY W10372113 Contact Us For Availability
13
STRAP, TETHER ADJUSTER MAY W10418322 Contact Us For Availability
14
BRACKET, CONTROL MAY W10350242 Contact Us For Availability
14
MISCELLANEOUS PARTS BAG (CONTAINS 2 SCREWS, 2 MAY W10292152 Contact Us For Availability
14
SCREW MAY W10348411 Contact Us For Availability
14
MOTOR, DRAIN MAY W10531320 Contact Us For Availability
14
CUPSHELF MAY W10208697 Contact Us For Availability
15
SCREW MAY 3400071 Contact Us For Availability
15
CLAMP, HOSE MAY 370445 Contact Us For Availability
15
WHEEL, LEG MAY 8268977 Contact Us For Availability
15
HOSE, DRAIN MAY 8269144 Contact Us For Availability
15
MOUNT, CUPSHELF MAY W10238407 Contact Us For Availability
16
NAMEPLATE (STAINLESS) MAY W10214168 Contact Us For Availability
16
DRAIN LOOP WITH CHECK VALVE ASSEMBLY MAY W10545278 Contact Us For Availability
16
LEVELER, LEG MAY W10619352 Contact Us For Availability
16
DISC, DIVERTER MAY W10476221 Contact Us For Availability
16
TINE, FOLD DOWN MAY W10194862 Contact Us For Availability
17
ACCESS PANEL (BLACK) MAY W10852733 Contact Us For Availability
17
WASHER, PRONGED CUP MAY 3378128 Contact Us For Availability
17
MOTOR, DIVERTER MAY W10476222 Contact Us For Availability
17
CLIP, PIVOT MAY W10238404 Contact Us For Availability
18
SPRING, DOOR BALANCE MAY 8270020 Contact Us For Availability
18
CLAMP, HOSE MAY 8269146 Contact Us For Availability
19
SCREW MAY 3400892 Contact Us For Availability
19
INDICATOR, OPTICAL WASH MAY W10134017 Contact Us For Availability
20
COVER, TERMINAL BOX MAY 8268991 Contact Us For Availability
20
CLAMP, HOSE MAY W10169167 Contact Us For Availability
21
CABLE, DOOR MAY W10158291 Contact Us For Availability
22
SHIELD, THERMOSTAT MAY W10292870 Contact Us For Availability
23
SHIELD, TUB SOUND MAY W10796452 Contact Us For Availability
24
SUPPORT ASSEMBLY, REAR MAY W10796046 Contact Us For Availability
25
BRACKET, THERMOSTAT MAY W10300703 Contact Us For Availability
26
SPACER, TUB/BRACE (LEFT HAND) MAY W10195630 Contact Us For Availability
26A
SPACER, TUB/BRACE (RIGHT HAND) MAY W10195631 Contact Us For Availability
27
SHIELD, SIDE TUB MAY W10275523 Contact Us For Availability
28
TIE, WIRE MAY 8539404 Contact Us For Availability
29
HEATER ELEMENT ASSEMBLY (INCLUDES HEATER WASH MAY W10696509 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12OZ. BLACK) MAY 285006 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12OZ. WHITE) MAY 350930 Contact Us For Availability
NI
POWER CORD KIT (INCLUDED CORD & MISC. HARDWAR MAY 4317824 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. BISCUIT/BISQUE) MAY 4392899 Contact Us For Availability
NI
PAINT, BULK (1 QT. BISCUIT/BISQUE) MAY 4392900 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12OZ. BISCUIT/BISQU MAY 4392901 Contact Us For Availability
NI
ACCESSORIES, MOISTURE BARRIER KIT MAY 4396277 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. METEORITE) MAY 4396603 Contact Us For Availability
NI
DISHRACK REPAIR (WHITE) MAY 4396838 Contact Us For Availability
NI
DISHRACK REPAIR (GREY) MAY 4396840 Contact Us For Availability
NI
ACCESSORIES, VINYL TOUCH-UP (4OZ SILVER ATLAN MAY 4396853 Contact Us For Availability
NI
DISHRACK REPAIR (SILVER ATLANTIS) MAY 4396854 Contact Us For Availability
NI
ACCESSORIES, VINYL TOUCH-UP (4OZ WHITE) MAY 676453 Contact Us For Availability
NI
ACCESSORIES, VINYL TOUCH-UP (4OZ GREY) MAY 676455 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. WHITE) MAY 72017 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. BLACK) MAY 72032 Contact Us For Availability
NI
PAINT, BULK (1 QT. WHITE (UNCUT)) MAY 799344 Contact Us For Availability
NI
ANTI-TIP KIT, FLOOR MOUNT KIT MAY 8171477 Contact Us For Availability
NI
ANTI-TIP KIT, SIDE MOUNT KIT MAY 8212560 Contact Us For Availability
NI
ACCESSORIES, TOWEL BAR HANDLE (STAINLESS) MAY W10701399 Contact Us For Availability
NI
ACCESSORIES, DRAIN HOSE 12 FT. MAY W10712310 Contact Us For Availability
NI
DISHRACK ACCESSORIES, ANTI-TARNISH SILVERWARE MAY W10712311 Contact Us For Availability
NI
DISHRACK ACCESSORIES, CUTLERY DISHWASHER BASK MAY W10712312 Contact Us For Availability
NI
DISHRACK ACCESSORIES, BOTTLE/VASE HOLDER MAY W10712313 Contact Us For Availability
× ![]()
