Model Maytag JDB3650AWR3 DISHWASHER – Common Parts & Diagrams

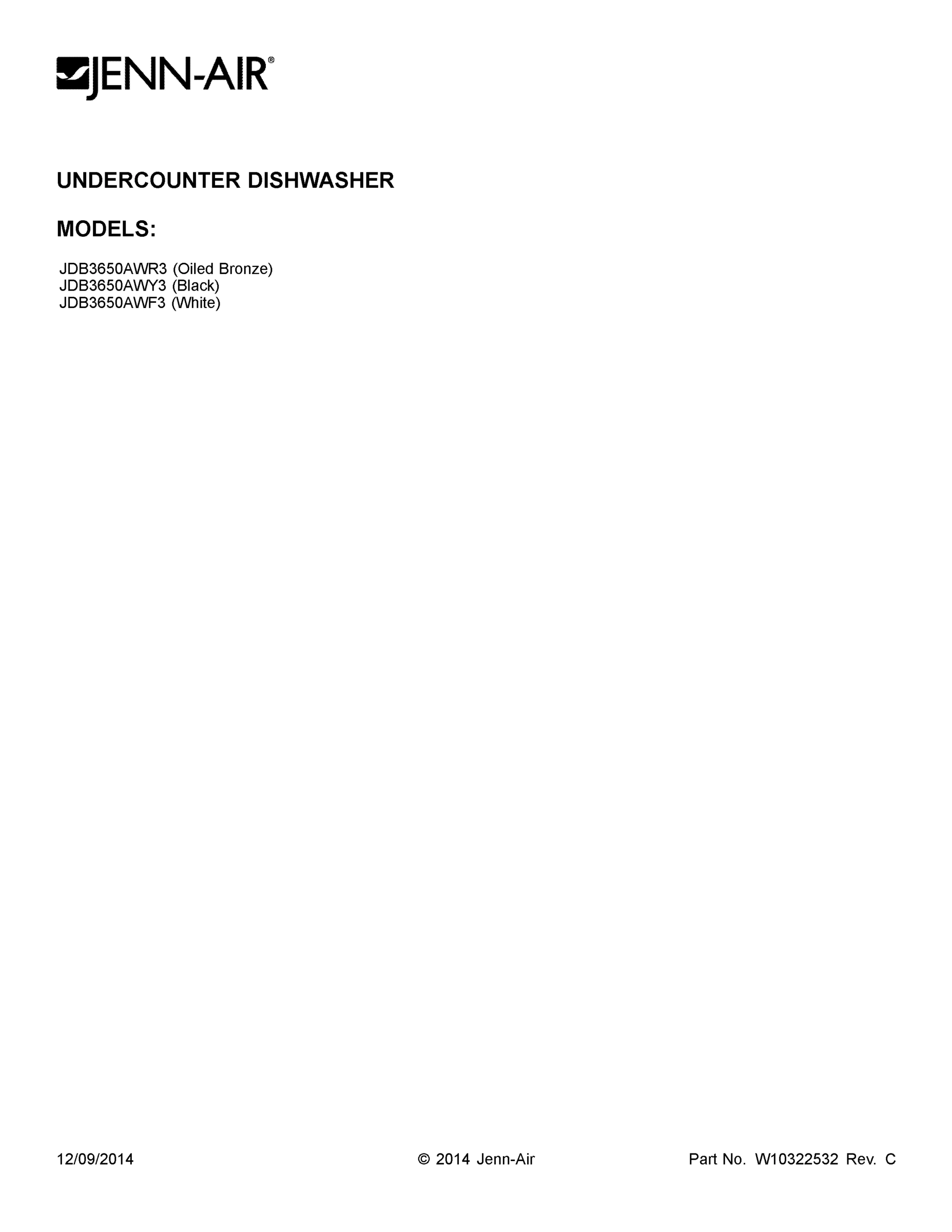

01 - COVER SHEET

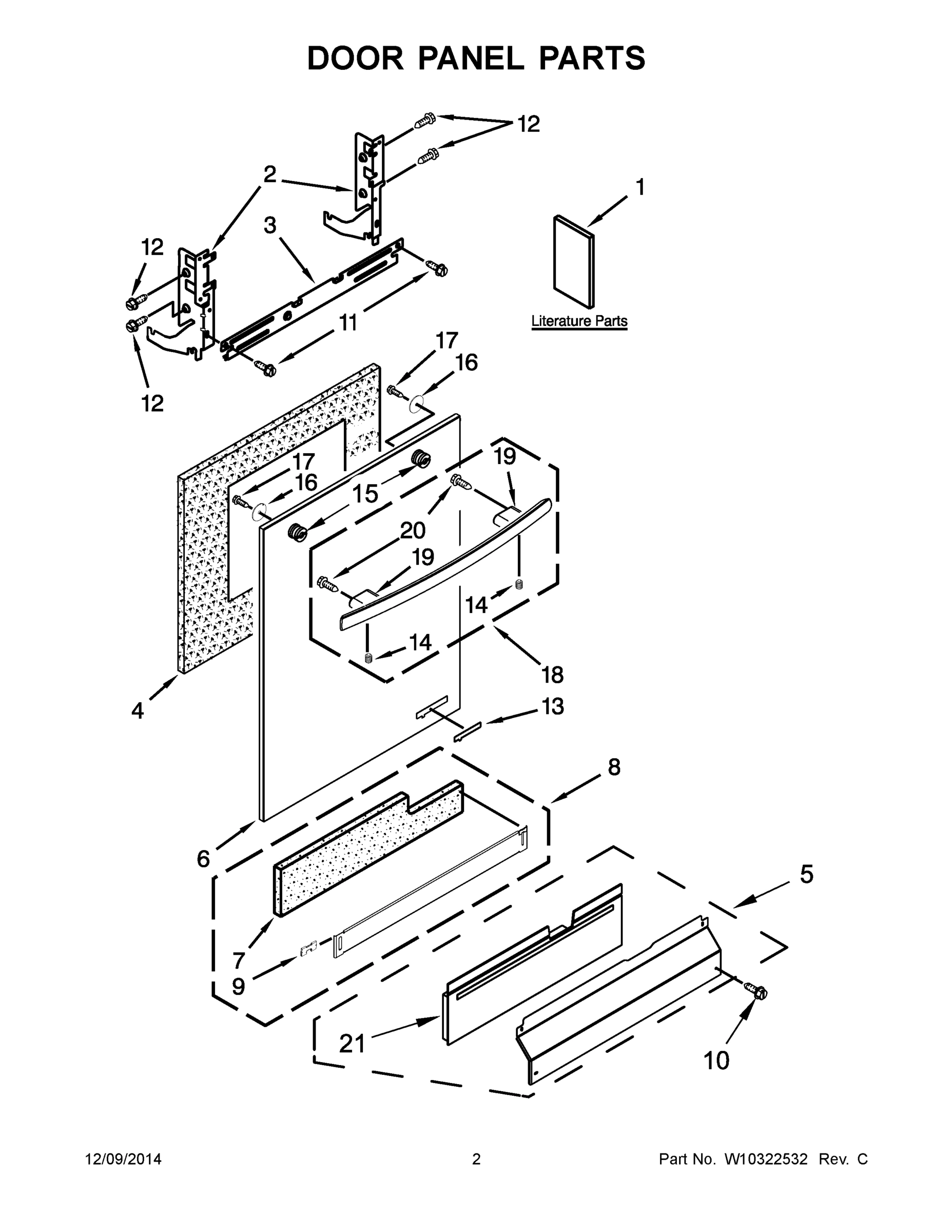

02 - DOOR PANEL PARTS
03 - CONTROL PANEL PARTS
04 - DOOR AND LATCH PARTS
05 - FILL, DRAIN AND OVERFILL PARTS
06 - TUB AND FRAME PARTS
07 - PUMP, WASHARM AND MOTOR PARTS
08 - UPPER WASH AND RINSE PARTS
09 - HEATER PARTS
10 - UPPER RACK AND TRACK PARTS
11 - LOWER RACK PARTS
12 - OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Maytag JDB3650AWR3 DISHWASHER
1
MAY W10282554 MAY W10282554 Contact Us For Availability
1
MAY W10208760 MAY W10208760 Contact Us For Availability
1
SCREW MAY W10348409 Contact Us For Availability
1
LEVER, OVERFLOW SWITCH MAY 8268892 Contact Us For Availability
1
MAY W10319023 MAY W10319023 Contact Us For Availability
1
MAY 8579241 MAY 8579241 Contact Us For Availability
1
FEED TUBE ASSEMBLY (INCLUDES ITEM 2) MAY 8579262 Contact Us For Availability
1
MAY W10082892 MAY W10082892 Contact Us For Availability
1
MAY W10194861 MAY W10194861 Contact Us For Availability
1
DISHRACK, LOWER MAY W10056350 Contact Us For Availability
1A
USE & CARE GUIDE, ENGLISH/FRENCH MAY W10300216 Contact Us For Availability
1A
MAY W10208758 MAY W10208758 Contact Us For Availability
1B
USE & CARE GUIDE, SPANISH MAY W10300217 Contact Us For Availability
1B
MAY W10208759 MAY W10208759 Contact Us For Availability
1C
TECH SHEET, ENGLISH MAY W10142826 Contact Us For Availability
1D
TECH SHEET, FRENCH MAY W10158347 Contact Us For Availability
2
ARM, HINGE (LEFT HAND) MAY 8534854 Contact Us For Availability
2
MAY W10102497 MAY W10102497 Contact Us For Availability
2
MAY 8281217 MAY 8281217 Contact Us For Availability
2
HOSE MAY 8531412 Contact Us For Availability
2
MAY W10309090 MAY W10309090 Contact Us For Availability
2
MAY W10348405 MAY W10348405 Contact Us For Availability
2
SPRAYARM, THIRD LEVEL MAY 8557720 Contact Us For Availability
2
WASHER, RUBBER MAY 717273 Contact Us For Availability
2
MOUNT, TRACK MAY W10077876 Contact Us For Availability
2
MAY W10261336 MAY W10261336 Contact Us For Availability
2A
ARM, HINGE (RIGHT HAND) MAY 8534853 Contact Us For Availability
3
BRACE, DOOR CROSS MAY 8268983 Contact Us For Availability
3
MAY W10285178 MAY W10285178 Contact Us For Availability
3
INNER DOOR & MASTIC ASSEMBLY (ALSO ORDER ITEM MAY W10056250 Contact Us For Availability
3
INLET, WATER (ALSO ORDER ITEM 4) MAY W10195536 Contact Us For Availability
3
GASKET, TUB MAY W10112096 Contact Us For Availability
3
MAY W10324447 MAY W10324447 Contact Us For Availability
3
MAY W10238395 MAY W10238395 Contact Us For Availability
3
NUT, HEATER ELEMENT MAY 8268548 Contact Us For Availability
3
TRACK RACK (LEFT HAND) MAY W10247512 Contact Us For Availability
3
MAY W10311153 MAY W10311153 Contact Us For Availability
3A
TRACK RACK (RIGHT HAND) MAY W10247511 Contact Us For Availability
4
MAY W10073520 MAY W10073520 Contact Us For Availability
4
MAY W10344801 MAY W10344801 Contact Us For Availability
4
MAY W10077883 MAY W10077883 Contact Us For Availability
4
MAY 8531323 MAY 8531323 Contact Us For Availability
4
MAY W10082838 MAY W10082838 Contact Us For Availability
4
SUMP WITH SEAL (ALSO INCLUDES 2 CLAMPS) MAY W10208687 Contact Us For Availability
4
MAY W10238399 MAY W10238399 Contact Us For Availability
4
NUT, SPEED MAY 3400931 Contact Us For Availability
4
MAY 8268653 MAY 8268653 Contact Us For Availability
4
MAY W10238412 MAY W10238412 Contact Us For Availability
5
MAY W10287593 MAY W10287593 Contact Us For Availability
5
MAY 8572611 MAY 8572611 Contact Us For Availability
5
NUT, WATER INLET (ALSO ORDER ITEM 4) MAY W10213825 Contact Us For Availability
5
MAY W10185389 MAY W10185389 Contact Us For Availability
5
MAY 8579298 MAY 8579298 Contact Us For Availability
5
MAY W10324454 MAY W10324454 Contact Us For Availability
5
SHIELD, HEATER PROBE MAY W10343251 Contact Us For Availability
5
HANDLE, DISHRACK (FRONT) MAY W10056297 Contact Us For Availability
5
RETAINER, TINEROW MAY W10238411 Contact Us For Availability
5A
MAY W10287592 MAY W10287592 Contact Us For Availability
6
PANEL, FULL FRONT (INCLUDES ITEMS 4, 13, 14, MAY W10056290 Contact Us For Availability
6
MAY W10404412 MAY W10404412 Contact Us For Availability
6
MAY 8269259 MAY 8269259 Contact Us For Availability
6
MAY 371505 MAY 371505 Contact Us For Availability
6
SEAL, CABINET MAY W10179427 Contact Us For Availability
6
MAY 8579253 MAY 8579253 Contact Us For Availability
6
MAY W10238406 MAY W10238406 Contact Us For Availability
6
TINEROW MAY W10056351 Contact Us For Availability
6A
PANEL, FULL FRONT (INCLUDES ITEMS 4, 13, 14, MAY W10056410 Contact Us For Availability
6B
PANEL, FULL FRONT (INCLUDES ITEMS 4, 13, 14, MAY W10056411 Contact Us For Availability
7
INSULATION, TOE PANEL MAY W10385107 Contact Us For Availability
7
MAY 8546546 MAY 8546546 Contact Us For Availability
7
MAY W10077877 MAY W10077877 Contact Us For Availability
7
MAY W10195048 MAY W10195048 Contact Us For Availability
7
MAY W10337661 MAY W10337661 Contact Us For Availability
7
MAY W10195665 MAY W10195665 Contact Us For Availability
7
MAY W10208697 MAY W10208697 Contact Us For Availability
7
MAY W10311149 MAY W10311149 Contact Us For Availability
8
TOE PANEL (BLACK) MAY 8558252 Contact Us For Availability
8
SCREW MAY 304392 Contact Us For Availability
8
MAY W10238413 MAY W10238413 Contact Us For Availability
8
DOOR BALANCE ASSEMBLY MAY W10084086 Contact Us For Availability
8
MAY W10393351 MAY W10393351 Contact Us For Availability
8
MAY W10238407 MAY W10238407 Contact Us For Availability
8
MAY W10311150 MAY W10311150 Contact Us For Availability
8A
TOE PANEL (WHITE) MAY 8558253 Contact Us For Availability
9
MAY 8269016 MAY 8269016 Contact Us For Availability
9
SCREW, SET MAY 8533965 Contact Us For Availability
9
MAY W10102495 MAY W10102495 Contact Us For Availability
9
MAY 3367670 MAY 3367670 Contact Us For Availability
9
MAY 8579311 MAY 8579311 Contact Us For Availability
9
MAY W10238416 MAY W10238416 Contact Us For Availability
9
MAY W10311151 MAY W10311151 Contact Us For Availability
10
SCREW (BLACK) MAY 302868 Contact Us For Availability
10
HARNESS, VENT MAY 8545608 Contact Us For Availability
10
HOUSING, OVERFILL (INCLUDES ITEM 11) MAY 8545946 Contact Us For Availability
10
MAY 8269145 MAY 8269145 Contact Us For Availability
10
MOTOR & SUMP ASSEMBLY MAY W10234567 Contact Us For Availability
10
ADJUSTER, ACTUATOR (LEFT HAND) MAY W10238418 Contact Us For Availability
10A
ADJUSTER, ACTUATOR (RIGHT HAND) MAY W10238417 Contact Us For Availability
11
MAY W10413104 MAY W10413104 Contact Us For Availability
11
MAY 8531743 MAY 8531743 Contact Us For Availability
11
SCREW MAY 3400074 Contact Us For Availability
11
MAY 8579272 MAY 8579272 Contact Us For Availability
11
MAY W10238419 MAY W10238419 Contact Us For Availability
12
SCREW MAY 3400071 Contact Us For Availability
12
MAY W10177098 MAY W10177098 Contact Us For Availability
12
MAY W10195038 MAY W10195038 Contact Us For Availability
12
MAY W10348411 MAY W10348411 Contact Us For Availability
12
MAY 9741232 MAY 9741232 Contact Us For Availability
13
MAY 8535660 MAY 8535660 Contact Us For Availability
13
MAY W10077871 MAY W10077871 Contact Us For Availability
13
WHEEL, LEG MAY 8268977 Contact Us For Availability
13
MAY W10372113 MAY W10372113 Contact Us For Availability
13
MAY W10238420 MAY W10238420 Contact Us For Availability
14
SCREW, SET MAY W10276608 Contact Us For Availability
14
MAY W10462232 MAY W10462232 Contact Us For Availability
14
MISCELLANEOUS PARTS BAG (CONTAINS 2 SCREWS, 2 MAY W10292152 Contact Us For Availability
14
MAY W10304228 MAY W10304228 Contact Us For Availability
14
MAY W10158351 MAY W10158351 Contact Us For Availability
14
MAY W10194862 MAY W10194862 Contact Us For Availability
15
STUD, MOUNTING (FOR NON-GLASS FRONT) MAY 8564951 Contact Us For Availability
15
MAY W10482094 MAY W10482094 Contact Us For Availability
15
MAY W10275523 MAY W10275523 Contact Us For Availability
15
MAY 8269144 MAY 8269144 Contact Us For Availability
15
MAY W10238404 MAY W10238404 Contact Us For Availability
15A
MAY W10208695 MAY W10208695 Contact Us For Availability
16
PLATE, BACKING MAY W10142904 Contact Us For Availability
16
CAP, RINSE AID MAY 8564929 Contact Us For Availability
16
MAY W10418853 MAY W10418853 Contact Us For Availability
16
SPRING, DOOR BALANCE (FOR NON-GLASS FRONT) MAY 8270020 Contact Us For Availability
16
DIVERTER, DISC VALVE MAY 8579251 Contact Us For Availability
16
MAY W10238405 MAY W10238405 Contact Us For Availability
16A
SPRING, DOOR BALANCE (FOR GLASS FRONT) MAY 8270182 Contact Us For Availability
17
MAY W10123421 MAY W10123421 Contact Us For Availability
17
MAY 8539404 MAY 8539404 Contact Us For Availability
17
MAY W10056349 MAY W10056349 Contact Us For Availability
17
WHEEL, RACK MAY 8270138 Contact Us For Availability
18
HANDLE (INCLUDES 14, 19 & 20) (OILED BRONZE) MAY W10214169 Contact Us For Availability
18
MAY 356138 MAY 356138 Contact Us For Availability
18
MAY 3400892 MAY 3400892 Contact Us For Availability
18
AXLE, ADJUSTER MAY 8268703 Contact Us For Availability
18A
HANDLE (INCLUDES 14, 19 & 20) (BLACK) MAY W10190724 Contact Us For Availability
18B
HANDLE (INCLUDES 14, 19 & 20) (WHITE) MAY W10190723 Contact Us For Availability
19
STANDOFF LEFT HAND (OILED BRONZE) MAY W10056380 Contact Us For Availability
19
MAY 8268991 MAY 8268991 Contact Us For Availability
19
INDICATOR, OPTICAL WASH MAY W10134017 Contact Us For Availability
19
MAY 8281156 MAY 8281156 Contact Us For Availability
19A
MAY W10275186 MAY W10275186 Contact Us For Availability
19B
MAY W10275187 MAY W10275187 Contact Us For Availability
19C
STANDOFF RIGHT HAND (OILED BRONZE) MAY W10056381 Contact Us For Availability
19D
MAY W10253599 MAY W10253599 Contact Us For Availability
19E
MAY W10253600 MAY W10253600 Contact Us For Availability
20
MAY W10201588 MAY W10201588 Contact Us For Availability
20
WASHER, PRONGED CUP MAY 3378128 Contact Us For Availability
20
GASKET, MOUNTING BRACKET MAY 9743002 Contact Us For Availability
21
MAY W10350437 MAY W10350437 Contact Us For Availability
21
RETAINER MAY 304666 Contact Us For Availability
21
MAY W10348407 MAY W10348407 Contact Us For Availability
21
DRAIN ASSEMBLY, DE-COUPLED MAY W10179455 Contact Us For Availability
22
SCREW, GROUNDING MAY 3400014 Contact Us For Availability
22
MAY W10056308 MAY W10056308 Contact Us For Availability
22
CLIP, DISPENSER GUARD MAY W10267076 Contact Us For Availability
23
SHIELD, TUB SOUND MAY 8573239 Contact Us For Availability
23
MAY W10179454 MAY W10179454 Contact Us For Availability
23
HANDLE, DISHRACK (REAR) MAY W10056298 Contact Us For Availability
24
MAY 9742648 MAY 9742648 Contact Us For Availability
24
PLUG, DRAIN MAY W10193605 Contact Us For Availability
25
MAY 661566 MAY 661566 Contact Us For Availability
26
STRIKE, PLATE MAY W10317686 Contact Us For Availability
27
MAY W10321574 MAY W10321574 Contact Us For Availability
28
CABLE, DOOR MAY W10158291 Contact Us For Availability
29
MAY W10195367 MAY W10195367 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ. BLACK) MAY 285006 Contact Us For Availability
NI
ACCESSORIES, DRAIN HOSE 12 FT. MAY 3385556 Contact Us For Availability
NI
MAY 350930 MAY 350930 Contact Us For Availability
NI
POWER CORD KIT (INCLUDED CORD & MISC. HARDWAR MAY 4317824 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. BISCUIT/BISQUE) MAY 4392899 Contact Us For Availability
NI
PAINT, BULK (1 QT. BISCUIT/BISQUE) MAY 4392900 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ. BISCUIT/BISQ MAY 4392901 Contact Us For Availability
NI
ACCESSORIES, MOISTURE BARRIER KIT MAY 4396277 Contact Us For Availability
NI
DISHRACK REPAIR, TINE TIP REPAIR KIT (ENOUGH MAY 4396838 Contact Us For Availability
NI
DISHRACK REPAIR, TINE TIP REPAIR KIT (ENOUGH MAY 4396840 Contact Us For Availability
NI
DISHRACK REPAIR, VINYL TOUCH-UP (4OZ SILVER A MAY 4396853 Contact Us For Availability
NI
DISHRACK REPAIR, TINE TIP REPAIR KIT (ENOUGH MAY 4396854 Contact Us For Availability
NI
DISHRACK REPAIR, VINYL TOUCH-UP (4OZ WHITE) MAY 676453 Contact Us For Availability
NI
DISHRACK REPAIR, VINYL TOUCH-UP (4OZ GREY) MAY 676455 Contact Us For Availability
NI
MAY 72017 MAY 72017 Contact Us For Availability
NI
MAY 72032 MAY 72032 Contact Us For Availability
NI
PAINT, BULK (1 QT. WHITE) MAY 799344 Contact Us For Availability
NI
ANTI-TIP KIT, FLOOR MOUNT KIT MAY 8171477 Contact Us For Availability
NI
ACCESSORIES, SIDE PANEL KITS (WHITE) MAY 8171656 Contact Us For Availability
NI
ACCESSORIES, SIDE PANEL KITS (BLACK) MAY 8171657 Contact Us For Availability
NI
ACCESSORIES, SIDE PANEL KITS (BISCUIT/BISQUE) MAY 8171658 Contact Us For Availability
NI
ACCESSORIES, SIDE PANEL KITS (STAINLESS STEEL MAY 8171659 Contact Us For Availability
NI
ANTI-TIP KIT, SIDE MOUNT KIT MAY 8212560 Contact Us For Availability
NI
MAY W10702080 MAY W10702080 Contact Us For Availability
NI
MAY W10702081 MAY W10702081 Contact Us For Availability
× ![]()
