Model Whirlpool JDB3010AWT DISHWASHER – Common Parts &amp; Diagrams

1

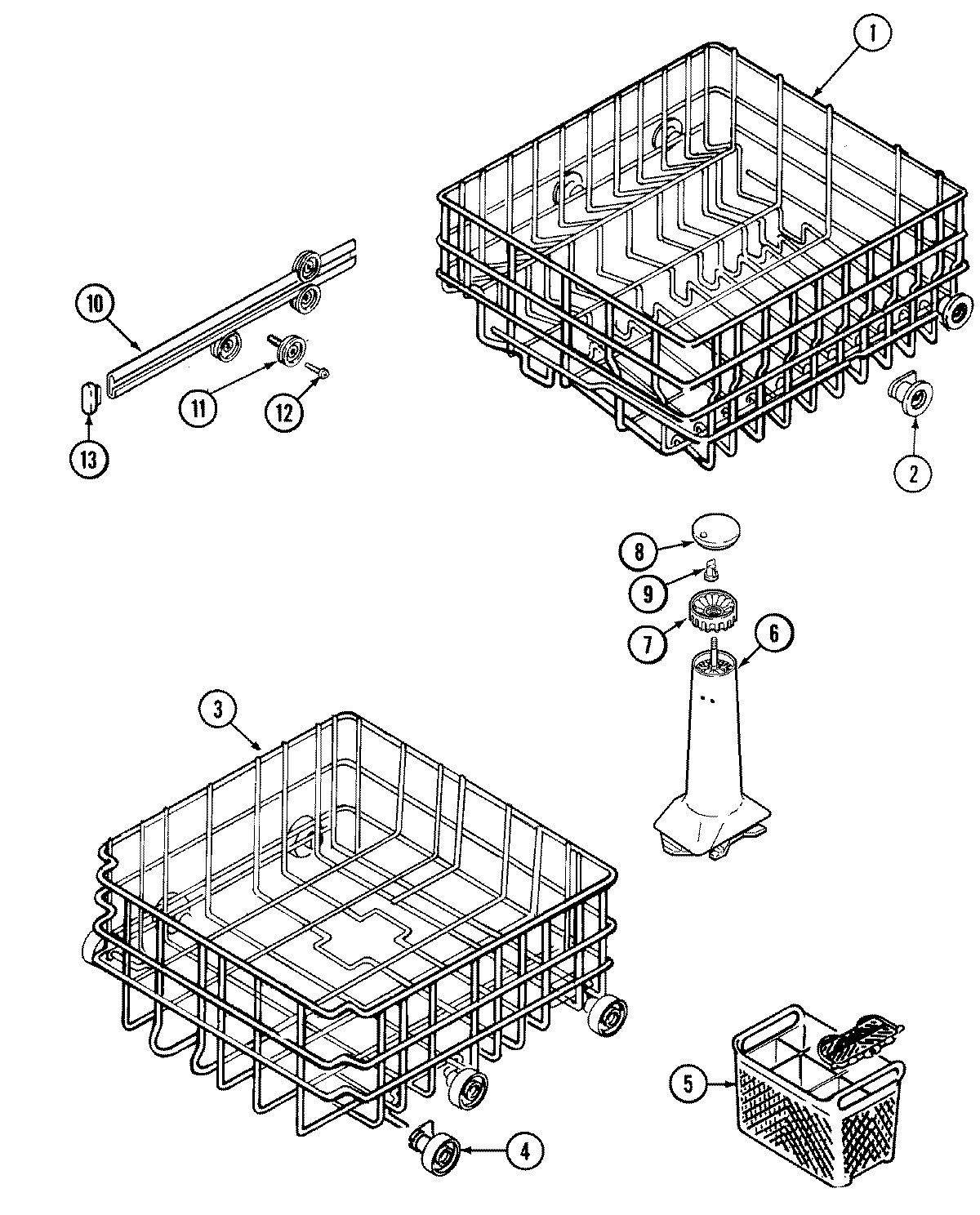

UPPER RACK ASSY WPL 903092 Contact Us For Availability

1

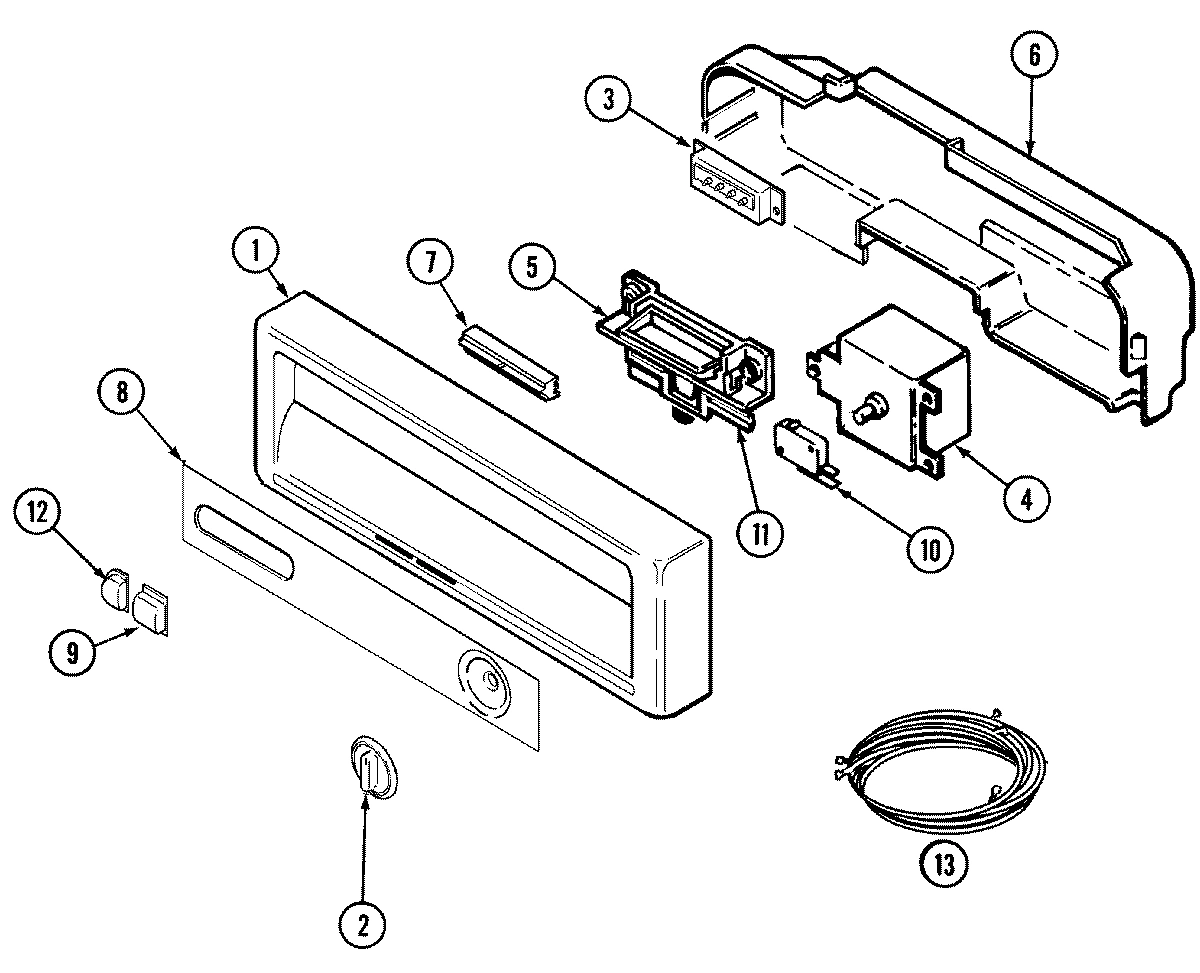

PANEL, CONTROL (BLK) WPL 99001770 Contact Us For Availability

1

INSERT, FRONT PANEL (BLK/WHT) WPL 99001659 Contact Us For Availability

2

WP903093 Whirlpool Dishwasher Rack Wheel In Stock WPL WP903093 $6.00

2

WP99001359 Whirlpool Dishwasher Water Valve In Stock WPL WP99001359 $30.62

2

WP99001788 Whirlpool Dishwasher Spray Arm In Stock WPL WP99001788 $51.93

2

KNOB, TIMER (BLK) WPL 99002132 Contact Us For Availability

2

FILLER, FRONT PANEL WPL Y913184 Contact Us For Availability

3

WP596669 Whirlpool Hose Clamp In Stock WPL WP596669 $2.51

3

RING, SEAL WPL 912313 Contact Us For Availability

3

RACK ASSEMBLY (LWR) WPL 99001515 Contact Us For Availability

3

RACK ASSEMBLY (LWR) WPL 99002395 Contact Us For Availability

3

SWITCH, SELECTOR WPL 99002081 Contact Us For Availability

3

SWITCH, CONTROL (4-BUTTON) WPL 99002391 Contact Us For Availability

3

TRIM, SIDE (BLK) WPL 99001350 Contact Us For Availability

3

TRIM, BOTTOM (BLK) WPL Y912936 Contact Us For Availability

3

SCREW WPL Y913157 Contact Us For Availability

4

WP99002780 Whirlpool Lower Wheel Assembly In Stock WPL WP99002780 $4.43

4

HOSE, INJECTOR WPL 912633 Contact Us For Availability

4

NUT, RESERVOIR WPL Y913060 Contact Us For Availability

4

FILTER ASSY., SECONDARY WPL 99001789 Contact Us For Availability

4

TIMER WPL 99002056 Contact Us For Availability

4

RIVET WPL 912024 Contact Us For Availability

4

GROUND WIRE, REINFORCEMENT WPL 99001688 Contact Us For Availability

4

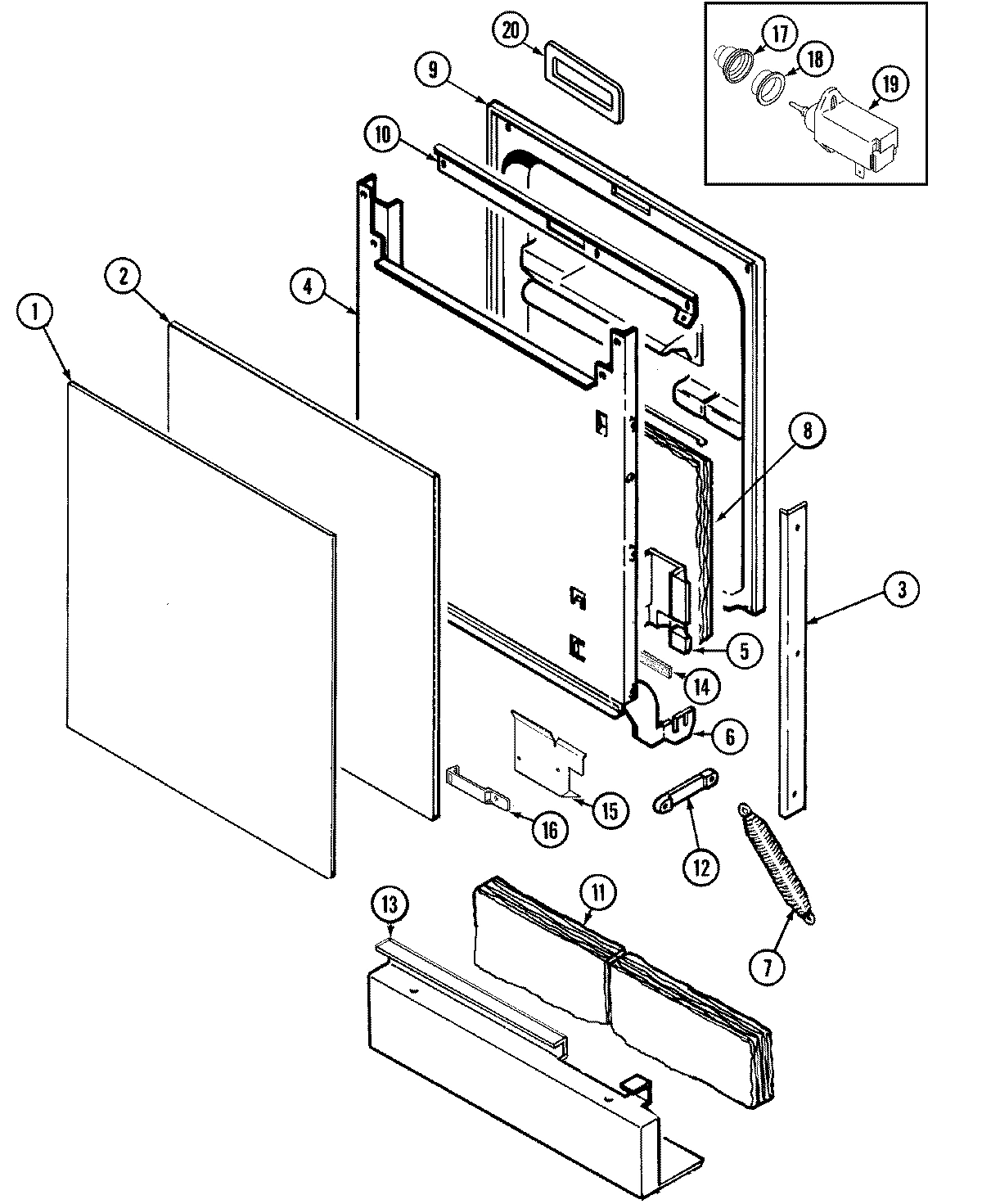

DOOR, OUTER WPL 99002176 Contact Us For Availability

5

WP33002917 Whirlpool Screw Backorder WPL WP33002917 $2.55

5

WP6-918873 Whirlpool Silverware Basket In Stock WPL WP6-918873 $26.54

5

WP99002240 Whirlpool Dishwasher Bracket Backorder WPL WP99002240 $32.59

5

SCREW, SECONDARY FILTER WPL 99001790 Contact Us For Availability

5

INJECTOR, WATER WPL 912533 Contact Us For Availability

5

RETAINER, WIRE WPL 99002188 Contact Us For Availability

5

SPACER, FOAM WPL 99002362 Contact Us For Availability

6

SLIDER WPL 99001289 Contact Us For Availability

6

TOWER, SPRAY (W/SHAFT-GRAY) WPL 99001533 Contact Us For Availability

6

BARRIER, CONTROL PANEL WPL 99001545 Contact Us For Availability

6

SCREW WPL 99001075 Contact Us For Availability

6

HINGE (LT) WPL 99001898 Contact Us For Availability

6

HINGE (RT) WPL 99001899 Contact Us For Availability

7

WP912652 Whirlpool Dishwasher Spring In Stock WPL WP912652 $4.50

7

WPW10116816 Whirlpool Dishwasher Spring Backorder WPL WPW10116816 $4.00

7

ASSEMBLY, RINSE ARM WPL 99002043 Contact Us For Availability

7

DIVERTER, SPRAY (GRAY) WPL 99001442 Contact Us For Availability

7

PANEL, TOE (BLK) WPL 912640 Contact Us For Availability

7

INSERT, VENT LINER WPL 99002009 Contact Us For Availability

8

WP6-920580 Whirlpool Dishwasher Insulation Pa Backorder WPL WP6-920580 $12.48

8

WP902899 Whirlpool Dishwasher Wax Motor Backorder WPL WP902899 $41.44

8

DOOR LATCH HOOK ASSY WPL 903098 Contact Us For Availability

8

SPRING, LATCH WPL 912648 Contact Us For Availability

8

RETAINER, LATCH WPL 912650 Contact Us For Availability

8

HOOK, LATCH WPL 99001355 Contact Us For Availability

8

SCREW, LATCH WPL Y912873 Contact Us For Availability

8

FACIA, CONTROL PANEL WPL 99002246 Contact Us For Availability

9

PIVOT WPL 99001287 Contact Us For Availability

9

NUT, DISCHARGE HOUSING WPL 99001426 Contact Us For Availability

9

SUPPORT, WASH ARM WPL 99002041 Contact Us For Availability

9

HOSE, TOP SHOWER WPL 912647 Contact Us For Availability

9

BUTTON, SWITCH (MDL-BLK) WPL 99001493 Contact Us For Availability

9

DOOR, INNER (W/VENT ASSY) WPL 99001775 Contact Us For Availability

WP99002207 Whirlpool Dishwasher Door Switch Backorder WPL WP99002207 $14.51

SEAL KIT (MOTOR/PUMP) WPL 99002103 Contact Us For Availability

VENT, INLET WPL Y913095 Contact Us For Availability

BAR, REINFORCEMENT WPL Y912668 Contact Us For Availability

W10834433 Whirlpool Dishwasher Handle Backorder WPL W10834433 $55.77

WPY912798 Whirlpool Dishwasher Tub Washer Whe Backorder WPL WPY912798 $2.55

ACTUATOR, RINSE AID WPL 99001290 Contact Us For Availability

DISCHARGE HOUSING ASSY (UPR) WPL 99002461 Contact Us For Availability

WASHER, TUB TOP WPL 910069 Contact Us For Availability

PAD, LATCH WPL 99001401 Contact Us For Availability

FOAM, LATCH HANDLE WPL 99001402 Contact Us For Availability

INSULATION, ACCESS PANEL WPL Y912836 Contact Us For Availability

WP912653 Whirlpool Dishwasher Door Spring Lin In Stock WPL WP912653 $3.06

WP99001553 Whirlpool Dishwasher Grommet Backorder WPL WP99001553 $35.82

WP99002947 Whirlpool Tub Wheel In Stock WPL WP99002947 $5.64

SCREW, IMPELLER WPL 910654 Contact Us For Availability

LEVER, ACTUATOR WPL 912014 Contact Us For Availability

BUTTON, SWITCH (END-BLK) WPL 99001491 Contact Us For Availability

WP6-912366 Whirlpool Dishwasher Screw Backorder WPL WP6-912366 $2.55

WP99002135 Whirlpool Dishwasher Rack Stop In Stock WPL WP99002135 $3.70

WIRE, JUMPER (MOTOR) WPL 99002104 Contact Us For Availability

PIN, LEVER PIVOT WPL 912015 Contact Us For Availability

HARNESS, WIRE WPL 99002044 Contact Us For Availability

HARNESS, WIRE WPL 99002392 Contact Us For Availability

PANEL, ACCESS (BLK) WPL 912637 Contact Us For Availability

WP6-912678 Whirlpool Hinge Pin In Stock WPL WP6-912678 $3.70

WP99002069 Whirlpool Dishwasher Impeller Backorder WPL WP99002069 $31.06

LID, DETERGENT CUP WPL 903108 Contact Us For Availability

SPRING, CUP LID WPL Y912547 Contact Us For Availability

CAP, RACK (WHT) WPL 99002016 Contact Us For Availability

CAP, RACK (LIGHT GRAY) WPL 99002017 Contact Us For Availability

RING, LOCKING WPL Y912686 Contact Us For Availability

MANUAL, USE & CARE WPL 99002247 Contact Us For Availability

DEFLECTOR, WATER WPL WP99001885 No Longer Available

WPW10339879 Whirlpool Wire Tie In Stock WPL WPW10339879 $2.51

PLATE, SUCTION WPL 99001793 Contact Us For Availability

PLATE, SUCTION WPL 99002279 Contact Us For Availability

SHIELD, TUB (BLK) WPL 912641 Contact Us For Availability

WP489128 Whirlpool Refrigerator Screw Backorder WPL WP489128 $4.63

SUPPORT, FILTER WPL 99001794 Contact Us For Availability

SUPPORT, FILTER WPL 99002280 Contact Us For Availability

THERMOSTAT, LIMITING WPL 99001852 Contact Us For Availability

STRAP, HARNESS WPL 99001444 Contact Us For Availability

17

O-RING WPL 912510 Contact Us For Availability

17

TUBE, INLET WPL Y913096 Contact Us For Availability

17

GROMMET, VENT WPL 99001805 Contact Us For Availability

18

DISC, CUTTER WPL 912310 Contact Us For Availability

18

BRACKET, ADJUSTING WPL 912651 Contact Us For Availability

18

RETAINER, GROMMET WPL 99001806 Contact Us For Availability

19

61002031 Whirlpool Air Conditioner Handle Scr Backorder WPL 61002031 $30.88

19

SCREW, ADJUSTING BRACKET WPL 912613 Contact Us For Availability

19

MOTOR, WAX WPL 99001807 Contact Us For Availability

COVER, DRAIN WPL 99001795 Contact Us For Availability

NUT, HEATING ELEMENT WPL 912645 Contact Us For Availability

SLEEVE, INSULATING WPL 99001333 Contact Us For Availability

SEAL, VENT BACK WPL 99001783 Contact Us For Availability

21

FLAPPER, VALVE WPL 99001799 Contact Us For Availability

21

SCREW WPL 912622 Contact Us For Availability

21

CAP, AIR INLET WPL Y912659 Contact Us For Availability

22

DRAIN IMPELLER ASSEMBLY WPL 903304 Contact Us For Availability

22

O-RING, HEATER WPL Y913079 Contact Us For Availability

23

WP99002360 Whirlpool Dishwasher Heat Element Backorder WPL WP99002360 $69.18

23

ELEMENT, HEATING WPL 99001995 Contact Us For Availability

23

CLIP, RETAINER WPL 99001800 Contact Us For Availability

24

SEAL, PUMP WPL 902882 Contact Us For Availability

24

BRACKET, ELEMENT WPL 99002361 Contact Us For Availability

24

BRACKET, HEATING ELEMENT WPL Y912541 Contact Us For Availability

25

GASKET, PUMP WPL 912529 Contact Us For Availability

26

WPW10143258 Whirlpool Dishwasher Leg Leveler Backorder WPL WPW10143258 $5.45

26

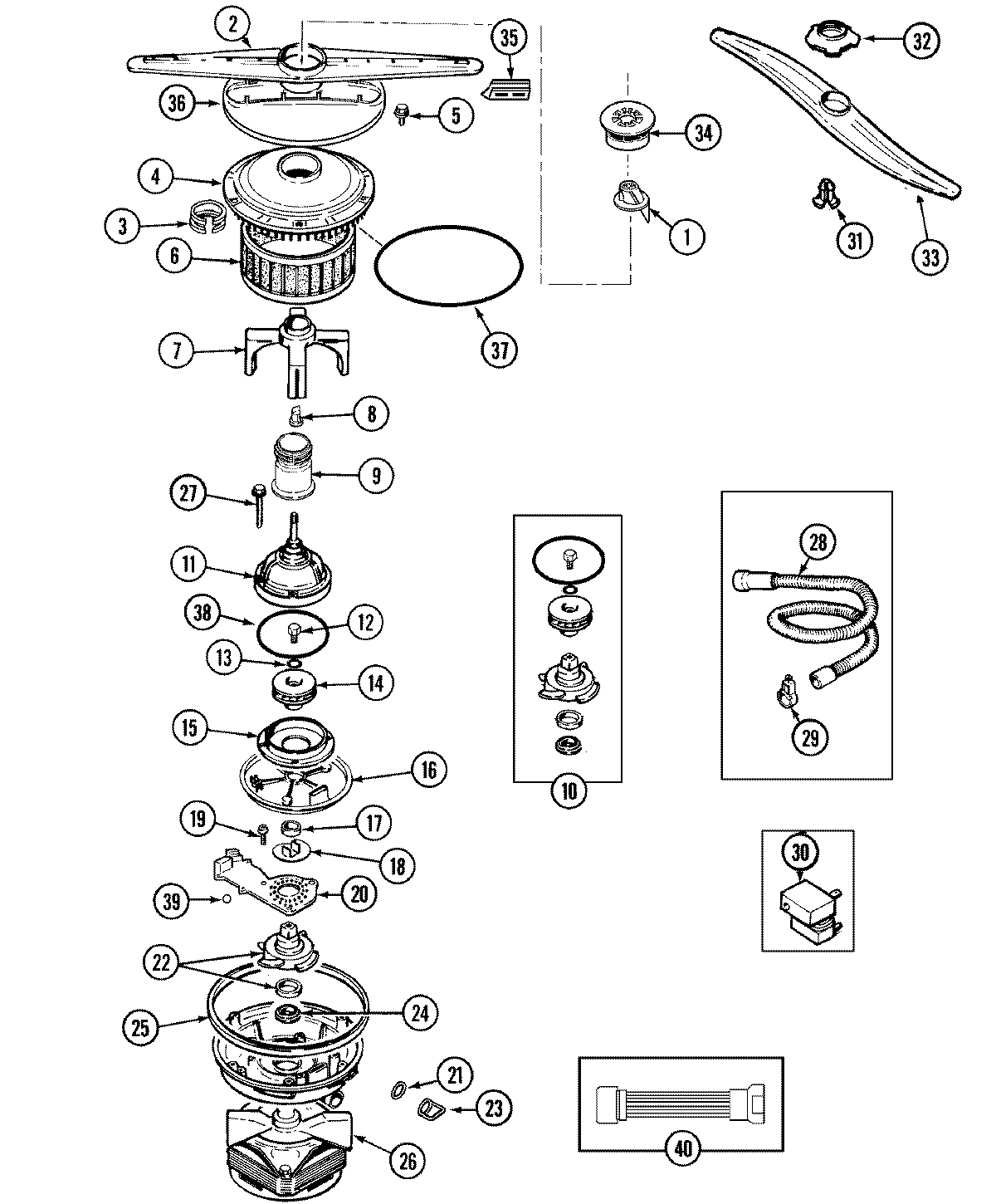

MOTOR&PUMP HOUSING ASSEMBLY WPL 99002087 Contact Us For Availability

26

MOTOR/PUMP HOUSING ASSEMBLY WPL 99002480 Contact Us For Availability

27

4396672 Whirlpool Dishwasher Connector Backorder WPL 4396672 $7.61

27

SCREW WPL 912383 Contact Us For Availability

27

BOX, TERMINAL WPL 912563 Contact Us For Availability

28

WP99002363 Whirlpool Dishwasher Float Backorder WPL WP99002363 $3.70

29

WP616099 Whirlpool Clamp Backorder WPL WP616099 $3.29

29

SCREW WPL 912012 Contact Us For Availability

30

RELAY, MOTOR WPL 99001425 Contact Us For Availability

30

BRACKET, RELAY WPL Y913156 Contact Us For Availability

30

BRACKET, WATER LEVEL SWITCH WPL 912656 Contact Us For Availability

31

WP489491 Whirlpool Refrigerator Screw Backorder WPL WP489491 $2.55

31

RETAINER, SNAP SPRAY WPL Y912681 Contact Us For Availability

32

FASTENER, INSULATION WPL 911917 Contact Us For Availability

32

FASTENER, INSULATION (COLLAR) WPL 99002415 Contact Us For Availability

ARM, WASH (UPR-WHT) WPL 99002418 Contact Us For Availability

FASTENER, PANEL WPL 99001057 Contact Us For Availability

STRAP, INSULATION WPL 99001076 Contact Us For Availability

INSULATION, TUB WPL 99002454 Contact Us For Availability

34

WP99001428 Whirlpool Dishwasher Nut Backorder WPL WP99001428 $3.76

34

HOOK, DRAIN HOSE WPL Y912790 Contact Us For Availability

35

SHIELD, RADIANT WPL Y912895 Contact Us For Availability

35

SEAL RING, INJECTOR WPL 912644 Contact Us For Availability

36

WP99001796 Whirlpool Dishwasher Guard Backorder WPL WP99001796 $13.58

36

STRAP, SUPPORT WPL 912654 Contact Us For Availability

37

O-RING WPL 99001797 Contact Us For Availability

38

GASKET, DISCHARGE HSNG (UPR) WPL 99001326 Contact Us For Availability

39

BALL, CHECK WPL 99001798 Contact Us For Availability

39

BALL, CHECK WPL 99002281 Contact Us For Availability

NI

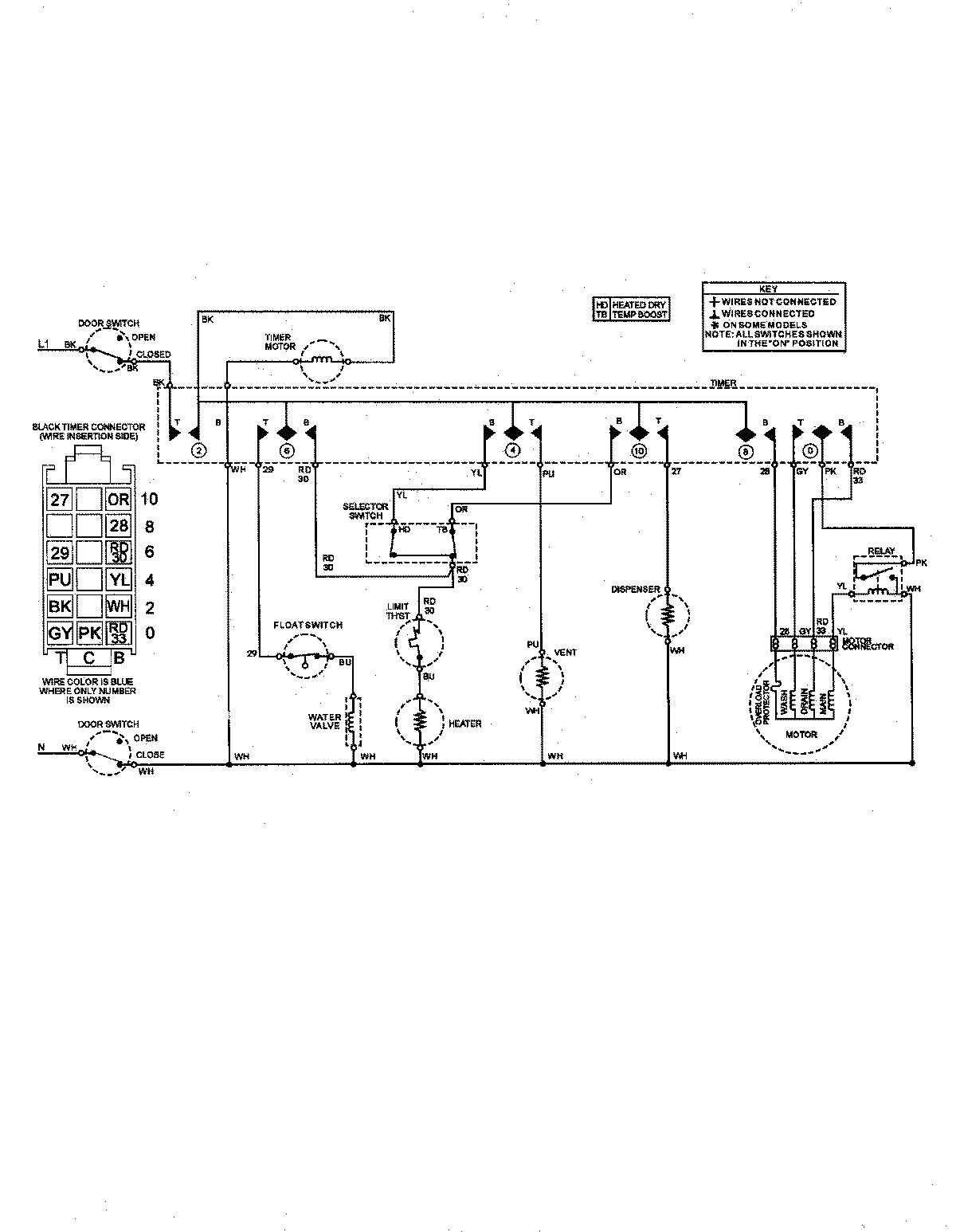

WIRING INFORMATION WPL 15002659 Contact Us For Availability
