Model JDB3000AWS3 – Common Parts & Diagrams
01 - DOOR AND PANEL PARTS
02 - CONTROL PANEL AND LATCH PARTS

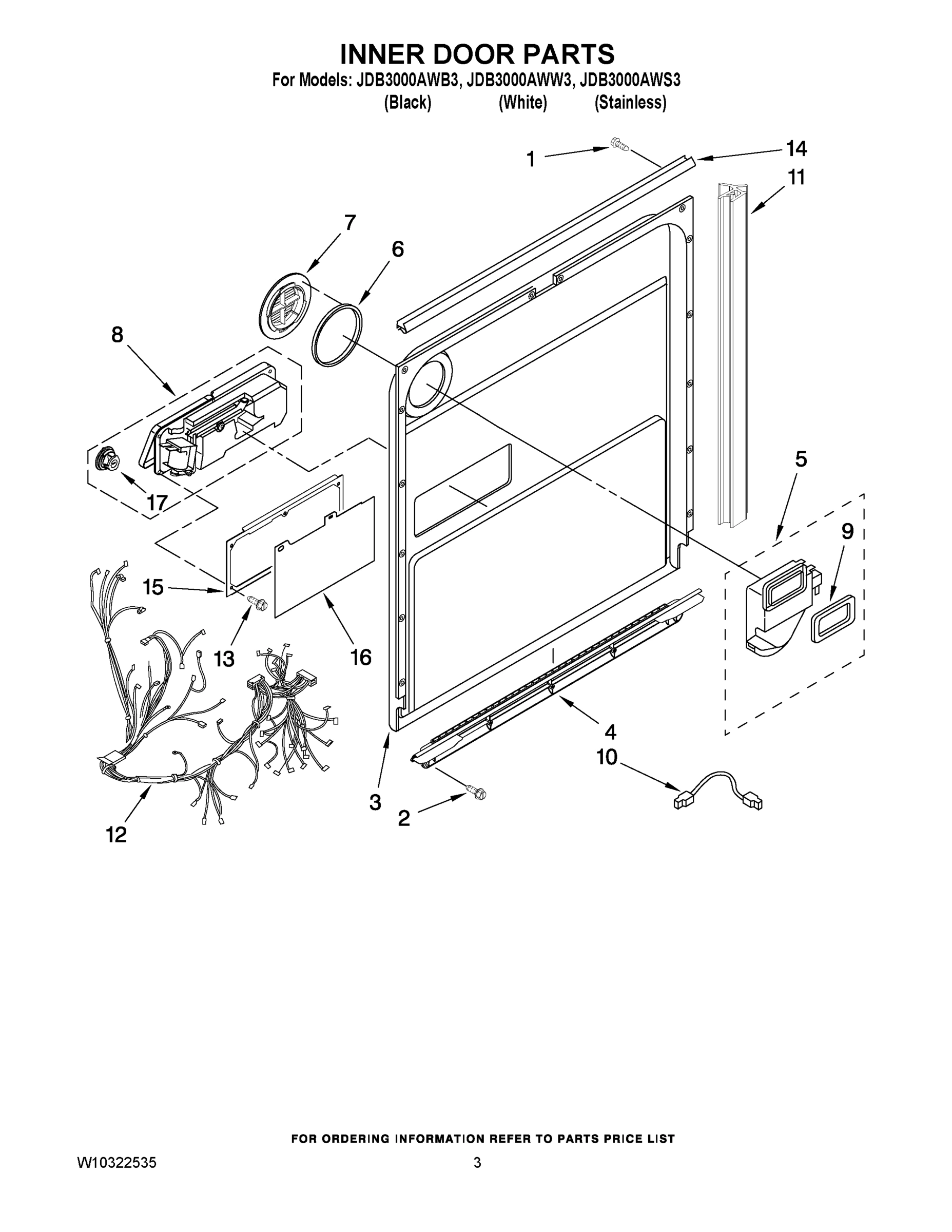

03 - INNER DOOR PARTS

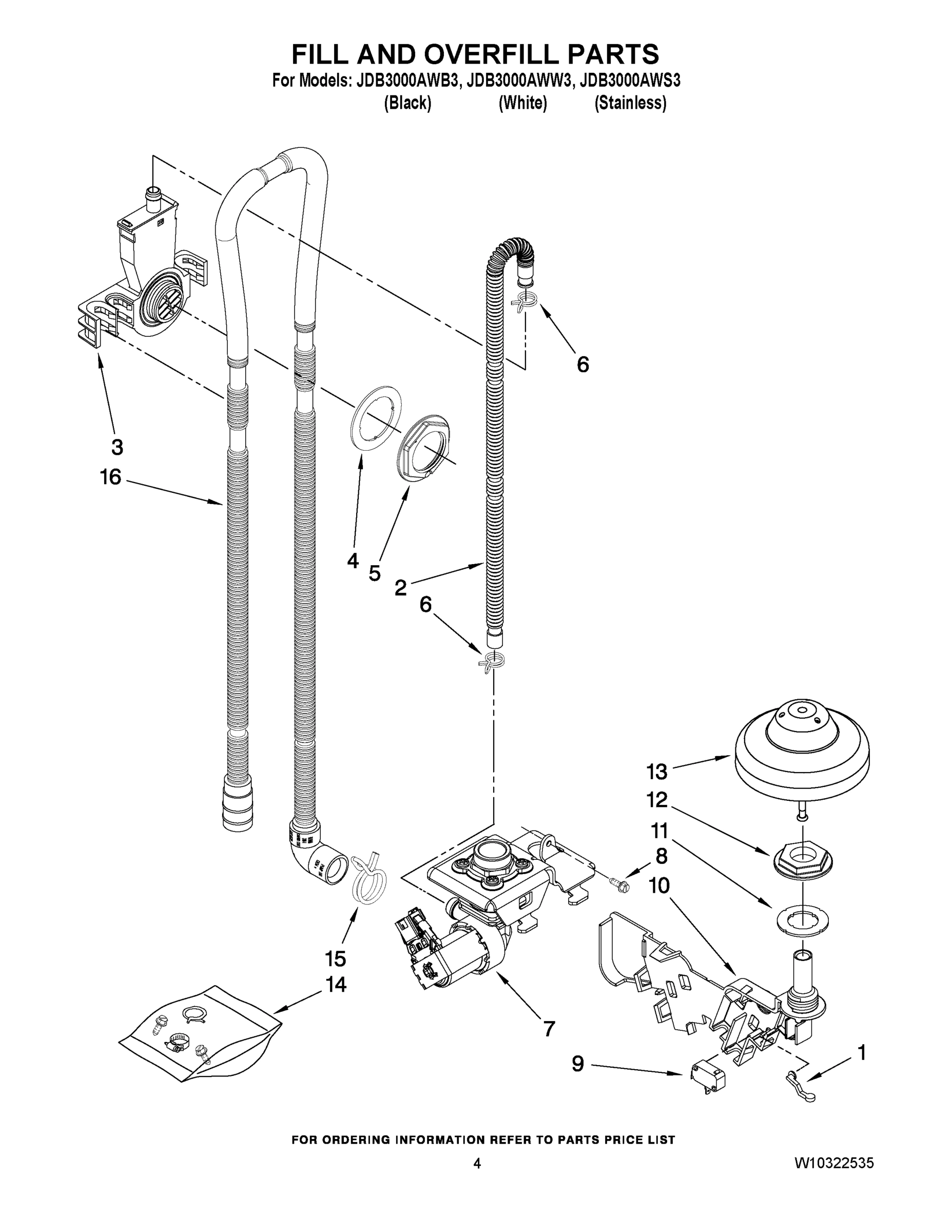

04 - FILL AND OVERFILL PARTS
05 - TUB AND FRAME PARTS

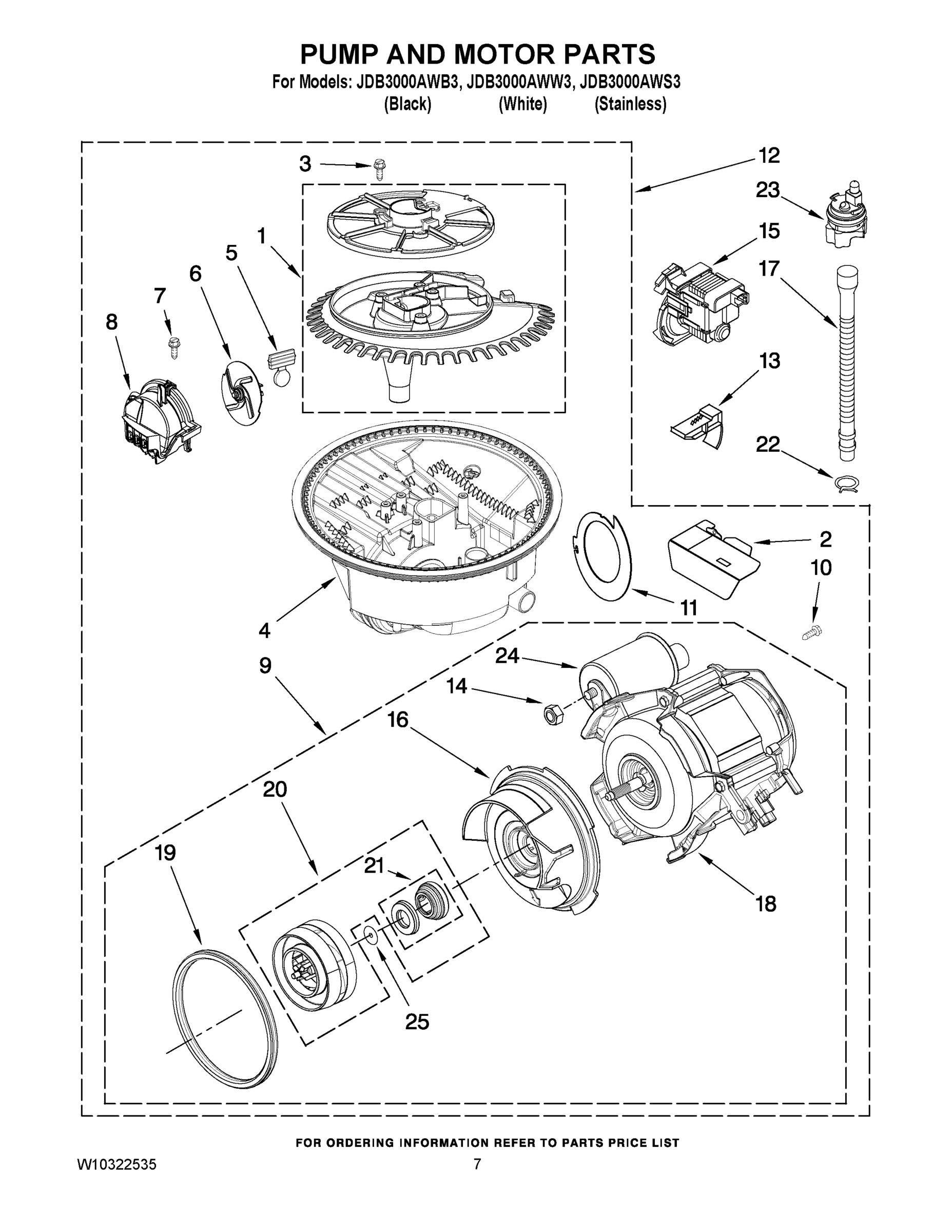

06 - PUMP AND MOTOR PARTS

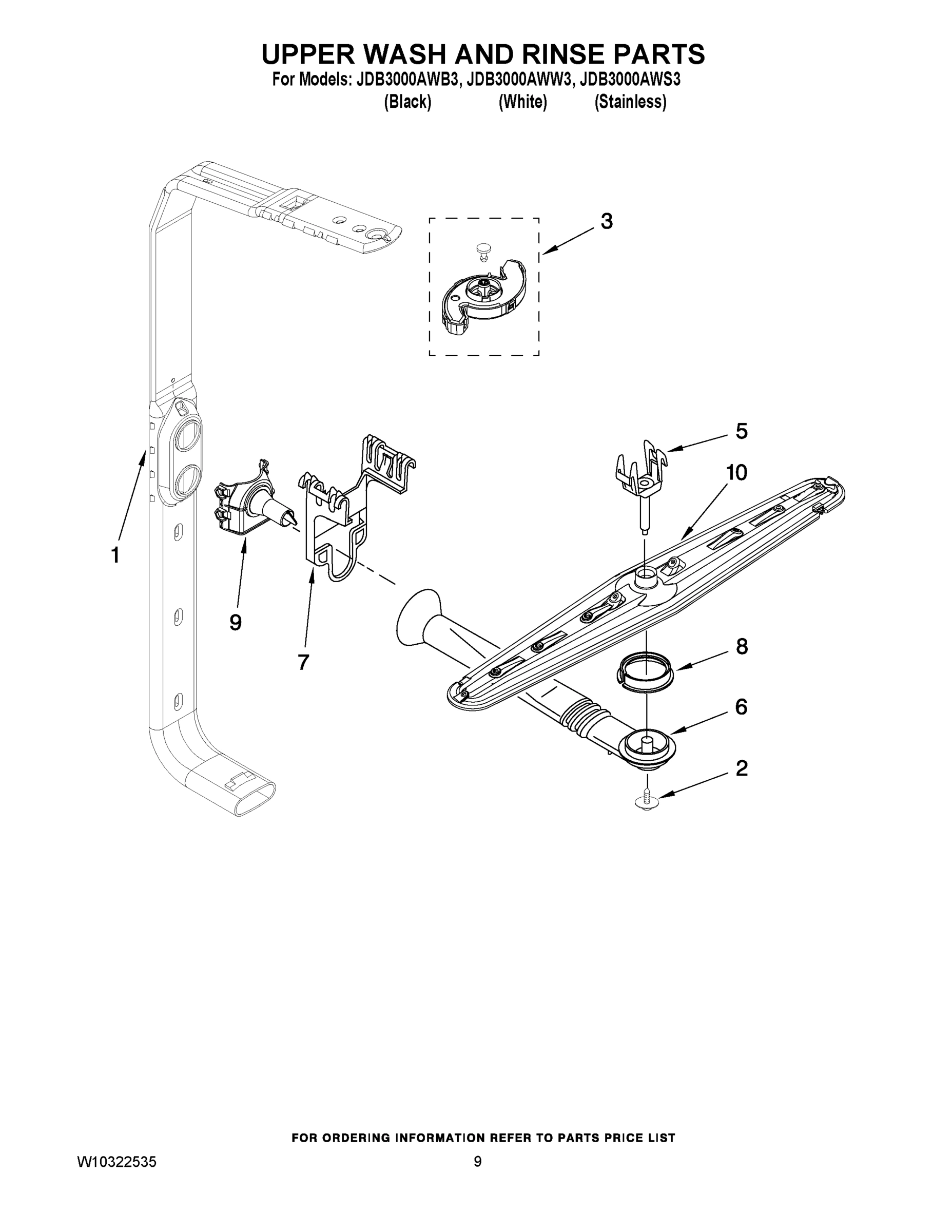

07 - UPPER WASH AND RINSE PARTS

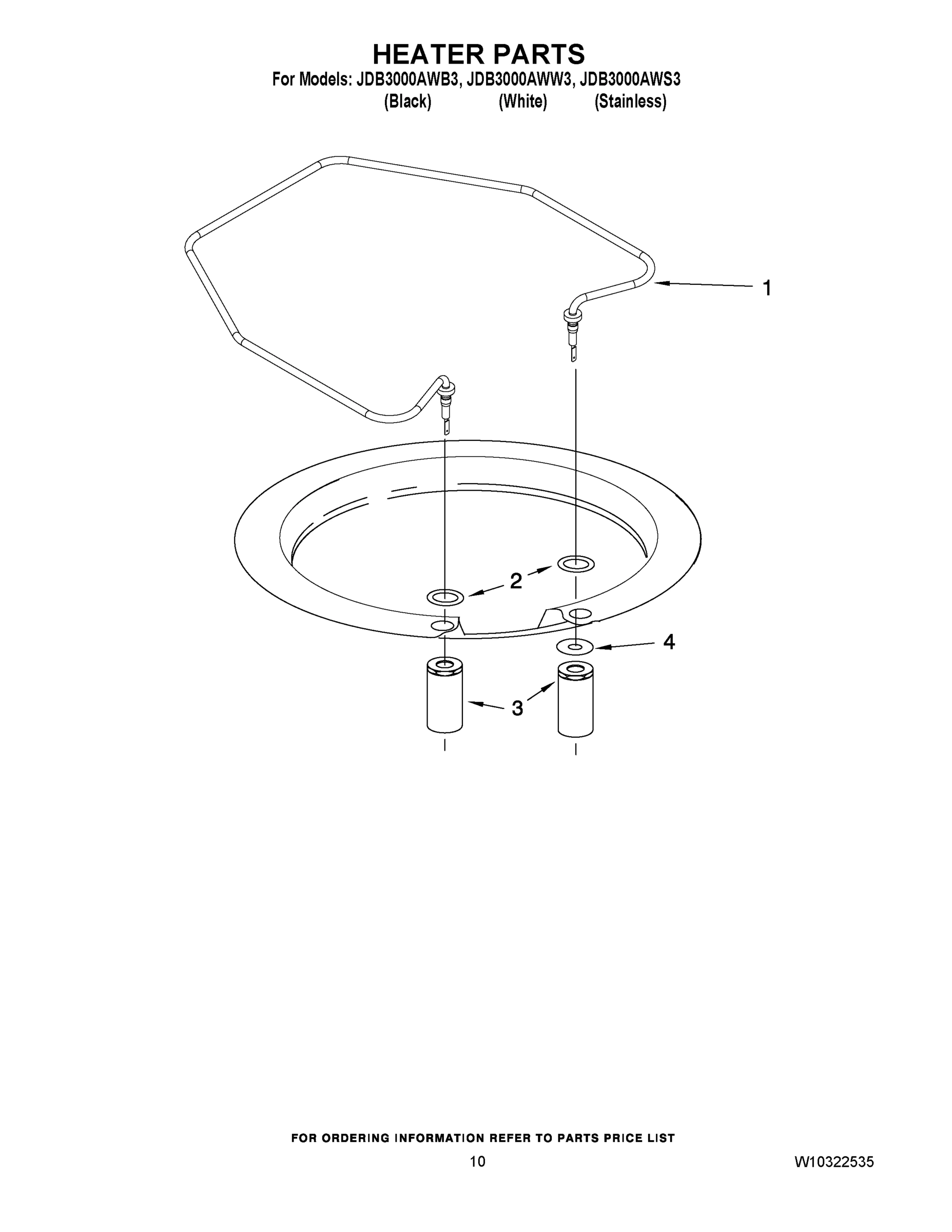

08 - HEATER PARTS

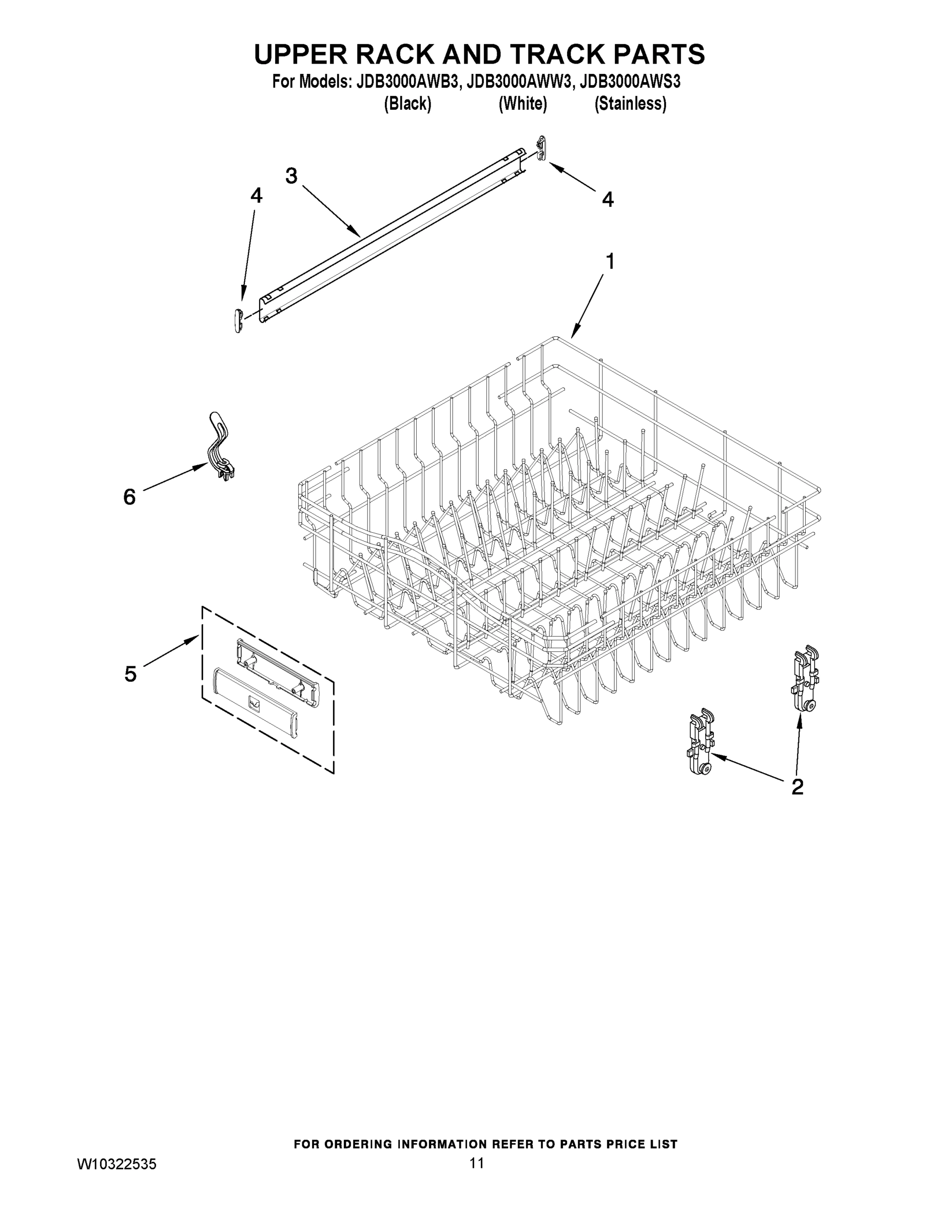

09 - UPPER RACK AND TRACK PARTS

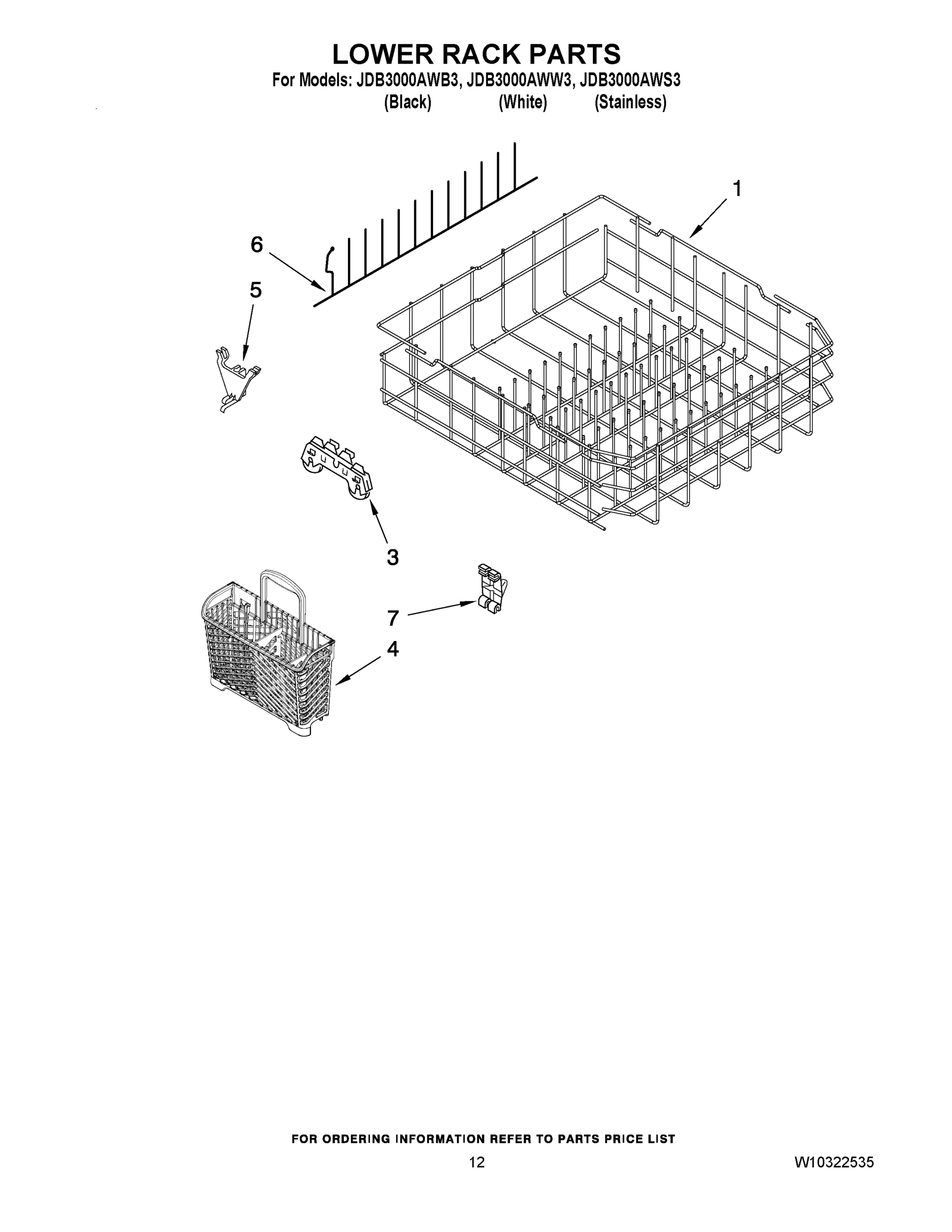

10 - LOWER RACK PARTS

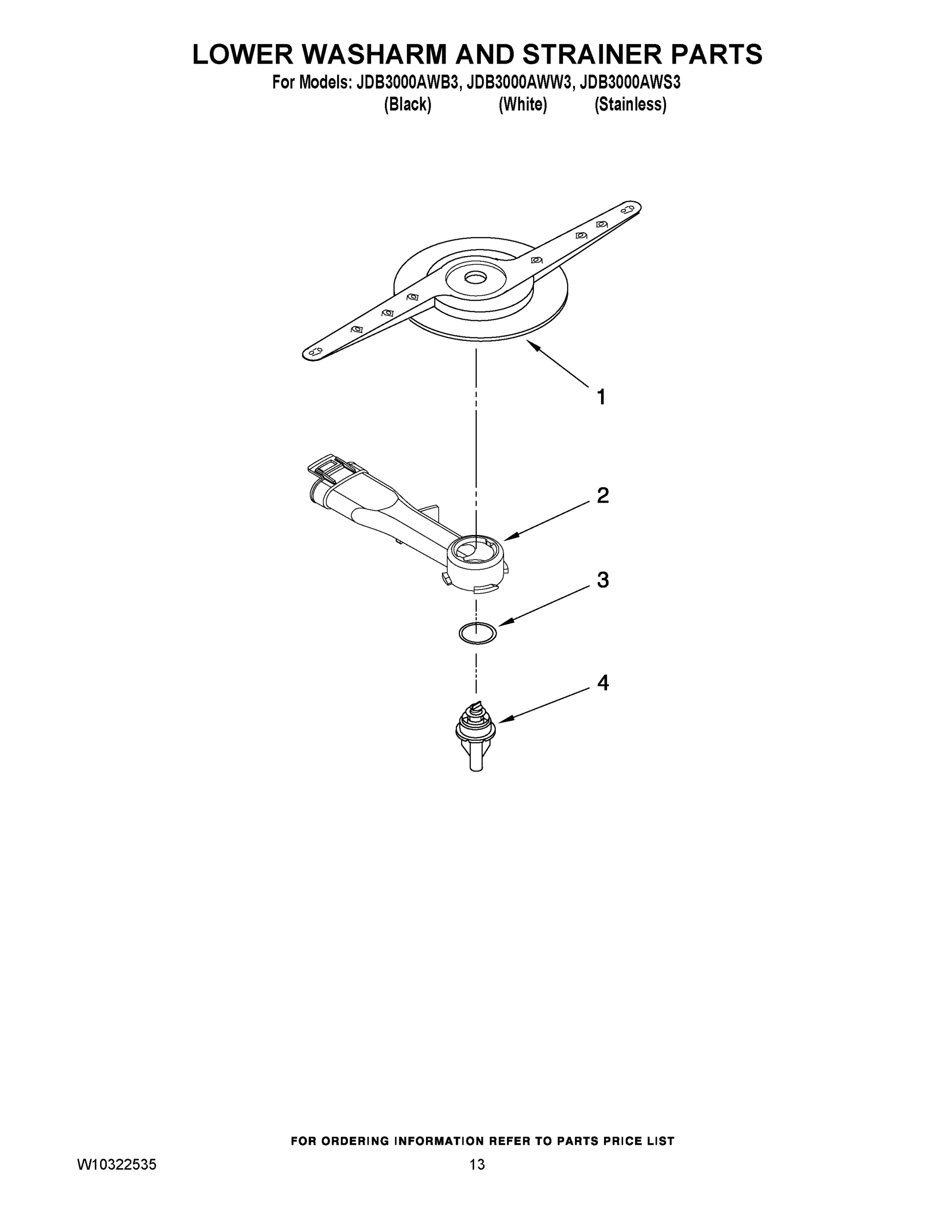

11 - LOWER WASHARM AND STRAINER PARTS
12 - OPTIONAL PARTS (NOT INCLUDED)
