Model Maytag JDB3000AWS0 DISHWASHER – Common Parts & Diagrams

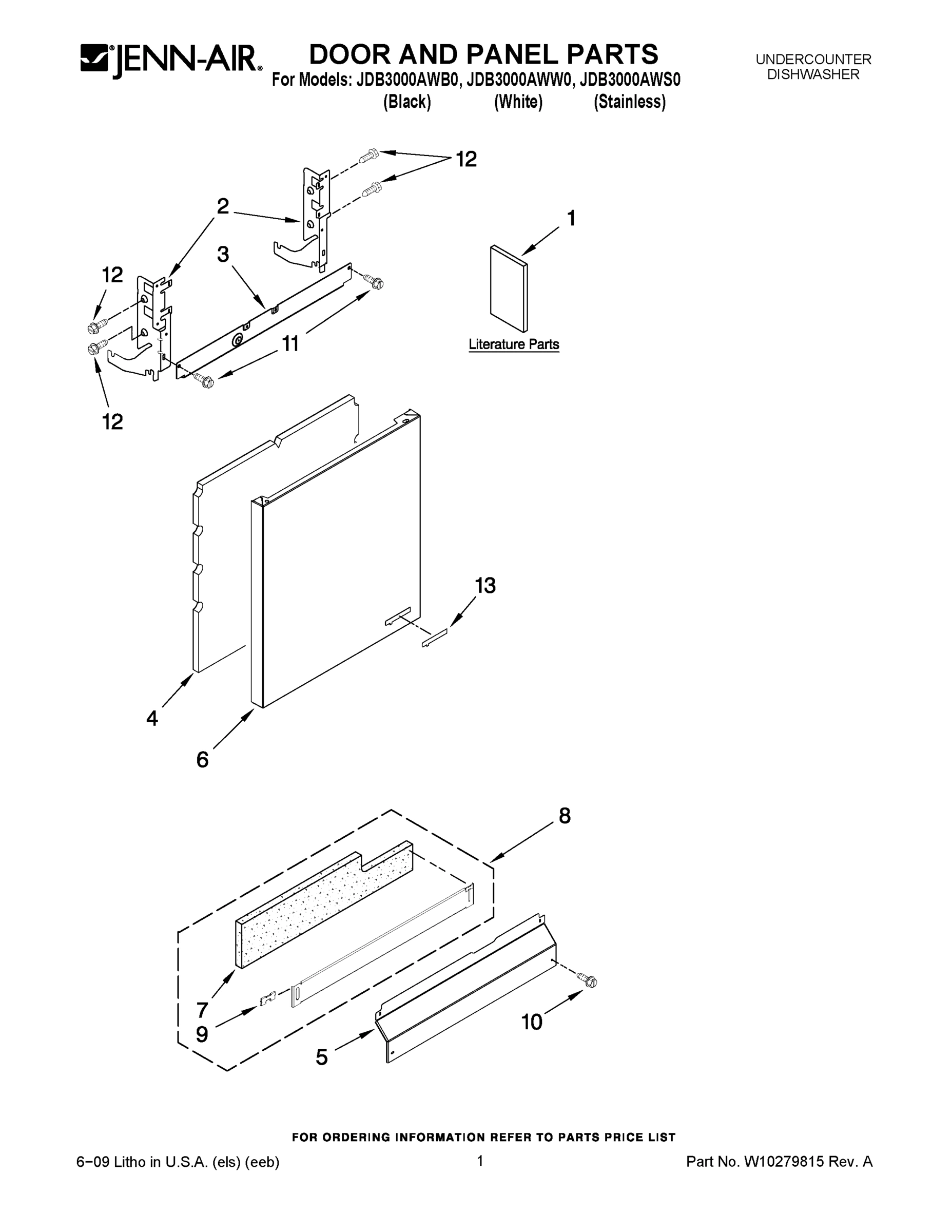

01 - DOOR AND PANEL PARTS

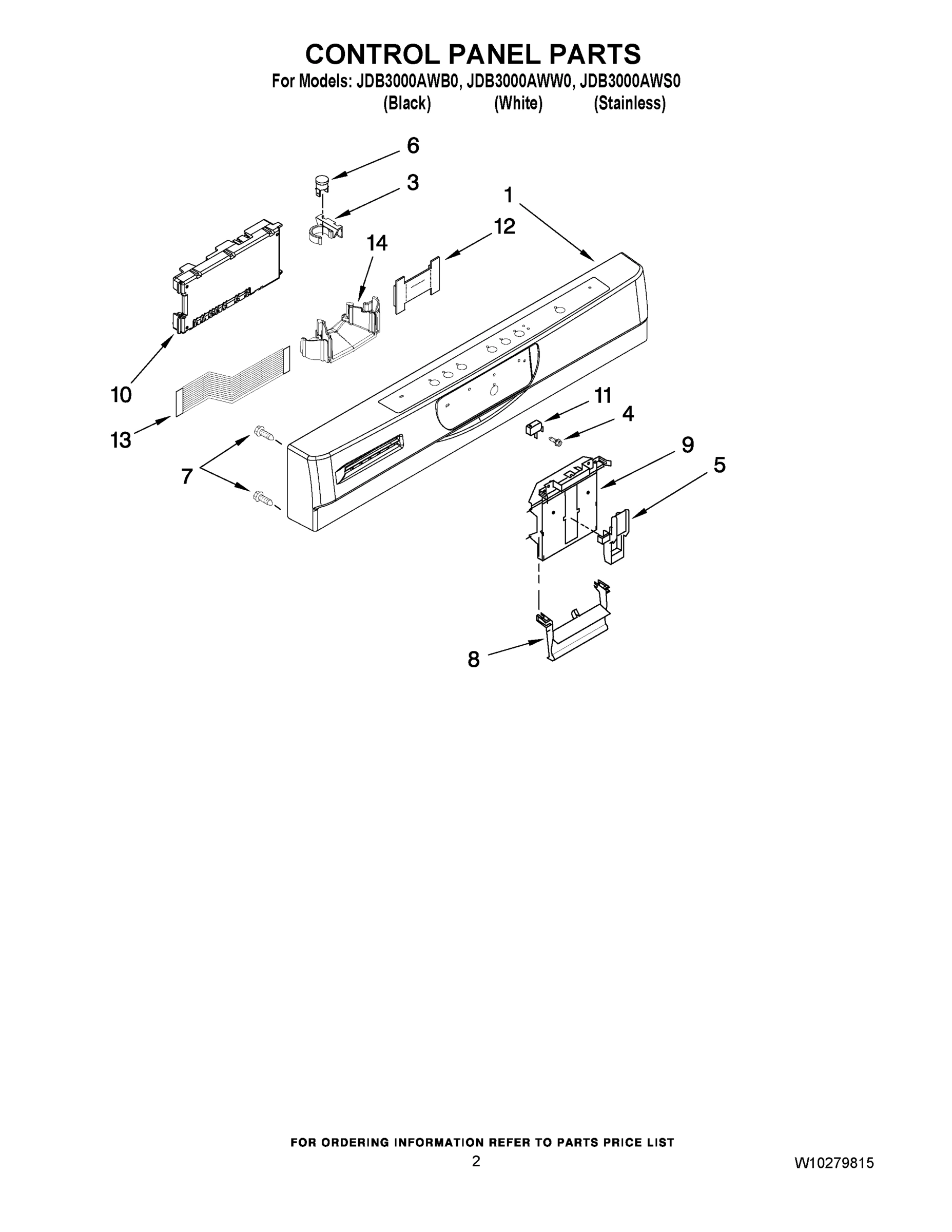

02 - CONTROL PANEL PARTS
03 - DOOR AND LATCH PARTS
04 - FILL AND OVERFILL PARTS
05 - TUB AND FRAME PARTS
06 - PUMP AND MOTOR PARTS
07 - UPPER WASH AND RINSE PARTS
08 - HEATER PARTS
09 - UPPER RACK AND TRACK PARTS
10 - LOWER RACK PARTS
11 - LOWER WASHARM AND STRAINER PARTS
12 - OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Maytag JDB3000AWS0 DISHWASHER
1
TECH SHEET MAY W10142800 Contact Us For Availability
1
MAY W10208698 MAY W10208698 Contact Us For Availability
1
MAY W10208699 MAY W10208699 Contact Us For Availability
1
MAY W10208727 MAY W10208727 Contact Us For Availability
1
MAY W10208728 MAY W10208728 Contact Us For Availability
1
MAY W10208694 MAY W10208694 Contact Us For Availability
1
MAY W10208747 MAY W10208747 Contact Us For Availability
1
MAY W10208748 MAY W10208748 Contact Us For Availability
1
SCREW, DOOR MAY 3369051 Contact Us For Availability
1
MAY 8268892 MAY 8268892 Contact Us For Availability
1
TUB ASSEMBLY MAY W10164353 Contact Us For Availability
1
MAY 8534952 MAY 8534952 Contact Us For Availability
1
MAY W10077896 MAY W10077896 Contact Us For Availability
1
MAY 8537057 MAY 8537057 Contact Us For Availability
1
MAY W10194864 MAY W10194864 Contact Us For Availability
1
MAY W10056350 MAY W10056350 Contact Us For Availability
1
MAY W10238415 MAY W10238415 Contact Us For Availability
2
MAY 8534853 MAY 8534853 Contact Us For Availability
2
MAY 8534854 MAY 8534854 Contact Us For Availability
2
MAY 8281217 MAY 8281217 Contact Us For Availability
2
MAY 8531412 MAY 8531412 Contact Us For Availability
2
SCREW MAY 3400072 Contact Us For Availability
2
MAY 8283527 MAY 8283527 Contact Us For Availability
2
MAY 8533889 MAY 8533889 Contact Us For Availability
2
WASHER, HEATER ELEMENT MAY 717273 Contact Us For Availability
2
MAY W10234628 MAY W10234628 Contact Us For Availability
2
MAY W10077899 MAY W10077899 Contact Us For Availability
3
MAY 8268983 MAY 8268983 Contact Us For Availability
3
MAY 8546546 MAY 8546546 Contact Us For Availability
3
MAY W10056249 MAY W10056249 Contact Us For Availability
3
MAY 8531325 MAY 8531325 Contact Us For Availability
3
MAY W10112096 MAY W10112096 Contact Us For Availability
3
MAY 3400069 MAY 3400069 Contact Us For Availability
3
SPRAYARM, 3RD LEVEL MAY 8557720 Contact Us For Availability
3
NUT, HEATER ELEMENT MAY 8268548 Contact Us For Availability
3
TRACK, RACK MAY 3385089 Contact Us For Availability
3
MAY W10238410 MAY W10238410 Contact Us For Availability
3
MAY 8268340 MAY 8268340 Contact Us For Availability
4
MAY W10073520 MAY W10073520 Contact Us For Availability
4
MAY 3400412 MAY 3400412 Contact Us For Availability
4
MAY W10077883 MAY W10077883 Contact Us For Availability
4
MAY 8531323 MAY 8531323 Contact Us For Availability
4
MAY W10082838 MAY W10082838 Contact Us For Availability
4
MAY 8572618 MAY 8572618 Contact Us For Availability
4
RETAINER, SPRING GRIP MAY 3400931 Contact Us For Availability
4
MAY W10082860 MAY W10082860 Contact Us For Availability
4
MAY 6-918872 MAY 6-918872 Contact Us For Availability
4
MAY W10077898 MAY W10077898 Contact Us For Availability
5
ACCESS PANEL (BLACK) MAY 8573255 Contact Us For Availability
5
MAY 8573256 MAY 8573256 Contact Us For Availability
5
MAY 8524471 MAY 8524471 Contact Us For Availability
5
MAY W10164259 MAY W10164259 Contact Us For Availability
5
MAY 8531327 MAY 8531327 Contact Us For Availability
5
MAY 9743002 MAY 9743002 Contact Us For Availability
5
MAY 8268375 MAY 8268375 Contact Us For Availability
5
MAY W10238391 MAY W10238391 Contact Us For Availability
5
MAY W10056297 MAY W10056297 Contact Us For Availability
5
MAY W10238412 MAY W10238412 Contact Us For Availability
6
MAY W10234553 MAY W10234553 Contact Us For Availability
6
MAY W10234554 MAY W10234554 Contact Us For Availability
6
MAY W10234555 MAY W10234555 Contact Us For Availability
6
MAY 661663 MAY 661663 Contact Us For Availability
6
MAY 8269259 MAY 8269259 Contact Us For Availability
6
MAY 371505 MAY 371505 Contact Us For Availability
6
MAY 8269110 MAY 8269110 Contact Us For Availability
6
MAY W10083957 MAY W10083957 Contact Us For Availability
6
MAY W10234639 MAY W10234639 Contact Us For Availability
6
MAY W10238406 MAY W10238406 Contact Us For Availability
6
TINEROW MAY W10056351 Contact Us For Availability
7
INSULATION TOE PANEL MAY W10073540 Contact Us For Availability
7
MAY W10077877 MAY W10077877 Contact Us For Availability
7
MAY W10219505 MAY W10219505 Contact Us For Availability
7
MAY 8573061 MAY 8573061 Contact Us For Availability
7
MAY 9741232 MAY 9741232 Contact Us For Availability
7
MAY W10238394 MAY W10238394 Contact Us For Availability
7
RETAINER, TINEROW MAY W10238411 Contact Us For Availability
8
TOE PANEL (INCLUDES ITEMS 7 & 9) (BLACK) MAY W10205336 Contact Us For Availability
8
TOE PANEL (INCLUDES ITEMS 7 & 9) (WHITE) MAY W10205337 Contact Us For Availability
8
Screw MAY 304392 Contact Us For Availability
8
MAY 8269632 MAY 8269632 Contact Us For Availability
8
MAY 8269633 MAY 8269633 Contact Us For Availability
8
MAY 8269636 MAY 8269636 Contact Us For Availability
8
MAY W10238413 MAY W10238413 Contact Us For Availability
8
BALANCE, DOOR MAY W10084086 Contact Us For Availability
8
MAY 8531857 MAY 8531857 Contact Us For Availability
8
MAY 8268433 MAY 8268433 Contact Us For Availability
9
CLIP, GROUNDING MAY 8269016 Contact Us For Availability
9
MAY 8524476 MAY 8524476 Contact Us For Availability
9
SEAL, FRONT MAY 8269258 Contact Us For Availability
9
MAY 8268909 MAY 8268909 Contact Us For Availability
9
MAY 3367670 MAY 3367670 Contact Us For Availability
9
MAY W10231538 MAY W10231538 Contact Us For Availability
9
MAY W10077923 MAY W10077923 Contact Us For Availability
10
SCREW (BLACK) MAY 302868 Contact Us For Availability
10
MAY 3400865 MAY 3400865 Contact Us For Availability
10
MAY W10250166 MAY W10250166 Contact Us For Availability
10
MAY 8545608 MAY 8545608 Contact Us For Availability
10
STANDPIPE, OVERFILL (INCLUDES ITEM 11) MAY 8545946 Contact Us For Availability
10
MAY 8269145 MAY 8269145 Contact Us For Availability
10
MAY 3400217 MAY 3400217 Contact Us For Availability
10
MAY W10234642 MAY W10234642 Contact Us For Availability
11
MAY 8269209 MAY 8269209 Contact Us For Availability
11
SEAL, SIDE MAY 8574160 Contact Us For Availability
11
MAY 8531743 MAY 8531743 Contact Us For Availability
11
MAY 3400074 MAY 3400074 Contact Us For Availability
11
MAY W10084567 MAY W10084567 Contact Us For Availability
12
SCREW MAY 3400071 Contact Us For Availability
12
MAY 8535571 MAY 8535571 Contact Us For Availability
12
WIRING HARNESS MAY 8573176 Contact Us For Availability
12
MAY 9741998 MAY 9741998 Contact Us For Availability
12
SCREW (2) MAY 3370389 Contact Us For Availability
12
SUMP & MOTOR ASSEMBLY (INCLUDES ITEM 13) MAY W10237168 Contact Us For Availability
13
NAMEPLATE (WHITE) MAY W10190723 Contact Us For Availability
13
NAMEPLATE (BLACK) MAY W10190724 Contact Us For Availability
13
NAMEPLATE (SS MODEL) MAY W10214168 Contact Us For Availability
13
MAY 8539449 MAY 8539449 Contact Us For Availability
13
MAY W10177098 MAY W10177098 Contact Us For Availability
13
MAY W10077871 MAY W10077871 Contact Us For Availability
13
WHEEL, LEG MAY 8268977 Contact Us For Availability
13
MAY 8269524 MAY 8269524 Contact Us For Availability
14
MAY 8269863 MAY 8269863 Contact Us For Availability
14
MAY 8535660 MAY 8535660 Contact Us For Availability
14
MISCELLANEOUS PARTS BAG (INCLUDES 2 SCREWS & MAY 8269297 Contact Us For Availability
14
MAY 8524584 MAY 8524584 Contact Us For Availability
14
MAY 8533949 MAY 8533949 Contact Us For Availability
15
BRACKET, DISPENSER MAY 8535637 Contact Us For Availability
15
INSULATION, BOTTOM MAY 8268582 Contact Us For Availability
15
MAY 661662 MAY 661662 Contact Us For Availability
16
SHIELD, DISPENSER MAY 8531865 Contact Us For Availability
16
MAY W10137608 MAY W10137608 Contact Us For Availability
16
MAY 8270020 MAY 8270020 Contact Us For Availability
16
VOLUTE, BACK (ALSO ORDER ITEMS 21 & 25) MAY 8531019 Contact Us For Availability
17
MAY 8564929 MAY 8564929 Contact Us For Availability
17
WHEEL & MOUNT ASSEMBLY (ALSO ORDER No.5) MAY W10078083 Contact Us For Availability
17
MAY 8269144 MAY 8269144 Contact Us For Availability
18
MAY 3400892 MAY 3400892 Contact Us For Availability
18
MAY W10226459 MAY W10226459 Contact Us For Availability
19
MAY 8268991 MAY 8268991 Contact Us For Availability
19
MAY 8268397 MAY 8268397 Contact Us For Availability
20
MAY 8535568 MAY 8535568 Contact Us For Availability
20
IMPELLER KIT MAY 8531017 Contact Us For Availability
21
MAY 304666 MAY 304666 Contact Us For Availability
21
FACE SEAL ASSEMBLY (ALSO ORDER ITEM 25) MAY 8268403 Contact Us For Availability
22
MAY 356138 MAY 356138 Contact Us For Availability
22
MAY 3400924 MAY 3400924 Contact Us For Availability
23
MAY 8573239 MAY 8573239 Contact Us For Availability
23
MAY W10134017 MAY W10134017 Contact Us For Availability
24
MAY 9742648 MAY 9742648 Contact Us For Availability
24
MAY W10216724 MAY W10216724 Contact Us For Availability
25
MAY 661566 MAY 661566 Contact Us For Availability
25
RIGHT HAND MAY W10185369 Contact Us For Availability
25
MAY 8531018 MAY 8531018 Contact Us For Availability
26
STRIKE, LATCH MAY 8580309 Contact Us For Availability
27
BRACKET, HINGE ASM (LEFT HAND) MAY W10185368 Contact Us For Availability
28
WASHER, PRONGED CUP MAY 3378128 Contact Us For Availability
29
MAY 3400014 MAY 3400014 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (SUPERIOR B MAY 285006 Contact Us For Availability
NI
MAY 3385556 MAY 3385556 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (WHITE) MAY 350930 Contact Us For Availability
NI
MAY 4317824 MAY 4317824 Contact Us For Availability
NI
MAY 4392899 MAY 4392899 Contact Us For Availability
NI
PAINT, BULK (1 qt.) (Biscuit) MAY 4392900 Contact Us For Availability
NI
MAY 4392901 MAY 4392901 Contact Us For Availability
NI
MAY 4396277 MAY 4396277 Contact Us For Availability
NI
MAY 4396603 MAY 4396603 Contact Us For Availability
NI
DISHRACK REPAIR (TIP TINE REPAIR KIT (ENOUGH MAY 4396838 Contact Us For Availability
NI
DISHRACK REPAIR (TIP TINE REPAIR KIT (ENOUGH MAY 4396840 Contact Us For Availability
NI
MAY 4396853 MAY 4396853 Contact Us For Availability
NI
DISHRACK REPAIR (TIP TINE REPAIR KIT (ENOUGH MAY 4396854 Contact Us For Availability
NI
VINYL TOUCH-UP (4OZ.) (WHITE) MAY 676453 Contact Us For Availability
NI
VINYL TOUCH-UP (4OZ.) (GREY) MAY 676455 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ.) (WHITE) MAY 72017 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2oz.) (Black) MAY 72032 Contact Us For Availability
NI
PAINT, BULK (1 QT.) (WHITE UNCUT) MAY 799344 Contact Us For Availability
NI
ANTI-TIP KIT, FLOOR MOUNT KIT MAY 8171477 Contact Us For Availability
NI
MAY 8171656 MAY 8171656 Contact Us For Availability
NI
MAY 8171657 MAY 8171657 Contact Us For Availability
NI
MAY 8171658 MAY 8171658 Contact Us For Availability
NI
SIDE PANEL KITS (STAINLESS) MAY 8171659 Contact Us For Availability
NI
CUSTOM PANEL & TRIM KIT ( BLACK) MAY 8212489 Contact Us For Availability
× ![]()
