Model GE JCS57Y3WW – Common Parts & Diagrams

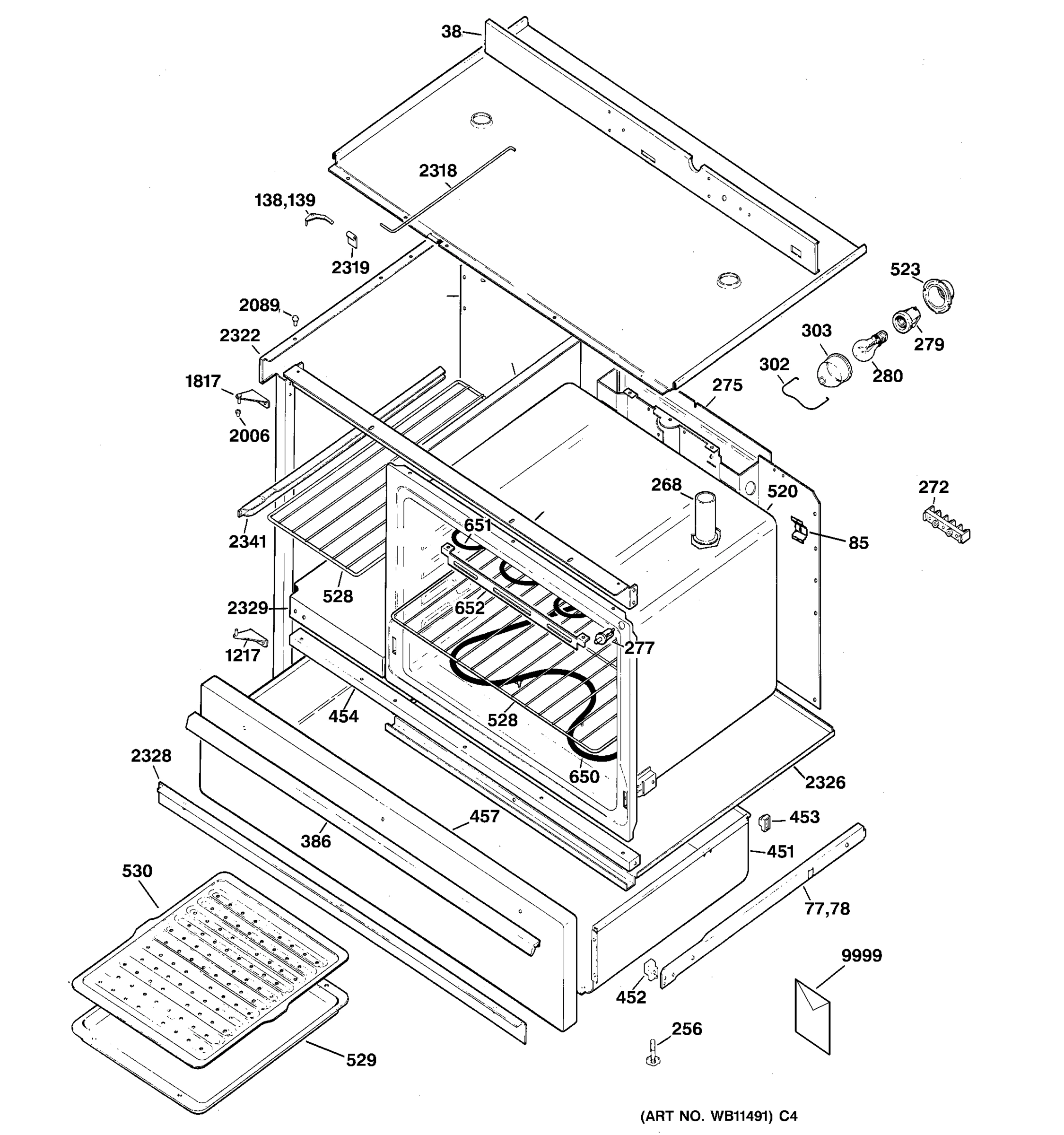

BODY & DRAWER PARTS

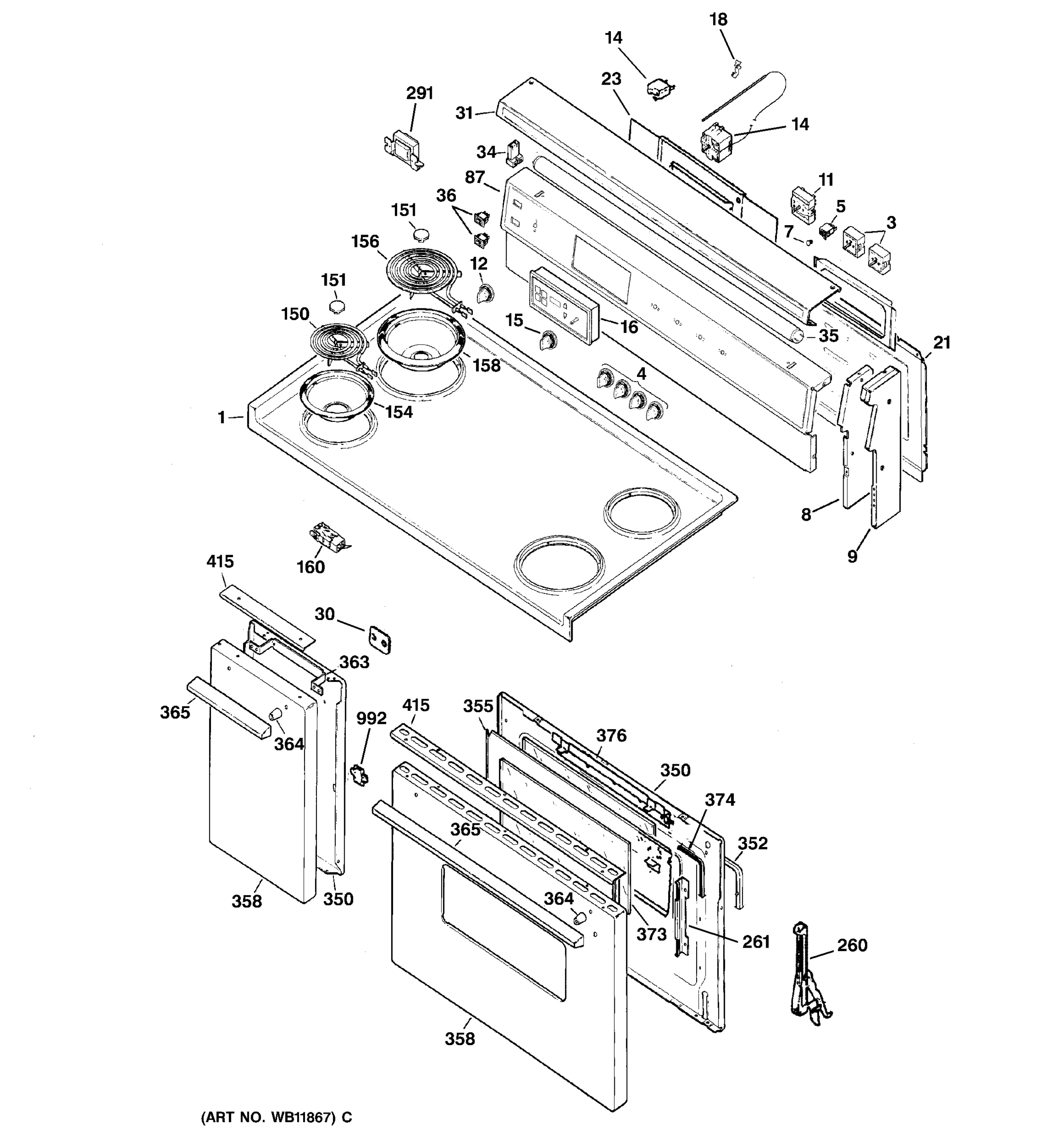

CONTROL PANEL, COOKTOP & DOORS
Common parts from model GE JCS57Y3WW
1
GEN WB62X5299 GEN WB62X5299 Contact Us For Availability
3
GEN WB23X10006 GEN WB23X10006 Contact Us For Availability
5
GEN WB25X5057 GEN WB25X5057 Contact Us For Availability
7
GEN WB02X7457 GEN WB02X7457 Contact Us For Availability
8
GEN WB02X8437 GEN WB02X8437 Contact Us For Availability
8
GEN WB02X8438 GEN WB02X8438 Contact Us For Availability
9
END CAP RH (WHITE) GEN WB07X7258 Contact Us For Availability
9
END CAP LH (WHITE) GEN WB07X7259 Contact Us For Availability
11
SWITCH, OVEN GEN WB22X5150 Contact Us For Availability
12
KNOB THERMOSTAT GEN WB03X10042 Contact Us For Availability
14
THERMOSTAT OVEN GEN WB20X5069 Contact Us For Availability
14
BRKT MTNG T'STAT GEN WB2X8593 Contact Us For Availability
15
GEN WB03X10043 GEN WB03X10043 Contact Us For Availability
16
GEN WB19X10002 GEN WB19X10002 Contact Us For Availability
18
GEN WB02X8358 GEN WB02X8358 Contact Us For Availability
21
GEN WB2X8435 GEN WB2X8435 Contact Us For Availability
23
GEN WB02X10603 GEN WB02X10603 Contact Us For Availability
30
GEN WB10X5202 GEN WB10X5202 Contact Us For Availability
31
GEN WB07X7262 GEN WB07X7262 Contact Us For Availability
34
GEN WB02X10604 GEN WB02X10604 Contact Us For Availability
34
GEN WB08X10013 GEN WB08X10013 Contact Us For Availability
34
GEN WB08X5114 GEN WB08X5114 Contact Us For Availability
35
GEN F25T12/CW/33 GEN F25T12/CW/33 Contact Us For Availability
36
SWITCH,LIGHT ROCKER GEN WB24X10043 Contact Us For Availability
87
GEN WB07X10253 GEN WB07X10253 Contact Us For Availability
138
PIN HINGE RH GEN WB02X7440 Contact Us For Availability
139
PIN HINGE LH GEN WB02X7439 Contact Us For Availability
151
GEN WB31X5022 GEN WB31X5022 Contact Us For Availability
154
GEN WB32X10017 GEN WB32X10017 Contact Us For Availability
160
TERM BLK SURF UNIT GEN WB17X5091 Contact Us For Availability
256
GEN WB01X10089 GEN WB01X10089 Contact Us For Availability
260
GEN WB10X5218 GEN WB10X5218 Contact Us For Availability
261
BRKT GLASS MTNG LH GEN WB02X8570 Contact Us For Availability
261
BRKT GLASS MTNG RH GEN WB02X8573 Contact Us For Availability
268
GEN WB02X8569 GEN WB02X8569 Contact Us For Availability
268
GEN WB29X5030 GEN WB29X5030 Contact Us For Availability
272
GEN WB02X10606 GEN WB02X10606 Contact Us For Availability
272
GEN WB02X10607 GEN WB02X10607 Contact Us For Availability
275
GEN WB49X10051 GEN WB49X10051 Contact Us For Availability
277
SWITCH OVEN LIGHT GEN WB24X10023 Contact Us For Availability
279
RECEPT LAMP GEN WB08X5091 Contact Us For Availability
291
GEN WB02X10608 GEN WB02X10608 Contact Us For Availability
302
GEN WB02X9965 GEN WB02X9965 Contact Us For Availability
303
GEN WB36X5799 GEN WB36X5799 Contact Us For Availability
350
LINER, OVEN DOOR, LG GEN WB55X10001 Contact Us For Availability
350
LINER, OVEN DOOR, SM GEN WB55X5406 Contact Us For Availability
352
GEN WB02X10605 GEN WB02X10605 Contact Us For Availability
355
GEN WB55X10266 GEN WB55X10266 Contact Us For Availability
358
GEN WB56X10002 GEN WB56X10002 Contact Us For Availability
358
GEN WB56X7087 GEN WB56X7087 Contact Us For Availability
363
SPACER-HANDLE GEN WB02X8561 Contact Us For Availability
364
GEN WB02X8572 GEN WB02X8572 Contact Us For Availability
365
GEN WB01X10088 GEN WB01X10088 Contact Us For Availability
365
HANDLE DOOR OVEN GEN WB15X5212 Contact Us For Availability
365
HANDLE DOOR STORAGE GEN WB15X5213 Contact Us For Availability
373
GLASS OVEN DOOR GEN WB36X5800 Contact Us For Availability
374
WINDOW GASKET GEN WB02X8567 Contact Us For Availability
376
GEN WB02X8565 GEN WB02X8565 Contact Us For Availability
386
GEN WB01X10091 GEN WB01X10091 Contact Us For Availability
386
GEN WB15X5214 GEN WB15X5214 Contact Us For Availability
415
GEN WB07X7349 GEN WB07X7349 Contact Us For Availability
415
GEN WB07X7350 GEN WB07X7350 Contact Us For Availability
451
GEN WB58X5009 GEN WB58X5009 Contact Us For Availability
452
GEN WB02X7437 GEN WB02X7437 Contact Us For Availability
453
GEN WB02X7468 GEN WB02X7468 Contact Us For Availability
454
CHANNEL SUPT GEN WB49X5347 Contact Us For Availability
457
GEN WB56X5969 GEN WB56X5969 Contact Us For Availability
520
OVEN LINER GEN WB53X5165 Contact Us For Availability
523
HOUSING-OVEN LIGHT GEN WB02X8552 Contact Us For Availability
528
RACK, STORAGE GEN WB48X5078 Contact Us For Availability
528
RACK, OVEN GEN WB48X5111 Contact Us For Availability
650
BAKE UNIT L.O. 208/240V GEN WB44X5104 Contact Us For Availability
651
BROIL UNIT L.O. 208/240V GEN WB44X5105 Contact Us For Availability
652
SUPPORT, BROIL UNIT L.O GEN WB02X10609 Contact Us For Availability
992
GEN WB10X0277 GEN WB10X0277 Contact Us For Availability
1217
GEN WB10X10001 GEN WB10X10001 Contact Us For Availability
1817
GEN WB10X10002 GEN WB10X10002 Contact Us For Availability
2006
GEN WB02X10001 GEN WB02X10001 Contact Us For Availability
2089
GEN WB02X7441 GEN WB02X7441 Contact Us For Availability
2318
GEN WB02X7436 GEN WB02X7436 Contact Us For Availability
2319
GEN WB02X7442 GEN WB02X7442 Contact Us For Availability
2322
GEN WB56X10001 GEN WB56X10001 Contact Us For Availability
2322
GEN WB56X5957 GEN WB56X5957 Contact Us For Availability
2326
GEN WB49X10047 GEN WB49X10047 Contact Us For Availability
2328
GEN WB02X8566 GEN WB02X8566 Contact Us For Availability
2329
GEN WB49X10046 GEN WB49X10046 Contact Us For Availability
2341
GLIDE STORAGE RACK GEN WB39X5018 Contact Us For Availability
9999
GEN 31-20015 GEN 31-20015 Contact Us For Availability
9999
GEN 49-8484 GEN 49-8484 Contact Us For Availability
× ![]()
