Model GE JCS57Y1WW Electric Range – Common Parts & Diagrams

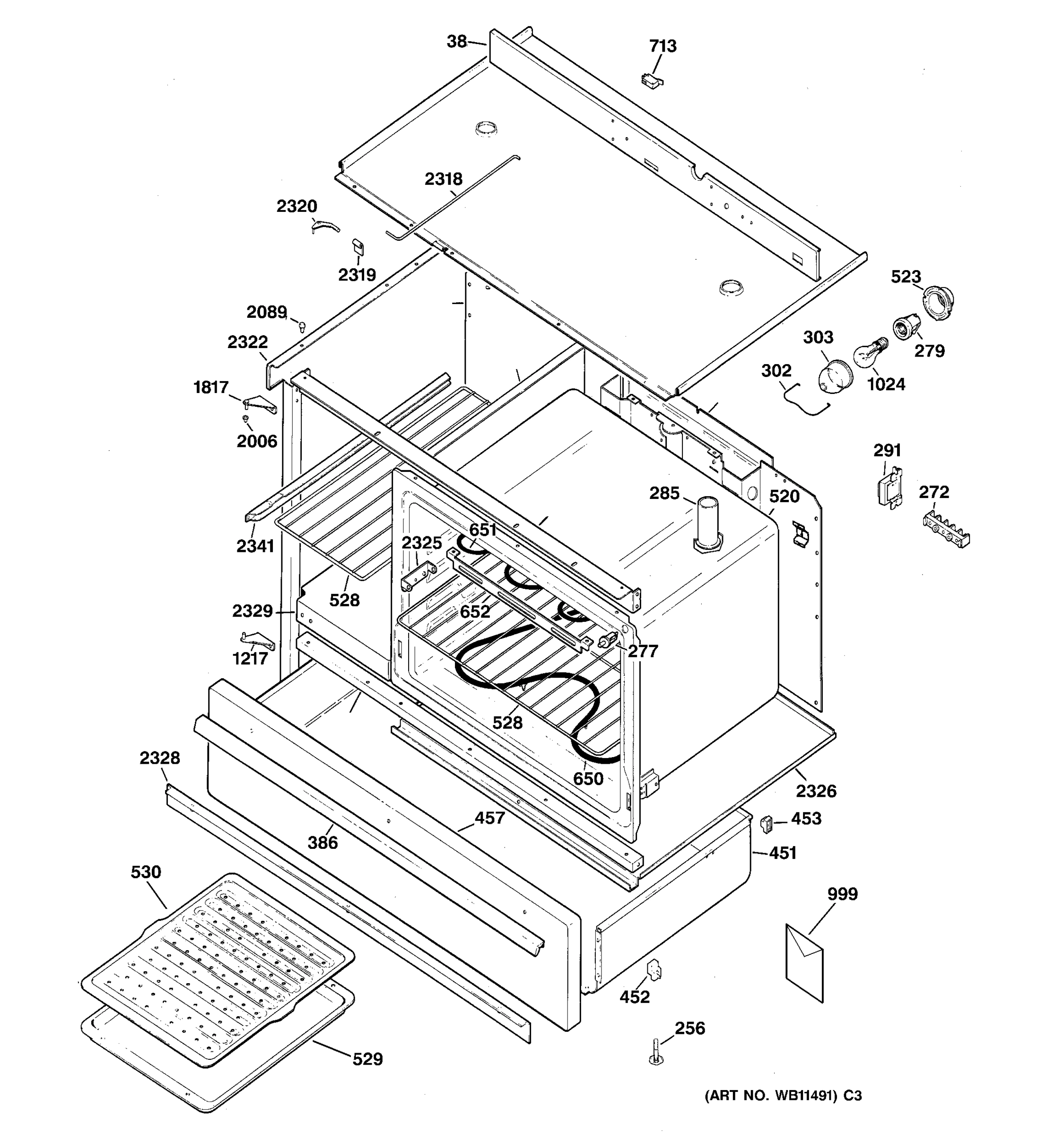

BODY & DRAWER PARTS

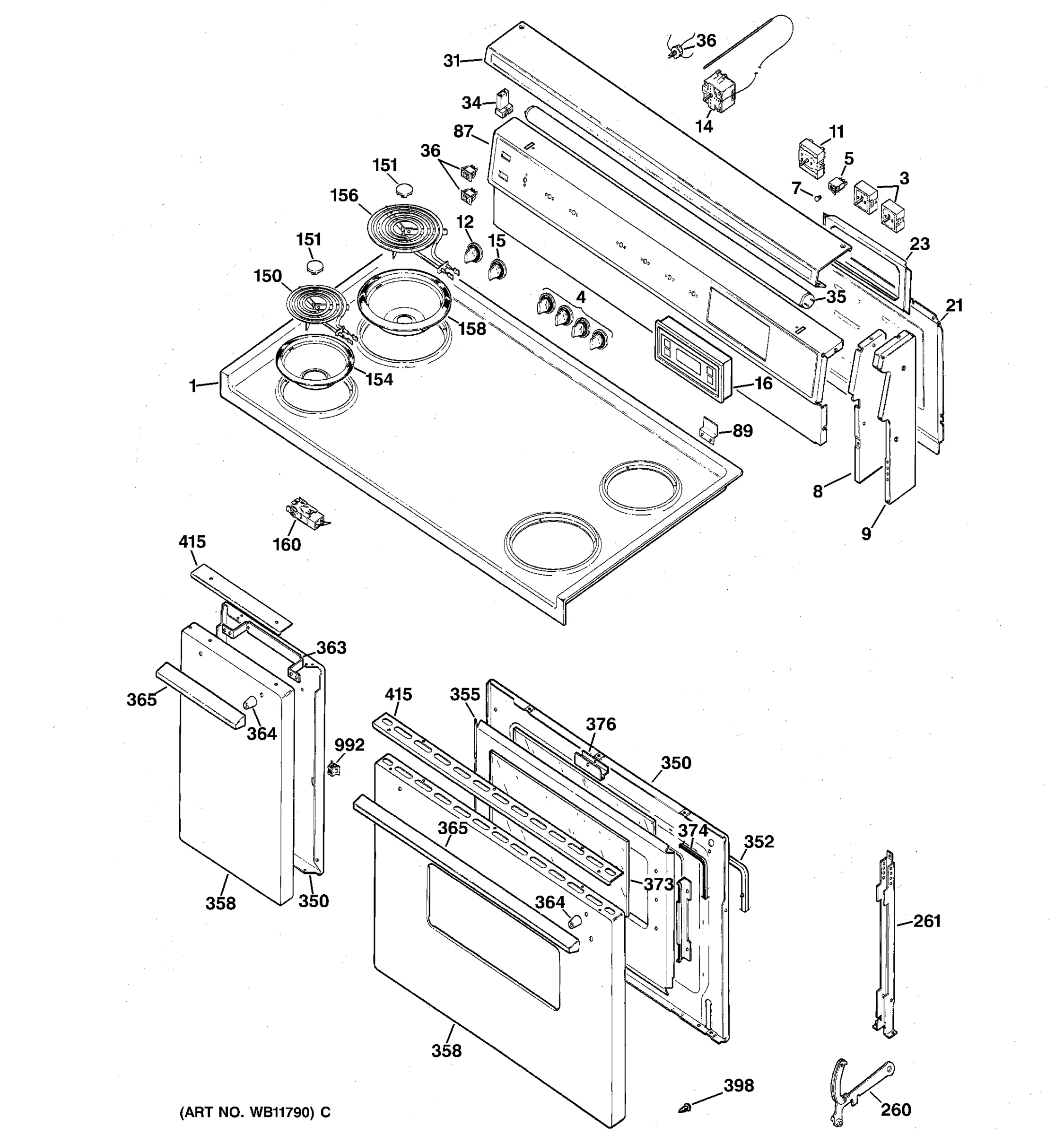

CONTROL PANEL, COOKTOP & DOORS
Common parts from model GE JCS57Y1WW Electric Range
1
GEN WB62X5299 GEN WB62X5299 Contact Us For Availability
3
GEN WB23X5090 GEN WB23X5090 Contact Us For Availability
3
GEN WB23X5091 GEN WB23X5091 Contact Us For Availability
4
GEN WB03X10041 GEN WB03X10041 Contact Us For Availability
5
GEN WB25X5056 GEN WB25X5056 Contact Us For Availability
5
GEN WB25X5057 GEN WB25X5057 Contact Us For Availability
7
GEN WB02X8602 GEN WB02X8602 Contact Us For Availability
8
GEN WB02X8437 GEN WB02X8437 Contact Us For Availability
8
GEN WB02X8438 GEN WB02X8438 Contact Us For Availability
9
GEN WB01X0840 GEN WB01X0840 Contact Us For Availability
9
GEN WB01X5700 GEN WB01X5700 Contact Us For Availability
9
END CAP RH (WHITE) GEN WB07X7258 Contact Us For Availability
9
END CAP LH (WHITE) GEN WB07X7259 Contact Us For Availability
11
GEN WB22X5150 GEN WB22X5150 Contact Us For Availability
12
GEN WB03X10042 GEN WB03X10042 Contact Us For Availability
14
GEN WB20X5069 GEN WB20X5069 Contact Us For Availability
14
GEN WB2X8593 GEN WB2X8593 Contact Us For Availability
15
GEN WB03X10043 GEN WB03X10043 Contact Us For Availability
16
GEN WB19X10002 GEN WB19X10002 Contact Us For Availability
21
GEN WB2X8435 GEN WB2X8435 Contact Us For Availability
23
GEN WB02X10510 GEN WB02X10510 Contact Us For Availability
31
GEN WB01X5699 GEN WB01X5699 Contact Us For Availability
31
GEN WB07X7262 GEN WB07X7262 Contact Us For Availability
34
GEN WB01X5701 GEN WB01X5701 Contact Us For Availability
34
STARTER SOCKET GEN WB02X8439 Contact Us For Availability
34
F LAMP SOCKET RH GEN WB08X5112 Contact Us For Availability
34
F LAMP SOCKET LH GEN WB08X5113 Contact Us For Availability
34
GEN WB08X5114 GEN WB08X5114 Contact Us For Availability
35
FLAMP F25T12/CW/33 GEN BUY LOCAL Contact Us For Availability
36
SWITCH, LIGHT ROCKER BLK GEN WB24X5332 Contact Us For Availability
87
GEN WB07X10164 GEN WB07X10164 Contact Us For Availability
89
GEN WB02X7491 GEN WB02X7491 Contact Us For Availability
151
GEN WB31X5022 GEN WB31X5022 Contact Us For Availability
160
GEN WB17X5091 GEN WB17X5091 Contact Us For Availability
260
GEN WB10X5218 GEN WB10X5218 Contact Us For Availability
261
GEN WB02X8570 GEN WB02X8570 Contact Us For Availability
261
GEN WB02X8573 GEN WB02X8573 Contact Us For Availability
272
GEN WB02X7446 GEN WB02X7446 Contact Us For Availability
272
GEN WB02X7447 GEN WB02X7447 Contact Us For Availability
277
SWITCH OVEN LIGHT GEN WB24X10023 Contact Us For Availability
279
GEN WB08X5091 GEN WB08X5091 Contact Us For Availability
285
ADAPTER ASM - VENT TUBE GEN WB02X8569 Contact Us For Availability
285
GEN WB29X5030 GEN WB29X5030 Contact Us For Availability
291
GEN WB02X7470 GEN WB02X7470 Contact Us For Availability
302
GEN WB02X9965 GEN WB02X9965 Contact Us For Availability
303
GEN WB36X5799 GEN WB36X5799 Contact Us For Availability
350
GEN WB10X5202 GEN WB10X5202 Contact Us For Availability
350
LINER, OVEN DOOR, LG GEN WB55X10001 Contact Us For Availability
350
LINER, OVEN DOOR, SM GEN WB55X5406 Contact Us For Availability
352
GASKET DOOR L.O. GEN WB02X8601 Contact Us For Availability
355
GEN WB55X5415 GEN WB55X5415 Contact Us For Availability
358
DOOR PANEL S.O. WHITE GEN WB56X10002 Contact Us For Availability
358
DOOR PANEL L.O. WHITE GEN WB56X7087 Contact Us For Availability
363
SPACER-HANDLE GEN WB02X8561 Contact Us For Availability
364
GEN WB02X8572 GEN WB02X8572 Contact Us For Availability
365
SCREW HANDLE MTG S.O. GEN WB01X5705 Contact Us For Availability
365
GEN WB01X5965 GEN WB01X5965 Contact Us For Availability
365
GEN WB15X5212 GEN WB15X5212 Contact Us For Availability
365
GEN WB15X5213 GEN WB15X5213 Contact Us For Availability
373
GEN WB36X5796 GEN WB36X5796 Contact Us For Availability
374
WINDOW GASKET GEN WB02X8567 Contact Us For Availability
376
RETAINER CRYSTAL GEN WB02X8565 Contact Us For Availability
386
GEN WB01X5708 GEN WB01X5708 Contact Us For Availability
386
GEN WB15X5214 GEN WB15X5214 Contact Us For Availability
398
GEN WB01X5706 GEN WB01X5706 Contact Us For Availability
415
TRIM-DOOR TOP S.O. GEN WB07X7349 Contact Us For Availability
415
TRIM-DOOR TOP L.O. GEN WB07X7350 Contact Us For Availability
451
GEN WB58X5009 GEN WB58X5009 Contact Us For Availability
452
GEN WB02X7437 GEN WB02X7437 Contact Us For Availability
453
GEN WB02X7468 GEN WB02X7468 Contact Us For Availability
457
GEN WB56X5969 GEN WB56X5969 Contact Us For Availability
520
SPRING-OVEN GEN WB02X8576 Contact Us For Availability
523
HOUSING-OVEN LIGHT GEN WB02X8552 Contact Us For Availability
528
RACK, OVEN S.O. GEN WB48X5078 Contact Us For Availability
528
RACK, OVEN L.O. GEN WB48X5111 Contact Us For Availability
650
BAKE UNIT L.O. 208/240V GEN WB44X5104 Contact Us For Availability
651
BROIL UNIT L.O. 208/240V GEN WB44X5105 Contact Us For Availability
652
GEN WB02X8551 GEN WB02X8551 Contact Us For Availability
713
SWITCH-LIGHT GEN WB24X5356 Contact Us For Availability
992
GEN WB10X0277 GEN WB10X0277 Contact Us For Availability
999
GEN 31-20015 GEN 31-20015 Contact Us For Availability
999
GEN 49-8484 GEN 49-8484 Contact Us For Availability
1217
GEN WB10X10001 GEN WB10X10001 Contact Us For Availability
1817
GEN WB10X10002 GEN WB10X10002 Contact Us For Availability
2006
GEN WB02X10001 GEN WB02X10001 Contact Us For Availability
2089
GEN WB02X7441 GEN WB02X7441 Contact Us For Availability
2318
GEN WB02X7436 GEN WB02X7436 Contact Us For Availability
2319
GEN WB02X7442 GEN WB02X7442 Contact Us For Availability
2320
GEN WB02X7439 GEN WB02X7439 Contact Us For Availability
2320
GEN WB02X7440 GEN WB02X7440 Contact Us For Availability
2322
GEN WB56X10001 GEN WB56X10001 Contact Us For Availability
2322
GEN WB56X5957 GEN WB56X5957 Contact Us For Availability
2325
GEN WB02X10002 GEN WB02X10002 Contact Us For Availability
2326
GEN WB49X10001 GEN WB49X10001 Contact Us For Availability
2328
GEN WB02X10511 GEN WB02X10511 Contact Us For Availability
2329
GEN WB49X5357 GEN WB49X5357 Contact Us For Availability
2341
RAIL SHELF S.O. GEN WB39X5018 Contact Us For Availability
× ![]()
