Model GE JCP67V2WH Electric Range – Common Parts & Diagrams

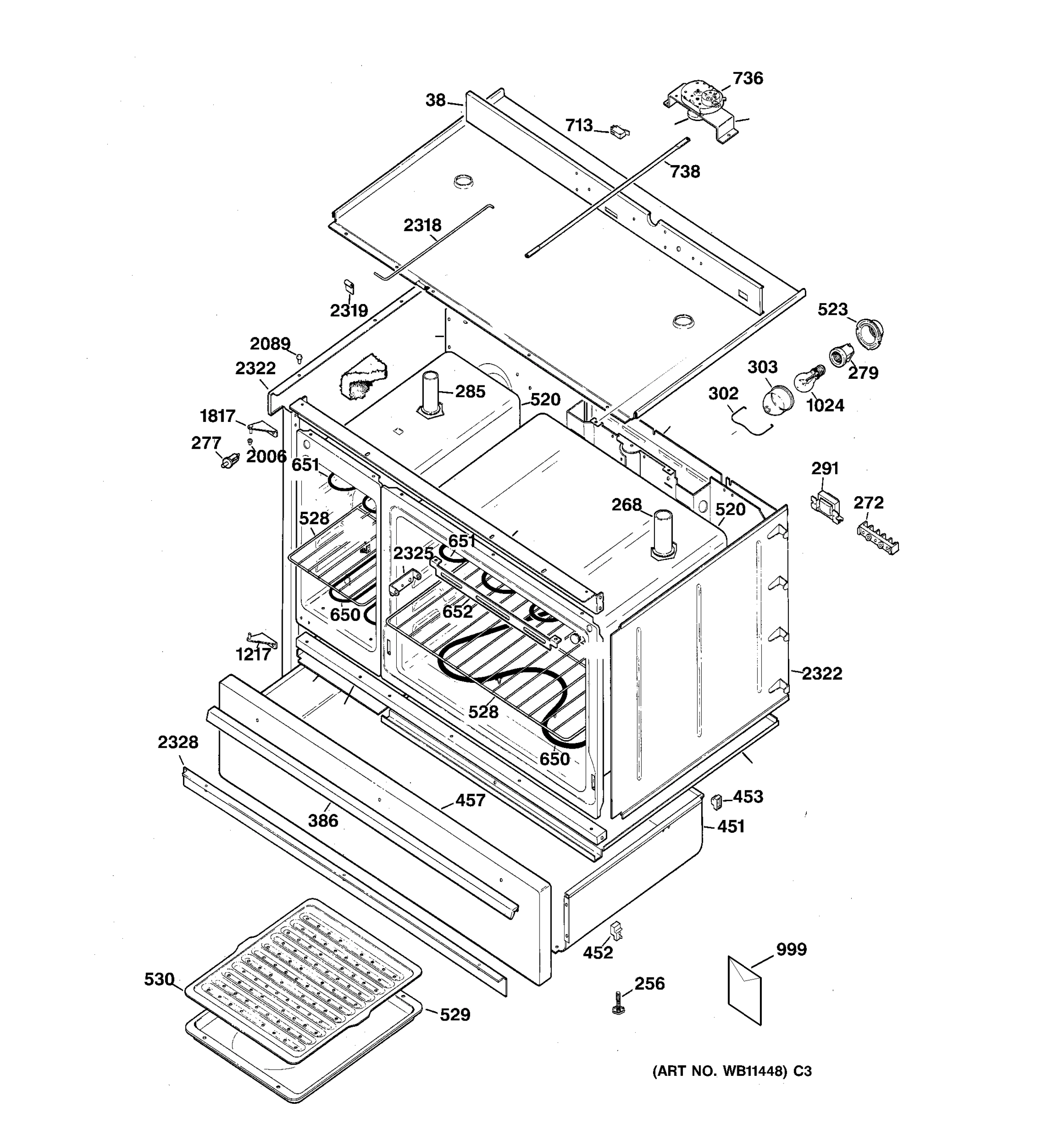

BODY PARTS

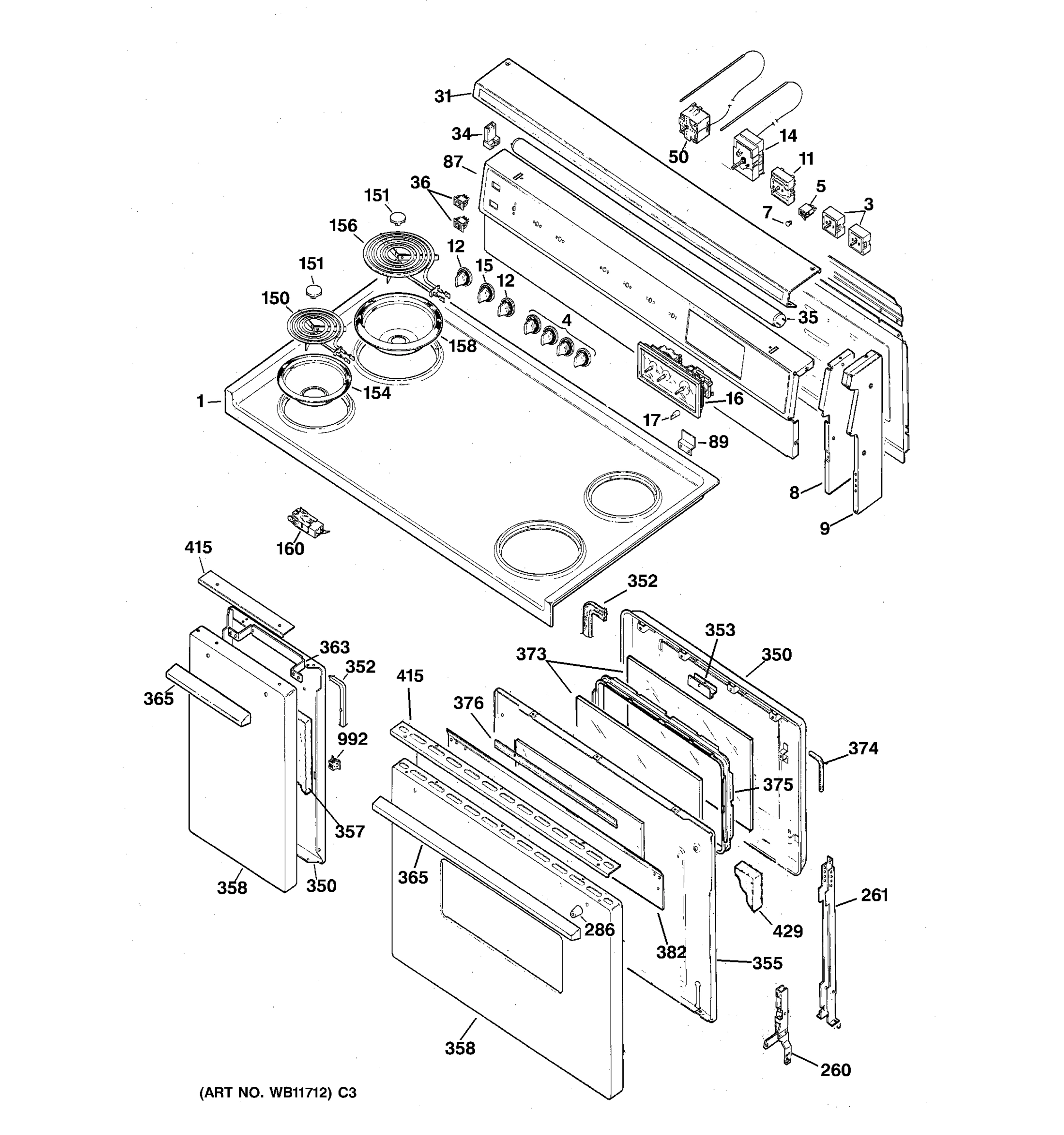

CONTROL PANEL, COOKTOP & DOOR
Common parts from model GE JCP67V2WH Electric Range
1
GEN WB62X5299 GEN WB62X5299 Contact Us For Availability
3
GEN WB23X5100 GEN WB23X5100 Contact Us For Availability
3
GEN WB23X5101 GEN WB23X5101 Contact Us For Availability
4
GEN WB03X0612 GEN WB03X0612 Contact Us For Availability
5
GEN WB25X5056 GEN WB25X5056 Contact Us For Availability
5
GEN WB25X5057 GEN WB25X5057 Contact Us For Availability
7
GEN WB02X7457 GEN WB02X7457 Contact Us For Availability
8
GEN WB02X8437 GEN WB02X8437 Contact Us For Availability
8
GEN WB02X8438 GEN WB02X8438 Contact Us For Availability
9
GEN WB01X0840 GEN WB01X0840 Contact Us For Availability
9
END CAP WHITE RH GEN WB07X7258 Contact Us For Availability
9
END CAP WHITE LH GEN WB07X7259 Contact Us For Availability
11
GEN WB22X5149 GEN WB22X5149 Contact Us For Availability
12
KNOB-SELECTOR GEN WB03X0617 Contact Us For Availability
14
GEN WB20X5068 GEN WB20X5068 Contact Us For Availability
15
KNOB THERMO L.O. GEN WB03X0616 Contact Us For Availability
15
KNOB THERMO S.O. GEN WB03X0776 Contact Us For Availability
16
GEN WB02X3325 GEN WB02X3325 Contact Us For Availability
16
GEN WB19X5277 GEN WB19X5277 Contact Us For Availability
16
GEN WB36X5551 GEN WB36X5551 Contact Us For Availability
17
GEN WB03X0459 GEN WB03X0459 Contact Us For Availability
31
GEN WB01X5699 GEN WB01X5699 Contact Us For Availability
31
GEN WB07X7262 GEN WB07X7262 Contact Us For Availability
34
GEN WB01X5701 GEN WB01X5701 Contact Us For Availability
34
GEN WB08X5112 GEN WB08X5112 Contact Us For Availability
34
GEN WB08X5113 GEN WB08X5113 Contact Us For Availability
34
GEN WB08X5114 GEN WB08X5114 Contact Us For Availability
35
"F" LAMP F25T12/CW/33 GEN BUY LOCAL Contact Us For Availability
36
GEN WB24X5357 GEN WB24X5357 Contact Us For Availability
50
GEN WB02X7453 GEN WB02X7453 Contact Us For Availability
50
COMBO OVEN THERMO S.O. GEN WB20X0085 Contact Us For Availability
87
GEN WB07X7260 GEN WB07X7260 Contact Us For Availability
89
GEN WB02X7491 GEN WB02X7491 Contact Us For Availability
151
GEN WB31X5022 GEN WB31X5022 Contact Us For Availability
160
GEN WB17X5091 GEN WB17X5091 Contact Us For Availability
260
GEN WB10X5217 GEN WB10X5217 Contact Us For Availability
261
GEN WB02X8562 GEN WB02X8562 Contact Us For Availability
261
GEN WB02X8563 GEN WB02X8563 Contact Us For Availability
272
GEN WB02X7446 GEN WB02X7446 Contact Us For Availability
272
GEN WB02X7447 GEN WB02X7447 Contact Us For Availability
277
SWITCH OVEN LIGHT S.O. GEN WB24X10012 Contact Us For Availability
279
GEN WB08X5091 GEN WB08X5091 Contact Us For Availability
285
GEN WB29X5031 GEN WB29X5031 Contact Us For Availability
286
GEN WB02X8571 GEN WB02X8571 Contact Us For Availability
291
GEN WB02X7470 GEN WB02X7470 Contact Us For Availability
302
GEN WB02X9965 GEN WB02X9965 Contact Us For Availability
303
GEN WB36X5540 GEN WB36X5540 Contact Us For Availability
350
GEN WB10X5202 GEN WB10X5202 Contact Us For Availability
350
GEN WB55X5413 GEN WB55X5413 Contact Us For Availability
350
GEN WB55X5416 GEN WB55X5416 Contact Us For Availability
352
GASKET DOOR L.O. GEN WB02X8560 Contact Us For Availability
352
GEN WB02X8601 GEN WB02X8601 Contact Us For Availability
353
LATCH-DOOR L.O. GEN WB10X5219 Contact Us For Availability
355
INNER PANEL GEN WB55X5409 Contact Us For Availability
357
GEN WB02X7465 GEN WB02X7465 Contact Us For Availability
358
GEN WB56X7088 GEN WB56X7088 Contact Us For Availability
358
GEN WB56X7089 GEN WB56X7089 Contact Us For Availability
363
SPACER-HANDLE GEN WB02X8561 Contact Us For Availability
365
SCREW-HANDLE MTG. S.O. GEN WB01X5705 Contact Us For Availability
365
GEN WB01X5965 GEN WB01X5965 Contact Us For Availability
365
GEN WB15X5223 GEN WB15X5223 Contact Us For Availability
365
GEN WB15X5224 GEN WB15X5224 Contact Us For Availability
373
WINDOW OVEN DOOR GEN WB36X5800 Contact Us For Availability
374
GEN WB02X8567 GEN WB02X8567 Contact Us For Availability
374
GEN WB02X8568 GEN WB02X8568 Contact Us For Availability
375
GEN WB02X8574 GEN WB02X8574 Contact Us For Availability
376
RETAINER CRYSTAL GEN WB02X8565 Contact Us For Availability
382
GEN WB02X8564 GEN WB02X8564 Contact Us For Availability
386
GEN WB01X5708 GEN WB01X5708 Contact Us For Availability
386
GEN WB15X5214 GEN WB15X5214 Contact Us For Availability
415
TRIM-DOOR TOP S.O. GEN WB07X7349 Contact Us For Availability
415
TRIM-DOOR TOP L.O. GEN WB07X7350 Contact Us For Availability
429
INSULATION DOOR L.O. GEN WB02X7506 Contact Us For Availability
451
GEN WB58X5009 GEN WB58X5009 Contact Us For Availability
452
GUIDE DRAWER FRONT GEN WB02X7437 Contact Us For Availability
453
GEN WB02X7468 GEN WB02X7468 Contact Us For Availability
457
GEN WB56X5969 GEN WB56X5969 Contact Us For Availability
520
GEN WB02X7421 GEN WB02X7421 Contact Us For Availability
520
GEN WB02X7445 GEN WB02X7445 Contact Us For Availability
520
GEN WB02X7490 GEN WB02X7490 Contact Us For Availability
520
GEN WB02X8576 GEN WB02X8576 Contact Us For Availability
520
OVEN LINER S.O. GEN WB53X10007 Contact Us For Availability
520
GEN WB53X5165 GEN WB53X5165 Contact Us For Availability
523
HOUSING-OVEN LIGHT GEN WB02X8552 Contact Us For Availability
528
RACK OVEN S.O. GEN WB48X5077 Contact Us For Availability
528
GEN WB48X5111 GEN WB48X5111 Contact Us For Availability
650
BAKE UNIT L.O. 208/240V GEN WB44X5104 Contact Us For Availability
650
GEN WB44X5106 GEN WB44X5106 Contact Us For Availability
651
GEN WB44X5092 GEN WB44X5092 Contact Us For Availability
651
BROIL UNIT L.O. 208/240V GEN WB44X5105 Contact Us For Availability
652
GEN WB02X8551 GEN WB02X8551 Contact Us For Availability
713
GEN WB24X5356 GEN WB24X5356 Contact Us For Availability
736
GEN WB26X5120 GEN WB26X5120 Contact Us For Availability
738
GEN WB02X8554 GEN WB02X8554 Contact Us For Availability
992
LATCH-MAGNETIC ASSY. S.O GEN WB10X0277 Contact Us For Availability
999
GEN 31-20012 GEN 31-20012 Contact Us For Availability
999
GEN 49-8484 GEN 49-8484 Contact Us For Availability
999
GEN WB02X9859 GEN WB02X9859 Contact Us For Availability
1217
GEN WB10X5215 GEN WB10X5215 Contact Us For Availability
1817
GEN WB10X5216 GEN WB10X5216 Contact Us For Availability
2006
GEN WB02X7448 GEN WB02X7448 Contact Us For Availability
2089
GEN WB02X7441 GEN WB02X7441 Contact Us For Availability
2318
END-PUSH ROD GEN WB02X7434 Contact Us For Availability
2318
GEN WB02X7436 GEN WB02X7436 Contact Us For Availability
2319
GEN WB02X7442 GEN WB02X7442 Contact Us For Availability
2322
GEN WB56X5957 GEN WB56X5957 Contact Us For Availability
2322
GEN WB56X5960 GEN WB56X5960 Contact Us For Availability
2325
CLIP THERMO BULB GEN WB02X7444 Contact Us For Availability
2328
GEN WB02X8566 GEN WB02X8566 Contact Us For Availability
× ![]()
