Model GE JCP67F1WW – Common Parts & Diagrams
BODY PARTS
CONTROL PANEL

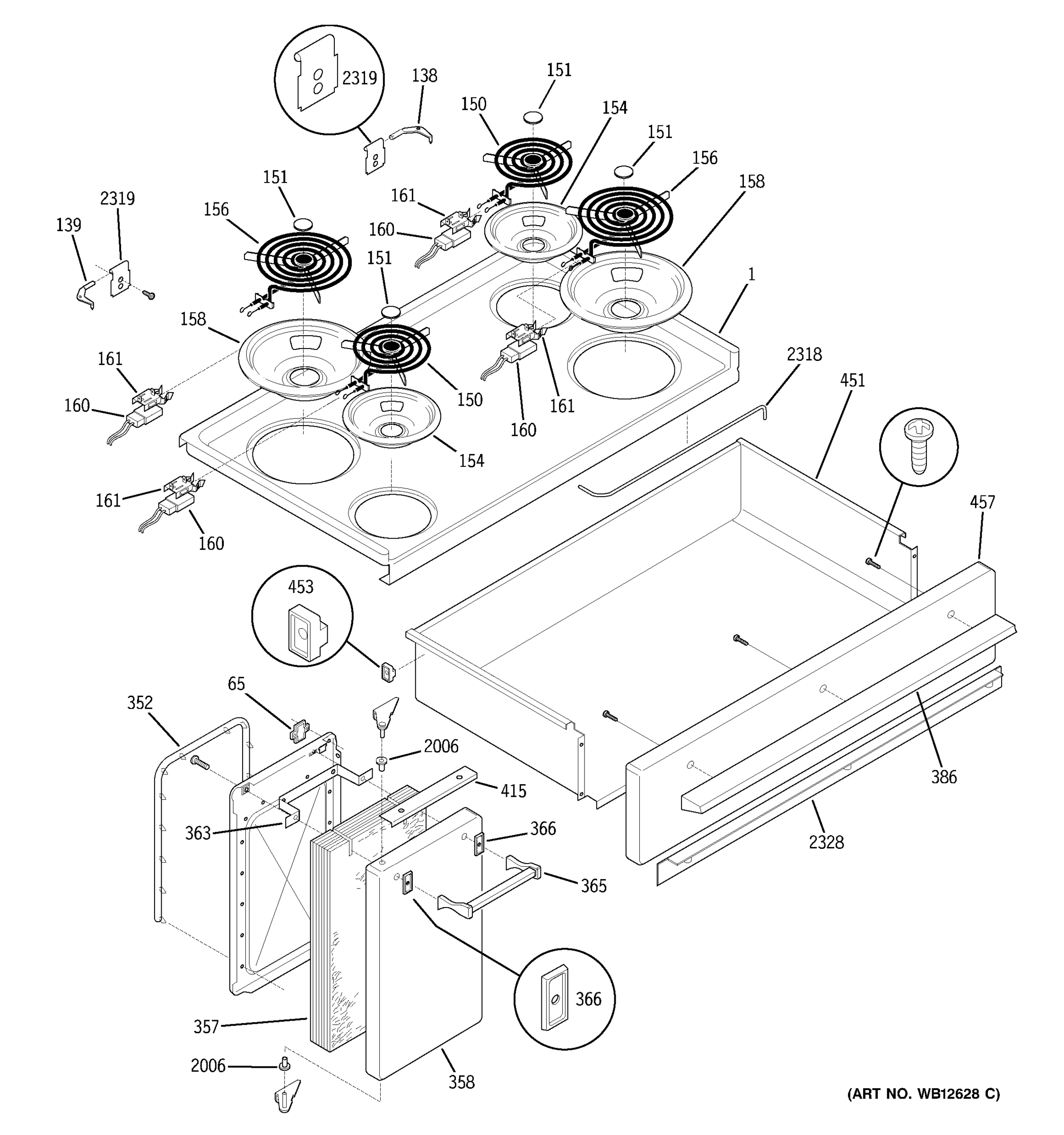

COOKTOP

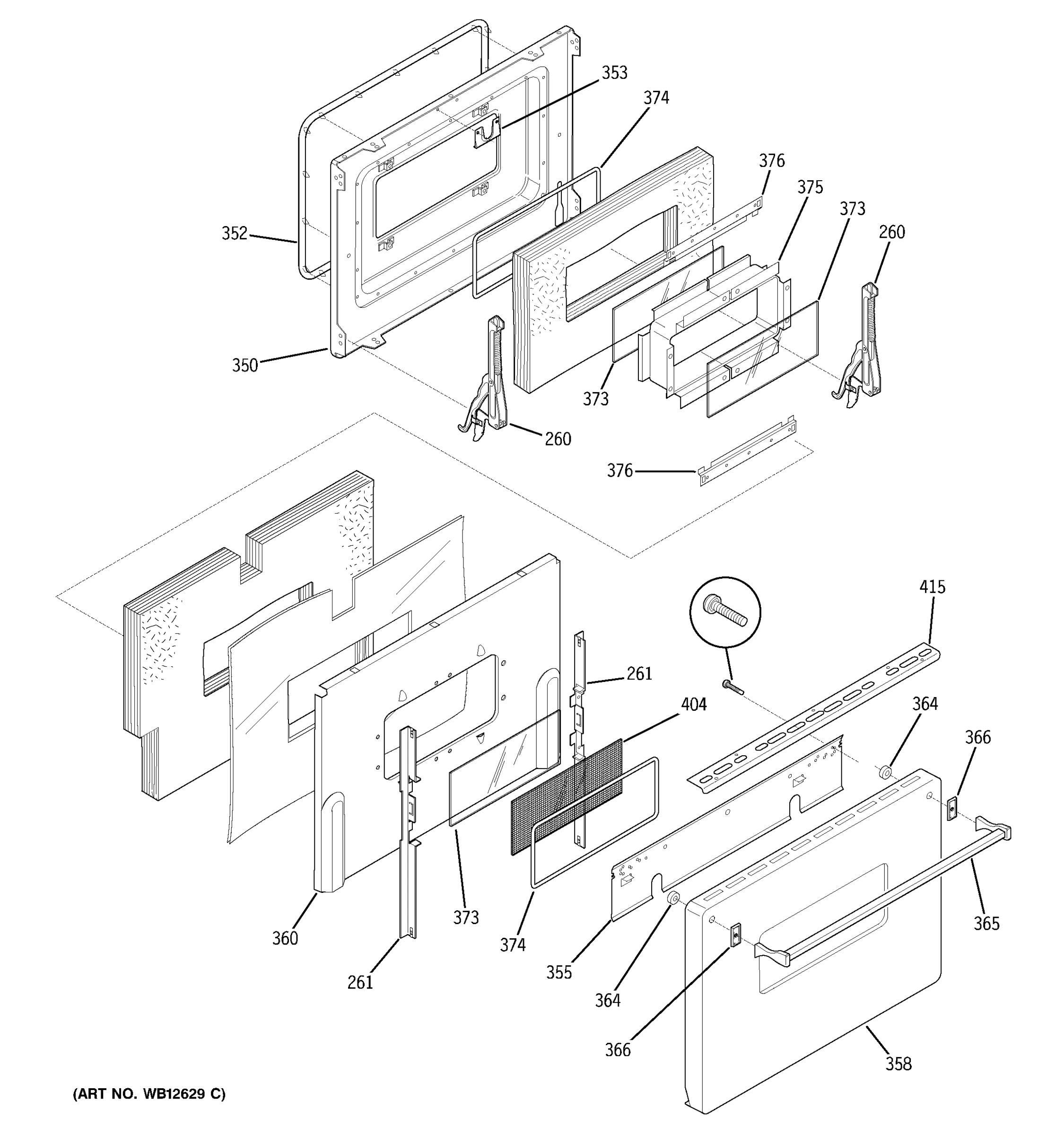

DOOR
Common parts from model GE JCP67F1WW
1
GEN WB62X10027 GEN WB62X10027 Contact Us For Availability
3
GEN WB23X10011 GEN WB23X10011 Contact Us For Availability
4
GEN WB03X10041 GEN WB03X10041 Contact Us For Availability
5
GEN WB25X10010 GEN WB25X10010 Contact Us For Availability
7
GEN WB02X7457 GEN WB02X7457 Contact Us For Availability
8
GEN WB02X10854 GEN WB02X10854 Contact Us For Availability
8
GEN WB02X10855 GEN WB02X10855 Contact Us For Availability
9
GEN WB07X10593 GEN WB07X10593 Contact Us For Availability
9
GEN WB07X10594 GEN WB07X10594 Contact Us For Availability
11
GEN WB23X10012 GEN WB23X10012 Contact Us For Availability
12
GEN WB20X10014 GEN WB20X10014 Contact Us For Availability
16
GEN WB19X10019 GEN WB19X10019 Contact Us For Availability
17
GEN WB03X10045 GEN WB03X10045 Contact Us For Availability
21
GEN WB02X10851 GEN WB02X10851 Contact Us For Availability
23
GEN WB02X10856 GEN WB02X10856 Contact Us For Availability
36
GEN WB24X10043 GEN WB24X10043 Contact Us For Availability
37
GEN WB20X10025 GEN WB20X10025 Contact Us For Availability
65
GEN WB10X10031 GEN WB10X10031 Contact Us For Availability
78
GEN WB39X10006 GEN WB39X10006 Contact Us For Availability
87
GEN WB07X10595 GEN WB07X10595 Contact Us For Availability
88
GEN WB02X10614 GEN WB02X10614 Contact Us For Availability
127
GEN WB02X8569 GEN WB02X8569 Contact Us For Availability
138
PIN HINGE RH GEN WB02X7440 Contact Us For Availability
139
PIN HINGE LH GEN WB02X7439 Contact Us For Availability
151
GEN WB31X5022 GEN WB31X5022 Contact Us For Availability
160
TERM BLK SURF UNIT GEN WB17X5091 Contact Us For Availability
161
GEN WB17X10012 GEN WB17X10012 Contact Us For Availability
256
GEN WB01X10133 GEN WB01X10133 Contact Us For Availability
260
GEN WB10X5217 GEN WB10X5217 Contact Us For Availability
261
GEN WB02X10844 GEN WB02X10844 Contact Us For Availability
261
GEN WB02X10845 GEN WB02X10845 Contact Us For Availability
272
GEN WB02X10606 GEN WB02X10606 Contact Us For Availability
272
GEN WB02X10607 GEN WB02X10607 Contact Us For Availability
275
GEN WB49X10051 GEN WB49X10051 Contact Us For Availability
277
GEN WB24X10012 GEN WB24X10012 Contact Us For Availability
277
GEN WB24X10106 GEN WB24X10106 Contact Us For Availability
279
RECEPT LAMP GEN WB08X5091 Contact Us For Availability
280
GEN BULB 40W GEN BULB 40W Contact Us For Availability
285
GEN WB29X10001 GEN WB29X10001 Contact Us For Availability
302
GEN WB02X10616 GEN WB02X10616 Contact Us For Availability
302
BAIL, LAMP SM OV GEN WB02X7485 Contact Us For Availability
303
GEN WB36X5799 GEN WB36X5799 Contact Us For Availability
350
GEN WB10X10032 GEN WB10X10032 Contact Us For Availability
350
GEN WB55X10552 GEN WB55X10552 Contact Us For Availability
350
GEN WB55X10564 GEN WB55X10564 Contact Us For Availability
352
GEN WB02X10605 GEN WB02X10605 Contact Us For Availability
352
GEN WB02X8560 GEN WB02X8560 Contact Us For Availability
353
GEN WB10X5219 GEN WB10X5219 Contact Us For Availability
355
GEN WB55X10266 GEN WB55X10266 Contact Us For Availability
357
GEN WB02X10846 GEN WB02X10846 Contact Us For Availability
358
GEN WB56X10002 GEN WB56X10002 Contact Us For Availability
358
GEN WB56X7087 GEN WB56X7087 Contact Us For Availability
360
GEN WB55X5409 GEN WB55X5409 Contact Us For Availability
363
GEN WB02X8561 GEN WB02X8561 Contact Us For Availability
364
GEN WB02X8572 GEN WB02X8572 Contact Us For Availability
365
GEN WB15X10085 GEN WB15X10085 Contact Us For Availability
365
GEN WB15X10087 GEN WB15X10087 Contact Us For Availability
366
GEN WB02X10847 GEN WB02X10847 Contact Us For Availability
373
GEN WB36X5795 GEN WB36X5795 Contact Us For Availability
374
GEN WB02X10759 GEN WB02X10759 Contact Us For Availability
374
GEN WB02X8568 GEN WB02X8568 Contact Us For Availability
375
GEN WB02X10003 GEN WB02X10003 Contact Us For Availability
376
GEN WB02X8565 GEN WB02X8565 Contact Us For Availability
386
GEN WB15X10088 GEN WB15X10088 Contact Us For Availability
404
GEN WB36X5800 GEN WB36X5800 Contact Us For Availability
415
GEN WB07X7349 GEN WB07X7349 Contact Us For Availability
415
GEN WB07X7350 GEN WB07X7350 Contact Us For Availability
451
GEN WB58X5009 GEN WB58X5009 Contact Us For Availability
452
GEN WB02X10848 GEN WB02X10848 Contact Us For Availability
453
GEN WB02X10615 GEN WB02X10615 Contact Us For Availability
457
GEN WB56X10288 GEN WB56X10288 Contact Us For Availability
520
GEN WB53X10007 GEN WB53X10007 Contact Us For Availability
520
GEN WB53X10015 GEN WB53X10015 Contact Us For Availability
523
GEN WB02X7969 GEN WB02X7969 Contact Us For Availability
523
GEN WB02X8552 GEN WB02X8552 Contact Us For Availability
527
SHELF SM OV GEN WB48X5077 Contact Us For Availability
528
GEN WB48X10025 GEN WB48X10025 Contact Us For Availability
551
GEN WB48X10022 GEN WB48X10022 Contact Us For Availability
650
GEN WB44X5104 GEN WB44X5104 Contact Us For Availability
650
GEN WB44X10002 GEN WB44X10002 Contact Us For Availability
651
GEN WB44X10001 GEN WB44X10001 Contact Us For Availability
651
GEN WB44X5105 GEN WB44X5105 Contact Us For Availability
736
GEN WB26X10122 GEN WB26X10122 Contact Us For Availability
2006
GEN WB02X10001 GEN WB02X10001 Contact Us For Availability
2089
GEN WB02X10862 GEN WB02X10862 Contact Us For Availability
2318
GEN WB02X7436 GEN WB02X7436 Contact Us For Availability
2319
GEN WB02X10840 GEN WB02X10840 Contact Us For Availability
2326
GEN WB49X10050 GEN WB49X10050 Contact Us For Availability
2328
GEN WB02X8566 GEN WB02X8566 Contact Us For Availability
× ![]()
