Model Alliance JCB30CSH Dryer – Common Parts & Diagrams
Control Panel Assembly - Non-CE Manual Timer Models
Control Panel Assembly - CE Manual Timer Models

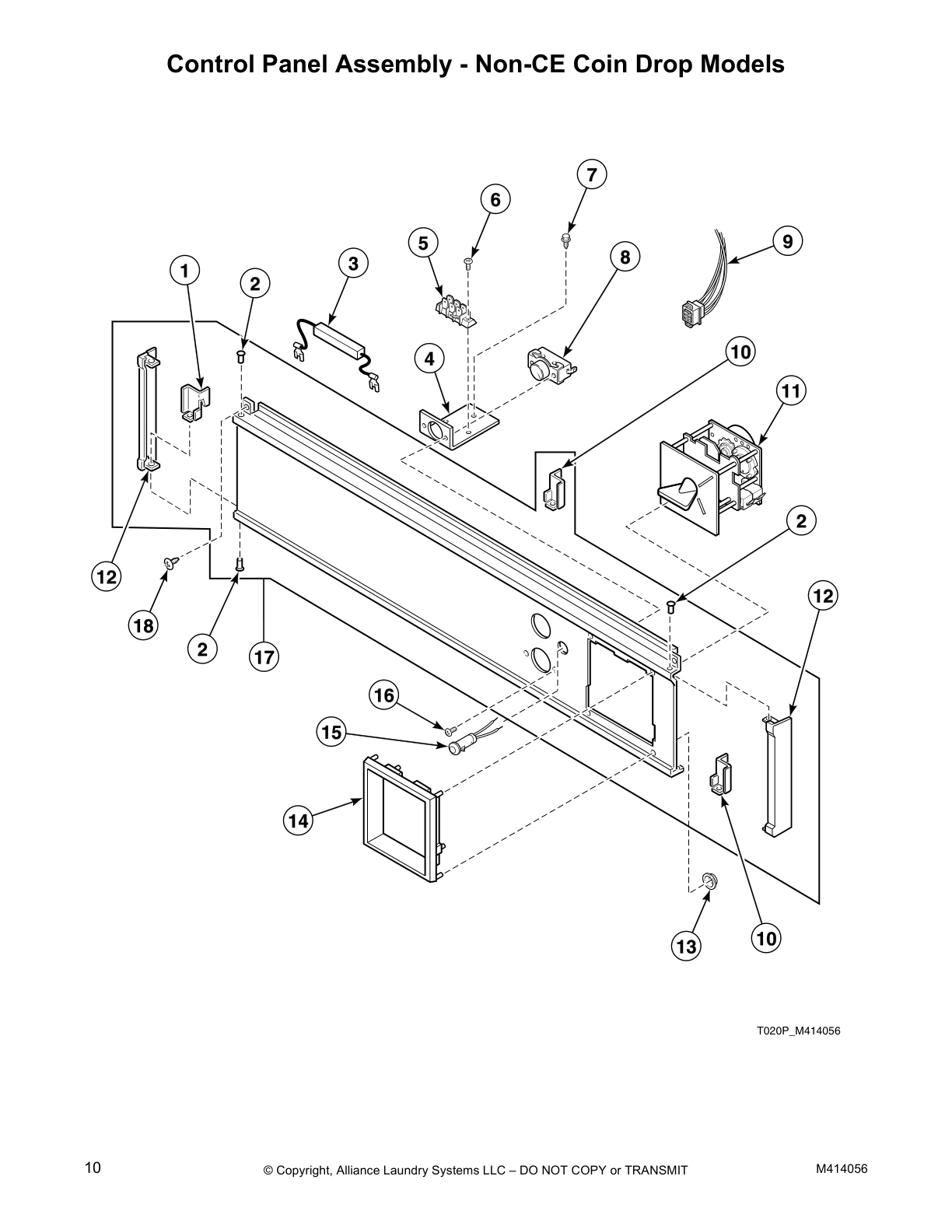

Control Panel Assembly - Non-CE Coin Drop Models

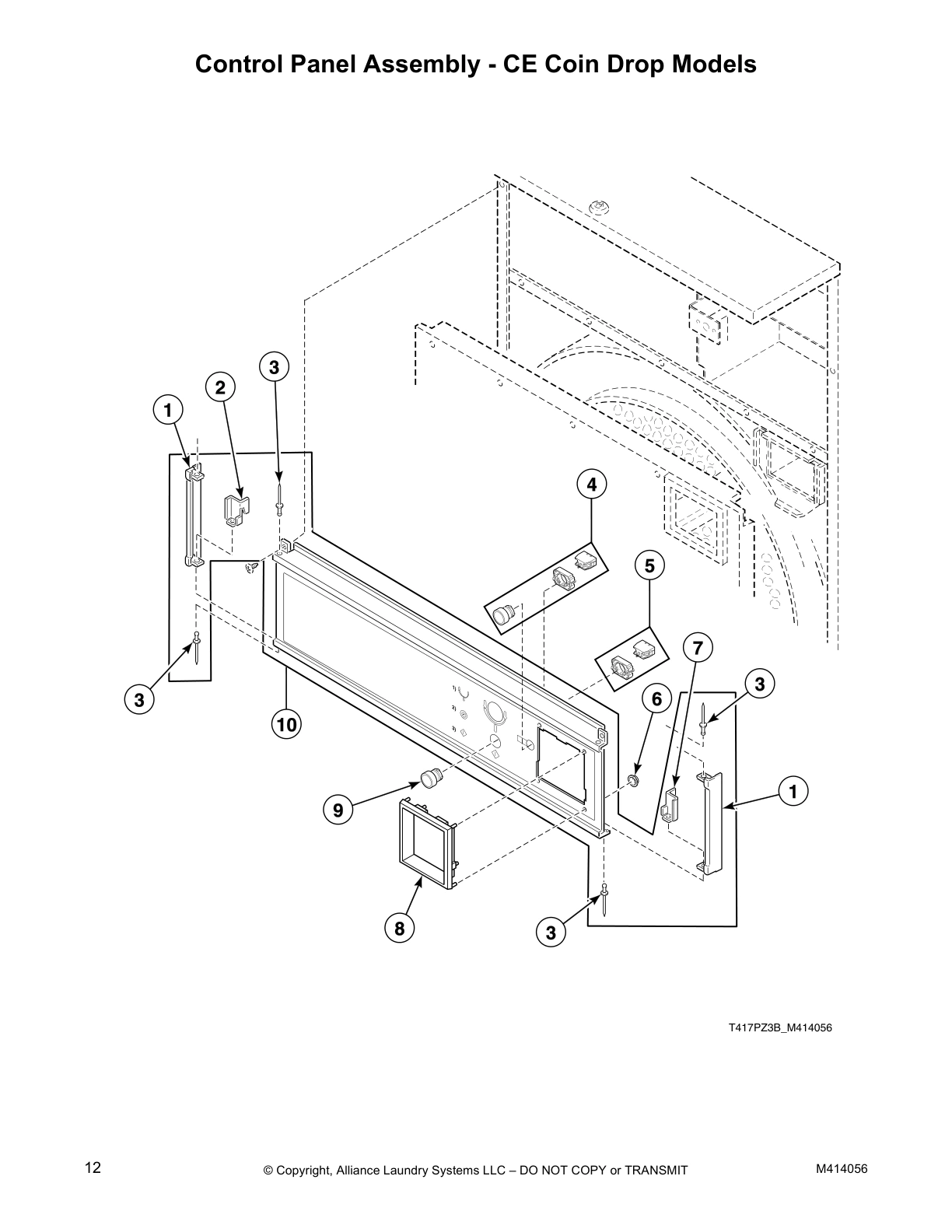

Control Panel Assembly - CE Coin Drop Models

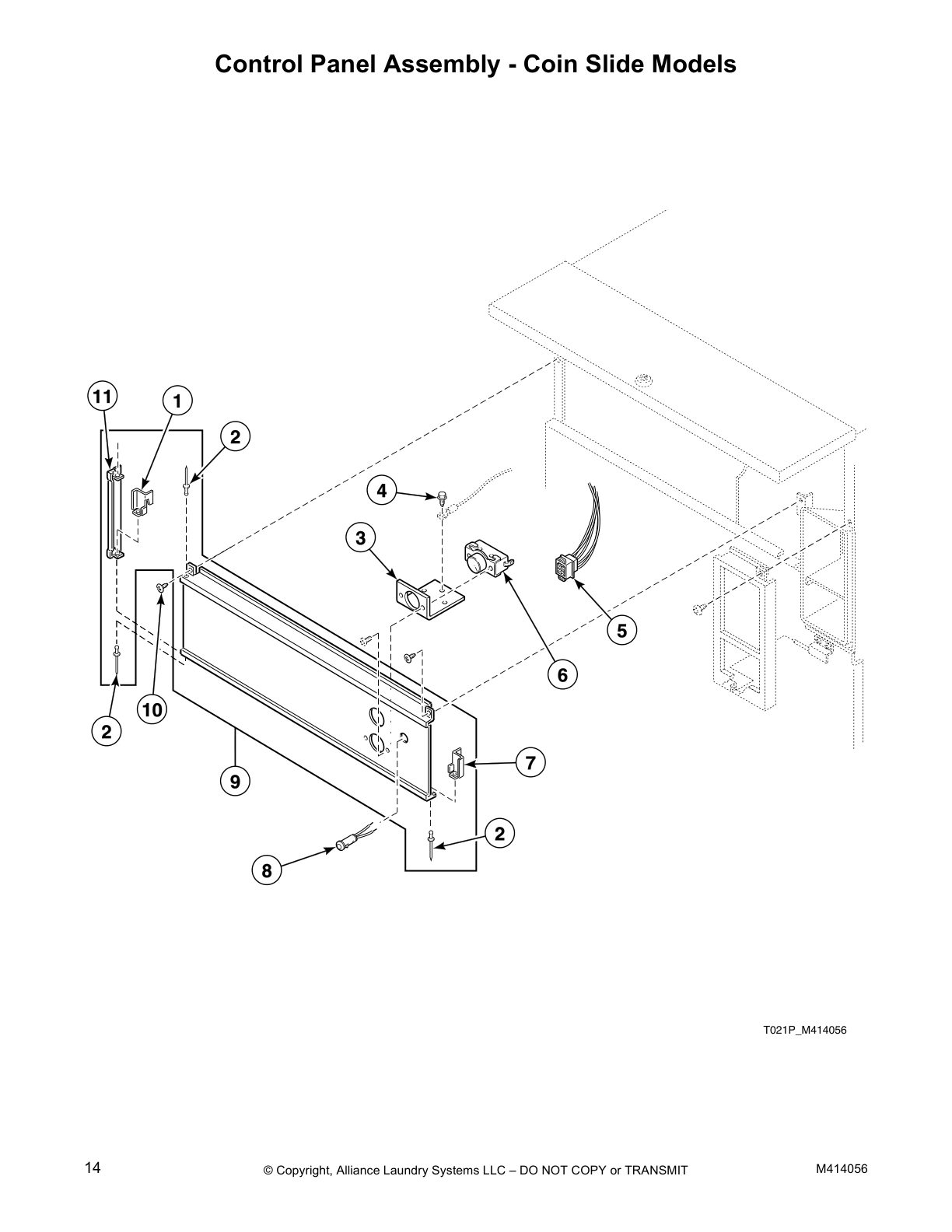

Control Panel Assembly - Coin Slide Models

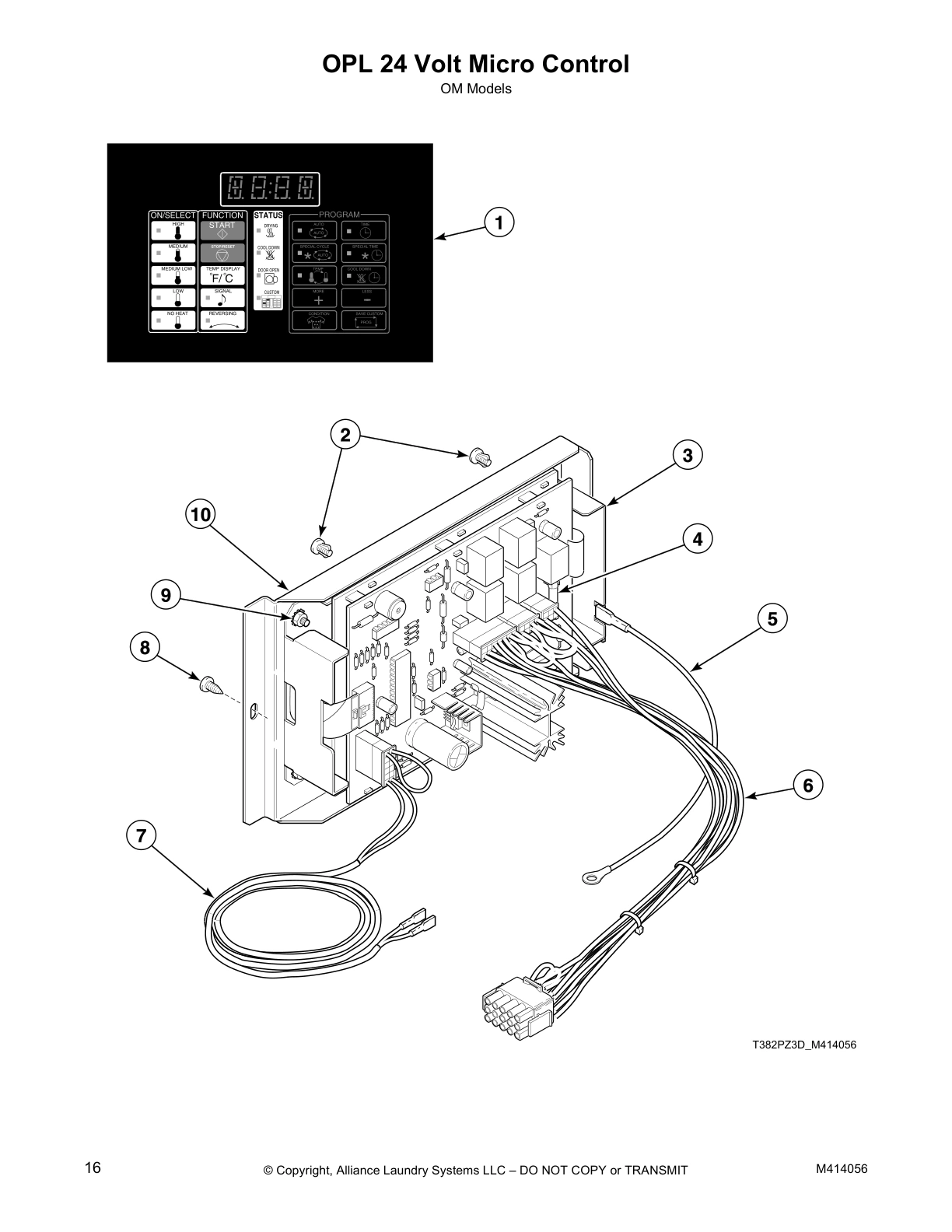

OPL 24 Volt Micro Control

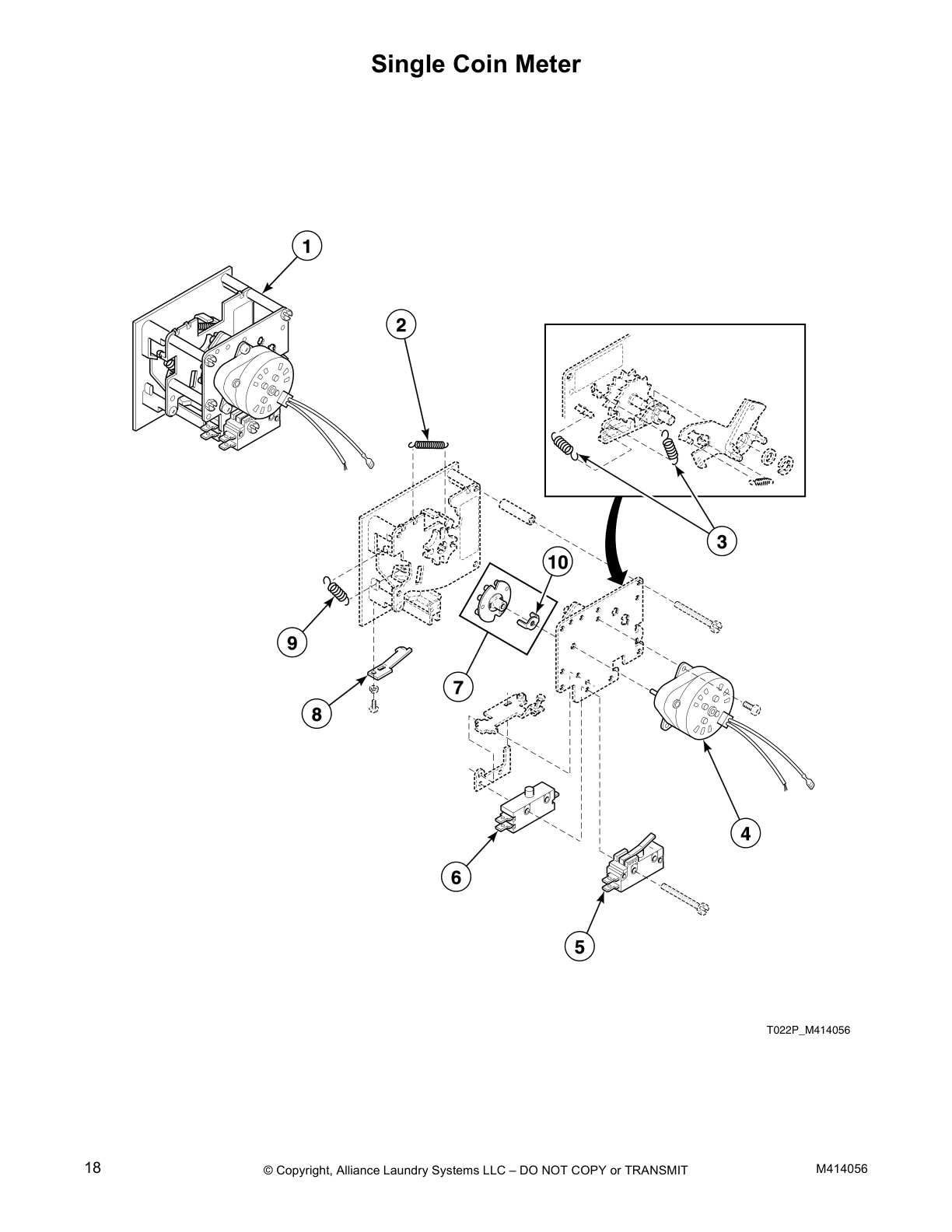

Single Coin Meter

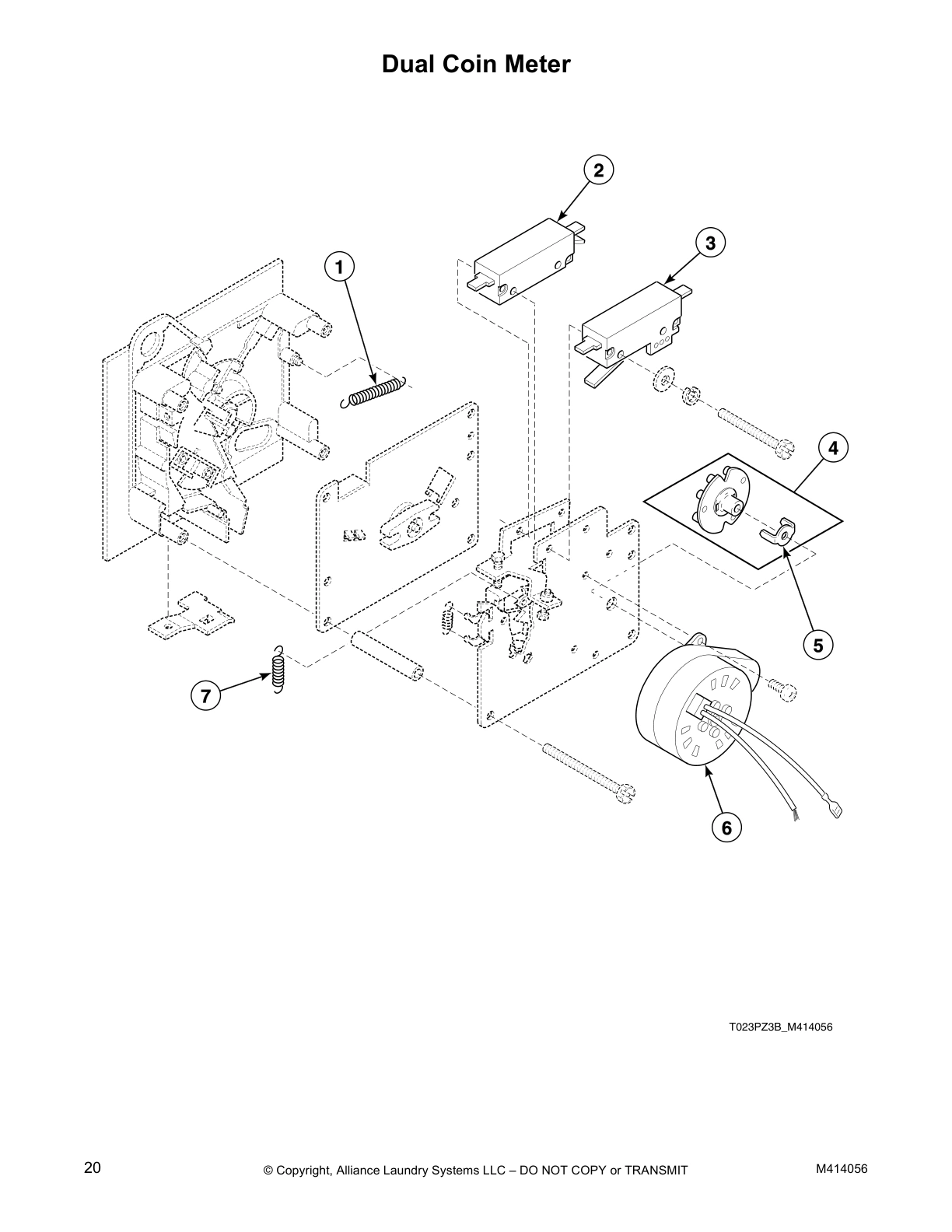

Dual Coin Meter
Coin Vault and Vault Guide Assembly

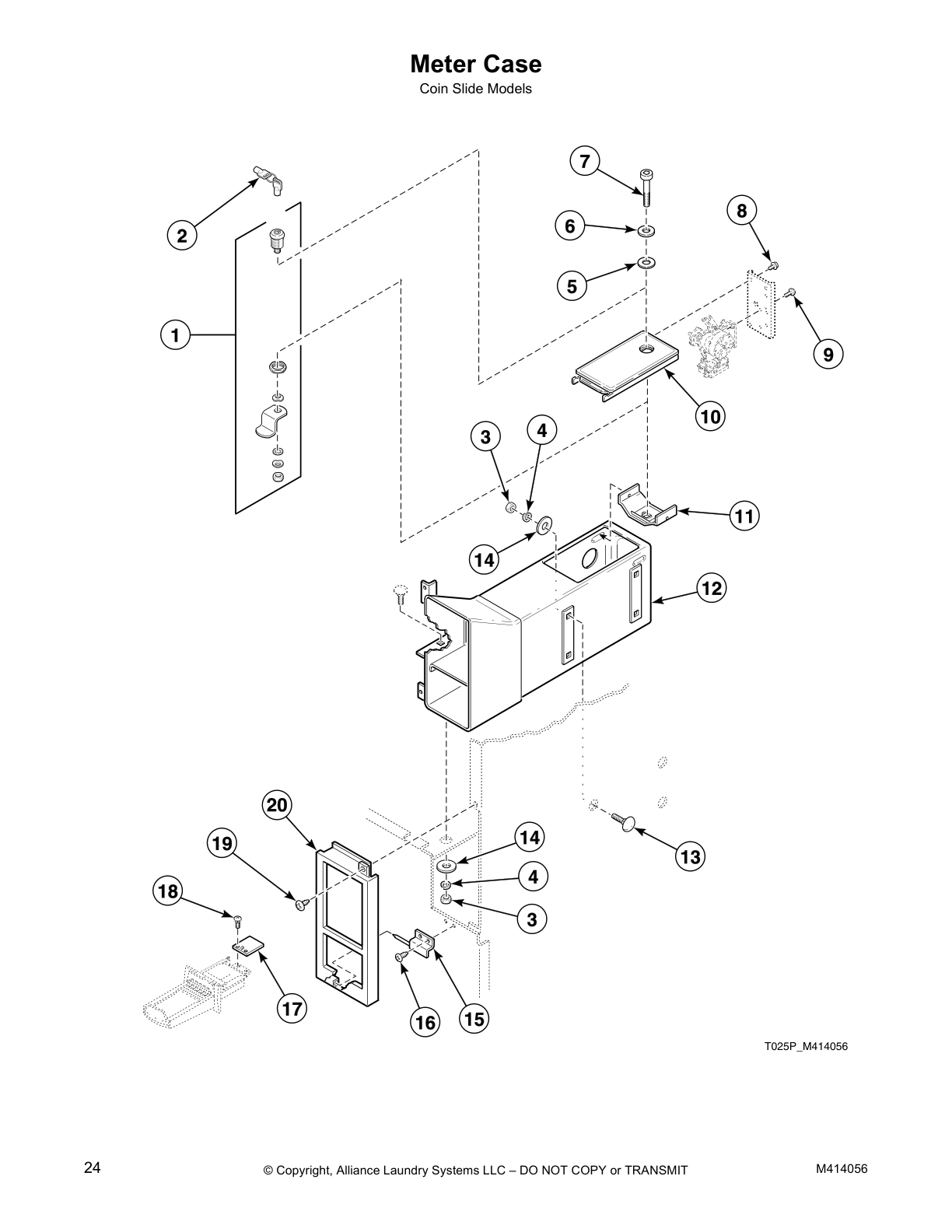

Meter Case

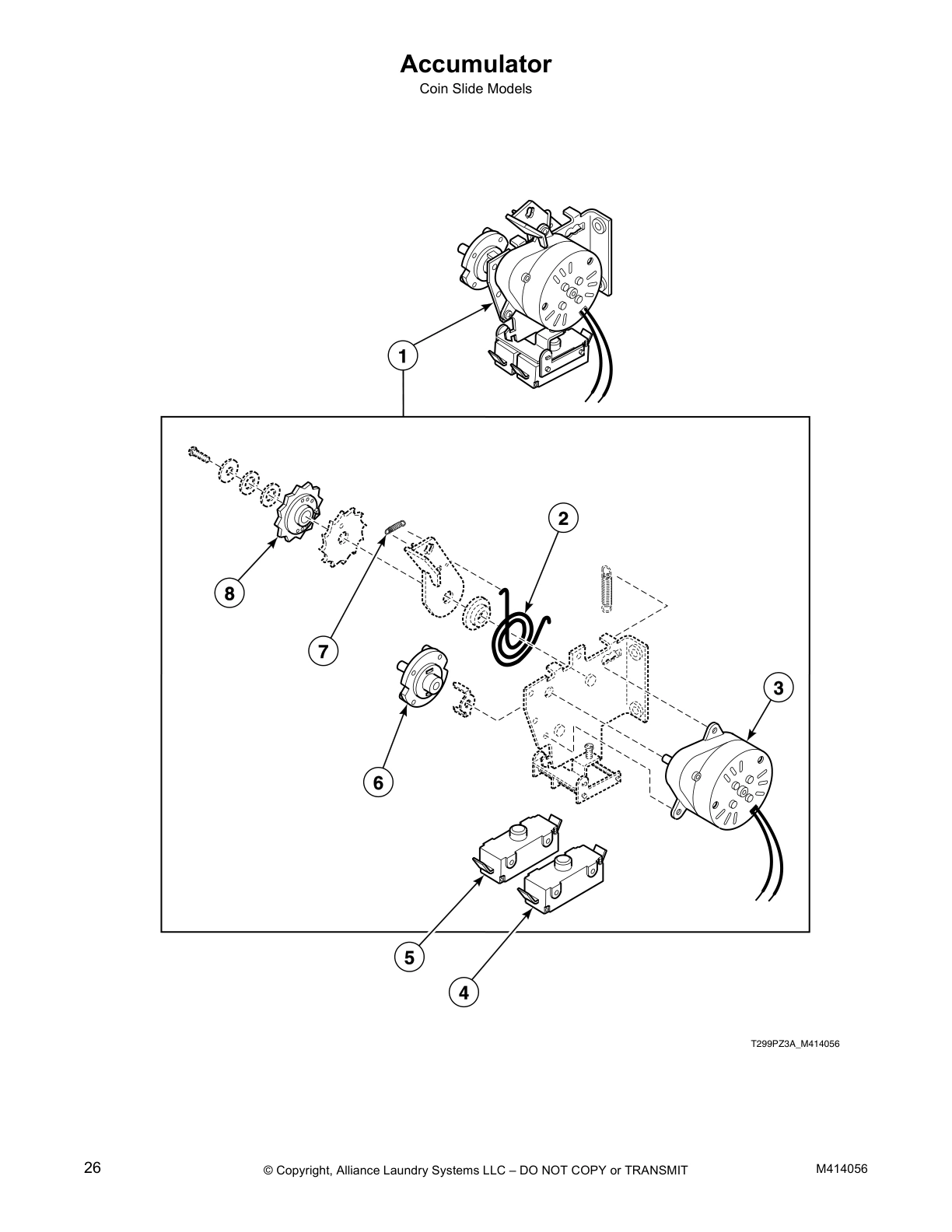

Accumulator

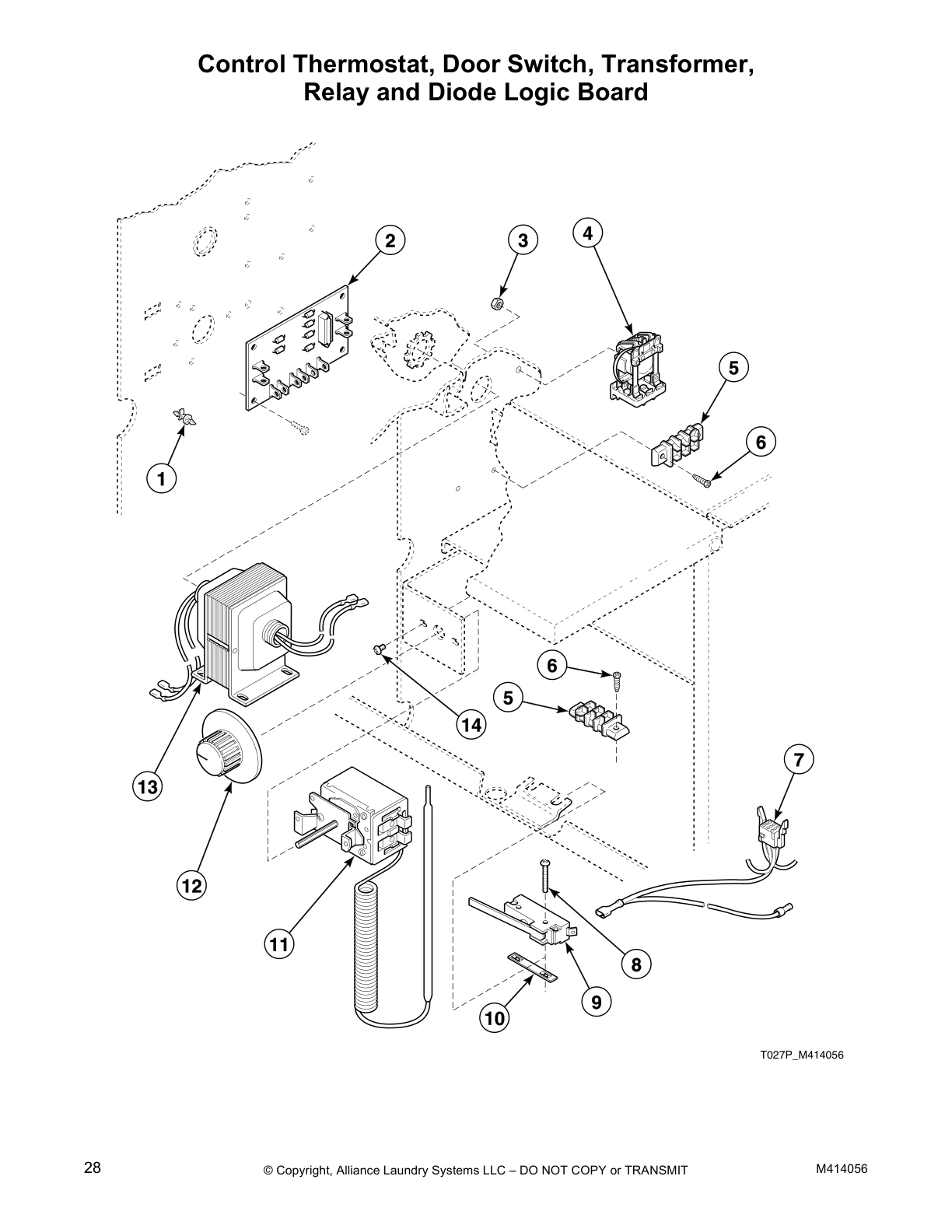

Control Thermostat, Door Switch, Transformer,
Relay and Diode Logic Board

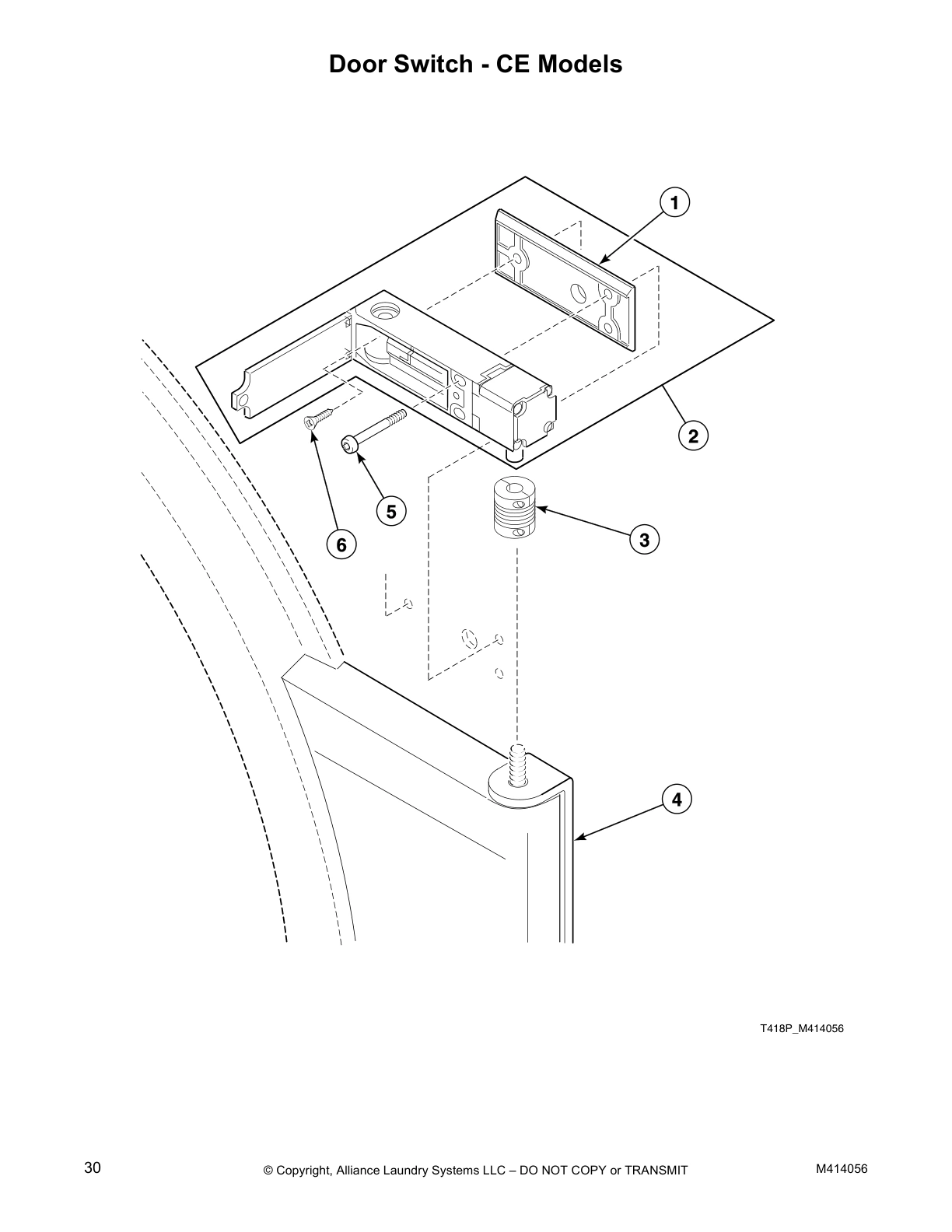

Door Switch - CE Models

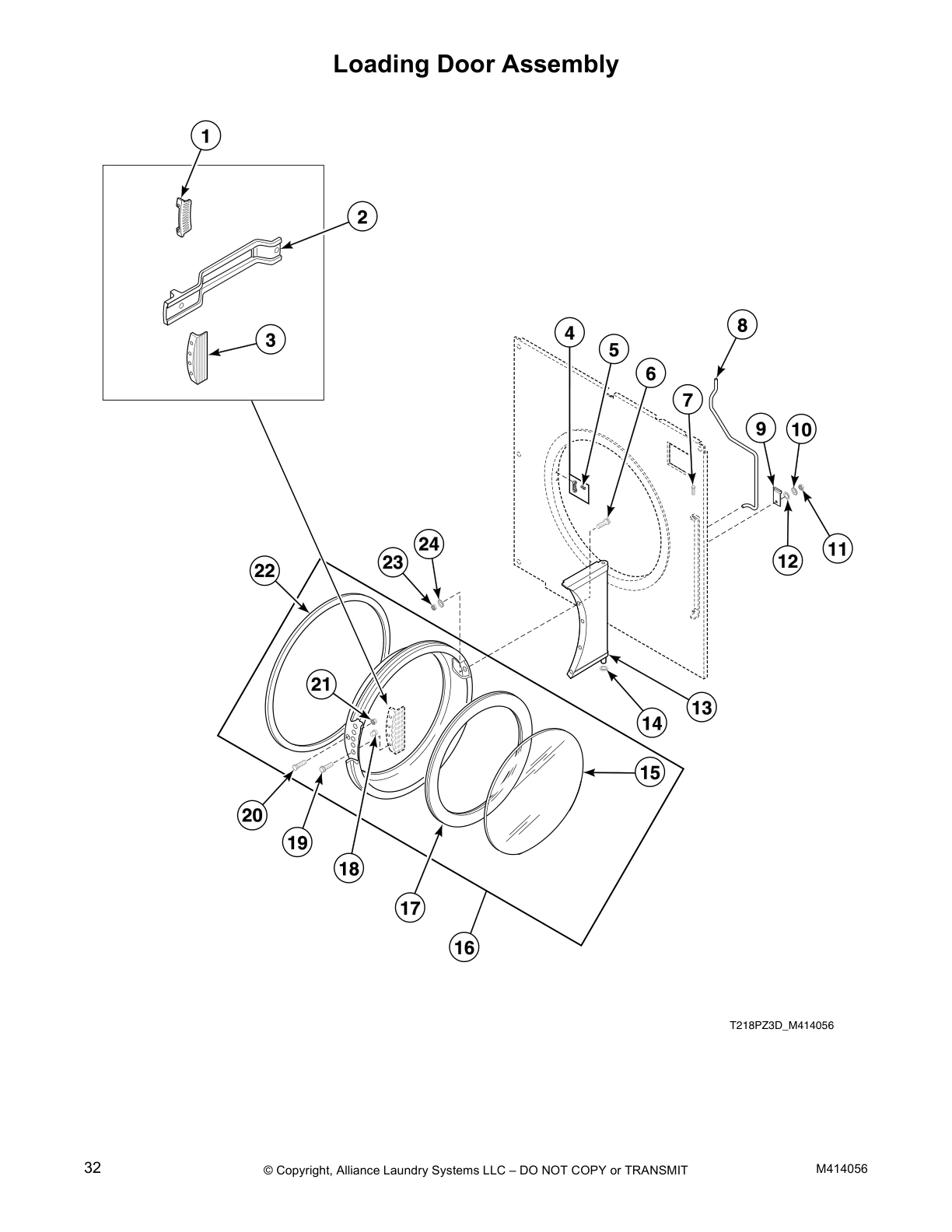

Loading Door Assembly

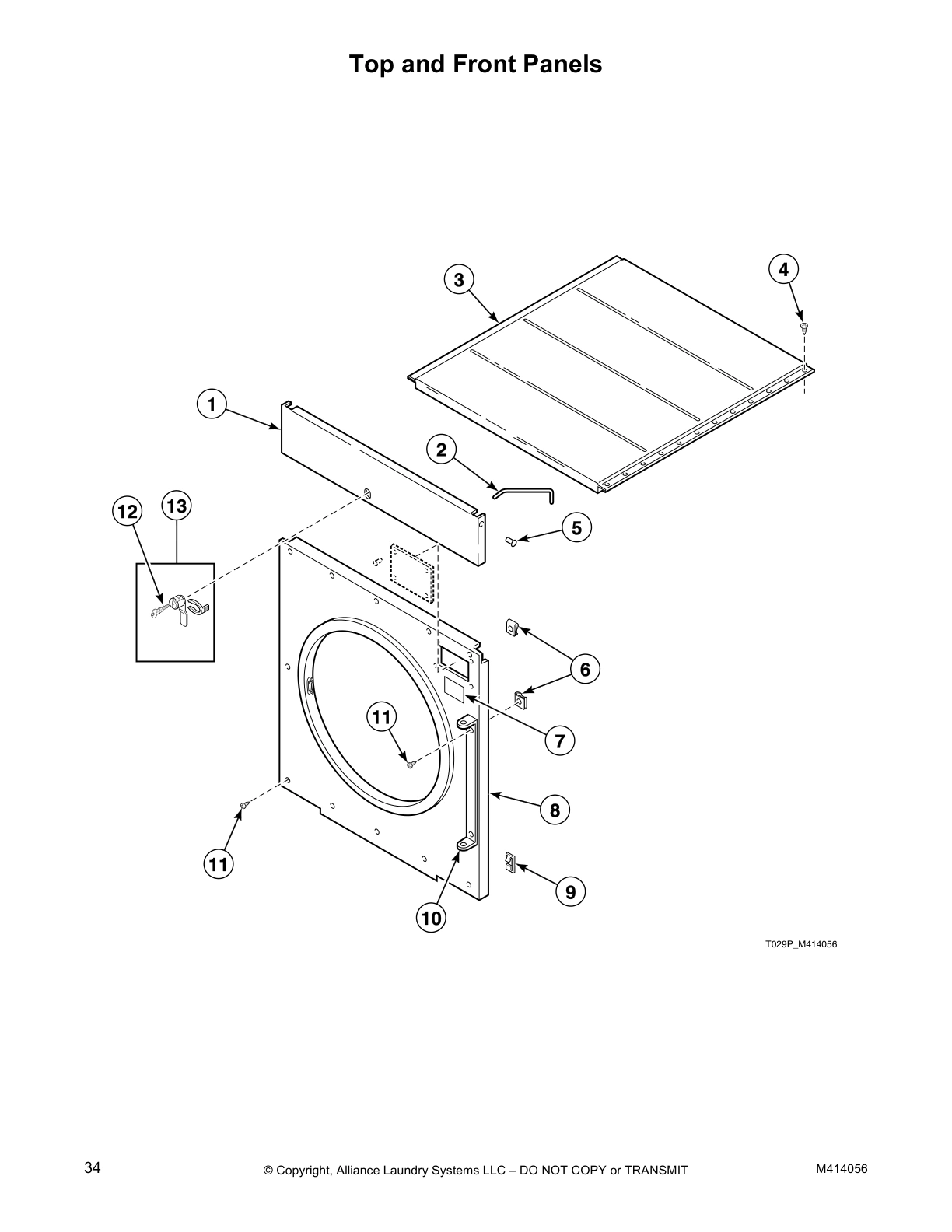

Top and Front Panels

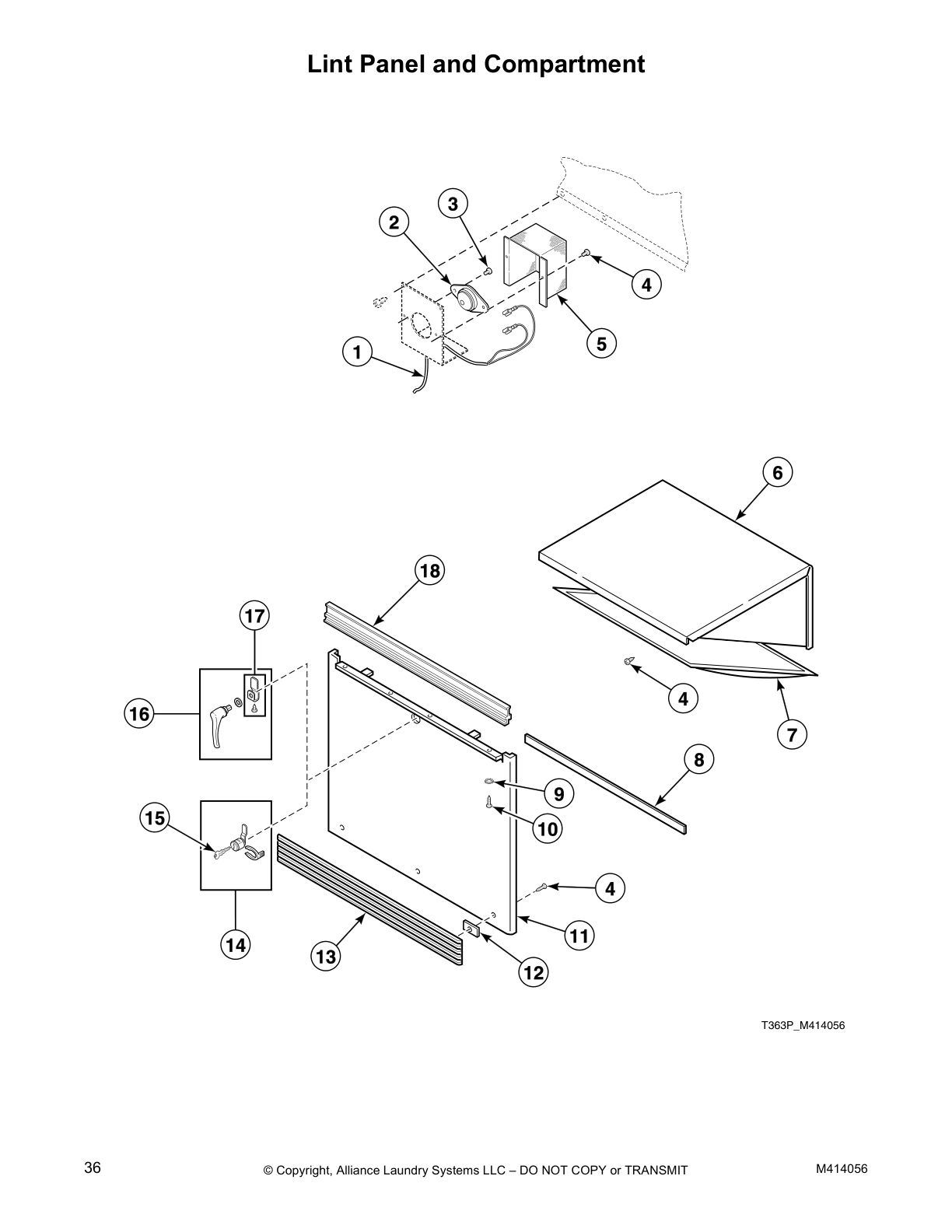

Lint Panel and Compartment

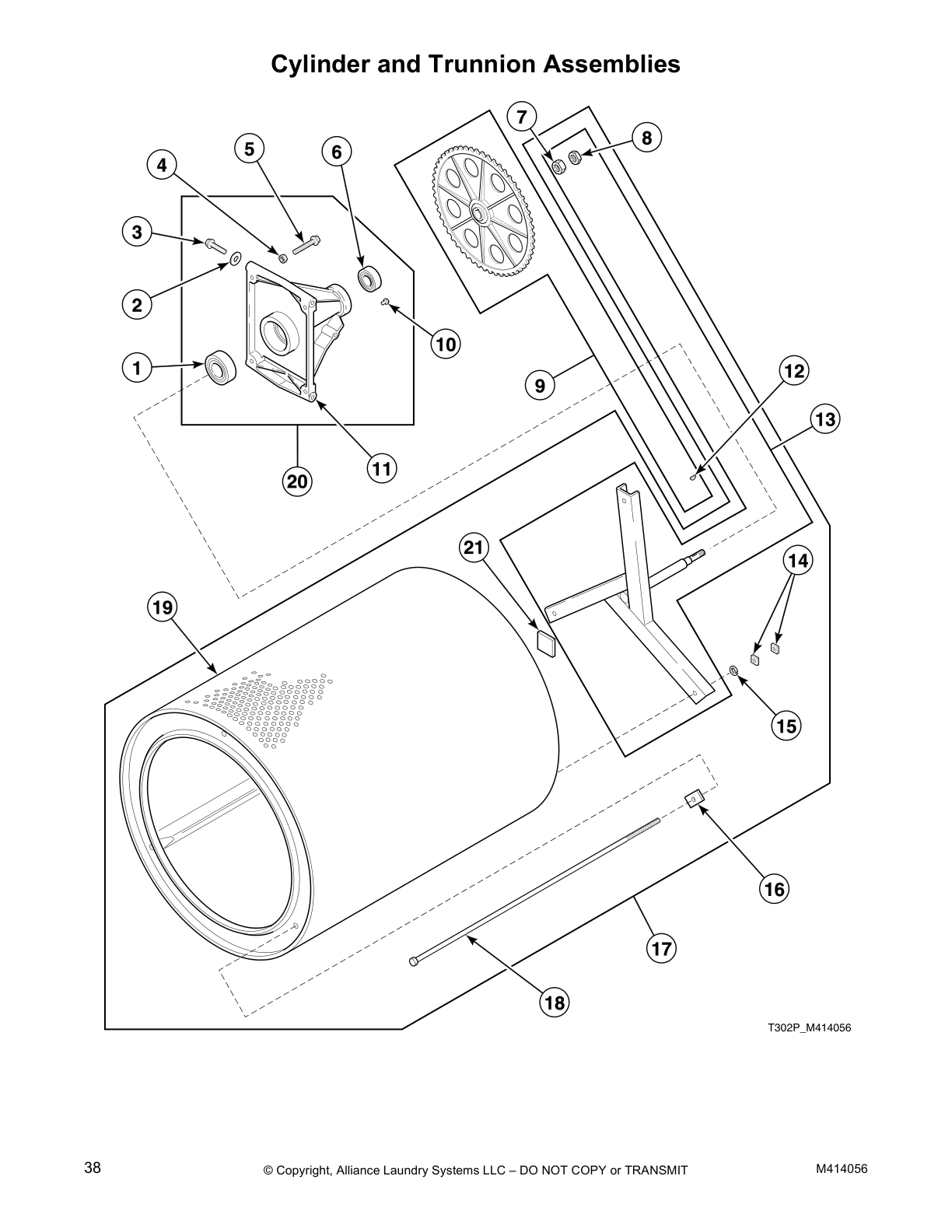

Cylinder and Trunnion Assemblies

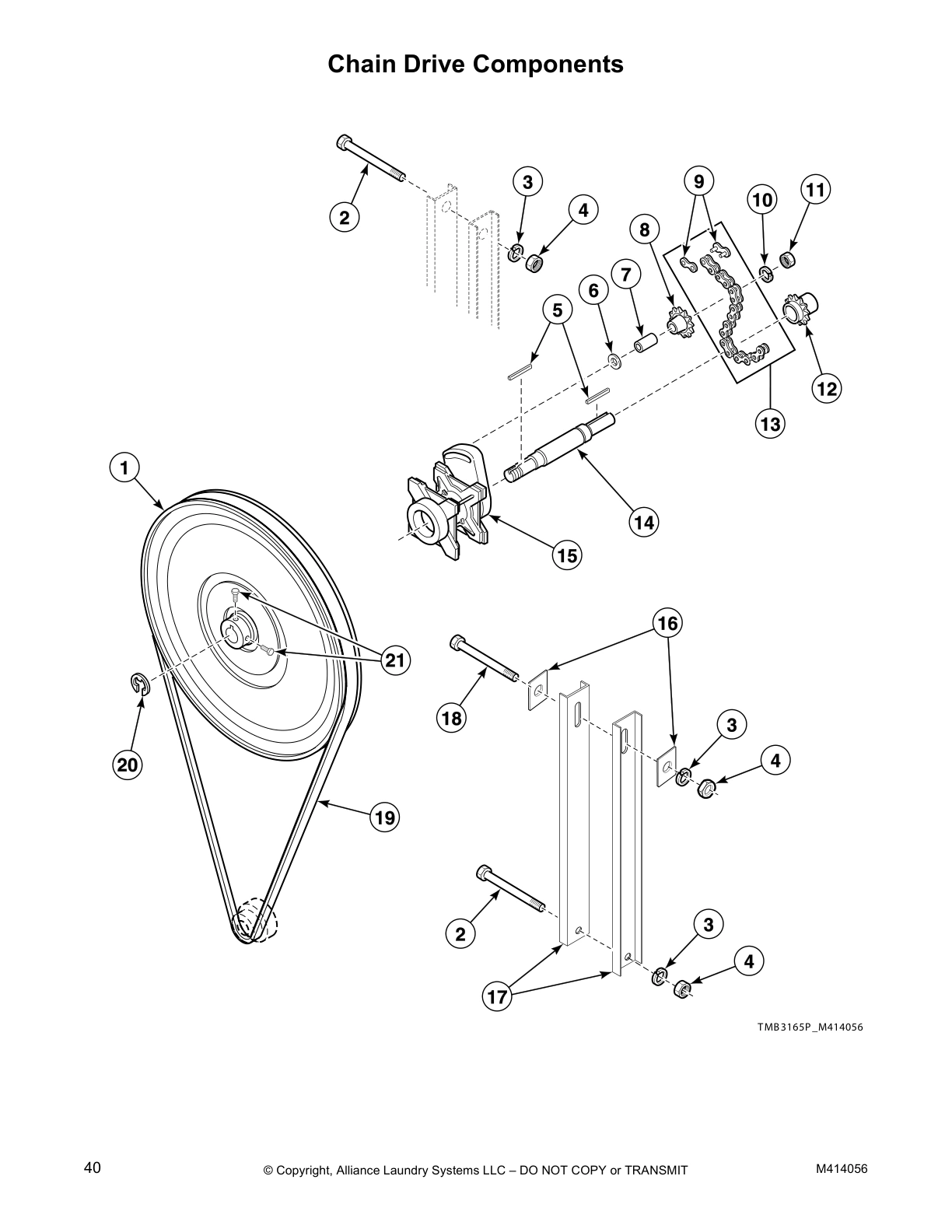

Chain Drive Components

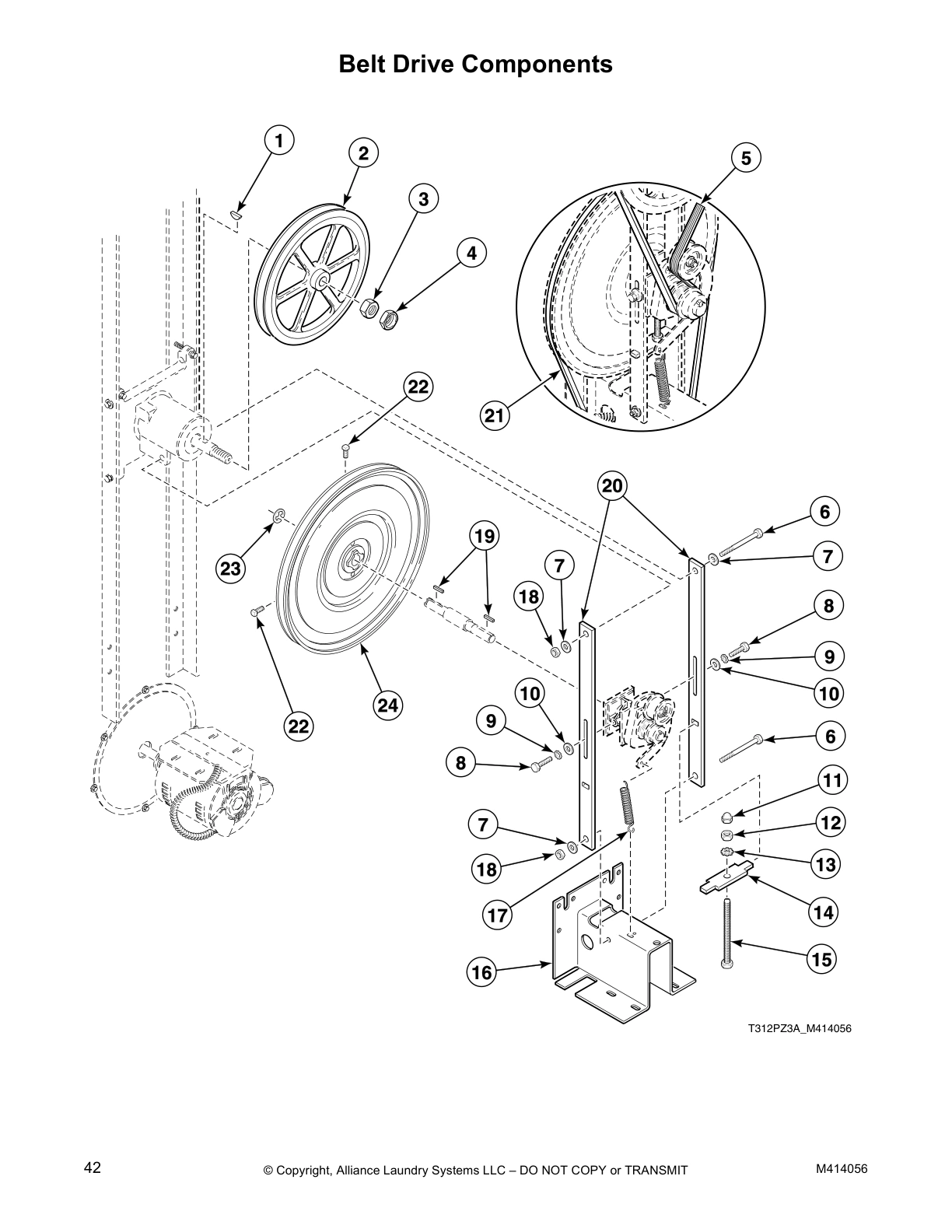

Belt Drive Components

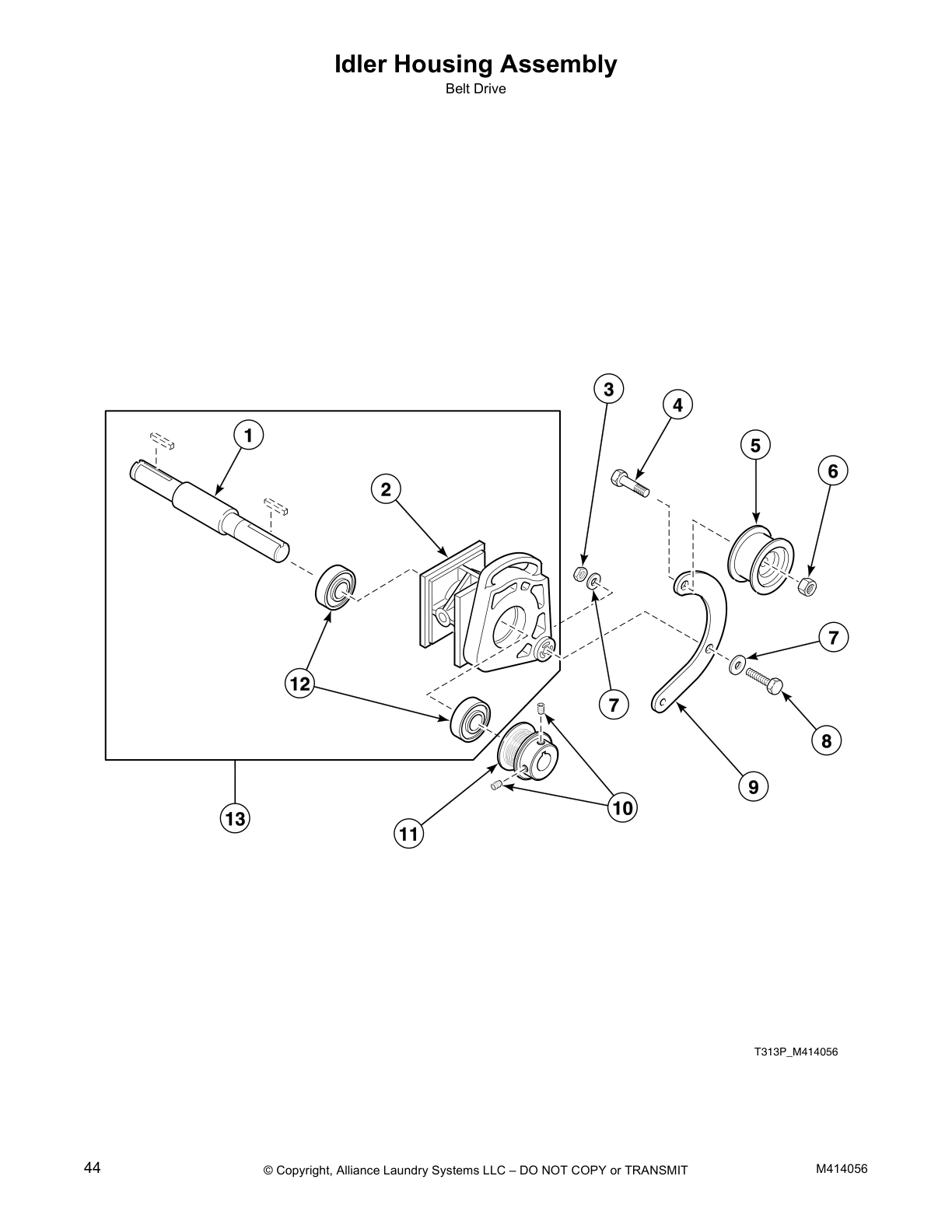

Idler Housing Assembly
Fan and Motor Assembly

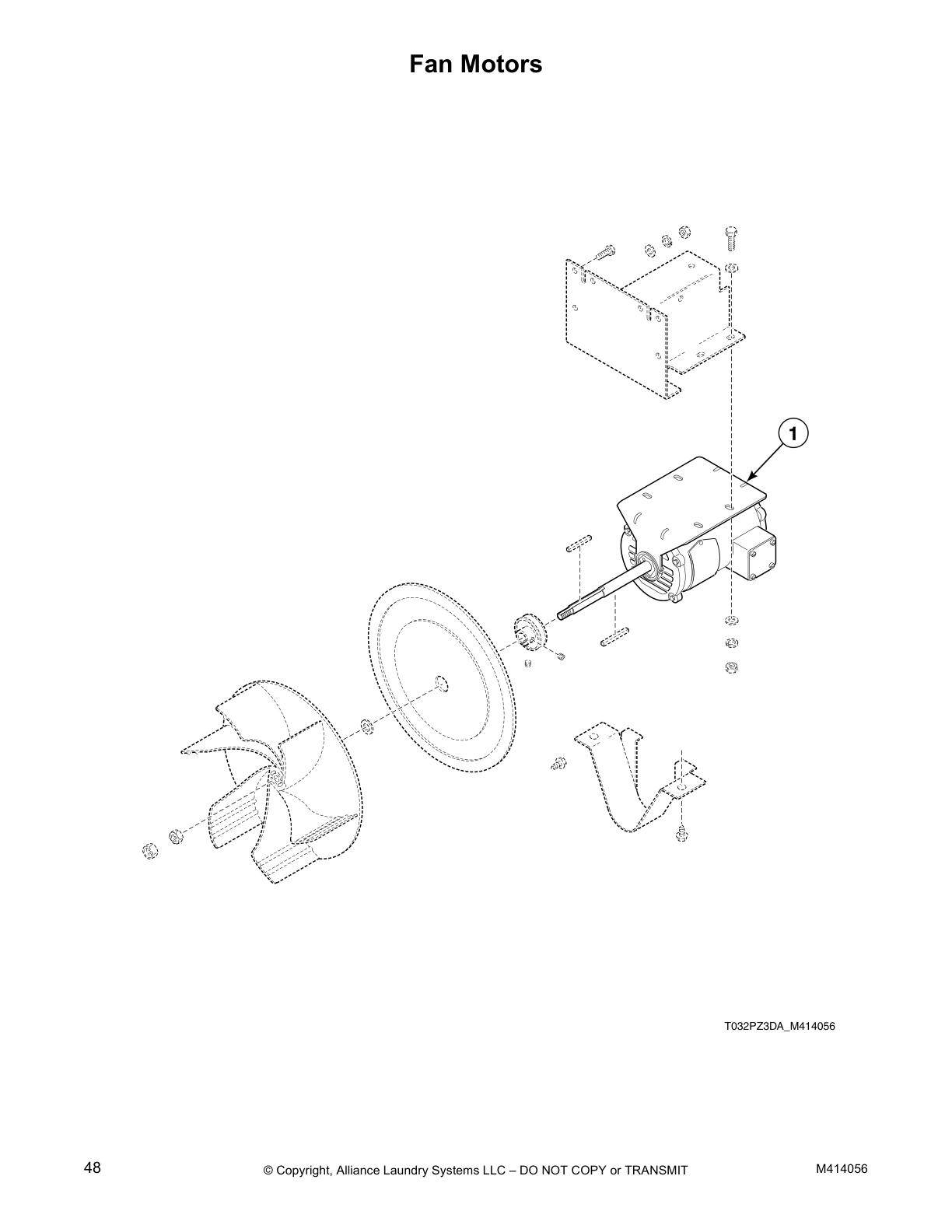

Fan Motors

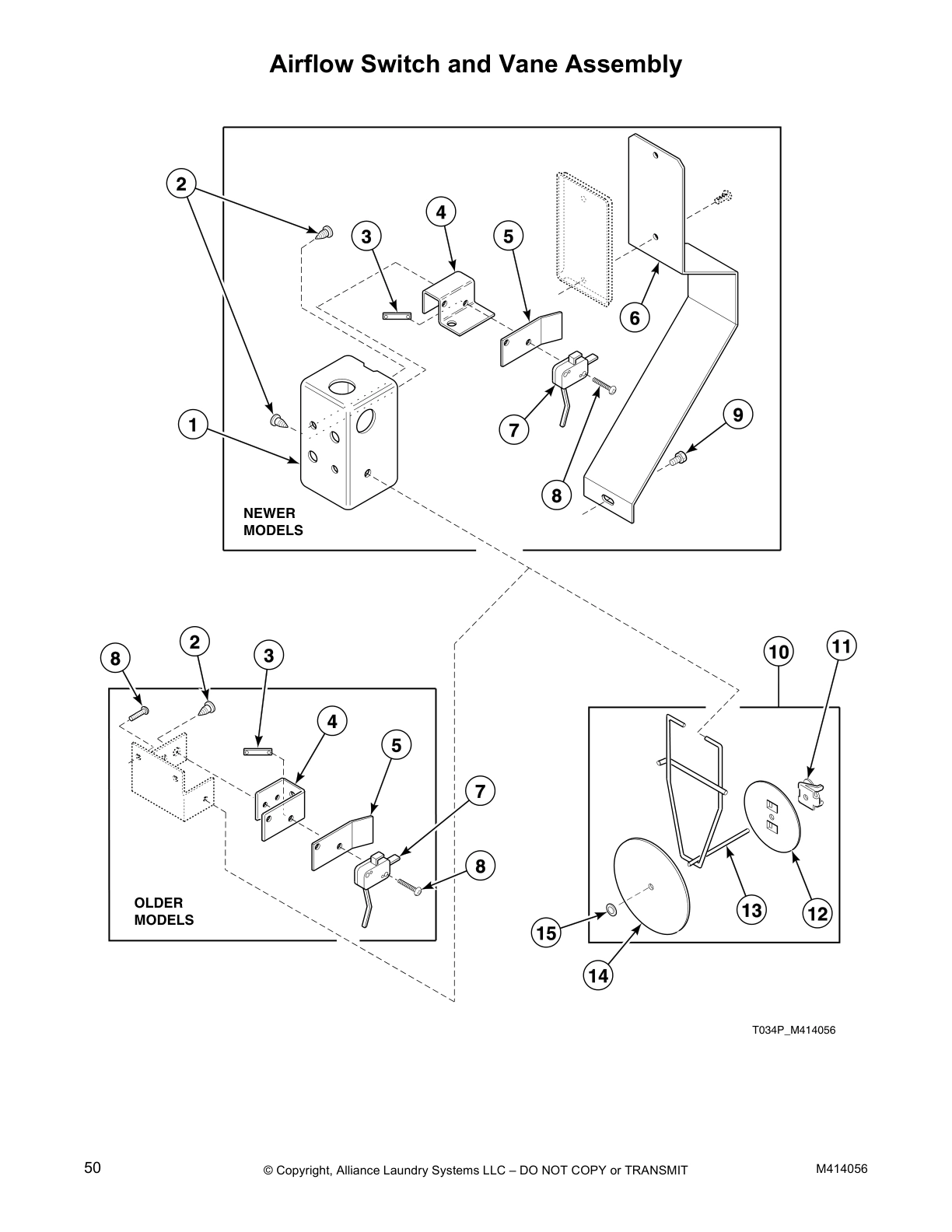

Airflow Switch and Vane Assembly

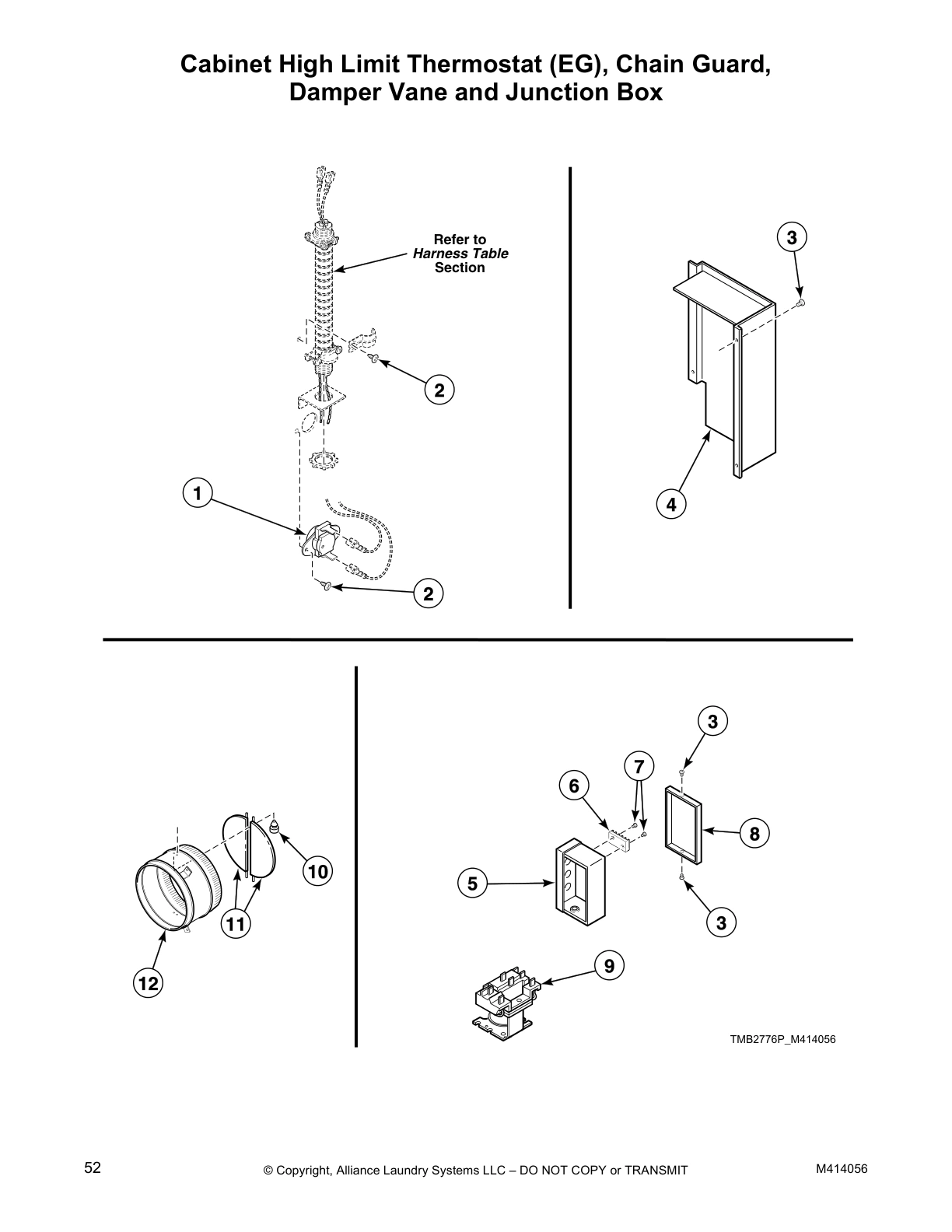

Cabinet High Limit Thermostat (EG), Chain Guard,
Damper Vane and Junction Box

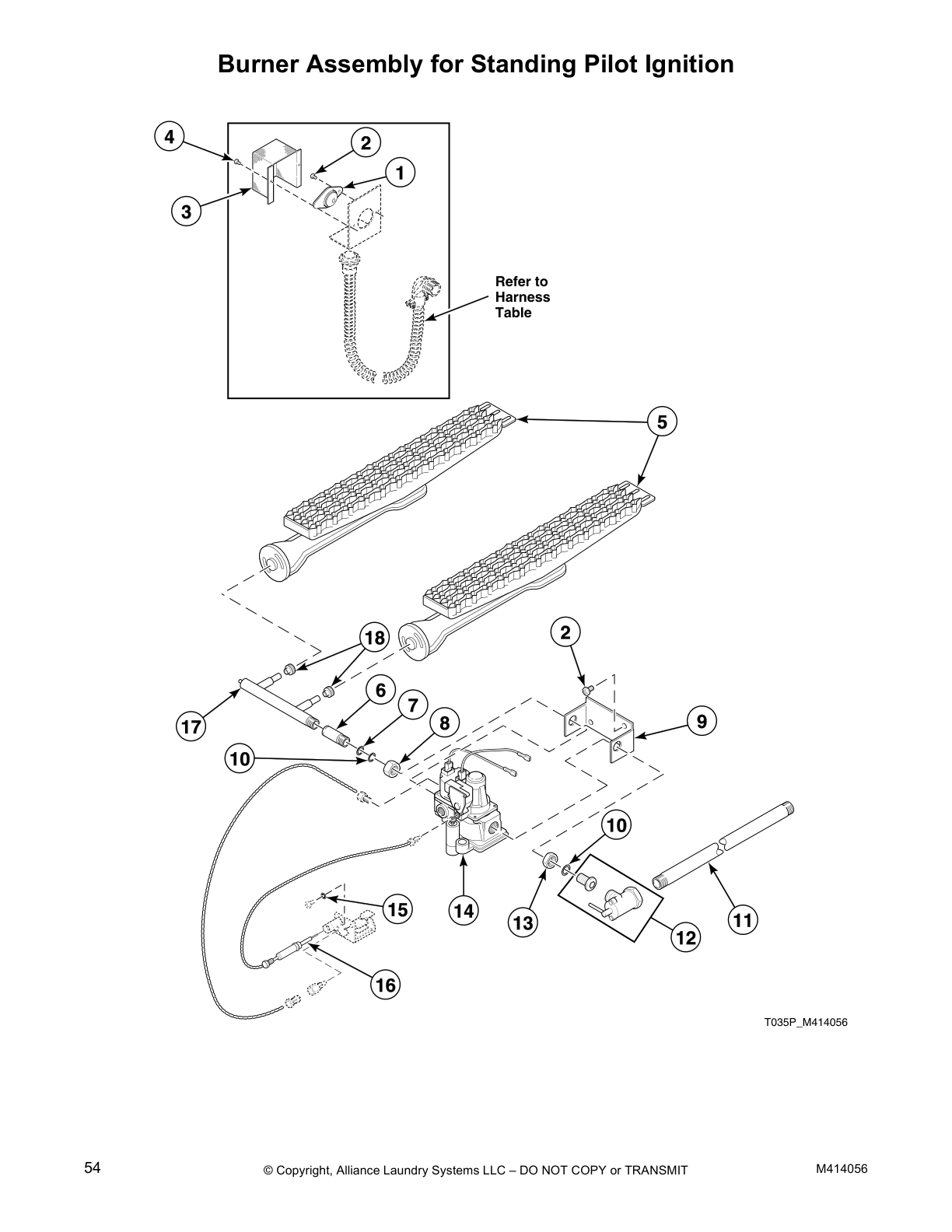

Burner Assembly for Standing Pilot Ignition

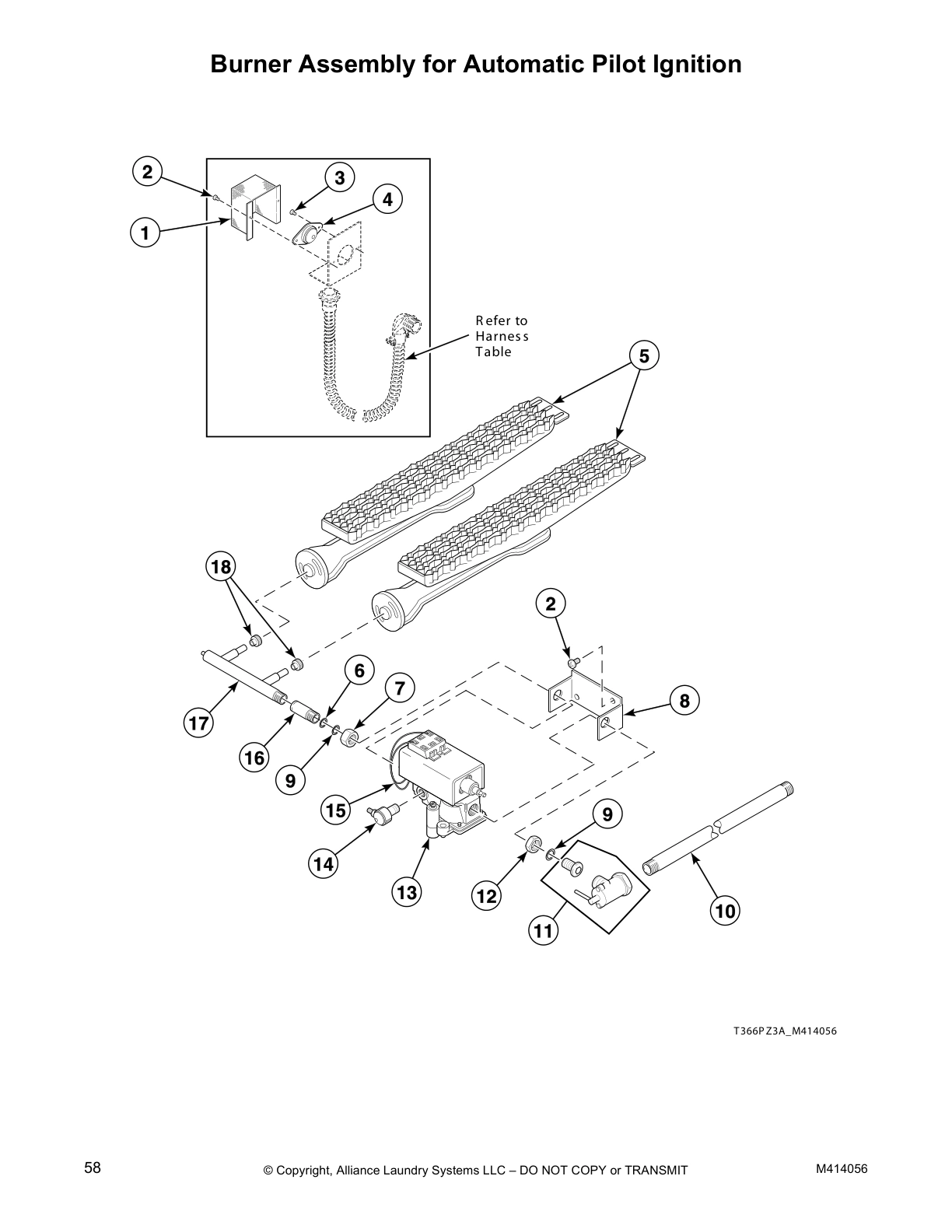

Burner Assembly for Automatic Pilot Ignition

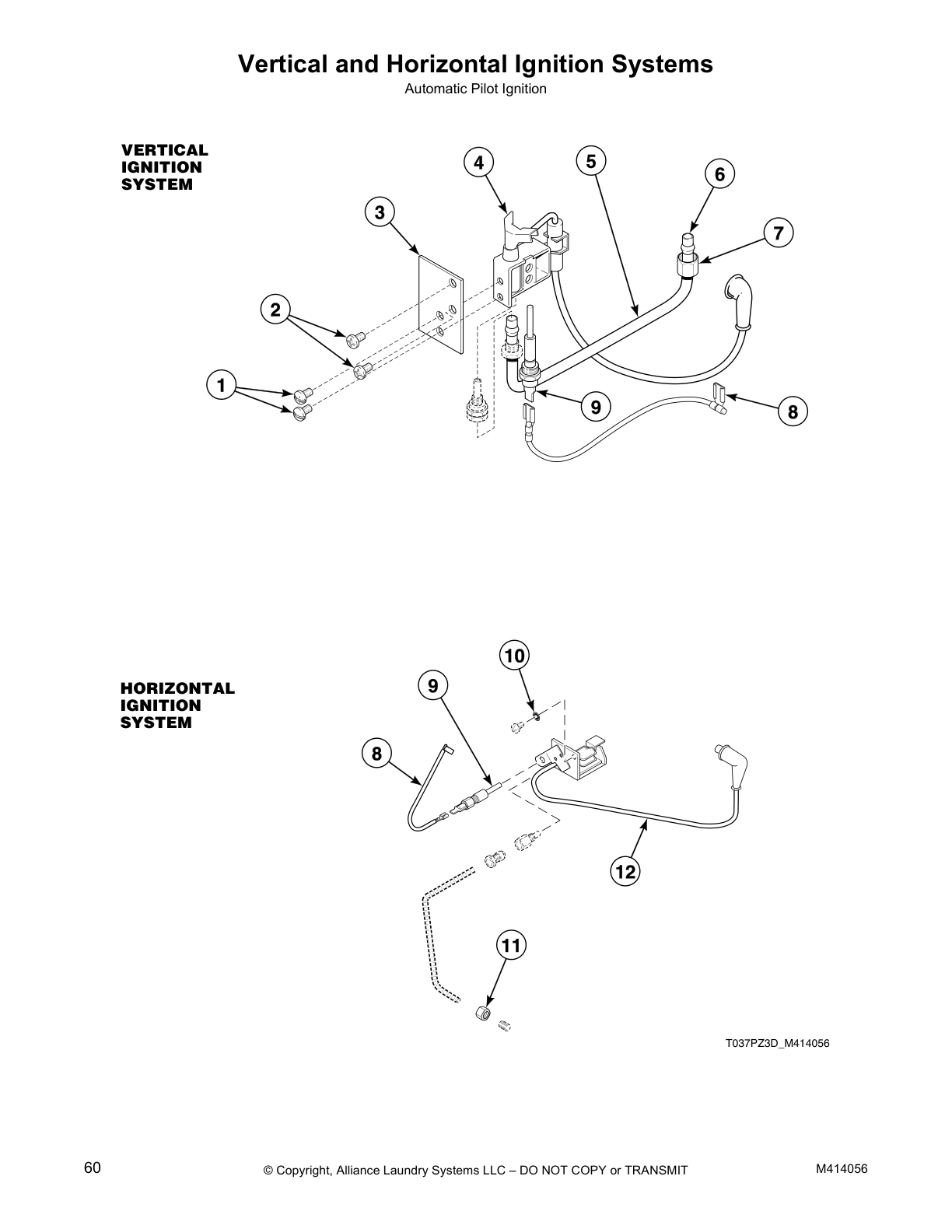

Vertical and Horizontal Ignition Systems

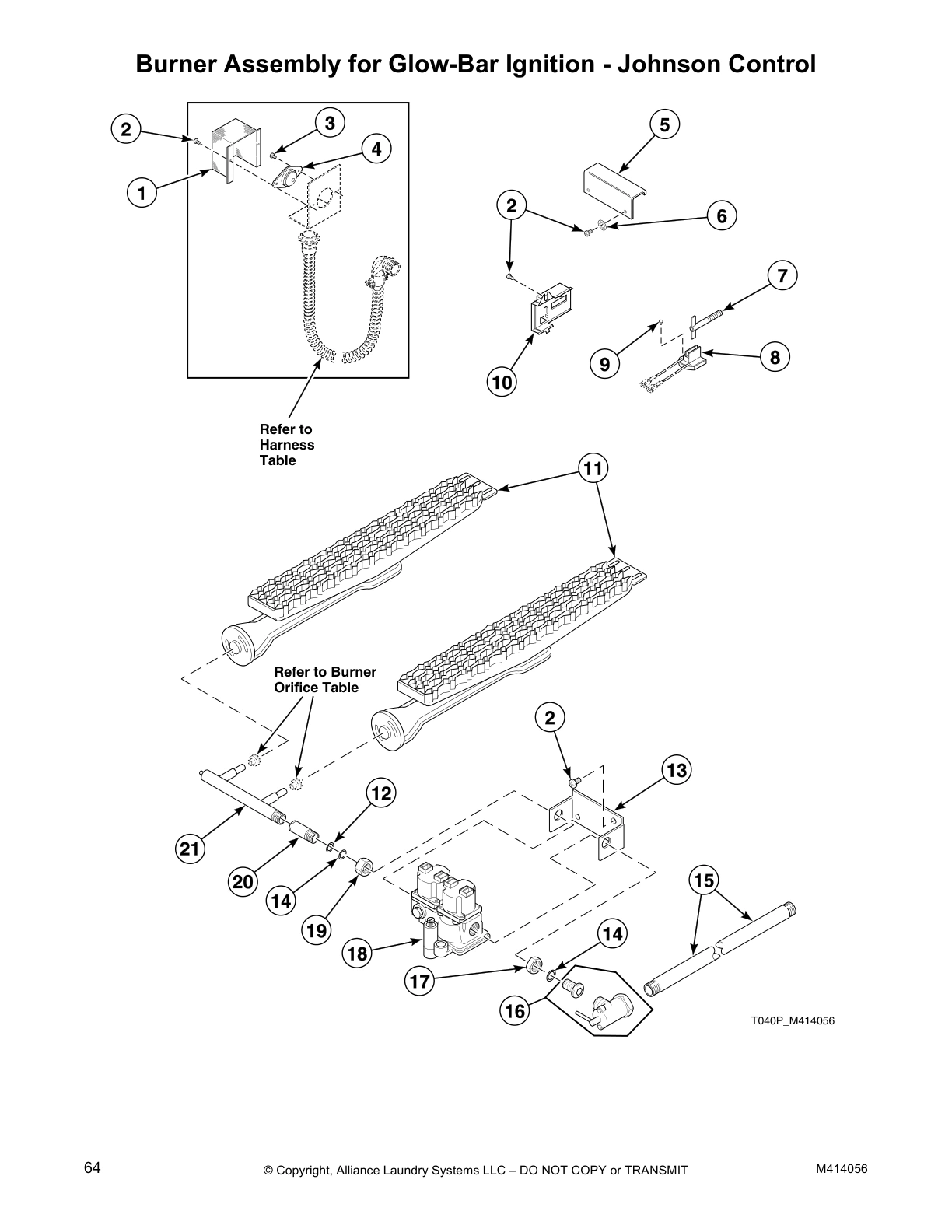

Burner Assembly for Glow-Bar Ignition - Johnson Control

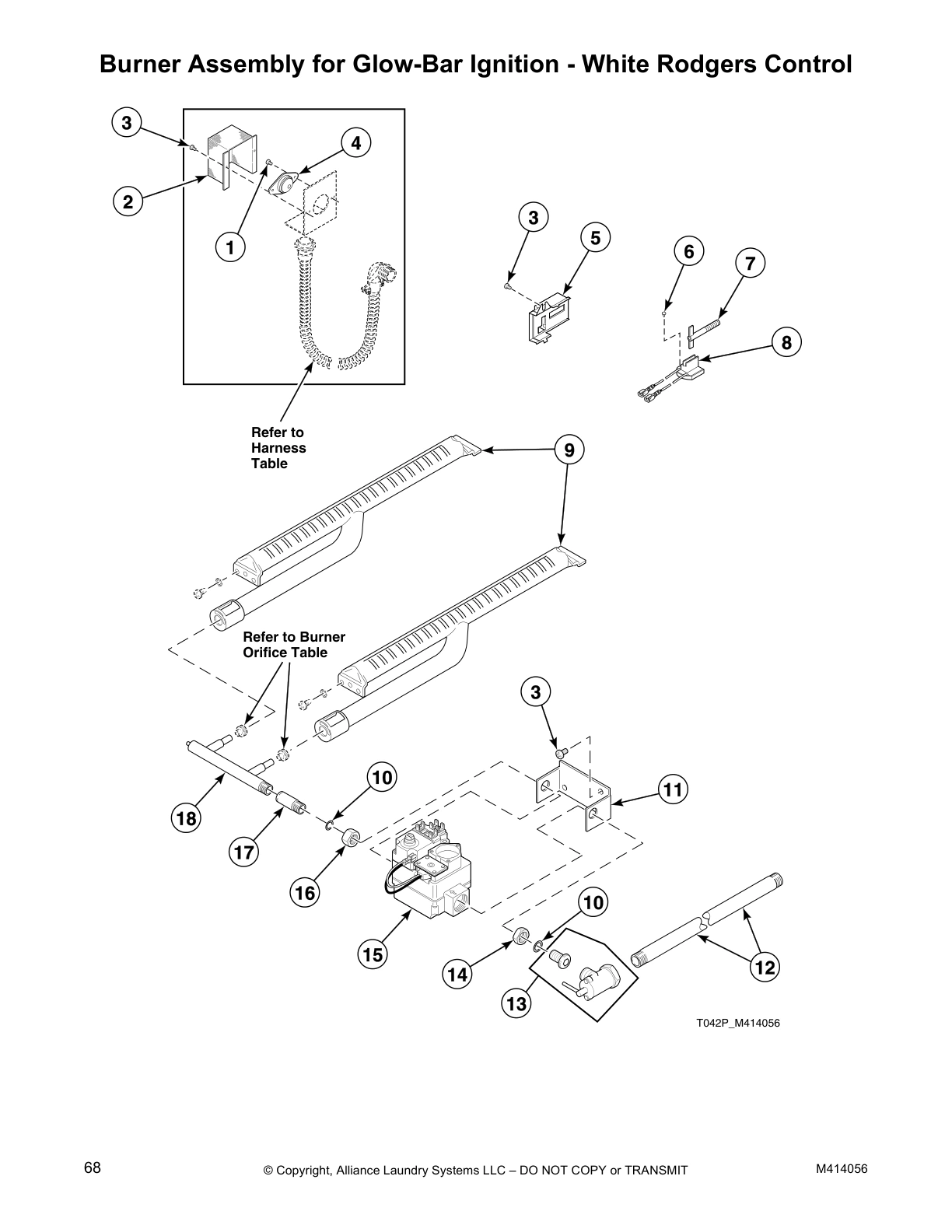

Burner Assembly for Glow-Bar Ignition - White Rodgers Control

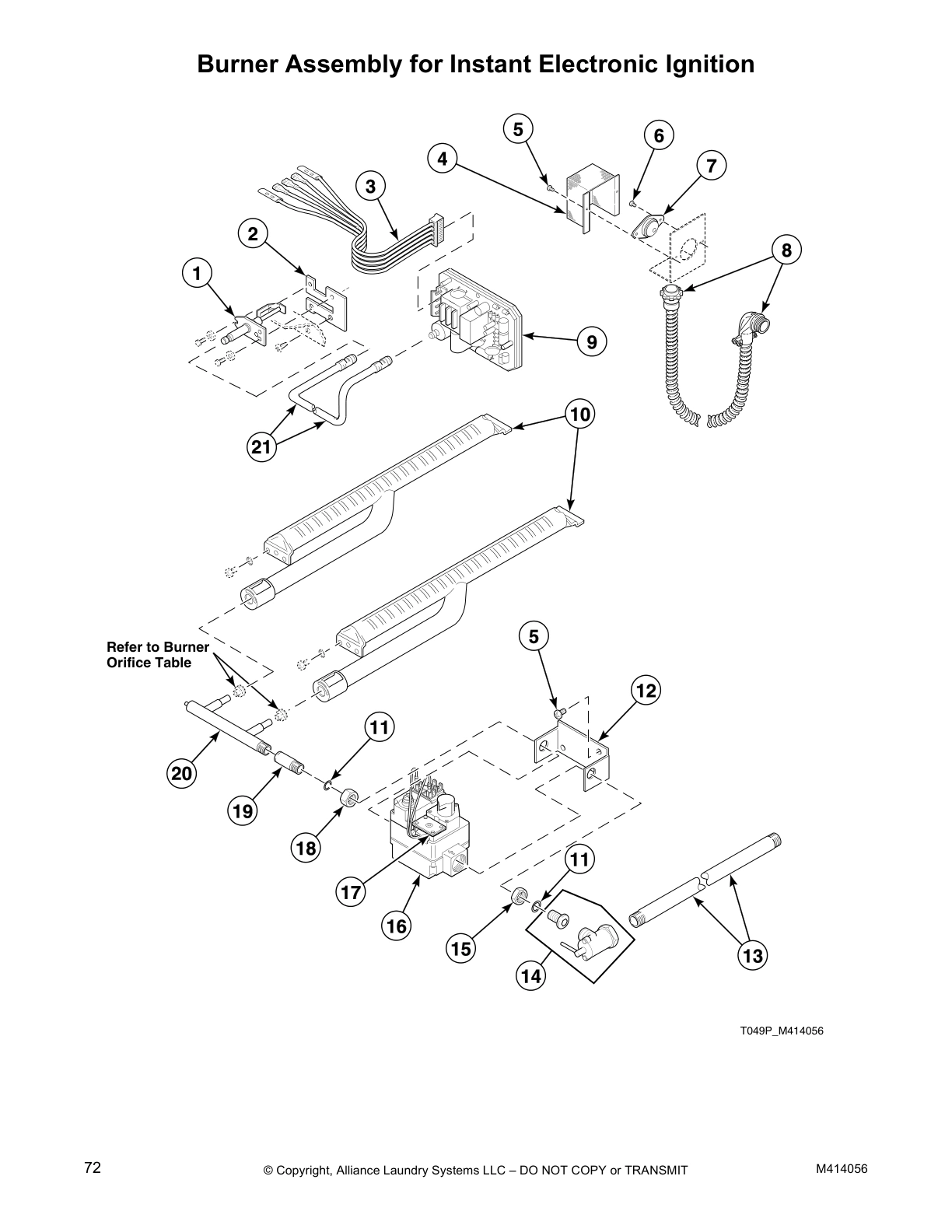

Burner Assembly for Instant Electronic Ignition

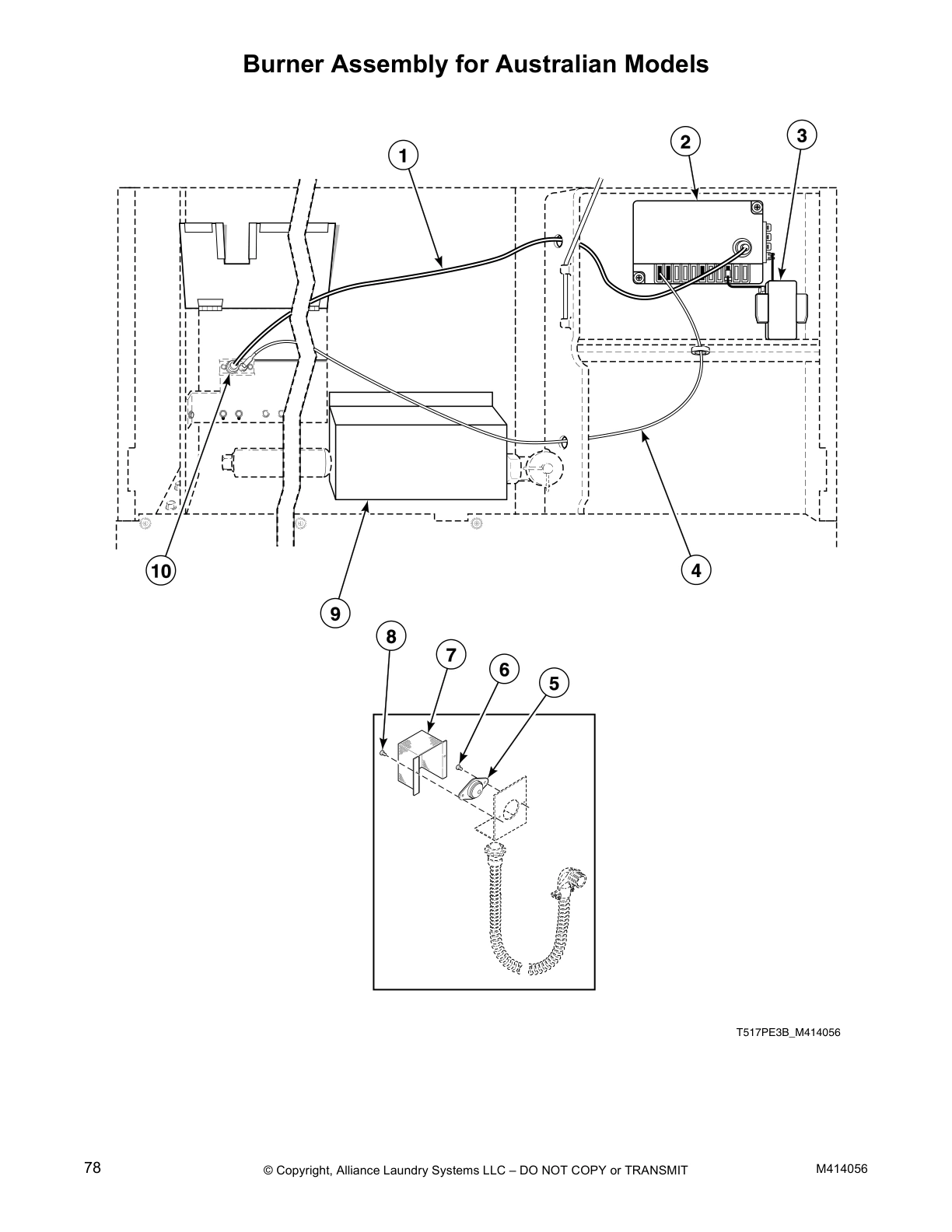

Burner Assembly for Australian Models

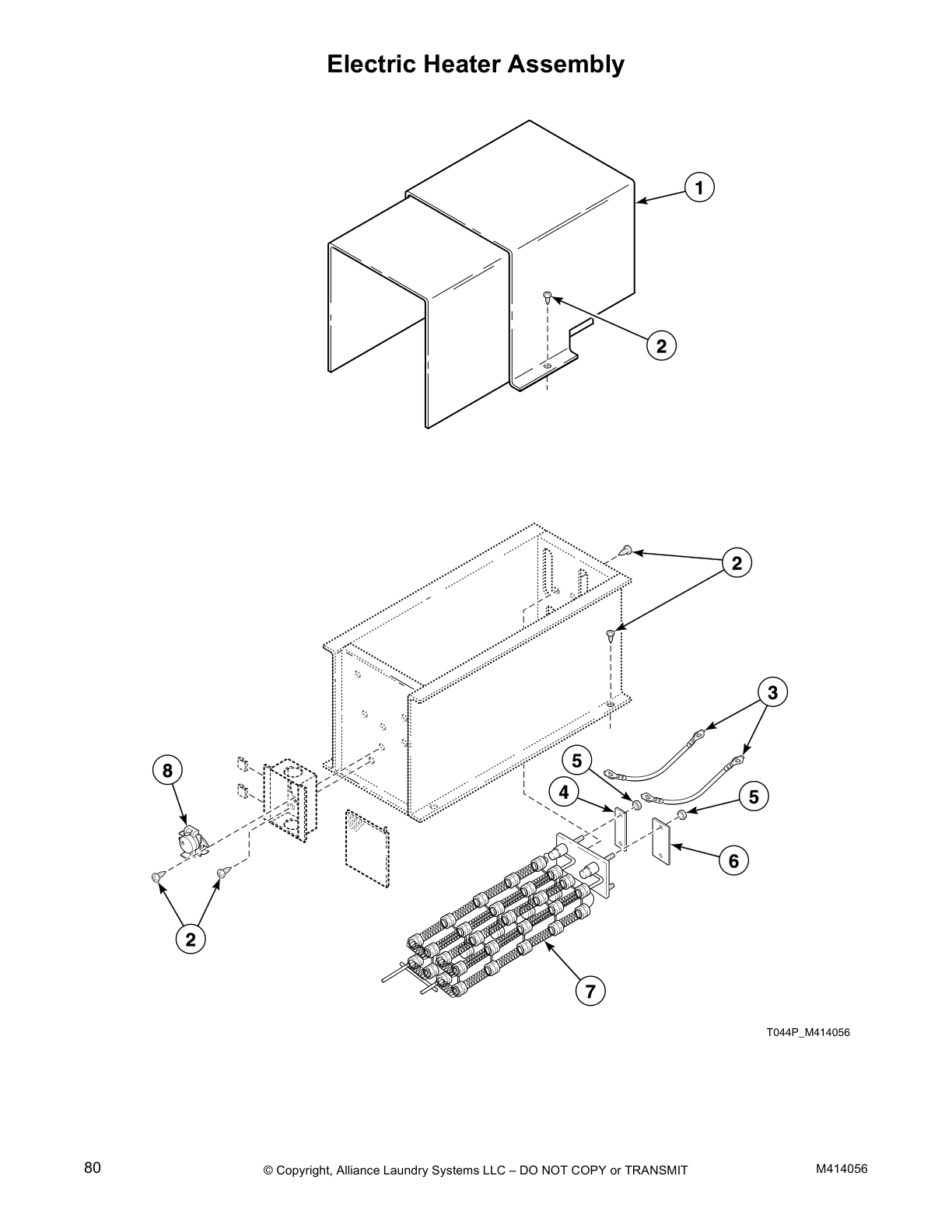

Electric Heater Assembly

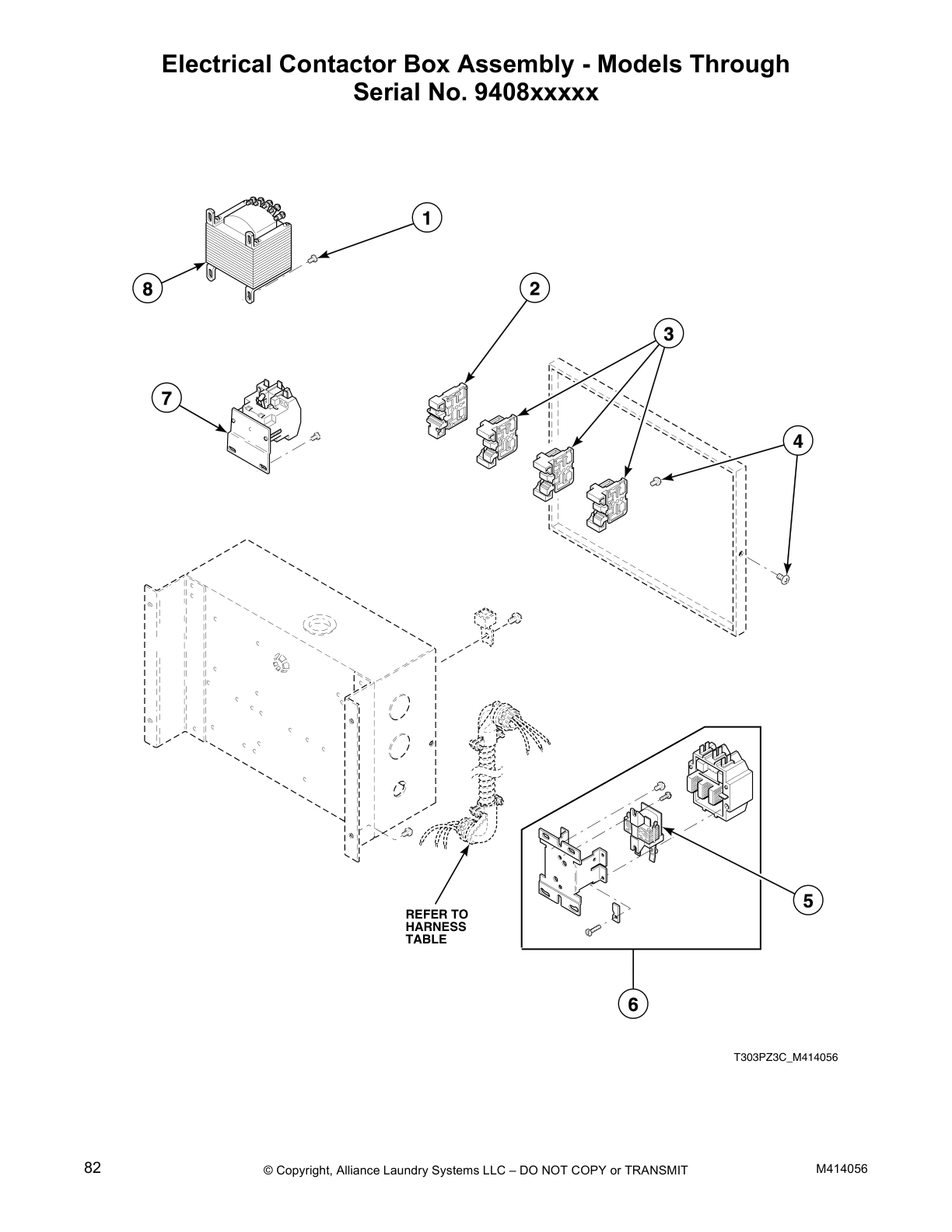

Electrical Contactor Box Assembly - Models Through
Serial No. 9408xxxxx

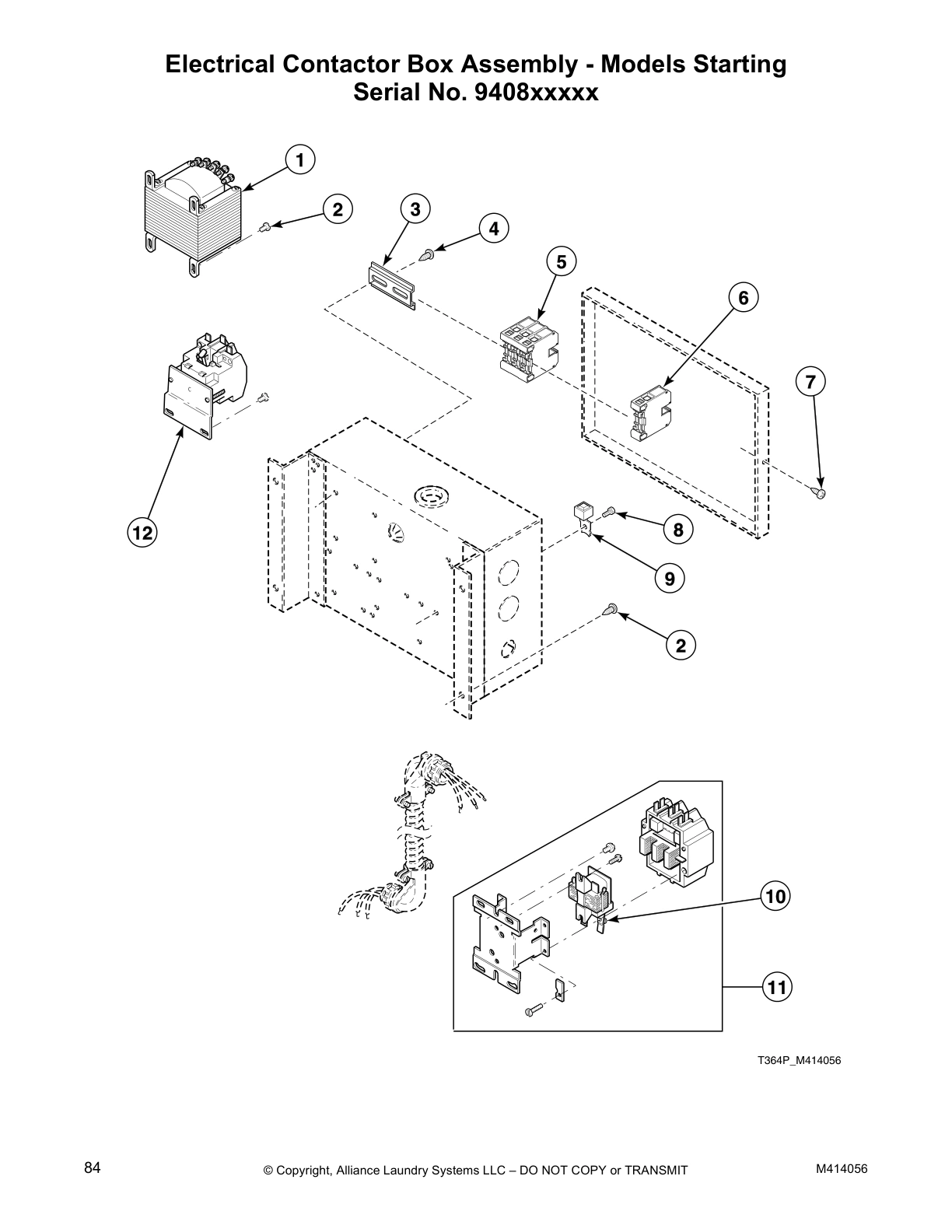

Electrical Contactor Box Assembly - Models Starting
Serial No. 9408xxxxx

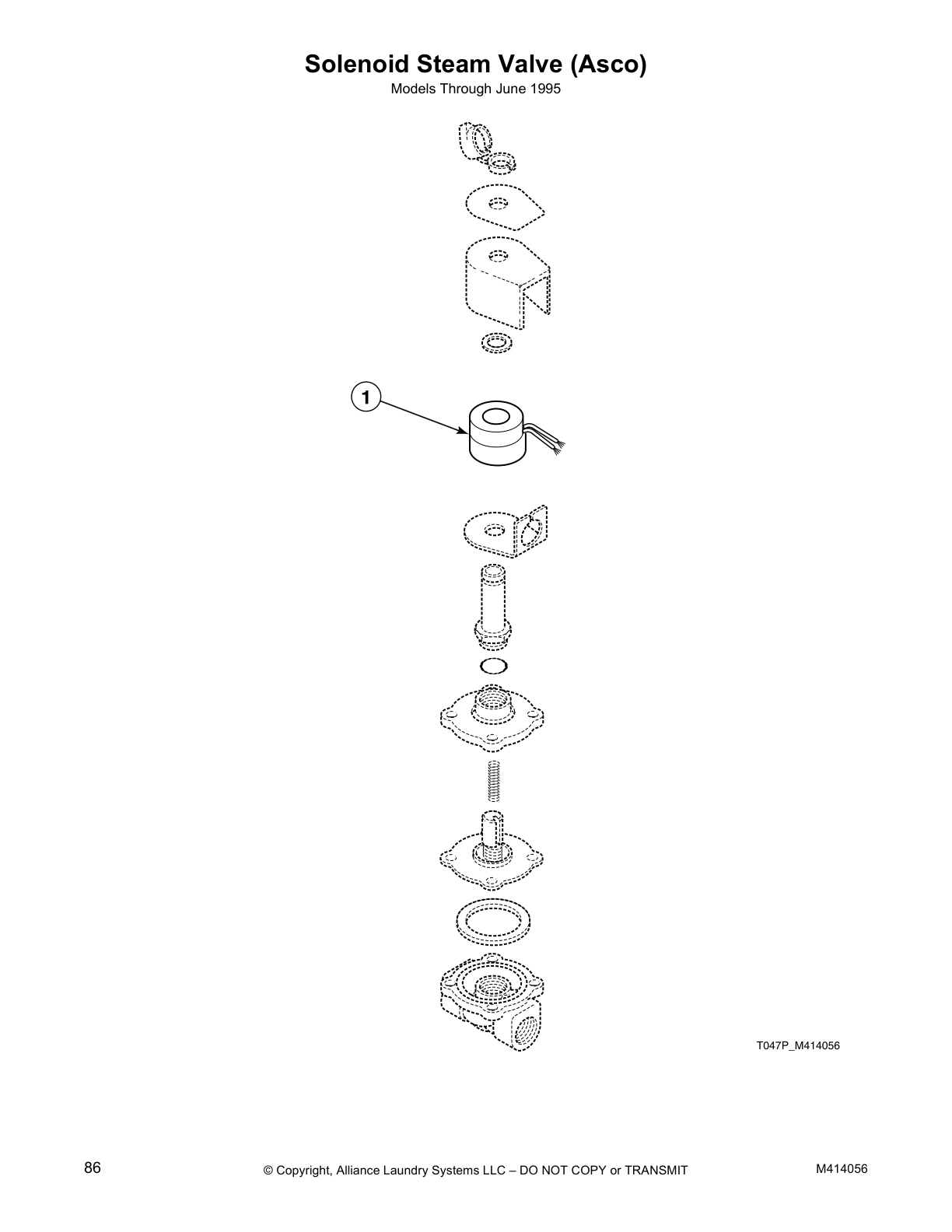

Solenoid Steam Valve (Asco)

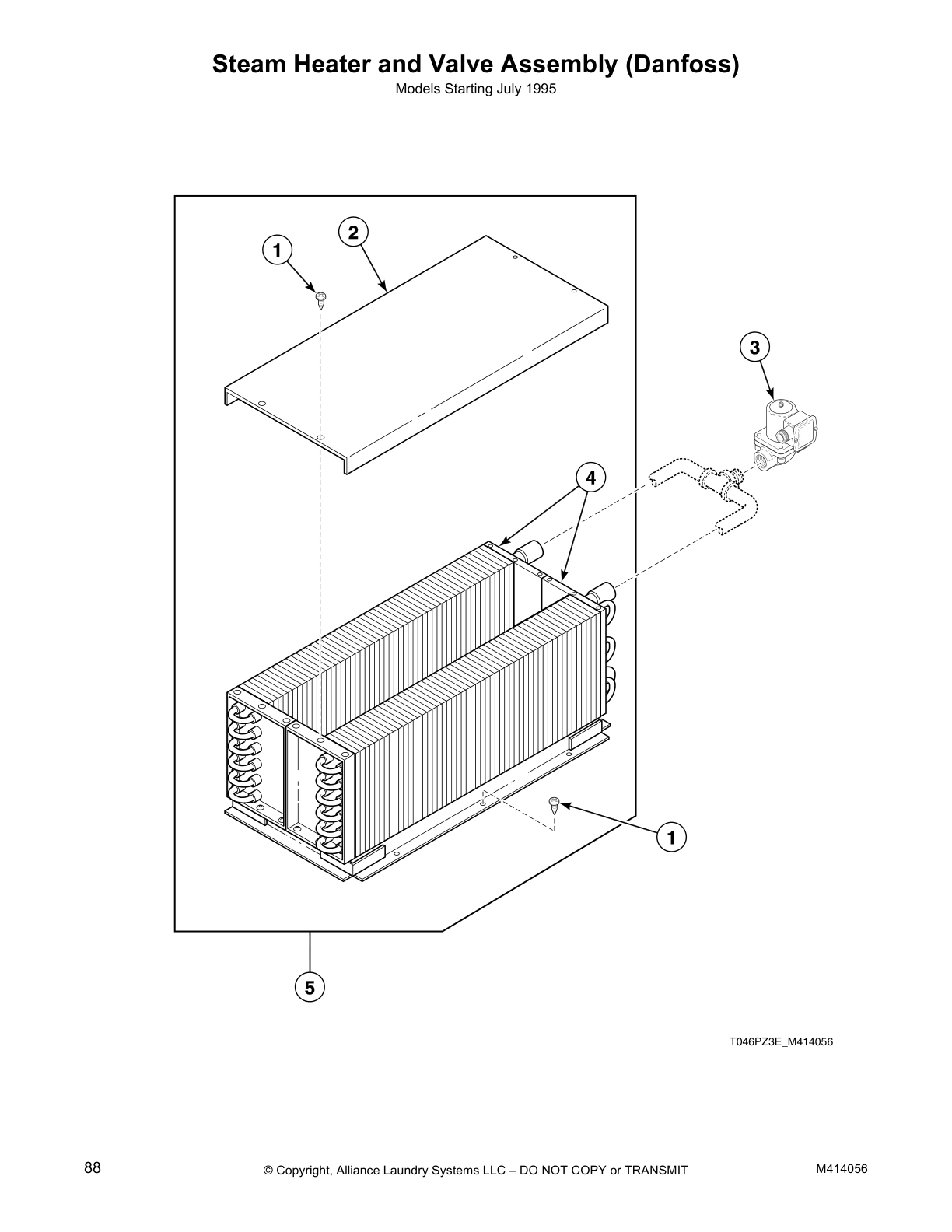

Steam Heater and Valve Assembly (Danfoss)

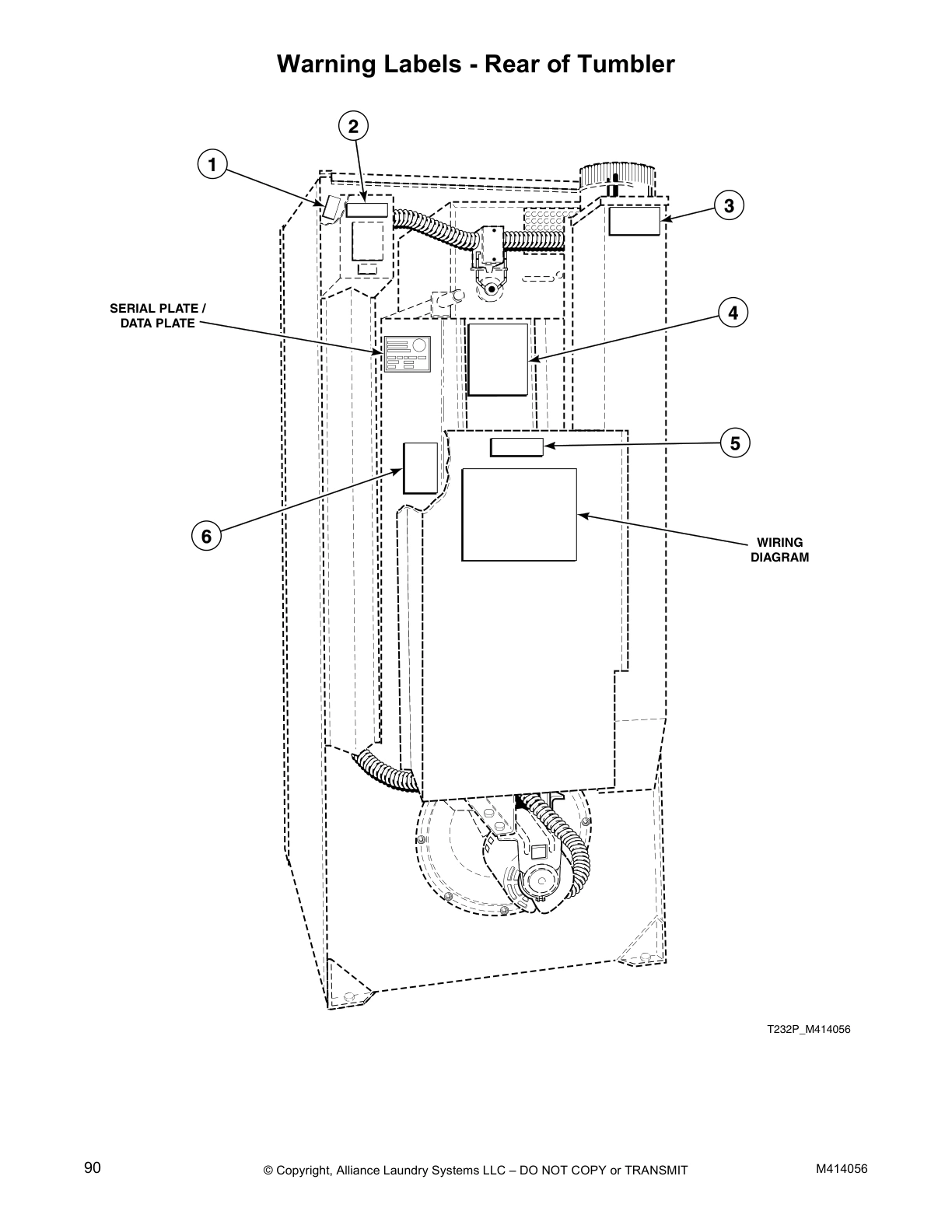

Warning Labels - Rear of Tumbler
Contactor Box Assembly for Electric Manual Timer

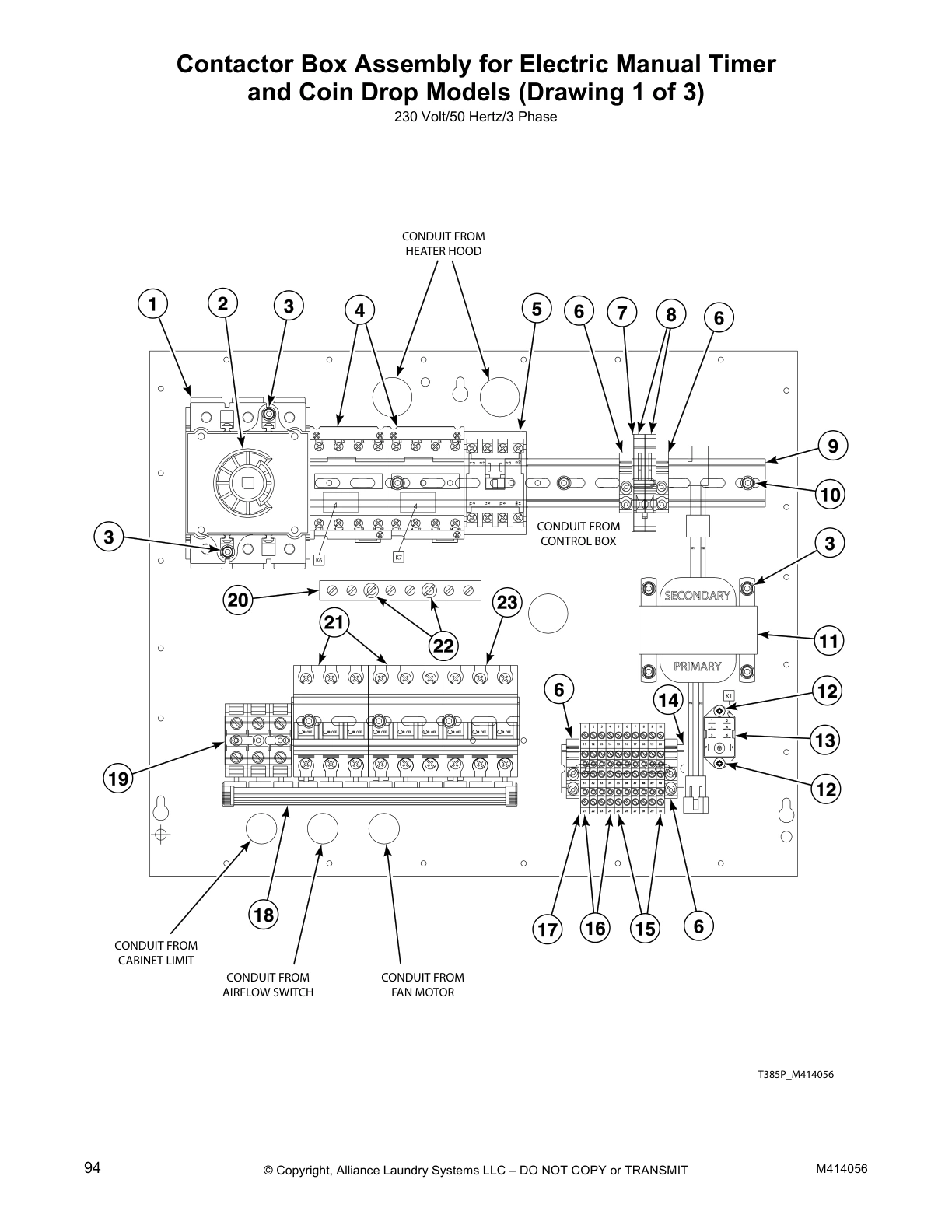

and Coin Drop Models (Drawing 1 of 3)

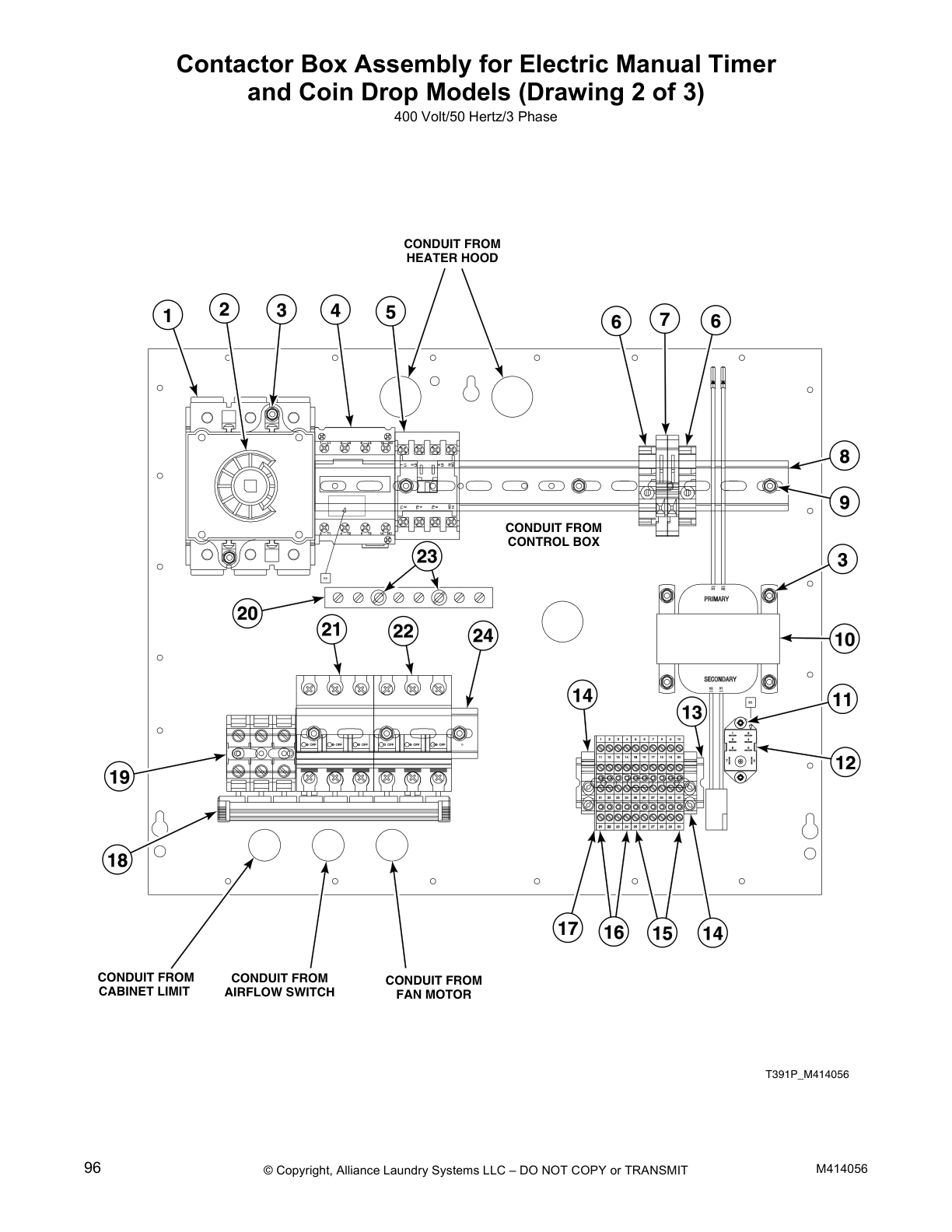

Contactor Box Assembly for Electric Manual Timer
and Coin Drop Models (Drawing 2 of 3)

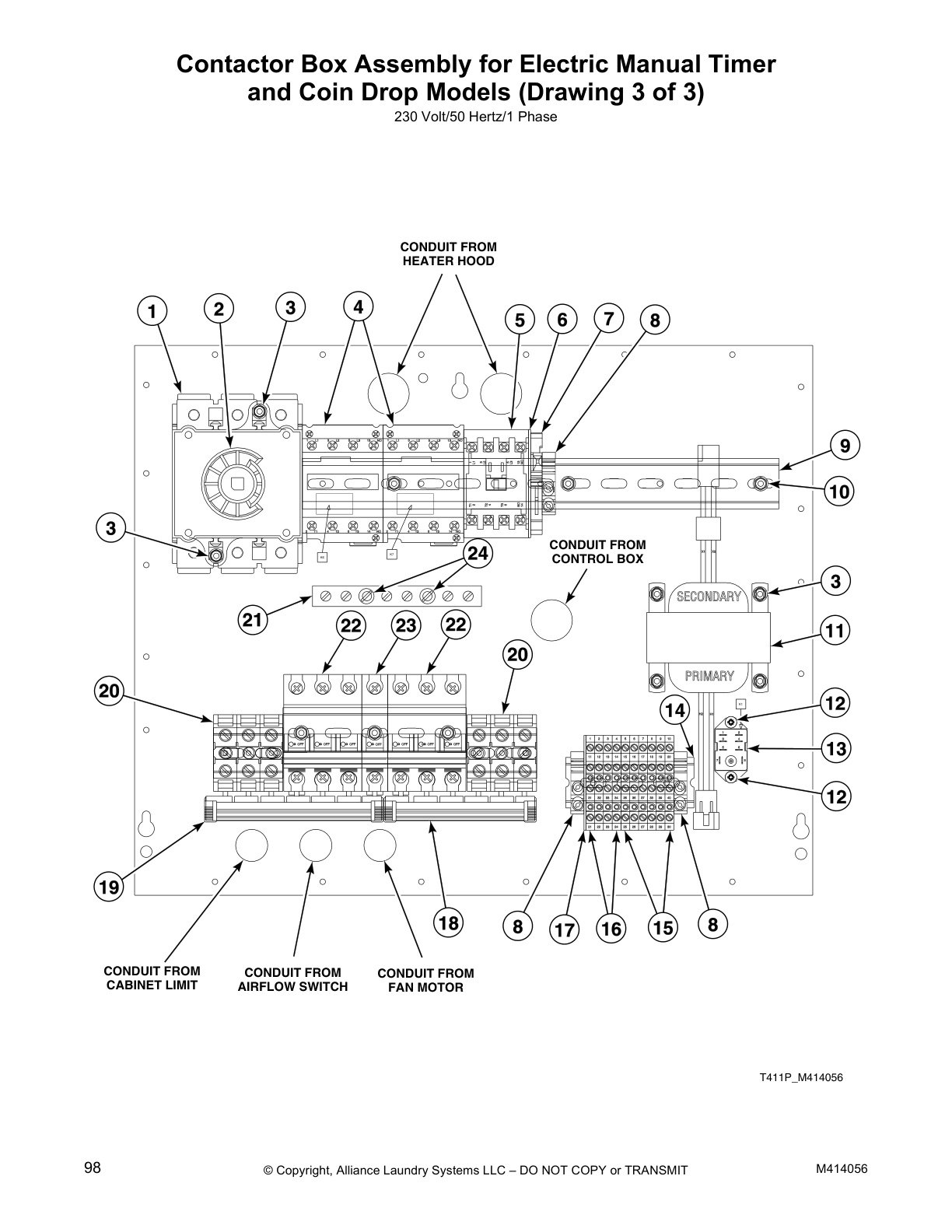

Contactor Box Assembly for Electric Manual Timer
and Coin Drop Models (Drawing 3 of 3)
Contactor Box Assembly for Gas Manual Timer Models

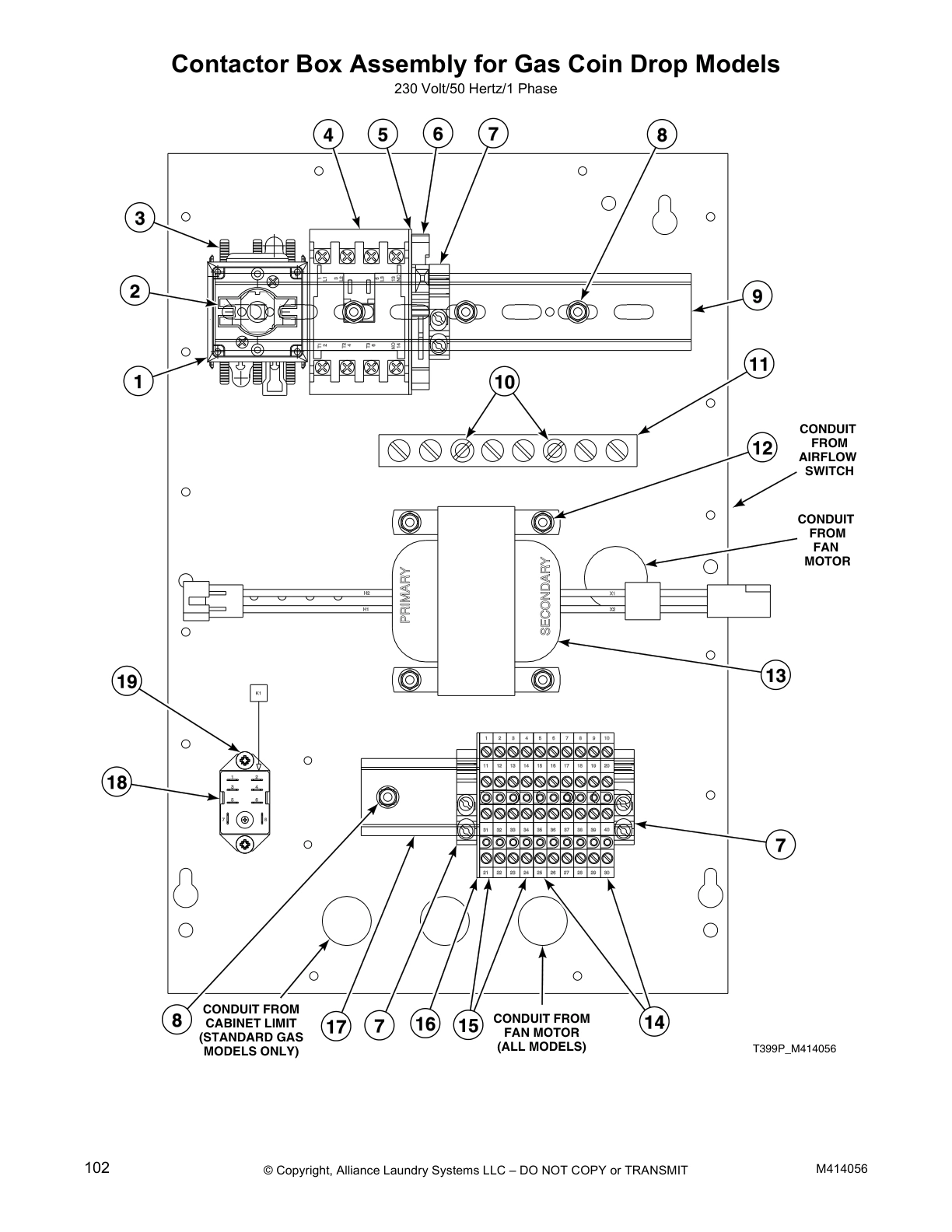

Contactor Box Assembly for Gas Coin Drop Models

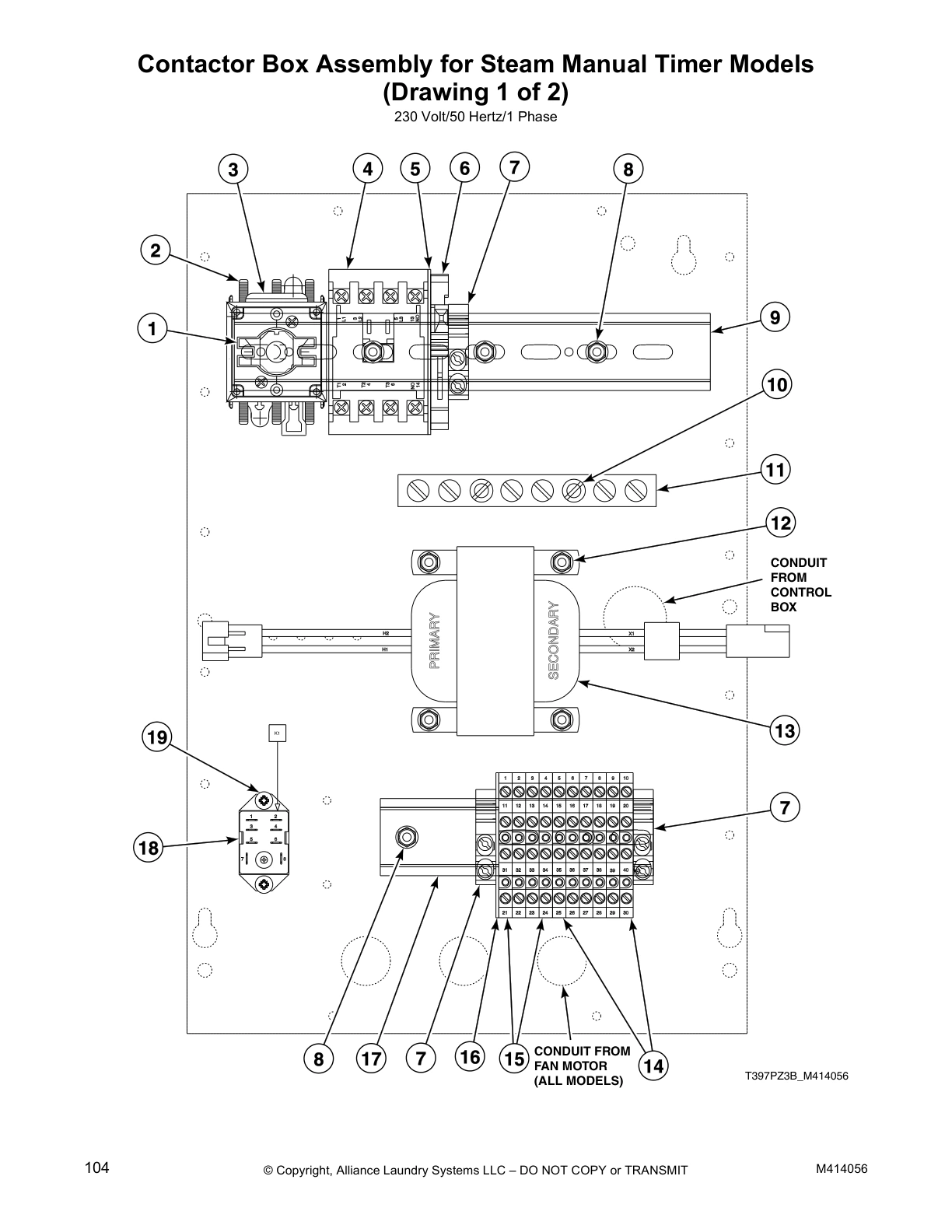

Contactor Box Assembly for Steam Manual Timer Models
(Drawing 1 of 2)

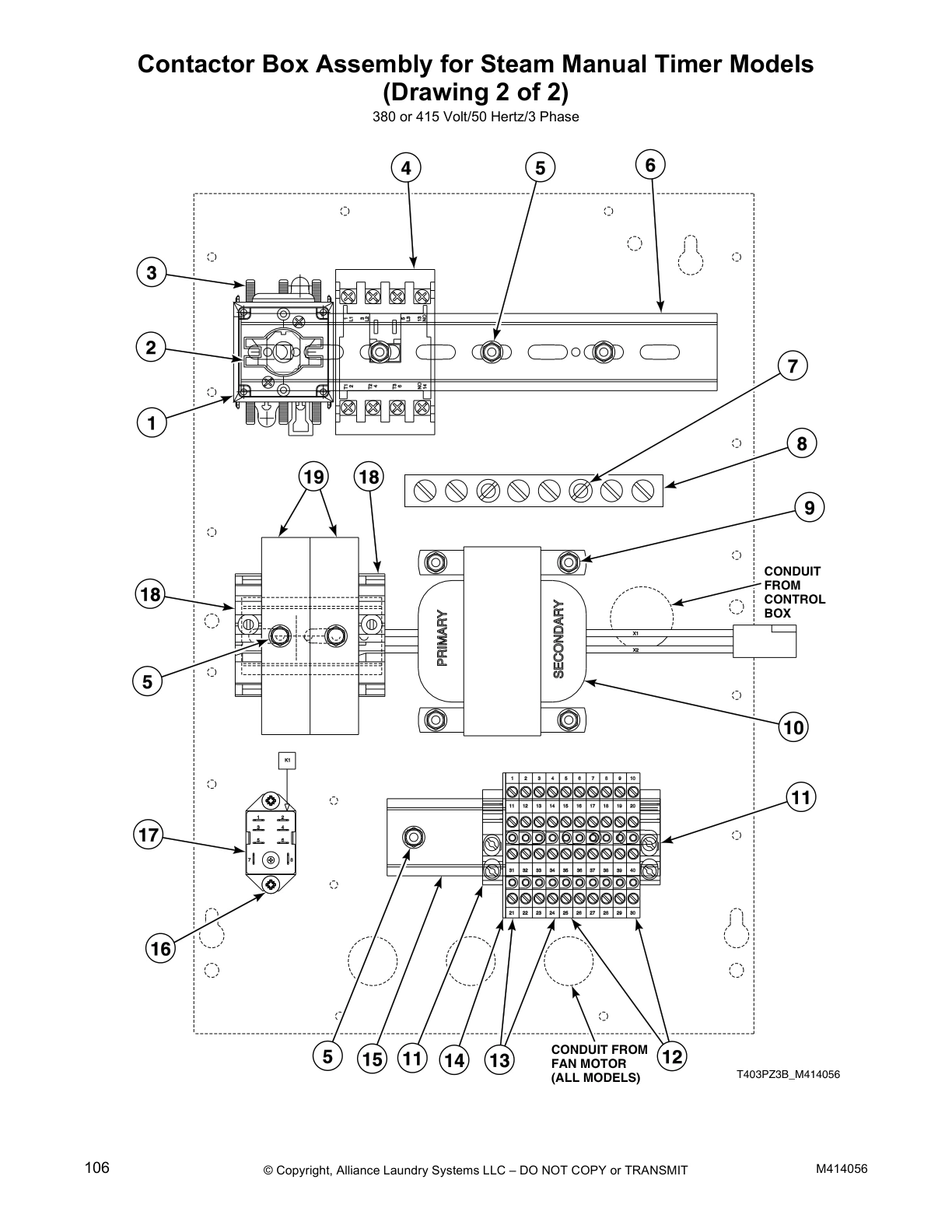

Contactor Box Assembly for Steam Manual Timer Models
(Drawing 2 of 2)

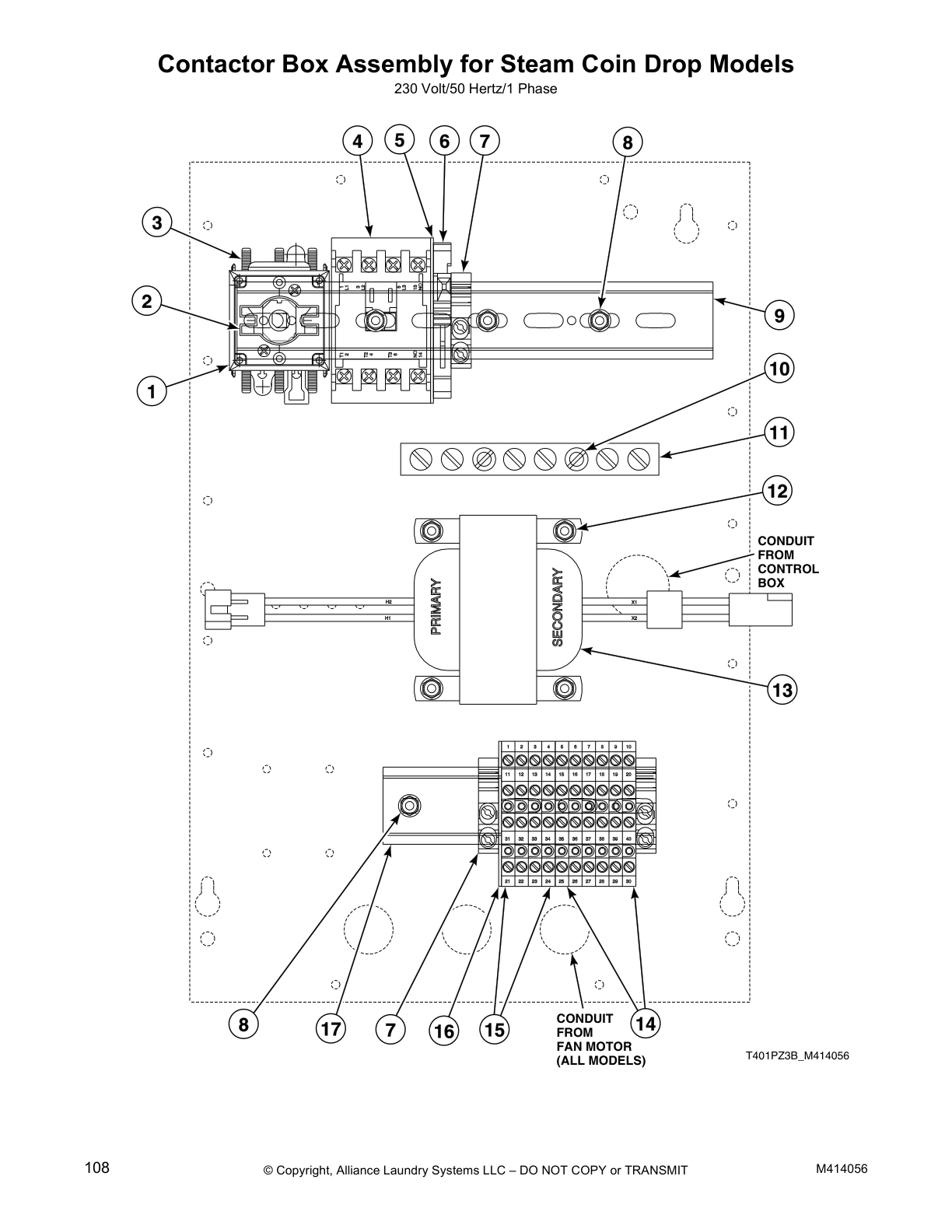

Contactor Box Assembly for Steam Coin Drop Models
Common parts from model Alliance JCB30CSH Dryer
SPQ M4834P3 SPQ M4834P3 Contact Us For Availability
SPQ 53243 SPQ 53243 Contact Us For Availability
SPQ 44045901P SPQ 44045901P Contact Us For Availability
Steam Coil SPQ F8322903 Contact Us For Availability
SPQ M401384 SPQ M401384 Contact Us For Availability
Solenoid Valve DIN Connector SPQ M412258 Contact Us For Availability
1
Fan Kit SPQ M4936P3 Contact Us For Availability
1
Ball Bearing SPQ M413921P Contact Us For Availability
1
Accumulator SPQ M403422P Contact Us For Availability
1
Switch Base SPQ M412528 Contact Us For Availability
1
Door Handle SPQ M400133 Contact Us For Availability
1
Top Front Panel SPQ M401315 Contact Us For Availability
1
Key SPQ M400010 Contact Us For Availability
1
Idler Shaft SPQ M412223P Contact Us For Availability
1
Motor SPQ 44048801P Contact Us For Availability
1
Airflow Switch Handy Box SPQ M403235 Contact Us For Availability
1
Mounting Switch Base SPQ M412187P Contact Us For Availability
2
Nut SPQ 943P3P Contact Us For Availability
2
Motor Hardware Kit SPQ M400991 Contact Us For Availability
2
Spring SPQ 53261 Contact Us For Availability
2
Door Safety Switch Kit SPQ M4842P3 Contact Us For Availability
2
Replacement Door Handle Kit SPQ 430475 Contact Us For Availability
2
Screw SPQ M409385 Contact Us For Availability
2
Sheave Kit SPQ M412155 Contact Us For Availability
2
Low Pressure Steam Cover SPQ M400828 Contact Us For Availability
2
Finger Guard SPQ M412370 Contact Us For Availability
3
SPQ M406129 SPQ M406129 Contact Us For Availability
3
Flexible Coupler SPQ M412551 Contact Us For Availability
3
Bumper Assembly SPQ M401161 Contact Us For Availability
3
SPQ M400023 SPQ M400023 Contact Us For Availability
3
SPQ M401183P SPQ M401183P Contact Us For Availability
3
Steam Valve SPQ M413298P Contact Us For Availability
3
Vent and Thimble Caution Label SPQ M411815 Contact Us For Availability
3
Contactor SPQ M412366 Contact Us For Availability
4
SPQ M400036 SPQ M400036 Contact Us For Availability
4
SPQ M411483 SPQ M411483 Contact Us For Availability
4
Washer SPQ 430648 Contact Us For Availability
4
Airflow Switch Insulator Barrier SPQ M409202 Contact Us For Availability
4
Terminal Block SPQ 44132401 Contact Us For Availability
4
Steam Valve Rebuild Kit SPQ M412259 Contact Us For Availability
5
Coin Vault Assembly SPQ 44102801 Contact Us For Availability
5
Drywall Screw Magnet Kit SPQ M400650 Contact Us For Availability
5
SPQ M411424P SPQ M411424P Contact Us For Availability
5
Airflow Switch Guard SPQ M400712 Contact Us For Availability
5
End Stop SPQ M412540 Contact Us For Availability
6
SPQ M400592 SPQ M400592 Contact Us For Availability
6
Run Light SPQ 44106901P Contact Us For Availability
6
SPQ 35774 SPQ 35774 Contact Us For Availability
6
Screw SPQ M412531 Contact Us For Availability
6
SPQ 70133501P SPQ 70133501P Contact Us For Availability
6
Screw SPQ M402797 Contact Us For Availability
6
SPQ M405525 SPQ M405525 Contact Us For Availability
6
Actuator Switch SPQ M410544 Contact Us For Availability
6
Relay SPQ M405364 Contact Us For Availability
6
Transformer Harness Assembly SPQ M412537 Contact Us For Availability
7
Clip SPQ M400974 Contact Us For Availability
7
SPQ 35917 SPQ 35917 Contact Us For Availability
7
SPQ M401223 SPQ M401223 Contact Us For Availability
7
Thermostat Cover SPQ M414477 Contact Us For Availability
7
SPQ M400013 SPQ M400013 Contact Us For Availability
7
SPQ M412474 SPQ M412474 Contact Us For Availability
7
SPQ M405535 SPQ M405535 Contact Us For Availability
7
SPQ M412423 SPQ M412423 Contact Us For Availability
7
SPQ M405824 SPQ M405824 Contact Us For Availability
7
Fuse SPQ 70121001 Contact Us For Availability
8
SPQ M404151 SPQ M404151 Contact Us For Availability
8
Shadow Box and Clip SPQ M400131P Contact Us For Availability
8
Front Panel Kit SPQ M411124P Contact Us For Availability
8
Washer SPQ M400515 Contact Us For Availability
8
SPQ M401369P SPQ M401369P Contact Us For Availability
8
SPQ M412119 SPQ M412119 Contact Us For Availability
8
SPQ 70142 SPQ 70142 Contact Us For Availability
8
SPQ M402917 SPQ M402917 Contact Us For Availability
9
SPQ M401360P SPQ M401360P Contact Us For Availability
9
SPQ M414320P SPQ M414320P Contact Us For Availability
9
SPQ M405750 SPQ M405750 Contact Us For Availability
9
Front Panel Kit SPQ M410756P Contact Us For Availability
9
Thermistor SPQ M401201 Contact Us For Availability
9
SPQ M400091P SPQ M400091P Contact Us For Availability
10
Service Door Assembly SPQ 35798WP Contact Us For Availability
10
Screw SPQ M400657 Contact Us For Availability
10
Key and Instruction Kit SPQ M400994P Contact Us For Availability
10
Vane Assembly SPQ M400541 Contact Us For Availability
10
Nut SPQ M412688 Contact Us For Availability
10
Transformer SPQ M412412P Contact Us For Availability
11
Thermostat SPQ M401251P Contact Us For Availability
11
Nut SPQ 20275 Contact Us For Availability
11
Trunnion Housing Casting SPQ M400144 Contact Us For Availability
11
Nut SPQ 02428 Contact Us For Availability
11
Nut SPQ M412626 Contact Us For Availability
11
Micro V Pulley SPQ M411466P Contact Us For Availability
11
Clip SPQ M400976 Contact Us For Availability
11
Ground Buss Assembly SPQ M412656 Contact Us For Availability
12
Sprocket SPQ M401366P Contact Us For Availability
12
Support Bearing SPQ 70448701 Contact Us For Availability
12
Hinge Assembly SPQ 03189 Contact Us For Availability
12
Key SPQ M400993 Contact Us For Availability
12
Counterweight SPQ M400822 Contact Us For Availability
12
Exhaust Thimble Assembly SPQ M412288 Contact Us For Availability
13
Roller Chain SPQ M401425 Contact Us For Availability
13
Door Glass SPQ M400514 Contact Us For Availability
13
Panel Lock SPQ M406654P Contact Us For Availability
13
Screw SPQ M412188 Contact Us For Availability
13
Screw SPQ M400077 Contact Us For Availability
13
Idler Housing Kit SPQ M412229P Contact Us For Availability
14
Washer SPQ 35798LP Contact Us For Availability
14
Screw SPQ M400071 Contact Us For Availability
14
Nut SPQ M401930 Contact Us For Availability
14
Idler Shaft SPQ M401374P Contact Us For Availability
14
Motor Bracket SPQ M414405 Contact Us For Availability
14
Vane SPQ M400253 Contact Us For Availability
14
Terminal Block SPQ M412631 Contact Us For Availability
15
Belt Drive Conversion Kit SPQ BDK30 Contact Us For Availability
15
Panel Key SPQ M401680 Contact Us For Availability
15
Door Assembly SPQ M400784P Contact Us For Availability
15
Hinge Assembly SPQ 20279 Contact Us For Availability
15
Extension Spring SPQ M412627 Contact Us For Availability
15
Cover Plate SPQ M413008 Contact Us For Availability
15
Nut SPQ M400977 Contact Us For Availability
15
End Barrier SPQ M412632 Contact Us For Availability
16
Handle and Cam Assembly SPQ M410243P Contact Us For Availability
16
Screw SPQ M405931 Contact Us For Availability
16
Door Glass Seal Kit SPQ 70133601P Contact Us For Availability
16
Cylinder and Trunnion Assembly SPQ M401947 Contact Us For Availability
16
Guide Rail SPQ M400832 Contact Us For Availability
16
Washer SPQ M410059 Contact Us For Availability
16
Extension Handle SPQ M412633 Contact Us For Availability
17
Screw SPQ M410887 Contact Us For Availability
17
Lint/Access Panel Handle SPQ M400594P Contact Us For Availability
17
Rib Rod SPQ M401052P Contact Us For Availability
17
Guide Rail SPQ M412121 Contact Us For Availability
17
Extension Handle SPQ M412534 Contact Us For Availability
18
Cam and Screw SPQ M400595 Contact Us For Availability
18
Belt SPQ M400026 Contact Us For Availability
18
Belt SPQ M400078 Contact Us For Availability
18
Motor Bracket SPQ M400022 Contact Us For Availability
18
Finger Guard SPQ M412615 Contact Us For Availability
19
Bolt SPQ M400034 Contact Us For Availability
19
Key SPQ 61031 Contact Us For Availability
19
Door Ring Gasket SPQ M400447P Contact Us For Availability
19
Trunnion Housing Assembly SPQ M401049P Contact Us For Availability
19
Ring SPQ M401327 Contact Us For Availability
19
Contactor SPQ M412538 Contact Us For Availability
20
Door Latch SPQ 70211901P Contact Us For Availability
20
Felt Pad SPQ M401349P Contact Us For Availability
20
Micro V Belt SPQ M412476 Contact Us For Availability
21
SPQ M401182P SPQ M401182P Contact Us For Availability
21
Bolt SPQ M402144 Contact Us For Availability
22
Hinge Pin SPQ 430117 Contact Us For Availability
22
SPQ M400065 SPQ M400065 Contact Us For Availability
23
Spring Clip SPQ M400661 Contact Us For Availability
23
SPQ M400399 SPQ M400399 Contact Us For Availability
24
SPQ 44086901P SPQ 44086901P Contact Us For Availability
24
SPQ M414215 SPQ M414215 Contact Us For Availability
NI
SPQ M4833P3 SPQ M4833P3 Contact Us For Availability
NI
Valve Kit SPQ F8521701 Contact Us For Availability
NI
Steam Valve Coil SPQ M400636P Contact Us For Availability
NI
SPQ M400732P SPQ M400732P Contact Us For Availability
NI
SPQ 03203 SPQ 03203 Contact Us For Availability
NI
SPQ M400044 SPQ M400044 Contact Us For Availability
NI
SPQ M400402 SPQ M400402 Contact Us For Availability
NI
SPQ 70343101P SPQ 70343101P Contact Us For Availability
NI
Fan Motor SPQ 44048701P Contact Us For Availability
NI
Motor Replacement Kit SPQ 44046101P Contact Us For Availability
NI
SPQ M4858P3 SPQ M4858P3 Contact Us For Availability
NI
Steam Valve Kit SPQ F951P3 Contact Us For Availability
NI
SPQ M410699 SPQ M410699 Contact Us For Availability
NI
SPQ M400152 SPQ M400152 Contact Us For Availability
NI
SPQ 70370301P SPQ 70370301P Contact Us For Availability
NI
SPQ 70205701P SPQ 70205701P Contact Us For Availability
NI
SPQ M412641 SPQ M412641 Contact Us For Availability
NI
SPQ M412642 SPQ M412642 Contact Us For Availability
NI
SPQ M412996 SPQ M412996 Contact Us For Availability
× ![]()
