Model Alliance JCB30CE Dryer – Common Parts & Diagrams

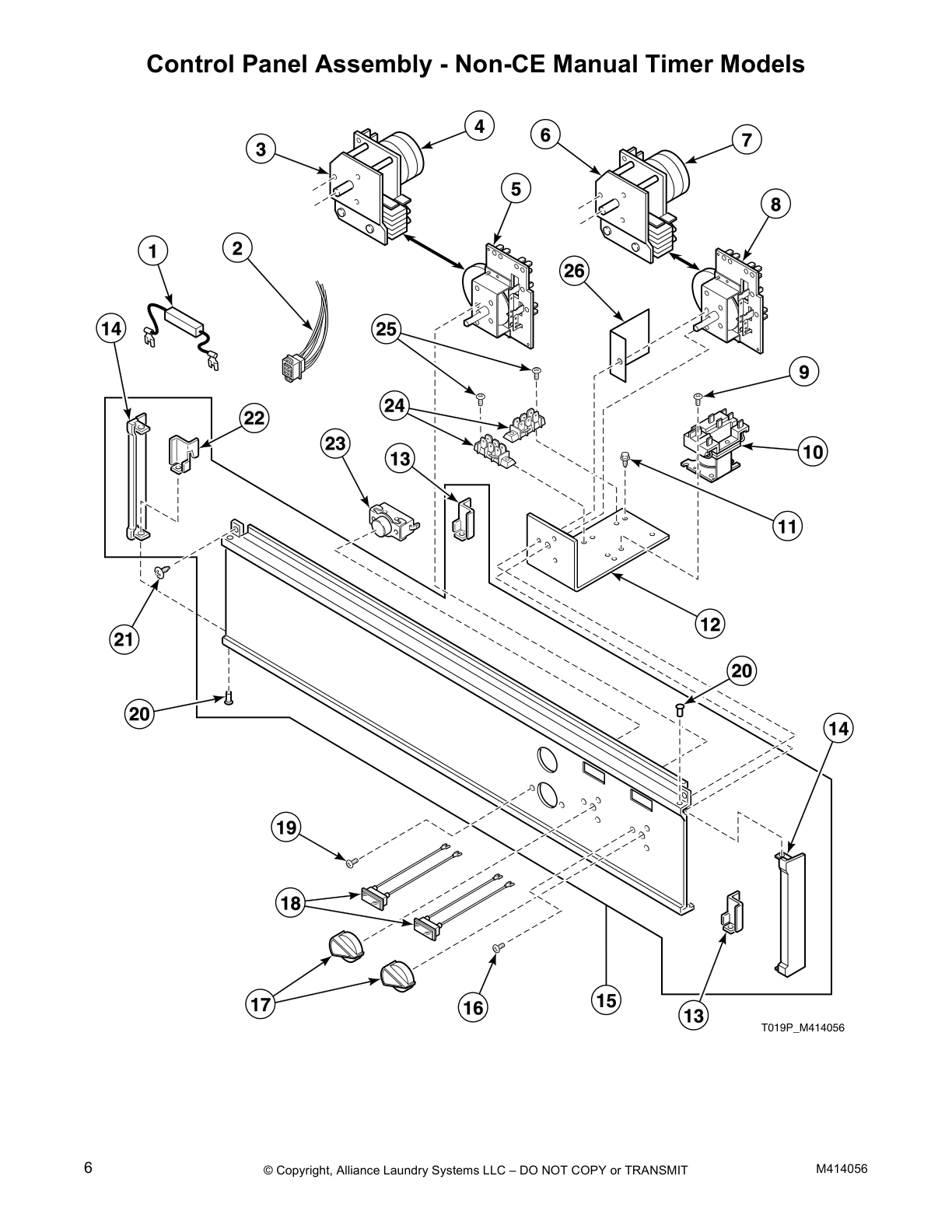

Control Panel Assembly - Non-CE Manual Timer Models

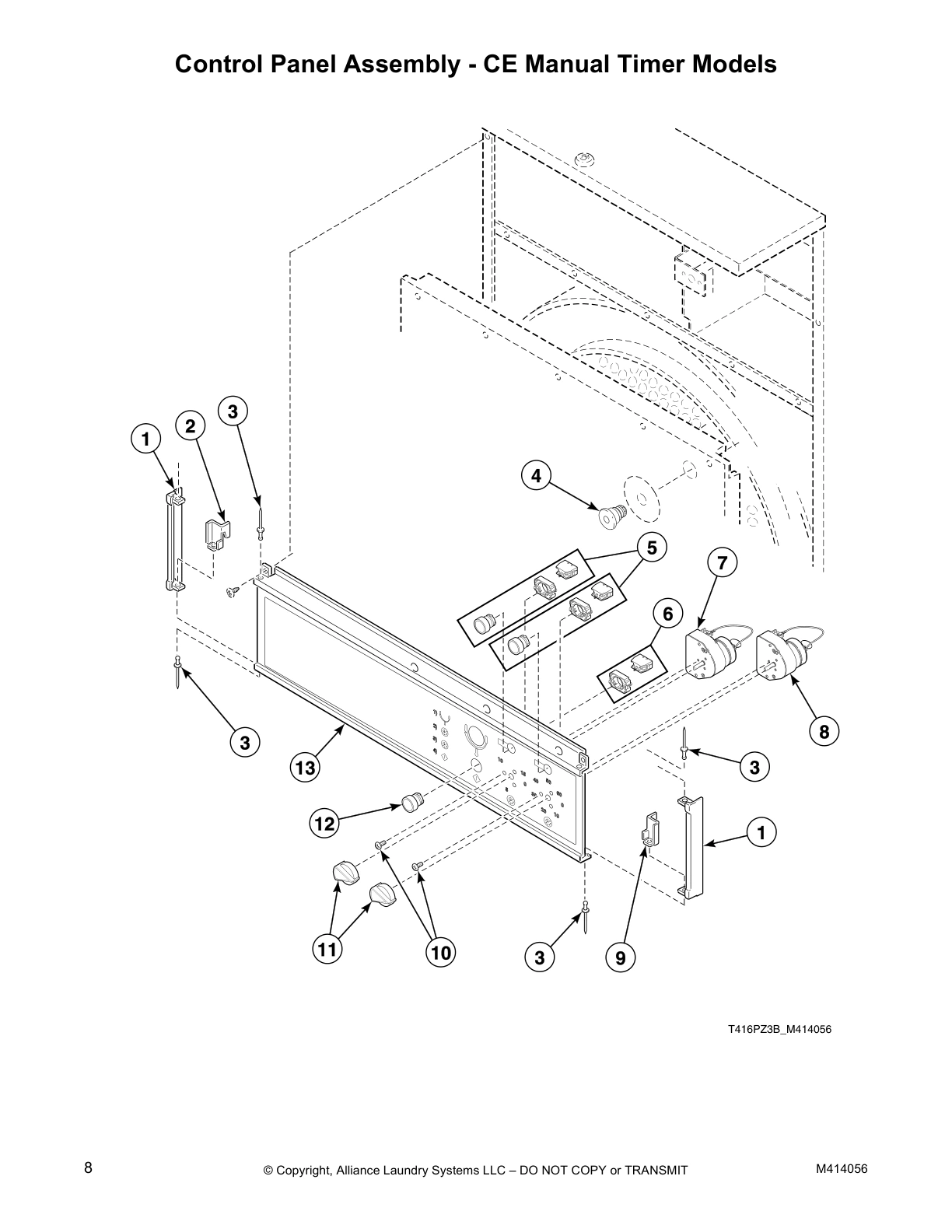

Control Panel Assembly - CE Manual Timer Models
Control Panel Assembly - Non-CE Coin Drop Models
Control Panel Assembly - CE Coin Drop Models
Control Panel Assembly - Coin Slide Models
OPL 24 Volt Micro Control
Single Coin Meter
Dual Coin Meter
Coin Vault and Vault Guide Assembly
Meter Case
Accumulator
Control Thermostat, Door Switch, Transformer,
Relay and Diode Logic Board
Door Switch - CE Models
Loading Door Assembly
Top and Front Panels
Lint Panel and Compartment
Cylinder and Trunnion Assemblies
Chain Drive Components
Belt Drive Components
Idler Housing Assembly
Fan and Motor Assembly
Fan Motors
Airflow Switch and Vane Assembly
Cabinet High Limit Thermostat (EG), Chain Guard,
Damper Vane and Junction Box
Burner Assembly for Standing Pilot Ignition
Burner Assembly for Automatic Pilot Ignition
Vertical and Horizontal Ignition Systems
Burner Assembly for Glow-Bar Ignition - Johnson Control
Burner Assembly for Glow-Bar Ignition - White Rodgers Control
Burner Assembly for Instant Electronic Ignition
Gas Valve Assembly for Dungs/B-M System
Channel/Johnson Gas System
Burner Assembly for Australian Models
Electric Heater Assembly
Electrical Contactor Box Assembly - Models Through
Serial No. 9408xxxxx
Electrical Contactor Box Assembly - Models Starting
Serial No. 9408xxxxx
Steam Heater and Valve Assembly (Danfoss)
Warning Labels - Rear of Tumbler
Contactor Box Assembly for Electric Manual Timer
and Coin Drop Models (Drawing 1 of 3)
Contactor Box Assembly for Electric Manual Timer
and Coin Drop Models (Drawing 2 of 3)
Contactor Box Assembly for Electric Manual Timer
and Coin Drop Models (Drawing 3 of 3)
Contactor Box Assembly for Gas Manual Timer Models
Contactor Box Assembly for Gas Coin Drop Models
Contactor Box Assembly for Steam Manual Timer Models
(Drawing 1 of 2)
Contactor Box Assembly for Steam Manual Timer Models
(Drawing 2 of 2)
Contactor Box Assembly for Steam Coin Drop Models
Common parts from model Alliance JCB30CE Dryer
SPQ 44106901P SPQ 44106901P Contact Us For Availability
SPQ M4834P3 SPQ M4834P3 Contact Us For Availability
SPQ 53243 SPQ 53243 Contact Us For Availability
Thermostat Kit SPQ M405230P Contact Us For Availability
SPQ M412117 SPQ M412117 Contact Us For Availability
SPQ M412776P SPQ M412776P Contact Us For Availability
1
Ball Bearing SPQ M413921P Contact Us For Availability
1
Fan Kit SPQ M4936P3 Contact Us For Availability
1
Sheave Kit SPQ 44086901P Contact Us For Availability
1
Accumulator SPQ M403422P Contact Us For Availability
1
Switch Base SPQ M412528 Contact Us For Availability
1
Door Handle SPQ M400133 Contact Us For Availability
1
Top Front Panel SPQ M401315 Contact Us For Availability
1
Key SPQ M400010 Contact Us For Availability
1
Idler Shaft SPQ M412223P Contact Us For Availability
1
Motor SPQ 44048801P Contact Us For Availability
1
Airflow Switch Handy Box SPQ M403235 Contact Us For Availability
1
Hood Assembly SPQ M401159 Contact Us For Availability
1
Mounting Switch Base SPQ M412186 Contact Us For Availability
2
Nut SPQ 943P3P Contact Us For Availability
2
Motor Hardware Kit SPQ M400991 Contact Us For Availability
2
Spring SPQ 53261 Contact Us For Availability
2
Door Safety Switch Kit SPQ M4842P3 Contact Us For Availability
2
Replacement Door Handle Kit SPQ 430475 Contact Us For Availability
2
Screw SPQ M409385 Contact Us For Availability
2
Bumper Assembly SPQ M401161 Contact Us For Availability
2
Sheave Kit SPQ M412155 Contact Us For Availability
2
Circuit Breaker SPQ M412371P Contact Us For Availability
3
SPQ M406129 SPQ M406129 Contact Us For Availability
3
SPQ M414567 SPQ M414567 Contact Us For Availability
3
Timer Motor SPQ M400609 Contact Us For Availability
3
Flexible Coupler SPQ M412551 Contact Us For Availability
3
Limit Thermostat SPQ M411813 Contact Us For Availability
3
SPQ M400023 SPQ M400023 Contact Us For Availability
3
Jumper Wire Assembly SPQ M401281 Contact Us For Availability
3
Vent and Thimble Caution Label SPQ M411815 Contact Us For Availability
4
Fuse SPQ 70343301P Contact Us For Availability
4
SPQ M400036 SPQ M400036 Contact Us For Availability
4
Washer SPQ 430648 Contact Us For Availability
4
SPQ M401186P SPQ M401186P Contact Us For Availability
4
Airflow Switch Insulator Barrier SPQ M409202 Contact Us For Availability
4
Relay SPQ 44132401 Contact Us For Availability
4
Jumper Wire Assembly SPQ M403743 Contact Us For Availability
4
Ground Lug Connector SPQ M400910P Contact Us For Availability
5
Drive Rivet SPQ M400713 Contact Us For Availability
5
Drywall Screw Magnet Kit SPQ M400650 Contact Us For Availability
5
SPQ M411424P SPQ M411424P Contact Us For Availability
5
SPQ M411483 SPQ M411483 Contact Us For Availability
5
Airflow Switch Guard SPQ M400712 Contact Us For Availability
5
Jumper Bar SPQ M400866 Contact Us For Availability
5
End Stop SPQ M412540 Contact Us For Availability
6
SPQ M400592 SPQ M400592 Contact Us For Availability
6
SPQ 35774 SPQ 35774 Contact Us For Availability
6
Timing Cam SPQ M400239 Contact Us For Availability
6
Screw SPQ M412531 Contact Us For Availability
6
SPQ 70133501P SPQ 70133501P Contact Us For Availability
6
Screw SPQ M402797 Contact Us For Availability
6
SPQ M405525 SPQ M405525 Contact Us For Availability
6
SPQ M401393 SPQ M401393 Contact Us For Availability
6
Actuator Switch SPQ M410544 Contact Us For Availability
6
Transformer Harness Assembly SPQ M412537 Contact Us For Availability
7
SPQ 35917 SPQ 35917 Contact Us For Availability
7
SPQ M401223 SPQ M401223 Contact Us For Availability
7
Thermostat Cover SPQ M414477 Contact Us For Availability
7
SPQ M412474 SPQ M412474 Contact Us For Availability
7
SPQ M405535 SPQ M405535 Contact Us For Availability
7
SPQ M412423 SPQ M412423 Contact Us For Availability
7
SPQ M405824 SPQ M405824 Contact Us For Availability
7
Jumper Strip SPQ M400869 Contact Us For Availability
7
Fuse SPQ 70121001 Contact Us For Availability
8
SPQ M404151 SPQ M404151 Contact Us For Availability
8
Front Panel Kit SPQ M411124P Contact Us For Availability
8
Washer SPQ M401150 Contact Us For Availability
8
SPQ M400013 SPQ M400013 Contact Us For Availability
8
SPQ M401369P SPQ M401369P Contact Us For Availability
8
SPQ M412119 SPQ M412119 Contact Us For Availability
8
SPQ M401938 SPQ M401938 Contact Us For Availability
8
Heater Element SPQ M405253P Contact Us For Availability
8
SPQ M412042 SPQ M412042 Contact Us For Availability
9
SPQ M414320P SPQ M414320P Contact Us For Availability
9
SPQ M401360P SPQ M401360P Contact Us For Availability
9
SPQ M405750 SPQ M405750 Contact Us For Availability
9
Front Panel Kit SPQ M410756P Contact Us For Availability
9
Thermistor SPQ M401201 Contact Us For Availability
9
SPQ M400091P SPQ M400091P Contact Us For Availability
9
SPQ 70142 SPQ 70142 Contact Us For Availability
10
Service Door Assembly SPQ 35798WP Contact Us For Availability
10
Washer SPQ M400017 Contact Us For Availability
10
Screw SPQ M400657 Contact Us For Availability
10
Key and Instruction Kit SPQ M400994P Contact Us For Availability
10
Vane Assembly SPQ M400541 Contact Us For Availability
10
Nut SPQ M412688 Contact Us For Availability
10
Transformer SPQ M412412P Contact Us For Availability
11
Thermostat SPQ M401251P Contact Us For Availability
11
Nut SPQ 20275 Contact Us For Availability
11
Trunnion Housing Casting SPQ M400144 Contact Us For Availability
11
Nut SPQ 02428 Contact Us For Availability
11
Nut SPQ M412626 Contact Us For Availability
11
Micro V Pulley SPQ M411466P Contact Us For Availability
11
Clip SPQ M400976 Contact Us For Availability
11
Thimble Vane Assembly SPQ M400503 Contact Us For Availability
11
Contactor SPQ M405116P Contact Us For Availability
11
Ground Buss Assembly SPQ M412656 Contact Us For Availability
12
Sprocket SPQ M401366P Contact Us For Availability
12
Support Bearing SPQ 70448701 Contact Us For Availability
12
Hinge Assembly SPQ 03189 Contact Us For Availability
12
Key SPQ M400993 Contact Us For Availability
12
Counterweight SPQ M400822 Contact Us For Availability
12
Exhaust Thimble Assembly SPQ M412288 Contact Us For Availability
12
Screw SPQ M400904P Contact Us For Availability
13
Roller Chain SPQ M401425 Contact Us For Availability
13
Door Glass SPQ M400514 Contact Us For Availability
13
Panel Lock SPQ M406654P Contact Us For Availability
13
Trunnion Assembly SPQ M401055P Contact Us For Availability
13
Screw SPQ M412188 Contact Us For Availability
13
Screw SPQ M400077 Contact Us For Availability
13
Idler Housing Kit SPQ M412229P Contact Us For Availability
13
Airflow Switch Vane Lever SPQ M400753 Contact Us For Availability
13
Transformer SPQ M412477P Contact Us For Availability
14
Washer SPQ 35798LP Contact Us For Availability
14
Screw SPQ M400071 Contact Us For Availability
14
Nut SPQ M401930 Contact Us For Availability
14
Idler Shaft SPQ M401374P Contact Us For Availability
14
Motor Bracket SPQ M414405 Contact Us For Availability
14
Vane SPQ M400253 Contact Us For Availability
14
Terminal Block SPQ M412692 Contact Us For Availability
14
Terminal Block SPQ M412631 Contact Us For Availability
15
Panel Key SPQ M401680 Contact Us For Availability
15
Door Assembly SPQ M400784P Contact Us For Availability
15
Belt Drive Conversion Kit SPQ BDK30 Contact Us For Availability
15
Hinge Assembly SPQ 20279 Contact Us For Availability
15
Extension Spring SPQ M412627 Contact Us For Availability
15
Cover Plate SPQ M413008 Contact Us For Availability
15
Nut SPQ M400977 Contact Us For Availability
15
End Barrier SPQ M412632 Contact Us For Availability
16
Handle and Cam Assembly SPQ M410243P Contact Us For Availability
16
Screw SPQ M405931 Contact Us For Availability
16
Door Glass Seal Kit SPQ 70133601P Contact Us For Availability
16
Cylinder and Trunnion Assembly SPQ M401947 Contact Us For Availability
16
Guide Rail SPQ M400832 Contact Us For Availability
16
Washer SPQ M410059 Contact Us For Availability
16
Contactor SPQ M412633 Contact Us For Availability
17
Screw SPQ M410887 Contact Us For Availability
17
Lint/Access Panel Handle SPQ M400594P Contact Us For Availability
17
Rib Rod SPQ M401052P Contact Us For Availability
17
Guide Rail SPQ M412121 Contact Us For Availability
17
Pulley SPQ M401362 Contact Us For Availability
17
Contactor SPQ M412534 Contact Us For Availability
18
Cam and Screw SPQ M400595 Contact Us For Availability
18
Belt SPQ M400026 Contact Us For Availability
18
Belt SPQ M400078 Contact Us For Availability
18
Motor Bracket SPQ M400022 Contact Us For Availability
18
Ground Buss Assembly SPQ M412757 Contact Us For Availability
18
Nut SPQ M412615 Contact Us For Availability
19
Screw SPQ M401182P Contact Us For Availability
19
Bolt SPQ M400034 Contact Us For Availability
19
Key SPQ 61031 Contact Us For Availability
19
Door Ring Gasket SPQ M400447P Contact Us For Availability
19
Trunnion Housing Assembly SPQ M401049P Contact Us For Availability
19
Ring SPQ M401327 Contact Us For Availability
19
Ground Buss Assembly SPQ M412538 Contact Us For Availability
20
Door Latch SPQ 70211901P Contact Us For Availability
20
Felt Pad SPQ M401349P Contact Us For Availability
20
Micro V Belt SPQ M412476 Contact Us For Availability
20
Nut SPQ M412045P Contact Us For Availability
21
Bolt SPQ M402144 Contact Us For Availability
22
Hinge Pin SPQ 430117 Contact Us For Availability
22
SPQ M400065 SPQ M400065 Contact Us For Availability
22
End Section SPQ M412406 Contact Us For Availability
22
Fuse SPQ M412407P Contact Us For Availability
23
Spring Clip SPQ M400661 Contact Us For Availability
23
SPQ M400399 SPQ M400399 Contact Us For Availability
23
End Stop SPQ M412401 Contact Us For Availability
24
SPQ M414215 SPQ M414215 Contact Us For Availability
24
Relay Harness Assembly SPQ M412693 Contact Us For Availability
NI
Fan Motor SPQ 44046001P Contact Us For Availability
NI
SPQ M4833P3 SPQ M4833P3 Contact Us For Availability
NI
SPQ M405943 SPQ M405943 Contact Us For Availability
NI
SPQ 03203 SPQ 03203 Contact Us For Availability
NI
SPQ M400044 SPQ M400044 Contact Us For Availability
NI
SPQ M400402 SPQ M400402 Contact Us For Availability
NI
Clip SPQ M400984 Contact Us For Availability
NI
SPQ 70343101P SPQ 70343101P Contact Us For Availability
NI
Motor Replacement Kit SPQ 44045901P Contact Us For Availability
NI
Heater Element SPQ M405252P Contact Us For Availability
NI
Limit Thermostat SPQ M4347P3 Contact Us For Availability
NI
SPQ M412116 SPQ M412116 Contact Us For Availability
NI
SPQ M402917 SPQ M402917 Contact Us For Availability
NI
SPQ M411283 SPQ M411283 Contact Us For Availability
NI
SPQ M412641 SPQ M412641 Contact Us For Availability
NI
SPQ M412777 SPQ M412777 Contact Us For Availability
NI
SPQ M412642 SPQ M412642 Contact Us For Availability
NI
SPQ M412871 SPQ M412871 Contact Us For Availability
NI
SPQ M412694 SPQ M412694 Contact Us For Availability
NI
SPQ M412367 SPQ M412367 Contact Us For Availability
NI
SPQ M412996 SPQ M412996 Contact Us For Availability
NI
SPQ M412766 SPQ M412766 Contact Us For Availability
× ![]()
