Model Maytag JCB2585WES01 REFRIGERATOR – Common Parts & Diagrams

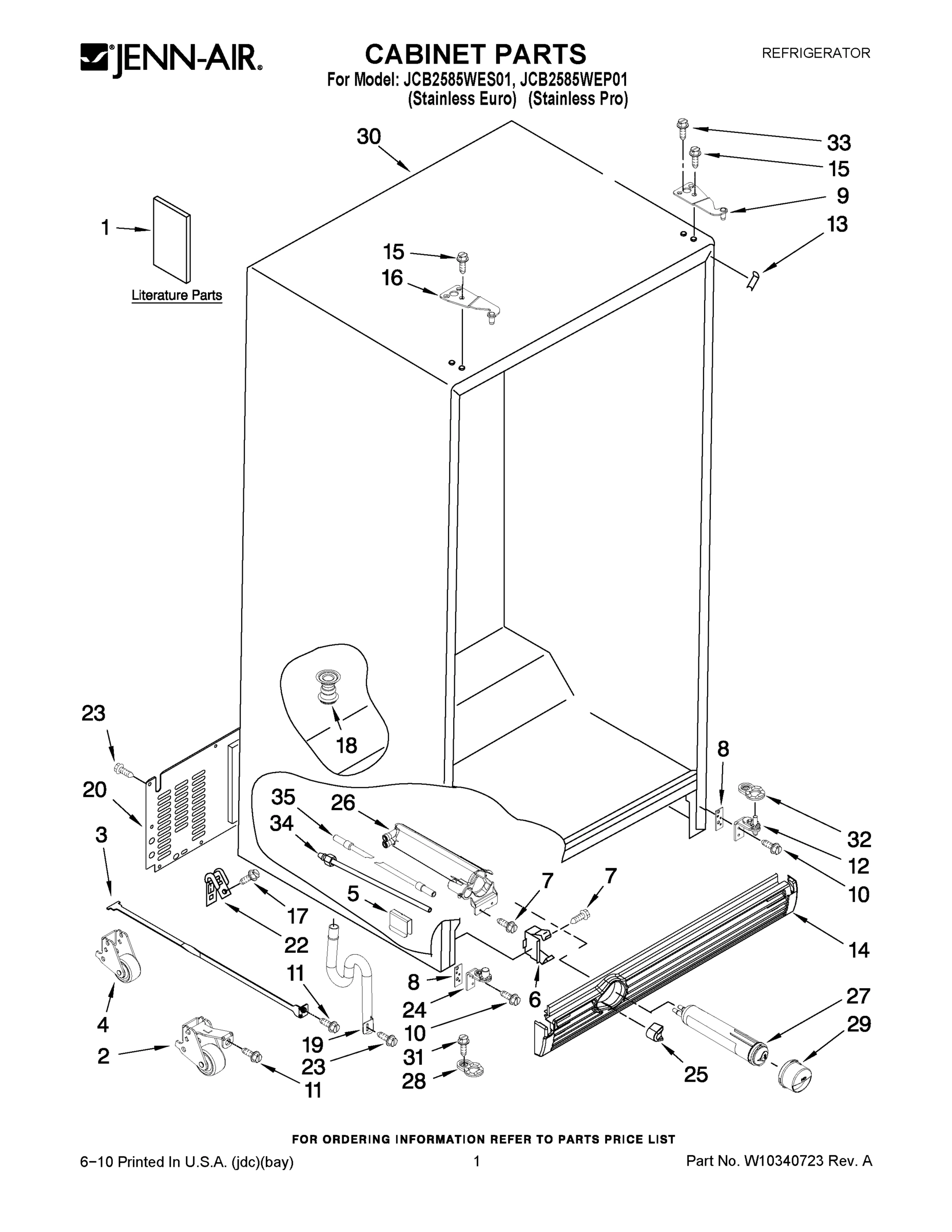

01 - CABINET PARTS

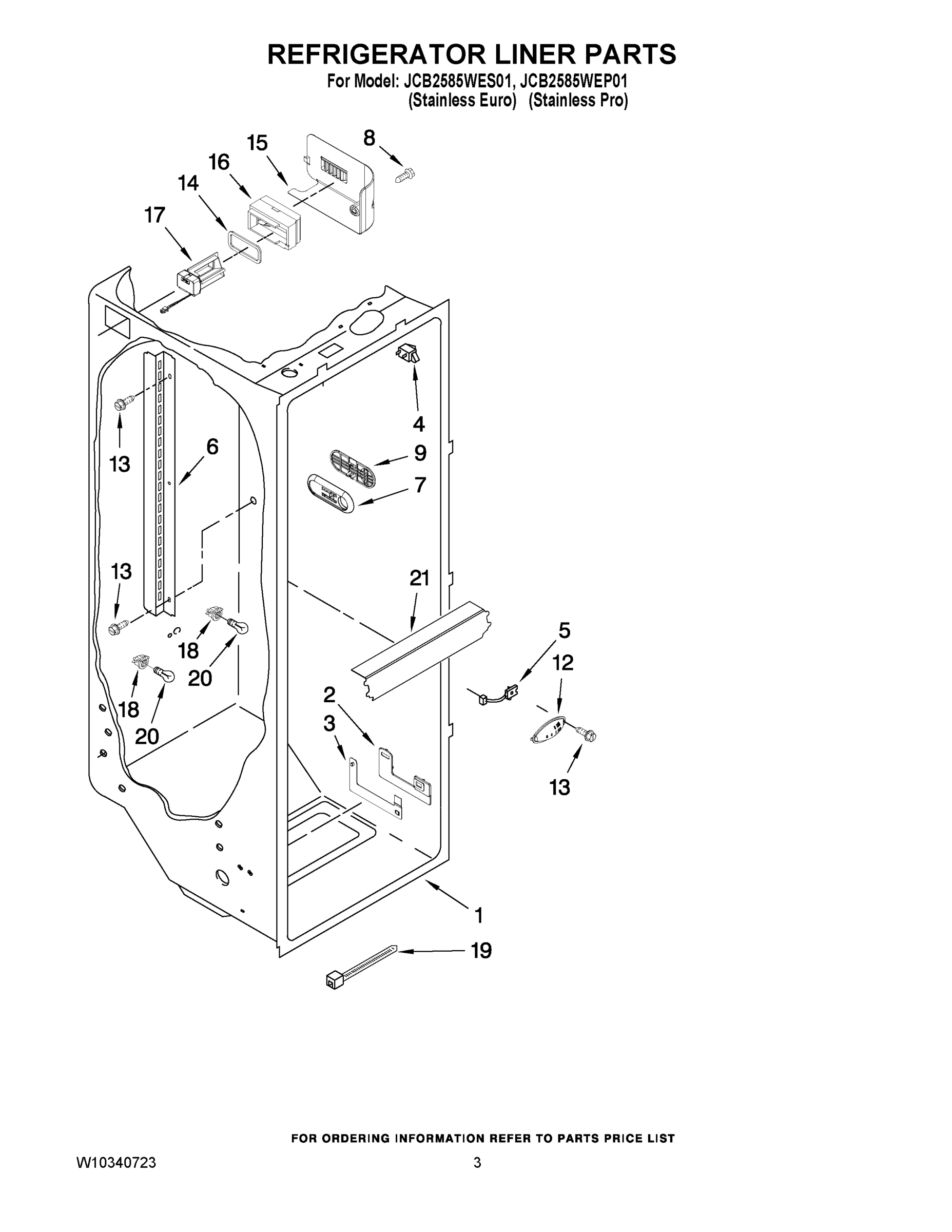

02 - REFRIGERATOR LINER PARTS

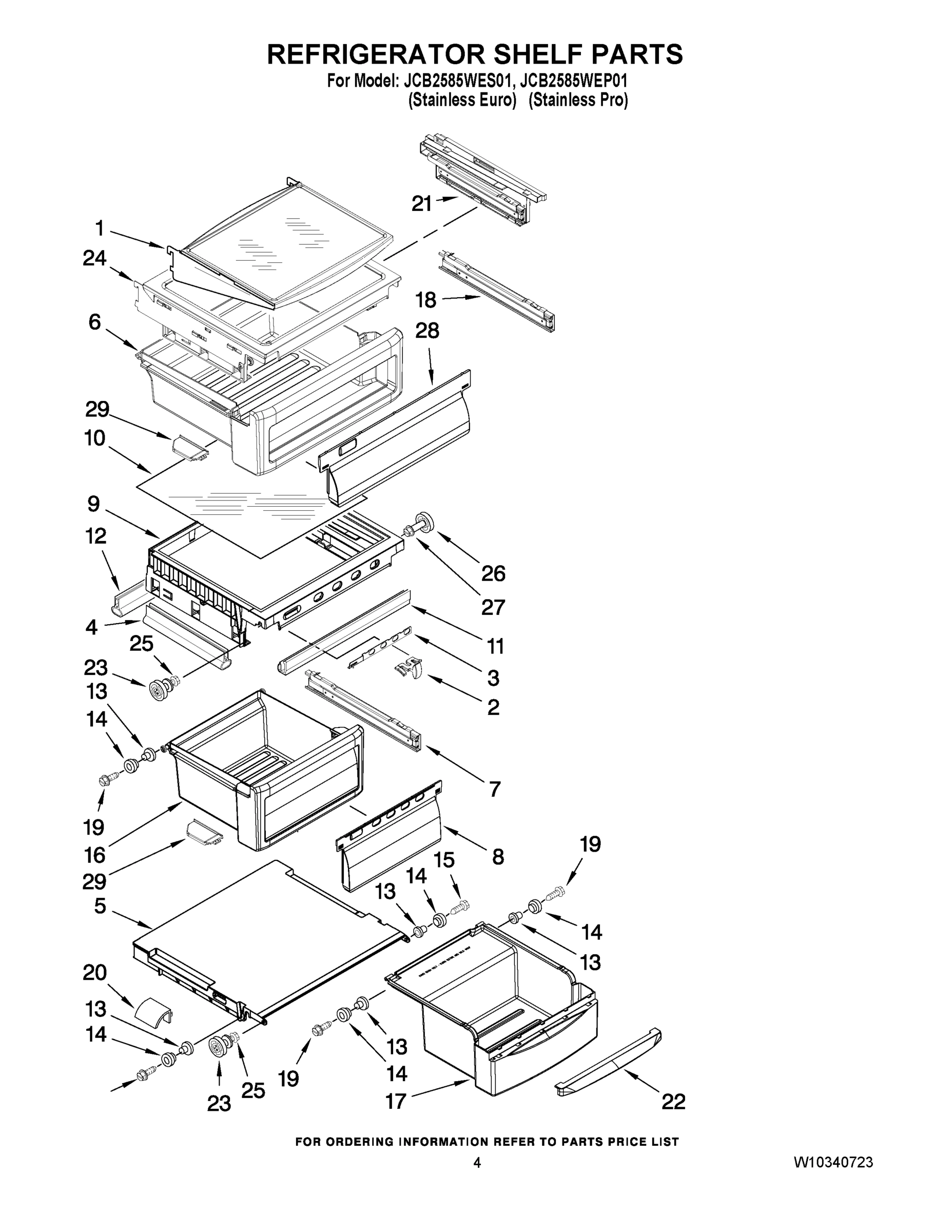

03 - REFRIGERATOR SHELF PARTS

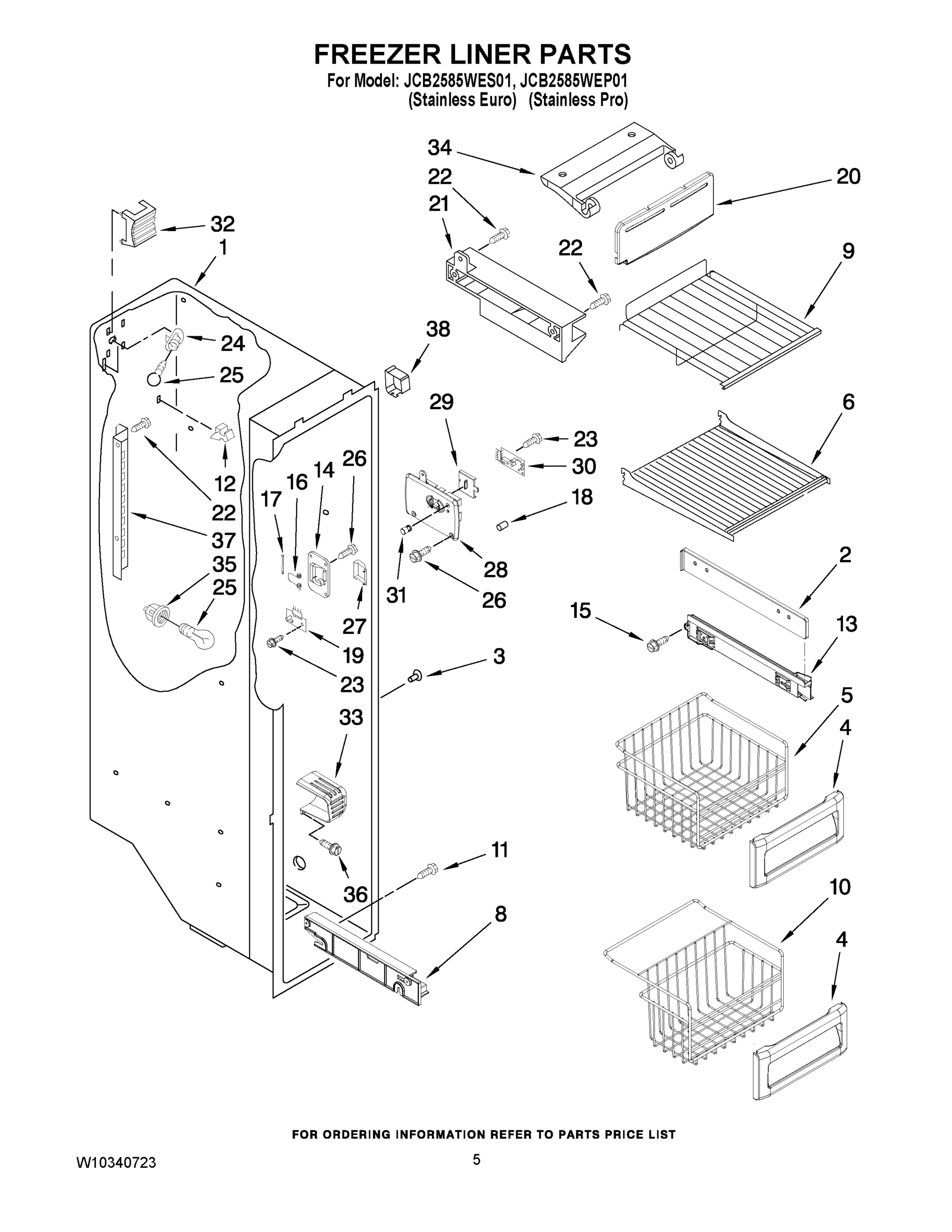

04 - FREEZER LINER PARTS

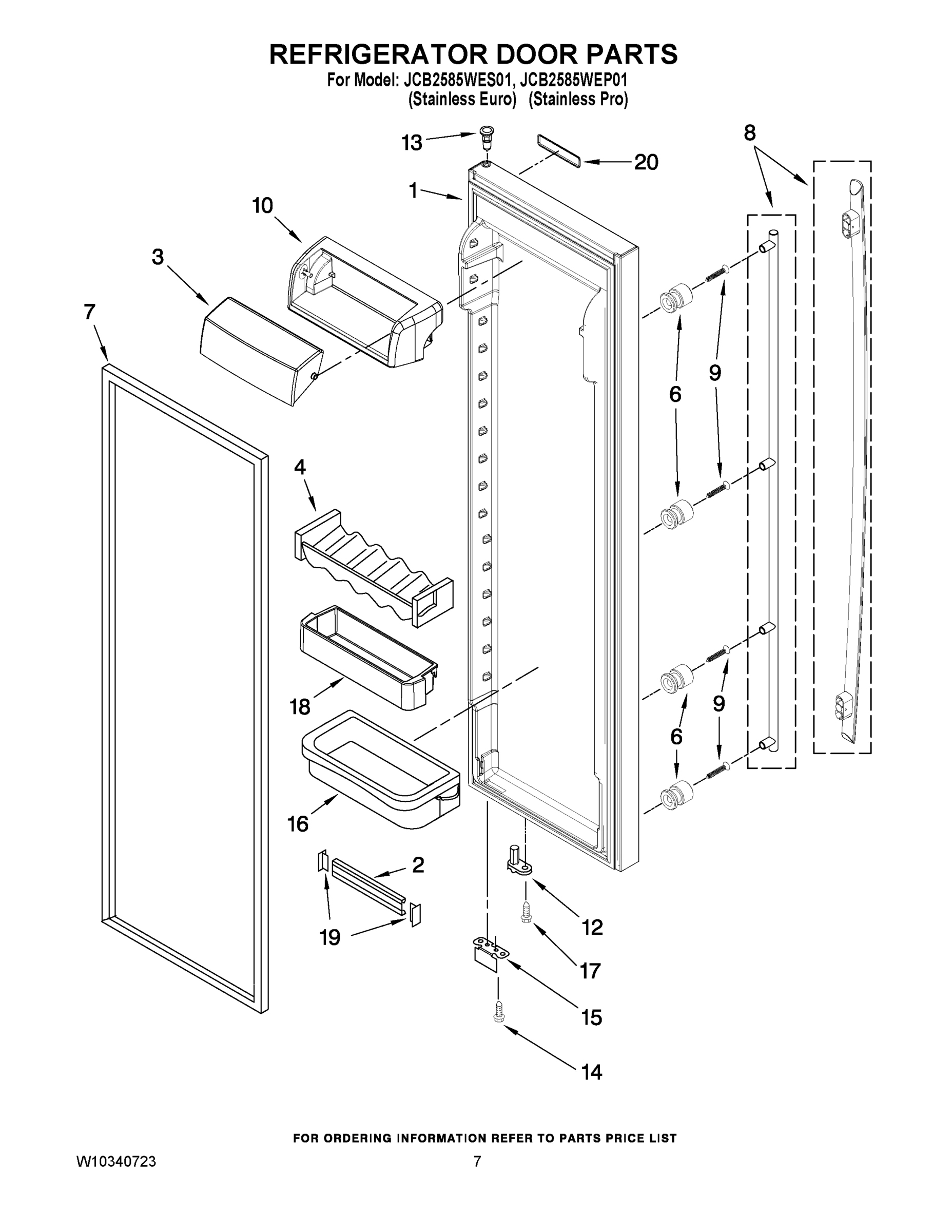

05 - REFRIGERATOR DOOR PARTS

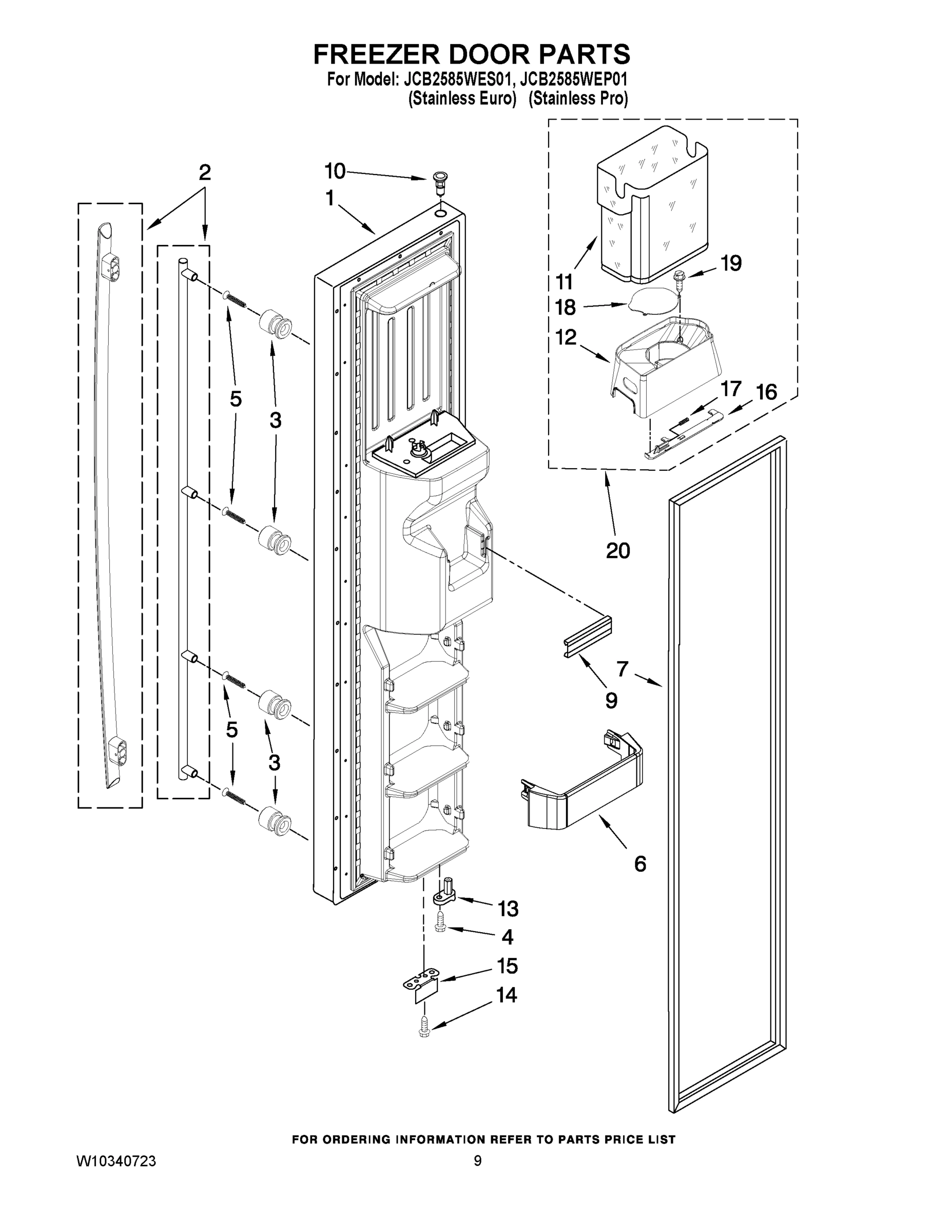

06 - FREEZER DOOR PARTS

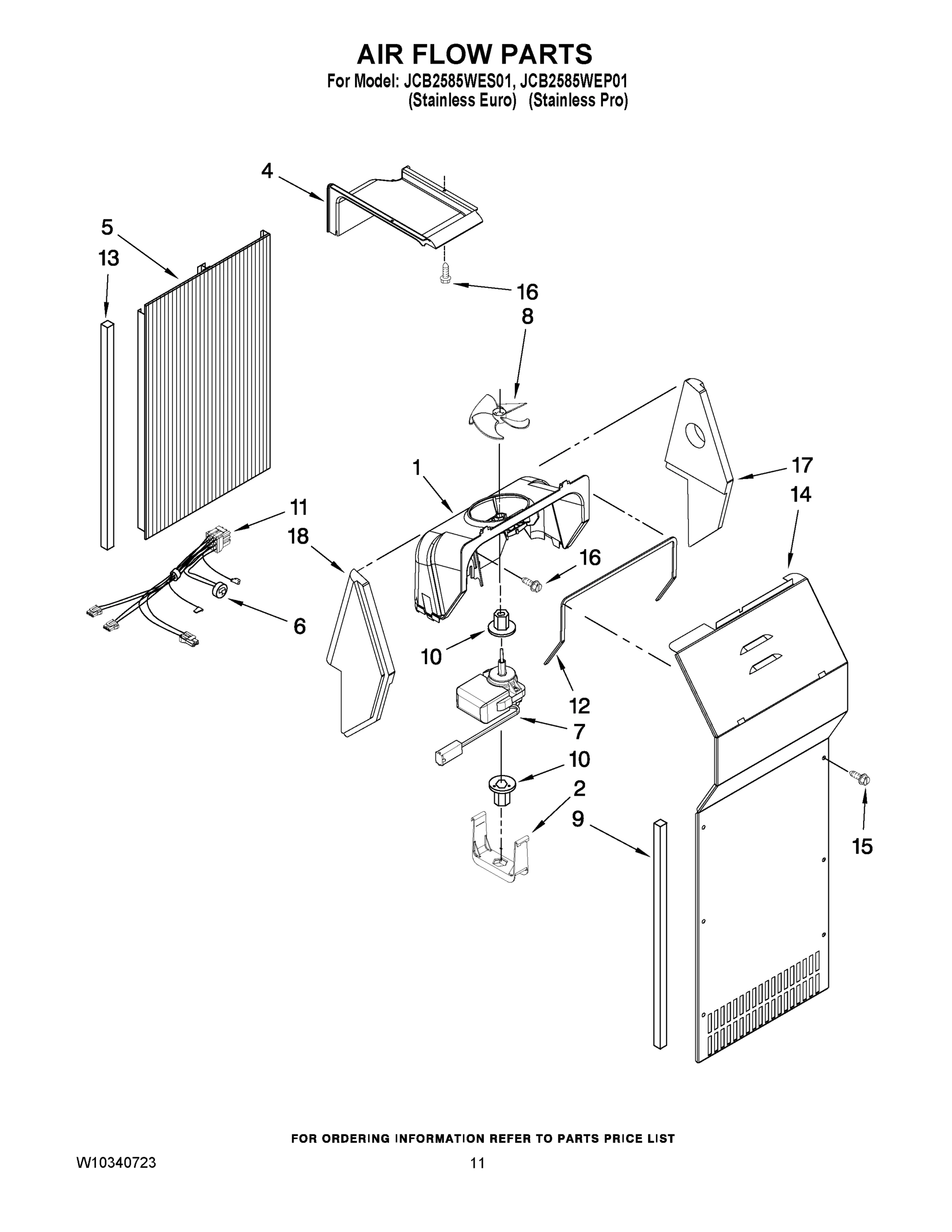

07 - AIR FLOW PARTS

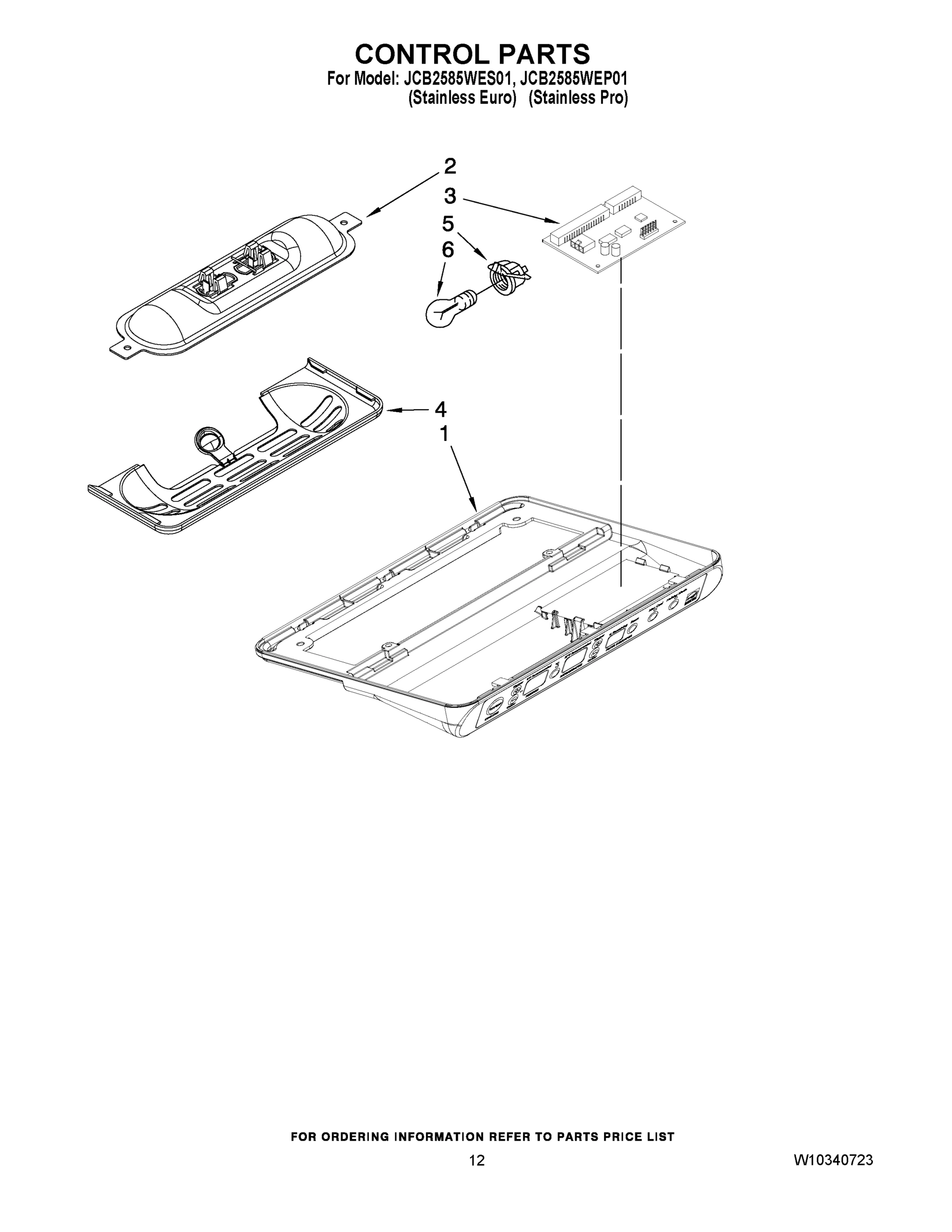

08 - CONTROL PARTS

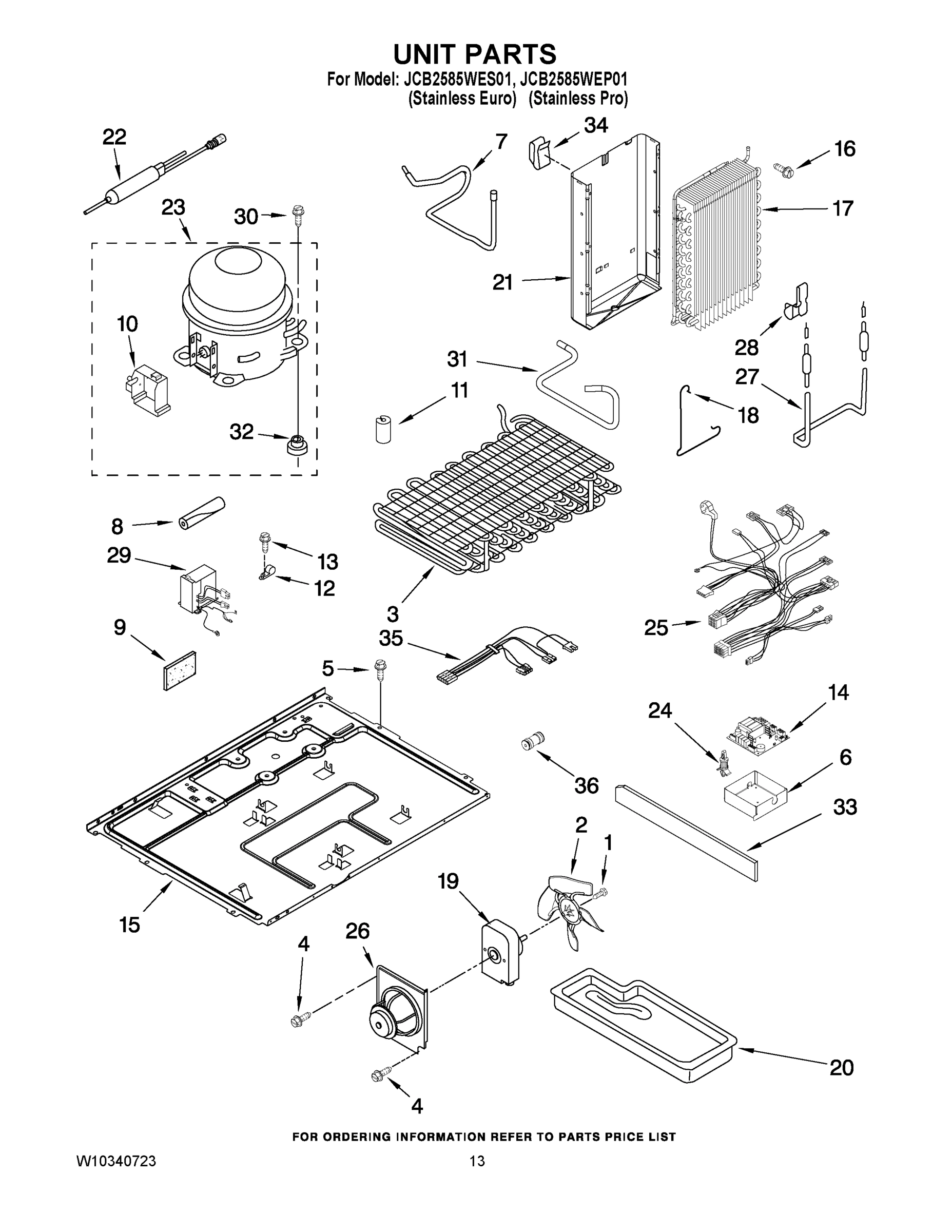

09 - UNIT PARTS

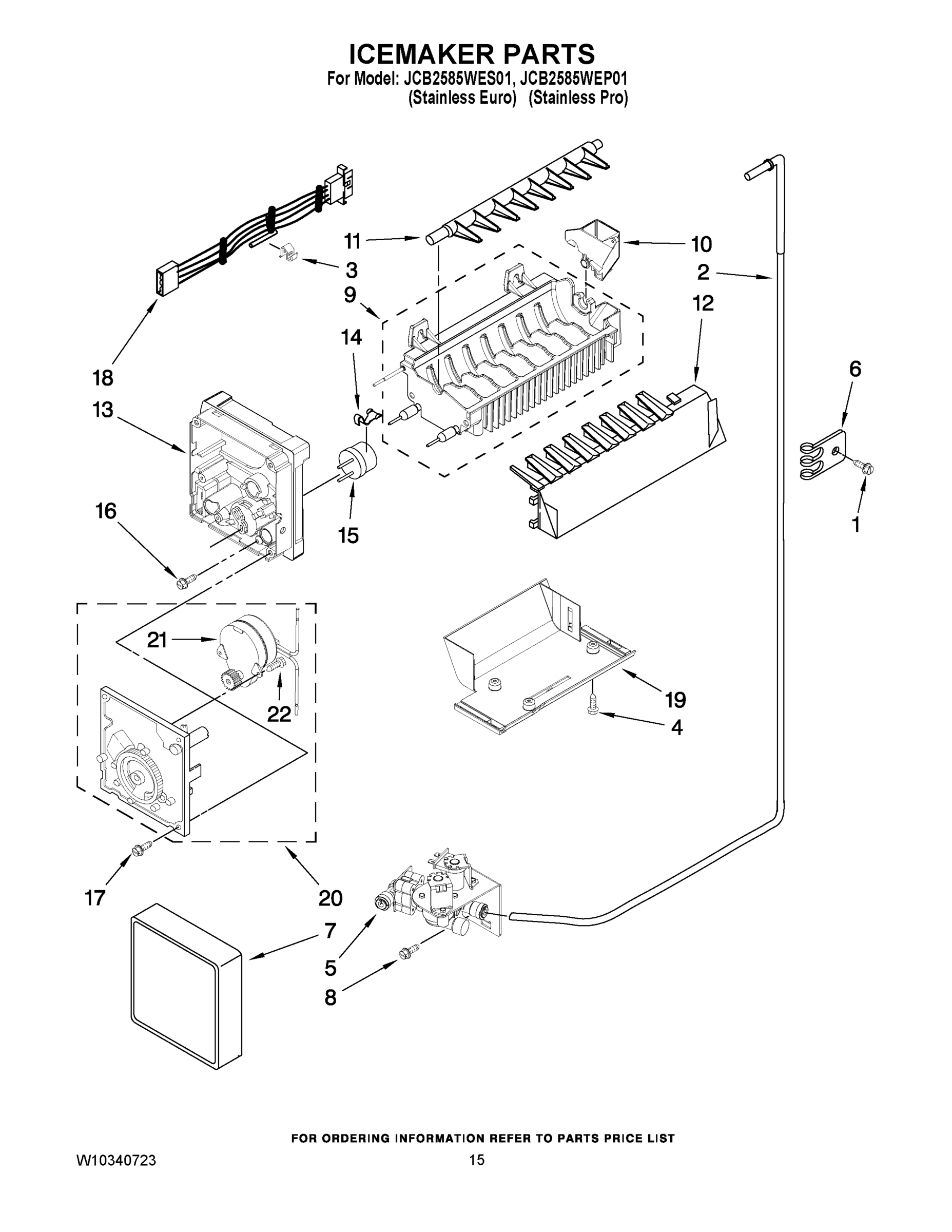

10 - ICEMAKER PARTS
11 - OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Maytag JCB2585WES01 REFRIGERATOR
1
MAY 2220407 MAY 2220407 Contact Us For Availability
1
MAY 2318477 MAY 2318477 Contact Us For Availability
1
MAY W10142175 MAY W10142175 Contact Us For Availability
1
MAY W10168304 MAY W10168304 Contact Us For Availability
1
MAY W10252507 MAY W10252507 Contact Us For Availability
1
MAY W10141645 MAY W10141645 Contact Us For Availability
1
Shelf Assembly, Cantilever (2) MAY W10235943 Contact Us For Availability
1
MAY W10257892 MAY W10257892 Contact Us For Availability
1
MAY W10257893 MAY W10257893 Contact Us For Availability
1
Fan Scroll MAY 2182120 Contact Us For Availability
1
MAY W10205031 MAY W10205031 Contact Us For Availability
1
SCREW MAY W10142287 Contact Us For Availability
2
MAY W10199222 MAY W10199222 Contact Us For Availability
2
MAY W10199223 MAY W10199223 Contact Us For Availability
2
MAY 2223524 MAY 2223524 Contact Us For Availability
2
Button, Humidity MAY 2301025 Contact Us For Availability
2
MAY 2223777 MAY 2223777 Contact Us For Availability
2
Trim, Shelf MAY 2203087 Contact Us For Availability
2
MAY W10183428 MAY W10183428 Contact Us For Availability
2
MAY W10214166 MAY W10214166 Contact Us For Availability
2
MAY 2223733 MAY 2223733 Contact Us For Availability
2
HEAT SHIELD ASM (INCLUDES No.5) MAY 2223882 Contact Us For Availability
2
FAN BLADE MAY W10139483 Contact Us For Availability
2
MAY 2303216 MAY 2303216 Contact Us For Availability
3
MAY W10199260 MAY W10199260 Contact Us For Availability
3
MAY 2223339 MAY 2223339 Contact Us For Availability
3
Slide, Humidity MAY 2301026 Contact Us For Availability
3
MAY 941839 MAY 941839 Contact Us For Availability
3
MAY 2255421 MAY 2255421 Contact Us For Availability
3
Mount, Hdl (4) MAY 67006109 Contact Us For Availability
3
MAY 2307037 MAY 2307037 Contact Us For Availability
3
MAY W10193018 MAY W10193018 Contact Us For Availability
3
CLIP,FUSE MAY 628379 Contact Us For Availability
4
MAY W10173132 MAY W10173132 Contact Us For Availability
4
MAY W10141625 MAY W10141625 Contact Us For Availability
4
Switch, Rocker Arm MAY 1118894 Contact Us For Availability
4
MAY 2301117 MAY 2301117 Contact Us For Availability
4
Basket, Front MAY 2224053 Contact Us For Availability
4
MAY W10142285 MAY W10142285 Contact Us For Availability
4
MAY 2223883 MAY 2223883 Contact Us For Availability
4
MAY W10256500 MAY W10256500 Contact Us For Availability
4
Light Lens, Control Box MAY 2223506 Contact Us For Availability
5
MAY 2223388 MAY 2223388 Contact Us For Availability
5
MAY 2188820 MAY 2188820 Contact Us For Availability
5
COVER, MEAT PAN MAY W10270150 Contact Us For Availability
5
MAY 2223811 MAY 2223811 Contact Us For Availability
5
Screw, Mount (4) MAY W10141596 Contact Us For Availability
5
MAY 2223297 MAY 2223297 Contact Us For Availability
5
Light Socket MAY 2223857 Contact Us For Availability
5
Screw (6) MAY W10141604 Contact Us For Availability
5
MAY W10216170 MAY W10216170 Contact Us For Availability
6
MAY 2155013 MAY 2155013 Contact Us For Availability
6
MAY 2223456 MAY 2223456 Contact Us For Availability
6
SNACK PAN MAY W10163047 Contact Us For Availability
6
MAY 2223500 MAY 2223500 Contact Us For Availability
6
MAY 2223559 MAY 2223559 Contact Us For Availability
6
MAY W10225581 MAY W10225581 Contact Us For Availability
6
MAY 2326255 MAY 2326255 Contact Us For Availability
6
MAY 2223703 MAY 2223703 Contact Us For Availability
6
Tube Clip MAY 2208136 Contact Us For Availability
7
Screw MAY 981126 Contact Us For Availability
7
MAY 2301234 MAY 2301234 Contact Us For Availability
7
Glide Assembly, Crisper Pan (Right Side) MAY 2301548 Contact Us For Availability
7
Glide Assembly, Crisper Pan (Left Side) MAY 2301549 Contact Us For Availability
7
MAY 2326341 MAY 2326341 Contact Us For Availability
7
MAY 2326340 MAY 2326340 Contact Us For Availability
7
MAY 2259385 MAY 2259385 Contact Us For Availability
7
MAY 2223351 MAY 2223351 Contact Us For Availability
7
COVER MAY W10289690 Contact Us For Availability
8
MAY 2223545 MAY 2223545 Contact Us For Availability
8
Window, Crisper Pan MAY 2301001 Contact Us For Availability
8
MAY 2223787 MAY 2223787 Contact Us For Availability
8
MAY 2223788 MAY 2223788 Contact Us For Availability
8
Fan Blade MAY 2169142 Contact Us For Availability
8
MAY 2161302 MAY 2161302 Contact Us For Availability
8
MAY W10146358 MAY W10146358 Contact Us For Availability
9
MAY 2307008AP MAY 2307008AP Contact Us For Availability
9
MAY W10162918 MAY W10162918 Contact Us For Availability
9
COVER, CRISPER MAY W10163043 Contact Us For Availability
9
MAY 2223681 MAY 2223681 Contact Us For Availability
9
MAY W10307494 MAY W10307494 Contact Us For Availability
9
MAY 2304241 MAY 2304241 Contact Us For Availability
9
INSULATION, SOUND MAY 2169104 Contact Us For Availability
9
Mold & Heater Assembly (Also Order 542638) MAY W10122527 Contact Us For Availability
10
MAY W10151272 MAY W10151272 Contact Us For Availability
10
MAY 2223694 MAY 2223694 Contact Us For Availability
10
MAY 2223879 MAY 2223879 Contact Us For Availability
10
MAY 2308091 MAY 2308091 Contact Us For Availability
10
MAY 2223986 MAY 2223986 Contact Us For Availability
10
MAY 2215676 MAY 2215676 Contact Us For Availability
10
MAY W10272168 MAY W10272168 Contact Us For Availability
11
Gasket (Front) MAY 2301116 Contact Us For Availability
11
SCREW MAY W10142283 Contact Us For Availability
11
Upper Bin MAY 2223317 Contact Us For Availability
11
MAY W10297478 MAY W10297478 Contact Us For Availability
11
Grommet, Condenser (4) MAY 2319835 Contact Us For Availability
11
MAY 627843 MAY 627843 Contact Us For Availability
12
HINGE ASSEMBLY, BOTTOM-RC (INCLUDES No.34) MAY 2307179 Contact Us For Availability
12
MAY 2317105 MAY 2317105 Contact Us For Availability
12
Gasket (Rear) MAY 2301115 Contact Us For Availability
12
MAY 2315163 MAY 2315163 Contact Us For Availability
12
Thimble Cam, RC MAY 2307048 Contact Us For Availability
12
MAY W10162938 MAY W10162938 Contact Us For Availability
12
Gasket, Fan Scroll MAY 2155789 Contact Us For Availability
12
Clamp, Cable MAY 2185788 Contact Us For Availability
12
ICE STRIPER MAY W10272161 Contact Us For Availability
13
MAY 2223893AP MAY 2223893AP Contact Us For Availability
13
MAY W10142289 MAY W10142289 Contact Us For Availability
13
MAY 2174478 MAY 2174478 Contact Us For Availability
13
MAY 2301544 MAY 2301544 Contact Us For Availability
13
MAY 2301545 MAY 2301545 Contact Us For Availability
13
Thimble Cam, FC MAY 2307050 Contact Us For Availability
13
MAY 2203876 MAY 2203876 Contact Us For Availability
13
MAY W10142231 MAY W10142231 Contact Us For Availability
13
Support MAY 2194712 Contact Us For Availability
14
Grille, Filter (Midnight Grey) MAY W10194061 Contact Us For Availability
14
MAY 2304597 MAY 2304597 Contact Us For Availability
14
MAY 2188212 MAY 2188212 Contact Us For Availability
14
MAY 2259487 MAY 2259487 Contact Us For Availability
14
MAY 2223413 MAY 2223413 Contact Us For Availability
14
MAY W10219463 MAY W10219463 Contact Us For Availability
14
MAY 2315522 MAY 2315522 Contact Us For Availability
15
MAY W10001260 MAY W10001260 Contact Us For Availability
15
MAY 2223403 MAY 2223403 Contact Us For Availability
15
MAY 489211 MAY 489211 Contact Us For Availability
15
Bracket, Door Stop (Chrome) MAY 2306940 Contact Us For Availability
15
MAY 2306932 MAY 2306932 Contact Us For Availability
15
Thermostat (Also Order 542369 Cement Alumilas MAY 628397 Contact Us For Availability
16
MAY 2307007AP MAY 2307007AP Contact Us For Availability
16
MAY W10001250 MAY W10001250 Contact Us For Availability
16
MAY 2224076 MAY 2224076 Contact Us For Availability
16
CRISPER PAN MAY W10163039 Contact Us For Availability
16
MAY 2198635 MAY 2198635 Contact Us For Availability
16
MAY 2223860 MAY 2223860 Contact Us For Availability
16
MAY 2317272 MAY 2317272 Contact Us For Availability
16
MAY 8533917 MAY 8533917 Contact Us For Availability
17
MAY 2220377 MAY 2220377 Contact Us For Availability
17
MEAT PAN MAY W10162924 Contact Us For Availability
17
MAY 2198634 MAY 2198634 Contact Us For Availability
17
MAY 2198608 MAY 2198608 Contact Us For Availability
17
MAY 2223395 MAY 2223395 Contact Us For Availability
17
Evaporator MAY 2188823 Contact Us For Availability
17
MAY 489276 MAY 489276 Contact Us For Availability
18
MAY 2304888 MAY 2304888 Contact Us For Availability
18
Glide Assembly, Snack Pan (Right Side) MAY 2301550 Contact Us For Availability
18
Glide Assembly, Snack Pan (Left Side) MAY 2301551 Contact Us For Availability
18
MAY 2198665 MAY 2198665 Contact Us For Availability
18
MAY 2224173 MAY 2224173 Contact Us For Availability
18
MAY W10131326 MAY W10131326 Contact Us For Availability
18
MAY 2203596 MAY 2203596 Contact Us For Availability
18
Clamp MAY 2161324 Contact Us For Availability
18
MAY 2187467 MAY 2187467 Contact Us For Availability
19
MAY 2254566 MAY 2254566 Contact Us For Availability
19
MAY 2205813 MAY 2205813 Contact Us For Availability
19
MAY 489261 MAY 489261 Contact Us For Availability
19
MAY W10193840 MAY W10193840 Contact Us For Availability
19
MAY 2156006 MAY 2156006 Contact Us For Availability
19
Screw (2) MAY 3400065 Contact Us For Availability
19
Fan, Motor MAY 2188874 Contact Us For Availability
19
Bracket, Ice Maker Mounting MAY 2303583 Contact Us For Availability
20
MAY 2223409 MAY 2223409 Contact Us For Availability
20
MAY 2223487 MAY 2223487 Contact Us For Availability
20
MAY W10185438 MAY W10185438 Contact Us For Availability
20
Badge, Jenn-Air (Stainless Pro) MAY W10159578 Contact Us For Availability
20
Badge, Jenn-Air (Stainless Euro) MAY W10214168 Contact Us For Availability
20
MAY W10162937 MAY W10162937 Contact Us For Availability
20
MAY 2223398 MAY 2223398 Contact Us For Availability
20
MAY 626691 MAY 626691 Contact Us For Availability
21
MAY 2223663 MAY 2223663 Contact Us For Availability
21
MAY 2301569 MAY 2301569 Contact Us For Availability
21
MAY 2301570 MAY 2301570 Contact Us For Availability
21
Slide, Ice Maker Mounting (Right Side) MAY 2212321 Contact Us For Availability
21
MAY 2306900 MAY 2306900 Contact Us For Availability
21
MAY 2224022 MAY 2224022 Contact Us For Availability
21
MAY 626683 MAY 626683 Contact Us For Availability
22
CLAMP, SERVICE CORD MAY 549193 Contact Us For Availability
22
Handle MAY 2203031 Contact Us For Availability
22
Drier MAY W10177049 Contact Us For Availability
22
Screw MAY 489136 Contact Us For Availability
23
MAY W10154233 MAY W10154233 Contact Us For Availability
23
Stud Assembly MAY 2196208 Contact Us For Availability
23
Screw MAY 489214 Contact Us For Availability
23
Compressor (Includes Items 10 & 32) MAY W10183959 Contact Us For Availability
24
Hinge Assembly, Bottom-FC (Includes 28 & 31) MAY 2307152 Contact Us For Availability
24
Light Socket MAY 2162085 Contact Us For Availability
24
MAY W10163049 MAY W10163049 Contact Us For Availability
24
Spacer (5) MAY 2223800 Contact Us For Availability
25
Button, Water Filter (Midnight Grey) MAY 2260503MG Contact Us For Availability
25
MAY W10311505 MAY W10311505 Contact Us For Availability
25
MAY W10191954 MAY W10191954 Contact Us For Availability
25
MAY 2187849 MAY 2187849 Contact Us For Availability
26
MAY W10121140 MAY W10121140 Contact Us For Availability
26
Stud Assembly MAY 2196205 Contact Us For Availability
26
MAY 2224024 MAY 2224024 Contact Us For Availability
27
MAY 4396841 MAY 4396841 Contact Us For Availability
27
MAY W10191952 MAY W10191952 Contact Us For Availability
27
MAY 2198633 MAY 2198633 Contact Us For Availability
27
MAY 2323199 MAY 2323199 Contact Us For Availability
28
MAY 2307051 MAY 2307051 Contact Us For Availability
28
MAY 2301006 MAY 2301006 Contact Us For Availability
28
MAY W10173569 MAY W10173569 Contact Us For Availability
28
MAY 2304287 MAY 2304287 Contact Us For Availability
29
MAY 2260502MG MAY 2260502MG Contact Us For Availability
29
Cap, Snack Pan (Right Side) MAY 2301016 Contact Us For Availability
29
Cap, Snack Pan (Left Side) MAY 2301017 Contact Us For Availability
29
MAY 2315398 MAY 2315398 Contact Us For Availability
29
MAY W10154805 MAY W10154805 Contact Us For Availability
30
MAY W10290817 MAY W10290817 Contact Us For Availability
30
MAY 489373 MAY 489373 Contact Us For Availability
31
MAY 2198643 MAY 2198643 Contact Us For Availability
31
TUBE, PROCESS MAY 2325479 Contact Us For Availability
32
Door Closer, RC MAY 2307049 Contact Us For Availability
32
MAY 2198589 MAY 2198589 Contact Us For Availability
32
Grommet (4) MAY 1100826 Contact Us For Availability
33
MAY 2212340 MAY 2212340 Contact Us For Availability
33
MAY 2223394 MAY 2223394 Contact Us For Availability
34
MAY 2224020 MAY 2224020 Contact Us For Availability
34
Bracket, Ice Maker Cover MAY 2198641 Contact Us For Availability
34
MAY 2155547 MAY 2155547 Contact Us For Availability
35
MAY W10212512 MAY W10212512 Contact Us For Availability
35
Socket, Light MAY 2155597 Contact Us For Availability
35
MAY 2310119 MAY 2310119 Contact Us For Availability
36
MAY W10271540 MAY W10271540 Contact Us For Availability
37
MAY 2223414 MAY 2223414 Contact Us For Availability
37
MAY 2223415 MAY 2223415 Contact Us For Availability
38
MAY 2303378 MAY 2303378 Contact Us For Availability
100
MAY W10272869 MAY W10272869 Contact Us For Availability
NI
REFRIGERANT CHARGE (6.00 OZ. (R-134A)) MAY N/P Contact Us For Availability
NI
MAY 876764 MAY 876764 Contact Us For Availability
NI
VALVE, ACCESS (1/4``) MAY 978025 Contact Us For Availability
NI
Valve, Access (5/16``) MAY 978026 Contact Us For Availability
NI
VALVE, ACCESS (3/8``) MAY 978027 Contact Us For Availability
NI
Valve, Access (1/2``) MAY 978028 Contact Us For Availability
NI
Valve, Access (5/8``) MAY 978029 Contact Us For Availability
NI
Valve, Access (3/4``) MAY 978030 Contact Us For Availability
NI
MAY 1117510 MAY 1117510 Contact Us For Availability
NI
SEALER, GUM (4 FEET) MAY 212643 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (PRIMER, WH MAY 350942 Contact Us For Availability
NI
MAY 479502 MAY 479502 Contact Us For Availability
NI
MAY 503695 MAY 503695 Contact Us For Availability
NI
MAY 505587 MAY 505587 Contact Us For Availability
NI
TOUCH-UP, WHITE PORCELAIN (2 OZ.) MAY 511873 Contact Us For Availability
NI
MAY 542638 MAY 542638 Contact Us For Availability
NI
MAY 542639 MAY 542639 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2oz.) (Graphite) MAY 72017 Contact Us For Availability
NI
Kit, Evaporator Repair (Aluminum Epoxy) MAY 799833 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12OZ. GRAPHITE) MAY 8171357 Contact Us For Availability
NI
PAINT, BULK (1 QT. GRAPHITE) MAY 8171358 Contact Us For Availability
NI
Previous Architect Series Handle Kit (Stainle MAY 8201806 Contact Us For Availability
NI
MAY 833938 MAY 833938 Contact Us For Availability
NI
MAY W10134625 MAY W10134625 Contact Us For Availability
× ![]()
