Model Alliance JC170CSH Dryer – Common Parts & Diagrams

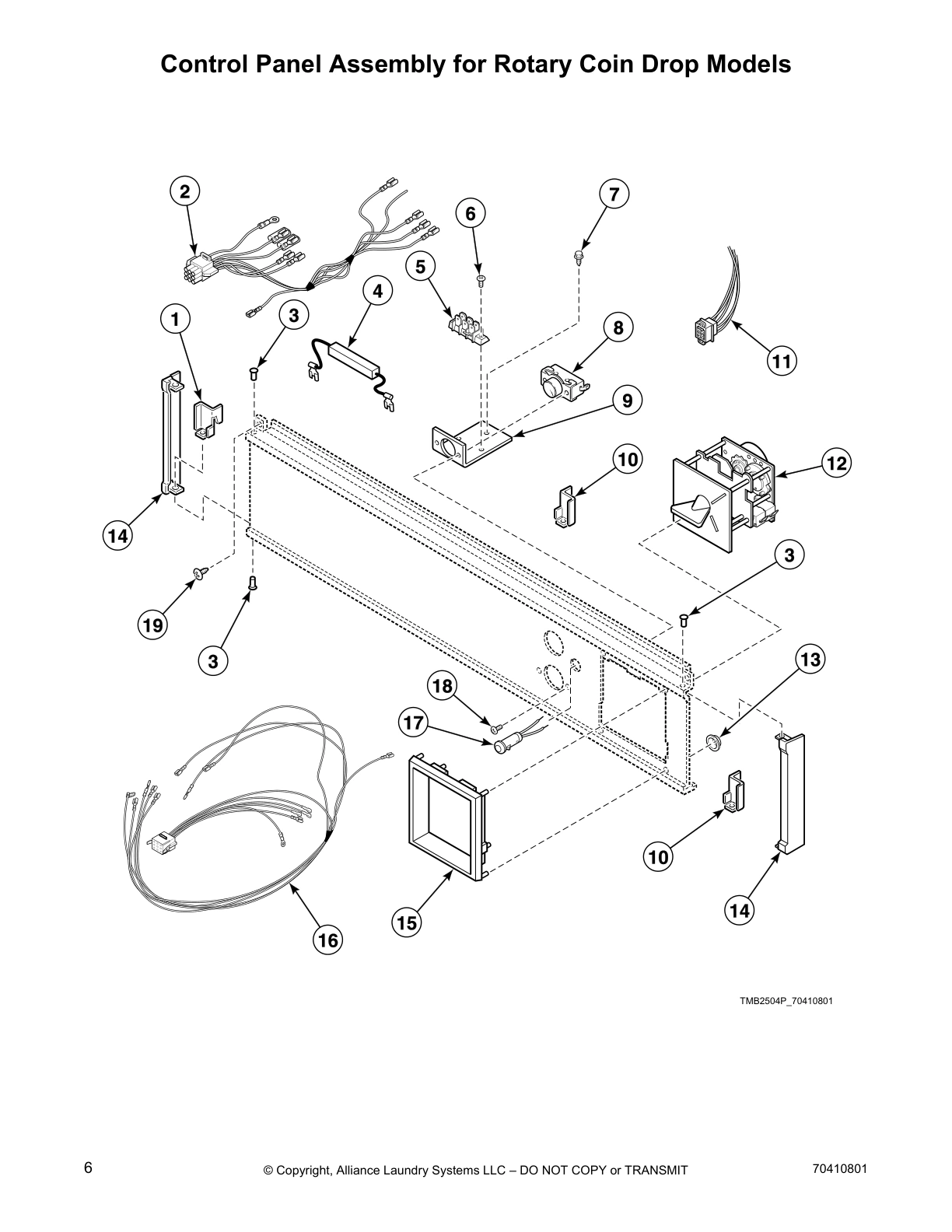

Control Panel Assembly for Rotary Coin Drop Models

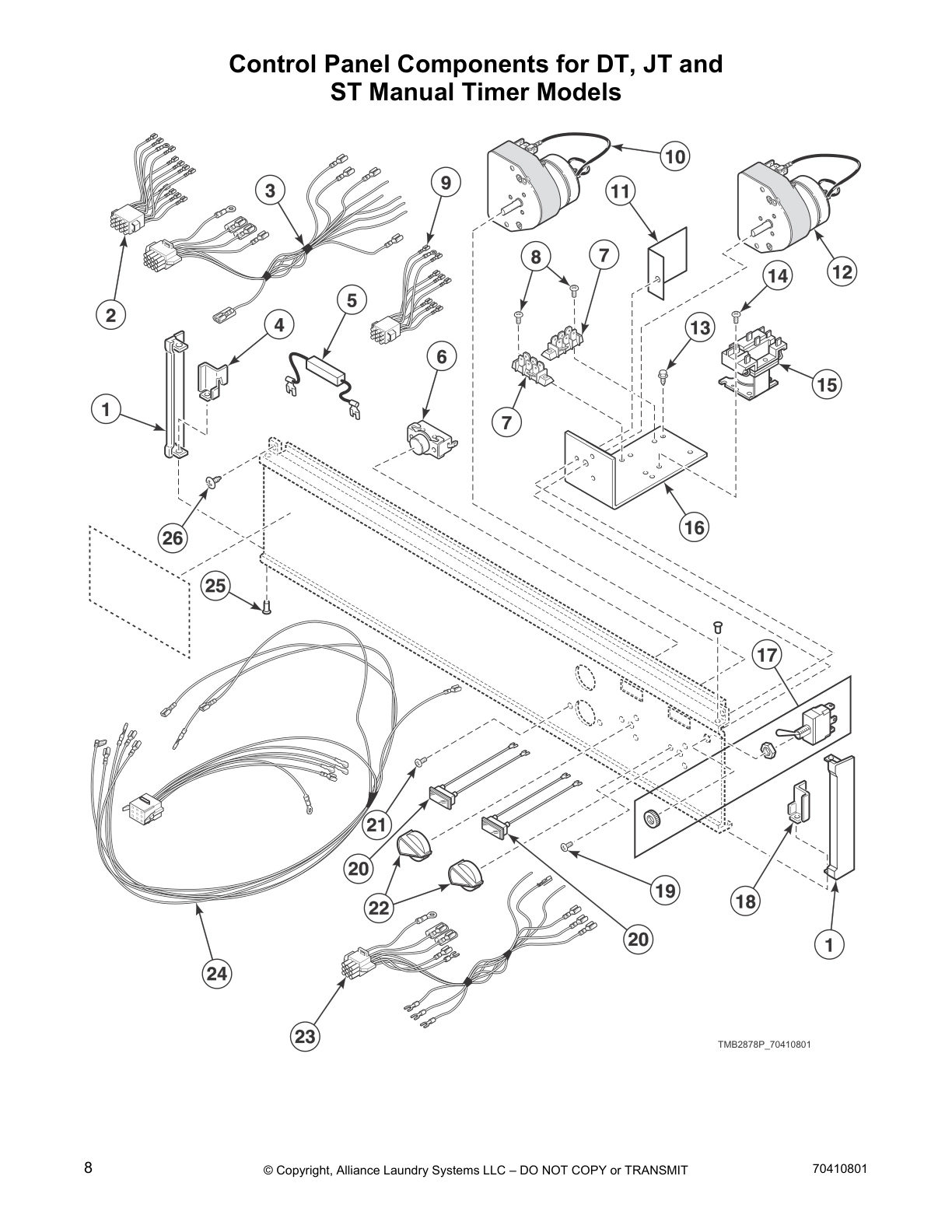

Control Panel Components for DT, JT and ST Manual Timer Models

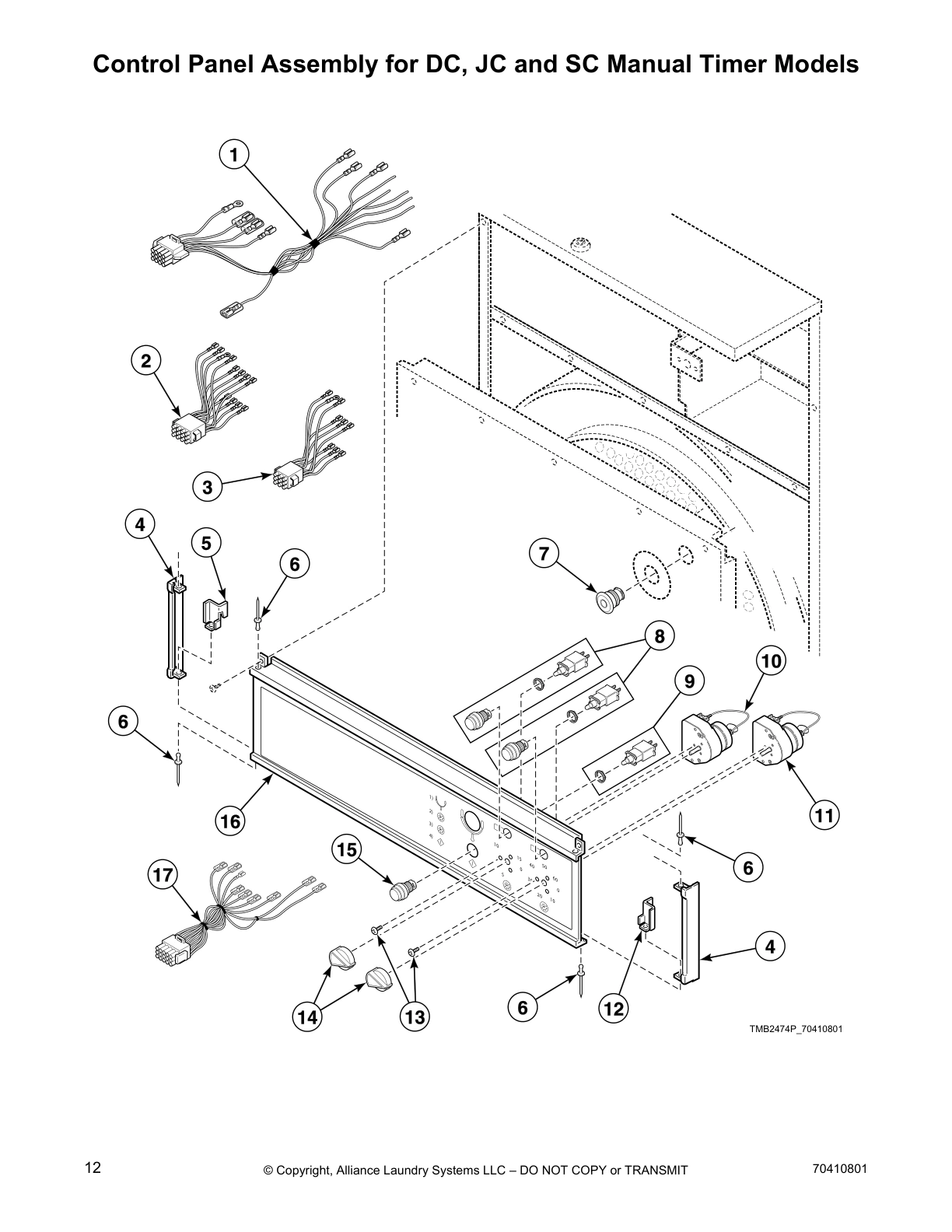

Control Panel Assembly for DC, JC and SC Manual Timer Models

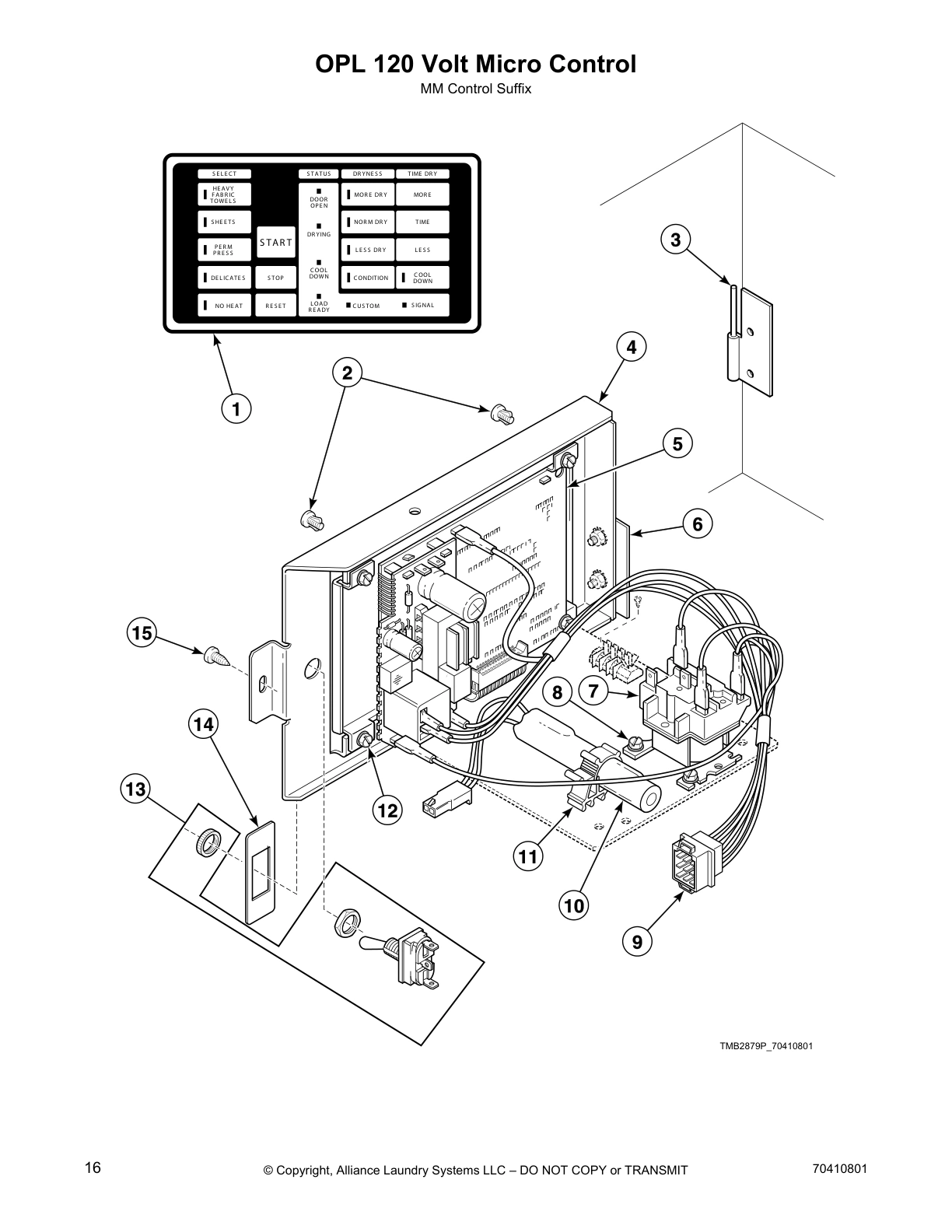

OPL 120 Volt Micro Control

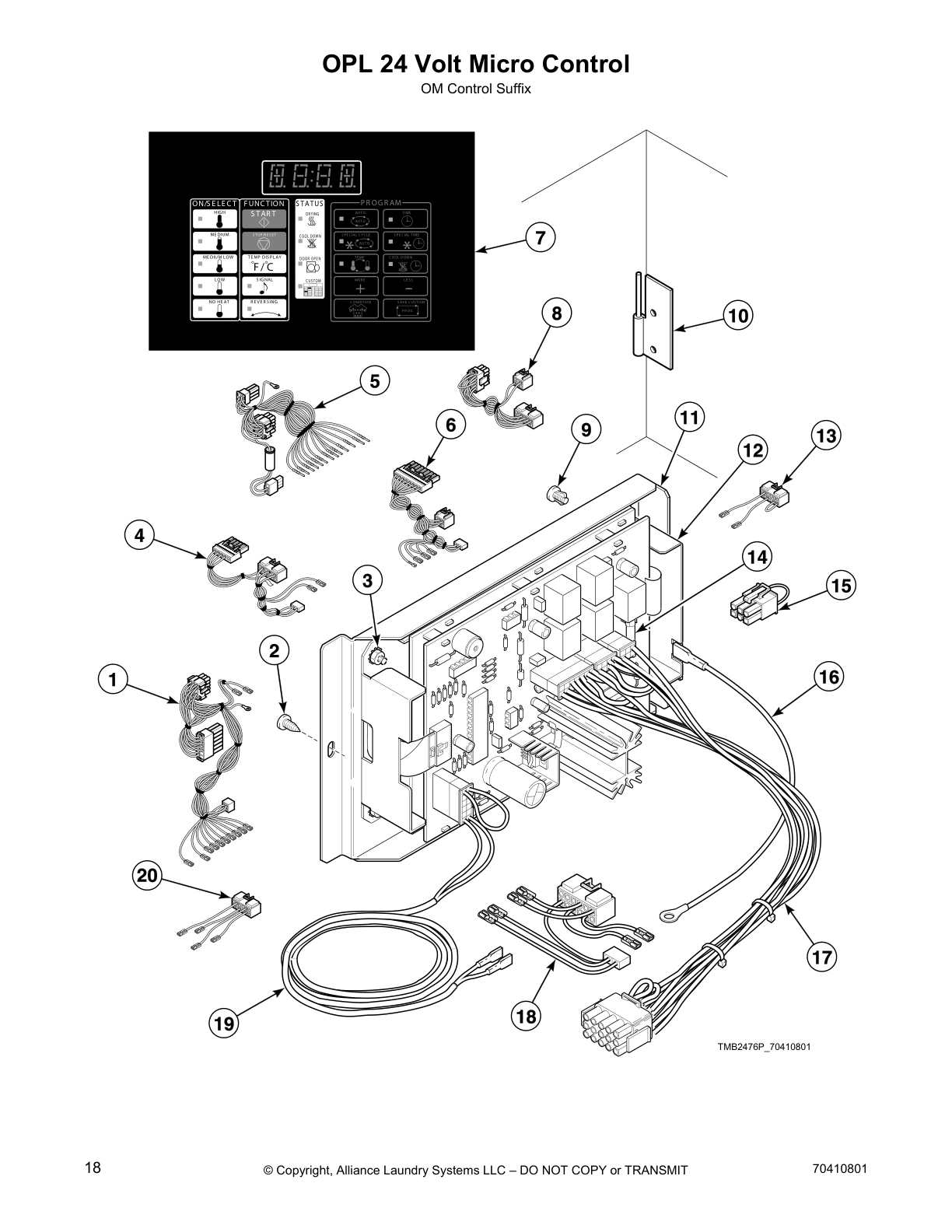

OPL 24 Volt Micro Control

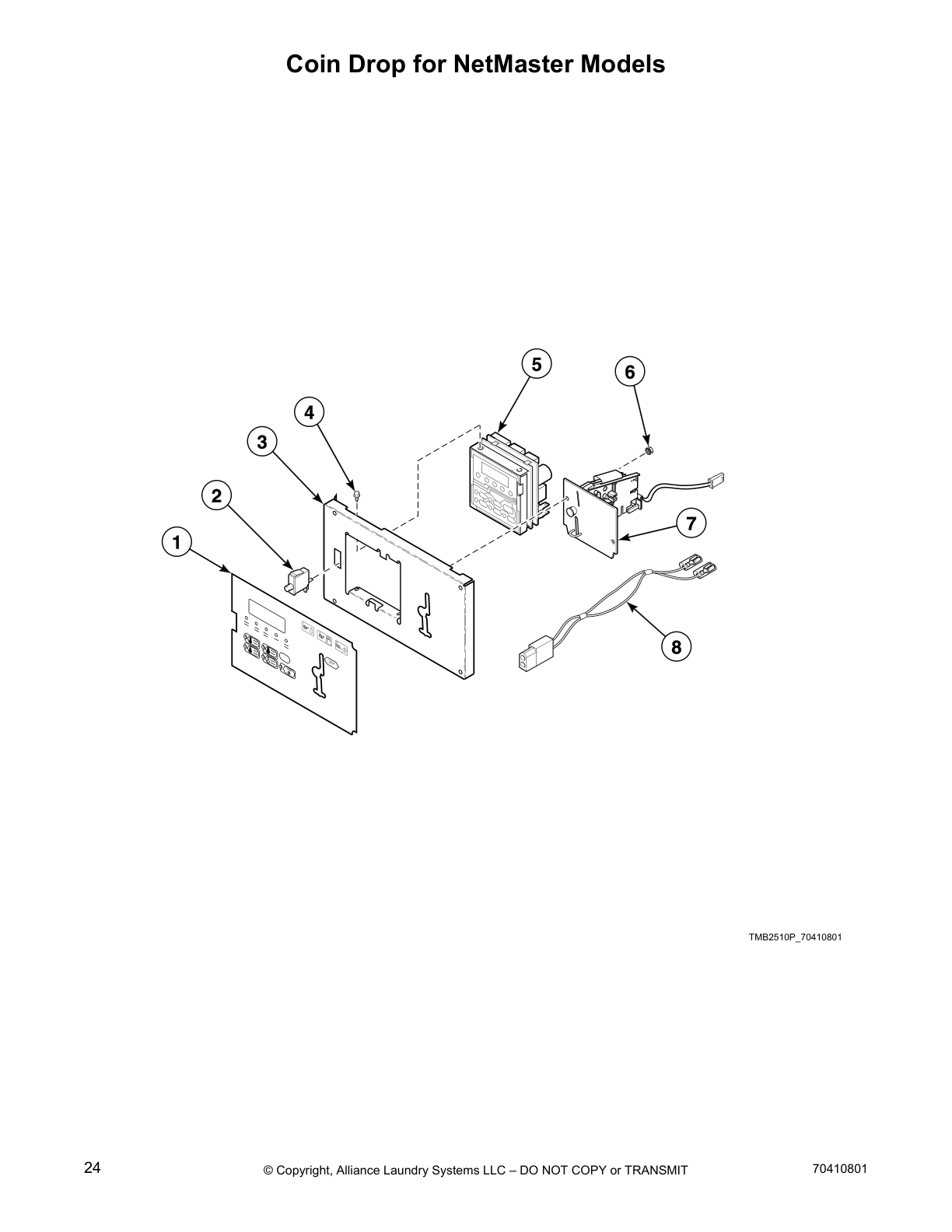

Coin Drop for NetMaster Models

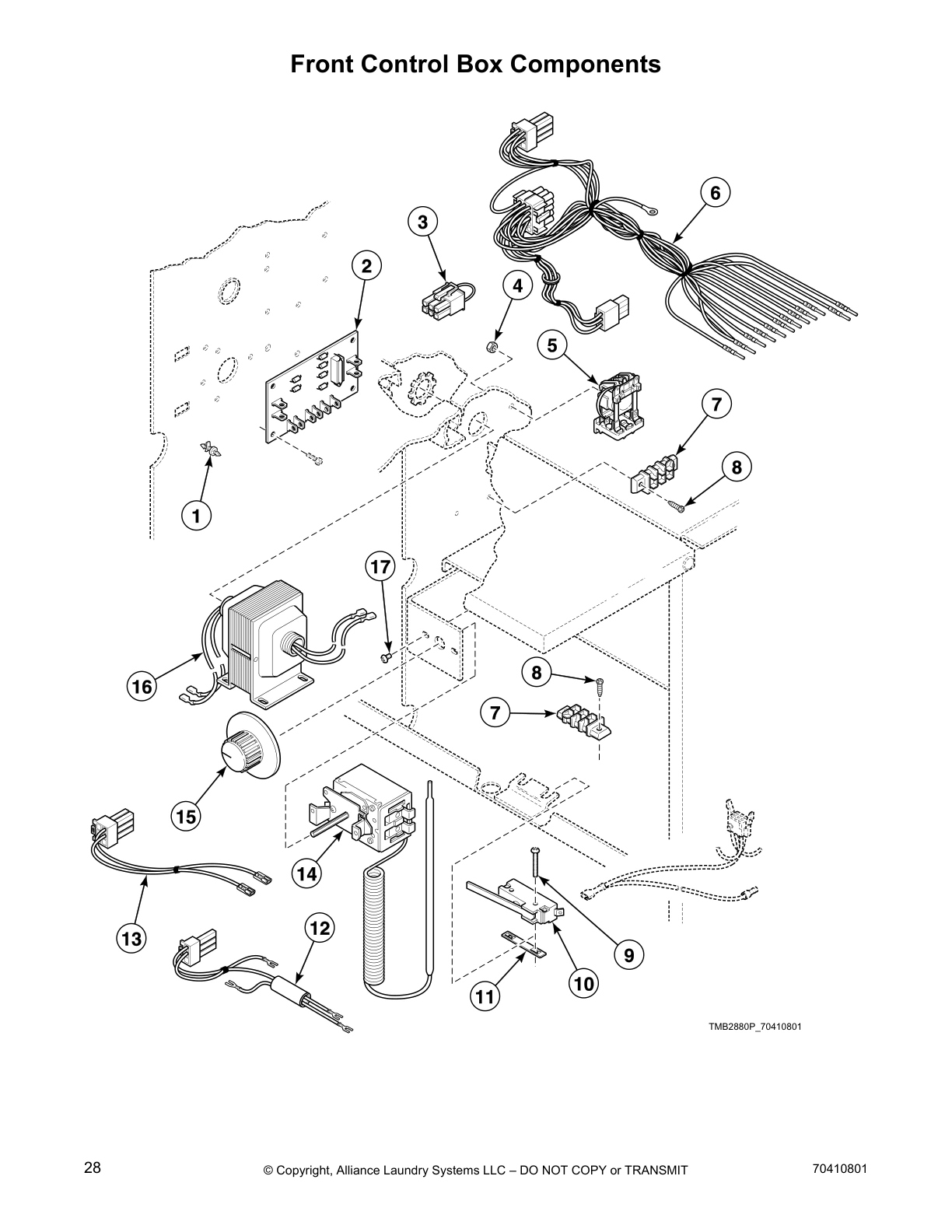

Front Control Box Components

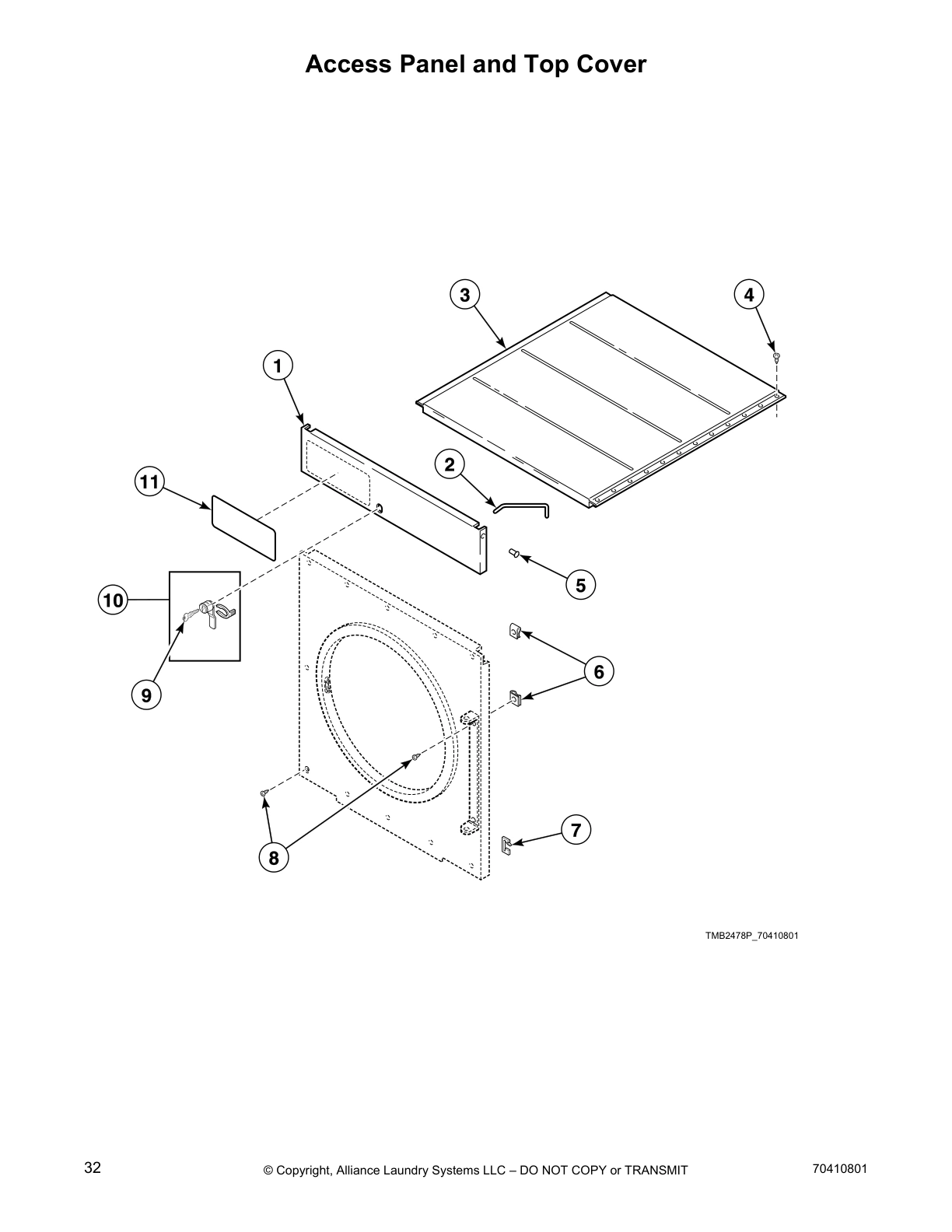

Access Panel and Top Cover

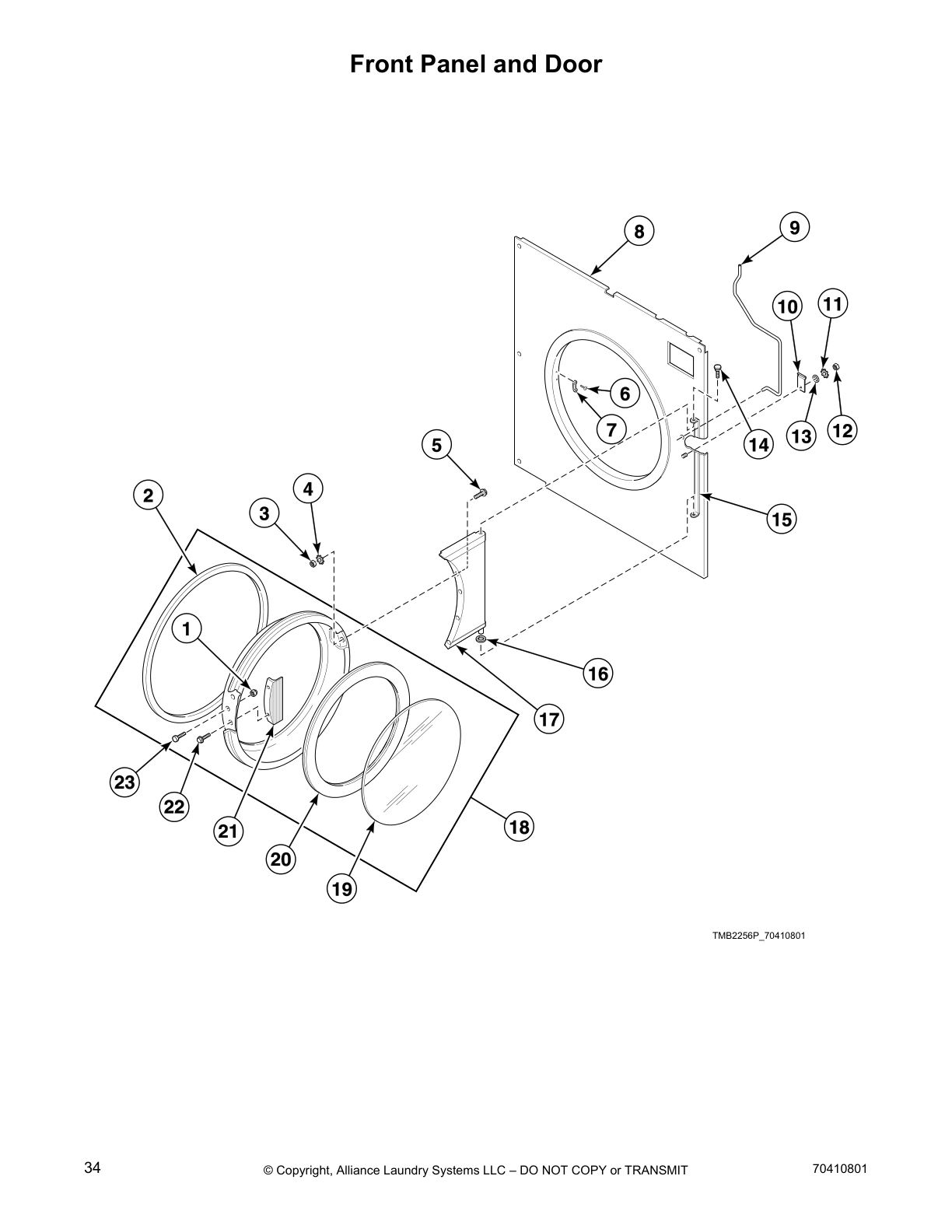

Front Panel and Door

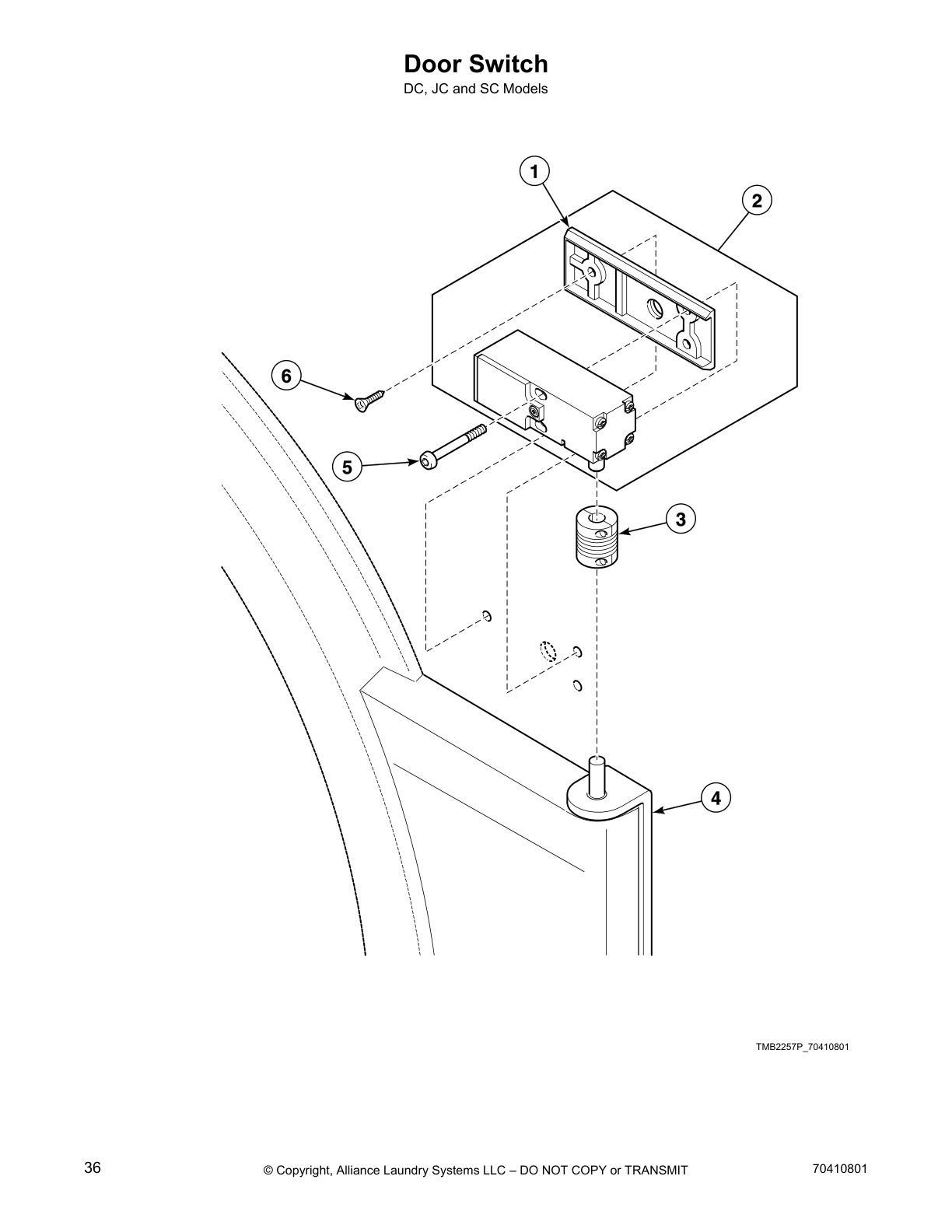

Door Switch

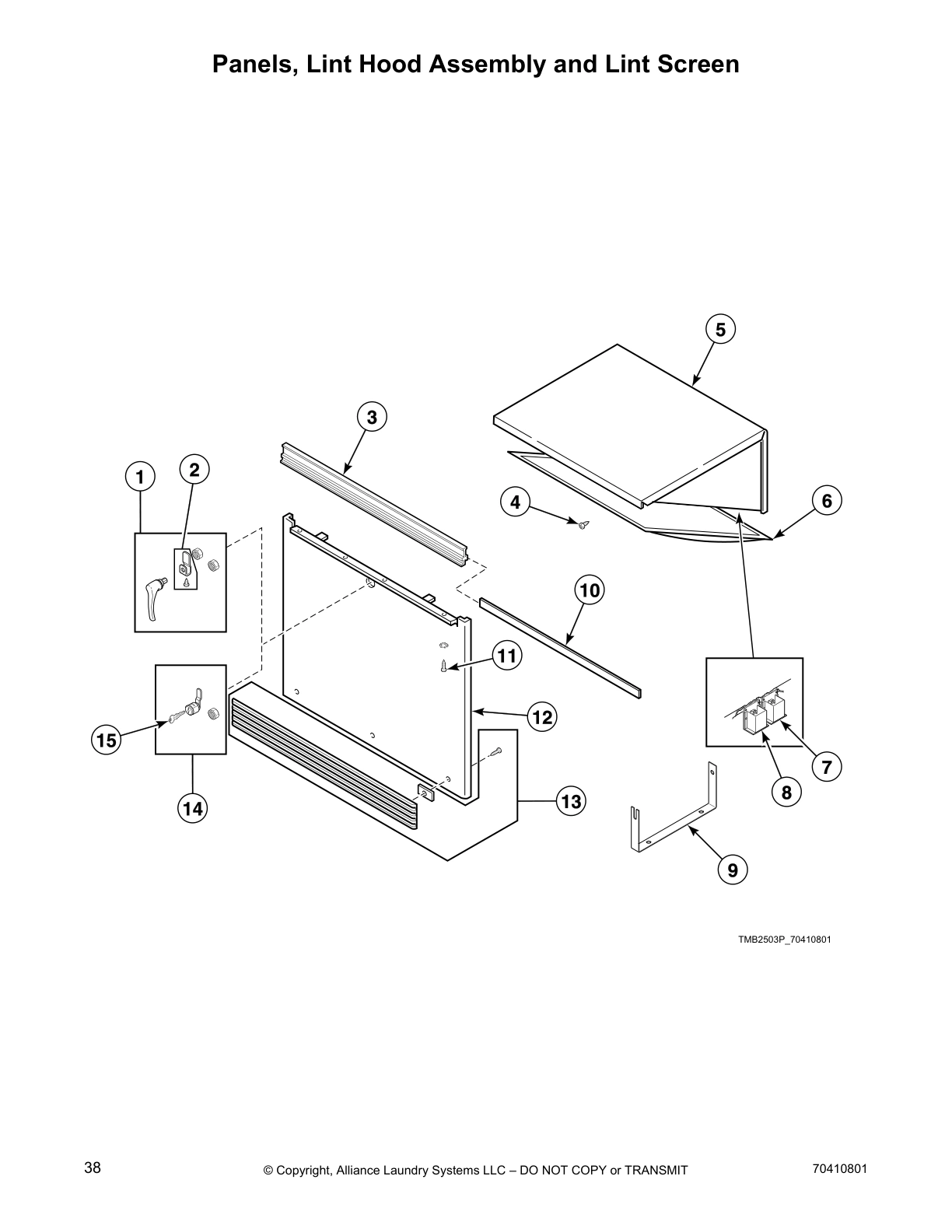

Panels, Lint Hood Assembly and Lint Screen

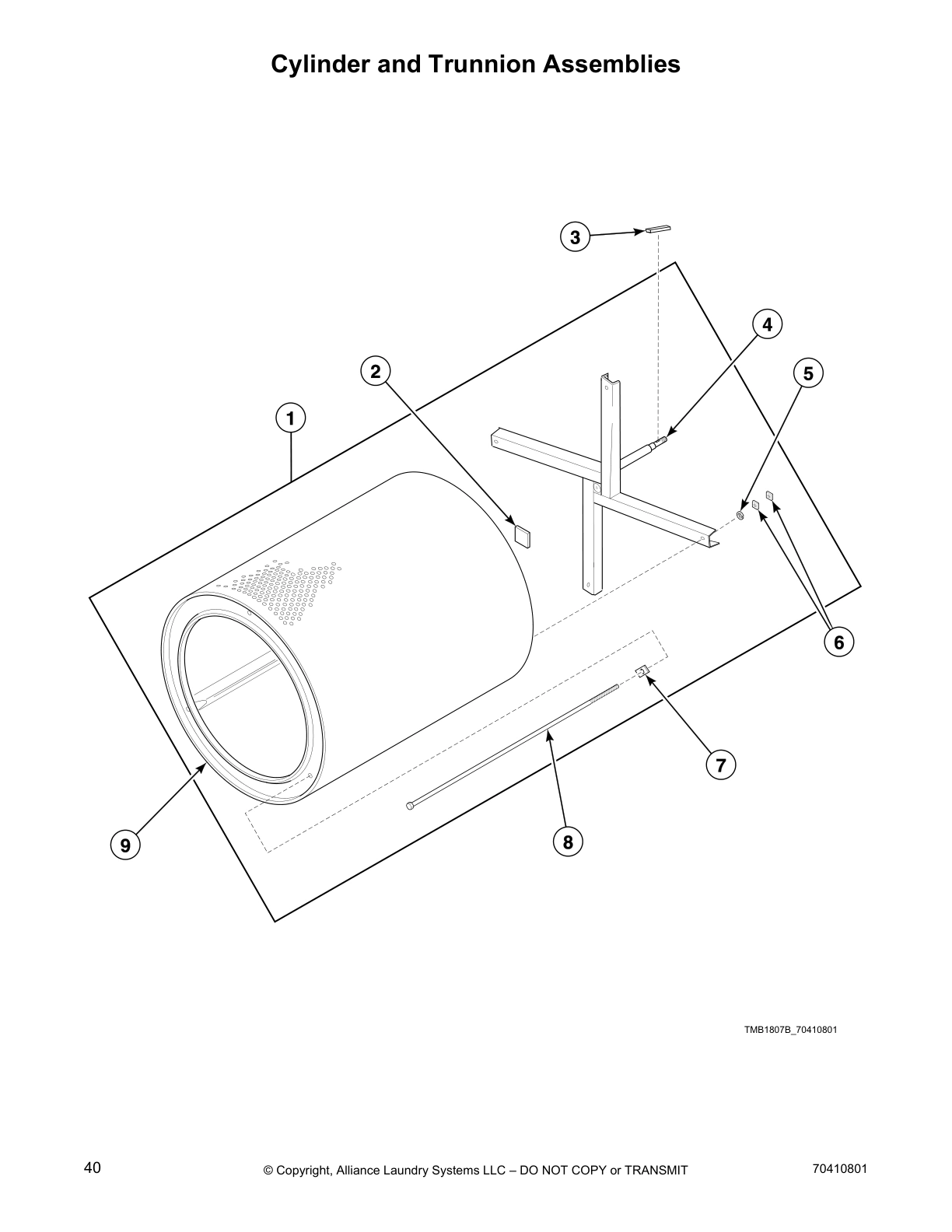

Cylinder and Trunnion Assemblies

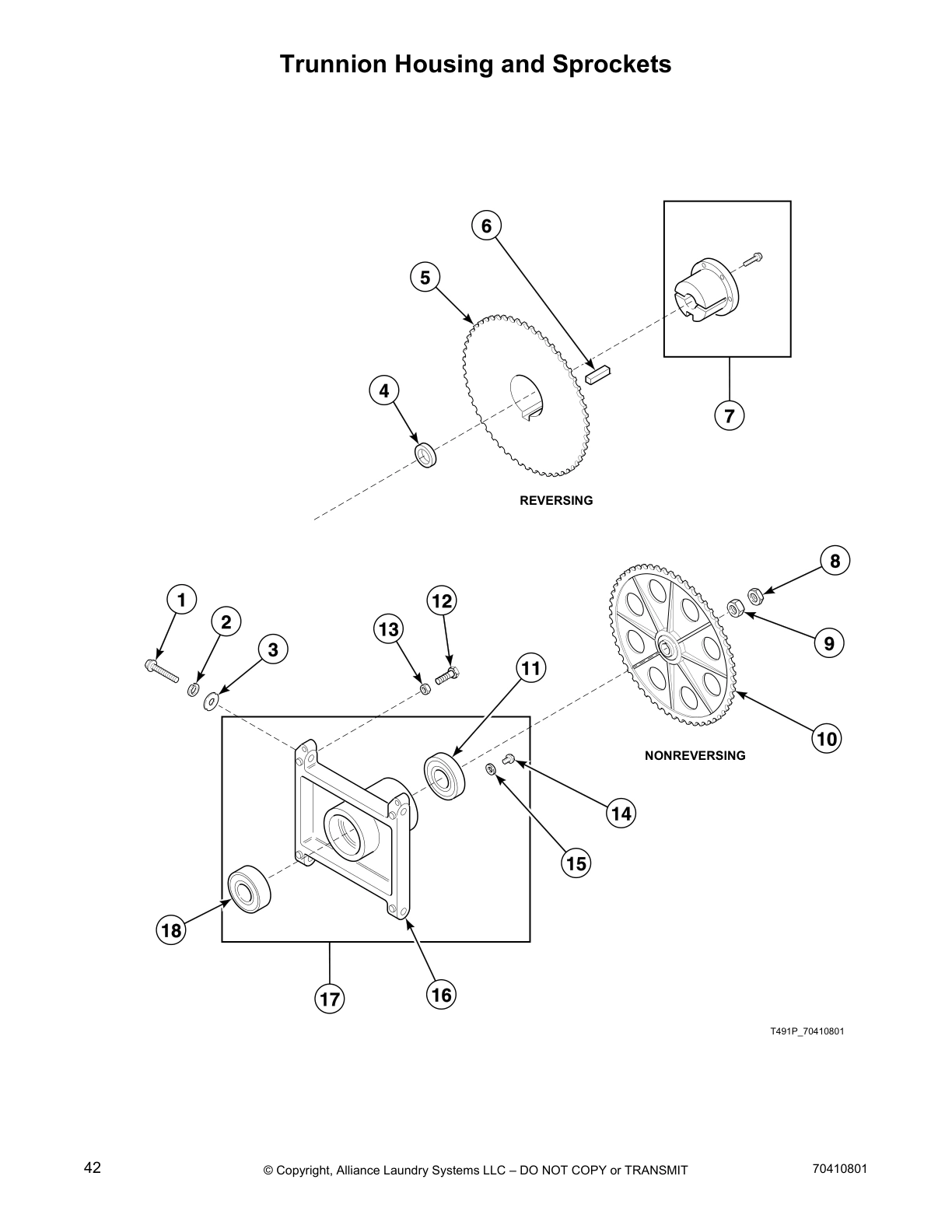

Trunnion Housing and Sprockets

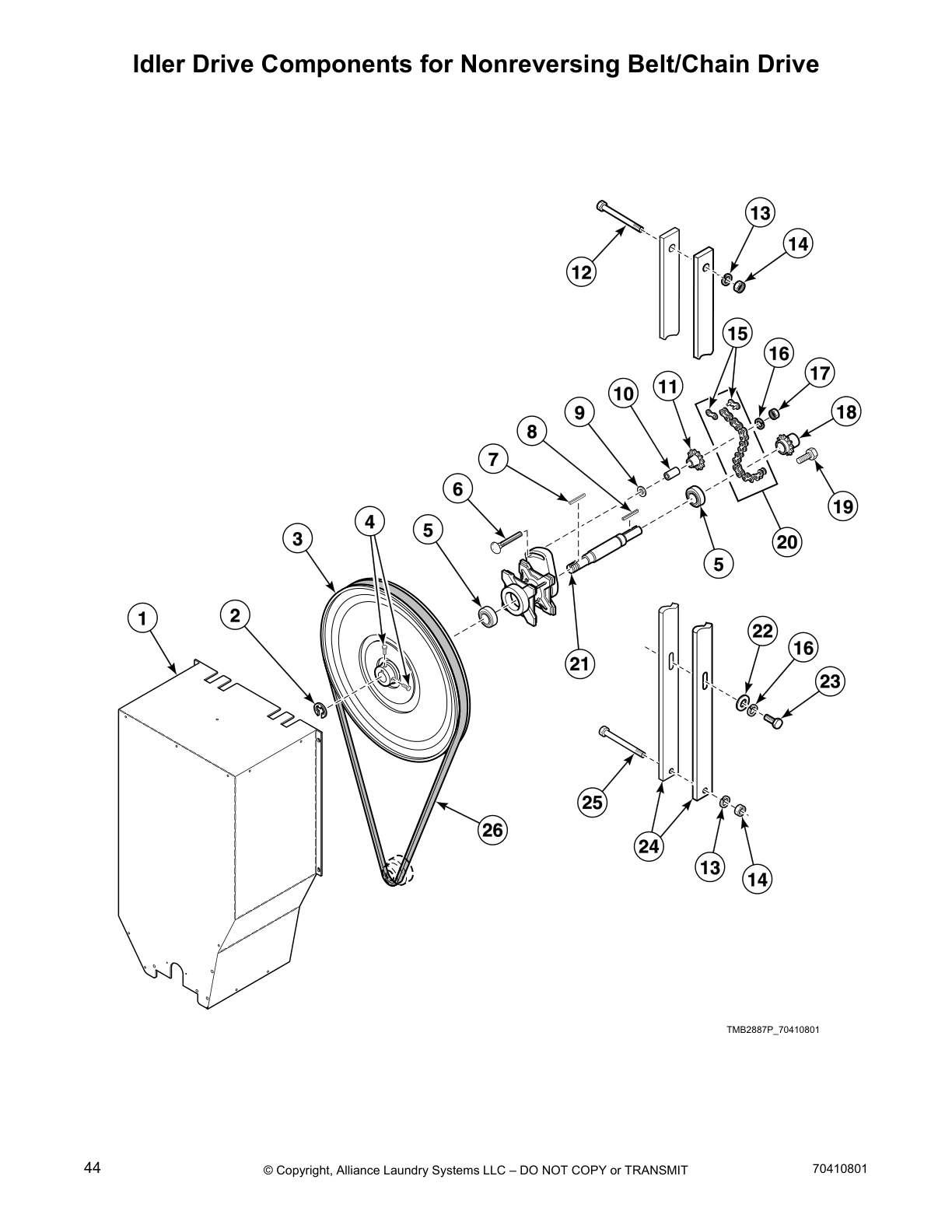

Idler Drive Components for Nonreversing Belt/Chain Drive

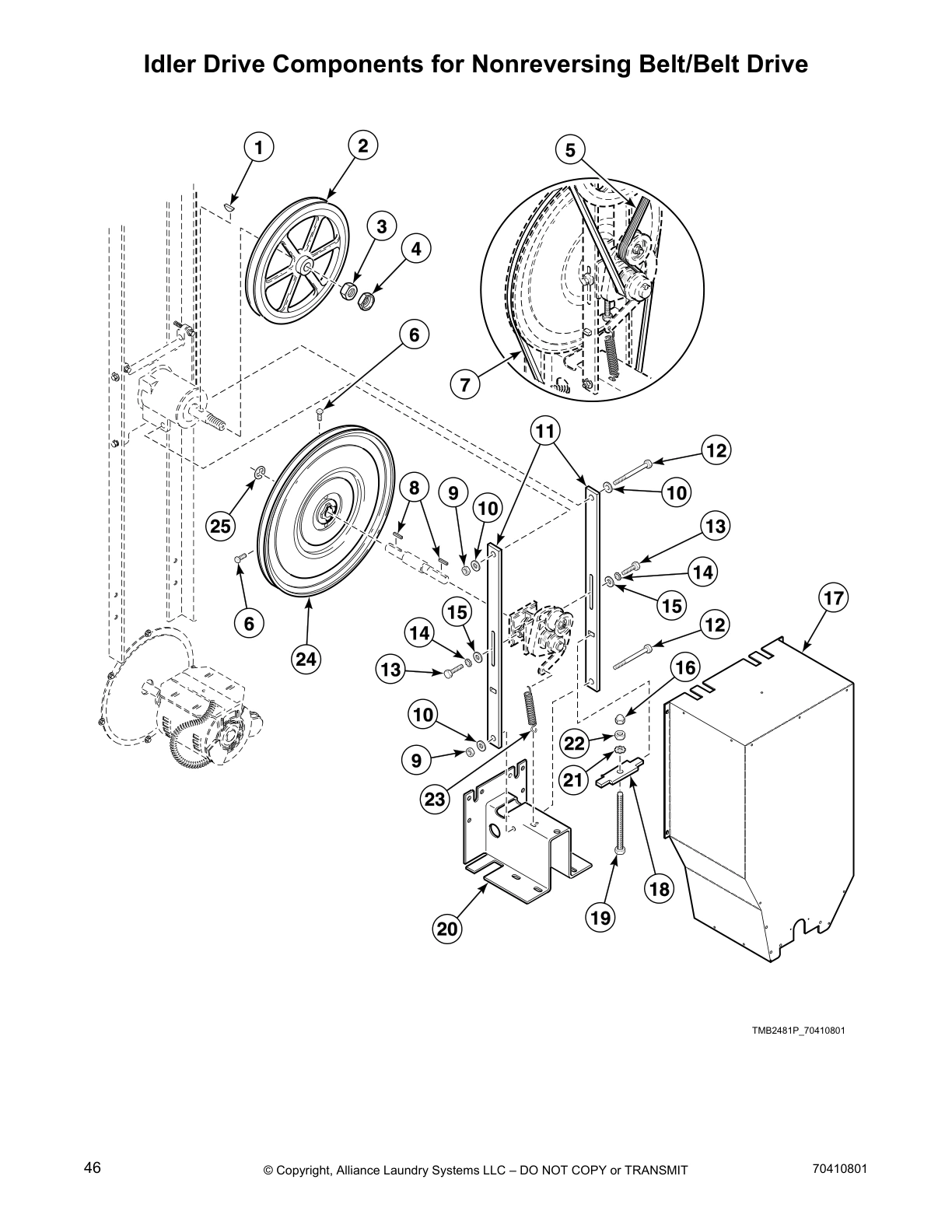

Idler Drive Components for Nonreversing Belt/Belt Drive

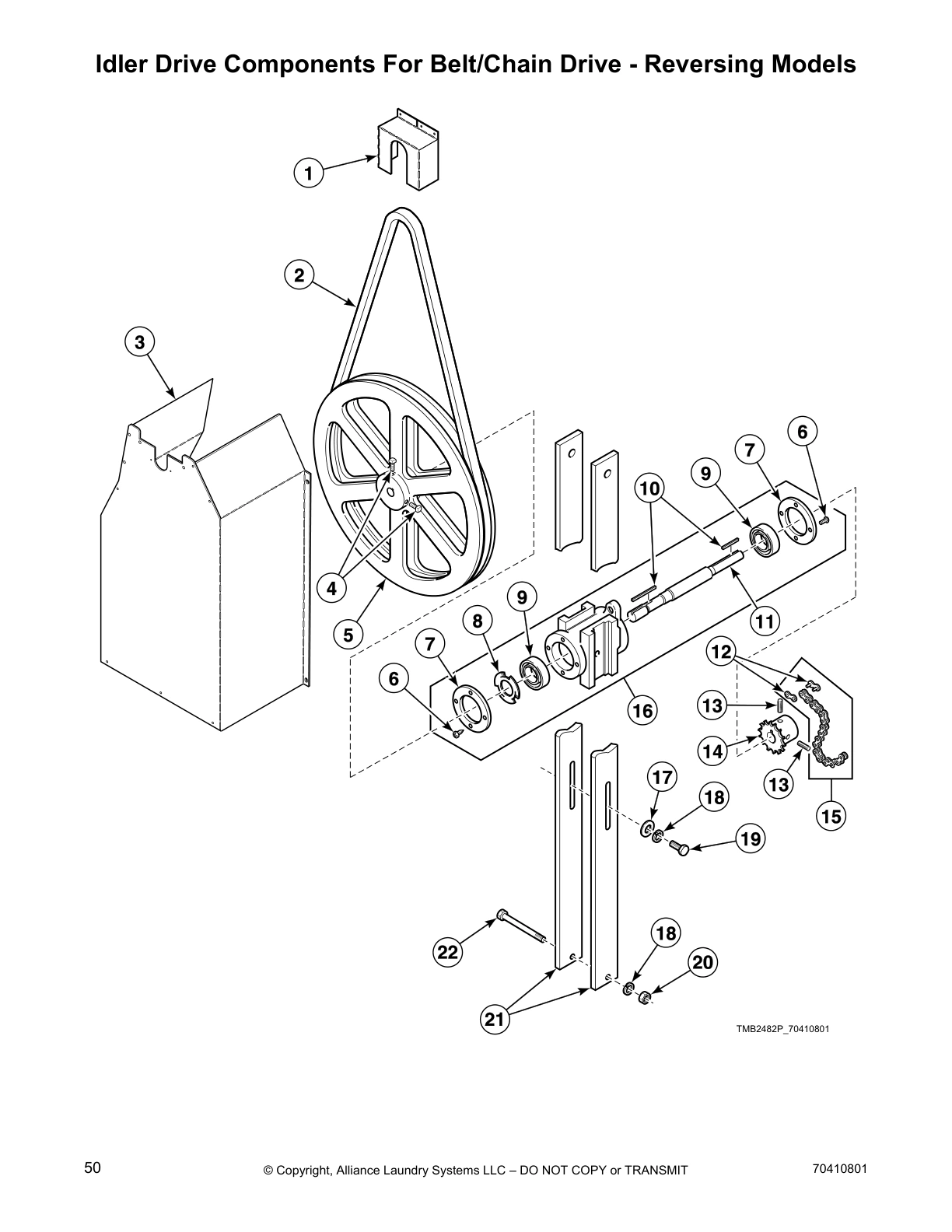

Idler Drive Components For Belt/Chain Drive - Reversing Models

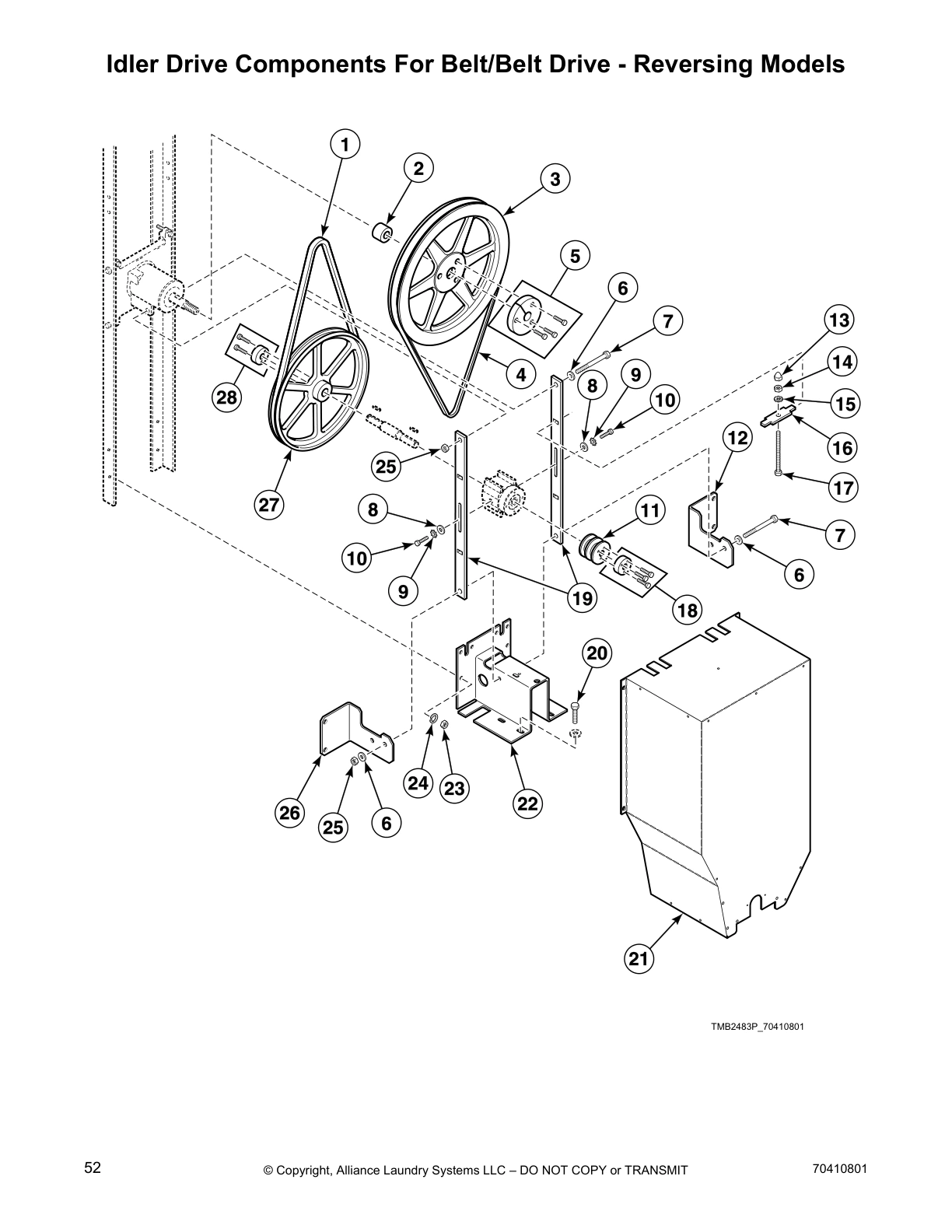

Idler Drive Components For Belt/Belt Drive - Reversing Models

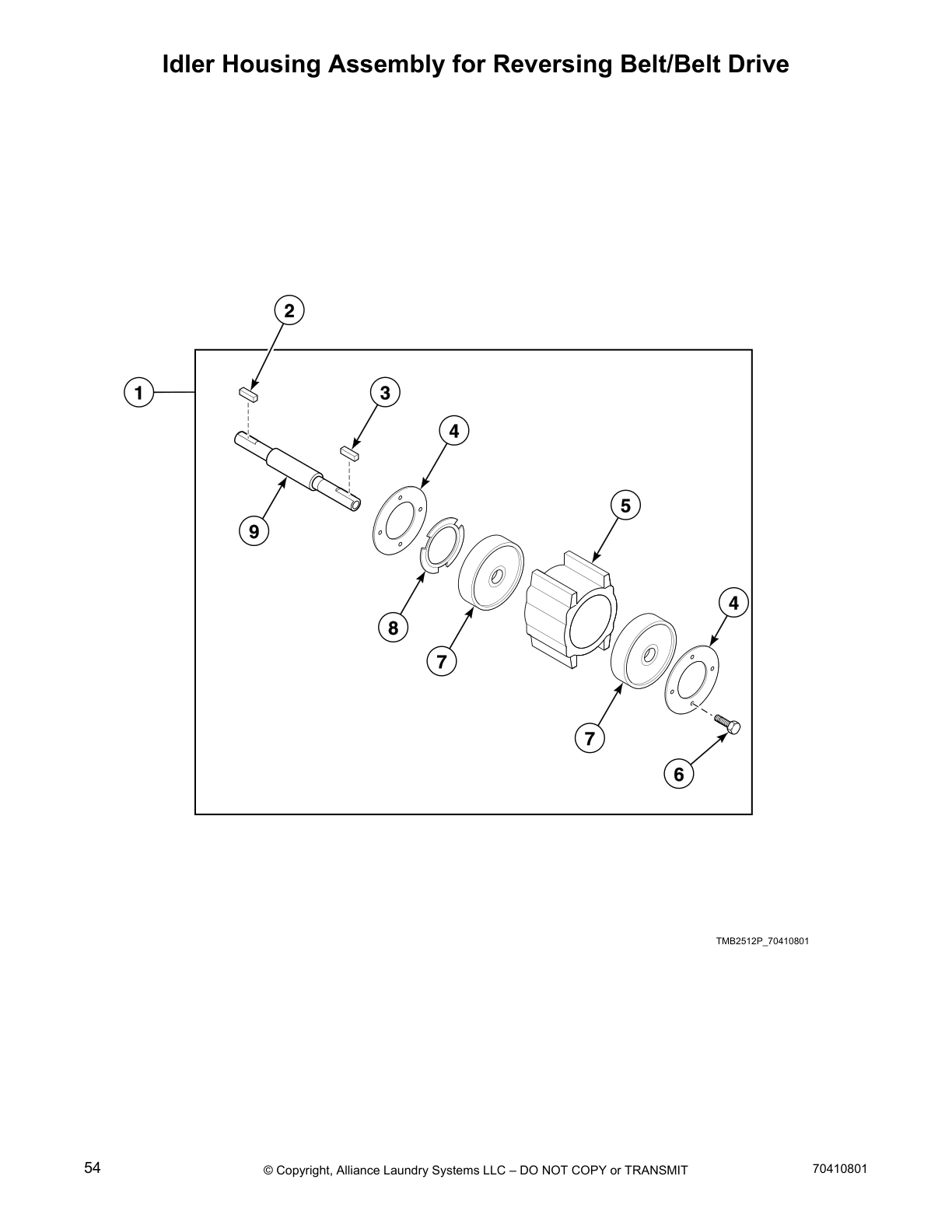

Idler Housing Assembly for Reversing Belt/Belt Drive

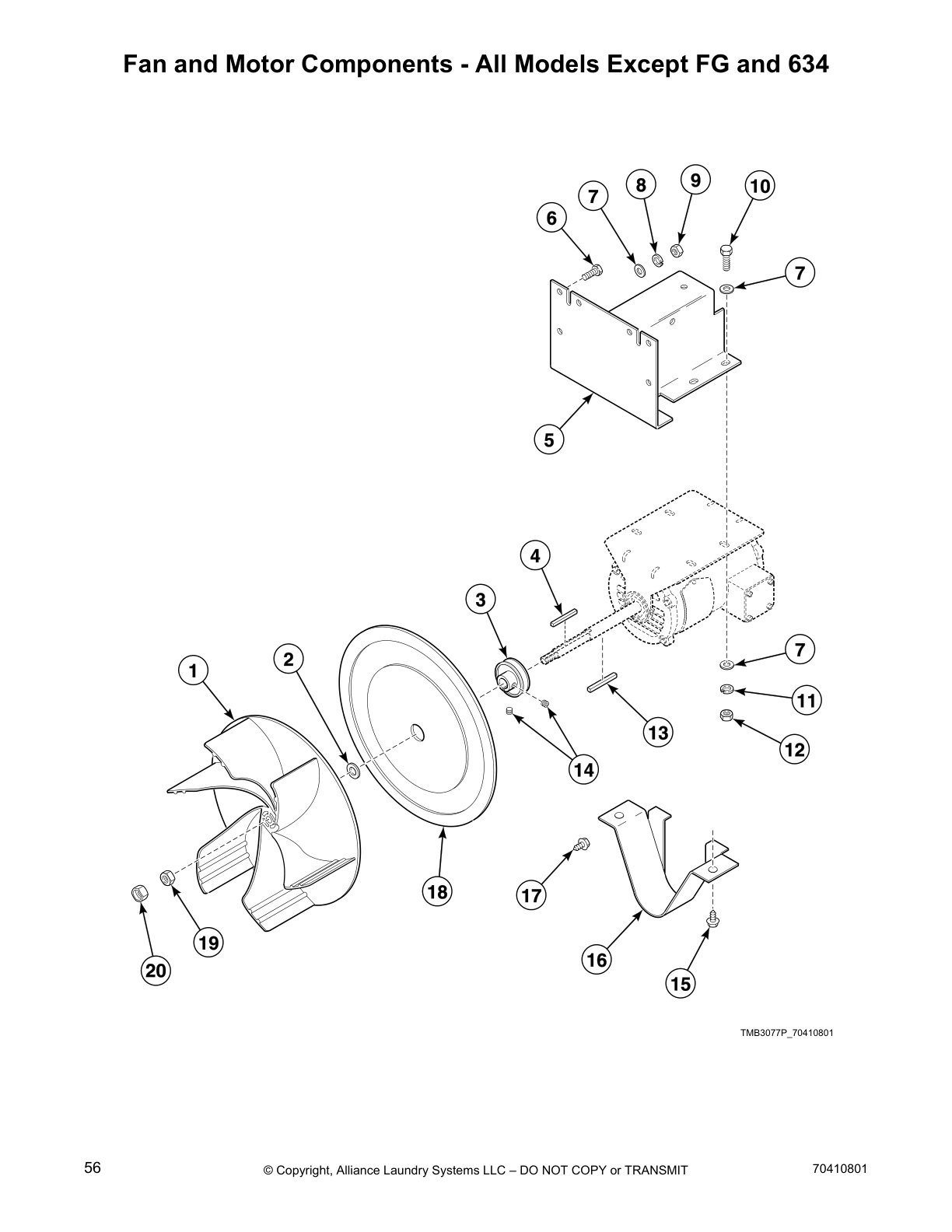

Fan and Motor Components - All Models Except FG and 634

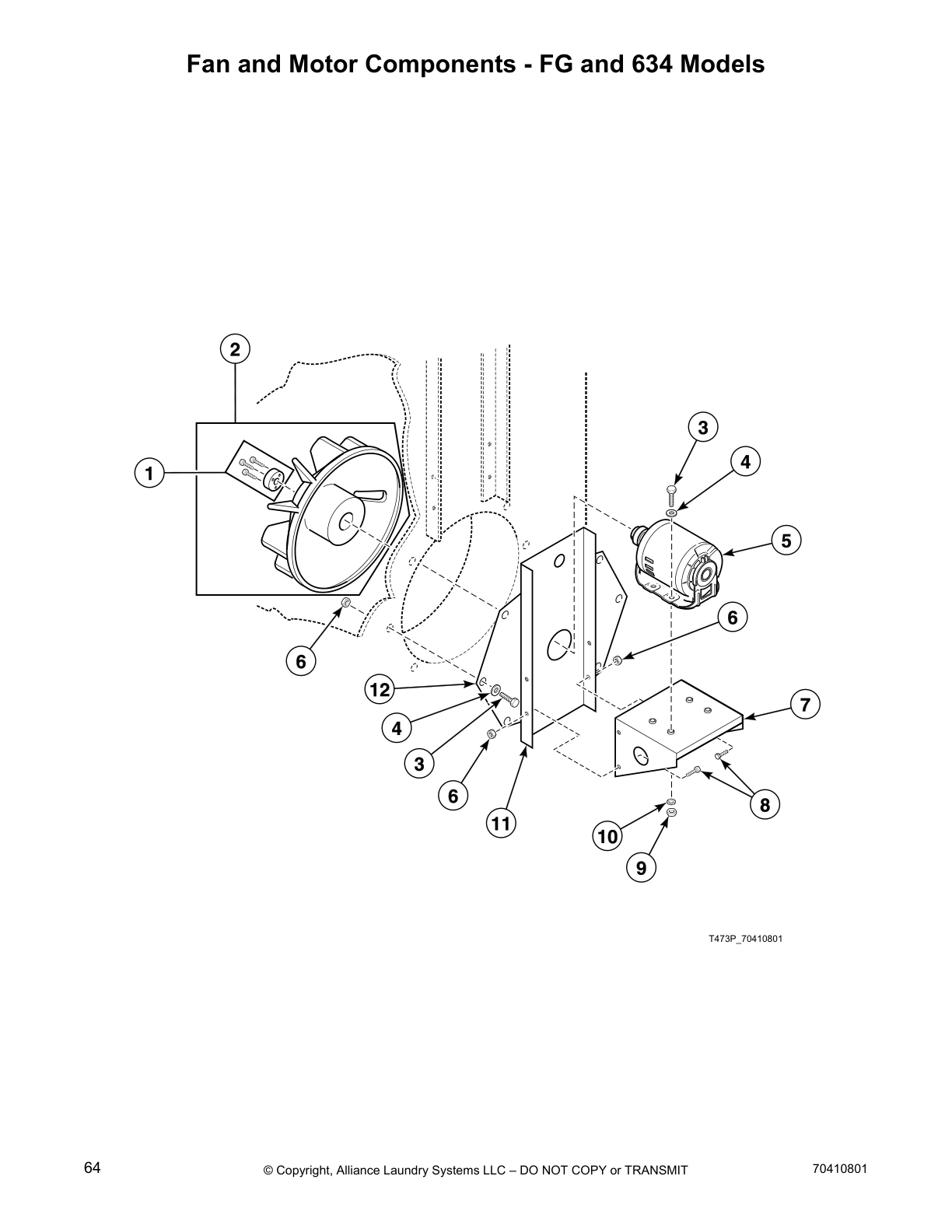

Fan and Motor Components - FG and 634 Models

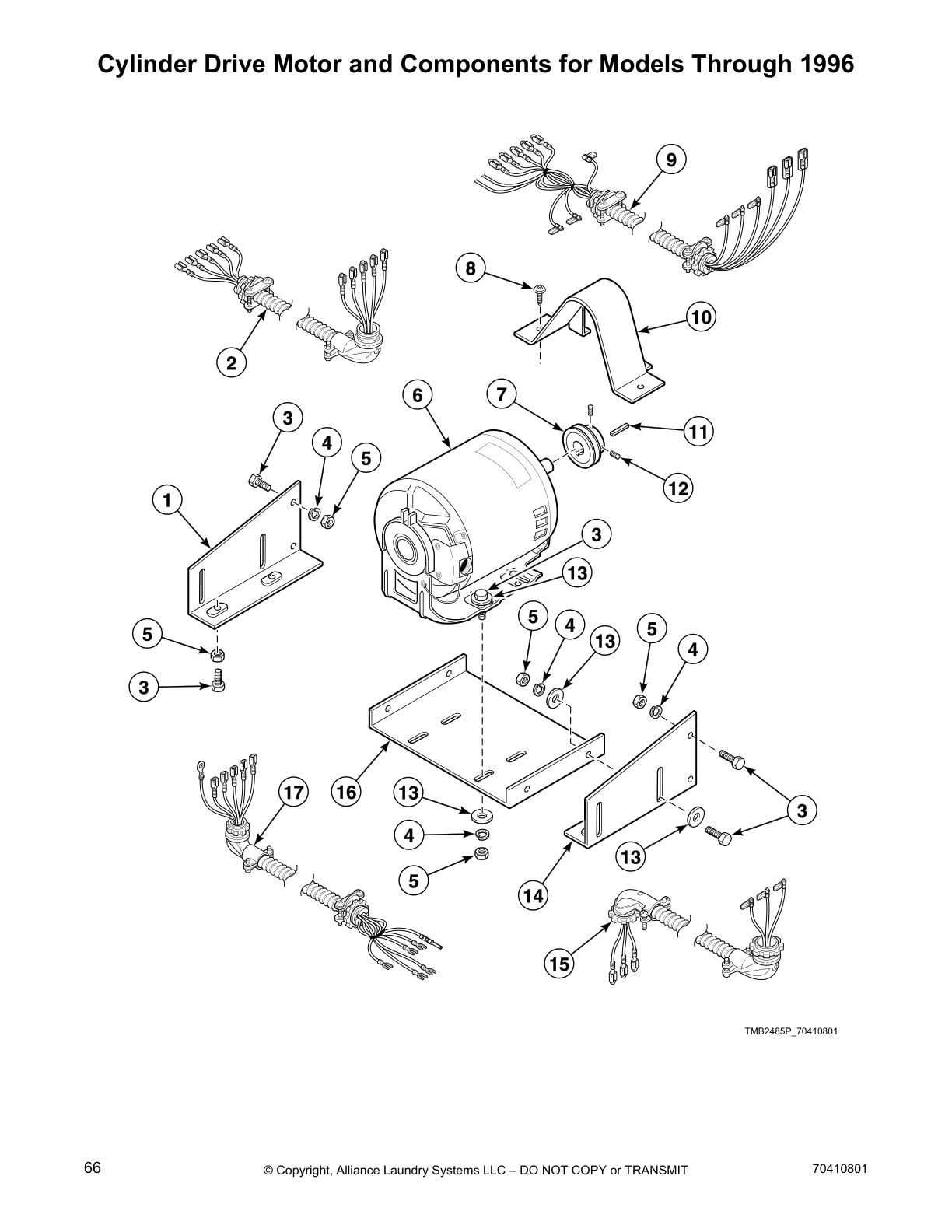

Cylinder Drive Motor and Components for Models Through 1996

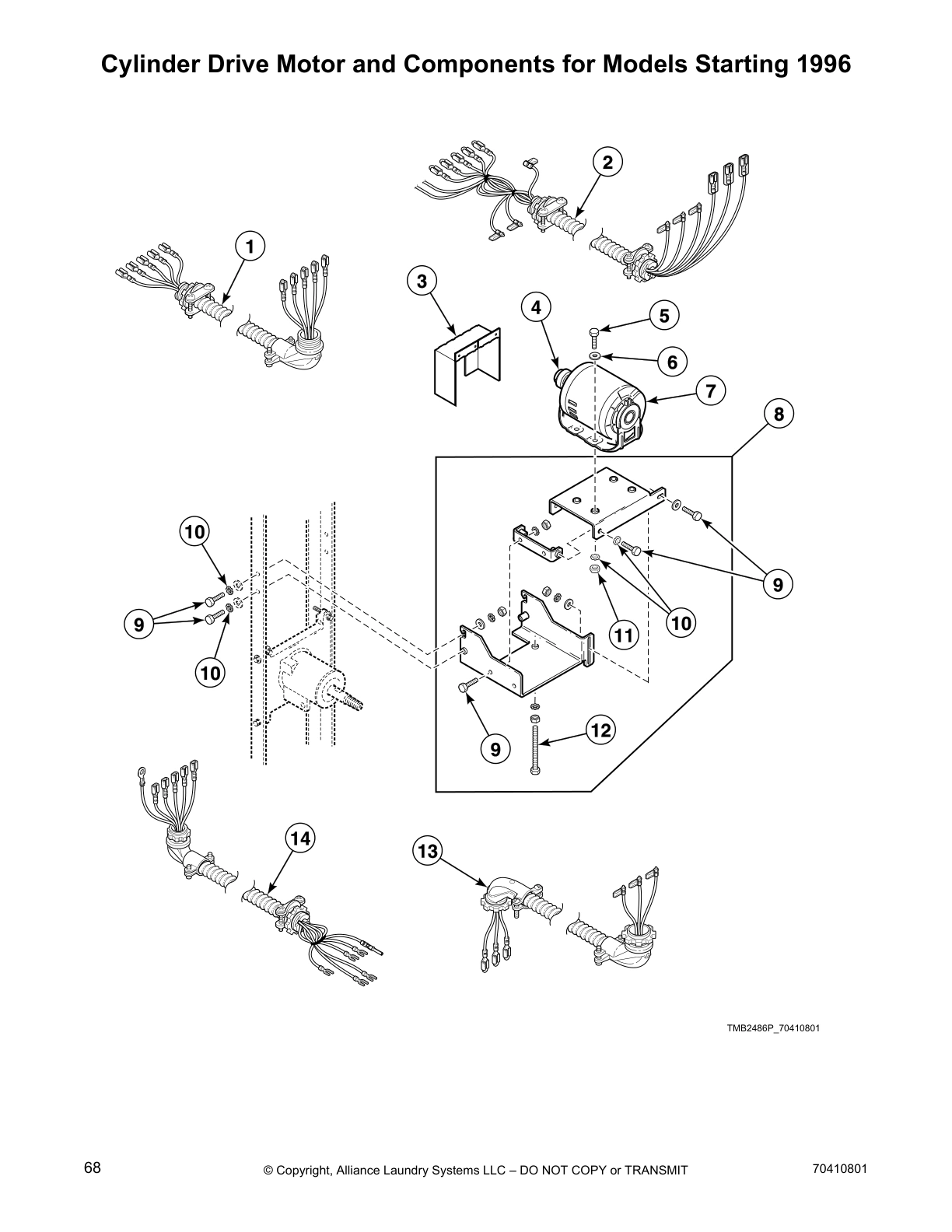

Cylinder Drive Motor and Components for Models Starting 1996

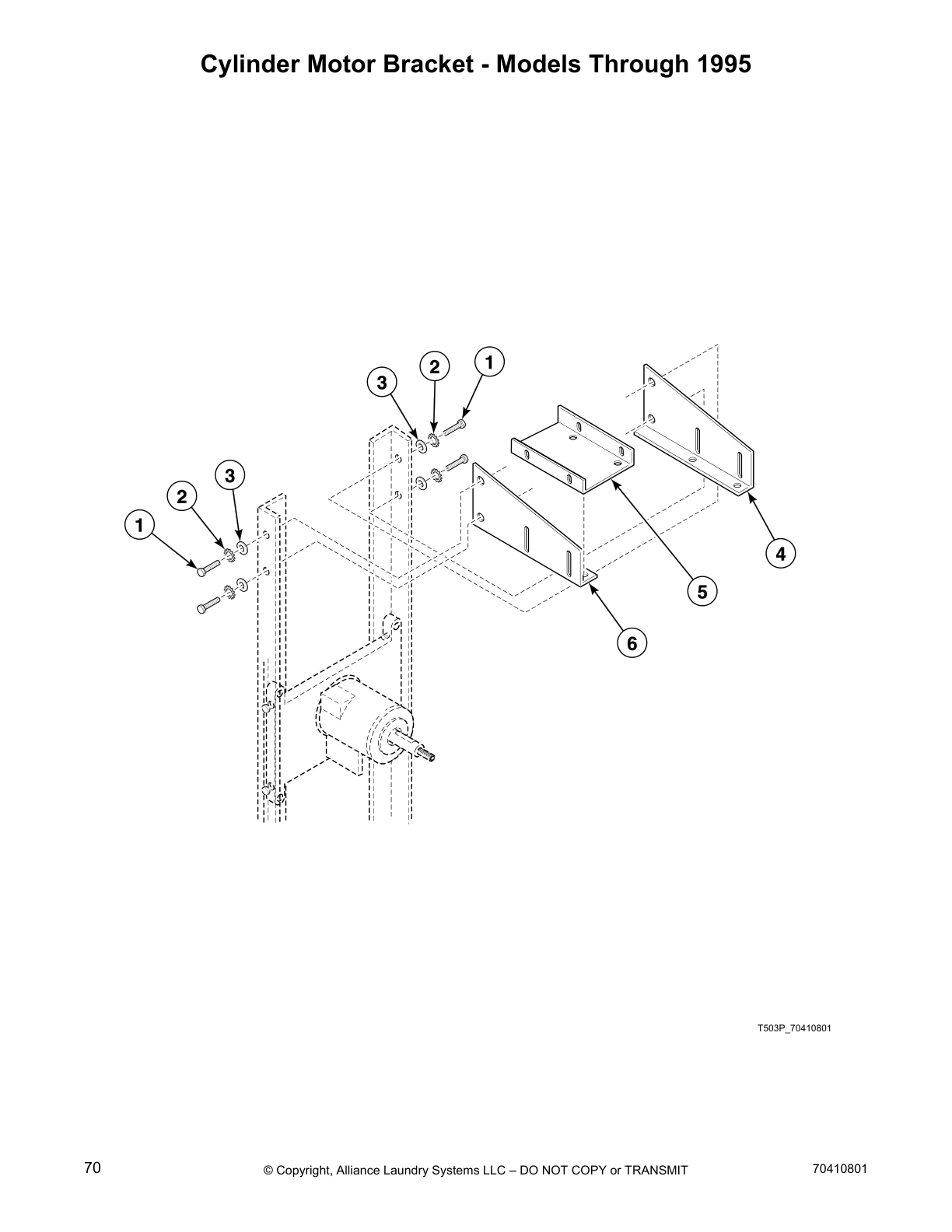

Cylinder Motor Bracket - Models Through 1995

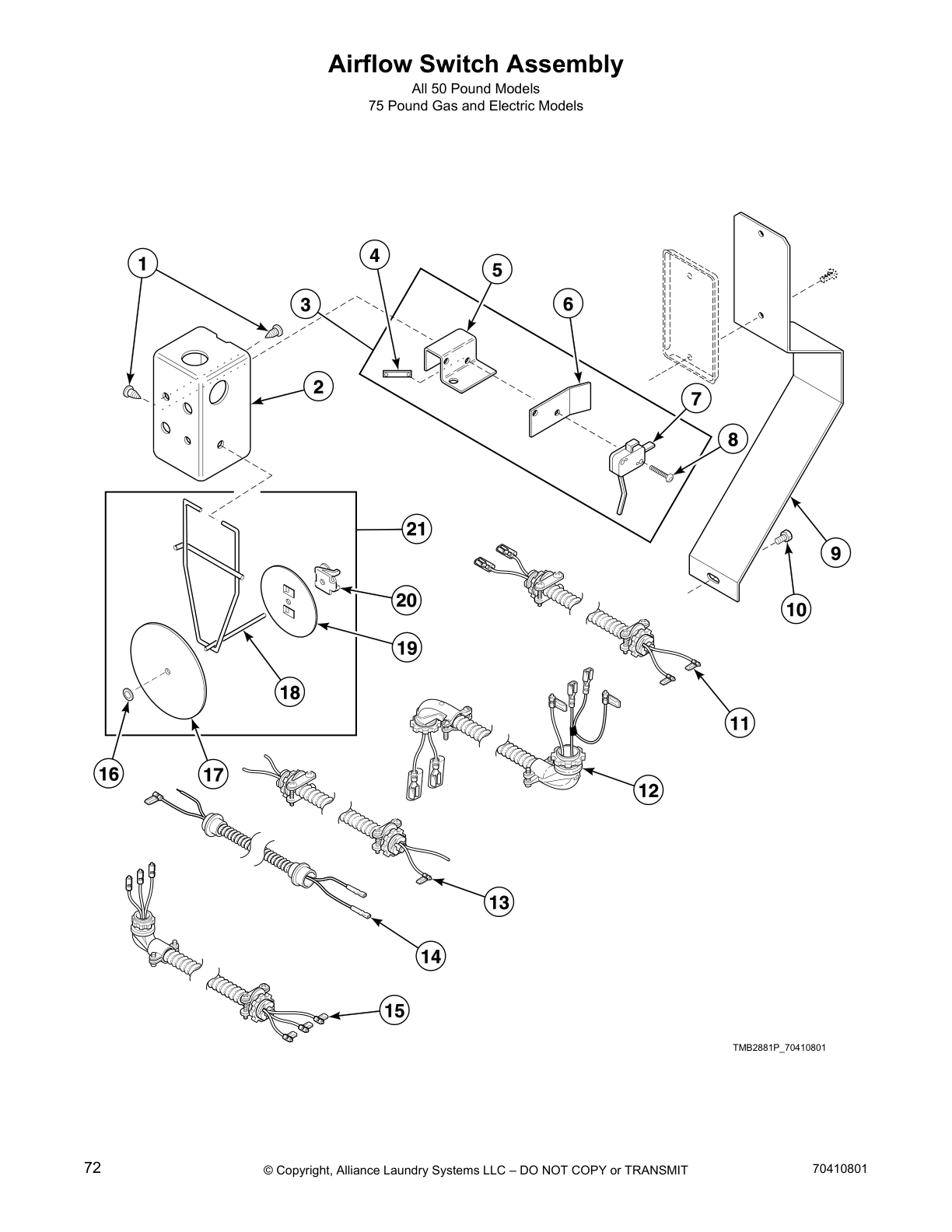

Airflow Switch Assembly

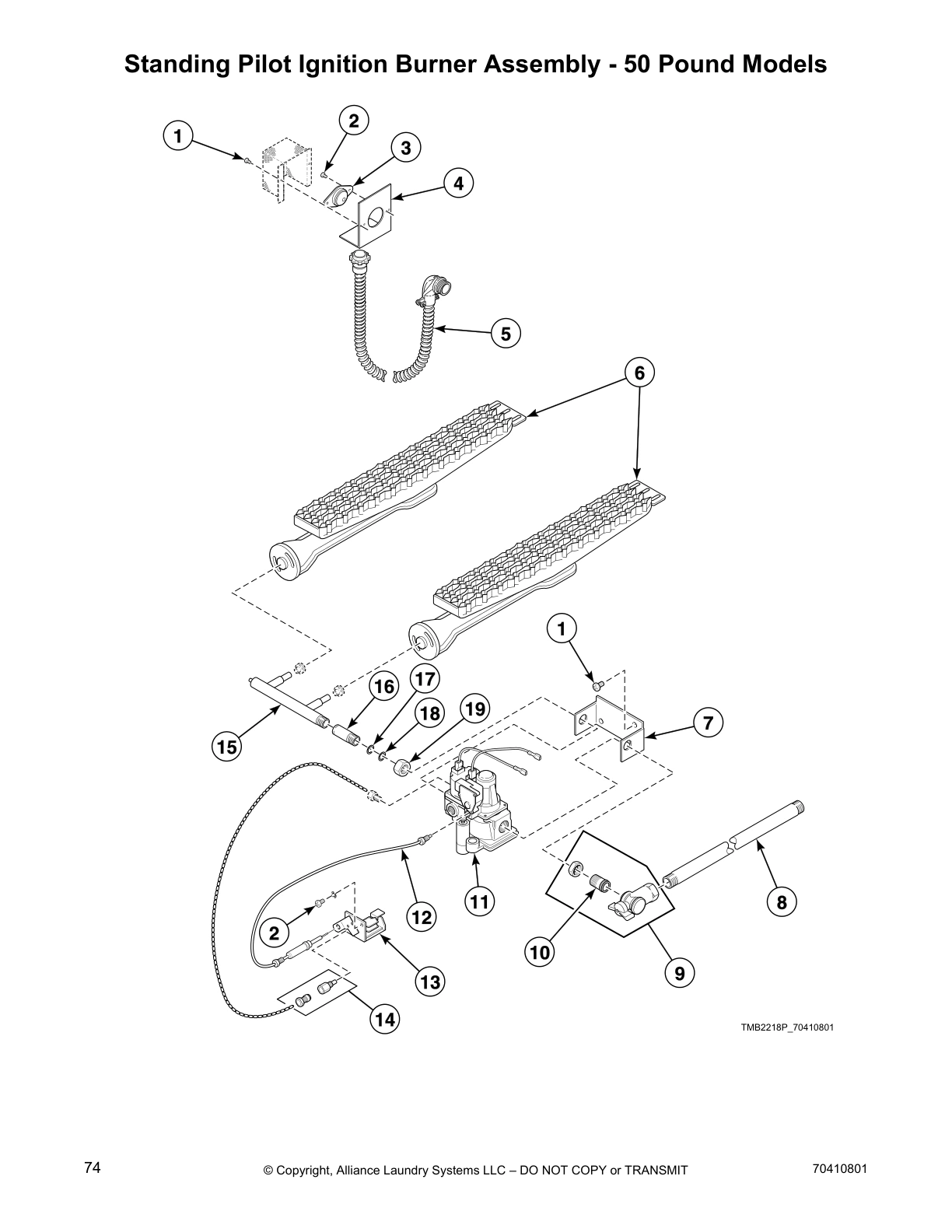

Standing Pilot Ignition Burner Assembly - 50 Pound Models

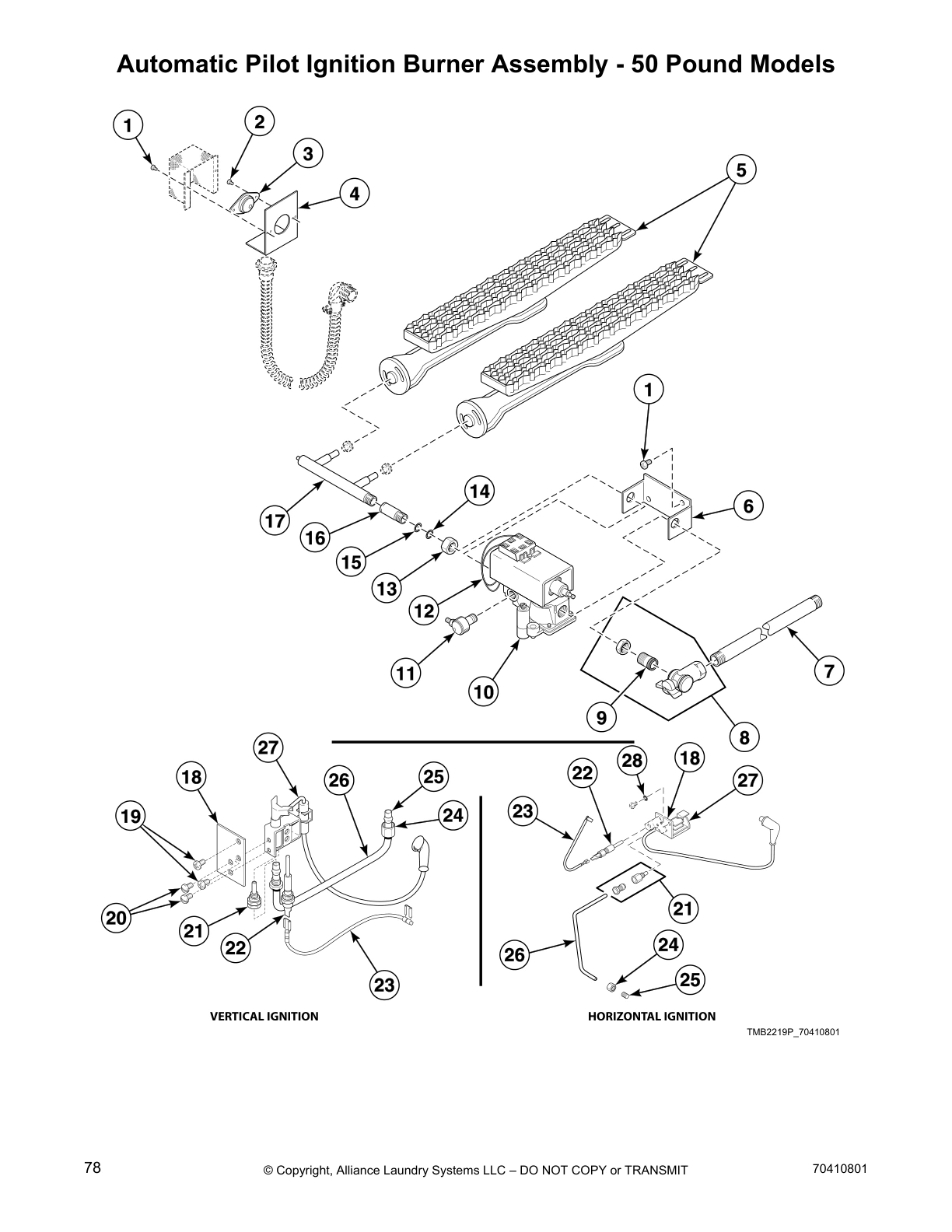

Automatic Pilot Ignition Burner Assembly - 50 Pound Models

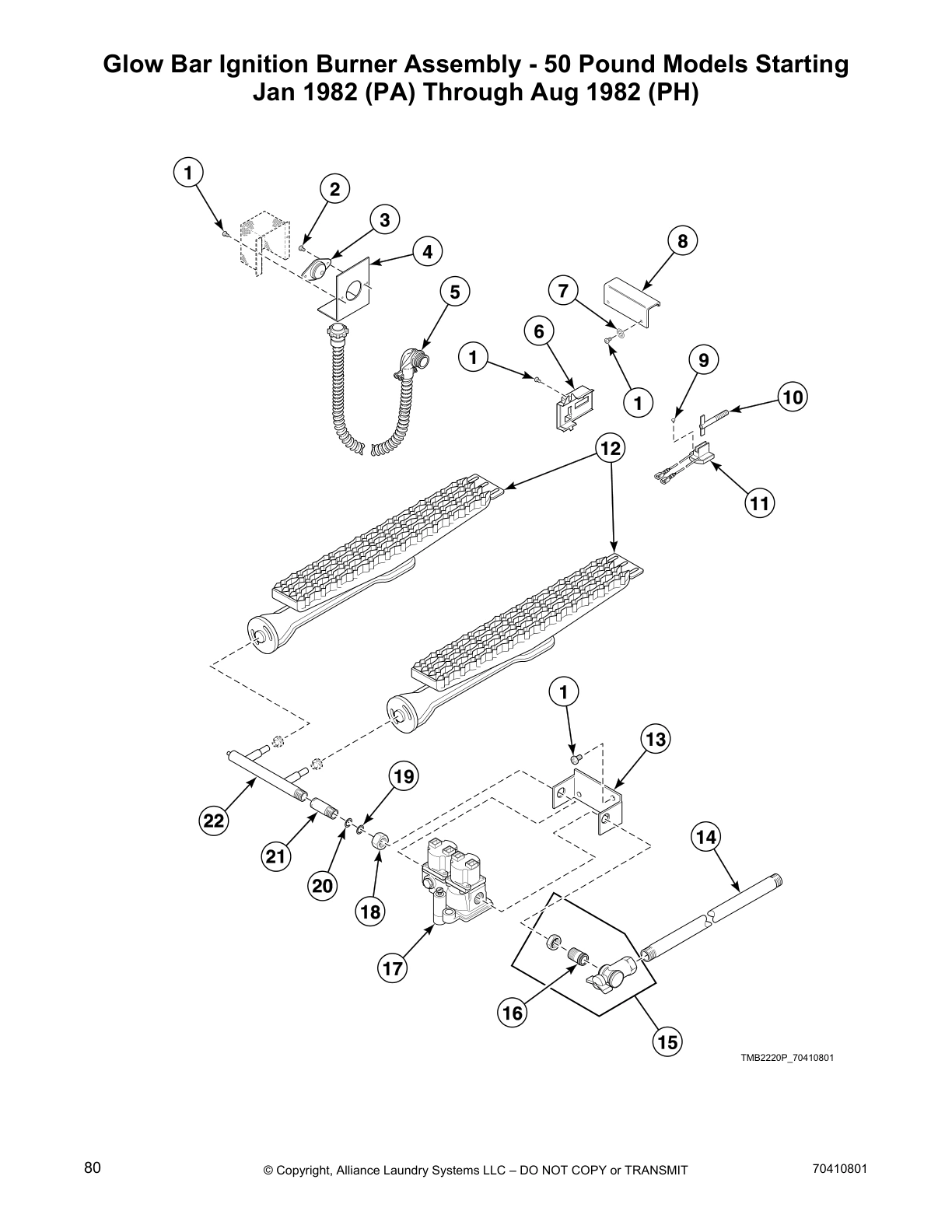

Glow Bar Ignition Burner Assembly - 50 Pound Models Starting Jan 1982 (PA) Through Aug 1982 (PH)

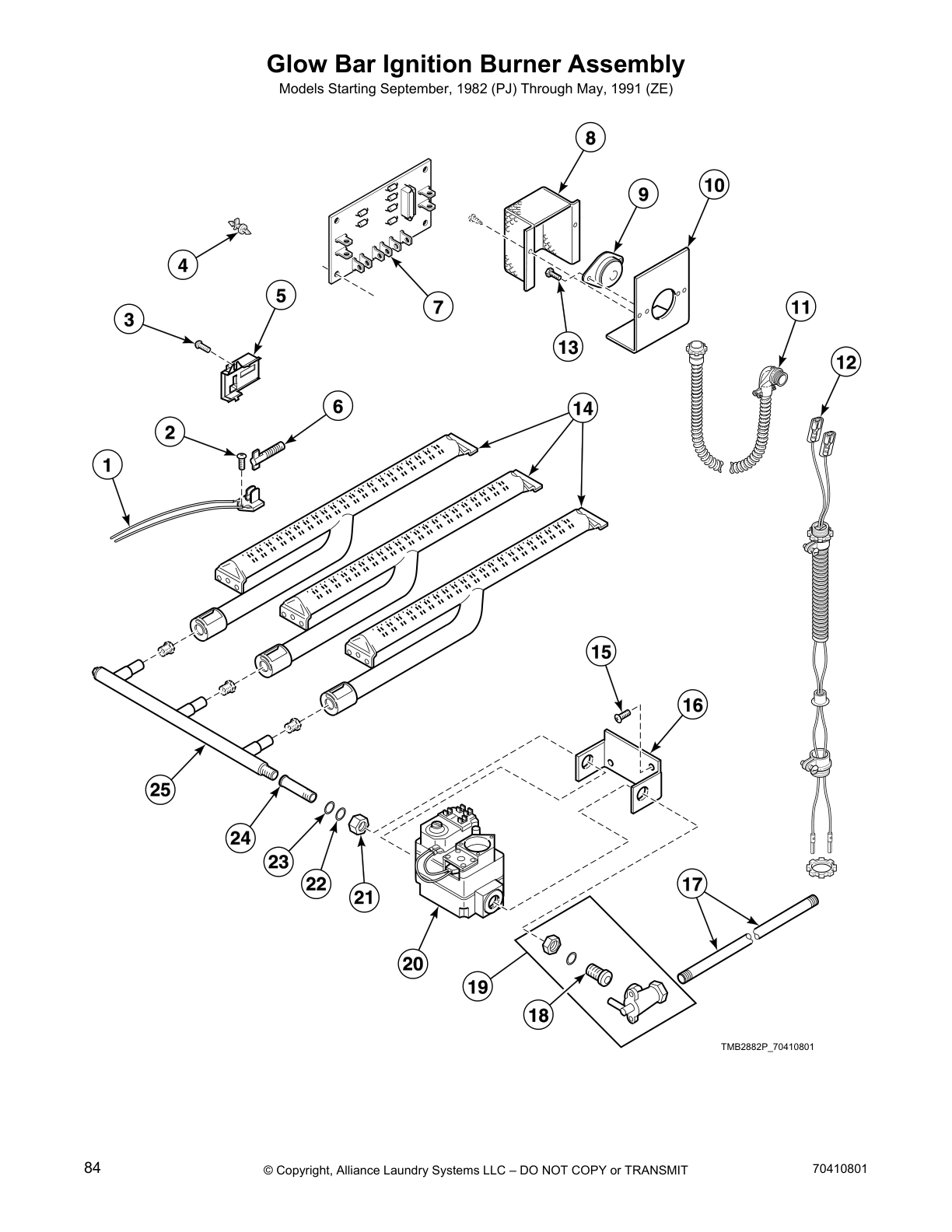

Glow Bar Ignition Burner Assembly

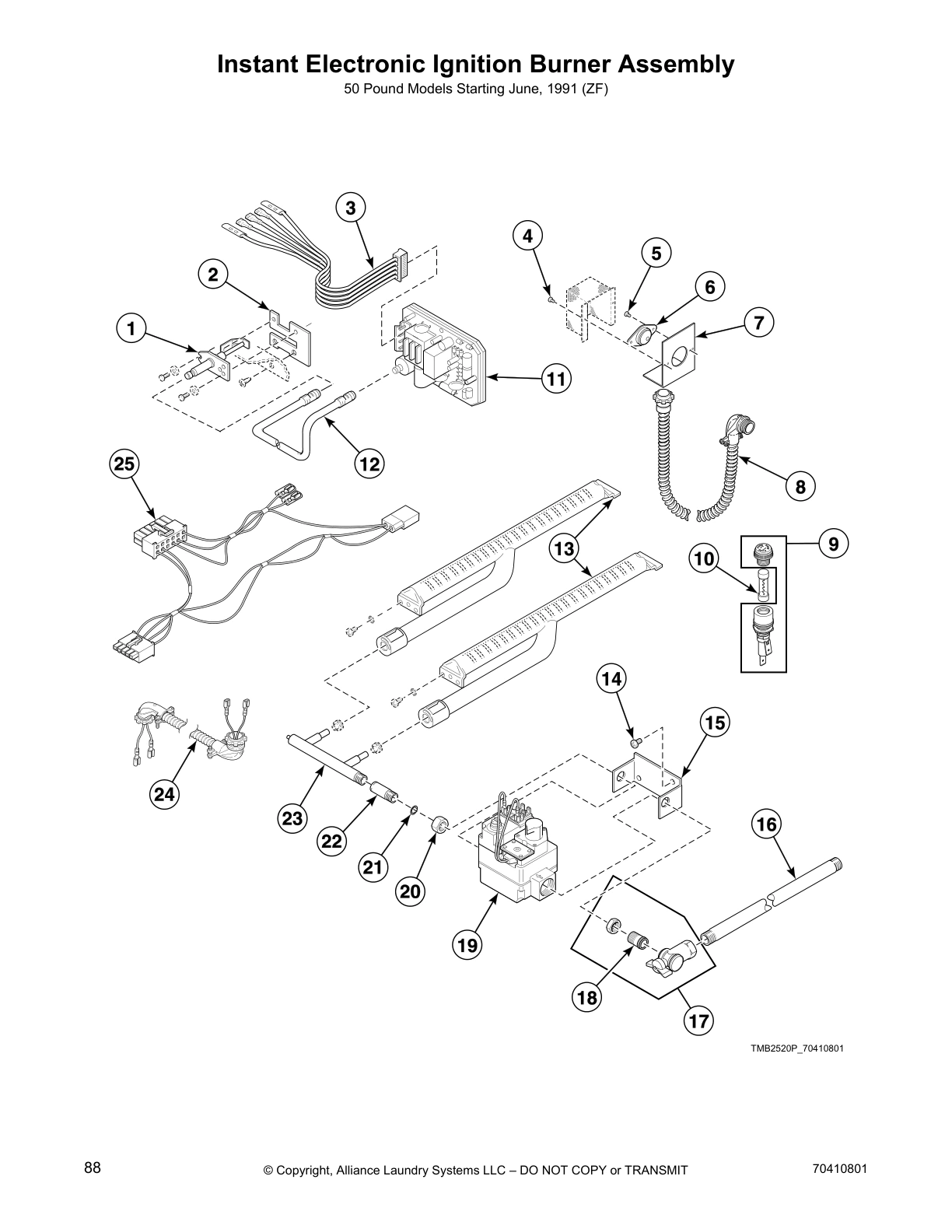

Instant Electronic Ignition Burner Assembly

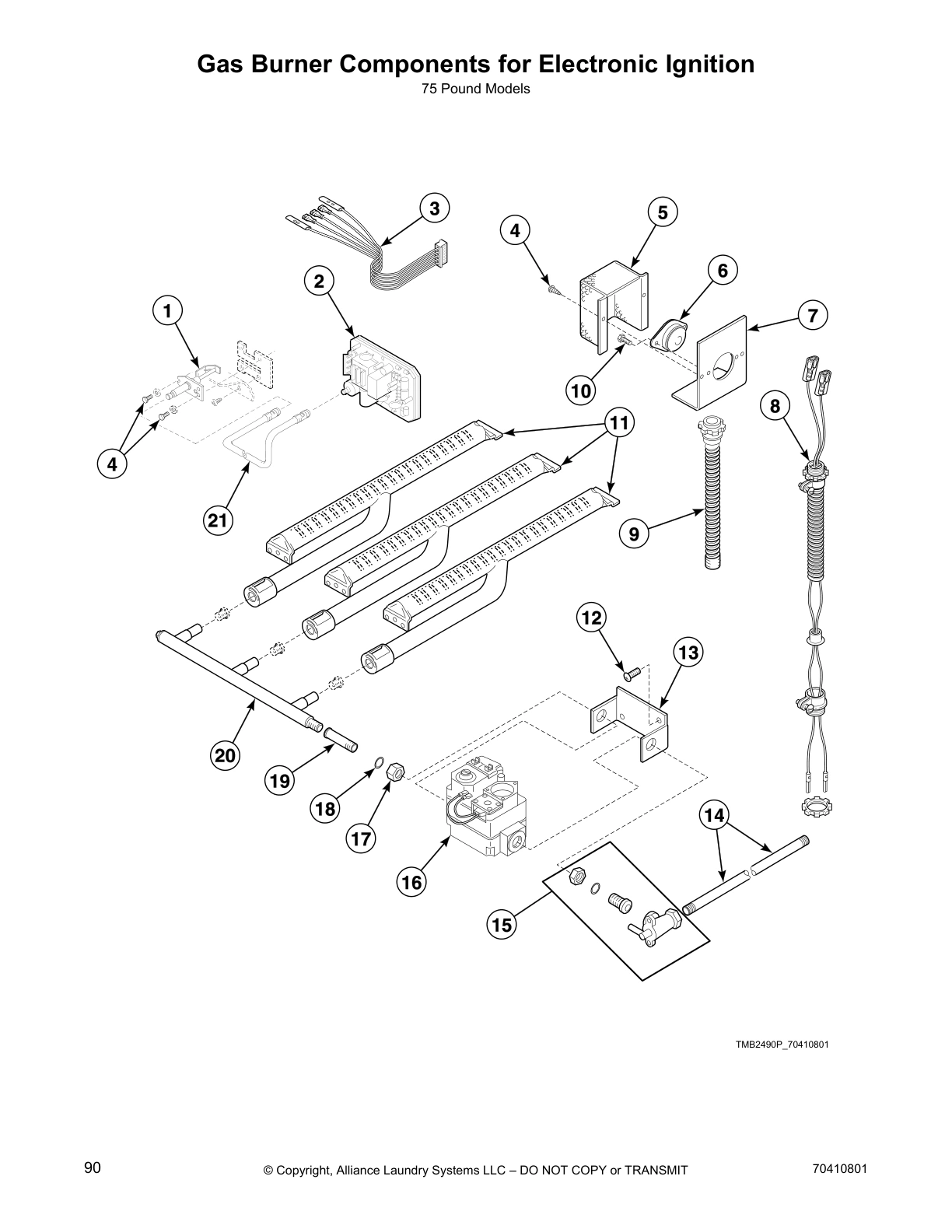

Gas Burner Components for Electronic Ignition

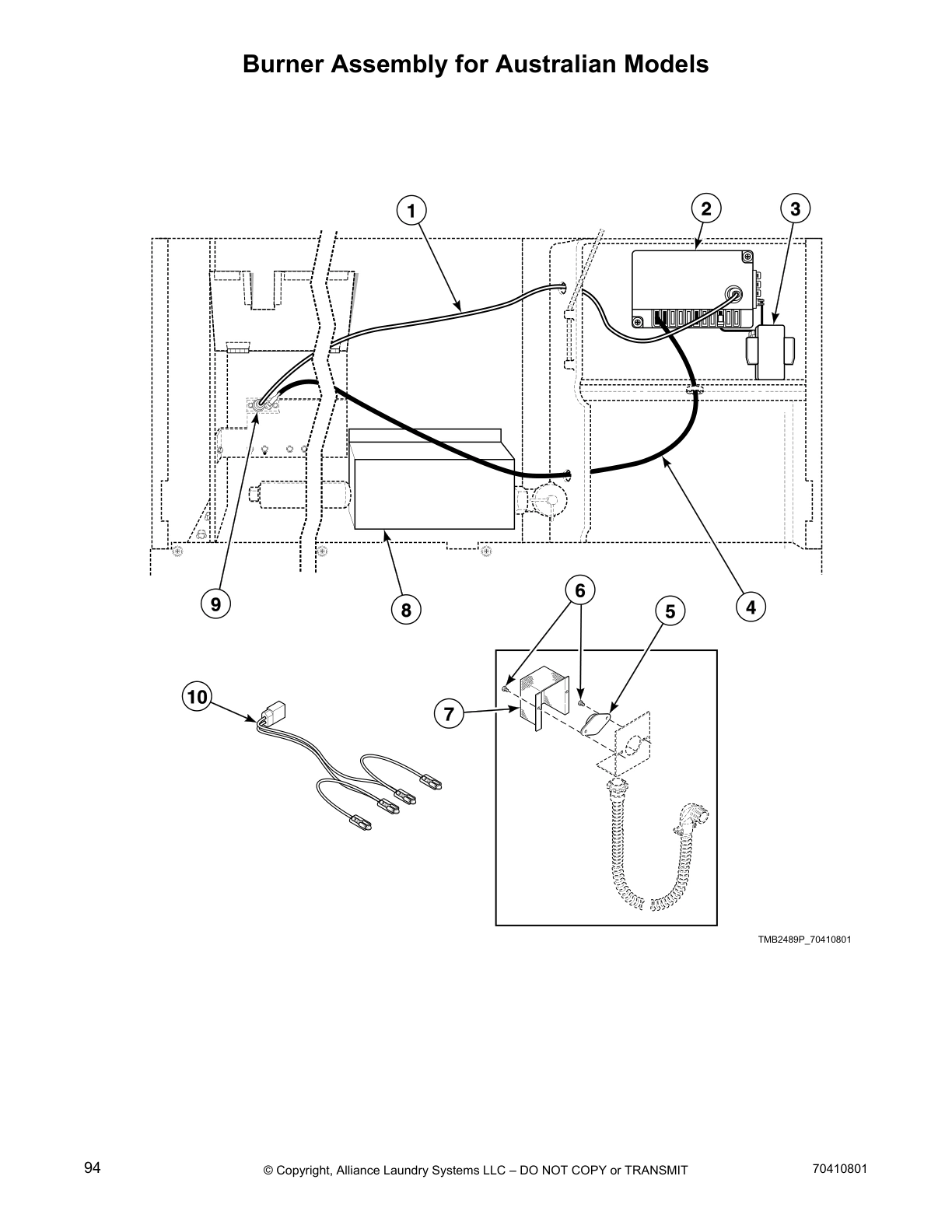

Burner Assembly for Australian Models

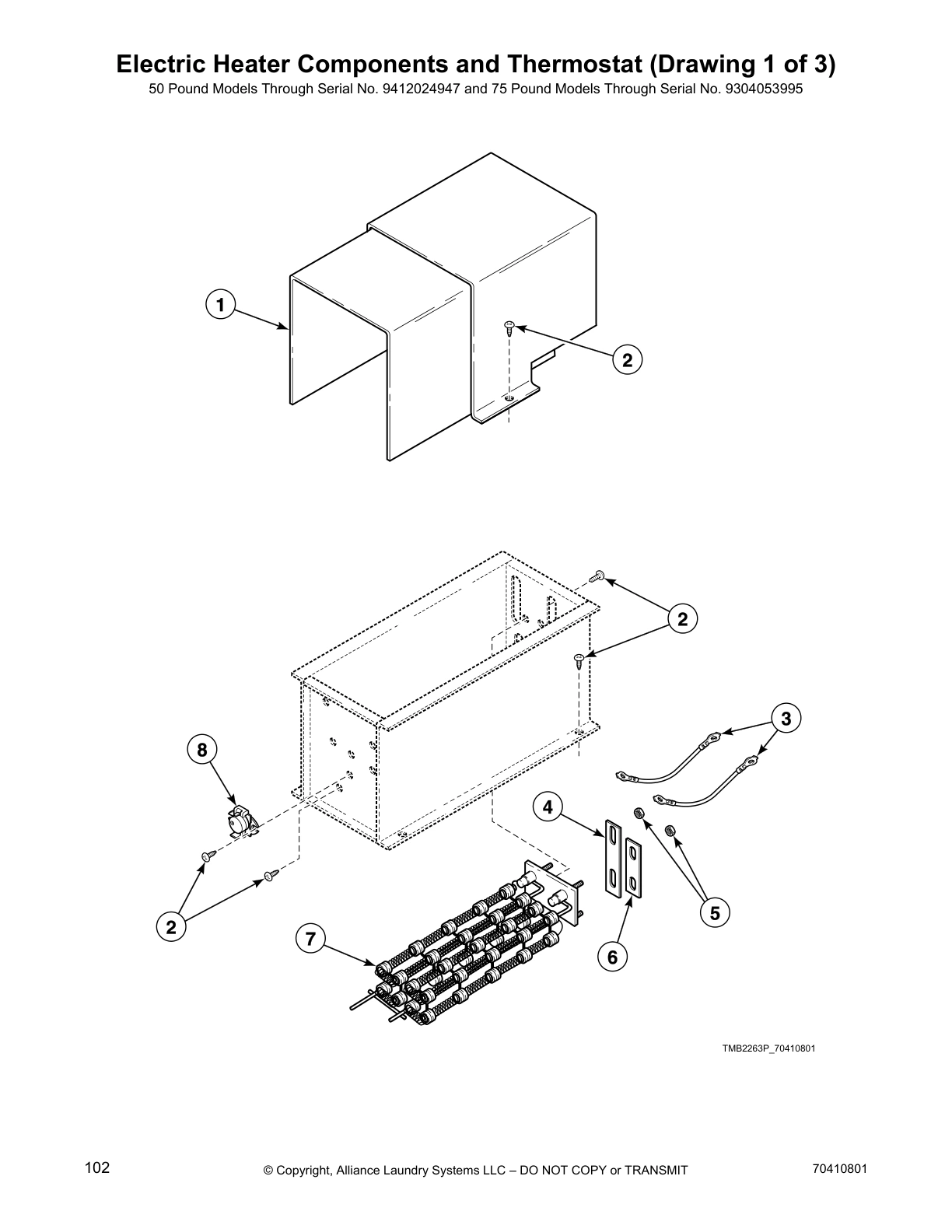

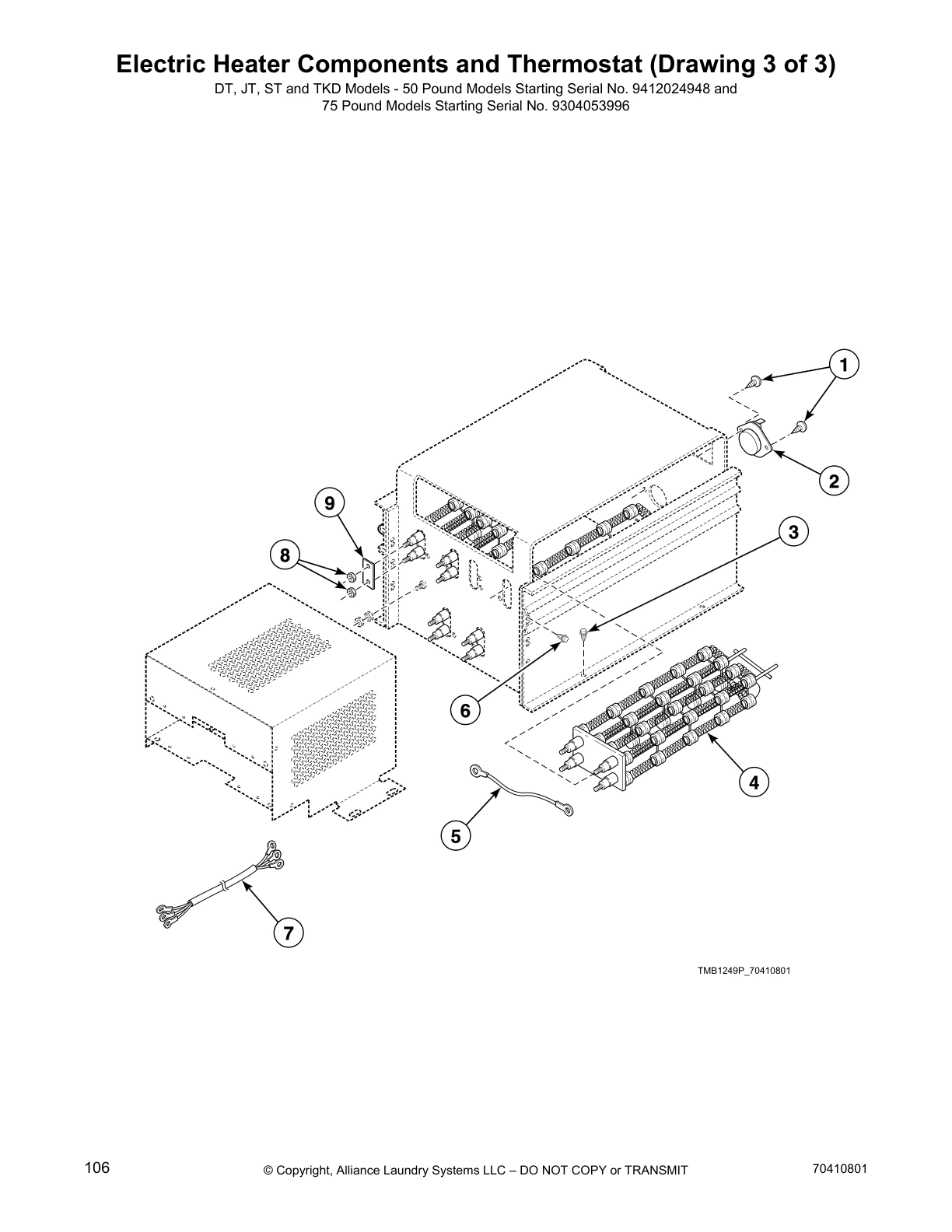

Electric Heater Components and Thermostat (Drawing 1 of 3)

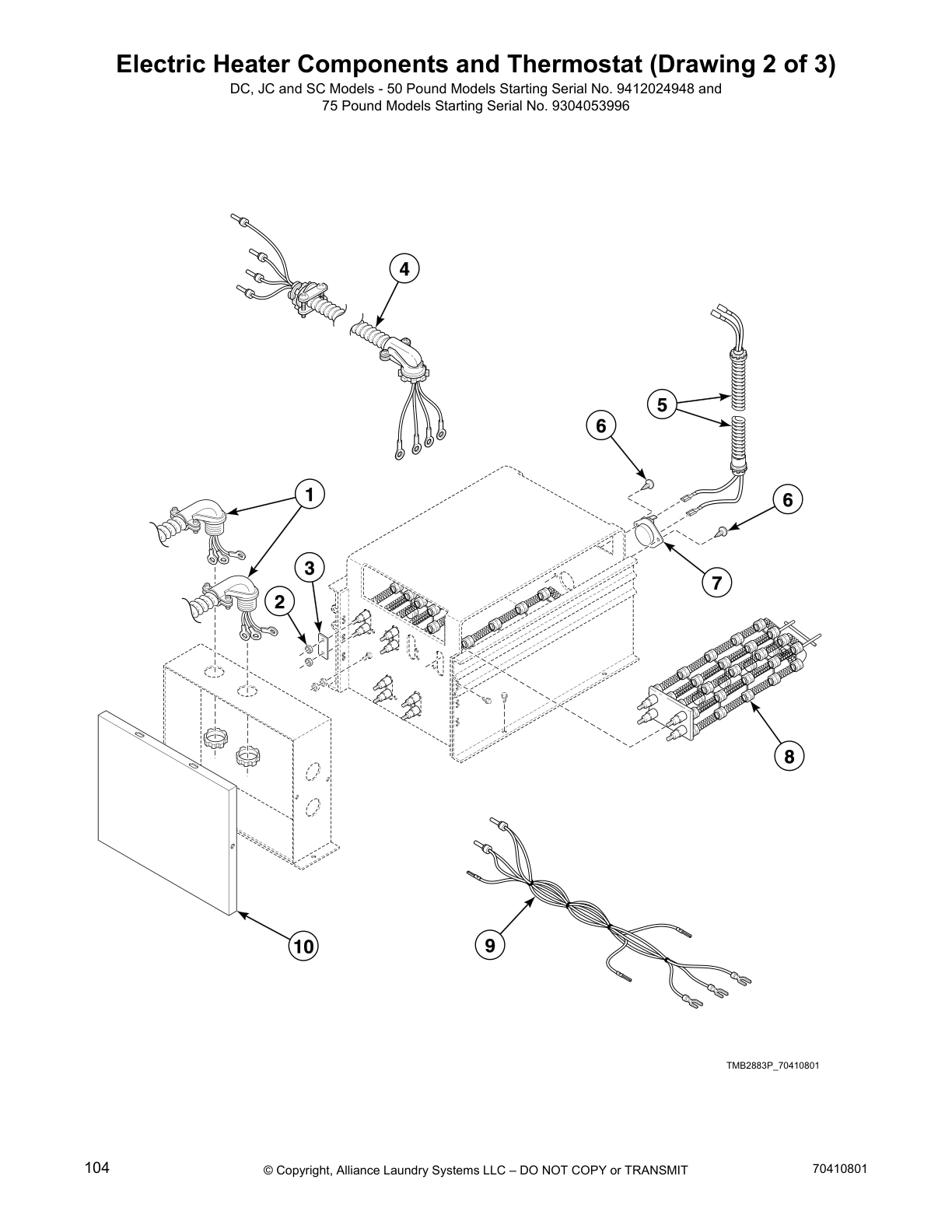

Electric Heater Components and Thermostat (Drawing 2 of 3)

Electric Heater Components and Thermostat (Drawing 3 of 3)

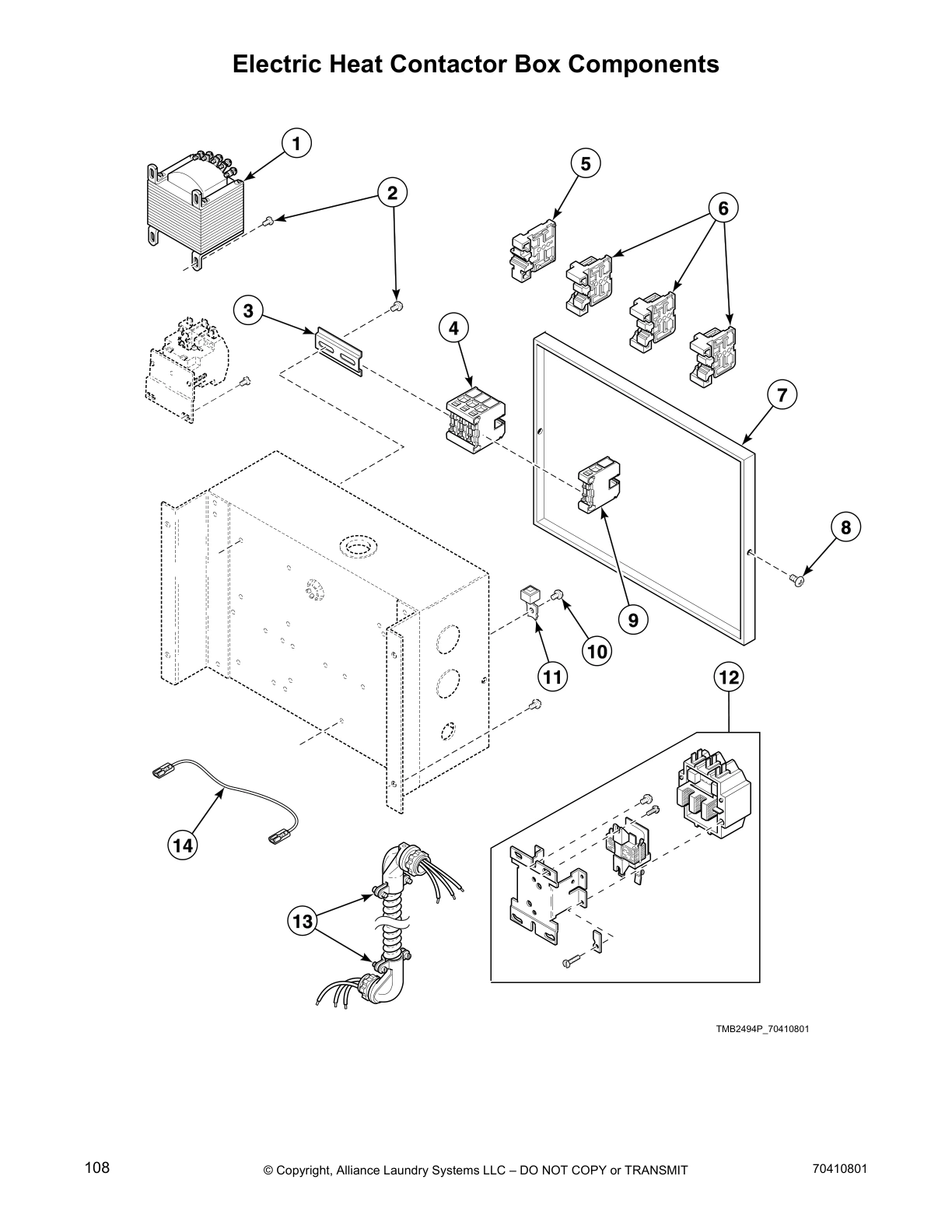

Electric Heat Contactor Box Components

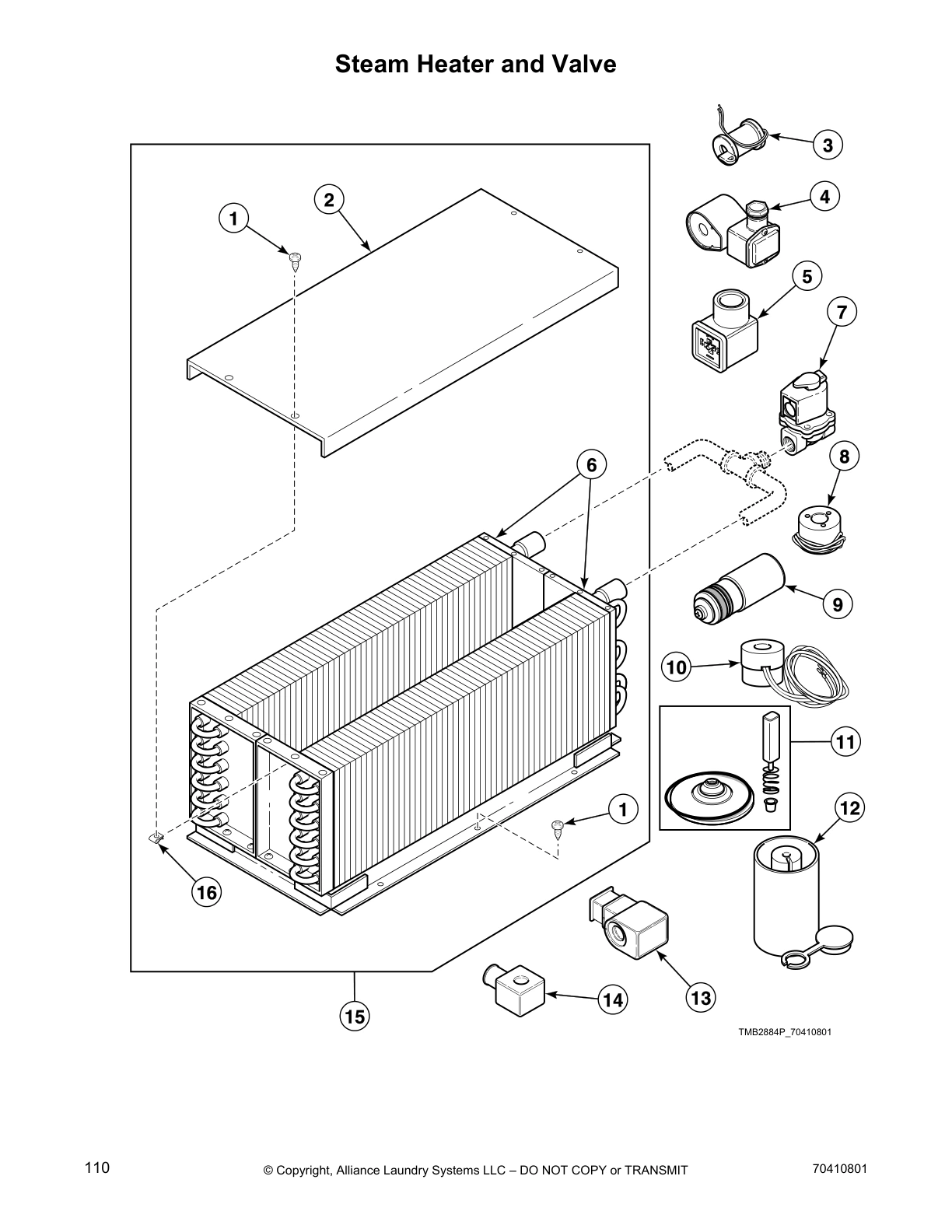

Steam Heater and Valve

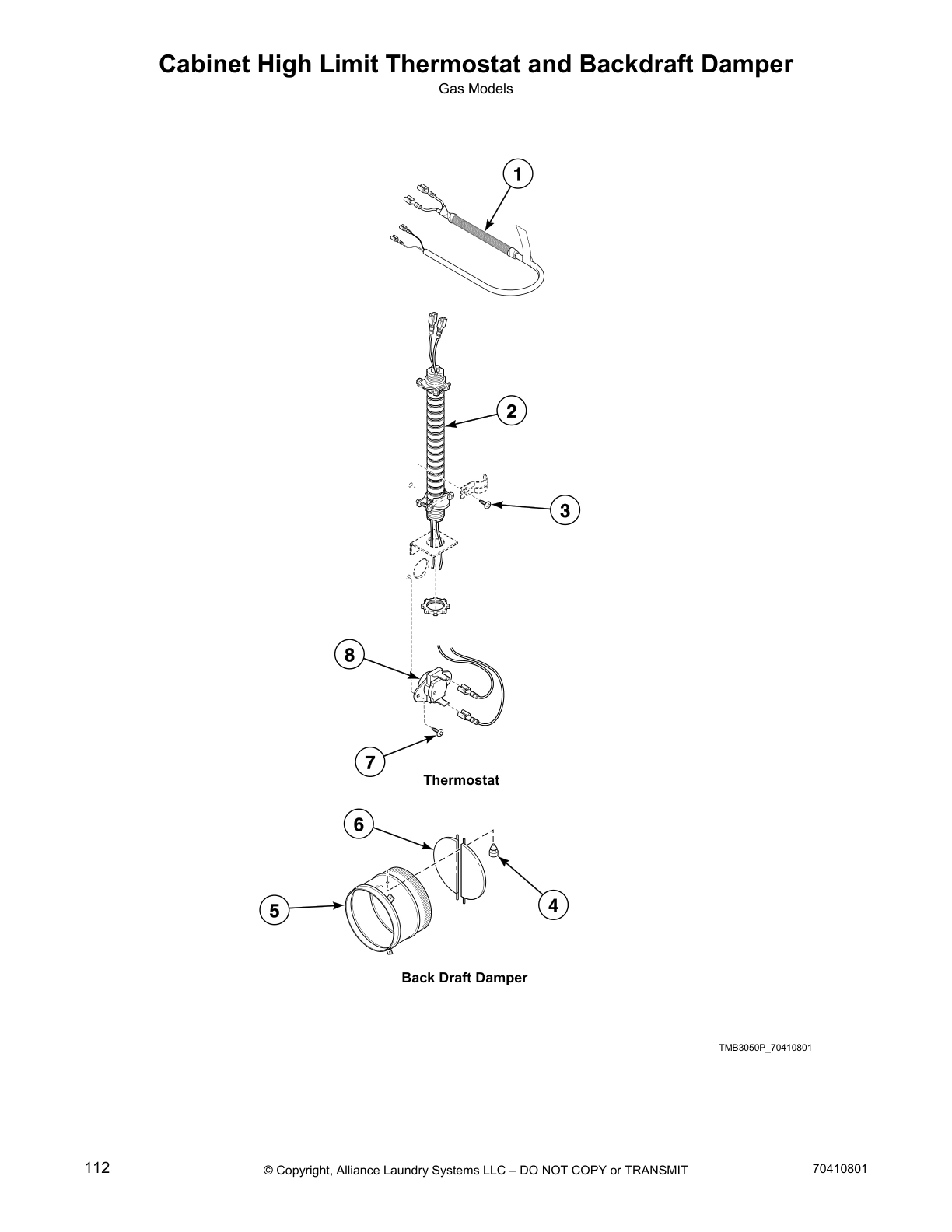

Cabinet High Limit Thermostat and Backdraft Damper

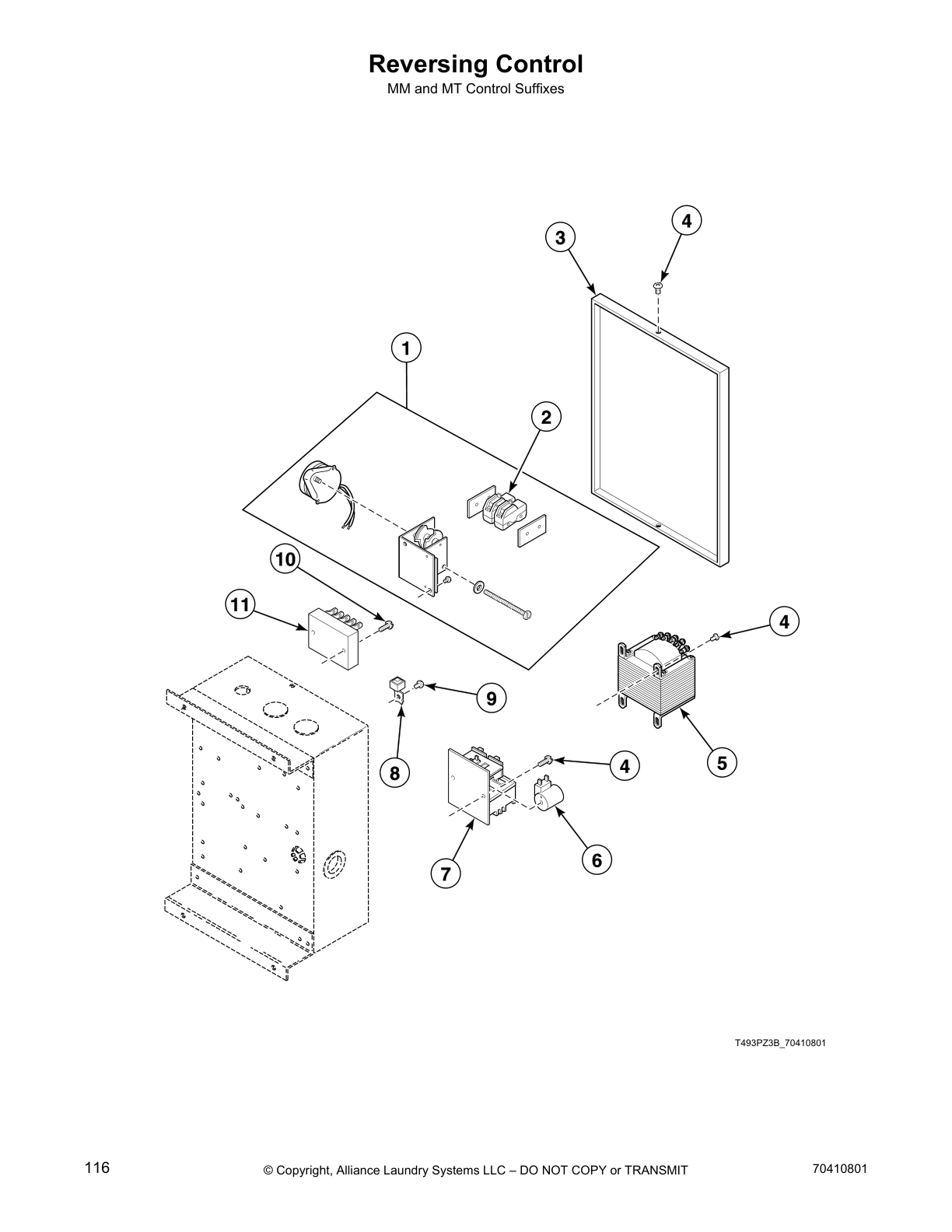

Reversing Control

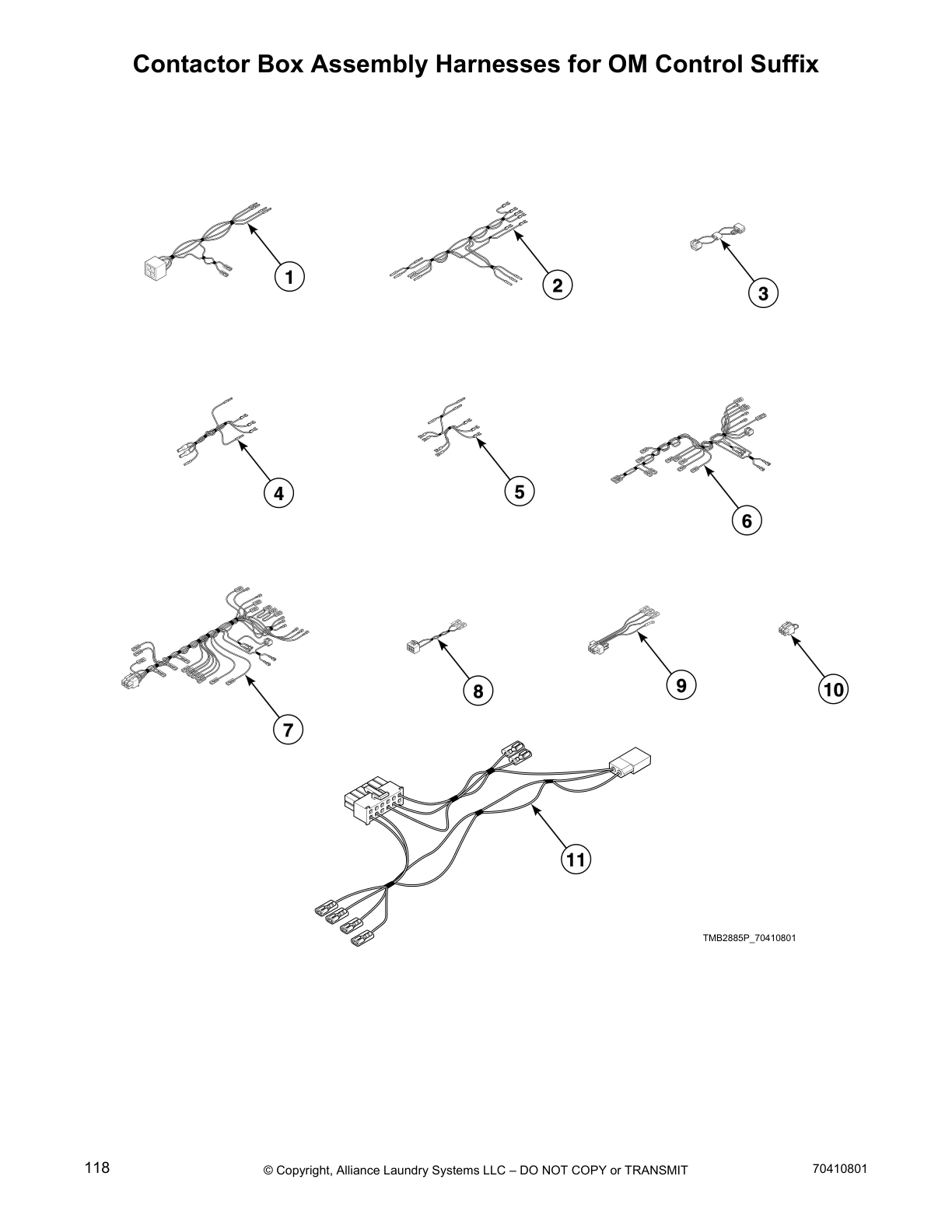

Contactor Box Assembly Harnesses for OM Control Suffix

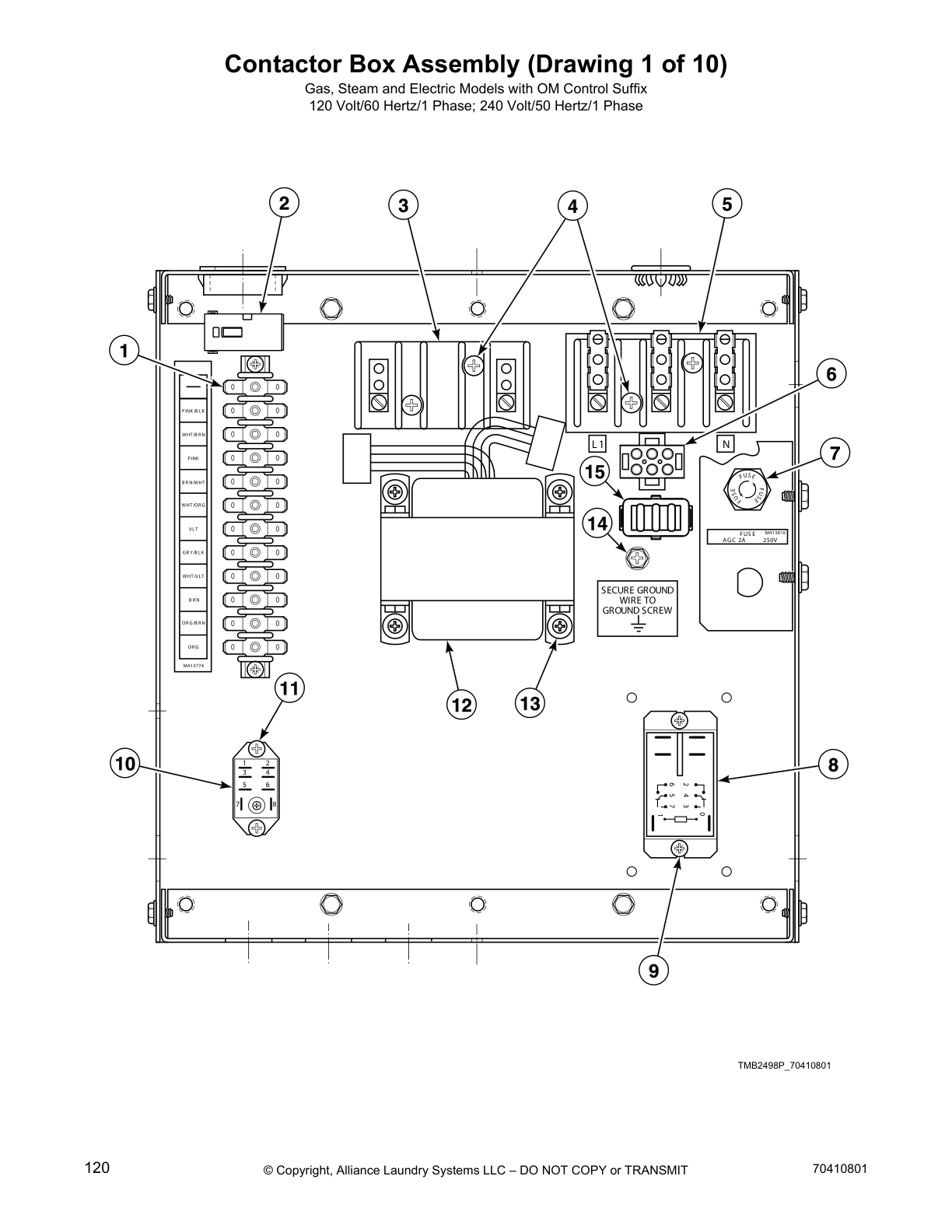

Contactor Box Assembly (Drawing 1 of 10)

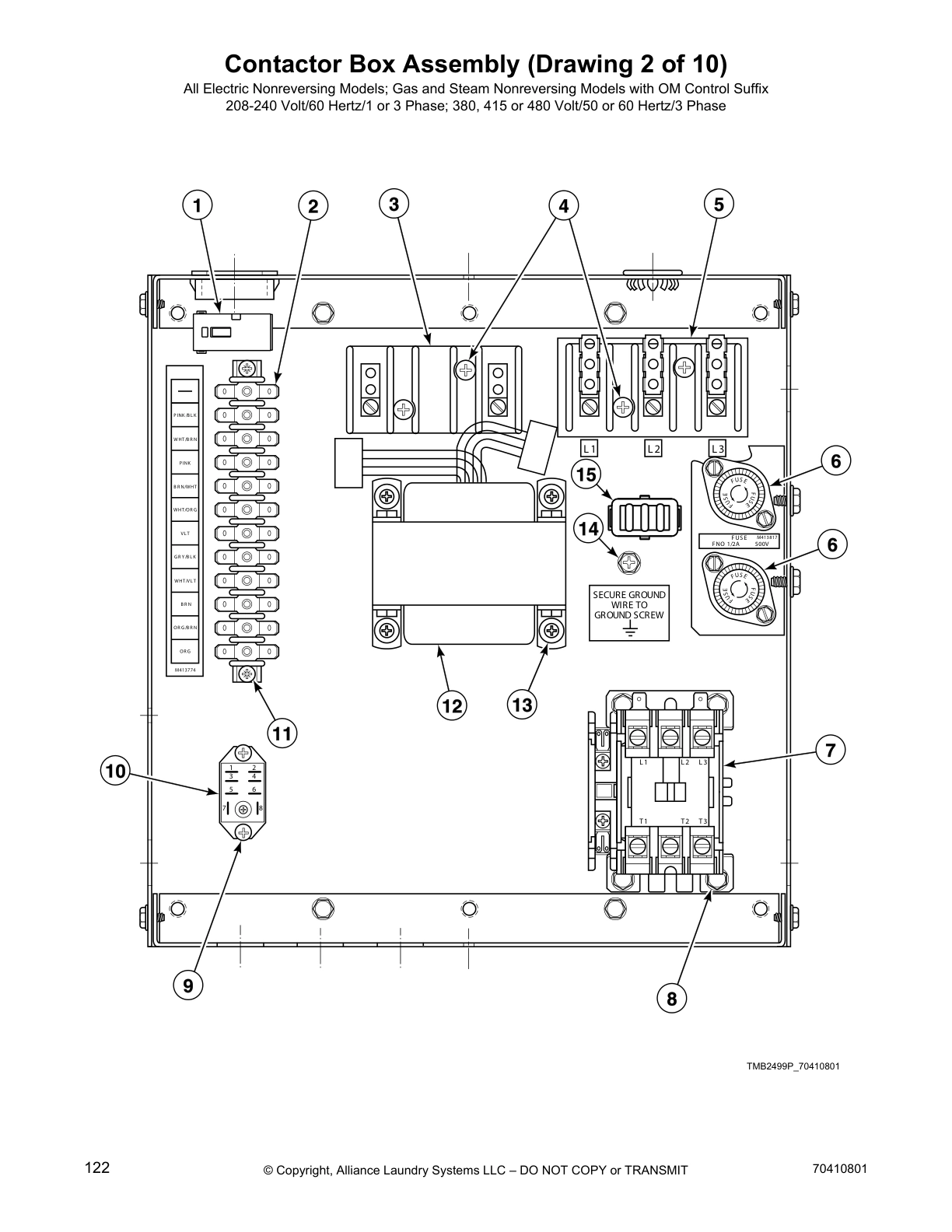

Contactor Box Assembly (Drawing 2 of 10)

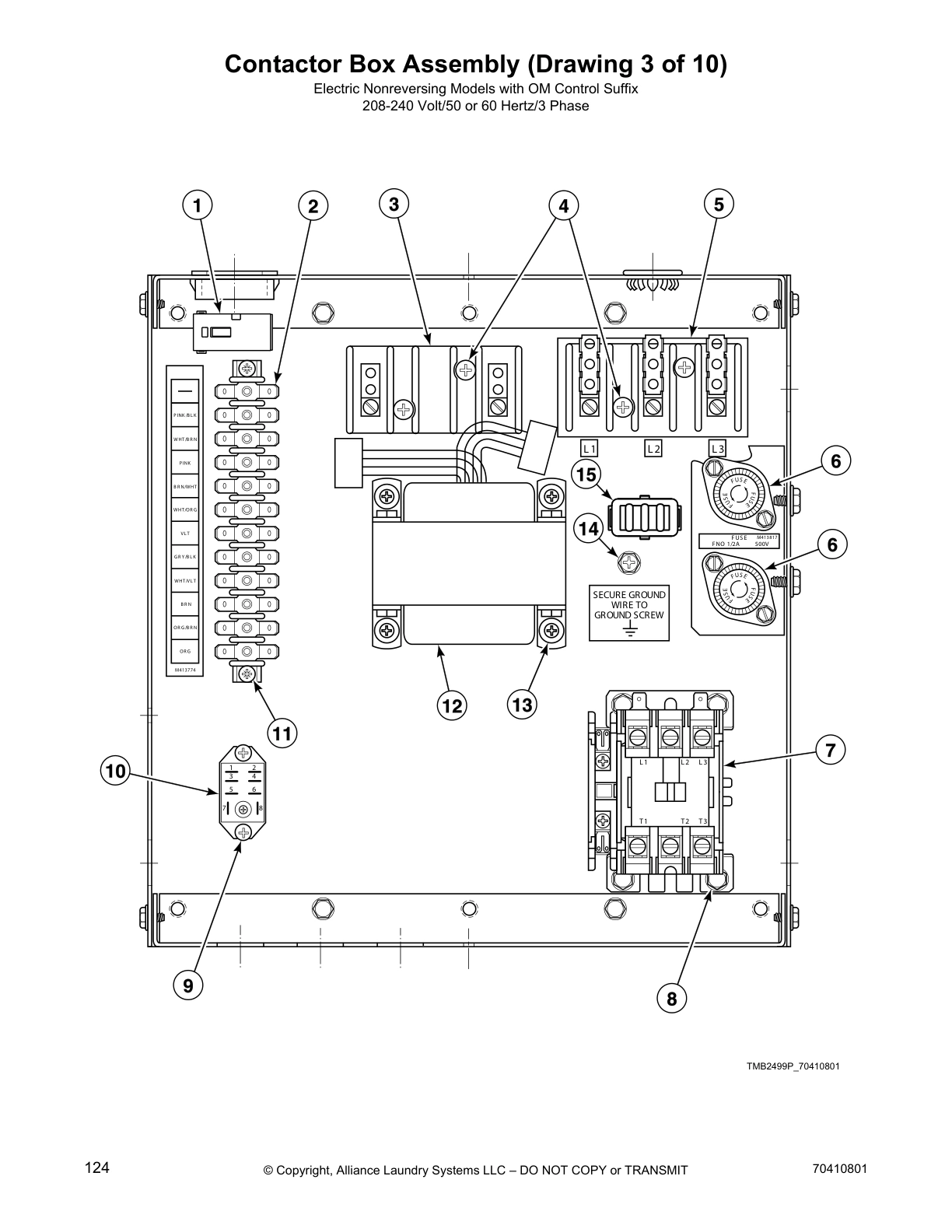

Contactor Box Assembly (Drawing 3 of 10)

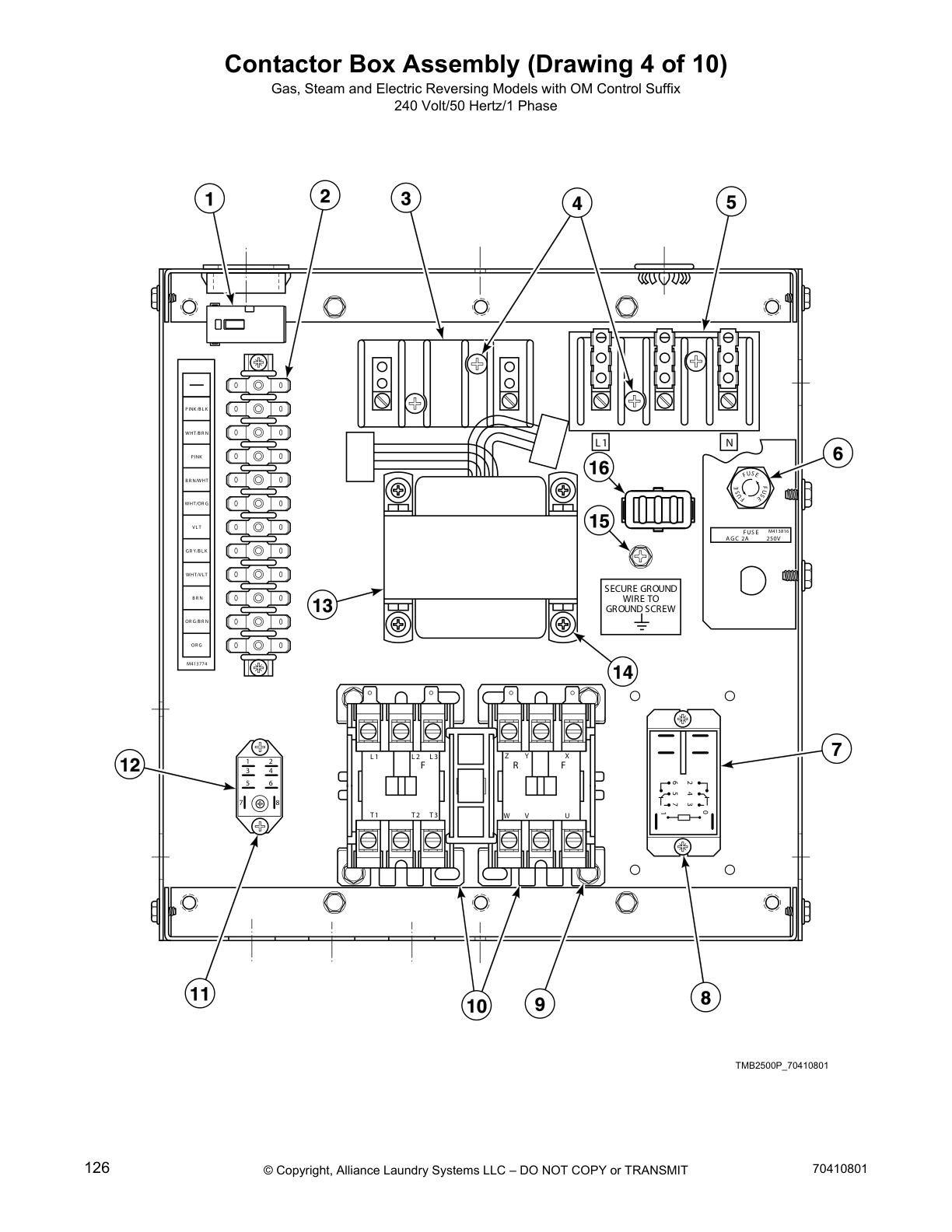

Contactor Box Assembly (Drawing 4 of 10)

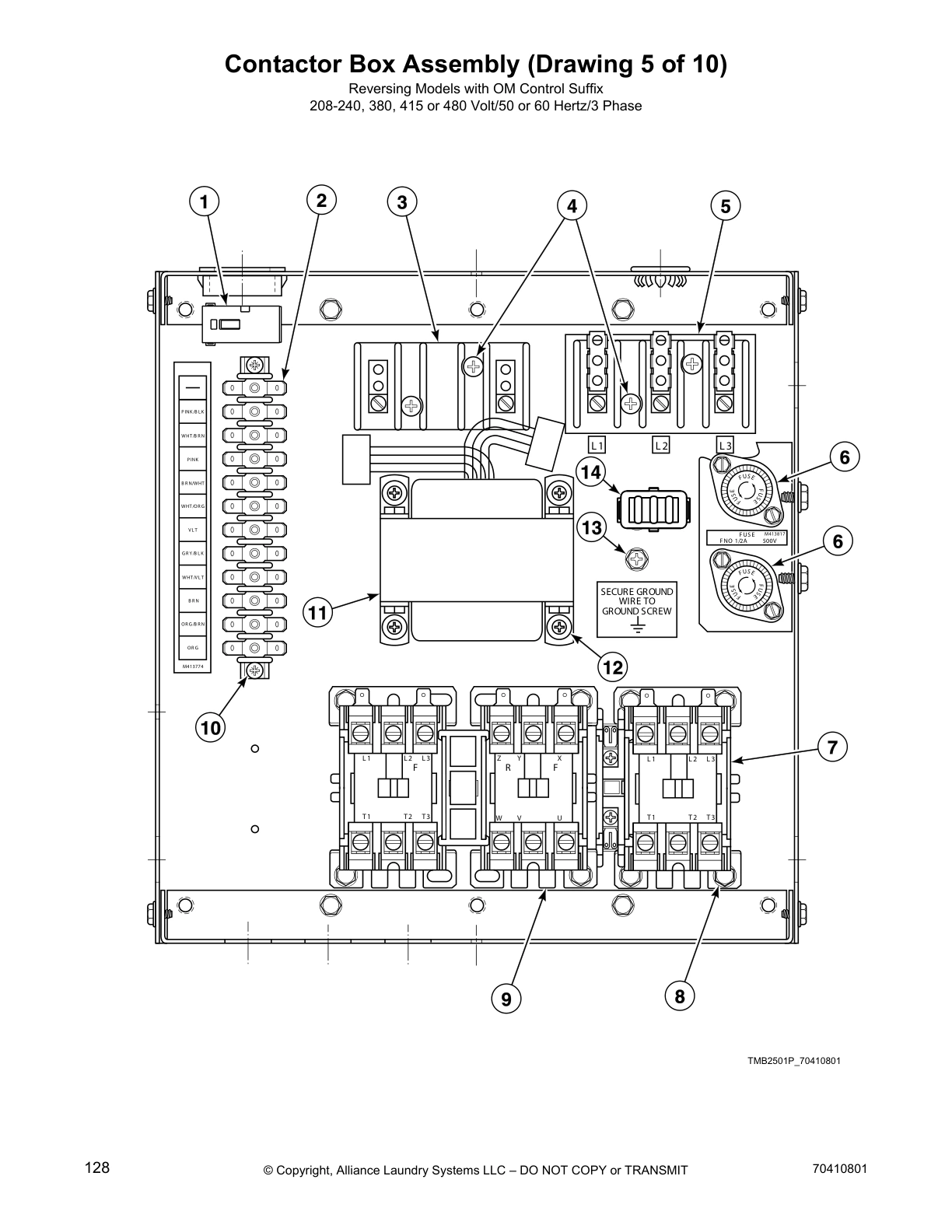

Contactor Box Assembly (Drawing 5 of 10)

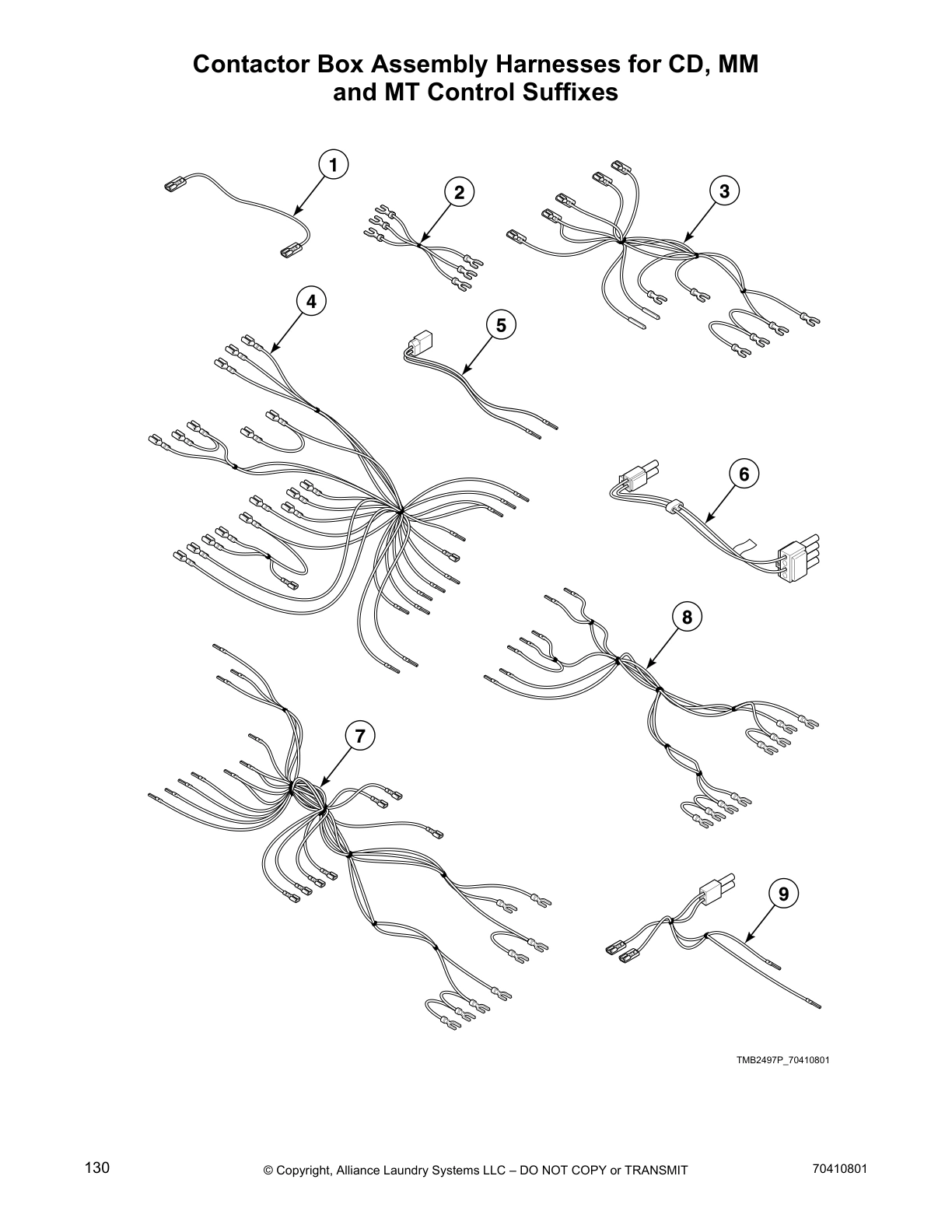

Contactor Box Assembly Harnesses for CD, MM and MT Control Suffixes

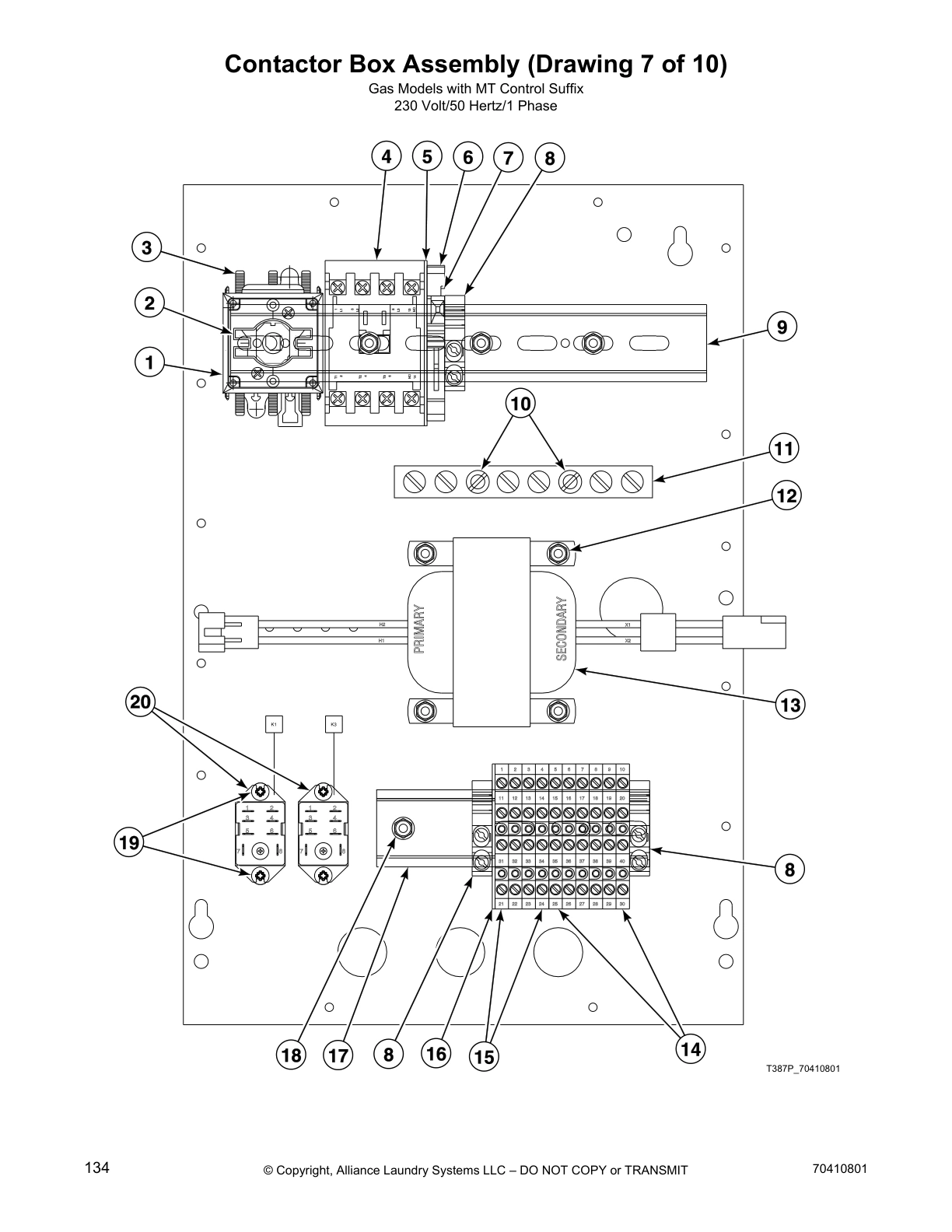

Contactor Box Assembly (Drawing 7 of 10)

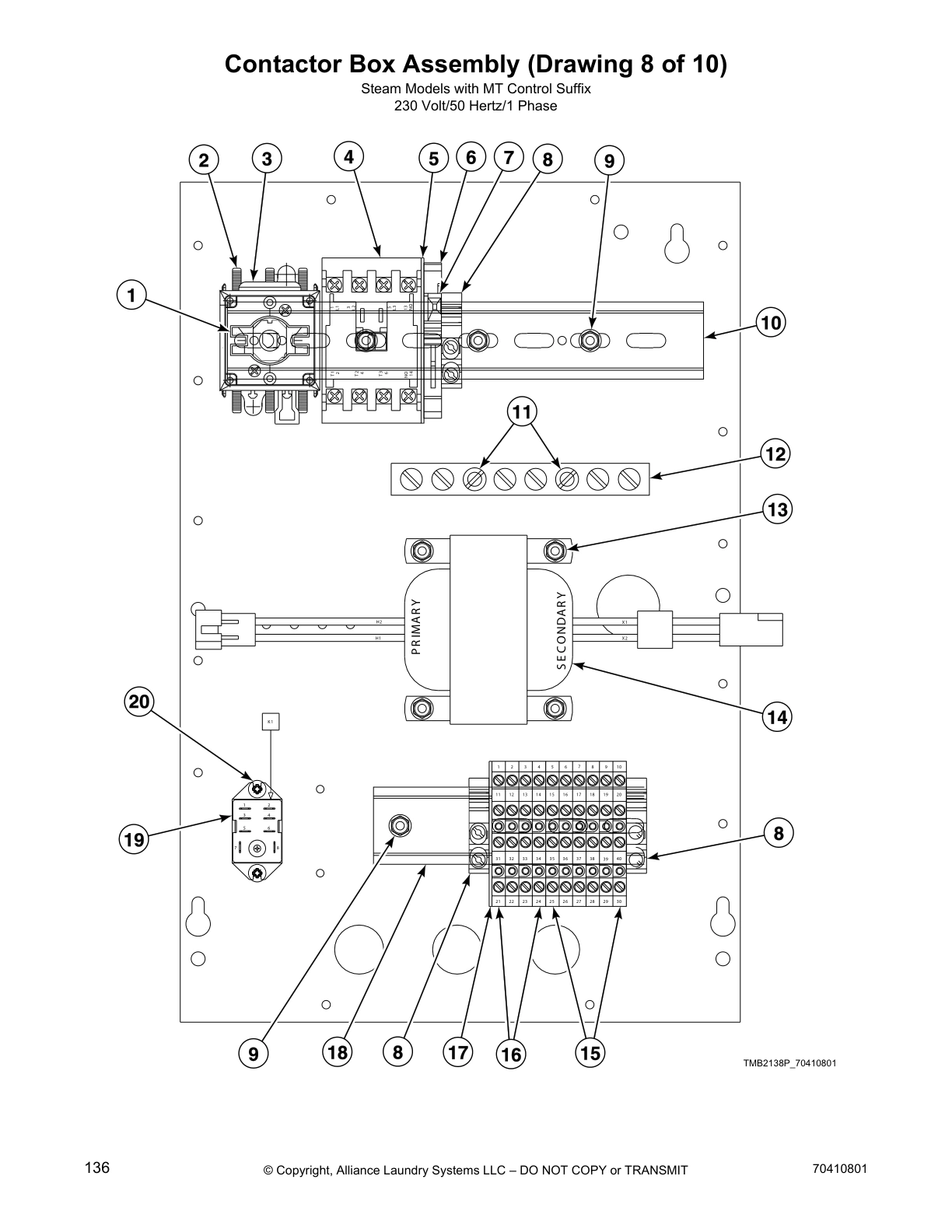

Contactor Box Assembly (Drawing 8 of 10)

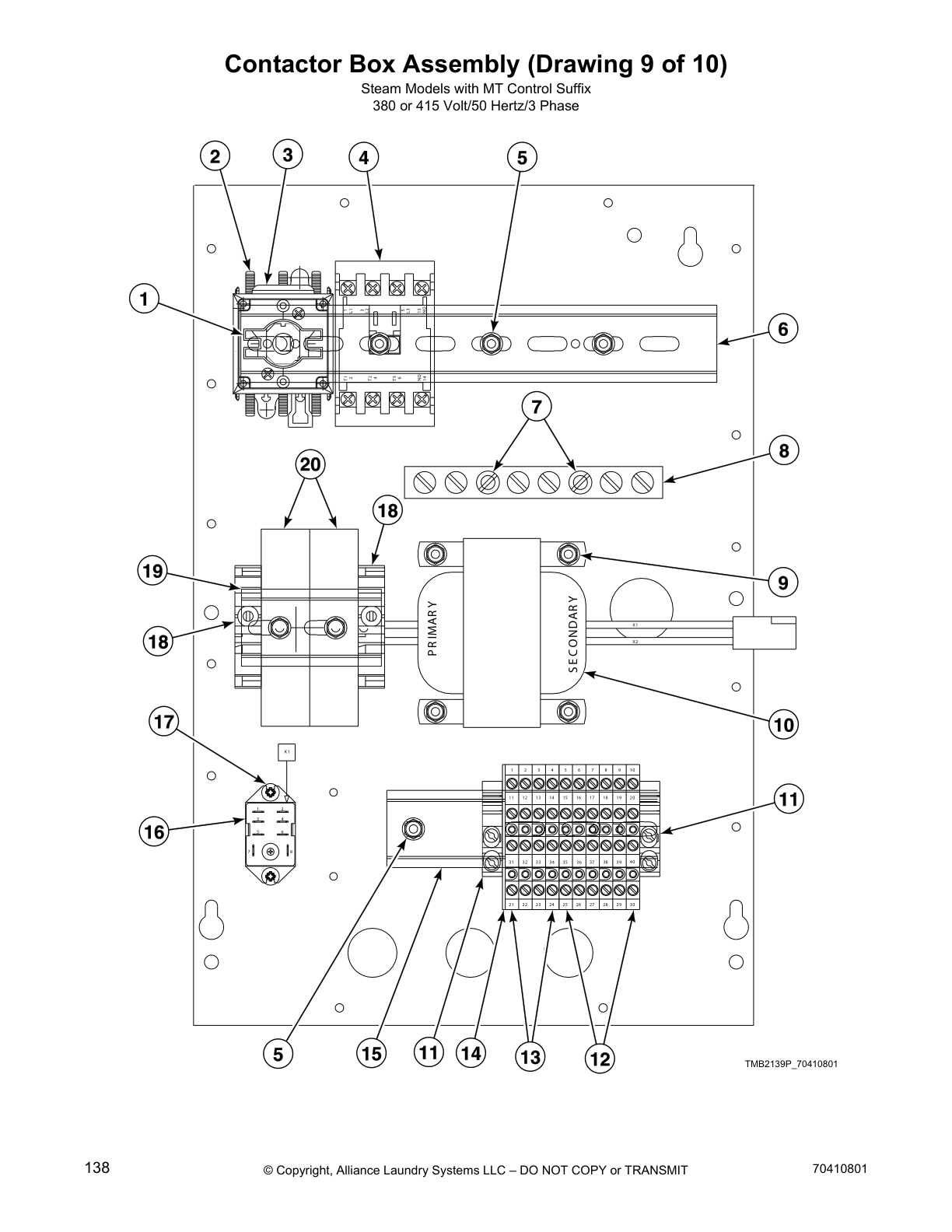

Contactor Box Assembly (Drawing 9 of 10)

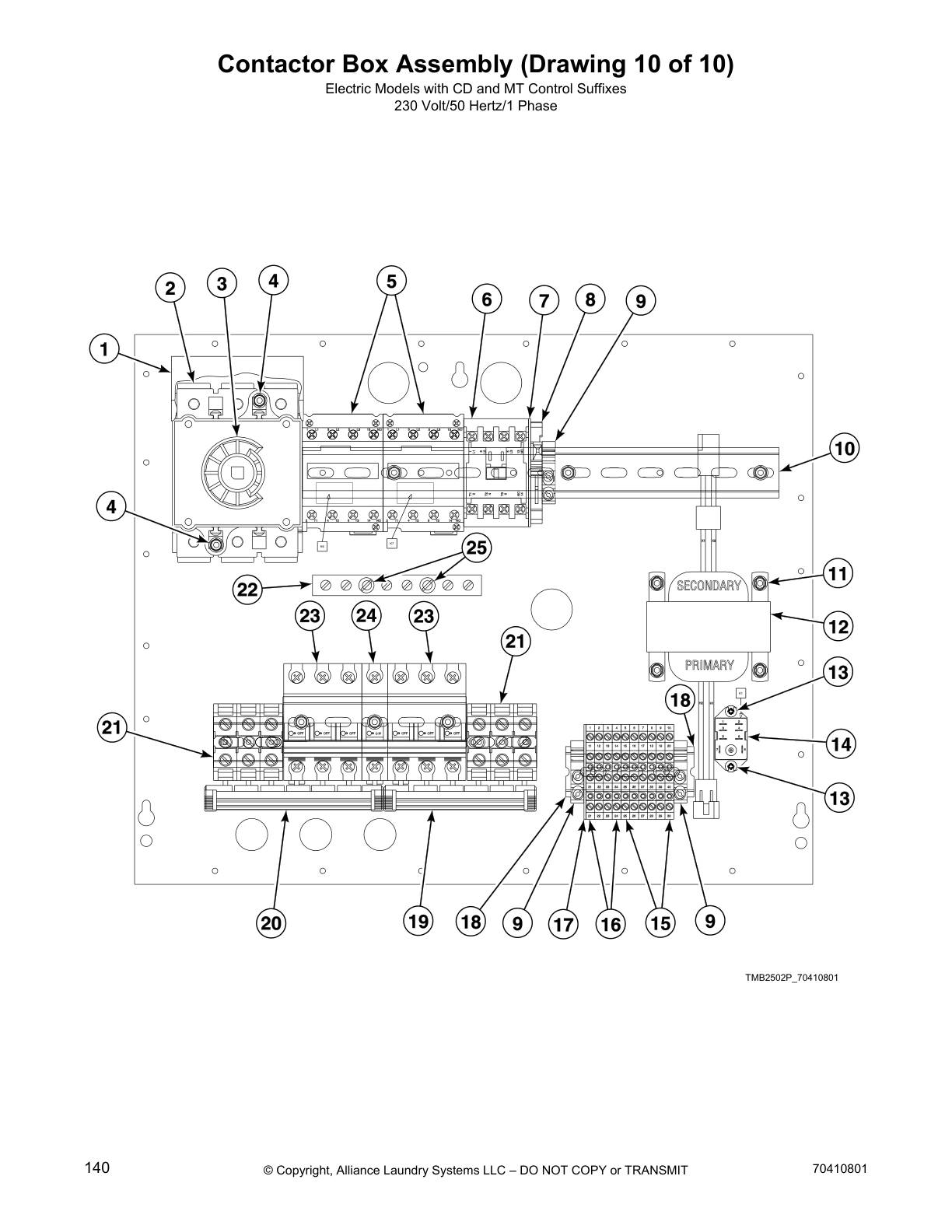

Contactor Box Assembly (Drawing 10 of 10)

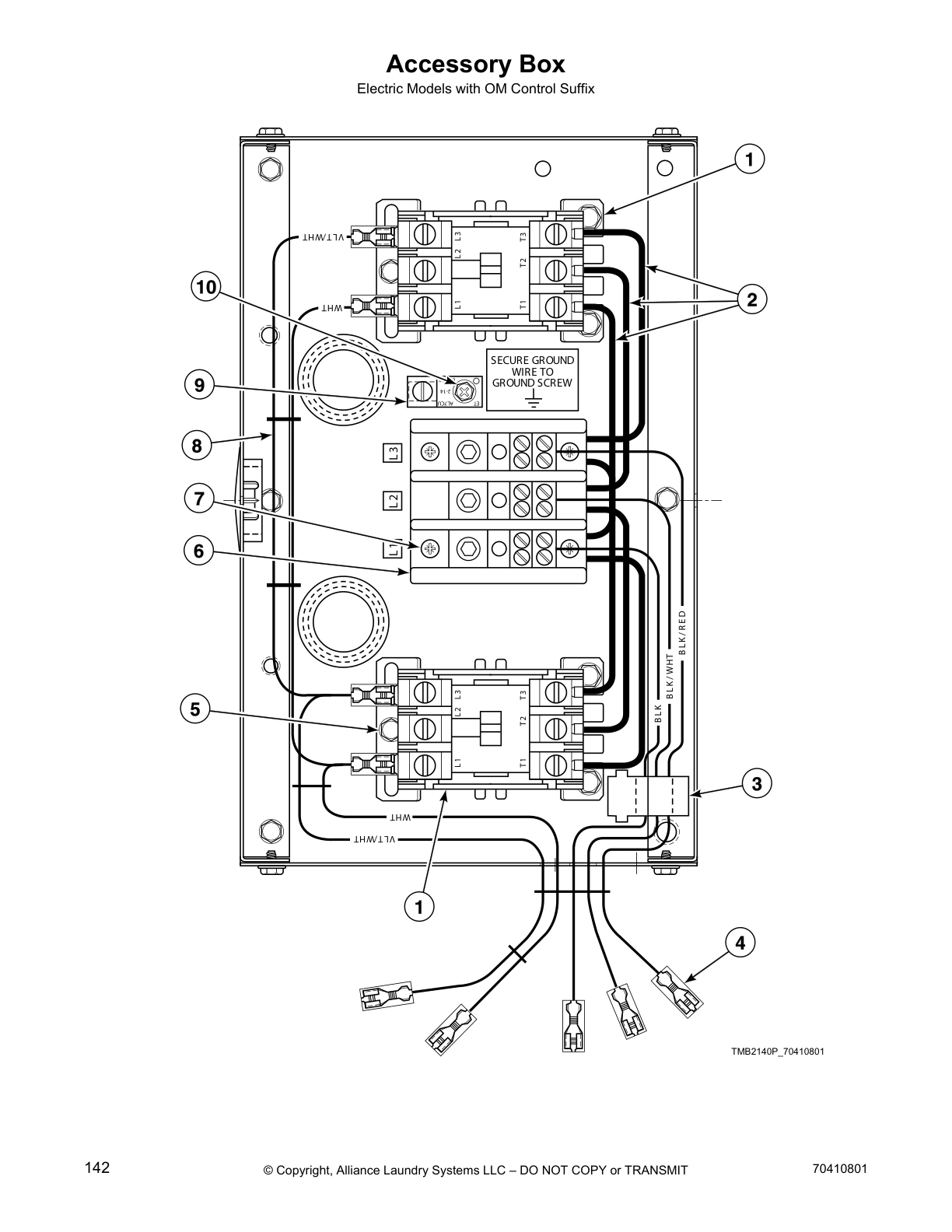

Accessory Box

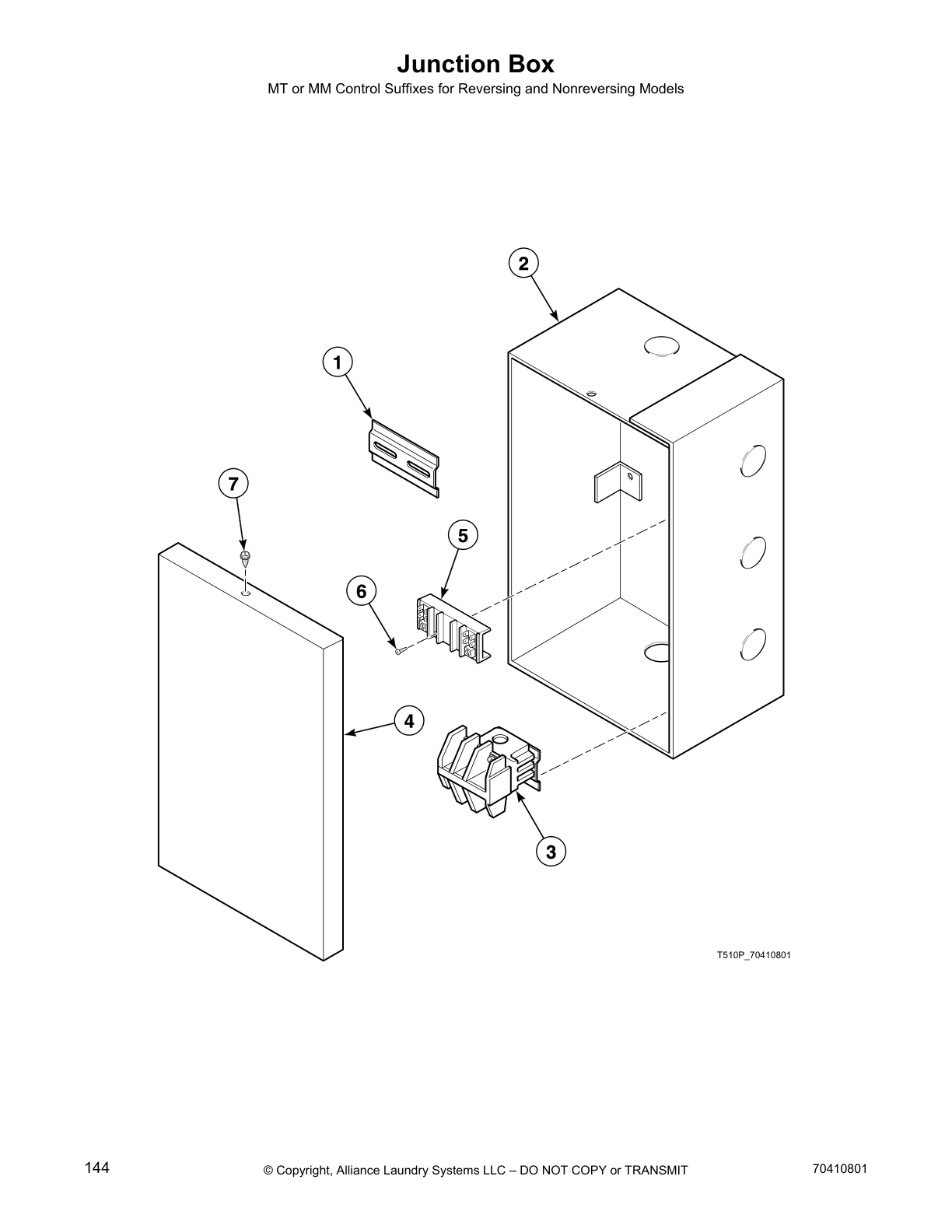

Junction Box

Common parts from model Alliance JC170CSH Dryer

Bushing SPQ H87529111P Contact Us For Availability

View on Model

Transformer Harness Assembly SPQ M414028 Contact Us For Availability

View on Model

Extension Handle SPQ M412370 Contact Us For Availability

View on Model

Q6163 Speed Queen Hex Nut 10-32 Mach-Unf Backorder SPQ Q6163 $1.41

View on Model

Washer SPQ M400015 Contact Us For Availability

View on Model

Washer SPQ M400013 Contact Us For Availability

View on Model

Key SPQ M401327 Contact Us For Availability

View on Model

Instant Electronic Ignition Control SPQ M410904P Contact Us For Availability

View on Model

Relay Harness Assembly SPQ M414224 Contact Us For Availability

View on Model

Reversing Jumper Harness Assembly SPQ M412929 Contact Us For Availability

View on Model

Contactor SPQ M412366 Contact Us For Availability

View on Model

Steam Valve Coil SPQ M412258 Contact Us For Availability

View on Model

Jumper Harness Assembly SPQ M413508 Contact Us For Availability

View on Model

Ground Buss Assembly SPQ M412187P Contact Us For Availability

View on Model

430497 Speed Queen Screw Tap SERHXWAHD10AB-16 Backorder SPQ 430497 $4.70

View on Model

M400979 Speed Queen 4-40 UNC Speed Nut (Twin Backorder SPQ M400979 $1.54

View on Model

Idler Housing SPQ M401370 Contact Us For Availability

View on Model

Steam Valve SPQ 70205701P Contact Us For Availability

View on Model

Screw SPQ M412612 Contact Us For Availability

View on Model

Reversing Contactor Harness Assembly SPQ M414034 Contact Us For Availability

View on Model

Terminal Block SPQ M405363 Contact Us For Availability

View on Model

20274 Speed Queen Hex Nut 3/8-16 Standard UNC Backorder SPQ 20274 $1.24

View on Model

44310001 Speed Queen 0.5A FNQ-R Fuse, 13/32" Backorder SPQ 44310001 $36.80

View on Model

70323701P Speed Queen Contactor 100-C16KJ10 Backorder SPQ 70323701P $113.31

View on Model

51780 Speed Queen Tap Screw SERHXWAHD10B-16X. Backorder SPQ 51780 $4.70

View on Model

M400664 Speed Queen Screw Backorder SPQ M400664 $4.70

View on Model

M414704 Speed Queen Thermistor In Stock SPQ M414704 $52.21

View on Model

SPQ M413299P SPQ M413299P Contact Us For Availability

View on Model

70054 Speed Queen Hex Keps Nut 10-32 STL Backorder SPQ 70054 $4.70

View on Model

SCREW PAN HD CR REC 4-40X.625 Backorder SPQ M401938 $5.76

View on Model

Idler Shaft SPQ M400401 Contact Us For Availability

View on Model

SPQ 22688 SPQ 22688 Contact Us For Availability

View on Model

SPQ M401375P SPQ M401375P Contact Us For Availability

View on Model

SPQ 70142 SPQ 70142 Contact Us For Availability

View on Model

SPQ M414241 SPQ M414241 Contact Us For Availability

View on Model

Transformer Harness Assembly SPQ M412928 Contact Us For Availability

View on Model

SPQ 70121001 SPQ 70121001 Contact Us For Availability

View on Model

Timer Kit SPQ M410900P Contact Us For Availability

View on Model

Bypass Harness Assembly SPQ M413168 Contact Us For Availability

View on Model

430757 Speed Queen Screw, 10-10 x 5/16 Hex He Backorder SPQ 430757 $4.70

View on Model

Key SPQ M400993 Contact Us For Availability

View on Model

Transformer SPQ M414229P Contact Us For Availability

View on Model

Screw SPQ M400044 Contact Us For Availability

View on Model

M400043 Speed Queen Hex Cap Screw 3/8-16 X 1. Backorder SPQ M400043 $4.58

View on Model

M400080 Speed Queen Washer Flat 5/16 Standard Backorder SPQ M400080 $4.70

View on Model

Terminal Block SPQ M412534 Contact Us For Availability

View on Model

End Barrier SPQ M412631 Contact Us For Availability

View on Model

Ground Buss Assembly SPQ M412632 Contact Us For Availability

View on Model

M400081 Speed Queen Washer Flat 3/8" Backorder SPQ M400081 $2.16

View on Model

Nut SPQ M412633 Contact Us For Availability

View on Model

M400014 Speed Queen Washer Lock Regulator Spr Backorder SPQ M400014 $4.70

View on Model

Bushing SPQ M412917P Contact Us For Availability

View on Model

Mounting Switch Base SPQ M412615 Contact Us For Availability

View on Model

M400912P Speed Queen 120V DPDT Relay Packagin Backorder SPQ M400912P $87.95

View on Model

SPQ M409385 SPQ M409385 Contact Us For Availability

View on Model

D501086 Speed Queen Screw Tap SLSERHXWAHD8B-1 Backorder SPQ D501086 $4.70

View on Model

Nut SPQ M400976 Contact Us For Availability

View on Model

Nut SPQ M412538 Contact Us For Availability

View on Model

M404993 Speed Queen Hex Nut 1/2-13 Jam UNC ZN Backorder SPQ M404993 $4.70

View on Model

Contactor SPQ M412656 Contact Us For Availability

View on Model

End Stop SPQ M412688 Contact Us For Availability

View on Model

SPQ M401402 SPQ M401402 Contact Us For Availability

View on Model

SPQ F8322903 SPQ F8322903 Contact Us For Availability

View on Model

SPQ M412641 SPQ M412641 Contact Us For Availability

View on Model
