Model Alliance JC0300DRG Dryer – Common Parts & Diagrams
Electronic Coin Drop Components
Coin Drop Assemblies

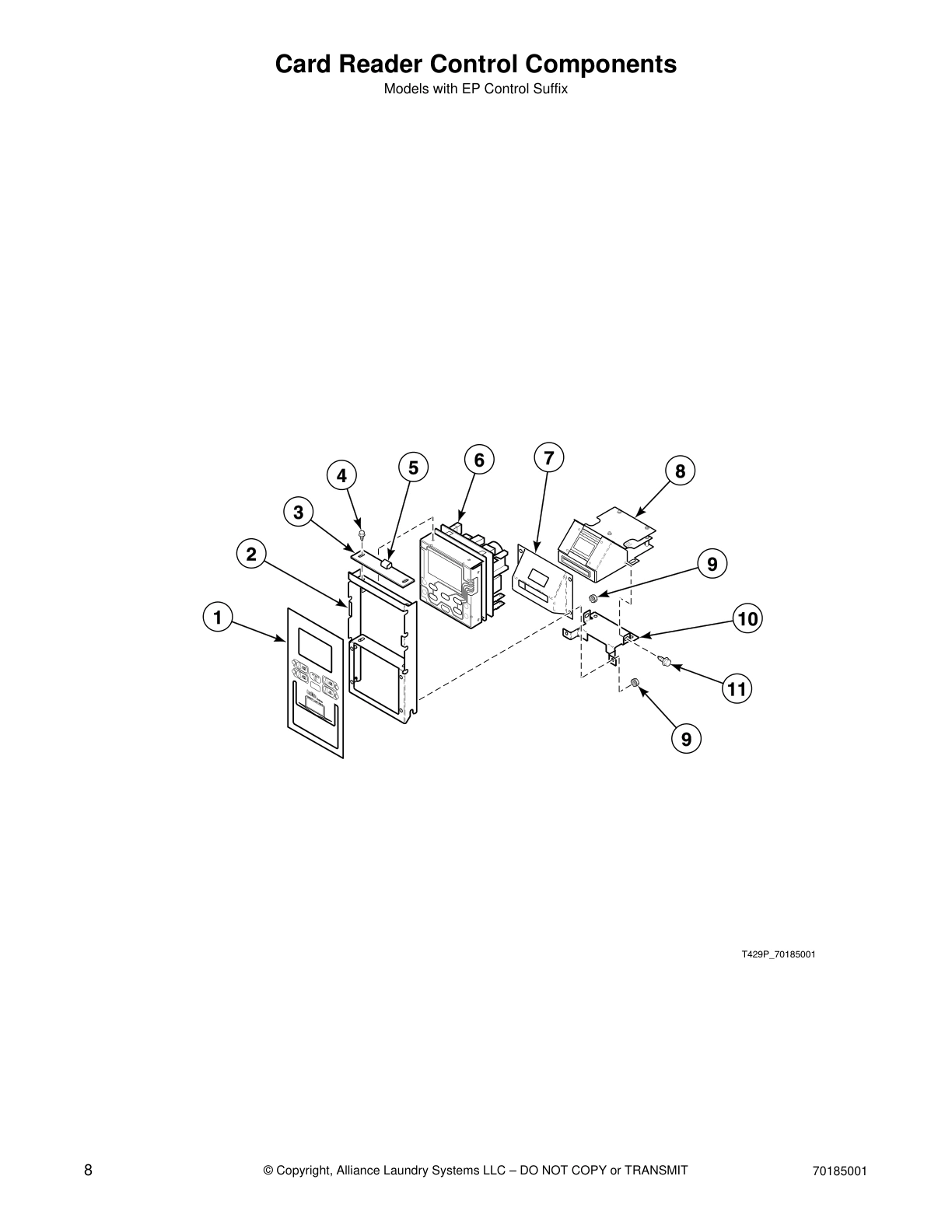

Card Reader Control Components

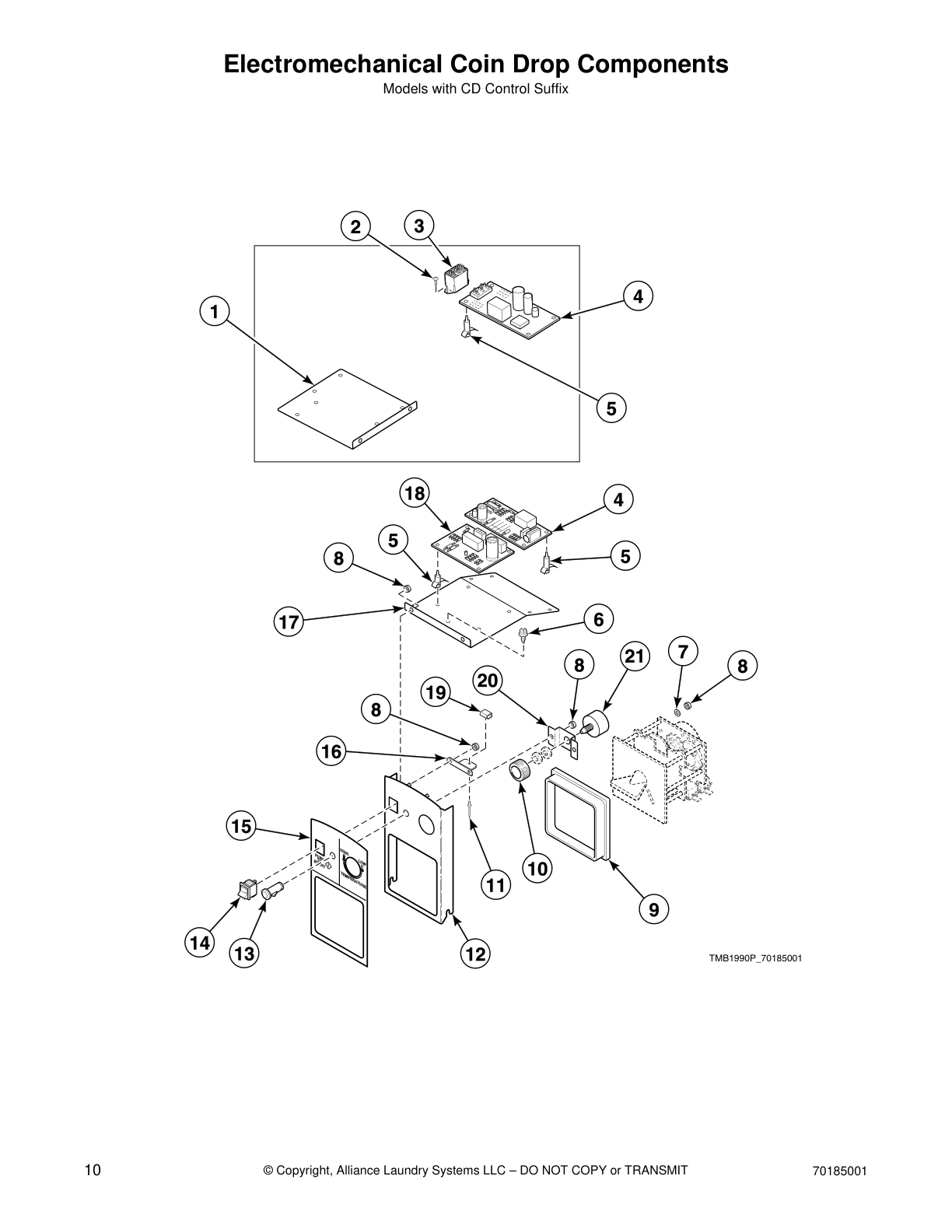

Electromechanical Coin Drop Components

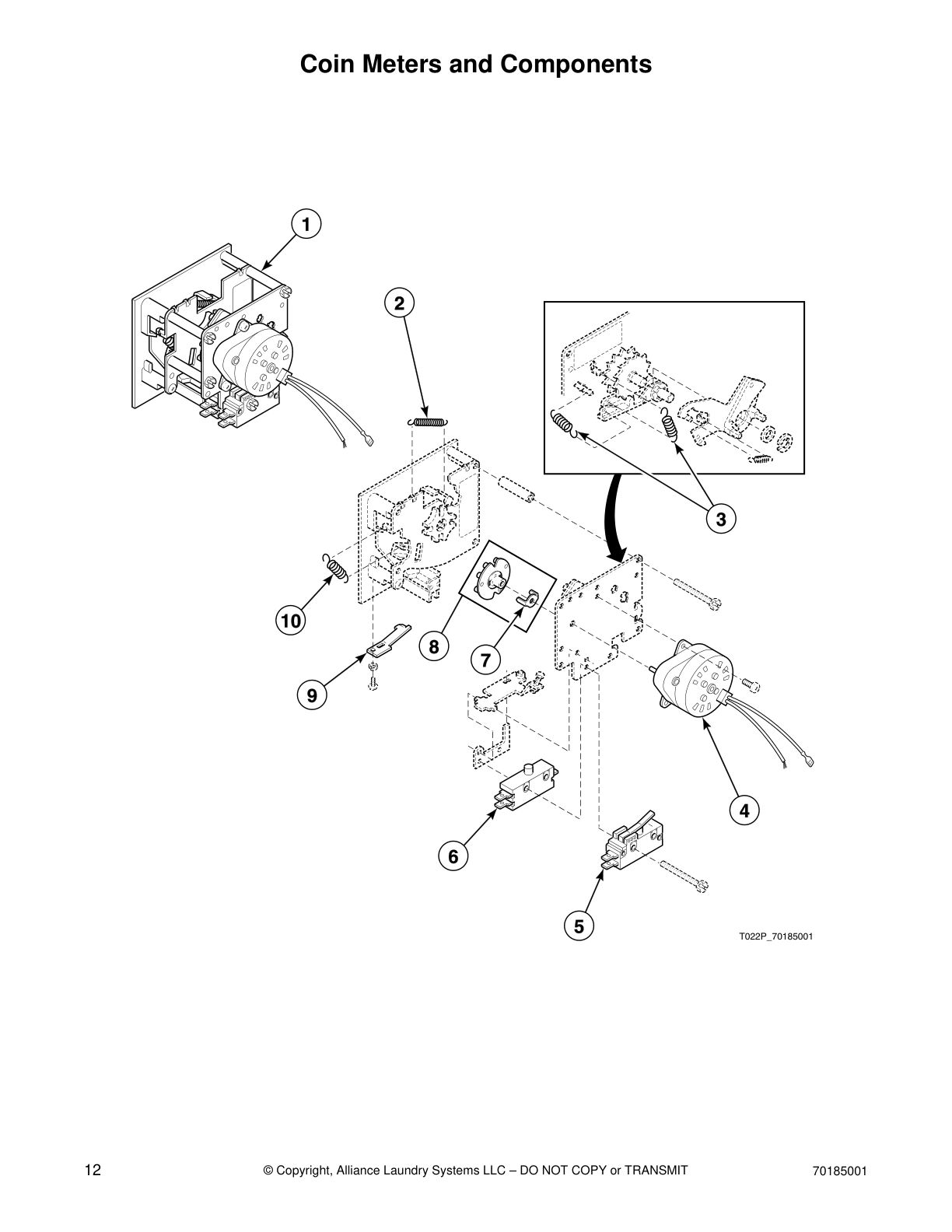

Coin Meters and Components

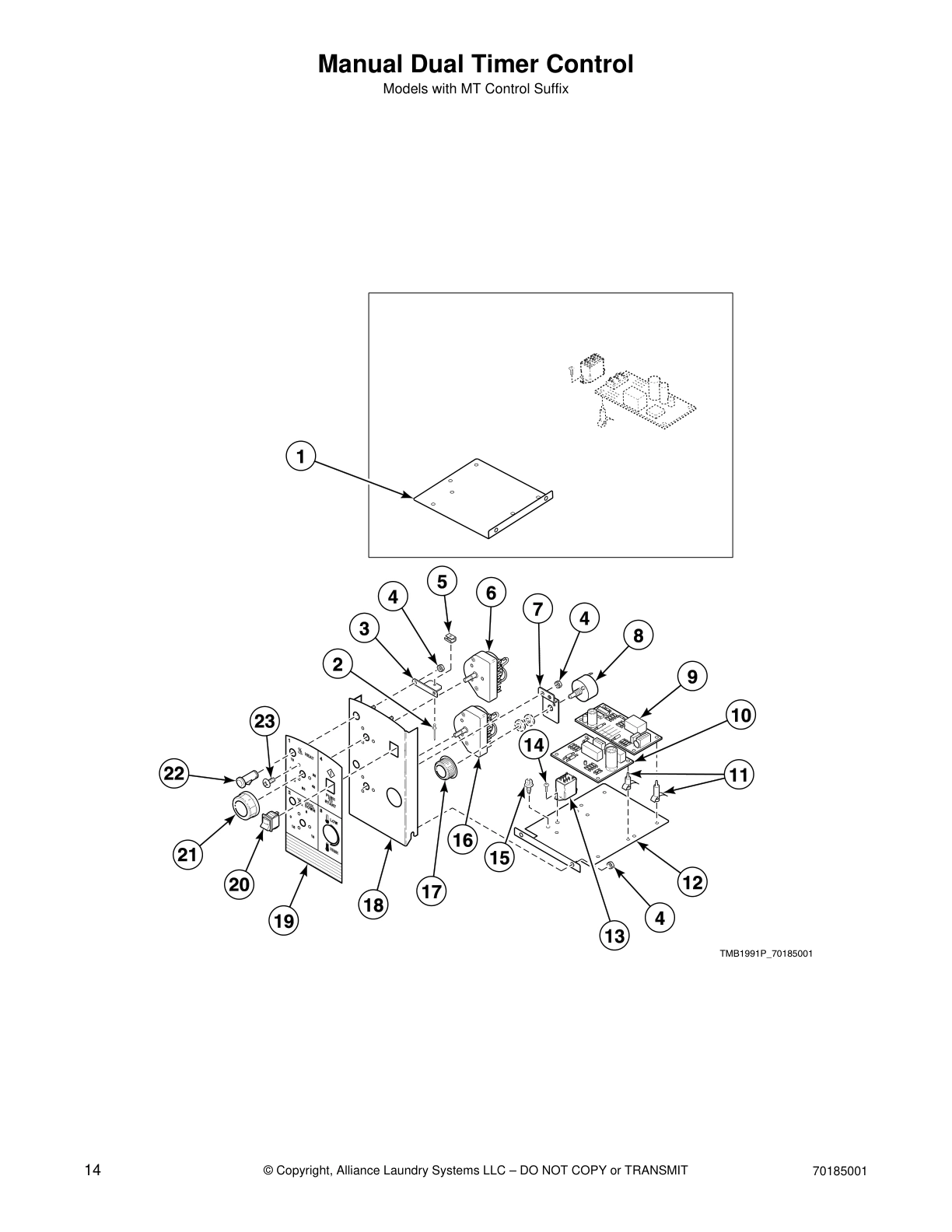

Manual Dual Timer Control
NetMaster Card Reader

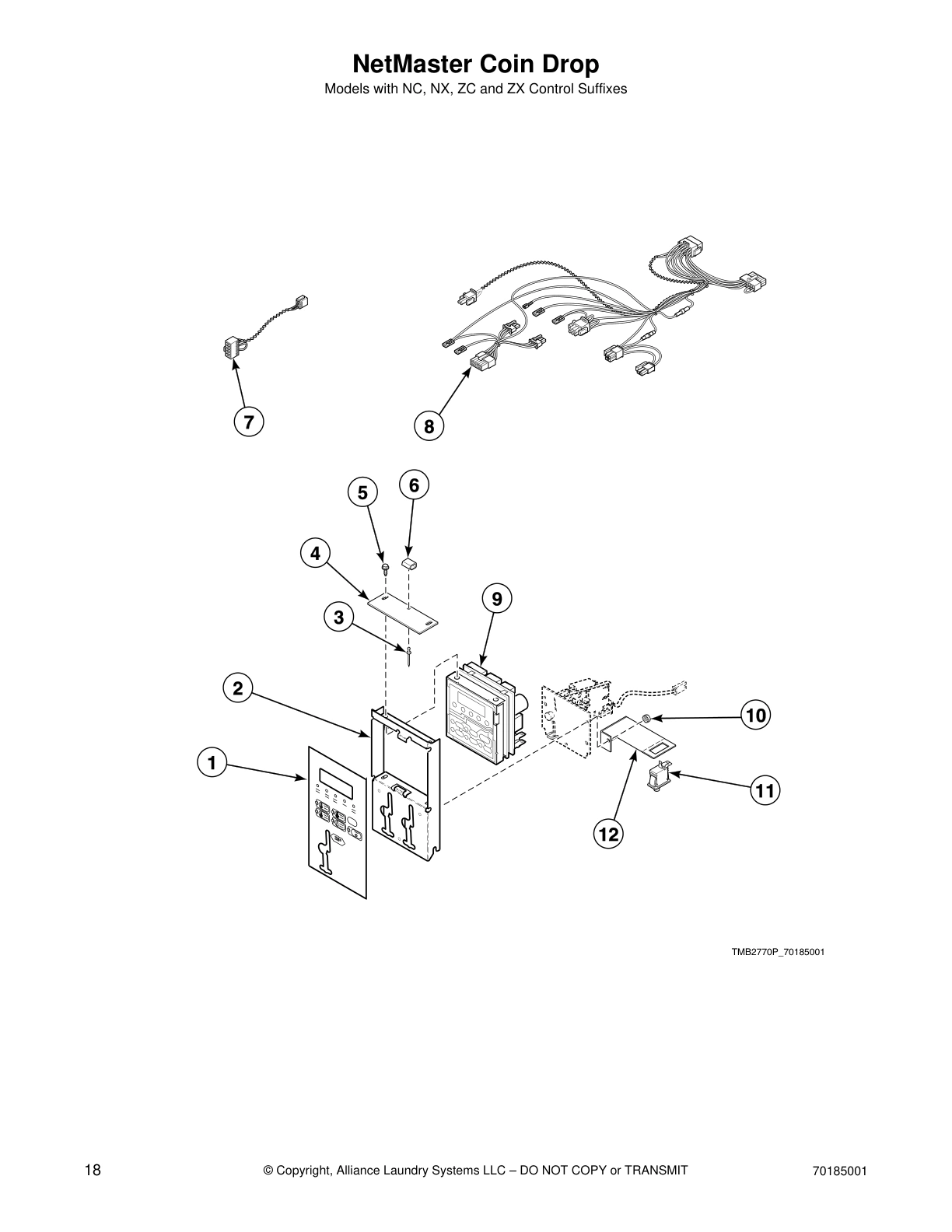

NetMaster Coin Drop

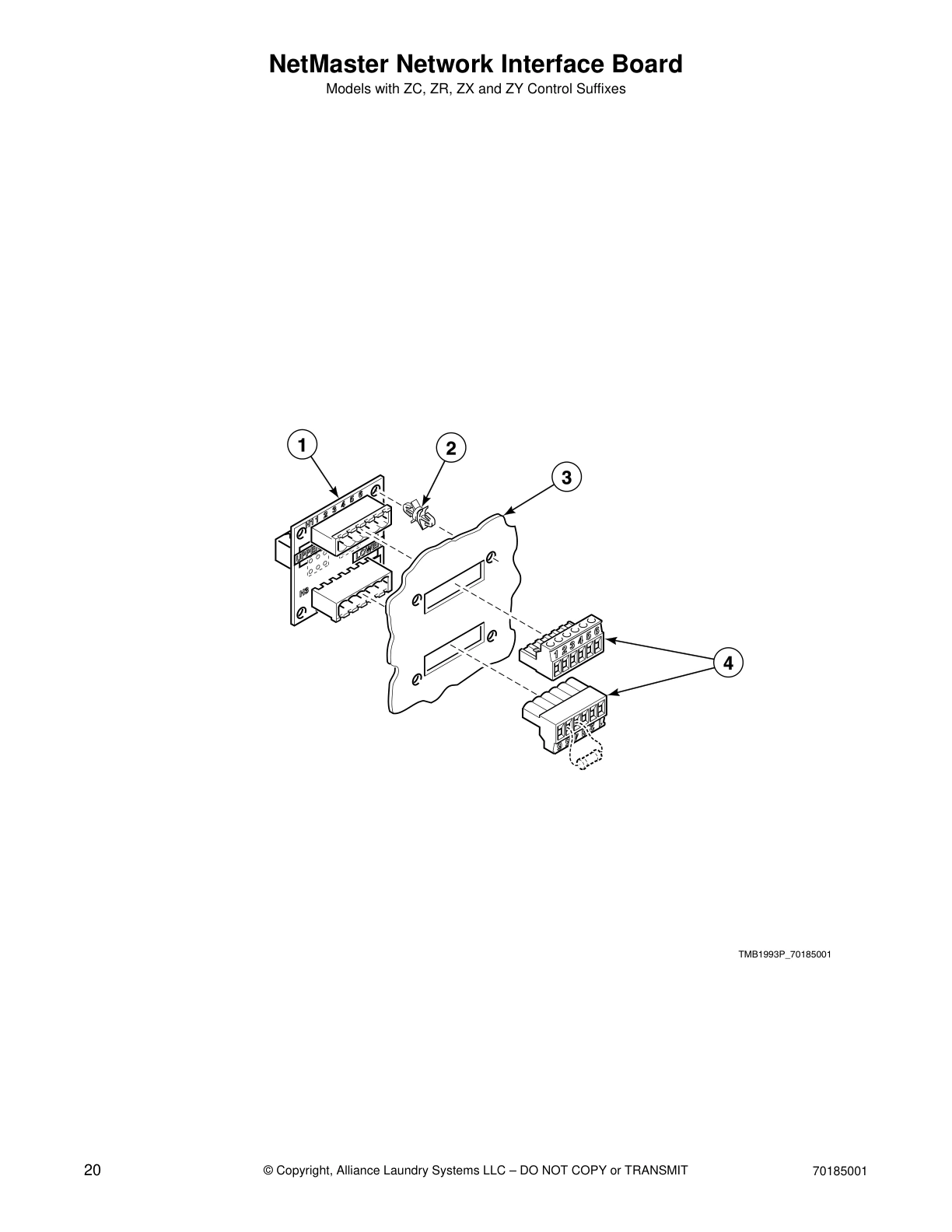

NetMaster Network Interface Board

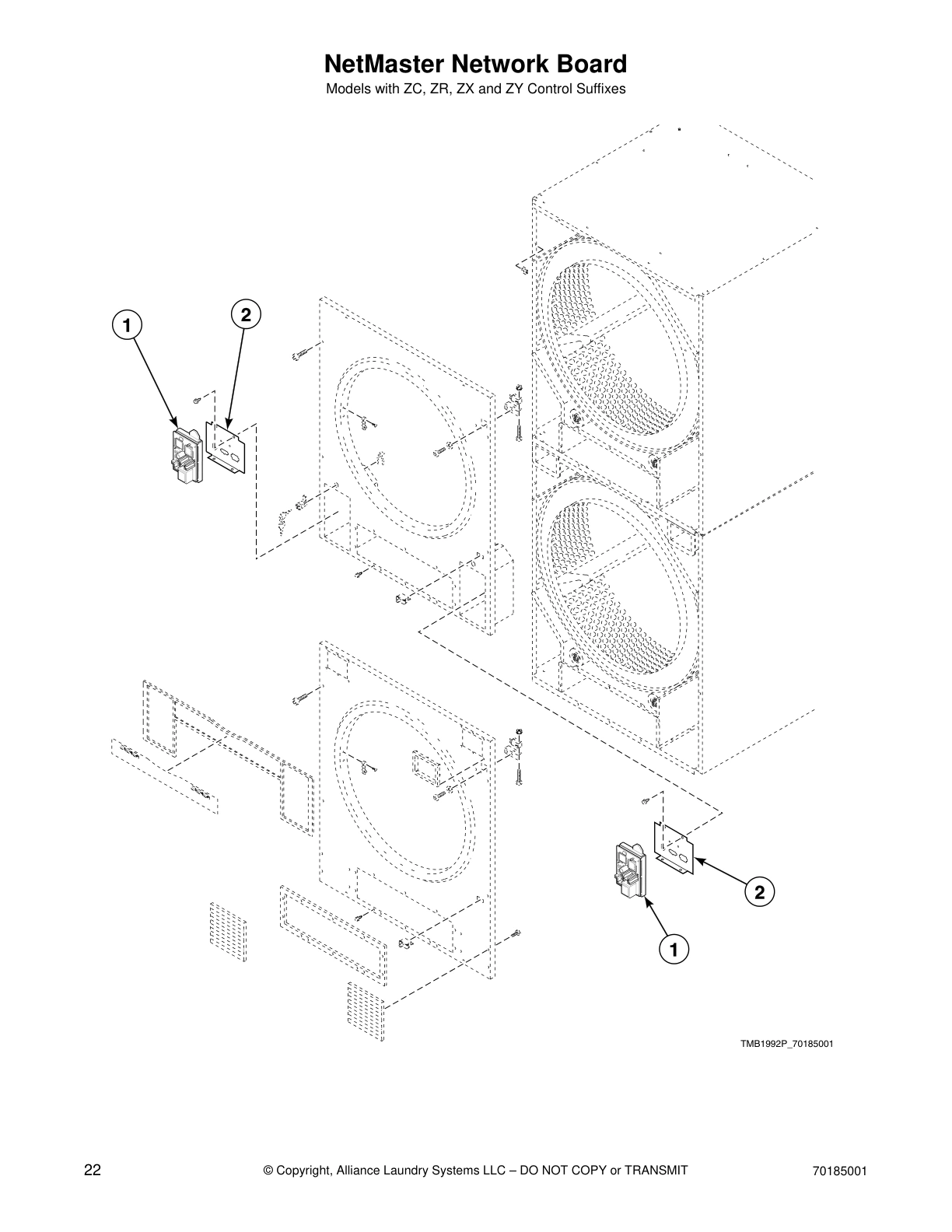

NetMaster Network Board

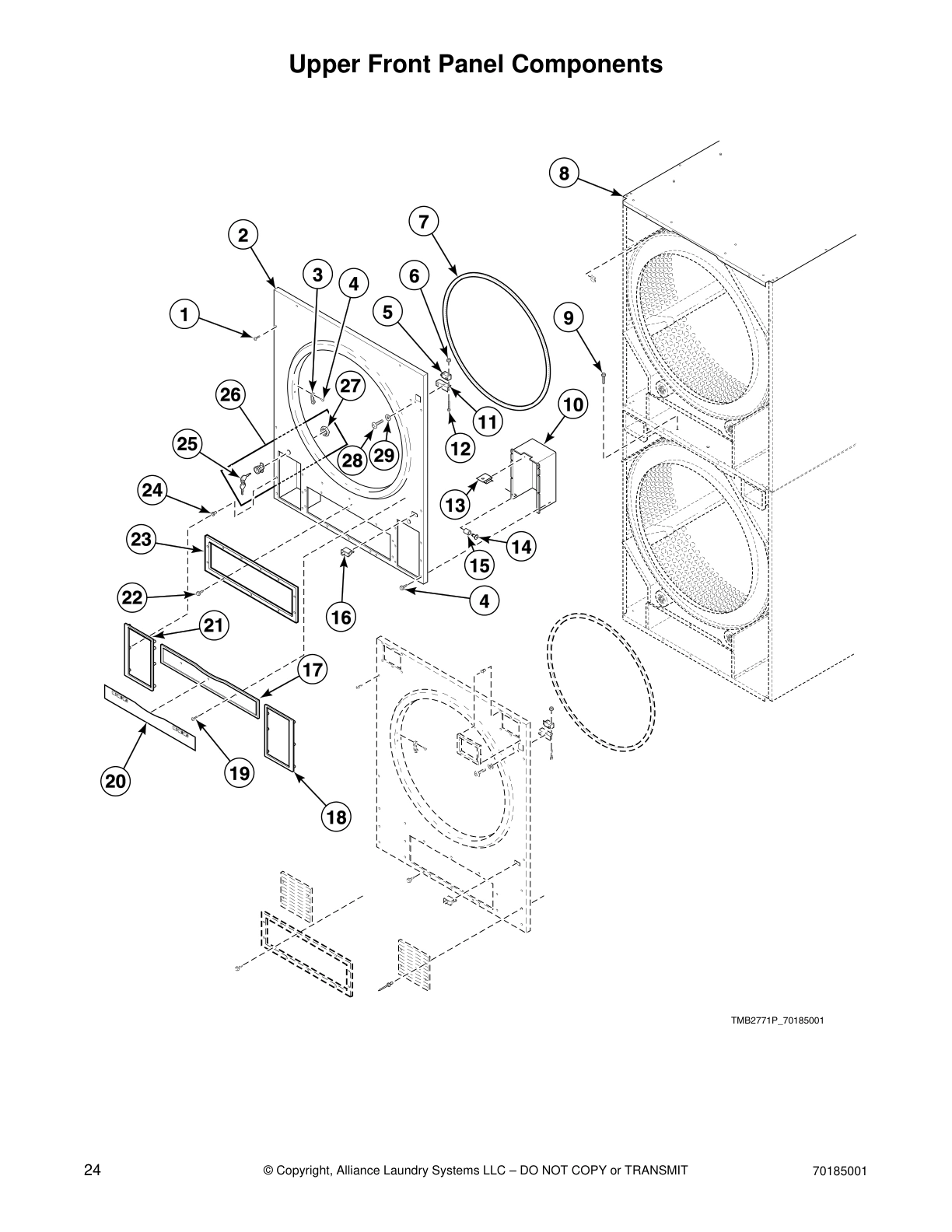

Upper Front Panel Components
Lower Front Panel Components

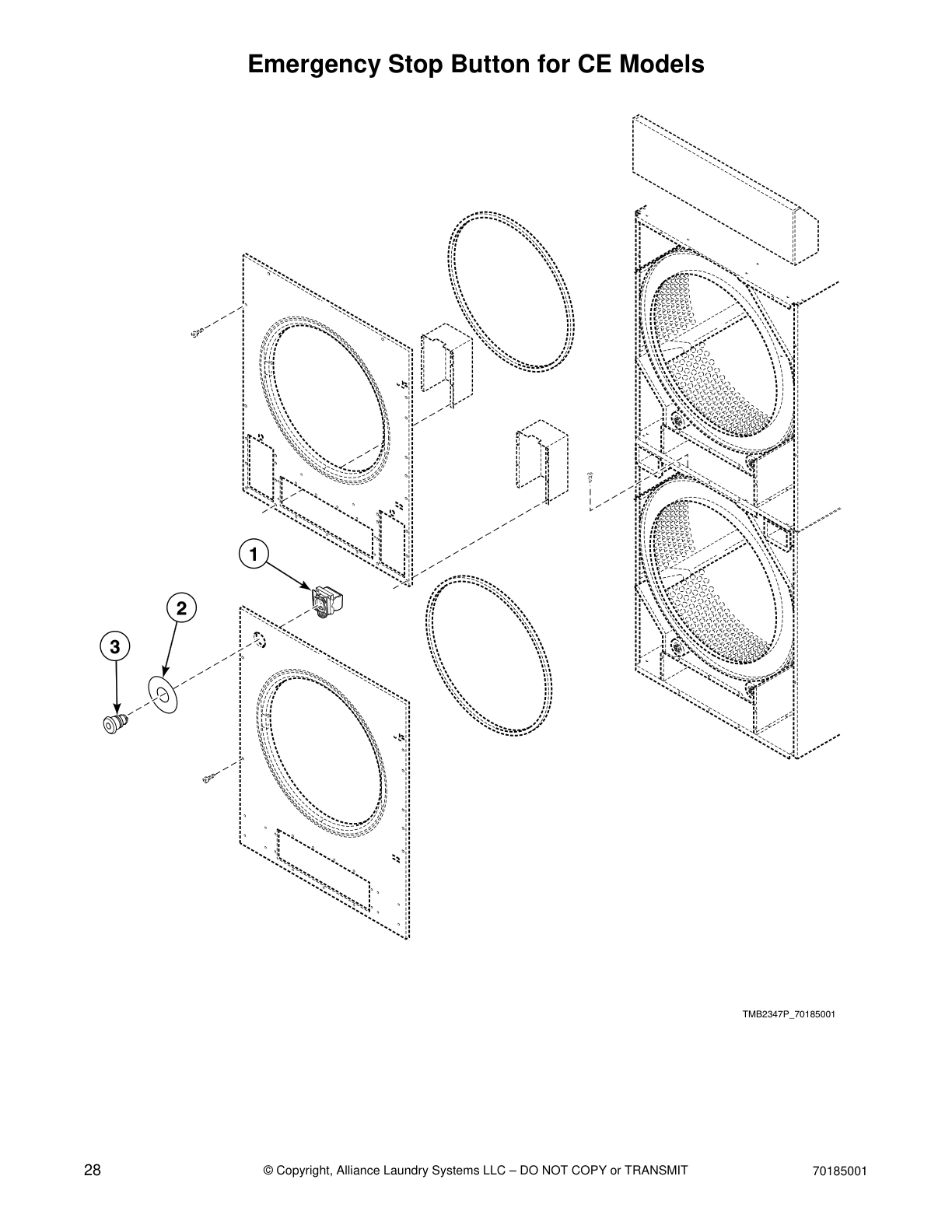

Emergency Stop Button for CE Models

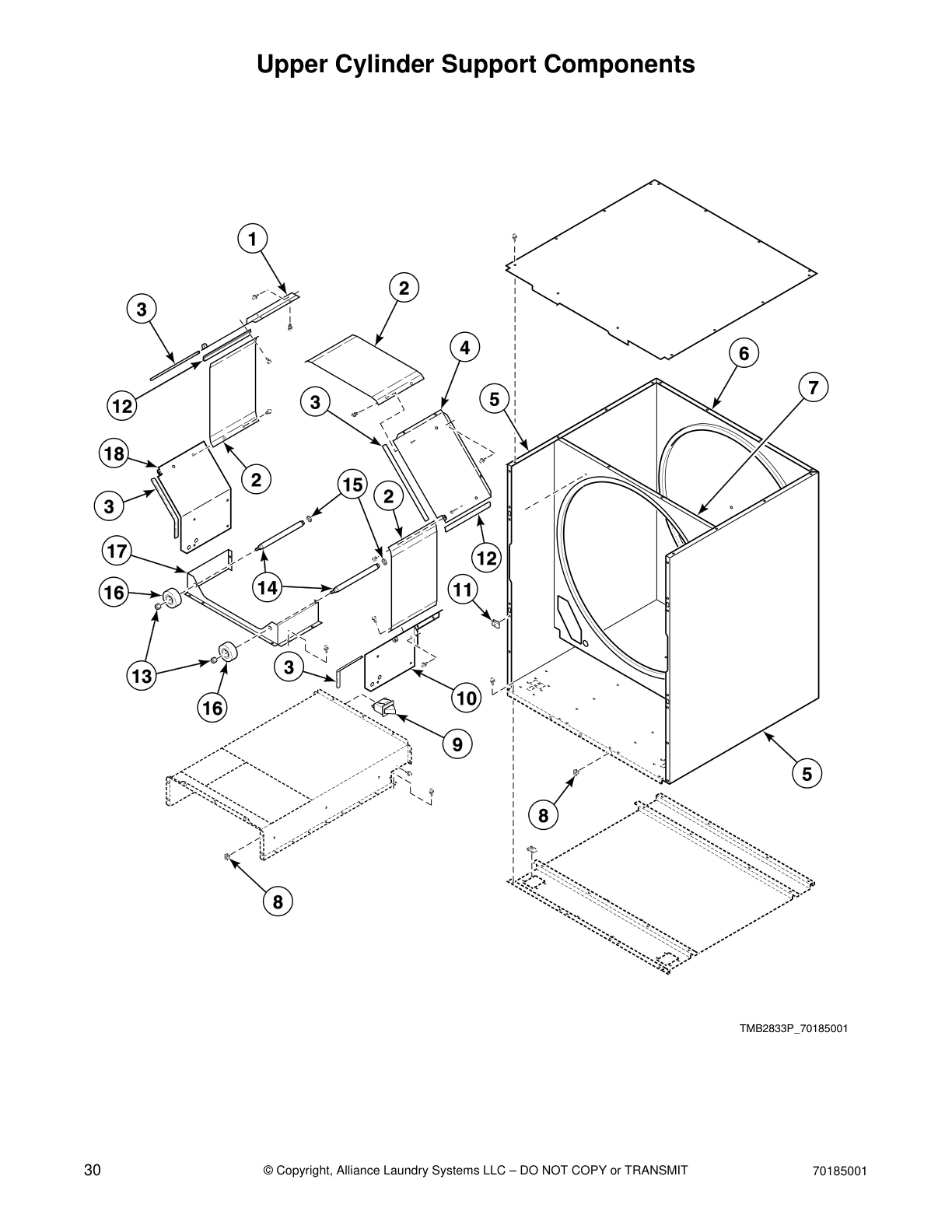

Upper Cylinder Support Components
Lower Cylinder Support Components

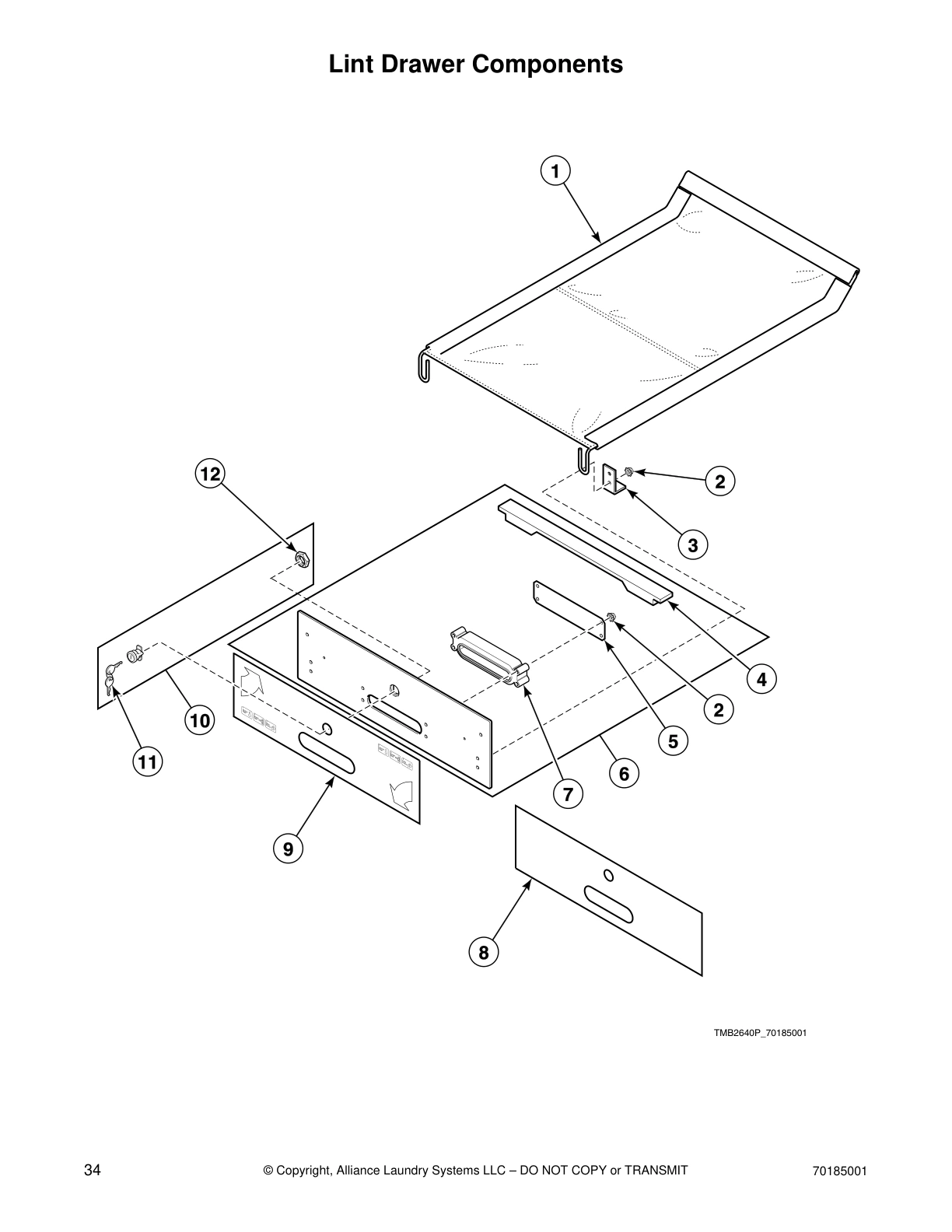

Lint Drawer Components
Door and Hinge Components

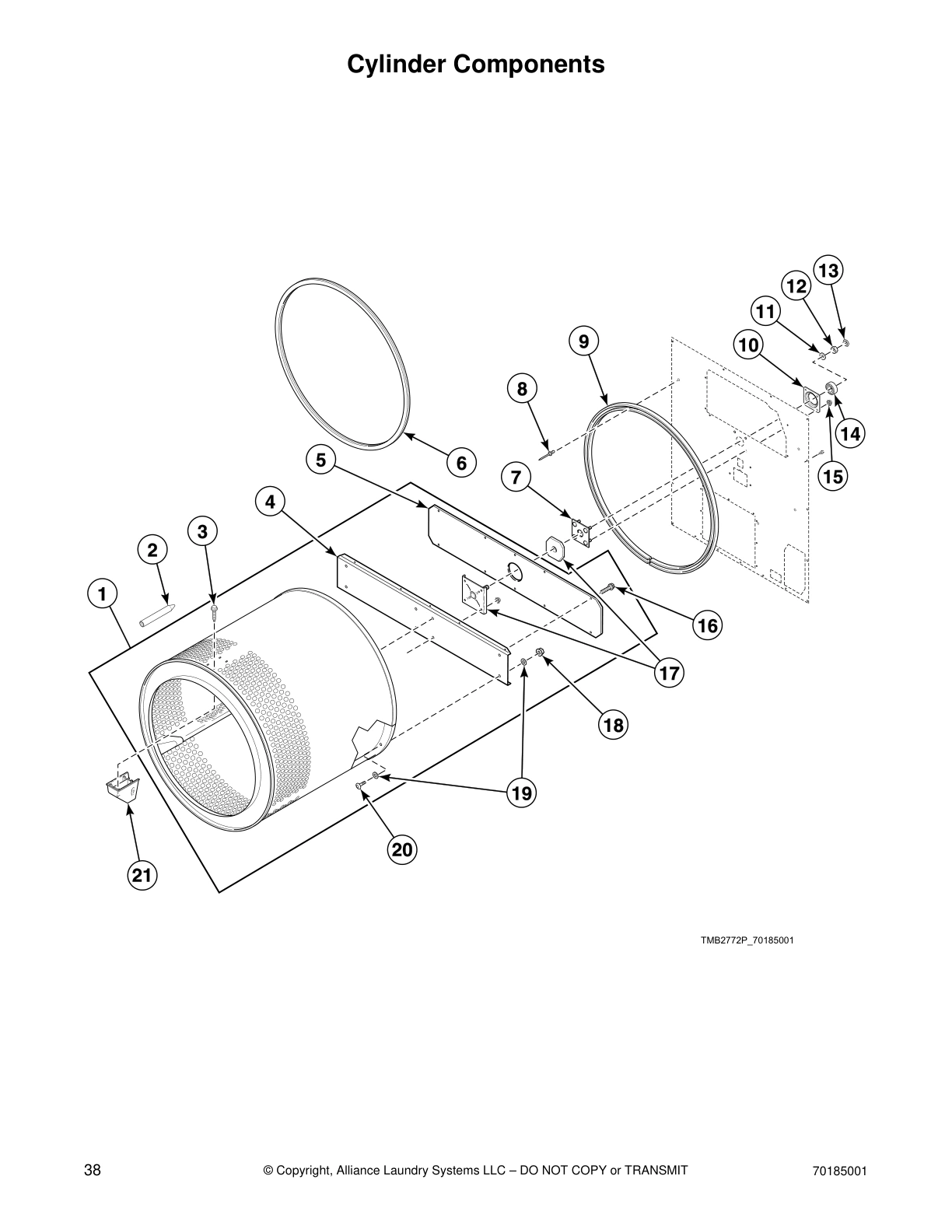

Cylinder Components

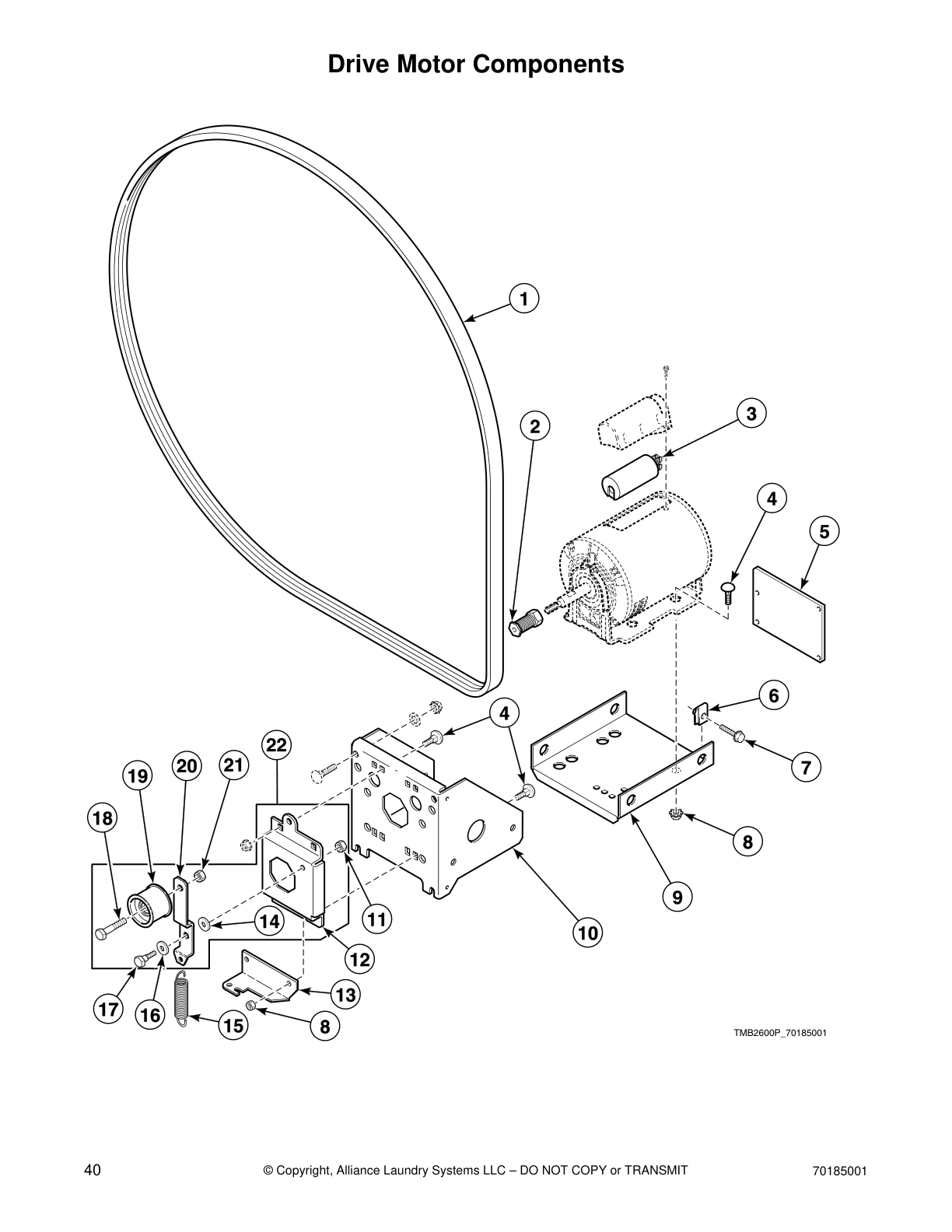

Drive Motor Components

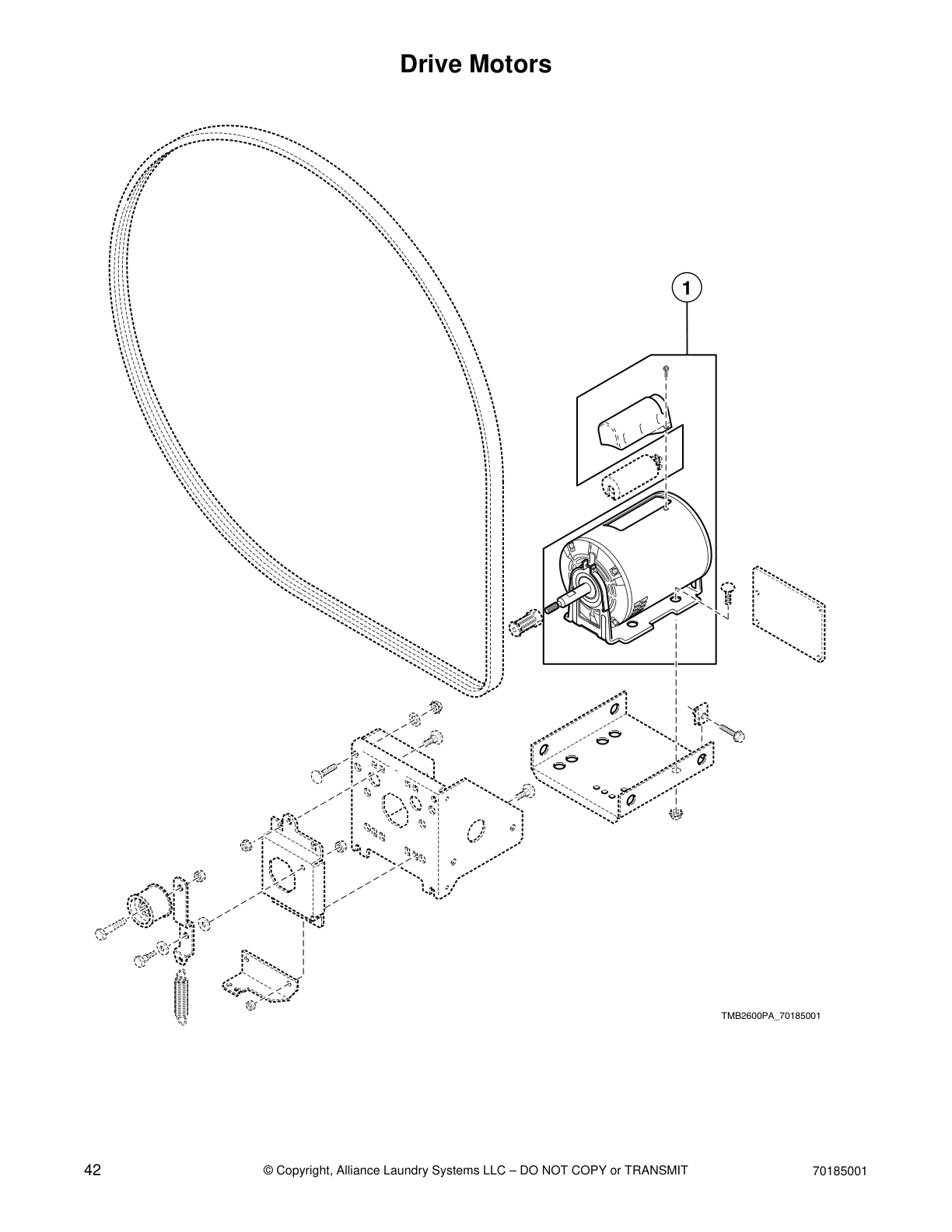

Drive Motors

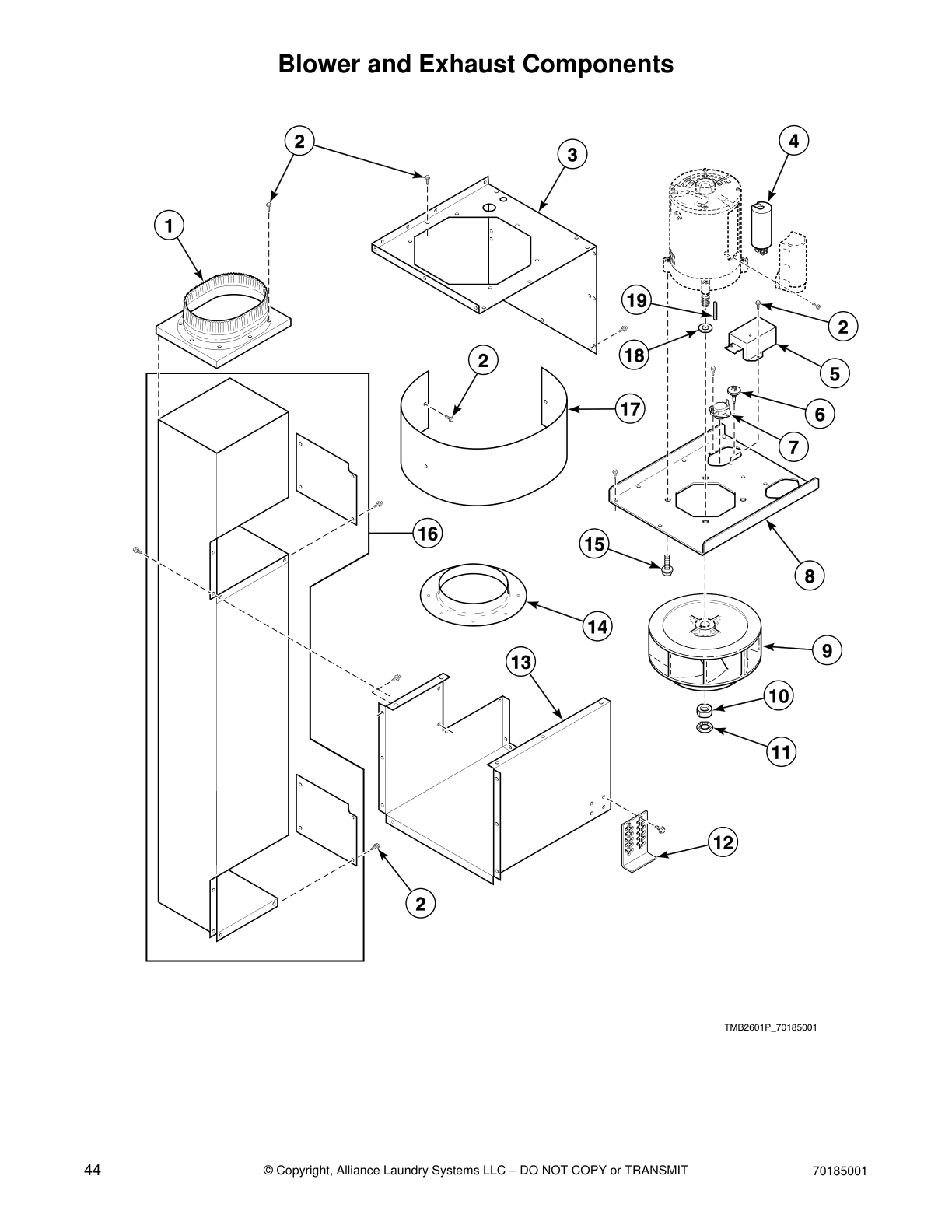

Blower and Exhaust Components

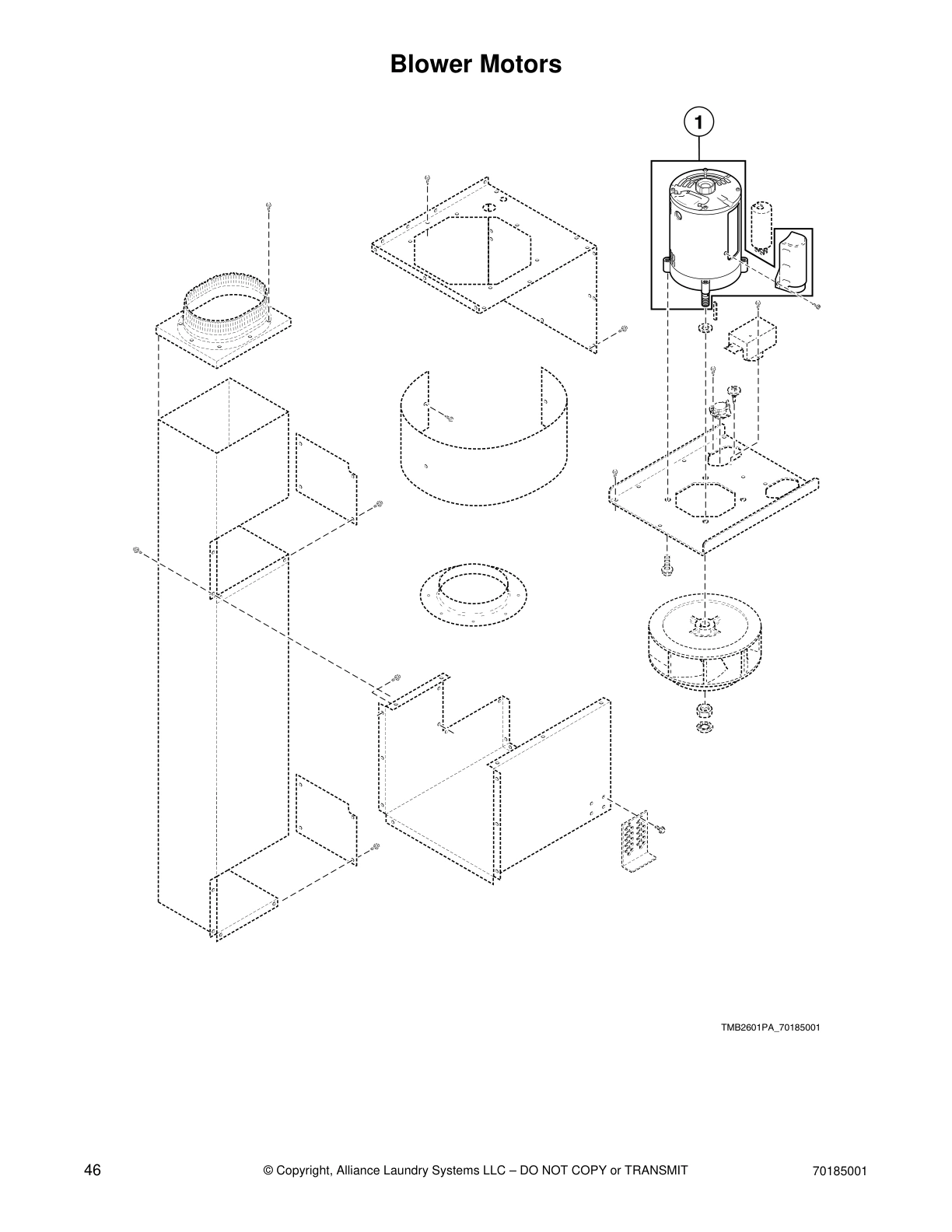

Blower Motors

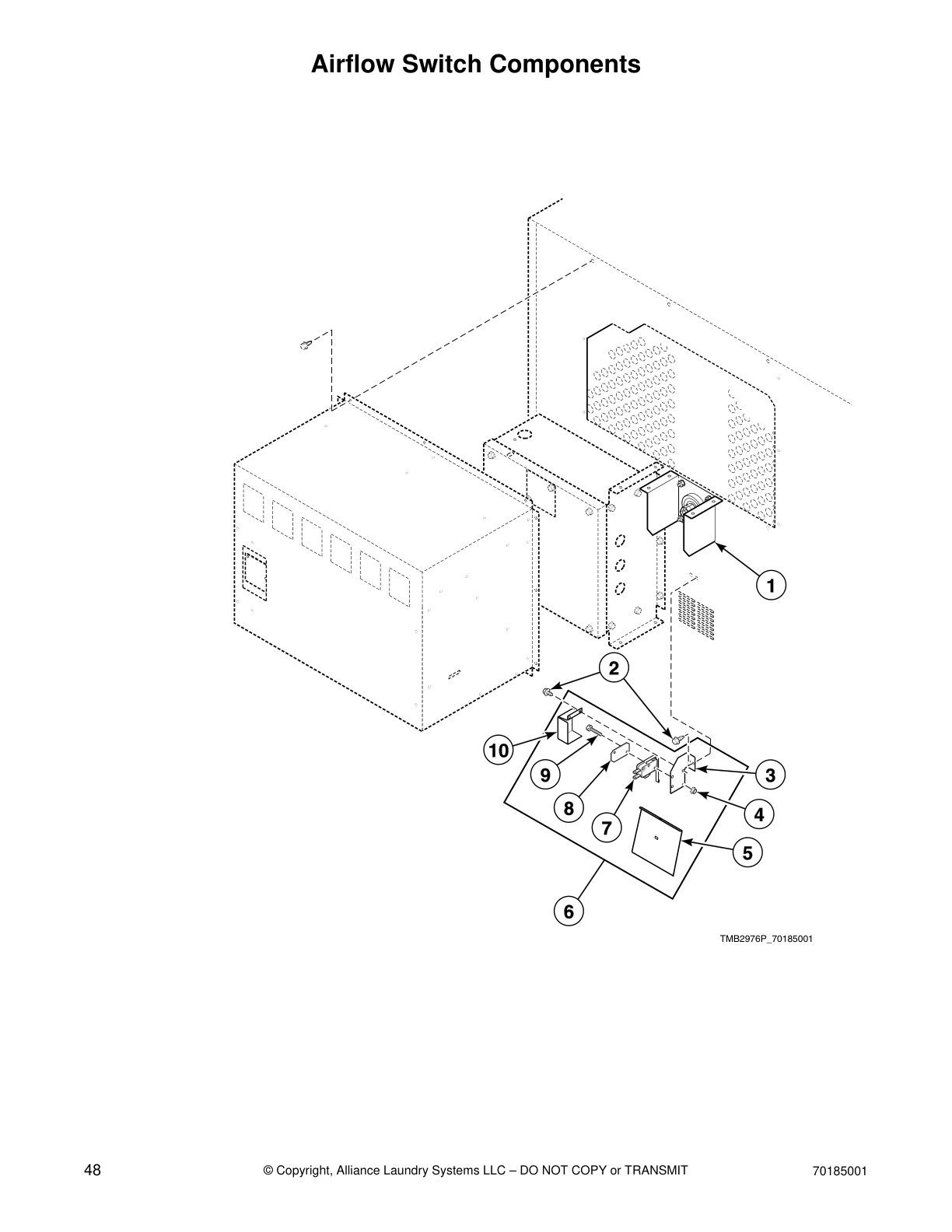

Airflow Switch Components

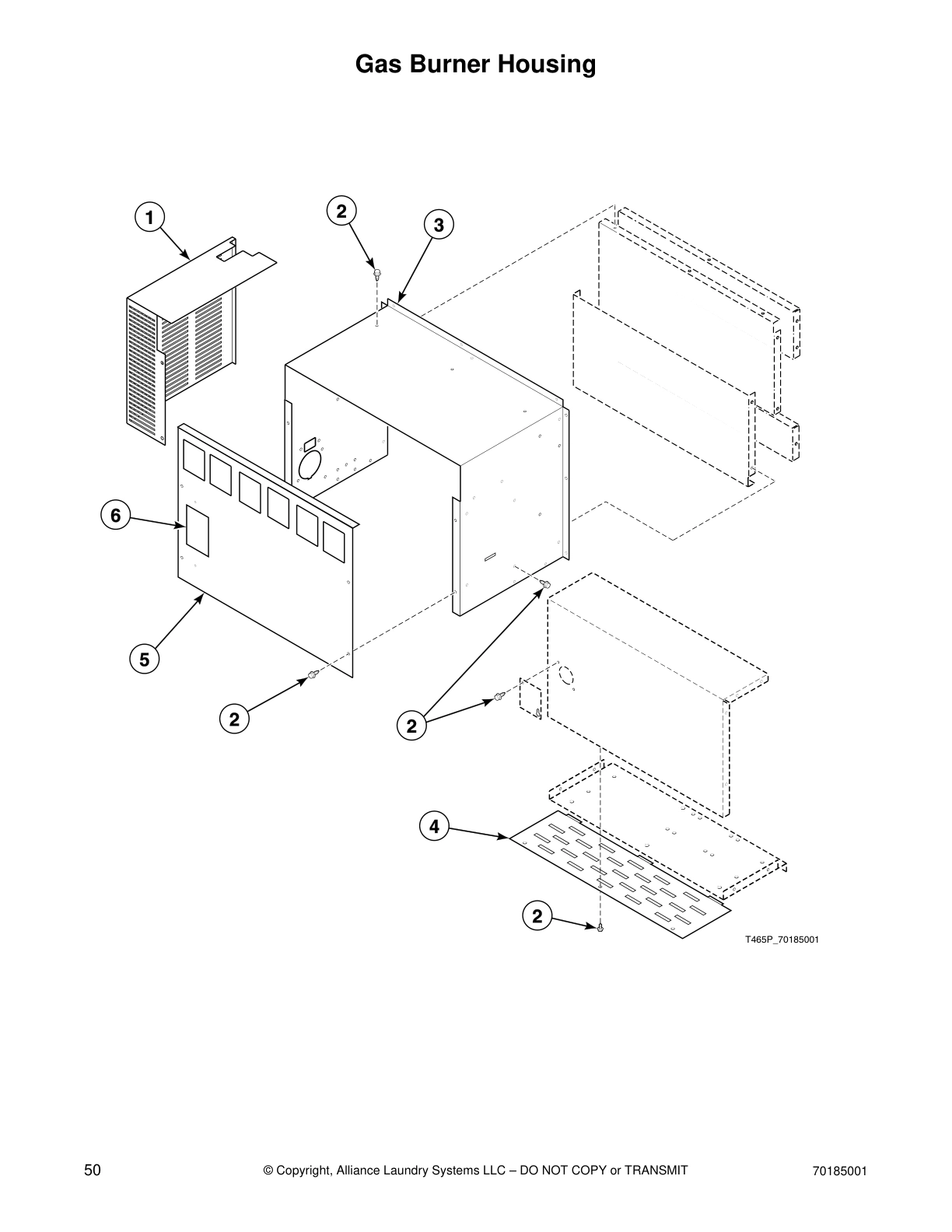

Gas Burner Housing

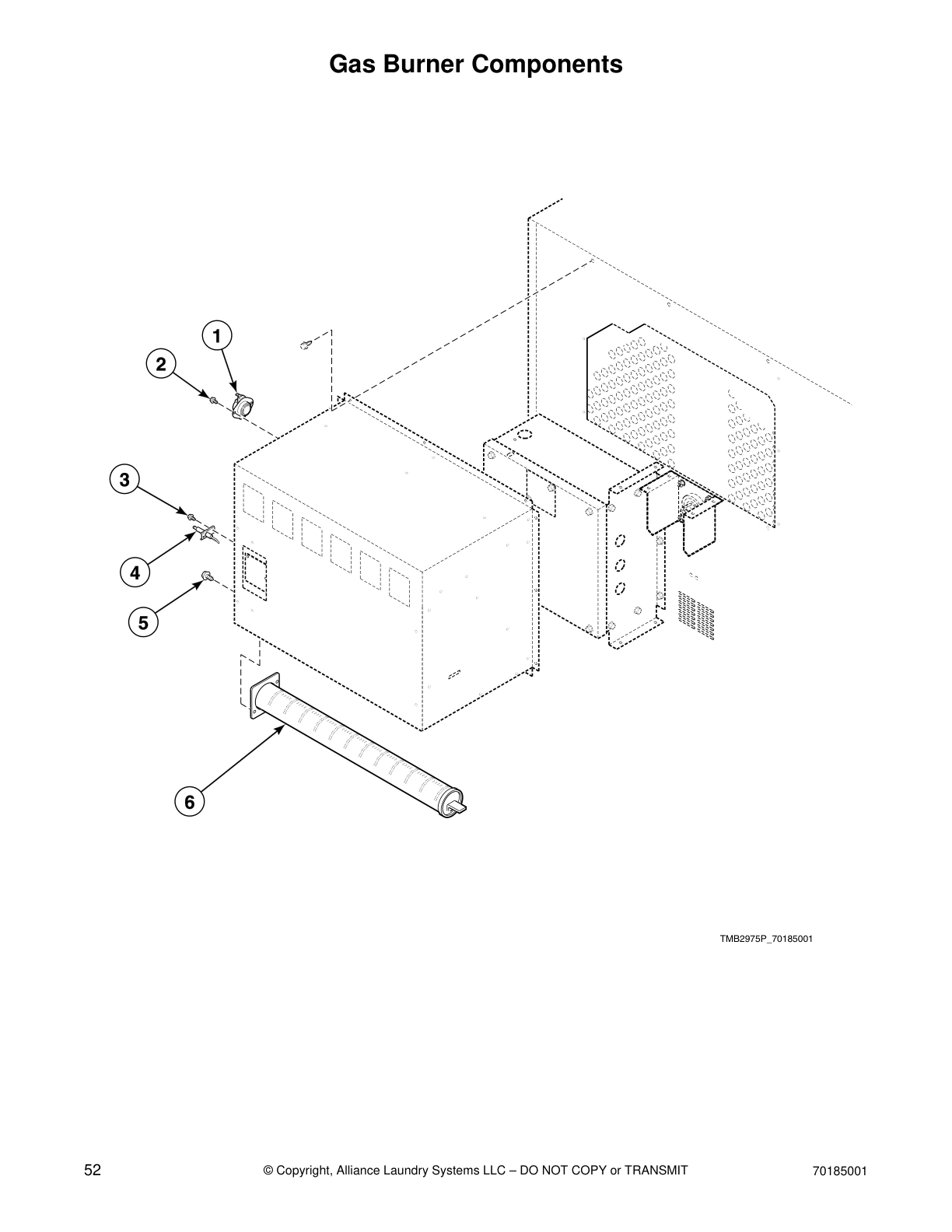

Gas Burner Components

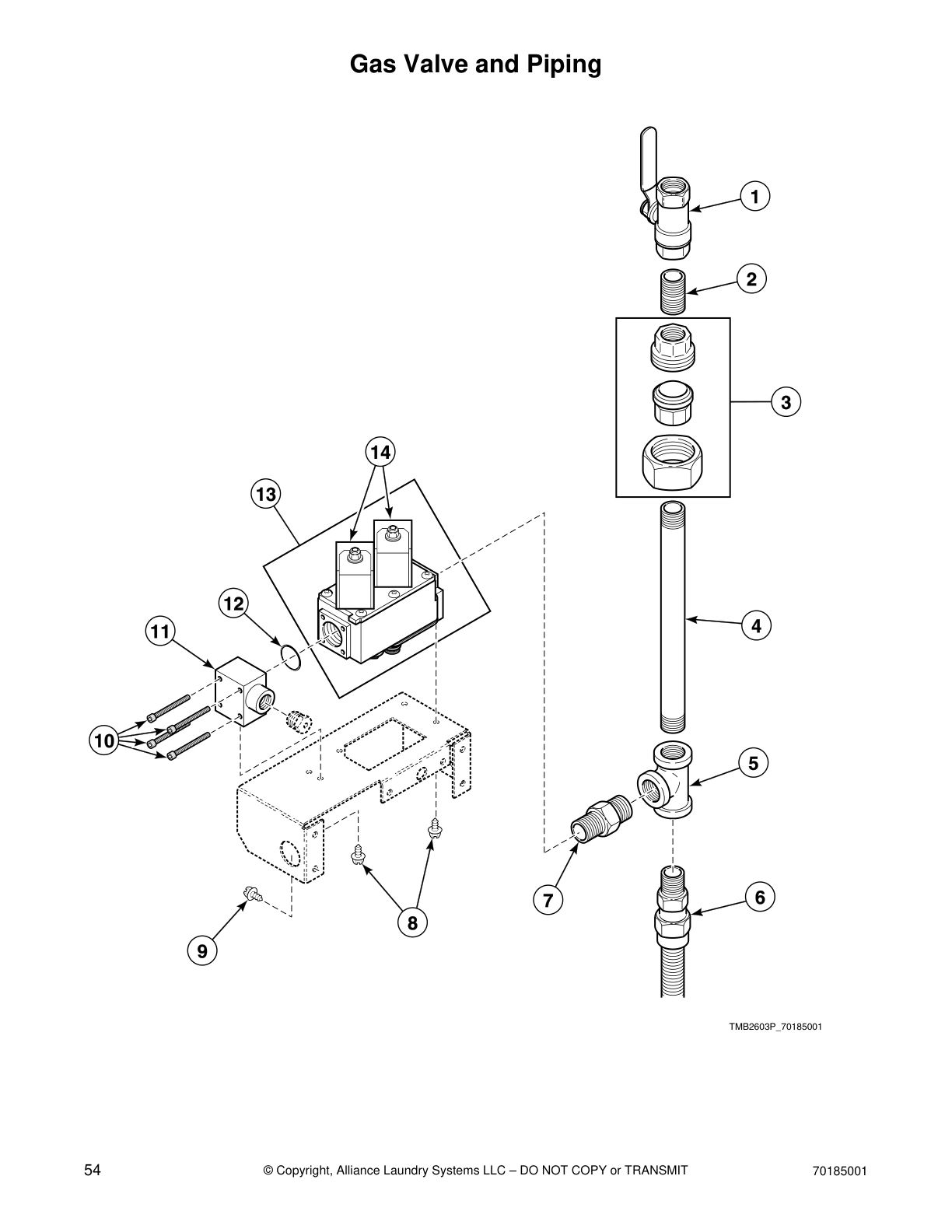

Gas Valve and Piping

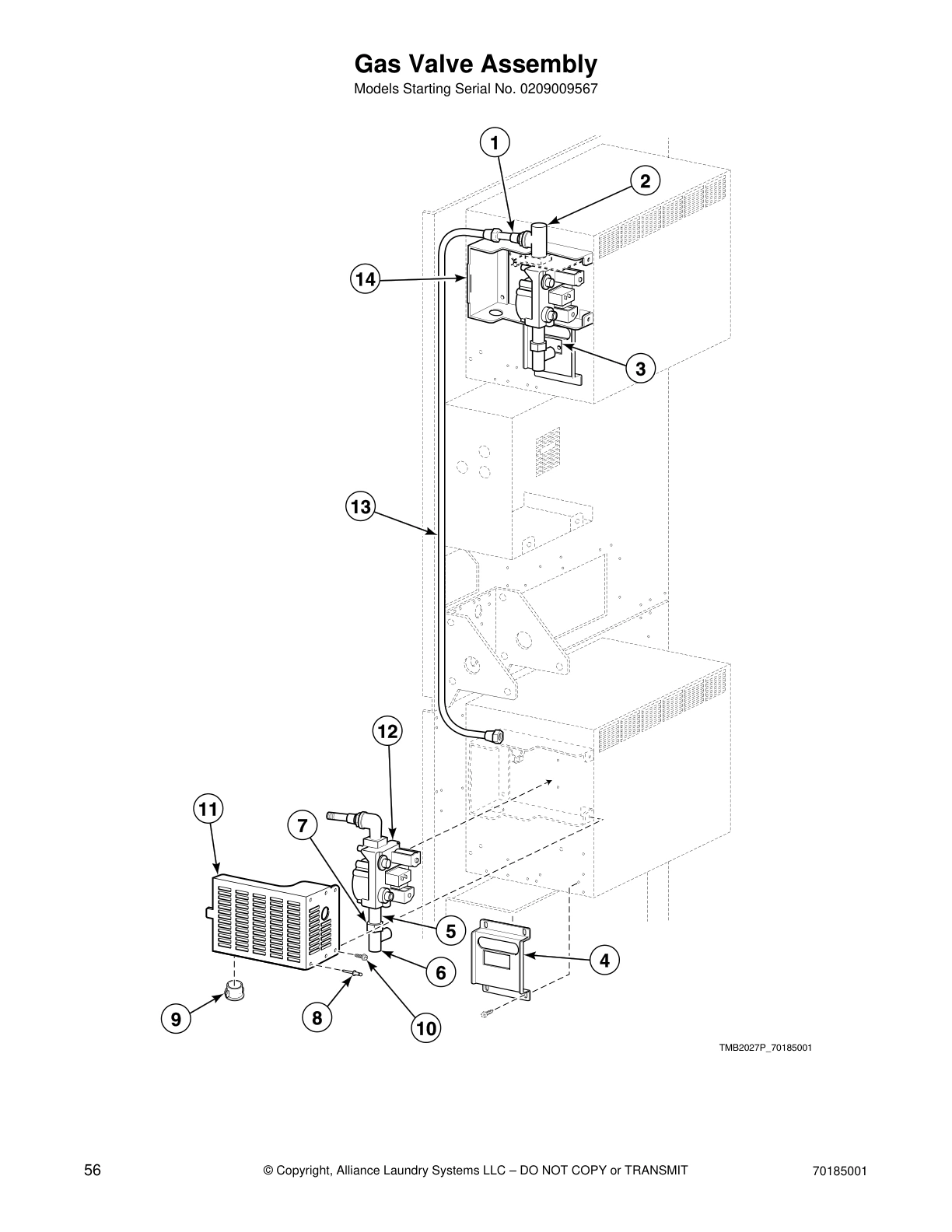

Gas Valve Assembly

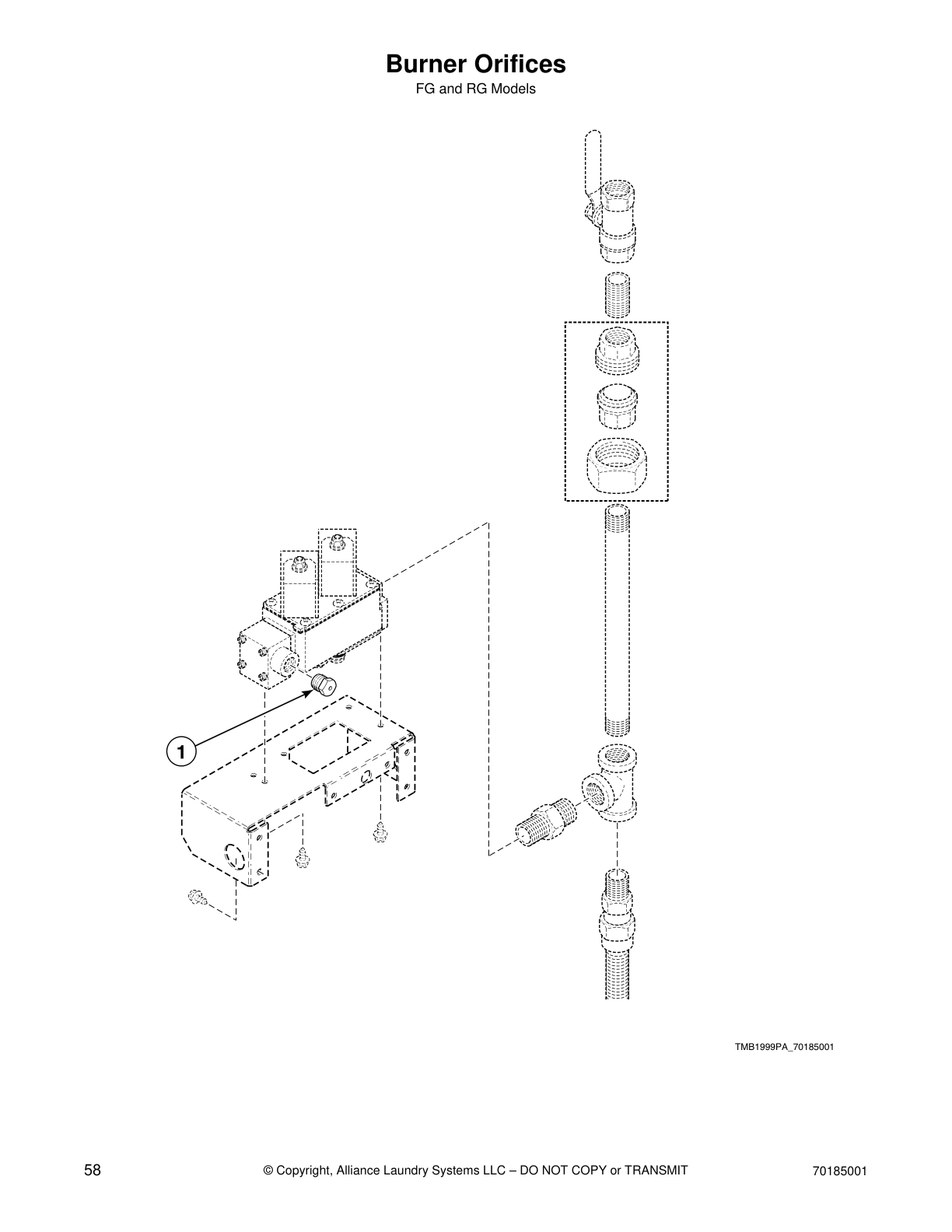

Burner Orifices

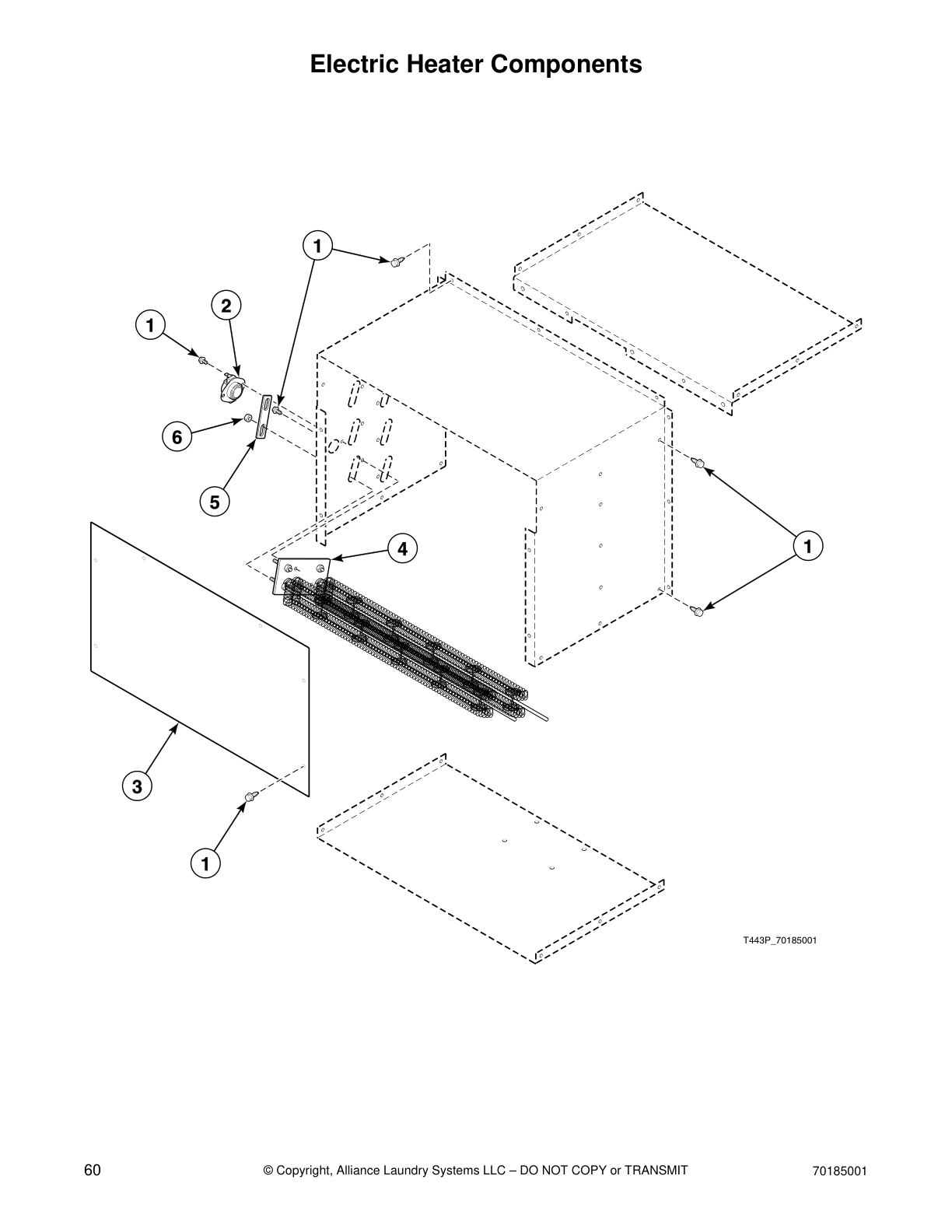

Electric Heater Components

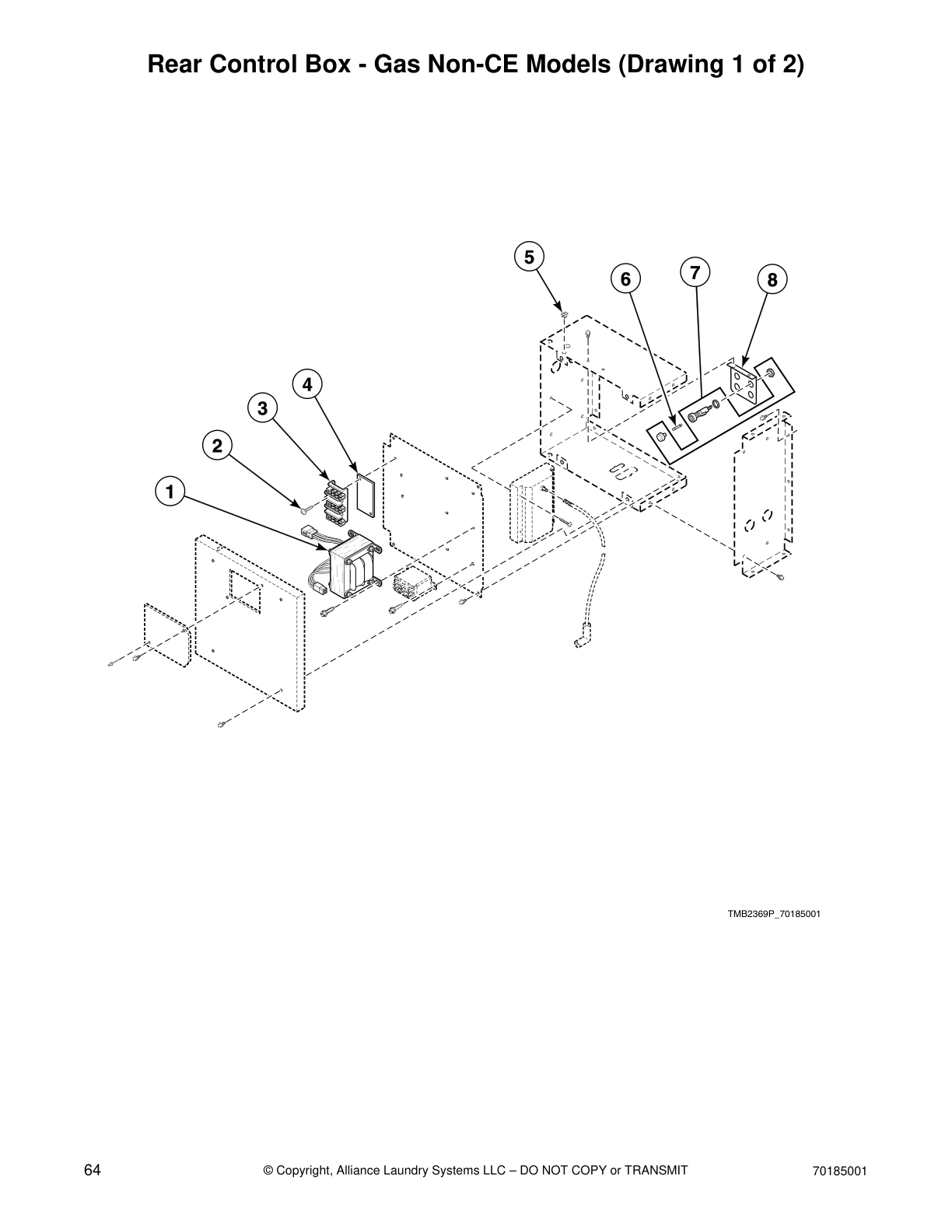

Rear Control Box - Gas Non-CE Models (Drawing 1 of 2)

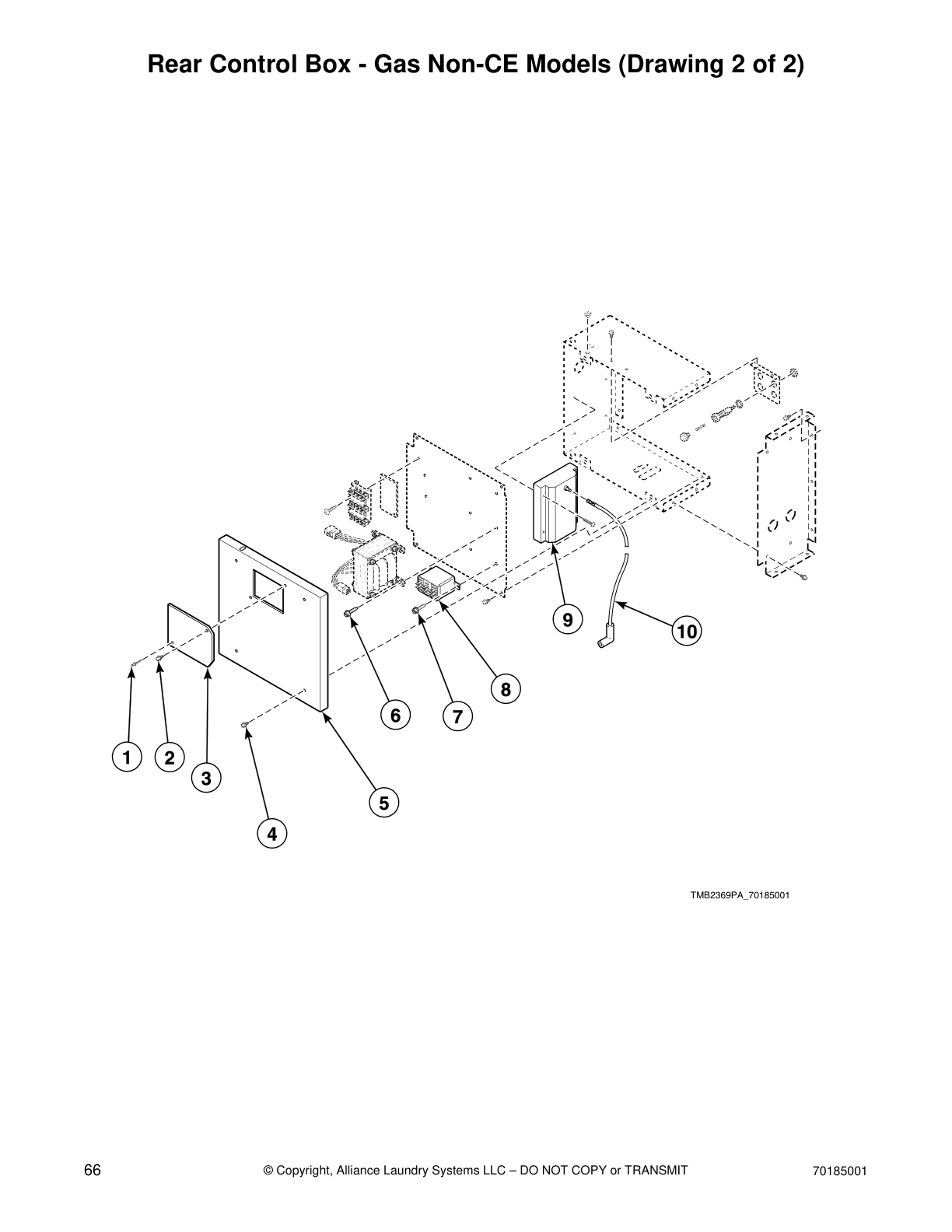

Rear Control Box - Gas Non-CE Models (Drawing 2 of 2)

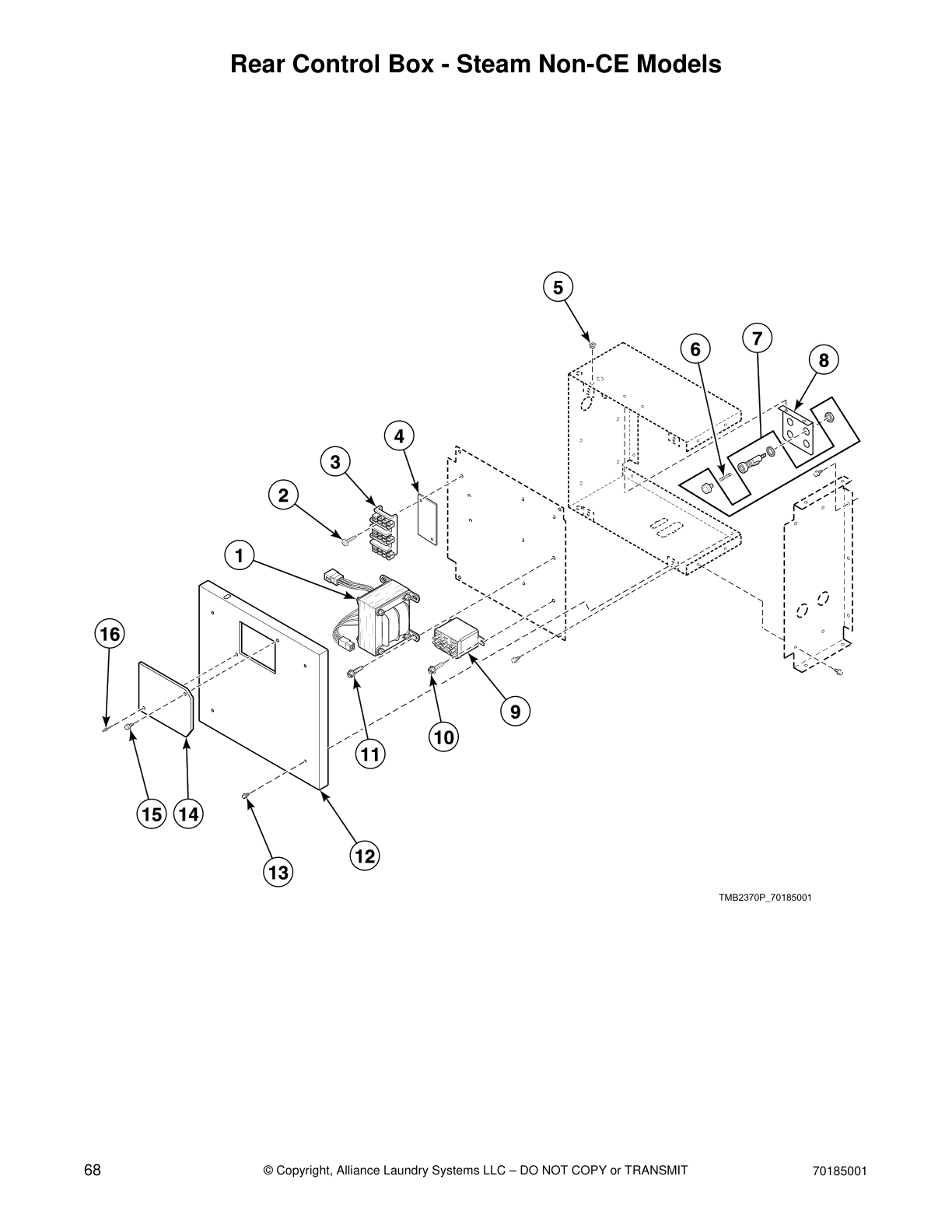

Rear Control Box - Steam Non-CE Models

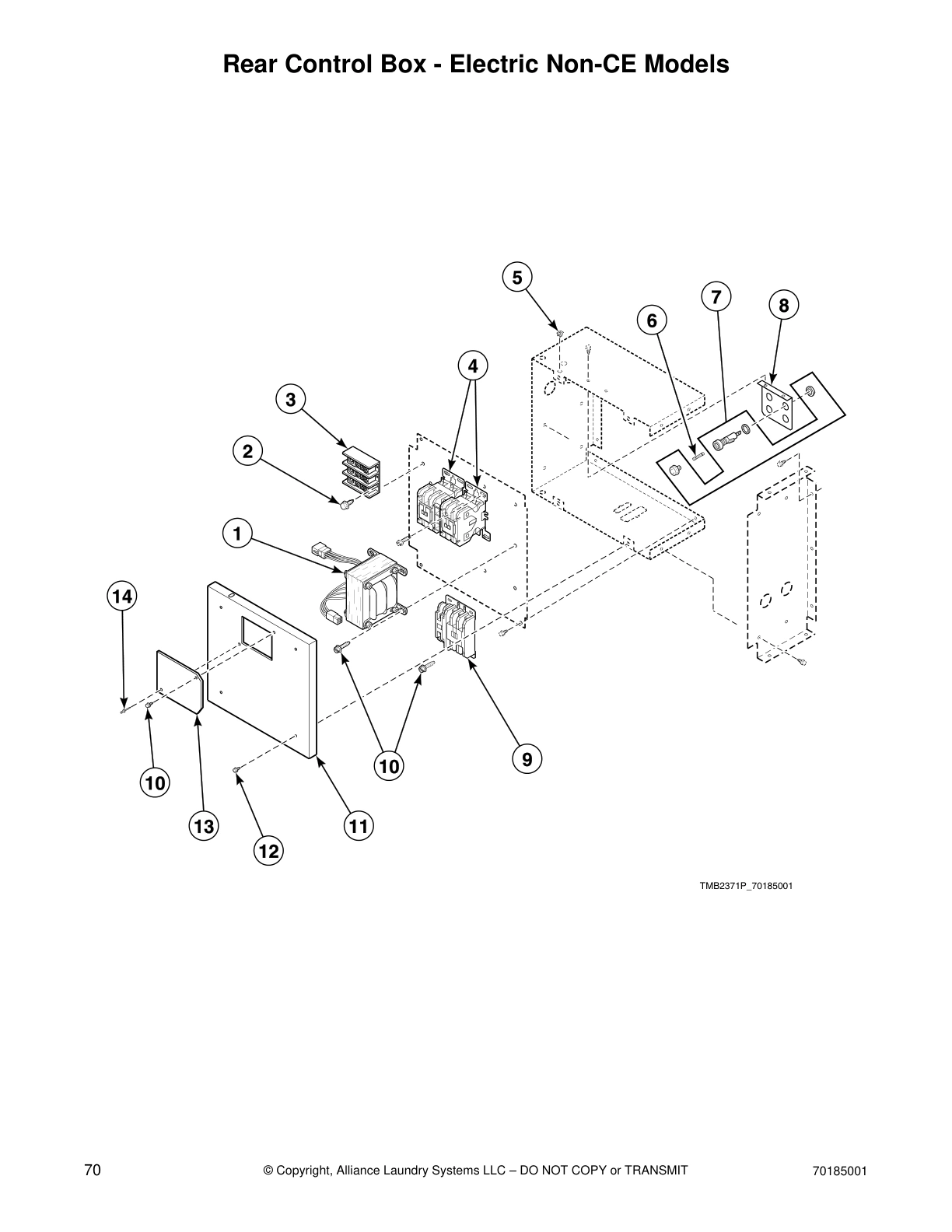

Rear Control Box - Electric Non-CE Models

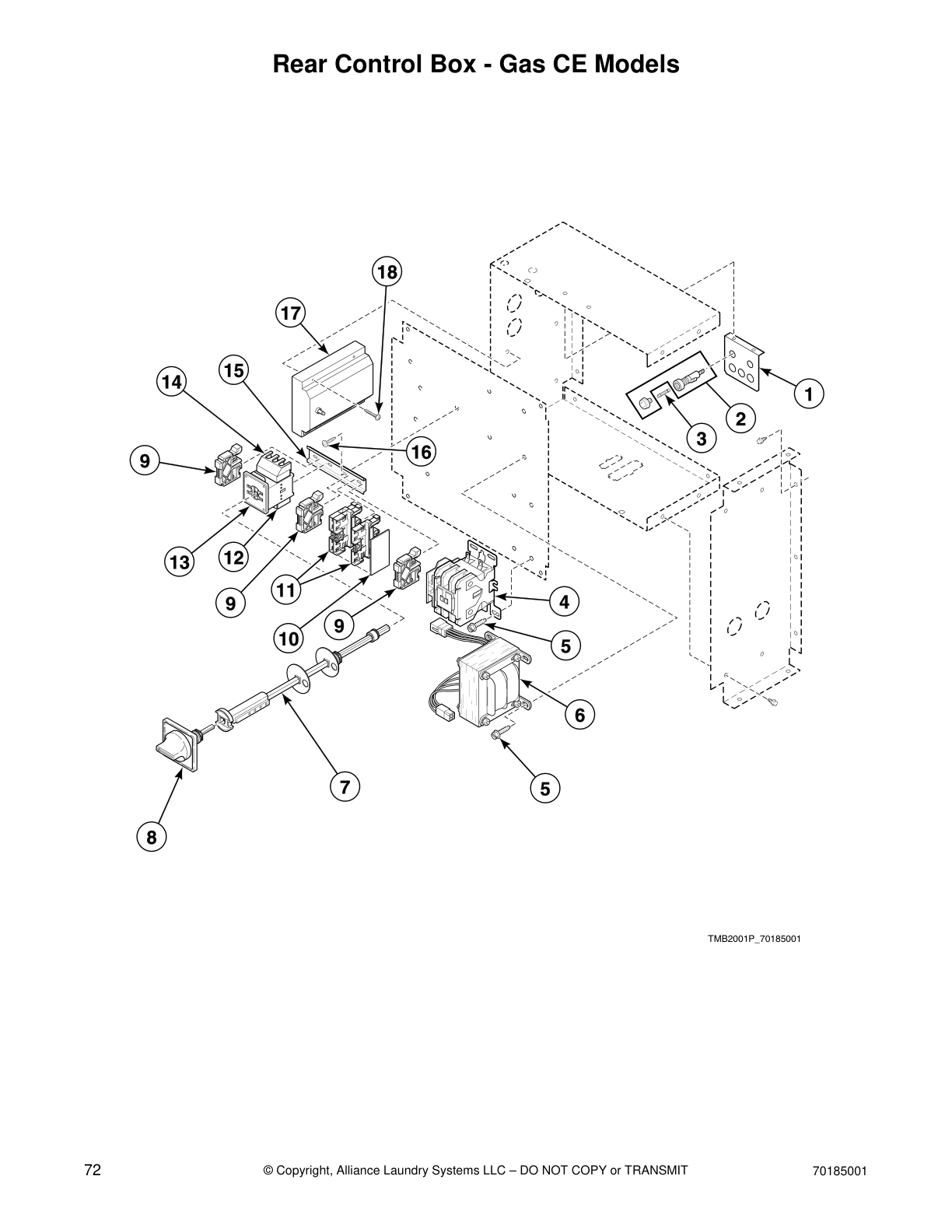

Rear Control Box - Gas CE Models

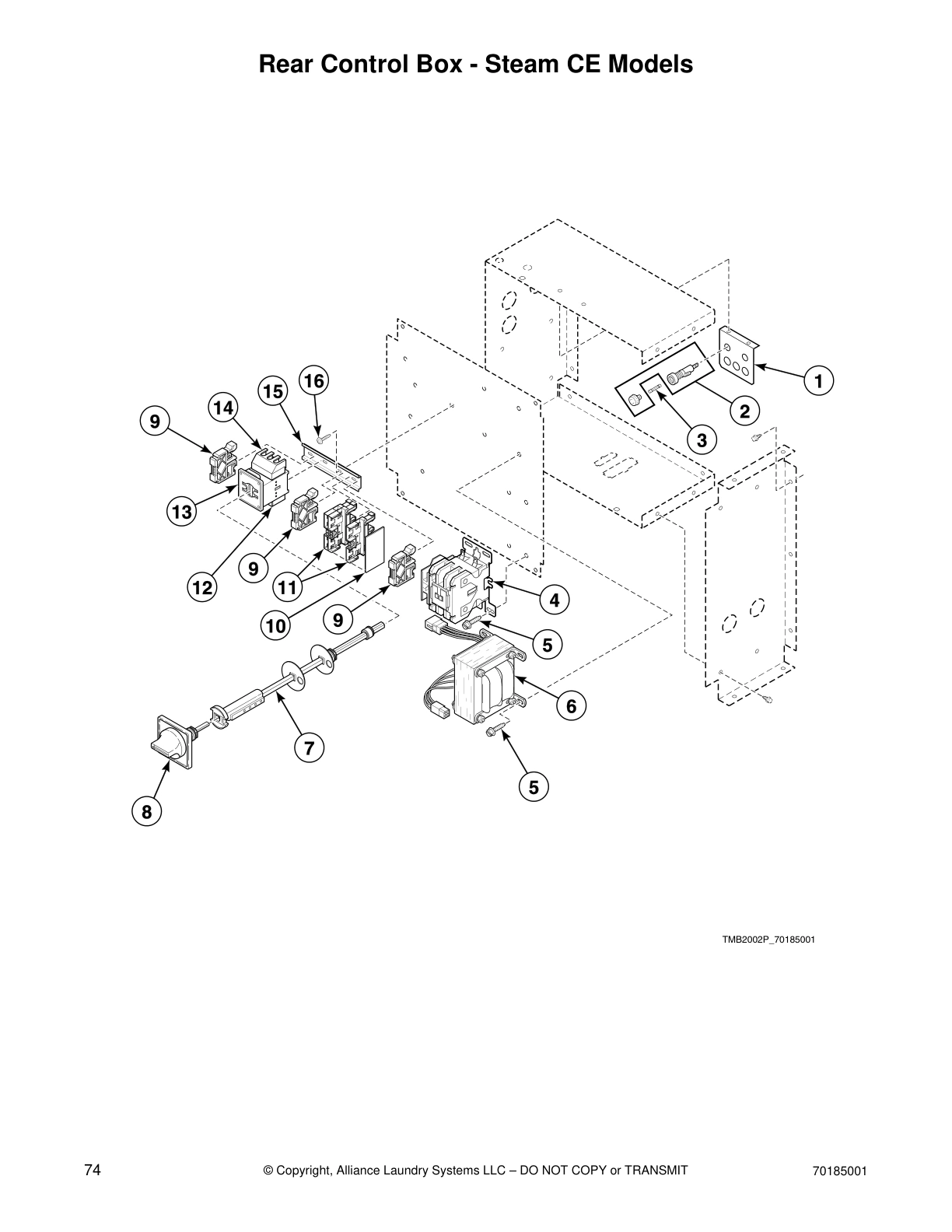

Rear Control Box - Steam CE Models

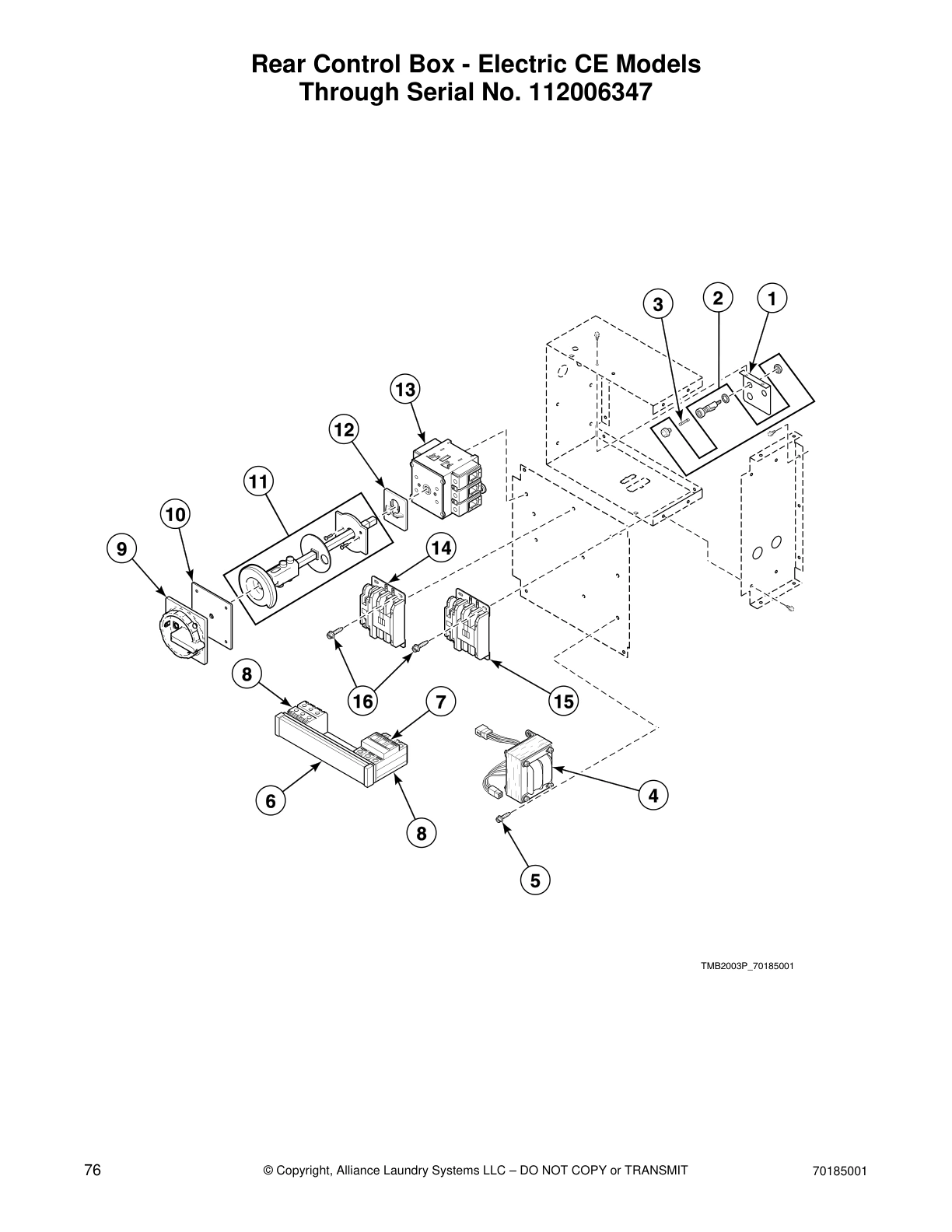

Rear Control Box - Electric CE Models
Through Serial No. 112006347
Rear Control Box - Electric CE Models

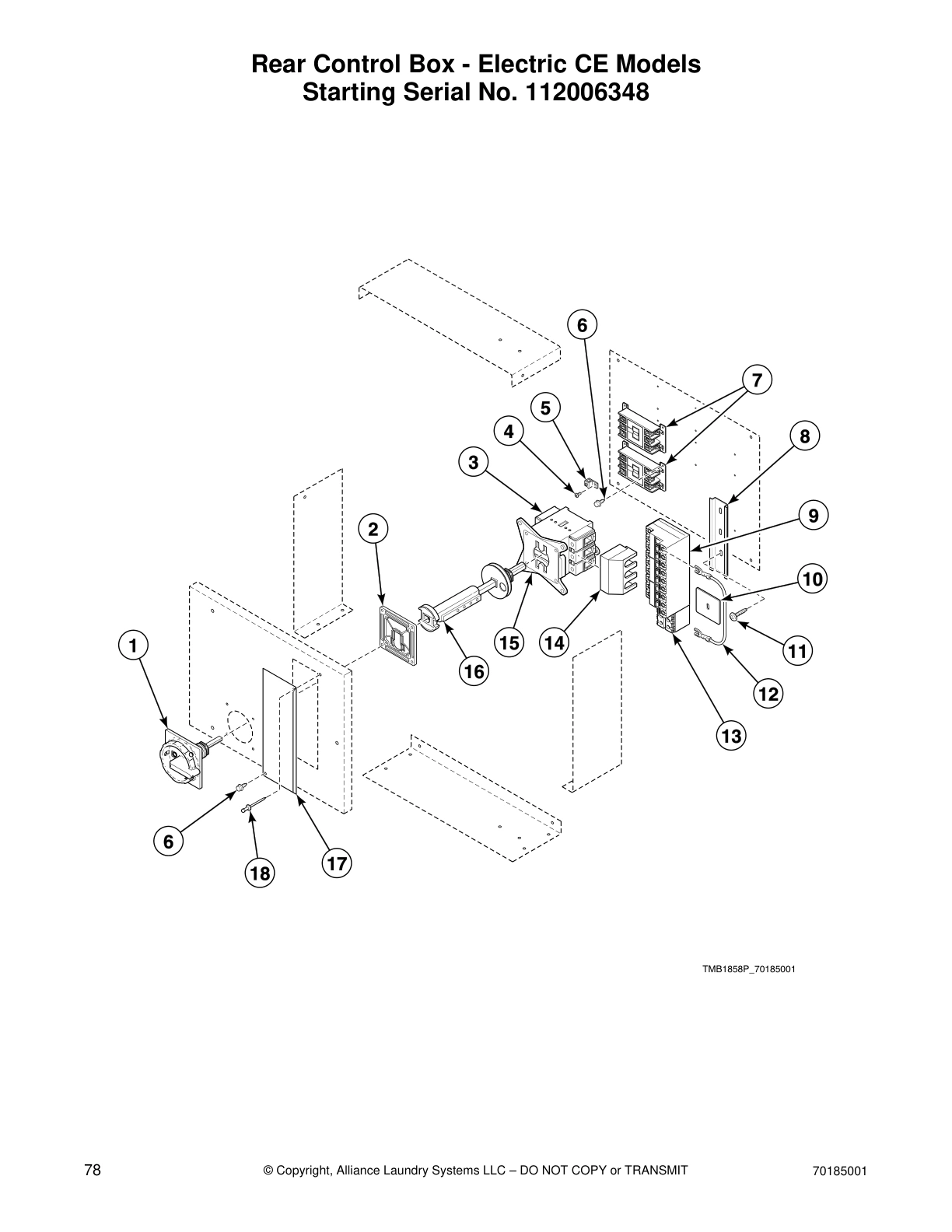

Starting Serial No. 112006348
Common parts from model Alliance JC0300DRG Dryer
Blower Motor Kit SPQ 70337601P Contact Us For Availability
SPQ 70506402 SPQ 70506402 Contact Us For Availability
Jumper Calibration Assembly SPQ 70211801 Contact Us For Availability
Control Panel Harness Assembly SPQ 70206601 Contact Us For Availability
SPQ 70232601 SPQ 70232601 Contact Us For Availability
SPQ F160673P SPQ F160673P Contact Us For Availability
SPQ 70296401 SPQ 70296401 Contact Us For Availability
SPQ 70226701 SPQ 70226701 Contact Us For Availability
SPQ 70320801 SPQ 70320801 Contact Us For Availability
Drive Motor Kit SPQ 70337901P Contact Us For Availability
SPQ 70184001 SPQ 70184001 Contact Us For Availability
SPQ M403017 SPQ M403017 Contact Us For Availability
SPQ M402980 SPQ M402980 Contact Us For Availability
SPQ M401011 SPQ M401011 Contact Us For Availability
Junction Box Cover SPQ M413506 Contact Us For Availability
SPQ M413504 SPQ M413504 Contact Us For Availability
SPQ 70083301P SPQ 70083301P Contact Us For Availability
Main Remote Interface Harness Assembly SPQ M413508 Contact Us For Availability
SPQ 70204501 SPQ 70204501 Contact Us For Availability
Main Remote Interface Harness Assembly SPQ 70121001 Contact Us For Availability
1
Belt SPQ 70276201P Contact Us For Availability
1
Limit Thermostat SPQ M409219 Contact Us For Availability
1
Mounting Bracket SPQ 70131301 Contact Us For Availability
1
Overlay SPQ 70235101 Contact Us For Availability
1
Communication Board SPQ 210097 Contact Us For Availability
1
Baffle Gasket SPQ 70015701 Contact Us For Availability
1
Lint Screen Assembly SPQ 70290601 Contact Us For Availability
1
Door Assembly SPQ 44058001P Contact Us For Availability
1
Cylinder Assembly SPQ 70372502P Contact Us For Availability
1
Drive Motor SPQ 70338101P Contact Us For Availability
1
Duct Cover SPQ 70207501 Contact Us For Availability
1
Blower Motor SPQ 70342601P Contact Us For Availability
1
Valve Bracket and Cover Kit SPQ M4746P3 Contact Us For Availability
1
Gas Shut-Off Valve SPQ M412562P Contact Us For Availability
1
Pipe SPQ 70262601 Contact Us For Availability
1
Burner Orifice SPQ M406361 Contact Us For Availability
1
Fuse Bracket SPQ 70124201 Contact Us For Availability
2
Gas Valve Coil SPQ 70260101 Contact Us For Availability
2
Nut SPQ 70155601 Contact Us For Availability
2
End Cap SPQ M4960P3 Contact Us For Availability
2
Knob SPQ 70135601 Contact Us For Availability
2
Screw SPQ M402797 Contact Us For Availability
2
Control Door Assembly SPQ 70184201 Contact Us For Availability
2
Control Housing Cover SPQ 70203201 Contact Us For Availability
2
Lint Drawer Gasket SPQ 70176004P Contact Us For Availability
2
Front Panel Seal SPQ 70125101 Contact Us For Availability
2
Emergency Stop Label SPQ 44012901 Contact Us For Availability
2
Roller Shaft SPQ 70232602 Contact Us For Availability
2
Nut SPQ M400661 Contact Us For Availability
2
Cylinder Idler Arm SPQ 70284203 Contact Us For Availability
2
Pipe Tee SPQ 70282301 Contact Us For Availability
2
Fuse Holder Kit SPQ M405824 Contact Us For Availability
2
Fuse Holder SPQ M413544P Contact Us For Availability
3
Door Hinge SPQ 70296801 Contact Us For Availability
3
Potentiometer Mounting Bracket SPQ M411052 Contact Us For Availability
3
Latch Mounting Bracket SPQ 70175911 Contact Us For Availability
3
Communication Board Bracket SPQ 70205401 Contact Us For Availability
3
Door Switch Bracket SPQ 70072901 Contact Us For Availability
3
Lint Screen Bracket SPQ 44088801 Contact Us For Availability
3
Pushbutton SPQ 44018801 Contact Us For Availability
3
Coin Box SPQ 70232001 Contact Us For Availability
3
Drive Access Cover SPQ 70275501P Contact Us For Availability
3
Thermistor Cover SPQ 70299201 Contact Us For Availability
3
Airflow Switch Bracket SPQ 70266301 Contact Us For Availability
3
Nipple SPQ F420101 Contact Us For Availability
3
Orifice Keeper Bracket SPQ 70267501 Contact Us For Availability
4
Thermistor SPQ 70211501 Contact Us For Availability
4
Motor Mount Bracket SPQ 70211502 Contact Us For Availability
4
Temperature Kit SPQ 70119801 Contact Us For Availability
4
Jumper Configuration Assembly SPQ M402917 Contact Us For Availability
4
Latch Mounting Bracket SPQ 70184501 Contact Us For Availability
4
Communication Connector SPQ 210099 Contact Us For Availability
4
Coin Vault Assembly SPQ 70231901 Contact Us For Availability
4
Cam and Hinge Kit SPQ M414215 Contact Us For Availability
4
Cylinder Bearing Stud Plate Assembly SPQ 70392801 Contact Us For Availability
4
Burner Grill SPQ 70188801 Contact Us For Availability
4
Gas Burner SPQ 70032801P Contact Us For Availability
4
Orifice Holder Bracket SPQ 70249001 Contact Us For Availability
4
Fuse SPQ M413889 Contact Us For Availability
5
Airflow Switch Vane SPQ 70266201 Contact Us For Availability
5
Belt Tension Tool Kit SPQ 70211401 Contact Us For Availability
5
Lower Front Panel Assembly SPQ 70119301 Contact Us For Availability
5
Coin Chute Assembly SPQ 70055001 Contact Us For Availability
5
Lint Drawer Handle Plate SPQ 70026901 Contact Us For Availability
5
Pop Rivet SPQ 70070101 Contact Us For Availability
5
Limit Thermostat SPQ 70112801 Contact Us For Availability
5
Stove Back SPQ 70183001 Contact Us For Availability
5
Gas Valve Harness SPQ 05161 Contact Us For Availability
5
Union SPQ H86000031 Contact Us For Availability
5
Orifice Adapter SPQ 70248901 Contact Us For Availability
6
Airflow Switch Kit SPQ 70270901P Contact Us For Availability
6
Control Door Latch SPQ 431318 Contact Us For Availability
6
Coin Vault Switch Harness Assembly SPQ 70015705 Contact Us For Availability
6
Lint Drawer Front Kit SPQ 70333101 Contact Us For Availability
6
SPQ 70115902 SPQ 70115902 Contact Us For Availability
6
SPQ 70062401 SPQ 70062401 Contact Us For Availability
6
Igniter Cover SPQ 70159601 Contact Us For Availability
6
SPQ 70229801P SPQ 70229801P Contact Us For Availability
6
Tee SPQ 70071801 Contact Us For Availability
6
Nut SPQ 70435901P Contact Us For Availability
6
Transformer SPQ M413867 Contact Us For Availability
7
Airflow Switch SPQ 70267301 Contact Us For Availability
7
SPQ 70173401P SPQ 70173401P Contact Us For Availability
7
SPQ 70131701P SPQ 70131701P Contact Us For Availability
7
Jumper Calibration Assembly SPQ 70211703P Contact Us For Availability
7
SPQ F430311 SPQ F430311 Contact Us For Availability
7
Clip SPQ 70015702 Contact Us For Availability
7
Lint Drawer Handle SPQ 70323201 Contact Us For Availability
7
Drywall Screw Magnet Kit SPQ 70257101 Contact Us For Availability
7
SPQ 70202501 SPQ 70202501 Contact Us For Availability
7
Exhaust Damper SPQ M411307 Contact Us For Availability
7
Pop Rivet SPQ 70297801 Contact Us For Availability
8
SPQ 70108001 SPQ 70108001 Contact Us For Availability
8
Control Panel Harness Assembly SPQ 70206301P Contact Us For Availability
8
SPQ 70233101 SPQ 70233101 Contact Us For Availability
8
SPQ 70132301 SPQ 70132301 Contact Us For Availability
8
Pop Rivet SPQ 70036601 Contact Us For Availability
8
Overlay SPQ 70322901P Contact Us For Availability
8
SPQ M400044 SPQ M400044 Contact Us For Availability
8
SPQ 70257201 SPQ 70257201 Contact Us For Availability
8
Airflow Switch Plate SPQ 70271601 Contact Us For Availability
8
Gas Line Assembly SPQ 70203601 Contact Us For Availability
8
Snap Bushing SPQ M401548 Contact Us For Availability
9
SPQ 70013701P SPQ 70013701P Contact Us For Availability
9
SPQ 70475001P SPQ 70475001P Contact Us For Availability
9
SPQ 70069901 SPQ 70069901 Contact Us For Availability
9
SPQ 70176108 SPQ 70176108 Contact Us For Availability
9
SPQ 70232801 SPQ 70232801 Contact Us For Availability
9
SPQ 70322902P SPQ 70322902P Contact Us For Availability
9
SPQ 70126201 SPQ 70126201 Contact Us For Availability
9
SPQ M412985 SPQ M412985 Contact Us For Availability
9
L.P. Conversion Kit SPQ 23222 Contact Us For Availability
10
Lock, Key and Nut Kit SPQ 44089302P Contact Us For Availability
10
High Voltage Lead SPQ 70006201 Contact Us For Availability
10
Door Hinge Lug Assembly SPQ 44035001 Contact Us For Availability
10
Timer Control Assembly SPQ 70175301P Contact Us For Availability
10
Pushbutton Switch SPQ 70413301 Contact Us For Availability
10
Control Housing SPQ 70119901 Contact Us For Availability
10
Nut SPQ 70022101 Contact Us For Availability
10
Cabinet Strap SPQ 70058301 Contact Us For Availability
10
Cylinder Kit SPQ 70372501P Contact Us For Availability
10
Nut SPQ M400022 Contact Us For Availability
10
Motor Channel SPQ 70261701 Contact Us For Availability
10
Airflow Switch Cover SPQ 70281801 Contact Us For Availability
10
Screw SPQ 431484 Contact Us For Availability
10
End Cover SPQ 70124101 Contact Us For Availability
11
Screw SPQ 70033502 Contact Us For Availability
11
Key SPQ 44089301P Contact Us For Availability
11
Kickplate SPQ 70117606 Contact Us For Availability
11
Center Cylinder Seal Assembly SPQ 70066003 Contact Us For Availability
11
Cylinder Kit SPQ 70222202P Contact Us For Availability
11
Spud Adapter SPQ 70223501 Contact Us For Availability
11
Rear Valve Cover SPQ 70282401 Contact Us For Availability
11
Terminal Block SPQ 70121101 Contact Us For Availability
12
Key SPQ 70155602 Contact Us For Availability
12
Relay SPQ 70179101 Contact Us For Availability
12
Audit Switch Bracket SPQ 70183901 Contact Us For Availability
12
Pop Rivet SPQ 70126401 Contact Us For Availability
12
Roller Shaft SPQ 70057101 Contact Us For Availability
12
Rear Cylinder Bearing Housing SPQ 70222201P Contact Us For Availability
12
Cylinder Idler Bracket SPQ 70261601 Contact Us For Availability
12
Blower Inlet Cone SPQ 70200301 Contact Us For Availability
12
O-Ring SPQ 431482 Contact Us For Availability
12
Gas Valve SPQ 44154502P Contact Us For Availability
12
Mounting Switch Base SPQ 70120001 Contact Us For Availability
12
Door Interlock SPQ M412368 Contact Us For Availability
13
Washer SPQ 70013901 Contact Us For Availability
13
L.P. Valve SPQ 70457302P Contact Us For Availability
13
Tube SPQ 44154501P Contact Us For Availability
13
Screw SPQ M412534 Contact Us For Availability
13
Screw SPQ M411072 Contact Us For Availability
13
Retaining Ring SPQ 70030401 Contact Us For Availability
13
Door Glass Seal Kit SPQ 70211901P Contact Us For Availability
13
Idler Bracket SPQ 70443301 Contact Us For Availability
13
Door Interlock SPQ M412187P Contact Us For Availability
14
Start Switch SPQ 70108501 Contact Us For Availability
14
Nut SPQ M400991 Contact Us For Availability
14
Spacer SPQ 430725 Contact Us For Availability
14
Door Glass SPQ 70133601P Contact Us For Availability
14
Washer SPQ 70270301 Contact Us For Availability
14
Screw SPQ 70014101 Contact Us For Availability
14
N.G. Valve SPQ 70457301P Contact Us For Availability
14
Forward Valve Cover SPQ 70281601 Contact Us For Availability
15
Pushbutton Switch SPQ 431264 Contact Us For Availability
15
Door Switch Actuator Kit SPQ 70215001P Contact Us For Availability
15
Drum Idler Spring SPQ 70045301 Contact Us For Availability
15
Exhaust Duct Assembly SPQ 70126101 Contact Us For Availability
15
Fan Contactor SPQ M413614P Contact Us For Availability
16
Screw SPQ M400034 Contact Us For Availability
16
Pop Rivet SPQ M412079P Contact Us For Availability
16
Coin Vault Trim SPQ M401223 Contact Us For Availability
16
Partition Baffle SPQ 70232701 Contact Us For Availability
16
Screw SPQ 70265901 Contact Us For Availability
16
Blower Housing Scroll SPQ 70246201 Contact Us For Availability
16
Extension Handle SPQ M412370 Contact Us For Availability
16
Screw SPQ M412366 Contact Us For Availability
17
Trunnion and Seal Kit SPQ 70448701 Contact Us For Availability
17
Rear Panel SPQ 70017701 Contact Us For Availability
17
Door Switch SPQ M400003 Contact Us For Availability
17
Door Ring Gasket SPQ M409385 Contact Us For Availability
17
Washer SPQ 70218101 Contact Us For Availability
18
Idler Wheel Assembly SPQ 430648 Contact Us For Availability
18
Key SPQ 70017401 Contact Us For Availability
19
Blower Housing Cover Assembly SPQ 70144101 Contact Us For Availability
19
Start Switch SPQ 70131801P Contact Us For Availability
19
Retaining Ring SPQ 70023601 Contact Us For Availability
19
Motor Pulley SPQ 70050401P Contact Us For Availability
20
Roller Support Bracket SPQ 70215302 Contact Us For Availability
20
Idler Assembly Service Kit SPQ 70284201 Contact Us For Availability
21
Rear Cylinder Channel Plate SPQ 70411301 Contact Us For Availability
21
Motor Capacitor SPQ 70259901 Contact Us For Availability
22
Nut SPQ M410927 Contact Us For Availability
23
Key SPQ 70117901P Contact Us For Availability
23
Control Door Latch SPQ 70082201 Contact Us For Availability
NI
Blower Motor SPQ 70337501P Contact Us For Availability
NI
SPQ M4772P3 SPQ M4772P3 Contact Us For Availability
NI
Drive Motor SPQ 70337801P Contact Us For Availability
NI
Coin Meter Control Kit SPQ M402455 Contact Us For Availability
NI
SPQ 70218301 SPQ 70218301 Contact Us For Availability
NI
SPQ M400737P SPQ M400737P Contact Us For Availability
NI
SPQ M406297 SPQ M406297 Contact Us For Availability
NI
SPQ M4723P3 SPQ M4723P3 Contact Us For Availability
NI
SPQ 70236301 SPQ 70236301 Contact Us For Availability
NI
Card Reader Harness Assembly SPQ 70324601 Contact Us For Availability
NI
Main Harness Assembly SPQ 70204801 Contact Us For Availability
NI
Communication Harness Assembly SPQ 70211101 Contact Us For Availability
NI
SPQ 70176106 SPQ 70176106 Contact Us For Availability
NI
Emergency Stop Switch Harnes Assembly SPQ 70235301 Contact Us For Availability
NI
SPQ 70198801 SPQ 70198801 Contact Us For Availability
NI
SPQ 70022001 SPQ 70022001 Contact Us For Availability
NI
SPQ 70243401P SPQ 70243401P Contact Us For Availability
NI
SPQ 70235201 SPQ 70235201 Contact Us For Availability
NI
SPQ 70215303 SPQ 70215303 Contact Us For Availability
NI
SPQ 70180101 SPQ 70180101 Contact Us For Availability
NI
SPQ 70058502 SPQ 70058502 Contact Us For Availability
NI
SPQ 70320802 SPQ 70320802 Contact Us For Availability
NI
SPQ 70136601 SPQ 70136601 Contact Us For Availability
NI
SPQ 70136401 SPQ 70136401 Contact Us For Availability
NI
SPQ 70133501P SPQ 70133501P Contact Us For Availability
NI
SPQ 70343101P SPQ 70343101P Contact Us For Availability
NI
SPQ 70127301 SPQ 70127301 Contact Us For Availability
NI
SPQ M4853P3 SPQ M4853P3 Contact Us For Availability
NI
Drive Motor Kit SPQ 70338001P Contact Us For Availability
NI
Nut SPQ 70056201 Contact Us For Availability
NI
SPQ 70017801 SPQ 70017801 Contact Us For Availability
NI
Blower Motor Kit SPQ 70337701P Contact Us For Availability
NI
Elbow SPQ M4707P3 Contact Us For Availability
NI
SPQ 70079601 SPQ 70079601 Contact Us For Availability
NI
SPQ M400770 SPQ M400770 Contact Us For Availability
NI
SPQ M406184 SPQ M406184 Contact Us For Availability
NI
SPQ M402996 SPQ M402996 Contact Us For Availability
NI
SPQ M401002 SPQ M401002 Contact Us For Availability
NI
SPQ M401000 SPQ M401000 Contact Us For Availability
NI
Junction Box Harness Assembly SPQ M413509 Contact Us For Availability
NI
SPQ 70204601 SPQ 70204601 Contact Us For Availability
NI
Jumper Configuration Assembly SPQ M414229P Contact Us For Availability
NI
Jumper Harness Assembly SPQ M414228P Contact Us For Availability
NI
Jumper Harness Assembly SPQ M413510 Contact Us For Availability
NI
SPQ 70067001P SPQ 70067001P Contact Us For Availability
NI
Junction Box Harness Assembly SPQ M412208 Contact Us For Availability
NI
SPQ 70120901 SPQ 70120901 Contact Us For Availability
NI
SPQ 70164402 SPQ 70164402 Contact Us For Availability
× ![]()
