Model Whirlpool JBWFNL18RX00 – Common Parts & Diagrams
OPTIONAL PARTS

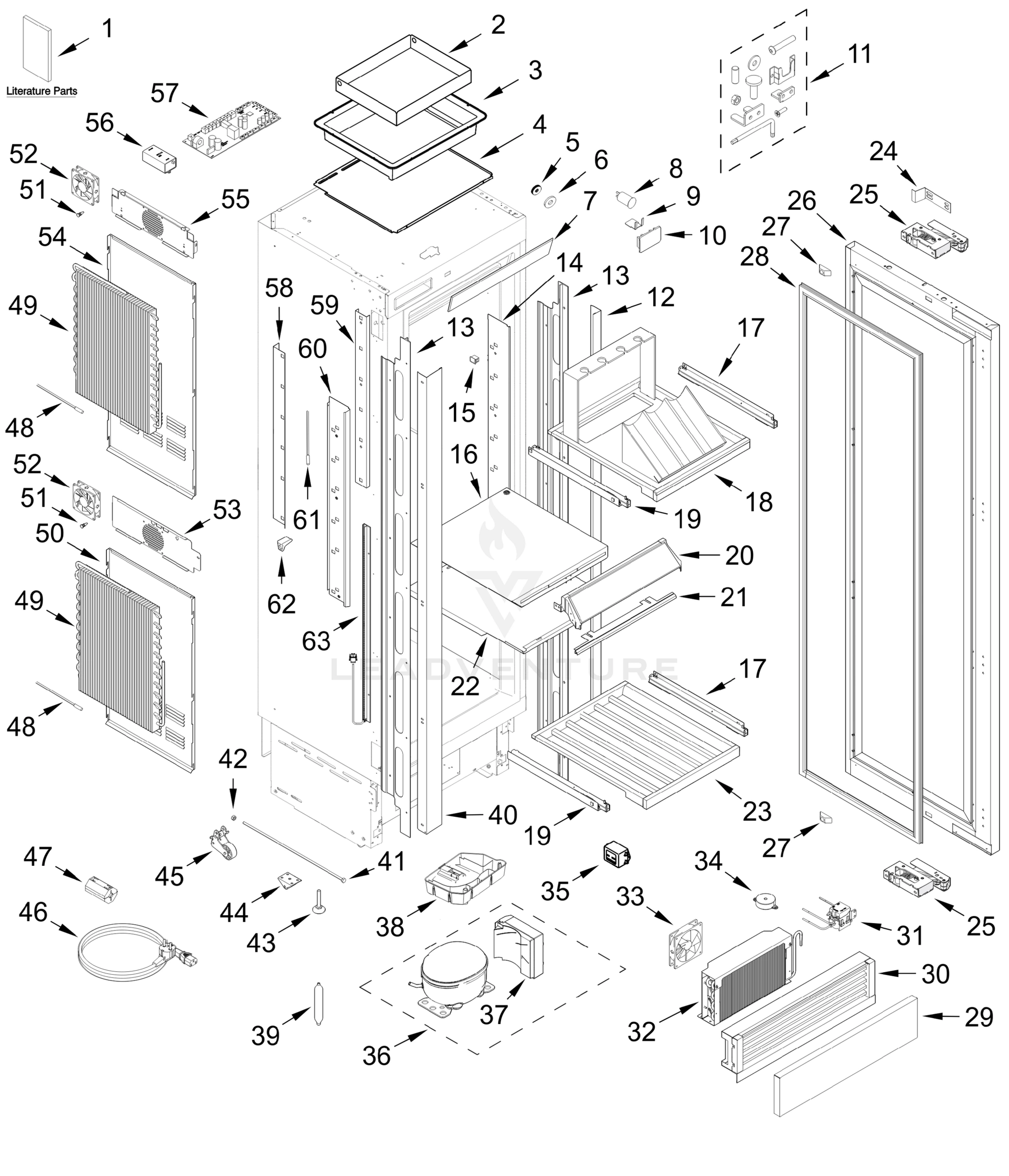

UNIT PARTS
Common parts from model Whirlpool JBWFNL18RX00
Tech Sheet WPL W11794672 Contact Us For Availability
2
Aluminum Shield, Control Board WPL W11773988 Contact Us For Availability
3
Cover, Control Board WPL W11773763 Contact Us For Availability
4
Ceiling Cover, Upper Compartment WPL W11773989 Contact Us For Availability
5
Nut, Knurled Plastic WPL W11803243 Contact Us For Availability
6
Washer, Plastic WPL W11803242 Contact Us For Availability
7
Panel, Decorative WPL W11773650 Contact Us For Availability
8
Reed Switch, Door WPL W11633505 Contact Us For Availability
9
Clip, Reed Switch WPL W11774114 Contact Us For Availability
10
Cover, Reed Switch WPL W11774323 Contact Us For Availability
11
Hardware Kit, Overlay Mounting WPL W11773800 Contact Us For Availability
12
Cover, Front Corner (Opposite the Hinge Side) WPL W11774060 Contact Us For Availability
13
Trim, Side WPL W11804819 Contact Us For Availability
14
Pillar, Front Right WPL W11774095 Contact Us For Availability
15
Plug, Pillar Hole WPL W11773831 Contact Us For Availability
16
Central Divider WPL W11776644 Contact Us For Availability
17
Slide, Wine Rack (Right Hand) WPL W11773805 Contact Us For Availability
18
Rack, Bottle Display WPL W11773808 Contact Us For Availability
19
Slide, Wine Rack (Left Hand) WPL W11773804 Contact Us For Availability
20
User Interface WPL W11773799 Contact Us For Availability
21
Seal, Compartment Divider WPL W11773987 Contact Us For Availability
22
Ceiling Cover, Lower Compartment WPL W11773990 Contact Us For Availability
23
Rack, Wine WPL W11773655 Contact Us For Availability
24
Cover, Hinge Socket WPL W11774329 Contact Us For Availability
25
Hinge, Door (Left Swing) WPL W11633300 Contact Us For Availability
26
Door Assembly (Left Swing, Includes Door Gask WPL W11773638 Contact Us For Availability
28
Gasket, Door WPL W11773645 Contact Us For Availability
29
Toe Kick WPL W11774347 Contact Us For Availability
30
Grille, Lower WPL W11773750 Contact Us For Availability
31
Three Way Valve WPL W11773801 Contact Us For Availability
32
Condenser WPL W11773748 Contact Us For Availability
33
Fan, Condenser WPL W11773657 Contact Us For Availability
34
Buzzer WPL W11633334 Contact Us For Availability
35
Filter, Line WPL W11773802 Contact Us For Availability
36
Compressor (Includes Inverter) WPL W11633561 Contact Us For Availability
37
Inverter WPL W11633574 Contact Us For Availability
38
Tray, Drain WPL W11773757 Contact Us For Availability
40
Cover, Front Corner (Hinge Side) WPL W11773993 Contact Us For Availability
41
Bolt, Leveling WPL W11773803 Contact Us For Availability
42
Nut, Locking WPL W11773835 Contact Us For Availability
43
Leg, Leveling WPL W11633325 Contact Us For Availability
44
Roller, Front WPL W11633324 Contact Us For Availability
45
Roller, Rear WPL W11633323 Contact Us For Availability
46
Cord, Power WPL W11633333 Contact Us For Availability
47
Ferrite Core, Clamp On WPL W11803241 Contact Us For Availability
48
Thermistor, Metal WPL W11773759 Contact Us For Availability
49
Evaporator WPL W11773762 Contact Us For Availability
50
Cover, Lower Evaporator WPL W11773649 Contact Us For Availability
51
Grommet, Fan WPL W11773774 Contact Us For Availability
52
Fan, Evaporator WPL W11773773 Contact Us For Availability
53
Support, Lower Evaporator Fan WPL W11803244 Contact Us For Availability
54
Cover, Upper Evaporator WPL W11773647 Contact Us For Availability
55
Support, Upper Evaporator Fan WPL W11803246 Contact Us For Availability
56
Power Supply, LED WPL W11773764 Contact Us For Availability
57
Control, Electronic WPL W11773770 Contact Us For Availability
58
Pillar, Rear (Left Side) WPL W11774081 Contact Us For Availability
59
Pillar, Rear (Opposite the Hinge Side) WPL W11774078 Contact Us For Availability
60
Pillar, Front Left WPL W11774093 Contact Us For Availability
61
Thermistor, Plastic WPL W11633336 Contact Us For Availability
62
Support, Central Divider WPL W11804820 Contact Us For Availability
63
Light Strip, LED WPL W11773797 Contact Us For Availability
× ![]()
