Model Maytag JBS7524BS1 RANGE/OVEN, ELECTRIC, BUILT-IN, COMBO, 24 INCH – Common Parts & Diagrams

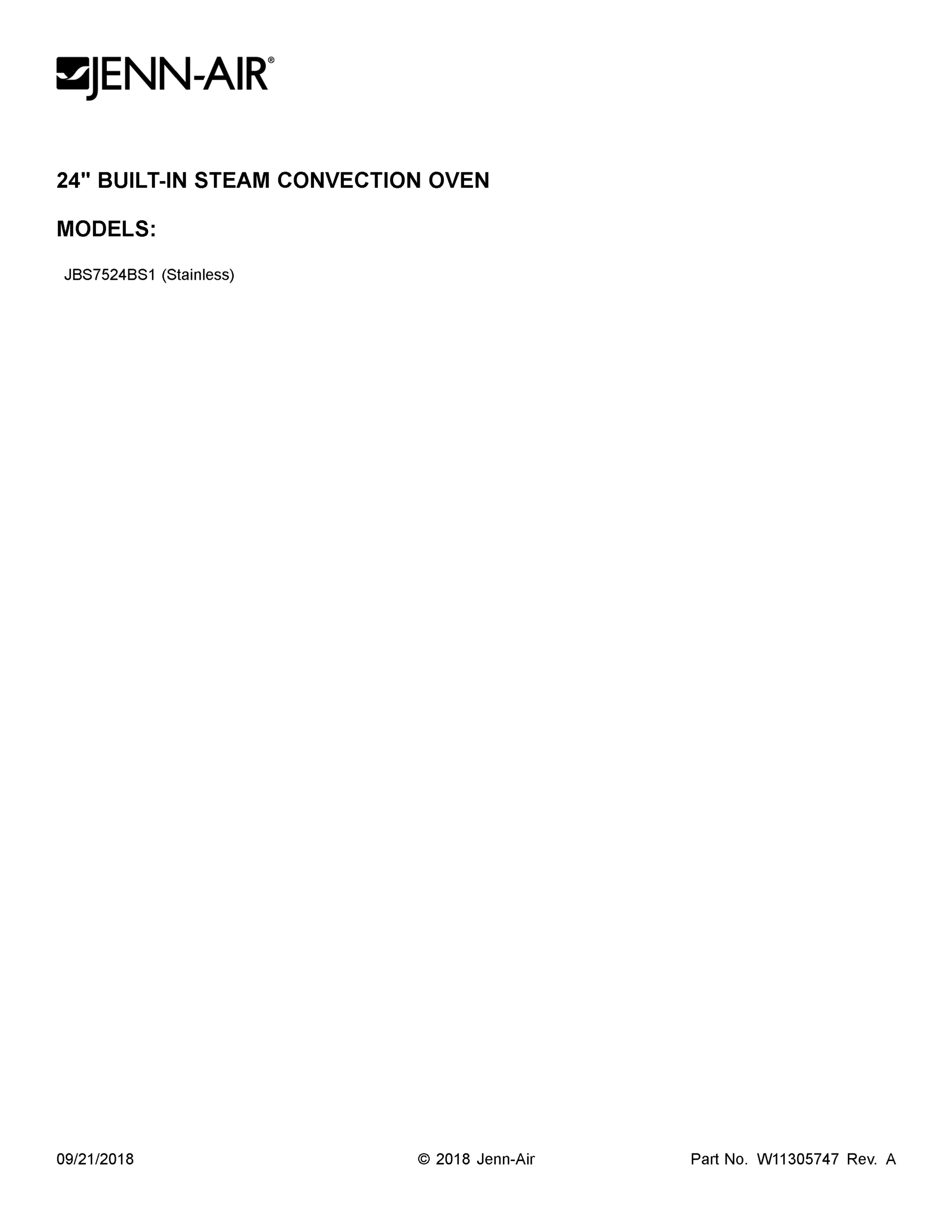

01 - COVER SHEET

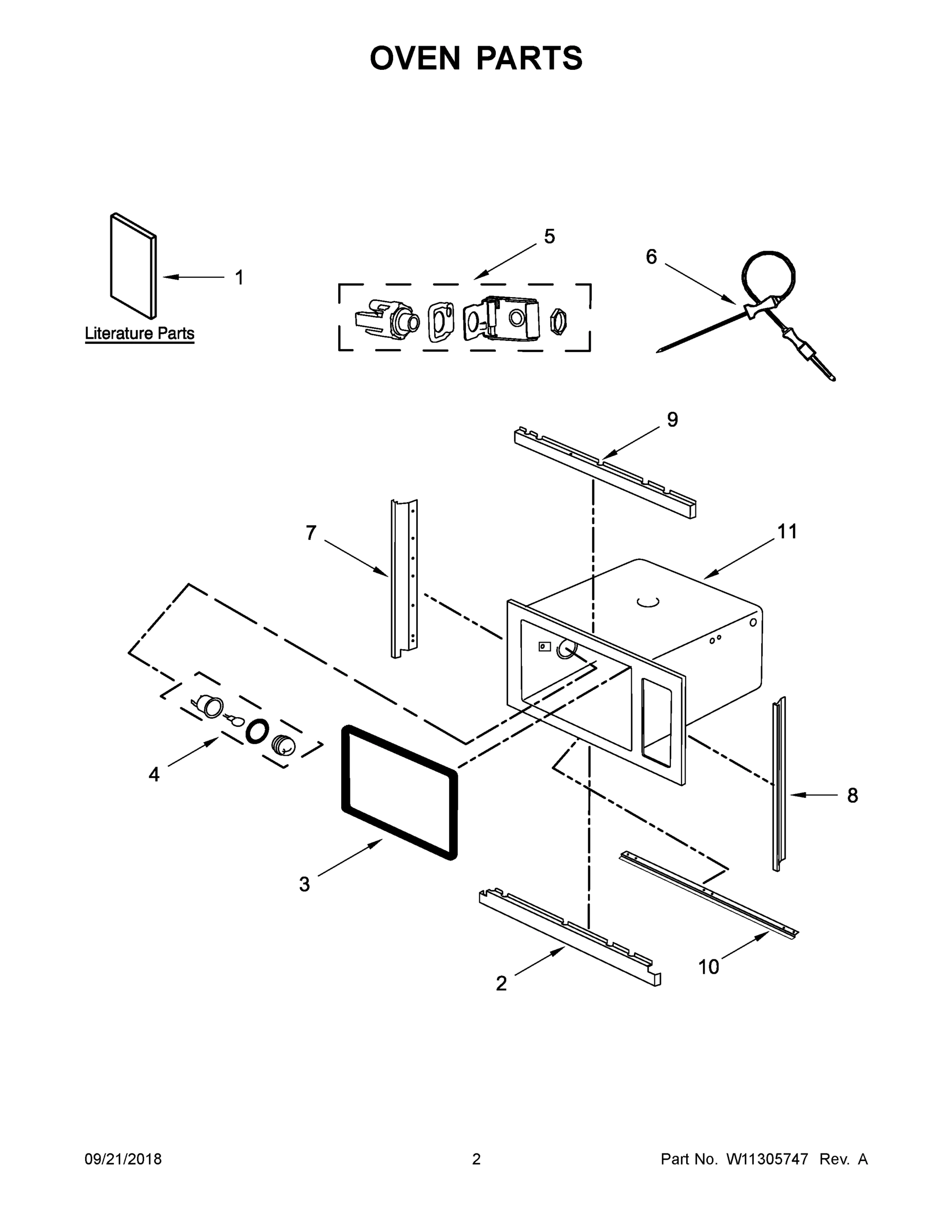

02 - OVEN PARTS

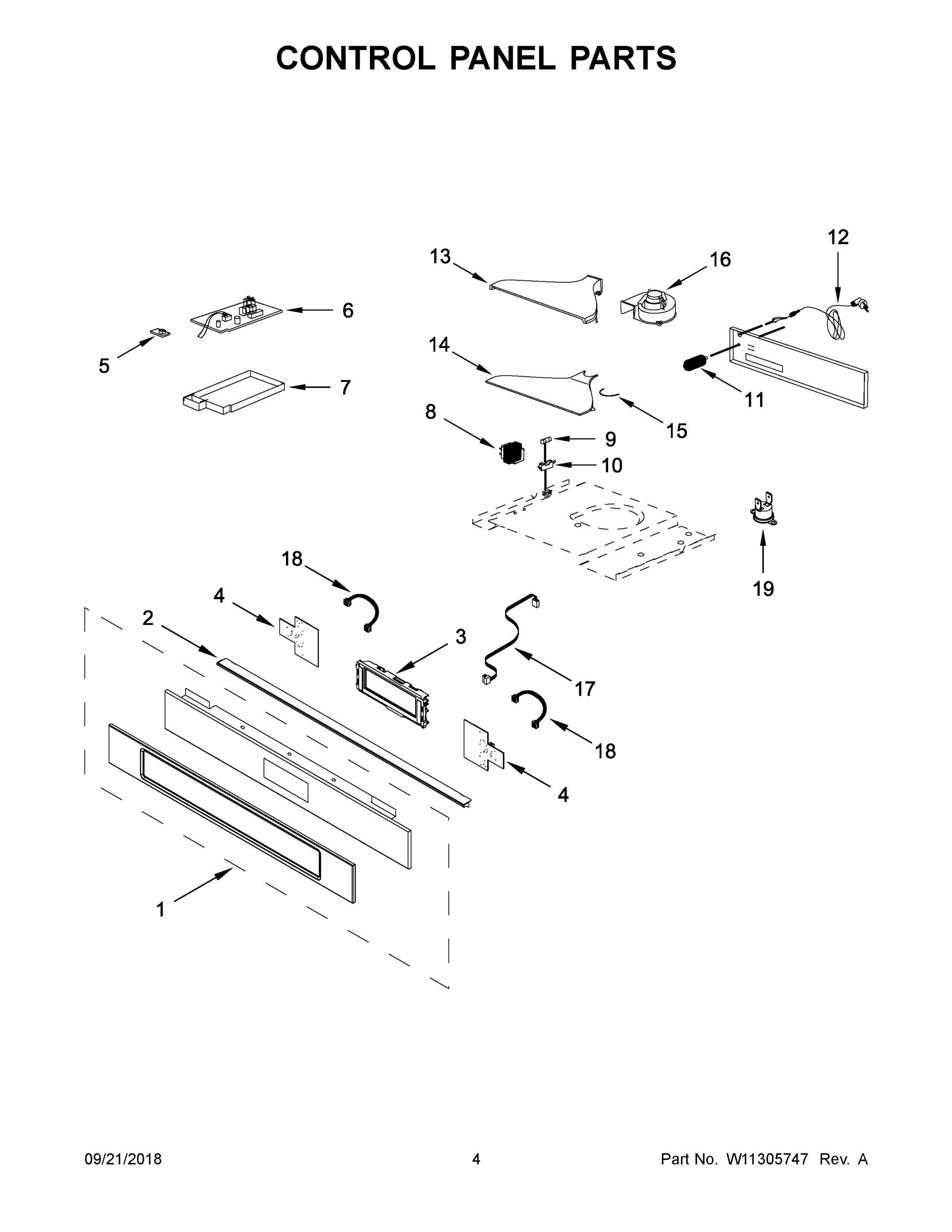

03 - CONTROL PANEL PARTS

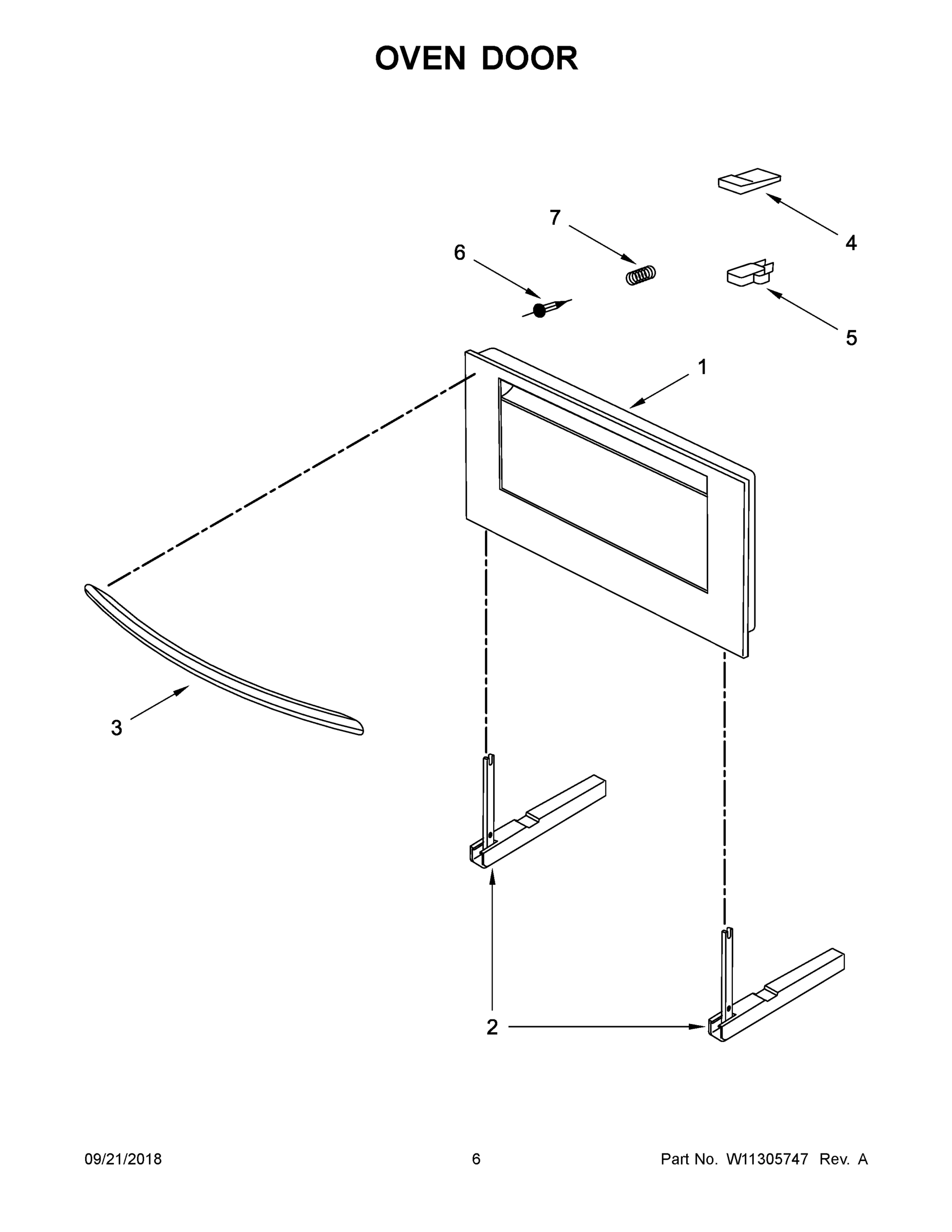

04 - OVEN DOOR

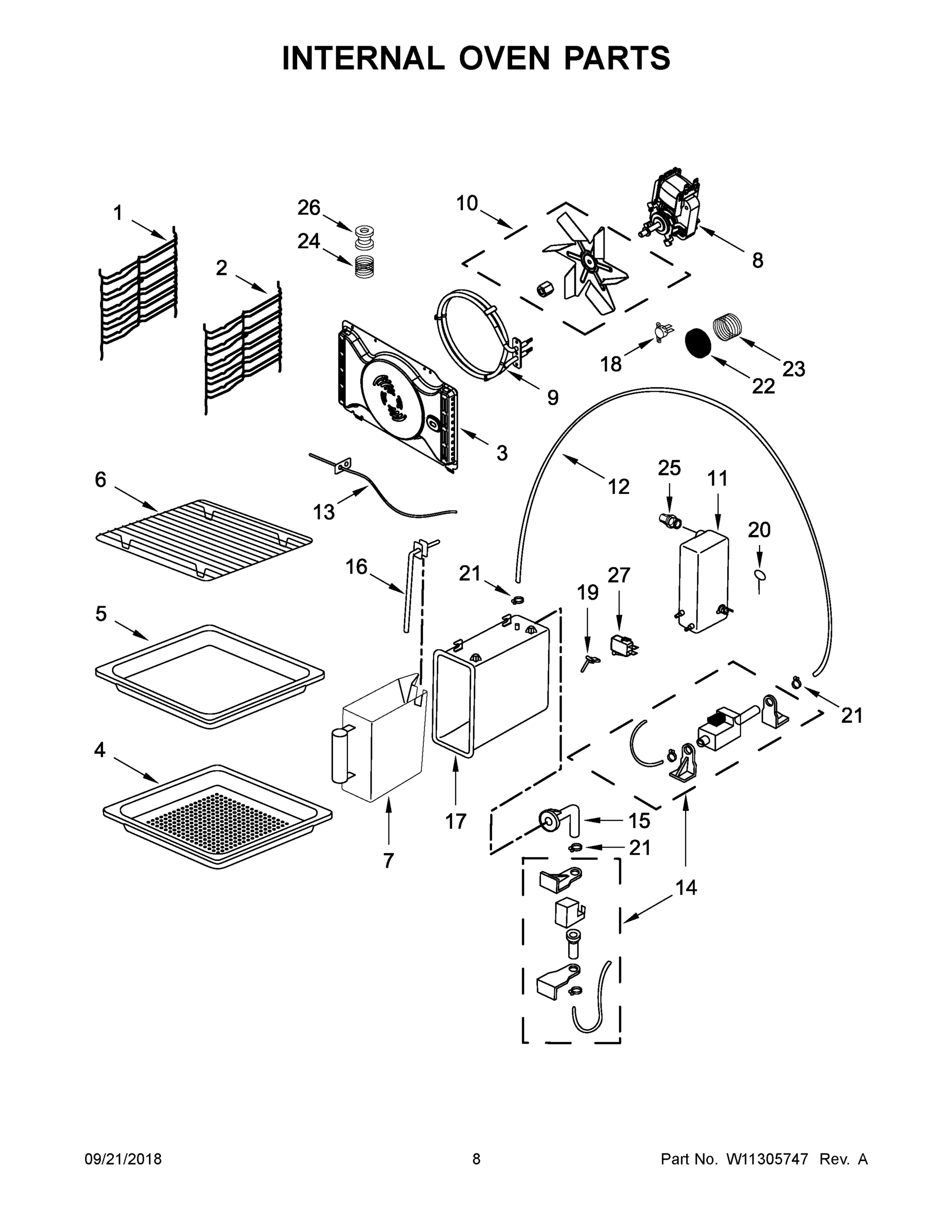

05 - INTERNAL OVEN PARTS
Common parts from model Maytag JBS7524BS1 RANGE/OVEN, ELECTRIC, BUILT-IN, COMBO, 24 INCH
1
USE AND CARE GUIDE MAY W10419852 Contact Us For Availability
1
PANEL, CONTROL WITH MEMBRANE MAY W10816254 Contact Us For Availability
1
DOOR, OVEN MAY W10586358 Contact Us For Availability
1
GRID, RACK LEFT SIDE MAY W10586511 Contact Us For Availability
1A
INSTALLATION INSTRUCTIONS MAY W10419853 Contact Us For Availability
1B
TECH SHEET MAY W10419854 Contact Us For Availability
2
TRIM, LOWER MAY W10586361 Contact Us For Availability
2
VENT, TRIM CONTROL PANEL MAY W10517985 Contact Us For Availability
2
HINGE, DOOR MAY W10760845 Contact Us For Availability
2
GRID, RACK RIGHT SIDE MAY W10586521 Contact Us For Availability
3
GASKET, DOOR KIT MAY W10588966 Contact Us For Availability
3
USER INTERFACE, DISPLAY MAY W10815542 Contact Us For Availability
3
HANDLE, DOOR MAY W10591600 Contact Us For Availability
3
BAFFLE, CONVECTION FAN MAY W10586466 Contact Us For Availability
4
ASSEMBLY, BULB MAY W10587792 Contact Us For Availability
4
BOARD, ELECTRONIC CONTROL MAY W10517895 Contact Us For Availability
4
BRACKET, DOOR SWITCH MAY W10586394 Contact Us For Availability
4
TRAY, STEAM MAY W10577816 Contact Us For Availability
5
JACK, FOOD PROBE MAY W10587802 Contact Us For Availability
5
BOARD, WATER LEVEL SENSOR MAY W10587536 Contact Us For Availability
5
TRAY, BAKE/DRIP MAY W10577820 Contact Us For Availability
6
PROBE, FOOD MAY W10577826 Contact Us For Availability
6
APPLIANCE MANAGER MAY W10587535 Contact Us For Availability
6
ACTUATOR, DOOR SWITCH MAY W10586462 Contact Us For Availability
6
RACK, WIRE SHELF MAY W10577824 Contact Us For Availability
7
TRIM, LEFT SIDE MAY W10586336 Contact Us For Availability
7
HOLDER, APPLIANCE MANAGER MAY W10586529 Contact Us For Availability
7
SPRING, DOOR SWITCH ACTUATOR MAY W10586465 Contact Us For Availability
7
RESERVOIR, WATER CONTAINER MAY 480123100285 Contact Us For Availability
8
TRIM, RIGHT SIDE MAY W10586352 Contact Us For Availability
8
TRANSFORMER MAY 481214528033 Contact Us For Availability
8
MOTOR, CONVECTION MAY W10330571 Contact Us For Availability
9
VENT, OVEN MAY W10586389 Contact Us For Availability
9
FUSE MAY W11305892 Contact Us For Availability
9
HEATER, CONVECTION ELEMENT MAY W10493735 Contact Us For Availability
10
TRIM, SHELF MAY 481068972371 Contact Us For Availability
10
BLOCK, FUSE MAY W10588576 Contact Us For Availability
10
BLADE, CONVECTION FAN INCLUDES NUT MAY W10586917 Contact Us For Availability
11
FILTER, LINE NOISE MAY W10549523 Contact Us For Availability
11
BOILER, UNIT CONTAINS BOILER ELEMENT AND SENS MAY W10587532 Contact Us For Availability
12
CORD, POWER MAY W10587534 Contact Us For Availability
12
TUBING, SILICON MAY W10587812 Contact Us For Availability
13
TOP, AIR GUIDE MAY W10587870 Contact Us For Availability
13
SENSOR, CAVITY TEMPERATURE MAY 480121103384 Contact Us For Availability
14
BOTTOM, AIR GUIDE MAY W10587873 Contact Us For Availability
14
PUMP, FILL AND DRAIN MAY W10586915 Contact Us For Availability
15
GASKET, AIR GUIDE MAY W10588568 Contact Us For Availability
15
TUBING, CONNECTION BOILER MAY W10586491 Contact Us For Availability
16
FAN, COOLING MAY W10586916 Contact Us For Availability
16
PIPE, WATER CONTAINER FILL MAY W10587540 Contact Us For Availability
17
HARNESS, DISPLAY TO APPLIANCE MANAGER 5 PIN R MAY W10587552 Contact Us For Availability
17
HOUSING, WATER CONTAINER MAY W10586494 Contact Us For Availability
18
HARNESS, DISPLAY TO POWER UNIT MAY 481068967651 Contact Us For Availability
18
THERMOSTAT (145C) MAY W11305876 Contact Us For Availability
19
THERMOSTAT MAY W11305872 Contact Us For Availability
19
SENSOR, BOILER TEMPERATURE MAY W10586492 Contact Us For Availability
20
SENSOR, WATER LEVEL MAY W10587533 Contact Us For Availability
21
CLAMP, TUBING MAY W10587851 Contact Us For Availability
22
GASKET, CONVECTION MOTOR MAY W10588571 Contact Us For Availability
23
SPRING, CONVECTION MOTOR MAY W10587877 Contact Us For Availability
24
SPRING, AIR FLOW MAY W10587880 Contact Us For Availability
25
GASKET, STEAM OUTLET MAY W10588572 Contact Us For Availability
26
GASKET, AIR FLOW MAY W10587885 Contact Us For Availability
27
SWITCH, MICRO MAY W10587790 Contact Us For Availability
NI
FOLLOWING PARTS NOT ILLUSTRATED MAY N/P Contact Us For Availability
NI
HARNESS, MAIN MAY 481232118265 Contact Us For Availability
NI
SPONGE MAY W10577833 Contact Us For Availability
NI
SCREW, TORX -15 T-15 3.4MM MAY W10591611 Contact Us For Availability
× ![]()
