Model Maytag JBS7524BS0 24`` BUILT-IN STEAM CONVECTION OVEN – Common Parts & Diagrams
01 - OVEN PARTS
02 - CONTROL PANEL PARTS

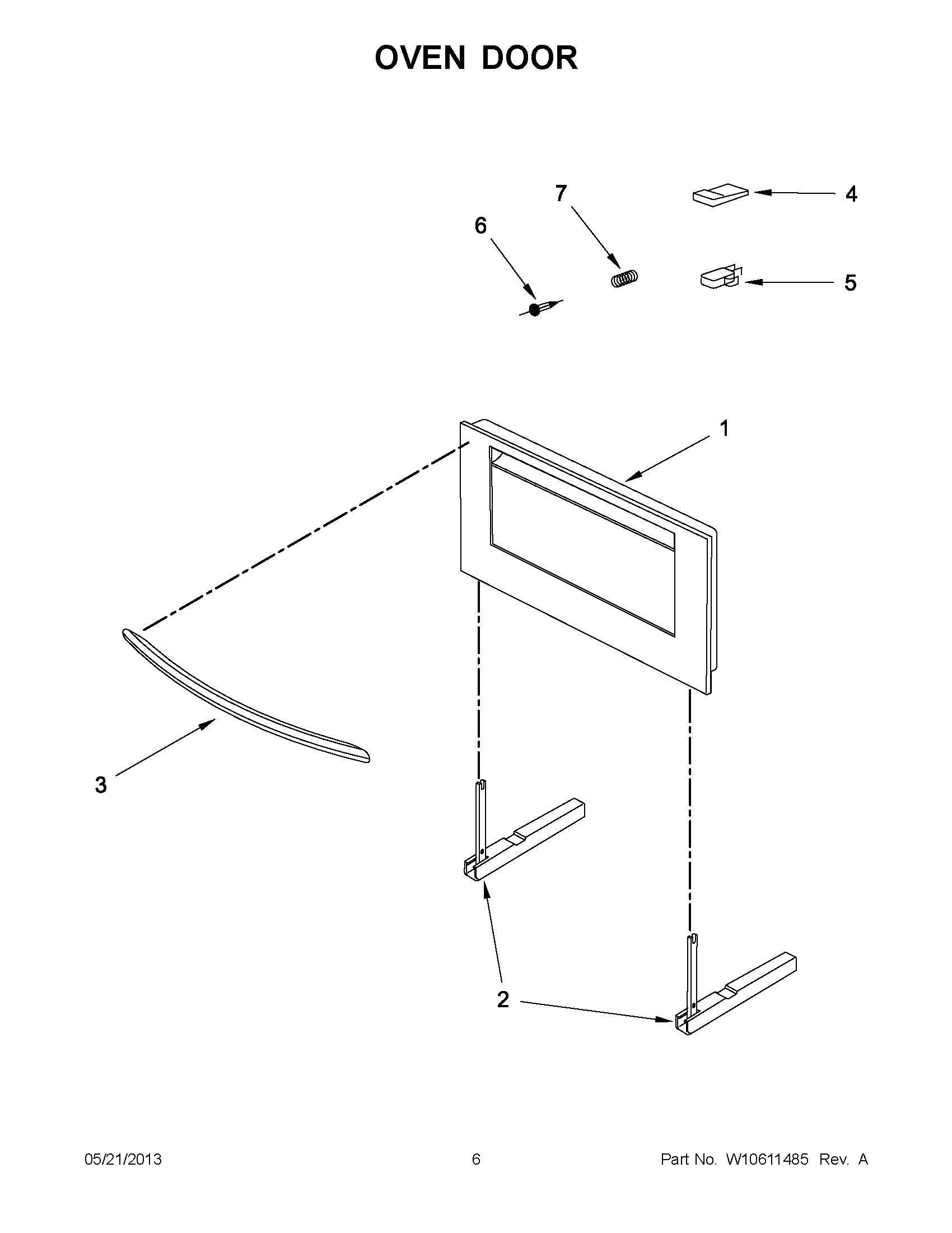

03 - OVEN DOOR

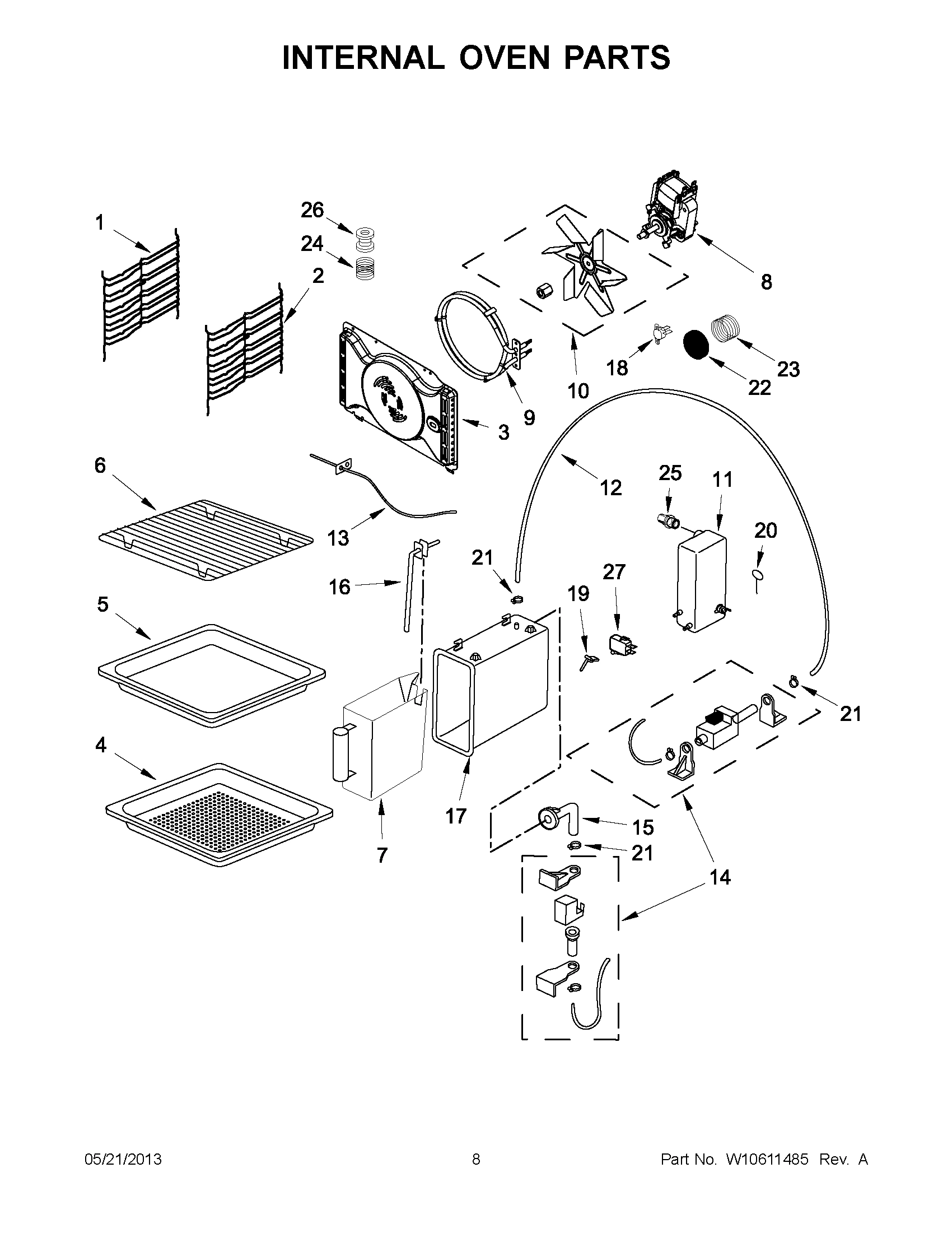

04 - INTERNAL OVEN PARTS
Common parts from model Maytag JBS7524BS0 24`` BUILT-IN STEAM CONVECTION OVEN
1
MAY W10419852 MAY W10419852 Contact Us For Availability
1
MAY W10419853 MAY W10419853 Contact Us For Availability
1
MAY W10419854 MAY W10419854 Contact Us For Availability
1
MAY W10586522 MAY W10586522 Contact Us For Availability
1
MAY W10586358 MAY W10586358 Contact Us For Availability
1
MAY W10586511 MAY W10586511 Contact Us For Availability
2
MAY W10586361 MAY W10586361 Contact Us For Availability
2
MAY W10517985 MAY W10517985 Contact Us For Availability
2
MAY W10586479 MAY W10586479 Contact Us For Availability
2
MAY W10586521 MAY W10586521 Contact Us For Availability
3
MAY W10588966 MAY W10588966 Contact Us For Availability
3
MAY W10586523 MAY W10586523 Contact Us For Availability
3
MAY W10591600 MAY W10591600 Contact Us For Availability
3
MAY W10586466 MAY W10586466 Contact Us For Availability
4
MAY W10587792 MAY W10587792 Contact Us For Availability
4
MAY W10588968 MAY W10588968 Contact Us For Availability
4
MAY W10586394 MAY W10586394 Contact Us For Availability
4
MAY W10577816 MAY W10577816 Contact Us For Availability
5
MAY W10587802 MAY W10587802 Contact Us For Availability
5
MAY W10587536 MAY W10587536 Contact Us For Availability
5
MAY W10577820 MAY W10577820 Contact Us For Availability
6
MAY W10577826 MAY W10577826 Contact Us For Availability
6
MAY W10587535 MAY W10587535 Contact Us For Availability
6
MAY W10586462 MAY W10586462 Contact Us For Availability
6
MAY W10577824 MAY W10577824 Contact Us For Availability
7
MAY W10586336 MAY W10586336 Contact Us For Availability
7
MAY W10586529 MAY W10586529 Contact Us For Availability
7
MAY W10586465 MAY W10586465 Contact Us For Availability
7
MAY W10577835 MAY W10577835 Contact Us For Availability
8
MAY W10586352 MAY W10586352 Contact Us For Availability
8
TRANSFORMER MAY 8205692 Contact Us For Availability
8
MOTOR, CONVECTION MAY W10330571 Contact Us For Availability
9
MAY W10586389 MAY W10586389 Contact Us For Availability
9
MAY 4375321 MAY 4375321 Contact Us For Availability
9
MAY W10590936 MAY W10590936 Contact Us For Availability
10
MAY W10588576 MAY W10588576 Contact Us For Availability
10
MAY W10586917 MAY W10586917 Contact Us For Availability
11
FILTER, LINE NOISE MAY W10549523 Contact Us For Availability
11
MAY W10587532 MAY W10587532 Contact Us For Availability
12
MAY W10587534 MAY W10587534 Contact Us For Availability
12
MAY W10587812 MAY W10587812 Contact Us For Availability
13
MAY W10587870 MAY W10587870 Contact Us For Availability
13
MAY W10587793 MAY W10587793 Contact Us For Availability
14
MAY W10587873 MAY W10587873 Contact Us For Availability
14
MAY W10586915 MAY W10586915 Contact Us For Availability
15
MAY W10588568 MAY W10588568 Contact Us For Availability
15
MAY W10586491 MAY W10586491 Contact Us For Availability
16
MAY W10586916 MAY W10586916 Contact Us For Availability
16
MAY W10587540 MAY W10587540 Contact Us For Availability
17
MAY W10587552 MAY W10587552 Contact Us For Availability
17
MAY W10586494 MAY W10586494 Contact Us For Availability
18
MAY W10587543 MAY W10587543 Contact Us For Availability
18
MAY W10587538 MAY W10587538 Contact Us For Availability
19
MAY W10586492 MAY W10586492 Contact Us For Availability
20
MAY W10587533 MAY W10587533 Contact Us For Availability
21
MAY W10587851 MAY W10587851 Contact Us For Availability
22
MAY W10588571 MAY W10588571 Contact Us For Availability
23
MAY W10587877 MAY W10587877 Contact Us For Availability
24
MAY W10587880 MAY W10587880 Contact Us For Availability
25
MAY W10588572 MAY W10588572 Contact Us For Availability
26
MAY W10587885 MAY W10587885 Contact Us For Availability
27
MAY W10587790 MAY W10587790 Contact Us For Availability
NI
FOLLOWING PARTS NOT ILLUSTRATED, MAY N/P Contact Us For Availability
NI
MAY W10577833 MAY W10577833 Contact Us For Availability
NI
MAY W10587541 MAY W10587541 Contact Us For Availability
NI
MAY W10591611 MAY W10591611 Contact Us For Availability
× ![]()
