Model Maytag JBRFL24IGX00 REFRIGERATOR, BUILT-IN, 24 INCH – Common Parts & Diagrams
01 - COVER SHEET
02 - CABINET PARTS

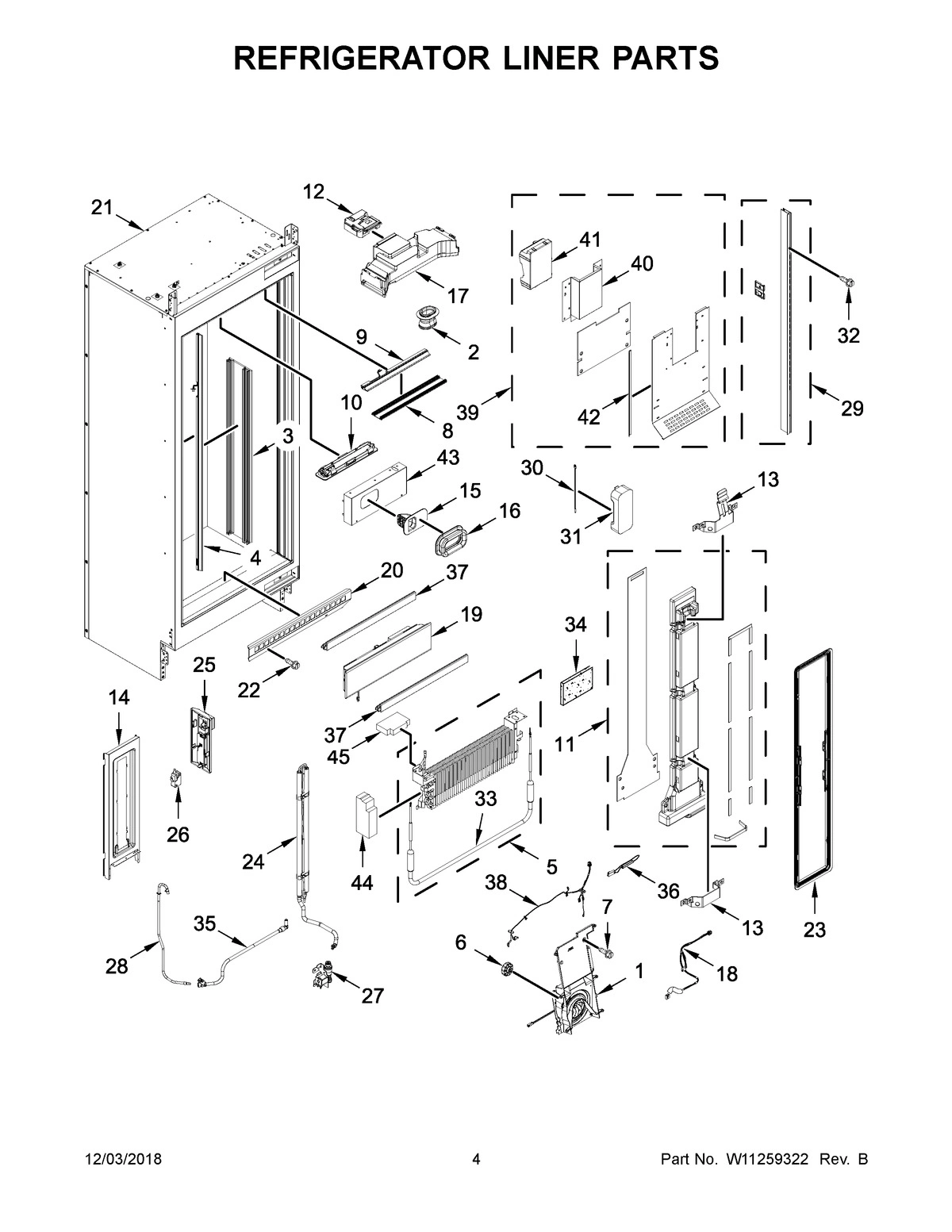

03 - REFRIGERATOR LINER PARTS

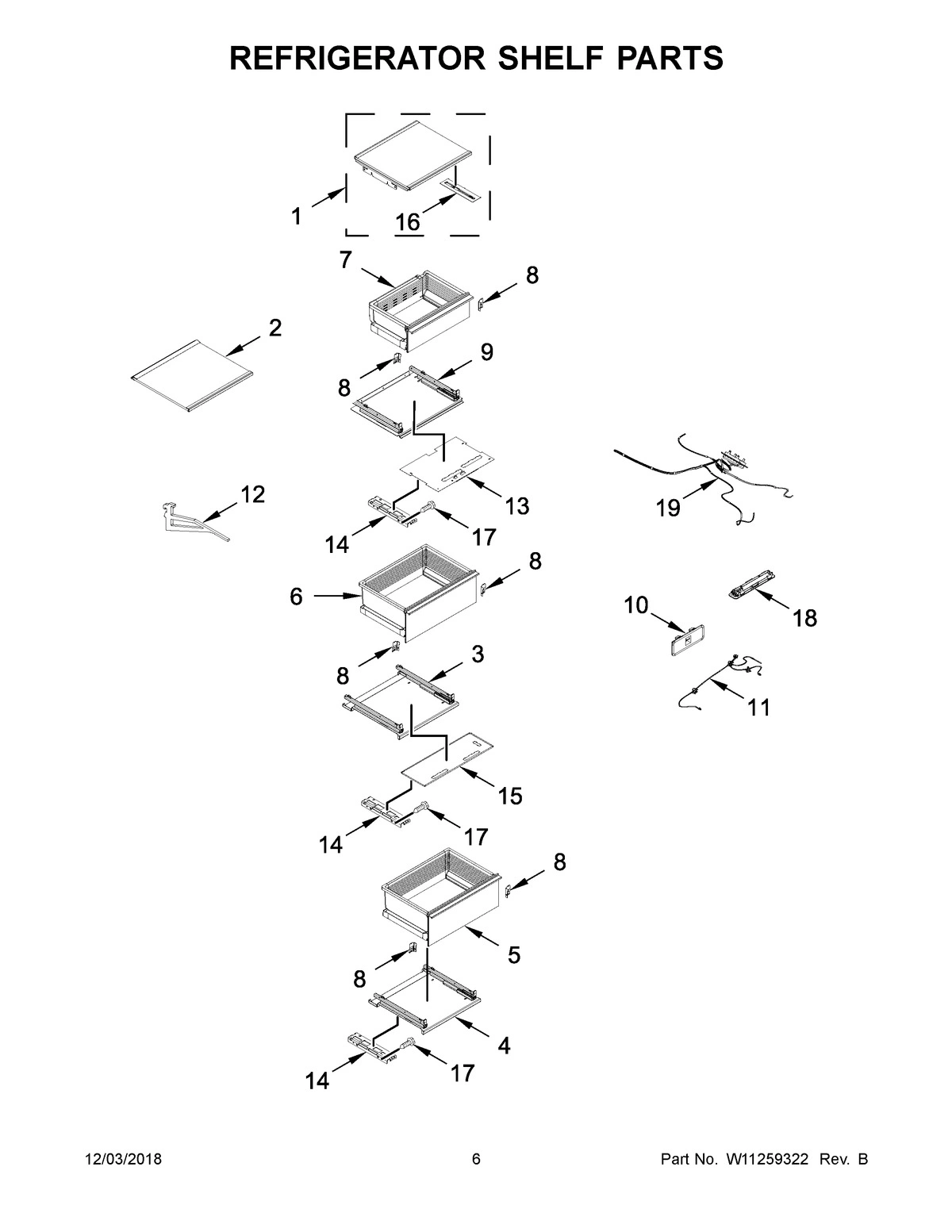

04 - REFRIGERATOR SHELF PARTS

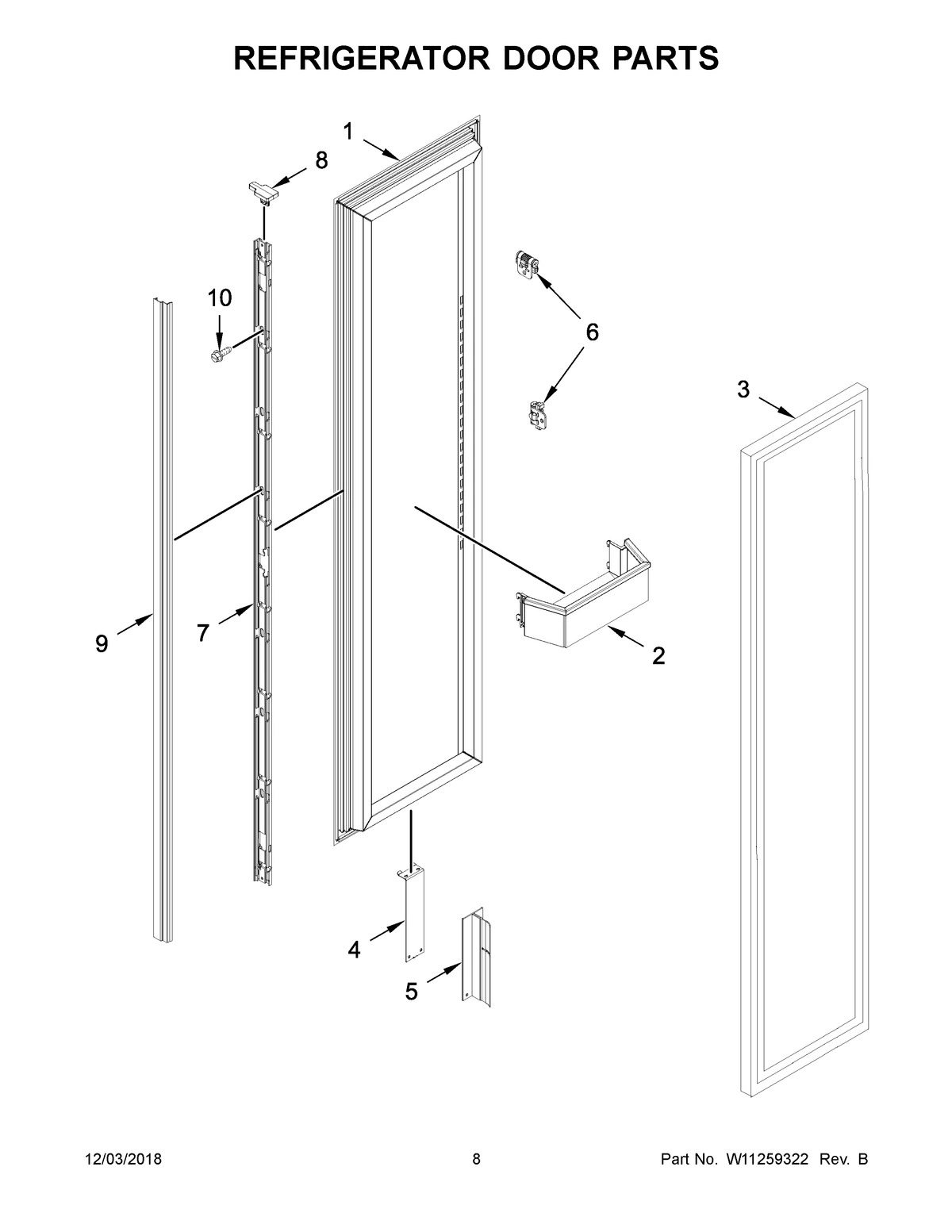

05 - REFRIGERATOR DOOR PARTS

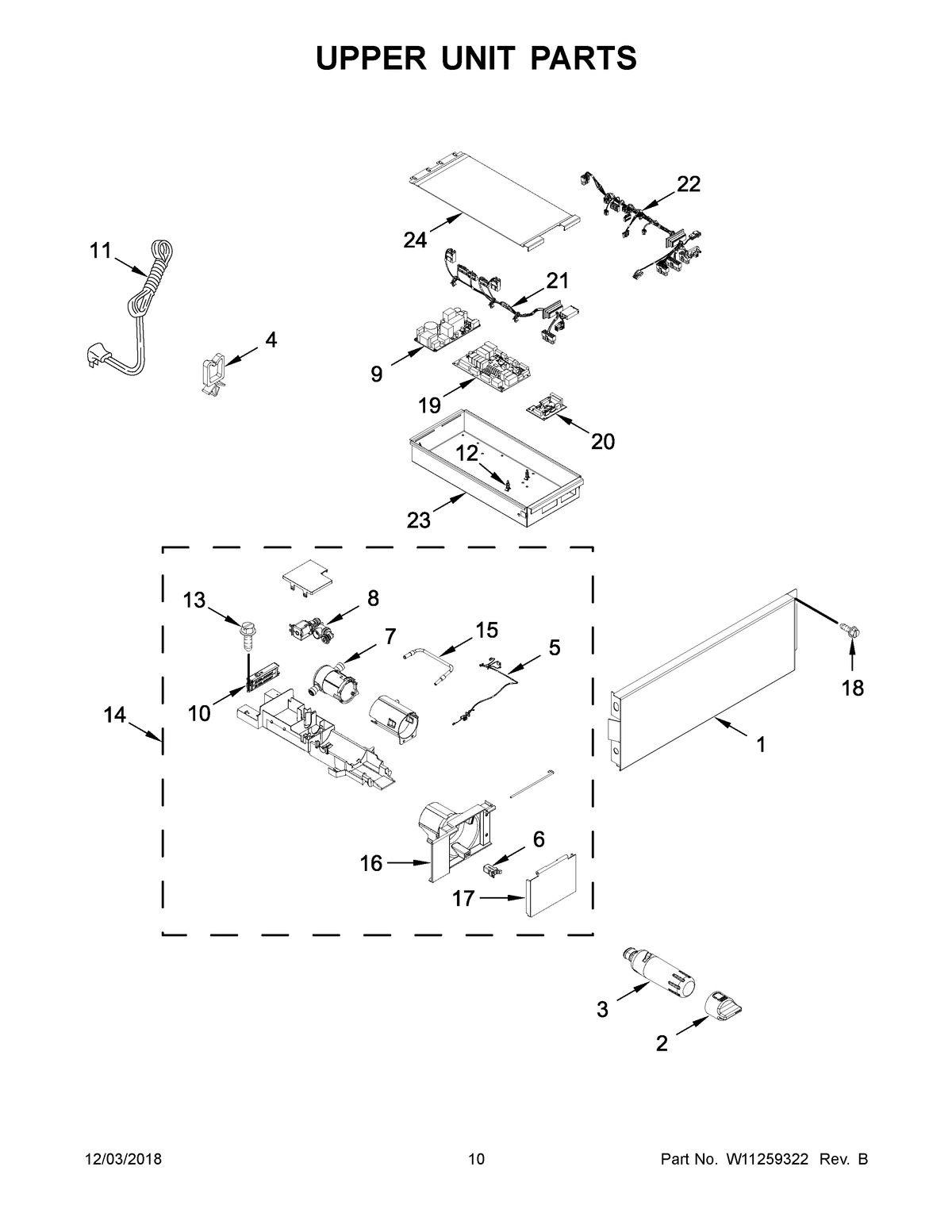

06 - UPPER UNIT PARTS

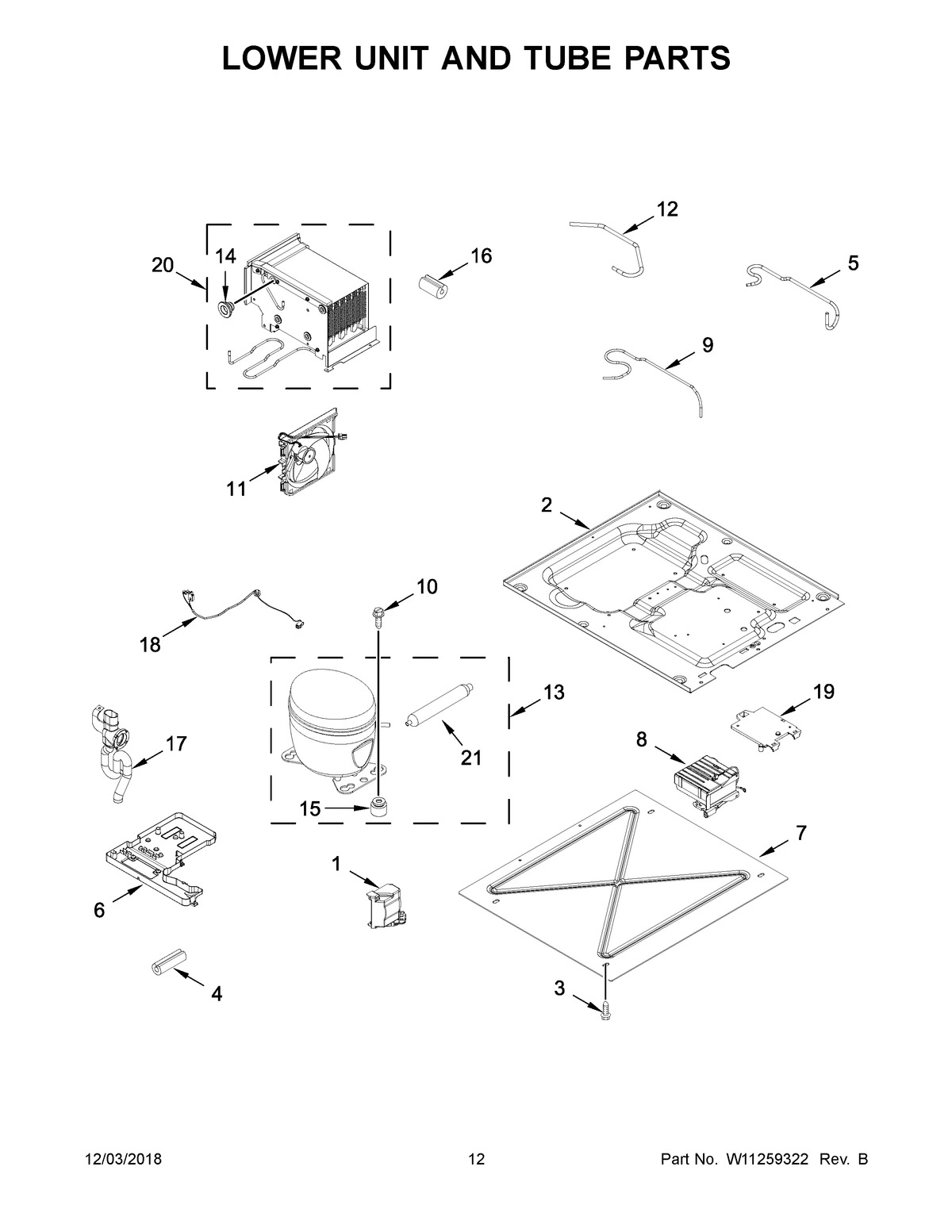

07 - LOWER UNIT AND TUBE PARTS
08 - OPTIONAL PARTS
Common parts from model Maytag JBRFL24IGX00 REFRIGERATOR, BUILT-IN, 24 INCH
1
USE AND CARE GUIDE MAY W10918236 Contact Us For Availability
1
ASSEMBLY, FAN MAY W10769486 Contact Us For Availability
1
ASSEMBLY, DELI SHELF MAY W10824594 Contact Us For Availability
1
ASSEMBLY, REFRIGERATOR/FREEZER DOOR MAY W10823674 Contact Us For Availability
1
ASSEMBLY, COVER PLATE (CHARCOAL SPARKLE) MAY W10823655 Contact Us For Availability
1
ASSEMBLY, COMPRESSOR COVER MAY W11235263 Contact Us For Availability
1A
ENERGY GUIDE MAY W10898661 Contact Us For Availability
1B
INSTALLATION INSTRUCTIONS MAY W10918241 Contact Us For Availability
1C
TECH SHEET (ENGLISH) MAY W10918869 Contact Us For Availability
1D
TECH SHEET (FRENCH) MAY W11108177 Contact Us For Availability
2
FITTING, DRAIN MAY W10370680 Contact Us For Availability
2
ASSEMBLY, SHELF MAY W11032682 Contact Us For Availability
2
ASSEMBLY, DOOR BIN MAY W10824622 Contact Us For Availability
2
CAP, WATER FILTER (GREY) MAY W10813884 Contact Us For Availability
2
PAN, BASE MAY W10761666 Contact Us For Availability
3
GRILLE (CHARCOAL SPARKLE) MAY W10823624 Contact Us For Availability
3
SCREW MAY W10141625 Contact Us For Availability
3
COVER, LED SIDE MAY W10816886 Contact Us For Availability
3
ASSEMBLY, UPPER CRISPER SLIDE SUPPORT MAY W10824120 Contact Us For Availability
3
GASKET, DOOR (BLACK) MAY W11038431 Contact Us For Availability
3
FILTER, WATER MAY W10680605 Contact Us For Availability
4
HINGE, TOP (CHARCOAL SPARKLE) MAY W11036483 Contact Us For Availability
4
ASSEMBLY, LED STRIP (LEFT HAND) MAY W10826246 Contact Us For Availability
4
ASSEMBLY, LOWER CRISPER SLIDE SUPPORT MAY W10821601 Contact Us For Availability
4
BRACKET, AIR DIVIDER MAY W10908496 Contact Us For Availability
4
CLIP MAY 2223913 Contact Us For Availability
4
GROMMET, EVAPORATOR TRAY MAY W10886557 Contact Us For Availability
4A
ASSEMBLY, LED STRIP (RIGHT HAND) MAY W10901633 Contact Us For Availability
5
ASSEMBLY, ROLLER BASE (LEFT HAND) MAY W10761654 Contact Us For Availability
5
EVAPORATOR MAY W10859367 Contact Us For Availability
5
ASSEMBLY, BOTTOM CRISPER PAN MAY W11022752 Contact Us For Availability
5
DIVIDER, AIR MAY W10908495 Contact Us For Availability
5
HARNESS, VALVE (ALSO ORDER 2300868 - 5/16" WA MAY W10831294 Contact Us For Availability
5
TUBE, SUCTION MAY W10772588 Contact Us For Availability
5A
ASSEMBLY, ROLLER BASE (RIGHT HAND) MAY W10761653 Contact Us For Availability
6
BRACKET, HINGE ATTACH MAY W10891495 Contact Us For Availability
6
GROMMET, MOTOR MAY W10225833 Contact Us For Availability
6
ASSEMBLY, TOP CRISPER PAN MAY W10816839 Contact Us For Availability
6
ASSEMBLY, PANEL ADJUSTER (HORIZONTAL) MAY W10873319 Contact Us For Availability
6
LATCH, PUSH MAY W11248444 Contact Us For Availability
6
TRAY, EVAPORATOR DRAIN MAY W10801047 Contact Us For Availability
6A
ASSEMBLY, PANEL ADJUSTER (VERTICAL) MAY W11215289 Contact Us For Availability
7
SWITCH, LIGHT MAY W11205246 Contact Us For Availability
7
SCREW MAY 12990511 Contact Us For Availability
7
ASSEMBLY, DELI MAY W10816762 Contact Us For Availability
7
BRACKET, PANEL ADJUST MAY W11105107 Contact Us For Availability
7
HOUSING, WATER FILTER (ALSO ORDER 2300868 - 5 MAY W11165806 Contact Us For Availability
7
PLATE, BOTTOM MAY W10834246 Contact Us For Availability
8
TRIM, HINGE (CHARCOAL SPARKLE) MAY W10900024 Contact Us For Availability
8
COVER, LED TOP MAY W10816890 Contact Us For Availability
8
CLIP, RETAINER (LEFT HAND) MAY W10856559 Contact Us For Availability
8
CAP, PANEL ADJUST TRIM MAY W10895136 Contact Us For Availability
8
VALVE, PILOT (ALSO ORDER 2300868 - 5/16" WATE MAY W10870856 Contact Us For Availability
8
ASSEMBLY, INVERTER BOX MAY W11083658 Contact Us For Availability
8A
CLIP, RETAINER (RIGHT HAND) MAY W10856558 Contact Us For Availability
9
SWITCH, POWER DISCONNECT MAY 2266802 Contact Us For Availability
9
STRIP, TOP LED MAY W10826248 Contact Us For Availability
9
ASSEMBLY, DELI SLIDE SUPPORT MAY W10824233 Contact Us For Availability
9
TRIM, PANEL ADJUST MAY W11105109 Contact Us For Availability
9
SUPPLY, POWER MAY W10624574 Contact Us For Availability
9
TUBE, DISCHARGE MAY W10770889 Contact Us For Availability
10
HOUSING, CRISPER THERMISTOR MAY W11047771 Contact Us For Availability
10
SCREW MAY W11085874 Contact Us For Availability
10
ASSEMBLY, WIFI MODULE (ALSO ORDER 2300868 - 5 MAY W11110768 Contact Us For Availability
10
SCREW MAY 489473 Contact Us For Availability
11
HARNESS, ANTENNA MAY W10897083 Contact Us For Availability
11
ASSEMBLY, AIR TOWER GASKET (INCLUDES AIR TOWE MAY W11176554 Contact Us For Availability
11
HARNESS, CRISPER LED (INCLUDES THERMISTOR) MAY W10909590 Contact Us For Availability
11
CORD, POWER MAY W10909588 Contact Us For Availability
11
ASSEMBLY, CONDENSER FAN SHROUD MAY W10801052 Contact Us For Availability
12
SCREW (BLACK) MAY W10678210 Contact Us For Availability
12
ASSEMBLY, DUCT DAMPER (INCLUDES HEATER) MAY W10872906 Contact Us For Availability
12
SIDEARM, SHELF MAY W10605575 Contact Us For Availability
12
SPACER MAY 2203075 Contact Us For Availability
12
TUBE, PROCESS MAY W10837048 Contact Us For Availability
13
TUBE, WATER (ALSO ORDER 2300868 - 5/16" WATER MAY W11227357 Contact Us For Availability
13
ASSEMBLY, AIR TOWER BRACKET (INCLUDES RUBBER MAY W11036131 Contact Us For Availability
13
PANEL, MULLION MAY W11024695 Contact Us For Availability
13
SCREW MAY W11168732 Contact Us For Availability
13
MAY W11328338 MAY W11328338 Contact Us For Availability
13A
ASSEMBLY, AIR TOWER BRACKET (INCLUDES RUBBER MAY W11036132 Contact Us For Availability
14
ASSEMBY, GRILLE MOUNT (INCLUDES NUT) (LEFT HA MAY W11028834 Contact Us For Availability
14
WALL, FALSE MAY W10816929 Contact Us For Availability
14
BRACKET, SUPPORT MAY W11045476 Contact Us For Availability
14
ASSEMBLY, FILTER (ALSO ORDER 2300868 - 5/16" MAY W11040339 Contact Us For Availability
14
GROMMET MAY W10587113 Contact Us For Availability
14A
ASSEMBY, GRILLE MOUNT (INCLUDES NUT) (RIGHT H MAY W11028835 Contact Us For Availability
15
COVER, HINGE BRACKET MAY W10895127 Contact Us For Availability
15
DUCT, DELI MAY W10816934 Contact Us For Availability
15
PLATE, CRISPER SUPPORT LED MAY W10902248 Contact Us For Availability
15
TUBE, FILTER INLET MAY W11050485 Contact Us For Availability
15
GROMMET MAY 2183042 Contact Us For Availability
16
HINGE, BOTTOM (CHARCOAL SPARKLE) MAY W11036493 Contact Us For Availability
16
GASKET, DELI DUCT MAY W10916552 Contact Us For Availability
16
THERMISTOR (INCLUDES COVER) MAY W11265008 Contact Us For Availability
16
MOUNT, FILTER MAY W10826558 Contact Us For Availability
16
GROMMET, CONDENSER MAY 2319835 Contact Us For Availability
17
ASSEMBLY, DUCT (INCLUDES DAMPER) MAY W10863616 Contact Us For Availability
17
COVER, FILTER MOUNT MAY W10826572 Contact Us For Availability
17
ASSEMBLY, DRAIN TUBE MAY W10781987 Contact Us For Availability
18
SCREW MAY W10882791 Contact Us For Availability
18
CLIP, WIRE MAY W10604160 Contact Us For Availability
18
ASSEMBY, LIGHT STRIP MAY W10914639 Contact Us For Availability
18
HARNESS, DAMPER MAY W10810632 Contact Us For Availability
18
HARNESS, COMPRESSOR MAY W10818556 Contact Us For Availability
19
SCREW MAY W10141645 Contact Us For Availability
19
ASSEMBLY, USER INTERFACE MAY W10840716 Contact Us For Availability
19
HARNESS, MULLION MAY W10818566 Contact Us For Availability
19
CONTROL, ELECTRONIC MAY W11043305 Contact Us For Availability
19
BRACKET, INVERTER MOUNTING MAY W10663674 Contact Us For Availability
20
TRIM, CABINET SIDE (EBONY (LEFT HAND)) MAY W11111408 Contact Us For Availability
20
GRILLE, AIR RETURN MAY W10847991 Contact Us For Availability
20
CONTROL, ELECTRONIC (LED DRIVER) MAY W10909108 Contact Us For Availability
20
CONDENSER (INCLUDES DRAIN PAN HEATER) MAY W10762098 Contact Us For Availability
20A
TRIM, CABINET SIDE (EBONY (NON-HINGE SIDE)) MAY W11111409 Contact Us For Availability
21
MODULE, WIFI MAY W10861217 Contact Us For Availability
21
HARNESS, HV MAY W10890822 Contact Us For Availability
21
DRIER MAY W10874653 Contact Us For Availability
22
ASSEMBLY, ADJUSTABLE TOEKICK (LEFT HAND) MAY W10848725 Contact Us For Availability
22
SCREW MAY 1157158 Contact Us For Availability
22
HARNESS, LV MAY W10890823 Contact Us For Availability
22A
ASSEMBLY, ADJUSTABLE TOEKICK (RIGHT HAND) MAY W10848724 Contact Us For Availability
23
TUBE, FILTER OUTLET WATER MAY W11047886 Contact Us For Availability
23
ASSEMBLY, AIR TOWER PANEL MAY W10816938 Contact Us For Availability
23
TRAY , CONTROL BOARD MOUNTING MAY W10910459 Contact Us For Availability
24
TRIM, HINGE (CHARCOAL SPARKLE) MAY W10900023 Contact Us For Availability
24
RESERVOIR, WATER MAY W11049326 Contact Us For Availability
24
LID, COVER MAY W10822213 Contact Us For Availability
25
ASSEMBLY, DISPENSER COVER MAY W10880332 Contact Us For Availability
26
SWITCH, LIMIT MAY 12575502 Contact Us For Availability
27
VALVE, SINGLE SOLENOID MAY W11135656 Contact Us For Availability
28
TUBE, DISPENSER WATER MAY W11233653 Contact Us For Availability
29
LADDER, SHELF (INCLUDES SCREW GUIDE) (LEFT HA MAY W10905671 Contact Us For Availability
29A
LADDER, SHELF (INCLUDES SCREW GUIDE) (RIGHT H MAY W10905672 Contact Us For Availability
30
THERMISTOR MAY W11084854 Contact Us For Availability
31
COVER, THERMISTOR MAY W10912104 Contact Us For Availability
32
SCREW (BLACK) MAY W10894079 Contact Us For Availability
33
HEATER, DEFROST MAY W10826529 Contact Us For Availability
34
INSULATION, SOUND DEADENING MAY 2169104 Contact Us For Availability
35
TUBE, DISPENSER WATER (WATER VALVE) MAY W11233591 Contact Us For Availability
36
ASSEMBLY, FUSE JUMPER WIRE MAY W10602825 Contact Us For Availability
37
CROSSBAR, CONTROL (UPPER) MAY W10816924 Contact Us For Availability
37A
CROSSBA MAY W10887668 Contact Us For Availability
38
MAY W10810633 MAY W10810633 Contact Us For Availability
39
MAY W10876959 MAY W10876959 Contact Us For Availability
40
MAY W10895218 MAY W10895218 Contact Us For Availability
41
MAY W10780861 MAY W10780861 Contact Us For Availability
42
MAY W10895214 MAY W10895214 Contact Us For Availability
43
MAY W10816945 MAY W10816945 Contact Us For Availability
44
MAY W10876967 MAY W10876967 Contact Us For Availability
45
MAY W11216534 MAY W11216534 Contact Us For Availability
45A
MAY W11216533 MAY W11216533 Contact Us For Availability
NI
FOLLOWING PARTS NOT ILLUSTRATED MAY N/P Contact Us For Availability
NI
GAUGE, DOOR MAY W11028745 Contact Us For Availability
NI
VALVE, ACCESS (3/16") MAY 876764 Contact Us For Availability
NI
VALVE, ACCESS (5/16") MAY 978026 Contact Us For Availability
NI
TORX SCREW WRENCH, TORX KEY MAY 1117510 Contact Us For Availability
NI
MISCELLANEOUS, CLEANER, STAINLESS STEEL MAY 20000008 Contact Us For Availability
NI
MISCELLANEOUS, SEALER, GUM (4 FEET) MAY 212643 Contact Us For Availability
NI
MISCELLANEOUS, TAPE, VINYL (3/4 X 108") MAY 479502 Contact Us For Availability
NI
MISCELLANEOUS, CORK, SEALER MAY 503695 Contact Us For Availability
NI
MISCELLANEOUS, SEALER, MASTIC (1 QT) MAY 505587 Contact Us For Availability
NI
MISCELLANEOUS, GREASE, SILICONE (1/2 OZ.) MAY 542638 Contact Us For Availability
NI
MISCELLANEOUS, CEMENT, ALUMILASTIC (1 1/4 OZ. MAY 542639 Contact Us For Availability
NI
MISCELLANEOUS, KIT, WATER INLET MAY 8003RP Contact Us For Availability
NI
MISCELLANEOUS, KIT, TERMINAL CONNECTOR MAY 833938 Contact Us For Availability
NI
MISCELLANEOUS, KIT, FOAM SLAB (30" X 32 1/2" MAY 876029 Contact Us For Availability
NI
MISCELLANEOUS, INSULATION KIT (14 PIECES, 3" MAY 876305 Contact Us For Availability
NI
MISCELLANEOUS, INSULATION (2 PIECES, 3" X 24" MAY 876370 Contact Us For Availability
NI
MISCELLANEOUS, INSULATION, FIBERGLASS (63 1/2 MAY 978941 Contact Us For Availability
NI
TOUCH-UP PAINT (CHARCOAL SPARKLE (.3 OZ TOUCH MAY W10756744 Contact Us For Availability
NI
TOUCH-UP PAINT (CHARCOAL SPARKLE (.6 OZ TOUCH MAY W10756745 Contact Us For Availability
NI
JOIN KIT, HINGE - LEFT HAND / NON HINGE - RIG MAY W11103738 Contact Us For Availability
NI
JOIN KIT, NON HINGE - LEFT HAND / NON HINGE - MAY W11103739 Contact Us For Availability
NI
JOIN KIT, NON HINGE - LEFT HAND / HINGE - RIG MAY W11103740 Contact Us For Availability
NI
BEZEL TRIM KIT, NON HINGE - LEFT HAND / HINGE MAY W11227384 Contact Us For Availability
NI
BEZEL TRIM KIT, HINGE - LEFT HAND / HINGE - R MAY W11227385 Contact Us For Availability
NI
BEZEL TRIM KIT, HINGE MAY W11227386 Contact Us For Availability
× ![]()
