Model GE JBP28GK-2 Electric Range – Common Parts & Diagrams
0
1
2
3
Common parts from model GE JBP28GK-2 Electric Range

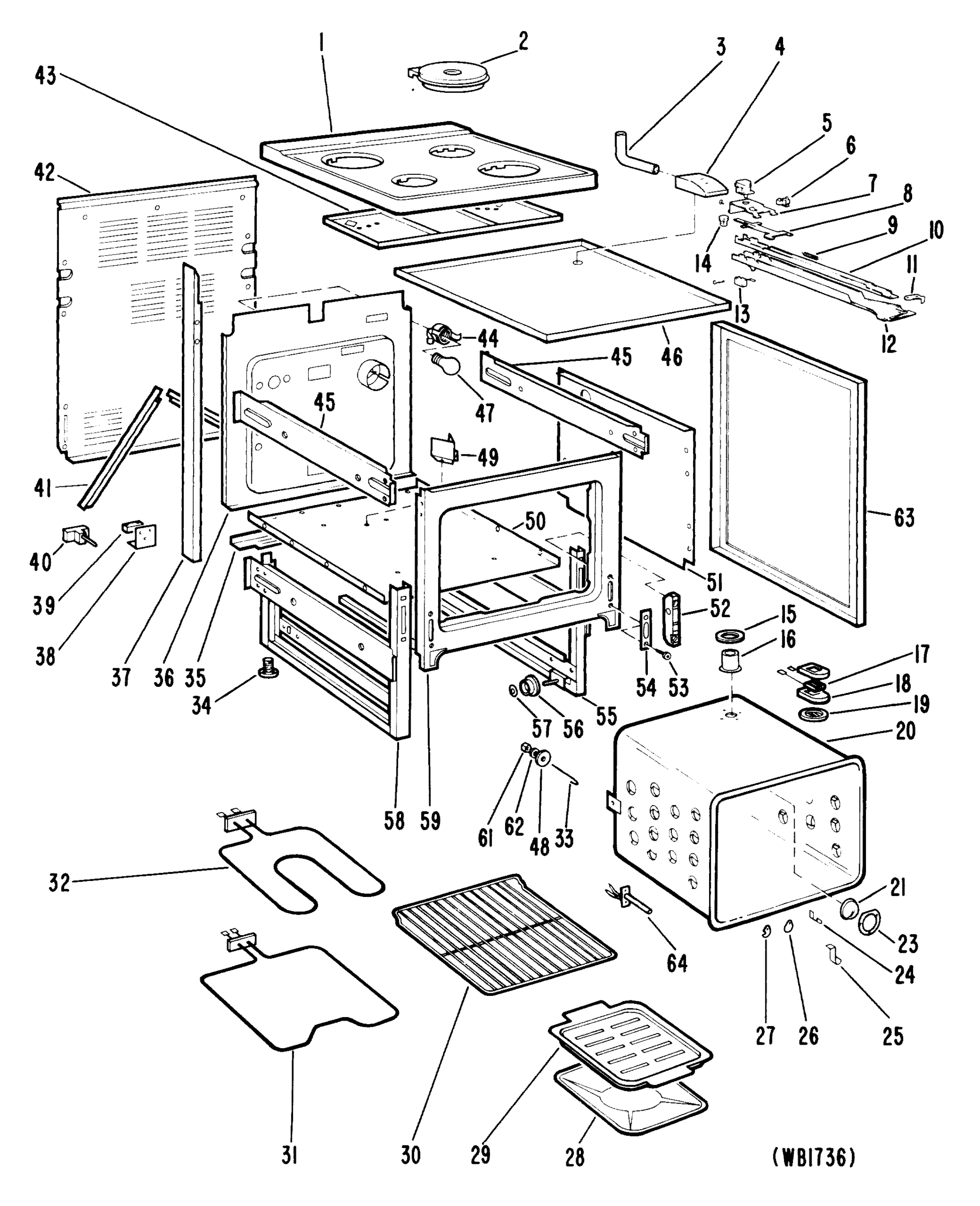

2
GEN WB30X0246 GEN WB30X0246 Contact Us For Availability
2
GEN WB30X0249 GEN WB30X0249 Contact Us For Availability
2
ELEMENT 5.7" GEN WB30X0250 Contact Us For Availability
3
DUCT VENT GEN WB38X0087 Contact Us For Availability
4
VENT-TRANSFER GEN WB38X0088 Contact Us For Availability
5
GEN WB24X0197 GEN WB24X0197 Contact Us For Availability
6
SWITCH-LATCH GEN WB24X0183 Contact Us For Availability
7
GEN WB02X9995 GEN WB02X9995 Contact Us For Availability
8
GEN WB02X7882 GEN WB02X7882 Contact Us For Availability
9
GEN WB02X7883 GEN WB02X7883 Contact Us For Availability
10
GEN WB02X7884 GEN WB02X7884 Contact Us For Availability
11
GEN WB02X7885 GEN WB02X7885 Contact Us For Availability
12
GEN WB02X7886 GEN WB02X7886 Contact Us For Availability
13
SWITCH-SOLENOID GEN WB24X5235 Contact Us For Availability
14
SPRING-OLUNGER GEN WB09X0148 Contact Us For Availability
15
GEN WB38X0090 GEN WB38X0090 Contact Us For Availability
16
GEN WB38X0089 GEN WB38X0089 Contact Us For Availability
17
HEATER-SMOKE ELIMIN GEN WB29X0079 Contact Us For Availability
18
HOUSING GEN WB29X0080 Contact Us For Availability
19
SCREEN-SMOKE ELIMIN GEN WB29X0081 Contact Us For Availability
20
GEN WB53X0271 GEN WB53X0271 Contact Us For Availability
21
LENS-OVEN LIGHT GEN WB36X0728 Contact Us For Availability
23
RING-RETAINING GEN WB02X4902 Contact Us For Availability
24
GEN WB01X5784 GEN WB01X5784 Contact Us For Availability
26
PLATE-TLS GEN WB02X3165 Contact Us For Availability
27
GEN WB02X4906 GEN WB02X4906 Contact Us For Availability
28
GEN WB49X0588 GEN WB49X0588 Contact Us For Availability
30
GEN WB48X0196 GEN WB48X0196 Contact Us For Availability
30
GEN WB48X0197 GEN WB48X0197 Contact Us For Availability
31
BAKE ELEMENT GEN WB44X0228 Contact Us For Availability
32
BROIL ELEMENT GEN WB44X0229 Contact Us For Availability
33
GEN WB01X0990 GEN WB01X0990 Contact Us For Availability
34
LEVELING LEG GEN WB01X0991 Contact Us For Availability
35
WIRE GUARD-BOTTOM GEN WB02X4913 Contact Us For Availability
36
MAIN BACK GEN WB63X5206 Contact Us For Availability
37
GEN WB02X4910 GEN WB02X4910 Contact Us For Availability
38
BRACKET-POWER CORD GEN WB02X4907 Contact Us For Availability
40
GASKET-TLS GEN WB02X3163 Contact Us For Availability
40
SWITCH TEMP-LIMIT GEN WB24X0388 Contact Us For Availability
41
BRACE GEN WB02X4909 Contact Us For Availability
42
GEN WB02X4914 GEN WB02X4914 Contact Us For Availability
42
COVER-REAR GEN WB63X5207 Contact Us For Availability
43
SUPPORT COOKTOP GEN WB02X4915 Contact Us For Availability
43
SUPPORT COOKTOP GEN WB02X7887 Contact Us For Availability
44
GEN WB02X4916 GEN WB02X4916 Contact Us For Availability
44
GEN WB08X0265 GEN WB08X0265 Contact Us For Availability
45
GEN WB02X4917 GEN WB02X4917 Contact Us For Availability
46
GEN WB63X0267 GEN WB63X0267 Contact Us For Availability
48
GEN WB01X0993 GEN WB01X0993 Contact Us For Availability
49
SUPPORT OVEN GEN WB02X4918 Contact Us For Availability
50
BOTTOM INSULATING GEN WB63X0268 Contact Us For Availability
51
SHEILD-INSULATION GEN WB63X0269 Contact Us For Availability
52
RECEIVER-INSULATION GEN WB14X0080 Contact Us For Availability
53
GEN WB01X0994 GEN WB01X0994 Contact Us For Availability
54
GEN WB07X1511 GEN WB07X1511 Contact Us For Availability
55
CHANNEL BASE-RH GEN WB63X0270 Contact Us For Availability
57
SPEEDNUT GEN WB01X0999 Contact Us For Availability
58
CHANNEL BASE-LH GEN WB63X0271 Contact Us For Availability
59
FRONT FRAME GEN WB63X5208 Contact Us For Availability
61
NUT HOOK BOLT GEN WB01X0996 Contact Us For Availability
62
GEN WB01X0995 GEN WB01X0995 Contact Us For Availability
63
SIDE PANEL WHITE GEN WB63X0263 Contact Us For Availability
63
SIDE PANEL ALMOND GEN WB63X0264 Contact Us For Availability
64
GEN WB21X158 GEN WB21X158 Contact Us For Availability

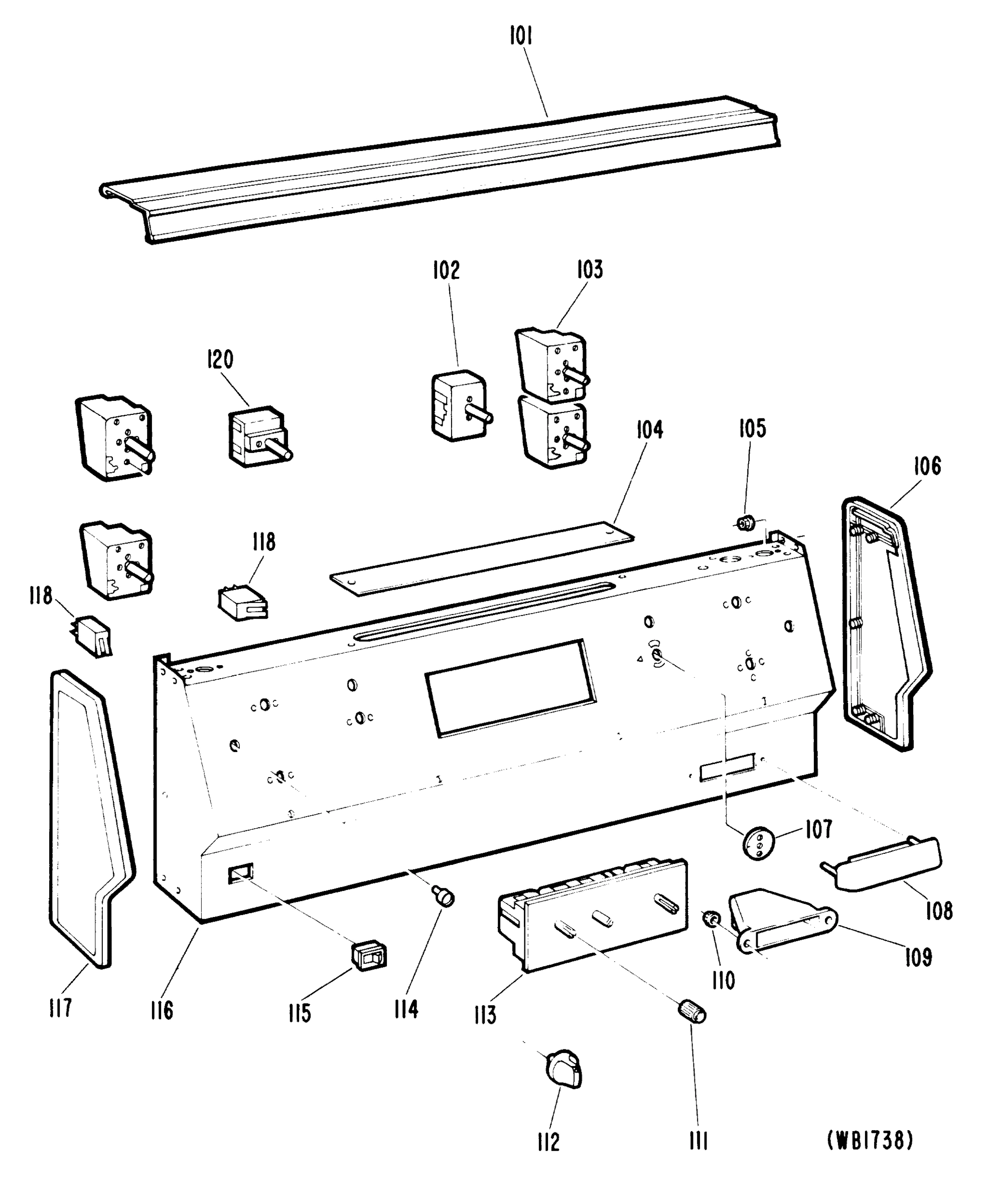

101
COVER-TOP GEN WB61X0297 Contact Us For Availability
102
GEN WB21X0527 GEN WB21X0527 Contact Us For Availability
103
GEN WB02X4899 GEN WB02X4899 Contact Us For Availability
103
INF HEAT SW 1400W GEN WB21X5258 Contact Us For Availability
103
INF HEAT SW 2000W GEN WB23X0082 Contact Us For Availability
103
SW SENSI-TEMP GEN WB23X0083 Contact Us For Availability
104
COVER FUSE OPENING GEN WB61X0298 Contact Us For Availability
105
GEN WB02X4934 GEN WB02X4934 Contact Us For Availability
105
PALNUT MTG END CAP GEN WB01X0980 Contact Us For Availability
106
GEN WB02X4935 GEN WB02X4935 Contact Us For Availability
106
END CAP RH GEN WB61X0302 Contact Us For Availability
107
DISC GEN WB21X0438 Contact Us For Availability
108
COVER VENT GEN WB61X0299 Contact Us For Availability
109
GEN WB38X0086 GEN WB38X0086 Contact Us For Availability
110
GEN WB01X0981 GEN WB01X0981 Contact Us For Availability
111
TIMER KNOB GEN WB03X0704 Contact Us For Availability
112
KNOB GEN WB03X0705 Contact Us For Availability
113
GEN WB19X0229 GEN WB19X0229 Contact Us For Availability
114
JEWEL AMBER GEN WB36X0769 Contact Us For Availability
115
SW OVEN LIGHT GEN WB24X5236 Contact Us For Availability
116
CONTROL PANEL-WH GEN WB61X0300 Contact Us For Availability
116
CONTROL PANEL-AD GEN WB61X0301 Contact Us For Availability
117
GEN WB61X0303 GEN WB61X0303 Contact Us For Availability
118
GEN WB25X0088 GEN WB25X0088 Contact Us For Availability
118
GEN WB25X0089 GEN WB25X0089 Contact Us For Availability
120
SELECTOR SWITCH GEN WB22X0110 Contact Us For Availability
122
GEN WB02X4928 GEN WB02X4928 Contact Us For Availability

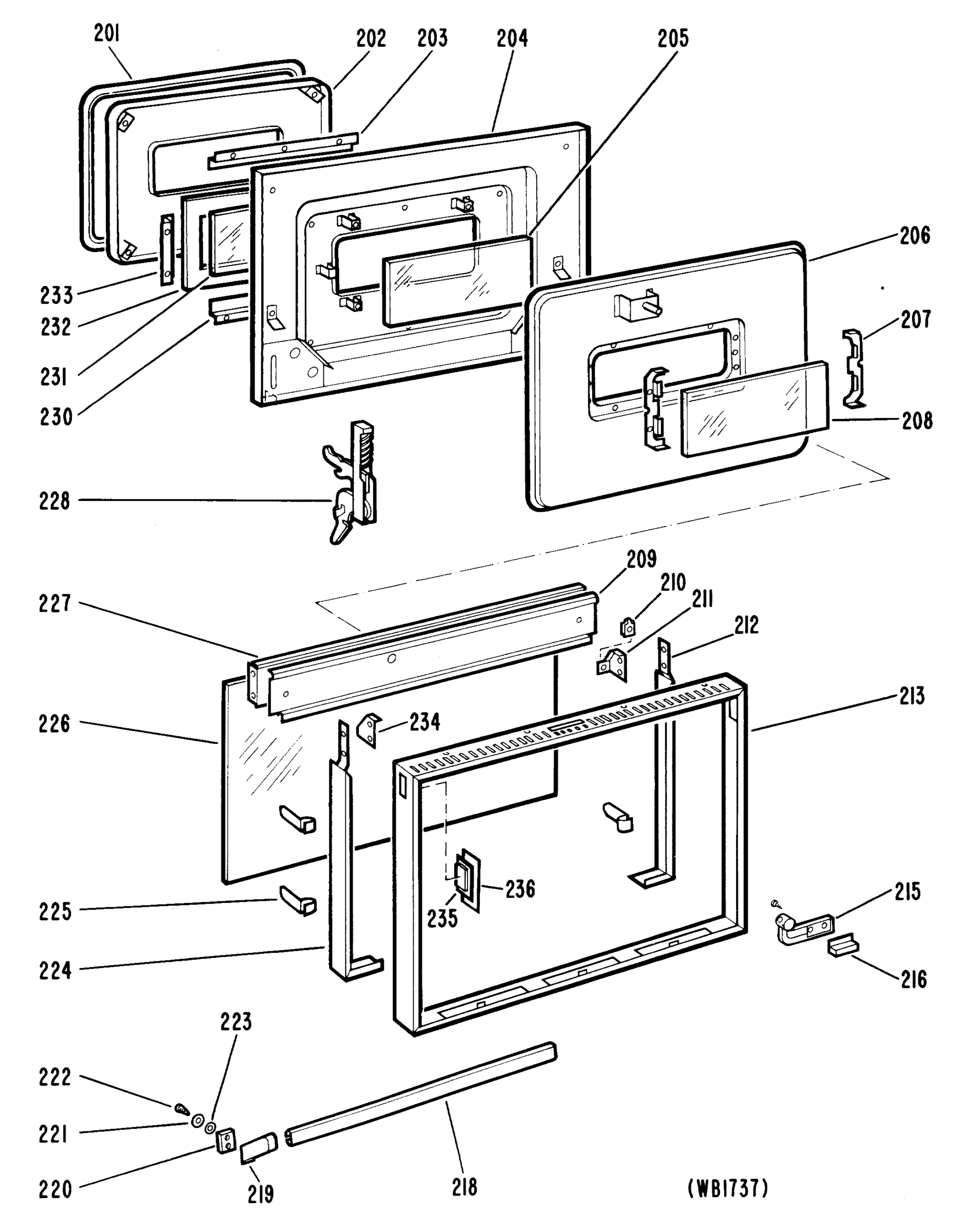

201
GEN WB2X10019 GEN WB2X10019 Contact Us For Availability
201
GEN WB2X10020 GEN WB2X10020 Contact Us For Availability
202
GEN WB55X5344 GEN WB55X5344 Contact Us For Availability
204
SHIELD GEN WB55X0621 Contact Us For Availability
206
GEN WB01X1002 GEN WB01X1002 Contact Us For Availability
206
RETAINER-PANEL GEN WB55X0623 Contact Us For Availability
207
WINDOW BRACKET GEN WB02X7888 Contact Us For Availability
208
DOOR GLASS GEN WB55X0622 Contact Us For Availability
209
GEN WB02X4921 GEN WB02X4921 Contact Us For Availability
210
GEN WB02X4922 GEN WB02X4922 Contact Us For Availability
211
PLATE-MTG RH GEN WB02X4923 Contact Us For Availability
212
SUPPORT SIDE RH GEN WB02X4924 Contact Us For Availability
213
GEN WB55X0625 GEN WB55X0625 Contact Us For Availability
215
GEN WB02X4925 GEN WB02X4925 Contact Us For Availability
216
HANDLE LATCH GEN WB15X0244 Contact Us For Availability
218
GEN WB15X0243 GEN WB15X0243 Contact Us For Availability
219
END CAP LH GEN WB02X7889 Contact Us For Availability
219
END CAP RH GEN WB02X7890 Contact Us For Availability
221
GEN WB01X5785 GEN WB01X5785 Contact Us For Availability
222
SCREW GEN WB01X5786 Contact Us For Availability
223
GEN WB01X1007 GEN WB01X1007 Contact Us For Availability
224
SUPPORT SIDE LH GEN WB02X4929 Contact Us For Availability
225
CLIP GEN WB02X6574 Contact Us For Availability
226
GEN WB55X0624 GEN WB55X0624 Contact Us For Availability
227
GEN WB02X4931 GEN WB02X4931 Contact Us For Availability
228
GEN WB14X0081 GEN WB14X0081 Contact Us For Availability
230
BRACKET-BOTTOM GEN WB02X4919 Contact Us For Availability
231
GEN WB55X0626 GEN WB55X0626 Contact Us For Availability
234
PLATE MTG LH GEN WB02X4936 Contact Us For Availability
235
GEN WB02X6573 GEN WB02X6573 Contact Us For Availability
236
GEN WB02X4938 GEN WB02X4938 Contact Us For Availability

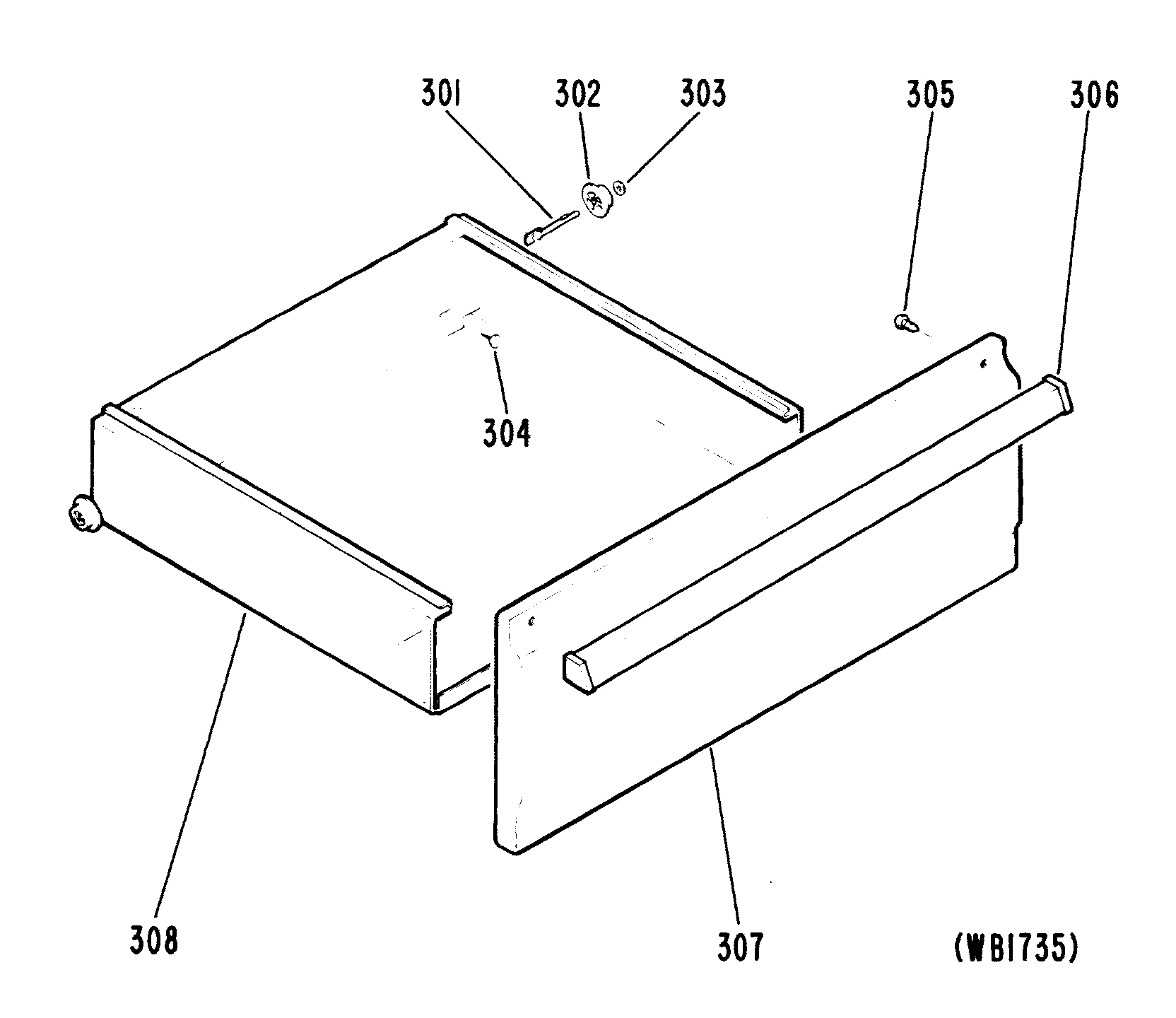

301
GEN WB01X1000 GEN WB01X1000 Contact Us For Availability
302
GEN WB39X0063 GEN WB39X0063 Contact Us For Availability
304
GEN WB01X5787 GEN WB01X5787 Contact Us For Availability
305
GEN WB01X5788 GEN WB01X5788 Contact Us For Availability
306
GEN WB15X0242 GEN WB15X0242 Contact Us For Availability
307
PANEL-WH GEN WB56X1828 Contact Us For Availability
307
PANEL-AD GEN WB56X1829 Contact Us For Availability
308
DRAWER GEN WB58X5012 Contact Us For Availability
32767
GEN 31-0626 GEN 31-0626 Contact Us For Availability
32767
GEN 49-4796 GEN 49-4796 Contact Us For Availability
× ![]()
