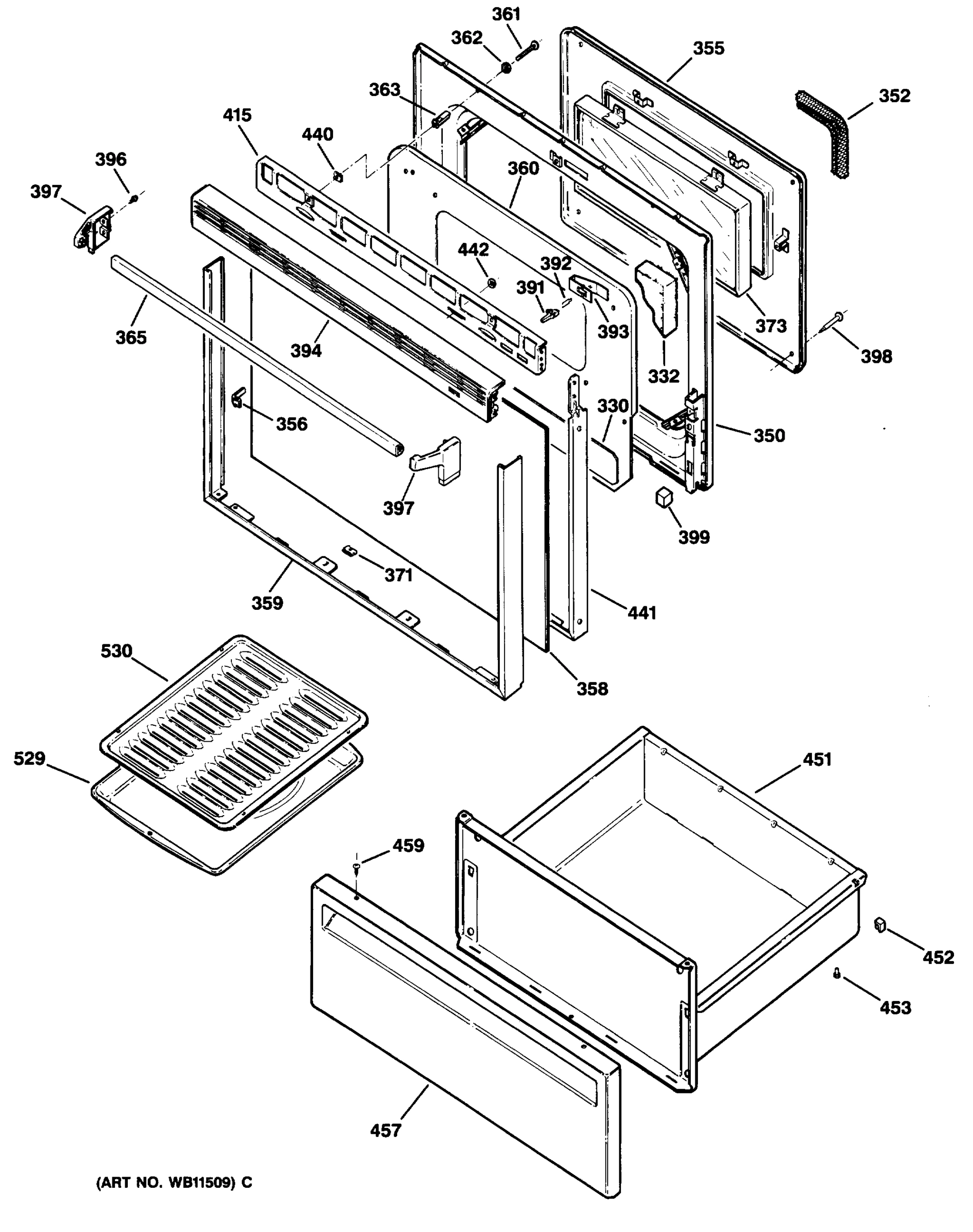

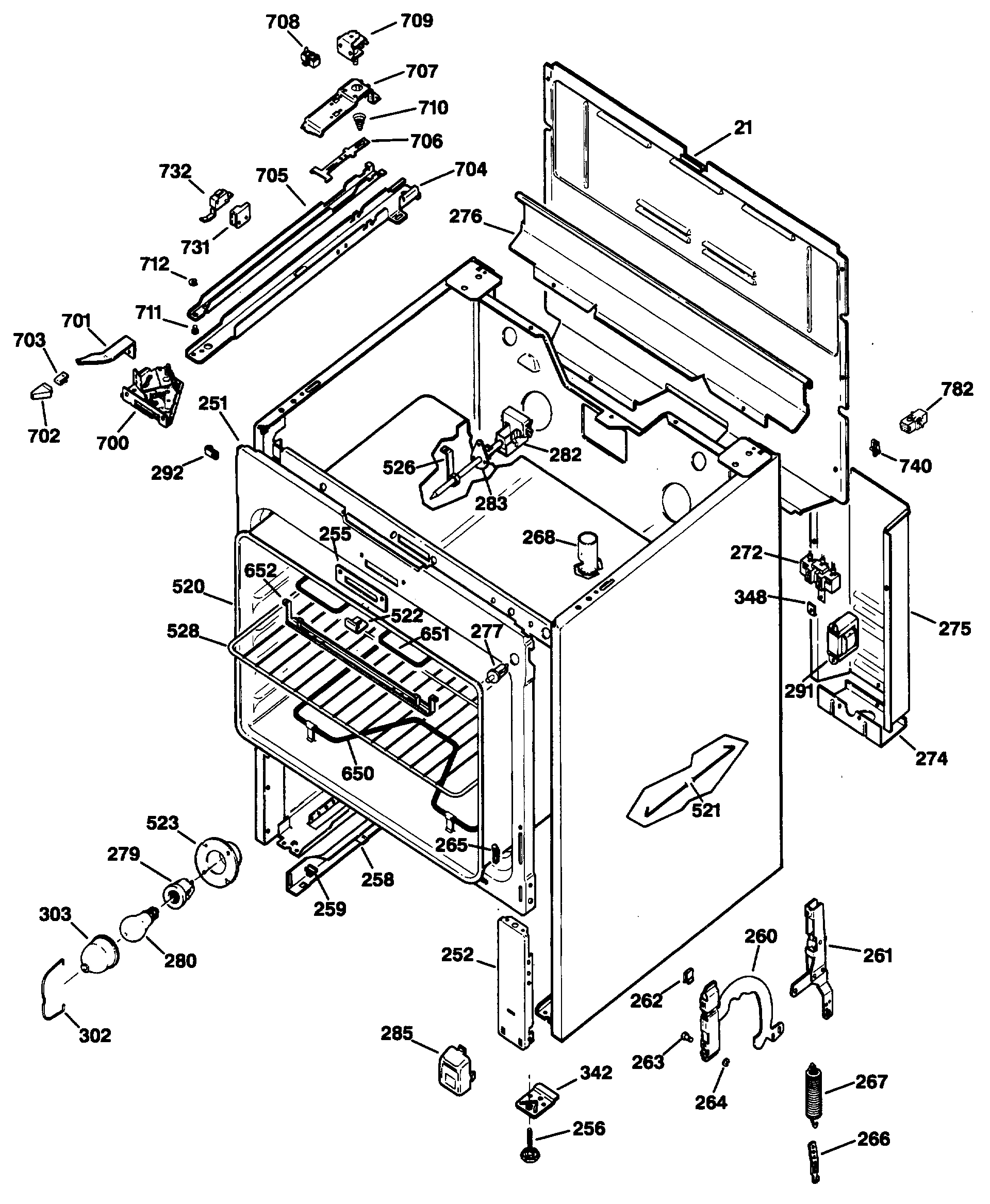

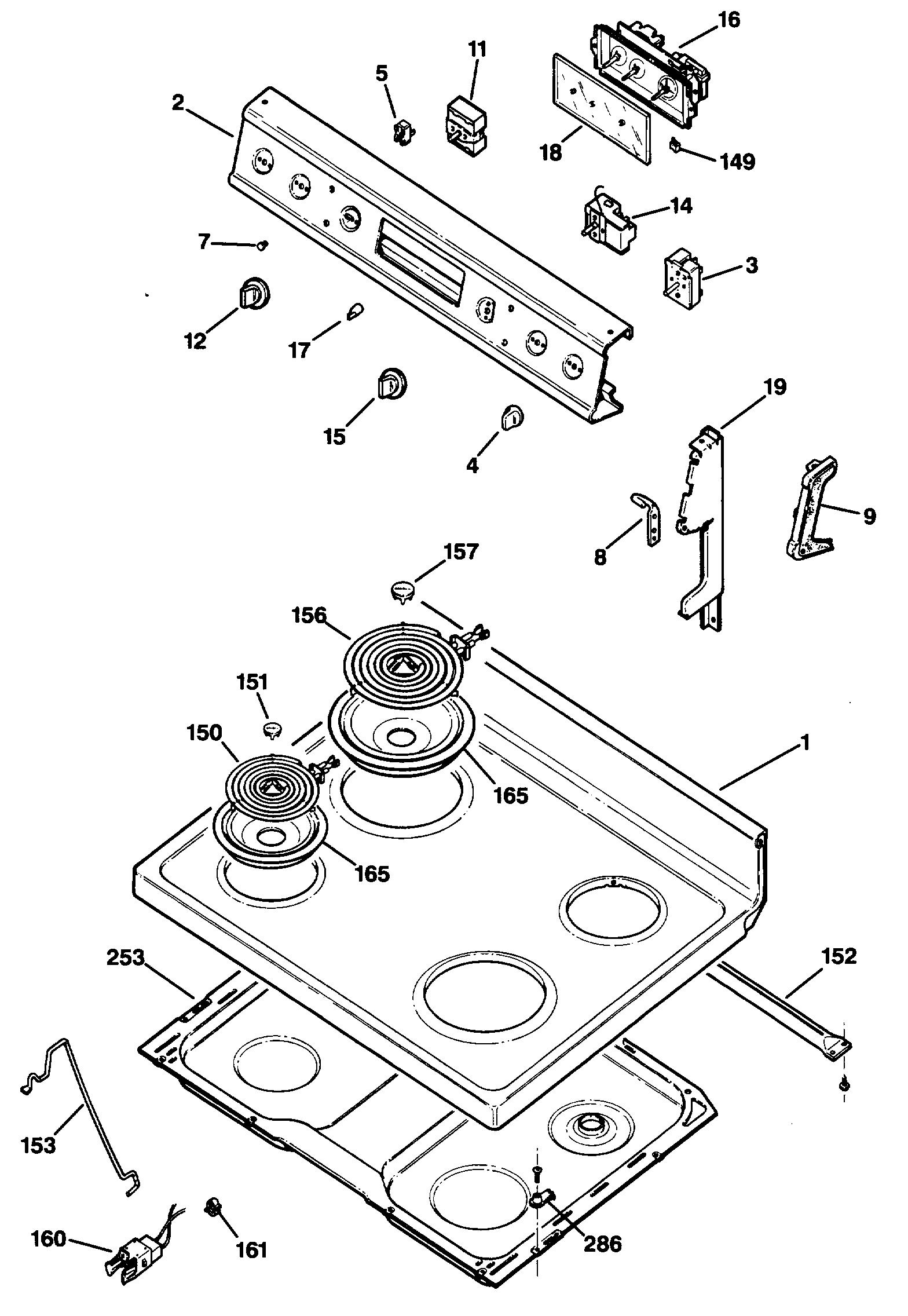

Model GE JBP26G*R1 Electric Range – Common Parts & Diagrams
Common parts from model GE JBP26G*R1 Electric Range
7
JEWEL GEN WB25X5054 Contact Us For Availability
14
GEN WB02X6274 GEN WB02X6274 Contact Us For Availability
14
GEN WB24X0176 GEN WB24X0176 Contact Us For Availability
14
SPRING-PLUNGER GEN WB09X0148 Contact Us For Availability
15
OVEN SET KNOB GEN WB03X5788 Contact Us For Availability
16
GEN WB19X5306 GEN WB19X5306 Contact Us For Availability
18
GEN WB36X5574 GEN WB36X5574 Contact Us For Availability
19
GEN WB07X7132 GEN WB07X7132 Contact Us For Availability
19
GEN WB07X7133 GEN WB07X7133 Contact Us For Availability
21
GEN WB49X5496 GEN WB49X5496 Contact Us For Availability
143
GEN WB01X5860 GEN WB01X5860 Contact Us For Availability
149
GEN WB02X7702 GEN WB02X7702 Contact Us For Availability
151
GEN WB32X0052 GEN WB32X0052 Contact Us For Availability
152
GEN WB02X8113 GEN WB02X8113 Contact Us For Availability
153
GEN WB02X8114 GEN WB02X8114 Contact Us For Availability
157
GEN WB32X0051 GEN WB32X0051 Contact Us For Availability
161
GEN WB02X8115 GEN WB02X8115 Contact Us For Availability
251
GEN WB56X7030 GEN WB56X7030 Contact Us For Availability
252
GEN WB49X5498 GEN WB49X5498 Contact Us For Availability
253
GEN WB49X5499 GEN WB49X5499 Contact Us For Availability
255
GEN WB07X7036 GEN WB07X7036 Contact Us For Availability
256
GEN WB02X8116 GEN WB02X8116 Contact Us For Availability
258
GEN WB02X7693 GEN WB02X7693 Contact Us For Availability
258
GEN WB39X0051 GEN WB39X0051 Contact Us For Availability
259
SLIDE GUIDE GEN WB02X0831 Contact Us For Availability
260
GEN WB10X5206 GEN WB10X5206 Contact Us For Availability
260
HANGER-TLS GEN WB02X3165 Contact Us For Availability
261
HINGE SPT RH GEN WB10X0148 Contact Us For Availability
261
HINGE SPT LH GEN WB10X0149 Contact Us For Availability
262
GEN WB02X3193 GEN WB02X3193 Contact Us For Availability
263
GEN WB02X6195 GEN WB02X6195 Contact Us For Availability
264
RING RETAINING GEN WB02X1082 Contact Us For Availability
265
GEN WB02X6342 GEN WB02X6342 Contact Us For Availability
266
HOOK DOOR SPRING GEN WB02X2506 Contact Us For Availability
267
GEN WB09X0144 GEN WB09X0144 Contact Us For Availability
268
GEN WB29X5022 GEN WB29X5022 Contact Us For Availability
274
KNOCKOUT PLATE GEN WB02X1908 Contact Us For Availability
275
GEN WB02X8104 GEN WB02X8104 Contact Us For Availability
276
GEN WB2X8105 GEN WB2X8105 Contact Us For Availability
277
SWITCH, OVEN LIGHT GEN WB24X0105 Contact Us For Availability
282
TEMP LIMIT SWITCH GEN WB24X5164 Contact Us For Availability
283
GEN WB02X3164 GEN WB02X3164 Contact Us For Availability
285
GEN WB02X8106 GEN WB02X8106 Contact Us For Availability
286
GEN WB02X8107 GEN WB02X8107 Contact Us For Availability
292
GEN WB01X0386 GEN WB01X0386 Contact Us For Availability
302
GEN WB02X7694 GEN WB02X7694 Contact Us For Availability
326
CLIP TRIM GEN WB02X6574 Contact Us For Availability
332
GEN WB02X8109 GEN WB02X8109 Contact Us For Availability
342
FOOT EXTENSION GEN NCN Contact Us For Availability
348
PLATE GROUND GEN WB02X0646 Contact Us For Availability
350
GEN WB55X5358 GEN WB55X5358 Contact Us For Availability
355
GEN WB55X5359 GEN WB55X5359 Contact Us For Availability
358
GEN WB36X5659 GEN WB36X5659 Contact Us For Availability
359
GEN WB07X7129 GEN WB07X7129 Contact Us For Availability
360
GEN WB55X0378 GEN WB55X0378 Contact Us For Availability
363
GEN WB02X3030 GEN WB02X3030 Contact Us For Availability
365
GEN WB15X5174 GEN WB15X5174 Contact Us For Availability
371
GEN WB01X5732 GEN WB01X5732 Contact Us For Availability
373
WINDOW PACK SM GEN WB56K0019 Contact Us For Availability
391
GEN WB02X7881 GEN WB02X7881 Contact Us For Availability
392
CAM LINK GEN WB02X5217 Contact Us For Availability
393
GEN WB09X5083 GEN WB09X5083 Contact Us For Availability
394
GEN WB07X7128 GEN WB07X7128 Contact Us For Availability
397
GEN WZ04X0384 GEN WZ04X0384 Contact Us For Availability
398
SCR SHOULDER GEN WB01X0600 Contact Us For Availability
399
PAD GEN WB02X3285 Contact Us For Availability
415
GEN WB02X7608 GEN WB02X7608 Contact Us For Availability
441
GEN WB02X8110 GEN WB02X8110 Contact Us For Availability
441
GEN WB02X8111 GEN WB02X8111 Contact Us For Availability
451
GEN WB58X5013 GEN WB58X5013 Contact Us For Availability
452
SLIDE TOP GEN WB02X0840 Contact Us For Availability
453
GEN WB02X3394 GEN WB02X3394 Contact Us For Availability
457
GEN WB56X7069 GEN WB56X7069 Contact Us For Availability
457
GEN WB56X7032 GEN WB56X7032 Contact Us For Availability
518
GEN WB02X8100 GEN WB02X8100 Contact Us For Availability
519
GEN WB02X8099 GEN WB02X8099 Contact Us For Availability
520
CLIP CAPILLARY TUBE OVEN GEN WB02X3471 Contact Us For Availability
520
GEN WB53X5143 GEN WB53X5143 Contact Us For Availability
521
LOCKWASHER GEN WB09X0088 Contact Us For Availability
530
GEN WB48X5093 GEN WB48X5093 Contact Us For Availability
532
GEN WB38X5063 GEN WB38X5063 Contact Us For Availability
700
GEN WB14X5037 GEN WB14X5037 Contact Us For Availability
701
GEN WB15X5190 GEN WB15X5190 Contact Us For Availability
702
GEN WB03X5774 GEN WB03X5774 Contact Us For Availability
703
RETAINER KNOB GEN WB02X2030 Contact Us For Availability
704
GEN WB02X7707 GEN WB02X7707 Contact Us For Availability
705
GEN WB02X7710 GEN WB02X7710 Contact Us For Availability
706
GEN WB02X7708 GEN WB02X7708 Contact Us For Availability
707
GEN WB02X7709 GEN WB02X7709 Contact Us For Availability
708
GEN WB24X0183 GEN WB24X0183 Contact Us For Availability
709
GEN WB24X5097 GEN WB24X5097 Contact Us For Availability
709
GEN WB24X0197 GEN WB24X0197 Contact Us For Availability
711
GEN WB02X6212 GEN WB02X6212 Contact Us For Availability
712
RETAINER RING GEN WB02X1800 Contact Us For Availability
713
GEN WB24X5291 GEN WB24X5291 Contact Us For Availability
731
GEN WB02X7711 GEN WB02X7711 Contact Us For Availability
732
SWITCH GEN WB24X5235 Contact Us For Availability
740
CLIP WIRE BLACK GEN WB02X7226 Contact Us For Availability
758
GEN WB01K5050 GEN WB01K5050 Contact Us For Availability
904
SCREW GEN WB01X5550 Contact Us For Availability
32767
GEN 31-0824 GEN 31-0824 Contact Us For Availability
32767
GEN 31-1046-A GEN 31-1046-A Contact Us For Availability
32767
GEN 49-8255 GEN 49-8255 Contact Us For Availability
× ![]()
