Model Maytag JBBFX24NHX00 REFRIGERATOR, BOTTOM MOUNT – Common Parts & Diagrams

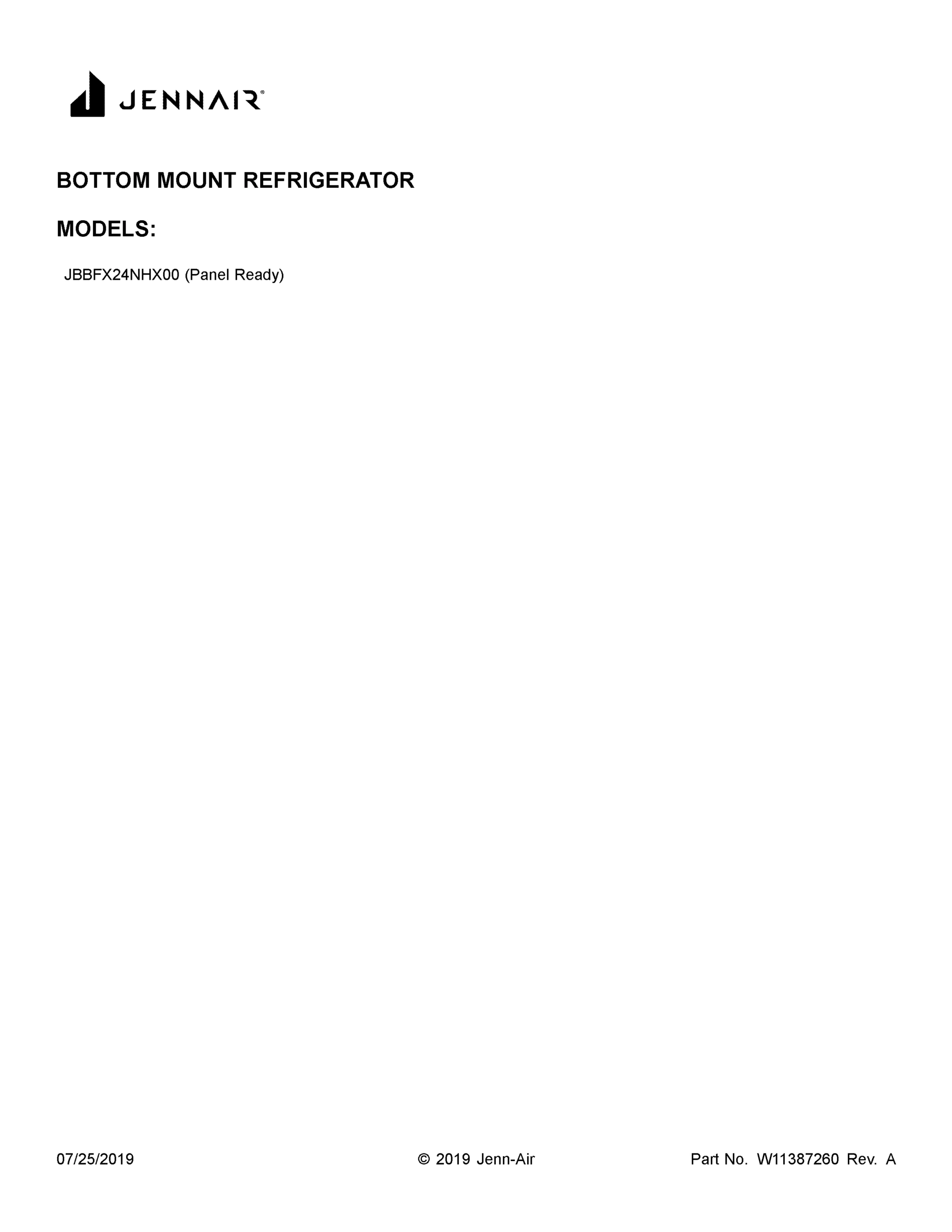

01 - COVER SHEET

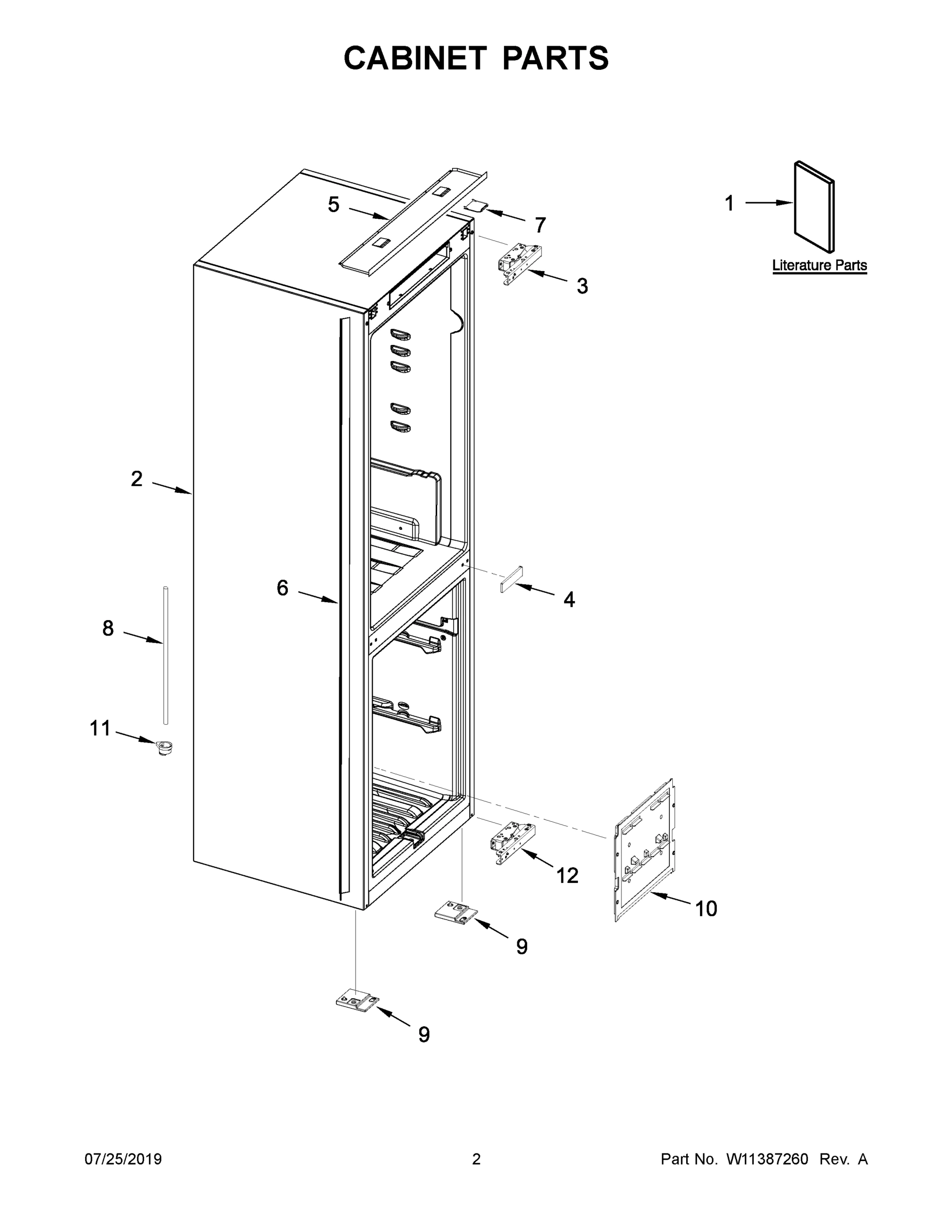

02 - CABINET PARTS

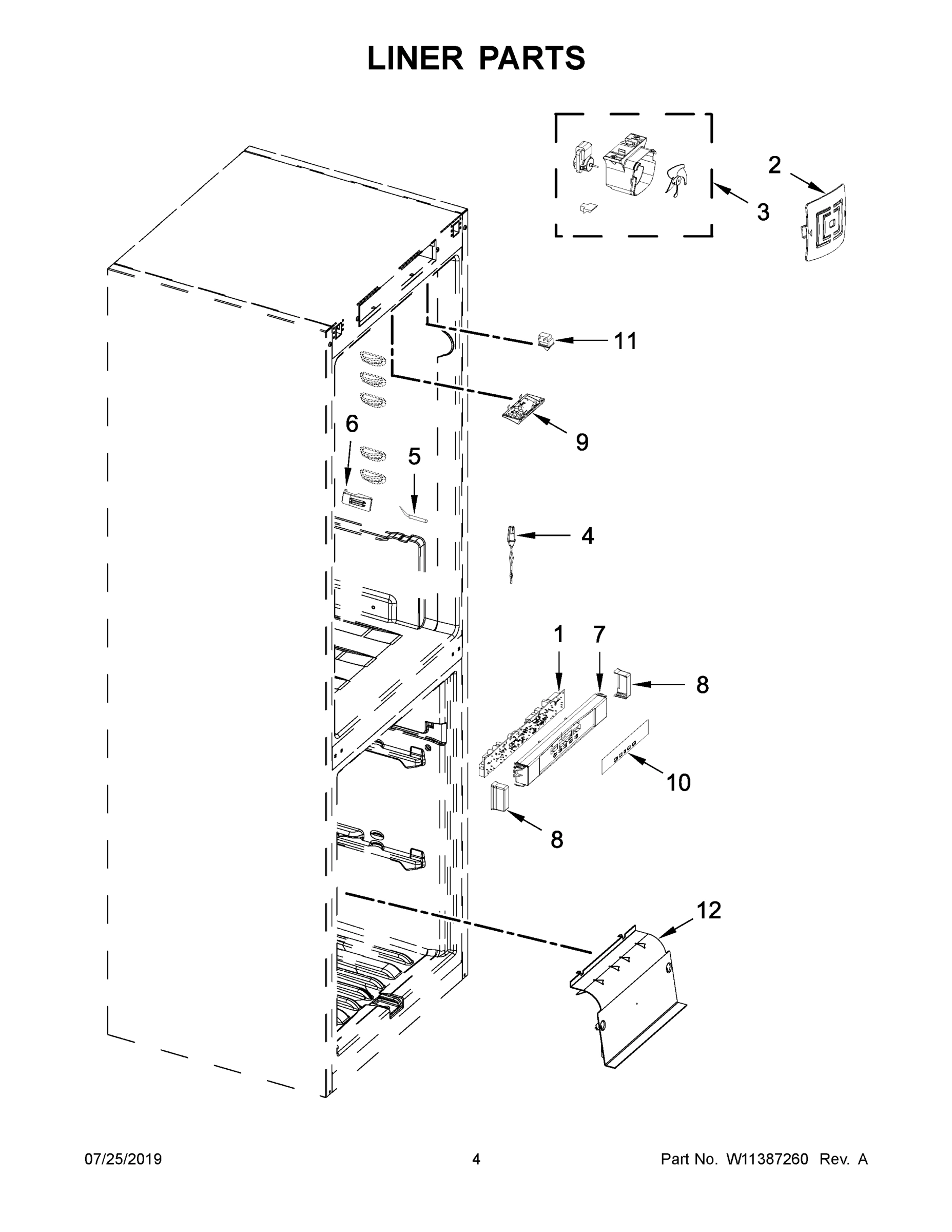

03 - LINER PARTS

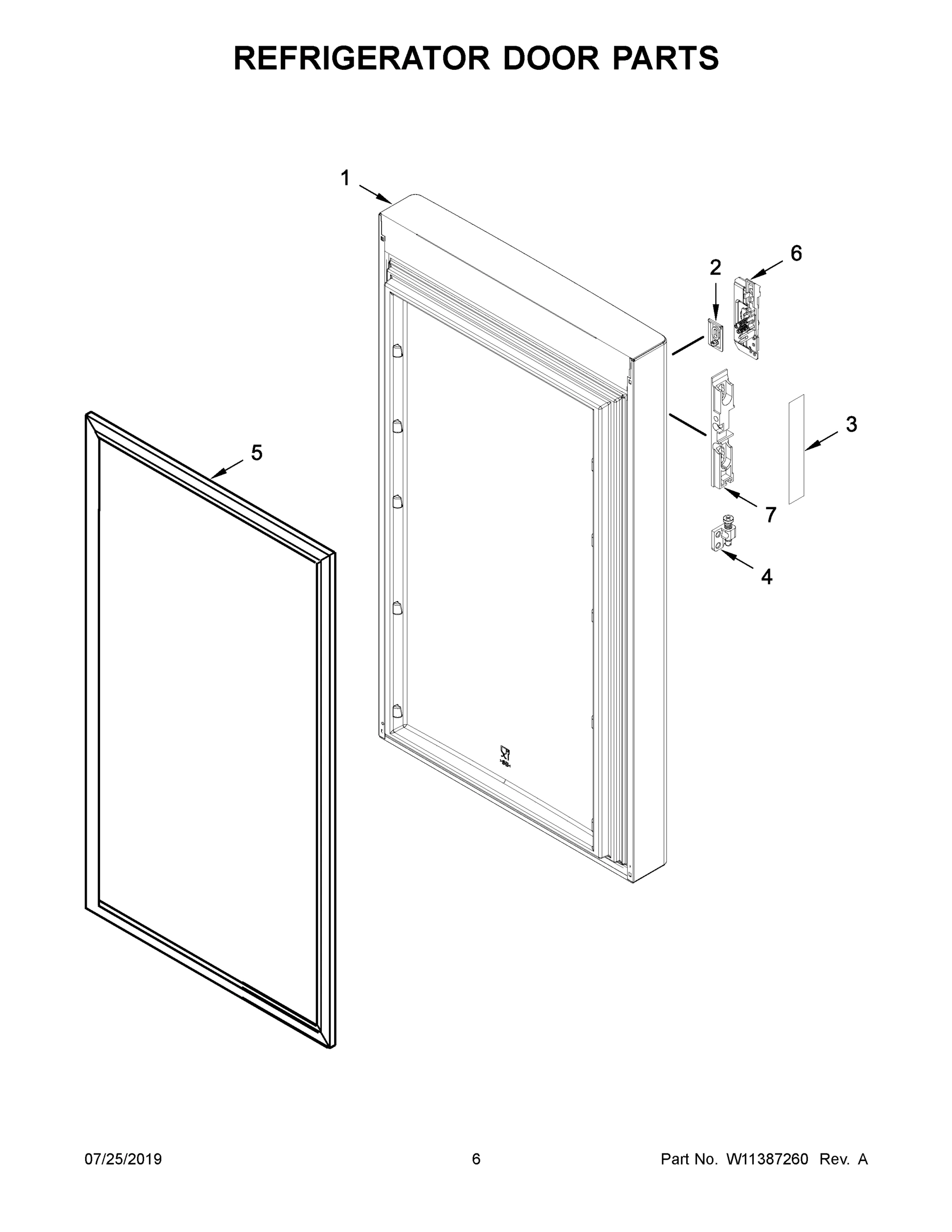

04 - REFRIGERATOR DOOR PARTS

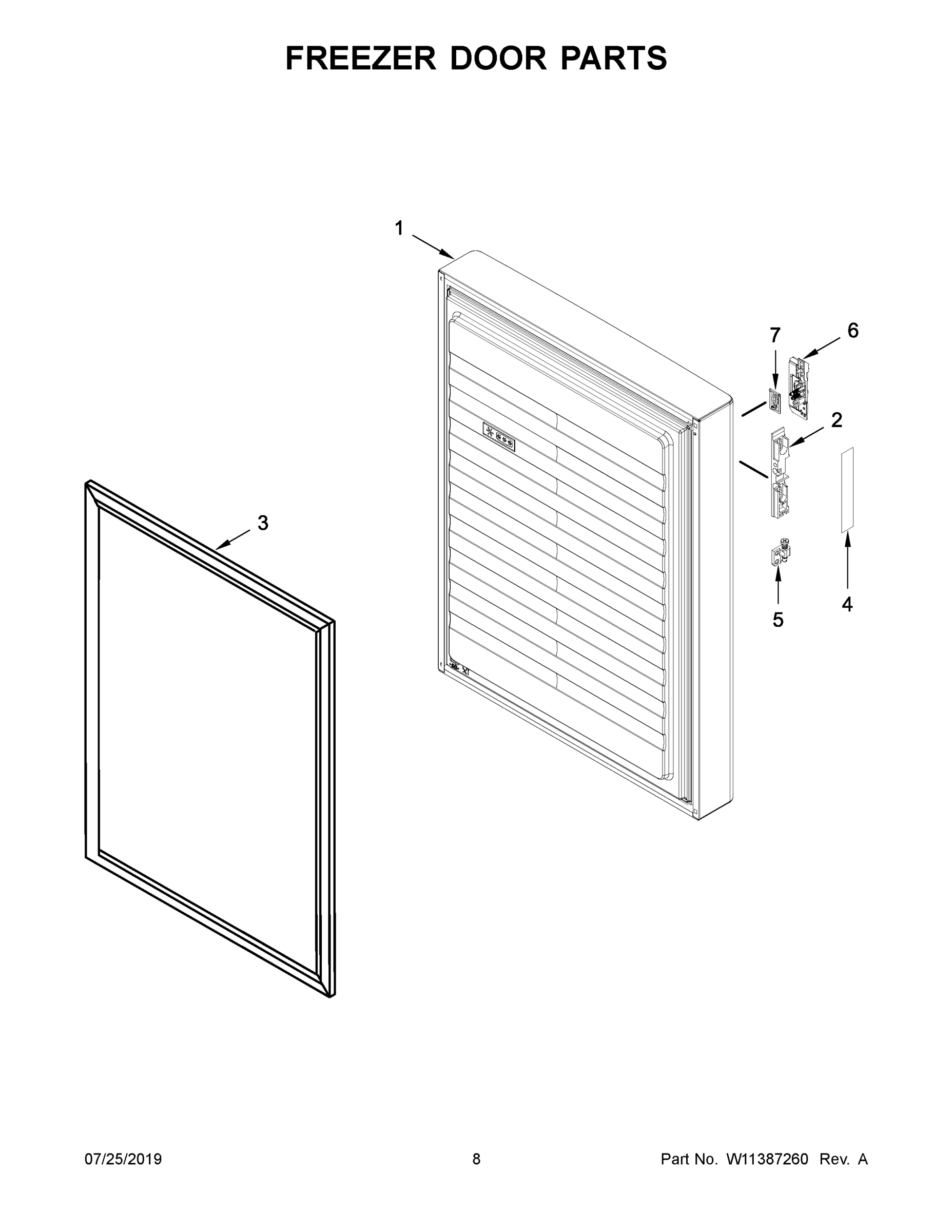

05 - FREEZER DOOR PARTS

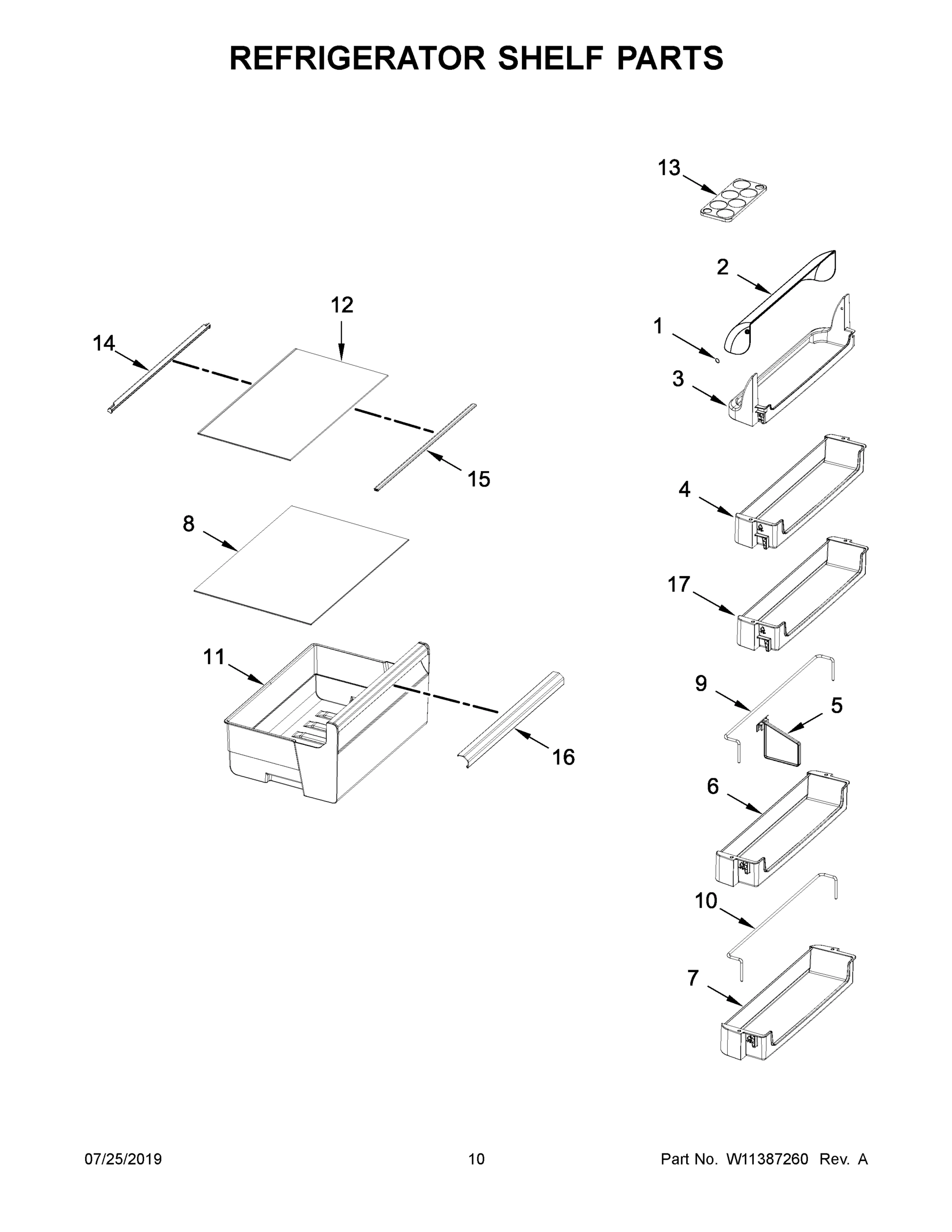

06 - REFRIGERATOR SHELF PARTS

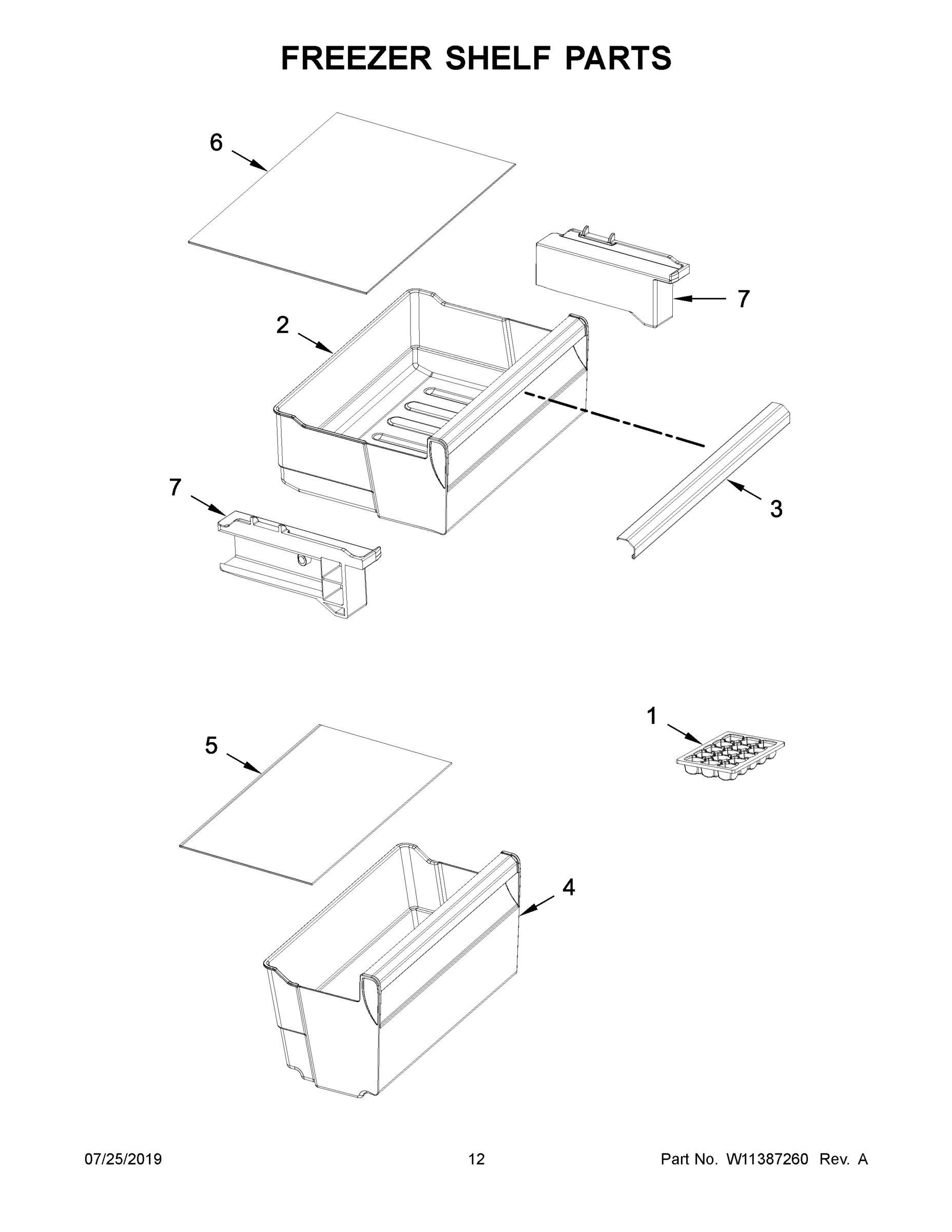

07 - FREEZER SHELF PARTS

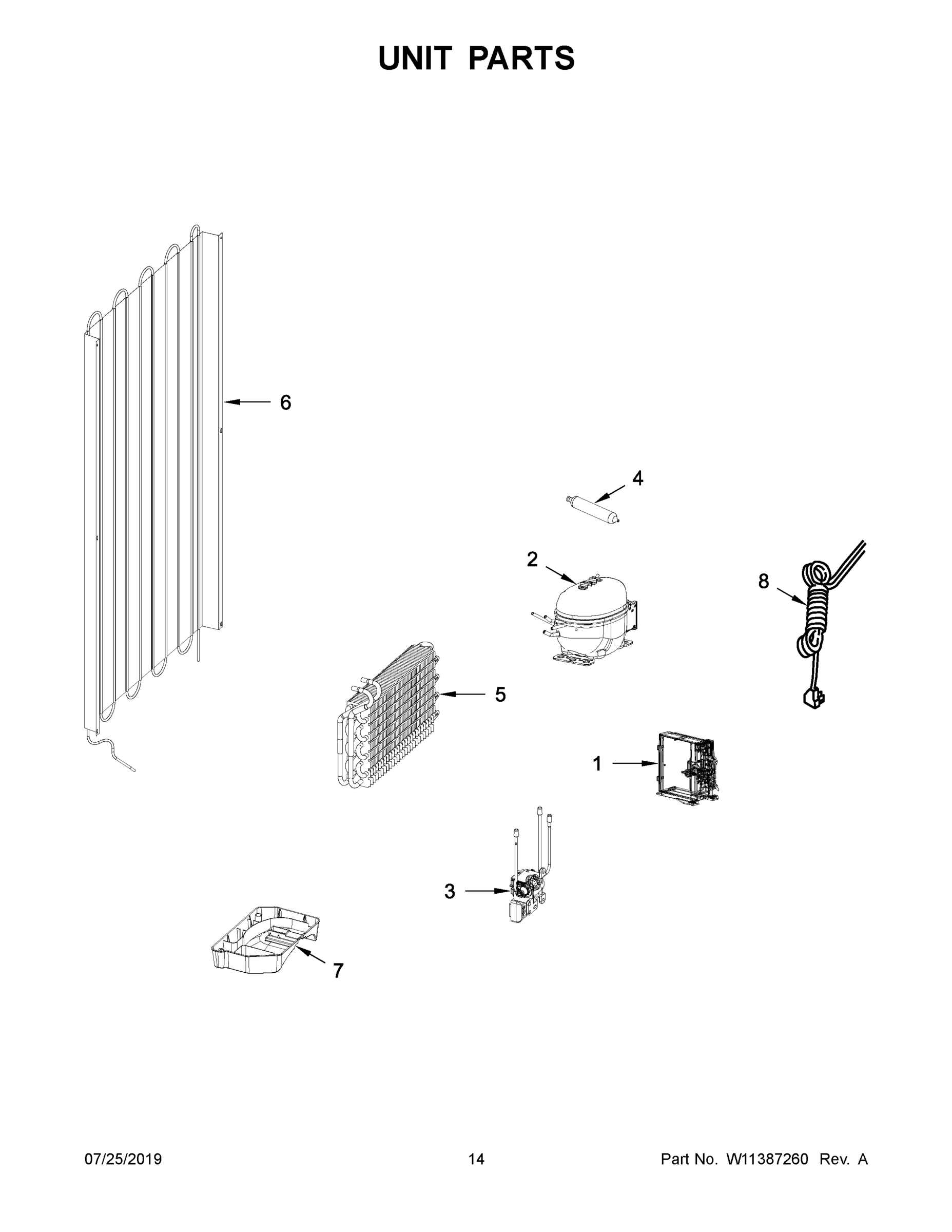

08 - UNIT PARTS
Common parts from model Maytag JBBFX24NHX00 REFRIGERATOR, BOTTOM MOUNT
1
USE AND CARE GUIDE MAY W11107109 Contact Us For Availability
1
CONTROL, ELECTRONIC MAY W10744762 Contact Us For Availability
1
DOOR, REFRIGERATOR MAY W10753516 Contact Us For Availability
1
DOOR, FREEZER MAY W10753820 Contact Us For Availability
1
DAMPER MAY W10804412 Contact Us For Availability
1
TRAY, ICE MAY W10804393 Contact Us For Availability
1
INVERTER MAY W10729632 Contact Us For Availability
1A
INSTALLATION INSTRUCTIONS MAY W11107107 Contact Us For Availability
2
COVER, FAN MAY W10506654 Contact Us For Availability
2
BRACKET, DOOR PANEL ADJUSTING (LEFT HAND) MAY W10747767 Contact Us For Availability
2
MAY W11387309 MAY W11387309 Contact Us For Availability
2
CRISPER, FREEZER MAY W10415644 Contact Us For Availability
2
MAY W11382792 MAY W11382792 Contact Us For Availability
2A
BRACKET, DOOR PANEL ADJUSTING (RIGHT HAND) MAY W10747766 Contact Us For Availability
3
HINGE, TOP MAY W10804396 Contact Us For Availability
3
MAY W11387312 MAY W11387312 Contact Us For Availability
3
GASKET, DOOR MAY W10804400 Contact Us For Availability
3
COMPARTMENT, DAIRY MAY W10770276 Contact Us For Availability
3
TRIM, CRISPER MAY W10374117 Contact Us For Availability
3
MAY W11381660 MAY W11381660 Contact Us For Availability
4
COVER, HINGE MAY W10804387 Contact Us For Availability
4
PIN, DRAIN MAY W10804413 Contact Us For Availability
4
COVER MAY W10804389 Contact Us For Availability
4
HOLDER, BOTTLE MAY W10778021 Contact Us For Availability
4
CRISPER, BOTTOM FREEZER MAY W10415649 Contact Us For Availability
4
DRIER MAY W10143759 Contact Us For Availability
5
FASTENER, UPPER MAY W10508414 Contact Us For Availability
5
KIT, SERVICE SENSOR MAY W10804410 Contact Us For Availability
5
SUPPORT (LEFT HAND) MAY W10748034 Contact Us For Availability
5
GASKET, DOOR MAY W10804398 Contact Us For Availability
5
DIVIDER, DOOR BIN MAY W10804390 Contact Us For Availability
5
SHELF, FREEZER MAY W10804404 Contact Us For Availability
5
MAY W11381658 MAY W11381658 Contact Us For Availability
5A
SUPPORT (RIGHT HAND) MAY W10748042 Contact Us For Availability
6
TRIM, SIDE PANEL MAY W10804395 Contact Us For Availability
6
COVER, SENSOR MAY W10506496 Contact Us For Availability
6
BRACKET, DOOR PANEL MOUNTING (LEFT HAND) MAY W10748071 Contact Us For Availability
6
HOLDER, BOTTLE MAY W10778020 Contact Us For Availability
6
SHELF, FREEZER MAY W10804405 Contact Us For Availability
6
MAY W11381657 MAY W11381657 Contact Us For Availability
6A
BRACKET, DOOR PANEL MOUNTING (RIGHT HAND) MAY W10748078 Contact Us For Availability
7
COVER, SCREW MAY W10804407 Contact Us For Availability
7
HOUSING, CONTROL (ALSO ORDER OVERLAY) MAY W10734478 Contact Us For Availability
7
SPACER, DOOR PANEL MAY W10556651 Contact Us For Availability
7
HOLDER, BOTTLE MAY W10470959 Contact Us For Availability
7
SLIDE, DRAWER (LEFT HAND) MAY W10745806 Contact Us For Availability
7
TRAY, EVAPORATION MAY W10756248 Contact Us For Availability
7A
SLIDE, DRAWER (RIGHT HAND) MAY W10745815 Contact Us For Availability
8
TUBE, DRAIN MAY W10804414 Contact Us For Availability
8
ENDCAP, CONTROL HOUSING MAY W10804409 Contact Us For Availability
8
COVER, CRISPER MAY W10804402 Contact Us For Availability
8
CORD, POWER MAY W10732868 Contact Us For Availability
9
FOOT (LEFT HAND) MAY W10642999 Contact Us For Availability
9
LED ASSEMBLY MAY W10398001 Contact Us For Availability
9
HOLDER, SHORT WIRE MAY W10804391 Contact Us For Availability
9A
FOOT (RIGHT HAND) MAY W10642997 Contact Us For Availability
10
COVER, UNIT (INCLUDES FAN MOTOR) MAY W10751012 Contact Us For Availability
10
OVERLAY MAY W10749451 Contact Us For Availability
10
HOLDER, LONG WIRE MAY W10804392 Contact Us For Availability
11
DIAPHRAM MAY W10804411 Contact Us For Availability
11
SWITCH, LIGHT MAY W10720006 Contact Us For Availability
11
PAN, CRISPER MAY W10471452 Contact Us For Availability
12
HINGE, BOTTOM MAY W10804397 Contact Us For Availability
12
CONVEYOR, AIR MAY W10762427 Contact Us For Availability
12
SHELF, GLASS MAY W10804403 Contact Us For Availability
13
MAY W11387311 MAY W11387311 Contact Us For Availability
14
TRIM, REAR MAY W10495387 Contact Us For Availability
15
TRIM, FRONT MAY W10804406 Contact Us For Availability
16
TRIM, CRISPER MAY W10804394 Contact Us For Availability
17
MAY W11387299 MAY W11387299 Contact Us For Availability
NI
FOLLOWING PARTS NOT ILLUSTRATED MAY N/P Contact Us For Availability
NI
HARDWARE, INSTALLATION MAY W10775677 Contact Us For Availability
NI
THERMOFUSE AND BIMETAL MAY W10720016 Contact Us For Availability
NI
MAY W11381656 MAY W11381656 Contact Us For Availability
× ![]()
