Model Whirlpool JBBFX22NMX00 REFRIGERATOR, ALL – Common Parts & Diagrams
01 - COVER SHEET
02 - SHELF PARTS

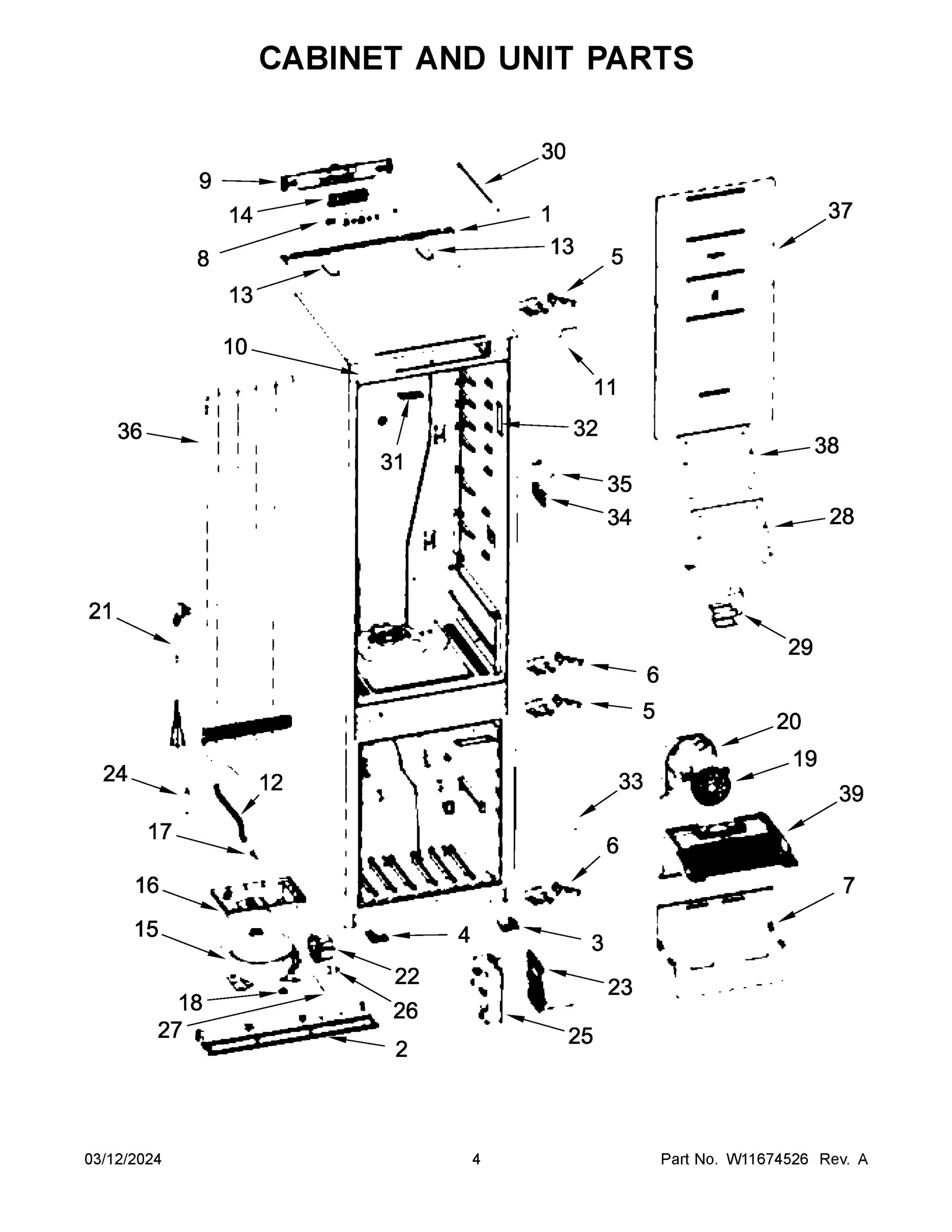

03 - CABINET AND UNIT PARTS

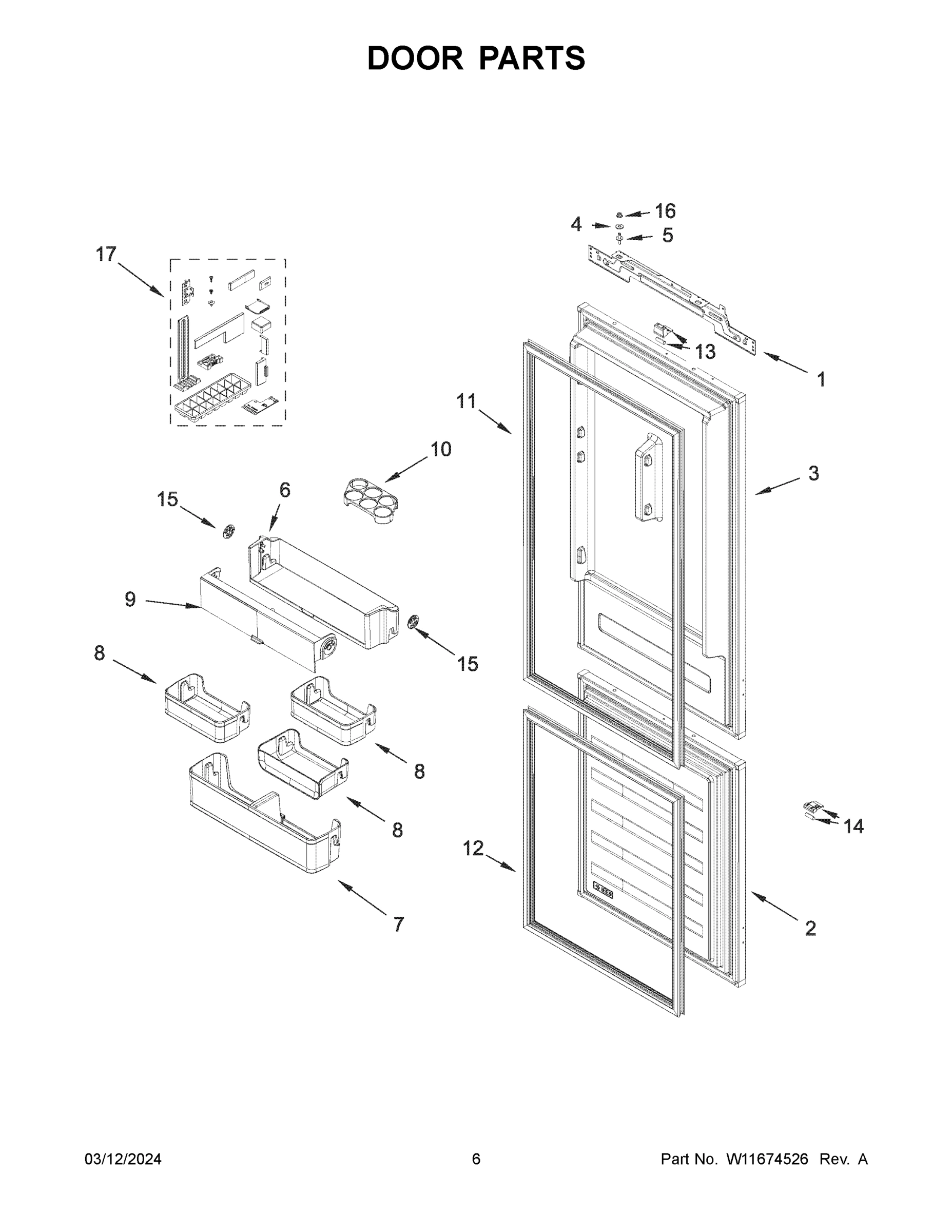

04 - DOOR PARTS
Common parts from model Whirlpool JBBFX22NMX00 REFRIGERATOR, ALL
1
TRIM WPL W10788628 Contact Us For Availability
1
ASSEMBLY, BRACKET WPL W10701782 Contact Us For Availability
2
PAN, CRISPER WPL W11481060 Contact Us For Availability
2
MOUNTING PLATE, COMPRESSOR WPL W11361031 Contact Us For Availability
2
DOOR, FREEZER WPL W11681912 Contact Us For Availability
3
TRAY, FREEZER WPL W11425557 Contact Us For Availability
3
FOOT, LEFT HAND WPL W10642999 Contact Us For Availability
3
DOOR, REFRIGERATOR WPL W11681913 Contact Us For Availability
4
BIN, FREEZER WPL W11579252 Contact Us For Availability
4
FOOD, RIGHT HAND WPL W10642997 Contact Us For Availability
4
WASHER WPL W10669329 Contact Us For Availability
5
FRONT, DRAWER WPL W11579259 Contact Us For Availability
5
HINGE, TOP WPL W11443325 Contact Us For Availability
5
SCREW WPL W10648794 Contact Us For Availability
6
DRAWER, FREEZER WPL W11579248 Contact Us For Availability
6
HINGE, BOTTOM WPL W11443328 Contact Us For Availability
7
SHELF ASSEMBLY, GLASS WPL W11399049 Contact Us For Availability
7
DIFFUSER, AIR WPL W11332618 Contact Us For Availability
7
BIN, BOTTLE WPL W11591891 Contact Us For Availability
8
BUMPER WPL W11418435 Contact Us For Availability
8
OVERLAY WPL W11584092 Contact Us For Availability
8
BIN, HALF WPL W11591893 Contact Us For Availability
9
ASSEMBLY, SHELF WPL W11399136 Contact Us For Availability
9
SUPPORT, CONTROL WPL W11554777 Contact Us For Availability
9
BIN, FRONT WPL W11591890 Contact Us For Availability
10
ASSEMBLY, TUCK SHELF WPL W11443009 Contact Us For Availability
10
COVER, UI WPL W11378677 Contact Us For Availability
10
HOLDER, EGG WPL W11387309 Contact Us For Availability
11
TRIM, SHELF WPL W11432131 Contact Us For Availability
11
PLUG, CONTROL PANEL (RIGHT HAND) WPL W11378679 Contact Us For Availability
11
GASKET, REFRIGERATOR WPL W11345237 Contact Us For Availability
11A
PLUG, CONTROL PANEL (LEFT HAND) WPL W11378678 Contact Us For Availability
12
ASSEMBLY, GLASS SHELF WPL W11399066 Contact Us For Availability
12
TUBE, DRAINAGE WPL W11357111 Contact Us For Availability
12
GASKET, FREEZER WPL W11345242 Contact Us For Availability
13
GLASS SHELF, FREEZER WPL W11361905 Contact Us For Availability
13
COVER, UPPER WPL W11604558 Contact Us For Availability
13
SUPPORT, MAGNET WPL W11681945 Contact Us For Availability
14
HOLDER, BOTTLE WPL W11288004 Contact Us For Availability
14
CONTROL, ELECTRONIC WPL W11681904 Contact Us For Availability
14
COVER, DOOR MAGNET WPL W11332213 Contact Us For Availability
15
PANEL, HUMIDITY CONTROL WPL W11568965 Contact Us For Availability
15
COMPRESSOR WPL W11439576 Contact Us For Availability
15
BUMPER, COMPARTMENT WPL W11184264 Contact Us For Availability
16
TRIM, SHELF WPL W11331458 Contact Us For Availability
16
TRAY, EVAPORATOR WPL W11430825 Contact Us For Availability
16
NUT, LOCK WPL W10669328 Contact Us For Availability
17
REAR, TRIM SHELF WPL W11351049 Contact Us For Availability
17
CAP, DRAIN WPL W10851213 Contact Us For Availability
17
INSTALLATION KIT (INCLUDES PANEL MOUNTING HAR WPL W11681942 Contact Us For Availability
18
METAL, RAIL WPL W11384906 Contact Us For Availability
18
GROMMET WPL W11677422 Contact Us For Availability
19
SLIDER, DRAWER (LEFT HAND) WPL W11381134 Contact Us For Availability
19
ASSEMBLY, FAN WPL W11226404 Contact Us For Availability
20
SLIDER, DRAWER (RIGHT HAND) WPL W11378141 Contact Us For Availability
20
COVER, FAN WPL W11342724 Contact Us For Availability
21
SLIDER, DRAWER (LEFT HAND) WPL W11385159 Contact Us For Availability
21
CORD, POWER WPL W11565946 Contact Us For Availability
22
SLIDER, DRAWER (RIGHT HAND) WPL W11385158 Contact Us For Availability
22
COVER WPL W11476092 Contact Us For Availability
23
KNOB, HUMIDITY WPL W11488298 Contact Us For Availability
23
CONTROL, ELECTRONIC WPL W11681906 Contact Us For Availability
25
COVER, ELECTRONIC CONTROL WPL W11531335 Contact Us For Availability
26
PROTECTOR, OVERLOAD WPL W11566075 Contact Us For Availability
27
RELIEF, CORD WPL W11476322 Contact Us For Availability
28
DAMPER WPL W10957431 Contact Us For Availability
29
GASKET, DAMPER WPL W11391854 Contact Us For Availability
30
COVER, SWITCH WPL W10711701 Contact Us For Availability
31
ASSEMBLY, LED WPL W11500501 Contact Us For Availability
32
ASSEMBLY, LED WPL W11113966 Contact Us For Availability
33
SUPPORT, SENSOR WPL W11677716 Contact Us For Availability
34
COVER, SENSOR WPL W10556073 Contact Us For Availability
35
SENSOR, AMBIENT WPL W11677717 Contact Us For Availability
36
CONDENSER WPL W11135268 Contact Us For Availability
37
ASSEMBLY, MULIFLOW WPL W11579279 Contact Us For Availability
38
COVER, MULTIFLOW WPL W11341920 Contact Us For Availability
39
ASSEMBLY, EVAPORATOR WPL W11579287 Contact Us For Availability
NI
REFRIGERANT CHARGE 34 GRAMS (R600A) WPL ARI325FF23E6A67BFCE250E698D70674E0F Contact Us For Availability
× ![]()
