Model GE JB552GK-2 Electric Range – Common Parts & Diagrams
0
1
2
3
Common parts from model GE JB552GK-2 Electric Range
2
GEN WB30X0246 GEN WB30X0246 Contact Us For Availability
2
GEN WB30X0249 GEN WB30X0249 Contact Us For Availability
2
GEN WB30X0250 GEN WB30X0250 Contact Us For Availability
3
GEN WB38X0087 GEN WB38X0087 Contact Us For Availability
4
VENT-TRANSFER GEN WB38X0088 Contact Us For Availability
5
GEN WB24X0197 GEN WB24X0197 Contact Us For Availability
6
SWITCH-LATCH GEN WB24X0183 Contact Us For Availability
7
GEN WB02X9995 GEN WB02X9995 Contact Us For Availability
8
GEN WB02X7882 GEN WB02X7882 Contact Us For Availability
9
GEN WB02X7883 GEN WB02X7883 Contact Us For Availability
10
GEN WB02X7884 GEN WB02X7884 Contact Us For Availability
11
GEN WB02X7885 GEN WB02X7885 Contact Us For Availability
12
GEN WB02X7886 GEN WB02X7886 Contact Us For Availability
13
SWITCH-SOLENOID GEN WB24X5235 Contact Us For Availability
14
GEN WB02X8119 GEN WB02X8119 Contact Us For Availability
14
SPRING-PLUNGER GEN WB09X0148 Contact Us For Availability
15
GEN WB38X0090 GEN WB38X0090 Contact Us For Availability
16
GEN WB38X0089 GEN WB38X0089 Contact Us For Availability
17
HEATER-SMOKE-ELIMIN GEN WB29X0079 Contact Us For Availability
18
HOUSING GEN WB29X0080 Contact Us For Availability
19
SCREEN-SMOKE-ELIMIN GEN WB29X0081 Contact Us For Availability
20
GEN WB53X0271 GEN WB53X0271 Contact Us For Availability
21
LENS-OVEN LIGHT GEN WB36X0728 Contact Us For Availability
22
SCREW GEN WB01X0988 Contact Us For Availability
23
RING-RETAINING GEN WB02X4902 Contact Us For Availability
24
GEN WB01X5784 GEN WB01X5784 Contact Us For Availability
25
HANGER-TLS GEN WB02X3165 Contact Us For Availability
26
GEN WB02X4905 GEN WB02X4905 Contact Us For Availability
27
GEN WB02X4906 GEN WB02X4906 Contact Us For Availability
28
GEN WB49X0588 GEN WB49X0588 Contact Us For Availability
30
GEN WB48X0196 GEN WB48X0196 Contact Us For Availability
31
GEN WB01X0989 GEN WB01X0989 Contact Us For Availability
31
BAKE-ELEMENT GEN WB44X0228 Contact Us For Availability
31
GEN WB48X0197 GEN WB48X0197 Contact Us For Availability
32
BROIL-ELEMENT GEN WB44X0229 Contact Us For Availability
33
GEN WB01X0990 GEN WB01X0990 Contact Us For Availability
34
LEVELLING SCREW GEN WB01X0991 Contact Us For Availability
35
GEN WB02X4913 GEN WB02X4913 Contact Us For Availability
36
GEN WB63X5206 GEN WB63X5206 Contact Us For Availability
37
GEN WB01X0992 GEN WB01X0992 Contact Us For Availability
37
CORNER-POST GEN WB02X4910 Contact Us For Availability
38
BRACKET-POWER-CORD GEN WB02X4907 Contact Us For Availability
40
GASKET-TLS GEN WB02X3163 Contact Us For Availability
40
SWITCH-TEMP LIMIT (TLS) GEN WB24X5164 Contact Us For Availability
41
GEN WB02X4909 GEN WB02X4909 Contact Us For Availability
42
ACCESS-COVER GEN WB02X4914 Contact Us For Availability
42
GEN WB63X5207 GEN WB63X5207 Contact Us For Availability
43
GEN WB02X4915 GEN WB02X4915 Contact Us For Availability
43
GEN WB02X7887 GEN WB02X7887 Contact Us For Availability
44
SLEEVE-OVEN LAMP GEN WB02X4916 Contact Us For Availability
44
GEN WB08X0265 GEN WB08X0265 Contact Us For Availability
45
GEN WB02X4917 GEN WB02X4917 Contact Us For Availability
46
BOTTOM-BURNER BOX GEN WB63X0267 Contact Us For Availability
49
GEN WB02X4918 GEN WB02X4918 Contact Us For Availability
50
GEN WB63X0268 GEN WB63X0268 Contact Us For Availability
51
SHIELD-INSULATING GEN WB63X0269 Contact Us For Availability
52
GEN WB14X0080 GEN WB14X0080 Contact Us For Availability
53
GEN WB01X0994 GEN WB01X0994 Contact Us For Availability
54
TRIM-PLATE GEN WB07X1511 Contact Us For Availability
55
GEN WB63X0270 GEN WB63X0270 Contact Us For Availability
56
WHEEL-DRAWER-TRACK GEN WB39X0063 Contact Us For Availability
58
GEN WB63X0271 GEN WB63X0271 Contact Us For Availability
59
GEN WB63X5208 GEN WB63X5208 Contact Us For Availability
61
GEN WB01X0996 GEN WB01X0996 Contact Us For Availability
63
SIDE-PANEL-WHITE GEN WB63X0263 Contact Us For Availability
63
SIDE-PANEL-ALMOND GEN WB63X0264 Contact Us For Availability
64
GEN WB21X158 GEN WB21X158 Contact Us For Availability
101
COVER-TOP GEN WB61X0297 Contact Us For Availability
102
GEN WB02X4941 GEN WB02X4941 Contact Us For Availability
102
GEN WB02X4942 GEN WB02X4942 Contact Us For Availability
103
LAMPHOLDER GEN WB08X0188 Contact Us For Availability
104
LAMP-FLUORESCENT GEN WB02X4666 Contact Us For Availability
105
GEN WB21X5258 GEN WB21X5258 Contact Us For Availability
105
INFINITE-SW-2000W GEN WB23X0082 Contact Us For Availability
105
SWITCH-SENSI-TEMP GEN WB23X0083 Contact Us For Availability
106
GEN WB08X0267 GEN WB08X0267 Contact Us For Availability
107
STARTER GEN BUYLOCALLY Contact Us For Availability
108
PALNUT-MTNG-END-CAP GEN WB01X0980 Contact Us For Availability
109
GEN WB07X1513 GEN WB07X1513 Contact Us For Availability
110
GEN WB22X0112 GEN WB22X0112 Contact Us For Availability
111
COVER-VENT GEN WB61X0299 Contact Us For Availability
112
GEN WB38X0086 GEN WB38X0086 Contact Us For Availability
113
PALNUT-MTNG-VENT-TOP GEN WB01X0981 Contact Us For Availability
114
TIMER GEN WB19X0230 Contact Us For Availability
116
GEN WB07X1514 GEN WB07X1514 Contact Us For Availability
117
GEN WB03X0705 GEN WB03X0705 Contact Us For Availability
117
KNOB-INFINITE-SW GEN WB03X0706 Contact Us For Availability
118
GEN WB03X0704 GEN WB03X0704 Contact Us For Availability
119
SET-BUTTON-TIMER GEN WB03X0707 Contact Us For Availability
120
CRYSTAL GEN WB36X0729 Contact Us For Availability
121
GEN WB07X1515 GEN WB07X1515 Contact Us For Availability
122
NUT-TRIM GEN WB01X5373 Contact Us For Availability
122
SW-FLUORESCENT-LAMP GEN WB24X0389 Contact Us For Availability
123
SW-OVEN-LAMP GEN WB24X0390 Contact Us For Availability
124
LENS-PILOT-LIGHT GEN WB36X0727 Contact Us For Availability
125
GEN WB61X6050 GEN WB61X6050 Contact Us For Availability
125
CONTROL PANEL-WHITE GEN WB61X0308 Contact Us For Availability
126
END-CAP-LH GEN WB07X1512 Contact Us For Availability
127
PILOT-LIGHT-125V GEN WB25X0088 Contact Us For Availability
127
PILOT-LIGHT-250V GEN WB25X0089 Contact Us For Availability
128
GEN WB01X0982 GEN WB01X0982 Contact Us For Availability
129
RETAINER-CRYSTAL GEN WB02X4943 Contact Us For Availability
129
RETAINER-CRYSTAL GEN WB02X4944 Contact Us For Availability
130
COVER-FUSE-OPENING GEN WB61X0298 Contact Us For Availability

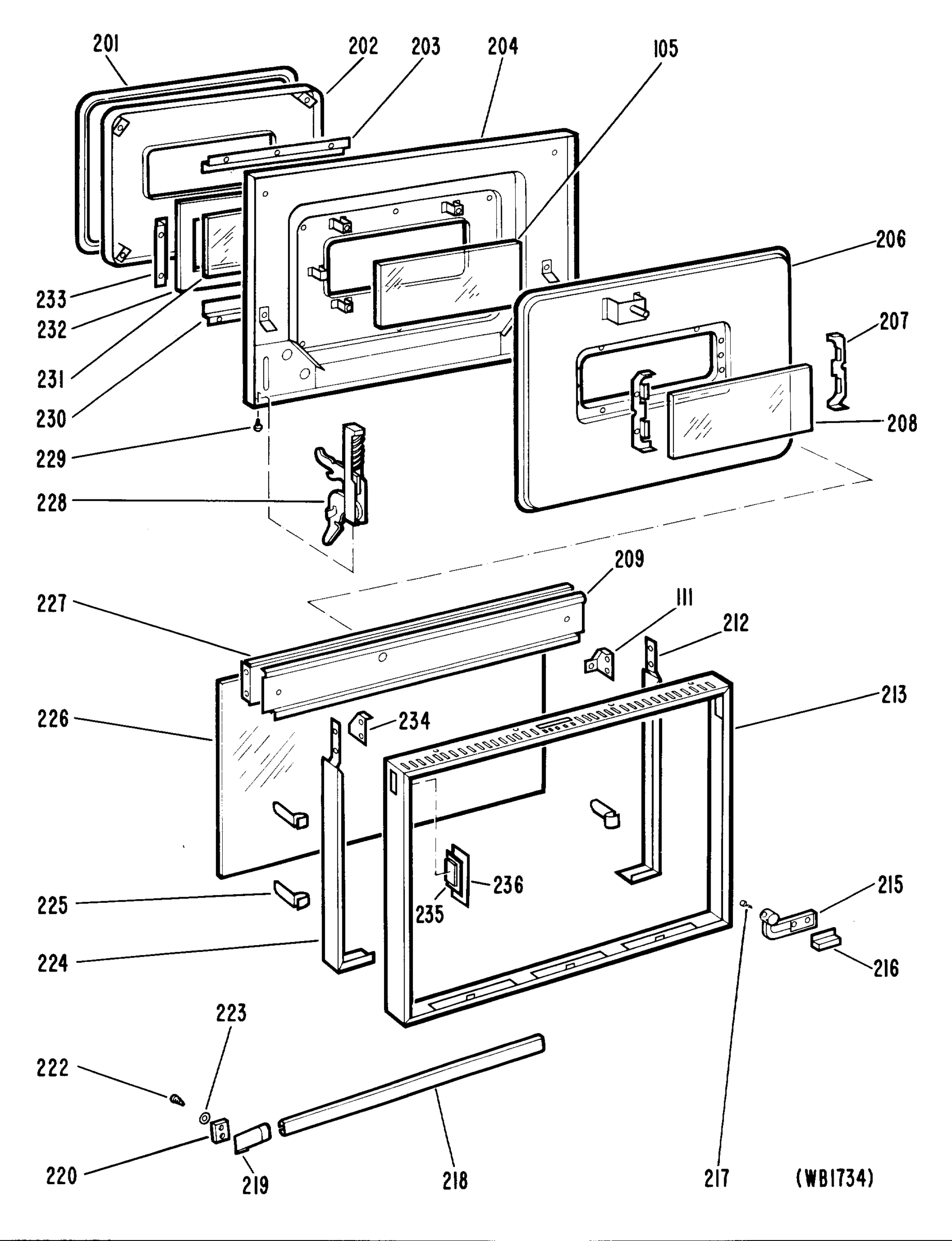

201
GEN WB02X10020 GEN WB02X10020 Contact Us For Availability
201
GEN WB2X10019 GEN WB2X10019 Contact Us For Availability
202
GEN WB55X5344 GEN WB55X5344 Contact Us For Availability
204
LINER GEN WB55X0621 Contact Us For Availability
206
GEN WB55X0623 GEN WB55X0623 Contact Us For Availability
207
GEN WB02X7888 GEN WB02X7888 Contact Us For Availability
208
GLASS GEN WB55X0622 Contact Us For Availability
209
GEN WB02X4921 GEN WB02X4921 Contact Us For Availability
211
PLATE-MTNG-RH GEN WB02X4923 Contact Us For Availability
212
SUPPORT-SIDE-RH GEN WB02X4924 Contact Us For Availability
213
GEN WN55X0625 GEN WN55X0625 Contact Us For Availability
215
GEN WB02X4925 GEN WB02X4925 Contact Us For Availability
216
GEN WB15X0244 GEN WB15X0244 Contact Us For Availability
218
GEN WB15X0243 GEN WB15X0243 Contact Us For Availability
219
GEN WB02X7889 GEN WB02X7889 Contact Us For Availability
219
GEN WB02X7890 GEN WB02X7890 Contact Us For Availability
220
GEN WB02X4928 GEN WB02X4928 Contact Us For Availability
222
GEN WB01X5786 GEN WB01X5786 Contact Us For Availability
223
GEN WB01X1007 GEN WB01X1007 Contact Us For Availability
224
SUPPORT-SIDE-LH GEN WB02X4929 Contact Us For Availability
225
CLIP GEN WB02X6574 Contact Us For Availability
226
BLACK-GLASS GEN WB55X0624 Contact Us For Availability
227
GEN WB02X4931 GEN WB02X4931 Contact Us For Availability
228
GEN WB14X0081 GEN WB14X0081 Contact Us For Availability
230
BRACKET/BOTTOM GEN WB02X4919 Contact Us For Availability
231
INNER-GLASS GEN WB55X0626 Contact Us For Availability
232
GEN WB02X4934 GEN WB02X4934 Contact Us For Availability
233
GEN WB02X4935 GEN WB02X4935 Contact Us For Availability
234
GEN WB02X4936 GEN WB02X4936 Contact Us For Availability
235
PAD-TRIM GEN WB02X6573 Contact Us For Availability
236
GEN WB02X4938 GEN WB02X4938 Contact Us For Availability

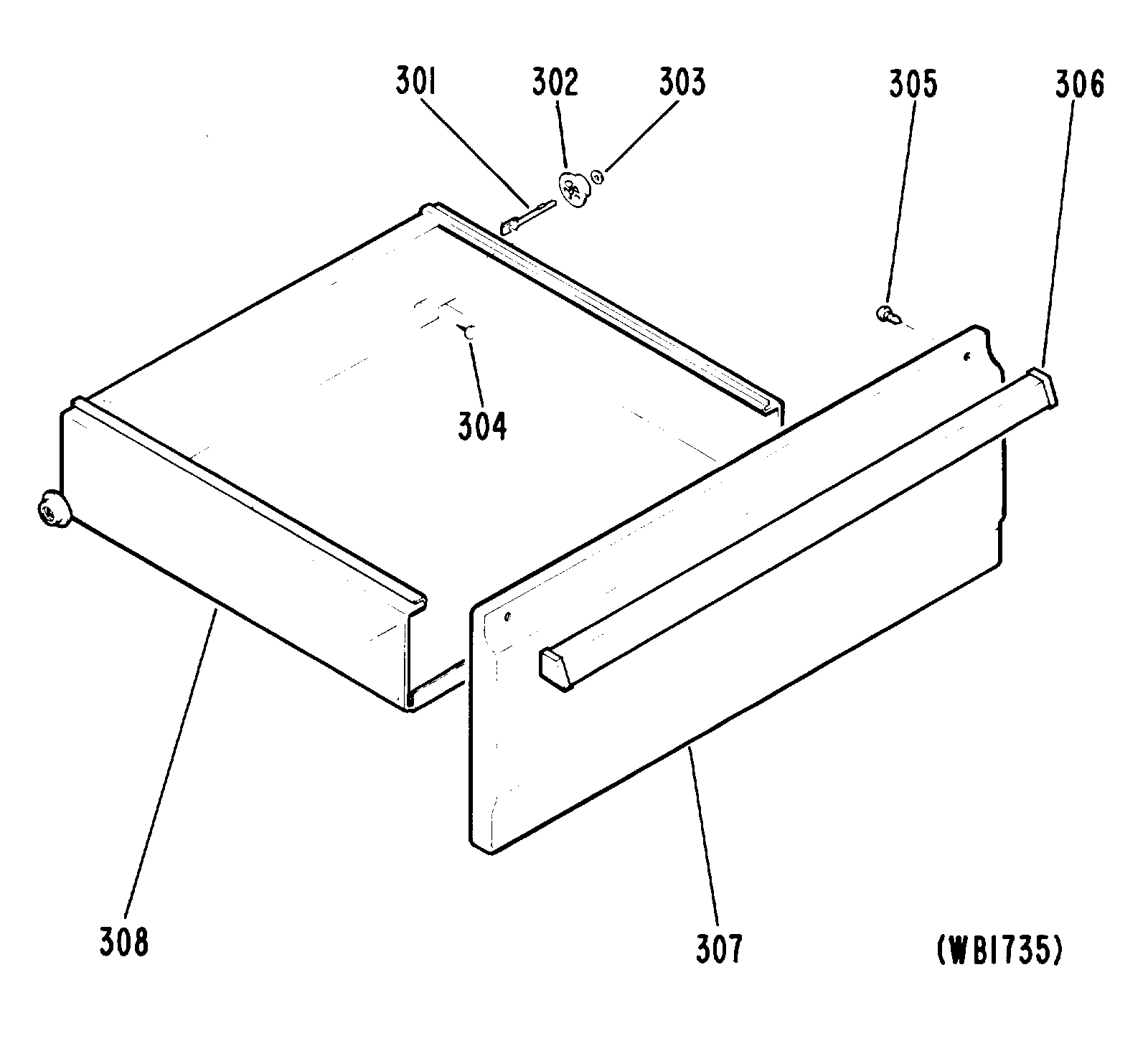

301
GEN WB01X1000 GEN WB01X1000 Contact Us For Availability
303
SPEEDNUT GEN WB01X0999 Contact Us For Availability
304
GEN WB01X5787 GEN WB01X5787 Contact Us For Availability
305
GEN WB01X5788 GEN WB01X5788 Contact Us For Availability
306
GEN WB15X0242 GEN WB15X0242 Contact Us For Availability
307
PANEL-WHITE GEN WB56X1828 Contact Us For Availability
307
PANEL-ALMOND GEN WB56X1829 Contact Us For Availability
308
GEN WB58X5012 GEN WB58X5012 Contact Us For Availability
32767
GEN 31-0626 GEN 31-0626 Contact Us For Availability
32767
GEN 49-4795 GEN 49-4795 Contact Us For Availability
× ![]()
