Model Maytag JB36SSFXLA01 REFRIGERATOR – Common Parts & Diagrams

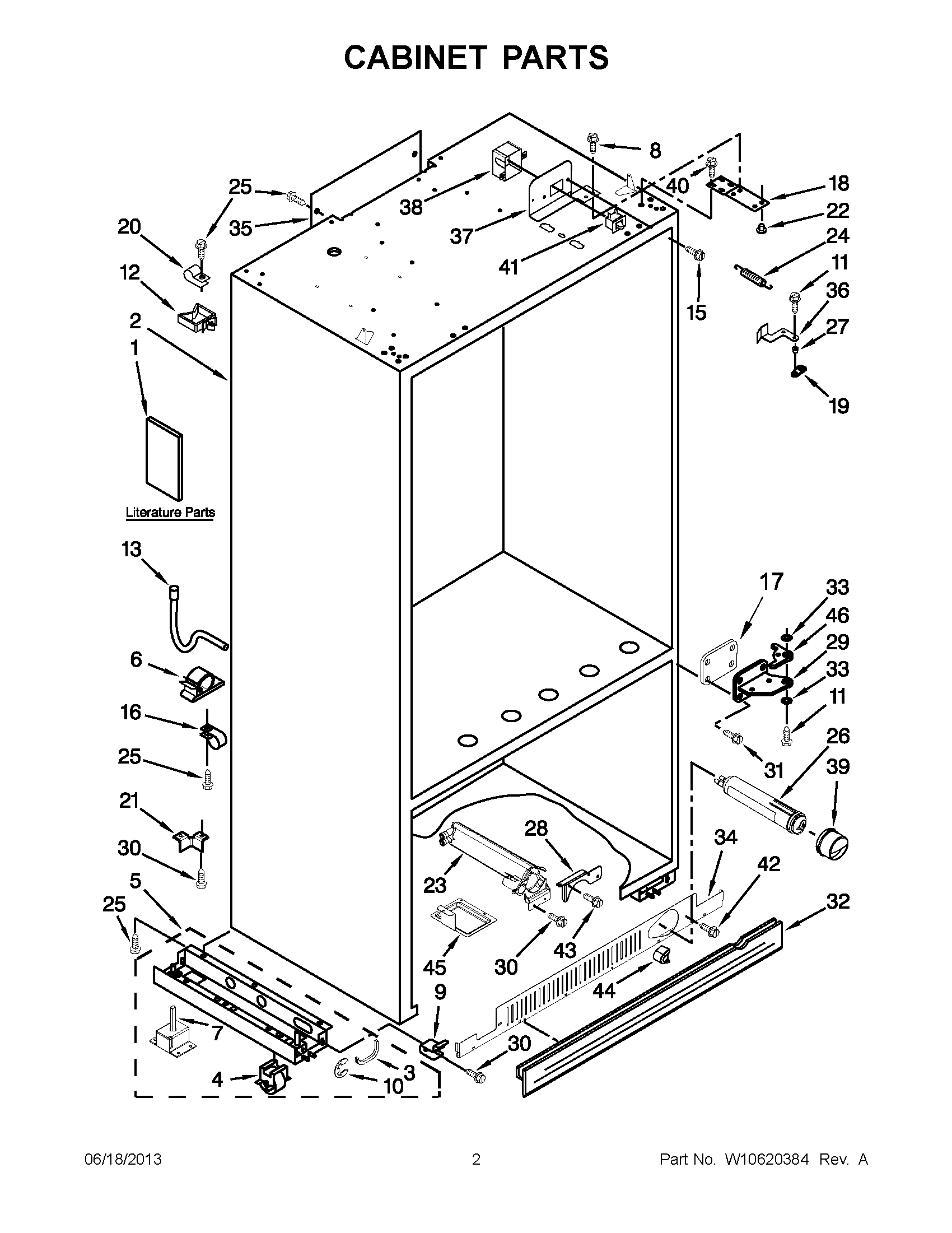

01 - CABINET PARTS

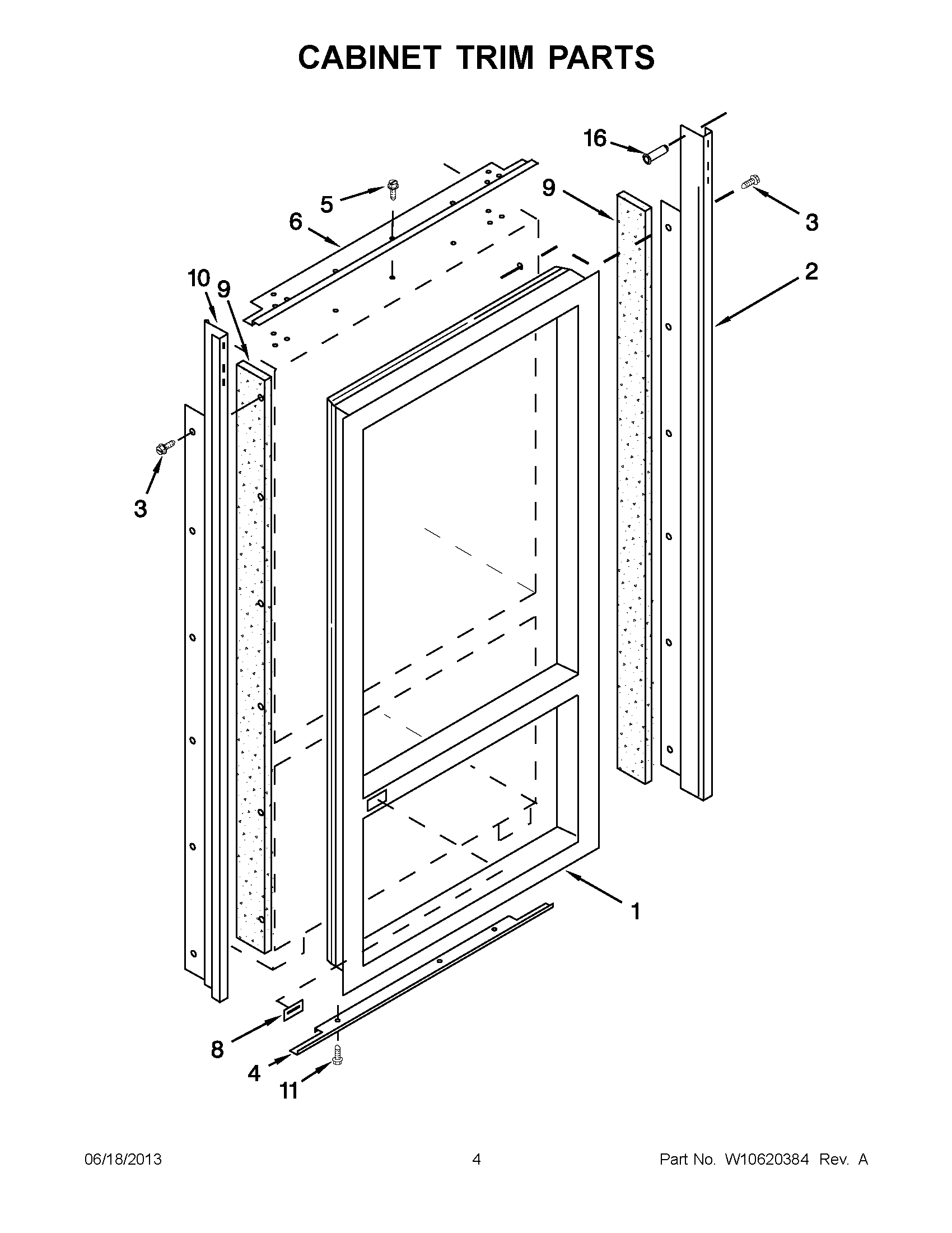

02 - CABINET TRIM PARTS

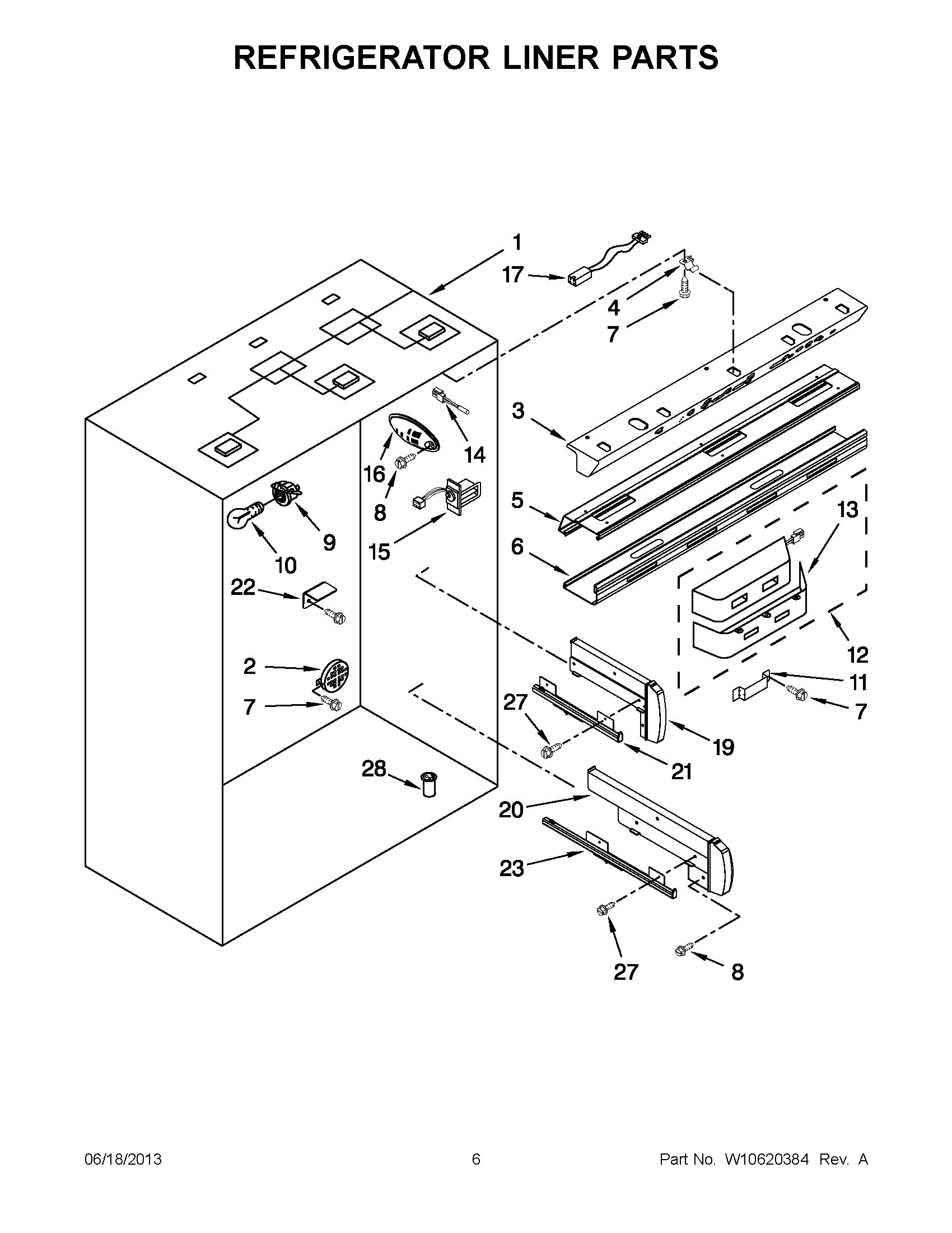

03 - REFRIGERATOR LINER PARTS

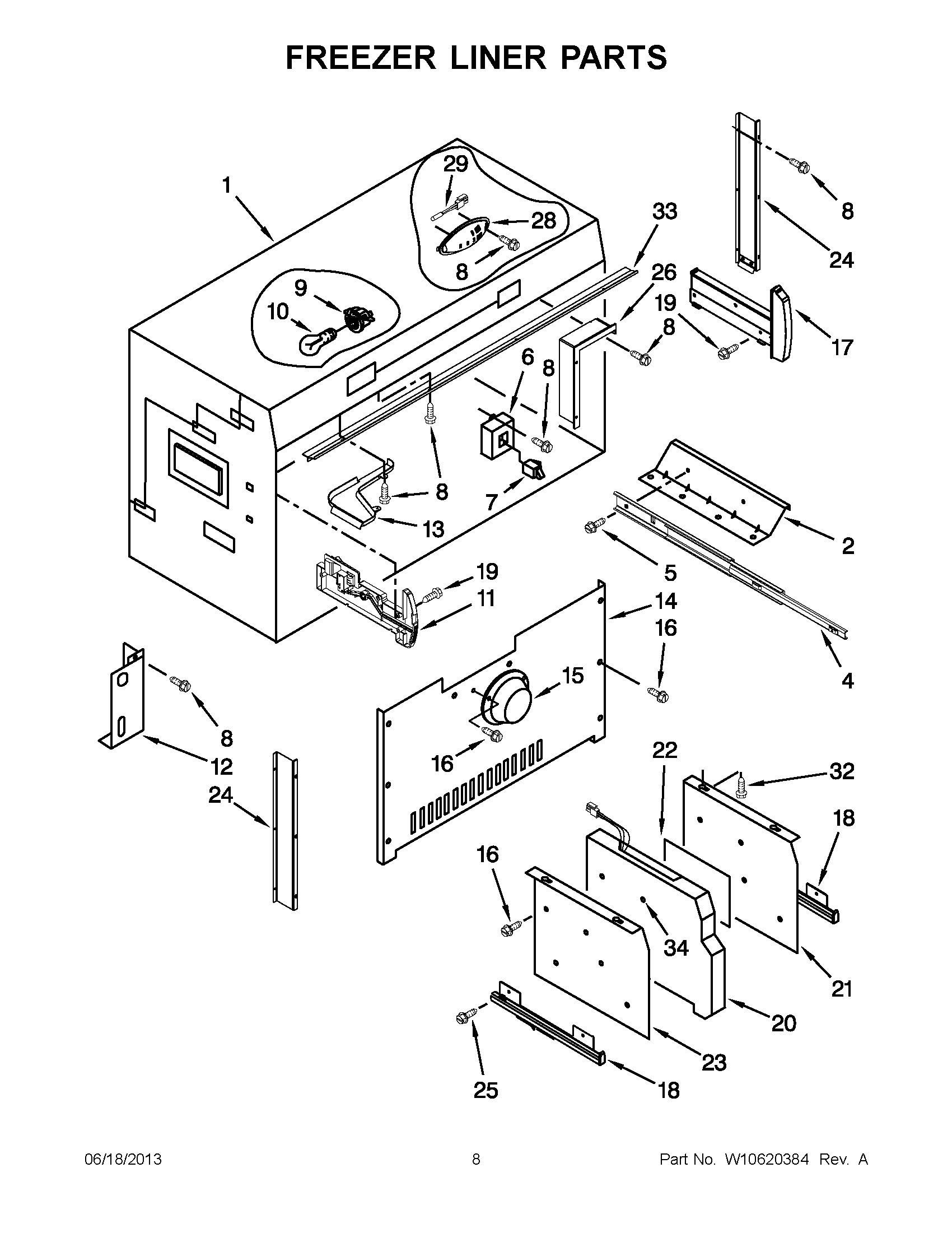

04 - FREEZER LINER PARTS

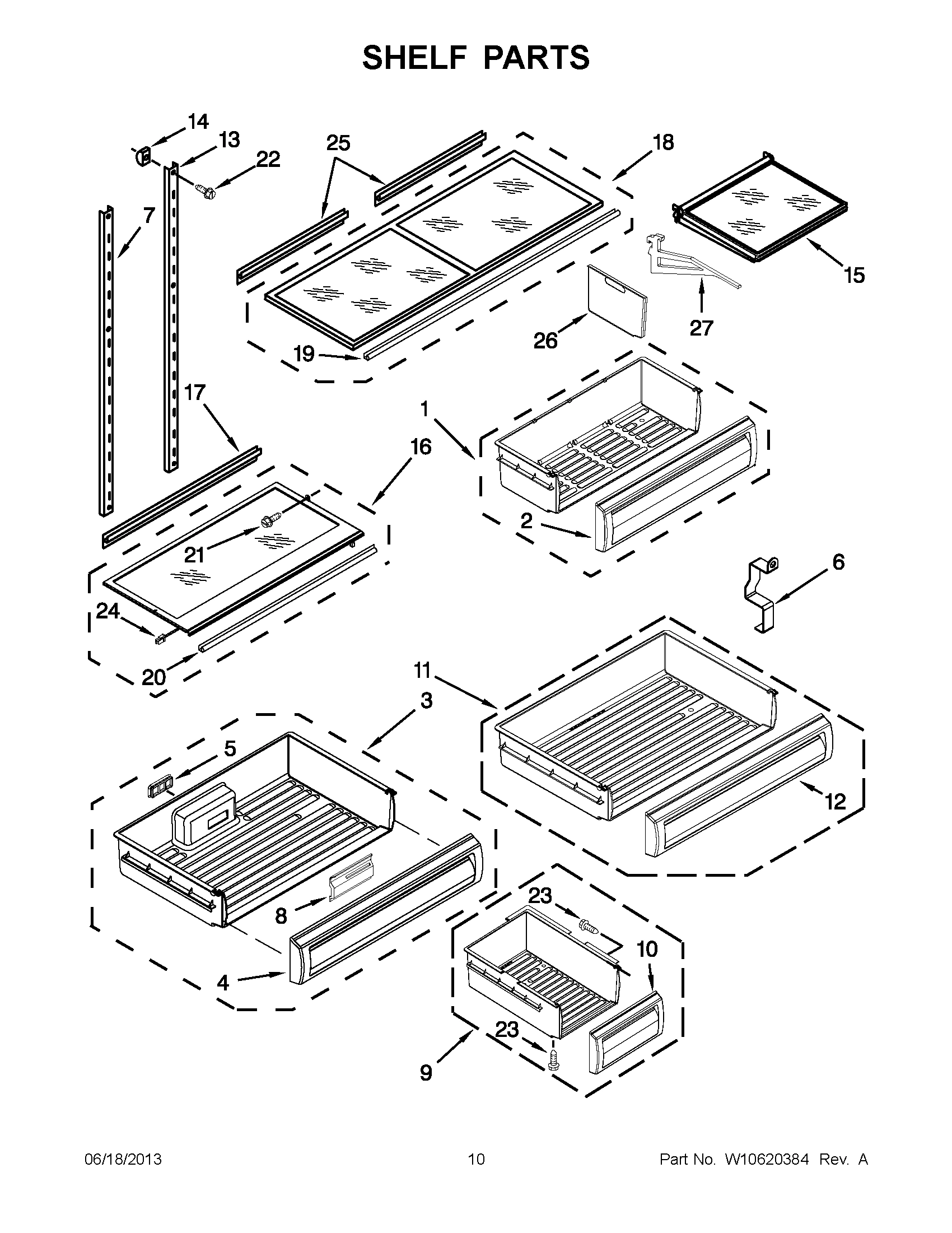

05 - SHELF PARTS

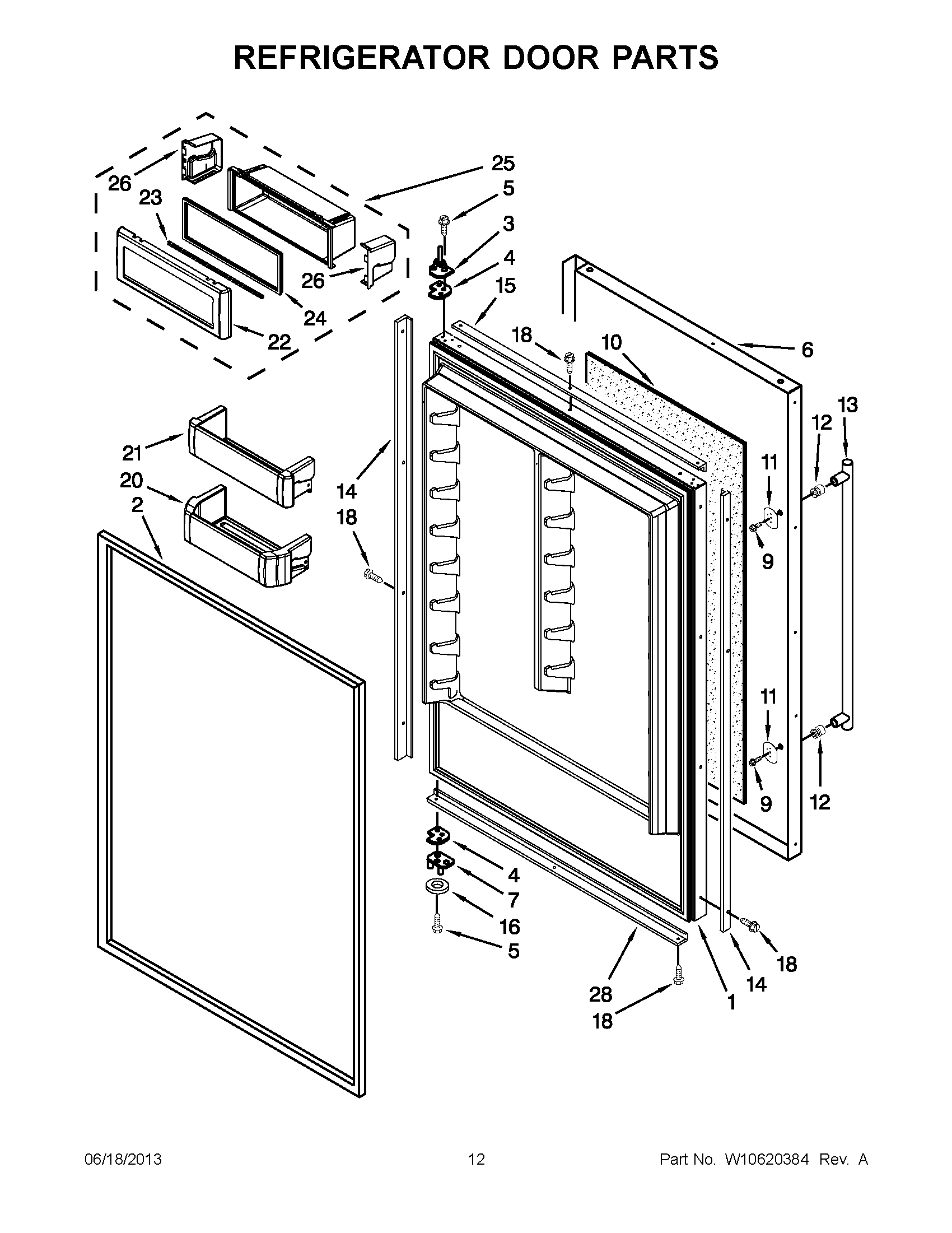

06 - REFRIGERATOR DOOR PARTS

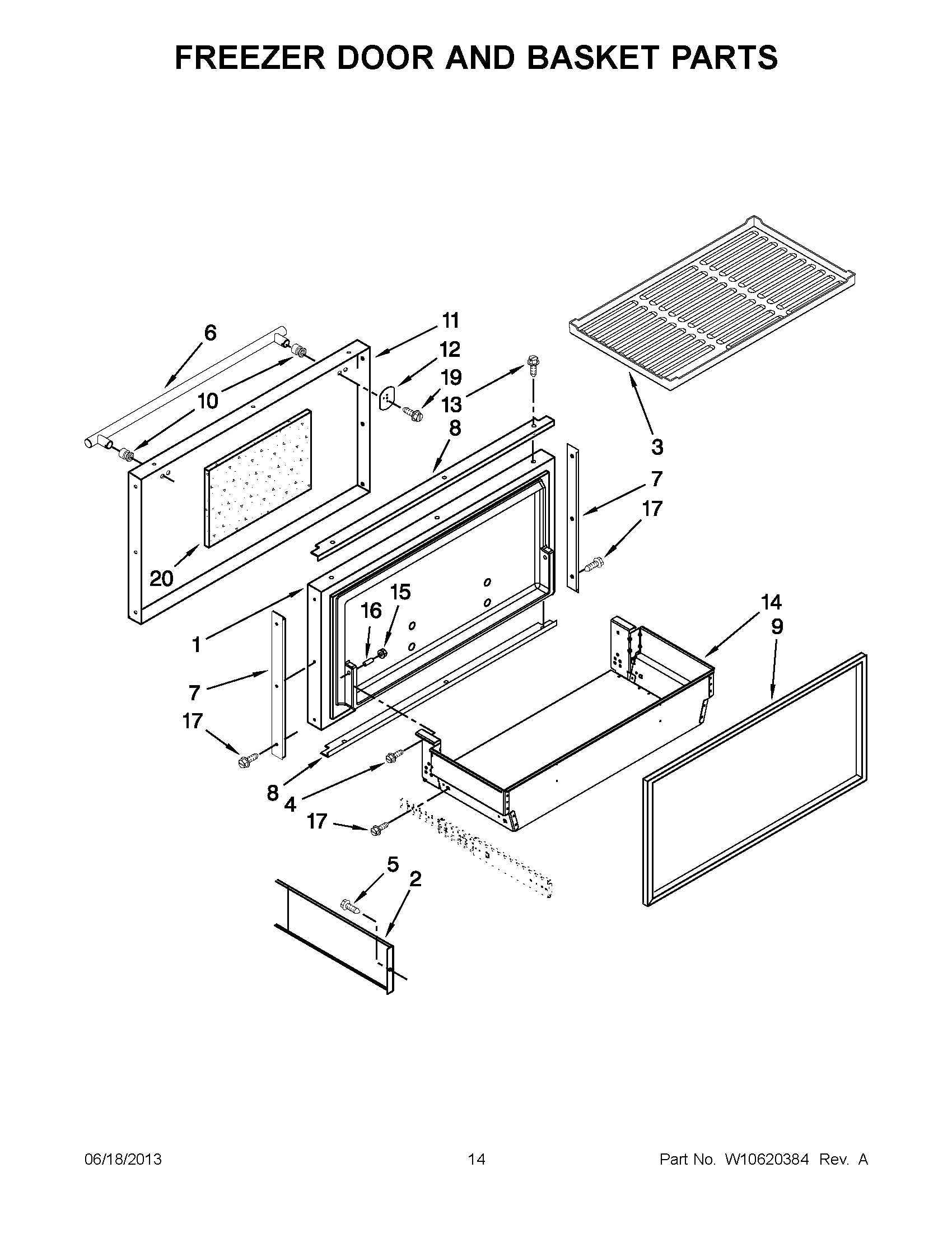

07 - FREEZER DOOR AND BASKET PARTS

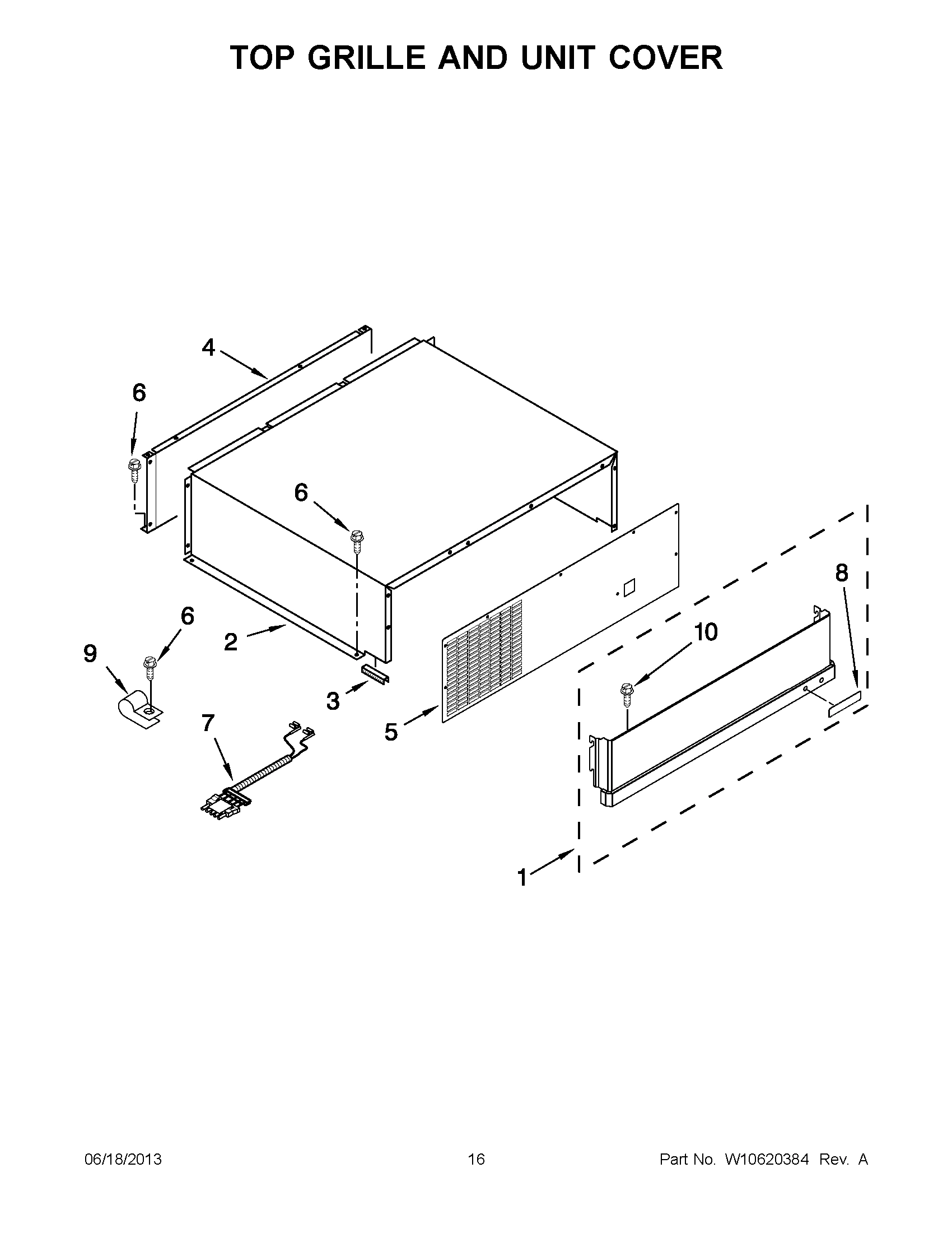

08 - TOP GRILLE AND UNIT COVER

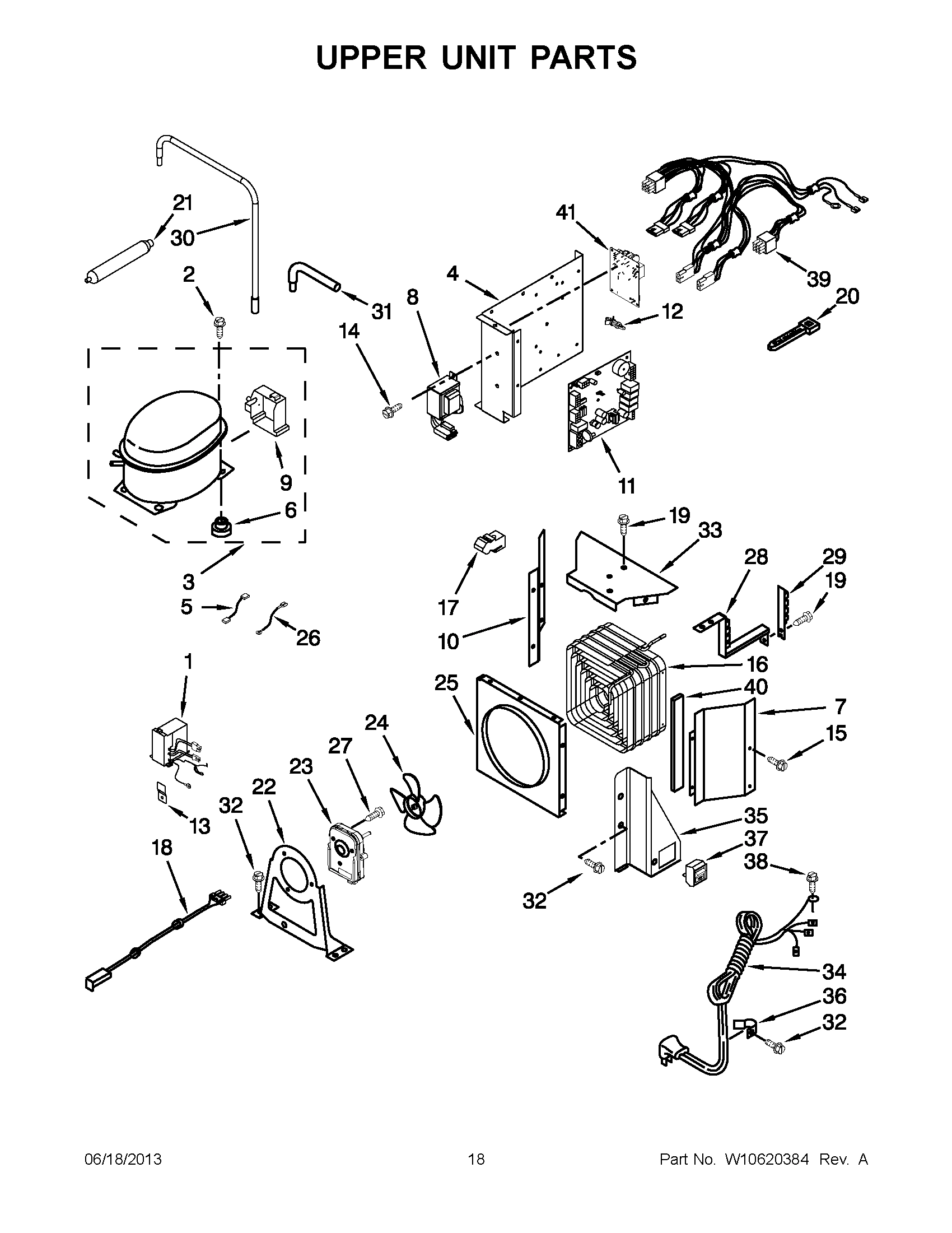

09 - UPPER UNIT PARTS

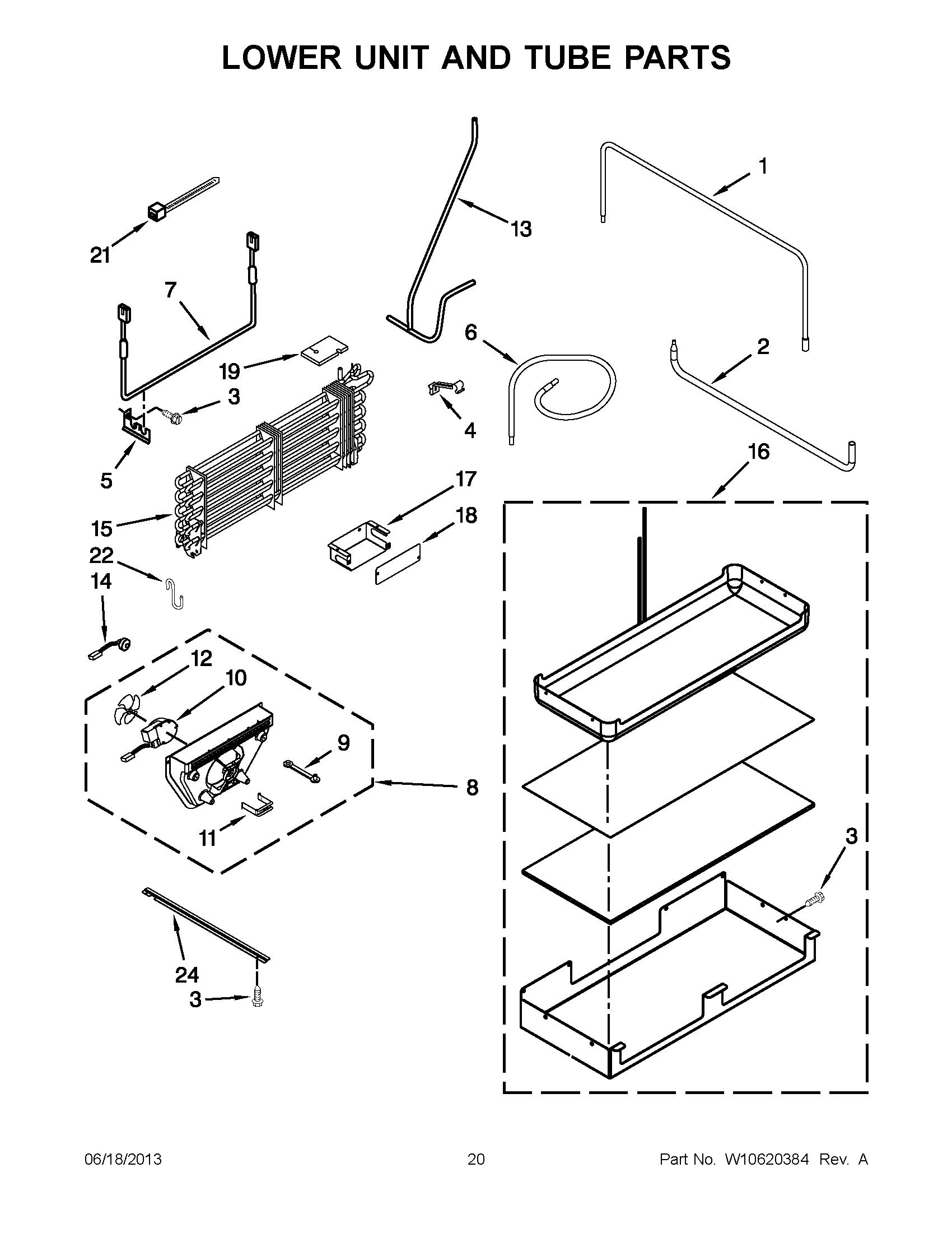

10 - LOWER UNIT AND TUBE PARTS

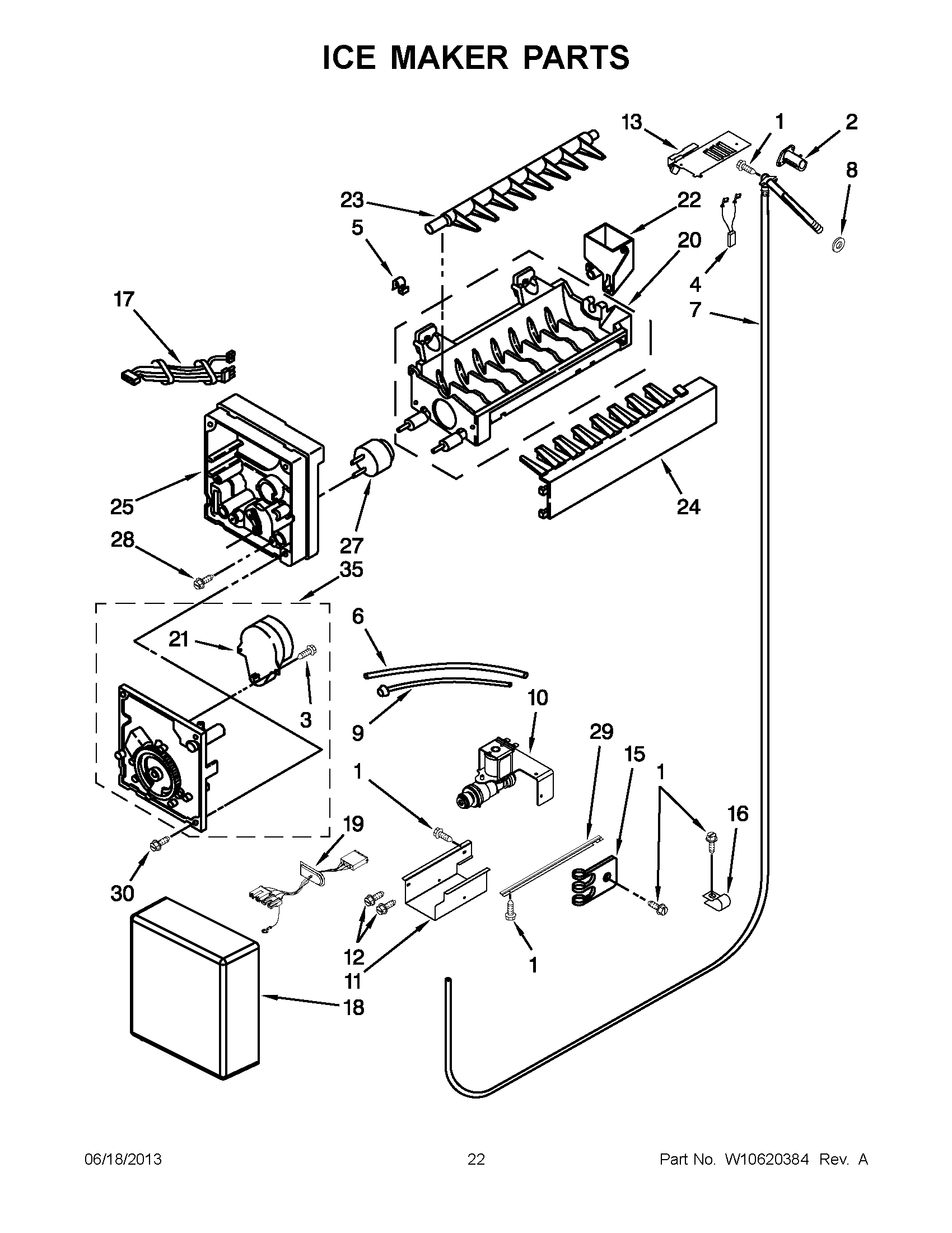

11 - ICE MAKER PARTS
Common parts from model Maytag JB36SSFXLA01 REFRIGERATOR
1
MAY 2317840 MAY 2317840 Contact Us For Availability
1
USE AND CARE GUIDE MAY W10183787 Contact Us For Availability
1
MAY W10469186 MAY W10469186 Contact Us For Availability
1
MAY W10477525 MAY W10477525 Contact Us For Availability
1
MAY W10512204 MAY W10512204 Contact Us For Availability
1
MAY W10555566 MAY W10555566 Contact Us For Availability
1
SCREW MAY 486194 Contact Us For Availability
1
CRISPER PAN ASSEMBLY (INCLUDES ITEM 2) MAY W10407629 Contact Us For Availability
1
DOOR, REFRIGERATOR MAY W10192039 Contact Us For Availability
1
FREEZER DOOR PANEL MAY W10258746 Contact Us For Availability
1
MAY W10516872 MAY W10516872 Contact Us For Availability
1
MAY W10516873 MAY W10516873 Contact Us For Availability
1
MAY W10449006 MAY W10449006 Contact Us For Availability
1
TUBE, TRANSITION (CONDENSER/DRAIN PAN) MAY 2309072 Contact Us For Availability
2
TRIM, CAB SIDE (RIGHT) (ALUMINUM) MAY W10132472 Contact Us For Availability
2
MAY 2317004 MAY 2317004 Contact Us For Availability
2
MAY W10423553 MAY W10423553 Contact Us For Availability
2
MAY 2256374 MAY 2256374 Contact Us For Availability
2
Gasket, Door MAY 2300184 Contact Us For Availability
2
MAY 2317101 MAY 2317101 Contact Us For Availability
2
Cover, Unit MAY W10188580 Contact Us For Availability
2
MAY 489373 MAY 489373 Contact Us For Availability
2
MAY W10388653 MAY W10388653 Contact Us For Availability
2
MAY 2221240 MAY 2221240 Contact Us For Availability
3
GROMMET, CROSSOVERTUBE MAY 2307584 Contact Us For Availability
3
SCREW MAY 1163283 Contact Us For Availability
3
MAY W10468944 MAY W10468944 Contact Us For Availability
3
DELI PAN ASSEMBLY MAY W10407636 Contact Us For Availability
3
ASSEMBLY, TOP HINGE MAY W10485980 Contact Us For Availability
3
MAY W10168937 MAY W10168937 Contact Us For Availability
3
GROMMET, FLEXIBLE MAY 2215910 Contact Us For Availability
3
COMPRESSOR MAY 2223801 Contact Us For Availability
3
Screw MAY 489136 Contact Us For Availability
4
MAY W10138054 MAY W10138054 Contact Us For Availability
4
TRIM, BOTTOM CAB (ALUMINUM) MAY 2316686 Contact Us For Availability
4
MAY 2317000 MAY 2317000 Contact Us For Availability
4
DRAWER SLIDE, FREEZER BASKET MAY W10423551 Contact Us For Availability
4
MAY 2257548 MAY 2257548 Contact Us For Availability
4
MAY 2316804 MAY 2316804 Contact Us For Availability
4
SCREW MAY W10135775 Contact Us For Availability
4
MAY 2256466 MAY 2256466 Contact Us For Availability
4
MAY W10321056 MAY W10321056 Contact Us For Availability
4
MAY 2307944 MAY 2307944 Contact Us For Availability
4
WIRE ASSEMBLY, FILL TUBE HEATER MAY W10482373 Contact Us For Availability
5
SUPPORT, LEVELER ASSEMBLY (RIGHT HAND) MAY W10138423 Contact Us For Availability
5
SUPPORT, LEVELER ASSEMBLY (LEFT HAND) MAY W10279275 Contact Us For Availability
5
MAY 2324970 MAY 2324970 Contact Us For Availability
5
MAY W10061370 MAY W10061370 Contact Us For Availability
5
MAY 2307810 MAY 2307810 Contact Us For Availability
5
MAY 8533980 MAY 8533980 Contact Us For Availability
5
MAY W10135792 MAY W10135792 Contact Us For Availability
5
UNIT COVER, FRONT MAY W10185625 Contact Us For Availability
5
MAY W10483905 MAY W10483905 Contact Us For Availability
5
Bracket, Mounting MAY 2307945 Contact Us For Availability
5
CLIP, THERMAL FUSE MAY 628379 Contact Us For Availability
6
CLIP MAY 2004514 Contact Us For Availability
6
CABINET TRIM, TOP RIGHT HAND (ALUMINUM) MAY 2314019 Contact Us For Availability
6
CABINET TRIM, TOP LEFT HAND (ALUMINUM) MAY 2314020 Contact Us For Availability
6
MAY 2309270 MAY 2309270 Contact Us For Availability
6
COVER, SWITCH MAY W10234211 Contact Us For Availability
6
CLIP, BIN (RIGHT HAND) MAY 2327393 Contact Us For Availability
6
CLIP, BIN (LEFT HAND) MAY 2327394 Contact Us For Availability
6
MAY W10523730 MAY W10523730 Contact Us For Availability
6
HANDLE, DOOR (STAINLESS) MAY W10298179 Contact Us For Availability
6
GROMMET MAY 1100826 Contact Us For Availability
6
TUBE, OIL TRAP SUCTION MAY W10306442 Contact Us For Availability
6
MAY W10296807 MAY W10296807 Contact Us For Availability
7
LEVELER, ADJUSTABLE MAY 2005032 Contact Us For Availability
7
SWITCH, ROCKER ARM (REF) MAY 1118894 Contact Us For Availability
7
LADDER, SHELF (CENTER) MAY W10246602 Contact Us For Availability
7
BOTTOM HINGE ASSEMBLY (RIGHT HAND) MAY 2316805 Contact Us For Availability
7
BOTTOM HINGE ASSEMBLY (LEFT HAND) MAY 2316807 Contact Us For Availability
7
Spacer, Door Edge (Side) MAY 2300025 Contact Us For Availability
7
MAY 2187894 MAY 2187894 Contact Us For Availability
7
SUPPORT, CONDENSER (RIGHT HAND) MAY W10415668 Contact Us For Availability
7
MAY 2268393 MAY 2268393 Contact Us For Availability
7
Tube Assembly, Water Inlet MAY 2317847 Contact Us For Availability
8
SCREW (STAINLESS) MAY 8281164 Contact Us For Availability
8
COVER, HINGE (WHITE) MAY 2005782 Contact Us For Availability
8
MAY 2317939 MAY 2317939 Contact Us For Availability
8
SPACER, DOOR EDGE MAY 2300027 Contact Us For Availability
8
MAY W10159580 MAY W10159580 Contact Us For Availability
8
MAY 2303033 MAY 2303033 Contact Us For Availability
8
MAY W10321092 MAY W10321092 Contact Us For Availability
8
GASKET, SEAL MAY 1106508 Contact Us For Availability
9
Mounting Bracket, Grill MAY 2307640 Contact Us For Availability
9
Clamp, Tube MAY 489348 Contact Us For Availability
9
MAY 2005925 MAY 2005925 Contact Us For Availability
9
MAY W10191429 MAY W10191429 Contact Us For Availability
9
ASSEMBLY, ICE PAN MAY 2306174 Contact Us For Availability
9
MAY W10144009 MAY W10144009 Contact Us For Availability
9
MAY 2215676 MAY 2215676 Contact Us For Availability
9
MAY W10321090 MAY W10321090 Contact Us For Availability
9
MAY W10437853 MAY W10437853 Contact Us For Availability
10
Ring, Retainer MAY 2006841 Contact Us For Availability
10
TRIM, CAB SIDE (LEFT) (ALUMINUM) MAY W10132541 Contact Us For Availability
10
Bulb, Light MAY 2326255 Contact Us For Availability
10
Front, Ice Pan MAY 2306175 Contact Us For Availability
10
MAY 2327469 MAY 2327469 Contact Us For Availability
10
MOUNT, HANDLE MAY W10168981 Contact Us For Availability
10
SUPPORT, CONDENSER (LEFT HAND) MAY W10415666 Contact Us For Availability
10
MAY W10436861 MAY W10436861 Contact Us For Availability
10
MAY 2307650 MAY 2307650 Contact Us For Availability
11
MAY W10004850 MAY W10004850 Contact Us For Availability
11
MAY W10001250 MAY W10001250 Contact Us For Availability
11
MAY 2317917 MAY 2317917 Contact Us For Availability
11
MAY W10321131 MAY W10321131 Contact Us For Availability
11
FREEZER PAN ASSEMBLY MAY 2327512 Contact Us For Availability
11
MAY W10523749 MAY W10523749 Contact Us For Availability
11
BOARD, CONTROL MAY W10427079 Contact Us For Availability
11
MAY W10260421 MAY W10260421 Contact Us For Availability
11
SHIELD, VALVE ELECTRICAL MAY W10129653 Contact Us For Availability
12
MAY W10129069 MAY W10129069 Contact Us For Availability
12
MAY 2320523 MAY 2320523 Contact Us For Availability
12
MAY 2306187 MAY 2306187 Contact Us For Availability
12
Front, Freezer Pan MAY 2268383 Contact Us For Availability
12
MAY W10127710 MAY W10127710 Contact Us For Availability
12
MAY 2203075 MAY 2203075 Contact Us For Availability
12
MAY 2169142 MAY 2169142 Contact Us For Availability
12
MAY 489464 MAY 489464 Contact Us For Availability
13
MAY 2314064 MAY 2314064 Contact Us For Availability
13
Cover, Diffuser MAY 2320519 Contact Us For Availability
13
MAY 2317006 MAY 2317006 Contact Us For Availability
13
LADDER, SHELF (SIDE) MAY W10213472 Contact Us For Availability
13
HANDLE, DOOR (STAINLESS) MAY W10298244 Contact Us For Availability
13
SCREW (STAINLESS) MAY 8281250 Contact Us For Availability
13
MAY 2256328 MAY 2256328 Contact Us For Availability
13
TUBE, DISCHARGE ASSEMBLY MAY W10404239 Contact Us For Availability
13
MAY 2221231 MAY 2221231 Contact Us For Availability
14
Screw MAY 487415 Contact Us For Availability
14
MAY 2268380 MAY 2268380 Contact Us For Availability
14
Support, Ladder MAY 520965 Contact Us For Availability
14
SPACER, DOOR SIDE EDGE MAY 2300026 Contact Us For Availability
14
MAY W10258182 MAY W10258182 Contact Us For Availability
14
MAY W10482185 MAY W10482185 Contact Us For Availability
15
Air Baffle Assembly MAY 2221296 Contact Us For Availability
15
COVER, FAN MAY 2317829 Contact Us For Availability
15
MAY W10198700 MAY W10198700 Contact Us For Availability
15
SPACER, DOOR-SKIN (WHITE) MAY 2300024 Contact Us For Availability
15
MAY 2207454 MAY 2207454 Contact Us For Availability
15
MAY 1157158 MAY 1157158 Contact Us For Availability
15
EVAPORATOR ASSEMBLY MAY W10195923 Contact Us For Availability
15
MAY 2208136 MAY 2208136 Contact Us For Availability
16
MAY W10331955 MAY W10331955 Contact Us For Availability
16
MAY 2006346 MAY 2006346 Contact Us For Availability
16
MAY W10121451 MAY W10121451 Contact Us For Availability
16
SCREW (STAINLESS) MAY 487539 Contact Us For Availability
16
MAY W10183750 MAY W10183750 Contact Us For Availability
16
MAY W10001190 MAY W10001190 Contact Us For Availability
16
MAY 2307998 MAY 2307998 Contact Us For Availability
16
MAY W10281063 MAY W10281063 Contact Us For Availability
17
MAY 2207470 MAY 2207470 Contact Us For Availability
17
WIRE ASSEMBLY MAY 2310164 Contact Us For Availability
17
MAY 2306106 MAY 2306106 Contact Us For Availability
17
GASKET, REAR (DELI COVER) MAY 2309399 Contact Us For Availability
17
MAY W10109030 MAY W10109030 Contact Us For Availability
17
GROMMET MAY 2309431 Contact Us For Availability
17
MAY W10309012 MAY W10309012 Contact Us For Availability
17
WIRE ASSEMBLY, ICE MAKER MAY W10508673 Contact Us For Availability
18
Hinge (Top) MAY 2257644 Contact Us For Availability
18
MAY 2306116 MAY 2306116 Contact Us For Availability
18
MAY 2306117 MAY 2306117 Contact Us For Availability
18
MAY W10183749 MAY W10183749 Contact Us For Availability
18
ASSEMBLY, CONDENSER FAN WIRE MAY 2310207 Contact Us For Availability
18
MAY W10321048 MAY W10321048 Contact Us For Availability
18
MAY W10289690 MAY W10289690 Contact Us For Availability
19
MAY 2320509 MAY 2320509 Contact Us For Availability
19
SPACER, CRISPER (RIGHT HAND) MAY 2309410 Contact Us For Availability
19
SPACER, CRISPER (LEFT HAND) MAY 2309411 Contact Us For Availability
19
Screw MAY 308544 Contact Us For Availability
19
MAY 489399 MAY 489399 Contact Us For Availability
19
MAY 2306180 MAY 2306180 Contact Us For Availability
19
MAY W10279393 MAY W10279393 Contact Us For Availability
20
SPACER, DELI (LEFT HAND) MAY 2268411 Contact Us For Availability
20
SPACER, DELI (RIGHT HAND) MAY 2268412 Contact Us For Availability
20
DIVIDER, FREEZER BINS MAY W10290822 Contact Us For Availability
20
GASKET, COVER FRONT MAY 2309397 Contact Us For Availability
20
MAY W10323749 MAY W10323749 Contact Us For Availability
20
MAY 2327468 MAY 2327468 Contact Us For Availability
20
ASSEMBLY, MOLD AND HEATER MAY W10122527 Contact Us For Availability
21
BRACKET, BASE SUPPORT MAY 2006617 Contact Us For Availability
21
SLIDE, CRISPER PAN (LEFT HAND) MAY 2302952 Contact Us For Availability
21
SLIDE, CRISPER PAN (RIGHT HAND) MAY 2302953 Contact Us For Availability
21
SUPPORT, SLIDE (RIGHT HAND) MAY 2306104 Contact Us For Availability
21
SCREW (WHITE) MAY 8281251 Contact Us For Availability
21
MAY W10323603 MAY W10323603 Contact Us For Availability
21
TIE, WIRE MAY 2155774 Contact Us For Availability
21
MAY W10175593 MAY W10175593 Contact Us For Availability
22
MAY W10484913 MAY W10484913 Contact Us For Availability
22
MAY 2302788 MAY 2302788 Contact Us For Availability
22
MAY 2317927 MAY 2317927 Contact Us For Availability
22
MAY 2006475 MAY 2006475 Contact Us For Availability
22
LID, UTILITY MAY 2309255 Contact Us For Availability
22
BRACKET, FAN MOTOR (CONDENSER FAN) MAY W10414681 Contact Us For Availability
22
MAY 2317920 MAY 2317920 Contact Us For Availability
22
MAY W10435665 MAY W10435665 Contact Us For Availability
23
MAY W10121140 MAY W10121140 Contact Us For Availability
23
SLIDE, DELI PAN (LEFT HAND) MAY 2302956 Contact Us For Availability
23
SLIDE, DELI PAN (RIGHT HAND) MAY 2302957 Contact Us For Availability
23
SUPPORT, SLIDE (LEFT HAND) MAY 2306105 Contact Us For Availability
23
SCREW MAY 488886 Contact Us For Availability
23
RAIL, UTILITY MAY 2309256 Contact Us For Availability
23
MAY 2188875 MAY 2188875 Contact Us For Availability
23
MAY 627843 MAY 627843 Contact Us For Availability
24
MAY 2221242 MAY 2221242 Contact Us For Availability
24
BRACKET, EVAPORATOR COVER (LEFT HAND) MAY 2320512 Contact Us For Availability
24
BRACKET, EVAPORATOR COVER (RIGHT HAND) MAY 2327339 Contact Us For Availability
24
LIGHT ASSEMBLY, (DELI) MAY 2309393 Contact Us For Availability
24
GASKET, BIN UTILITY MAY 2309257 Contact Us For Availability
24
MAY W10139483 MAY W10139483 Contact Us For Availability
24
MAY 2320554 MAY 2320554 Contact Us For Availability
24
STRIPPER, ICE MAY W10122563 Contact Us For Availability
25
MAY 488163 MAY 488163 Contact Us For Availability
25
COVER, REAR GASKET MAY 2309398 Contact Us For Availability
25
MAY W10323044 MAY W10323044 Contact Us For Availability
25
MAY W10415670 MAY W10415670 Contact Us For Availability
25
MAY 2194712 MAY 2194712 Contact Us For Availability
26
Filter, Water MAY W10121146 Contact Us For Availability
26
MAY 2317902 MAY 2317902 Contact Us For Availability
26
DIVIDER, CRISPER MAY 2256474 Contact Us For Availability
26
END CAP, UTILITY BIN (RIGHT HAND) MAY W10323172 Contact Us For Availability
26
END CAP, UTILITY BIN (LEFT HAND) MAY W10323173 Contact Us For Availability
26
MAY W10495645 MAY W10495645 Contact Us For Availability
27
MAY 2316859 MAY 2316859 Contact Us For Availability
27
MAY 8533929 MAY 8533929 Contact Us For Availability
27
MAY W10187549 MAY W10187549 Contact Us For Availability
27
MAY 8533993 MAY 8533993 Contact Us For Availability
27
THERMOSTAT MAY 627985 Contact Us For Availability
28
BRACKET, FILTER MAY W10348782 Contact Us For Availability
28
MAY 2317105 MAY 2317105 Contact Us For Availability
28
VALVE TUBE, BODY MAY 2171931 Contact Us For Availability
28
SPACER, DOOR-SKIN (WHITE) MAY 2300023 Contact Us For Availability
28
ASSEMBLY, BRACKET MAY 2317031 Contact Us For Availability
28
MAY W10001280 MAY W10001280 Contact Us For Availability
29
MAY 2005101 MAY 2005101 Contact Us For Availability
29
MAY 2188820 MAY 2188820 Contact Us For Availability
29
ASSEMBLY, ARM MAY 2317030 Contact Us For Availability
29
MAY 2320559 MAY 2320559 Contact Us For Availability
30
Tube, Drier Transition MAY 2307566 Contact Us For Availability
30
MAY 489276 MAY 489276 Contact Us For Availability
31
MAY W10162602 MAY W10162602 Contact Us For Availability
31
MAY W10528578 MAY W10528578 Contact Us For Availability
32
SKIRT, GRILLE BOTTOM (BLACK) MAY 2209024B Contact Us For Availability
32
SCREW (STAINLESS) MAY 8533928 Contact Us For Availability
33
AIR DEFLECTOR ASSEMBLY MAY W10135431 Contact Us For Availability
33
MAY 2309000 MAY 2309000 Contact Us For Availability
34
GRILLE, PUSH FILTER BOTTOM (BLACK) MAY 2325187B Contact Us For Availability
34
Lens, Receiver MAY 2198643 Contact Us For Availability
34
MAY 2310251 MAY 2310251 Contact Us For Availability
35
MAY 2215612 MAY 2215612 Contact Us For Availability
35
MAY W10321055 MAY W10321055 Contact Us For Availability
35
ASSEMBLY, MODULE AND MOTOR MAY 626691 Contact Us For Availability
36
ARM, EXTENSION (LEFT HAND) MAY 2266881 Contact Us For Availability
36
ARM, EXTENSION (RIGHT HAND) MAY 2266882 Contact Us For Availability
36
Clamp, Power Cord MAY 549193 Contact Us For Availability
37
BRACKET, SWITCH (LEFT HAND) MAY 2221096 Contact Us For Availability
37
BRACKET, SWITCH (RIGHT HAND) MAY 2221097 Contact Us For Availability
37
Switch, Power Disconnect MAY 2266802 Contact Us For Availability
38
MAY 2215938 MAY 2215938 Contact Us For Availability
38
SCREW MAY 487294 Contact Us For Availability
39
MAY 2260518B MAY 2260518B Contact Us For Availability
39
MAY W10427099 MAY W10427099 Contact Us For Availability
40
MAY 8533913 MAY 8533913 Contact Us For Availability
40
MAY 2309432 MAY 2309432 Contact Us For Availability
41
CONTROL, ELECTRONIC MAY W10356040 Contact Us For Availability
42
MAY W10005050 MAY W10005050 Contact Us For Availability
43
SCREW (STAINLESS) MAY 8281163 Contact Us For Availability
44
MAY 2260503B MAY 2260503B Contact Us For Availability
45
MAY 2318189 MAY 2318189 Contact Us For Availability
46
COVER, BOTTOM GAP MAY W10188434 Contact Us For Availability
100
MAY W10277450 MAY W10277450 Contact Us For Availability
NI
FOLLOWING PARTS NOT ILLUSTRATED, MAY N/P Contact Us For Availability
NI
VALVE, ACCESS MAY 876764 Contact Us For Availability
NI
VALVE, ACCESS MAY 978025 Contact Us For Availability
NI
VALVE, ACCESS MAY 978026 Contact Us For Availability
NI
VALVE, ACCESS MAY 978027 Contact Us For Availability
NI
VALVE, ACCESS MAY 978028 Contact Us For Availability
NI
VALVE, ACCESS MAY 978029 Contact Us For Availability
NI
VALVE, ACCESS MAY 978030 Contact Us For Availability
NI
CLEANER, STAINLESS STEEL (2 OZ) MAY 8537055 Contact Us For Availability
× ![]()
