Model IPSO IXU135C Washer – Common Parts & Diagrams

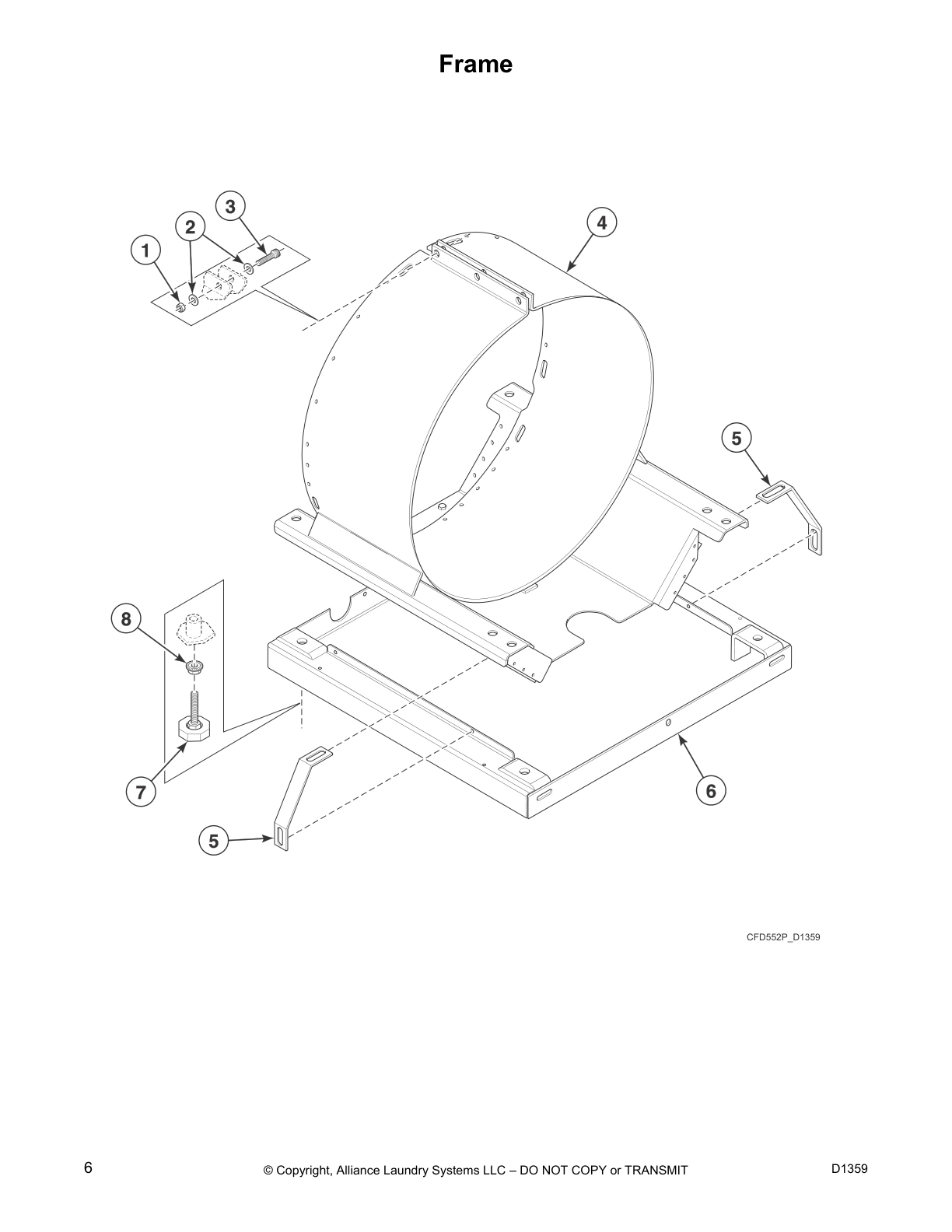

Frame

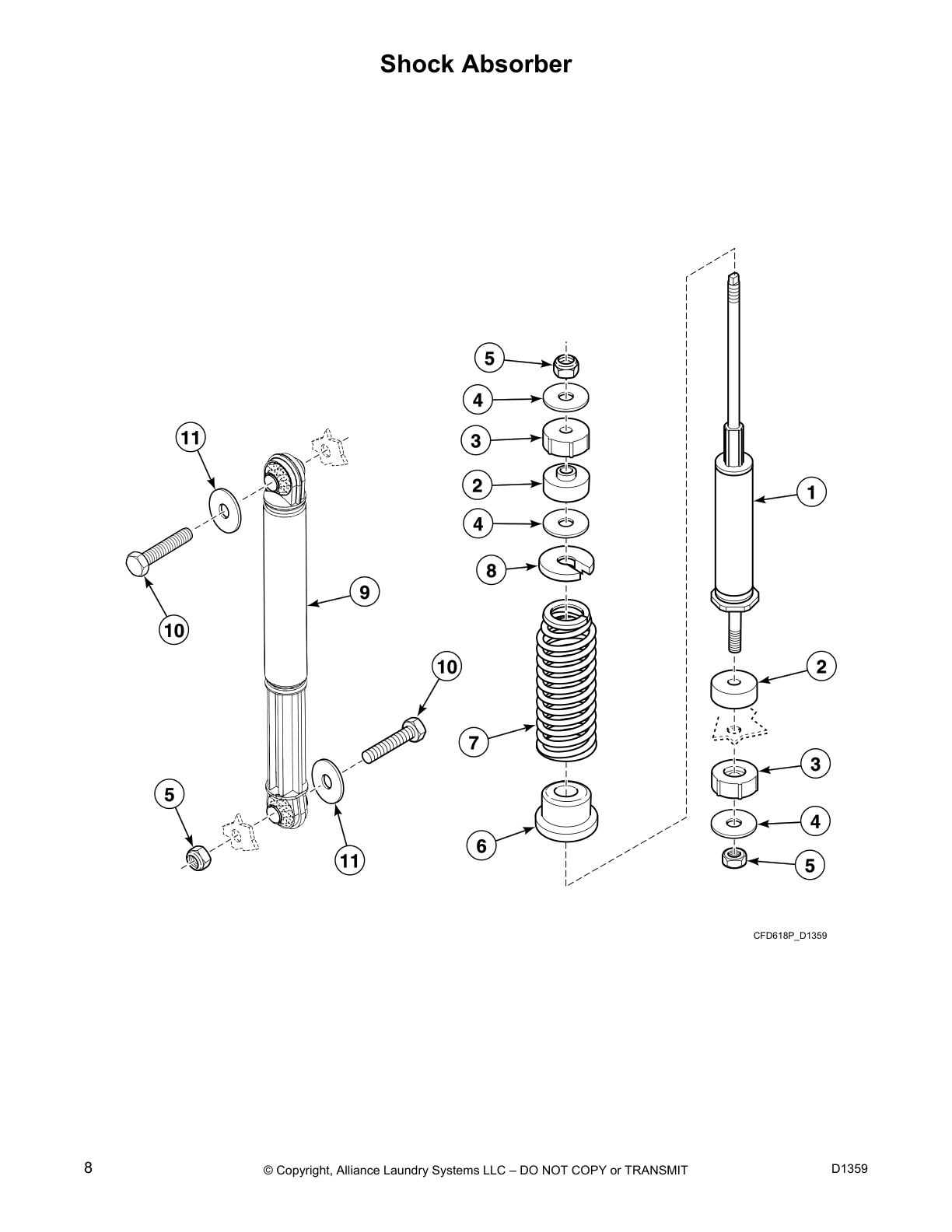

Shock Absorber

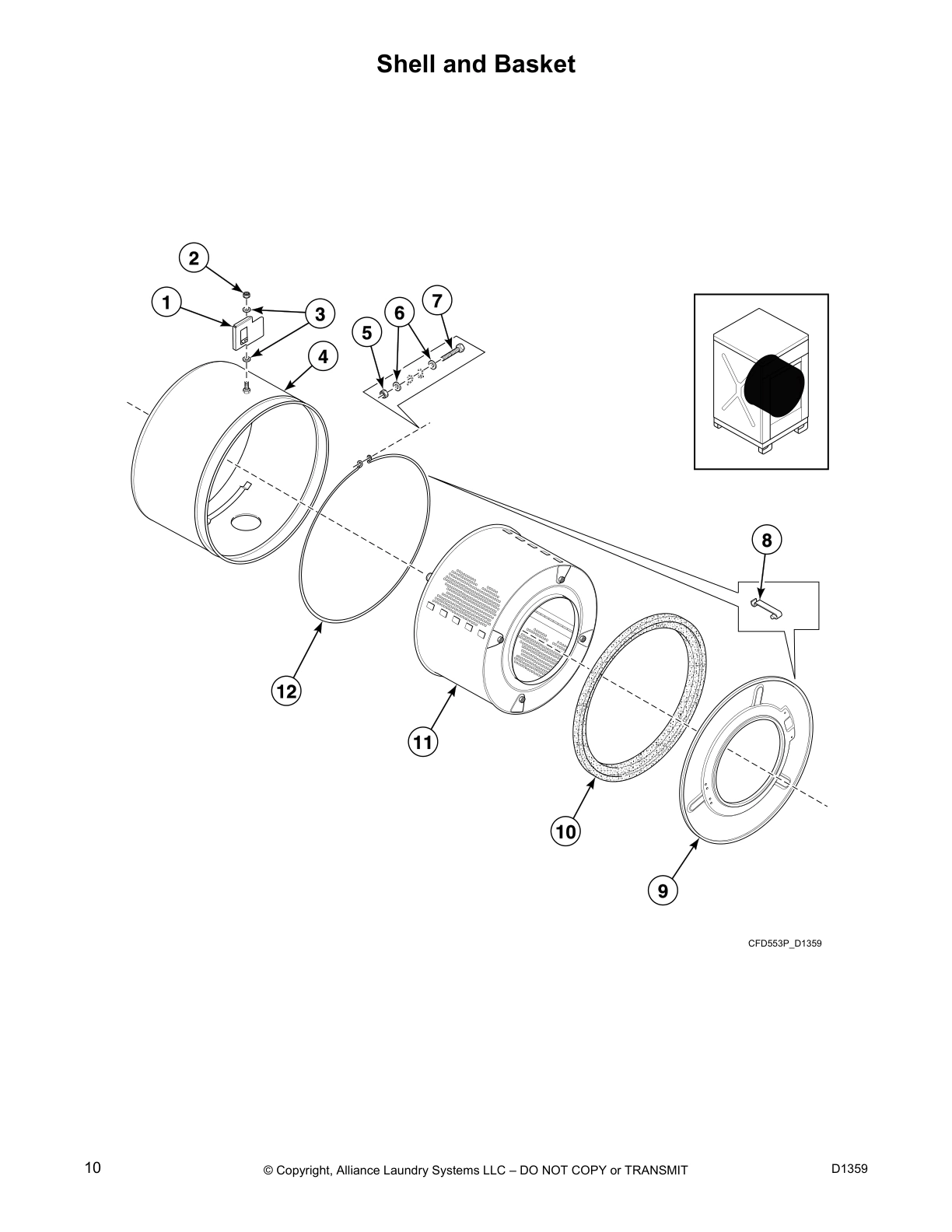

Shell and Basket

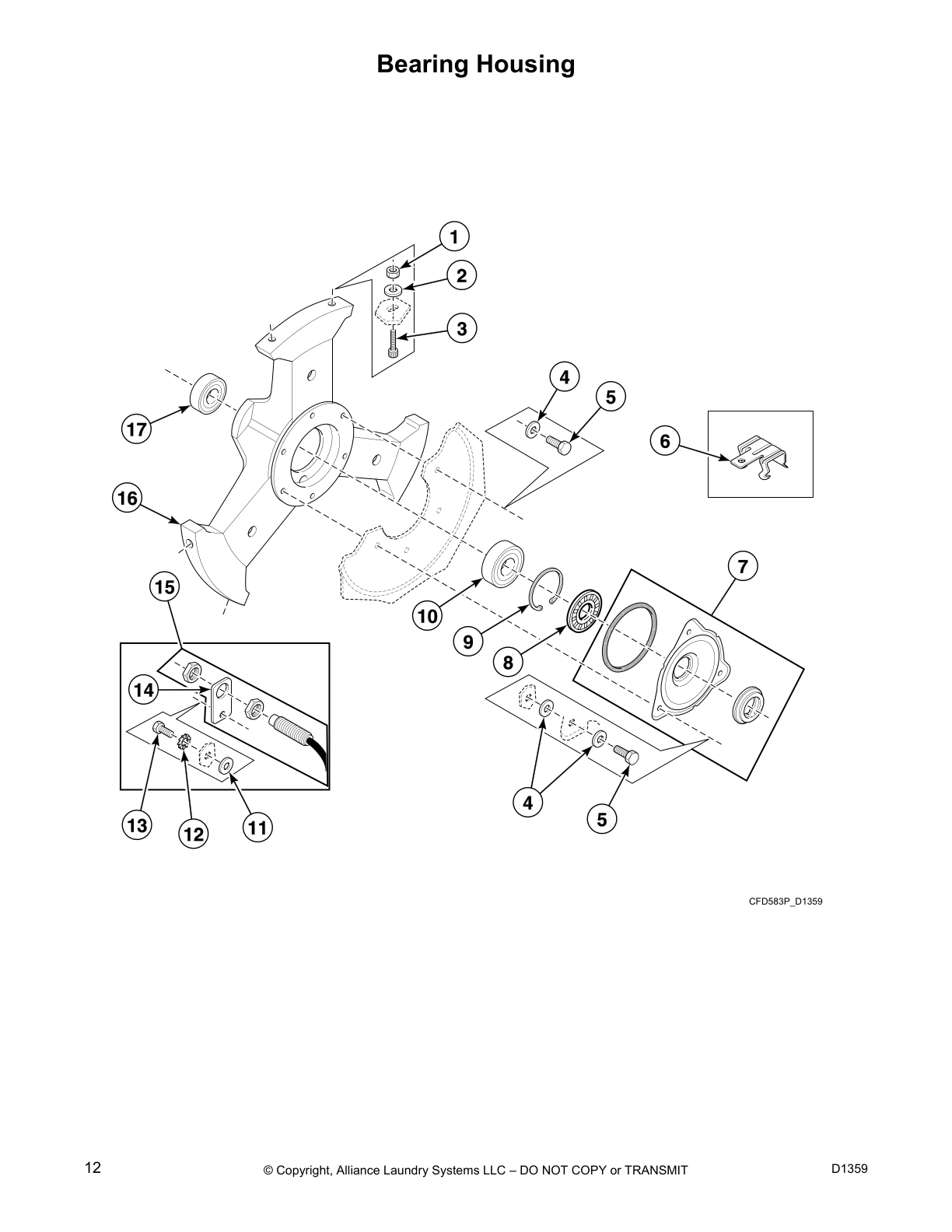

Bearing Housing

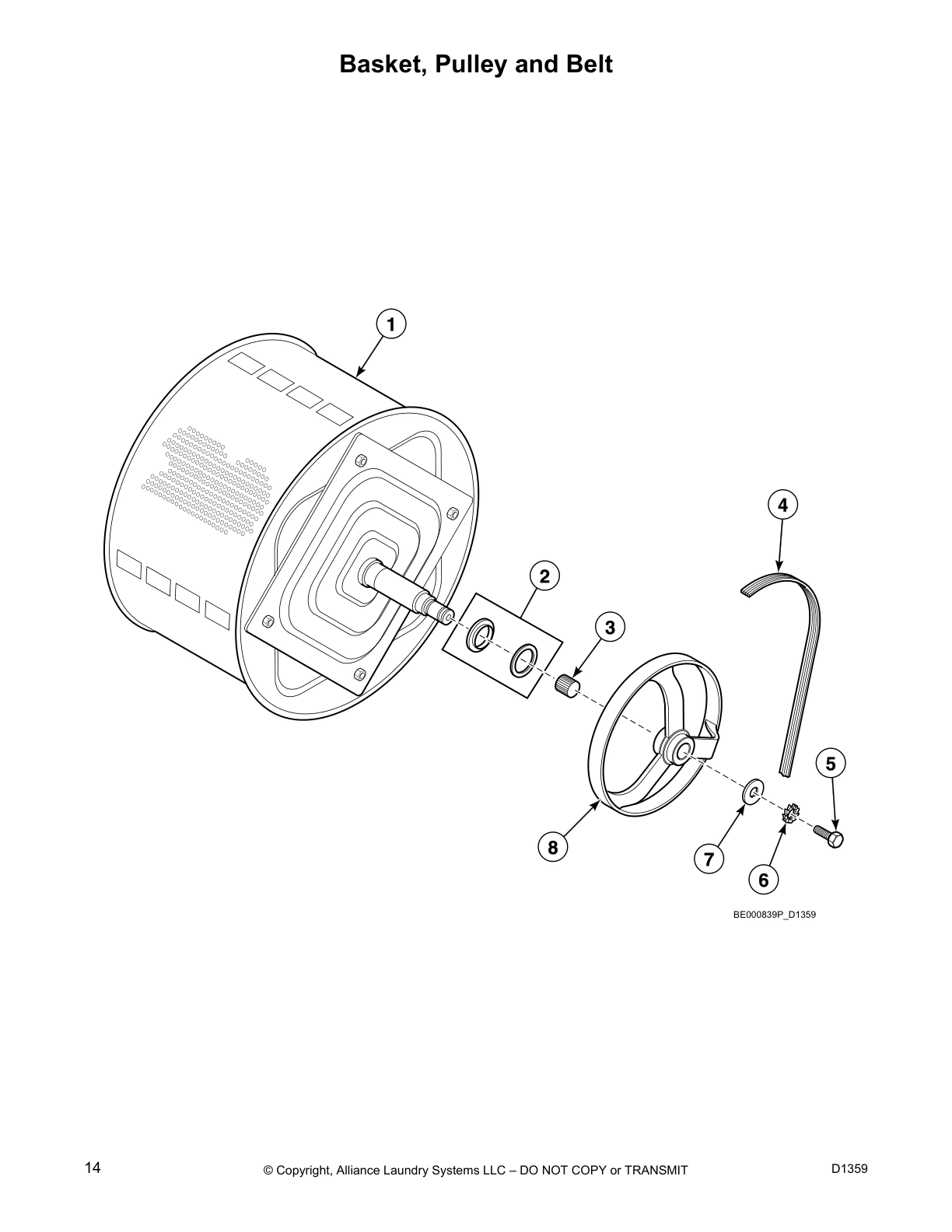

Basket, Pulley and Belt

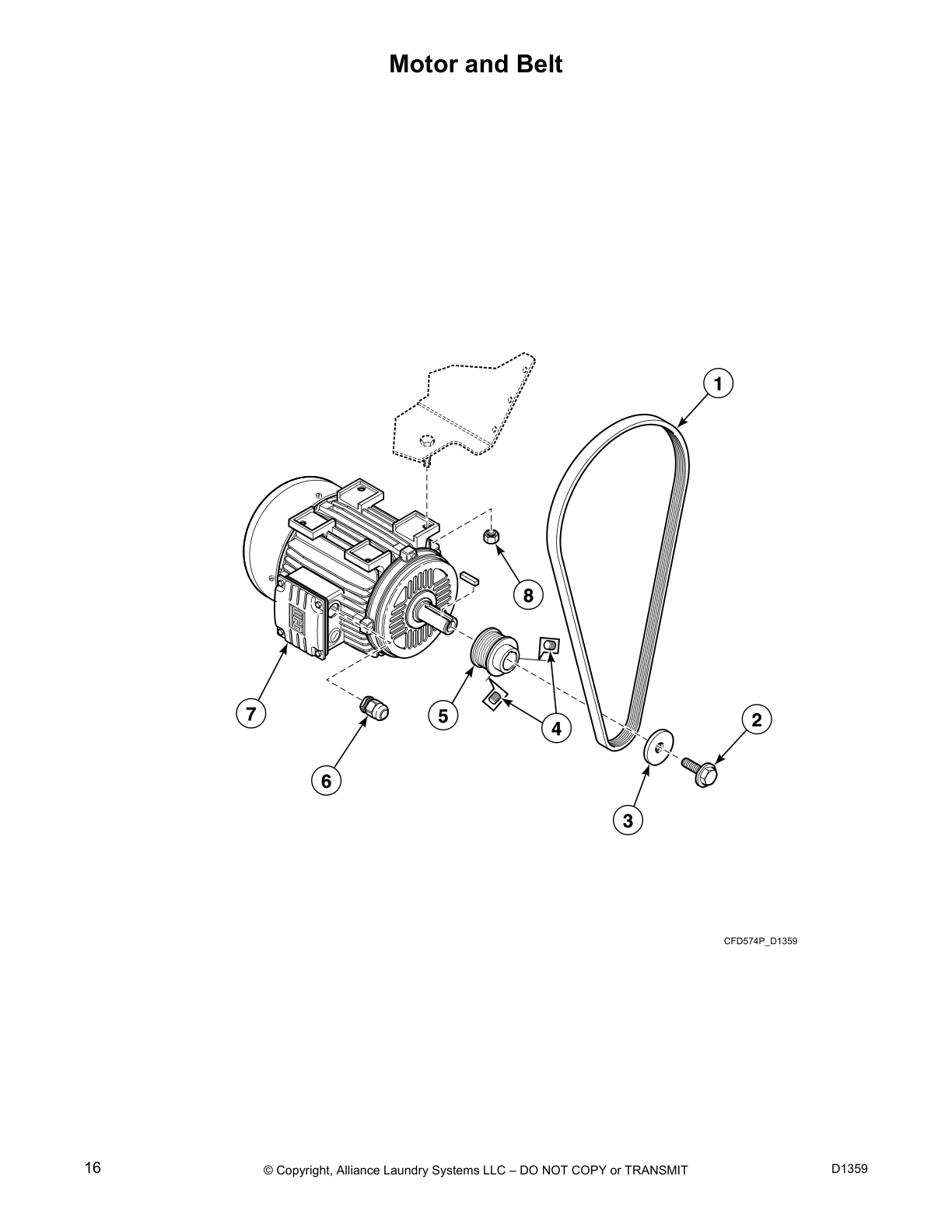

Motor and Belt

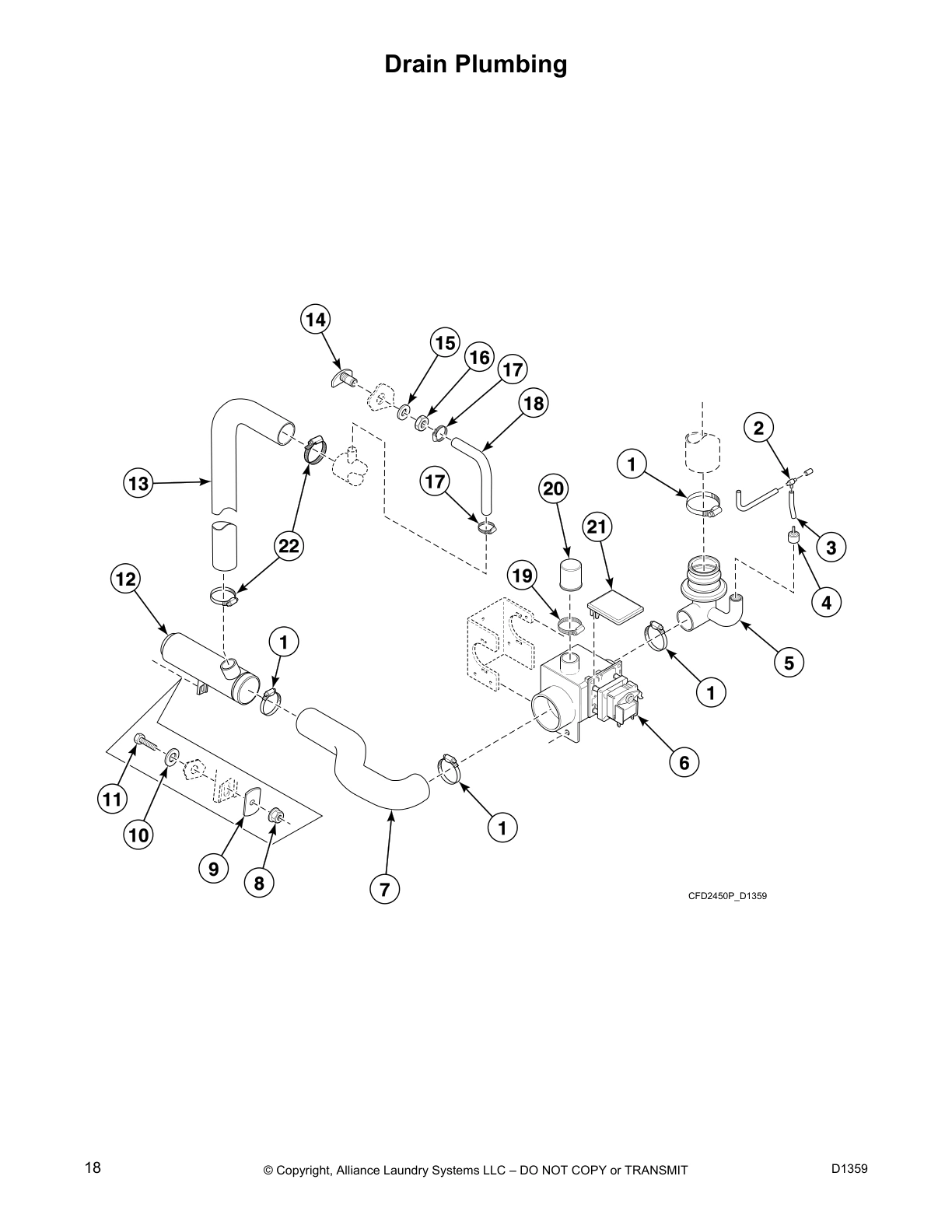

Drain Plumbing

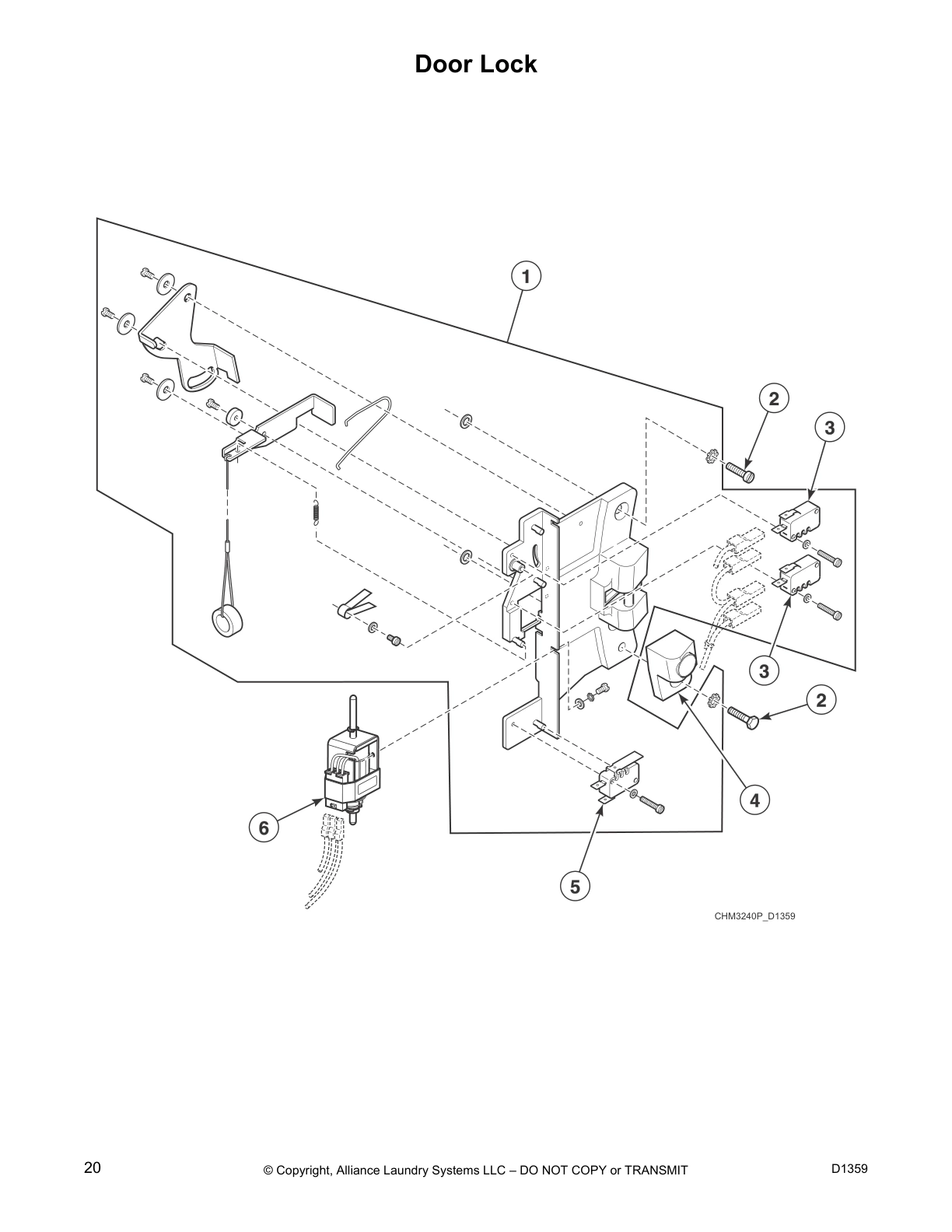

Door Lock

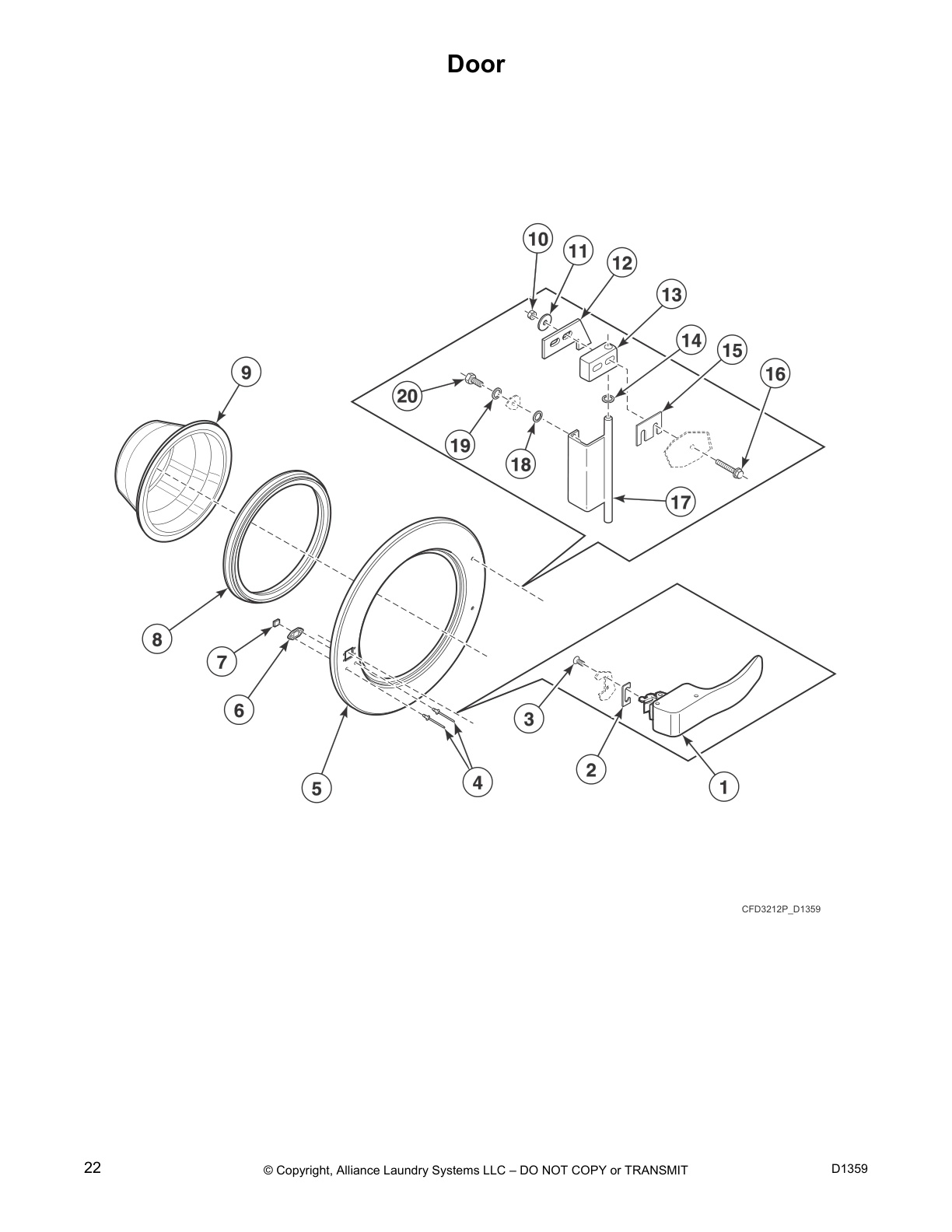

Door

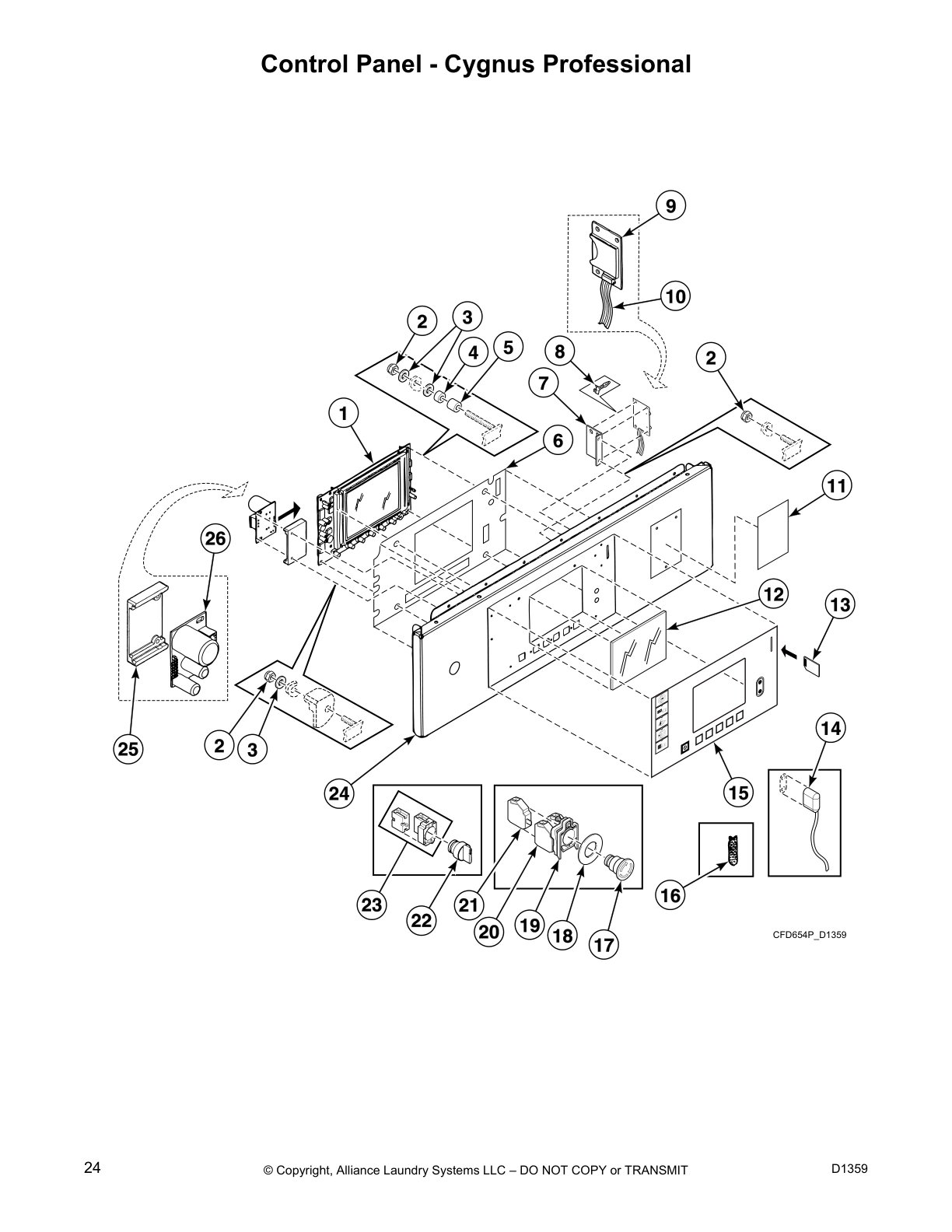

Control Panel - Cygnus Professional

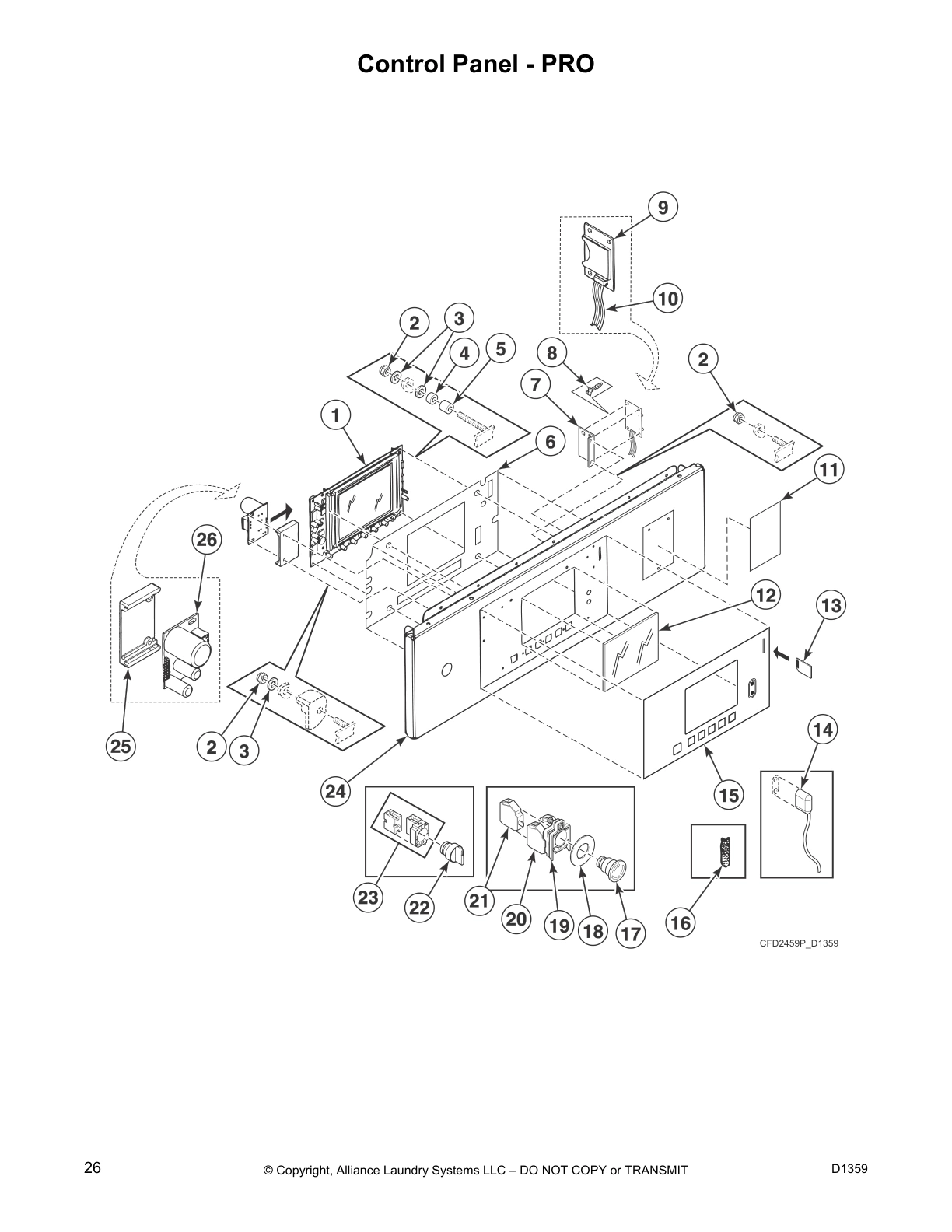

Control Panel - PRO

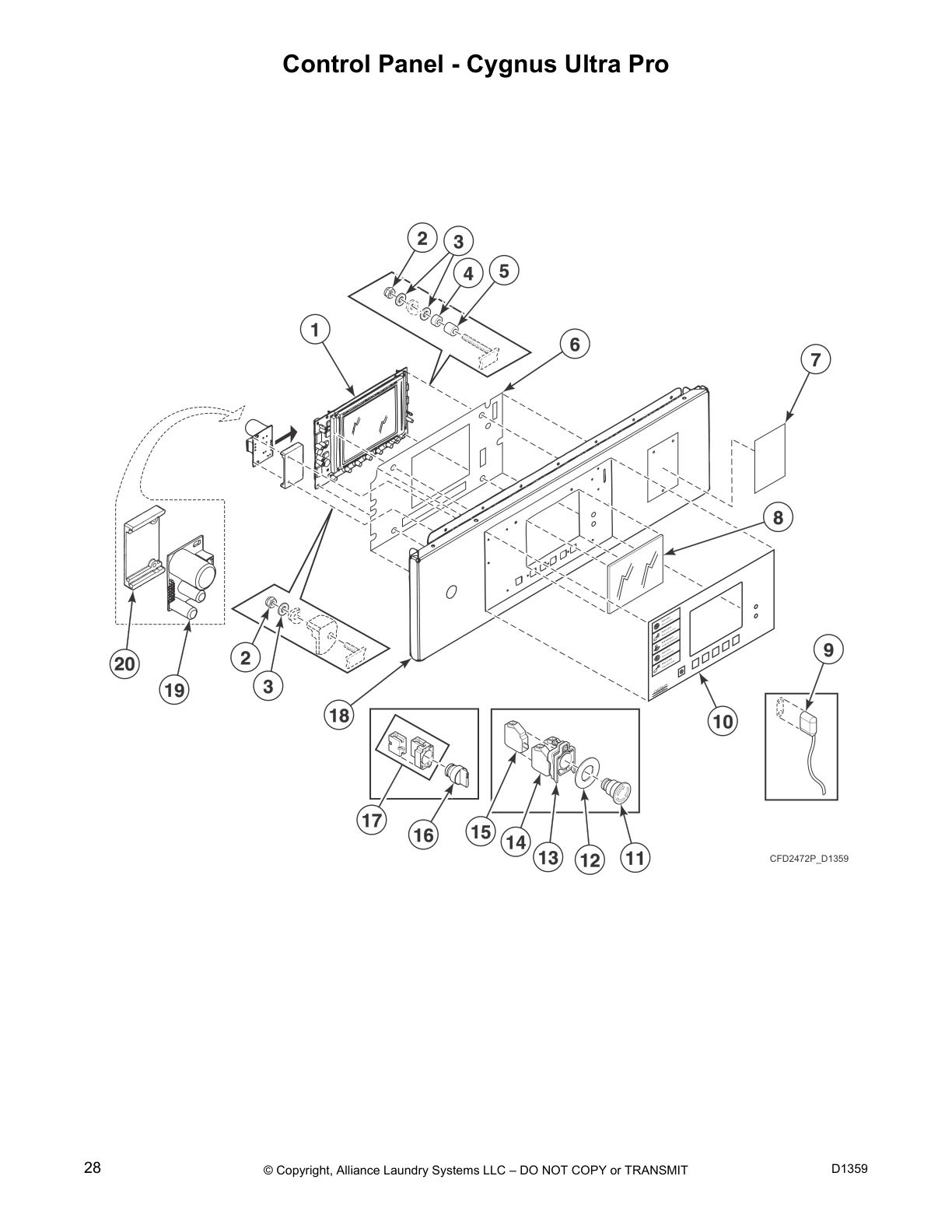

Control Panel - Cygnus Ultra Pro
Control Panel - Cygnus Premium OPL and Ultra

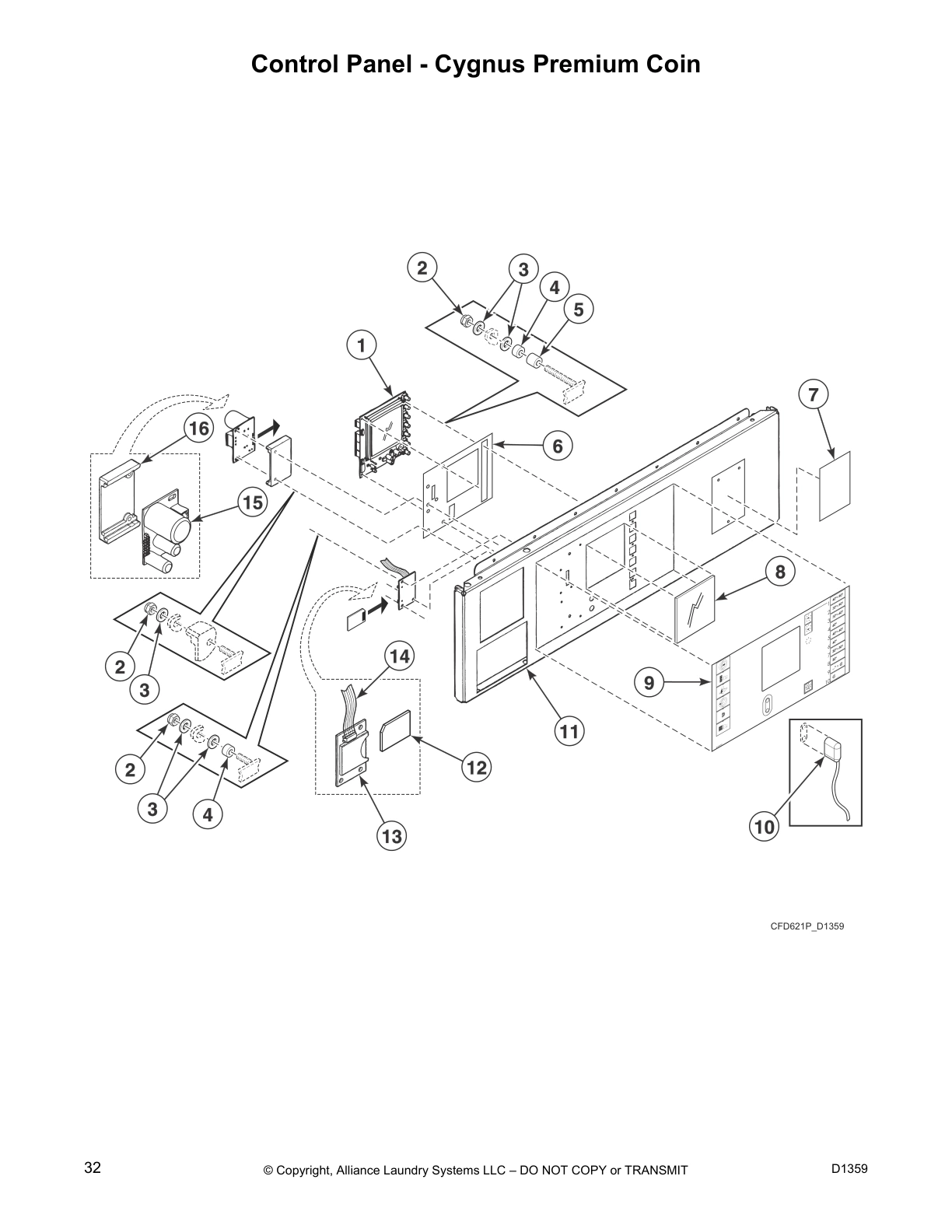

Control Panel - Cygnus Premium Coin

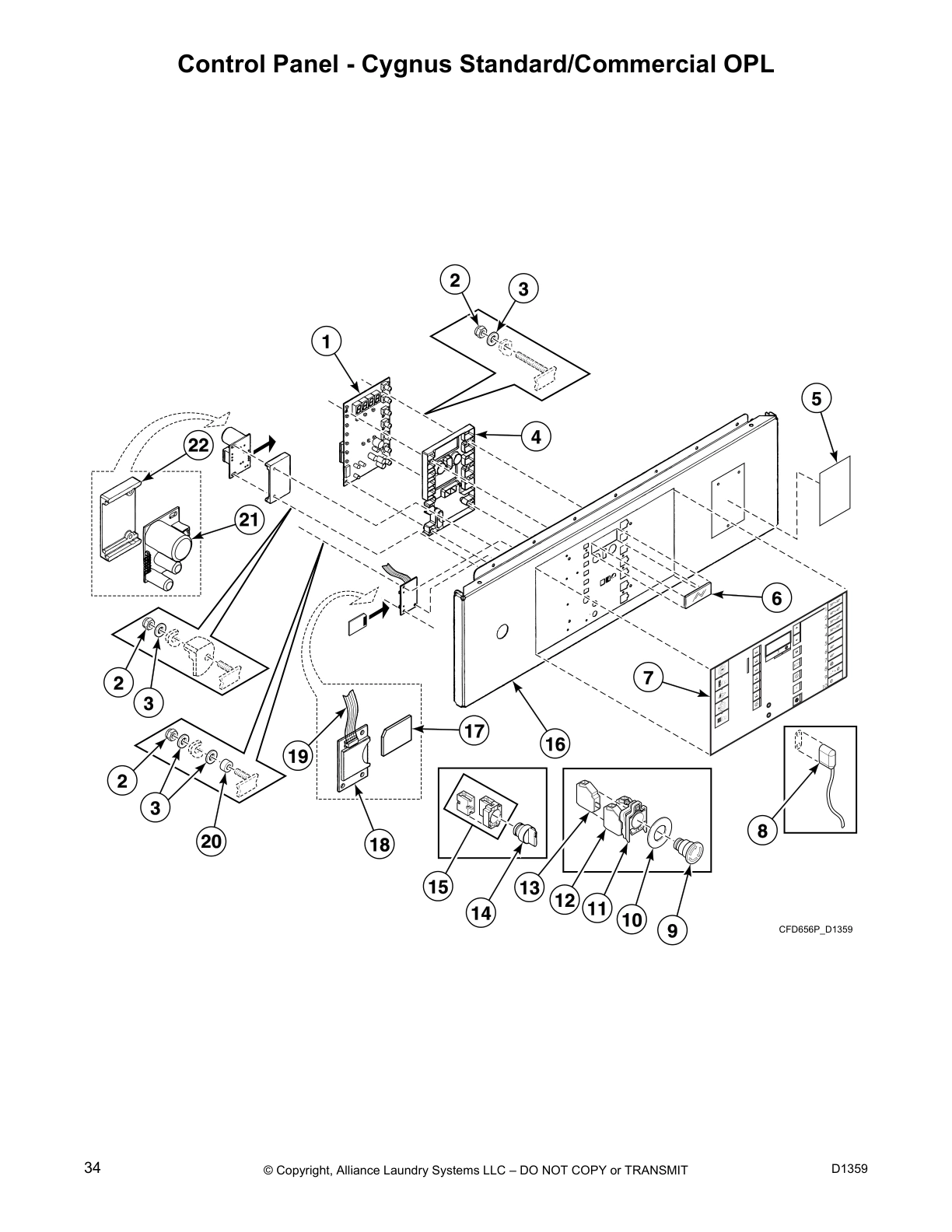

Control Panel - Cygnus Standard/Commercial OPL

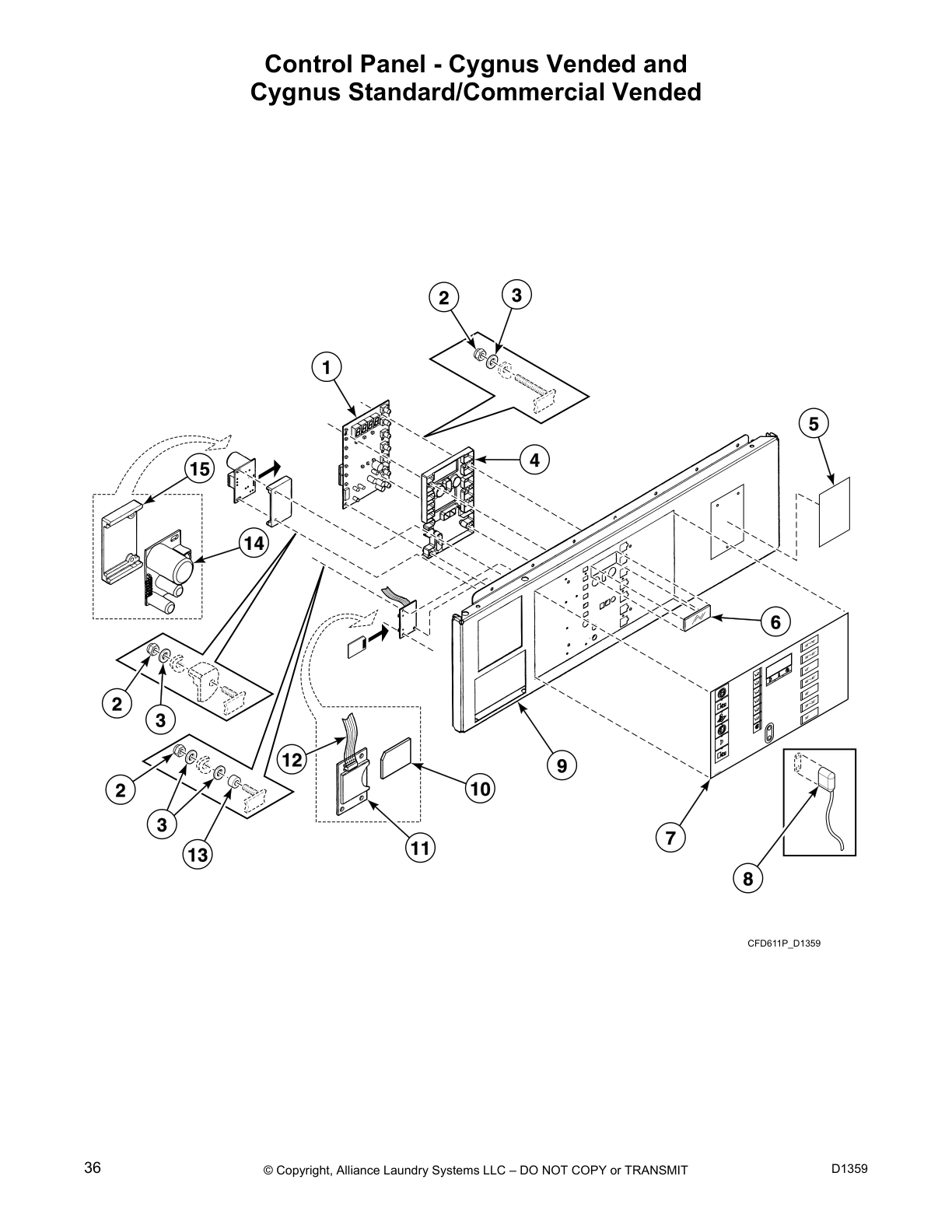

Control Panel - Cygnus Vended and
Cygnus Standard/Commercial Vended

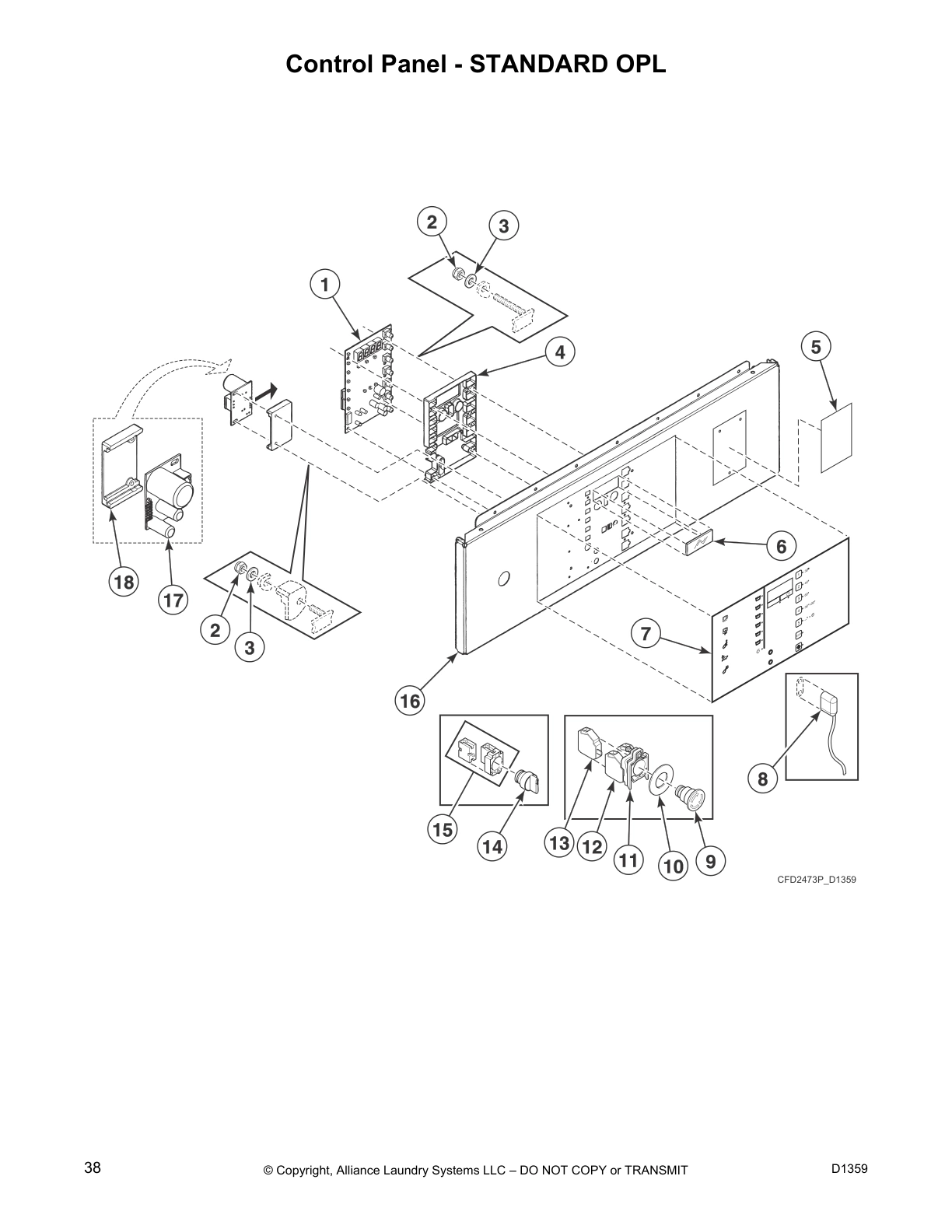

Control Panel - STANDARD OPL

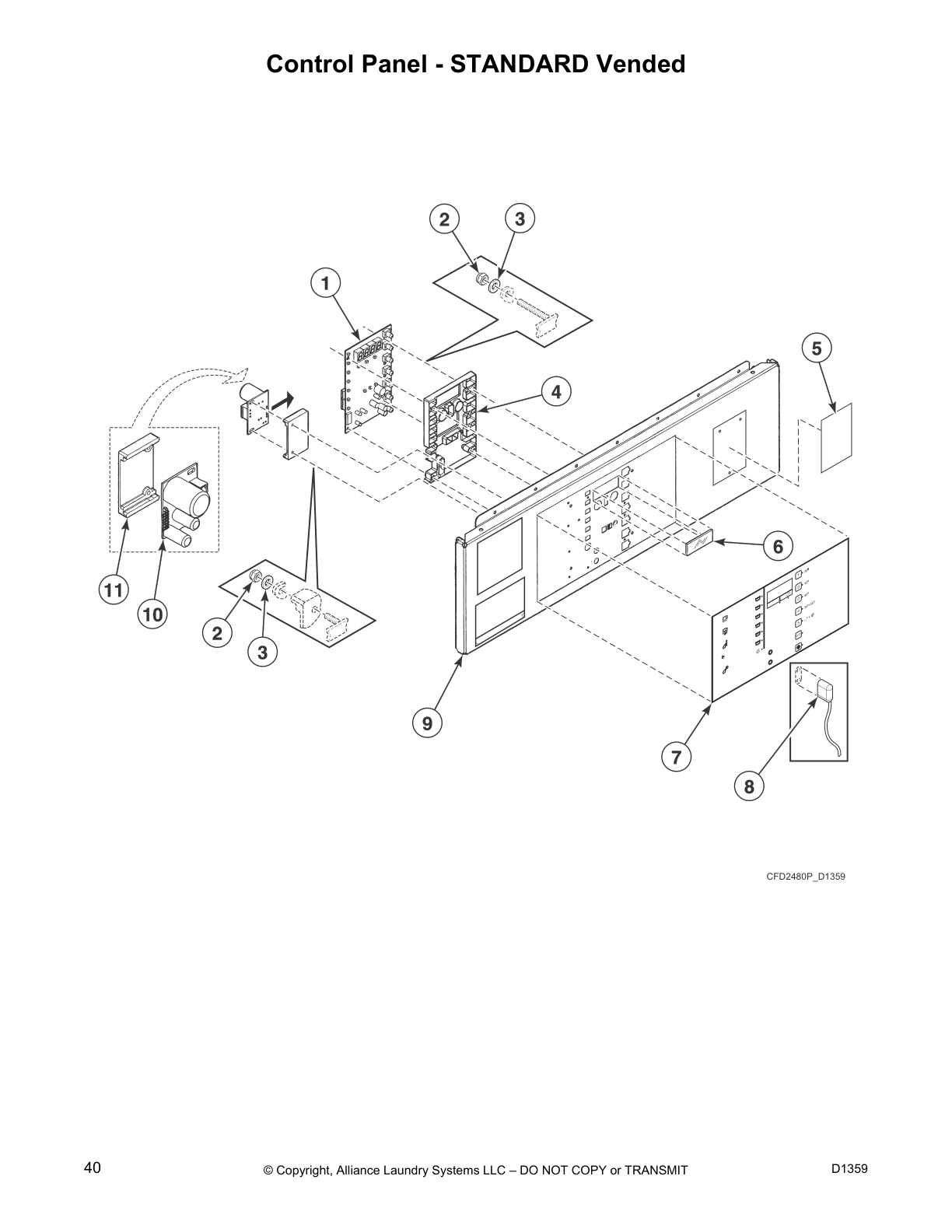

Control Panel - STANDARD Vended

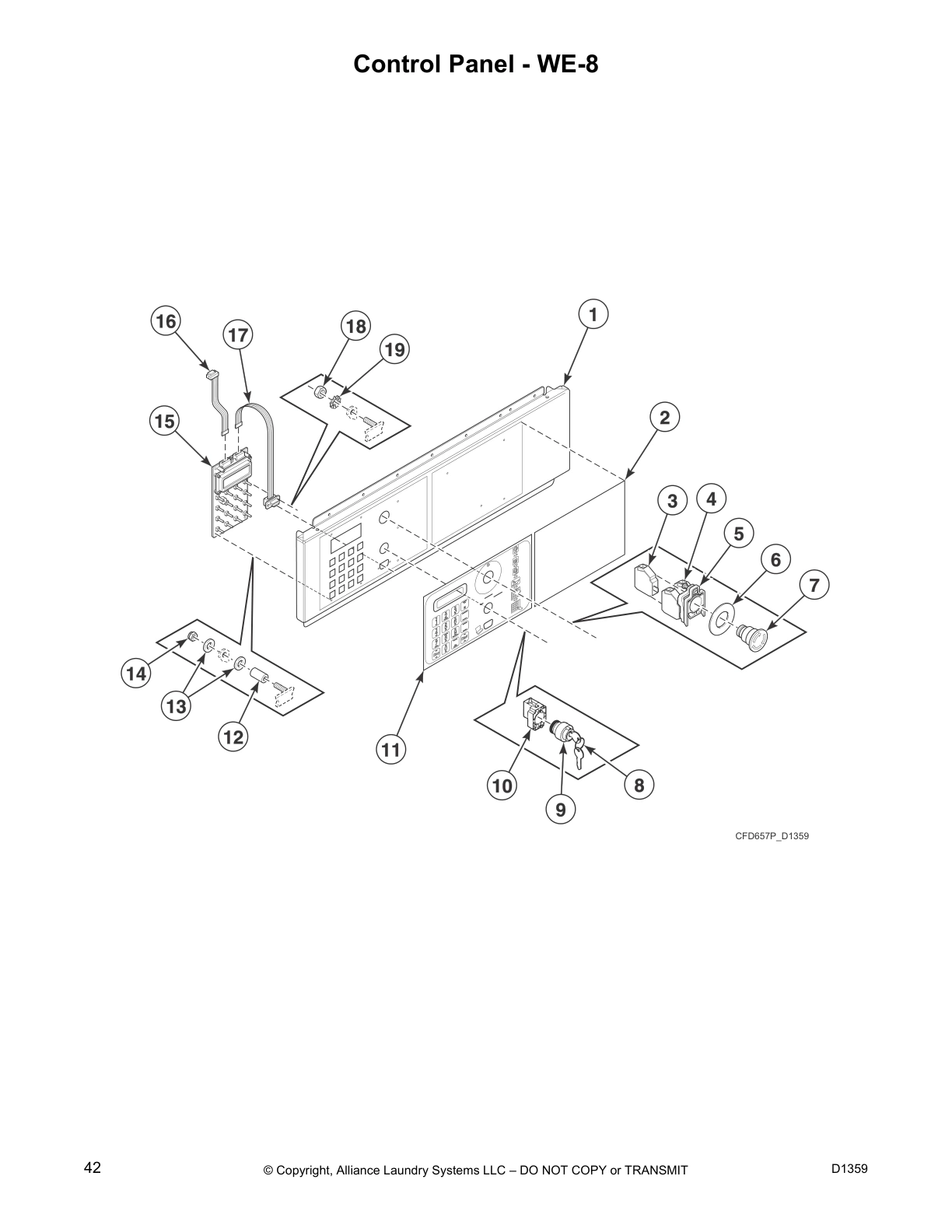

Control Panel - WE-8

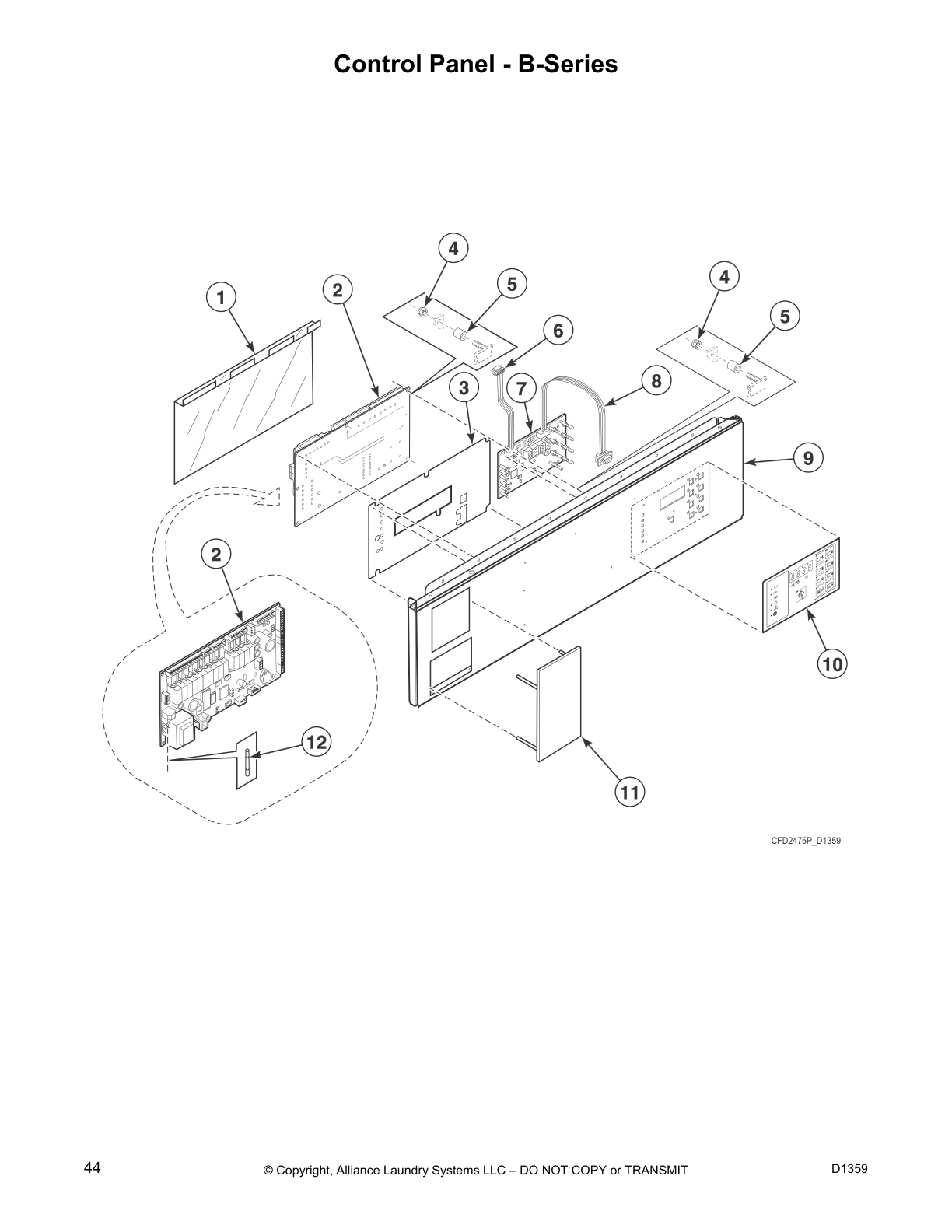

Control Panel - B-Series

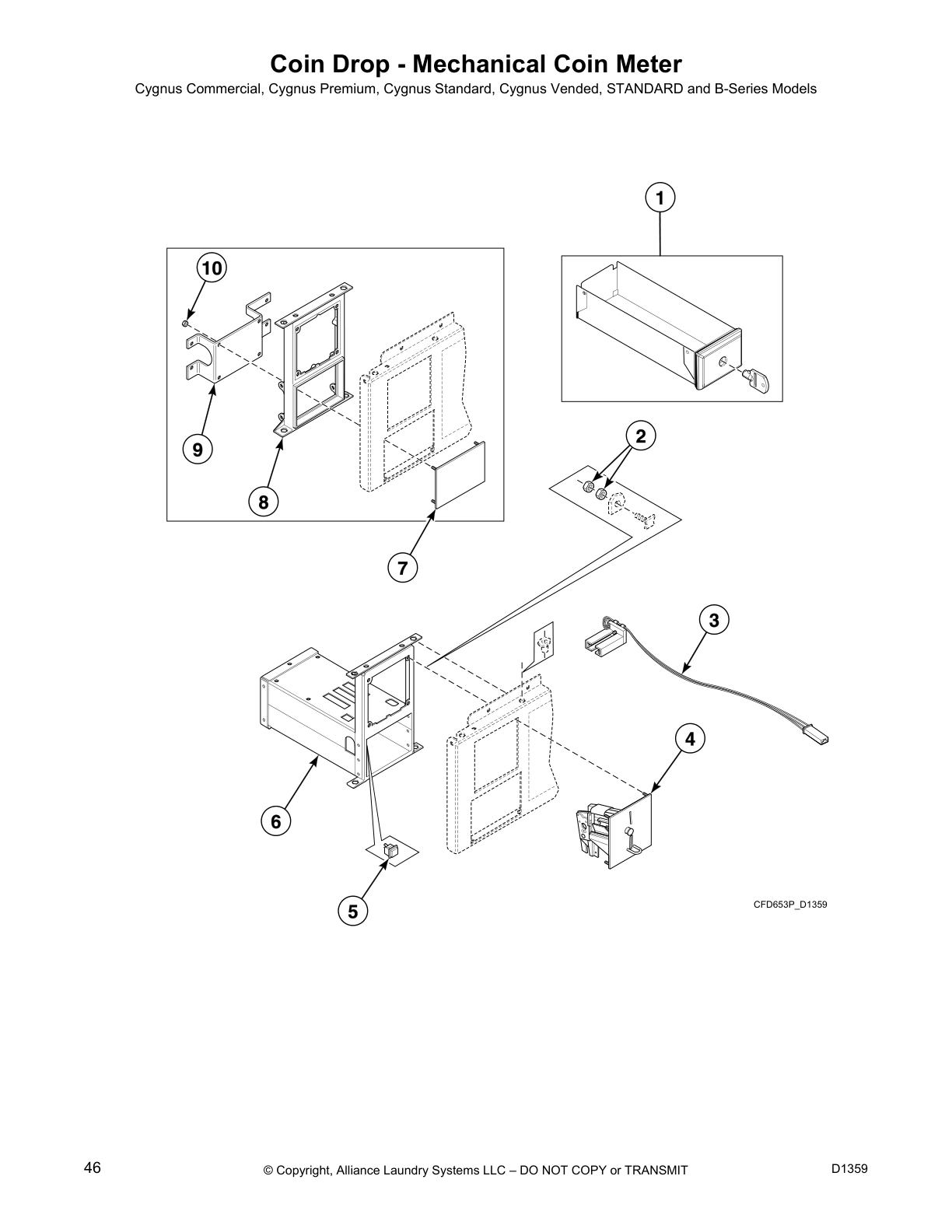

Coin Drop - Mechanical Coin Meter

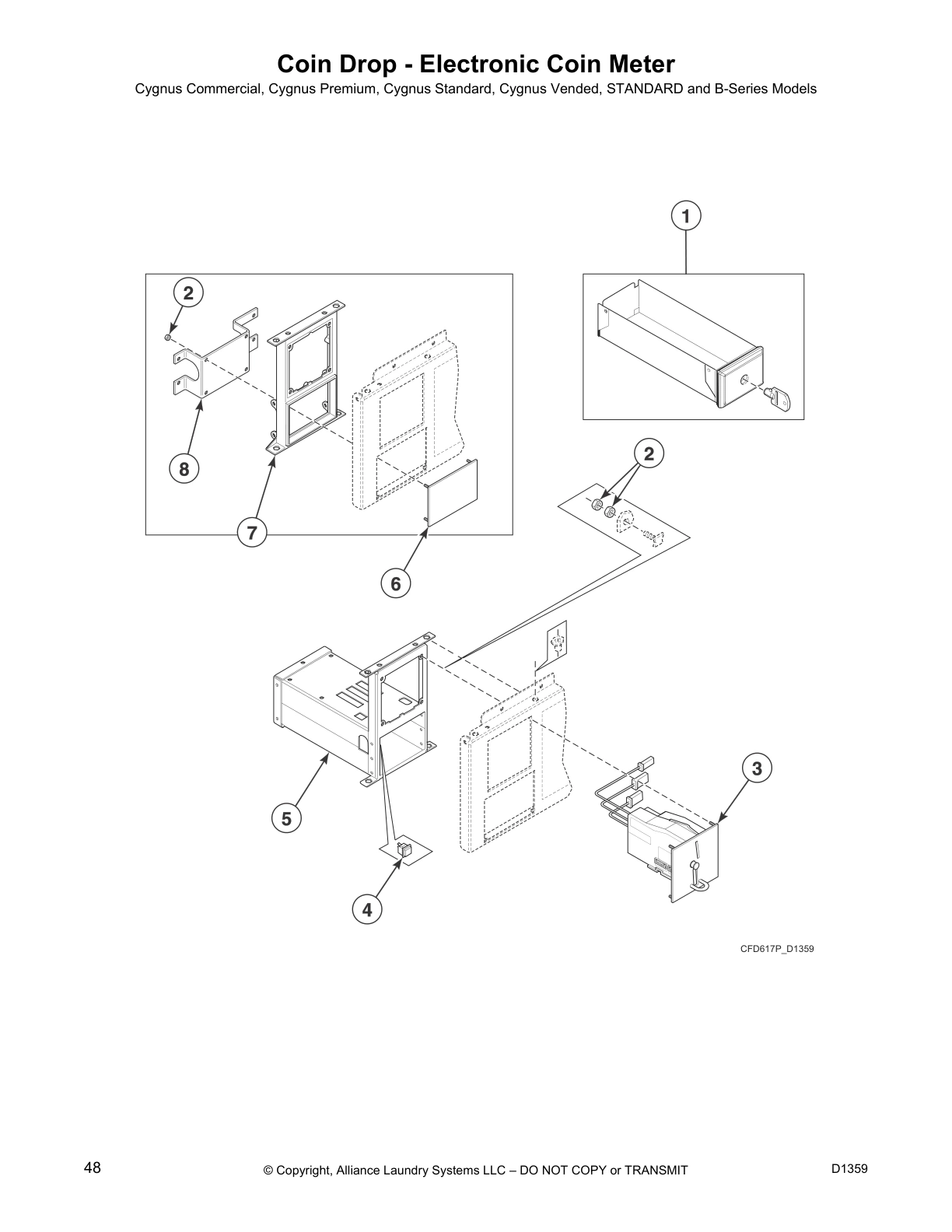

Coin Drop - Electronic Coin Meter

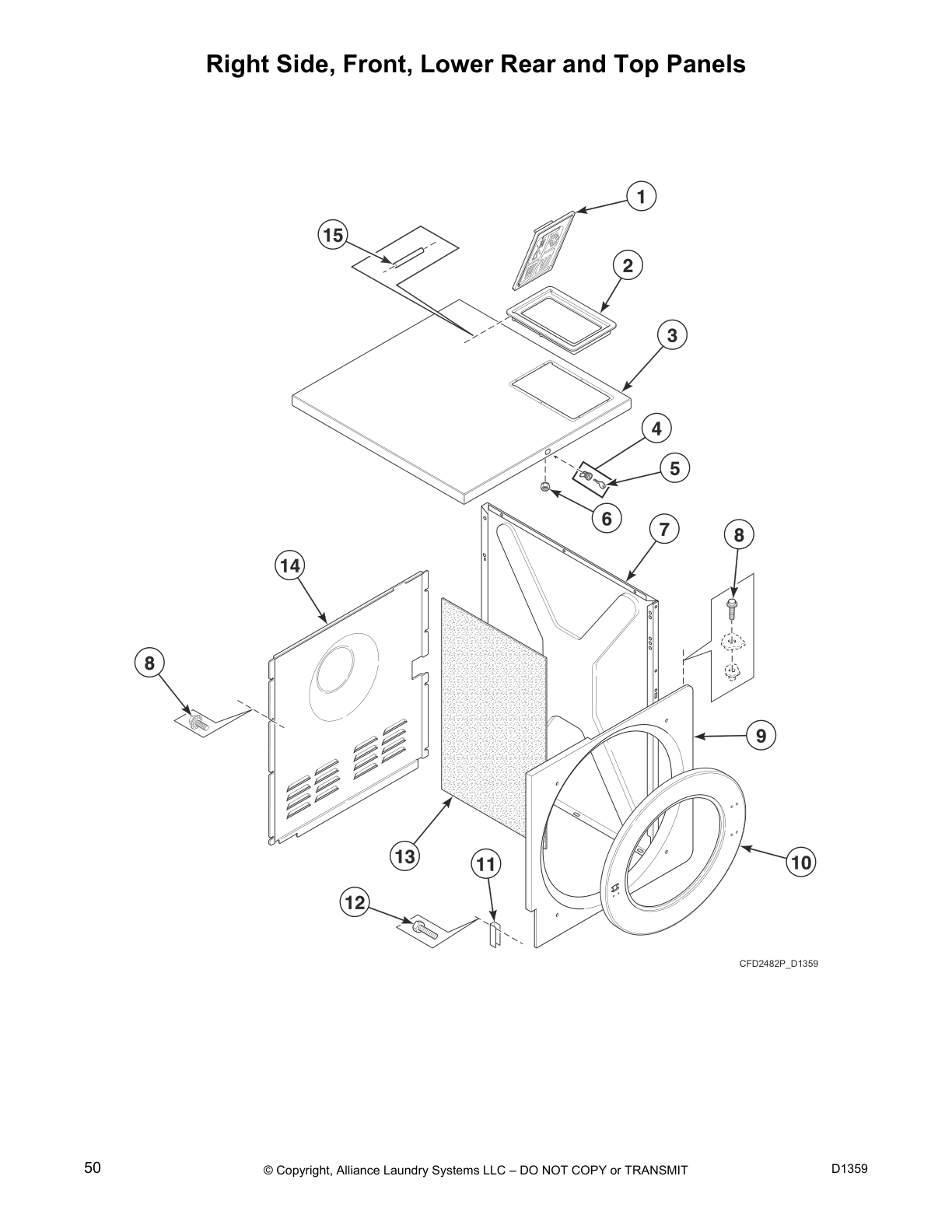

Right Side, Front, Lower Rear and Top Panels

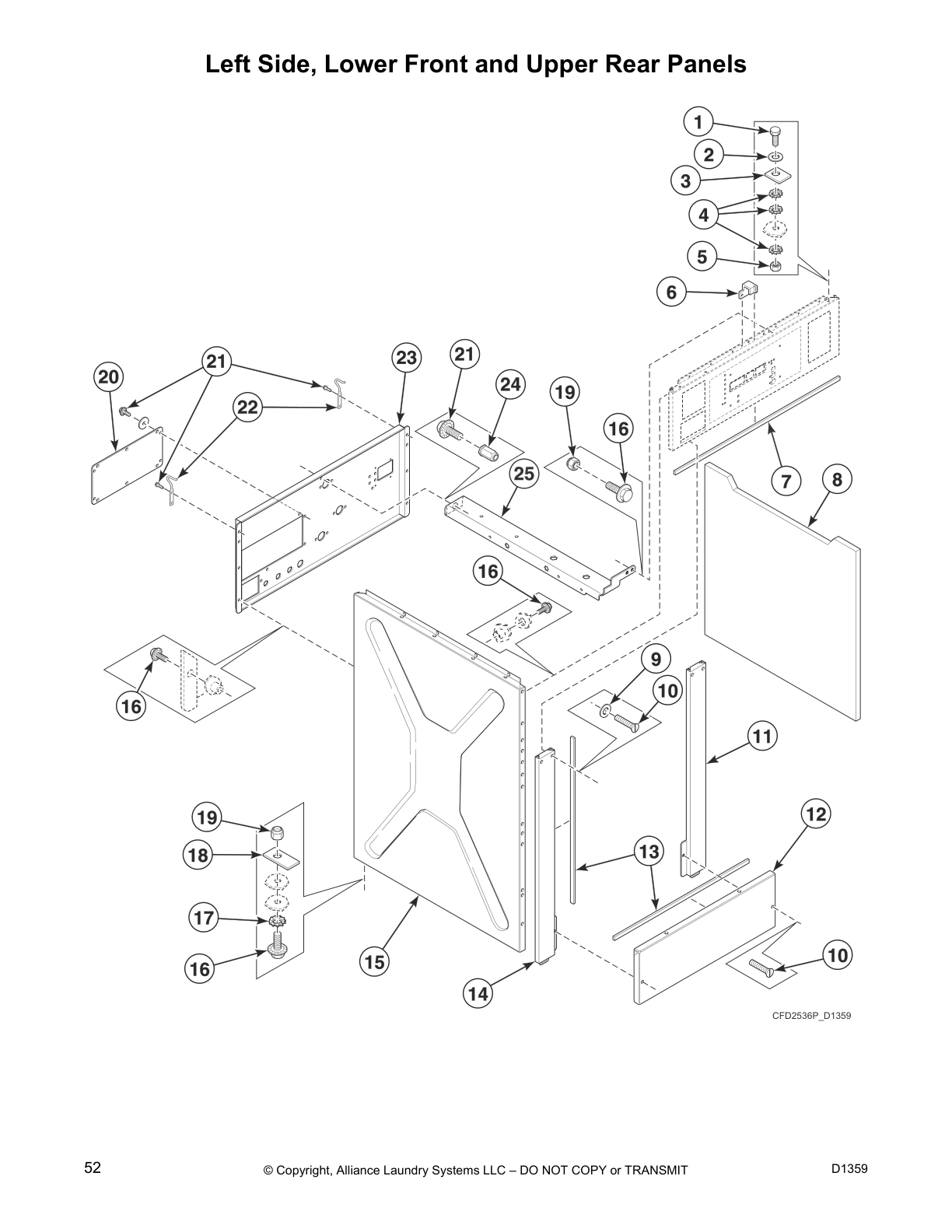

Left Side, Lower Front and Upper Rear Panels
Inverter Drive

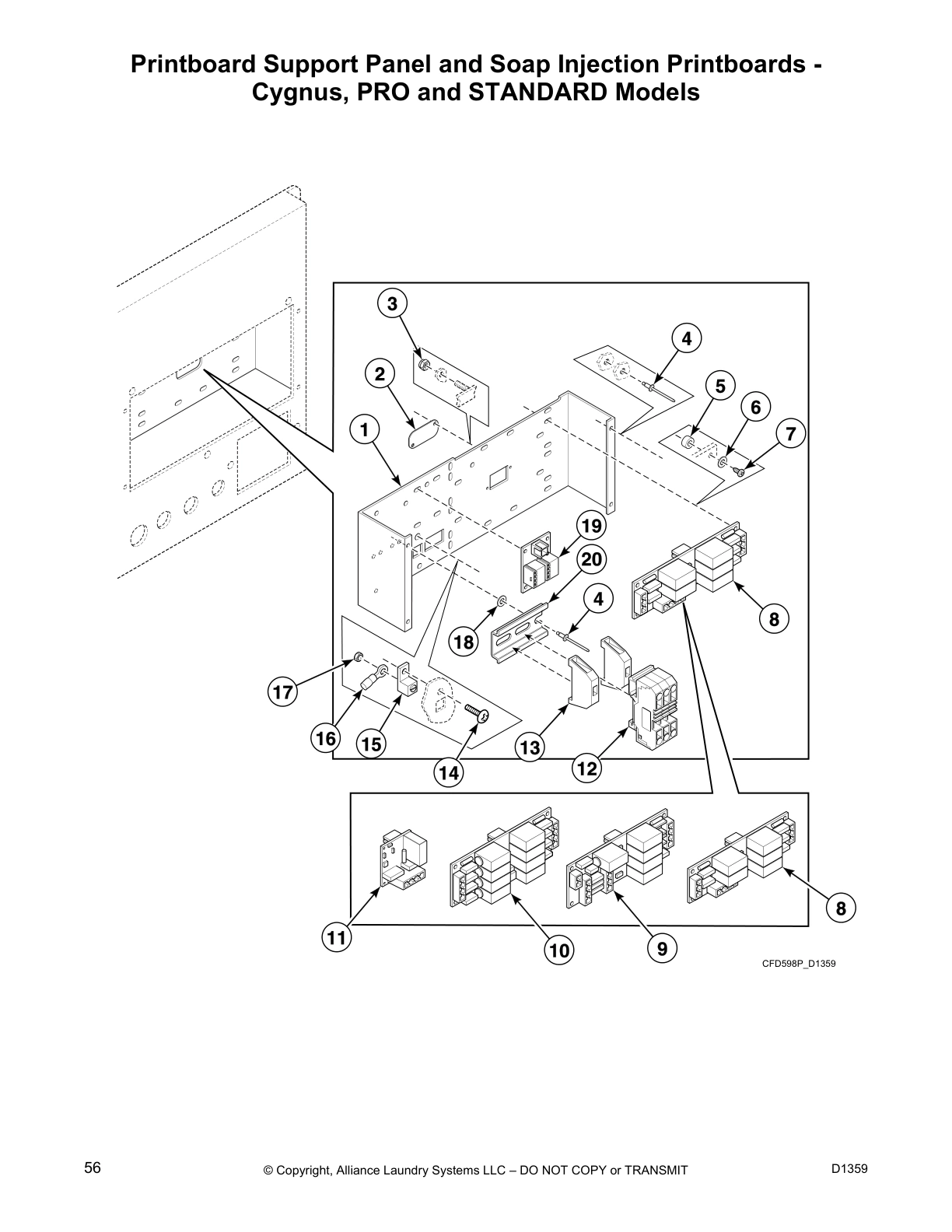

Printboard Support Panel and Soap Injection Printboards -
Cygnus, PRO and STANDARD Models

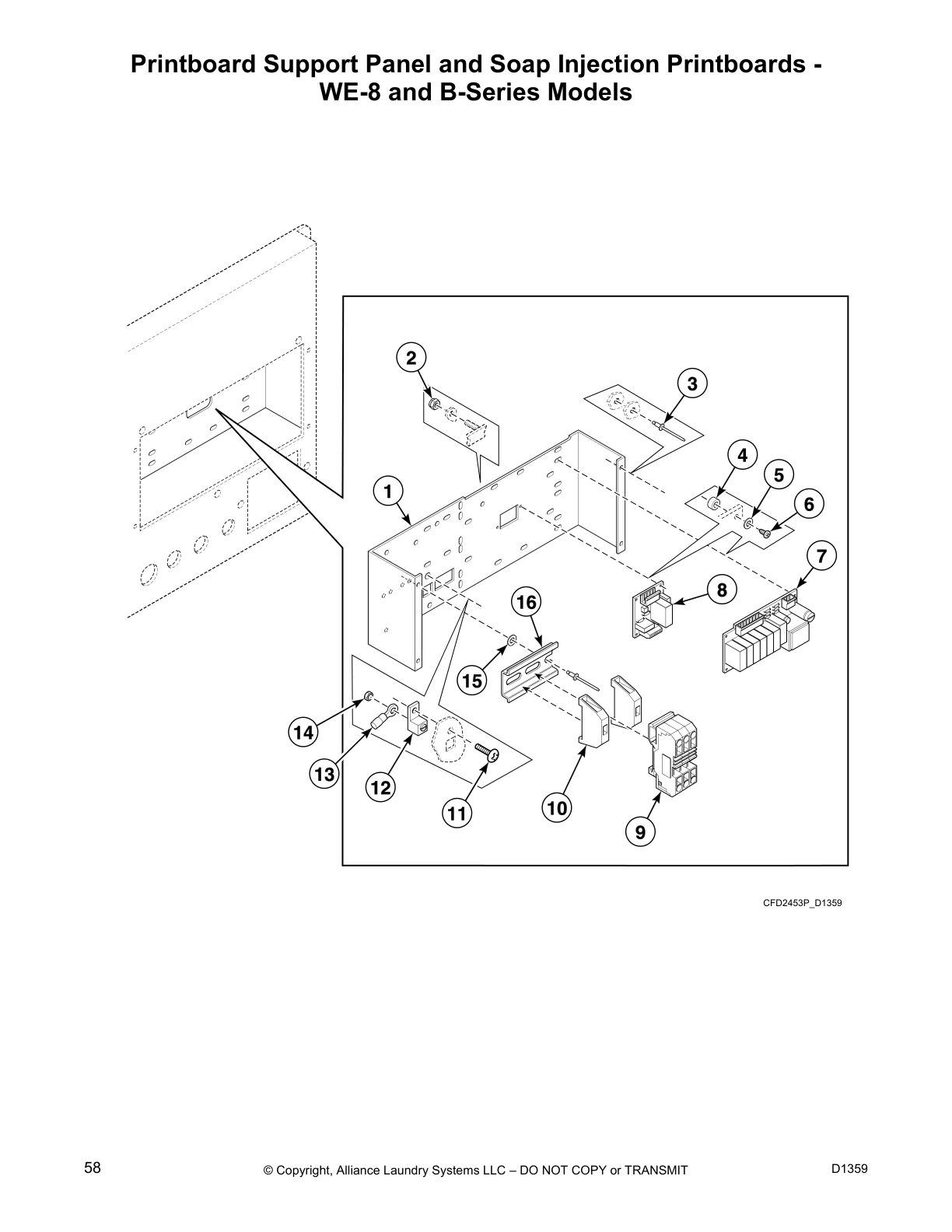

Printboard Support Panel and Soap Injection Printboards -
WE-8 and B-Series Models

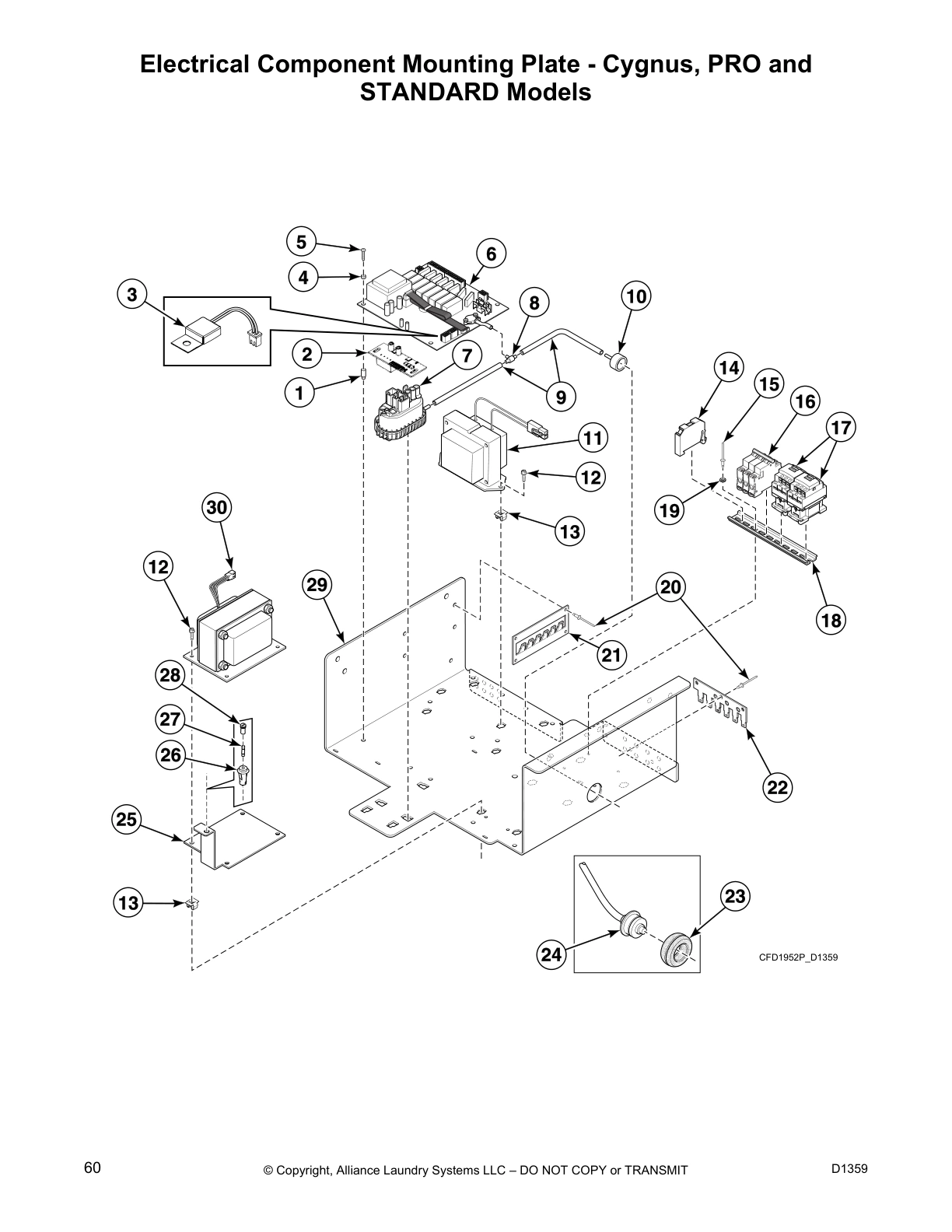

Electrical Component Mounting Plate - Cygnus, PRO and
STANDARD Models

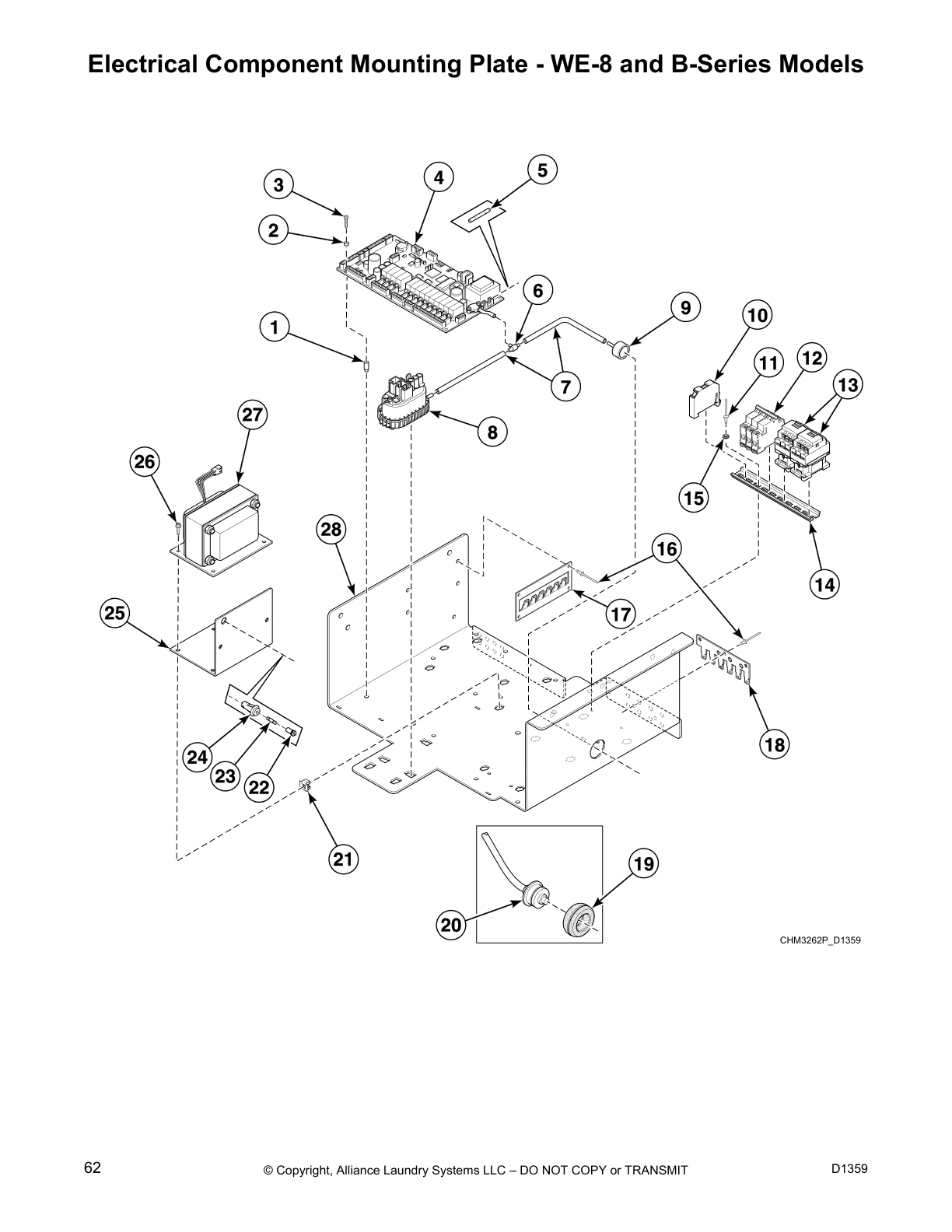

Electrical Component Mounting Plate - WE-8 and B-Series Models

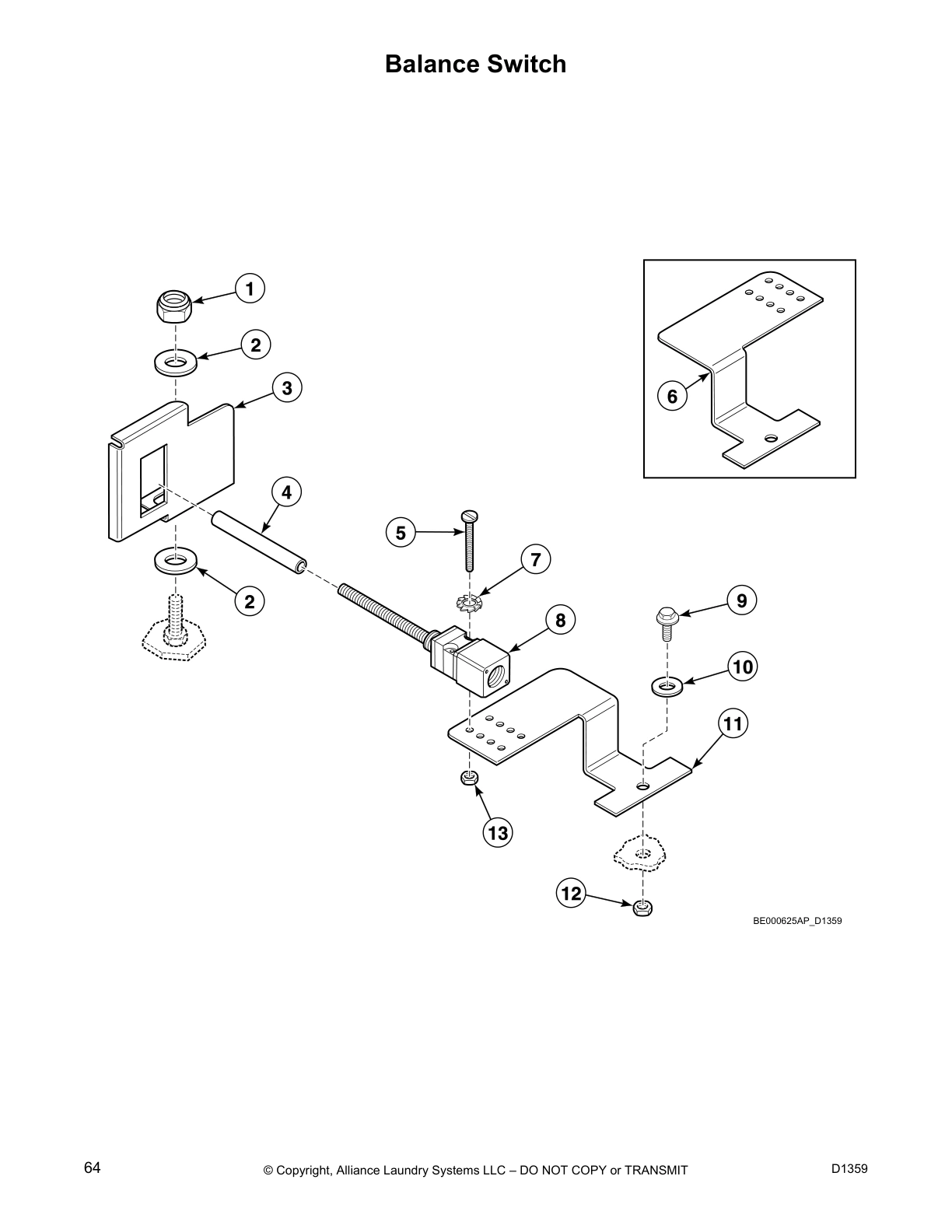

Balance Switch

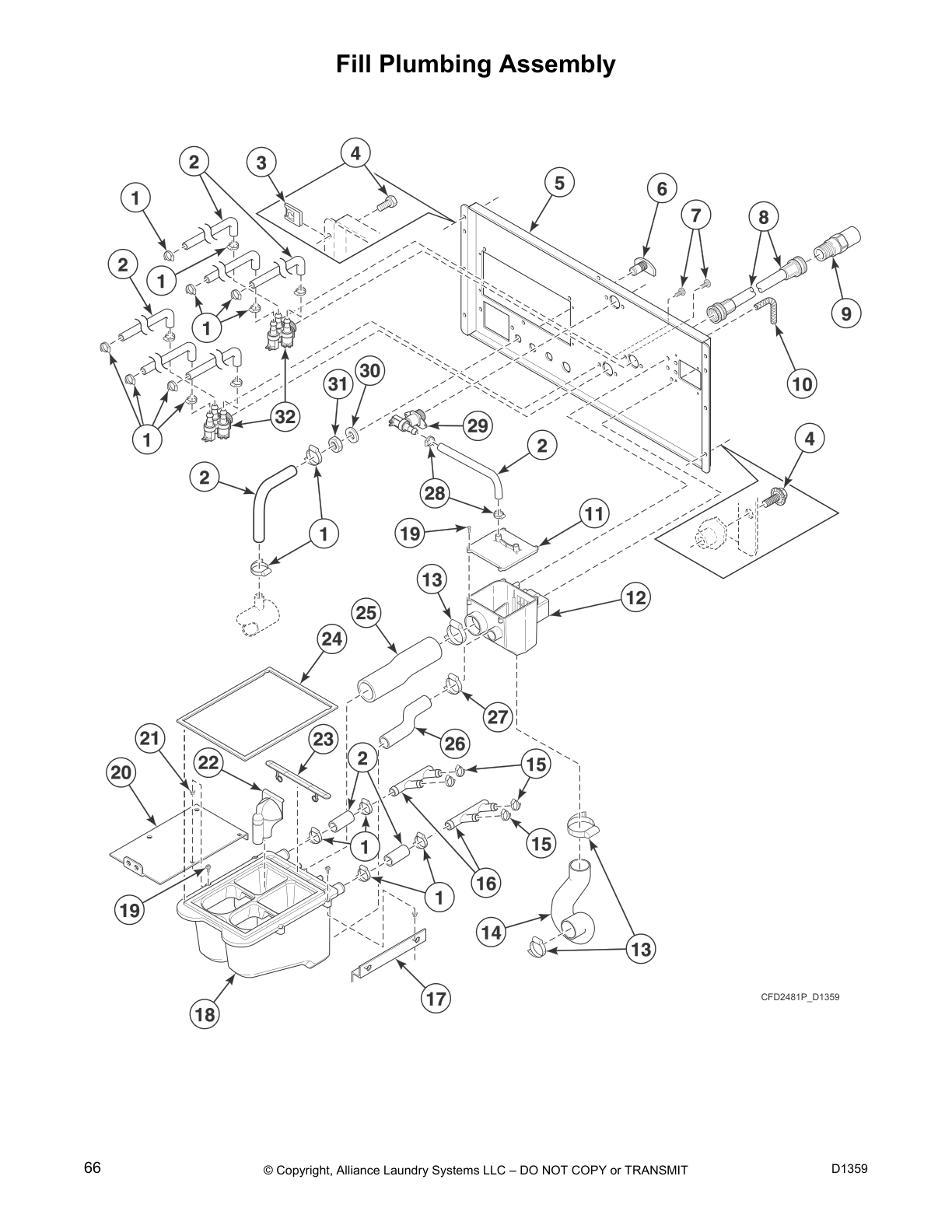

Fill Plumbing Assembly

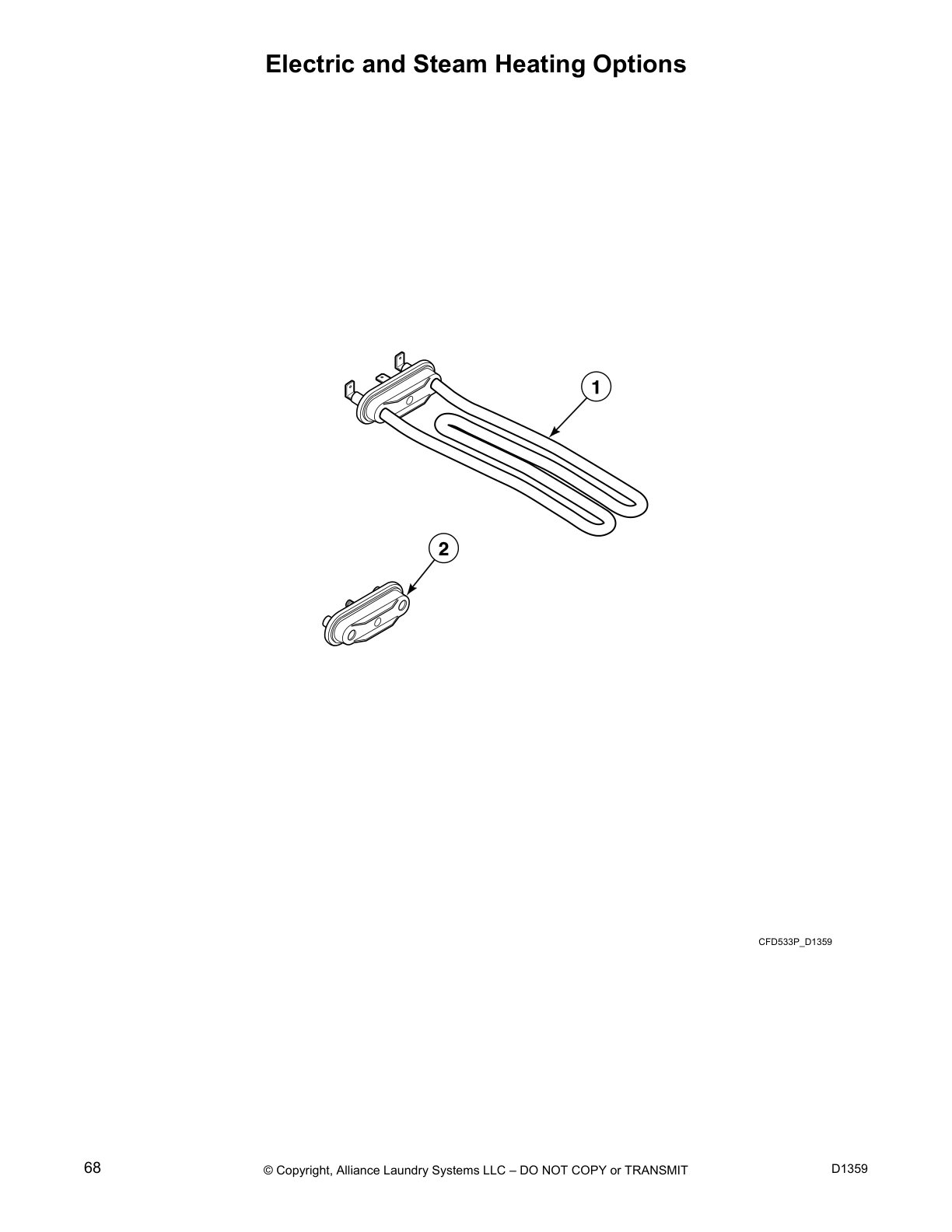

Electric and Steam Heating Options
Common parts from model IPSO IXU135C Washer
Heating Harness SPQ 209/00099/29 Contact Us For Availability
SPQ B12311234 SPQ B12311234 Contact Us For Availability
SPQ B12311222 SPQ B12311222 Contact Us For Availability
SPQ B12311220 SPQ B12311220 Contact Us For Availability
SPQ B12311214 SPQ B12311214 Contact Us For Availability
SPQ B12311211 SPQ B12311211 Contact Us For Availability
SPQ B12311206 SPQ B12311206 Contact Us For Availability
SPQ B12311204 SPQ B12311204 Contact Us For Availability
SPQ B12311201 SPQ B12311201 Contact Us For Availability
SPQ B12311216 SPQ B12311216 Contact Us For Availability
SPQ B12311304 SPQ B12311304 Contact Us For Availability
SPQ B12501501 SPQ B12501501 Contact Us For Availability
SPQ B12348801 SPQ B12348801 Contact Us For Availability
SPQ B12390201 SPQ B12390201 Contact Us For Availability
SPQ B12348101 SPQ B12348101 Contact Us For Availability
Branch Harness SPQ B12381301 Contact Us For Availability
Electric Heat Harness SPQ B12348506 Contact Us For Availability
SPQ B12349803 SPQ B12349803 Contact Us For Availability
SPQ B12455904 SPQ B12455904 Contact Us For Availability
SPQ B12455804 SPQ B12455804 Contact Us For Availability
1
Shock Absorber SPQ 247/00002/02 Contact Us For Availability
1
Nut SPQ 204/00110/00 Contact Us For Availability
1
Tilt Detector Plate SPQ B12529401 Contact Us For Availability
1
Nut SPQ 204/00111/00 Contact Us For Availability
1
Hose Clamp SPQ 223/00010/00 Contact Us For Availability
1
Door Handle SPQ B12336302 Contact Us For Availability
1
Bolt SPQ 205/00106/00 Contact Us For Availability
1
Printboard SPQ 209/02001/02 Contact Us For Availability
1
Key SPQ 254/00077/02 Contact Us For Availability
1
Supply Dispenser Cover SPQ B12356701 Contact Us For Availability
1
Nut SPQ 204/00014/00 Contact Us For Availability
1
Printboard Support SPQ B12312401 Contact Us For Availability
1
Standoff SPQ B12390301 Contact Us For Availability
1
Heating Element SPQ 209/00563/20 Contact Us For Availability
2
Fastening Rubber SPQ 247/00006/00 Contact Us For Availability
2
Screw SPQ 201/00010/00 Contact Us For Availability
2
Caddy Bracket SPQ 201/00012/00 Contact Us For Availability
2
Screw SPQ 202/00003/00 Contact Us For Availability
2
Insert SPQ 223/00044/00 Contact Us For Availability
2
Bolt SPQ 202/00101/00 Contact Us For Availability
2
Nut SPQ 204/00116/00 Contact Us For Availability
2
Expansion Clip SPQ 223/00123/00 Contact Us For Availability
2
Coin Box SPQ 254/00077/00 Contact Us For Availability
2
Supply Dispenser Cover Frame SPQ B12332901 Contact Us For Availability
2
Printboard SPQ B12341801 Contact Us For Availability
3
Screw SPQ 206/00053/00 Contact Us For Availability
3
Nut SPQ 247/00007/00 Contact Us For Availability
3
Washer SPQ 201/00015/00 Contact Us For Availability
3
Seal Plate Assembly SPQ 206/00057/00 Contact Us For Availability
3
Tolerance Ring SPQ 215/00004/00 Contact Us For Availability
3
Top Panel SPQ B12597501 Contact Us For Availability
3
SPQ 117/00042/00 SPQ 117/00042/00 Contact Us For Availability
3
Voltage Discharge Decal SPQ B12389501 Contact Us For Availability
3
Pressure Switch SPQ B12393801 Contact Us For Availability
3
Control Board SPQ 209/02020/00 Contact Us For Availability
3
Out-of-Balance Switch SPQ 111/01854/00 Contact Us For Availability
4
Tub Support SPQ B12508701 Contact Us For Availability
4
Tub SPQ B12329001 Contact Us For Availability
4
Lip Seal SPQ 201/00201/00 Contact Us For Availability
4
Screw SPQ 206/00058/00 Contact Us For Availability
4
Reed Switch Holder SPQ B12517601 Contact Us For Availability
4
Protection LED SPQ 223/00330/00 Contact Us For Availability
4
Coin Drop SPQ B12311401 Contact Us For Availability
4
Panel Lock SPQ B12333001 Contact Us For Availability
4
SPQ 203/00005/00 SPQ 203/00005/00 Contact Us For Availability
4
SPQ B12462901 SPQ B12462901 Contact Us For Availability
4
Out-of-Balance Switch Wiring Harn SPQ 223/00246/00 Contact Us For Availability
5
Key SPQ 44089303P Contact Us For Availability
5
Shipping Brace SPQ 185/00009/12 Contact Us For Availability
5
Bolt SPQ B12328901 Contact Us For Availability
5
Motor Pulley SPQ 226/00123/00 Contact Us For Availability
5
Pushbutton SPQ 209/00396/00 Contact Us For Availability
5
Pushbutton SPQ B12323401 Contact Us For Availability
5
SPQ 207/00018/00 SPQ 207/00018/00 Contact Us For Availability
6
Frame SPQ B12316201 Contact Us For Availability
6
Shock Absorber SPQ 247/00001/03 Contact Us For Availability
6
SPQ 224/00052/00 SPQ 224/00052/00 Contact Us For Availability
6
SPQ 223/00001/04 SPQ 223/00001/04 Contact Us For Availability
6
Door Solenoid Assembly SPQ B12518101 Contact Us For Availability
6
SPQ 209/00520/00 SPQ 209/00520/00 Contact Us For Availability
6
Plexi Frame SPQ 225/00322/00 Contact Us For Availability
6
Mechanical Coin Meter Housing SPQ B12311252 Contact Us For Availability
6
SPQ F8201001 SPQ F8201001 Contact Us For Availability
6
Inverter Air Inlet Filter Grill SPQ 227/00242/00 Contact Us For Availability
6
Direct Fill Harness SPQ B12355701 Contact Us For Availability
7
Leveling Leg SPQ 252/00006/00 Contact Us For Availability
7
Spring Holder Top SPQ 247/00002/01 Contact Us For Availability
7
SPQ 224/00051/00 SPQ 224/00051/00 Contact Us For Availability
7
Motor SPQ B12527601 Contact Us For Availability
7
SPQ 223/00328/00 SPQ 223/00328/00 Contact Us For Availability
7
Operating Sticker SPQ B12382801 Contact Us For Availability
7
Operating Sticker SPQ B12382901 Contact Us For Availability
7
Electronic Coin Meter Housing SPQ 152/00112/50 Contact Us For Availability
7
Side Panel SPQ 70155603 Contact Us For Availability
7
SPQ 203/00006/00 SPQ 203/00006/00 Contact Us For Availability
7
Control Communication Harness SPQ B12360001 Contact Us For Availability
7
SPQ 206/00027/00 SPQ 206/00027/00 Contact Us For Availability
8
SPQ 206/00106/00 SPQ 206/00106/00 Contact Us For Availability
8
SPQ 247/00001/01 SPQ 247/00001/01 Contact Us For Availability
8
Wiring Earth for Tub SPQ 206/00032/00 Contact Us For Availability
8
SPQ B12333701 SPQ B12333701 Contact Us For Availability
8
Pulley SPQ 255/00117/00 Contact Us For Availability
8
Nut SPQ 204/00109/00 Contact Us For Availability
8
Fastening Piece SPQ B12311241 Contact Us For Availability
8
SPQ 246/00079/00 SPQ 246/00079/00 Contact Us For Availability
8
Ethernet Cable SPQ B12357201 Contact Us For Availability
8
SPQ B12548301 SPQ B12548301 Contact Us For Availability
8
SPQ F200166 SPQ F200166 Contact Us For Availability
9
SPQ 217/00008/00 SPQ 217/00008/00 Contact Us For Availability
9
SPQ B12332301 SPQ B12332301 Contact Us For Availability
9
SPQ 223/00035/02 SPQ 223/00035/02 Contact Us For Availability
9
Operating Panel SPQ B12356301 Contact Us For Availability
9
SPQ 206/00104/00 SPQ 206/00104/00 Contact Us For Availability
9
SPQ 208/00009/00 SPQ 208/00009/00 Contact Us For Availability
9
SPQ B12355001 SPQ B12355001 Contact Us For Availability
9
SPQ 209/01625/00 SPQ 209/01625/00 Contact Us For Availability
10
Washer SPQ 201/00007/00 Contact Us For Availability
10
Nut SPQ B12336301 Contact Us For Availability
10
Door Frame SPQ B12319101 Contact Us For Availability
10
Inverter Air Inlet Filter Frame SPQ B12346701 Contact Us For Availability
10
End Stop SPQ 209/00633/02 Contact Us For Availability
10
Washer SPQ 201/00006/00 Contact Us For Availability
11
Bolt SPQ 206/00033/00 Contact Us For Availability
11
Reinforcement Plate SPQ B12337201 Contact Us For Availability
11
Memory Card PC-Board SPQ B12305201 Contact Us For Availability
11
Mounting Plate SPQ 223/00374/00 Contact Us For Availability
11
Side Plate SPQ B12354201 Contact Us For Availability
11
Relay PC-Board SPQ 209/02016/00 Contact Us For Availability
11
Rivet SPQ 208/00027/00 Contact Us For Availability
11
Tilt Switch Support SPQ 111/01855/00 Contact Us For Availability
12
Tub Front Ring Clamp SPQ 219/00007/00 Contact Us For Availability
12
Drain Pipe SPQ 223/00106/00 Contact Us For Availability
12
Door Hinge Blocking Plate SPQ 204/00106/00 Contact Us For Availability
12
Data Card Ribbon Assembly SPQ B12538301 Contact Us For Availability
12
Lower Front Panel SPQ B12343301 Contact Us For Availability
12
Ground Lug Connector SPQ M411283 Contact Us For Availability
12
Circuit Breaker SPQ B12474601 Contact Us For Availability
12
Tilt Detector Plate SPQ 204/00005/00 Contact Us For Availability
13
Speed Detector Bracket SPQ 205/00104/00 Contact Us For Availability
13
Manifold SPQ 223/00014/00 Contact Us For Availability
13
Overflow Hose SPQ 223/00100/00 Contact Us For Availability
13
Printboard Separator SPQ 211/00128/00 Contact Us For Availability
13
Side Panel Gasket SPQ 111/10089/01 Contact Us For Availability
13
Wiring Earth for Inverter SPQ B12456001 Contact Us For Availability
13
Out-of-Balance Switch Boot SPQ 204/00007/00 Contact Us For Availability
14
Bearing Housing Assembly SPQ 152/00055/00 Contact Us For Availability
14
Washer SPQ B12565001 Contact Us For Availability
14
Side Panel SPQ B12354301 Contact Us For Availability
14
DIN Rail SPQ B12315301 Contact Us For Availability
15
Washer SPQ 111/60035/00 Contact Us For Availability
15
Washer SPQ 202/00004/00 Contact Us For Availability
15
Parameter Unit Program Cable SPQ 227/00171/10 Contact Us For Availability
15
Supply Dispenser Support SPQ 223/00011/00 Contact Us For Availability
16
Bearing SPQ 152/10118/01 Contact Us For Availability
16
Screw SPQ 202/00104/00 Contact Us For Availability
16
Operating Panel SPQ B12356201 Contact Us For Availability
16
Earth Plate Side SPQ 208/00017/00 Contact Us For Availability
16
DIN Rail SPQ B12315401 Contact Us For Availability
16
Dispenser Assembly SPQ F8333201 Contact Us For Availability
17
Outlet Pipe Plate Assembly SPQ 203/00004/00 Contact Us For Availability
17
Screw SPQ F100134 Contact Us For Availability
17
Washer SPQ 204/00114/00 Contact Us For Availability
17
Earth Plate Bottom SPQ B12395201 Contact Us For Availability
17
Screw SPQ B12316401 Contact Us For Availability
18
Washer SPQ 206/00101/00 Contact Us For Availability
18
Nut SPQ 101/00007/00 Contact Us For Availability
18
Telem Sticker SPQ 204/00008/00 Contact Us For Availability
18
Thermostat Grommet SPQ B12395301 Contact Us For Availability
18
Water Hose SPQ F8047401 Contact Us For Availability
19
Main Switch Cover SPQ 204/00009/00 Contact Us For Availability
19
Door Handle Stop SPQ 207/00126/00 Contact Us For Availability
19
Thermostat SPQ 225/10004/00 Contact Us For Availability
19
Supply Dispenser Mounting Plate SPQ B12462801 Contact Us For Availability
20
Top Cover Hinge SPQ B12312501 Contact Us For Availability
20
Air Inlet SPQ B12333201 Contact Us For Availability
20
DIN Rail SPQ B12382501 Contact Us For Availability
20
Siphon Cover SPQ B12335101 Contact Us For Availability
21
Access Cover SPQ B12463001 Contact Us For Availability
22
Retaining Ring SPQ F8258601 Contact Us For Availability
22
Fuse SPQ 204/00011/00 Contact Us For Availability
22
Vacuum Supply Hose SPQ F8047901 Contact Us For Availability
23
Noise Filter SPQ B12342701 Contact Us For Availability
23
Screw SPQ 802492 Contact Us For Availability
23
Dispenser Overflow Hose SPQ F8047801 Contact Us For Availability
24
Rivet SPQ B12342501 Contact Us For Availability
24
Transformer SPQ 70329401P Contact Us For Availability
25
Side Panel Gasket SPQ B12333301 Contact Us For Availability
25
Fan Mounting Plate SPQ 209/00468/00 Contact Us For Availability
25
Fuse Holder Body SPQ B12439601 Contact Us For Availability
25
Inlet Valve SPQ B12390004 Contact Us For Availability
26
Expansion Clip SPQ B12313303 Contact Us For Availability
27
Washer SPQ 223/00223/00 Contact Us For Availability
27
Pressure Hose SPQ F8401301 Contact Us For Availability
28
Nut SPQ 223/00013/00 Contact Us For Availability
29
ID Chip SPQ B12313001 Contact Us For Availability
29
Prewash and Mainwash Nozzle SPQ 209/00276/00 Contact Us For Availability
30
Water Hose SPQ 201/00002/00 Contact Us For Availability
31
Inlet Valve Harness SPQ 204/00201/00 Contact Us For Availability
NI
SPQ 247/00002/00 SPQ 247/00002/00 Contact Us For Availability
NI
SPQ 247/00001/04 SPQ 247/00001/04 Contact Us For Availability
NI
SPQ B12533201 SPQ B12533201 Contact Us For Availability
NI
SPQ B12456002 SPQ B12456002 Contact Us For Availability
NI
SPQ 212/00006/00 SPQ 212/00006/00 Contact Us For Availability
NI
Motor Harness SPQ B12382102 Contact Us For Availability
NI
SPQ B12349401 SPQ B12349401 Contact Us For Availability
NI
Door Lock Harness SPQ B12495001 Contact Us For Availability
NI
SPQ B12363301 SPQ B12363301 Contact Us For Availability
NI
E-Stop Harness SPQ B12348901 Contact Us For Availability
NI
E-Stop Bypass Harness SPQ B12349001 Contact Us For Availability
NI
E-Stop Harness SPQ B12382701 Contact Us For Availability
NI
Wire Harness Assembly SPQ B12310001 Contact Us For Availability
NI
SPQ B12309901 SPQ B12309901 Contact Us For Availability
NI
SPQ B12311239 SPQ B12311239 Contact Us For Availability
NI
SPQ B12311224 SPQ B12311224 Contact Us For Availability
NI
SPQ B12311221 SPQ B12311221 Contact Us For Availability
NI
SPQ B12311219 SPQ B12311219 Contact Us For Availability
NI
SPQ B12311212 SPQ B12311212 Contact Us For Availability
NI
SPQ B12311210 SPQ B12311210 Contact Us For Availability
NI
SPQ B12311205 SPQ B12311205 Contact Us For Availability
NI
SPQ B12311202 SPQ B12311202 Contact Us For Availability
NI
SPQ B12311247 SPQ B12311247 Contact Us For Availability
NI
SPQ B12311301 SPQ B12311301 Contact Us For Availability
NI
SPQ B12311302 SPQ B12311302 Contact Us For Availability
NI
SPQ 152/00112/00 SPQ 152/00112/00 Contact Us For Availability
NI
Fastening Piece SPQ 217/00060/00 Contact Us For Availability
NI
SPQ B12354401 SPQ B12354401 Contact Us For Availability
NI
SPQ B12551301 SPQ B12551301 Contact Us For Availability
NI
SPQ B12382401 SPQ B12382401 Contact Us For Availability
NI
SPQ B12350101 SPQ B12350101 Contact Us For Availability
NI
SPQ 209/01624/00 SPQ 209/01624/00 Contact Us For Availability
NI
SPQ 209/02014/00 SPQ 209/02014/00 Contact Us For Availability
NI
SPQ B12388301 SPQ B12388301 Contact Us For Availability
NI
SPQ B12392701 SPQ B12392701 Contact Us For Availability
NI
SPQ B12348301 SPQ B12348301 Contact Us For Availability
NI
SPQ B12381402 SPQ B12381402 Contact Us For Availability
NI
SPQ B12381101 SPQ B12381101 Contact Us For Availability
NI
SPQ B12349901 SPQ B12349901 Contact Us For Availability
NI
SPQ F200164 SPQ F200164 Contact Us For Availability
NI
SPQ B12349201 SPQ B12349201 Contact Us For Availability
NI
Switch Knob SPQ 209/00562/20 Contact Us For Availability
NI
Switch Base SPQ 209/00564/20 Contact Us For Availability
NI
Power Jumper Harness SPQ 209/00099/25 Contact Us For Availability
NI
Dual Heat Harness SPQ B12381204 Contact Us For Availability
NI
Heat Harness SPQ B12348502 Contact Us For Availability
NI
SPQ B12349603 SPQ B12349603 Contact Us For Availability
NI
SPQ B12455903 SPQ B12455903 Contact Us For Availability
NI
SPQ B12455803 SPQ B12455803 Contact Us For Availability
× ![]()
