Model IPSO IWF305ML2 Washer – Common Parts & Diagrams

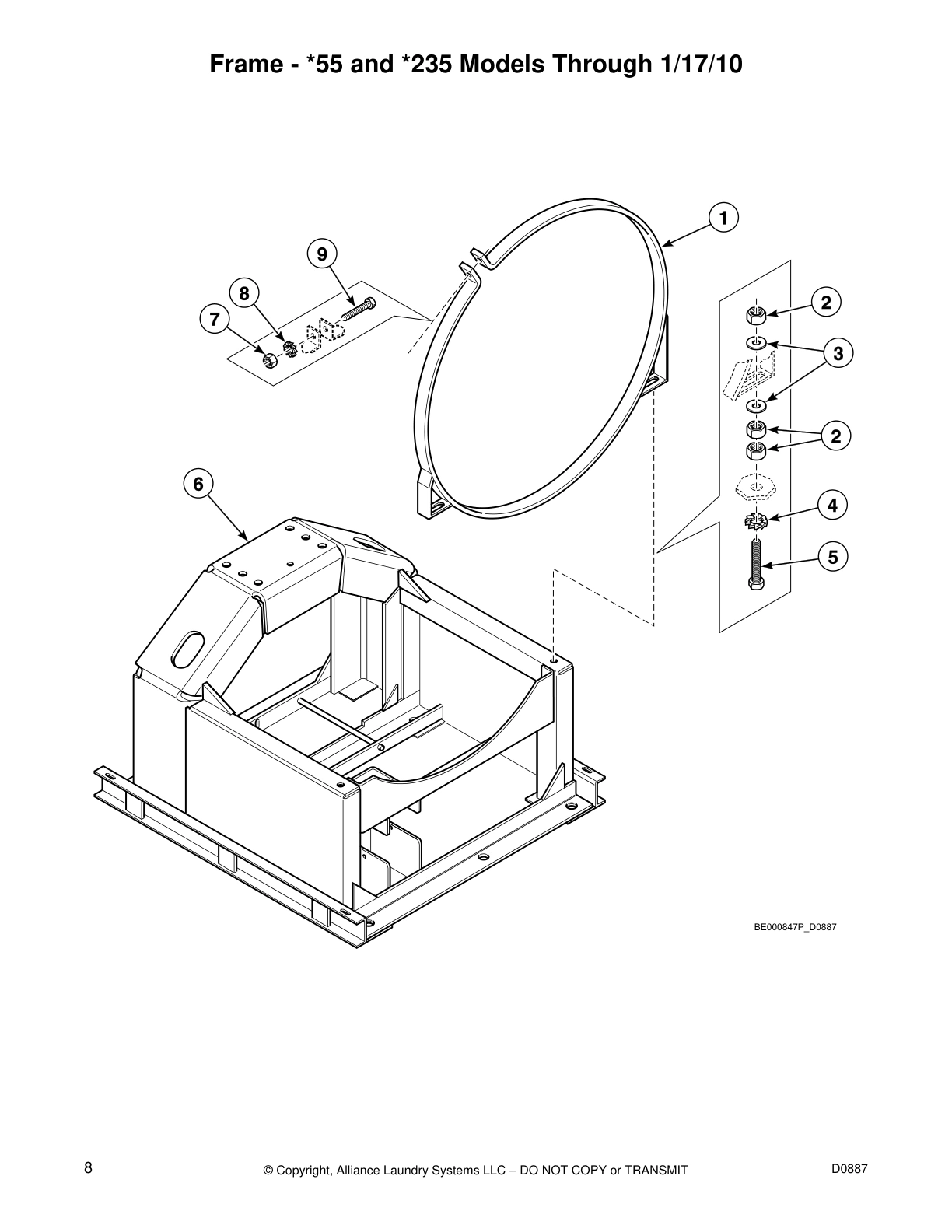

Frame - *55 and *235 Models Through 1/17/10

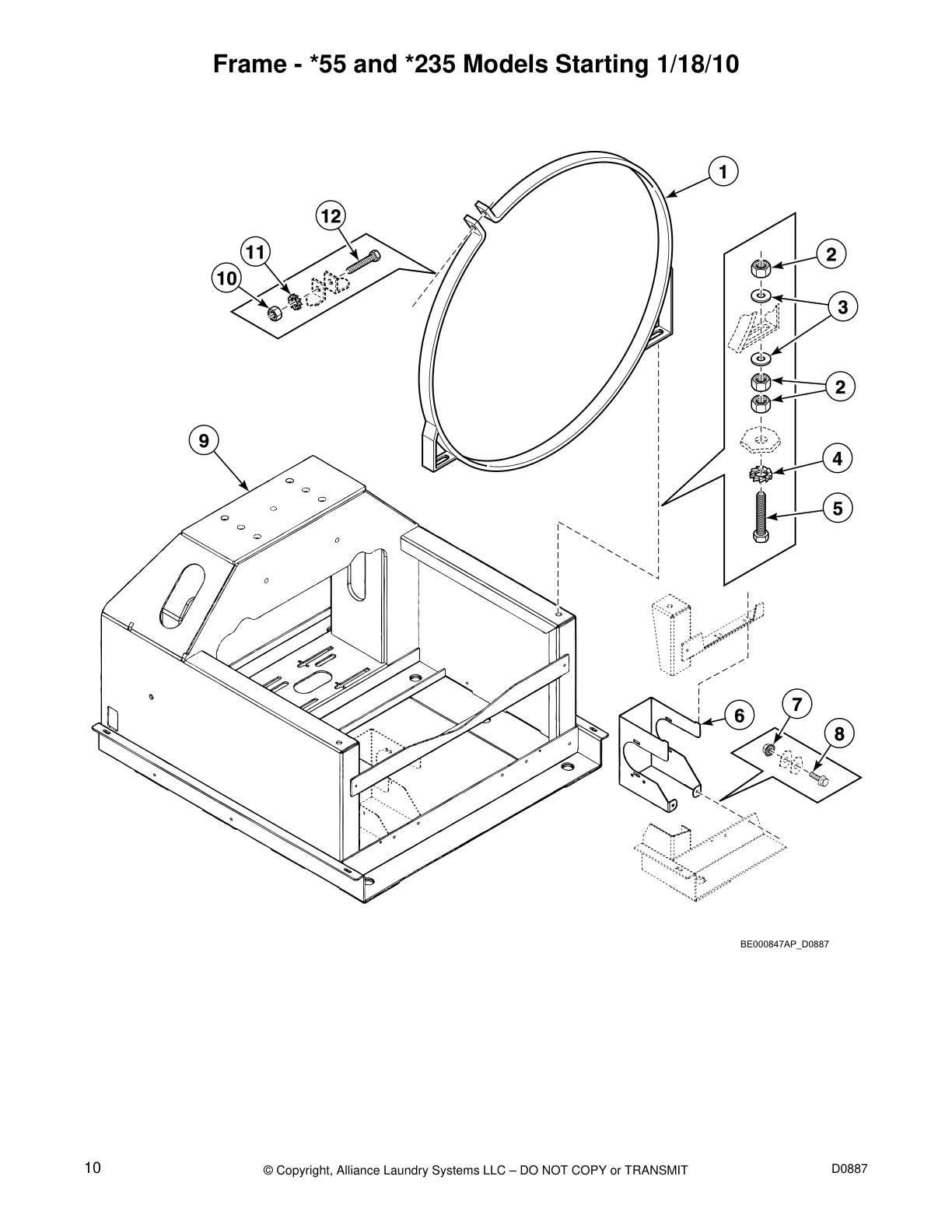

Frame - *55 and *235 Models Starting 1/18/10

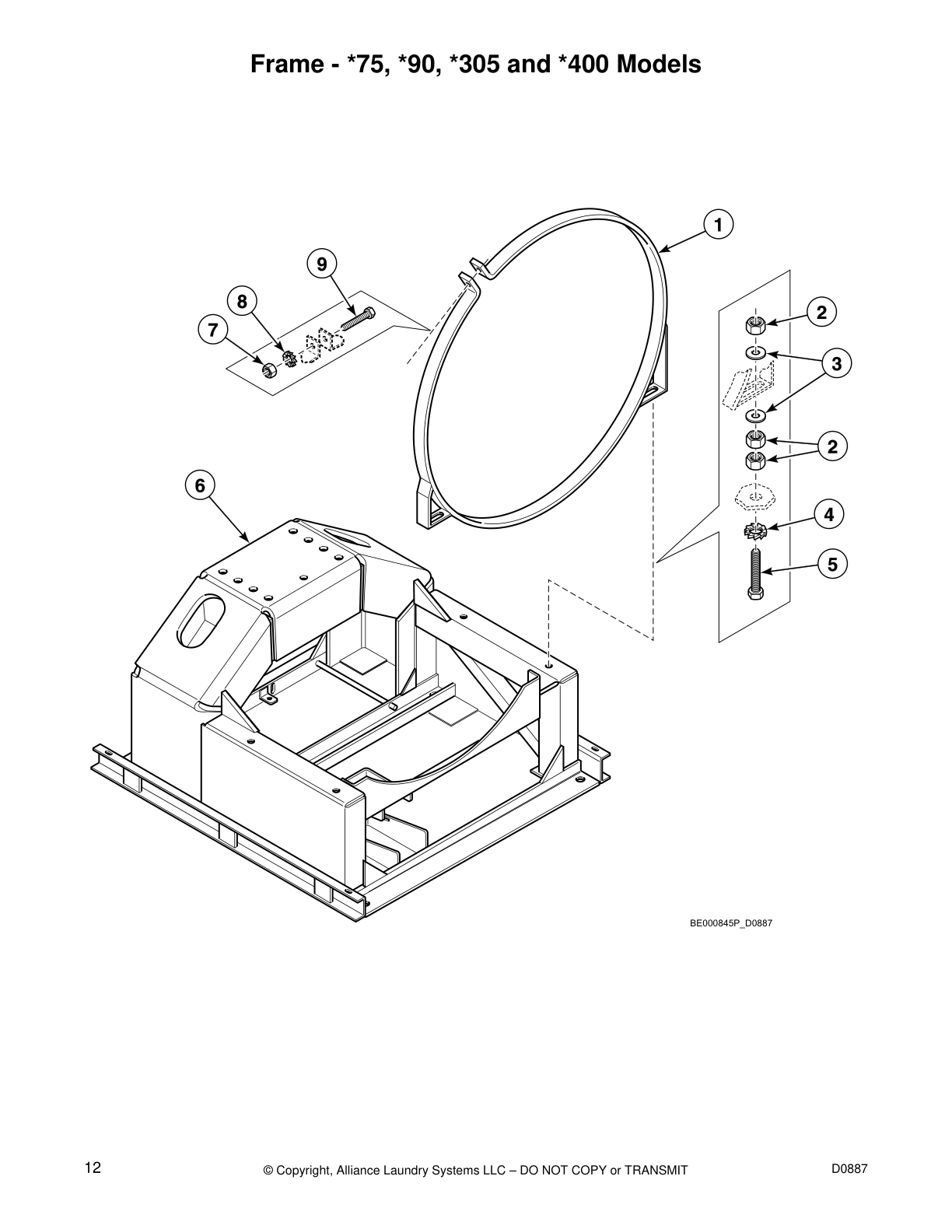

Frame - *75, *90, *305 and *400 Models

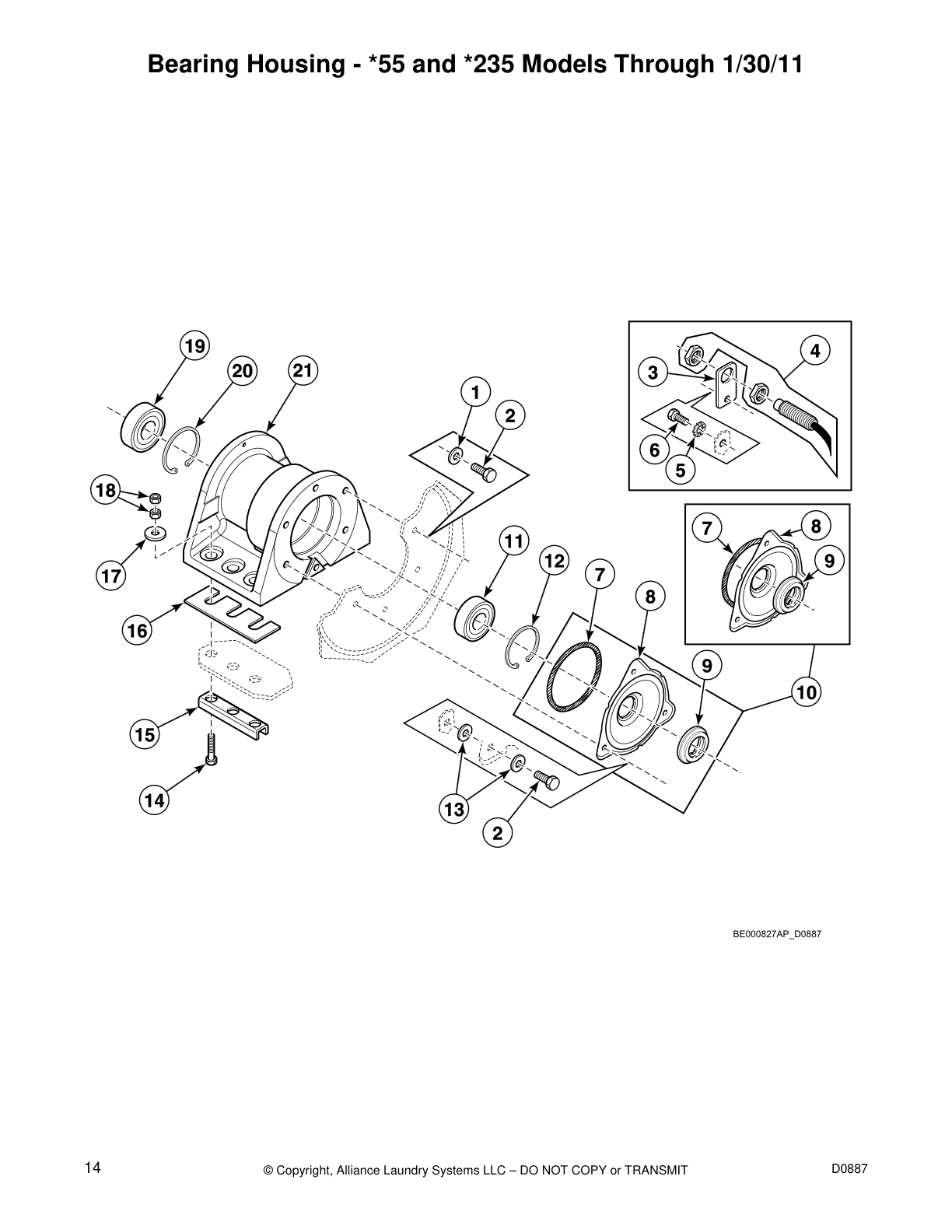

Bearing Housing - *55 and *235 Models Through 1/30/11

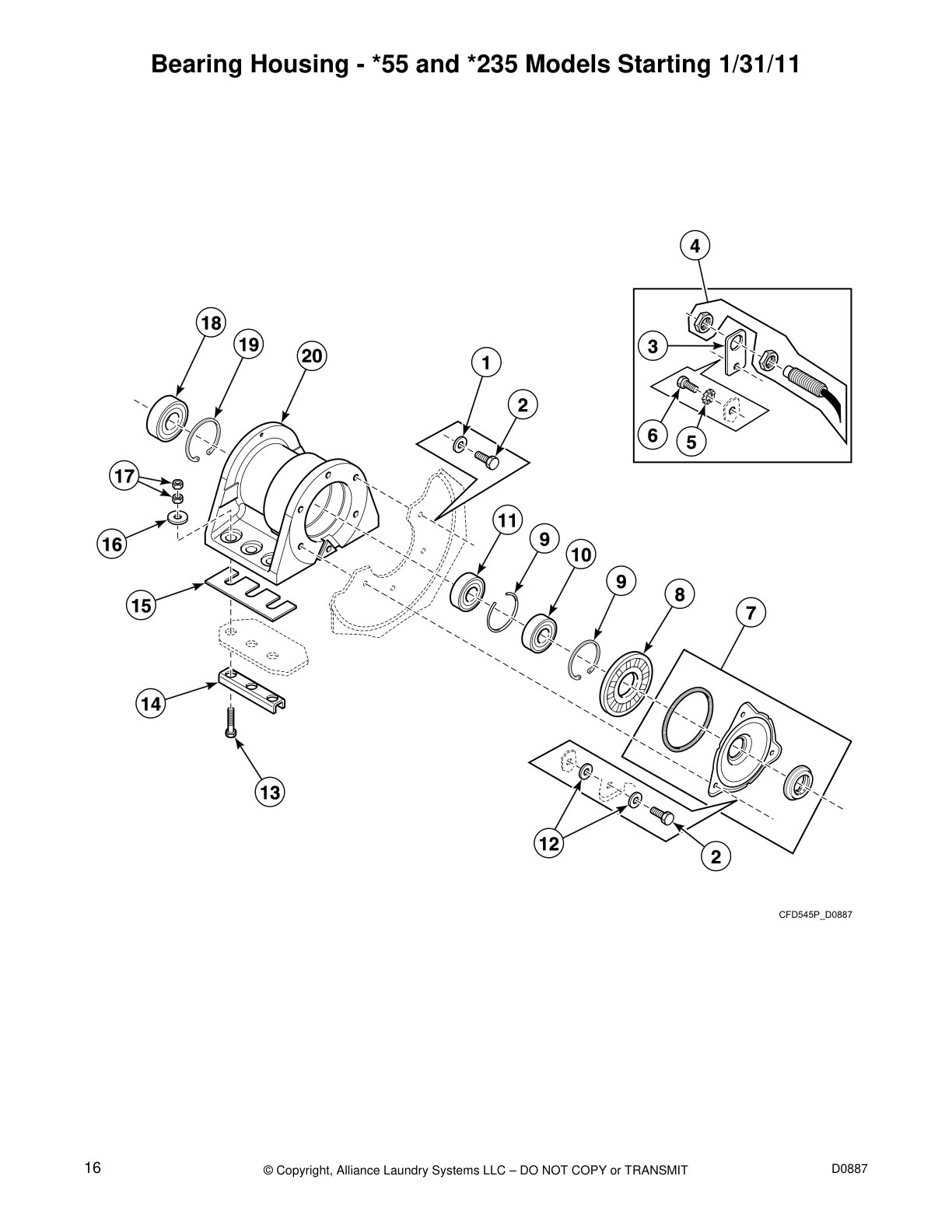

Bearing Housing - *55 and *235 Models Starting 1/31/11

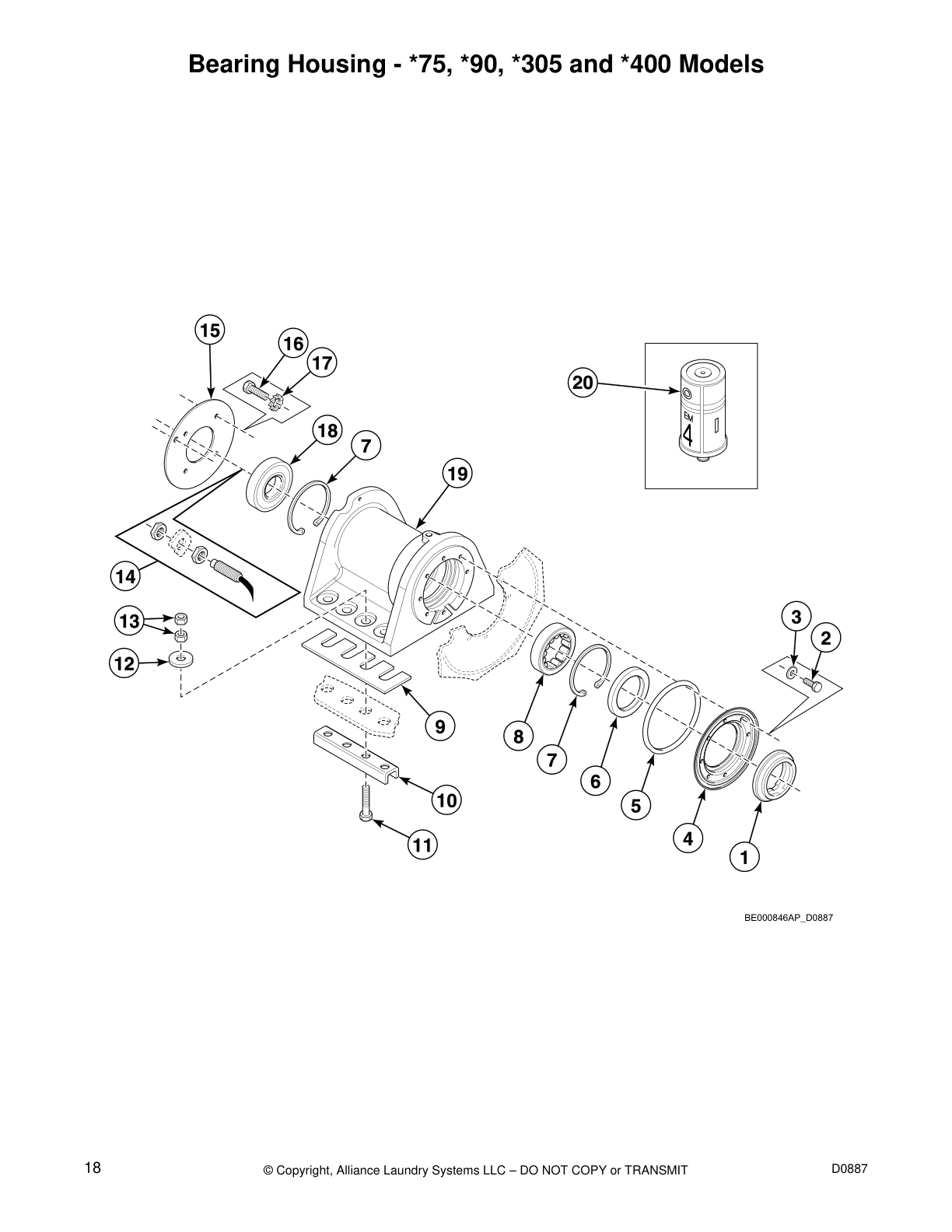

Bearing Housing - *75, *90, *305 and *400 Models

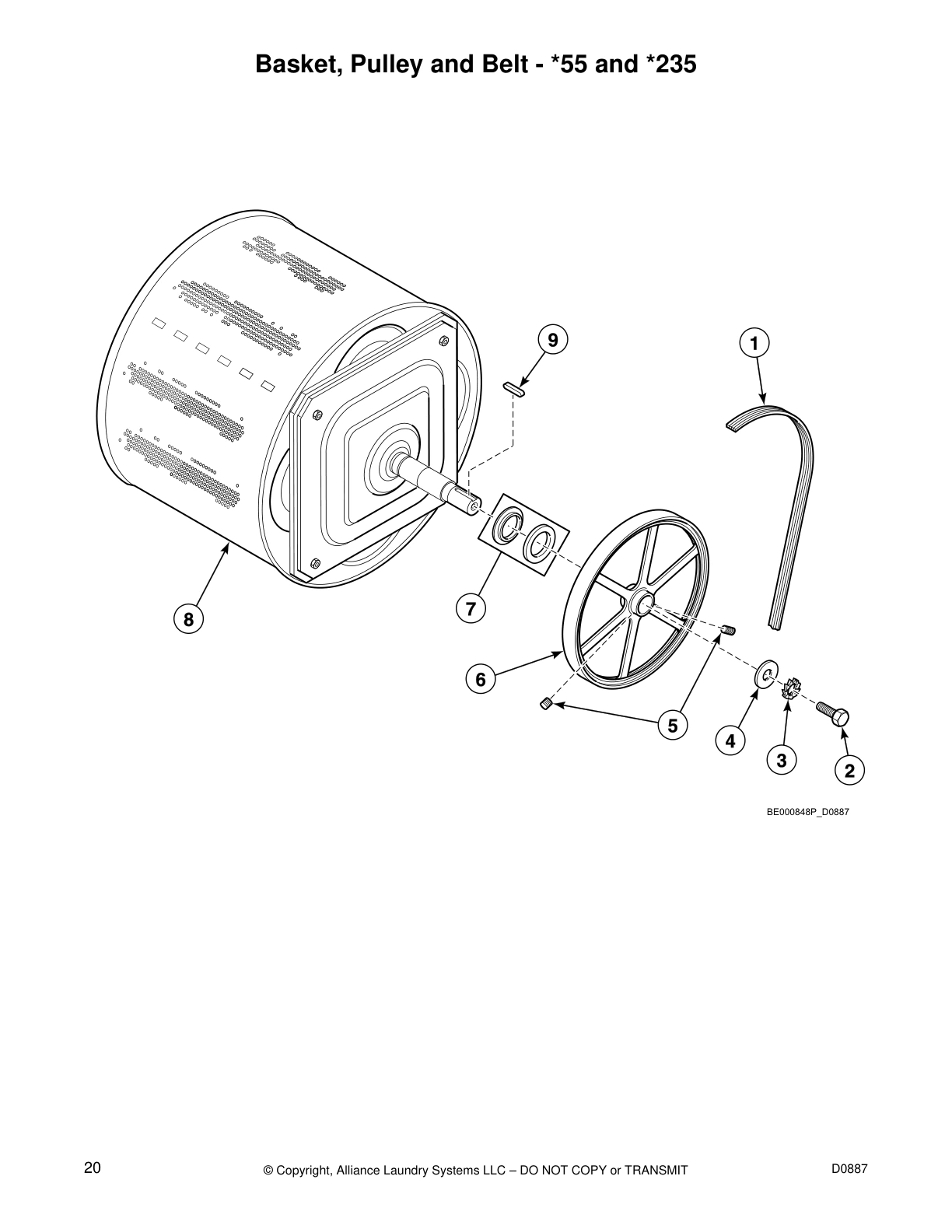

Basket, Pulley and Belt - *55 and *235

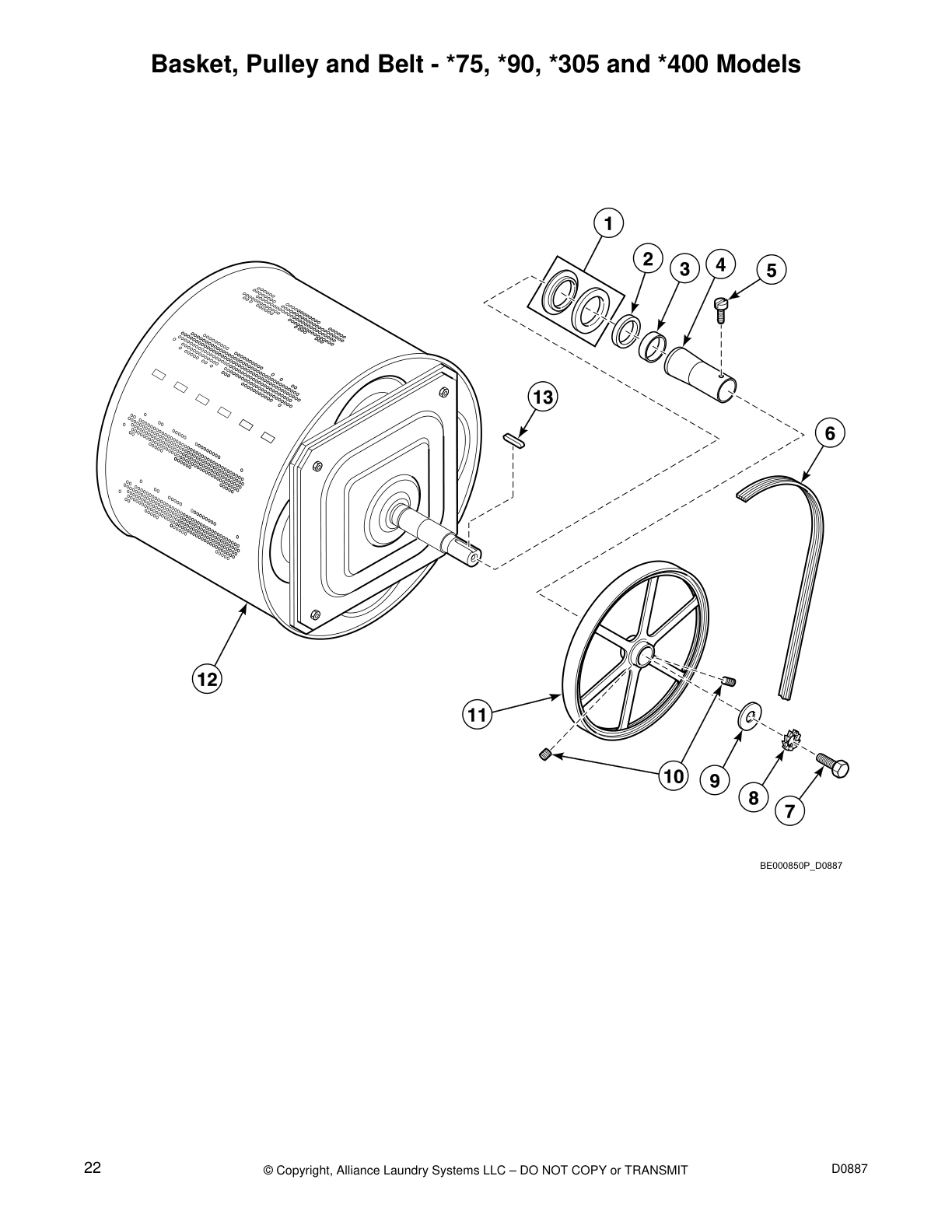

Basket, Pulley and Belt - *75, *90, *305 and *400 Models

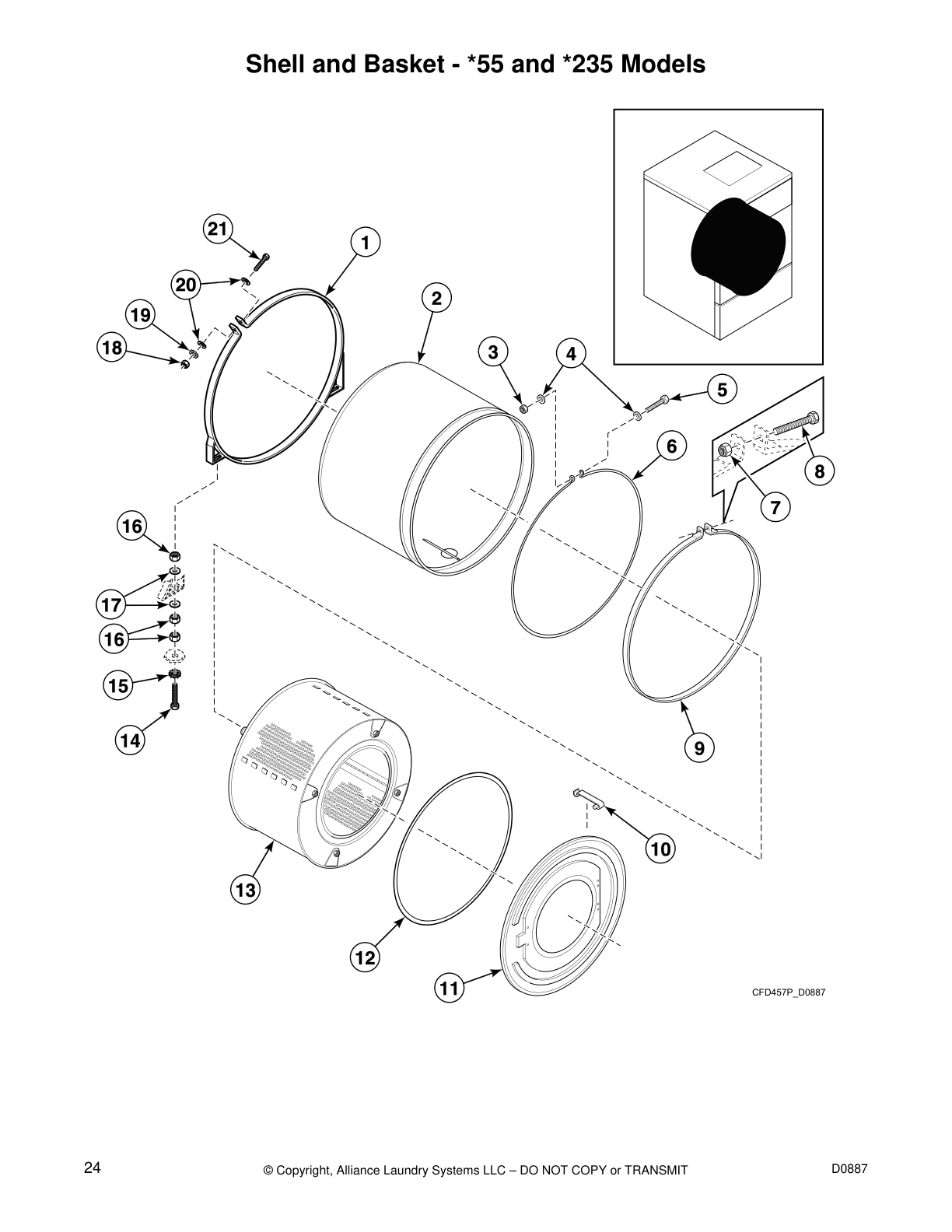

Shell and Basket - *55 and *235 Models

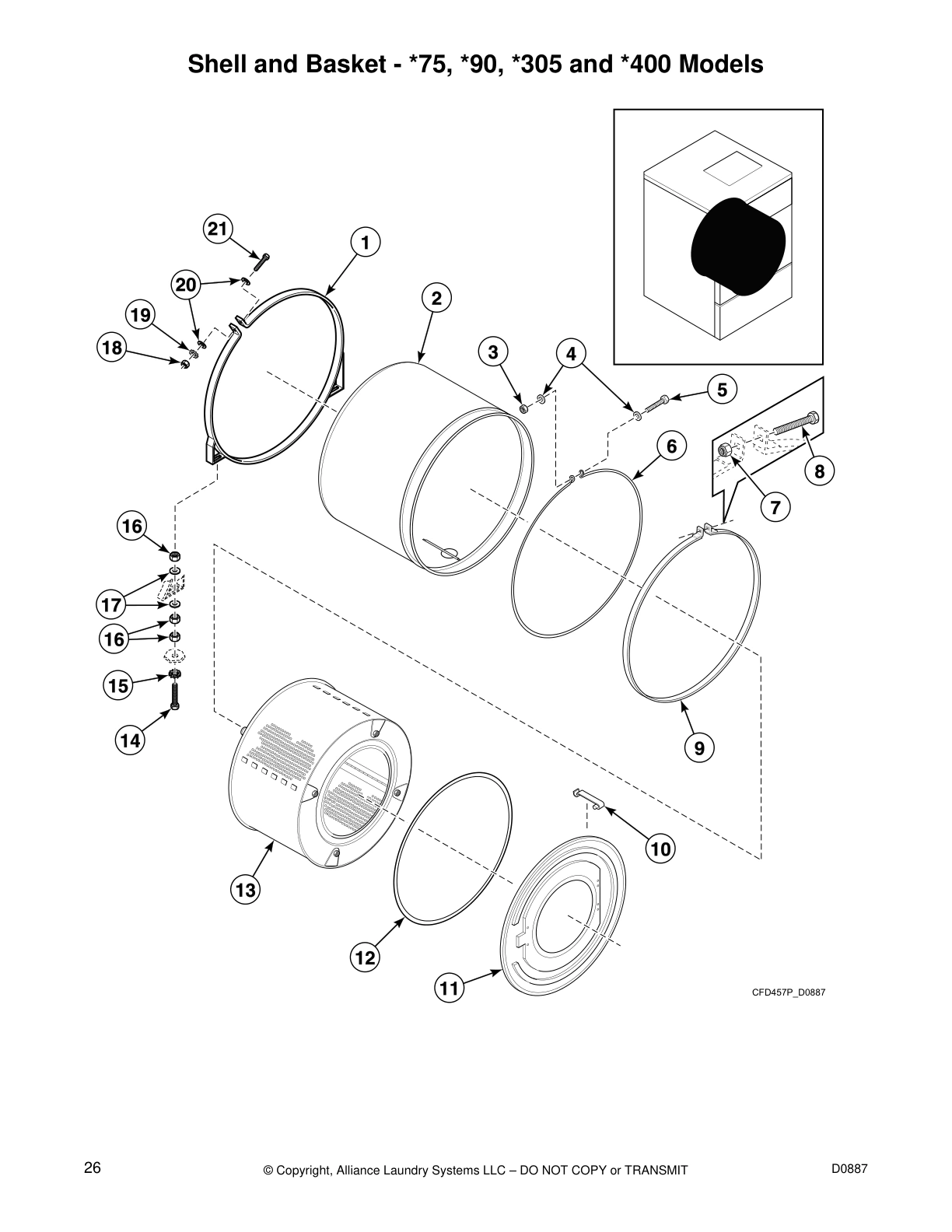

Shell and Basket - *75, *90, *305 and *400 Models

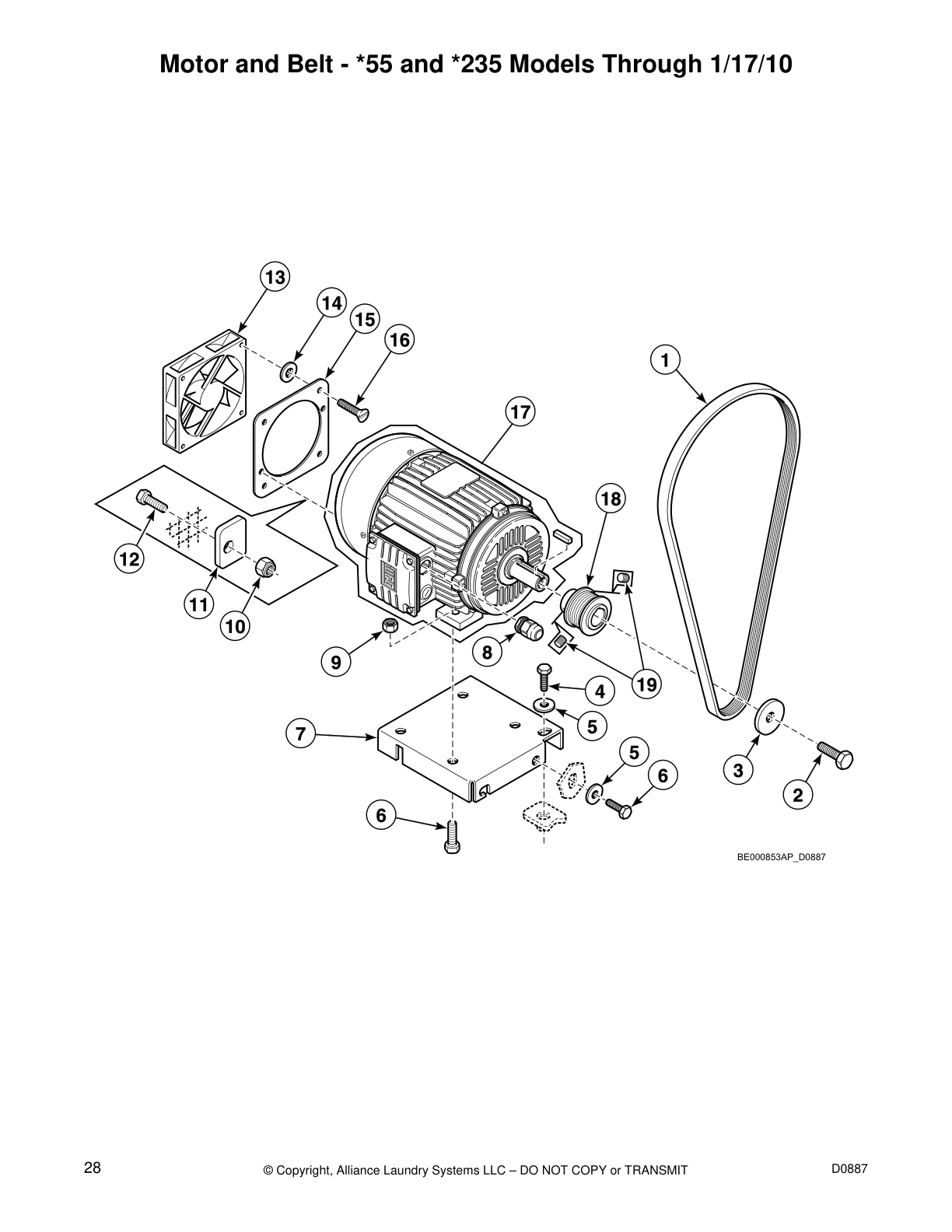

Motor and Belt - *55 and *235 Models Through 1/17/10

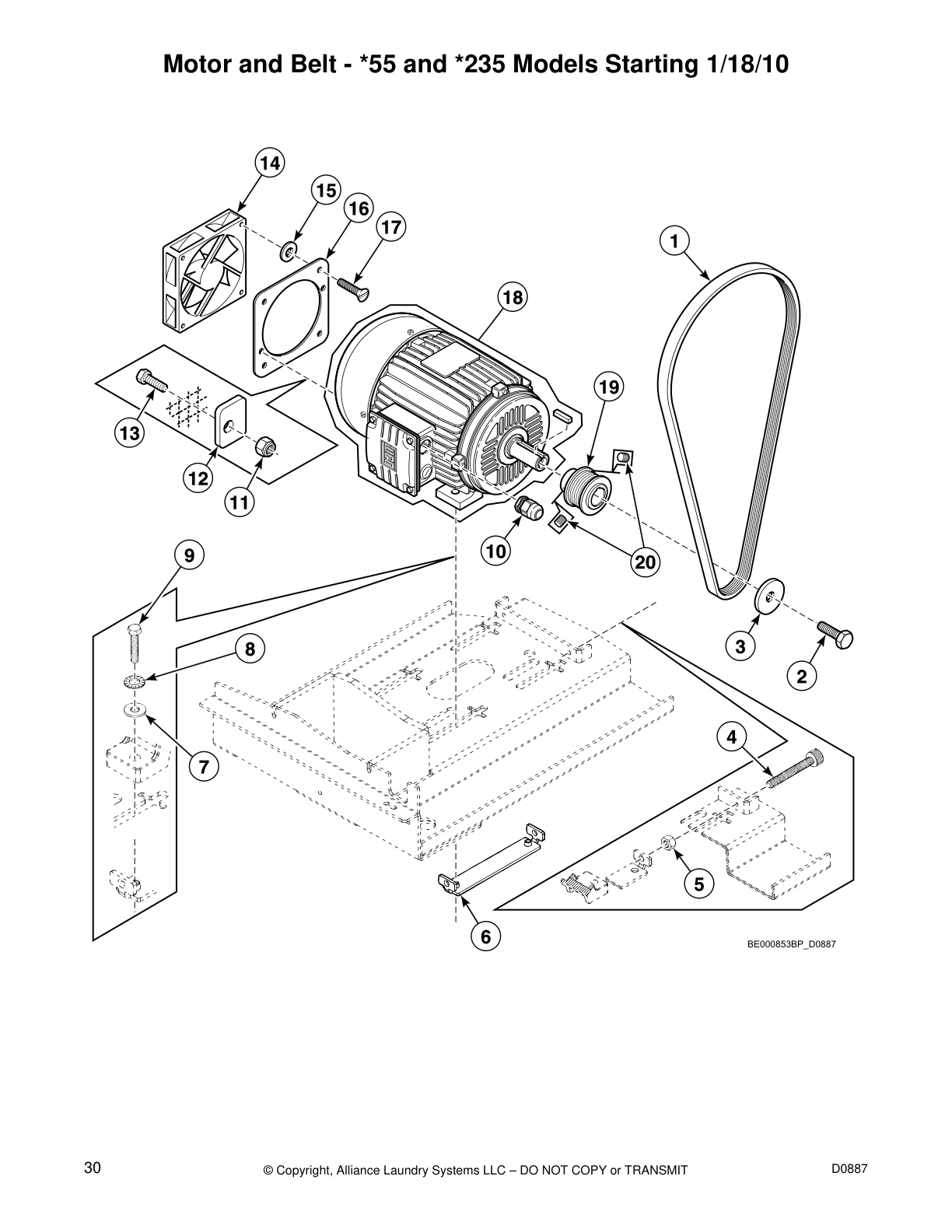

Motor and Belt - *55 and *235 Models Starting 1/18/10
Motor and Belt - *75 and *305 Models

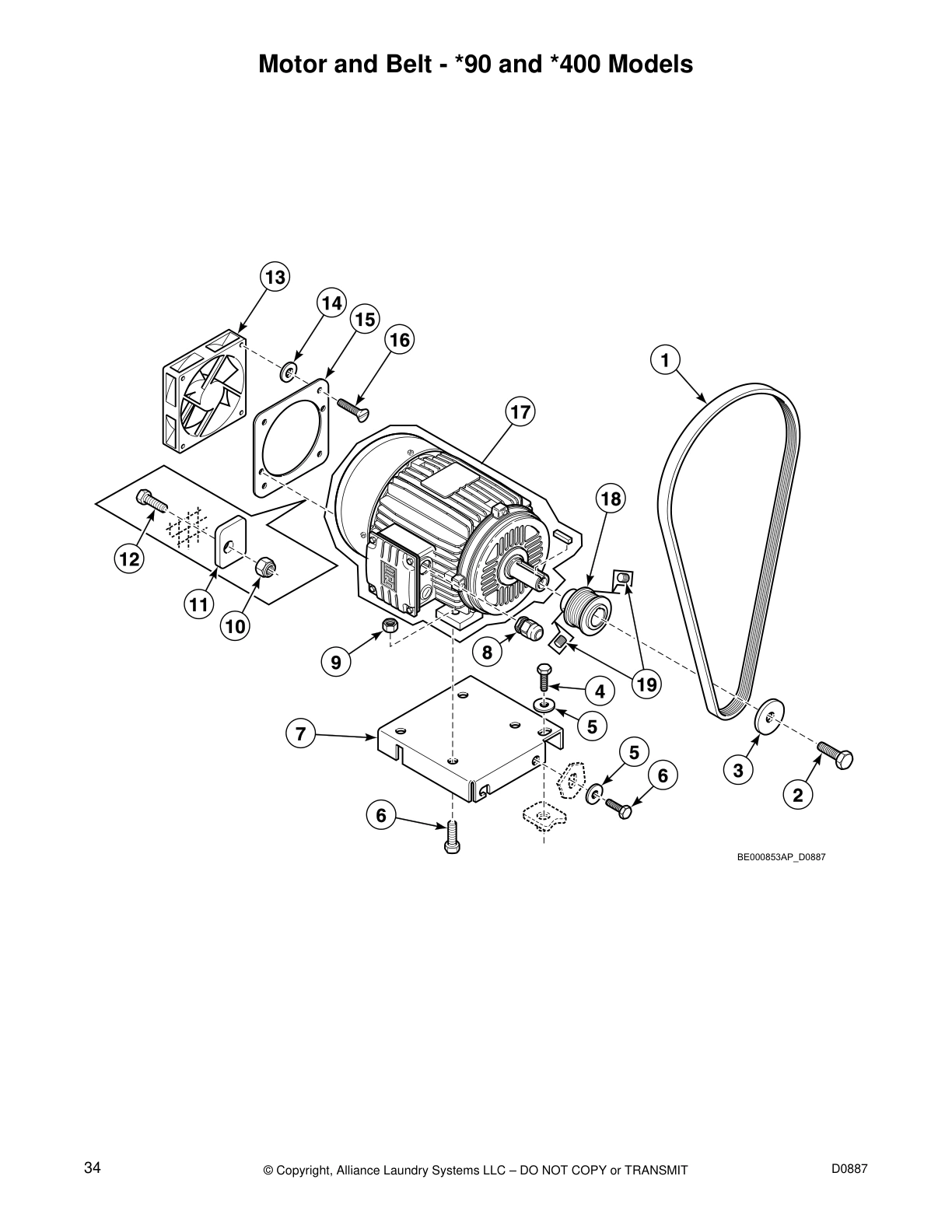

Motor and Belt - *90 and *400 Models

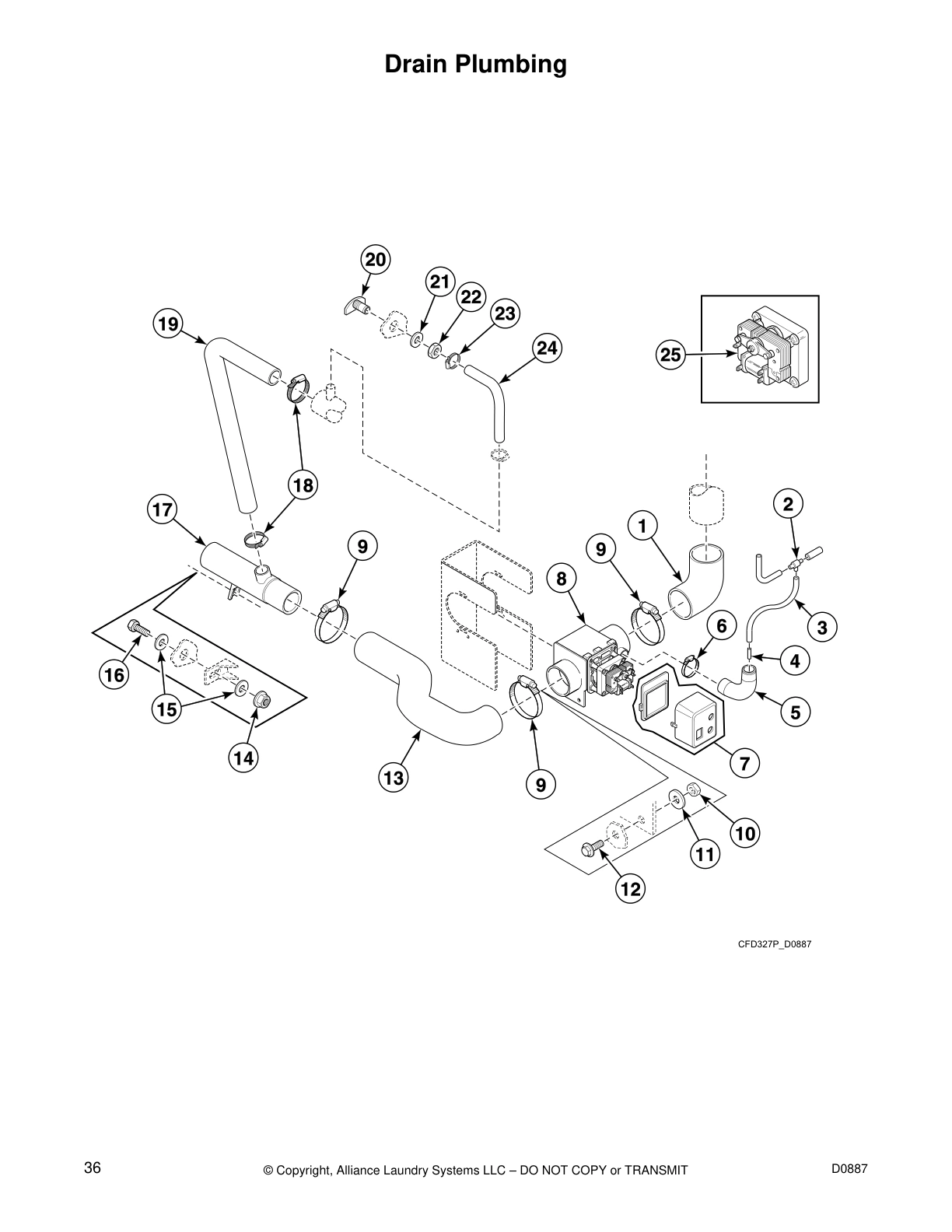

Drain Plumbing

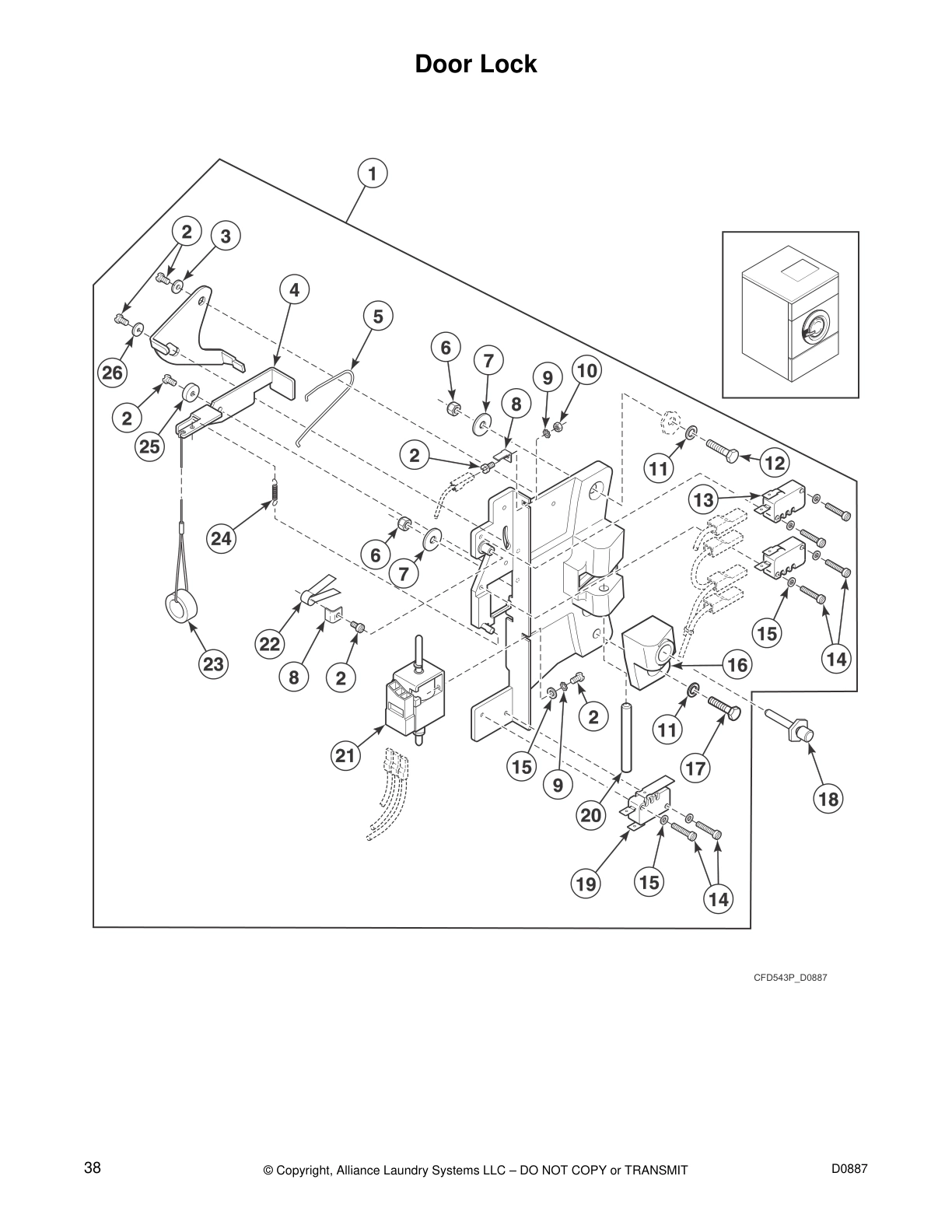

Door Lock
Door

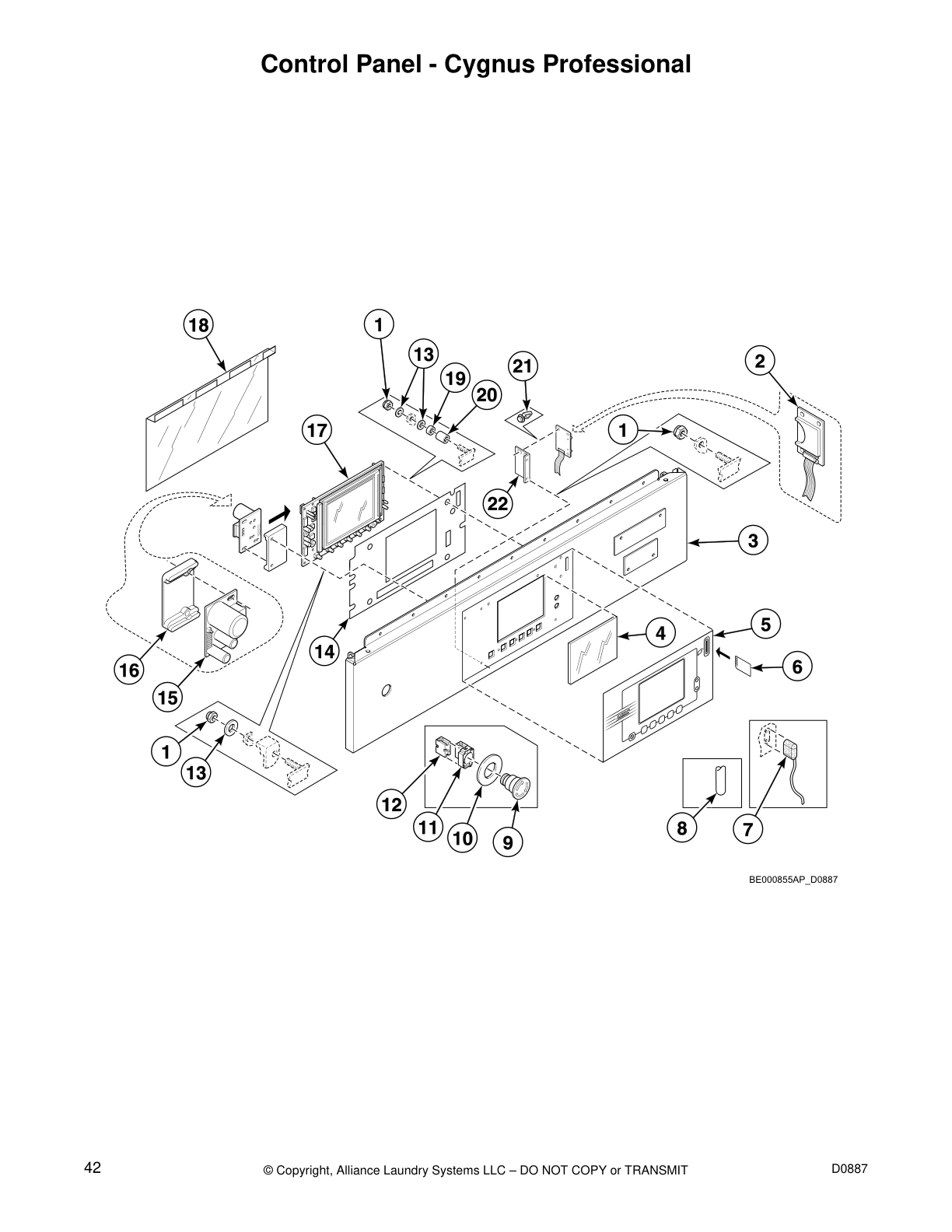

Control Panel - Cygnus Professional

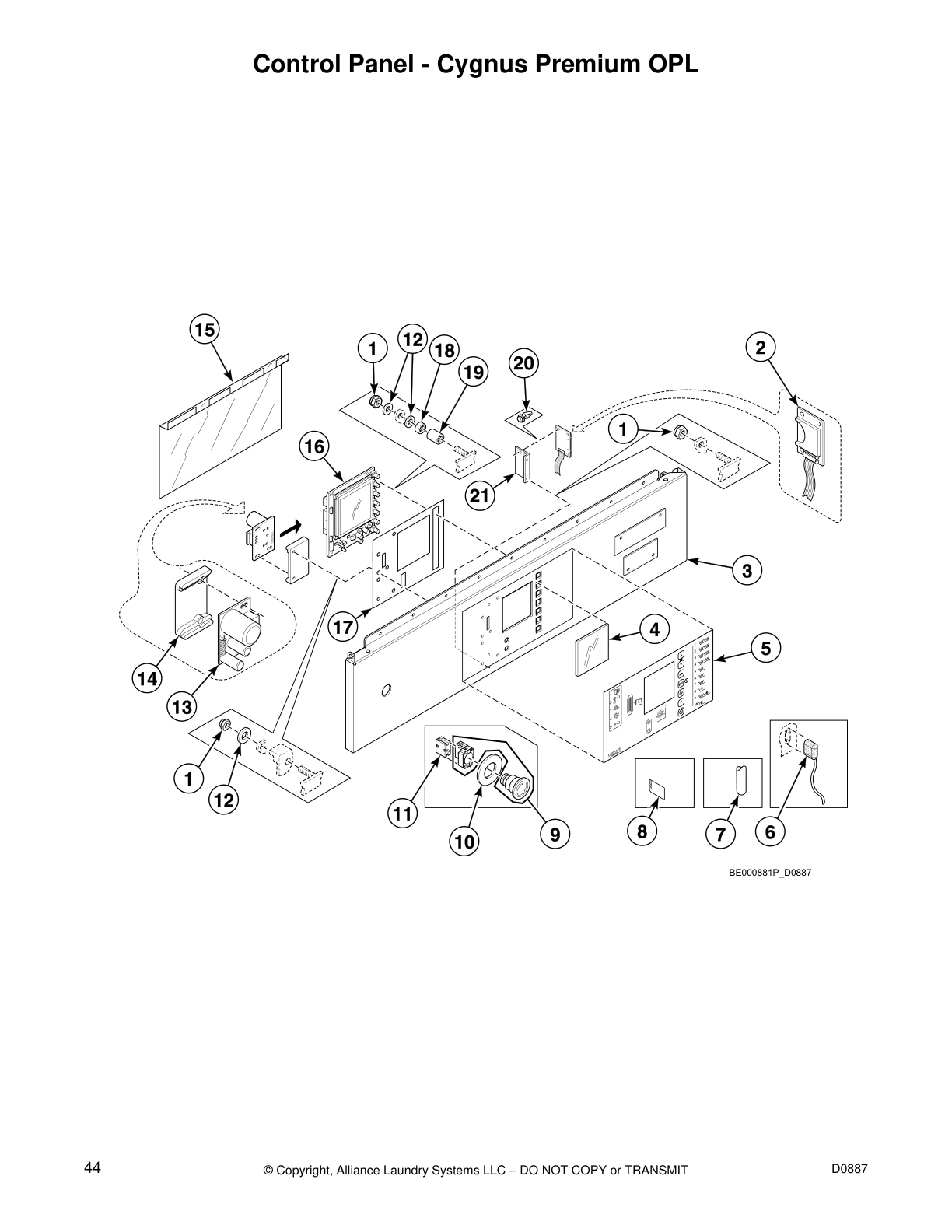

Control Panel - Cygnus Premium OPL

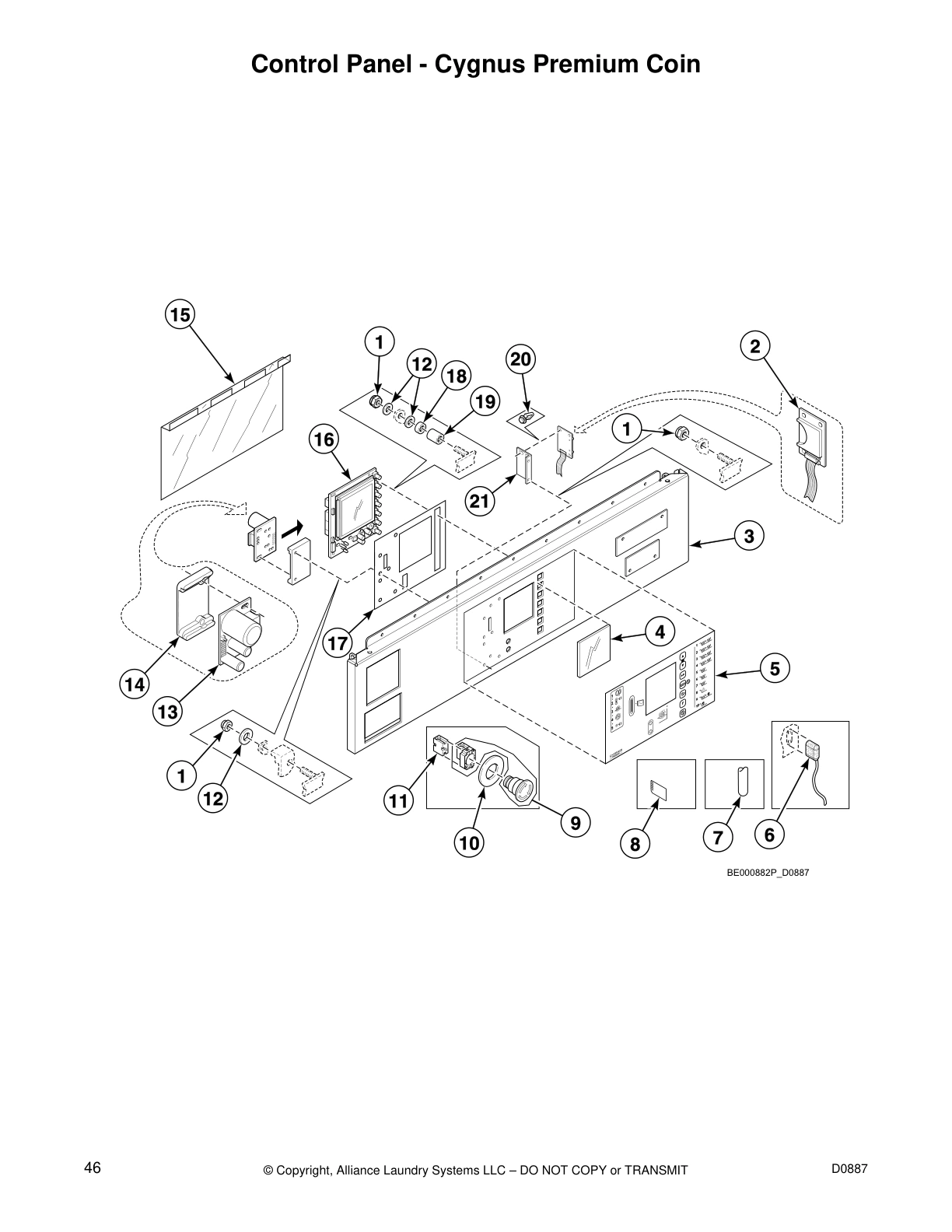

Control Panel - Cygnus Premium Coin

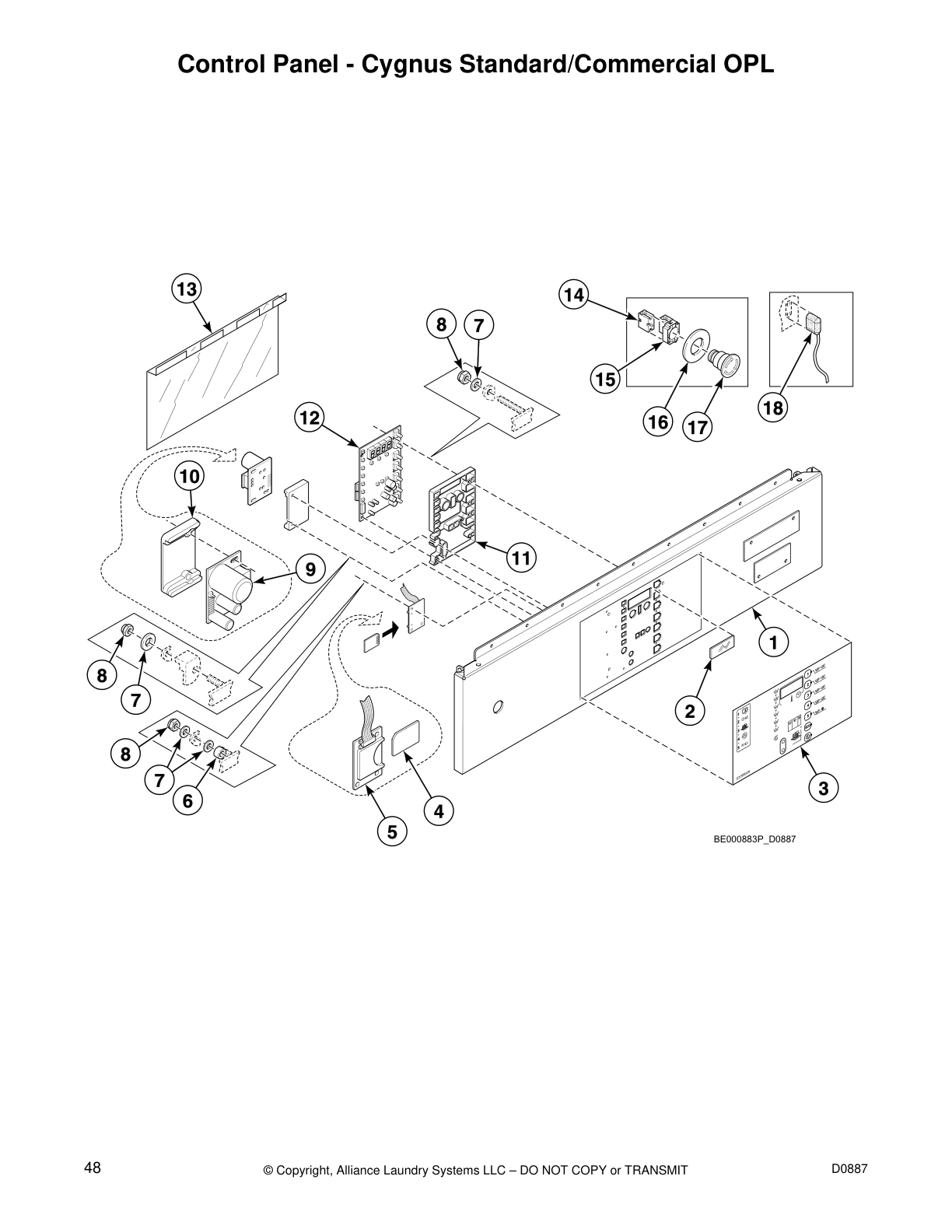

Control Panel - Cygnus Standard/Commercial OPL

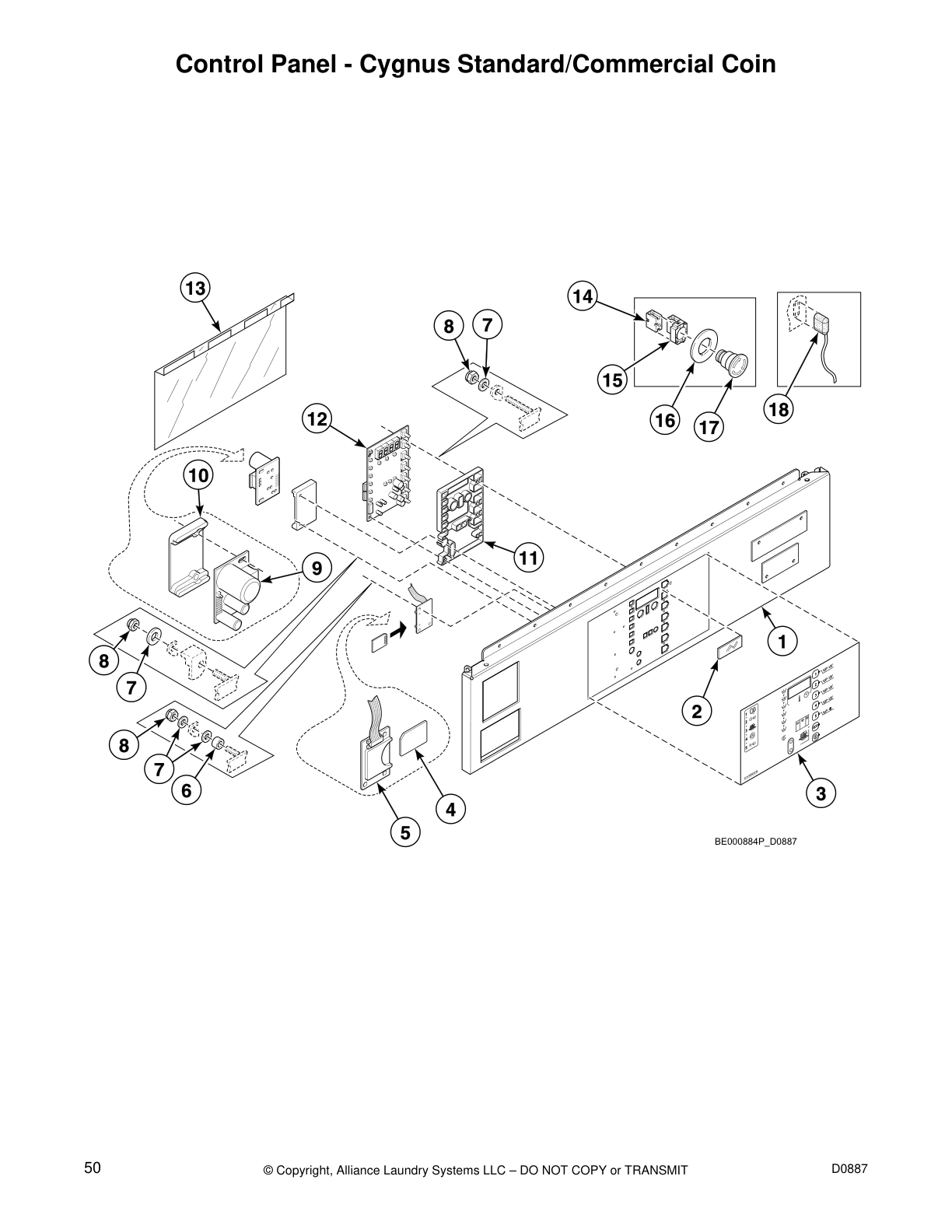

Control Panel - Cygnus Standard/Commercial Coin

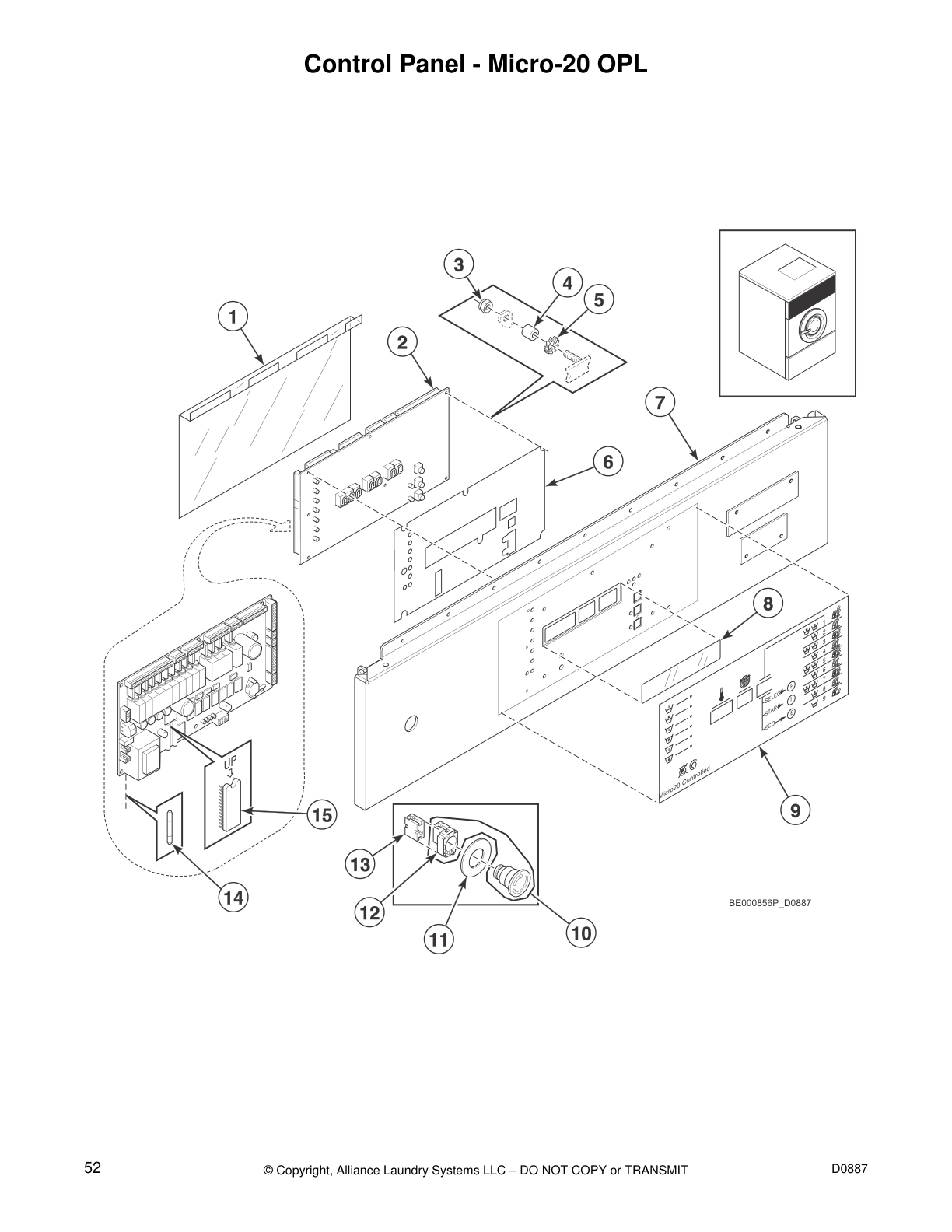

Control Panel - Micro-20 OPL

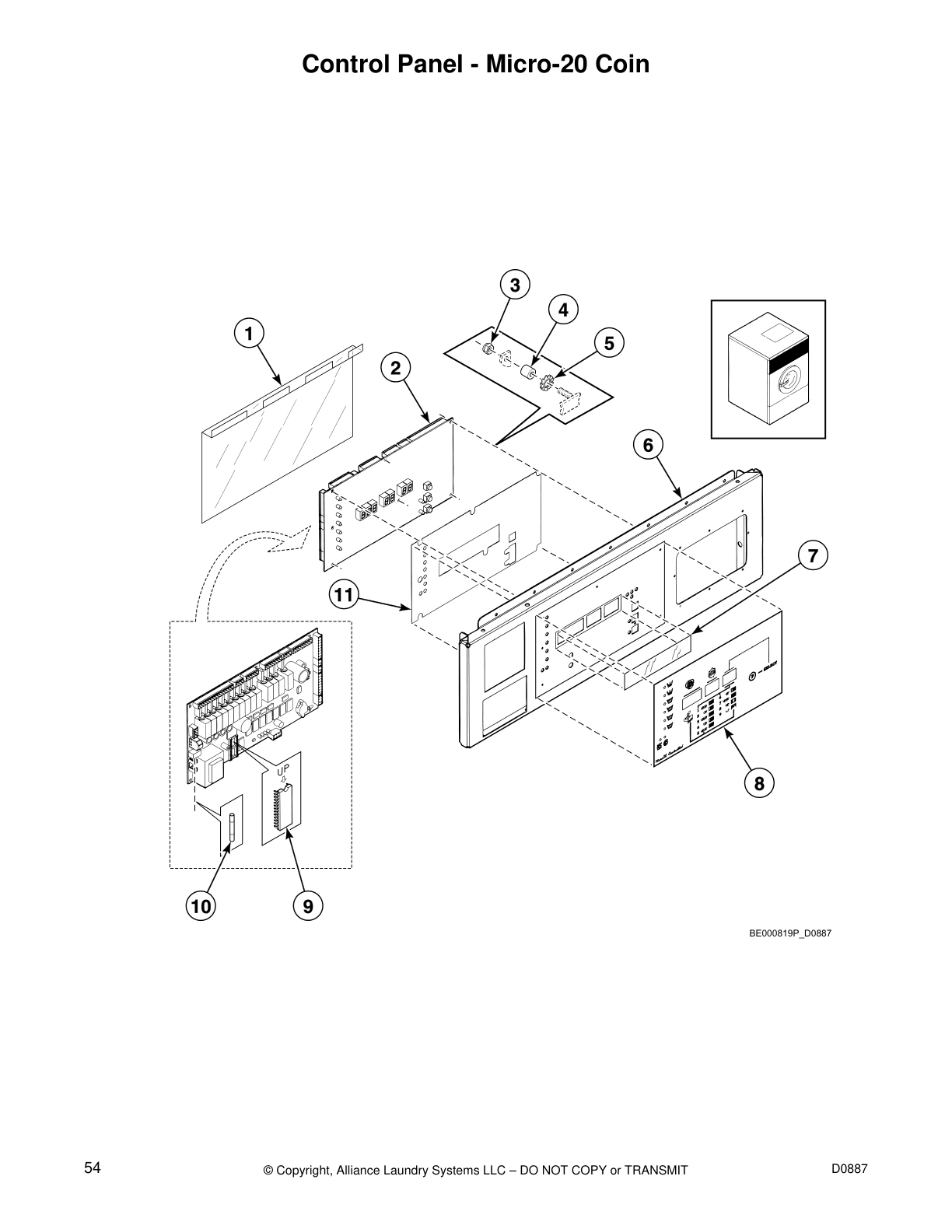

Control Panel - Micro-20 Coin

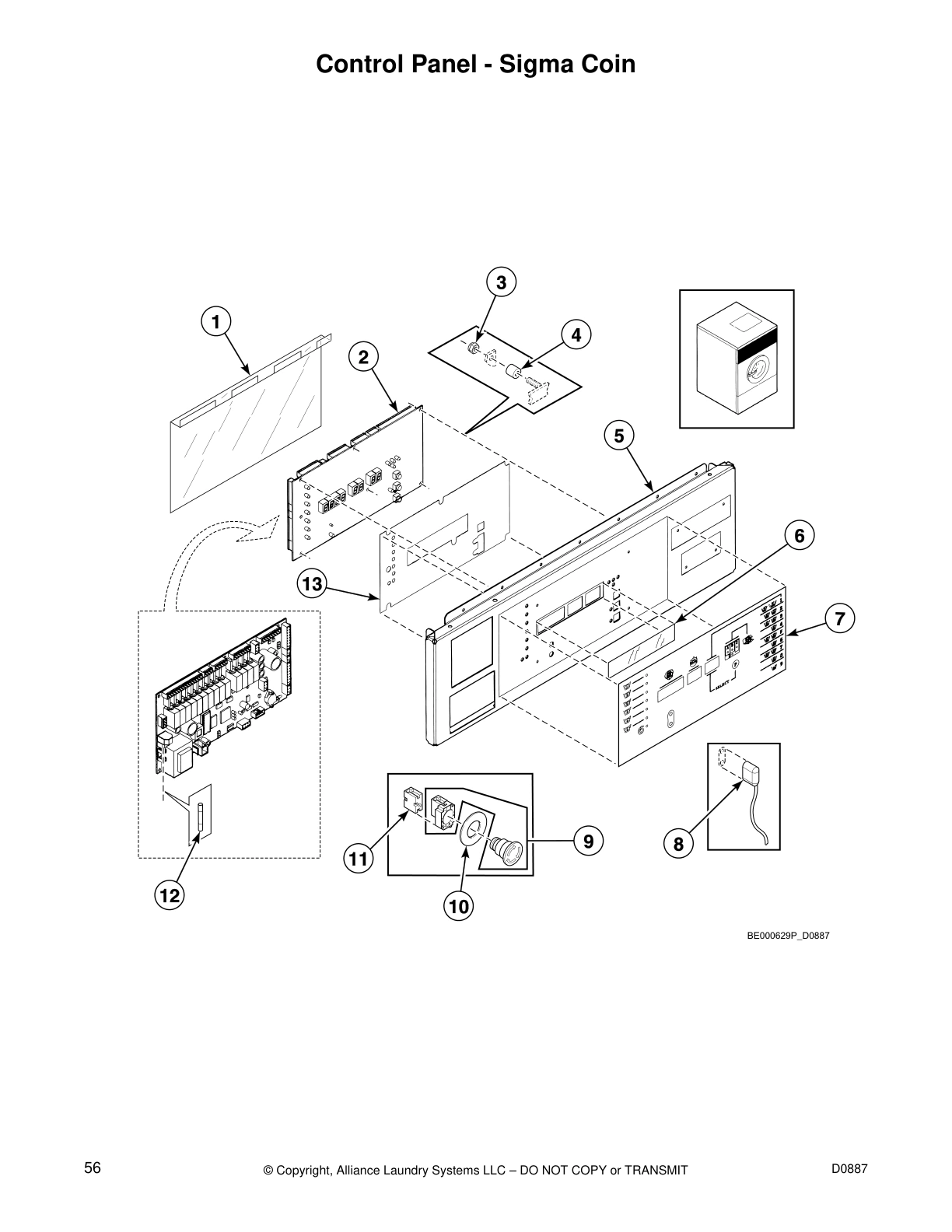

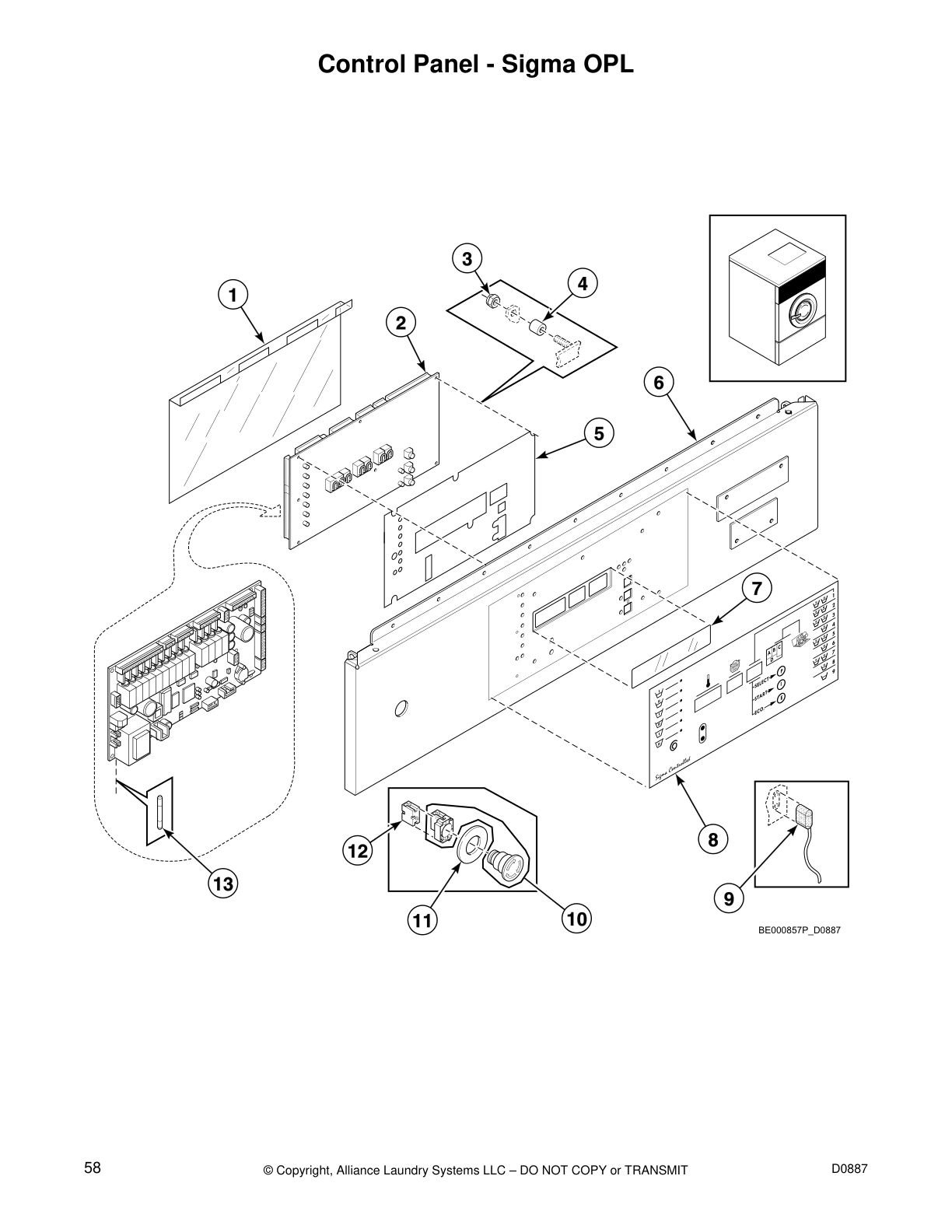

Control Panel - Sigma Coin
Control Panel - Sigma OPL

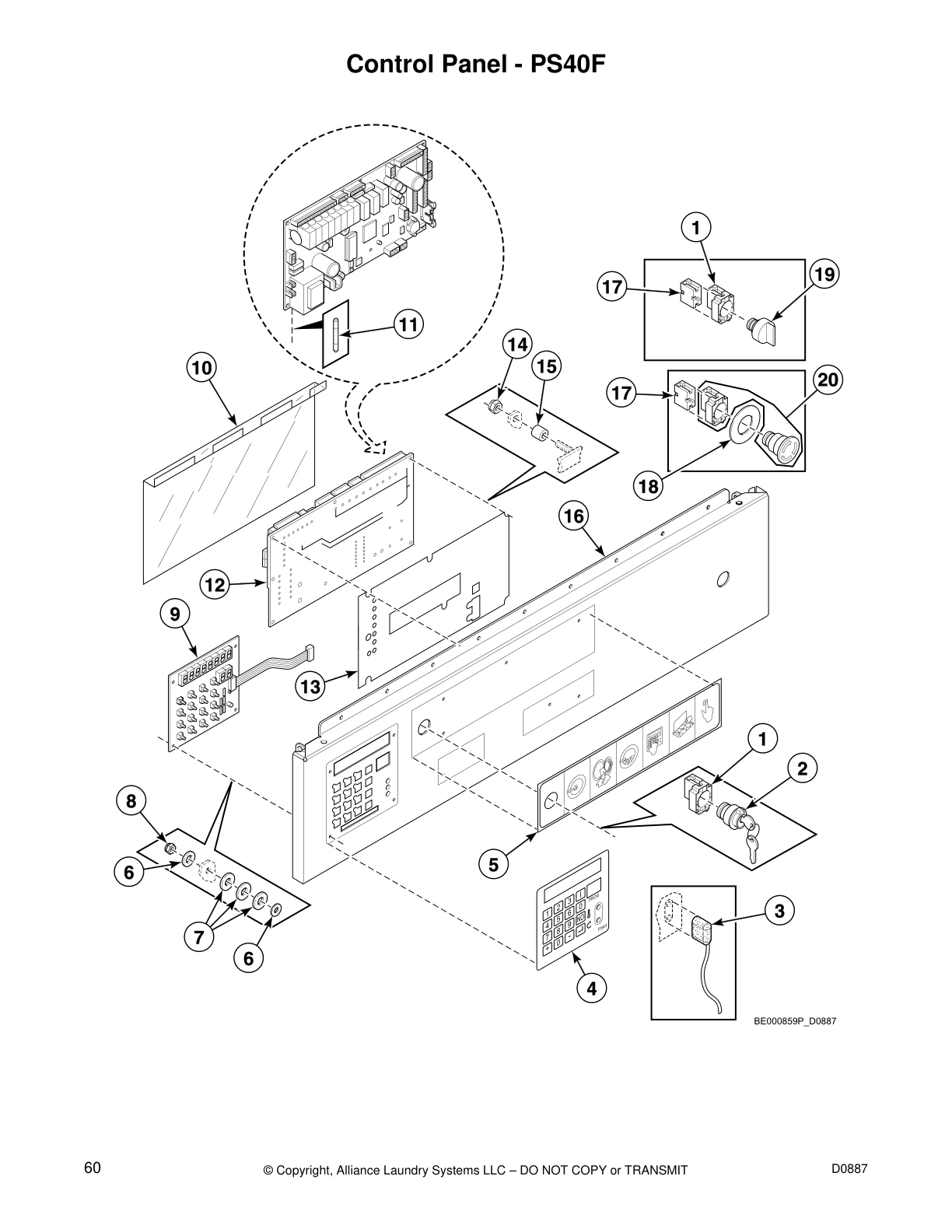

Control Panel - PS40F
Coin Drop - Mechanical Coin Meter
Coin Drop - Electronic Coin Meter
Left Side, Lower Front and Upper Back Panels - *55 and *235

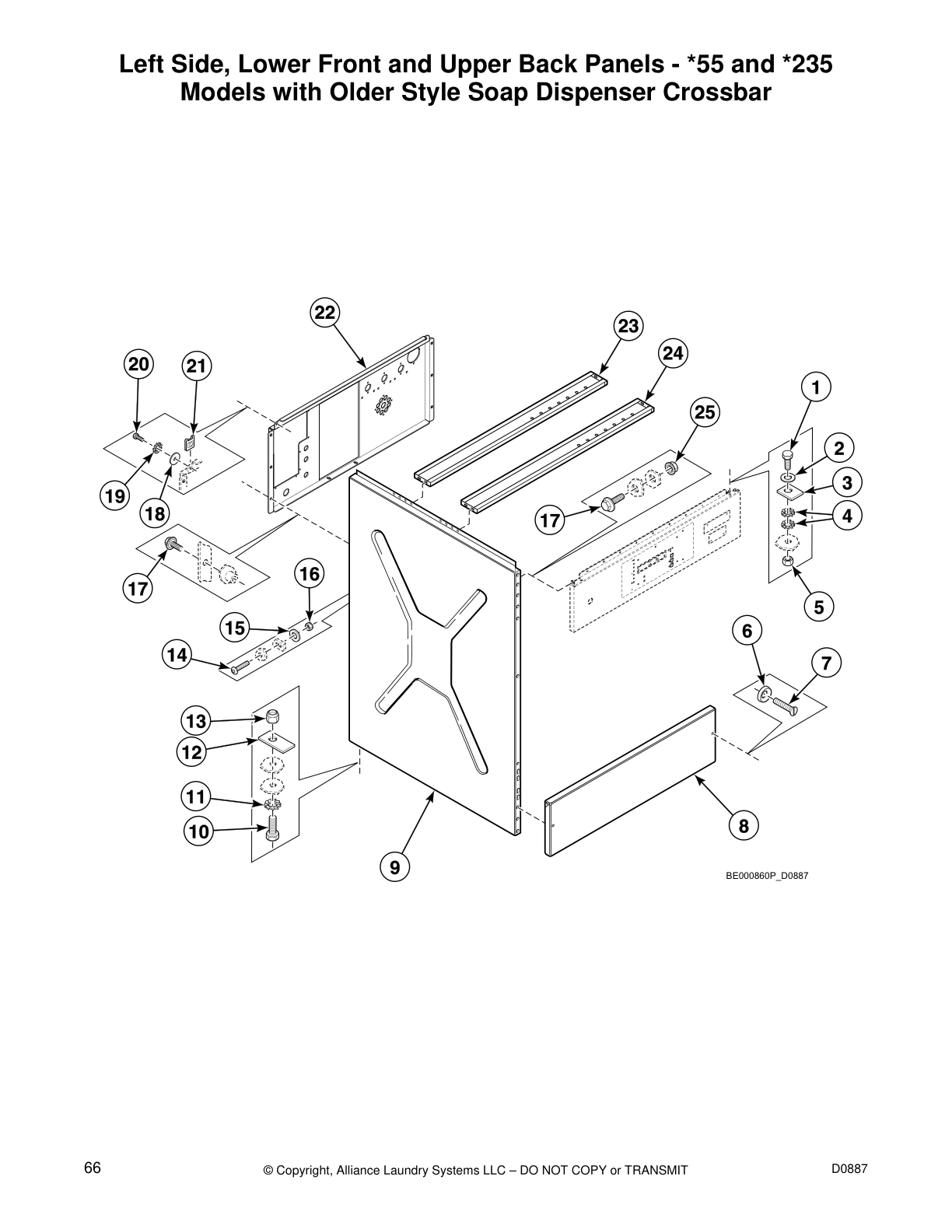

Models with Older Style Soap Dispenser Crossbar

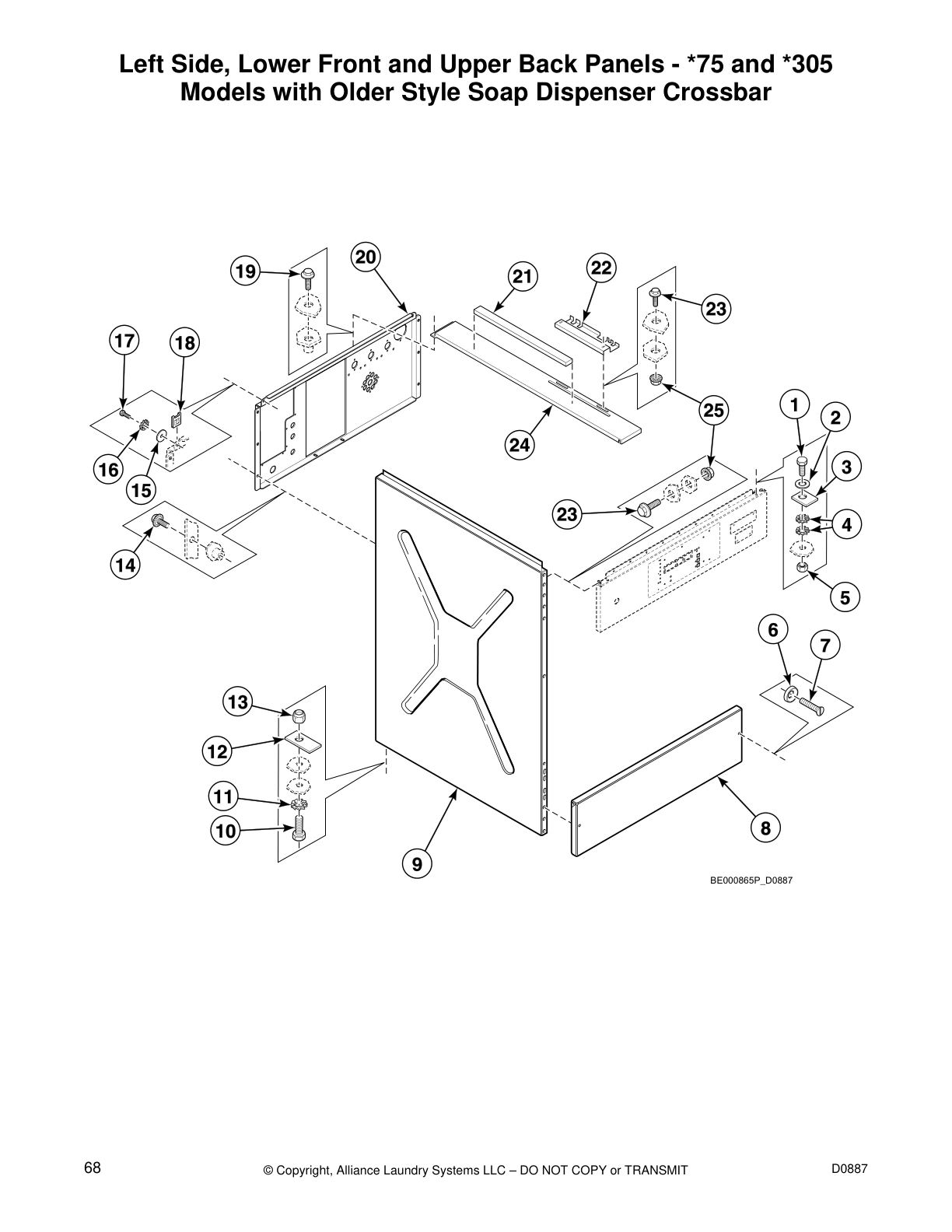

Left Side, Lower Front and Upper Back Panels - *75 and *305
Models with Older Style Soap Dispenser Crossbar

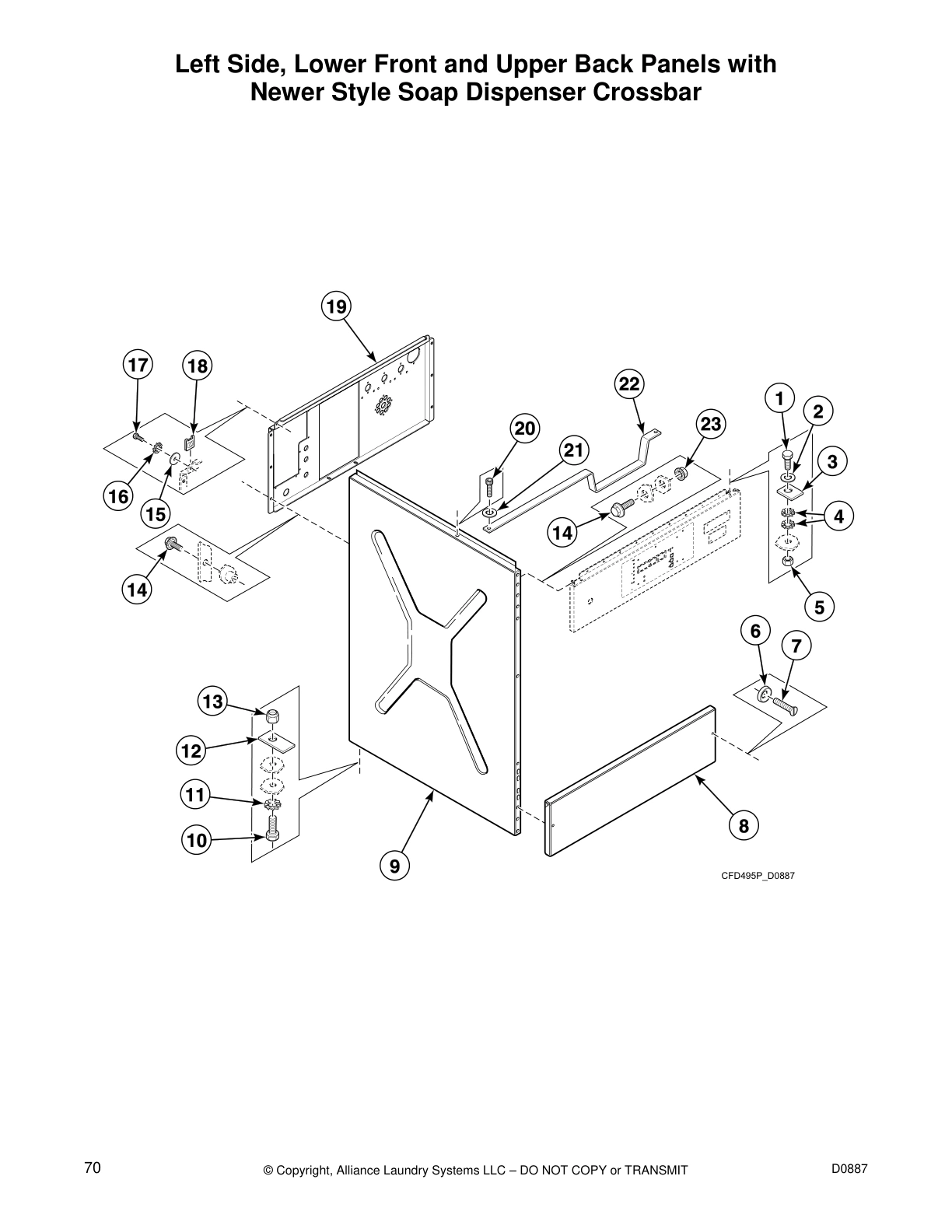

Left Side, Lower Front and Upper Back Panels with
Newer Style Soap Dispenser Crossbar

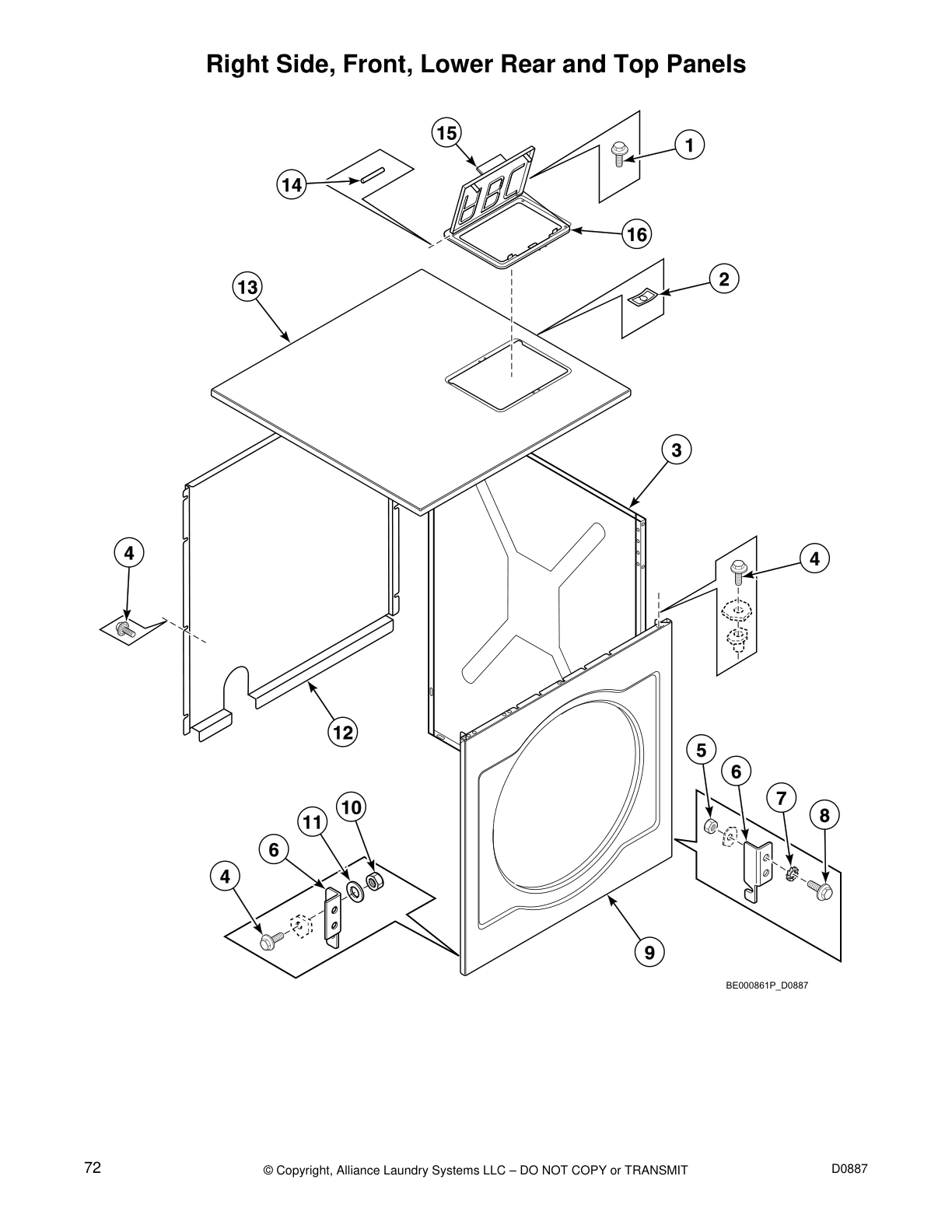

Right Side, Front, Lower Rear and Top Panels

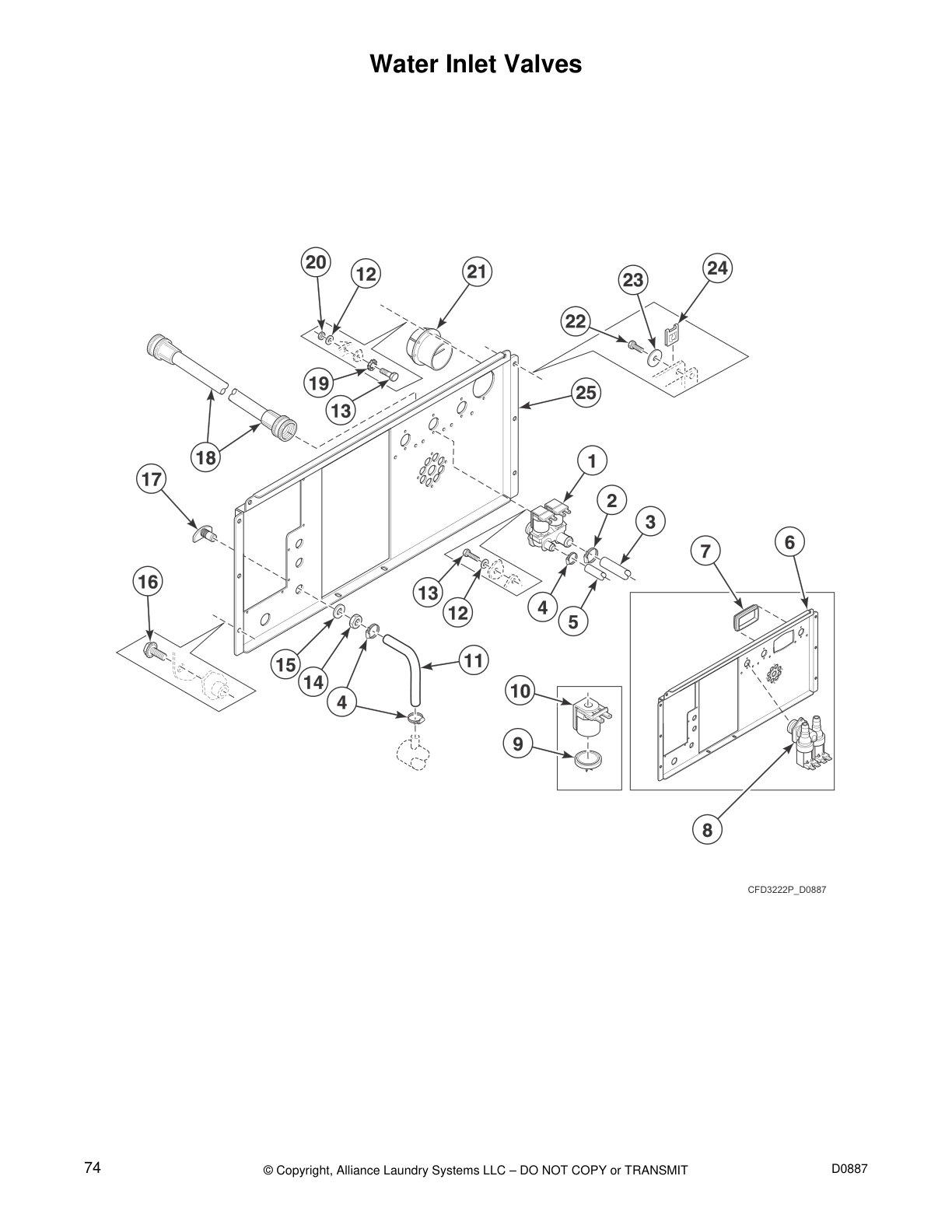

Water Inlet Valves

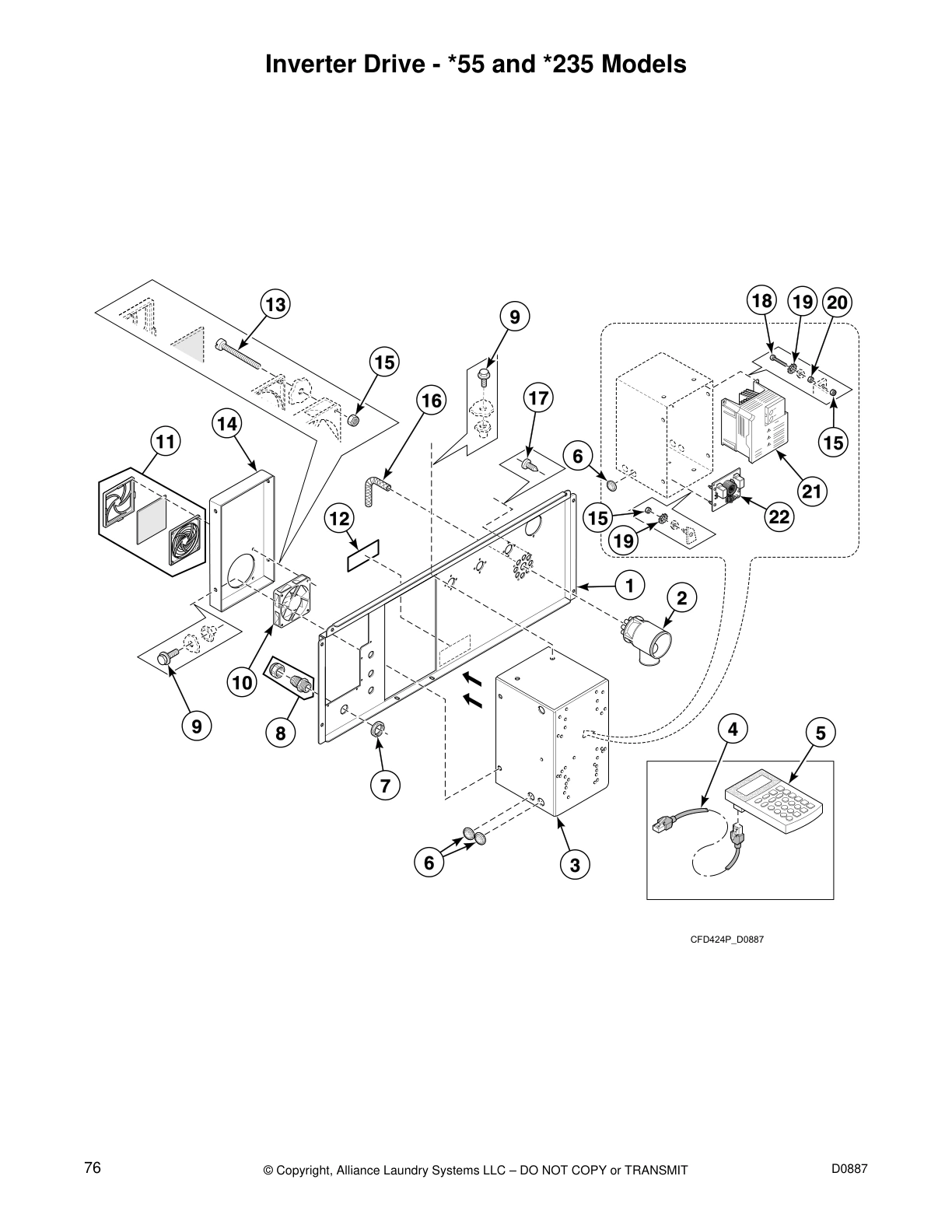

Inverter Drive - *55 and *235 Models

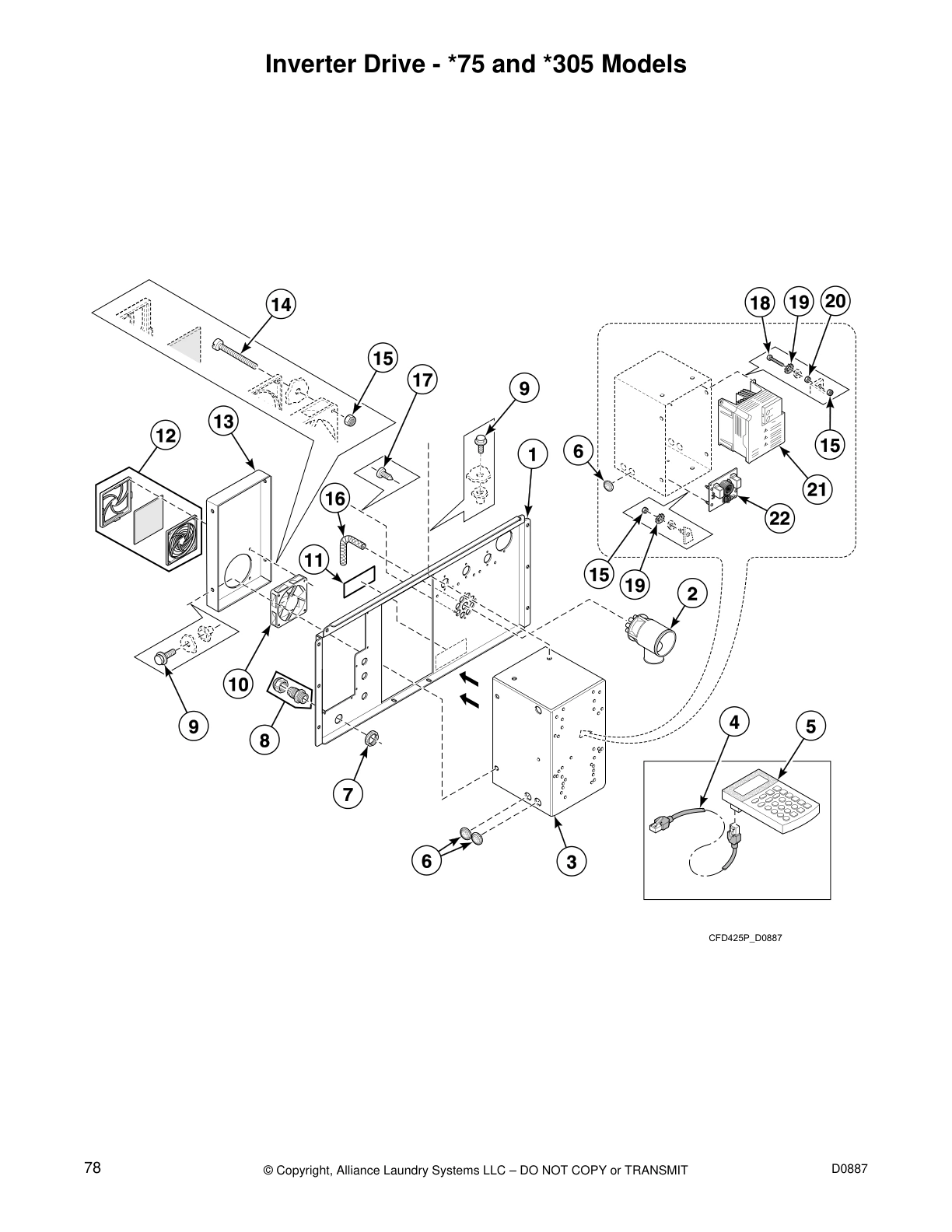

Inverter Drive - *75 and *305 Models

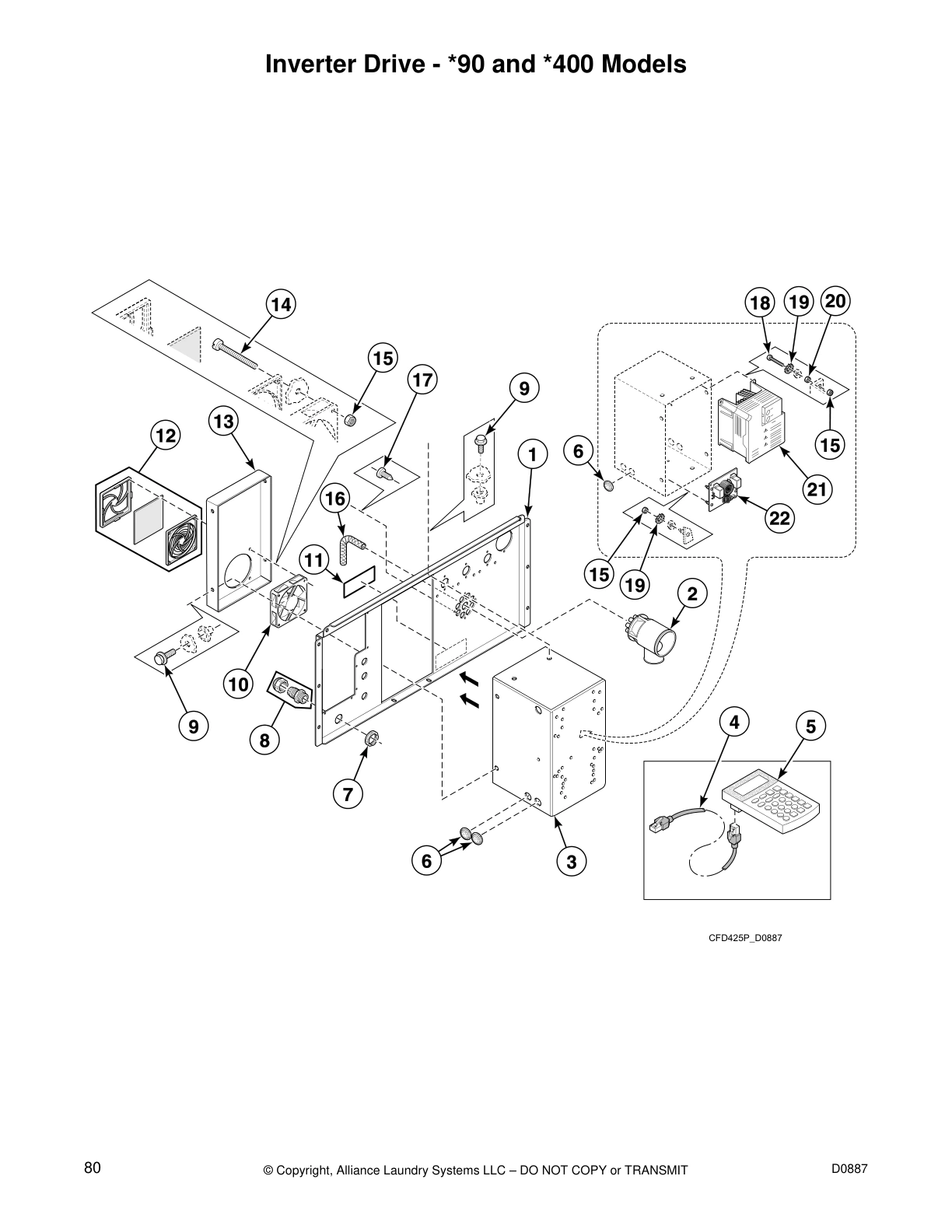

Inverter Drive - *90 and *400 Models
Main Switch and Noise Filter

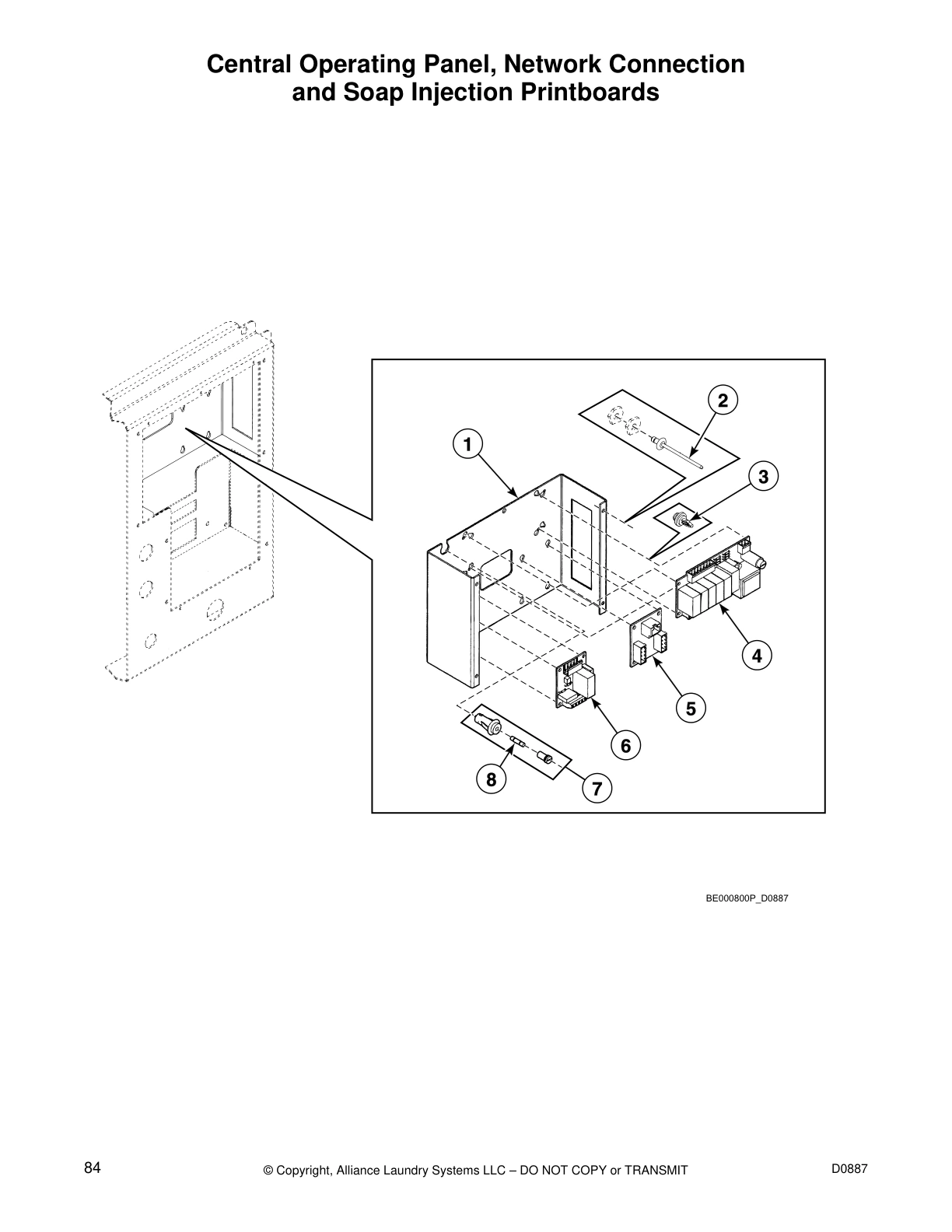

Central Operating Panel, Network Connection
and Soap Injection Printboards
Relay, Network Connection and Main Printboards - Cygnus Models
Electrical Component Mounting Plate - *55, *75, *235 and *305

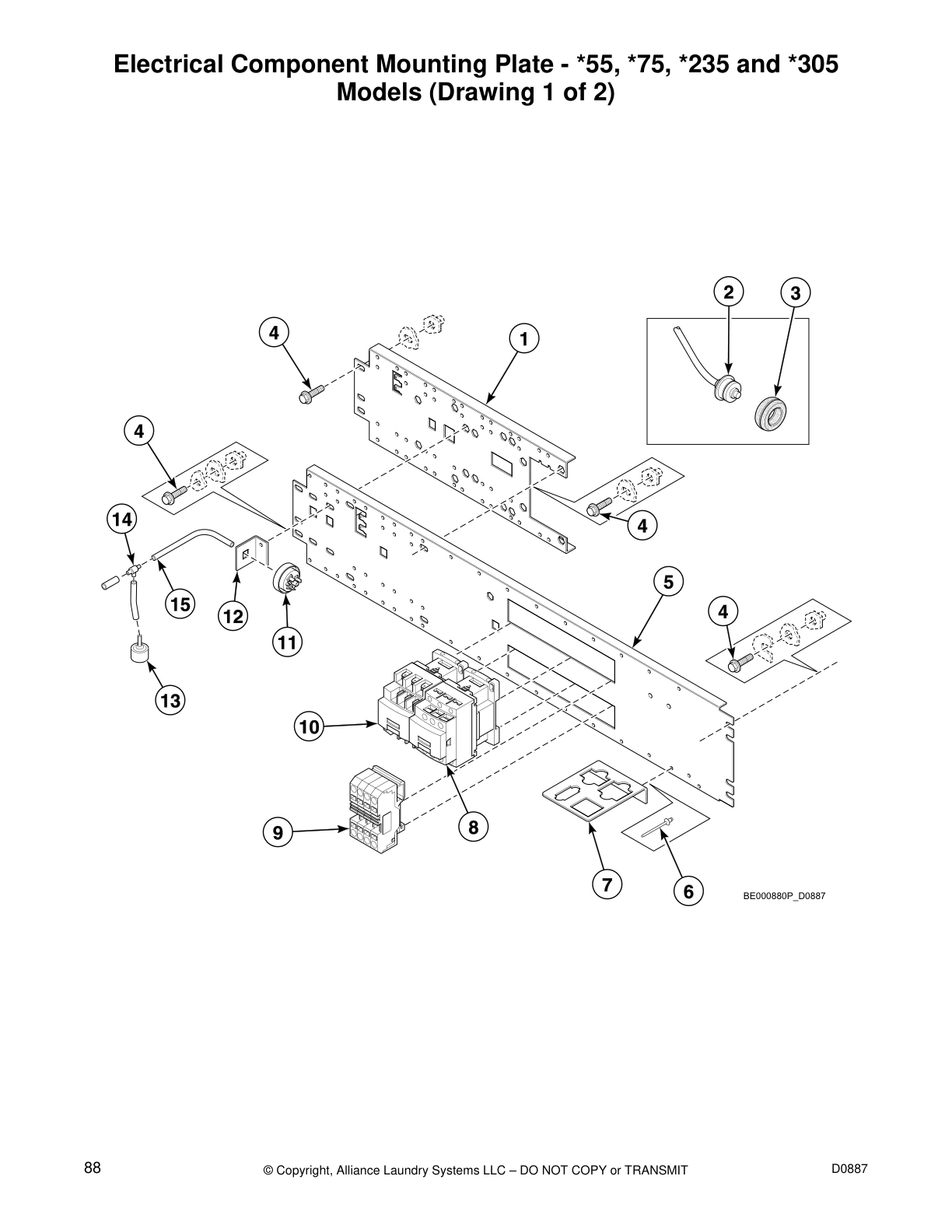

Models (Drawing 1 of 2)

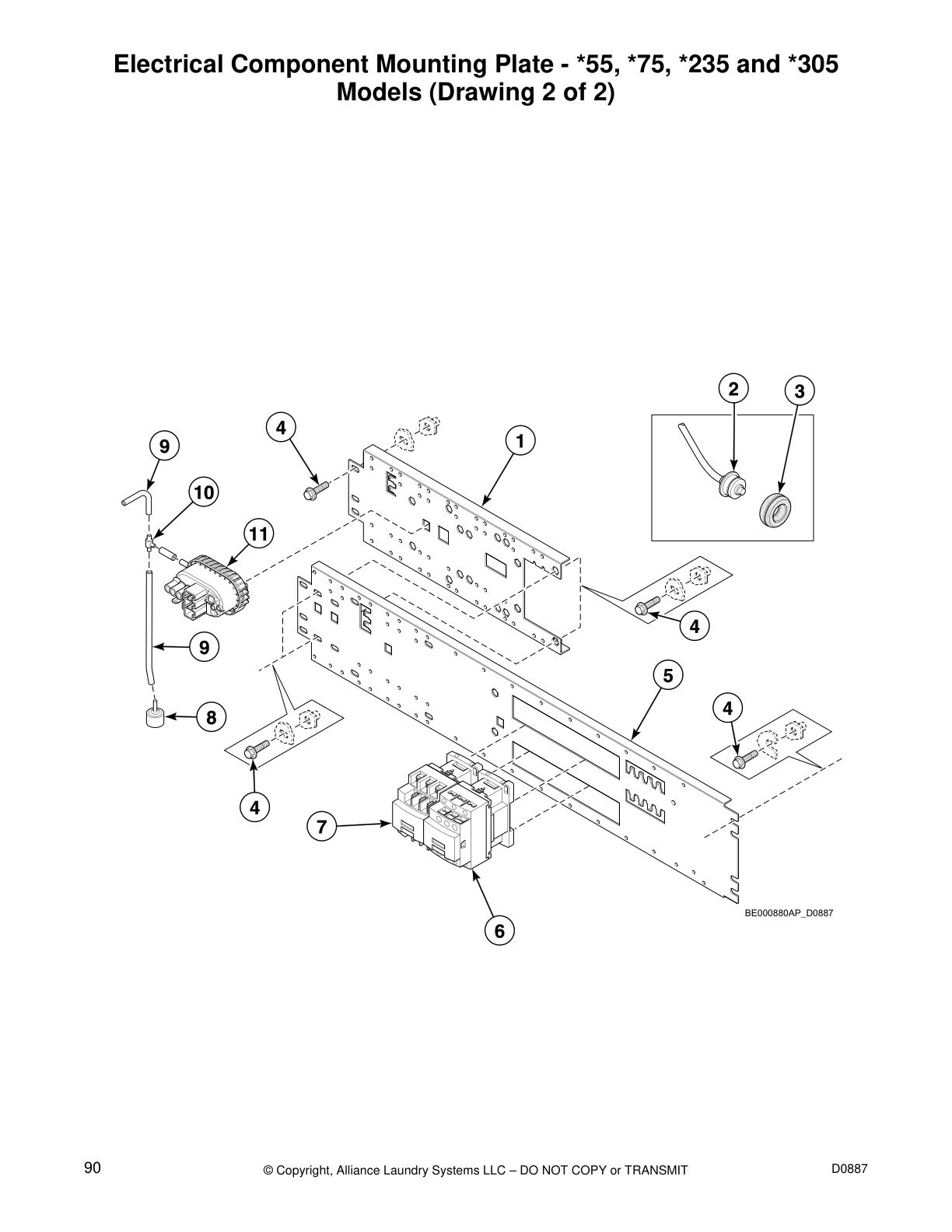

Electrical Component Mounting Plate - *55, *75, *235 and *305
Models (Drawing 2 of 2)

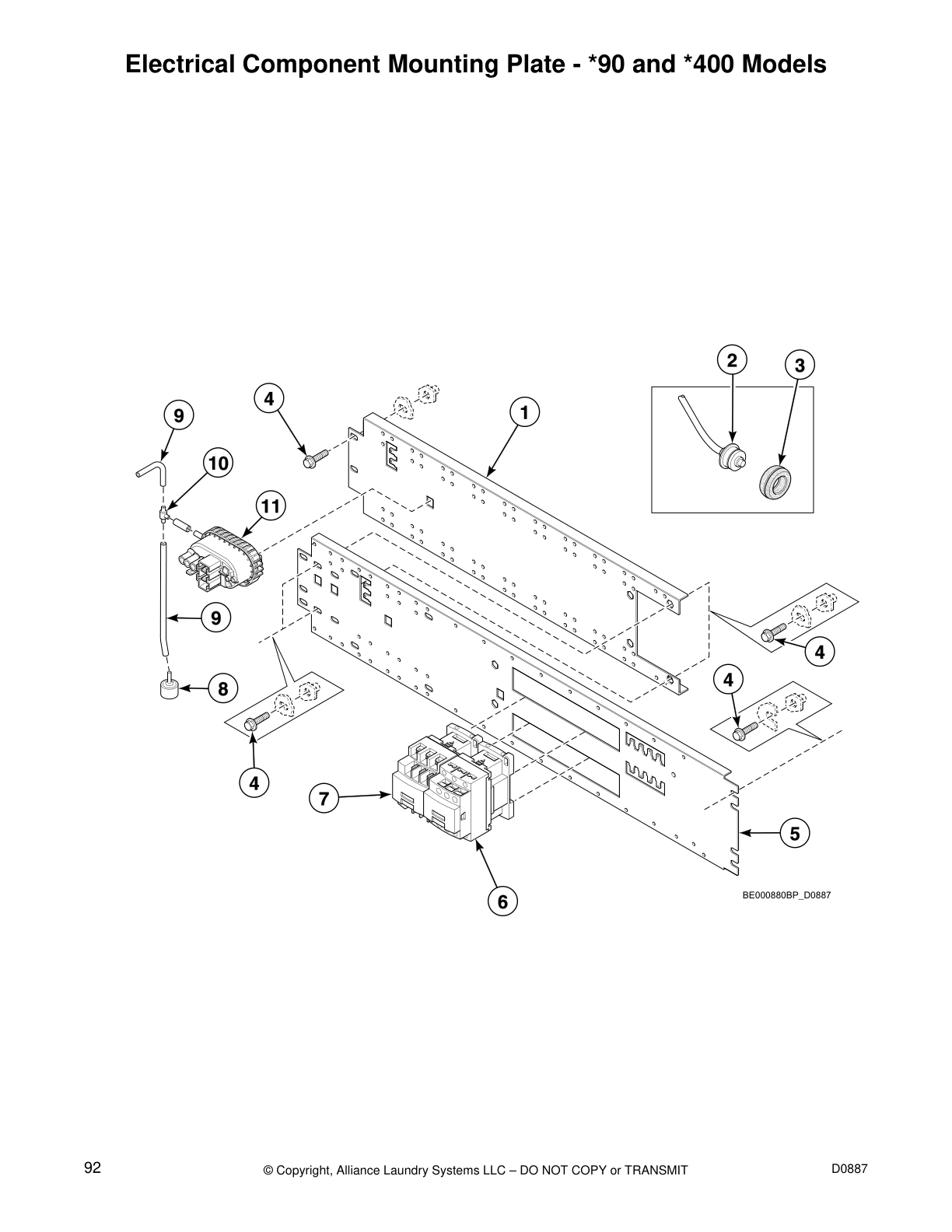

Electrical Component Mounting Plate - *90 and *400 Models

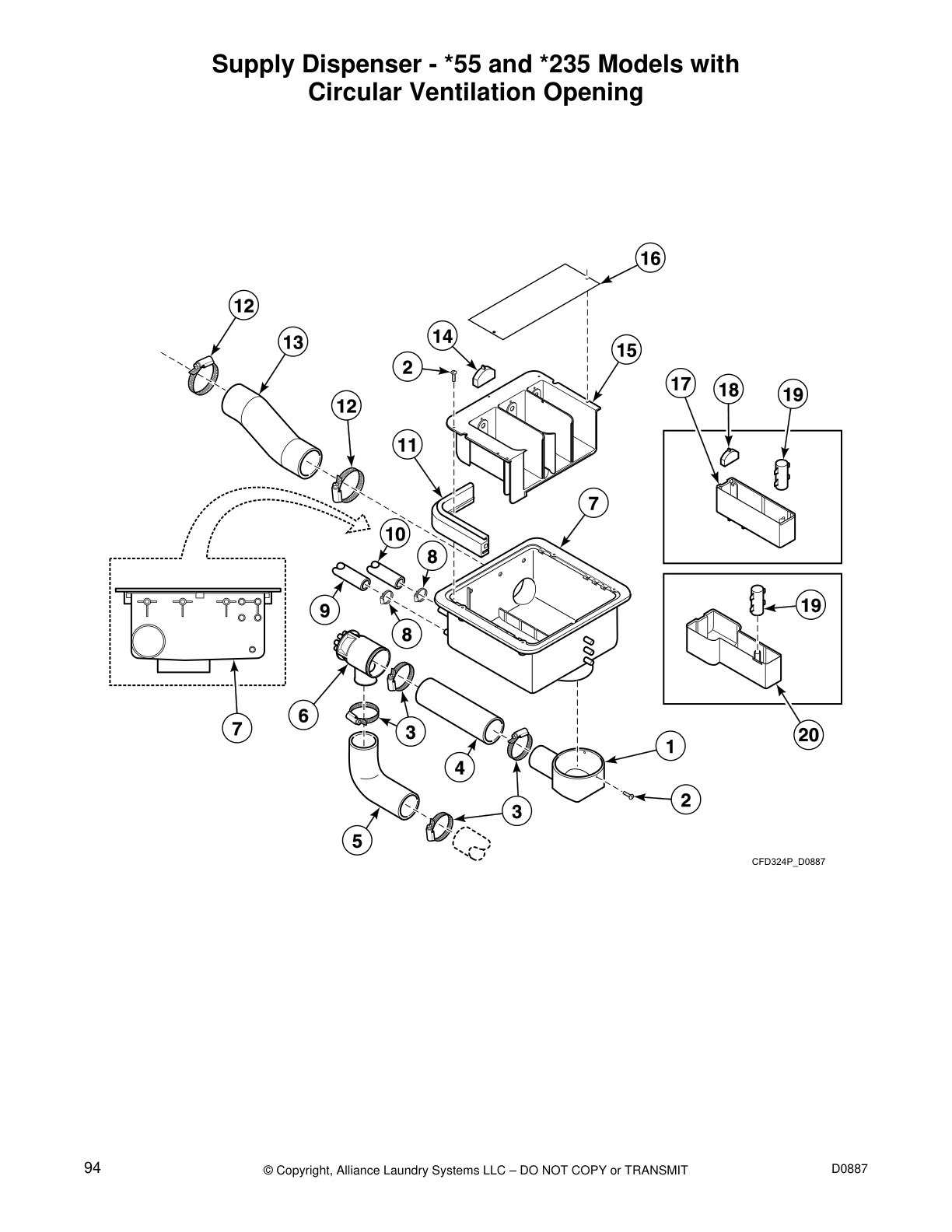

Supply Dispenser - *55 and *235 Models with
Circular Ventilation Opening

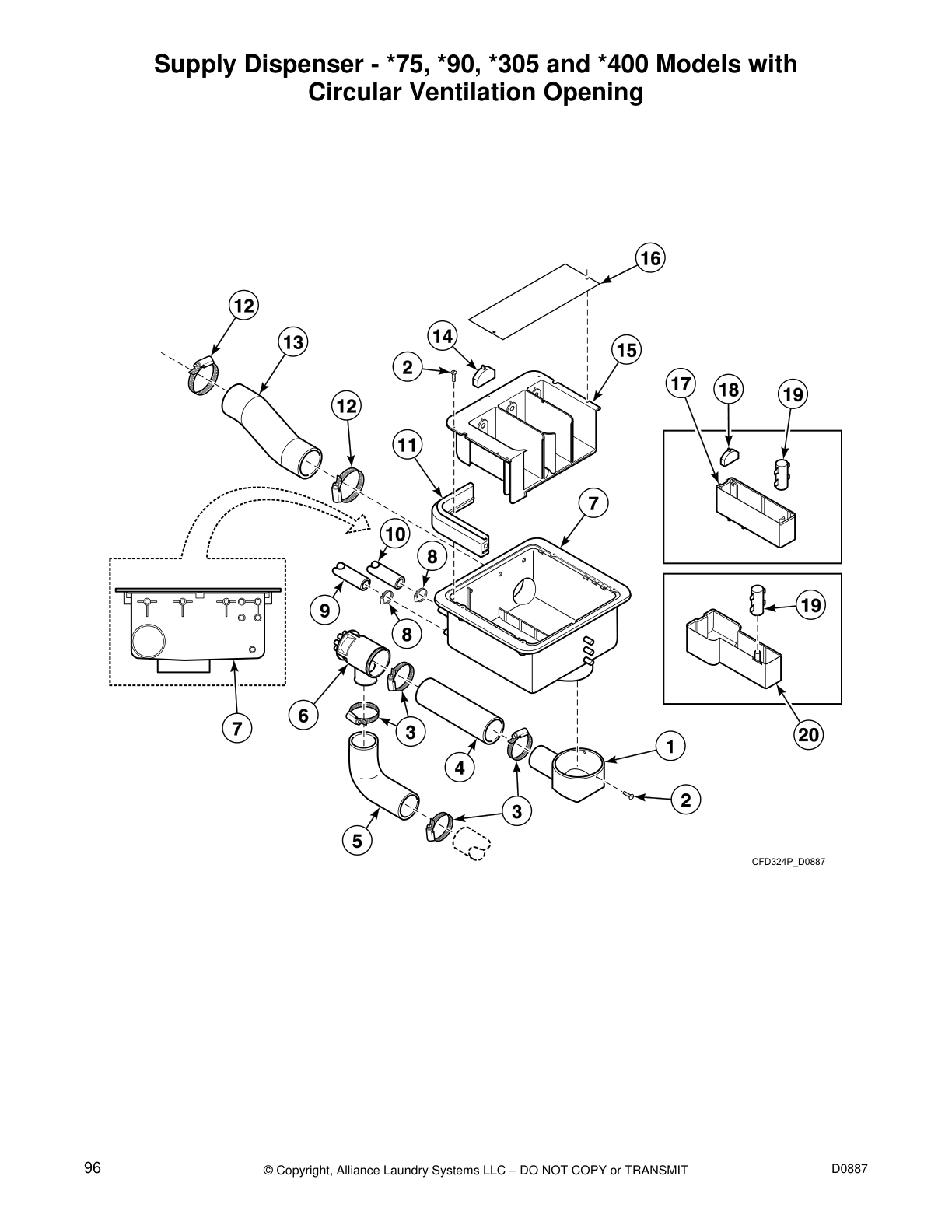

Supply Dispenser - *75, *90, *305 and *400 Models with
Circular Ventilation Opening

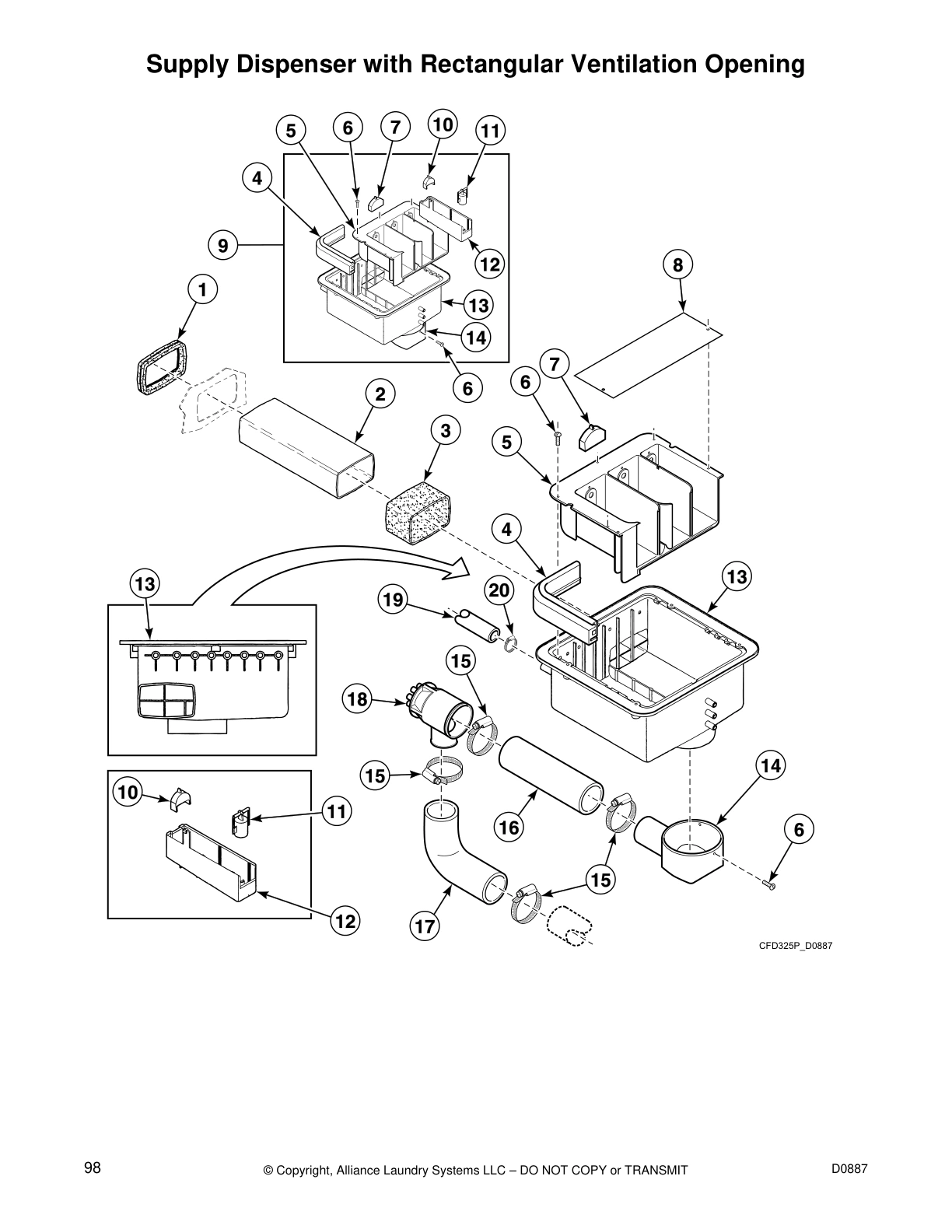

Supply Dispenser with Rectangular Ventilation Opening

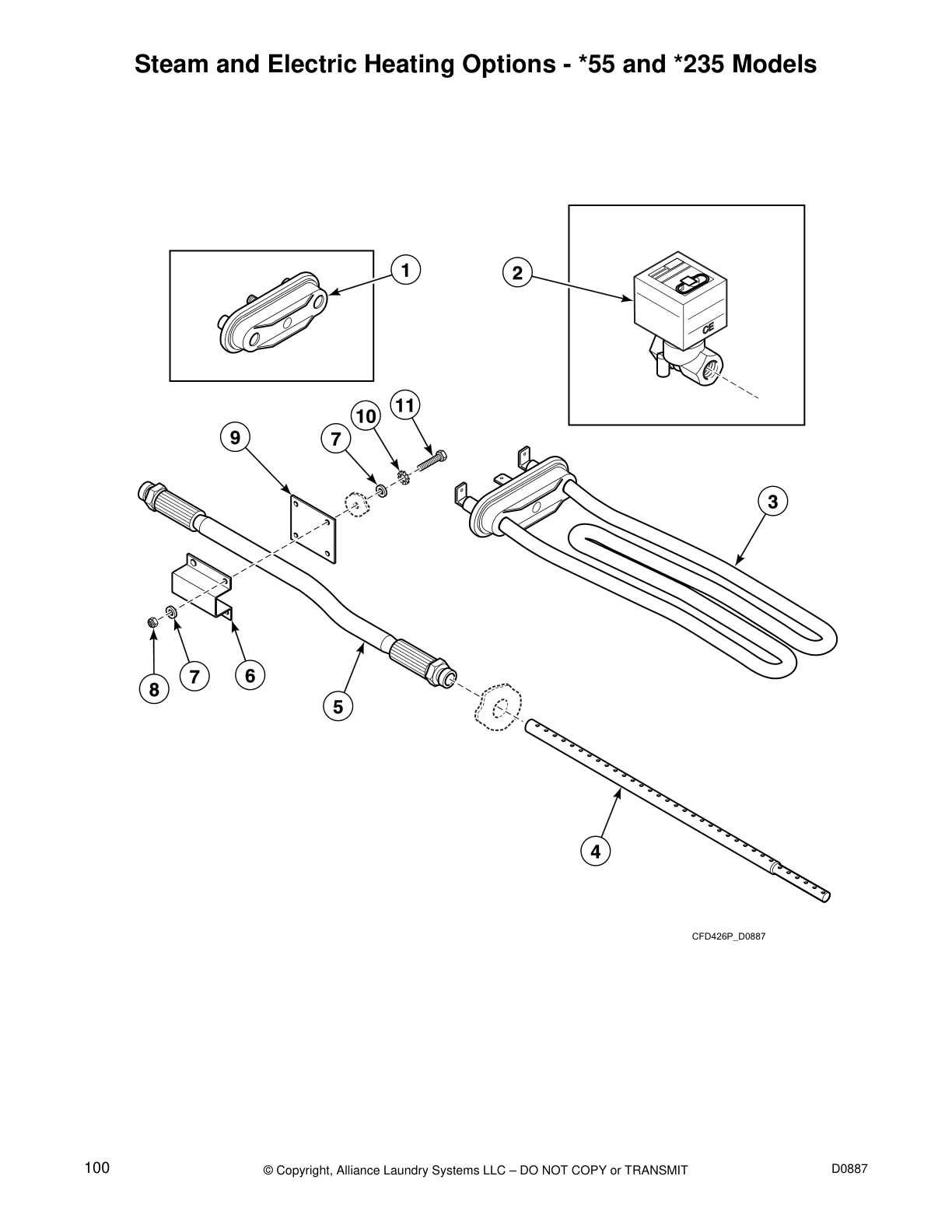

Steam and Electric Heating Options - *55 and *235 Models

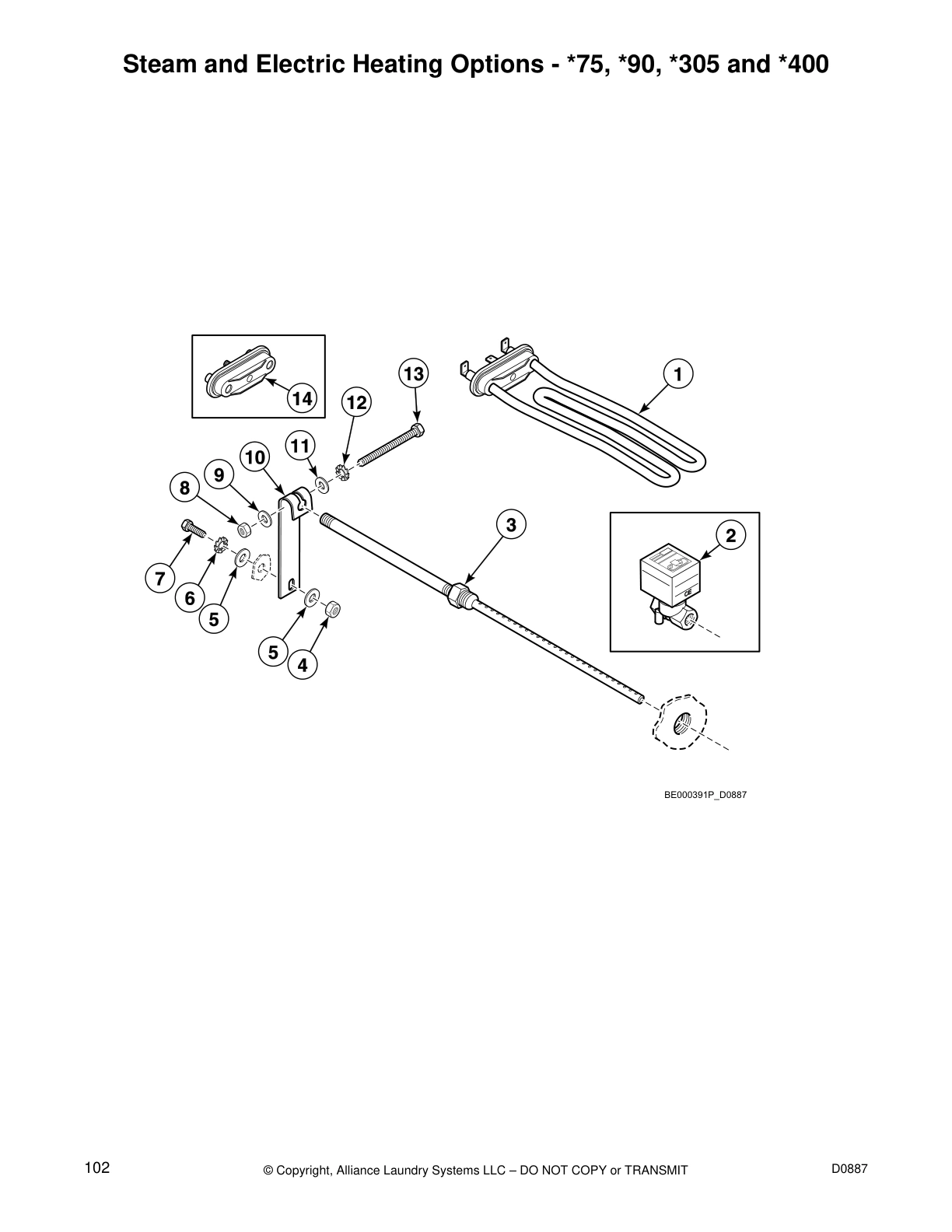

Steam and Electric Heating Options - *75, *90, *305 and *400

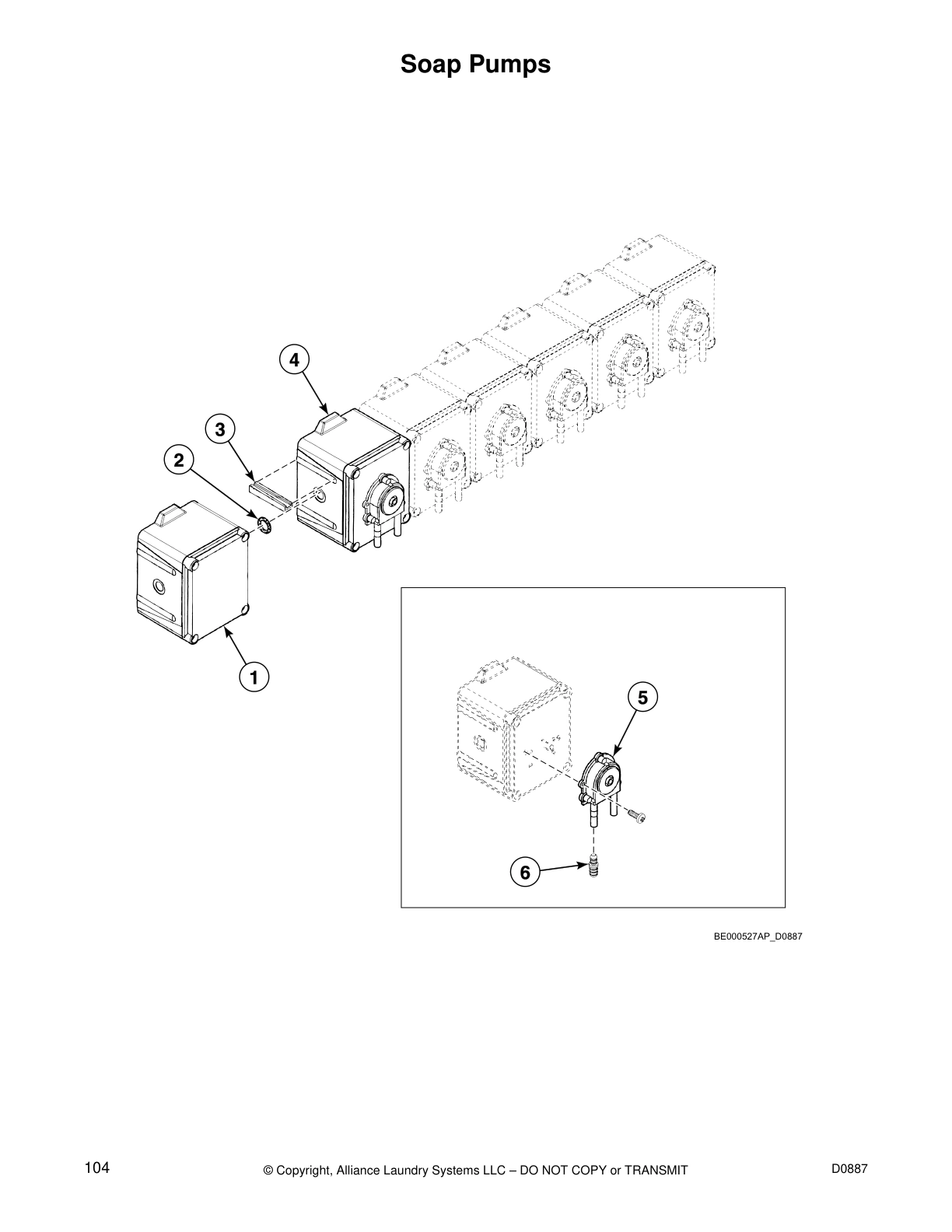

Soap Pumps
Common parts from model IPSO IWF305ML2 Washer
SPQ B12311224 SPQ B12311224 Contact Us For Availability
SPQ B12311221 SPQ B12311221 Contact Us For Availability
SPQ B12311219 SPQ B12311219 Contact Us For Availability
SPQ B12311212 SPQ B12311212 Contact Us For Availability
SPQ B12311210 SPQ B12311210 Contact Us For Availability
SPQ B12311205 SPQ B12311205 Contact Us For Availability
SPQ B12311202 SPQ B12311202 Contact Us For Availability
SPQ B12311247 SPQ B12311247 Contact Us For Availability
SPQ B12311301 SPQ B12311301 Contact Us For Availability
SPQ B12311302 SPQ B12311302 Contact Us For Availability
SPQ B12388102 SPQ B12388102 Contact Us For Availability
SPQ 227/00242/00 SPQ 227/00242/00 Contact Us For Availability
SPQ 209/00554/01 SPQ 209/00554/01 Contact Us For Availability
SPQ 209/00554/98 SPQ 209/00554/98 Contact Us For Availability
1
Tub Fastening Ring SPQ 212/00117/00 Contact Us For Availability
1
Shaft Seal SPQ 231/00037/00 Contact Us For Availability
1
Belt SPQ 226/00134/00 Contact Us For Availability
1
Tub to Drain Valve Hose SPQ 223/00327/00 Contact Us For Availability
1
Door Glass SPQ B12449801 Contact Us For Availability
1
Circuit Board Cover SPQ 229/00289/00 Contact Us For Availability
1
Key SPQ 254/00077/02 Contact Us For Availability
1
Bolt SPQ 205/00106/00 Contact Us For Availability
1
Backbridge SPQ 111/00304/00 Contact Us For Availability
1
Screw SPQ 207/00112/00 Contact Us For Availability
1
Vent Tube SPQ 223/00226/00 Contact Us For Availability
1
Bolt SPQ 206/00027/00 Contact Us For Availability
1
Printboard Support SPQ 111/01838/10 Contact Us For Availability
1
Electrical Component Mounting Plate SPQ 111/10003/40 Contact Us For Availability
1
Heating Element SPQ 209/00563/20 Contact Us For Availability
1
Feeding Liquid Soap Dosing Pump SPQ 209/00554/51 Contact Us For Availability
2
Seal Cover Plate SPQ 212/00103/01 Contact Us For Availability
2
Shaft Seal SPQ 132/00009/00 Contact Us For Availability
2
SPQ B12331601 SPQ B12331601 Contact Us For Availability
2
Steam Injector SPQ 202/00002/00 Contact Us For Availability
2
Washer SPQ 206/00005/00 Contact Us For Availability
2
Printboard SPQ 209/00440/80 Contact Us For Availability
2
Washer SPQ 203/00006/00 Contact Us For Availability
2
SPQ 202/00003/00 SPQ 202/00003/00 Contact Us For Availability
2
SPQ 111/00117/00 SPQ 111/00117/00 Contact Us For Availability
2
Side Panel SPQ 208/00104/00 Contact Us For Availability
2
Fuse Holder SPQ 211/00146/00 Contact Us For Availability
2
Shrink Fit SPQ 223/00229/00 Contact Us For Availability
2
Soap Pump Assembly SPQ 209/00554/06 Contact Us For Availability
3
SPQ 201/00005/00 SPQ 201/00005/00 Contact Us For Availability
3
Nut SPQ 203/00003/00 Contact Us For Availability
3
Grease Ring SPQ 212/00002/00 Contact Us For Availability
3
Roller Bearing SPQ 212/00005/00 Contact Us For Availability
3
SPQ 201/00004/00 SPQ 201/00004/00 Contact Us For Availability
3
SPQ 117/00042/00 SPQ 117/00042/00 Contact Us For Availability
3
Bolt SPQ 118/00125/00 Contact Us For Availability
3
Bolt SPQ 111/60038/50 Contact Us For Availability
3
Noise Filter SPQ F8420323 Contact Us For Availability
3
Ground Terminal SPQ 209/00006/01 Contact Us For Availability
3
Fuse SPQ 209/00202/01 Contact Us For Availability
3
Thermostat Grommet SPQ 225/10004/00 Contact Us For Availability
3
Outer and Inner Box Kit SPQ 223/00245/00 Contact Us For Availability
4
Bolt SPQ 206/00099/00 Contact Us For Availability
4
Retainer Ring SPQ 201/00202/00 Contact Us For Availability
4
SPQ 206/00052/00 SPQ 206/00052/00 Contact Us For Availability
4
SPQ 206/00110/00 SPQ 206/00110/00 Contact Us For Availability
4
Door Hinge Plate Assembly SPQ 217/00021/00 Contact Us For Availability
4
SPQ 223/00016/00 SPQ 223/00016/00 Contact Us For Availability
4
SPQ 217/00052/04 SPQ 217/00052/04 Contact Us For Availability
4
Optical Switch SPQ B12359901 Contact Us For Availability
4
Input Block SPQ 209/00683/00 Contact Us For Availability
4
Inverter Drive Box SPQ F8420223 Contact Us For Availability
4
Parameter Unit Program Cable SPQ 111/01149/00 Contact Us For Availability
4
Main Switch Cover SPQ 111/01834/00 Contact Us For Availability
4
SPQ 209/00468/00 SPQ 209/00468/00 Contact Us For Availability
4
Screw SPQ 223/00109/00 Contact Us For Availability
4
Steam Heat Kit SPQ 206/00035/00 Contact Us For Availability
5
Chassis SPQ 206/00079/00 Contact Us For Availability
5
Roller Bearing SPQ 131/00035/00 Contact Us For Availability
5
Bolt SPQ 207/00004/00 Contact Us For Availability
5
SPQ 201/00010/00 SPQ 201/00010/00 Contact Us For Availability
5
SPQ 223/00210/00 SPQ 223/00210/00 Contact Us For Availability
5
SPQ 224/00040/00 SPQ 224/00040/00 Contact Us For Availability
5
Door Hinge Block SPQ 202/00101/00 Contact Us For Availability
5
Coin Drop SPQ 209/00781/00 Contact Us For Availability
5
SPQ 204/00006/00 SPQ 204/00006/00 Contact Us For Availability
5
Front Panel SPQ 204/00107/00 Contact Us For Availability
5
Rivet SPQ 202/00004/00 Contact Us For Availability
5
Parameter Unit Assembly SPQ 227/00171/10 Contact Us For Availability
5
Electrical Component Bridge SPQ 111/10005/00 Contact Us For Availability
5
Soap Spray Nozzle SPQ 223/00222/60 Contact Us For Availability
5
SPQ 209/00476/00 SPQ 209/00476/00 Contact Us For Availability
5
Liquid Soap Dosing Pump O-Ring SPQ 209/00554/05 Contact Us For Availability
6
Screw SPQ 212/00112/50 Contact Us For Availability
6
SPQ 205/00104/00 SPQ 205/00104/00 Contact Us For Availability
6
Bearing Housing Plate SPQ 231/00036/00 Contact Us For Availability
6
SPQ 206/00119/00 SPQ 206/00119/00 Contact Us For Availability
6
Pushbutton SPQ 204/00008/00 Contact Us For Availability
6
Upper Front Panel SPQ 111/01823/00 Contact Us For Availability
6
Switch SPQ B12323401 Contact Us For Availability
6
SPQ 208/00009/00 SPQ 208/00009/00 Contact Us For Availability
6
SPQ 111/10089/01 SPQ 111/10089/01 Contact Us For Availability
6
Grommet SPQ F8410901 Contact Us For Availability
6
Central Control Board SPQ 209/00438/50 Contact Us For Availability
6
Soap Box Assembly Plate SPQ B12350903 Contact Us For Availability
6
SPQ 119/00089/00 SPQ 119/00089/00 Contact Us For Availability
6
Hose SPQ 209/00554/03 Contact Us For Availability
7
Bearing Replacement Kit SPQ 212/00007/00 Contact Us For Availability
7
Washer SPQ 206/00004/00 Contact Us For Availability
7
SPQ 206/00032/00 SPQ 206/00032/00 Contact Us For Availability
7
SPQ 209/00643/01 SPQ 209/00643/01 Contact Us For Availability
7
Plexi Frame SPQ 225/00316/00 Contact Us For Availability
7
Electronic Coin Meter Housing SPQ 209/00396/00 Contact Us For Availability
7
Pushbutton SPQ B12311252 Contact Us For Availability
7
SPQ 203/00005/00 SPQ 203/00005/00 Contact Us For Availability
7
SPQ 207/00101/00 SPQ 207/00101/00 Contact Us For Availability
7
Bolt SPQ 223/00174/00 Contact Us For Availability
7
Terminal Block SPQ 209/00529/00 Contact Us For Availability
7
Support Connector SPQ 111/10004/00 Contact Us For Availability
7
Dispenser Assembly SPQ 223/00102/40 Contact Us For Availability
7
Soap Dispenser SPQ 223/00102/06 Contact Us For Availability
7
SPQ 204/00005/00 SPQ 204/00005/00 Contact Us For Availability
8
SPQ 212/00006/00 SPQ 212/00006/00 Contact Us For Availability
8
SPQ 201/00007/00 SPQ 201/00007/00 Contact Us For Availability
8
SPQ 231/00010/00 SPQ 231/00010/00 Contact Us For Availability
8
SPQ 271/35945/00 SPQ 271/35945/00 Contact Us For Availability
8
SPQ 209/00644/00 SPQ 209/00644/00 Contact Us For Availability
8
SPQ 210/10015/00 SPQ 210/10015/00 Contact Us For Availability
8
SPQ 118/00121/00 SPQ 118/00121/00 Contact Us For Availability
8
Operating Sticker SPQ 225/00410/00 Contact Us For Availability
8
Mechanical Coin Meter Housing SPQ B12311241 Contact Us For Availability
8
Screw SPQ 152/00112/50 Contact Us For Availability
8
SPQ 111/00333/00 SPQ 111/00333/00 Contact Us For Availability
8
SPQ 206/00016/00 SPQ 206/00016/00 Contact Us For Availability
8
Noise Filter SPQ 209/00526/00 Contact Us For Availability
8
Pressure Switch Cap SPQ 223/00035/02 Contact Us For Availability
8
SPQ 223/00102/60 SPQ 223/00102/60 Contact Us For Availability
8
SPQ 123/00103/06 SPQ 123/00103/06 Contact Us For Availability
9
SPQ 206/00007/00 SPQ 206/00007/00 Contact Us For Availability
9
SPQ 203/00004/00 SPQ 203/00004/00 Contact Us For Availability
9
SPQ 201/00011/00 SPQ 201/00011/00 Contact Us For Availability
9
SPQ 204/00111/00 SPQ 204/00111/00 Contact Us For Availability
9
SPQ 204/00110/00 SPQ 204/00110/00 Contact Us For Availability
9
SPQ 203/00007/00 SPQ 203/00007/00 Contact Us For Availability
9
SPQ 253/00022/00 SPQ 253/00022/00 Contact Us For Availability
9
SPQ 111/60038/00 SPQ 111/60038/00 Contact Us For Availability
9
SPQ 111/00332/00 SPQ 111/00332/00 Contact Us For Availability
9
SPQ 211/00171/00 SPQ 211/00171/00 Contact Us For Availability
9
Filter SPQ 209/00530/00 Contact Us For Availability
9
SPQ 223/00240/00 SPQ 223/00240/00 Contact Us For Availability
10
U-Piece Assembly SPQ 113/00068/00 Contact Us For Availability
10
Screw SPQ 206/00056/00 Contact Us For Availability
10
Tub Front Panel Clip SPQ 217/00008/00 Contact Us For Availability
10
Nut SPQ 204/00115/00 Contact Us For Availability
10
Nut SPQ 204/00106/00 Contact Us For Availability
10
Door Hinge Spacer SPQ 118/00124/00 Contact Us For Availability
10
Washer SPQ 205/00105/00 Contact Us For Availability
10
Water Hose SPQ 223/00059/00 Contact Us For Availability
10
Filter Bracket SPQ 111/01837/01 Contact Us For Availability
10
Connection Clamp SPQ 209/00622/01 Contact Us For Availability
10
Softener Spray Nozzle SPQ 223/00222/03 Contact Us For Availability
10
Steam Injector Bracket SPQ 209/00562/20 Contact Us For Availability
11
Bolt SPQ 206/00093/00 Contact Us For Availability
11
Drum Pulley SPQ 226/00142/00 Contact Us For Availability
11
Front Panel SPQ 131/00002/00 Contact Us For Availability
11
Screw SPQ 207/00126/00 Contact Us For Availability
11
Coin Box SPQ 254/00077/00 Contact Us For Availability
11
Voltage Discharge Decal SPQ B12355001 Contact Us For Availability
11
Pressure Switch SPQ 209/00027/10 Contact Us For Availability
11
Siphon Break SPQ 223/00222/04 Contact Us For Availability
11
Washer SPQ 209/00581/10 Contact Us For Availability
12
Washer SPQ 201/00001/00 Contact Us For Availability
12
Tub Front Gasket SPQ 223/00242/00 Contact Us For Availability
12
Bolt SPQ 206/00054/00 Contact Us For Availability
12
Bolt SPQ 205/00103/00 Contact Us For Availability
12
Washer SPQ 202/00104/00 Contact Us For Availability
12
Nut SPQ 101/00007/00 Contact Us For Availability
12
Back Panel SPQ 111/00335/00 Contact Us For Availability
12
Filter SPQ 209/00287/21 Contact Us For Availability
12
Overload Contactor SPQ 209/00619/01 Contact Us For Availability
12
Hose Clamp SPQ 223/00014/00 Contact Us For Availability
12
Rinsing Box SPQ 223/00222/05 Contact Us For Availability
12
Bolt SPQ 209/00564/20 Contact Us For Availability
13
Nut SPQ 204/00010/00 Contact Us For Availability
13
Key SPQ 212/00026/00 Contact Us For Availability
13
Drum SPQ B12327301 Contact Us For Availability
13
Screw SPQ 204/00009/00 Contact Us For Availability
13
Drain Valve to Drain Tube Hose SPQ 223/00328/00 Contact Us For Availability
13
Nut SPQ 204/00116/00 Contact Us For Availability
13
Insulating Sticker SPQ 229/00255/00 Contact Us For Availability
13
Fuse SPQ 209/00439/00 Contact Us For Availability
13
Fastening Piece SPQ 217/00060/00 Contact Us For Availability
13
Electrical Component Plate SPQ 209/01625/00 Contact Us For Availability
13
Vent Hose SPQ 223/00388/00 Contact Us For Availability
13
Steam Valve SPQ 113/00028/00 Contact Us For Availability
14
Bolt SPQ 206/00029/00 Contact Us For Availability
14
Nut SPQ 204/00201/00 Contact Us For Availability
14
Screw SPQ 207/00009/00 Contact Us For Availability
14
Pressure Switch Cap SPQ 111/10004/10 Contact Us For Availability
14
Dispenser Drain Funnel SPQ 223/00196/00 Contact Us For Availability
15
Washer SPQ 203/00001/00 Contact Us For Availability
15
Bearing Cover SPQ 112/00003/00 Contact Us For Availability
15
Intermediate Fan Motor Plate SPQ 111/00243/00 Contact Us For Availability
15
Hose Clamp SPQ 223/00071/00 Contact Us For Availability
15
Prewash and Mainwash Nozzle SPQ 201/00002/00 Contact Us For Availability
15
Door Lock Bracket SPQ 201/00018/00 Contact Us For Availability
15
Inverter Box Cover SPQ 111/01158/11 Contact Us For Availability
15
Soap Dispenser Assembly SPQ 223/00102/30 Contact Us For Availability
16
Nut SPQ 204/00002/00 Contact Us For Availability
16
Ball Bearing SPQ 206/00010/00 Contact Us For Availability
16
Overflow Hose SPQ 206/00033/00 Contact Us For Availability
16
Lock Shaft SPQ 217/00052/11 Contact Us For Availability
16
Standoff SPQ 211/00122/00 Contact Us For Availability
16
Nut SPQ 204/00114/00 Contact Us For Availability
16
Soap Dispenser Frame SPQ 223/00103/03 Contact Us For Availability
16
Siphon Break Dispenser Hose SPQ 223/00264/00 Contact Us For Availability
17
Tub SPQ 201/00009/00 Contact Us For Availability
17
Pressure Switch Hose Tee SPQ 223/00106/00 Contact Us For Availability
17
Hose Vent SPQ 223/00001/04 Contact Us For Availability
17
Door Solenoid Assembly SPQ 205/00115/00 Contact Us For Availability
17
Pressure Hose SPQ 223/00179/10 Contact Us For Availability
17
Rinse Insert SPQ 223/00102/03 Contact Us For Availability
18
Tub Front Ring Clamp SPQ 204/00003/00 Contact Us For Availability
18
Pulley SPQ 226/00146/00 Contact Us For Availability
18
Prewash and Mainwash Nozzle SPQ 223/00013/00 Contact Us For Availability
18
Side Panel SPQ 208/00025/00 Contact Us For Availability
18
Screw SPQ F200166 Contact Us For Availability
18
Softener Spray Nozzle SPQ 223/00102/05 Contact Us For Availability
19
Lubricator SPQ 212/00103/00 Contact Us For Availability
19
Tub Strap SPQ 203/00002/00 Contact Us For Availability
19
Water Hose SPQ 223/00131/00 Contact Us For Availability
19
Water Hose SPQ 223/00044/00 Contact Us For Availability
19
Backbridge SPQ F200164 Contact Us For Availability
19
Screw SPQ 208/00130/00 Contact Us For Availability
19
Soap Dispenser Rinse Siphon SPQ 223/00102/04 Contact Us For Availability
20
SPQ B12331501 SPQ B12331501 Contact Us For Availability
20
Diaphragm SPQ 223/00011/00 Contact Us For Availability
20
Soap Dispenser Gasket SPQ 223/00010/00 Contact Us For Availability
20
Interlock Coil Spring SPQ 217/00017/03 Contact Us For Availability
20
SPQ 206/00166/00 SPQ 206/00166/00 Contact Us For Availability
20
Liquid Soap Dispenser Insert SPQ 223/00102/08 Contact Us For Availability
21
SPQ B12331401 SPQ B12331401 Contact Us For Availability
21
Interlock Lever SPQ B12495102 Contact Us For Availability
22
Lever Spring SPQ 224/00049/00 Contact Us For Availability
22
Noise Filter SPQ 204/00007/00 Contact Us For Availability
22
SPQ 111/00156/00 SPQ 111/00156/00 Contact Us For Availability
22
SPQ 223/00102/07 SPQ 223/00102/07 Contact Us For Availability
22
Inverter Kit SPQ F8420324 Contact Us For Availability
23
SPQ 206/00101/00 SPQ 206/00101/00 Contact Us For Availability
23
SPQ 208/00014/00 SPQ 208/00014/00 Contact Us For Availability
24
SPQ 201/00006/00 SPQ 201/00006/00 Contact Us For Availability
24
Ground Terminal SPQ 224/00043/00 Contact Us For Availability
25
SPQ 209/00644/11 SPQ 209/00644/11 Contact Us For Availability
25
SPQ 208/00002/00 SPQ 208/00002/00 Contact Us For Availability
26
SPQ 202/00124/00 SPQ 202/00124/00 Contact Us For Availability
NI
SPQ 204/00004/00 SPQ 204/00004/00 Contact Us For Availability
NI
SPQ 381P3 SPQ 381P3 Contact Us For Availability
NI
SPQ 113/00018/02 SPQ 113/00018/02 Contact Us For Availability
NI
SPQ 113/00018/01 SPQ 113/00018/01 Contact Us For Availability
NI
SPQ 892P3 SPQ 892P3 Contact Us For Availability
NI
SPQ 206/00066/00 SPQ 206/00066/00 Contact Us For Availability
NI
SPQ 131/00010/00 SPQ 131/00010/00 Contact Us For Availability
NI
Dual Drop Optical Sensor Kit SPQ B12311239 Contact Us For Availability
NI
Single Drop Optical Sensor Kit SPQ B12311234 Contact Us For Availability
NI
SPQ B12311222 SPQ B12311222 Contact Us For Availability
NI
SPQ B12311220 SPQ B12311220 Contact Us For Availability
NI
SPQ B12311214 SPQ B12311214 Contact Us For Availability
NI
SPQ B12311211 SPQ B12311211 Contact Us For Availability
NI
SPQ B12311206 SPQ B12311206 Contact Us For Availability
NI
SPQ B12311204 SPQ B12311204 Contact Us For Availability
NI
SPQ B12311201 SPQ B12311201 Contact Us For Availability
NI
SPQ B12311216 SPQ B12311216 Contact Us For Availability
NI
SPQ B12311304 SPQ B12311304 Contact Us For Availability
NI
SPQ 209/00600/01P SPQ 209/00600/01P Contact Us For Availability
NI
SPQ 152/00112/00 SPQ 152/00112/00 Contact Us For Availability
NI
SPQ B12388101 SPQ B12388101 Contact Us For Availability
NI
SPQ 208/00017/00 SPQ 208/00017/00 Contact Us For Availability
NI
SPQ 209/00527/00 SPQ 209/00527/00 Contact Us For Availability
NI
SPQ 227/00180/00 SPQ 227/00180/00 Contact Us For Availability
NI
SPQ 227/00179/00 SPQ 227/00179/00 Contact Us For Availability
NI
SPQ 111/10003/10 SPQ 111/10003/10 Contact Us For Availability
NI
SPQ 206/00013/00 SPQ 206/00013/00 Contact Us For Availability
NI
SPQ 923P3 SPQ 923P3 Contact Us For Availability
NI
Hose Connector SPQ 209/00554/02 Contact Us For Availability
NI
SPQ 209/00554/52 SPQ 209/00554/52 Contact Us For Availability
NI
SPQ 209/00554/99 SPQ 209/00554/99 Contact Us For Availability
× ![]()
