Model IPSO IWF165ZN2 Washer – Common Parts & Diagrams

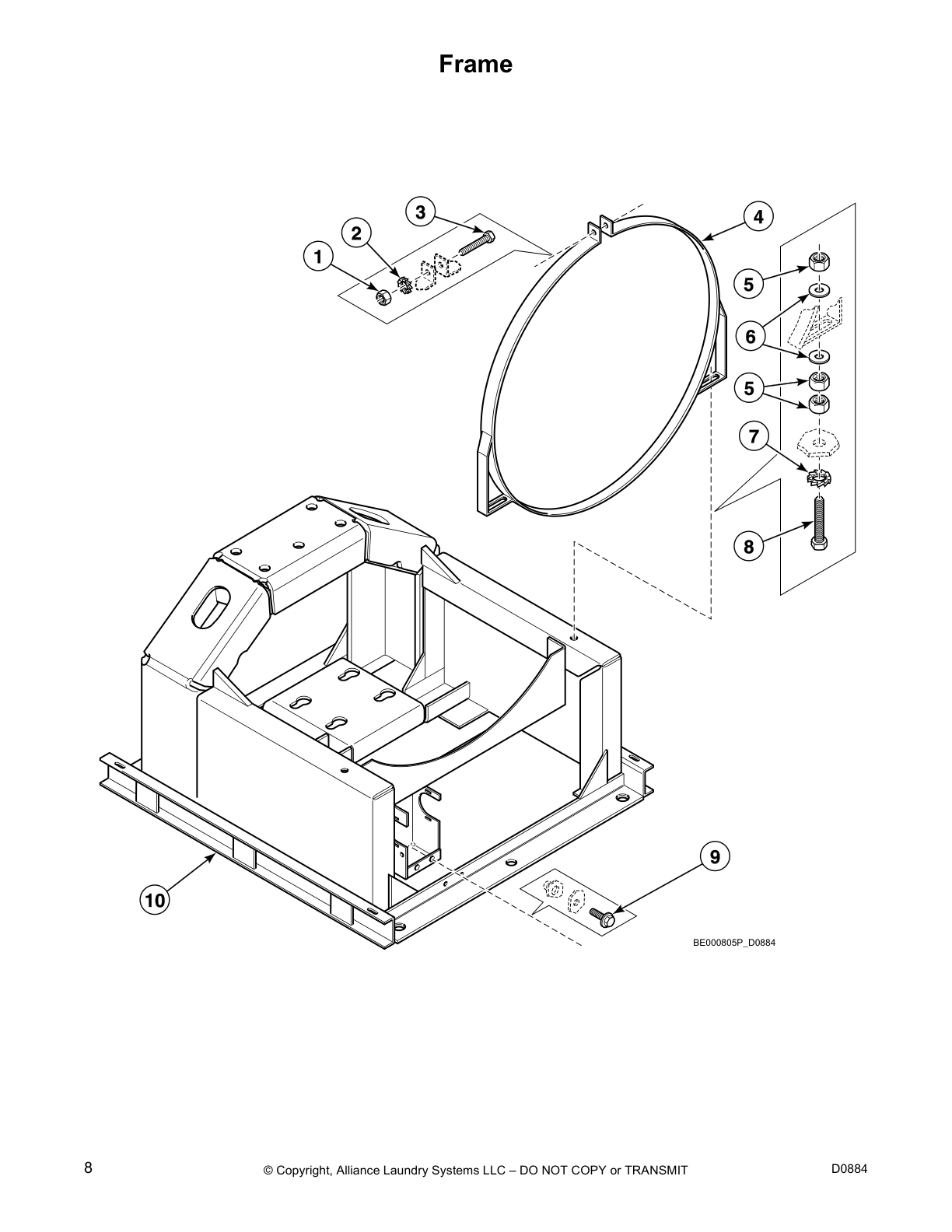

Frame

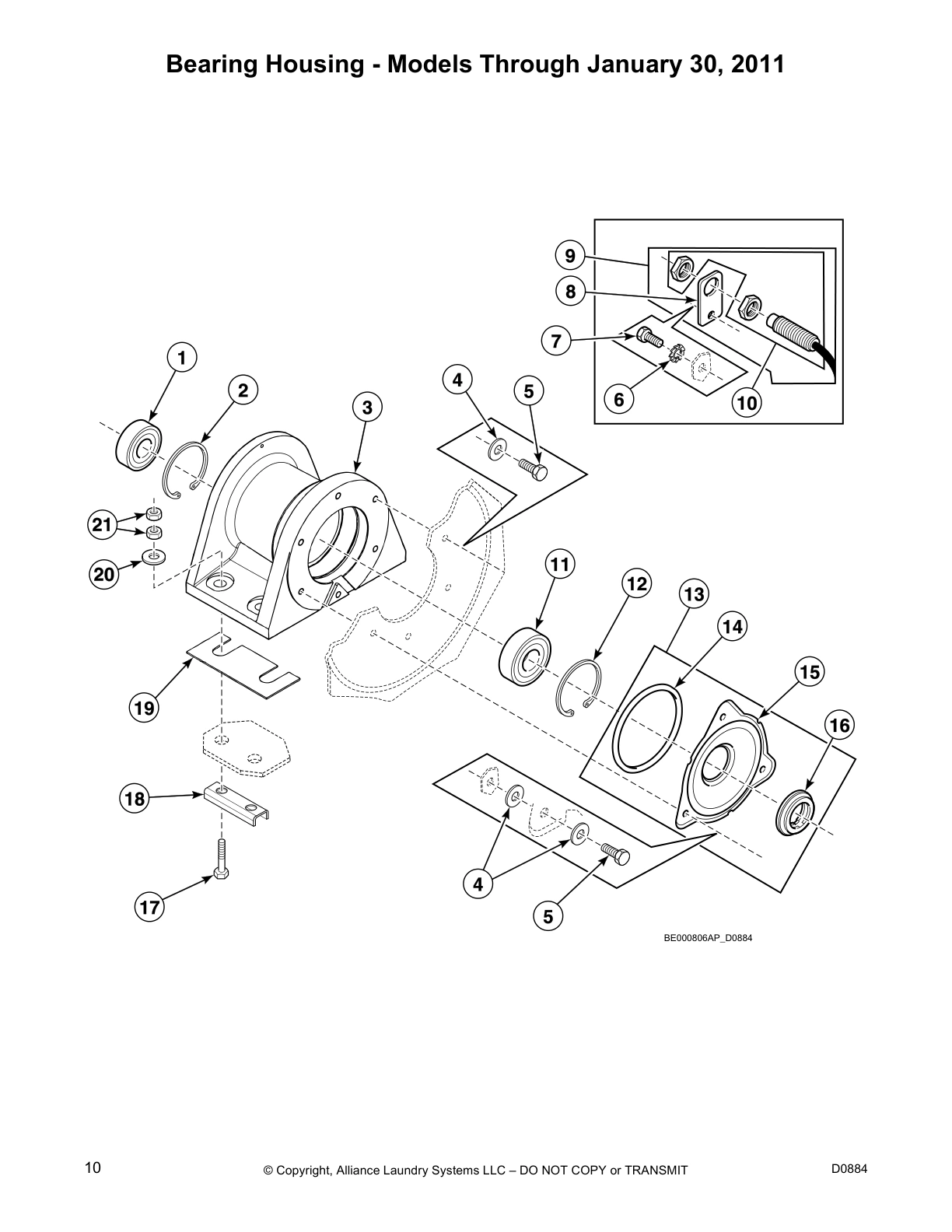

Bearing Housing - Models Through January 30, 2011
Bearing Housing - Models Starting January 31, 2011
Pulley and Belt - Models Through April 22, 2007
Pulley and Belt - Models Starting April 23, 2007
Shell and Basket
Motor and Belt - Medium Speed Models Through April 1, 2007
Motor and Belt - Medium Speed Models Starting April 2, 2007
and All 2 Speed Models
Drain Plumbing - Models with 2 Inch Drain Valve
Through August 11, 2010
Drain Plumbing - Models with 2 Inch Drain Valve
Starting August 12, 2010
Drain Plumbing - *030 and *135 Models with 3 Inch Drain Valve
Drain Plumbing - *035 and *165 Models with 3 Inch Drain Valve
Door Lock
Door
Control Panel - Cygnus Professional
Control Panel - Cygnus Premium OPL
Control Panel - Cygnus Premium OPL
with Frontal Supply Dispenser
Control Panel - Cygnus Premium Coin
Control Panel - Cygnus Premium Coin
with Frontal Supply Dispenser
Control Panel - Cygnus Standard/Commercial OPL
Control Panel - Cygnus Standard/Commercial OPL
with Frontal Supply Dispenser
Control Panel - Cygnus Standard/Commercial Coin
Control Panel - Cygnus Standard/Commercial Coin
with Frontal Supply Dispenser
Control Panel - Micro-20 OPL
Control Panel - Micro-20 OPL with Frontal Supply Dispenser
Control Panel - Micro-20 Coin
Control Panel - Sigma OPL
Control Panel - Sigma OPL with Frontal Supply Dispenser
Control Panel - Sigma Coin
Control Panel - Sigma Coin with Frontal Supply Dispenser
Control Panel - PS40F
Coin Drop - Mechanical Coin Meter
Coin Drop - Electronic Coin Meter
Left Side, Lower Front and Upper Back Panels
Right Side, Front, Rear and Top Panels
Water Inlet Valves
Inverter Drive (Drawing 1 of 2)
Main Switch and Noise Filter
Central Operating Panel, Network Connection and
Soap Injection Printboards
Relay, Network Connection and Main Printboards - Cygnus Models
Electrical Component Mounting Plate
Supply Dispenser - Models with Frontal Supply Dispenser
Supply Dispenser - Models with Round Ventilation Opening
Supply Dispenser - Models with Rectangular Ventilation Opening
Steam and Electric Heating Options
Soap Pumps
Common parts from model IPSO IWF165ZN2 Washer
SPQ 388P4 SPQ 388P4 Contact Us For Availability
SPQ 227/00242/00 SPQ 227/00242/00 Contact Us For Availability
SPQ 209/00554/01 SPQ 209/00554/01 Contact Us For Availability
SPQ 209/00554/98 SPQ 209/00554/98 Contact Us For Availability
1
Bolt SPQ 206/00099/00 Contact Us For Availability
1
Bearing Spacer SPQ 217/00101/00 Contact Us For Availability
1
Hose Clamp SPQ 223/00014/00 Contact Us For Availability
1
Door Glass SPQ B12449701 Contact Us For Availability
1
Circuit Board Cover SPQ 229/00289/00 Contact Us For Availability
1
Soap Dispenser Cover SPQ 223/00103/50 Contact Us For Availability
1
Vent Tube SPQ 223/00226/00 Contact Us For Availability
1
Fan Grill SPQ 209/00287/01 Contact Us For Availability
1
Printboard Support SPQ 111/01838/10 Contact Us For Availability
1
Hose SPQ 223/00286/00 Contact Us For Availability
1
Feeding Liquid Soap D SPQ 209/00554/51 Contact Us For Availability
2
Bearing Housing Assembly SPQ 204/00010/00 Contact Us For Availability
2
Tolerance Ring SPQ 215/00004/00 Contact Us For Availability
2
SPQ 152/00044/03 SPQ 152/00044/03 Contact Us For Availability
2
Pressure Switch Elbow SPQ 223/00150/00 Contact Us For Availability
2
Door Frame SPQ 217/00015/00 Contact Us For Availability
2
Voltage Discharge Decal SPQ 271/35945/00 Contact Us For Availability
2
Fuse Holder SPQ 211/00146/00 Contact Us For Availability
2
Electrical Component Mountin SPQ 209/00027/10 Contact Us For Availability
2
Soap Dispenser Gasket SPQ 223/00107/01 Contact Us For Availability
2
Soap Dispenser SPQ 223/00222/04 Contact Us For Availability
2
Soap Pump Assembly SPQ 209/00554/06 Contact Us For Availability
3
Speed Detector Bracket SPQ 212/00037/00 Contact Us For Availability
3
SPQ 207/00117/00 SPQ 207/00117/00 Contact Us For Availability
3
SPQ 202/00124/00 SPQ 202/00124/00 Contact Us For Availability
3
Bolt SPQ 118/00046/10 Contact Us For Availability
3
Mounting Plate SPQ 223/00374/00 Contact Us For Availability
3
SPQ F200164 SPQ F200164 Contact Us For Availability
3
Ground Terminal SPQ 209/00006/01 Contact Us For Availability
3
Fuse SPQ 209/00202/01 Contact Us For Availability
3
Thermostat SPQ 111/10003/40 Contact Us For Availability
3
Soap Spray Nozzle SPQ 123/00103/06 Contact Us For Availability
3
Steam Injector SPQ 209/00563/20 Contact Us For Availability
4
Tub Fastening Ring SPQ 212/00114/00 Contact Us For Availability
4
Bearing Replacement Tool Kit SPQ 212/00101/00 Contact Us For Availability
4
Bolt SPQ 206/00032/00 Contact Us For Availability
4
SPQ B12510501 SPQ B12510501 Contact Us For Availability
4
Screw SPQ 204/00008/00 Contact Us For Availability
4
Door Hinge Spacer SPQ 205/00107/00 Contact Us For Availability
4
Screw SPQ 223/00179/10 Contact Us For Availability
4
Main Switch Cover SPQ 111/01834/00 Contact Us For Availability
4
Relay PC-Board SPQ 209/00468/00 Contact Us For Availability
4
Front Soapbox Siphon SPQ 223/00280/00 Contact Us For Availability
4
Outer and Inner Box Kit SPQ 223/00245/00 Contact Us For Availability
4
Nut SPQ 209/00581/10 Contact Us For Availability
5
Bolt SPQ 204/00002/00 Contact Us For Availability
5
SPQ 212/00101/01 SPQ 212/00101/01 Contact Us For Availability
5
Bolt SPQ 203/00002/00 Contact Us For Availability
5
Tub Front Panel Clip SPQ 217/00008/00 Contact Us For Availability
5
SPQ 211/00167/00 SPQ 211/00167/00 Contact Us For Availability
5
SPQ 255/00010/00 SPQ 255/00010/00 Contact Us For Availability
5
SPQ 202/00104/00 SPQ 202/00104/00 Contact Us For Availability
5
SPQ 208/00025/00 SPQ 208/00025/00 Contact Us For Availability
5
Bolt SPQ 223/00103/03 Contact Us For Availability
5
ID Chip SPQ 209/02016/00 Contact Us For Availability
5
Rivet SPQ 225/10004/00 Contact Us For Availability
5
Inner Soapbox SPQ 223/00280/03 Contact Us For Availability
5
Soap Dispenser Gasket SPQ B12347501 Contact Us For Availability
5
Steam Heat Kit SPQ 209/00564/20 Contact Us For Availability
5
Liquid Soap Dosing Pu SPQ 209/00554/05 Contact Us For Availability
6
SPQ 201/00005/00 SPQ 201/00005/00 Contact Us For Availability
6
SPQ 201/00201/00 SPQ 201/00201/00 Contact Us For Availability
6
Drum Pulley SPQ 206/00005/00 Contact Us For Availability
6
Tub Front SPQ 135/00033/00 Contact Us For Availability
6
SPQ 226/00144/00 SPQ 226/00144/00 Contact Us For Availability
6
SPQ 217/00052/04 SPQ 217/00052/04 Contact Us For Availability
6
SPQ 204/00106/00 SPQ 204/00106/00 Contact Us For Availability
6
Grommet SPQ 204/00114/00 Contact Us For Availability
6
Nut SPQ 207/00125/00 Contact Us For Availability
6
SPQ 223/00102/07 SPQ 223/00102/07 Contact Us For Availability
6
Central Control Board SPQ 209/00438/50 Contact Us For Availability
6
Support Connector SPQ 111/10003/30 Contact Us For Availability
6
Soapbox Handle SPQ 223/00280/20 Contact Us For Availability
6
SPQ 223/00102/06 SPQ 223/00102/06 Contact Us For Availability
6
SPQ 118/00084/00 SPQ 118/00084/00 Contact Us For Availability
6
Hose SPQ 209/00554/03 Contact Us For Availability
7
SPQ 203/00001/00 SPQ 203/00001/00 Contact Us For Availability
7
SPQ 226/00141/00 SPQ 226/00141/00 Contact Us For Availability
7
SPQ 209/00463/00 SPQ 209/00463/00 Contact Us For Availability
7
SPQ 224/00040/00 SPQ 224/00040/00 Contact Us For Availability
7
SPQ 202/00108/00 SPQ 202/00108/00 Contact Us For Availability
7
SPQ 208/00014/00 SPQ 208/00014/00 Contact Us For Availability
7
SPQ 206/00166/00 SPQ 206/00166/00 Contact Us For Availability
7
Side Panel SPQ 208/00104/00 Contact Us For Availability
7
SPQ 208/00017/00 SPQ 208/00017/00 Contact Us For Availability
7
Terminal Block SPQ 209/00529/00 Contact Us For Availability
7
SPQ 209/02014/00 SPQ 209/02014/00 Contact Us For Availability
7
SPQ 223/00280/07 SPQ 223/00280/07 Contact Us For Availability
7
SPQ 223/00222/60 SPQ 223/00222/60 Contact Us For Availability
7
SPQ 204/00005/00 SPQ 204/00005/00 Contact Us For Availability
8
SPQ 206/00079/00 SPQ 206/00079/00 Contact Us For Availability
8
SPQ 201/00007/00 SPQ 201/00007/00 Contact Us For Availability
8
Basket and Shaft Assembly SPQ B12380601 Contact Us For Availability
8
SPQ 206/00042/00 SPQ 206/00042/00 Contact Us For Availability
8
SPQ 210/10015/00 SPQ 210/10015/00 Contact Us For Availability
8
Insulating Sticker SPQ 229/00268/00 Contact Us For Availability
8
Telem Sticker SPQ 209/00520/00 Contact Us For Availability
8
SPQ 201/00006/00 SPQ 201/00006/00 Contact Us For Availability
8
SPQ 111/60036/00 SPQ 111/60036/00 Contact Us For Availability
8
SPQ 208/00130/00 SPQ 208/00130/00 Contact Us For Availability
8
Noise Filter SPQ 209/00526/00 Contact Us For Availability
8
SPQ 223/00109/00 SPQ 223/00109/00 Contact Us For Availability
9
SPQ 203/00004/00 SPQ 203/00004/00 Contact Us For Availability
9
SPQ 201/00015/00 SPQ 201/00015/00 Contact Us For Availability
9
Tub Front Ring Clamp SPQ 217/00007/00 Contact Us For Availability
9
SPQ 223/00303/00 SPQ 223/00303/00 Contact Us For Availability
9
SPQ 203/00007/00 SPQ 203/00007/00 Contact Us For Availability
9
SPQ 117/00010/00 SPQ 117/00010/00 Contact Us For Availability
9
Printboard Support Card SPQ 111/01893/00 Contact Us For Availability
9
SPQ 208/00002/00 SPQ 208/00002/00 Contact Us For Availability
9
SPQ 111/01833/00 SPQ 111/01833/00 Contact Us For Availability
9
Filter SPQ 209/00530/00 Contact Us For Availability
9
SPQ 209/02020/00 SPQ 209/02020/00 Contact Us For Availability
9
SPQ 223/00298/00 SPQ 223/00298/00 Contact Us For Availability
10
Chassis SPQ 212/00108/50 Contact Us For Availability
10
Screw SPQ 206/00058/00 Contact Us For Availability
10
Washer SPQ 202/00002/00 Contact Us For Availability
10
Drain Piece SPQ 223/00146/00 Contact Us For Availability
10
Water Hose SPQ 223/00044/00 Contact Us For Availability
10
Tub Exhaust SPQ 223/00382/00 Contact Us For Availability
10
Hose Barb SPQ 223/00016/00 Contact Us For Availability
10
Screw SPQ 207/00126/00 Contact Us For Availability
10
Datacard SPQ 209/02022/00 Contact Us For Availability
10
Washer SPQ 205/00106/00 Contact Us For Availability
10
Front Panel SPQ 111/00291/00 Contact Us For Availability
10
Filter Bracket SPQ 111/01837/01 Contact Us For Availability
10
Connection Clamp SPQ 209/00622/01 Contact Us For Availability
10
Tube SPQ 118/00118/03 Contact Us For Availability
11
Screw SPQ 206/00007/00 Contact Us For Availability
11
Bolt SPQ 206/00119/00 Contact Us For Availability
11
Hose Clamp SPQ 223/00010/00 Contact Us For Availability
11
Drain Valve SPQ 223/00071/00 Contact Us For Availability
11
O-Ring SPQ 217/00021/00 Contact Us For Availability
11
Hinge SPQ 221/00003/00 Contact Us For Availability
11
Data Card Ribbon Assembly SPQ B12538301 Contact Us For Availability
11
Retaining Ring SPQ 202/00003/00 Contact Us For Availability
11
Reinforcement Plate SPQ 111/10089/01 Contact Us For Availability
11
Bolt SPQ 206/00027/00 Contact Us For Availability
11
Microprocessor SPQ 209/02025/00 Contact Us For Availability
11
Pressure Switch Cap SPQ 209/00619/01 Contact Us For Availability
11
Soap Dispenser Assembly SPQ 223/00102/50 Contact Us For Availability
11
Steam Injector Plate Assembly SPQ 113/00025/00 Contact Us For Availability
12
Bolt SPQ 203/00003/00 Contact Us For Availability
12
Retainer Ring SPQ 212/00006/00 Contact Us For Availability
12
Nut SPQ 117/00042/00 Contact Us For Availability
12
Washer SPQ 201/00010/00 Contact Us For Availability
12
Pressure Hose SPQ 223/00035/02 Contact Us For Availability
12
Bolt SPQ 209/00644/00 Contact Us For Availability
12
Washer SPQ 203/00010/00 Contact Us For Availability
12
Memory Card PC-Board SPQ B12305201 Contact Us For Availability
12
Washer SPQ 203/00006/00 Contact Us For Availability
12
Network Connection Printboard SPQ 209/02007/00 Contact Us For Availability
12
Dispenser Drain Funnel SPQ 223/00195/00 Contact Us For Availability
12
Liquid Soap Dispenser Insert SPQ 223/00102/08 Contact Us For Availability
13
Motor Mounting Plate SPQ 206/00006/00 Contact Us For Availability
13
Nut SPQ 204/00116/00 Contact Us For Availability
13
Plexi Frame SPQ 225/00321/00 Contact Us For Availability
13
Screw SPQ 203/00005/00 Contact Us For Availability
13
Nut SPQ 202/00004/00 Contact Us For Availability
13
Backbridge SPQ 111/01833/10 Contact Us For Availability
13
Screw SPQ B12350903 Contact Us For Availability
13
Soap Dispenser Rinse Siphon SPQ 223/00102/04 Contact Us For Availability
13
Heating Element SPQ 206/00035/00 Contact Us For Availability
14
O-Ring SPQ 217/00002/00 Contact Us For Availability
14
Seal Plate Assembly SPQ B12333701 Contact Us For Availability
14
Nut SPQ 206/00009/00 Contact Us For Availability
14
Siphon Break Hose SPQ 223/00013/00 Contact Us For Availability
14
Motor SPQ 206/00101/00 Contact Us For Availability
14
Washer SPQ 223/00123/00 Contact Us For Availability
14
Lower Front Panel SPQ 204/00006/00 Contact Us For Availability
14
Pump Support SPQ 204/00007/00 Contact Us For Availability
14
Parameter Unit Assembly SPQ F8410901 Contact Us For Availability
14
Rinse Insert SPQ 223/00102/03 Contact Us For Availability
15
Seal Cover SPQ 219/00001/00 Contact Us For Availability
15
Bolt SPQ 206/00093/00 Contact Us For Availability
15
Drain Hose SPQ 209/00644/11 Contact Us For Availability
15
Screw SPQ 201/00018/00 Contact Us For Availability
15
Printboard Separator SPQ 211/00128/00 Contact Us For Availability
15
Side Panel SPQ 208/00009/00 Contact Us For Availability
15
Parameter Unit Program Cable SPQ 227/00171/10 Contact Us For Availability
15
Hose Clamp SPQ 155/00161/00 Contact Us For Availability
15
Softener Spray Nozzle SPQ 223/00102/05 Contact Us For Availability
15
Siphon Break Dispenser Hose SPQ B12310304 Contact Us For Availability
16
U-Piece Assembly SPQ 113/00066/00 Contact Us For Availability
16
Fan Plate Assembly SPQ 115/11165/00 Contact Us For Availability
16
Washer SPQ 204/00201/00 Contact Us For Availability
16
Drain Valve Hose SPQ 209/00643/00 Contact Us For Availability
16
Door Lock Bracket SPQ 207/00009/00 Contact Us For Availability
16
Standoff SPQ 211/00122/00 Contact Us For Availability
16
Operating Sticker SPQ 225/10313/00 Contact Us For Availability
16
Datacard Cover SPQ 223/00348/00 Contact Us For Availability
16
Outlet Pipe Plate Assembly SPQ 207/00101/00 Contact Us For Availability
16
Inverter Drive Box SPQ 111/10425/50 Contact Us For Availability
16
Liquid Soap Manifold SPQ 223/00262/00 Contact Us For Availability
17
Bearing Housing Plate SPQ 113/00019/02 Contact Us For Availability
17
Motor SPQ 204/00109/00 Contact Us For Availability
17
Bolt SPQ 201/00002/00 Contact Us For Availability
17
Siphon Break Dispenser Hose SPQ 223/00072/00 Contact Us For Availability
17
Lock Shaft SPQ 217/00052/11 Contact Us For Availability
17
Backbridge SPQ 111/01803/00 Contact Us For Availability
17
Rinsing Box SPQ 223/00250/00 Contact Us For Availability
18
Washer SPQ 113/00019/01 Contact Us For Availability
18
Cordlock SPQ 204/00115/00 Contact Us For Availability
18
Overflow Hose SPQ 153/00028/00 Contact Us For Availability
18
Door Lock Assembly SPQ 207/00102/00 Contact Us For Availability
18
Inverter Box Cover SPQ 111/10425/00 Contact Us For Availability
18
Siphon Break SPQ 223/00222/05 Contact Us For Availability
19
Nut SPQ 201/00001/00 Contact Us For Availability
19
SPQ 101/00007/00 SPQ 101/00007/00 Contact Us For Availability
19
Hose Vent SPQ 223/00001/04 Contact Us For Availability
19
Drain Valve Plate Assembly SPQ 223/00263/00 Contact Us For Availability
19
Door Solenoid Assembly SPQ 217/00017/03 Contact Us For Availability
19
Softener Spray Nozzle SPQ 223/00229/00 Contact Us For Availability
20
SPQ 204/00009/00 SPQ 204/00009/00 Contact Us For Availability
20
SPQ 206/00054/00 SPQ 206/00054/00 Contact Us For Availability
20
Bolt SPQ 223/00100/00 Contact Us For Availability
20
Outlet Pipe Plate Assembly SPQ 114/00010/00 Contact Us For Availability
20
SPQ F200166 SPQ F200166 Contact Us For Availability
20
Pressure Hose SPQ 111/01174/01 Contact Us For Availability
20
Soap Box Assembly Plate SPQ 223/00222/03 Contact Us For Availability
21
Washer SPQ 223/00011/00 Contact Us For Availability
21
Bolt SPQ B12355001 Contact Us For Availability
21
Soap Spray Nozzle SPQ 223/00102/30 Contact Us For Availability
21
Shrink Fit SPQ 223/00222/00 Contact Us For Availability
22
Drain Pipe SPQ 223/00210/00 Contact Us For Availability
22
Interlock Lever SPQ B12495102 Contact Us For Availability
23
Lever Spring SPQ 224/00049/00 Contact Us For Availability
25
Pressure Switch Hose Tee SPQ 206/00033/00 Contact Us For Availability
25
Ground Terminal SPQ 224/00043/00 Contact Us For Availability
26
Pressure Hose SPQ 223/00106/00 Contact Us For Availability
NI
SPQ 204/00004/00 SPQ 204/00004/00 Contact Us For Availability
NI
SPQ 205/00104/00 SPQ 205/00104/00 Contact Us For Availability
NI
SPQ 152/00055/00 SPQ 152/00055/00 Contact Us For Availability
NI
SPQ 381P3 SPQ 381P3 Contact Us For Availability
NI
SPQ 223/00190/00 SPQ 223/00190/00 Contact Us For Availability
NI
SPQ 209/00643/11 SPQ 209/00643/11 Contact Us For Availability
NI
SPQ 211/00145/00 SPQ 211/00145/00 Contact Us For Availability
NI
SPQ 223/00174/00 SPQ 223/00174/00 Contact Us For Availability
NI
SPQ 209/00527/00 SPQ 209/00527/00 Contact Us For Availability
NI
SPQ 227/00180/00 SPQ 227/00180/00 Contact Us For Availability
NI
SPQ 227/00179/00 SPQ 227/00179/00 Contact Us For Availability
NI
SPQ 111/10003/10 SPQ 111/10003/10 Contact Us For Availability
NI
SPQ 206/00013/00 SPQ 206/00013/00 Contact Us For Availability
NI
SPQ 919P3 SPQ 919P3 Contact Us For Availability
NI
Hose Connector SPQ 209/00554/02 Contact Us For Availability
NI
SPQ 209/00554/52 SPQ 209/00554/52 Contact Us For Availability
NI
SPQ 209/00554/99 SPQ 209/00554/99 Contact Us For Availability
× ![]()
