Model IPSO IWF150ZN2 Washer – Common Parts & Diagrams

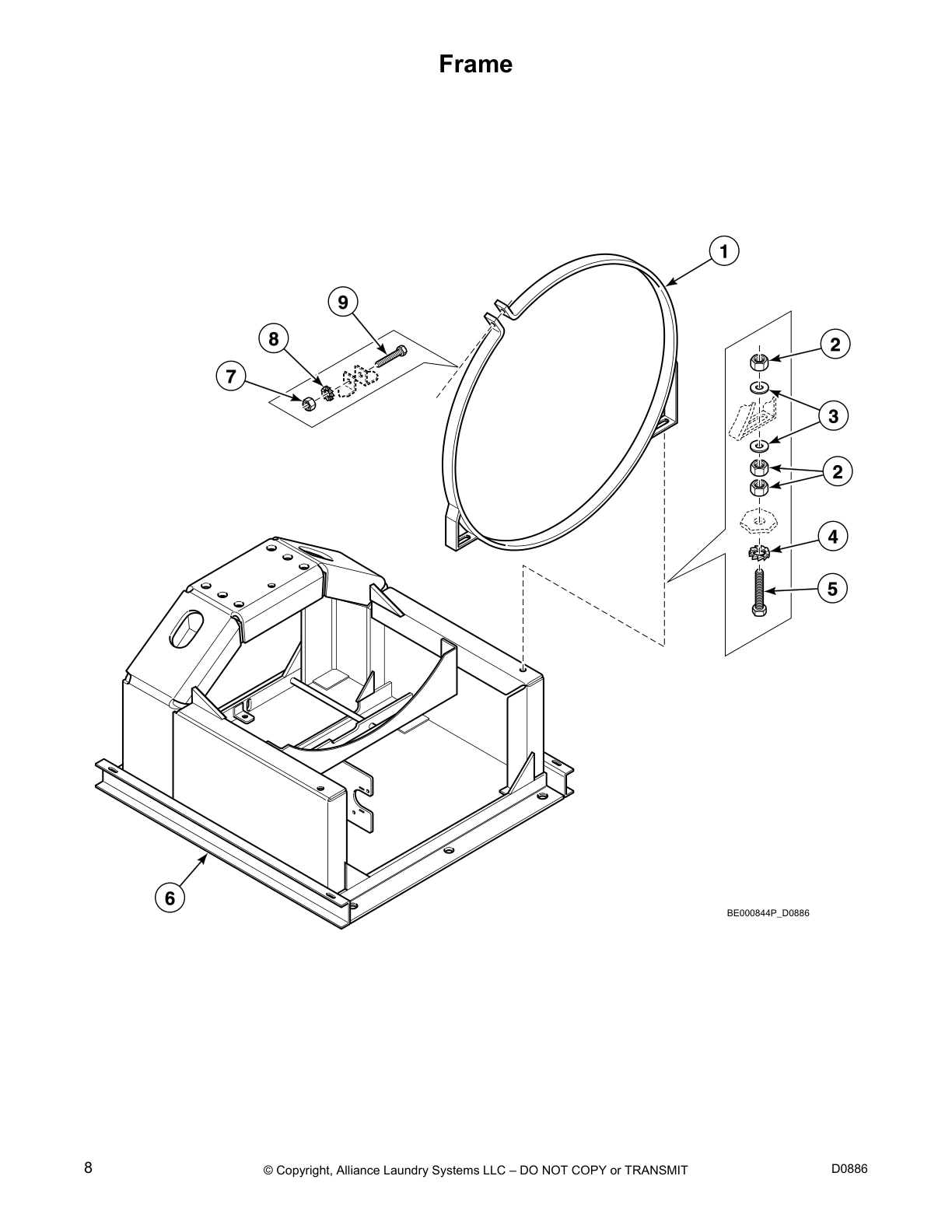

Frame

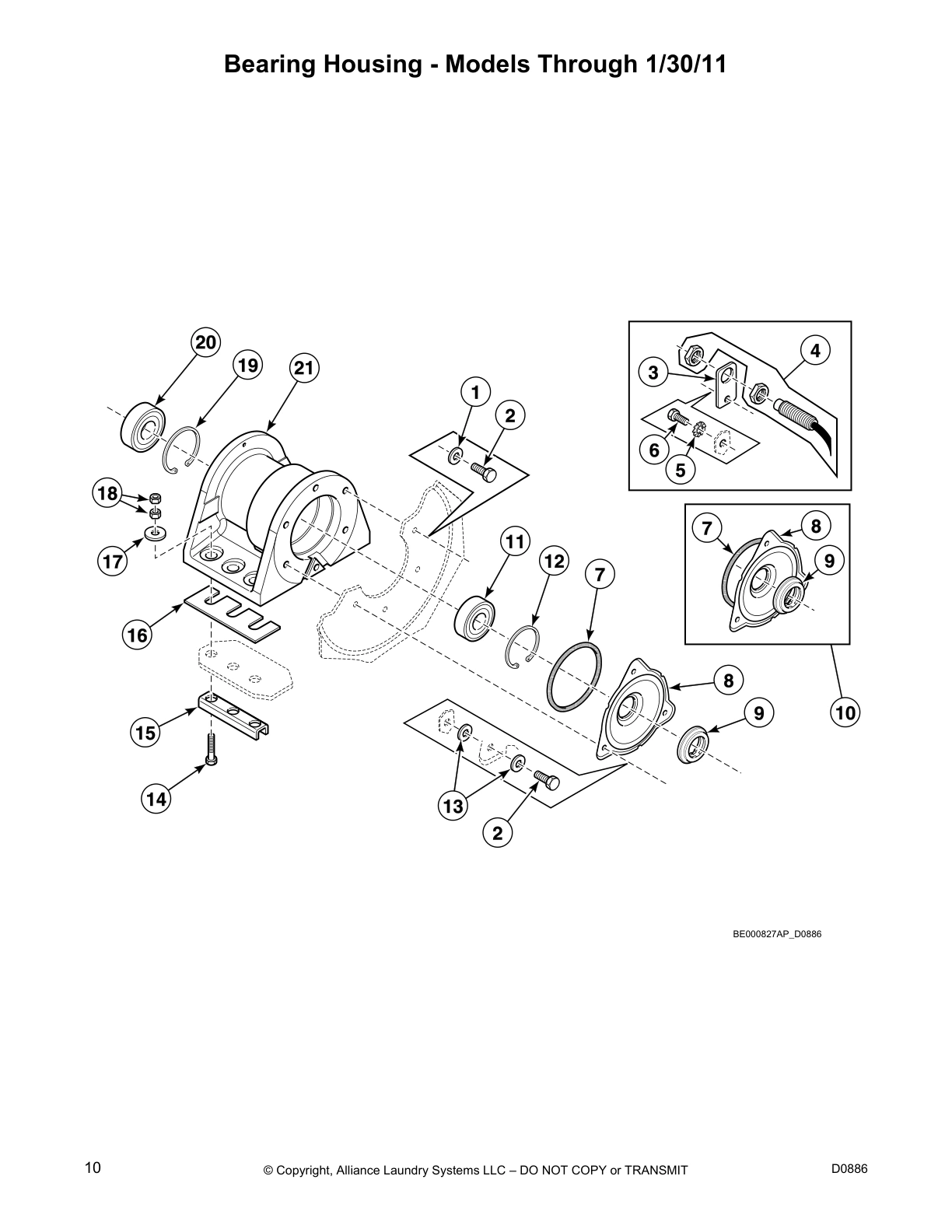

Bearing Housing - Models Through 1/30/11

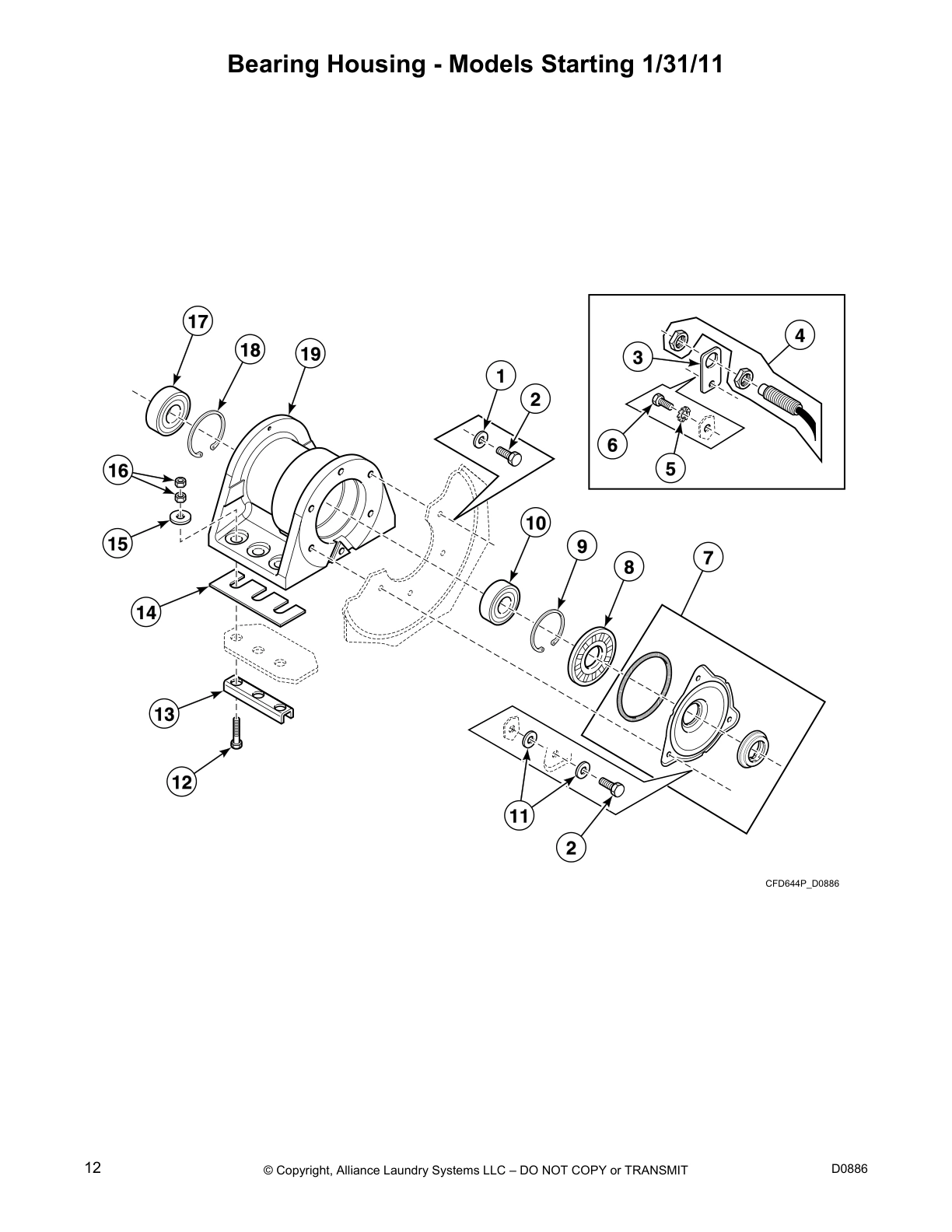

Bearing Housing - Models Starting 1/31/11

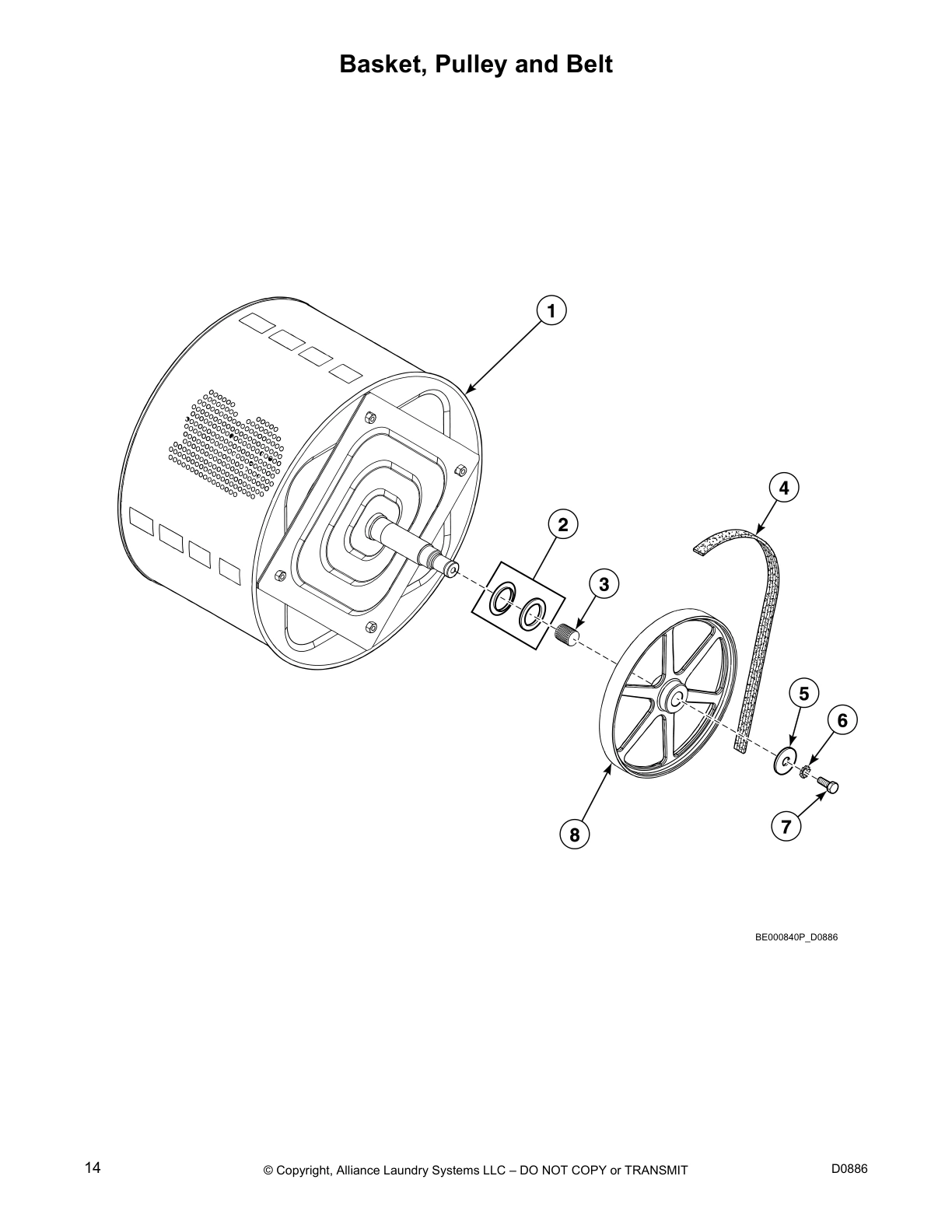

Basket, Pulley and Belt

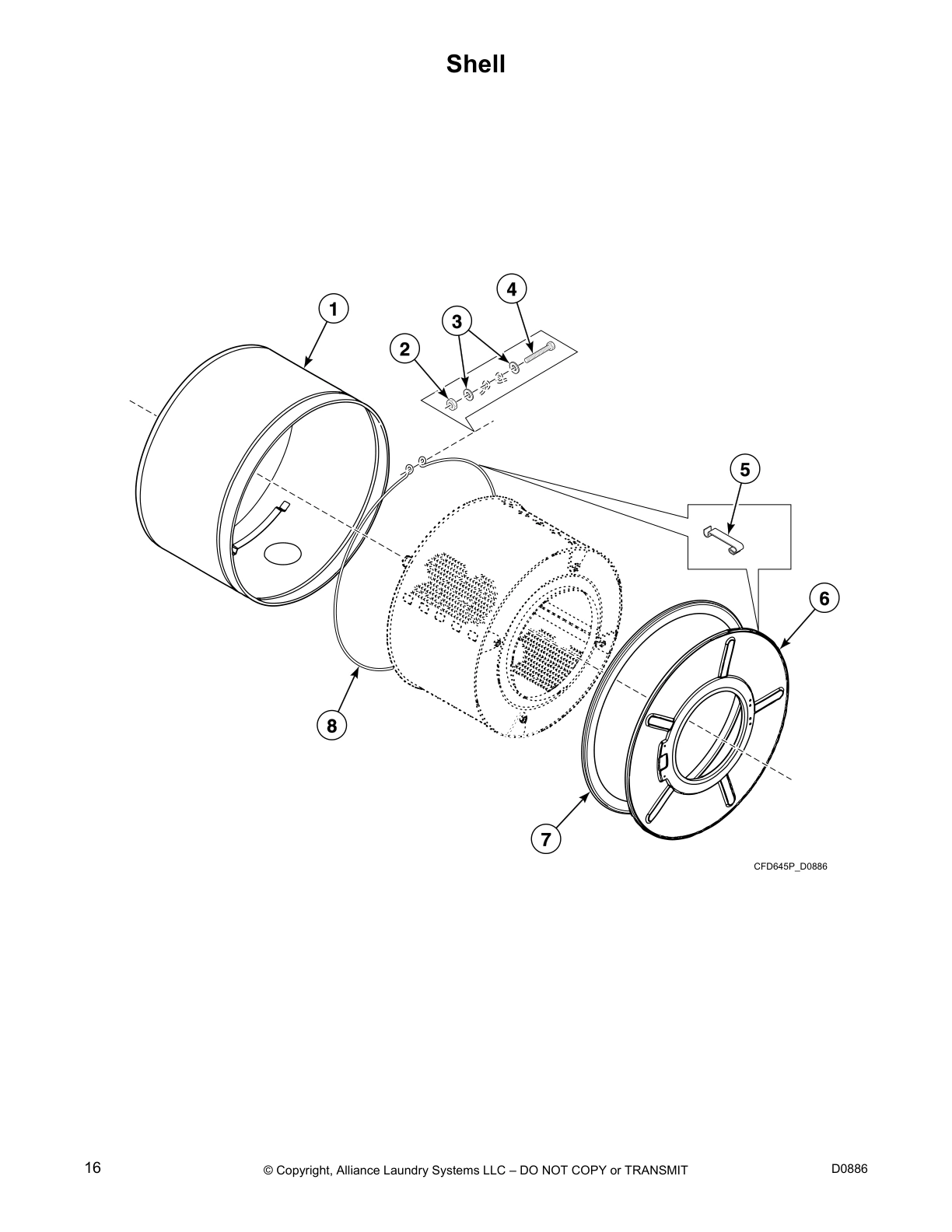

Shell

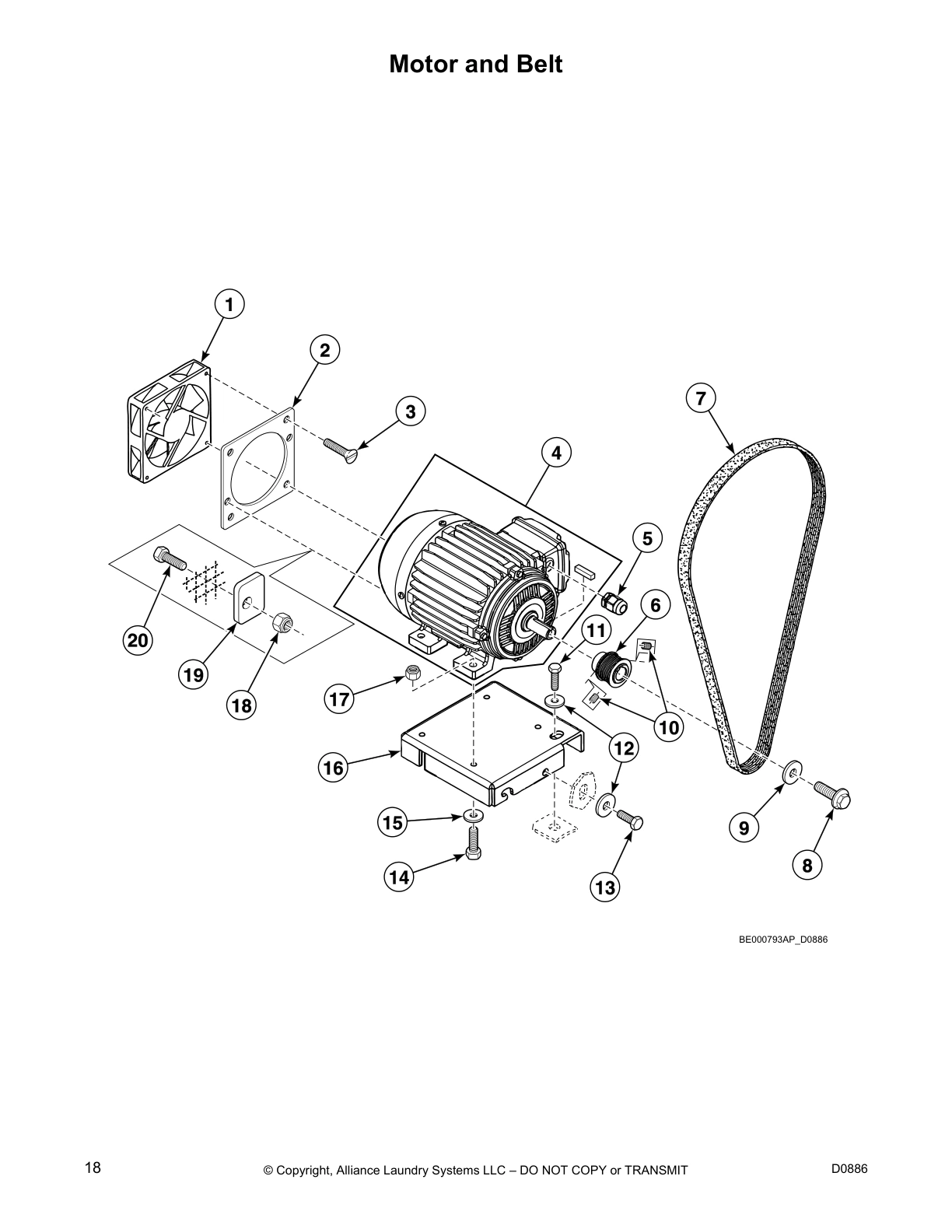

Motor and Belt

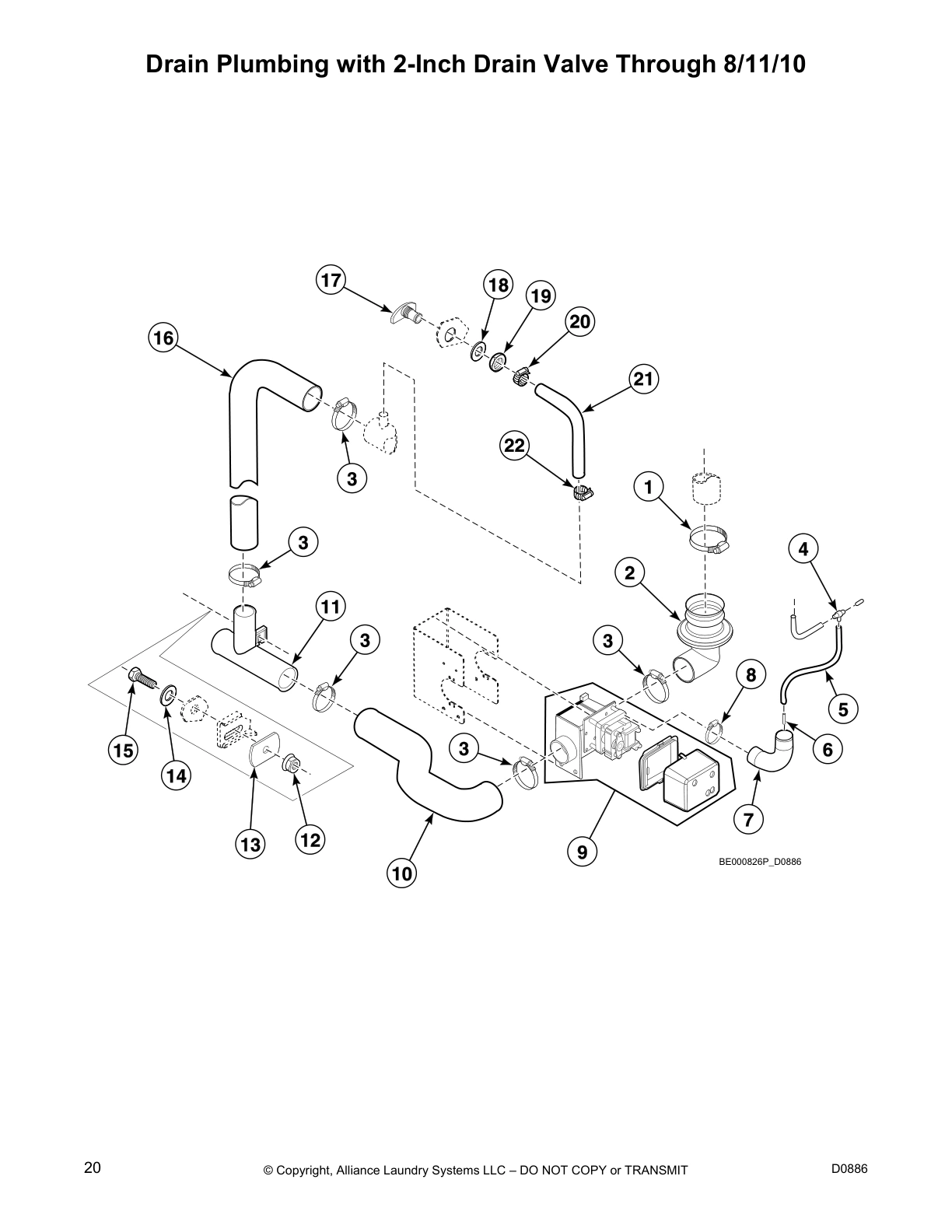

Drain Plumbing with 2-Inch Drain Valve Through 8/11/10

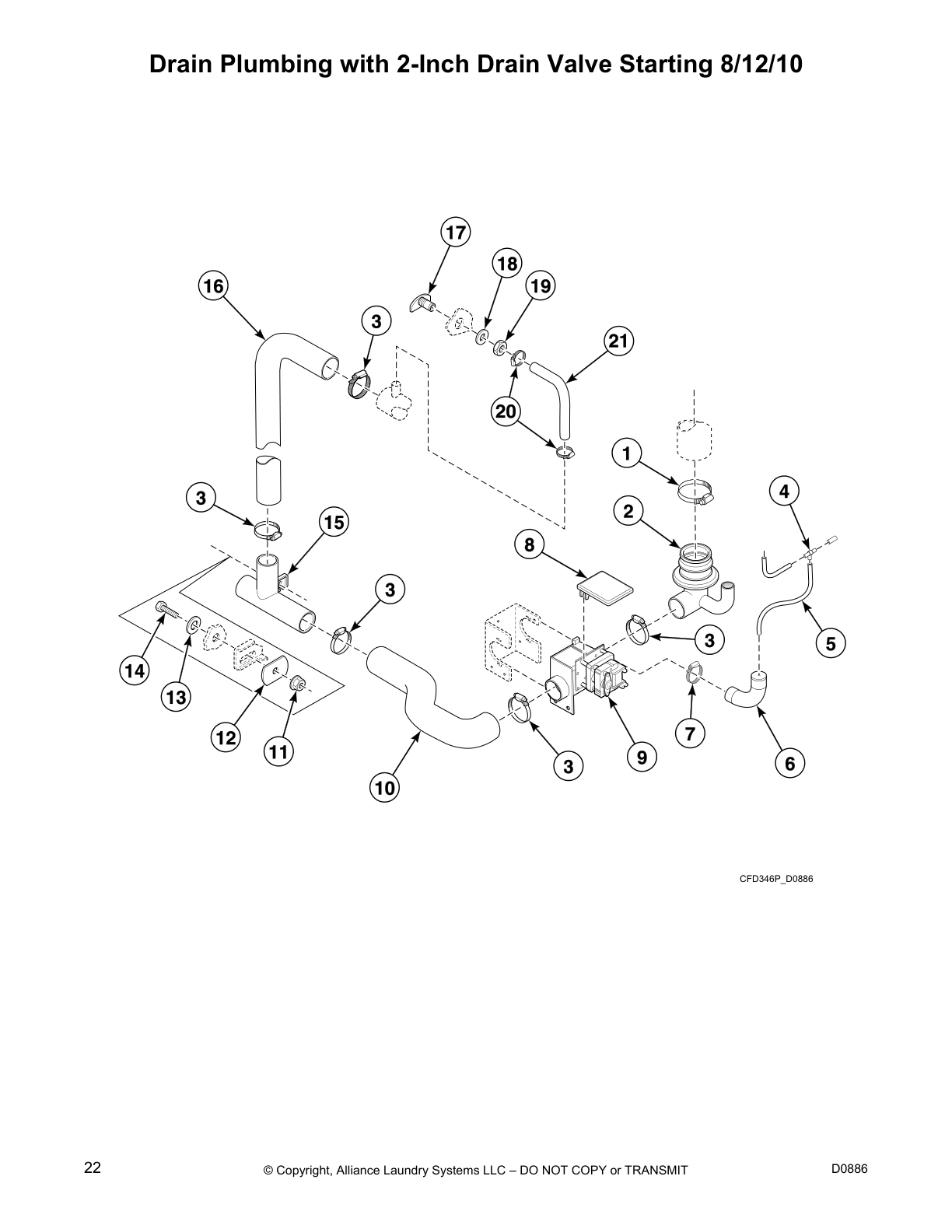

Drain Plumbing with 2-Inch Drain Valve Starting 8/12/10

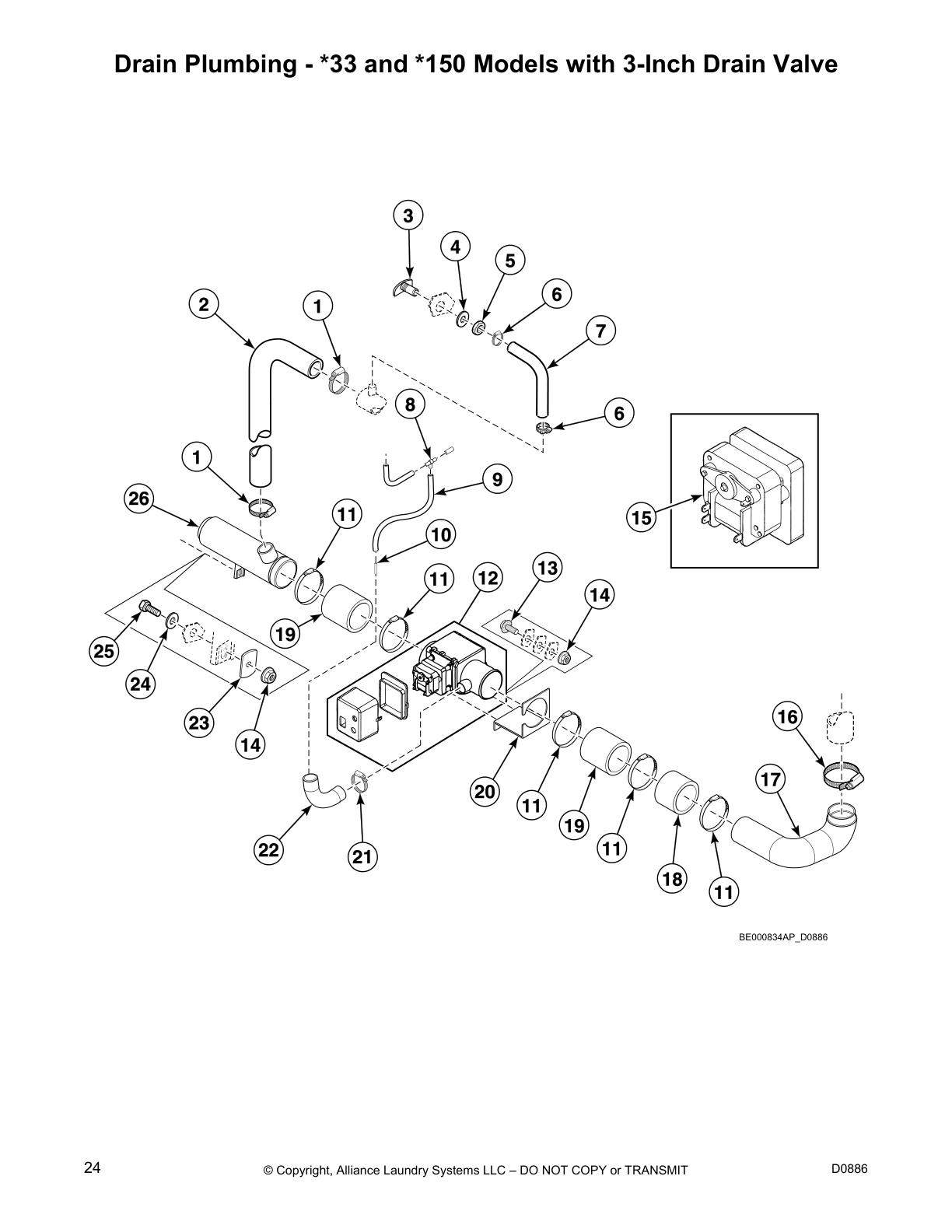

Drain Plumbing - *33 and *150 Models with 3-Inch Drain Valve

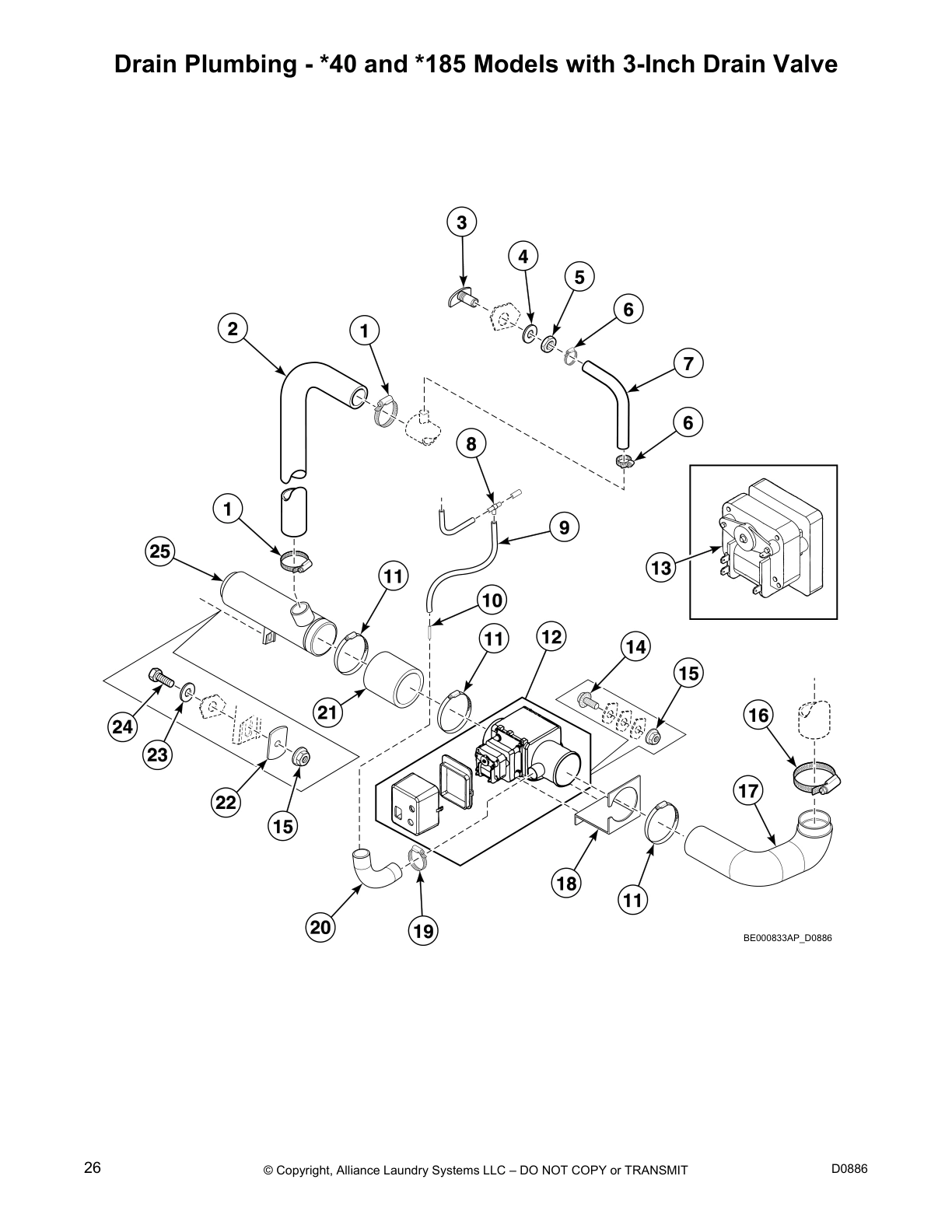

Drain Plumbing - *40 and *185 Models with 3-Inch Drain Valve

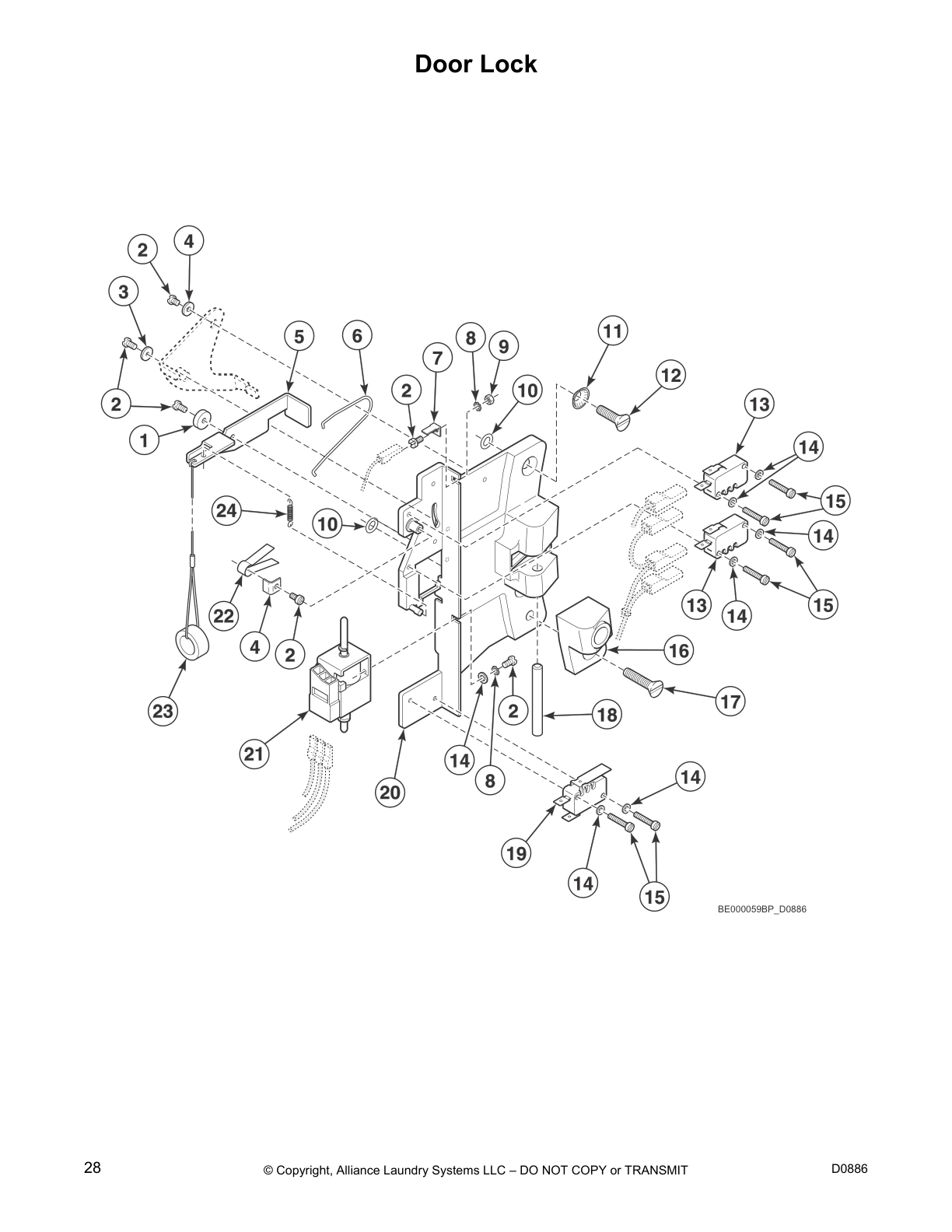

Door Lock

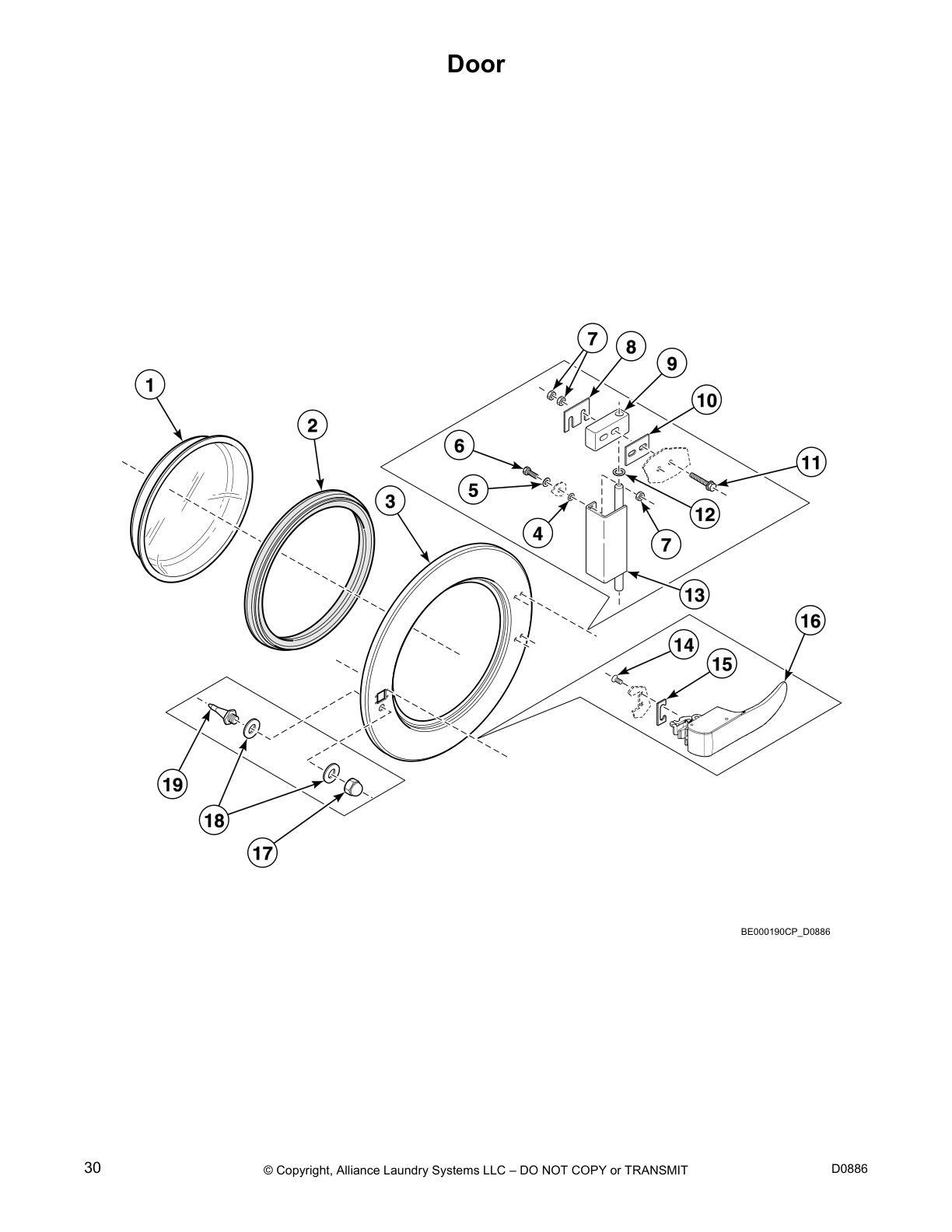

Door

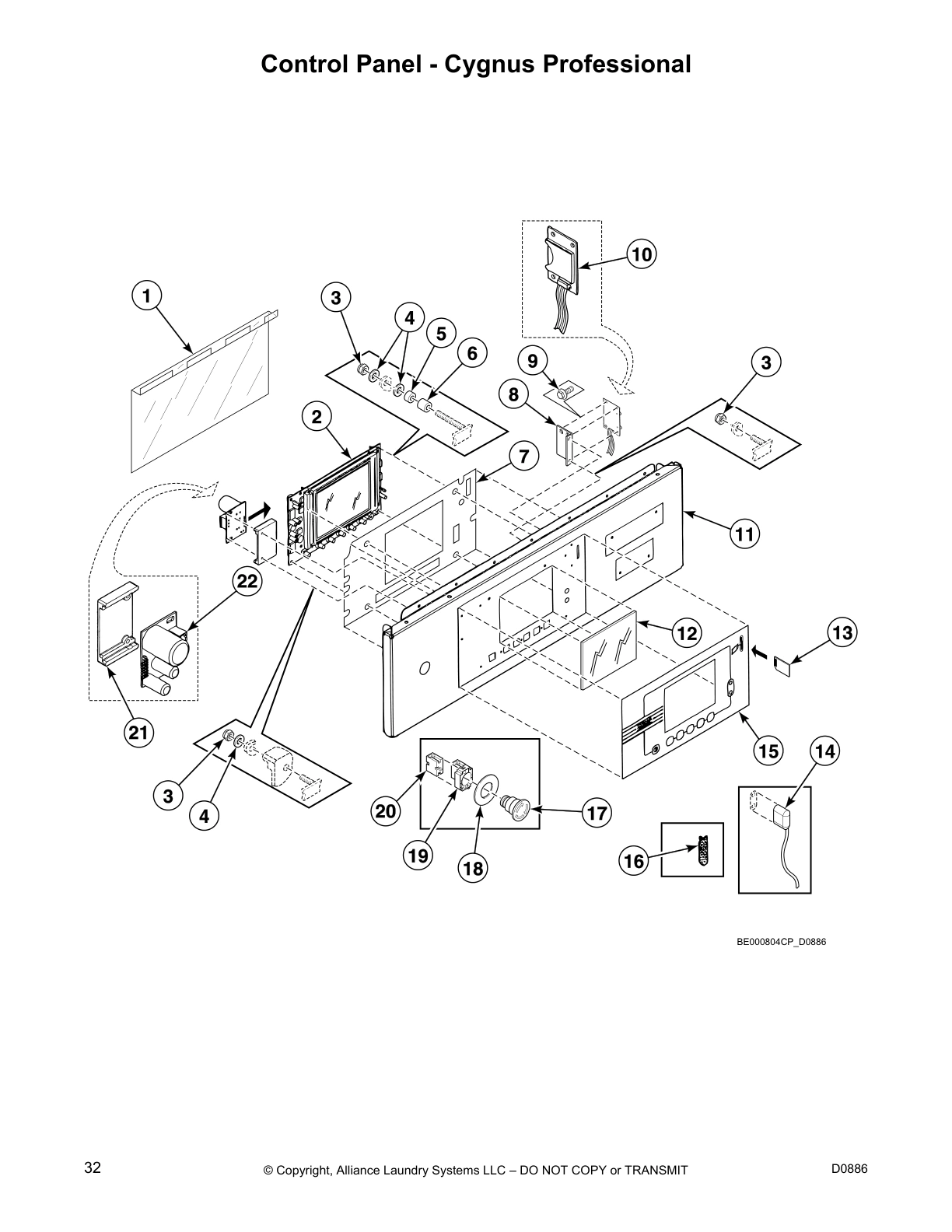

Control Panel - Cygnus Professional

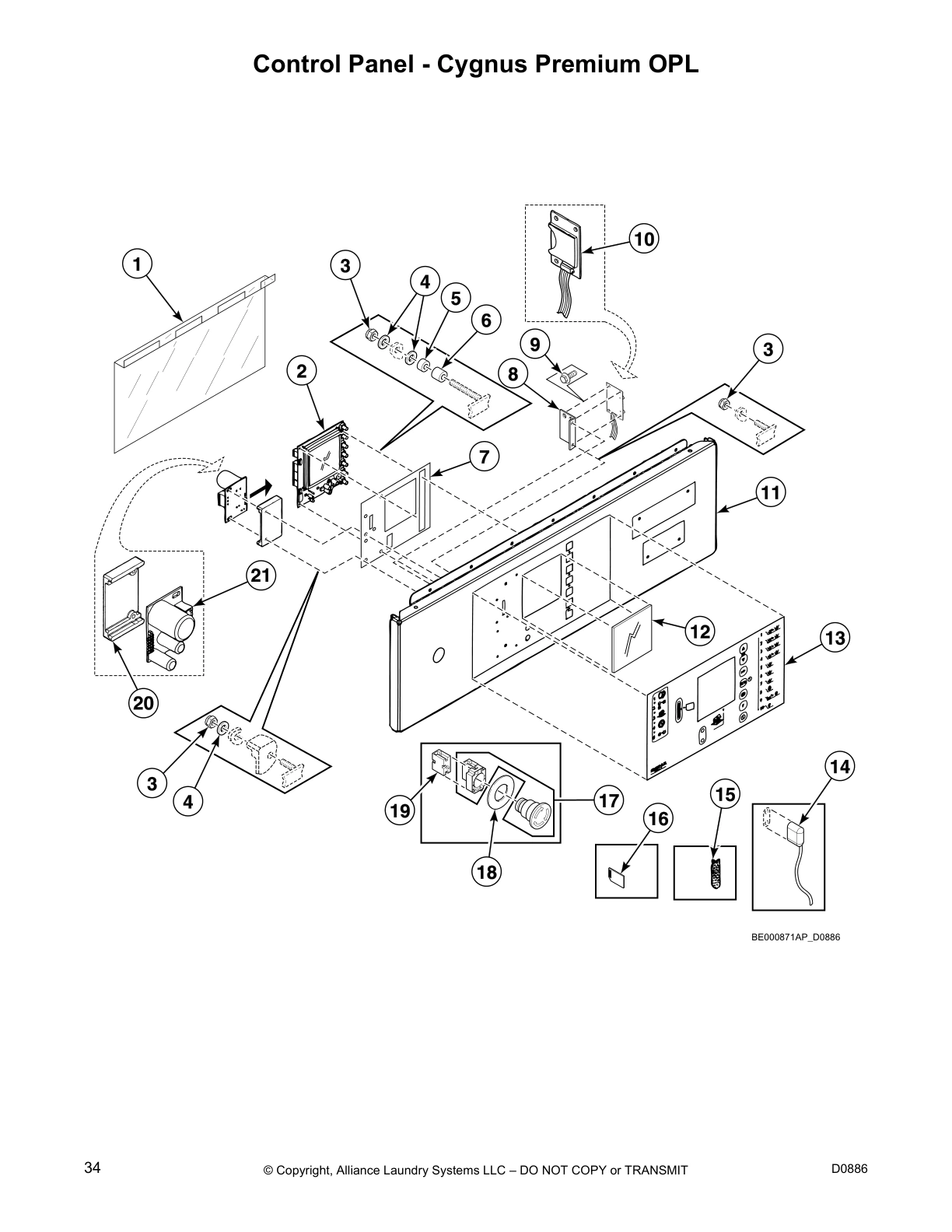

Control Panel - Cygnus Premium OPL

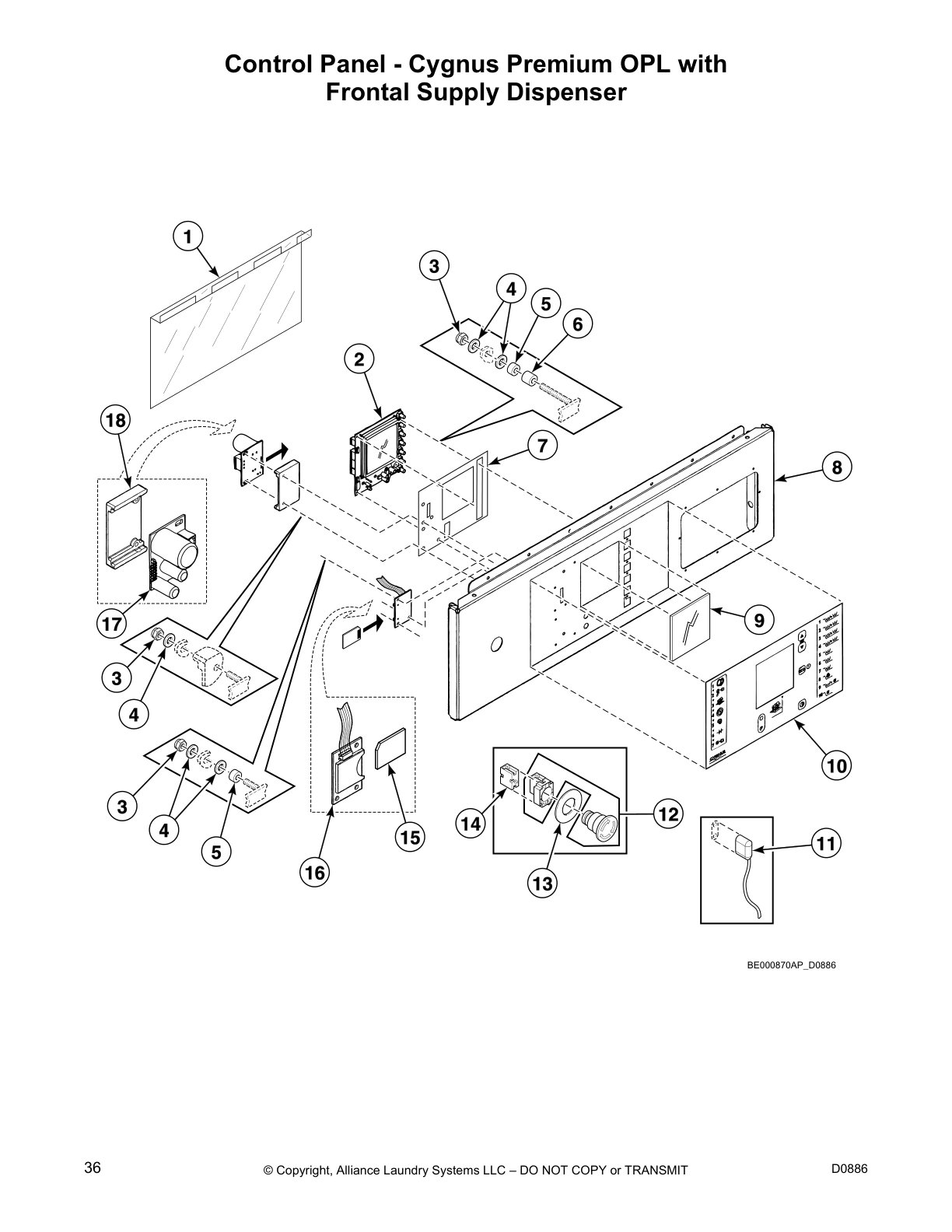

Control Panel - Cygnus Premium OPL with
Frontal Supply Dispenser
Control Panel - Cygnus Premium Coin
Control Panel - Cygnus Premium Coin with
Frontal Supply Dispenser

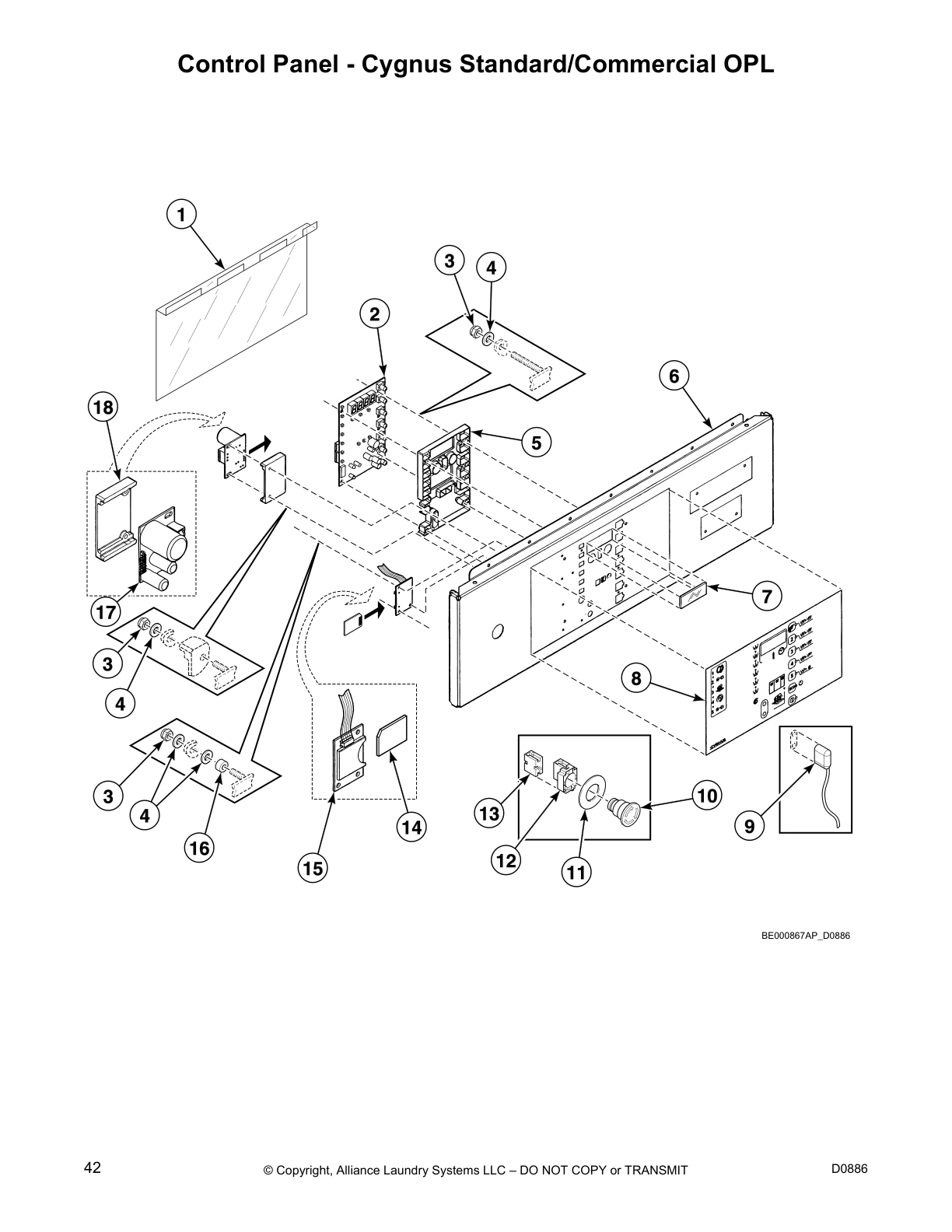

Control Panel - Cygnus Standard/Commercial OPL

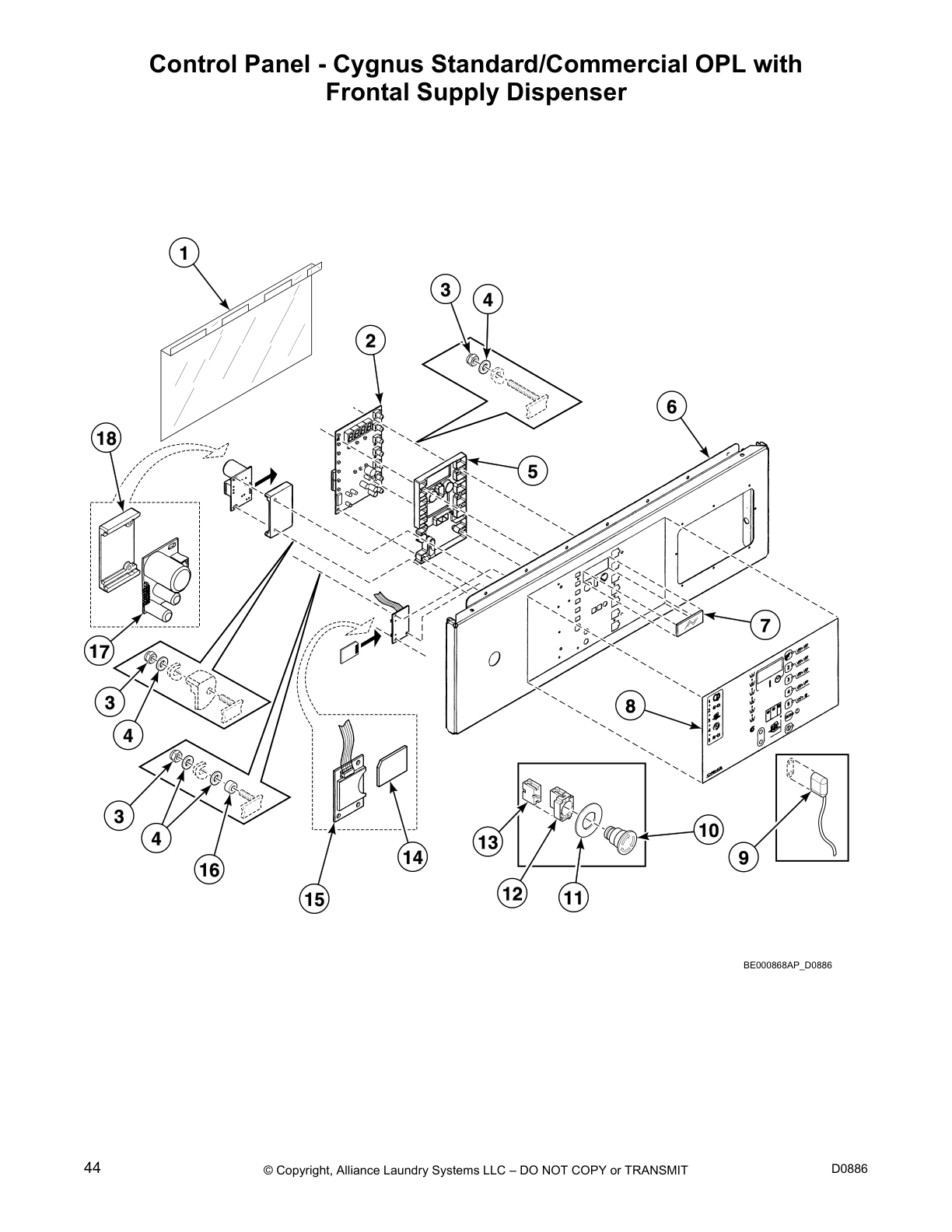

Control Panel - Cygnus Standard/Commercial OPL with
Frontal Supply Dispenser

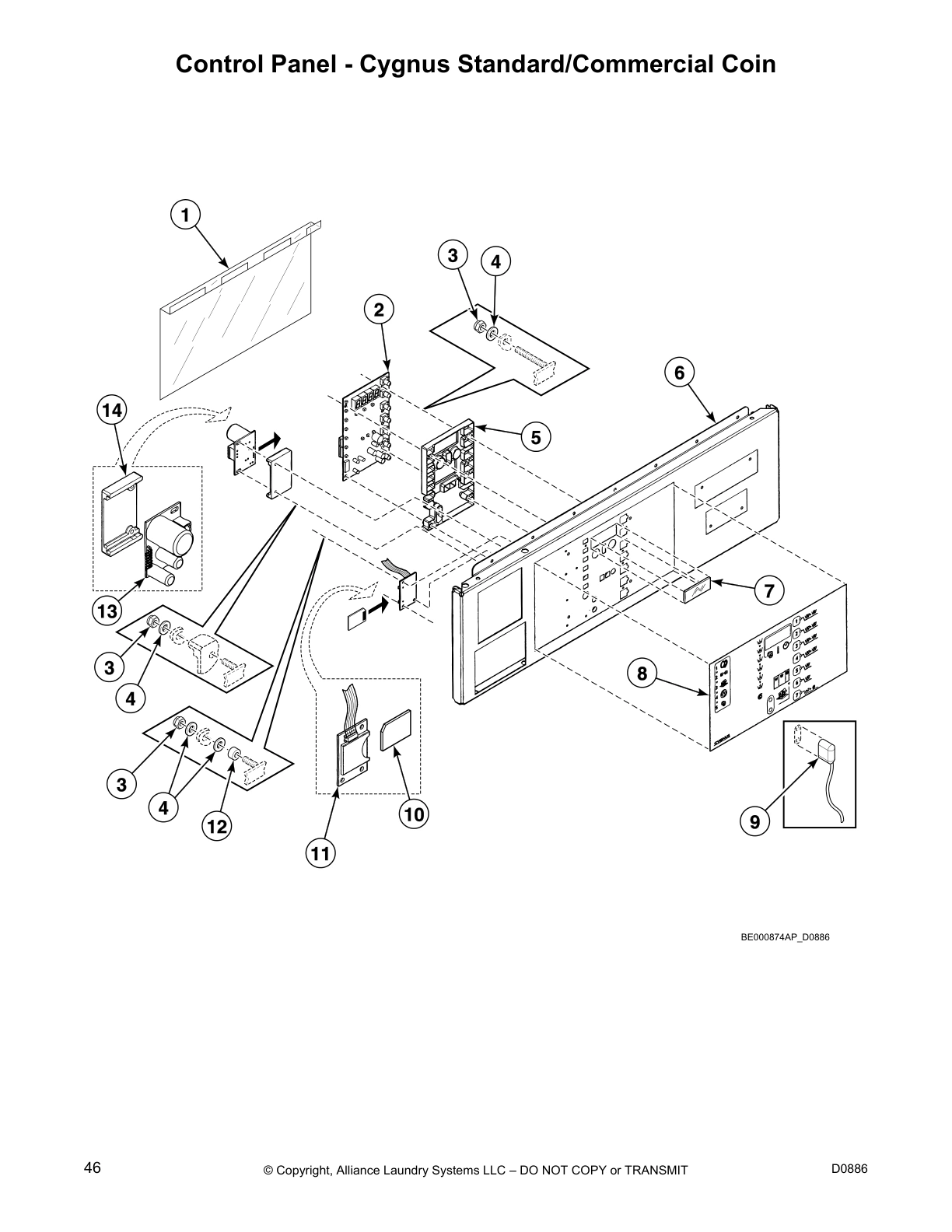

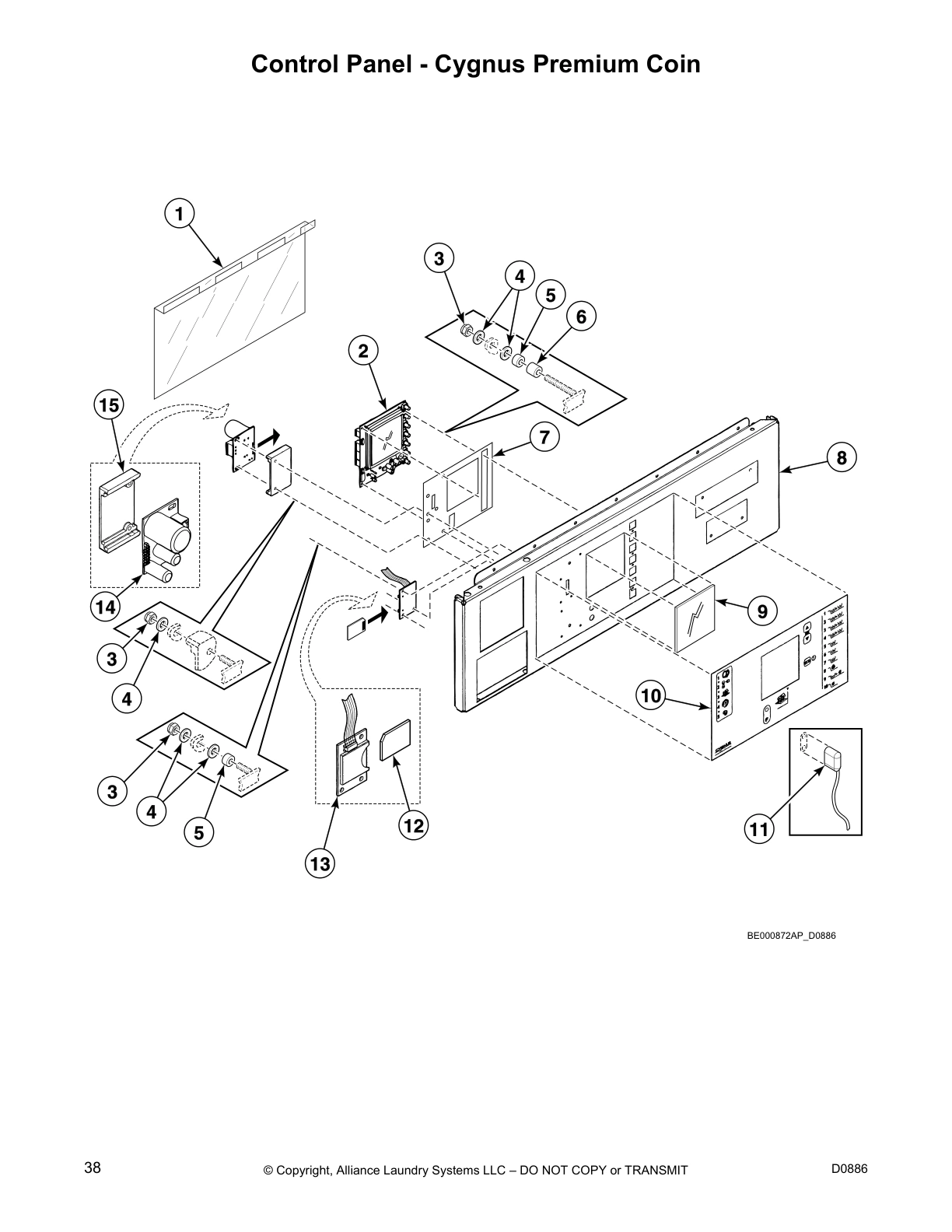

Control Panel - Cygnus Standard/Commercial Coin

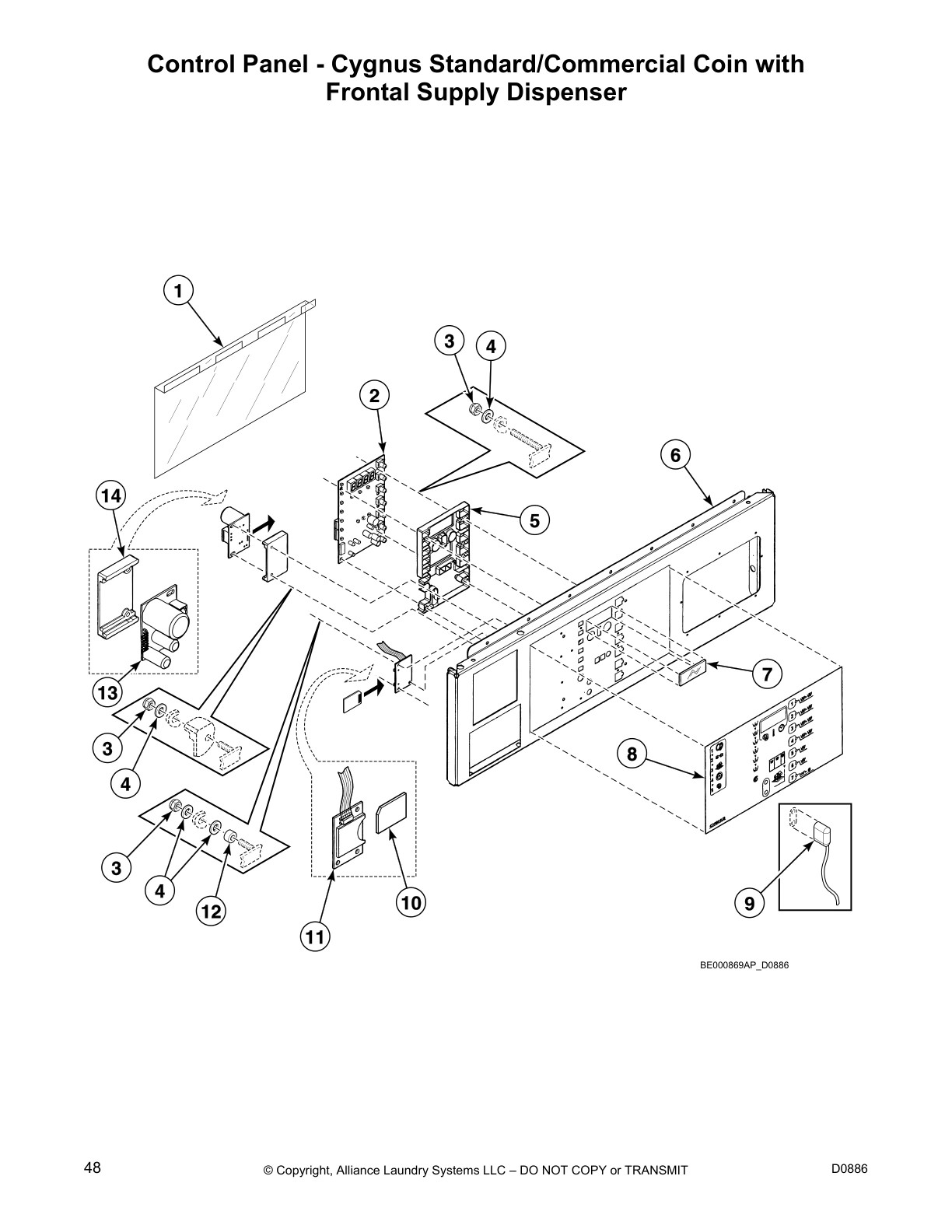

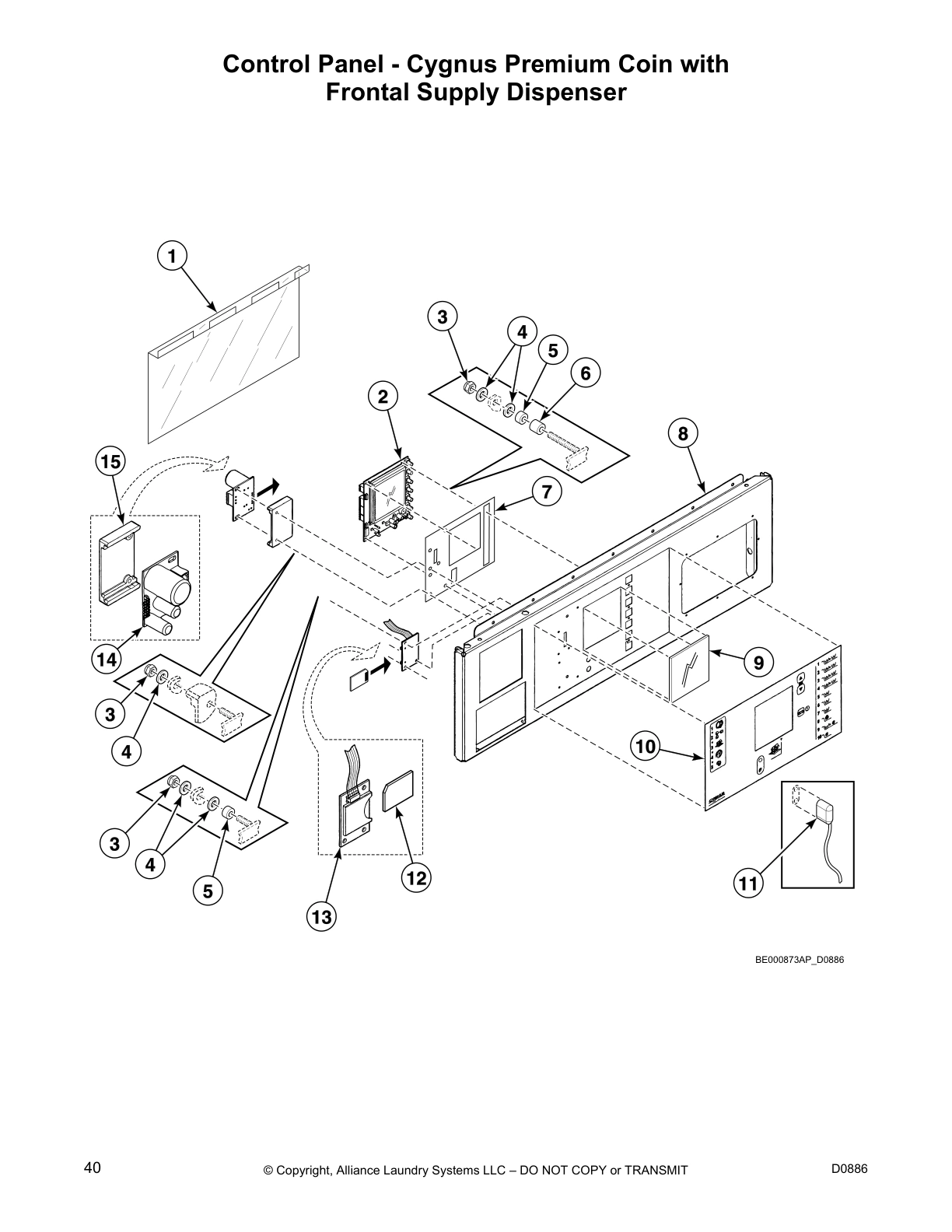

Control Panel - Cygnus Standard/Commercial Coin with
Frontal Supply Dispenser

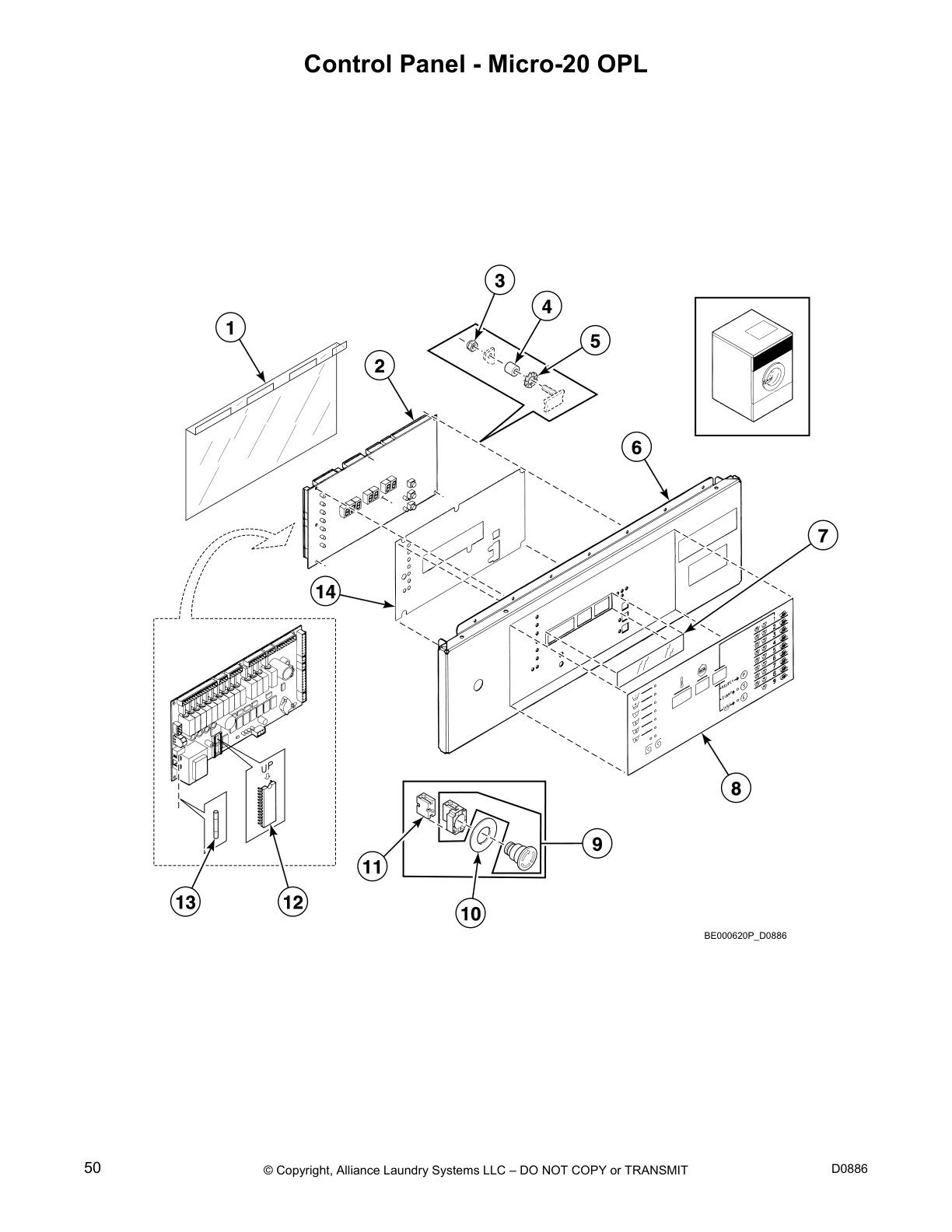

Control Panel - Micro-20 OPL

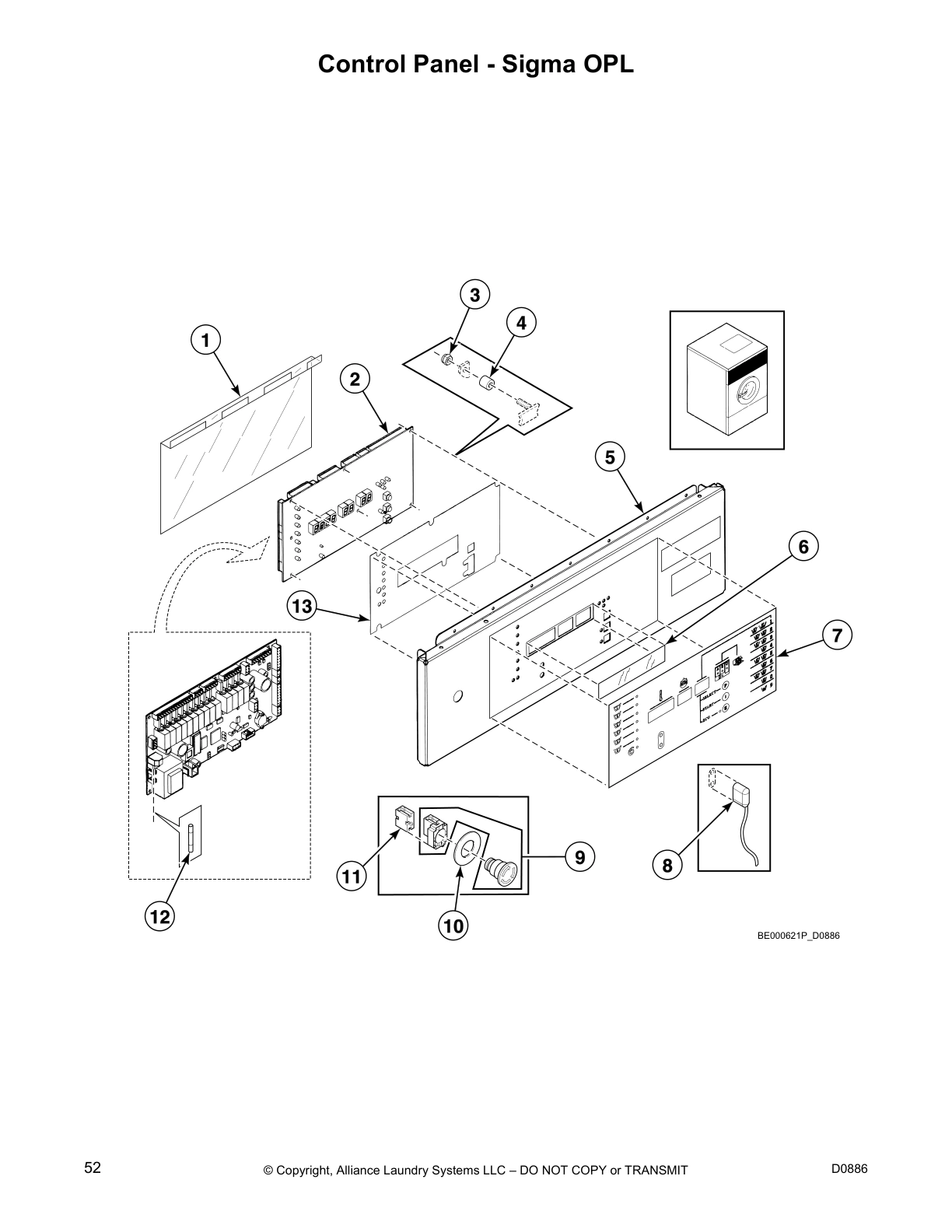

Control Panel - Sigma OPL

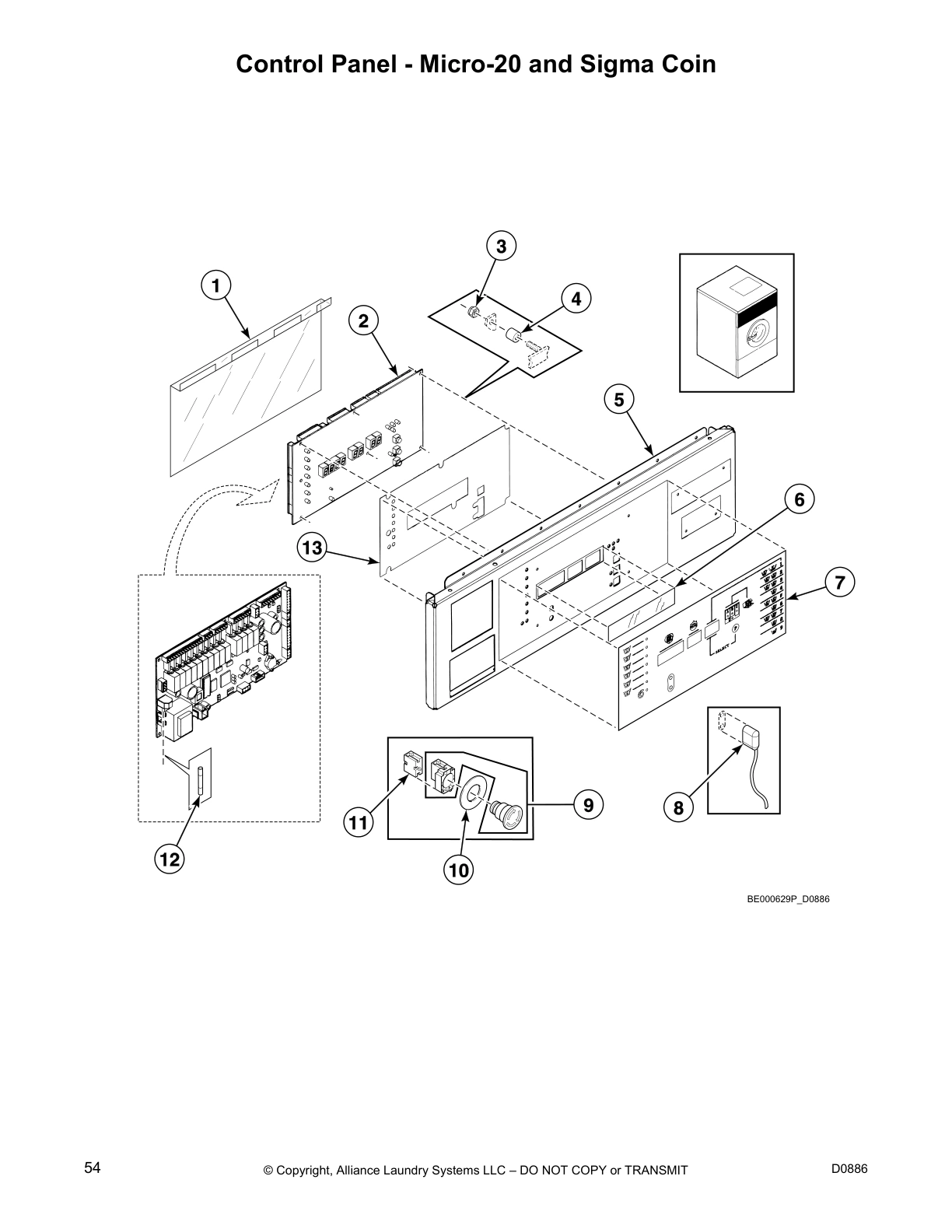

Control Panel - Micro-20 and Sigma Coin

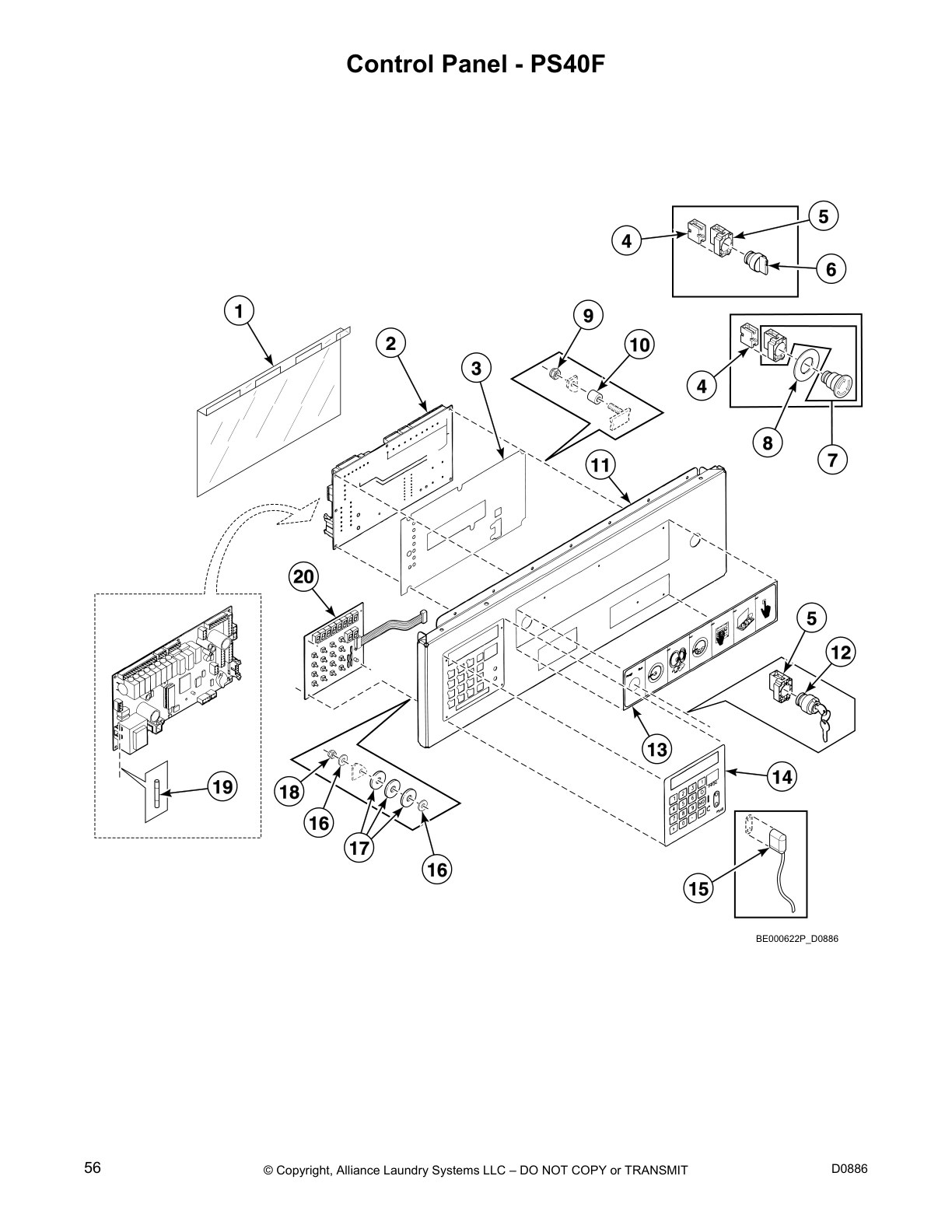

Control Panel - PS40F

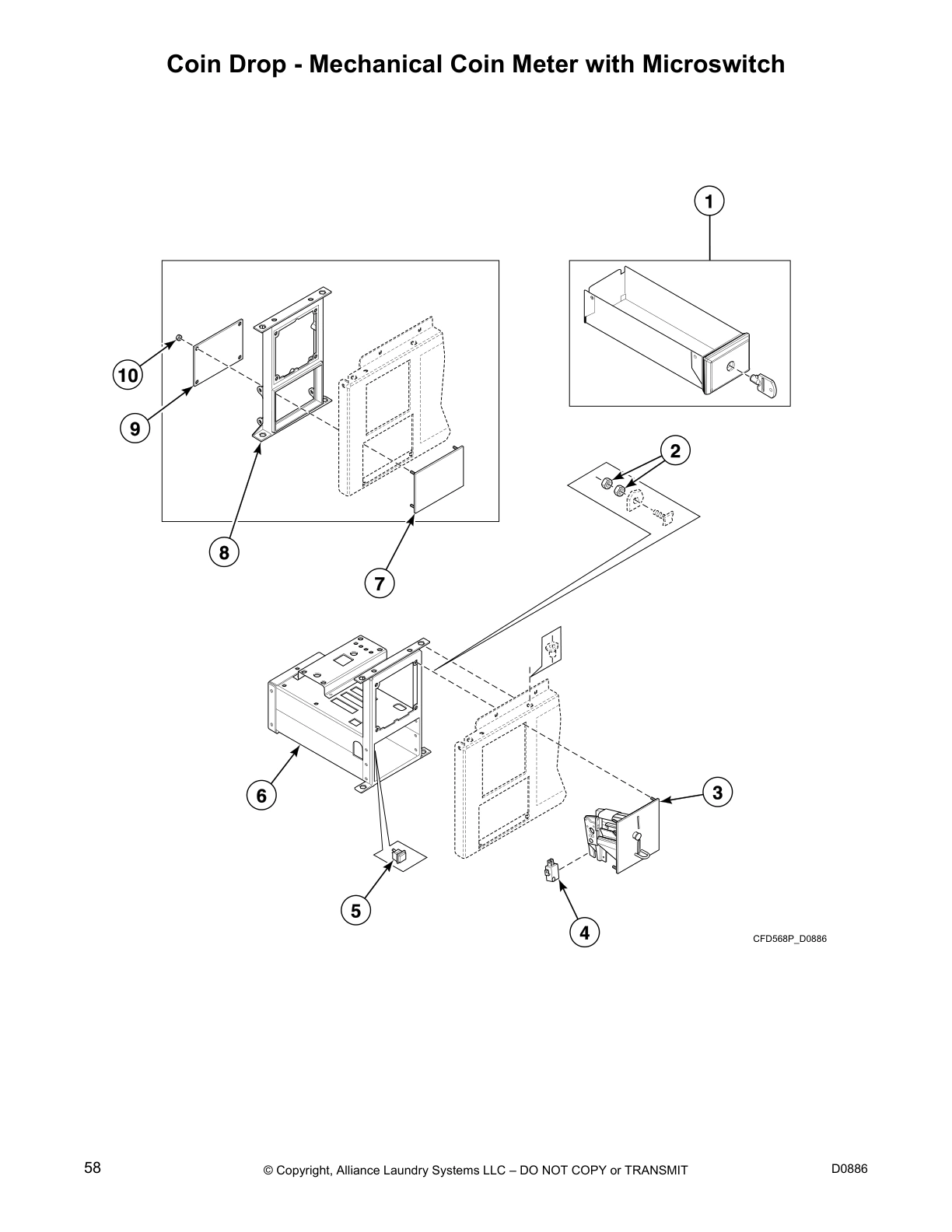

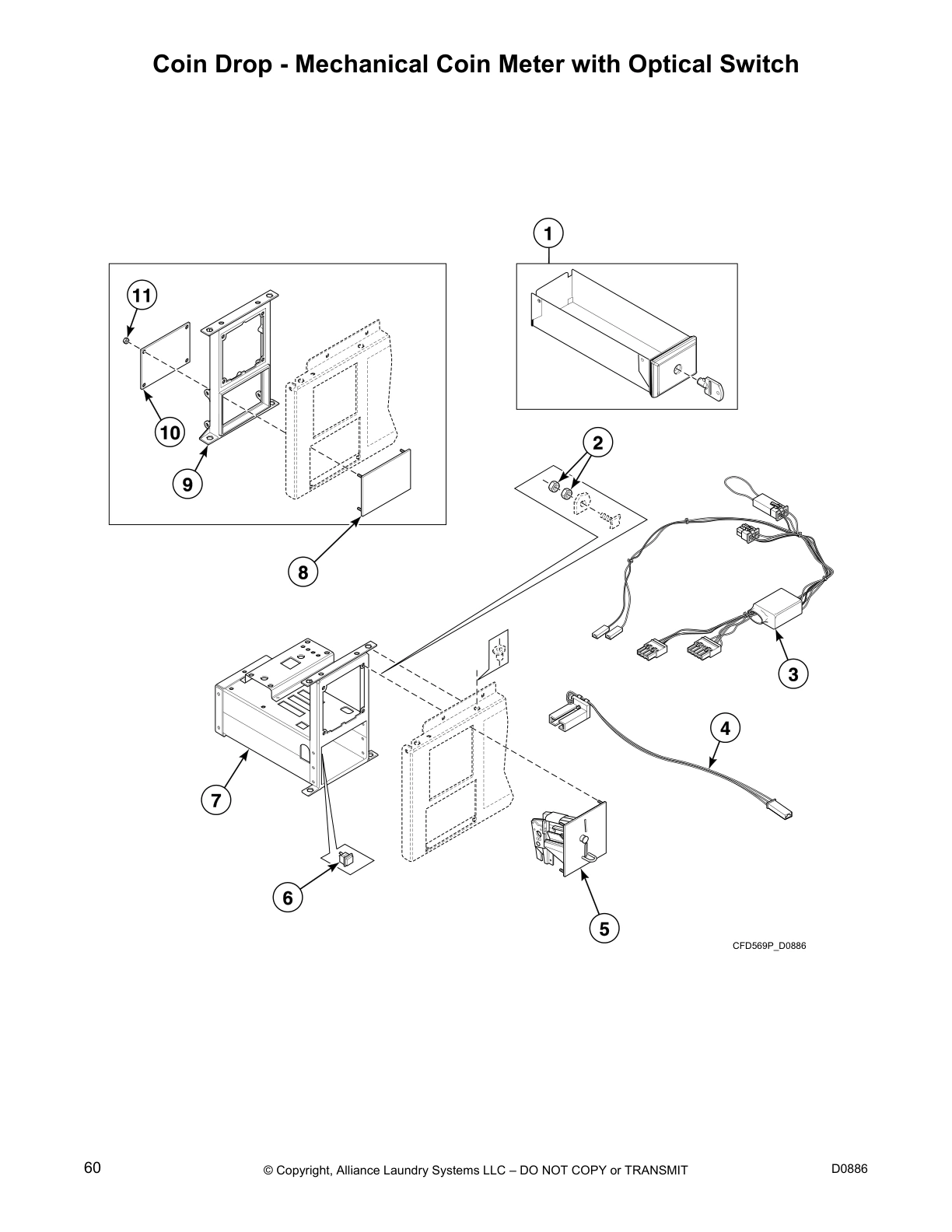

Coin Drop - Mechanical Coin Meter with Microswitch
Coin Drop - Mechanical Coin Meter with Optical Switch
Coin Drop - Electronic Coin Meter

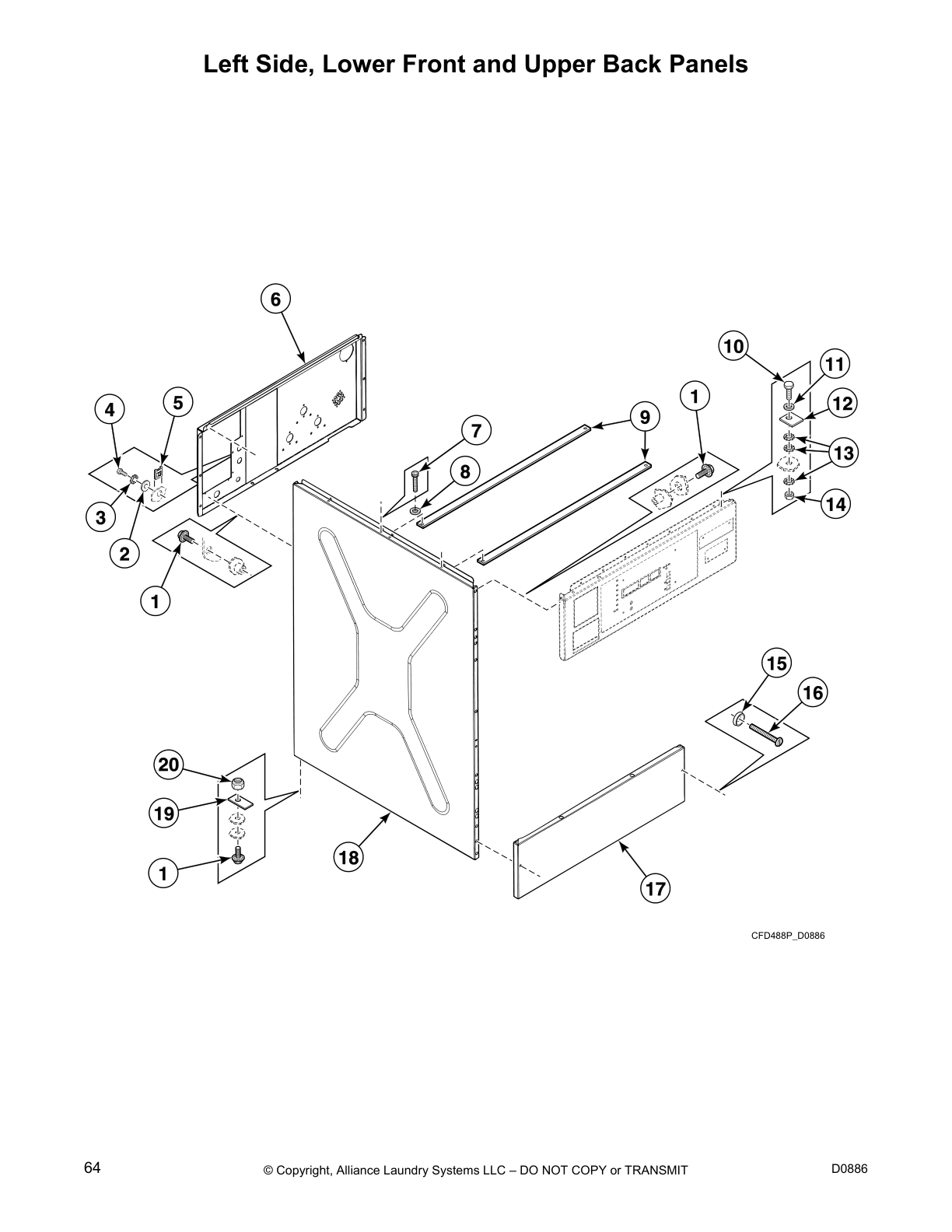

Left Side, Lower Front and Upper Back Panels

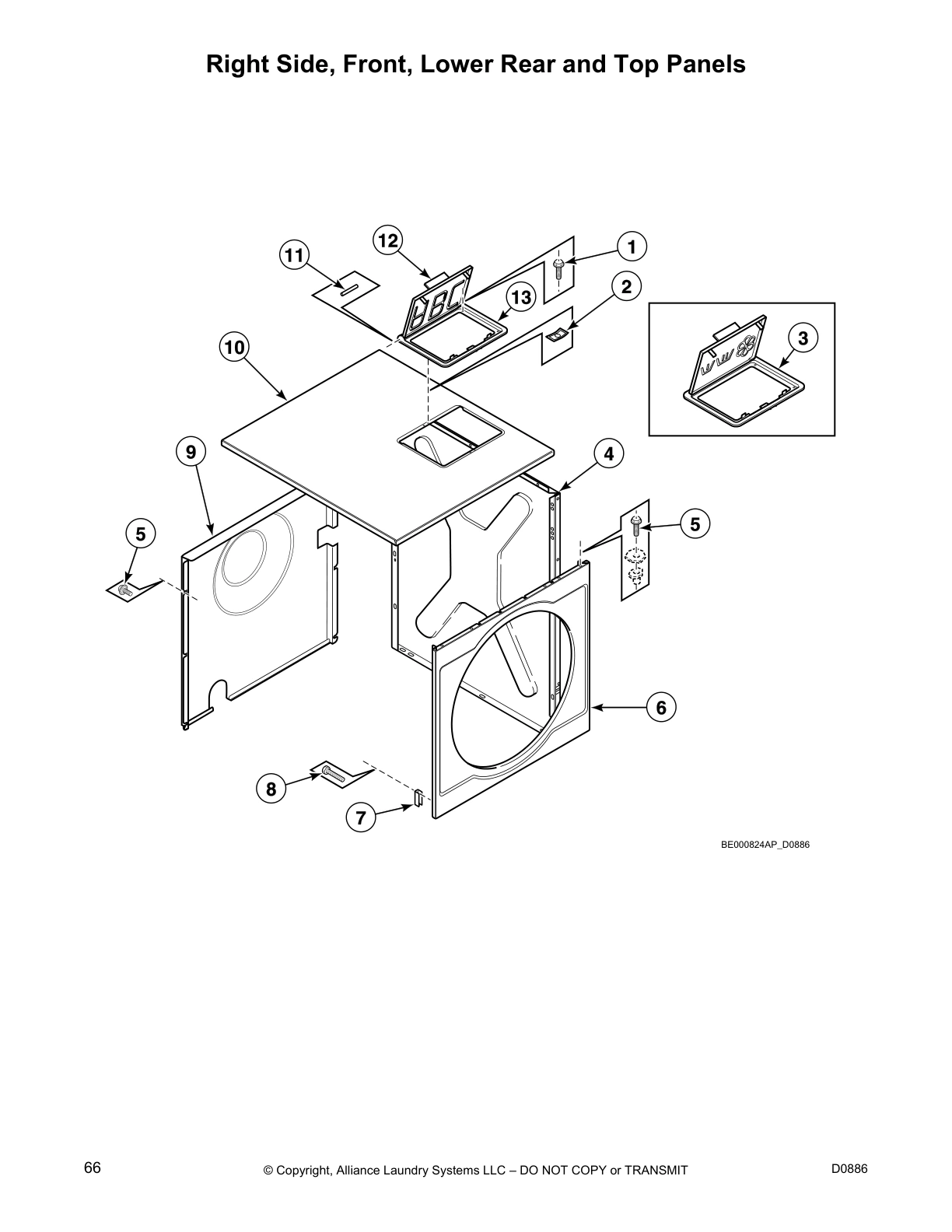

Right Side, Front, Lower Rear and Top Panels

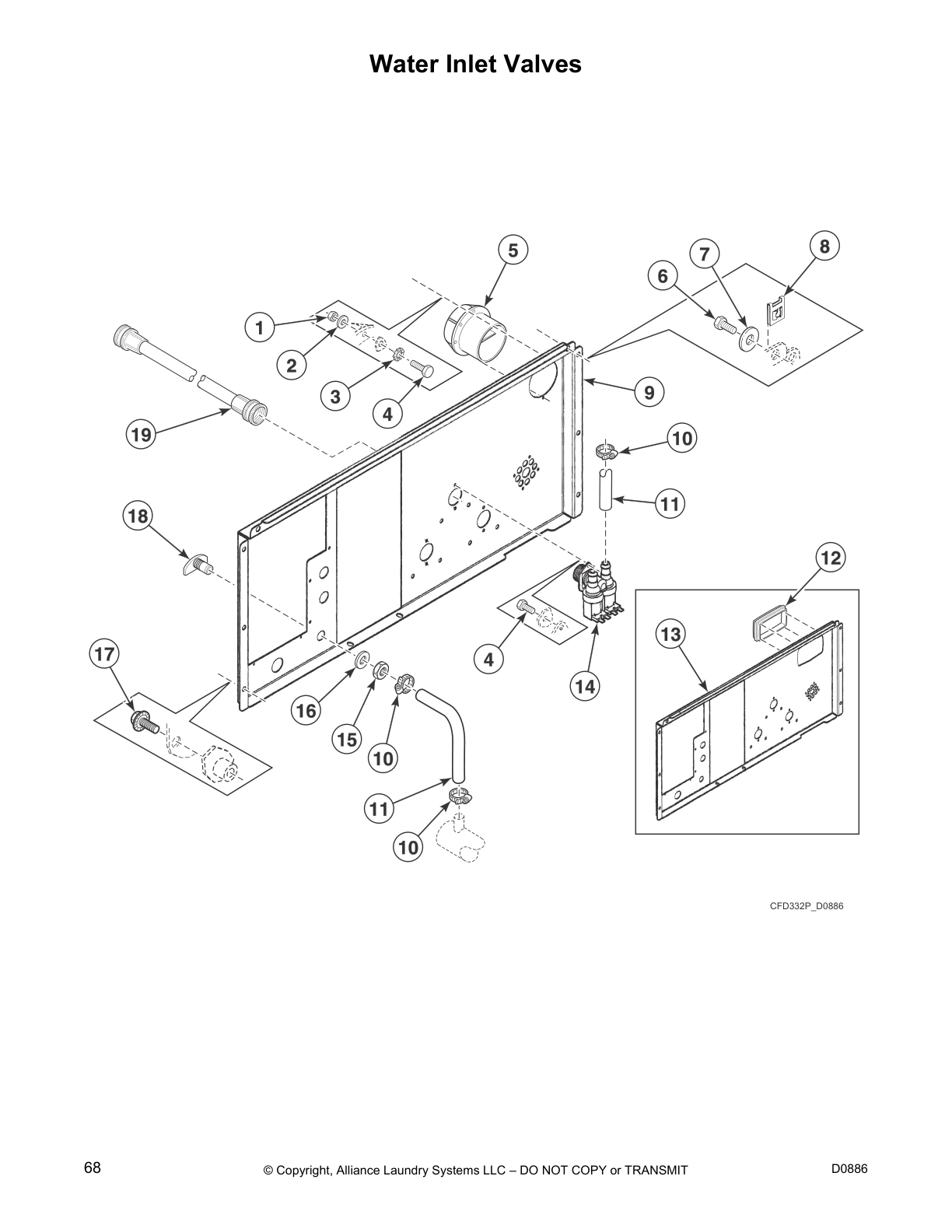

Water Inlet Valves

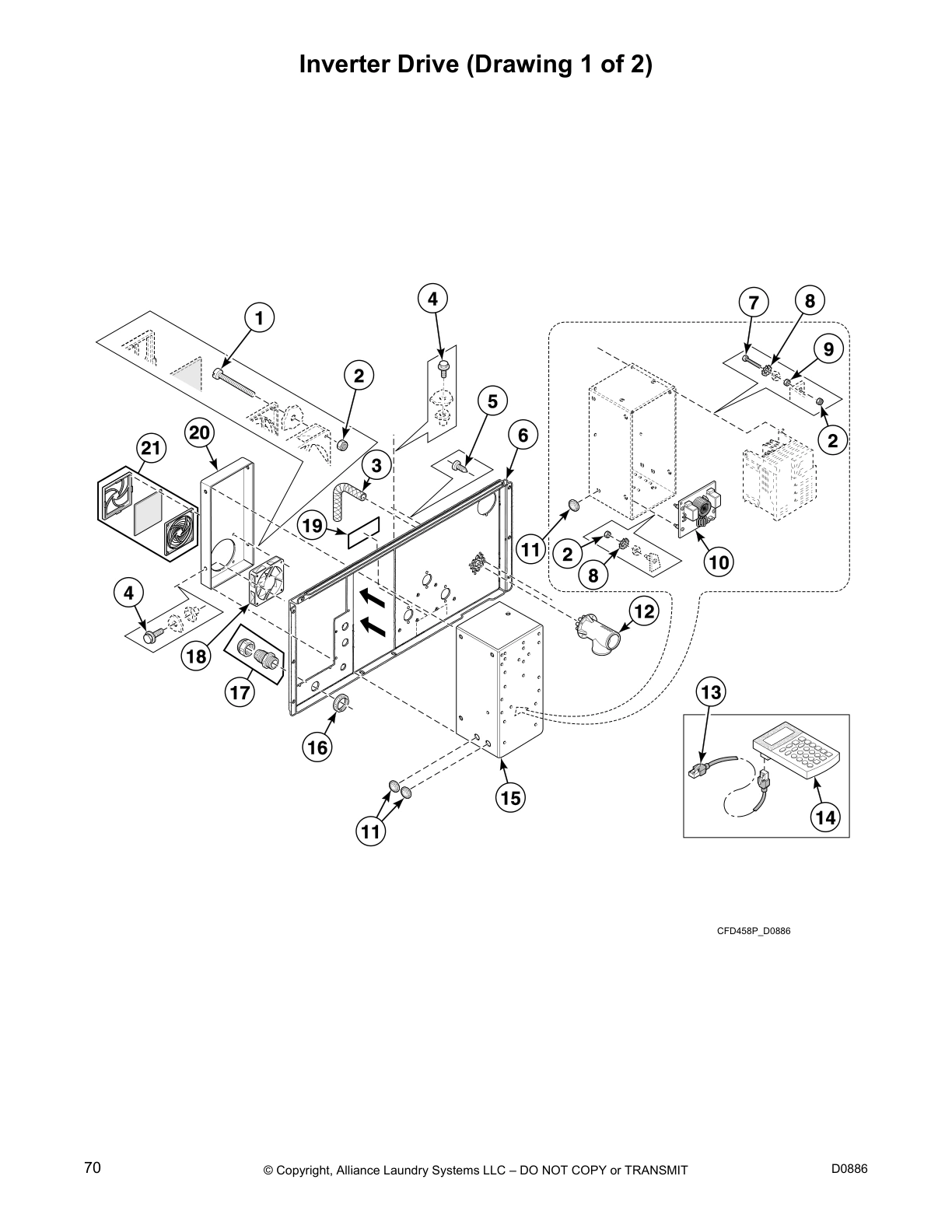

Inverter Drive (Drawing 1 of 2)

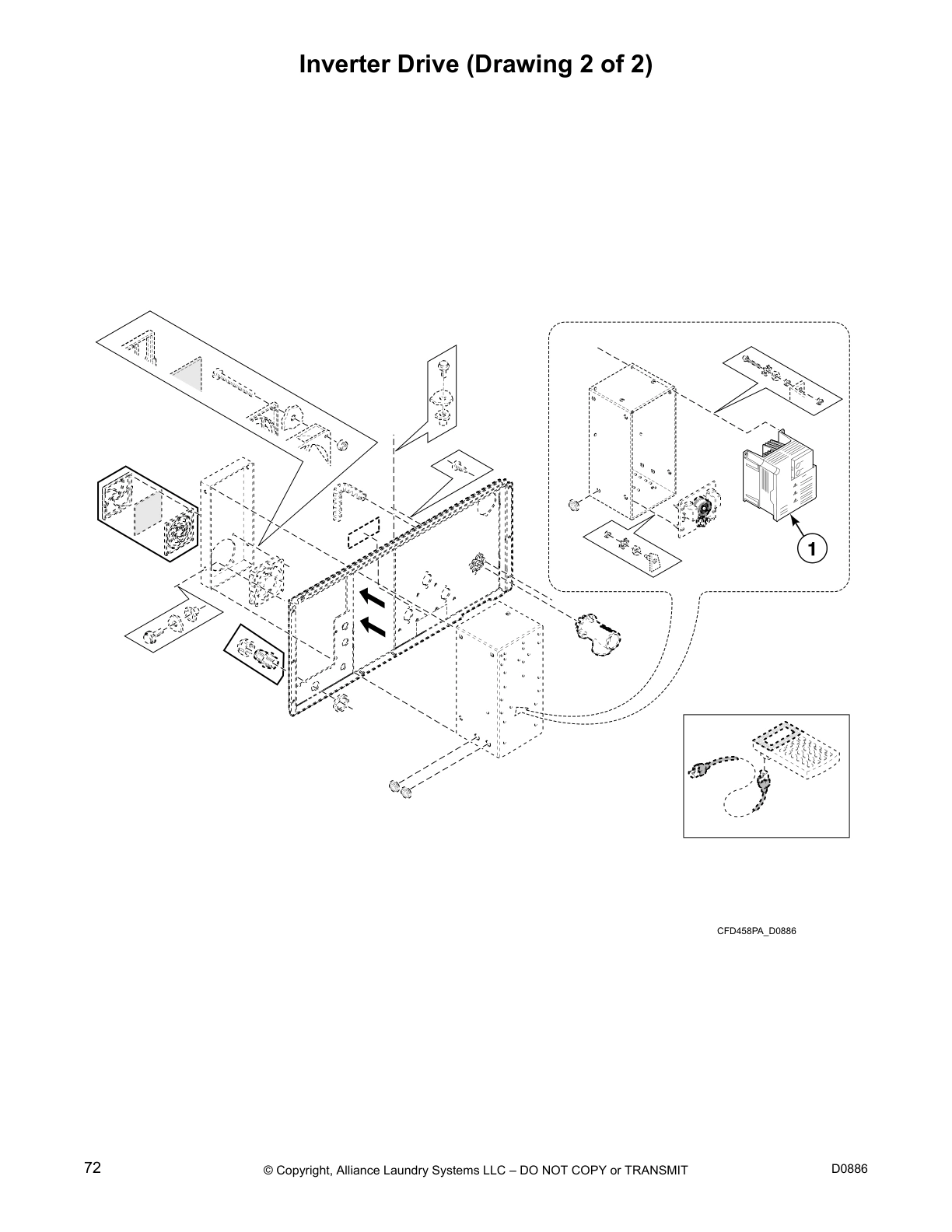

Inverter Drive (Drawing 2 of 2)
Main Switch and Noise Filter

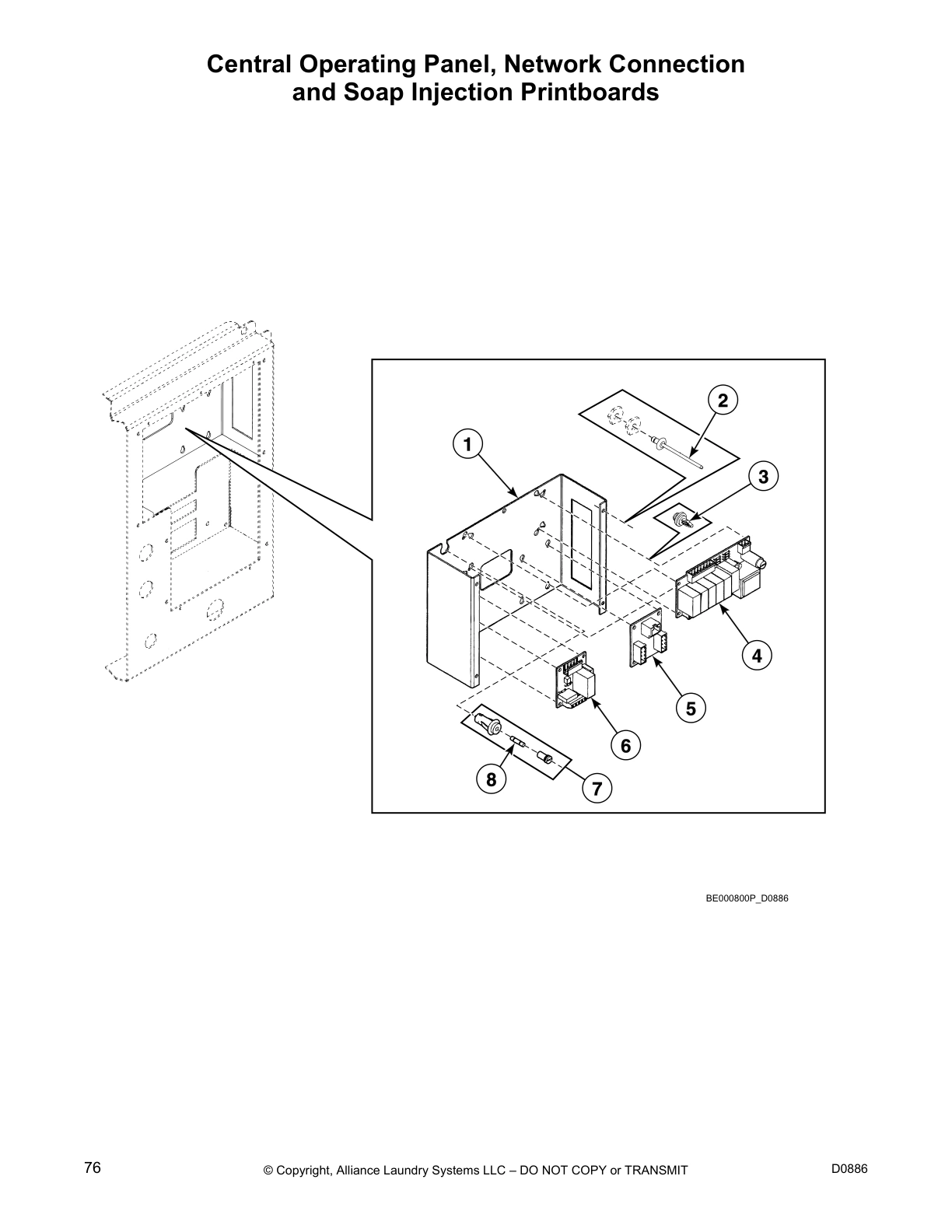

Central Operating Panel, Network Connection
and Soap Injection Printboards
Relay, Network Connection and Main Printboards - Cygnus Models

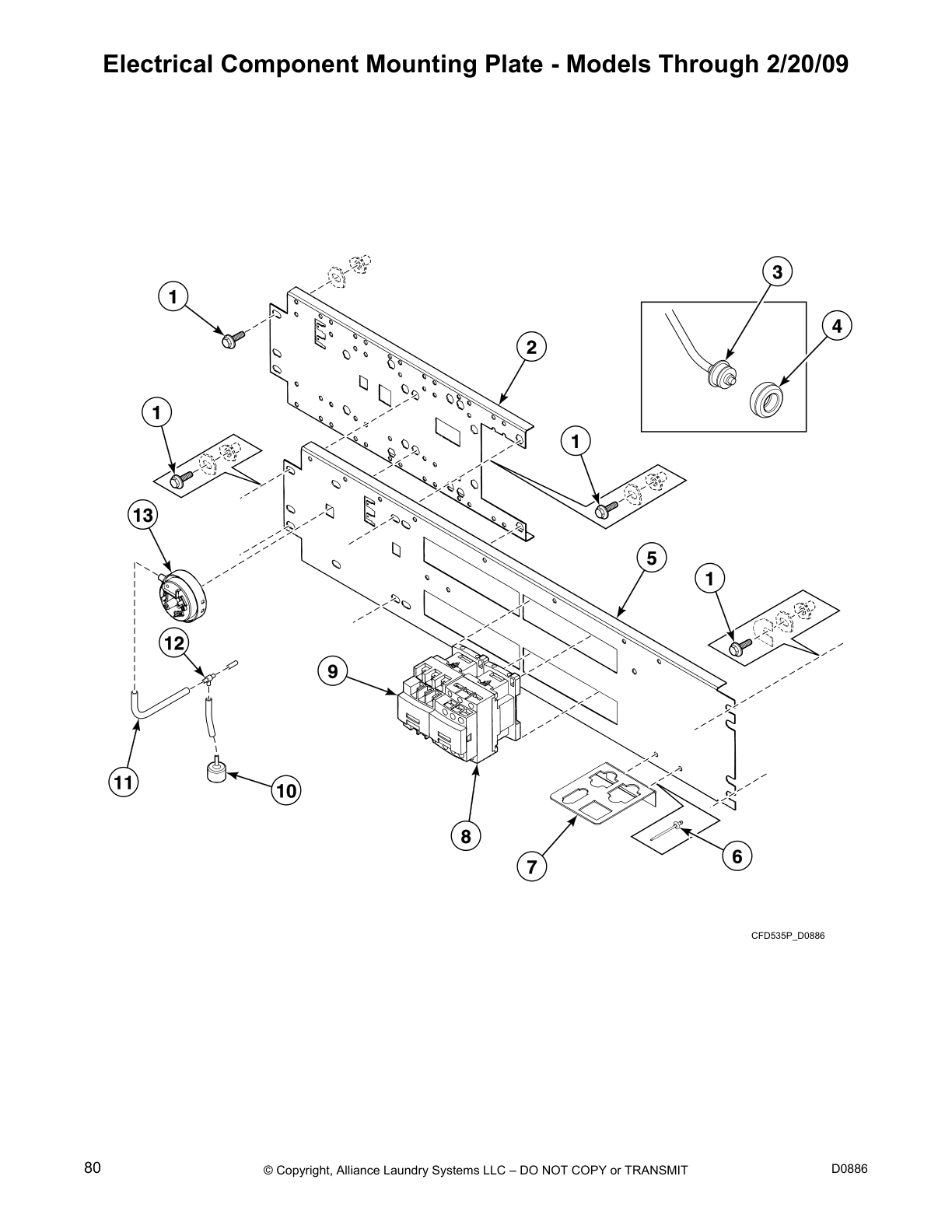

Electrical Component Mounting Plate - Models Through 2/20/09

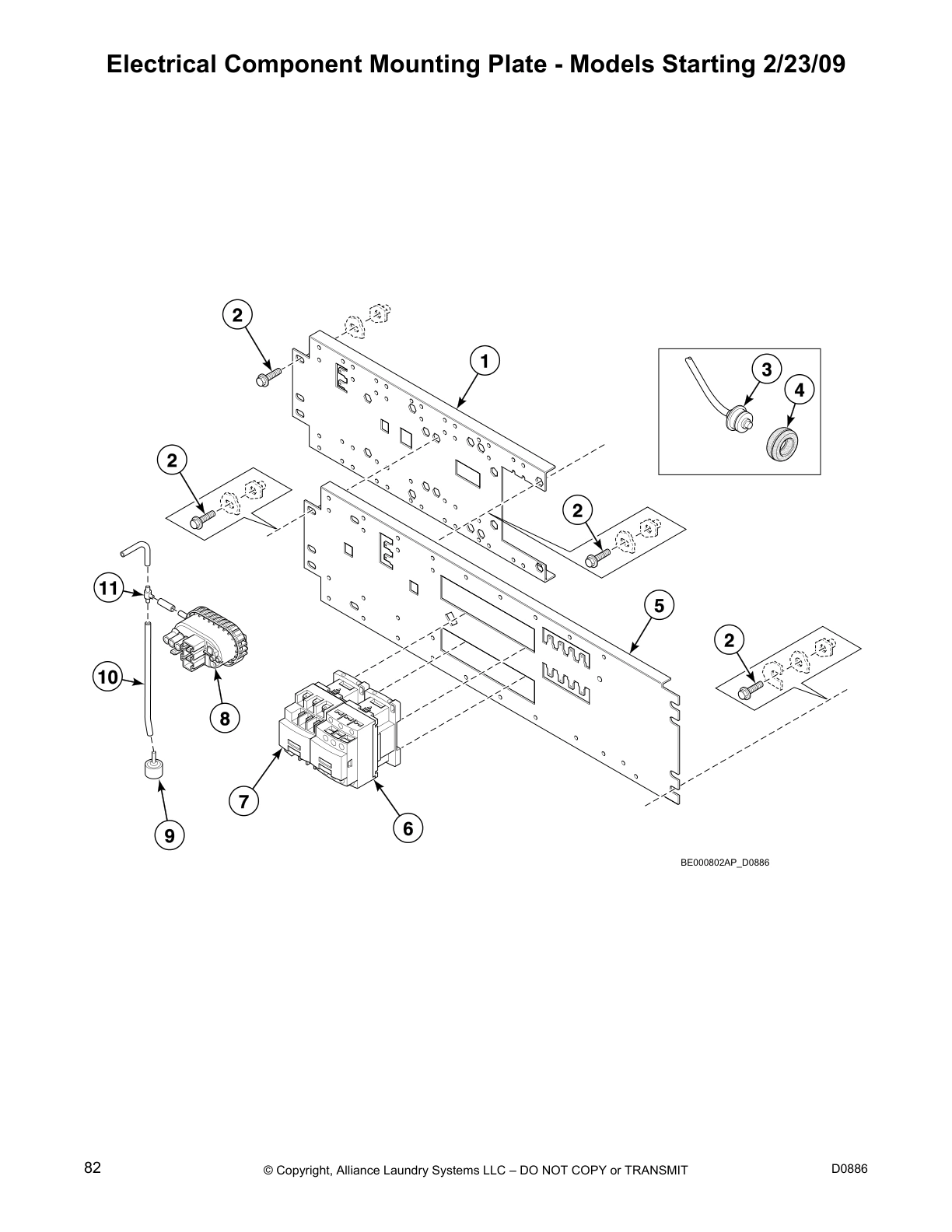

Electrical Component Mounting Plate - Models Starting 2/23/09

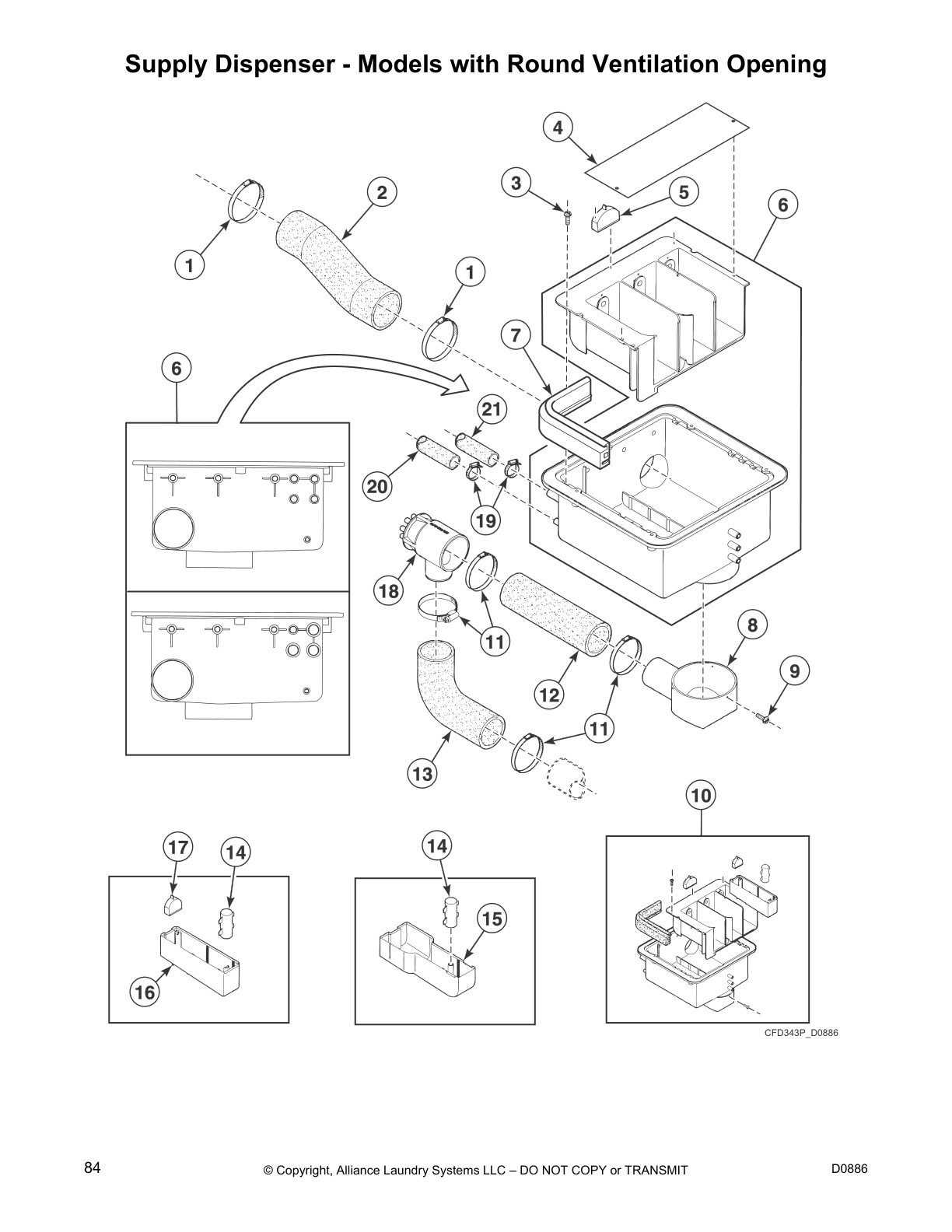

Supply Dispenser - Models with Round Ventilation Opening

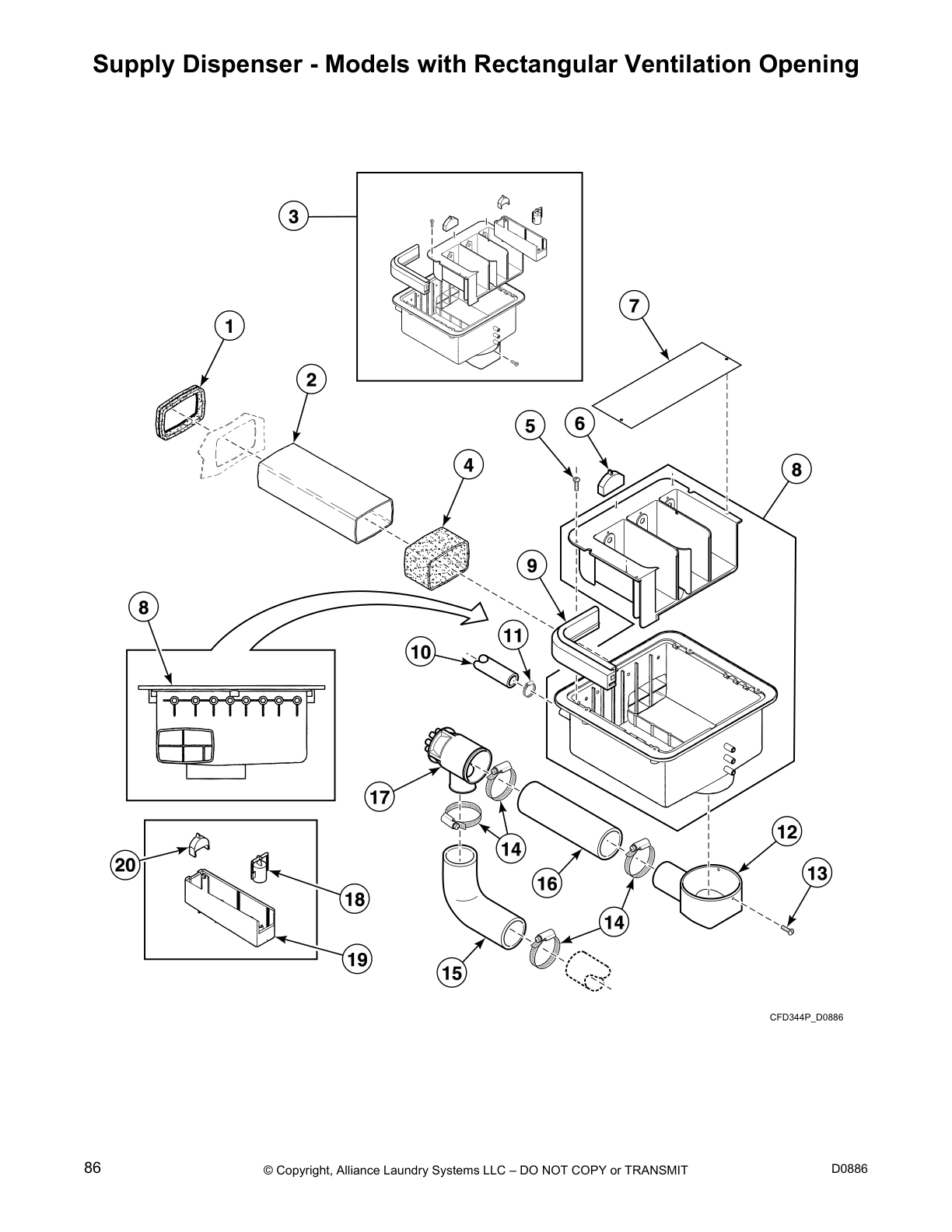

Supply Dispenser - Models with Rectangular Ventilation Opening

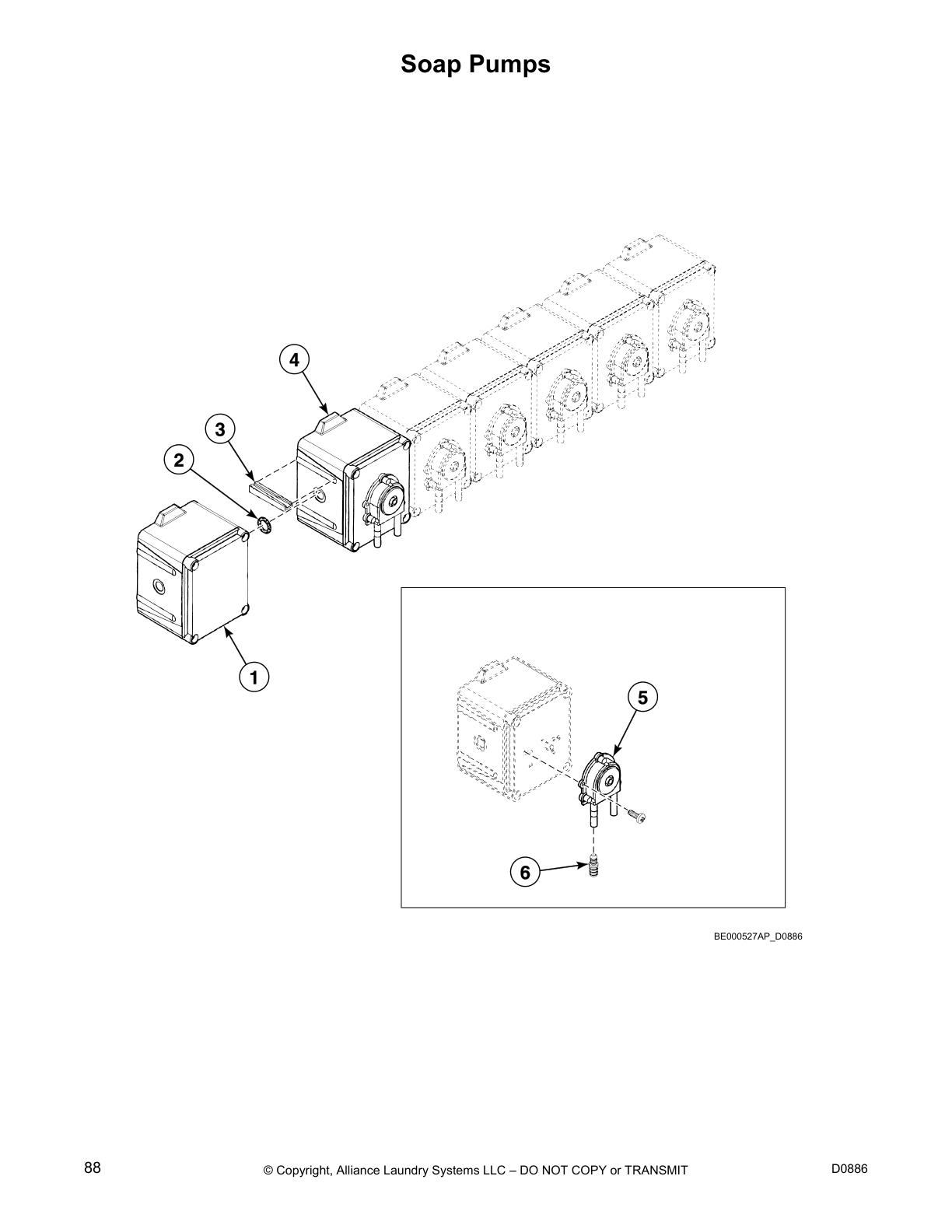

Soap Pumps

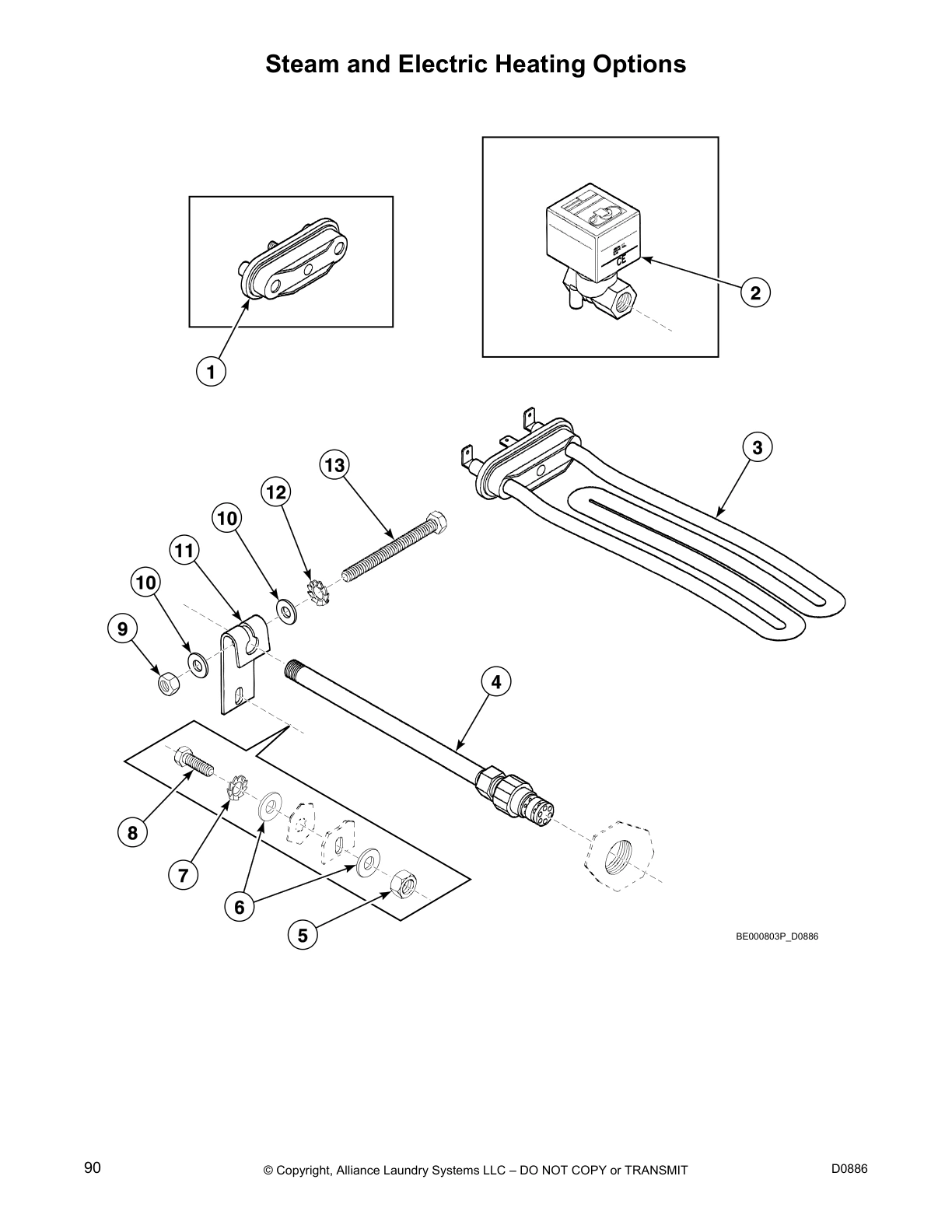

Steam and Electric Heating Options
Common parts from model IPSO IWF150ZN2 Washer
SPQ 227/00242/00 SPQ 227/00242/00 Contact Us For Availability
SPQ 209/00554/01 SPQ 209/00554/01 Contact Us For Availability
SPQ 209/00554/98 SPQ 209/00554/98 Contact Us For Availability
SPQ 206/00013/00 SPQ 206/00013/00 Contact Us For Availability
1
Tub Fastening Ring SPQ 212/00115/00 Contact Us For Availability
1
Washer SPQ 201/00201/00 Contact Us For Availability
1
Drum SPQ 136/00021/00 Contact Us For Availability
1
Tub SPQ B12329601 Contact Us For Availability
1
Hose Clamp SPQ 223/00014/00 Contact Us For Availability
1
Door Glass SPQ B12449801 Contact Us For Availability
1
Circuit Board Cover SPQ 229/00289/00 Contact Us For Availability
1
Bolt SPQ 207/00125/00 Contact Us For Availability
1
Bolt SPQ 206/00027/00 Contact Us For Availability
1
Vent Tube SPQ 223/00226/00 Contact Us For Availability
1
Inverter Drive SPQ 227/00167/00 Contact Us For Availability
1
Printboard Support SPQ 111/01838/10 Contact Us For Availability
1
Electrical Component Mounting Plate SPQ 111/10003/40 Contact Us For Availability
1
Feeding Liquid Soap Dosing Pump SPQ 209/00554/51 Contact Us For Availability
1
Heating Element Plug SPQ F360202 Contact Us For Availability
2
Nut SPQ 204/00002/00 Contact Us For Availability
2
SPQ 152/00044/03 SPQ 152/00044/03 Contact Us For Availability
2
Pressure Switch Hose Tee SPQ 223/00382/00 Contact Us For Availability
2
SPQ 101/00007/00 SPQ 101/00007/00 Contact Us For Availability
2
Outlet Pipe Plate Assembly SPQ 223/00150/00 Contact Us For Availability
2
Bolt SPQ 206/00099/00 Contact Us For Availability
2
Washer SPQ 203/00006/00 Contact Us For Availability
2
Inverter Box Cover SPQ 204/00114/00 Contact Us For Availability
2
Nut SPQ 208/00104/00 Contact Us For Availability
2
SPQ F200164 SPQ F200164 Contact Us For Availability
2
Fuse Holder SPQ 211/00146/00 Contact Us For Availability
2
Softener Spray Nozzle SPQ 223/00222/04 Contact Us For Availability
2
Soap Pump Assembly SPQ 209/00554/06 Contact Us For Availability
3
Washer SPQ 201/00005/00 Contact Us For Availability
3
SPQ 152/00055/00 SPQ 152/00055/00 Contact Us For Availability
3
Basket Kit SPQ B12380401 Contact Us For Availability
3
SPQ 207/00117/00 SPQ 207/00117/00 Contact Us For Availability
3
SPQ 202/00124/00 SPQ 202/00124/00 Contact Us For Availability
3
Bolt SPQ 118/00125/00 Contact Us For Availability
3
Mounting Plate SPQ 223/00374/00 Contact Us For Availability
3
Side Panel SPQ 223/00103/50 Contact Us For Availability
3
Ground Terminal SPQ 209/00006/01 Contact Us For Availability
3
Fuse SPQ 209/00202/01 Contact Us For Availability
3
Water Hose SPQ 223/00107/01 Contact Us For Availability
3
Shrink Fit SPQ 223/00229/00 Contact Us For Availability
3
Steam Injector SPQ 209/00563/20 Contact Us For Availability
4
Bolt SPQ 203/00001/00 Contact Us For Availability
4
SPQ 204/00009/00 SPQ 204/00009/00 Contact Us For Availability
4
Bolt SPQ 206/00032/00 Contact Us For Availability
4
SPQ 227/00196/00 SPQ 227/00196/00 Contact Us For Availability
4
Screw SPQ 204/00008/00 Contact Us For Availability
4
Door Hinge Assembly Plate SPQ 217/00021/00 Contact Us For Availability
4
Contact Block SPQ 44018901 Contact Us For Availability
4
Reinforcement Plate SPQ 111/60037/00 Contact Us For Availability
4
Bolt SPQ 223/00179/10 Contact Us For Availability
4
Main Switch Cover SPQ 111/01834/00 Contact Us For Availability
4
Relay PC-Board SPQ 209/00468/00 Contact Us For Availability
4
Thermostat Grommet SPQ 225/10004/00 Contact Us For Availability
4
Screw SPQ 223/00197/00 Contact Us For Availability
4
Soap Spray Nozzle SPQ 223/00222/03 Contact Us For Availability
4
Nut SPQ 209/00562/20 Contact Us For Availability
5
Chassis SPQ 206/00079/00 Contact Us For Availability
5
Tolerance Ring SPQ B12545901 Contact Us For Availability
5
Tub Front Panel Clip SPQ 217/00008/00 Contact Us For Availability
5
SPQ 217/00052/04 SPQ 217/00052/04 Contact Us For Availability
5
Door Hinge Block SPQ 202/00101/00 Contact Us For Availability
5
SPQ 111/22727/00 SPQ 111/22727/00 Contact Us For Availability
5
Rivet SPQ 202/00004/00 Contact Us For Availability
5
ID Chip SPQ 209/02016/00 Contact Us For Availability
5
Rivet SPQ 111/10003/30 Contact Us For Availability
5
Soap Box Assembly Plate SPQ 223/00107/02 Contact Us For Availability
5
Soap Box Assembly Plate SPQ 223/00222/00 Contact Us For Availability
5
Liquid Soap Dosing Pump O-Ring SPQ 209/00554/05 Contact Us For Availability
5
Steam Heat Kit SPQ 209/00581/10 Contact Us For Availability
6
Screw SPQ 212/00109/50 Contact Us For Availability
6
SPQ 205/00104/00 SPQ 205/00104/00 Contact Us For Availability
6
Washer SPQ 215/00004/00 Contact Us For Availability
6
Tub Front Panel SPQ 185/00049/00 Contact Us For Availability
6
SPQ 226/00144/00 SPQ 226/00144/00 Contact Us For Availability
6
SPQ 225/10167/00 SPQ 225/10167/00 Contact Us For Availability
6
SPQ 224/00040/00 SPQ 224/00040/00 Contact Us For Availability
6
SPQ 208/00025/00 SPQ 208/00025/00 Contact Us For Availability
6
SPQ 223/00102/07 SPQ 223/00102/07 Contact Us For Availability
6
Backbridge SPQ 208/00130/00 Contact Us For Availability
6
Support Connector SPQ 208/00017/00 Contact Us For Availability
6
Central Control Board SPQ 209/00438/50 Contact Us For Availability
6
Soap Spray Nozzle SPQ 223/00107/03 Contact Us For Availability
6
Outer and Inner Box Kit SPQ 223/00245/00 Contact Us For Availability
6
Hose SPQ 209/00554/03 Contact Us For Availability
6
SPQ 209/00564/20 SPQ 209/00564/20 Contact Us For Availability
7
SPQ 217/00002/00 SPQ 217/00002/00 Contact Us For Availability
7
SPQ B12333701 SPQ B12333701 Contact Us For Availability
7
SPQ 210/10015/00 SPQ 210/10015/00 Contact Us For Availability
7
SPQ 204/00106/00 SPQ 204/00106/00 Contact Us For Availability
7
Pushbutton SPQ 44018801 Contact Us For Availability
7
SPQ 208/00014/00 SPQ 208/00014/00 Contact Us For Availability
7
Terminal Block SPQ 209/00529/00 Contact Us For Availability
7
SPQ 209/02014/00 SPQ 209/02014/00 Contact Us For Availability
7
SPQ 111/10003/10 SPQ 111/10003/10 Contact Us For Availability
7
Soap Dispenser Gasket SPQ 223/00107/00 Contact Us For Availability
7
Soap Dispenser Gasket SPQ B12347501 Contact Us For Availability
7
SPQ 118/00084/00 SPQ 118/00084/00 Contact Us For Availability
8
SPQ 219/00001/00 SPQ 219/00001/00 Contact Us For Availability
8
Drum Pulley SPQ 203/00002/00 Contact Us For Availability
8
Ring Clip SPQ 219/00008/00 Contact Us For Availability
8
SPQ 206/00042/00 SPQ 206/00042/00 Contact Us For Availability
8
SPQ 209/00643/00 SPQ 209/00643/00 Contact Us For Availability
8
SPQ F200133600 SPQ F200133600 Contact Us For Availability
8
SPQ 203/00007/00 SPQ 203/00007/00 Contact Us For Availability
8
SPQ 118/00121/00 SPQ 118/00121/00 Contact Us For Availability
8
Insulating Sticker SPQ 229/00268/00 Contact Us For Availability
8
Telem Sticker SPQ 209/00520/00 Contact Us For Availability
8
Washer SPQ 111/01833/00 Contact Us For Availability
8
SPQ 201/00006/00 SPQ 201/00006/00 Contact Us For Availability
8
Noise Filter SPQ 209/00526/00 Contact Us For Availability
8
Pressure Switch SPQ 209/00027/10 Contact Us For Availability
8
SPQ 223/00102/06 SPQ 223/00102/06 Contact Us For Availability
8
SPQ 118/00085/00 SPQ 118/00085/00 Contact Us For Availability
9
SPQ 206/00007/00 SPQ 206/00007/00 Contact Us For Availability
9
SPQ 212/00006/00 SPQ 212/00006/00 Contact Us For Availability
9
SPQ 209/00463/00 SPQ 209/00463/00 Contact Us For Availability
9
SPQ 253/00022/00 SPQ 253/00022/00 Contact Us For Availability
9
Printboard Support Card SPQ 111/01893/00 Contact Us For Availability
9
SPQ 208/00002/00 SPQ 208/00002/00 Contact Us For Availability
9
Filter SPQ 209/00530/00 Contact Us For Availability
9
SPQ 209/02020/00 SPQ 209/02020/00 Contact Us For Availability
9
Pressure Switch Cap SPQ 223/00035/02 Contact Us For Availability
9
SPQ 123/00103/06 SPQ 123/00103/06 Contact Us For Availability
9
SPQ 204/00005/00 SPQ 204/00005/00 Contact Us For Availability
10
Screw SPQ 206/00058/00 Contact Us For Availability
10
Washer SPQ 202/00002/00 Contact Us For Availability
10
Hose Barb SPQ 223/00016/00 Contact Us For Availability
10
Drain Valve Hose SPQ 223/00190/00 Contact Us For Availability
10
Water Hose SPQ 223/00044/00 Contact Us For Availability
10
Door Hinge Spacer SPQ 118/00124/00 Contact Us For Availability
10
Datacard SPQ 209/02022/00 Contact Us For Availability
10
Washer SPQ 205/00106/00 Contact Us For Availability
10
Top Panel SPQ 111/22741/00 Contact Us For Availability
10
Filter Bracket SPQ 111/01837/01 Contact Us For Availability
10
Soap Dispenser Assembly SPQ 223/00102/50 Contact Us For Availability
11
Bolt SPQ 206/00093/00 Contact Us For Availability
11
Bolt SPQ 206/00119/00 Contact Us For Availability
11
Hose Clamp SPQ 223/00010/00 Contact Us For Availability
11
Drain Valve SPQ 223/00071/00 Contact Us For Availability
11
Washer SPQ 203/00010/00 Contact Us For Availability
11
Screw SPQ 207/00126/00 Contact Us For Availability
11
Data Card Ribbon Assembly SPQ B12538301 Contact Us For Availability
11
Retaining Ring SPQ 202/00003/00 Contact Us For Availability
11
Grommet SPQ 223/00174/00 Contact Us For Availability
11
Microprocessor SPQ 209/02025/00 Contact Us For Availability
11
Steam Injector Plate Assembly SPQ 113/00025/00 Contact Us For Availability
12
Bolt SPQ 203/00003/00 Contact Us For Availability
12
U-Piece Assembly SPQ 113/00067/00 Contact Us For Availability
12
Washer SPQ 201/00010/00 Contact Us For Availability
12
Nut SPQ 117/00042/00 Contact Us For Availability
12
Motor SPQ F8546501 Contact Us For Availability
12
Screw SPQ 207/00112/00 Contact Us For Availability
12
Washer SPQ 202/00104/00 Contact Us For Availability
12
Memory Card PC-Board SPQ B12305201 Contact Us For Availability
12
Emergency Switch Pushbutton SPQ 209/00099/20 Contact Us For Availability
12
Network Connection Printboard SPQ 209/02007/00 Contact Us For Availability
12
Dispenser Drain Funnel SPQ 223/00195/00 Contact Us For Availability
13
Bearing Housing Plate SPQ 113/00017/02 Contact Us For Availability
13
Motor Mounting Plate SPQ 206/00006/00 Contact Us For Availability
13
Bolt SPQ 209/00644/11 Contact Us For Availability
13
Nut SPQ 204/00116/00 Contact Us For Availability
13
Plexi Frame SPQ 225/00321/00 Contact Us For Availability
13
Screw SPQ 203/00005/00 Contact Us For Availability
13
Soap Dispenser Frame SPQ 223/00103/03 Contact Us For Availability
13
Backbridge SPQ 111/01833/10 Contact Us For Availability
13
Parameter Unit Program Cable SPQ 227/00171/10 Contact Us For Availability
13
Screw SPQ B12350903 Contact Us For Availability
13
Heating Element SPQ 206/00035/00 Contact Us For Availability
14
Nut SPQ 113/00017/01 Contact Us For Availability
14
Nut SPQ 206/00009/00 Contact Us For Availability
14
Siphon Break Hose SPQ 223/00013/00 Contact Us For Availability
14
Door Lock Bracket SPQ 201/00018/00 Contact Us For Availability
14
Washer SPQ 223/00123/00 Contact Us For Availability
14
Lower Front Panel SPQ 204/00006/00 Contact Us For Availability
14
Parameter Unit Assembly SPQ F8410901 Contact Us For Availability
15
Bearing SPQ 201/00001/00 Contact Us For Availability
15
Drain Piece SPQ 223/00146/00 Contact Us For Availability
15
Drain Hose SPQ 206/00101/00 Contact Us For Availability
15
Washer SPQ 204/00201/00 Contact Us For Availability
15
Lock Shaft SPQ 207/00009/00 Contact Us For Availability
15
Printboard Separator SPQ 211/00128/00 Contact Us For Availability
15
Side Panel SPQ 208/00009/00 Contact Us For Availability
15
Inverter Drive Box SPQ 111/01174/00 Contact Us For Availability
15
Soap Dispenser Hose SPQ B12310304 Contact Us For Availability
16
Retainer Ring SPQ 204/00010/00 Contact Us For Availability
16
Fan Plate Assembly SPQ 115/10185/00 Contact Us For Availability
16
Bolt SPQ 201/00002/00 Contact Us For Availability
16
Microswitch SPQ 217/00052/11 Contact Us For Availability
16
Standoff SPQ 211/00122/00 Contact Us For Availability
16
Operating Sticker SPQ 225/10313/00 Contact Us For Availability
16
Datacard Cover SPQ 223/00348/00 Contact Us For Availability
16
Outlet Pipe Plate Assembly SPQ 207/00101/00 Contact Us For Availability
16
Siphon Break Dispenser Hose SPQ 223/00261/00 Contact Us For Availability
16
Rinse Insert SPQ 223/00102/04 Contact Us For Availability
17
Bearing Housing Assembly SPQ F100134 Contact Us For Availability
17
Nut SPQ 271/35945/00 Contact Us For Availability
17
Motor SPQ 204/00109/00 Contact Us For Availability
17
Overflow Hose SPQ 223/00072/00 Contact Us For Availability
17
Door Lock Assembly SPQ 207/00102/00 Contact Us For Availability
17
Backbridge SPQ 111/01803/00 Contact Us For Availability
17
Liquid Soap Manifold SPQ 223/00262/00 Contact Us For Availability
17
Softener Spray Nozzle SPQ 223/00102/08 Contact Us For Availability
18
Speed Detector Bracket SPQ 212/00037/00 Contact Us For Availability
18
Motor Pulley SPQ 204/00115/00 Contact Us For Availability
18
Hose Vent SPQ 223/00001/04 Contact Us For Availability
18
Overflow Hose SPQ 153/00028/00 Contact Us For Availability
18
Pressure Switch Elbow SPQ 114/00010/00 Contact Us For Availability
18
Door Solenoid Assembly SPQ 217/00017/03 Contact Us For Availability
18
Siphon Break SPQ 223/00260/00 Contact Us For Availability
18
Liquid Soap Manifold SPQ 223/00102/03 Contact Us For Availability
19
Seal Plate Assembly SPQ 212/10104/00 Contact Us For Availability
19
Siphon Break Dispenser Hose SPQ 223/00011/00 Contact Us For Availability
19
Screw SPQ F200166 Contact Us For Availability
19
Rinsing Box SPQ 223/00250/00 Contact Us For Availability
19
Voltage Discharge Decal SPQ B12355001 Contact Us For Availability
19
Ventilating Hose SPQ 223/00102/05 Contact Us For Availability
20
SPQ 206/00054/00 SPQ 206/00054/00 Contact Us For Availability
20
Washer SPQ 223/00210/00 Contact Us For Availability
20
Filter SPQ 111/01174/01 Contact Us For Availability
20
Soap Dispenser SPQ 223/00222/05 Contact Us For Availability
21
Drain Pipe SPQ 223/00263/00 Contact Us For Availability
21
Lever Spring SPQ B12495102 Contact Us For Availability
21
AC Drive Filter SPQ 209/00287/21 Contact Us For Availability
22
Ground Terminal SPQ 224/00049/00 Contact Us For Availability
24
Pressure Switch Hose Tee SPQ 206/00033/00 Contact Us For Availability
24
Nut SPQ 224/00043/00 Contact Us For Availability
25
Pressure Hose SPQ 223/00106/00 Contact Us For Availability
NI
SPQ 204/00004/00 SPQ 204/00004/00 Contact Us For Availability
NI
SPQ 203/00004/00 SPQ 203/00004/00 Contact Us For Availability
NI
SPQ 206/00005/00 SPQ 206/00005/00 Contact Us For Availability
NI
SPQ 226/00141/00 SPQ 226/00141/00 Contact Us For Availability
NI
SPQ 201/00007/00 SPQ 201/00007/00 Contact Us For Availability
NI
SPQ 211/00145/00 SPQ 211/00145/00 Contact Us For Availability
NI
SPQ 206/00166/00 SPQ 206/00166/00 Contact Us For Availability
NI
SPQ 111/10089/01 SPQ 111/10089/01 Contact Us For Availability
NI
SPQ 204/00007/00 SPQ 204/00007/00 Contact Us For Availability
NI
SPQ 209/00527/00 SPQ 209/00527/00 Contact Us For Availability
NI
SPQ 227/00180/00 SPQ 227/00180/00 Contact Us For Availability
NI
SPQ 227/00179/00 SPQ 227/00179/00 Contact Us For Availability
NI
SPQ 223/00109/00 SPQ 223/00109/00 Contact Us For Availability
NI
SPQ 223/00102/30 SPQ 223/00102/30 Contact Us For Availability
NI
SPQ 223/00222/60 SPQ 223/00222/60 Contact Us For Availability
NI
Hose Connector SPQ 209/00554/02 Contact Us For Availability
NI
SPQ 209/00554/52 SPQ 209/00554/52 Contact Us For Availability
NI
SPQ 209/00554/99 SPQ 209/00554/99 Contact Us For Availability
NI
SPQ 921P3 SPQ 921P3 Contact Us For Availability
× ![]()
