Model IPSO IWF150SX2 Washer – Common Parts & Diagrams
Frame
Bearing Housing - Models Through 1/30/11

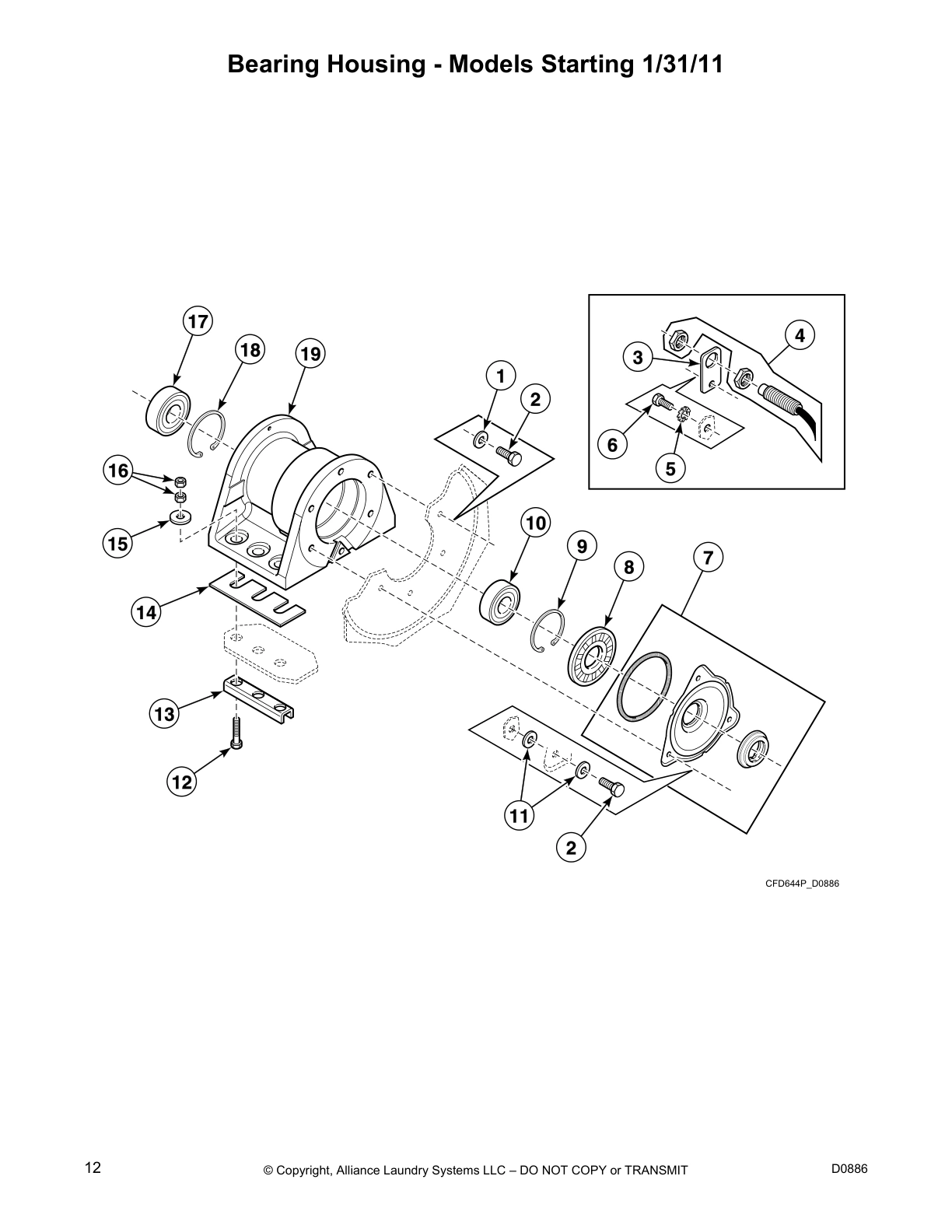

Bearing Housing - Models Starting 1/31/11

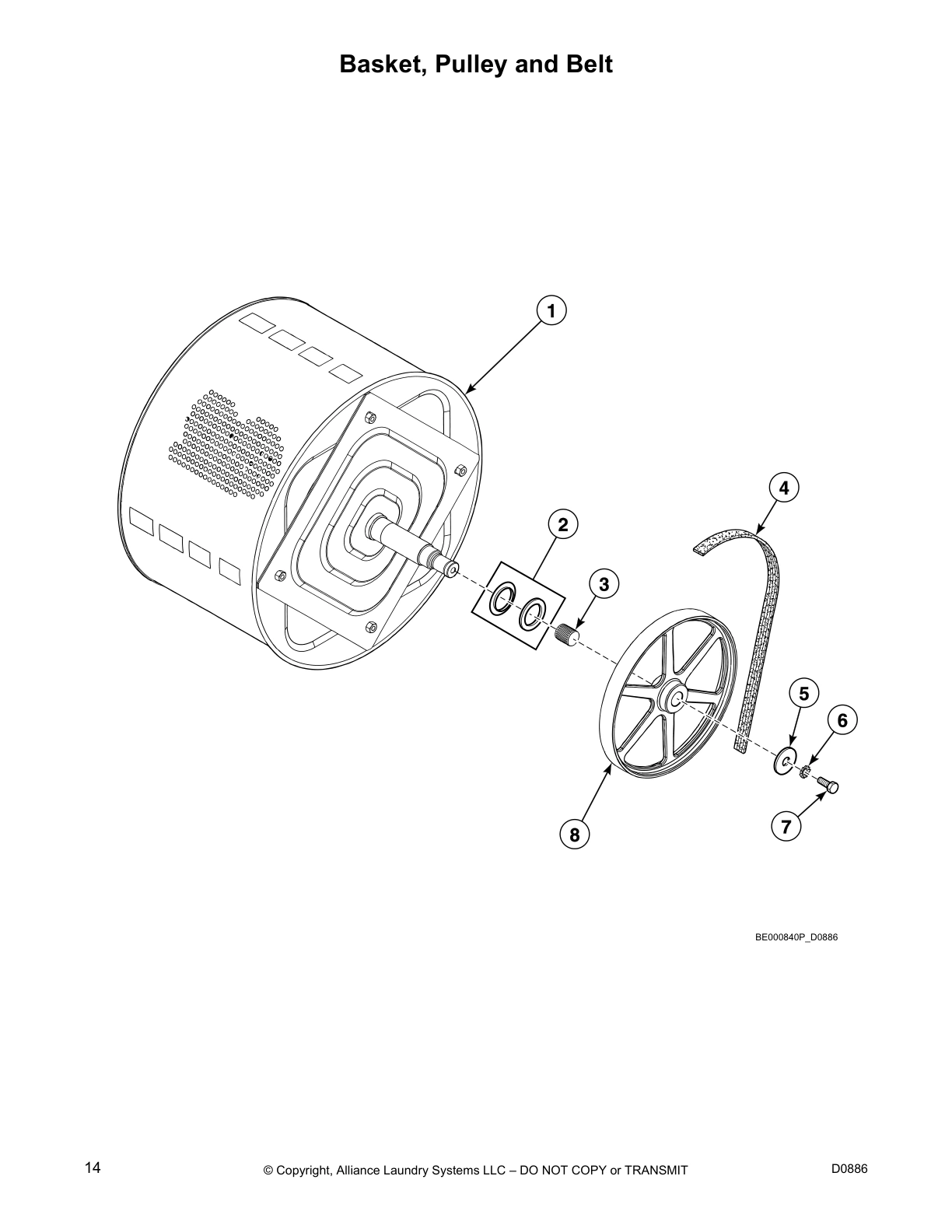

Basket, Pulley and Belt

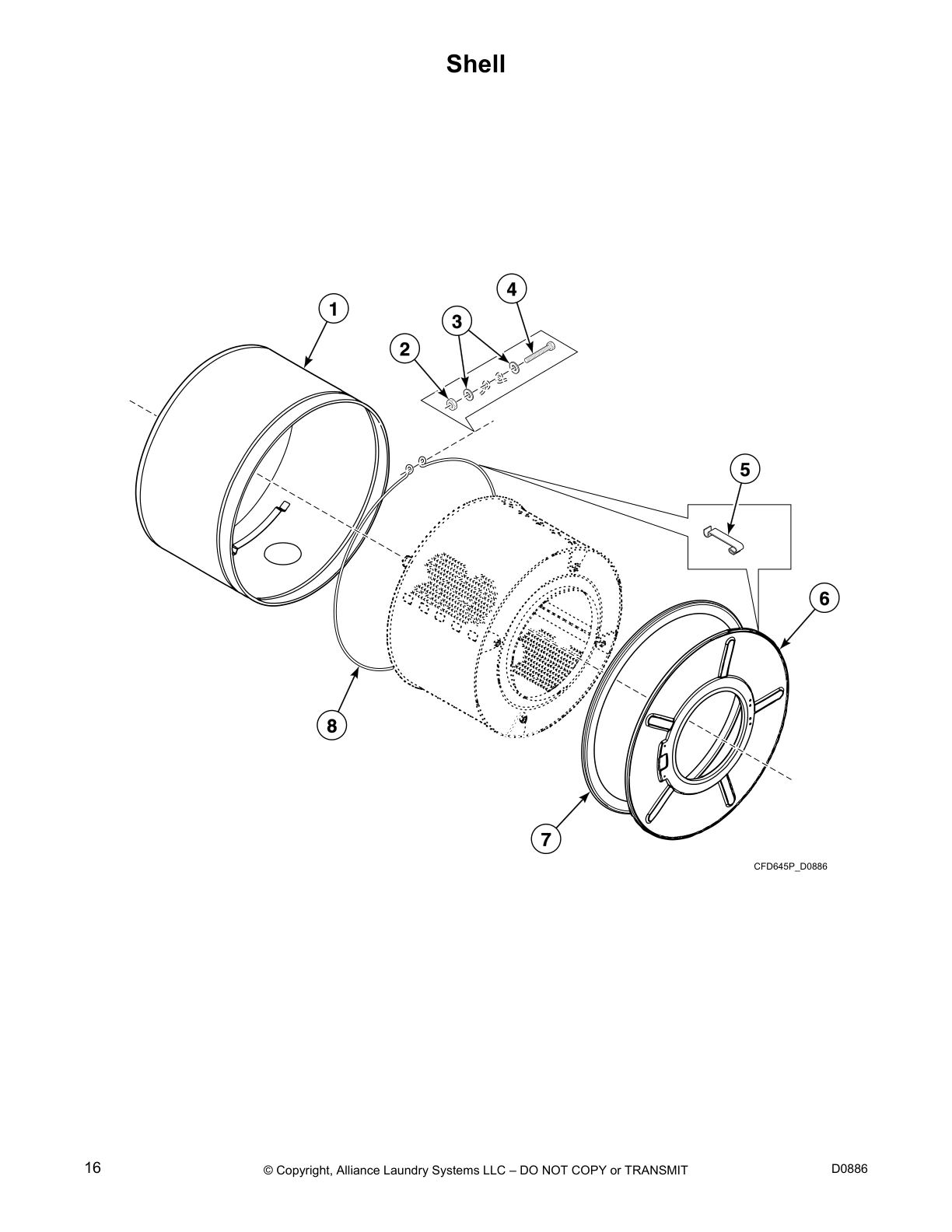

Shell

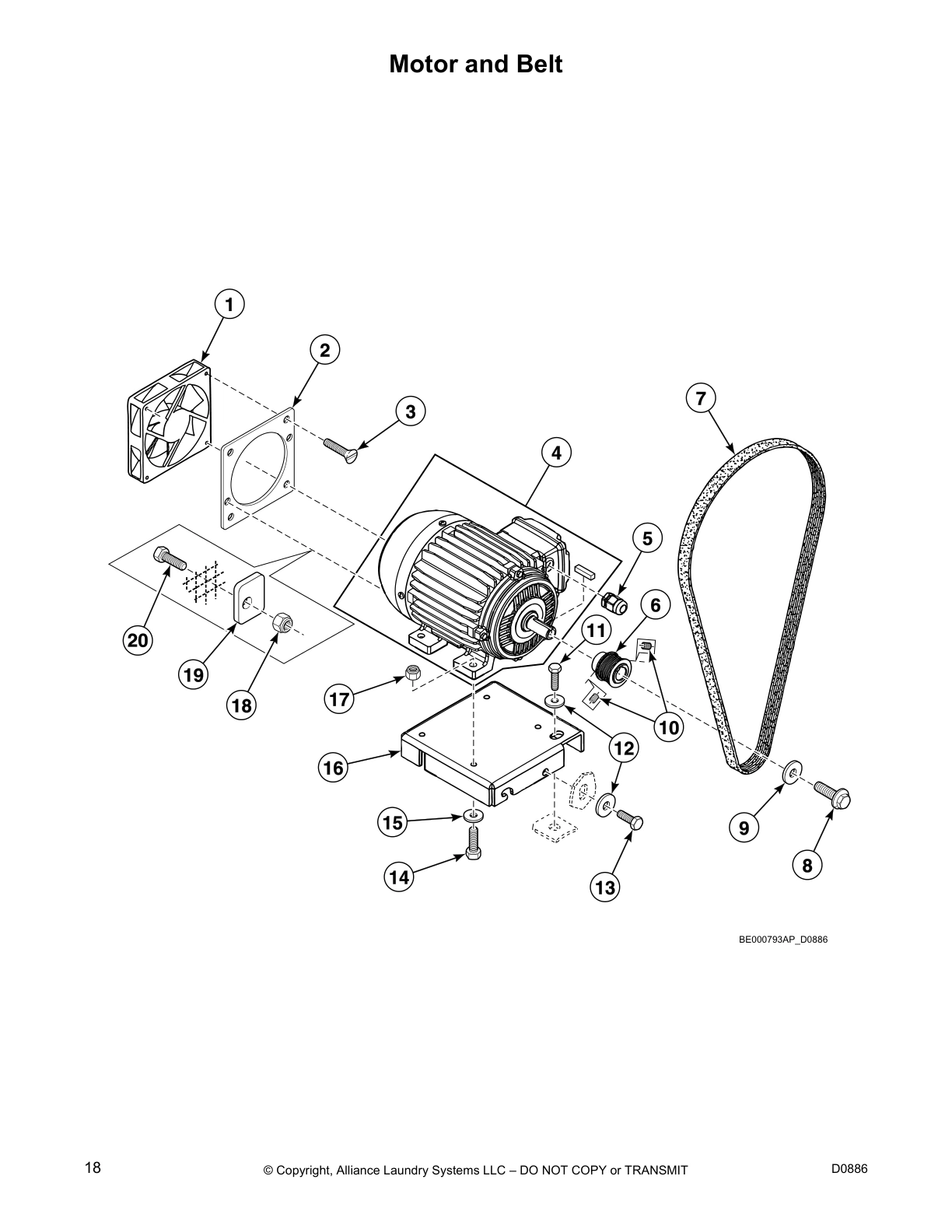

Motor and Belt

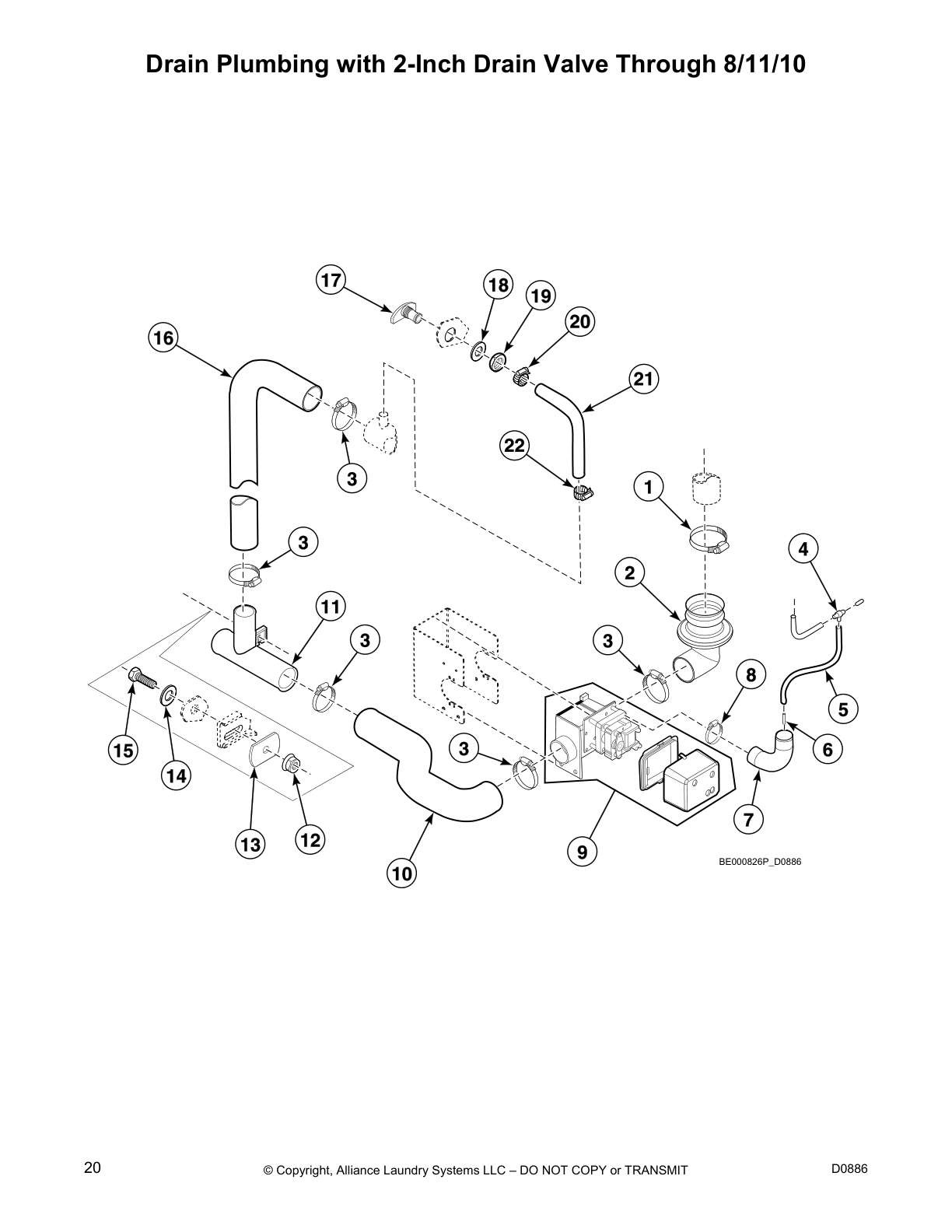

Drain Plumbing with 2-Inch Drain Valve Through 8/11/10

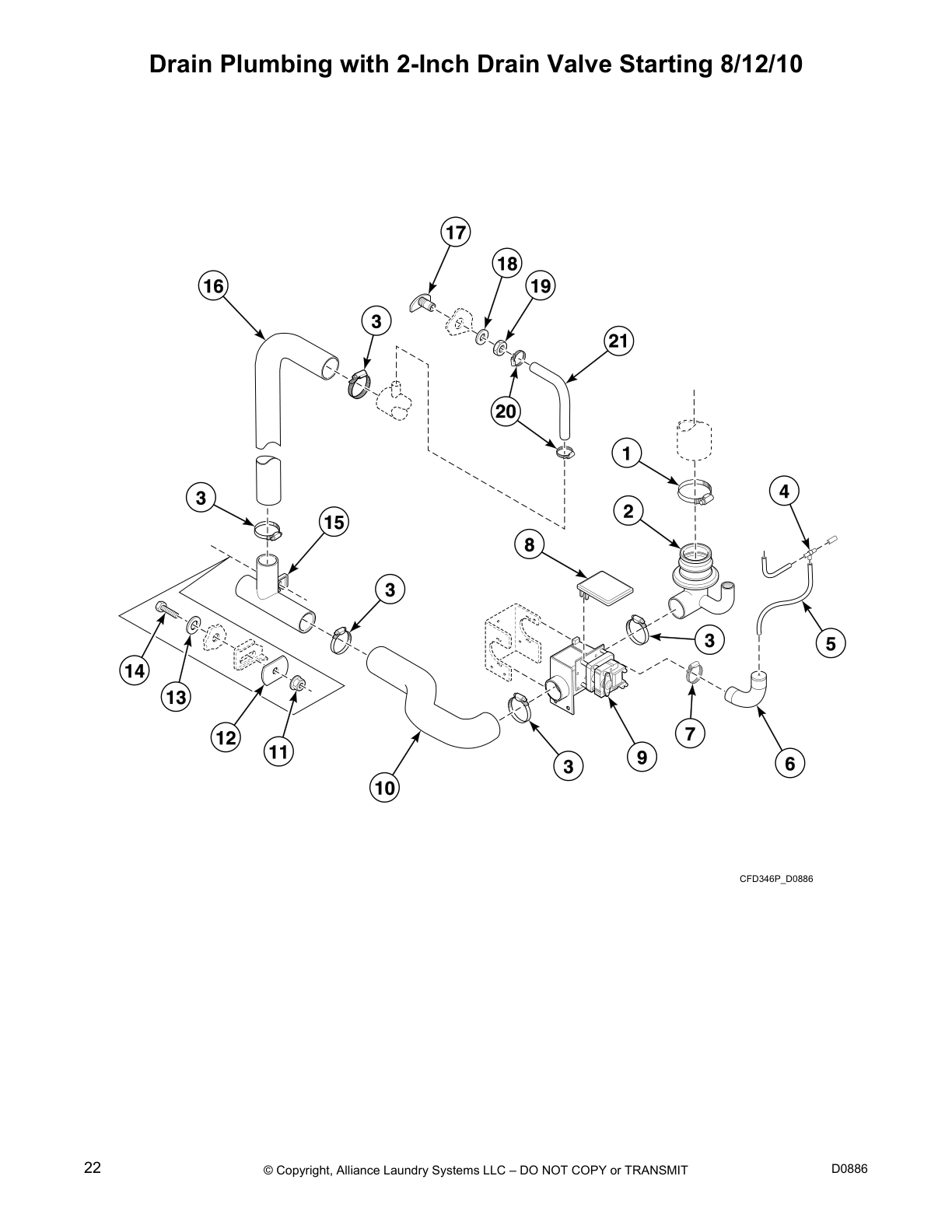

Drain Plumbing with 2-Inch Drain Valve Starting 8/12/10

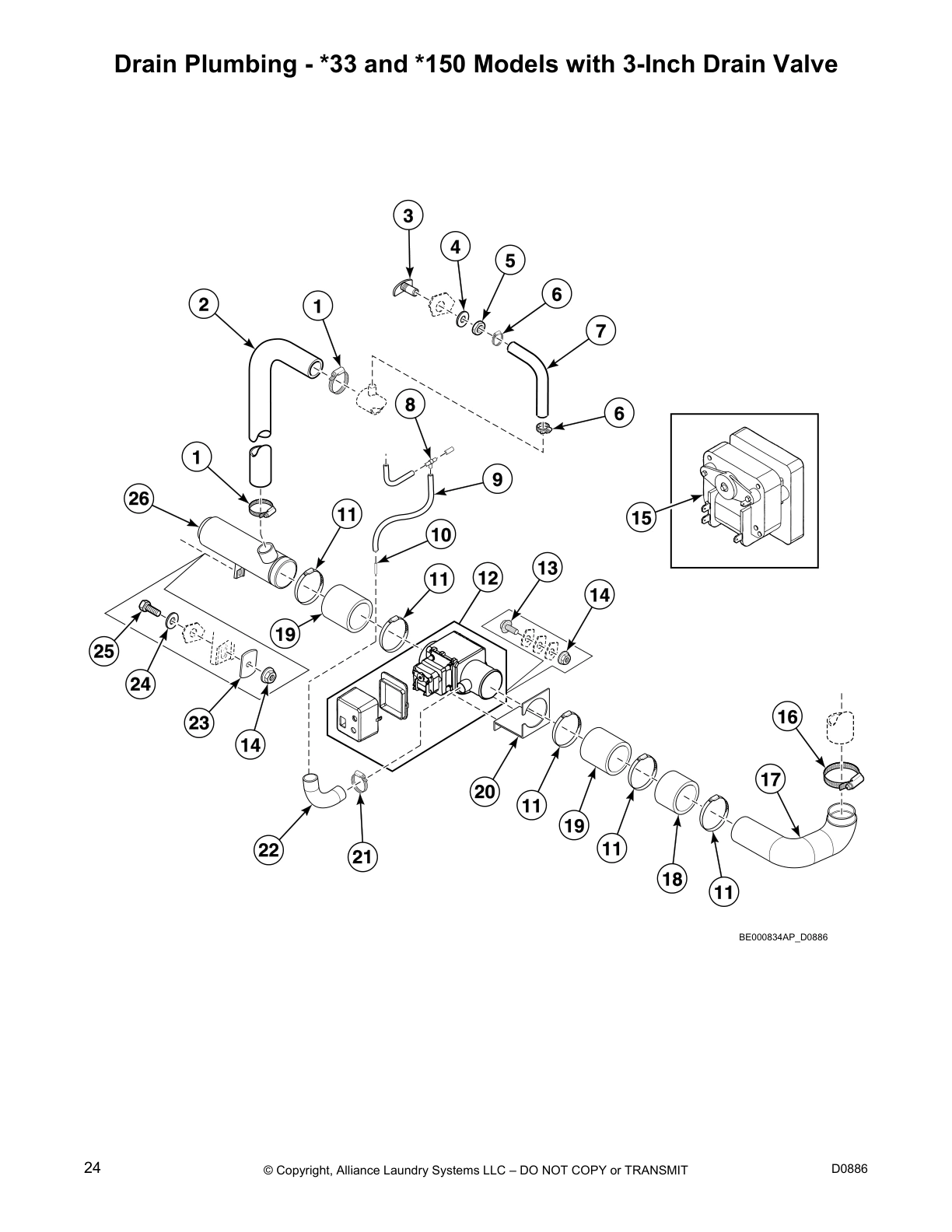

Drain Plumbing - *33 and *150 Models with 3-Inch Drain Valve

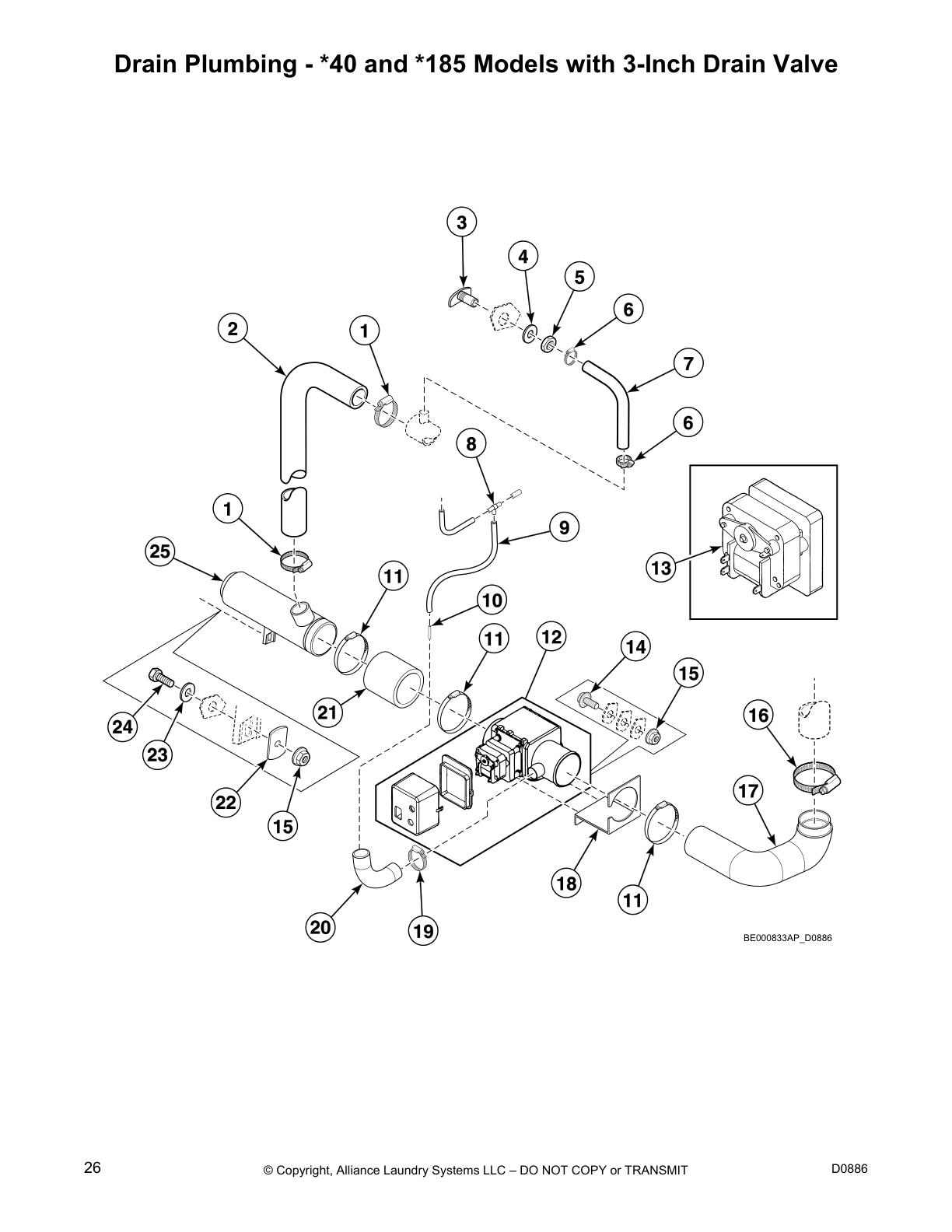

Drain Plumbing - *40 and *185 Models with 3-Inch Drain Valve

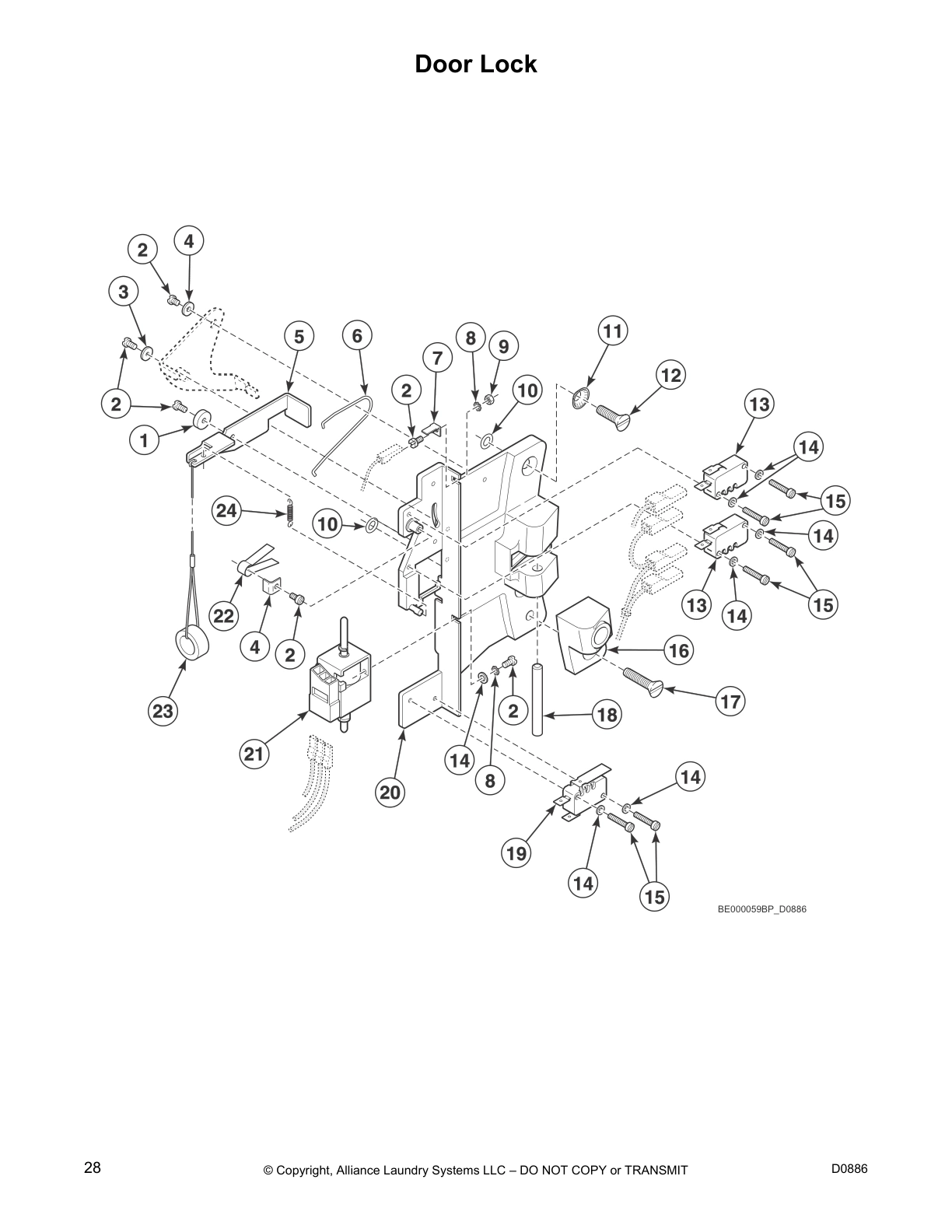

Door Lock

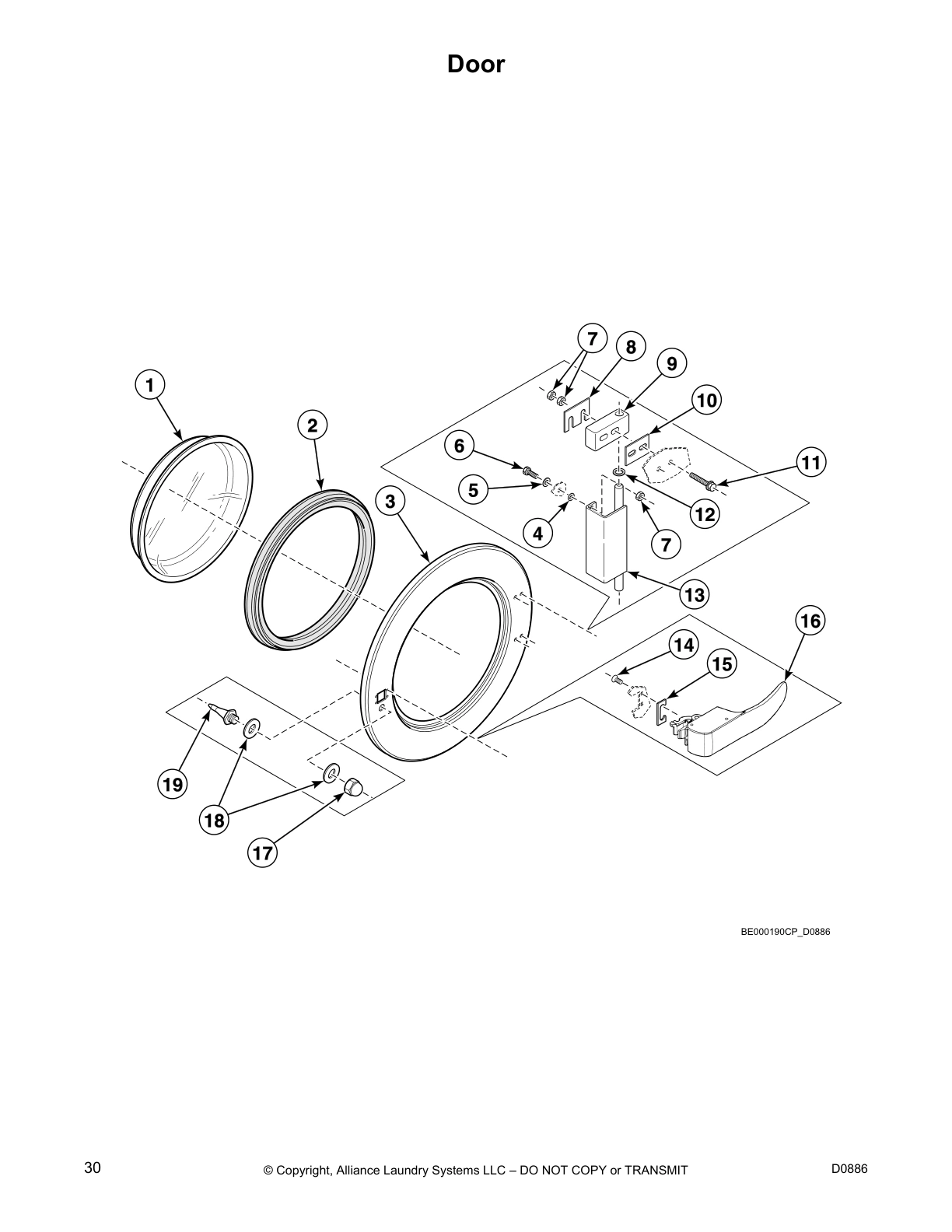

Door

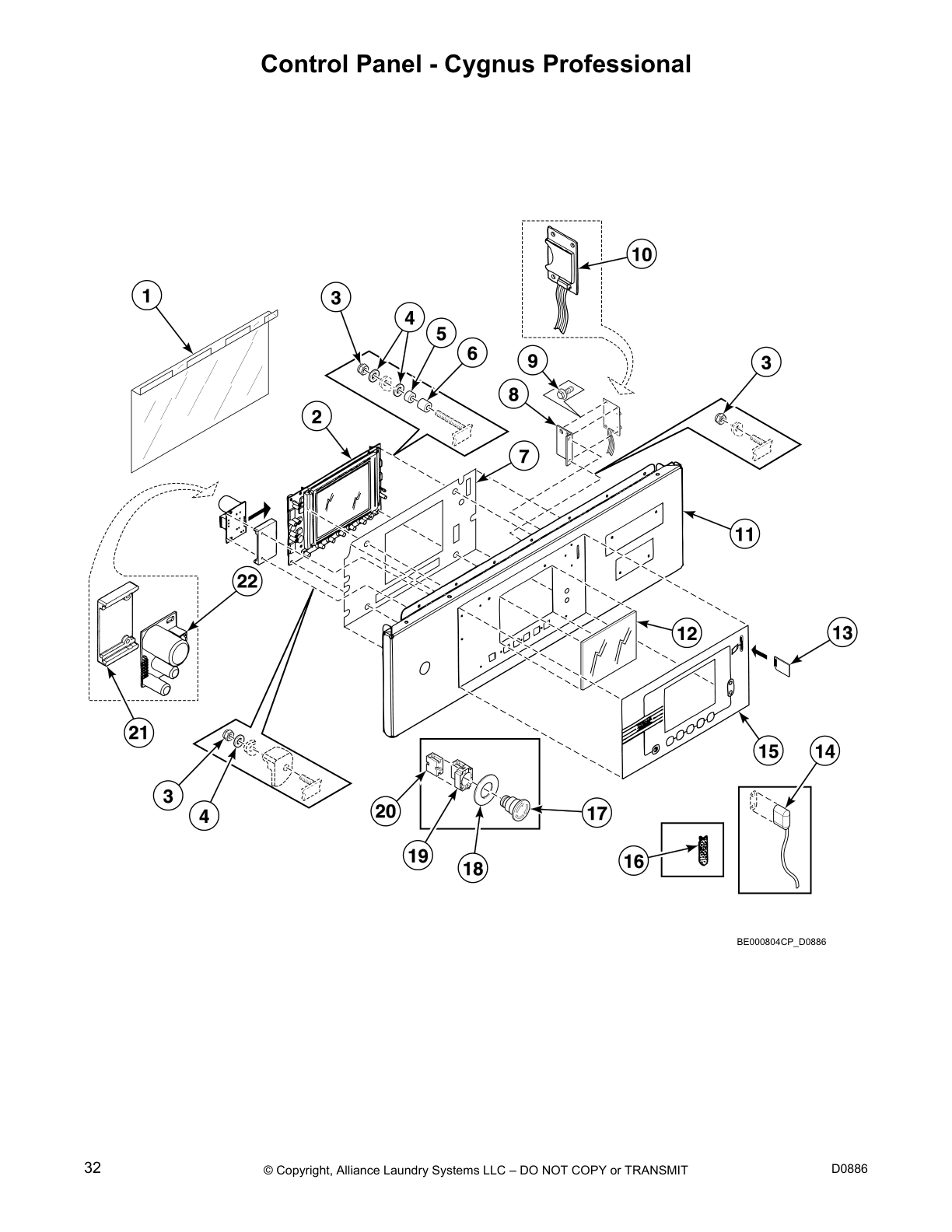

Control Panel - Cygnus Professional

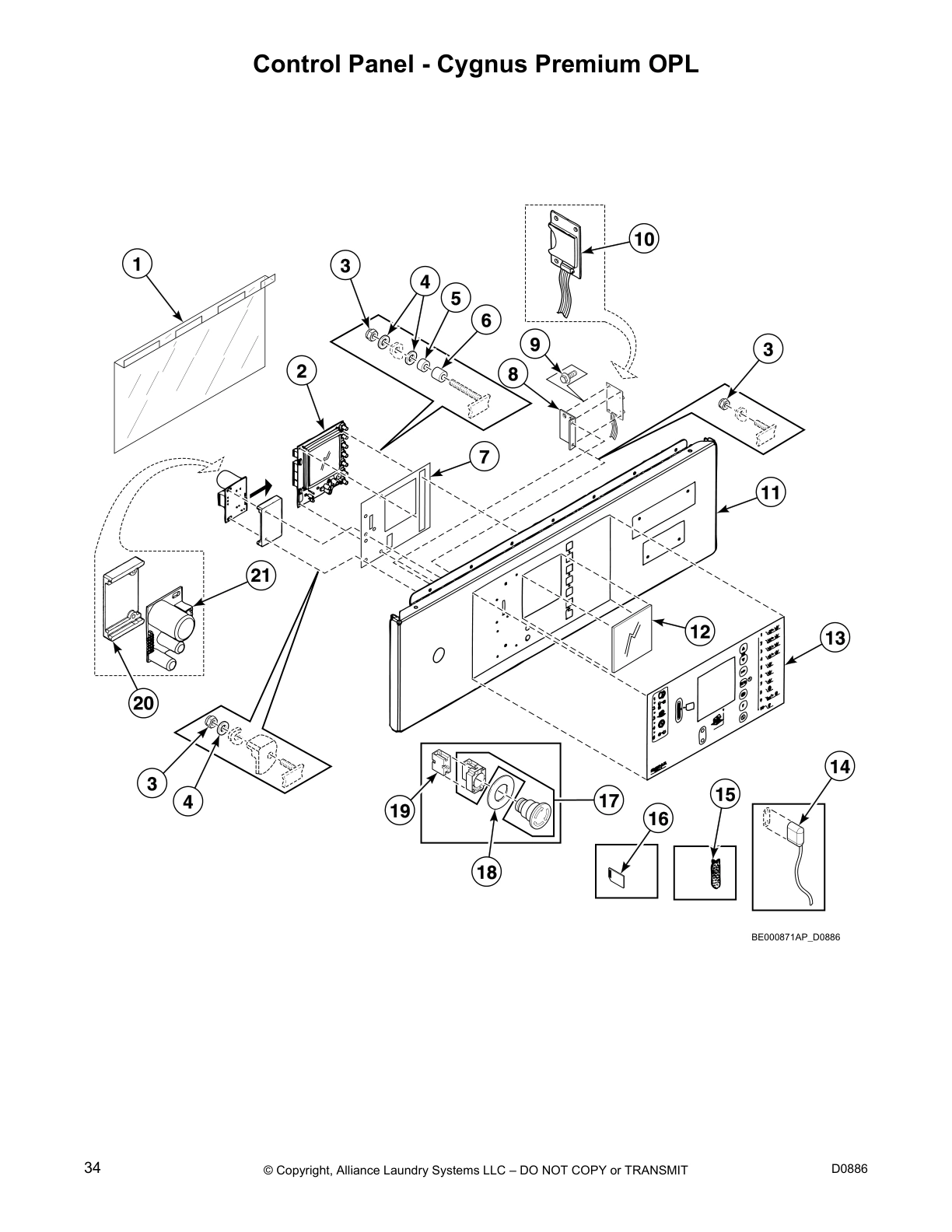

Control Panel - Cygnus Premium OPL

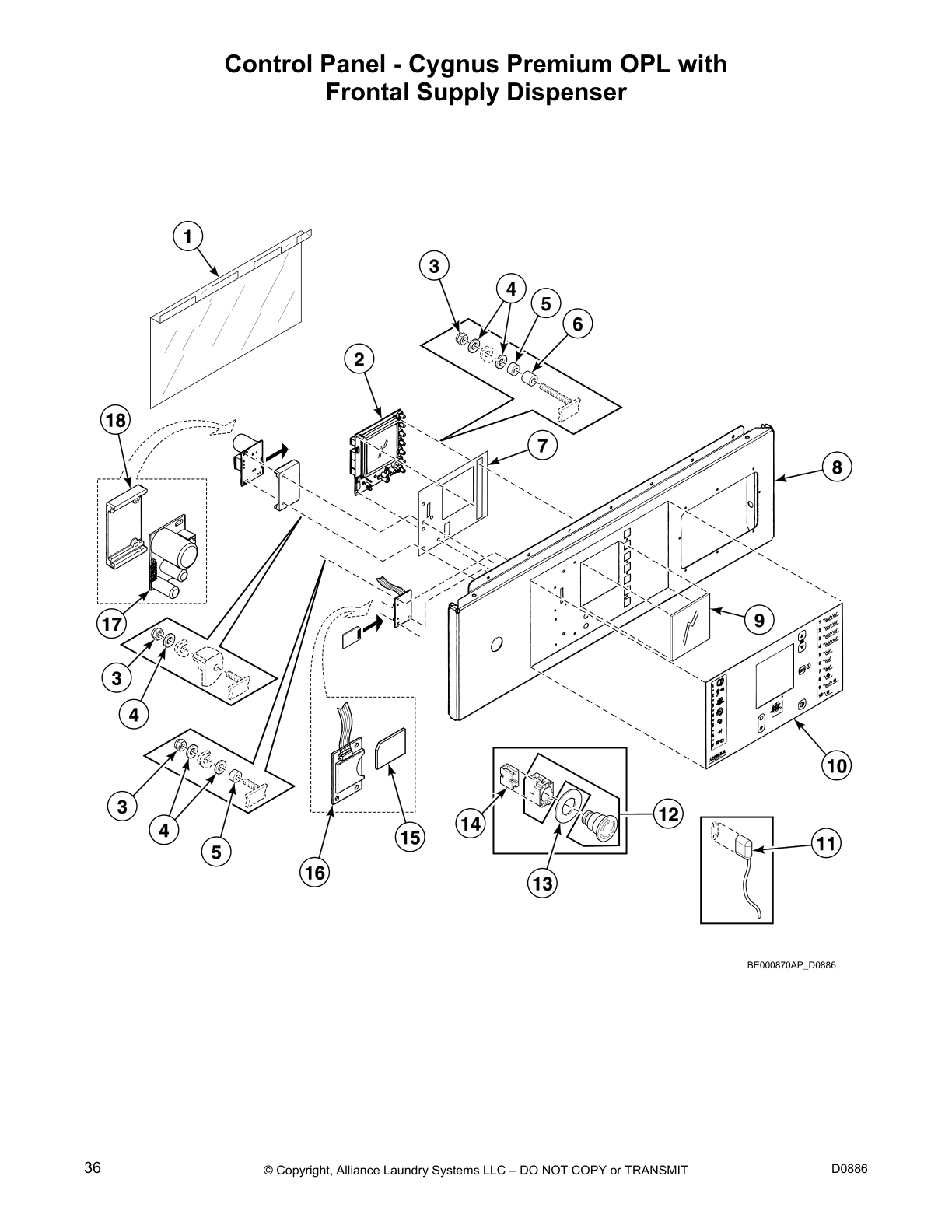

Control Panel - Cygnus Premium OPL with
Frontal Supply Dispenser

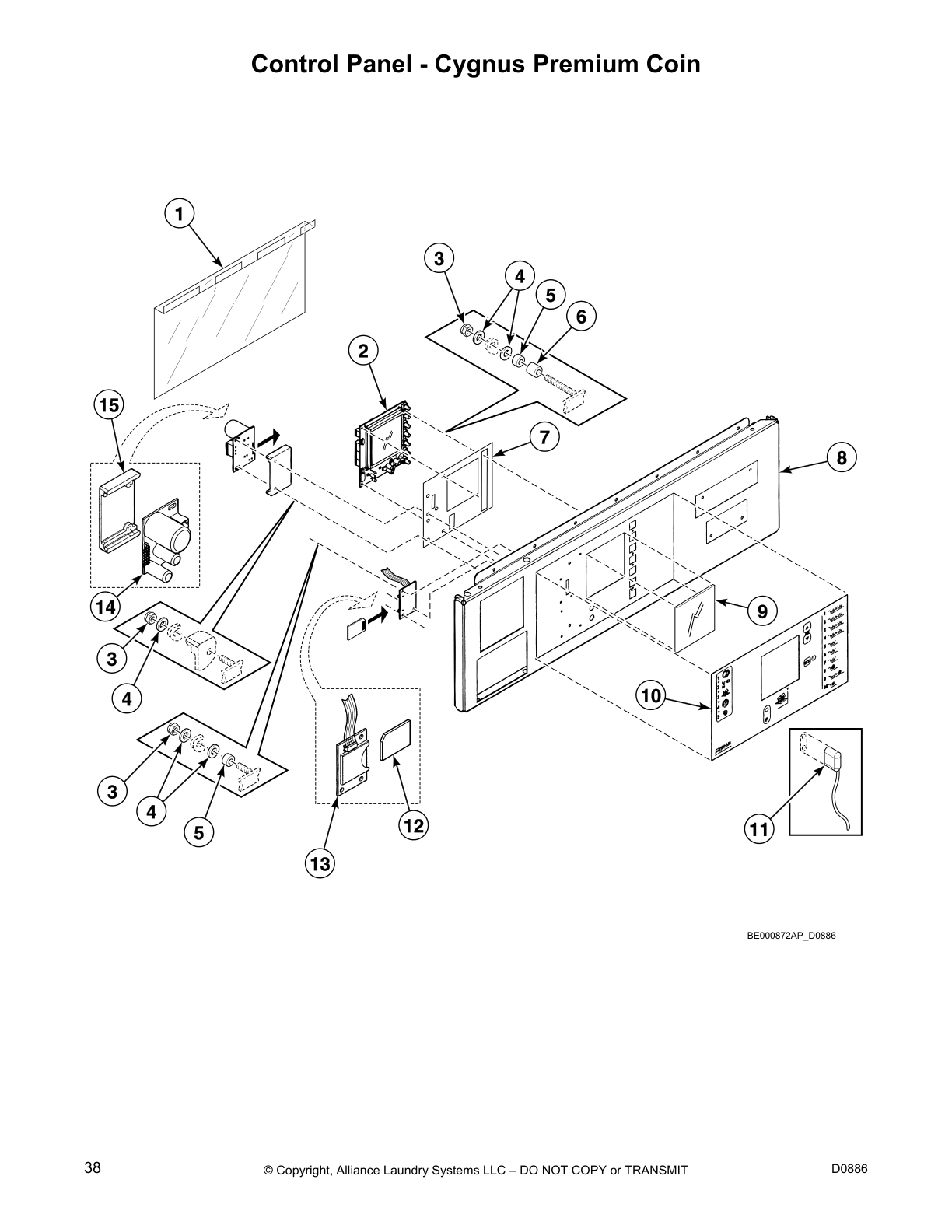

Control Panel - Cygnus Premium Coin

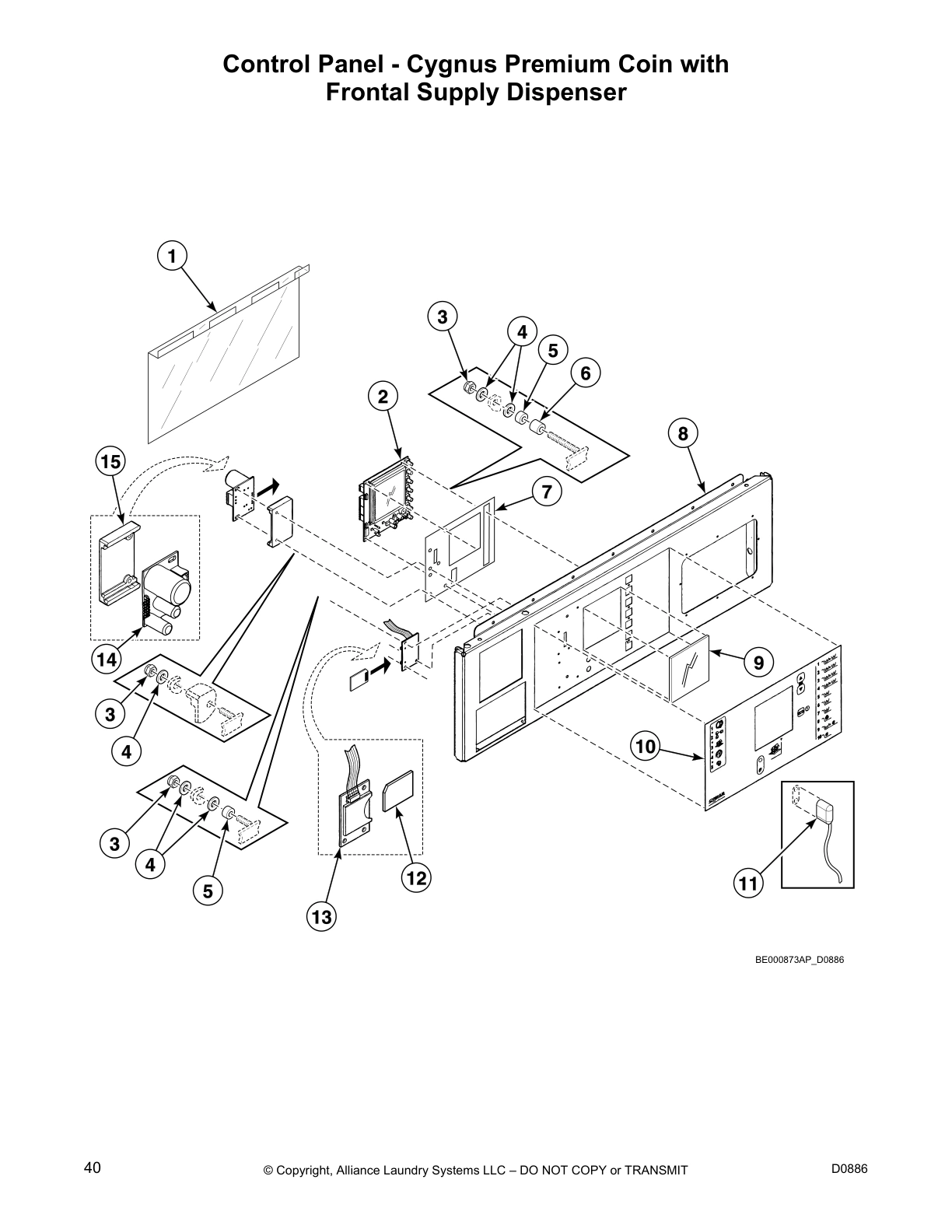

Control Panel - Cygnus Premium Coin with
Frontal Supply Dispenser

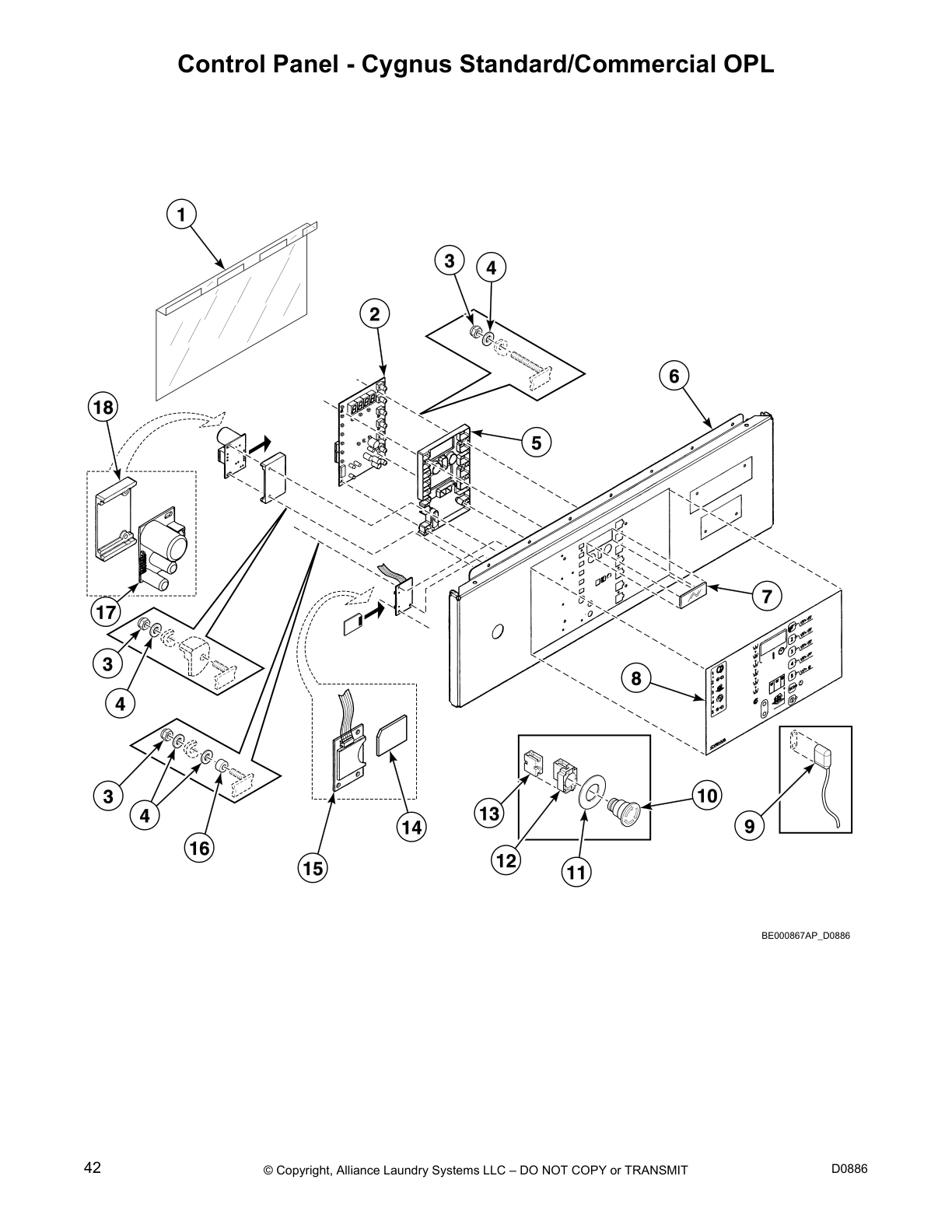

Control Panel - Cygnus Standard/Commercial OPL

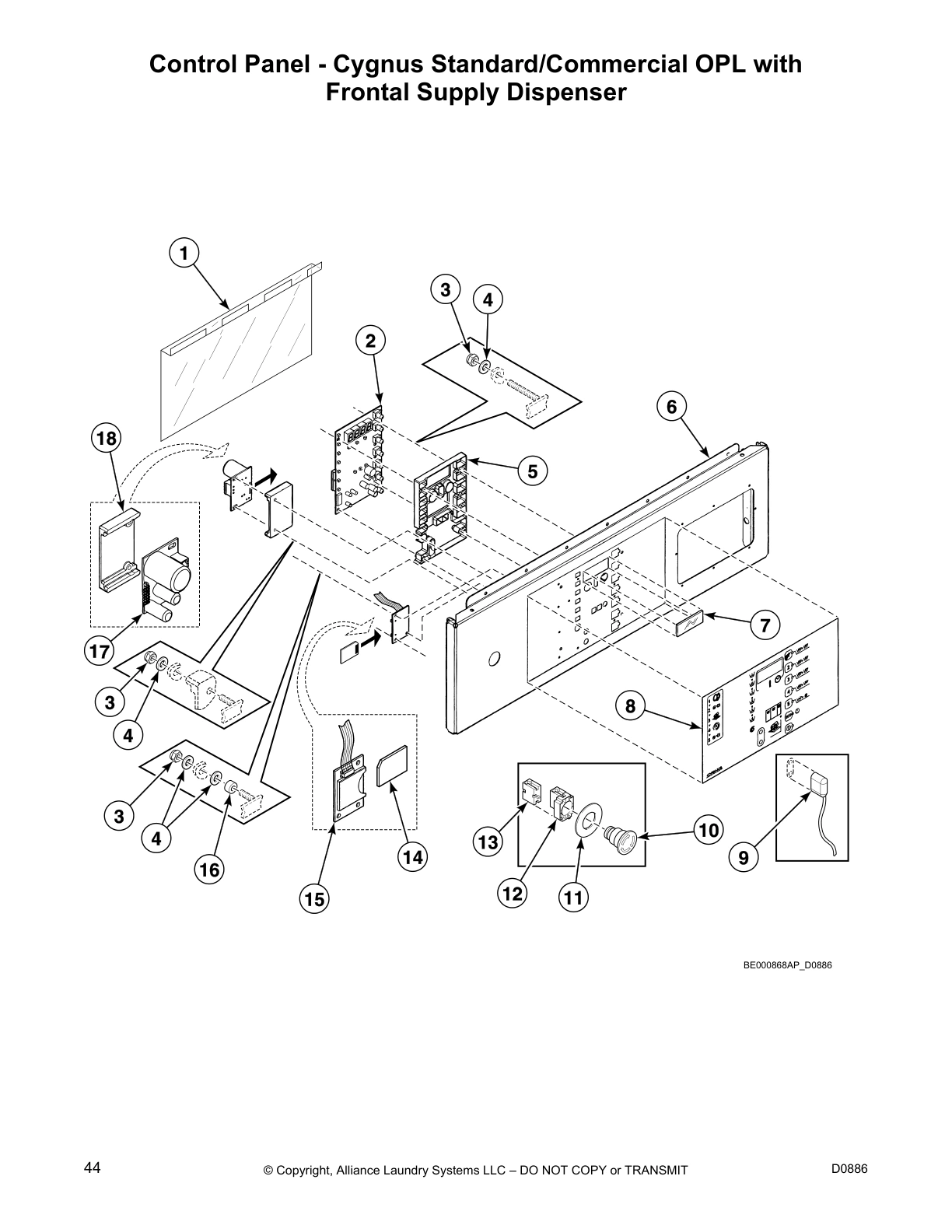

Control Panel - Cygnus Standard/Commercial OPL with
Frontal Supply Dispenser

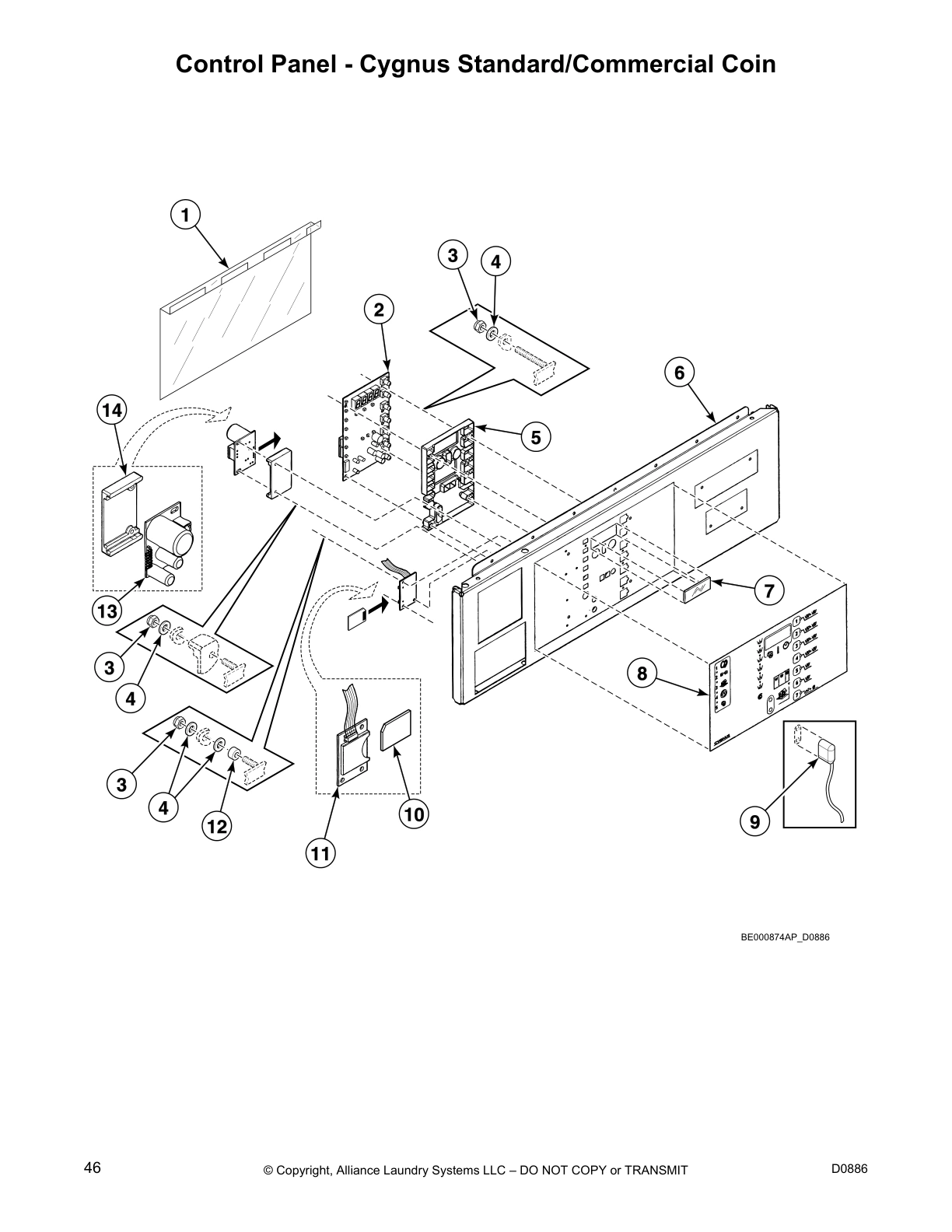

Control Panel - Cygnus Standard/Commercial Coin

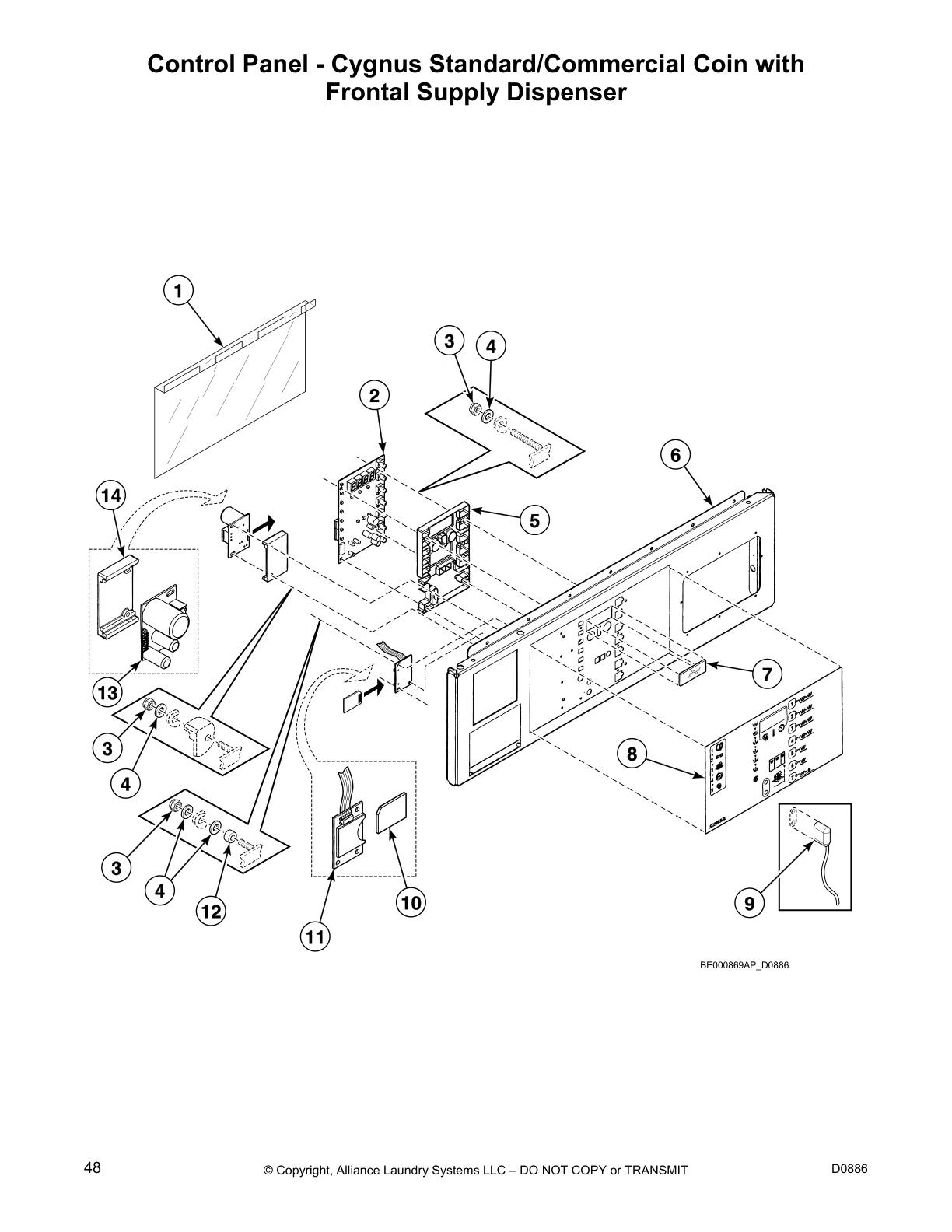

Control Panel - Cygnus Standard/Commercial Coin with
Frontal Supply Dispenser

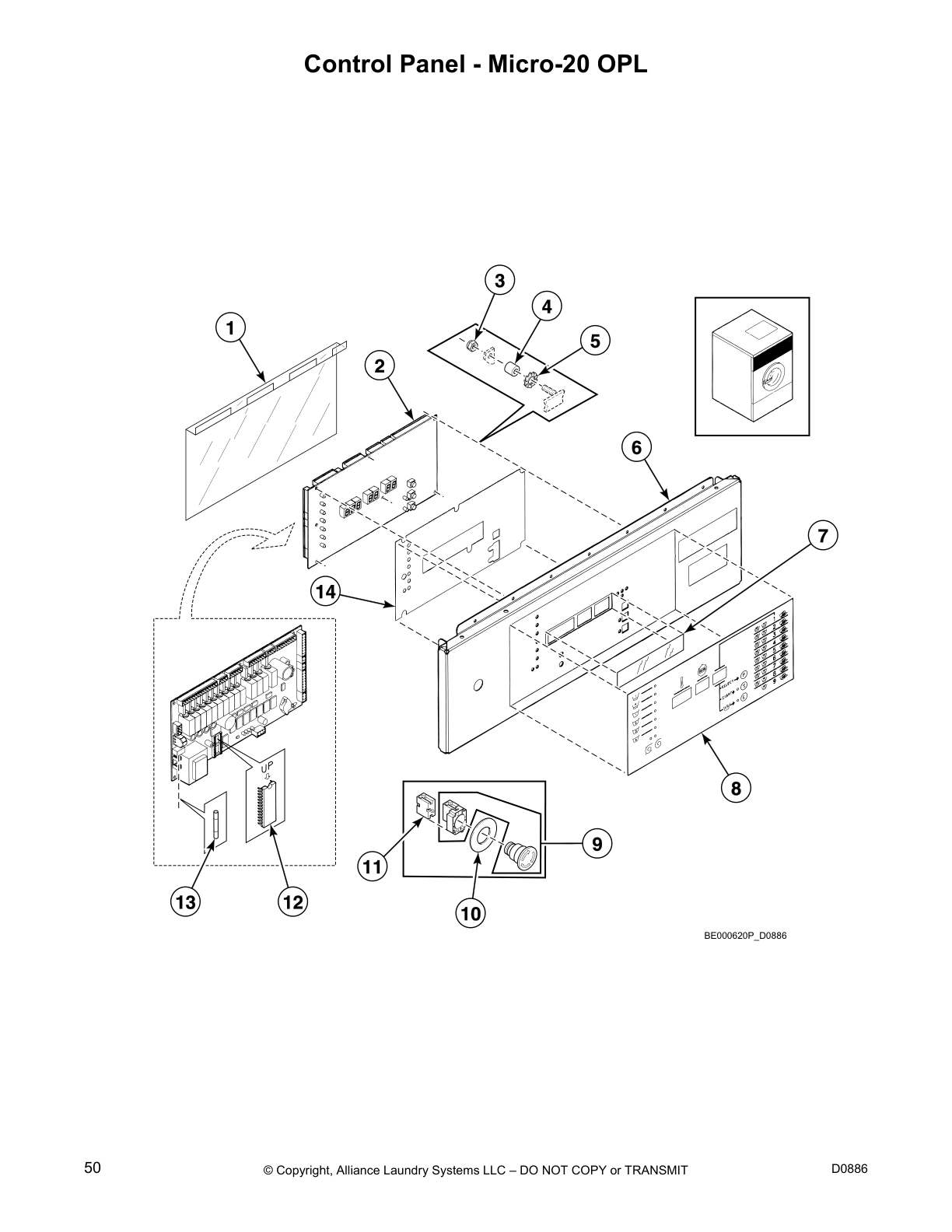

Control Panel - Micro-20 OPL

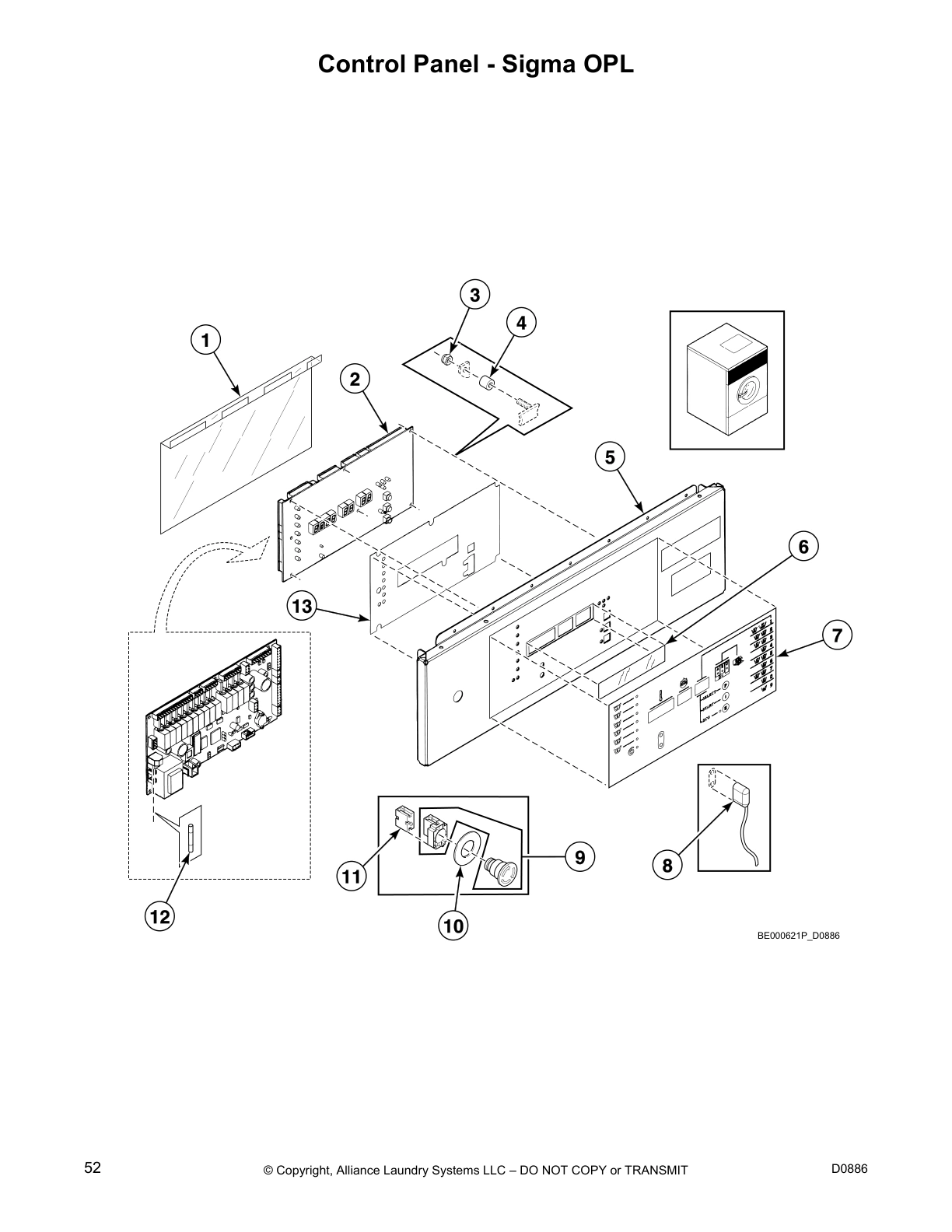

Control Panel - Sigma OPL

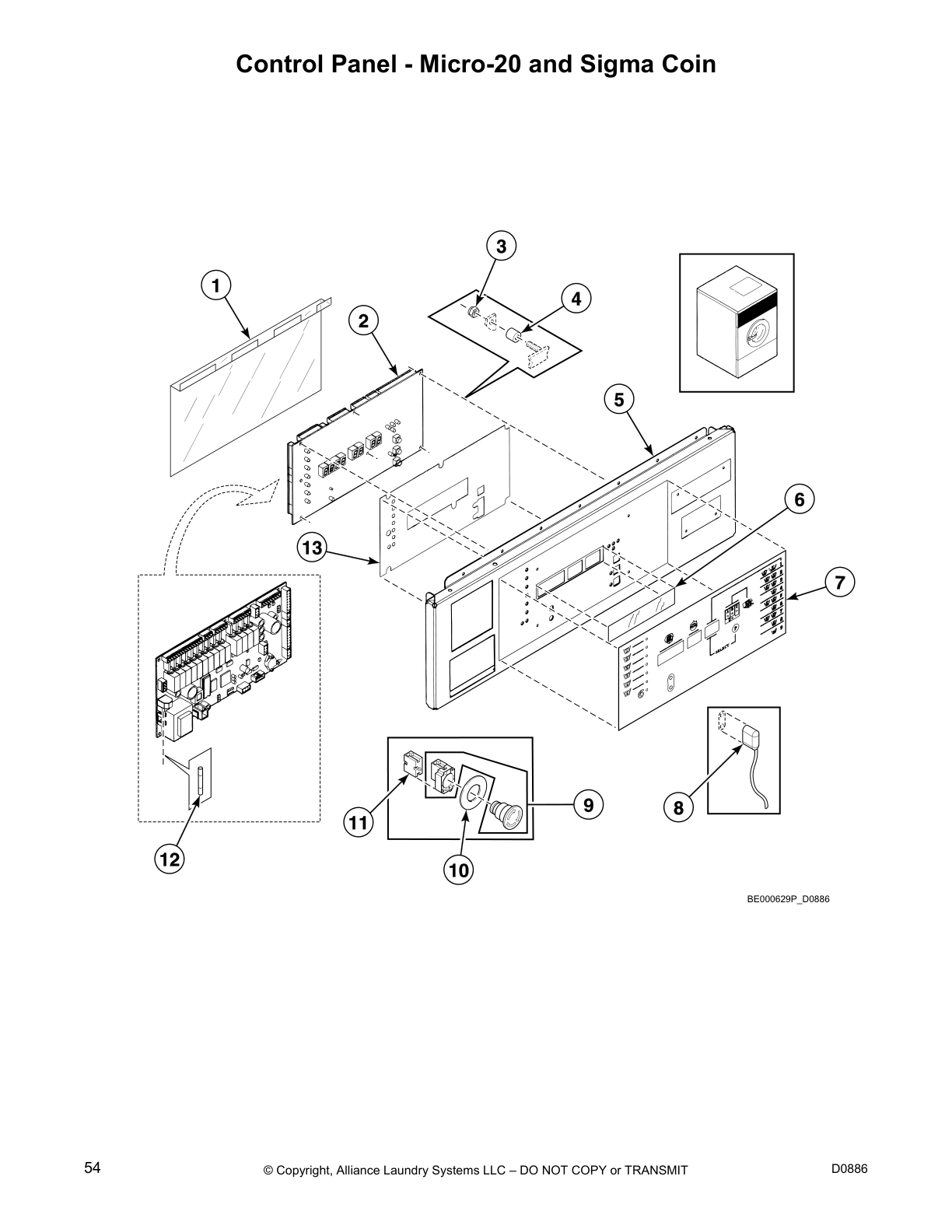

Control Panel - Micro-20 and Sigma Coin

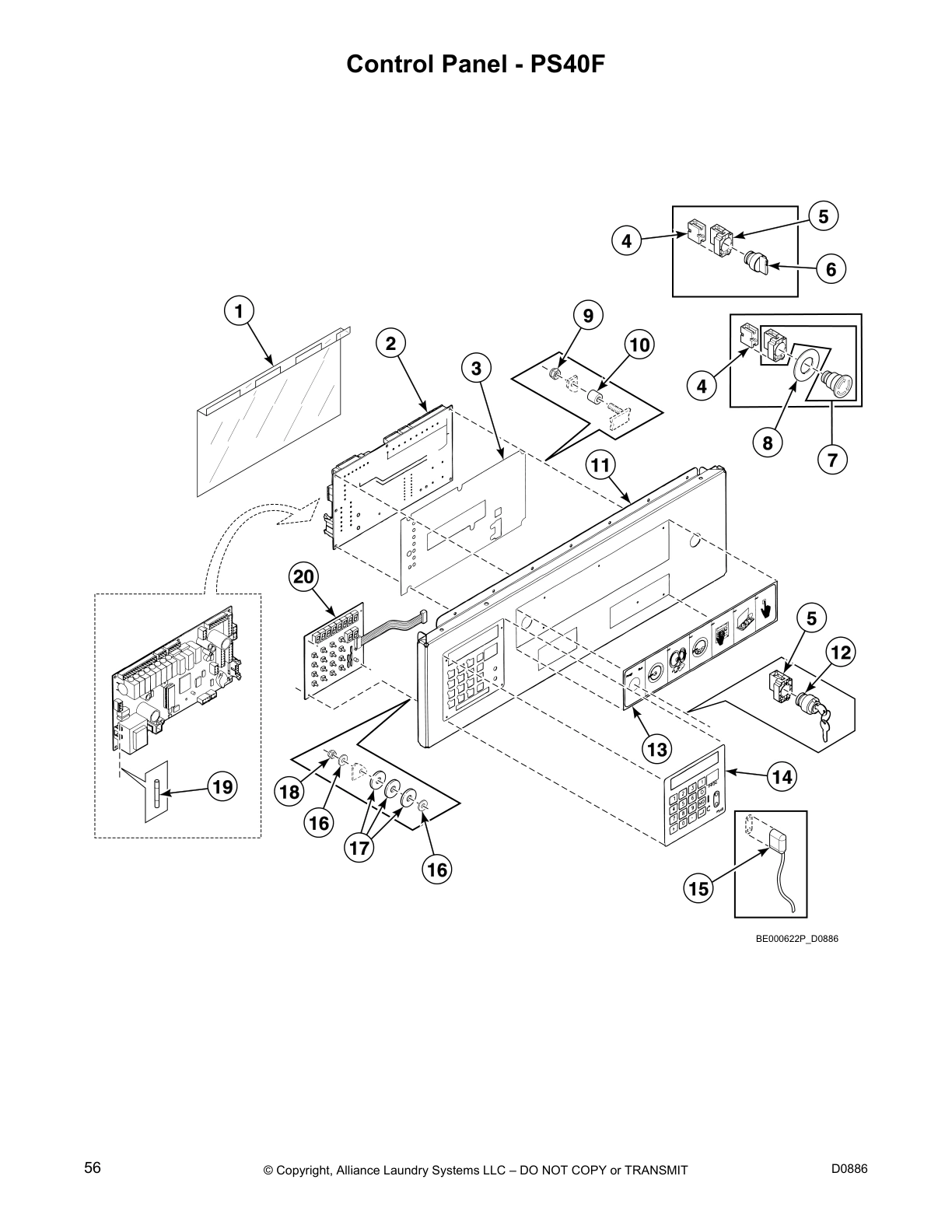

Control Panel - PS40F

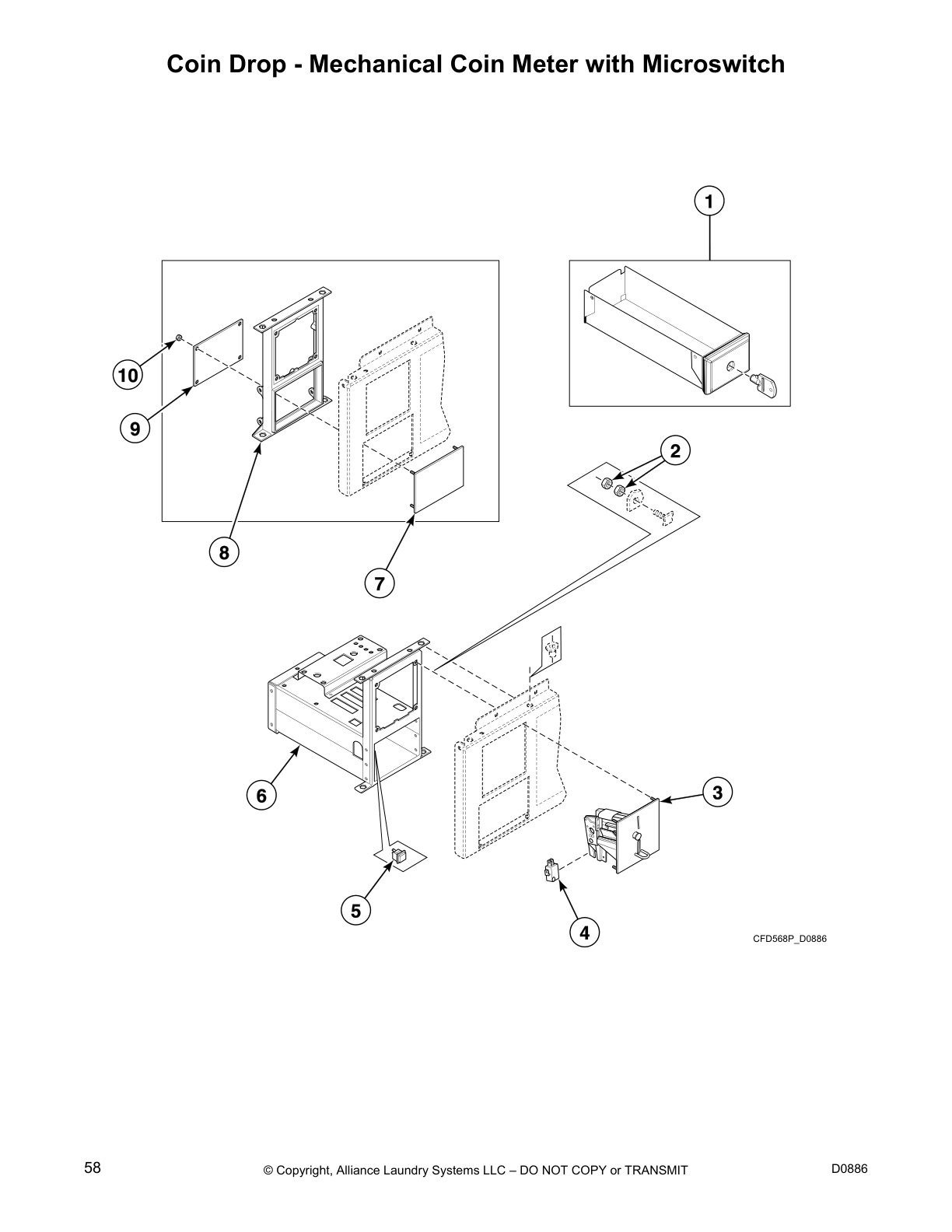

Coin Drop - Mechanical Coin Meter with Microswitch

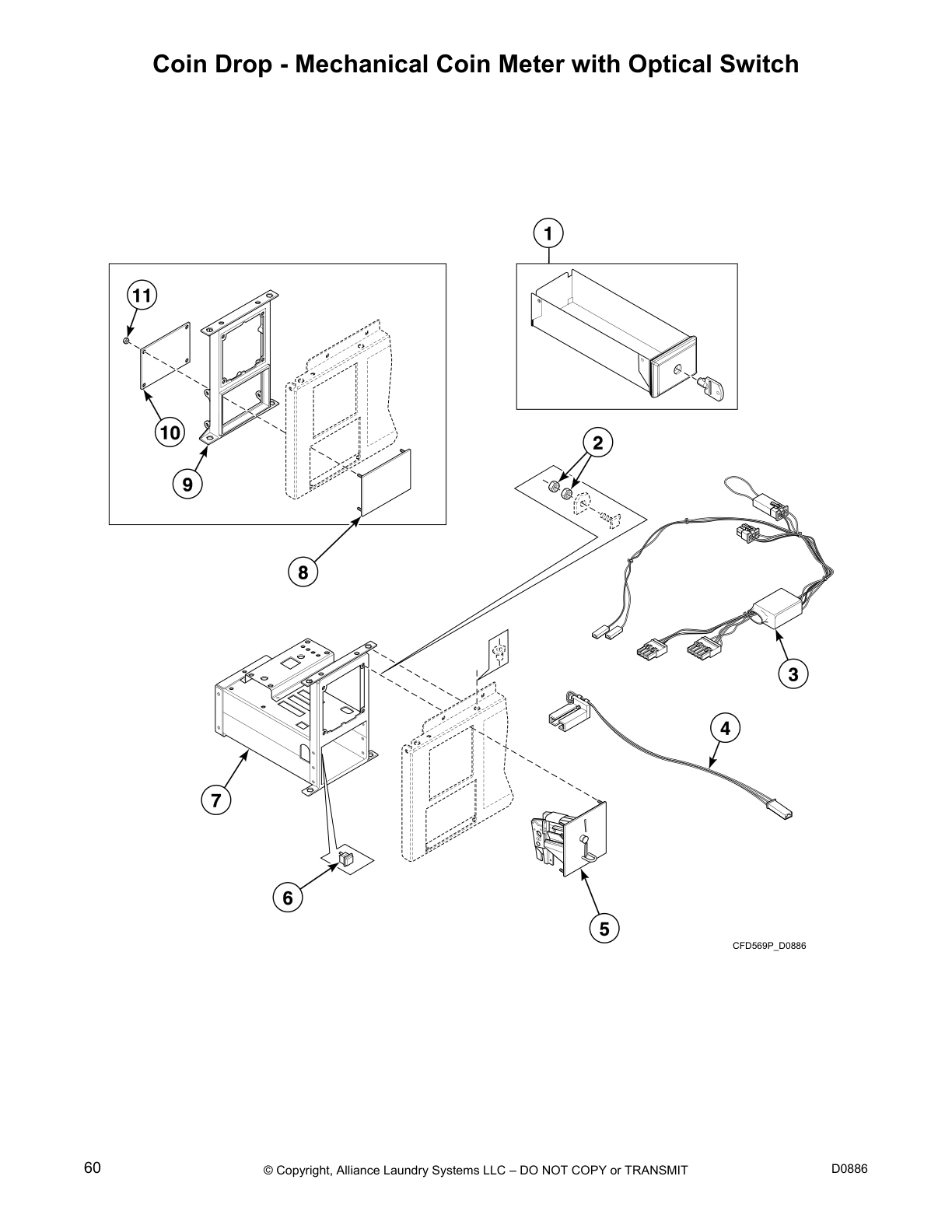

Coin Drop - Mechanical Coin Meter with Optical Switch
Coin Drop - Electronic Coin Meter

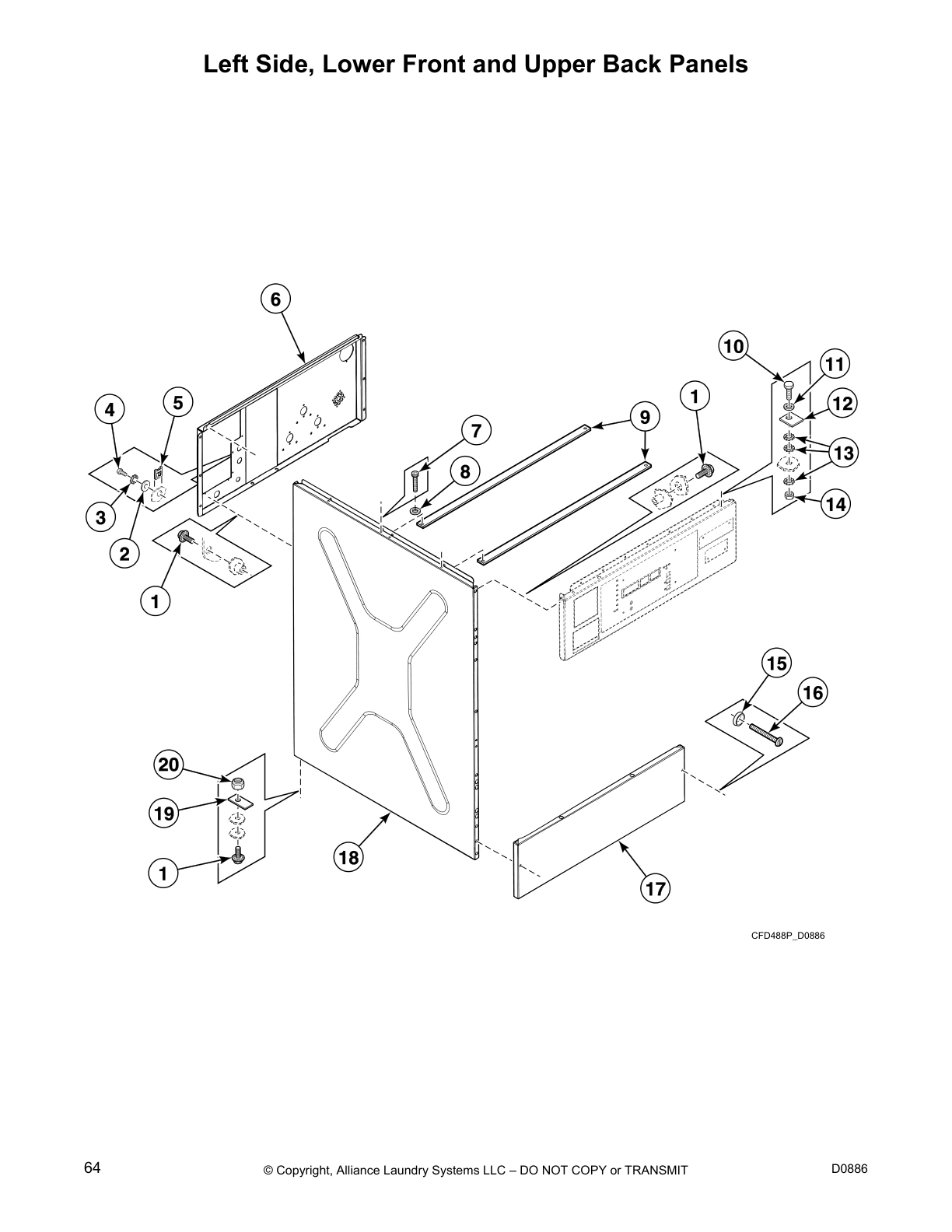

Left Side, Lower Front and Upper Back Panels

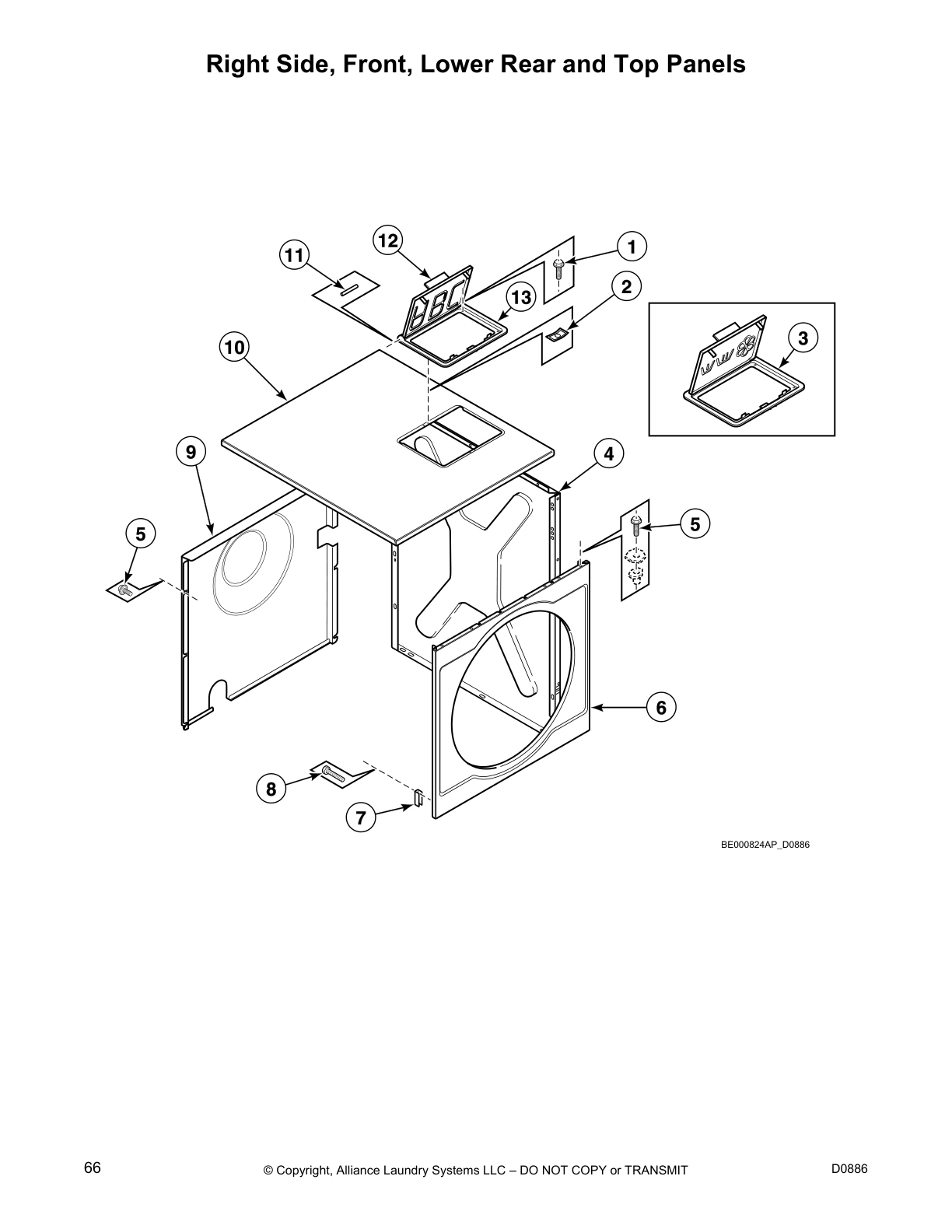

Right Side, Front, Lower Rear and Top Panels

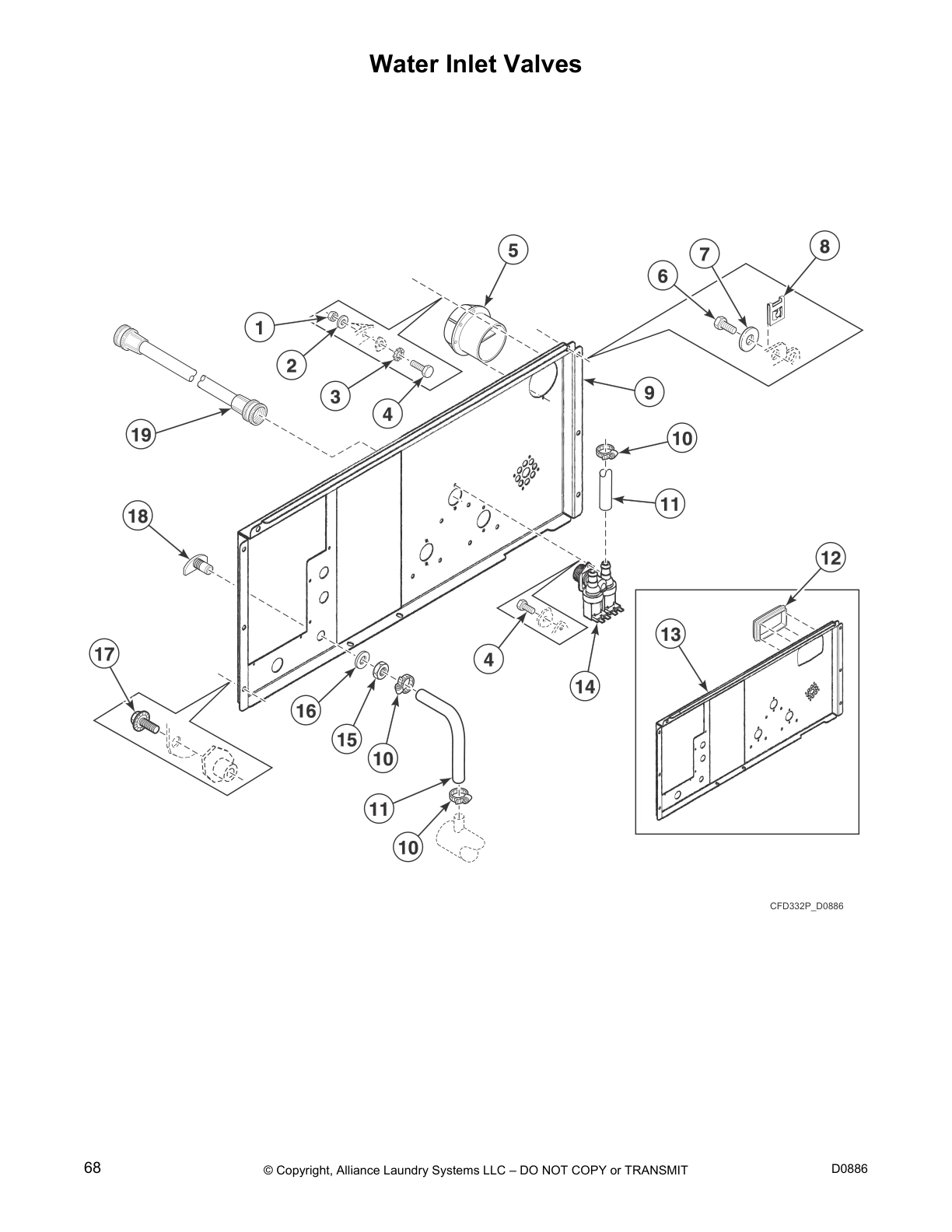

Water Inlet Valves

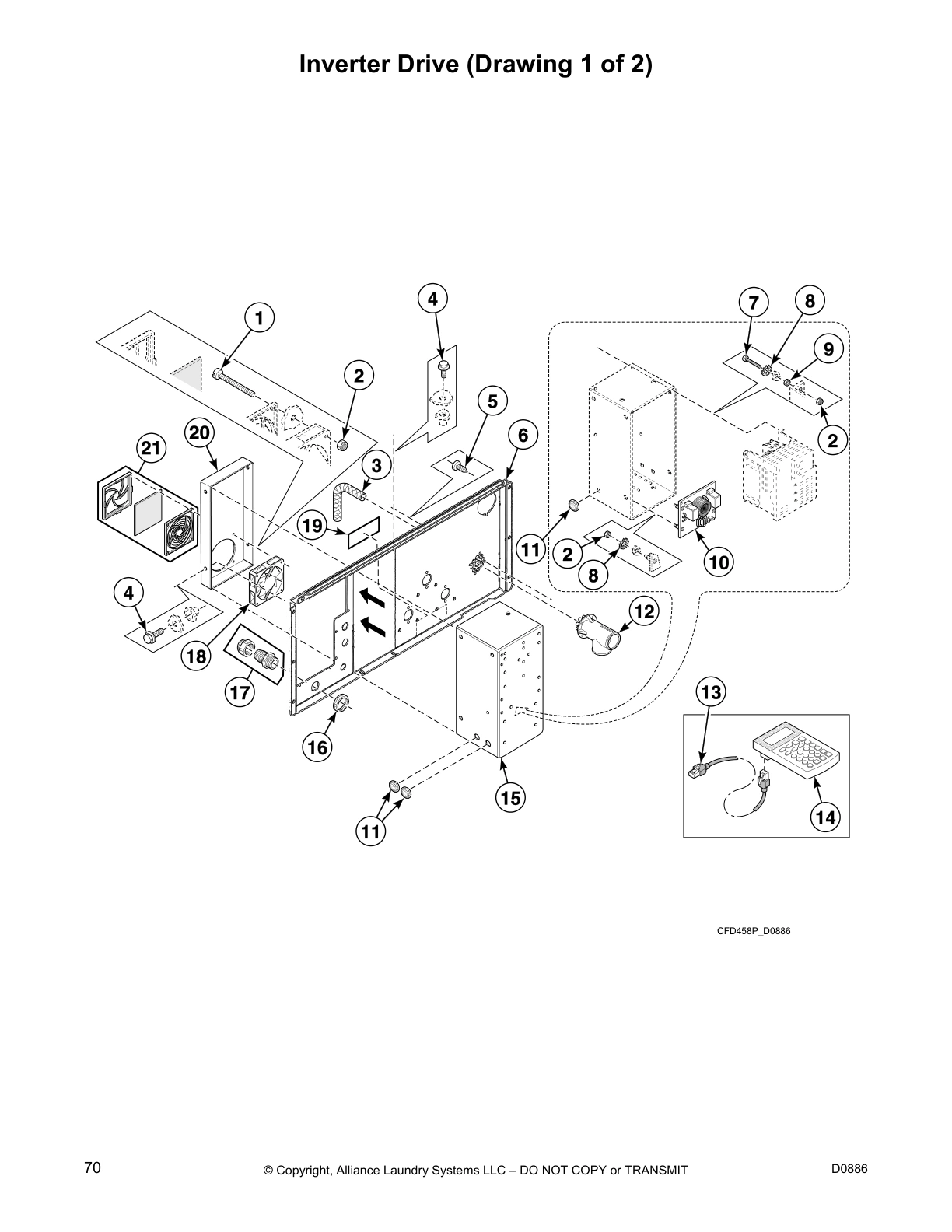

Inverter Drive (Drawing 1 of 2)

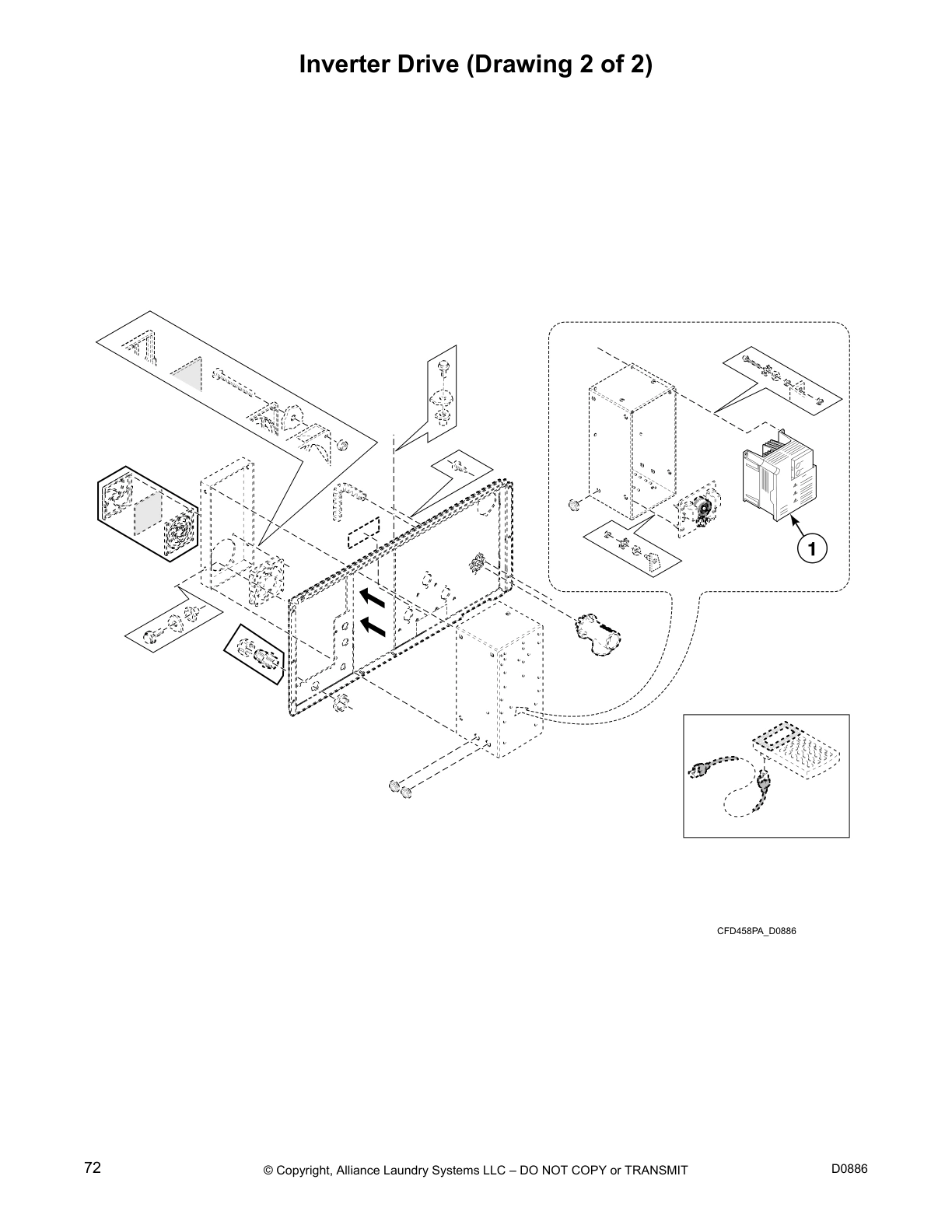

Inverter Drive (Drawing 2 of 2)
Main Switch and Noise Filter

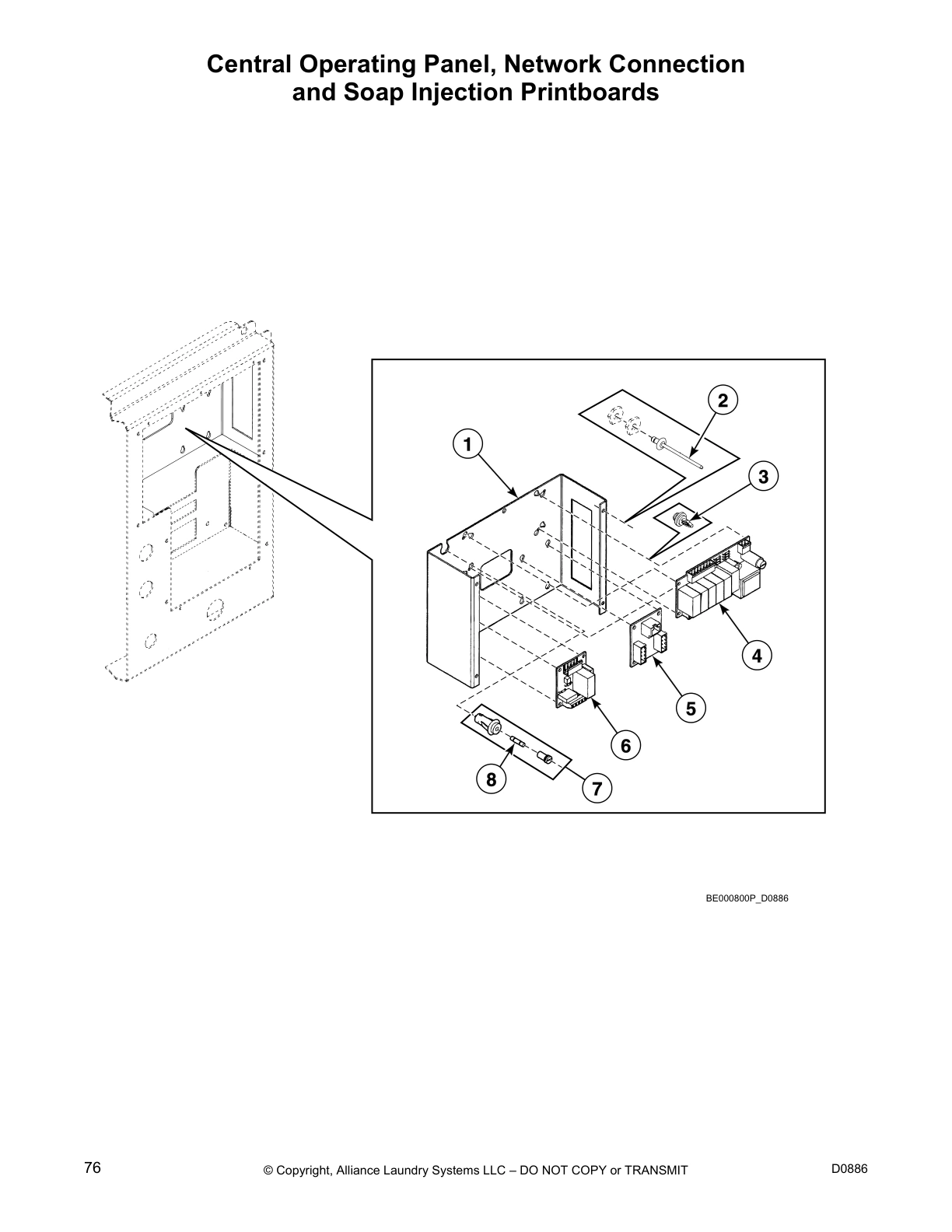

Central Operating Panel, Network Connection
and Soap Injection Printboards
Relay, Network Connection and Main Printboards - Cygnus Models

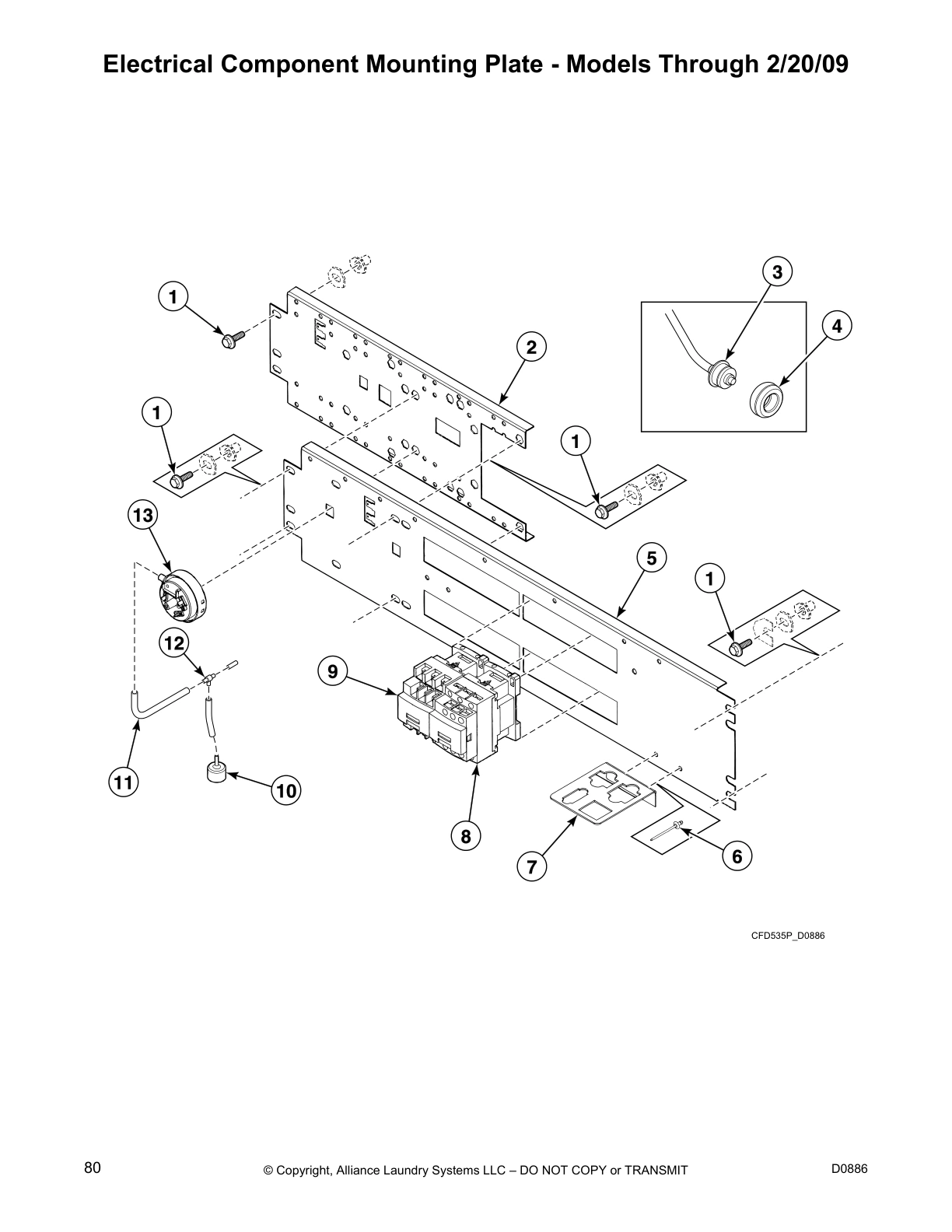

Electrical Component Mounting Plate - Models Through 2/20/09

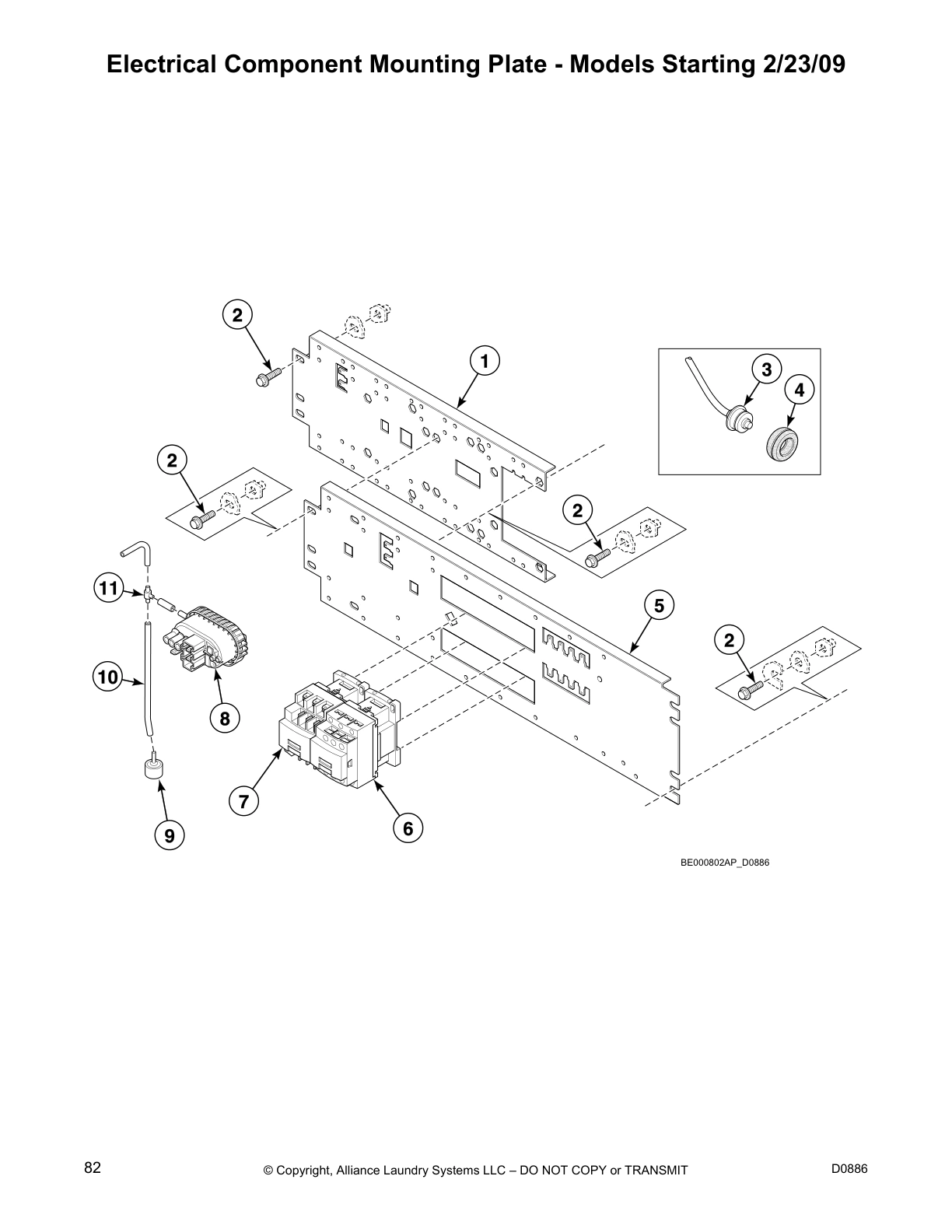

Electrical Component Mounting Plate - Models Starting 2/23/09

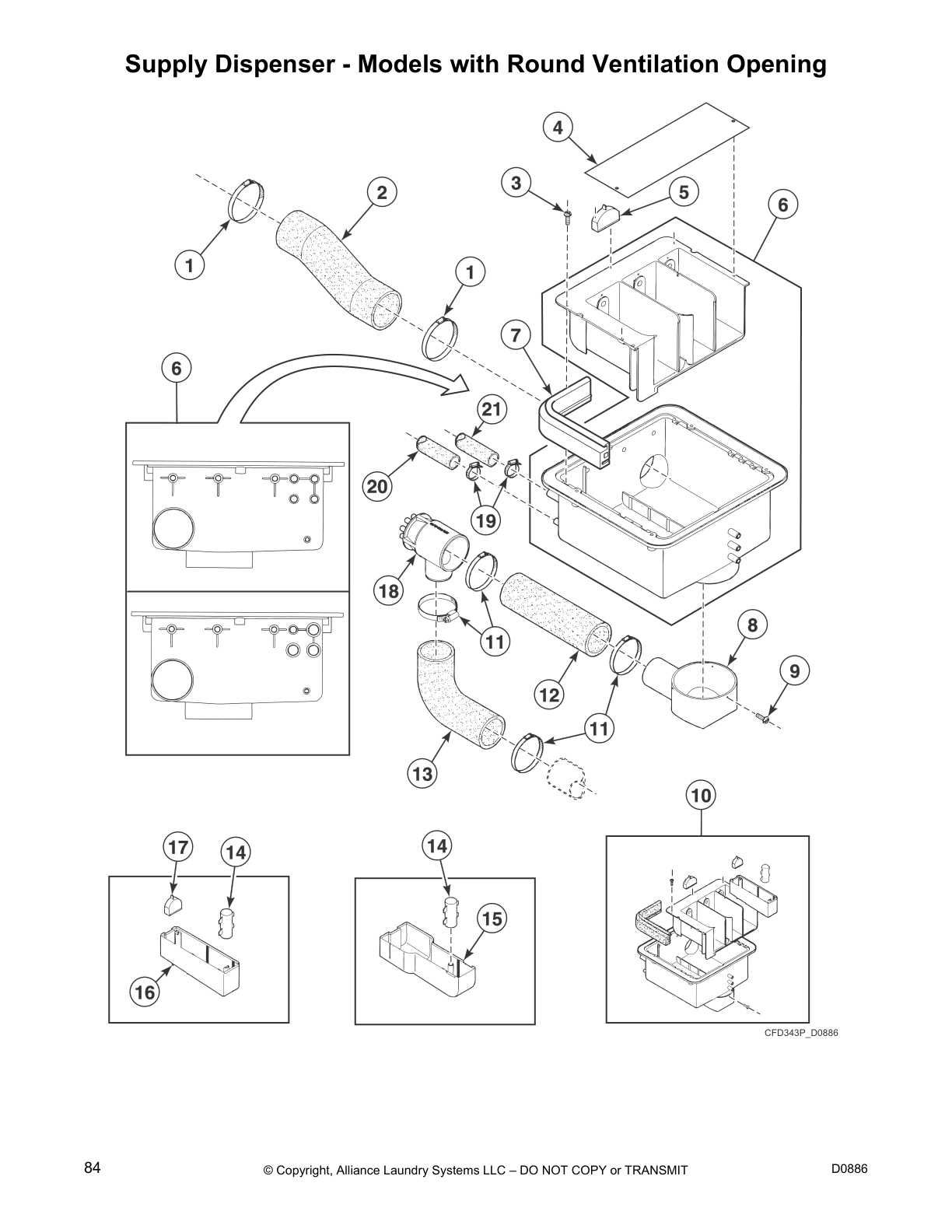

Supply Dispenser - Models with Round Ventilation Opening

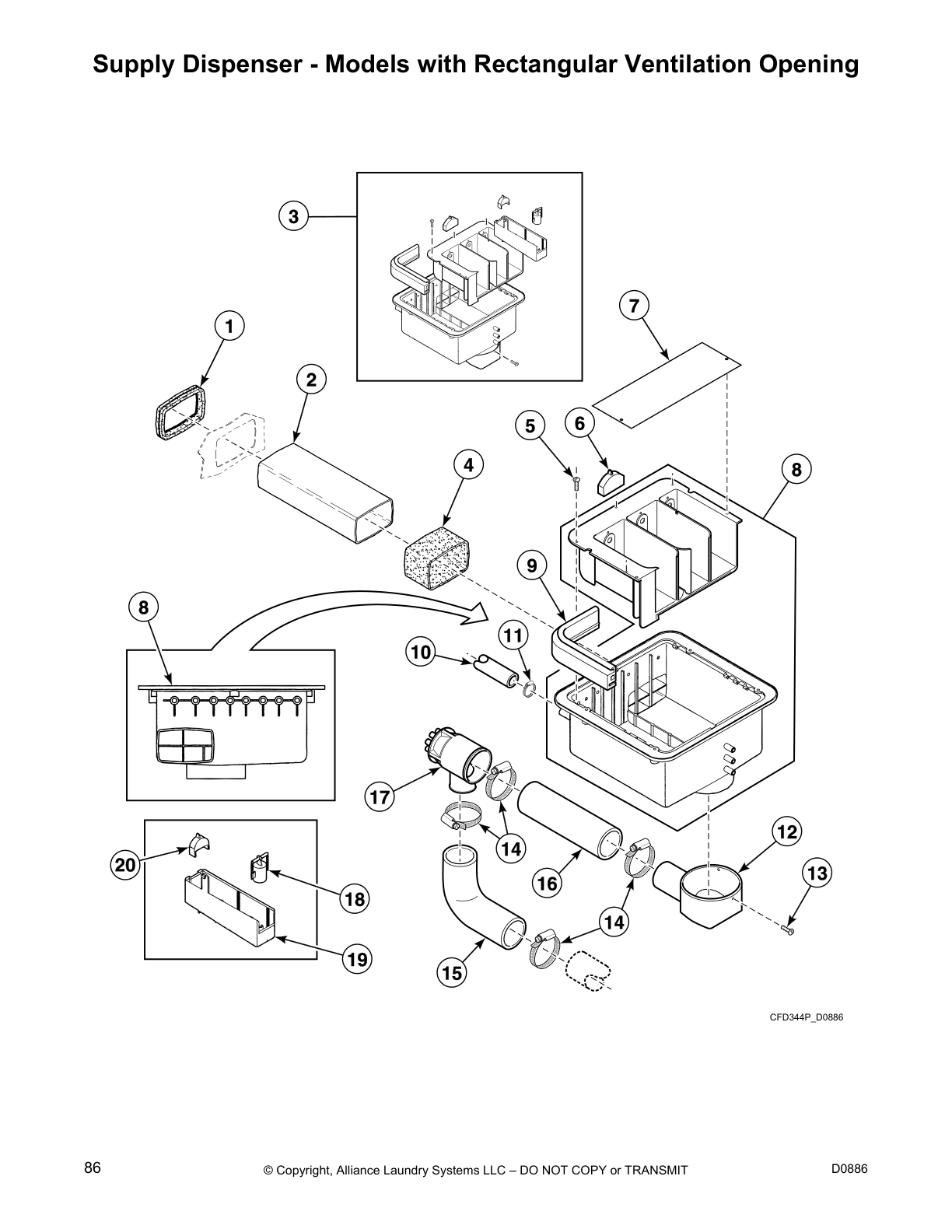

Supply Dispenser - Models with Rectangular Ventilation Opening

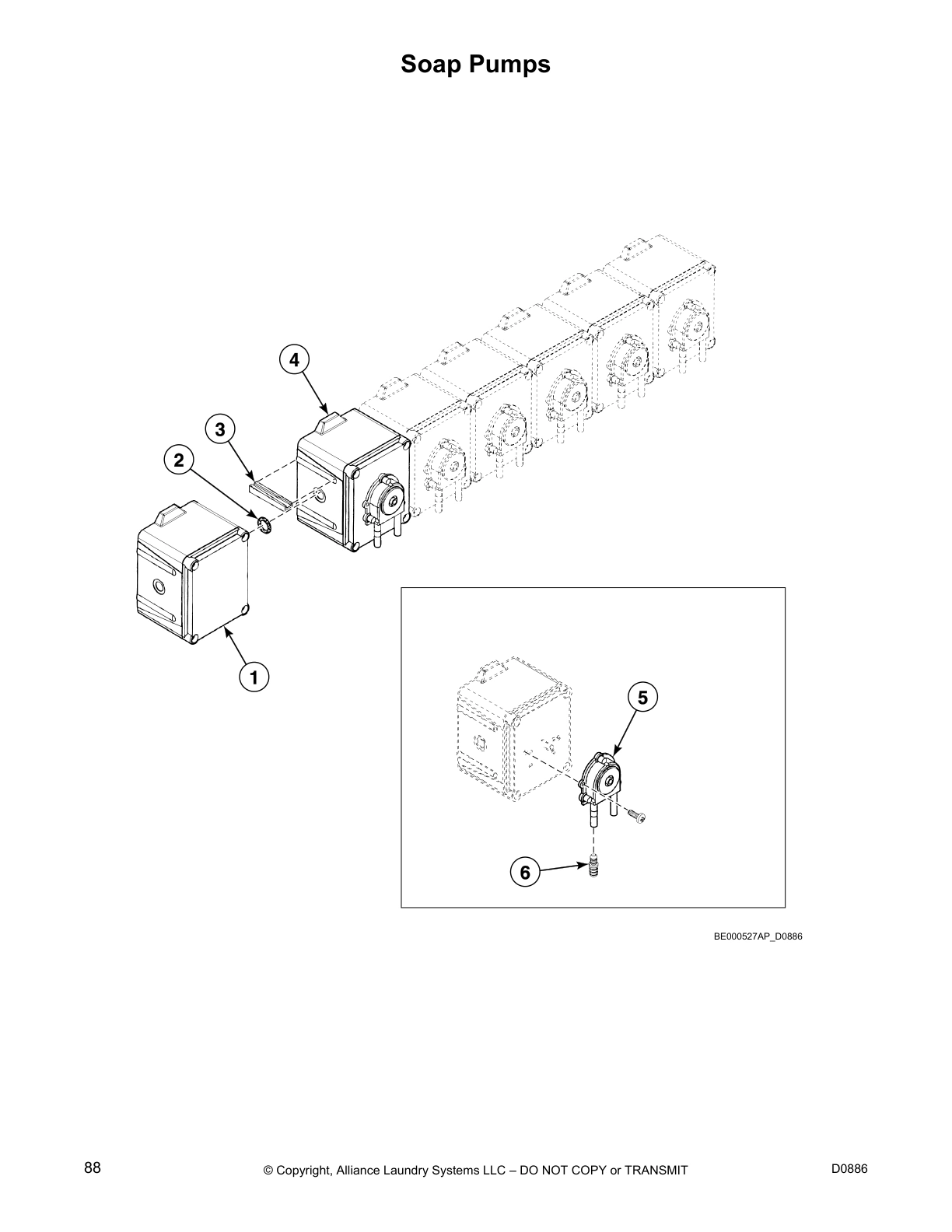

Soap Pumps

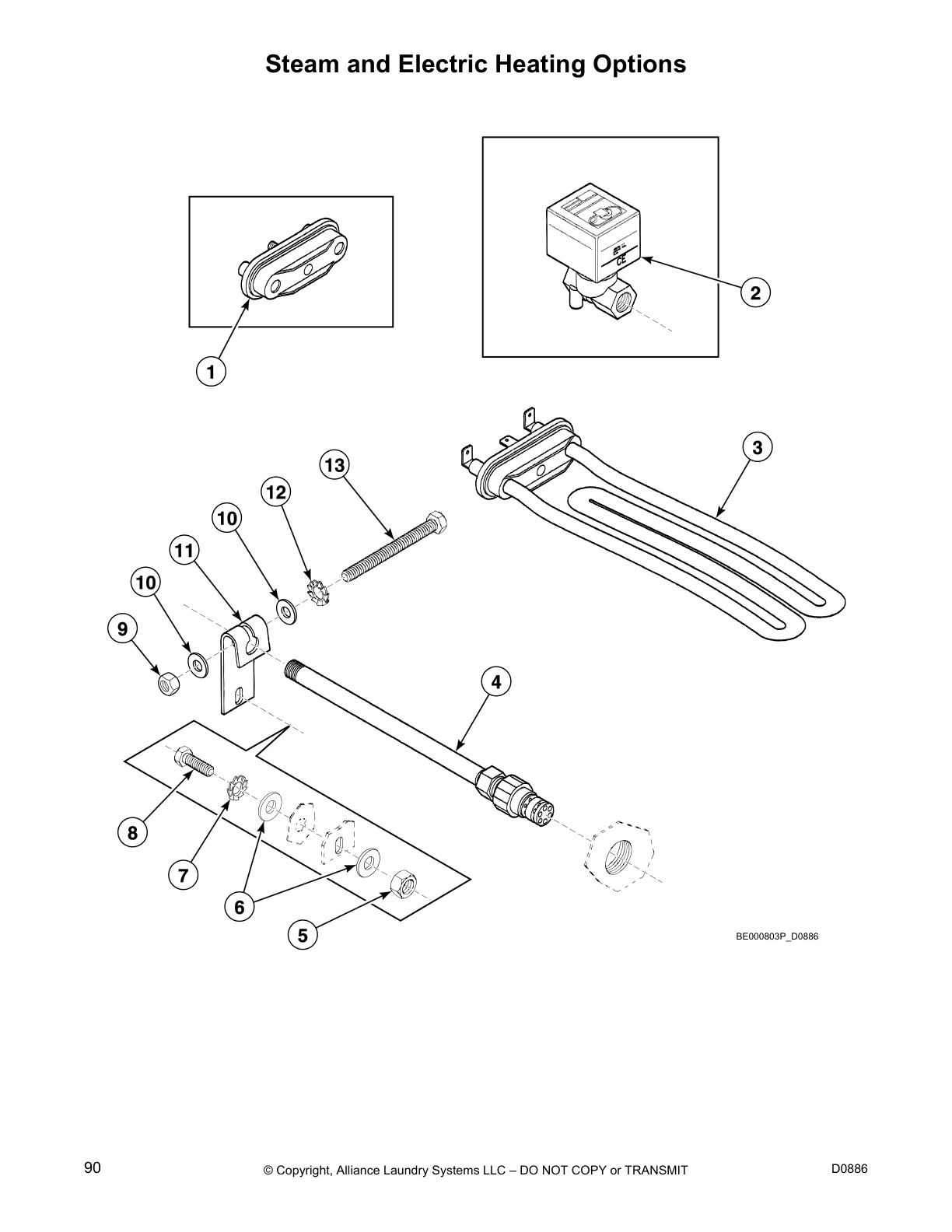

Steam and Electric Heating Options
Common parts from model IPSO IWF150SX2 Washer
SPQ B12311222 SPQ B12311222 Contact Us For Availability
SPQ B12311220 SPQ B12311220 Contact Us For Availability
SPQ B12311214 SPQ B12311214 Contact Us For Availability
SPQ B12311211 SPQ B12311211 Contact Us For Availability
SPQ B12311206 SPQ B12311206 Contact Us For Availability
SPQ B12311204 SPQ B12311204 Contact Us For Availability
SPQ B12311201 SPQ B12311201 Contact Us For Availability
SPQ B12311216 SPQ B12311216 Contact Us For Availability
SPQ B12311302 SPQ B12311302 Contact Us For Availability
Inverter Kit SPQ F8420315 Contact Us For Availability
SPQ 227/00242/00 SPQ 227/00242/00 Contact Us For Availability
SPQ 209/00554/01 SPQ 209/00554/01 Contact Us For Availability
SPQ 209/00554/98 SPQ 209/00554/98 Contact Us For Availability
SPQ 206/00013/00 SPQ 206/00013/00 Contact Us For Availability
1
Tub Fastening Ring SPQ 212/00115/00 Contact Us For Availability
1
Washer SPQ 201/00201/00 Contact Us For Availability
1
Drum SPQ 136/00021/00 Contact Us For Availability
1
Tub SPQ B12329601 Contact Us For Availability
1
Hose Clamp SPQ 223/00014/00 Contact Us For Availability
1
Door Glass SPQ B12449801 Contact Us For Availability
1
Circuit Board Cover SPQ 229/00262/00 Contact Us For Availability
1
Key SPQ 254/00077/02 Contact Us For Availability
1
Bolt SPQ 207/00125/00 Contact Us For Availability
1
Bolt SPQ 206/00027/00 Contact Us For Availability
1
Vent Tube SPQ 223/00226/00 Contact Us For Availability
1
Inverter Drive SPQ 227/00167/00 Contact Us For Availability
1
Printboard Support SPQ 111/01838/10 Contact Us For Availability
1
Electrical Component Mounting Plate SPQ 111/10003/40 Contact Us For Availability
1
Feeding Liquid Soap Dosing Pump SPQ 209/00554/51 Contact Us For Availability
1
Heating Element Plug SPQ F360202 Contact Us For Availability
2
Nut SPQ 204/00002/00 Contact Us For Availability
2
SPQ 152/00044/03 SPQ 152/00044/03 Contact Us For Availability
2
Pressure Switch Hose Tee SPQ 223/00382/00 Contact Us For Availability
2
SPQ 101/00007/00 SPQ 101/00007/00 Contact Us For Availability
2
Outlet Pipe Plate Assembly SPQ 223/00150/00 Contact Us For Availability
2
Bolt SPQ 206/00099/00 Contact Us For Availability
2
Washer SPQ 203/00006/00 Contact Us For Availability
2
Inverter Box Cover SPQ 204/00114/00 Contact Us For Availability
2
Nut SPQ 208/00104/00 Contact Us For Availability
2
SPQ F200164 SPQ F200164 Contact Us For Availability
2
Fuse Holder SPQ 211/00146/00 Contact Us For Availability
2
Softener Spray Nozzle SPQ 223/00222/04 Contact Us For Availability
2
Soap Pump Assembly SPQ 209/00554/06 Contact Us For Availability
3
Washer SPQ 201/00005/00 Contact Us For Availability
3
SPQ 152/00055/00 SPQ 152/00055/00 Contact Us For Availability
3
Basket Kit SPQ B12380401 Contact Us For Availability
3
SPQ 207/00117/00 SPQ 207/00117/00 Contact Us For Availability
3
SPQ 202/00124/00 SPQ 202/00124/00 Contact Us For Availability
3
Bolt SPQ 118/00125/00 Contact Us For Availability
3
Insulating Sticker SPQ 229/00255/00 Contact Us For Availability
3
Side Panel SPQ 223/00103/50 Contact Us For Availability
3
Ground Terminal SPQ 209/00006/01 Contact Us For Availability
3
Fuse SPQ 209/00202/01 Contact Us For Availability
3
Water Hose SPQ 223/00107/01 Contact Us For Availability
3
Shrink Fit SPQ 223/00229/00 Contact Us For Availability
3
Steam Injector SPQ 209/00563/20 Contact Us For Availability
4
Bolt SPQ 203/00001/00 Contact Us For Availability
4
SPQ 204/00009/00 SPQ 204/00009/00 Contact Us For Availability
4
Bolt SPQ 206/00032/00 Contact Us For Availability
4
SPQ 227/00196/00 SPQ 227/00196/00 Contact Us For Availability
4
Door Hinge Assembly Plate SPQ 217/00021/00 Contact Us For Availability
4
Contact Block SPQ 44018901 Contact Us For Availability
4
Switch SPQ B12323401 Contact Us For Availability
4
Optical Switch SPQ B12359901 Contact Us For Availability
4
Input Block SPQ 209/00683/00 Contact Us For Availability
4
Reinforcement Plate SPQ 111/60037/00 Contact Us For Availability
4
Bolt SPQ 223/00179/10 Contact Us For Availability
4
Main Switch Cover SPQ 111/01834/00 Contact Us For Availability
4
SPQ 209/00468/00 SPQ 209/00468/00 Contact Us For Availability
4
Thermostat Grommet SPQ 225/10004/00 Contact Us For Availability
4
Screw SPQ 223/00197/00 Contact Us For Availability
4
Soap Spray Nozzle SPQ 223/00222/03 Contact Us For Availability
4
Nut SPQ 209/00562/20 Contact Us For Availability
5
Chassis SPQ 206/00079/00 Contact Us For Availability
5
Tolerance Ring SPQ B12545901 Contact Us For Availability
5
Tub Front Panel Clip SPQ 217/00008/00 Contact Us For Availability
5
SPQ 217/00052/04 SPQ 217/00052/04 Contact Us For Availability
5
Door Hinge Block SPQ 202/00101/00 Contact Us For Availability
5
Upper Front Panel SPQ 111/01811/01 Contact Us For Availability
5
Pushbutton SPQ B12311252 Contact Us For Availability
5
SPQ 111/22727/00 SPQ 111/22727/00 Contact Us For Availability
5
Rivet SPQ 202/00004/00 Contact Us For Availability
5
Rivet SPQ 111/10003/30 Contact Us For Availability
5
Anti-Splash Plate SPQ 223/00107/02 Contact Us For Availability
5
Anti-Splash Plate SPQ 223/00222/00 Contact Us For Availability
5
Liquid Soap Dosing Pump O-Ring SPQ 209/00554/05 Contact Us For Availability
5
Steam Heat Kit SPQ 209/00581/10 Contact Us For Availability
6
Screw SPQ 212/00109/50 Contact Us For Availability
6
SPQ 205/00104/00 SPQ 205/00104/00 Contact Us For Availability
6
Washer SPQ 215/00004/00 Contact Us For Availability
6
Tub Front Panel SPQ 185/00049/00 Contact Us For Availability
6
SPQ 226/00144/00 SPQ 226/00144/00 Contact Us For Availability
6
SPQ 225/10167/00 SPQ 225/10167/00 Contact Us For Availability
6
SPQ 224/00040/00 SPQ 224/00040/00 Contact Us For Availability
6
Pushbutton SPQ 204/00008/00 Contact Us For Availability
6
Plexi Frame SPQ 225/00316/00 Contact Us For Availability
6
Mechanical Coin Meter Housing SPQ B12311241 Contact Us For Availability
6
Pushbutton SPQ 209/00781/00 Contact Us For Availability
6
SPQ 208/00025/00 SPQ 208/00025/00 Contact Us For Availability
6
SPQ 223/00102/07 SPQ 223/00102/07 Contact Us For Availability
6
Backbridge SPQ 208/00130/00 Contact Us For Availability
6
Support Connector SPQ 208/00017/00 Contact Us For Availability
6
Central Control Board SPQ 209/00438/50 Contact Us For Availability
6
Soap Spray Nozzle SPQ 223/00107/03 Contact Us For Availability
6
Outer and Inner Box Kit SPQ 223/00245/00 Contact Us For Availability
6
Hose SPQ 209/00554/03 Contact Us For Availability
6
SPQ 209/00564/20 SPQ 209/00564/20 Contact Us For Availability
7
SPQ 217/00002/00 SPQ 217/00002/00 Contact Us For Availability
7
SPQ B12333701 SPQ B12333701 Contact Us For Availability
7
SPQ 210/10015/00 SPQ 210/10015/00 Contact Us For Availability
7
SPQ 204/00106/00 SPQ 204/00106/00 Contact Us For Availability
7
Pushbutton SPQ 44018801 Contact Us For Availability
7
Decal SPQ 225/00403/00 Contact Us For Availability
7
Electronic Coin Meter Housing SPQ 209/00396/00 Contact Us For Availability
7
SPQ 208/00014/00 SPQ 208/00014/00 Contact Us For Availability
7
Terminal Block SPQ 209/00529/00 Contact Us For Availability
7
SPQ 111/10003/10 SPQ 111/10003/10 Contact Us For Availability
7
Soap Dispenser Gasket SPQ 223/00107/00 Contact Us For Availability
7
Soap Dispenser Gasket SPQ B12347501 Contact Us For Availability
7
SPQ 118/00084/00 SPQ 118/00084/00 Contact Us For Availability
8
SPQ 219/00001/00 SPQ 219/00001/00 Contact Us For Availability
8
Drum Pulley SPQ 203/00002/00 Contact Us For Availability
8
Ring Clip SPQ 219/00008/00 Contact Us For Availability
8
SPQ 206/00042/00 SPQ 206/00042/00 Contact Us For Availability
8
SPQ 209/00643/00 SPQ 209/00643/00 Contact Us For Availability
8
SPQ F200133600 SPQ F200133600 Contact Us For Availability
8
SPQ 203/00007/00 SPQ 203/00007/00 Contact Us For Availability
8
SPQ 118/00121/00 SPQ 118/00121/00 Contact Us For Availability
8
Telem Sticker SPQ 209/00520/00 Contact Us For Availability
8
Fastening Piece SPQ B12311239 Contact Us For Availability
8
Screw SPQ 152/00112/50 Contact Us For Availability
8
Washer SPQ 111/01833/00 Contact Us For Availability
8
SPQ 201/00006/00 SPQ 201/00006/00 Contact Us For Availability
8
Noise Filter SPQ 209/00526/00 Contact Us For Availability
8
Pressure Switch SPQ 209/00027/10 Contact Us For Availability
8
SPQ 223/00102/06 SPQ 223/00102/06 Contact Us For Availability
8
SPQ 118/00085/00 SPQ 118/00085/00 Contact Us For Availability
9
SPQ 206/00007/00 SPQ 206/00007/00 Contact Us For Availability
9
SPQ 212/00006/00 SPQ 212/00006/00 Contact Us For Availability
9
SPQ 209/00463/00 SPQ 209/00463/00 Contact Us For Availability
9
SPQ 253/00022/00 SPQ 253/00022/00 Contact Us For Availability
9
Fastening Piece SPQ 152/00112/00 Contact Us For Availability
9
SPQ 208/00002/00 SPQ 208/00002/00 Contact Us For Availability
9
Filter SPQ 209/00530/00 Contact Us For Availability
9
Pressure Switch Cap SPQ 223/00035/02 Contact Us For Availability
9
SPQ 123/00107/00 SPQ 123/00107/00 Contact Us For Availability
9
SPQ 204/00005/00 SPQ 204/00005/00 Contact Us For Availability
10
Screw SPQ 206/00058/00 Contact Us For Availability
10
Washer SPQ 202/00002/00 Contact Us For Availability
10
Hose Barb SPQ 223/00016/00 Contact Us For Availability
10
Drain Valve Hose SPQ 223/00190/00 Contact Us For Availability
10
Water Hose SPQ 223/00044/00 Contact Us For Availability
10
Door Hinge Spacer SPQ 118/00124/00 Contact Us For Availability
10
Washer SPQ 205/00106/00 Contact Us For Availability
10
Top Panel SPQ 111/22741/00 Contact Us For Availability
10
Filter Bracket SPQ 111/01837/01 Contact Us For Availability
10
Soap Dispenser Assembly SPQ 223/00102/50 Contact Us For Availability
11
Bolt SPQ 206/00093/00 Contact Us For Availability
11
Bolt SPQ 206/00119/00 Contact Us For Availability
11
Hose Clamp SPQ 223/00010/00 Contact Us For Availability
11
Drain Valve SPQ 223/00071/00 Contact Us For Availability
11
Washer SPQ 203/00010/00 Contact Us For Availability
11
Screw SPQ 207/00126/00 Contact Us For Availability
11
Coin Box SPQ 254/00077/00 Contact Us For Availability
11
Retaining Ring SPQ 202/00003/00 Contact Us For Availability
11
Grommet SPQ 223/00174/00 Contact Us For Availability
11
Steam Injector Plate Assembly SPQ 113/00025/00 Contact Us For Availability
12
Bolt SPQ 203/00003/00 Contact Us For Availability
12
U-Piece Assembly SPQ 113/00067/00 Contact Us For Availability
12
Washer SPQ 201/00010/00 Contact Us For Availability
12
Nut SPQ 117/00042/00 Contact Us For Availability
12
Motor SPQ F8546501 Contact Us For Availability
12
Screw SPQ 207/00112/00 Contact Us For Availability
12
Washer SPQ 202/00104/00 Contact Us For Availability
12
Fuse SPQ 209/00439/00 Contact Us For Availability
12
Dispenser Drain Funnel SPQ 223/00195/00 Contact Us For Availability
13
Bearing Housing Plate SPQ 113/00017/02 Contact Us For Availability
13
Motor Mounting Plate SPQ 206/00006/00 Contact Us For Availability
13
Bolt SPQ 209/00644/11 Contact Us For Availability
13
Nut SPQ 204/00116/00 Contact Us For Availability
13
Fastening Piece SPQ 217/00060/00 Contact Us For Availability
13
Screw SPQ 203/00005/00 Contact Us For Availability
13
Soap Dispenser Frame SPQ 223/00103/03 Contact Us For Availability
13
Backbridge SPQ 111/01833/10 Contact Us For Availability
13
Parameter Unit Program Cable SPQ 227/00171/10 Contact Us For Availability
13
Screw SPQ B12350903 Contact Us For Availability
13
Heating Element SPQ 206/00035/00 Contact Us For Availability
14
Nut SPQ 113/00017/01 Contact Us For Availability
14
Nut SPQ 206/00009/00 Contact Us For Availability
14
Siphon Break Hose SPQ 223/00013/00 Contact Us For Availability
14
Door Lock Bracket SPQ 201/00018/00 Contact Us For Availability
14
Lower Front Panel SPQ 204/00006/00 Contact Us For Availability
14
Parameter Unit Assembly SPQ F8410901 Contact Us For Availability
15
Bearing SPQ 201/00001/00 Contact Us For Availability
15
Drain Piece SPQ 223/00146/00 Contact Us For Availability
15
Drain Hose SPQ 206/00101/00 Contact Us For Availability
15
Washer SPQ 204/00201/00 Contact Us For Availability
15
Lock Shaft SPQ 207/00009/00 Contact Us For Availability
15
Side Panel SPQ 208/00009/00 Contact Us For Availability
15
Inverter Drive Box SPQ 111/01174/00 Contact Us For Availability
15
Soap Dispenser Hose SPQ B12310304 Contact Us For Availability
16
Retainer Ring SPQ 204/00010/00 Contact Us For Availability
16
Fan Plate Assembly SPQ 115/10185/00 Contact Us For Availability
16
Bolt SPQ 201/00002/00 Contact Us For Availability
16
Microswitch SPQ 217/00052/11 Contact Us For Availability
16
Standoff SPQ 211/00122/00 Contact Us For Availability
16
Outlet Pipe Plate Assembly SPQ 207/00101/00 Contact Us For Availability
16
Siphon Break Dispenser Hose SPQ 223/00261/00 Contact Us For Availability
16
Rinse Insert SPQ 223/00102/04 Contact Us For Availability
17
Bearing Housing Assembly SPQ F100134 Contact Us For Availability
17
Nut SPQ 271/35945/00 Contact Us For Availability
17
Motor SPQ 204/00109/00 Contact Us For Availability
17
Overflow Hose SPQ 223/00072/00 Contact Us For Availability
17
Door Lock Assembly SPQ 207/00102/00 Contact Us For Availability
17
Backbridge SPQ 111/01803/00 Contact Us For Availability
17
Liquid Soap Manifold SPQ 223/00262/00 Contact Us For Availability
17
Softener Spray Nozzle SPQ 223/00102/08 Contact Us For Availability
18
Speed Detector Bracket SPQ 212/00037/00 Contact Us For Availability
18
Motor Pulley SPQ 204/00115/00 Contact Us For Availability
18
Hose Vent SPQ 223/00001/04 Contact Us For Availability
18
Overflow Hose SPQ 153/00028/00 Contact Us For Availability
18
Pressure Switch Elbow SPQ 114/00010/00 Contact Us For Availability
18
Door Solenoid Assembly SPQ 217/00017/03 Contact Us For Availability
18
Siphon Break SPQ 223/00260/00 Contact Us For Availability
18
Liquid Soap Manifold SPQ 223/00102/03 Contact Us For Availability
19
Seal Plate Assembly SPQ 212/10104/00 Contact Us For Availability
19
Siphon Break Dispenser Hose SPQ 223/00011/00 Contact Us For Availability
19
Screw SPQ F200166 Contact Us For Availability
19
Rinsing Box SPQ 223/00250/00 Contact Us For Availability
19
Voltage Discharge Decal SPQ B12355001 Contact Us For Availability
19
Ventilating Hose SPQ 223/00102/05 Contact Us For Availability
20
SPQ 206/00054/00 SPQ 206/00054/00 Contact Us For Availability
20
Washer SPQ 223/00210/00 Contact Us For Availability
20
Filter SPQ 111/01174/01 Contact Us For Availability
20
Soap Dispenser SPQ 223/00222/05 Contact Us For Availability
21
Drain Pipe SPQ 223/00263/00 Contact Us For Availability
21
Lever Spring SPQ B12495102 Contact Us For Availability
21
AC Drive Filter SPQ 209/00287/21 Contact Us For Availability
22
Ground Terminal SPQ 224/00049/00 Contact Us For Availability
24
Pressure Switch Hose Tee SPQ 206/00033/00 Contact Us For Availability
24
Nut SPQ 224/00043/00 Contact Us For Availability
25
Pressure Hose SPQ 223/00106/00 Contact Us For Availability
NI
SPQ 204/00004/00 SPQ 204/00004/00 Contact Us For Availability
NI
SPQ 203/00004/00 SPQ 203/00004/00 Contact Us For Availability
NI
SPQ 206/00005/00 SPQ 206/00005/00 Contact Us For Availability
NI
SPQ 226/00141/00 SPQ 226/00141/00 Contact Us For Availability
NI
SPQ 201/00007/00 SPQ 201/00007/00 Contact Us For Availability
NI
Dual Drop Optical Sensor Kit SPQ B12311234 Contact Us For Availability
NI
Single Drop Optical Sensor Kit SPQ B12311224 Contact Us For Availability
NI
SPQ B12311221 SPQ B12311221 Contact Us For Availability
NI
SPQ B12311219 SPQ B12311219 Contact Us For Availability
NI
SPQ B12311212 SPQ B12311212 Contact Us For Availability
NI
SPQ B12311210 SPQ B12311210 Contact Us For Availability
NI
SPQ B12311205 SPQ B12311205 Contact Us For Availability
NI
SPQ B12311202 SPQ B12311202 Contact Us For Availability
NI
SPQ B12311247 SPQ B12311247 Contact Us For Availability
NI
SPQ B12311304 SPQ B12311304 Contact Us For Availability
NI
SPQ 209/00600/01P SPQ 209/00600/01P Contact Us For Availability
NI
Single Drop Optical Sensor Kit SPQ B12388102 Contact Us For Availability
NI
SPQ B12388101 SPQ B12388101 Contact Us For Availability
NI
SPQ 206/00166/00 SPQ 206/00166/00 Contact Us For Availability
NI
SPQ 111/10089/01 SPQ 111/10089/01 Contact Us For Availability
NI
SPQ 204/00007/00 SPQ 204/00007/00 Contact Us For Availability
NI
Drive SPQ F8420316 Contact Us For Availability
NI
SPQ F8420216 SPQ F8420216 Contact Us For Availability
NI
SPQ F8420215 SPQ F8420215 Contact Us For Availability
NI
SPQ 209/00527/00 SPQ 209/00527/00 Contact Us For Availability
NI
SPQ 227/00180/00 SPQ 227/00180/00 Contact Us For Availability
NI
SPQ 227/00179/00 SPQ 227/00179/00 Contact Us For Availability
NI
SPQ 223/00109/00 SPQ 223/00109/00 Contact Us For Availability
NI
SPQ 223/00102/30 SPQ 223/00102/30 Contact Us For Availability
NI
SPQ 223/00222/60 SPQ 223/00222/60 Contact Us For Availability
NI
Hose Connector SPQ 209/00554/02 Contact Us For Availability
NI
SPQ 209/00554/52 SPQ 209/00554/52 Contact Us For Availability
NI
SPQ 209/00554/99 SPQ 209/00554/99 Contact Us For Availability
NI
SPQ 921P3 SPQ 921P3 Contact Us For Availability
× ![]()
