Model IPSO IWF014SLM Washer – Common Parts & Diagrams

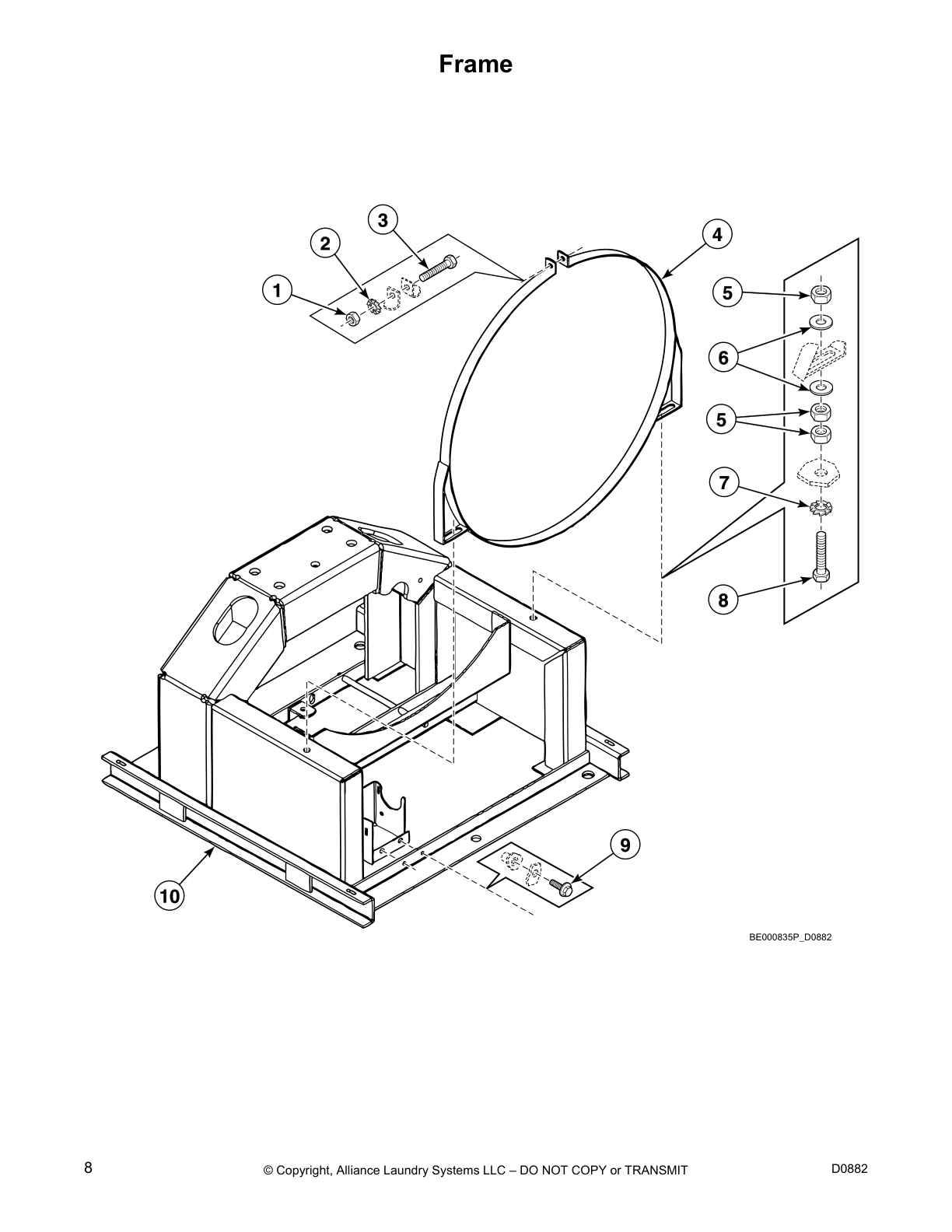

Frame

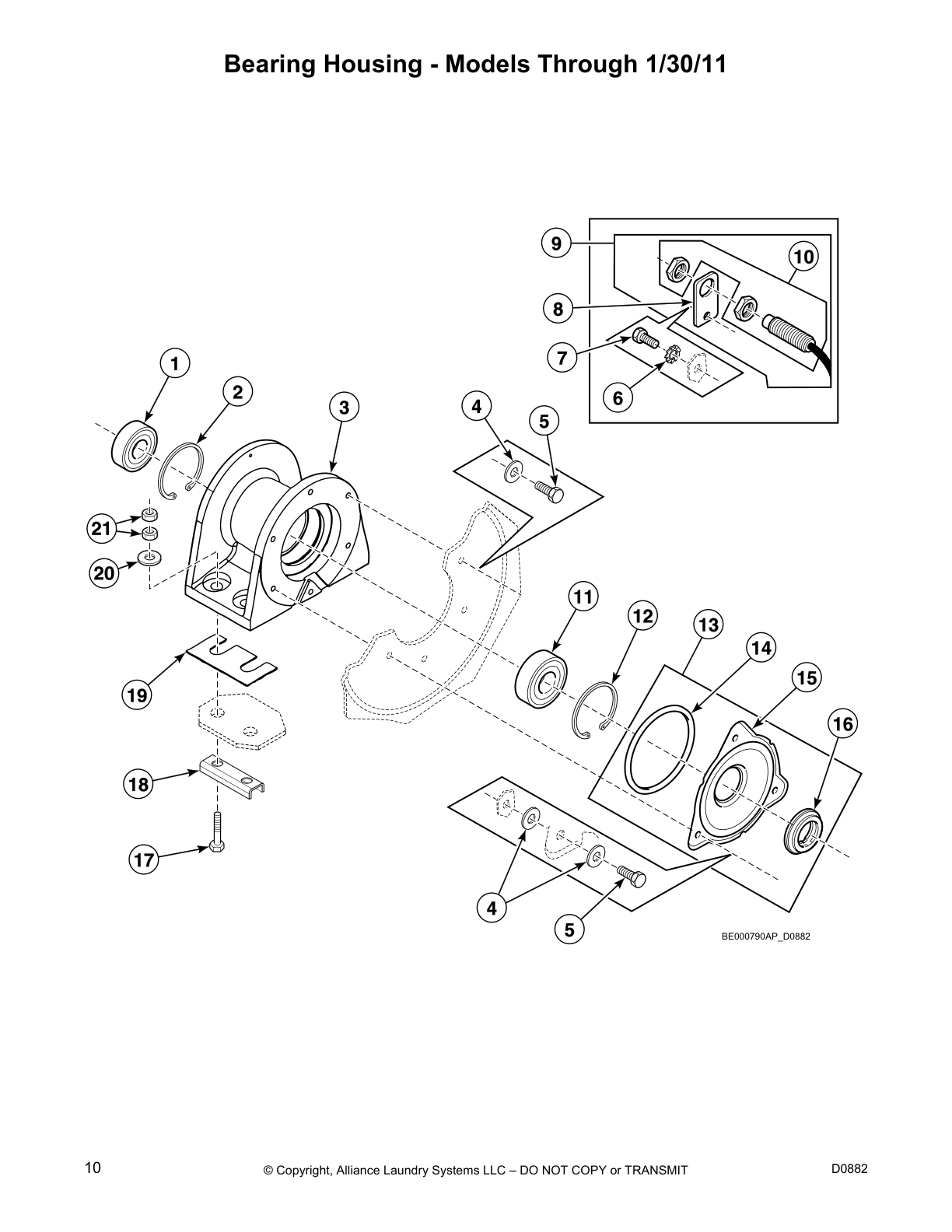

Bearing Housing - Models Through 1/30/11
Bearing Housing - Models Starting 1/31/11
Basket, Pulley and Belt
Shell - Models Through 4/22/2007
Shell - Models Starting 4/23/2007
Motor and Belt - Models Through 4/1/2007
Motor and Belt - *14 and *65 Models Starting 4/2/2007
Motor and Belt -
*18, *25, *74, *75 and *100 Models Starting 4/2/2007
Drain Plumbing - Models Through 8/11/10 with 2 Inch Drain Valve
Drain Plumbing - Models Starting 8/12/10 with 2 Inch Drain Valve
Drain Plumbing - *18, *74 and *75 Models with 3 Inch Drain Valve
Drain Plumbing - *25 and *100 Models with 3 Inch Drain Valve
Door Lock
Door
Control Panel - Cygnus Professional
Control Panel - Cygnus Premium OPL
Control Panel - Cygnus Premium OPL
with Frontal Supply Dispenser
Control Panel - Cygnus Premium Coin
Control Panel - Cygnus Premium Coin
with Frontal Supply Dispenser
Control Panel - Cygnus Standard/Commercial OPL
Control Panel - Cygnus Standard/Commercial OPL
with Frontal Supply Dispenser
Control Panel - Micro-20 OPL
Control Panel - Micro-20 OPL with Frontal Supply Dispenser
Control Panel - Micro-20 Coin
Control Panel - Sigma OPL
Control Panel - Sigma OPL with Frontal Supply Dispenser
Control Panel - Sigma Coin
Control Panel - Sigma Coin with Frontal Supply Dispenser
Control Panel - PS40F
Coin Drop - Mechanical Coin Meter
Coin Drop - Electronic Coin Meter
Left Side, Lower Front and Upper Back Panels
Right Side, Front, Lower Rear and Top Panels
Water Inlet Valves
Inverter Drive
Main Switch and Noise Filter
Central Operating Panel, Network Connection
and Soap Injection Printboards
Relay, Network Connection and Main Printboards - Cygnus Models
Electrical Component Mounting Plate
Supply Dispenser - Models with Frontal Supply Dispenser
Supply Dispenser - Models with Round Ventilation Opening
Supply Dispenser - Models with Rectangular Ventilation Opening
Steam and Electric Heating Options
Soap Pumps
Common parts from model IPSO IWF014SLM Washer
SPQ 204/00004/00 SPQ 204/00004/00 Contact Us For Availability
SPQ 208/00130/00 SPQ 208/00130/00 Contact Us For Availability
SPQ 227/00242/00 SPQ 227/00242/00 Contact Us For Availability
SPQ 209/00554/01 SPQ 209/00554/01 Contact Us For Availability
SPQ 209/00554/98 SPQ 209/00554/98 Contact Us For Availability
1
Bolt SPQ 206/00099/00 Contact Us For Availability
1
Outer Tub SPQ B12328101 Contact Us For Availability
1
Hose Clamp SPQ 223/00014/00 Contact Us For Availability
1
Door Glass SPQ B12449701 Contact Us For Availability
1
Circuit Board Cover SPQ 229/00262/00 Contact Us For Availability
1
Vent Tube SPQ 223/00226/00 Contact Us For Availability
1
Fan Grill SPQ 209/00465/01 Contact Us For Availability
1
Printboard Support SPQ 111/01838/10 Contact Us For Availability
1
Hose SPQ 223/00286/00 Contact Us For Availability
1
Feeding Liquid Soap Dosing Pump SPQ 209/00554/51 Contact Us For Availability
2
Bearing Housing Assembly SPQ 212/00028/00 Contact Us For Availability
2
SPQ 152/00044/03 SPQ 152/00044/03 Contact Us For Availability
2
Pressure Switch Elbow SPQ 223/00150/00 Contact Us For Availability
2
Screw SPQ 223/00001/04 Contact Us For Availability
2
SPQ 101/00007/00 SPQ 101/00007/00 Contact Us For Availability
2
Door Frame SPQ 217/00015/00 Contact Us For Availability
2
Reinforcement Plate SPQ 111/10089/01 Contact Us For Availability
2
Inverter Drive Box SPQ F8410901 Contact Us For Availability
2
Fuse Holder SPQ 211/00146/00 Contact Us For Availability
2
Water Hose SPQ 223/00197/00 Contact Us For Availability
2
Soap Dispenser SPQ 223/00229/00 Contact Us For Availability
2
Soap Pump Assembly SPQ 209/00554/06 Contact Us For Availability
3
Speed Detector Bracket SPQ 212/00100/00 Contact Us For Availability
3
Tolerance Ring SPQ 215/00004/00 Contact Us For Availability
3
SPQ 207/00117/00 SPQ 207/00117/00 Contact Us For Availability
3
SPQ 202/00124/00 SPQ 202/00124/00 Contact Us For Availability
3
Bolt SPQ 118/00046/10 Contact Us For Availability
3
Insulating Sticker SPQ 229/00255/00 Contact Us For Availability
3
Lower Rear Panel SPQ 111/10427/01 Contact Us For Availability
3
SPQ F200166 SPQ F200166 Contact Us For Availability
3
Ground Terminal SPQ 209/00006/01 Contact Us For Availability
3
Fuse SPQ 209/00202/01 Contact Us For Availability
3
Electrical Component Mountin SPQ 209/00027/10 Contact Us For Availability
3
Soap Spray Nozzle SPQ 223/00222/00 Contact Us For Availability
3
Steam Injector SPQ 209/00563/20 Contact Us For Availability
4
Tub Fastening Ring SPQ 212/00113/00 Contact Us For Availability
4
Bearing Replacement Tool Kit SPQ 201/00201/00 Contact Us For Availability
4
SPQ 204/00009/00 SPQ 204/00009/00 Contact Us For Availability
4
Bolt SPQ 206/00011/00 Contact Us For Availability
4
Bolt SPQ 206/00032/00 Contact Us For Availability
4
Nut SPQ 204/00008/00 Contact Us For Availability
4
Hinge Plate SPQ 205/00107/00 Contact Us For Availability
4
Top Panel SPQ 111/22141/00 Contact Us For Availability
4
SPQ F200164 SPQ F200164 Contact Us For Availability
4
Voltage Discharge Decal SPQ 111/10425/00 Contact Us For Availability
4
Main Switch Cover SPQ 111/01834/00 Contact Us For Availability
4
SPQ 209/00468/00 SPQ 209/00468/00 Contact Us For Availability
4
Thermostat SPQ 111/10003/40 Contact Us For Availability
4
Front Soapbox Siphon SPQ 223/00280/00 Contact Us For Availability
4
Outer and Inner Box Kit SPQ 223/00245/00 Contact Us For Availability
4
Nut SPQ 209/00562/20 Contact Us For Availability
5
Nut SPQ 204/00002/00 Contact Us For Availability
5
Washer SPQ 201/00015/00 Contact Us For Availability
5
Tub Front Panel Clip SPQ 217/00008/00 Contact Us For Availability
5
SPQ 211/00167/00 SPQ 211/00167/00 Contact Us For Availability
5
SPQ 217/00052/04 SPQ 217/00052/04 Contact Us For Availability
5
SPQ 202/00104/00 SPQ 202/00104/00 Contact Us For Availability
5
Upper Front Panel SPQ 111/01823/00 Contact Us For Availability
5
Facia and Outer Coin Box Assembly Kit SPQ 245/00124/00 Contact Us For Availability
5
Bolt SPQ 271/35945/00 Contact Us For Availability
5
Inner Soapbox SPQ 223/00280/03 Contact Us For Availability
5
Anti-Splash Plate SPQ B12347501 Contact Us For Availability
5
Steam Heat Kit SPQ 209/00581/10 Contact Us For Availability
5
Liquid Soap Dosing Pump O-Ring SPQ 209/00554/05 Contact Us For Availability
6
SPQ 201/00005/00 SPQ 201/00005/00 Contact Us For Availability
6
Bolt SPQ 203/00002/00 Contact Us For Availability
6
Tub Front SPQ 118/00022/01 Contact Us For Availability
6
SPQ 226/00129/00 SPQ 226/00129/00 Contact Us For Availability
6
SPQ 224/00040/00 SPQ 224/00040/00 Contact Us For Availability
6
SPQ 204/00106/00 SPQ 204/00106/00 Contact Us For Availability
6
Plexi Frame SPQ 225/00316/00 Contact Us For Availability
6
SPQ 208/00025/00 SPQ 208/00025/00 Contact Us For Availability
6
Screw SPQ 223/00179/10 Contact Us For Availability
6
Central Control Board SPQ 209/00438/50 Contact Us For Availability
6
Rivet SPQ 225/10004/00 Contact Us For Availability
6
Soapbox Handle SPQ 223/00280/20 Contact Us For Availability
6
Soap Dispenser Gasket SPQ 223/00102/06 Contact Us For Availability
6
SPQ 209/00564/20 SPQ 209/00564/20 Contact Us For Availability
6
Hose SPQ 209/00554/03 Contact Us For Availability
7
SPQ 203/00001/00 SPQ 203/00001/00 Contact Us For Availability
7
SPQ 205/00104/00 SPQ 205/00104/00 Contact Us For Availability
7
Pulley SPQ 206/00005/00 Contact Us For Availability
7
SPQ 210/10015/00 SPQ 210/10015/00 Contact Us For Availability
7
SPQ 202/00108/00 SPQ 202/00108/00 Contact Us For Availability
7
Decal SPQ 225/00403/00 Contact Us For Availability
7
Soap Dispenser Frame SPQ 223/00103/50 Contact Us For Availability
7
Backbridge SPQ B12355001 Contact Us For Availability
7
Terminal Block SPQ 209/00529/00 Contact Us For Availability
7
Support Connector SPQ 111/10003/30 Contact Us For Availability
7
SPQ 223/00280/07 SPQ 223/00280/07 Contact Us For Availability
7
SPQ 223/00102/30 SPQ 223/00102/30 Contact Us For Availability
7
SPQ 223/00222/60 SPQ 223/00222/60 Contact Us For Availability
7
SPQ 118/00084/00 SPQ 118/00084/00 Contact Us For Availability
8
SPQ 206/00079/00 SPQ 206/00079/00 Contact Us For Availability
8
SPQ 152/00055/00 SPQ 152/00055/00 Contact Us For Availability
8
SPQ 226/00126/00 SPQ 226/00126/00 Contact Us For Availability
8
Tub Front Ring Clamp SPQ 217/00007/00 Contact Us For Availability
8
SPQ 209/00643/11 SPQ 209/00643/11 Contact Us For Availability
8
SPQ 203/00007/00 SPQ 203/00007/00 Contact Us For Availability
8
SPQ 118/00128/00 SPQ 118/00128/00 Contact Us For Availability
8
Telem Sticker SPQ 209/00520/00 Contact Us For Availability
8
Nut SPQ 223/00103/03 Contact Us For Availability
8
Noise Filter SPQ 209/00526/00 Contact Us For Availability
8
SPQ 123/00107/00 SPQ 123/00107/00 Contact Us For Availability
8
SPQ 204/00005/00 SPQ 204/00005/00 Contact Us For Availability
9
SPQ 201/00007/00 SPQ 201/00007/00 Contact Us For Availability
9
SPQ 255/00010/00 SPQ 255/00010/00 Contact Us For Availability
9
Fuse SPQ 209/00439/00 Contact Us For Availability
9
SPQ 204/00114/00 SPQ 204/00114/00 Contact Us For Availability
9
SPQ 206/00166/00 SPQ 206/00166/00 Contact Us For Availability
9
SPQ 207/00125/00 SPQ 207/00125/00 Contact Us For Availability
9
SPQ 223/00102/07 SPQ 223/00102/07 Contact Us For Availability
9
Filter SPQ 209/00530/00 Contact Us For Availability
9
SPQ 223/00298/00 SPQ 223/00298/00 Contact Us For Availability
9
SPQ 223/00109/00 SPQ 223/00109/00 Contact Us For Availability
10
Chassis SPQ 212/00104/50 Contact Us For Availability
10
Washer SPQ 201/00006/00 Contact Us For Availability
10
Screw SPQ 206/00058/00 Contact Us For Availability
10
Washer SPQ 202/00002/00 Contact Us For Availability
10
Water Hose SPQ 223/00044/00 Contact Us For Availability
10
Trap SPQ 223/00316/00 Contact Us For Availability
10
Hose Barb SPQ 223/00016/00 Contact Us For Availability
10
O-Ring SPQ 217/00021/00 Contact Us For Availability
10
Door Hinge Spacer SPQ 117/00010/00 Contact Us For Availability
10
Washer SPQ 205/00106/00 Contact Us For Availability
10
Side Panel SPQ 111/10089/00 Contact Us For Availability
10
Filter Bracket SPQ 111/01837/01 Contact Us For Availability
10
Connection Clamp SPQ 209/00622/01 Contact Us For Availability
10
Tube SPQ 118/00118/03 Contact Us For Availability
11
Nut SPQ 206/00007/00 Contact Us For Availability
11
Retaining Ring SPQ 202/00003/00 Contact Us For Availability
11
Bolt SPQ 206/00119/00 Contact Us For Availability
11
Hose Clamp SPQ 223/00010/00 Contact Us For Availability
11
Washer SPQ 203/00010/00 Contact Us For Availability
11
Screw SPQ 207/00126/00 Contact Us For Availability
11
Nut SPQ 208/00002/00 Contact Us For Availability
11
Side Panel SPQ 111/60031/00 Contact Us For Availability
11
Bolt SPQ 206/00027/00 Contact Us For Availability
11
Terminal Block SPQ 209/00619/01 Contact Us For Availability
11
Soap Dispenser Assembly SPQ 223/00102/50 Contact Us For Availability
11
Steam Injector Plate Assembly SPQ 113/00025/00 Contact Us For Availability
12
Bolt SPQ 203/00003/00 Contact Us For Availability
12
Nut SPQ 117/00042/00 Contact Us For Availability
12
Washer SPQ 201/00010/00 Contact Us For Availability
12
Screw SPQ 207/00112/00 Contact Us For Availability
12
Hinge SPQ 221/00003/00 Contact Us For Availability
12
Washer SPQ 203/00006/00 Contact Us For Availability
12
Front Panel SPQ 111/00290/00 Contact Us For Availability
12
Pressure Switch Cap SPQ 209/01625/00 Contact Us For Availability
12
Screw SPQ B12350903 Contact Us For Availability
12
Liquid Soap Dispenser Insert SPQ 223/00102/08 Contact Us For Availability
13
Motor Mounting Plate SPQ 206/00006/00 Contact Us For Availability
13
Pressure Hose SPQ 223/00035/02 Contact Us For Availability
13
Screw SPQ 203/00005/00 Contact Us For Availability
13
Nut SPQ 202/00004/00 Contact Us For Availability
13
Inverter Drive SPQ 227/00167/00 Contact Us For Availability
13
Dispenser Drain Funnel SPQ 223/00195/00 Contact Us For Availability
13
Soap Dispenser Rinse Siphon SPQ 223/00102/04 Contact Us For Availability
13
Heating Element SPQ 206/00035/00 Contact Us For Availability
14
O-Ring SPQ 217/00002/00 Contact Us For Availability
14
Nut SPQ 206/00009/00 Contact Us For Availability
14
Siphon Break Hose SPQ 223/00013/00 Contact Us For Availability
14
Nut SPQ 206/00101/00 Contact Us For Availability
14
Drain Valve SPQ F200133600 Contact Us For Availability
14
Door Lock Bracket SPQ 201/00018/00 Contact Us For Availability
14
Lower Front Panel SPQ 204/00006/00 Contact Us For Availability
14
Pump Support SPQ 204/00007/00 Contact Us For Availability
14
Drive SPQ F8420502 Contact Us For Availability
14
Rinse Insert SPQ 223/00102/03 Contact Us For Availability
15
Seal Cover SPQ 117/00001/00 Contact Us For Availability
15
Bolt SPQ 206/00093/00 Contact Us For Availability
15
Drain Valve Hose SPQ 209/00463/00 Contact Us For Availability
15
Lock Shaft SPQ 207/00009/00 Contact Us For Availability
15
Side Panel SPQ 208/00009/00 Contact Us For Availability
15
Inverter Kit SPQ F8420501 Contact Us For Availability
15
Water Hose SPQ 155/00161/00 Contact Us For Availability
15
Softener Spray Nozzle SPQ 223/00102/05 Contact Us For Availability
15
Siphon Break Dispenser Hose SPQ B12310301 Contact Us For Availability
16
Shaft Seal SPQ 217/00003/00 Contact Us For Availability
16
U-Piece Assembly SPQ 113/00065/00 Contact Us For Availability
16
Fan Plate Assembly SPQ 115/10100/00 Contact Us For Availability
16
Drain Valve Hose SPQ 209/00643/00 Contact Us For Availability
16
Nut SPQ 223/00190/00 Contact Us For Availability
16
Microswitch SPQ 217/00052/11 Contact Us For Availability
16
Standoff SPQ 211/00122/00 Contact Us For Availability
16
Side Panel SPQ 207/00101/00 Contact Us For Availability
16
Liquid Soap Manifold SPQ F8420402 Contact Us For Availability
16
Liquid Soap Manifold SPQ 223/00260/00 Contact Us For Availability
17
Cordlock SPQ 204/00109/00 Contact Us For Availability
17
Door Lock Assembly SPQ 207/00102/00 Contact Us For Availability
17
Outlet Pipe Plate Assembly SPQ 111/00285/00 Contact Us For Availability
17
Upper Backpanel SPQ 111/01832/10 Contact Us For Availability
17
Parameter Unit Assembly SPQ F8420401 Contact Us For Availability
17
Siphon Break SPQ 223/00250/00 Contact Us For Availability
18
Washer SPQ 201/00001/00 Contact Us For Availability
18
Pulley SPQ 204/00115/00 Contact Us For Availability
18
Prewash and Mainwash Nozzle SPQ 204/00201/00 Contact Us For Availability
18
Door Solenoid Assembly SPQ 217/00017/03 Contact Us For Availability
18
Rinsing Box SPQ 223/00222/04 Contact Us For Availability
19
Nut SPQ 204/00010/00 Contact Us For Availability
19
Hose Vent SPQ 201/00002/00 Contact Us For Availability
19
Softener Spray Nozzle SPQ 223/00222/05 Contact Us For Availability
20
SPQ 206/00054/00 SPQ 206/00054/00 Contact Us For Availability
20
Shrink Fit SPQ 223/00222/03 Contact Us For Availability
21
Outlet Pipe Plate Assembly SPQ 223/00011/00 Contact Us For Availability
21
Prewash and Mainwash Nozzle SPQ 223/00146/00 Contact Us For Availability
21
Lever Spring SPQ B12495102 Contact Us For Availability
21
Inverter Drive Box SPQ 227/00171/10 Contact Us For Availability
22
Washer SPQ 223/00210/00 Contact Us For Availability
22
Ground Terminal SPQ 224/00049/00 Contact Us For Availability
22
Pressure Hose SPQ 111/10425/50 Contact Us For Availability
24
Nut SPQ 224/00043/00 Contact Us For Availability
25
Pressure Switch Hose Tee SPQ 206/00033/00 Contact Us For Availability
NI
SPQ 203/00004/00 SPQ 203/00004/00 Contact Us For Availability
NI
SPQ 387P4 SPQ 387P4 Contact Us For Availability
NI
SPQ 380P3 SPQ 380P3 Contact Us For Availability
NI
SPQ 208/00014/00 SPQ 208/00014/00 Contact Us For Availability
NI
SPQ 111/01832/00 SPQ 111/01832/00 Contact Us For Availability
NI
SPQ 155/00162/00 SPQ 155/00162/00 Contact Us For Availability
NI
SPQ 208/00104/00 SPQ 208/00104/00 Contact Us For Availability
NI
SPQ 223/00174/00 SPQ 223/00174/00 Contact Us For Availability
NI
SPQ 208/00017/00 SPQ 208/00017/00 Contact Us For Availability
NI
SPQ 209/00527/00 SPQ 209/00527/00 Contact Us For Availability
NI
SPQ 227/00180/00 SPQ 227/00180/00 Contact Us For Availability
NI
SPQ 227/00179/00 SPQ 227/00179/00 Contact Us For Availability
NI
SPQ 111/10003/10 SPQ 111/10003/10 Contact Us For Availability
NI
SPQ 206/00013/00 SPQ 206/00013/00 Contact Us For Availability
NI
SPQ 919P3 SPQ 919P3 Contact Us For Availability
NI
Hose Connector SPQ 209/00554/02 Contact Us For Availability
NI
SPQ 209/00554/52 SPQ 209/00554/52 Contact Us For Availability
NI
SPQ 209/00554/99 SPQ 209/00554/99 Contact Us For Availability
× ![]()
