Model IPSO IWE095SR2 Washer – Common Parts & Diagrams
Frame
Bearing Housing

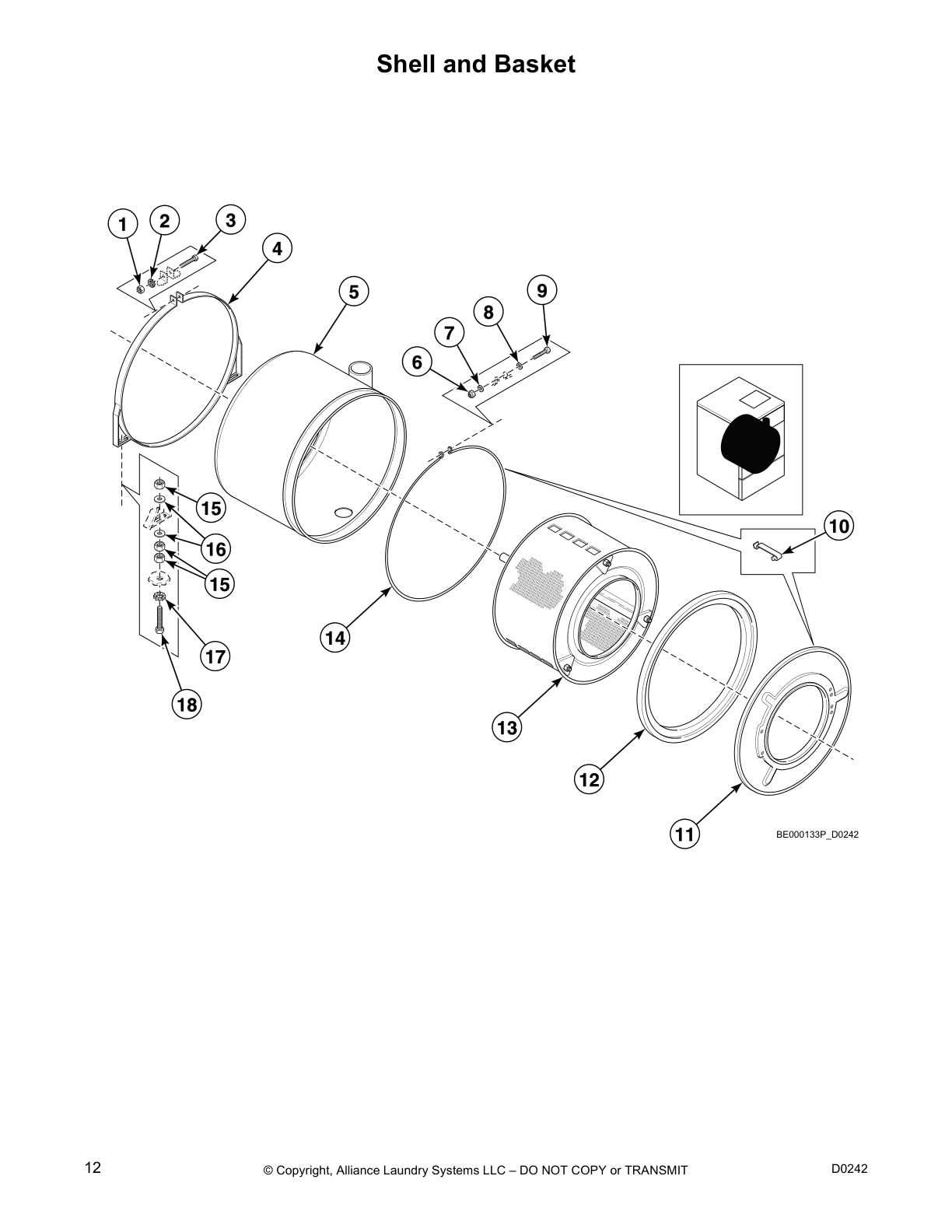

Shell and Basket

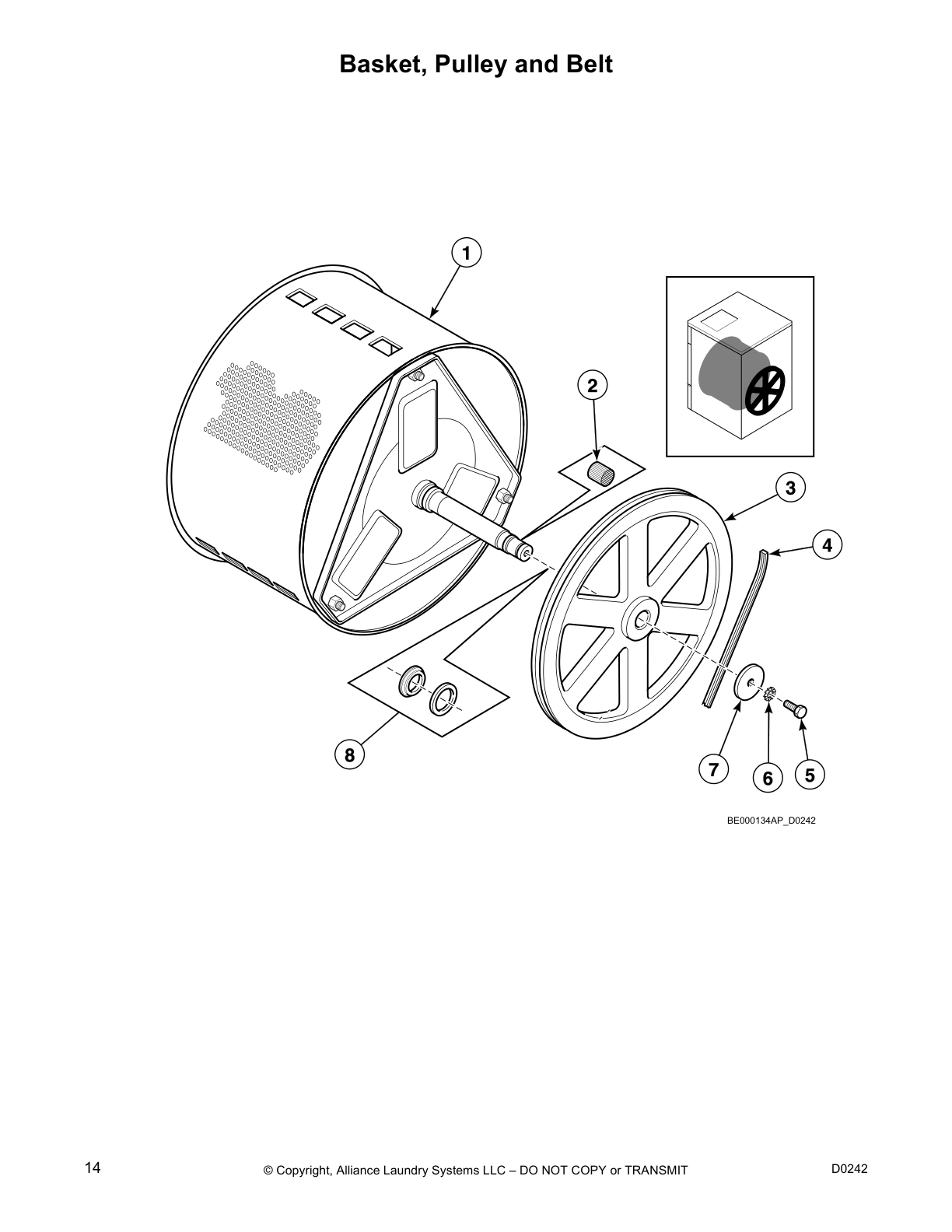

Basket, Pulley and Belt

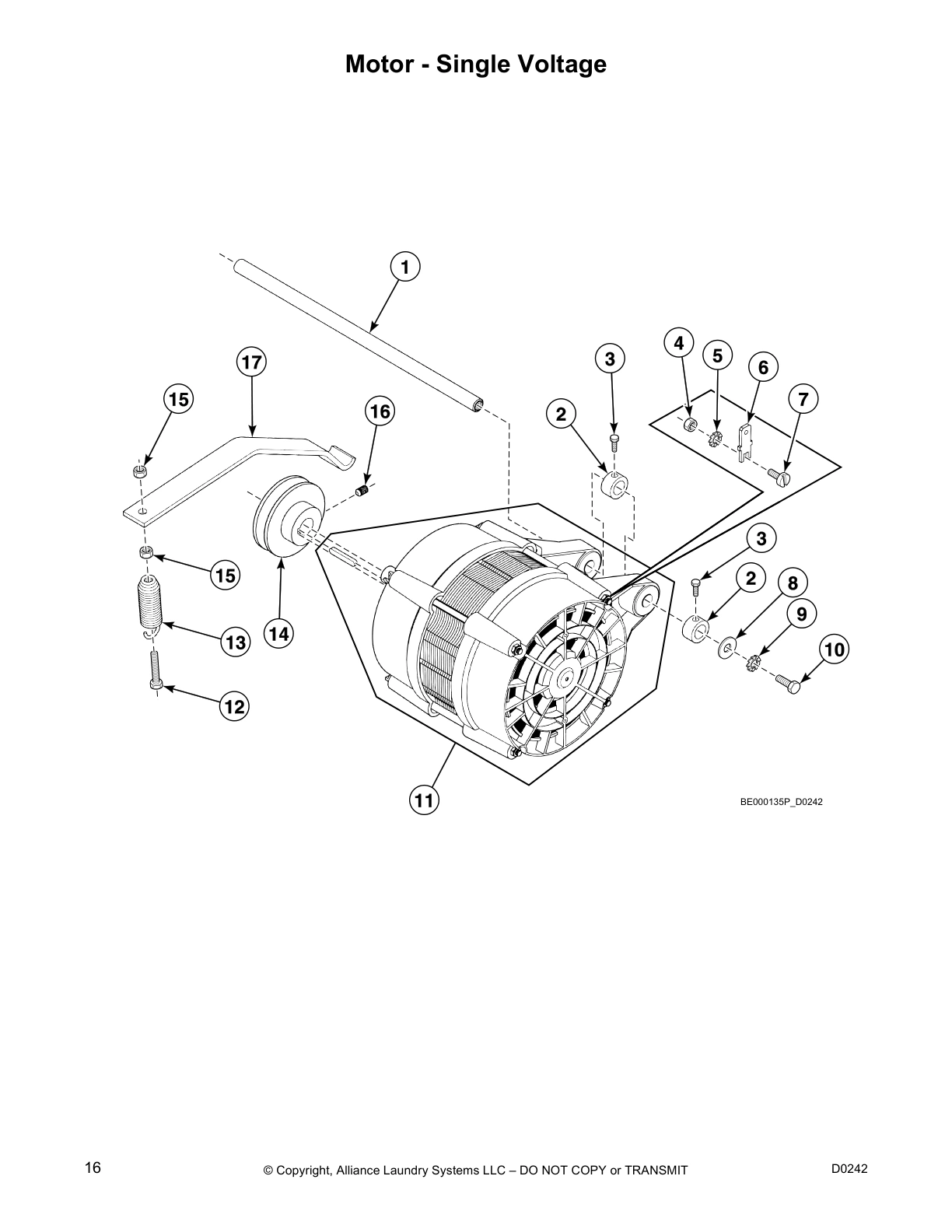

Motor - Single Voltage

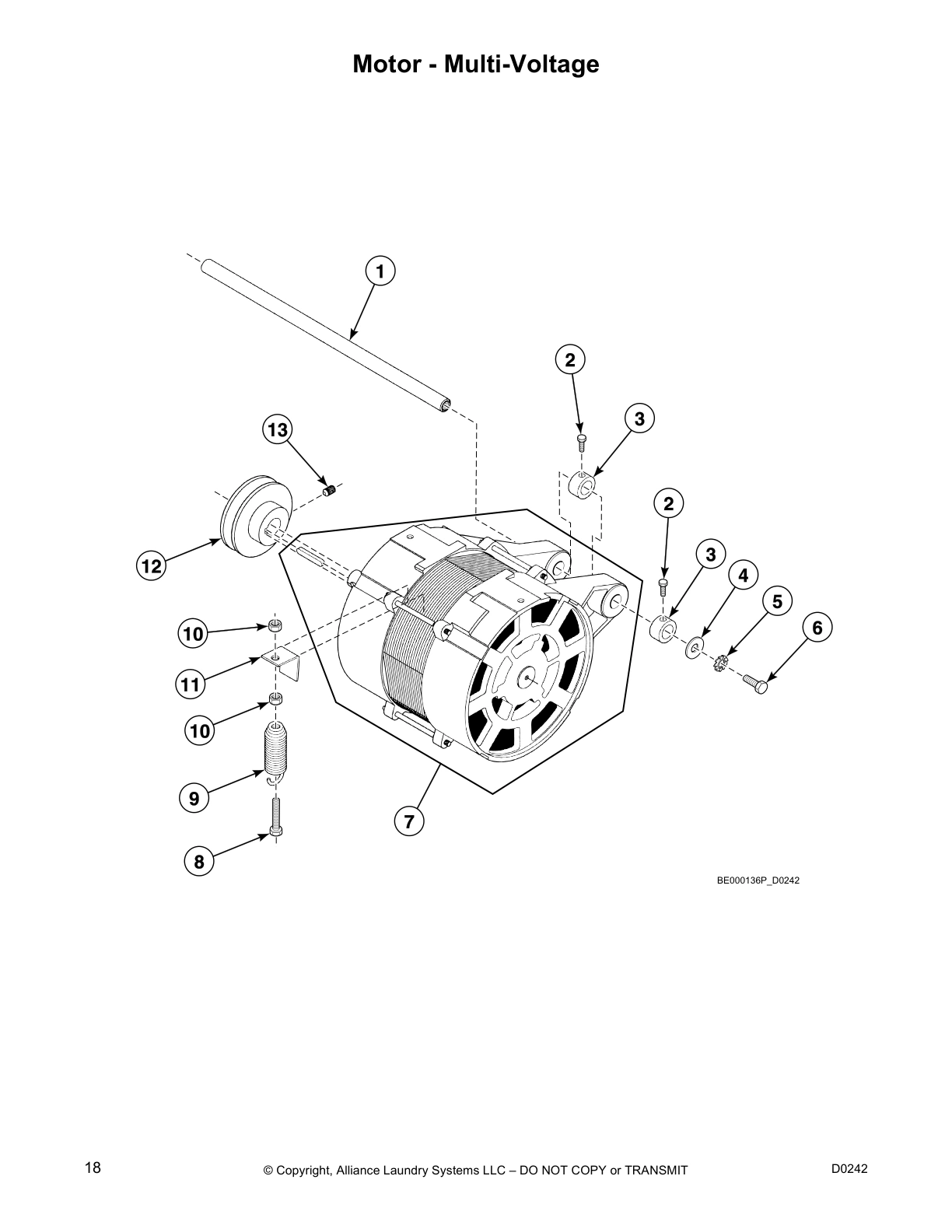

Motor - Multi-Voltage

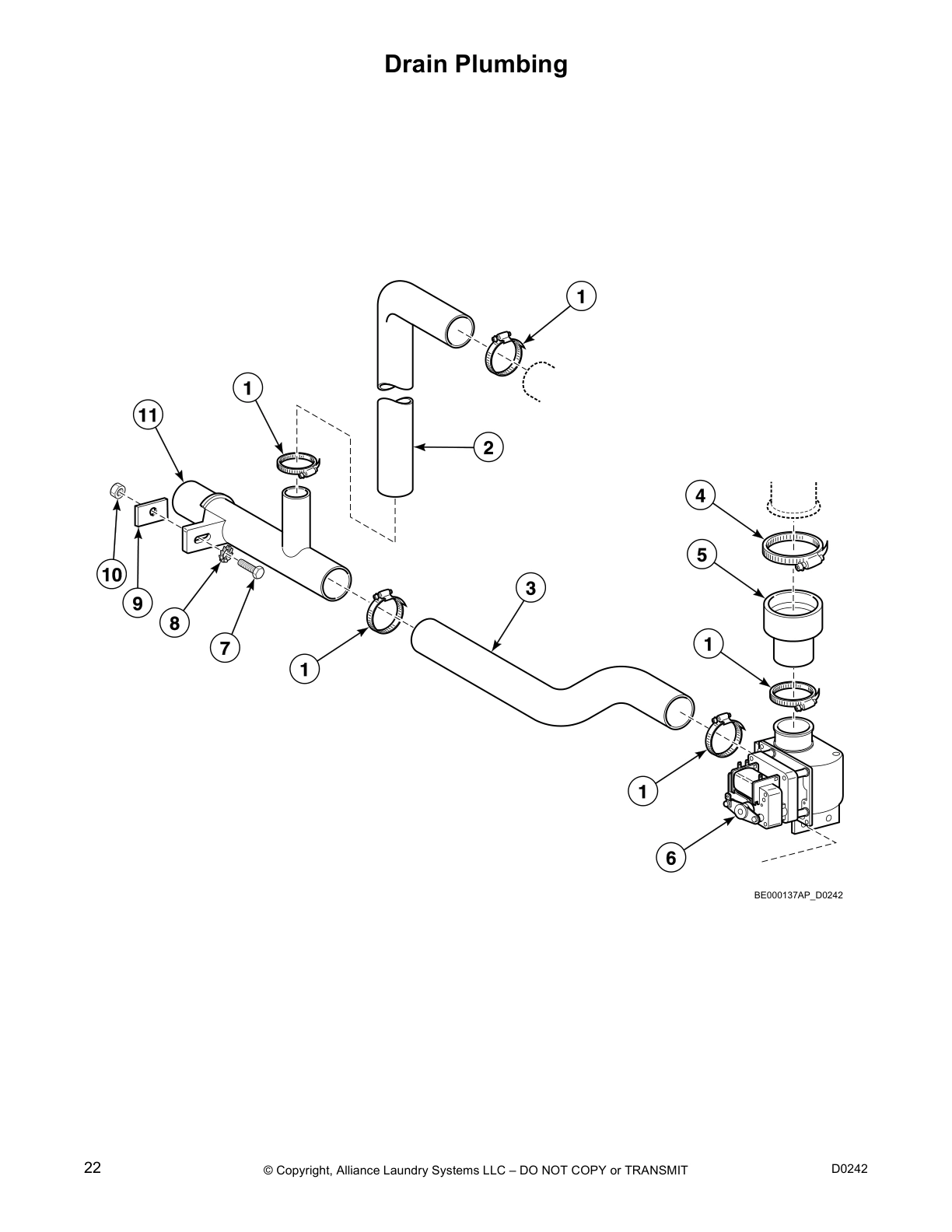

Drain Plumbing

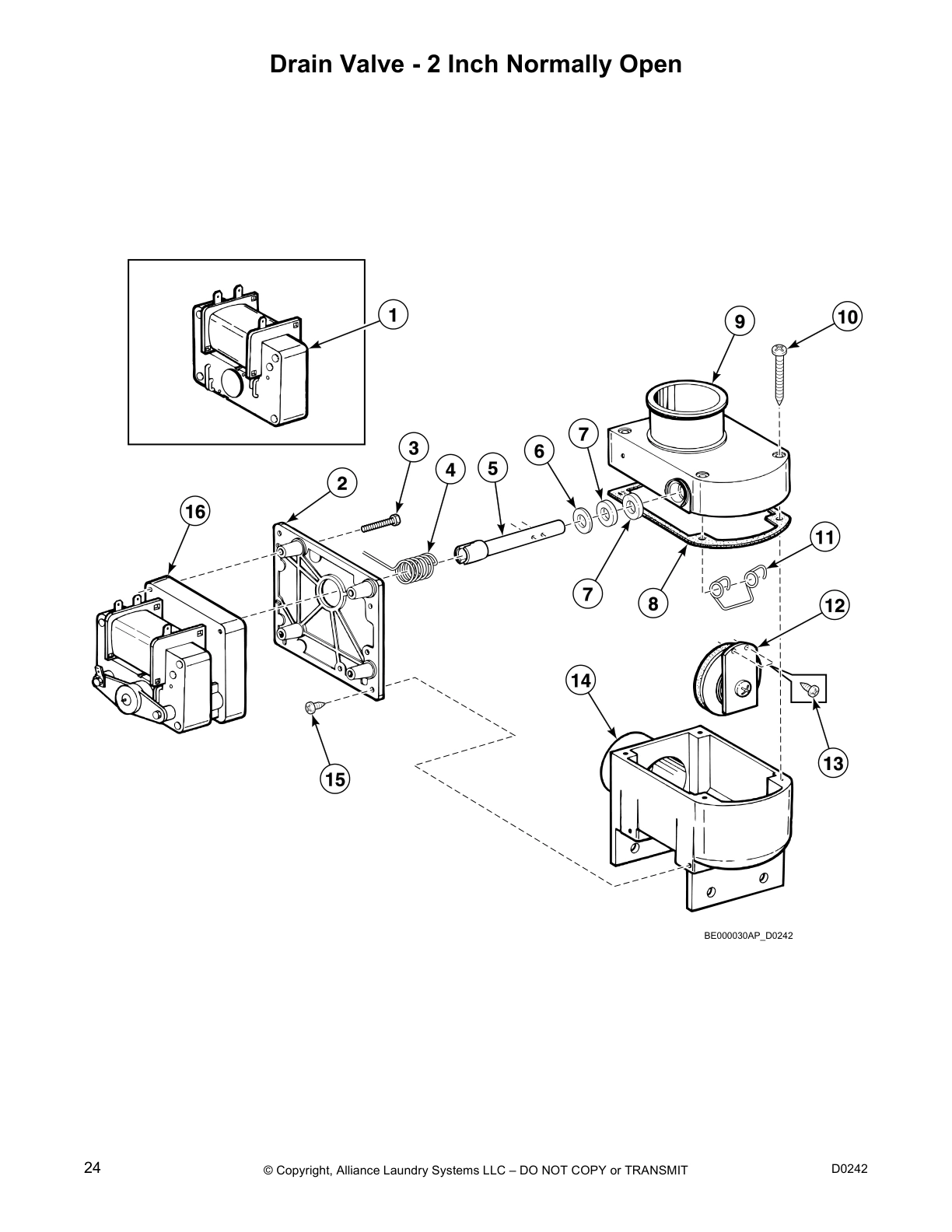

Drain Valve - 2 Inch Normally Open

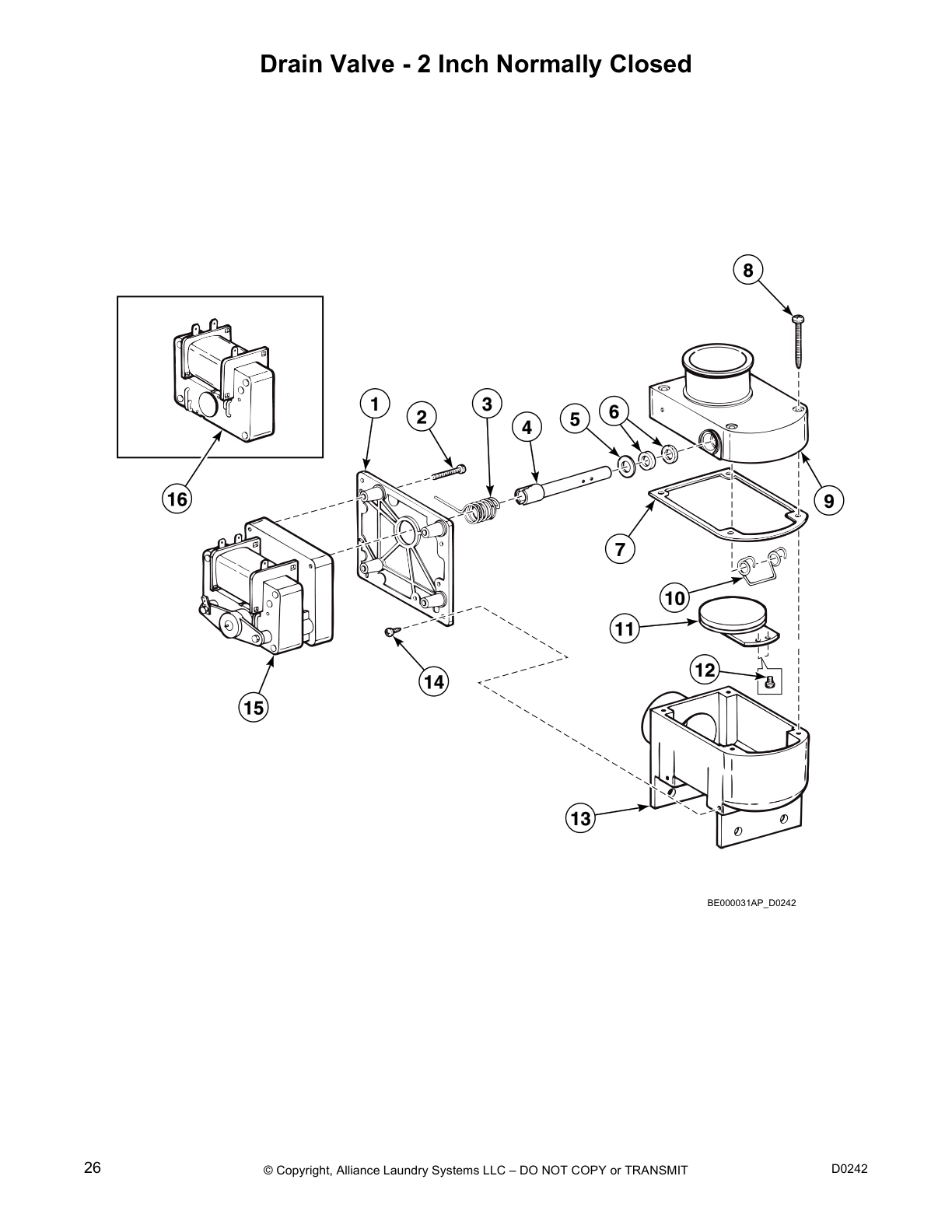

Drain Valve - 2 Inch Normally Closed

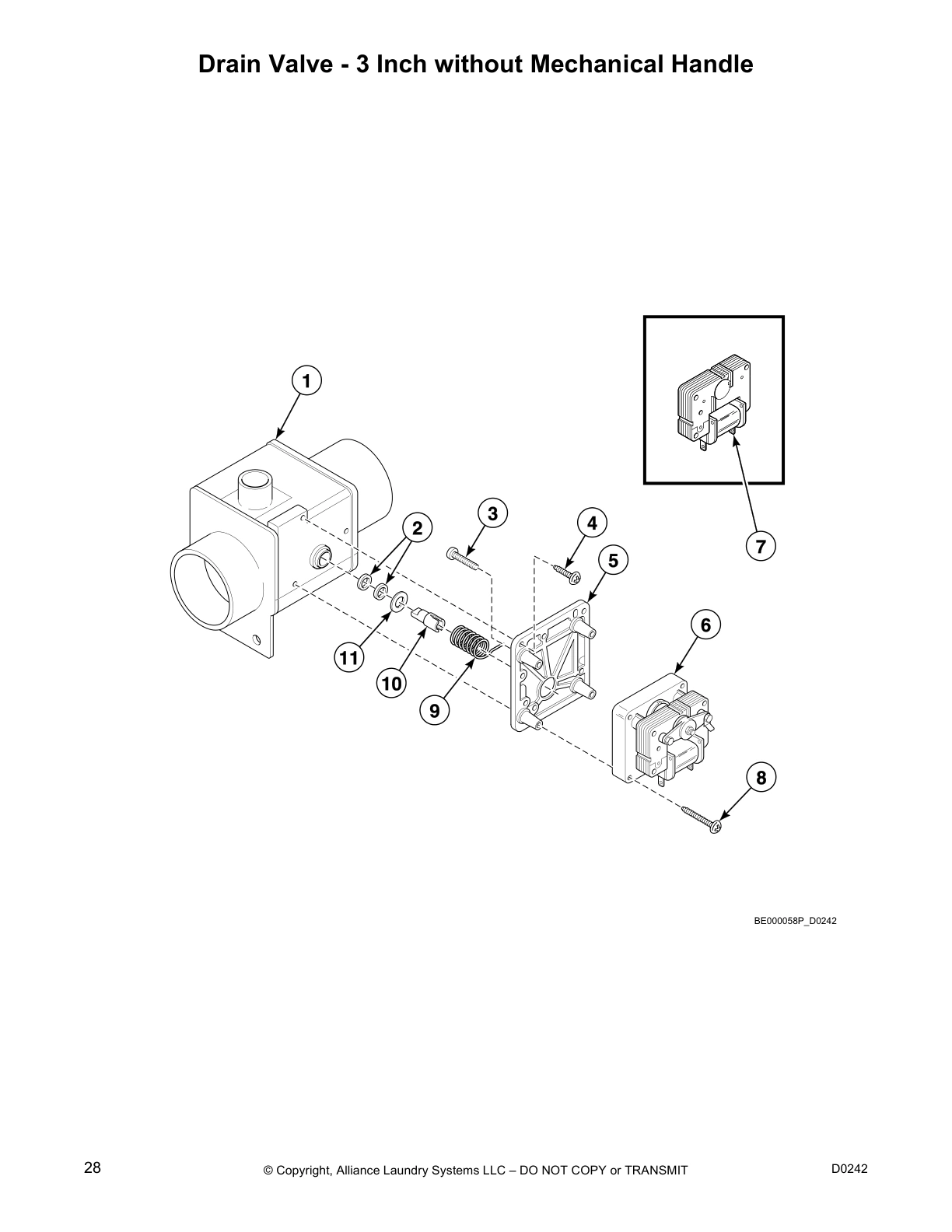

Drain Valve - 3 Inch without Mechanical Handle

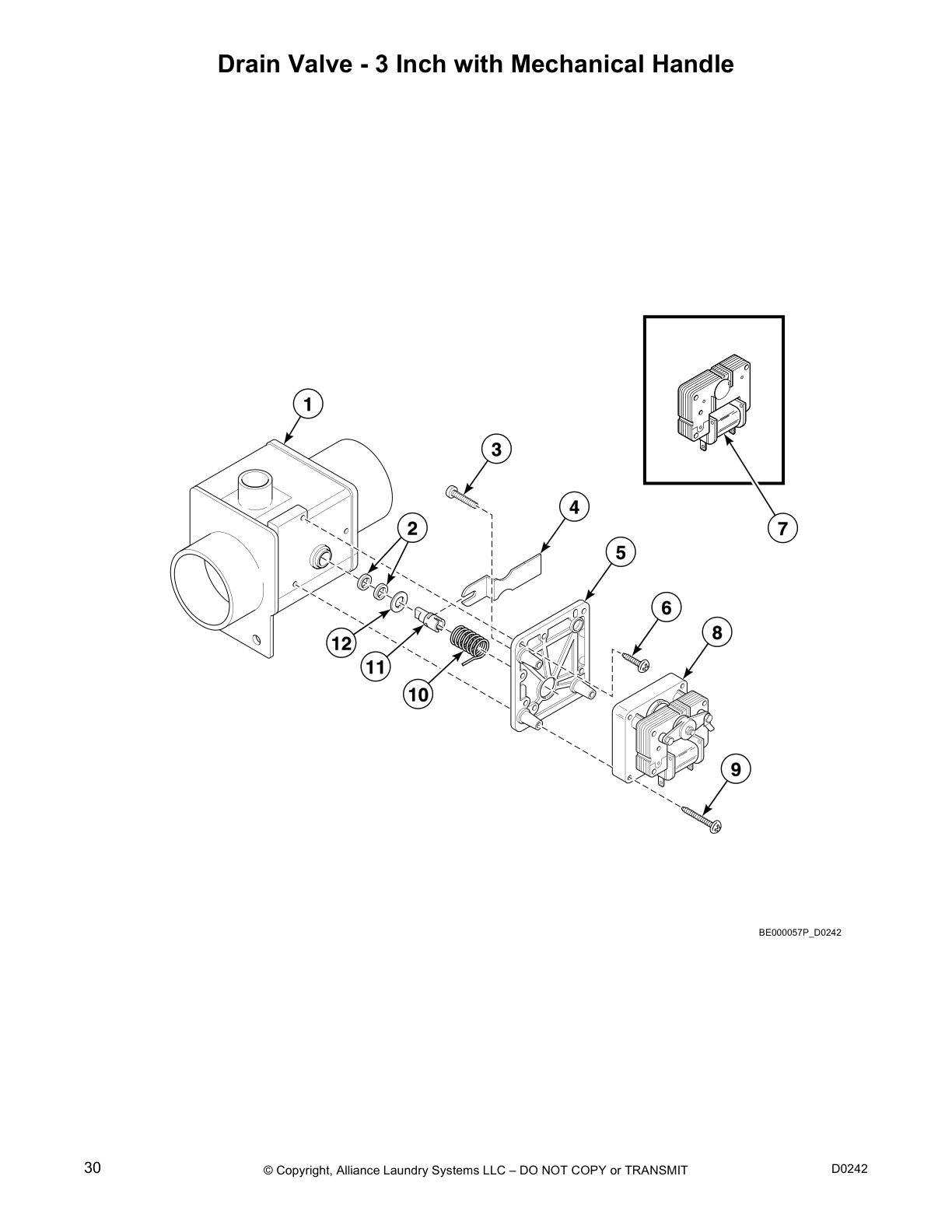

Drain Valve - 3 Inch with Mechanical Handle

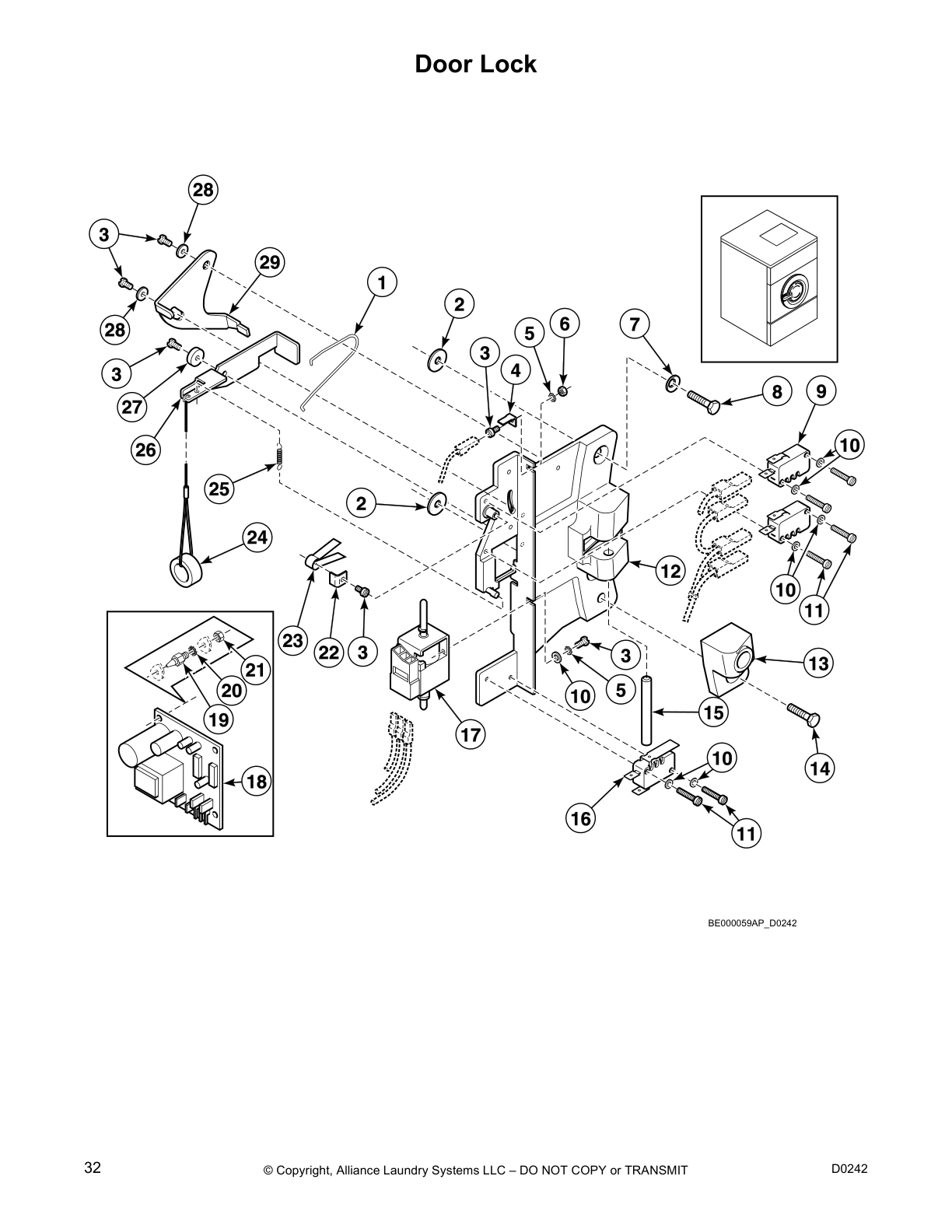

Door Lock
Door - Models Through 12/31/87

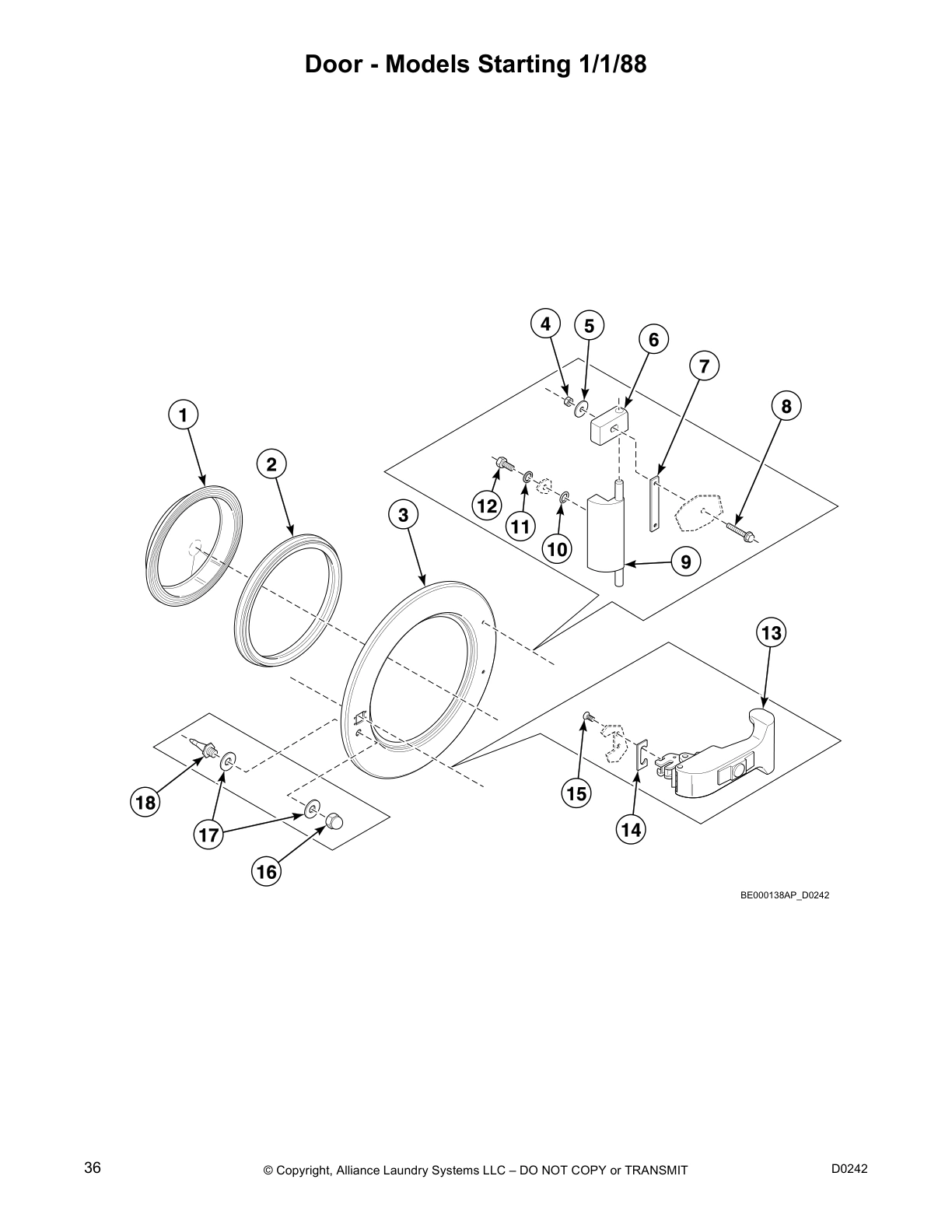

Door - Models Starting 1/1/88

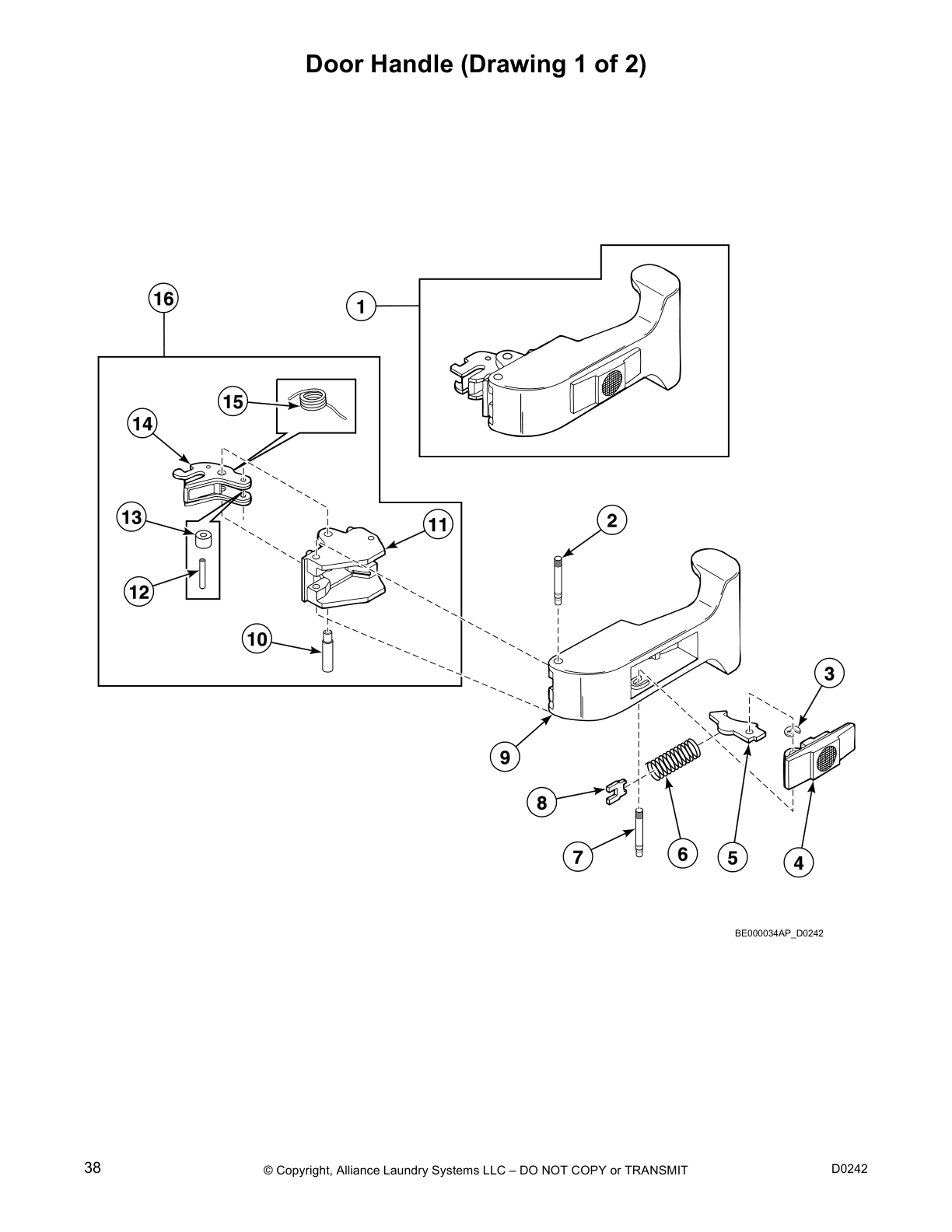

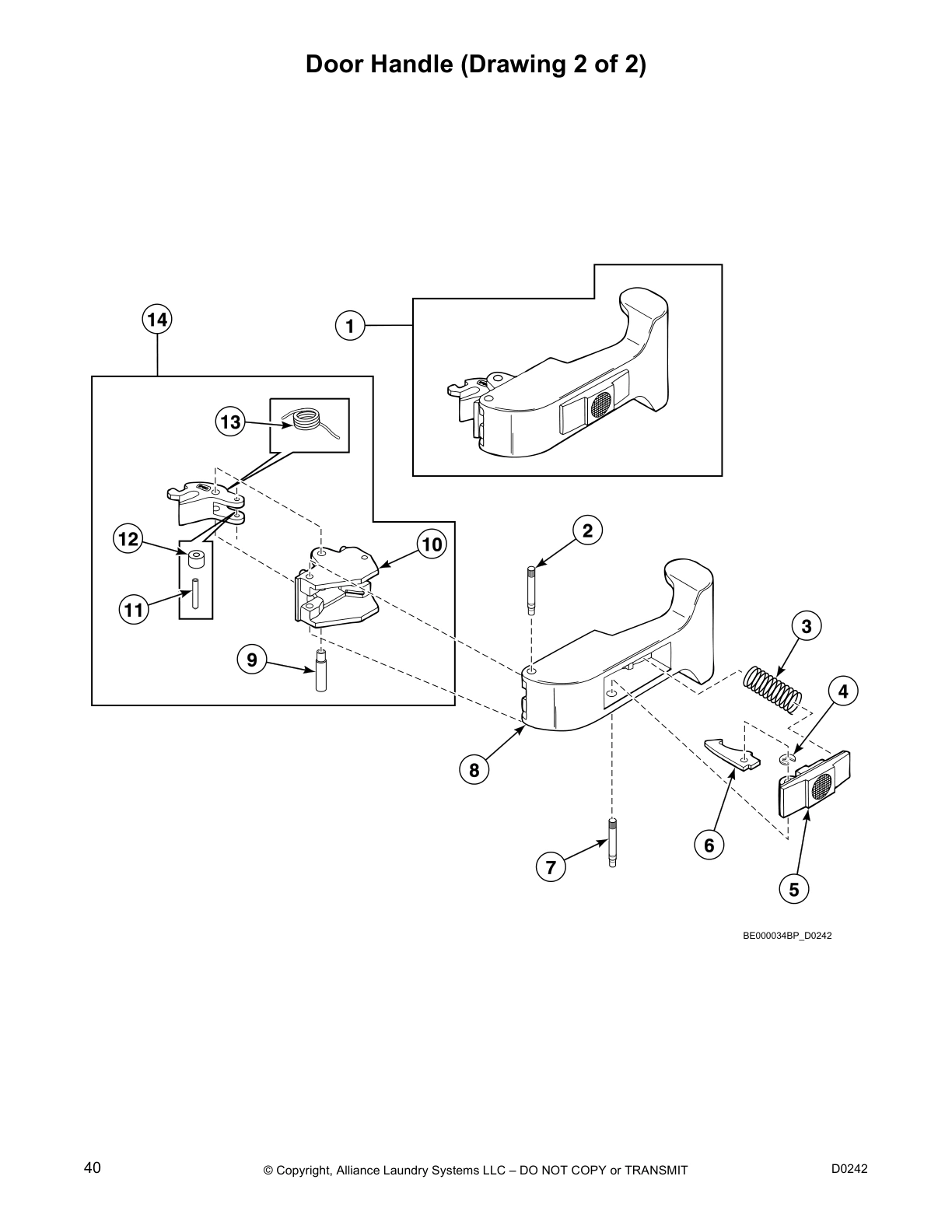

Door Handle (Drawing 1 of 2)
Door Handle (Drawing 2 of 2)

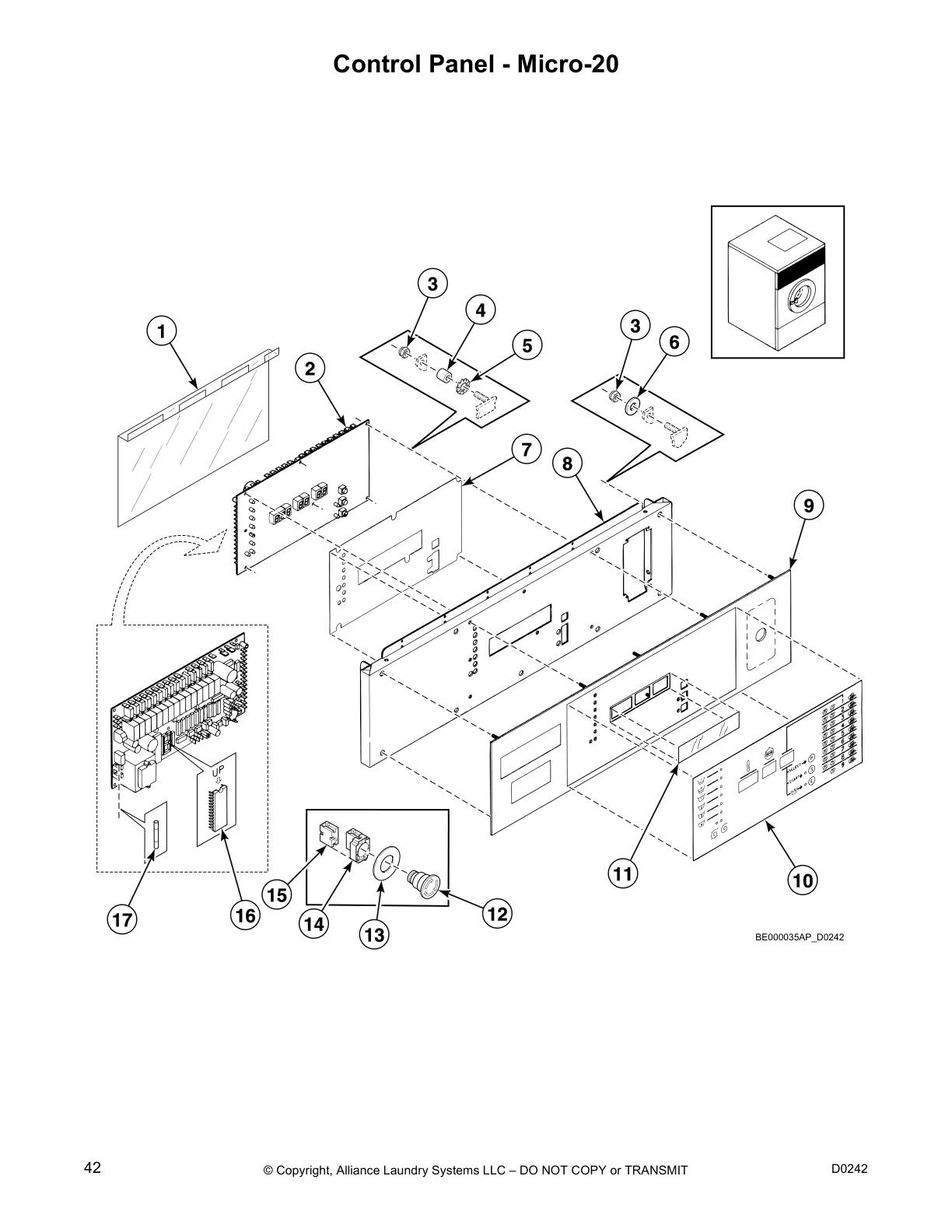

Control Panel - Micro-20

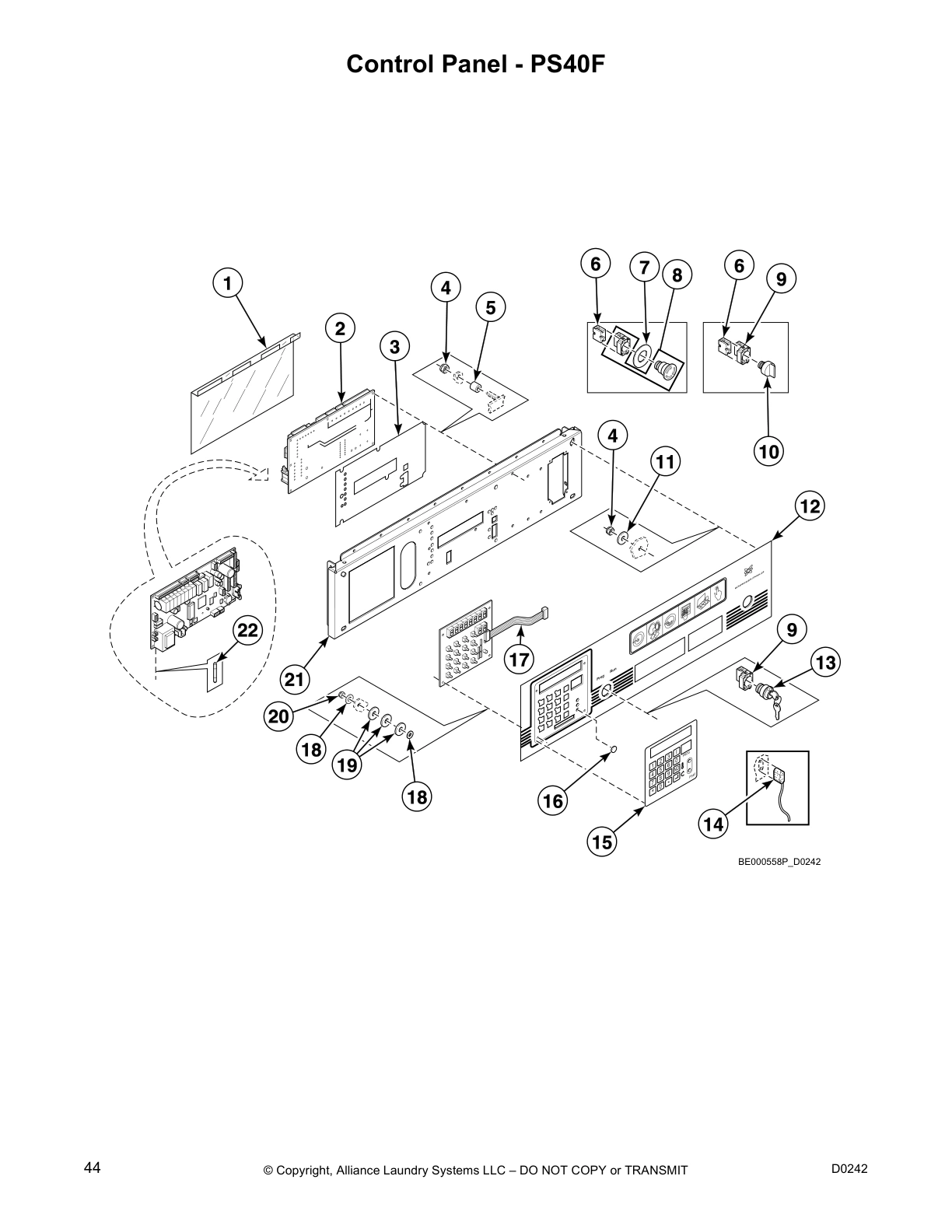

Control Panel - PS40F

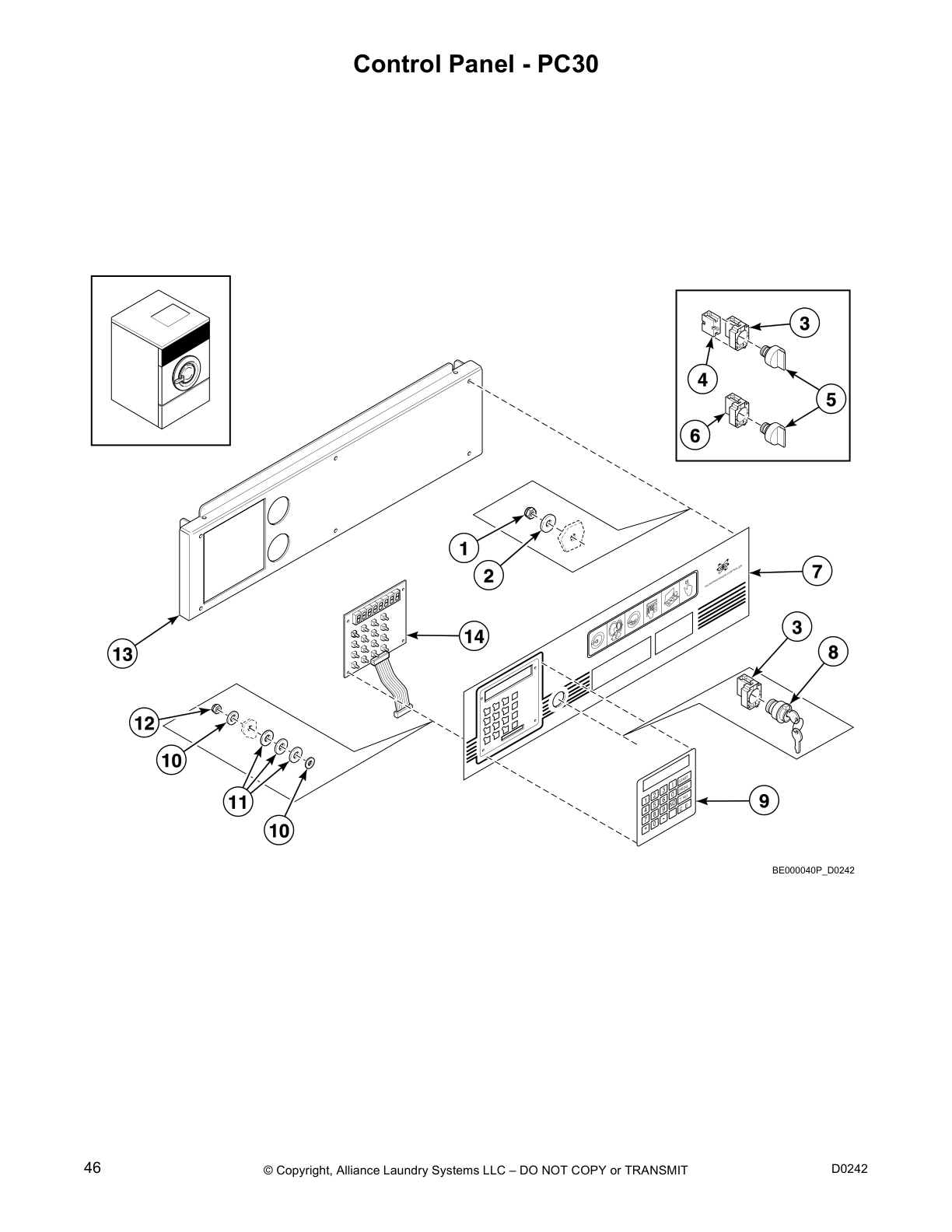

Control Panel - PC30

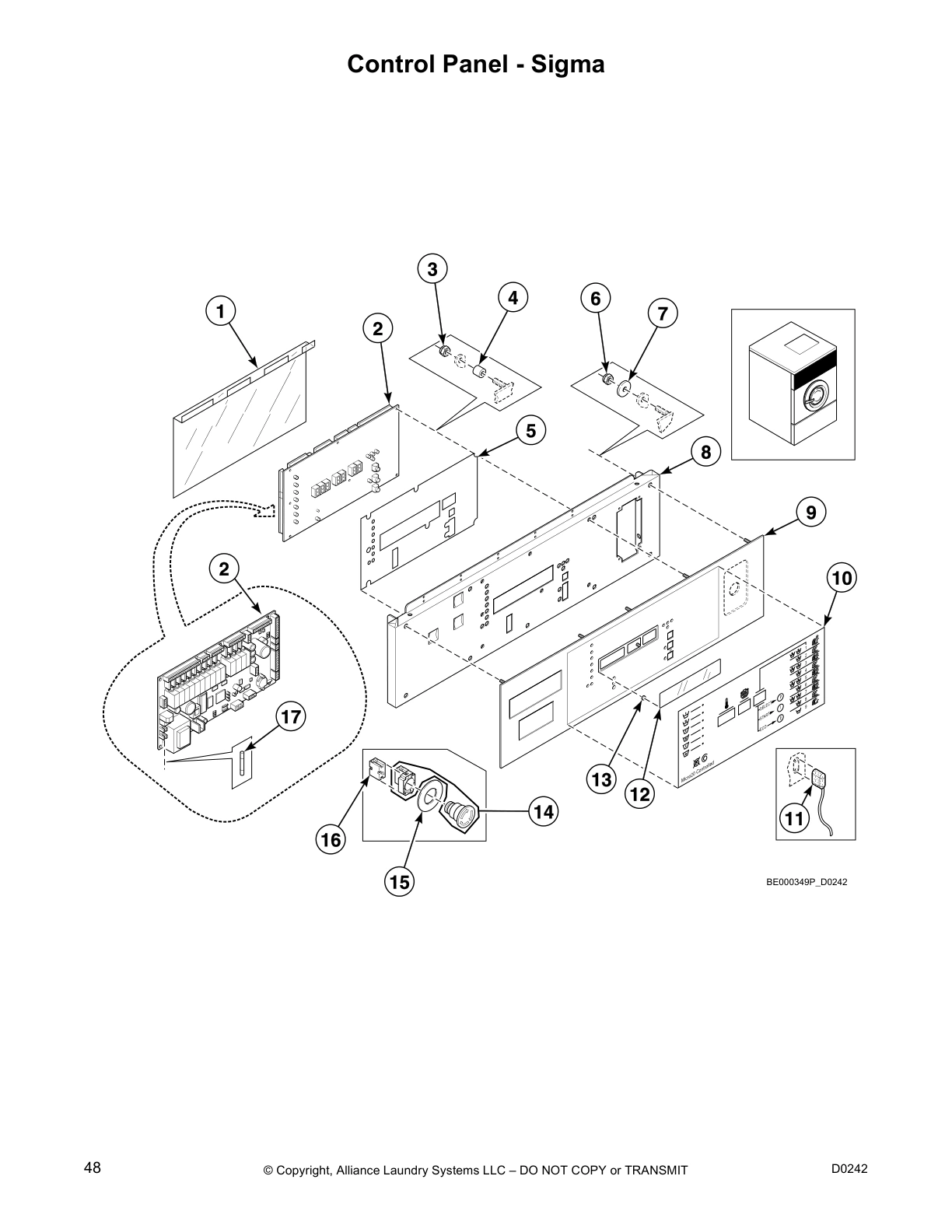

Control Panel - Sigma

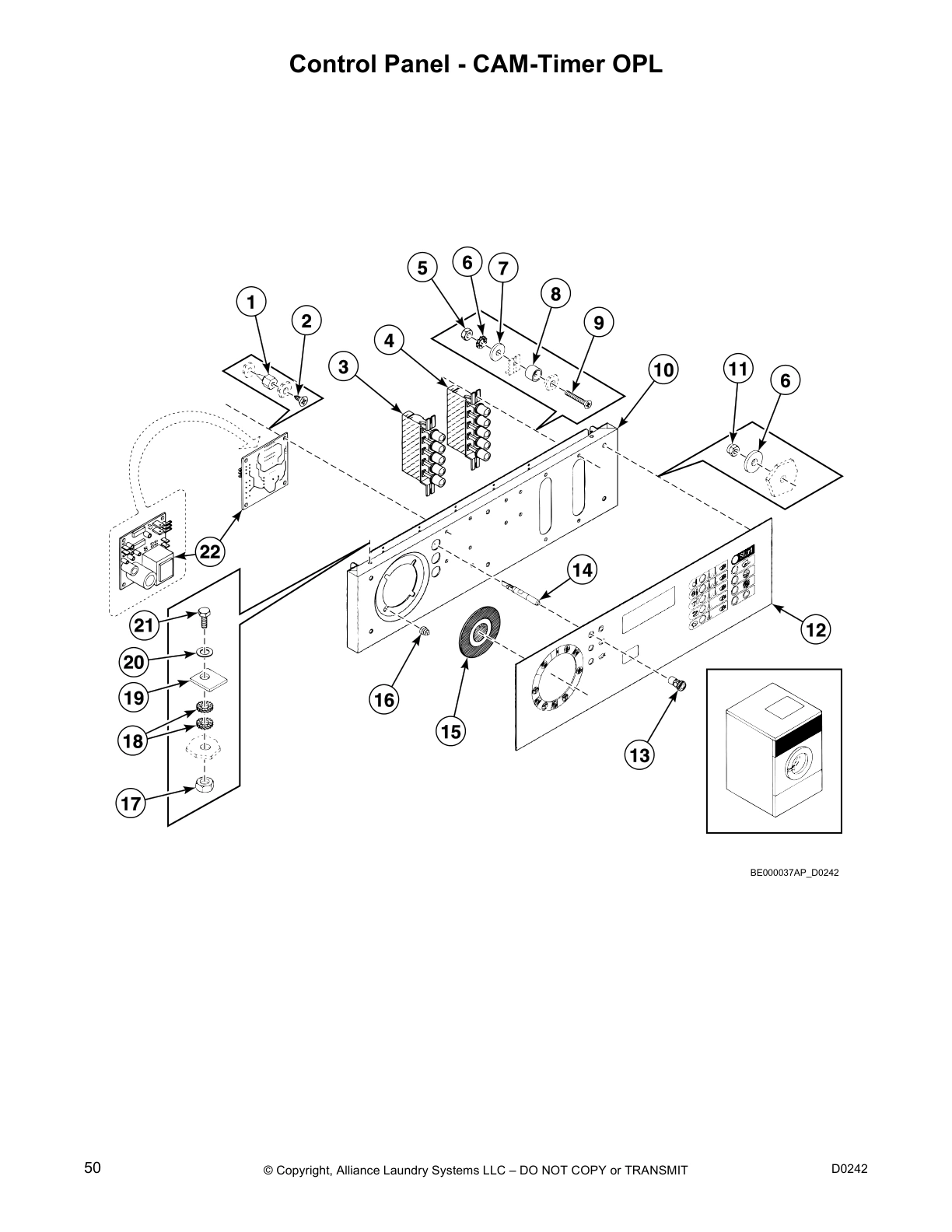

Control Panel - CAM-Timer OPL

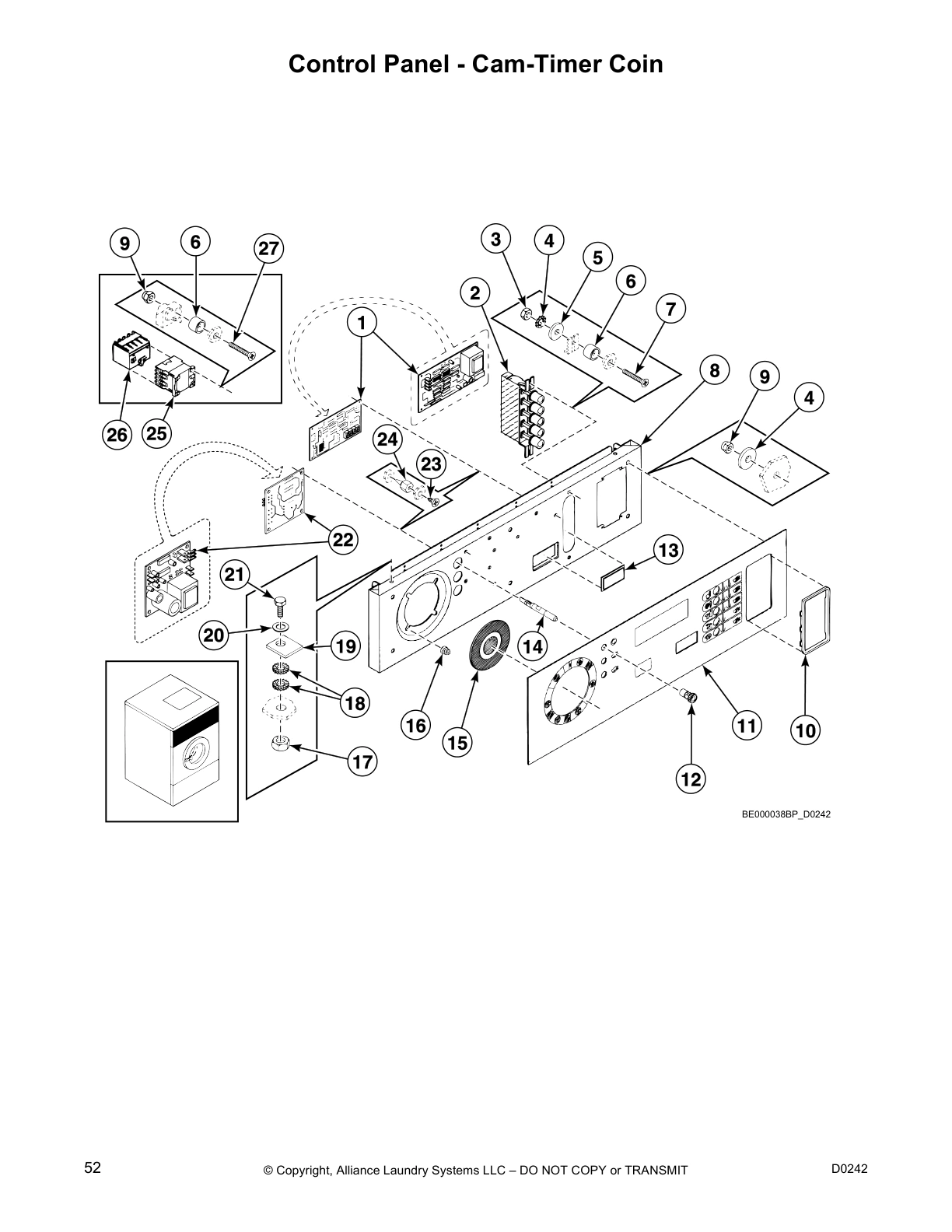

Control Panel - Cam-Timer Coin

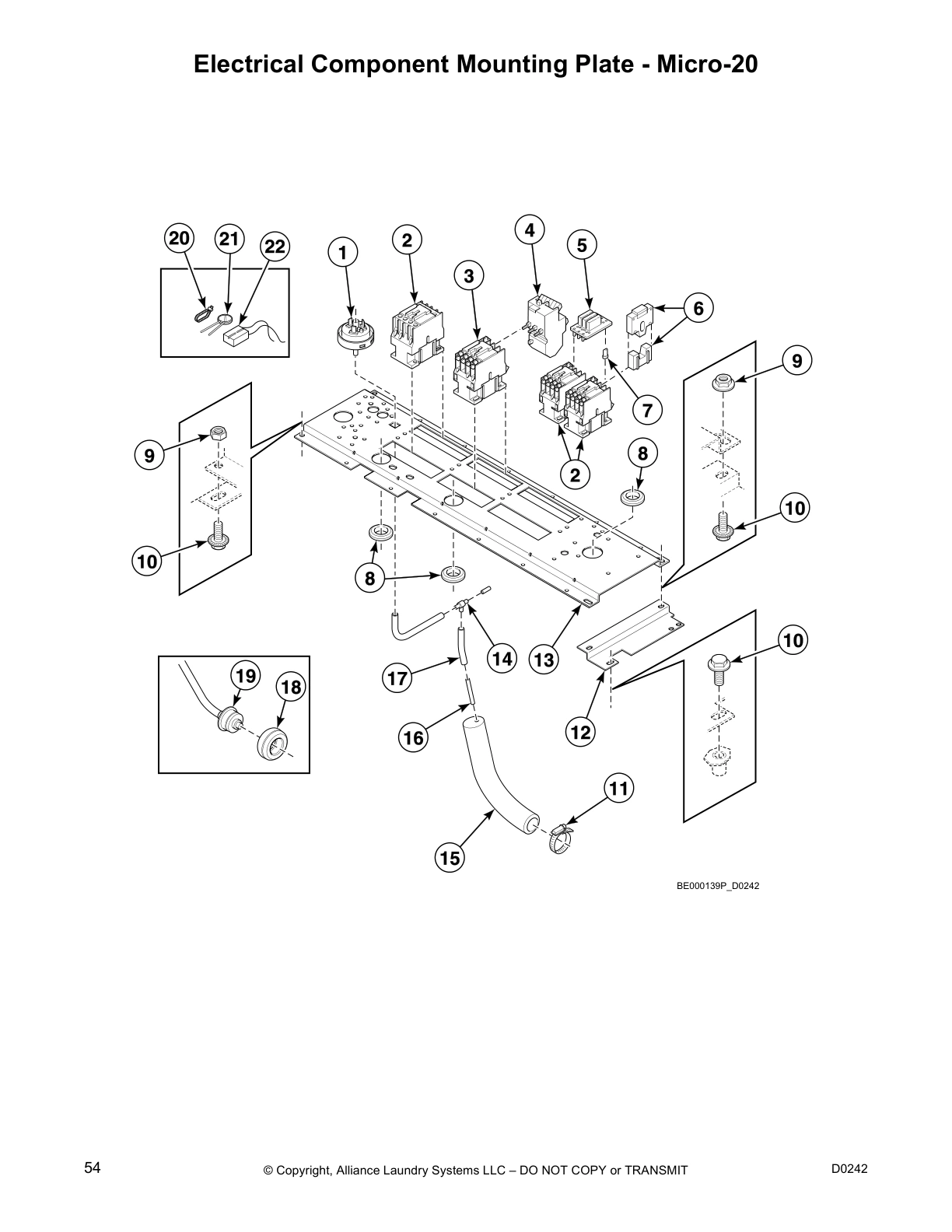

Electrical Component Mounting Plate - Micro-20

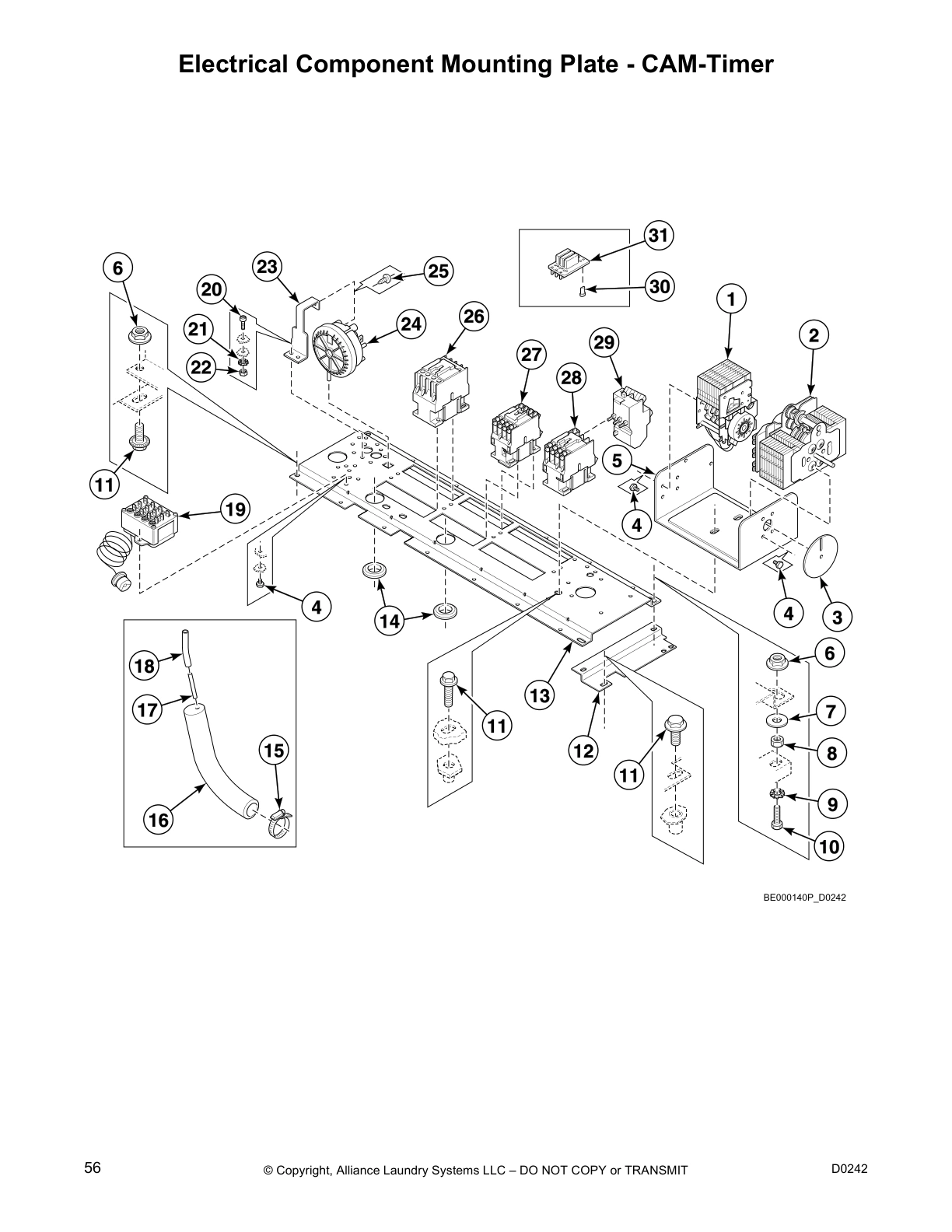

Electrical Component Mounting Plate - CAM-Timer

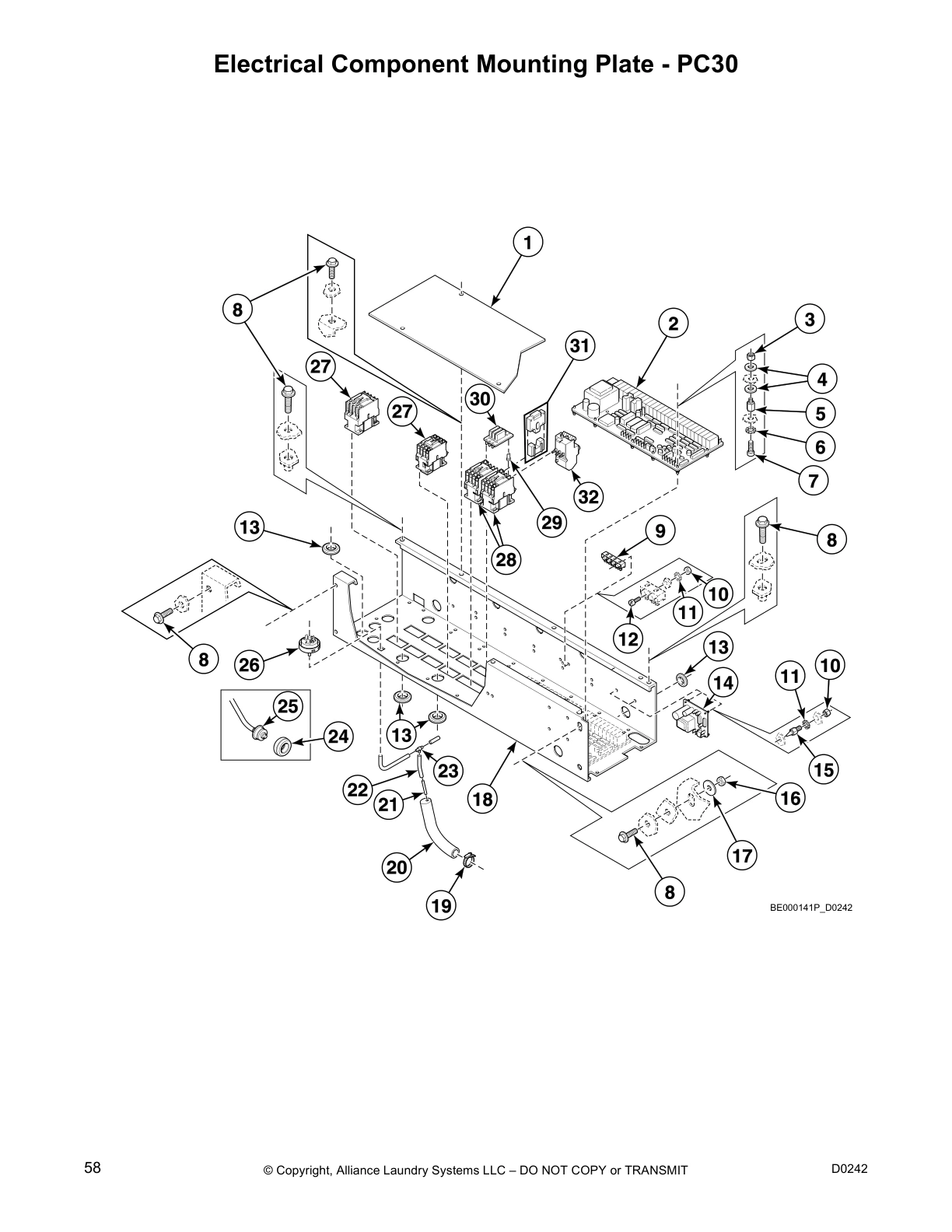

Electrical Component Mounting Plate - PC30

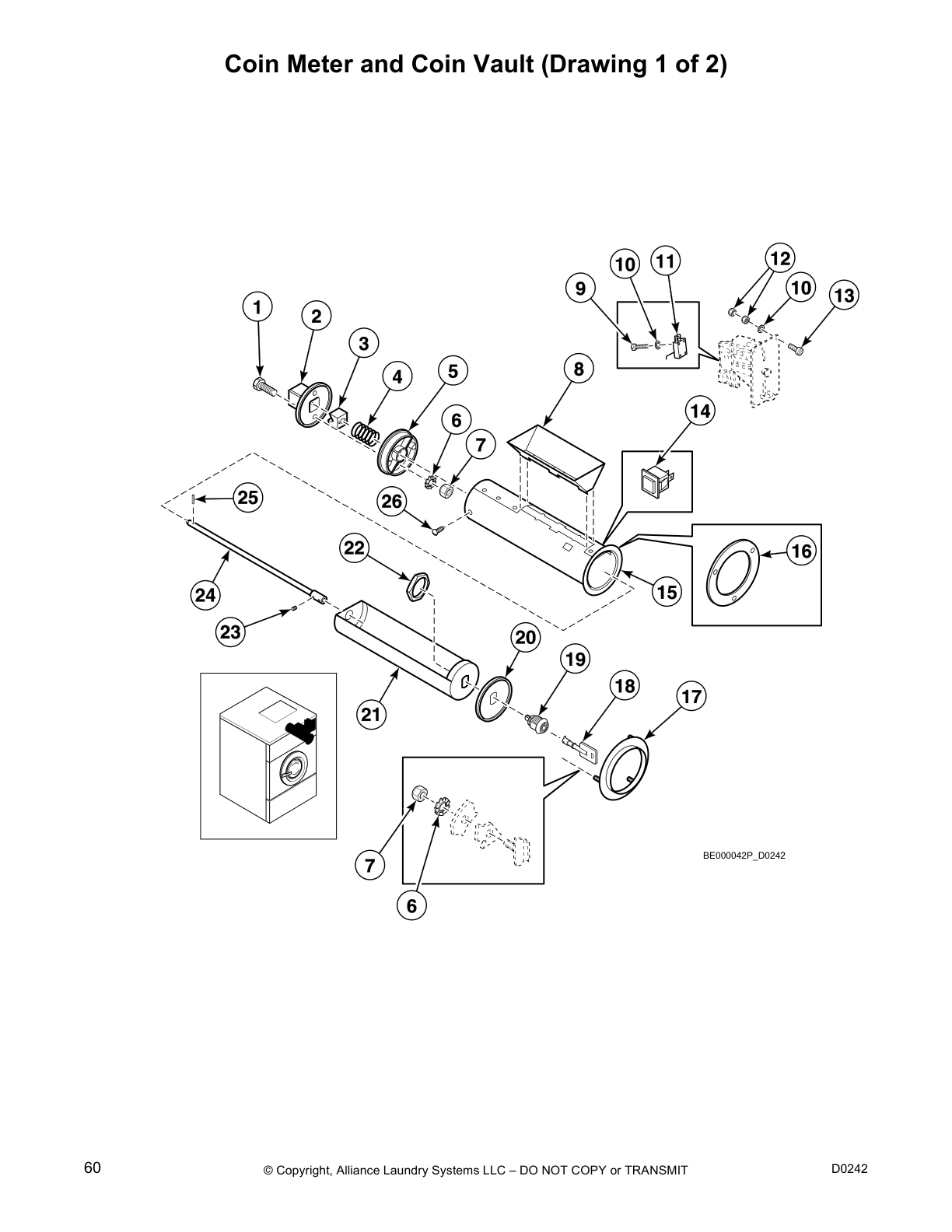

Coin Meter and Coin Vault (Drawing 1 of 2)

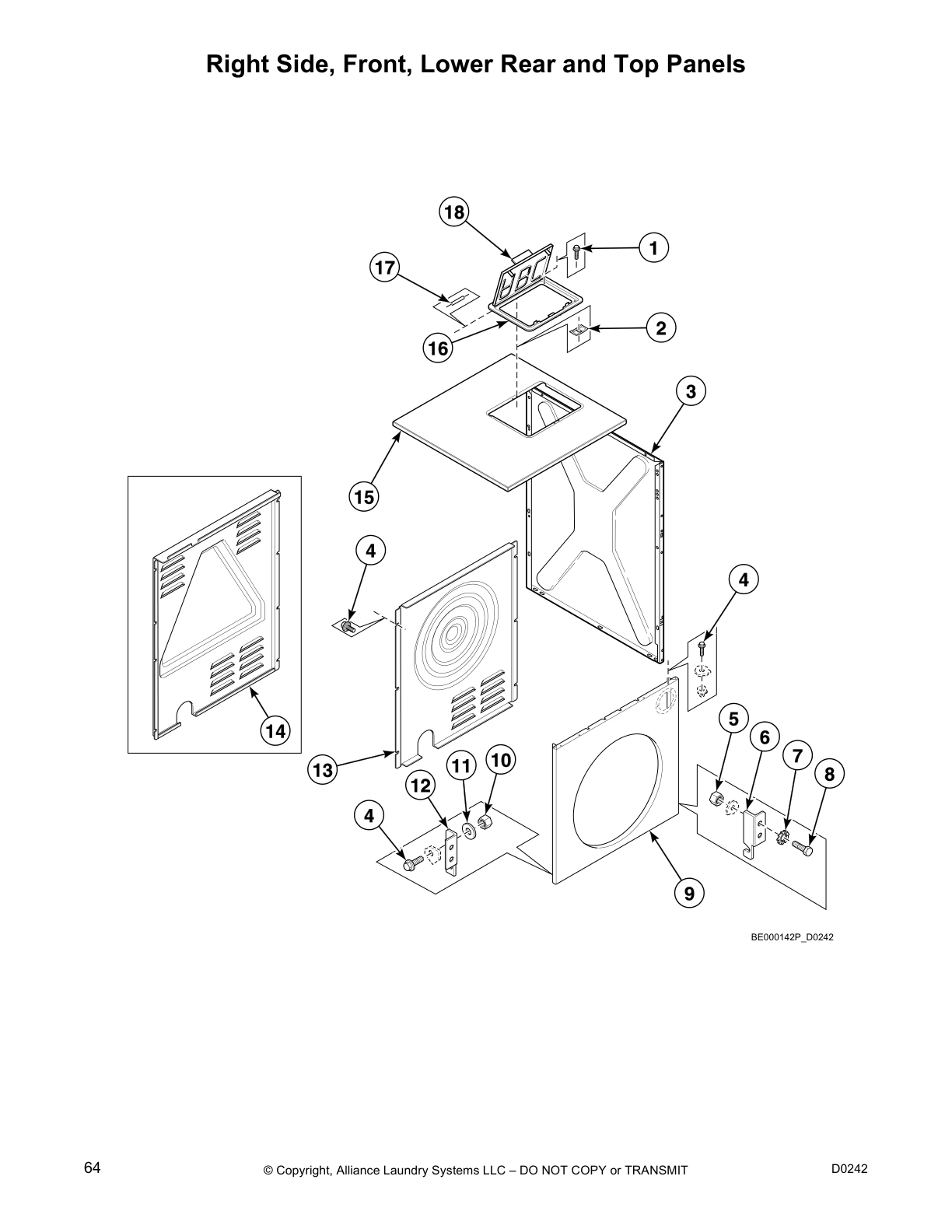

Right Side, Front, Lower Rear and Top Panels

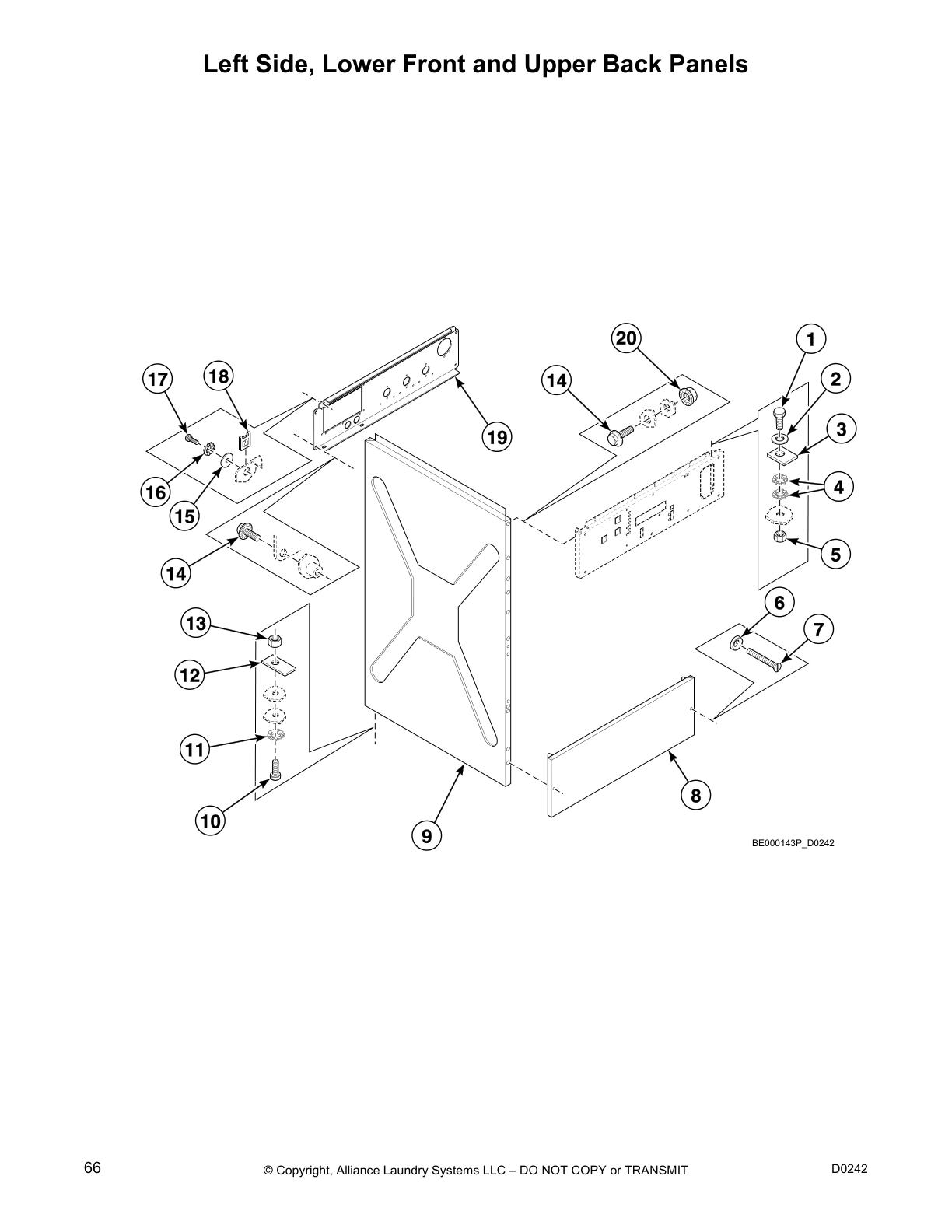

Left Side, Lower Front and Upper Back Panels

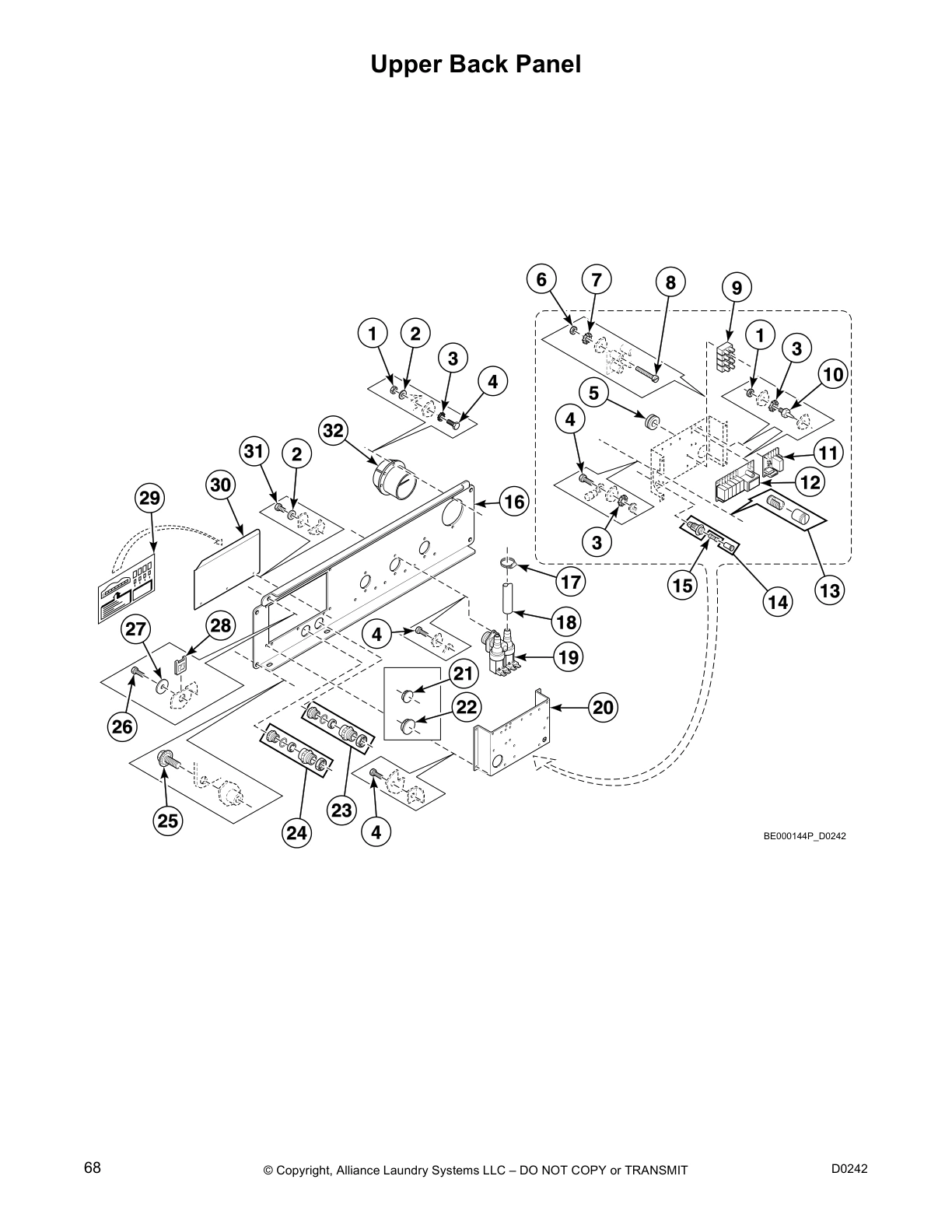

Upper Back Panel
Supply Dispenser - Models Through 12/31/92 with

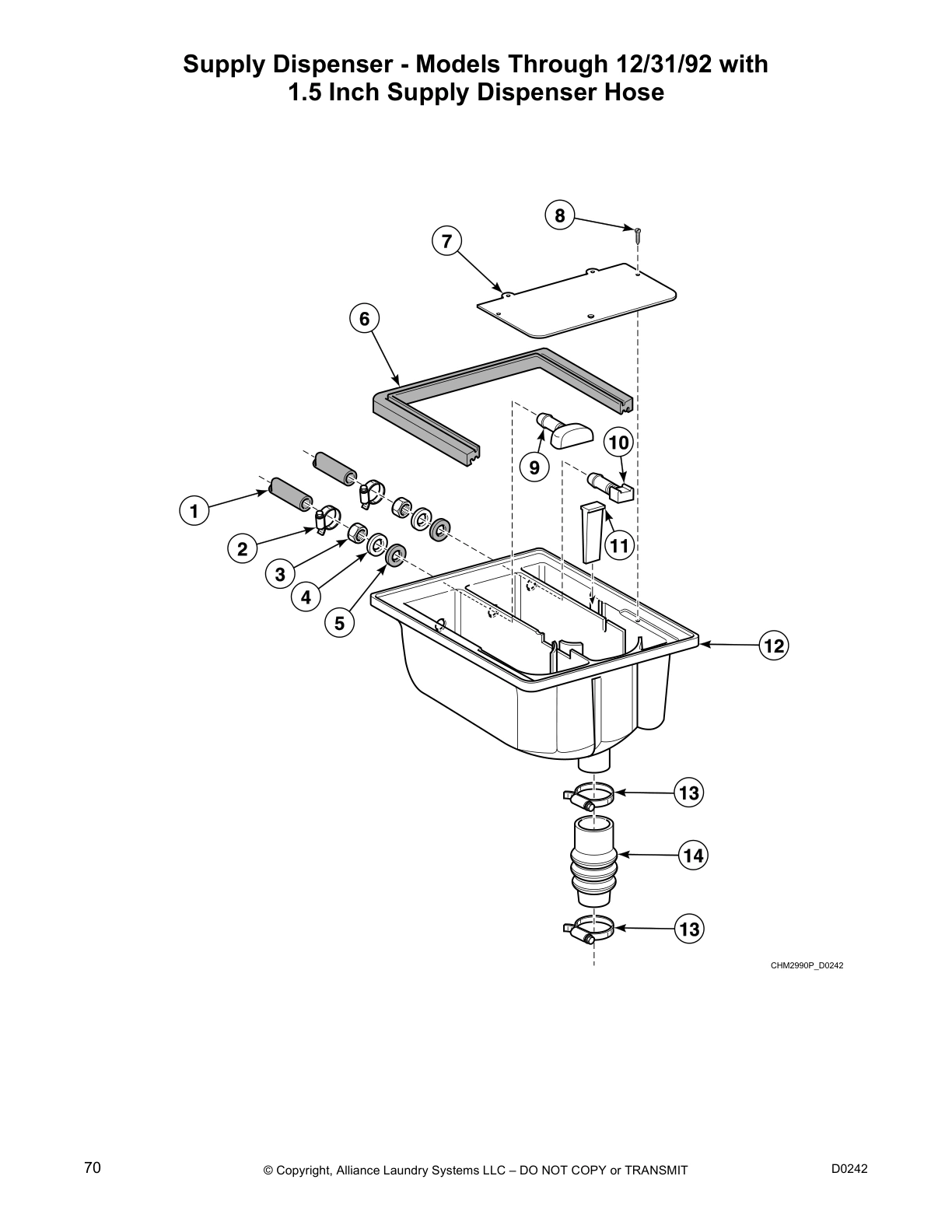

1.5 Inch Supply Dispenser Hose
Supply Dispenser - Models Through 12/31/92 with

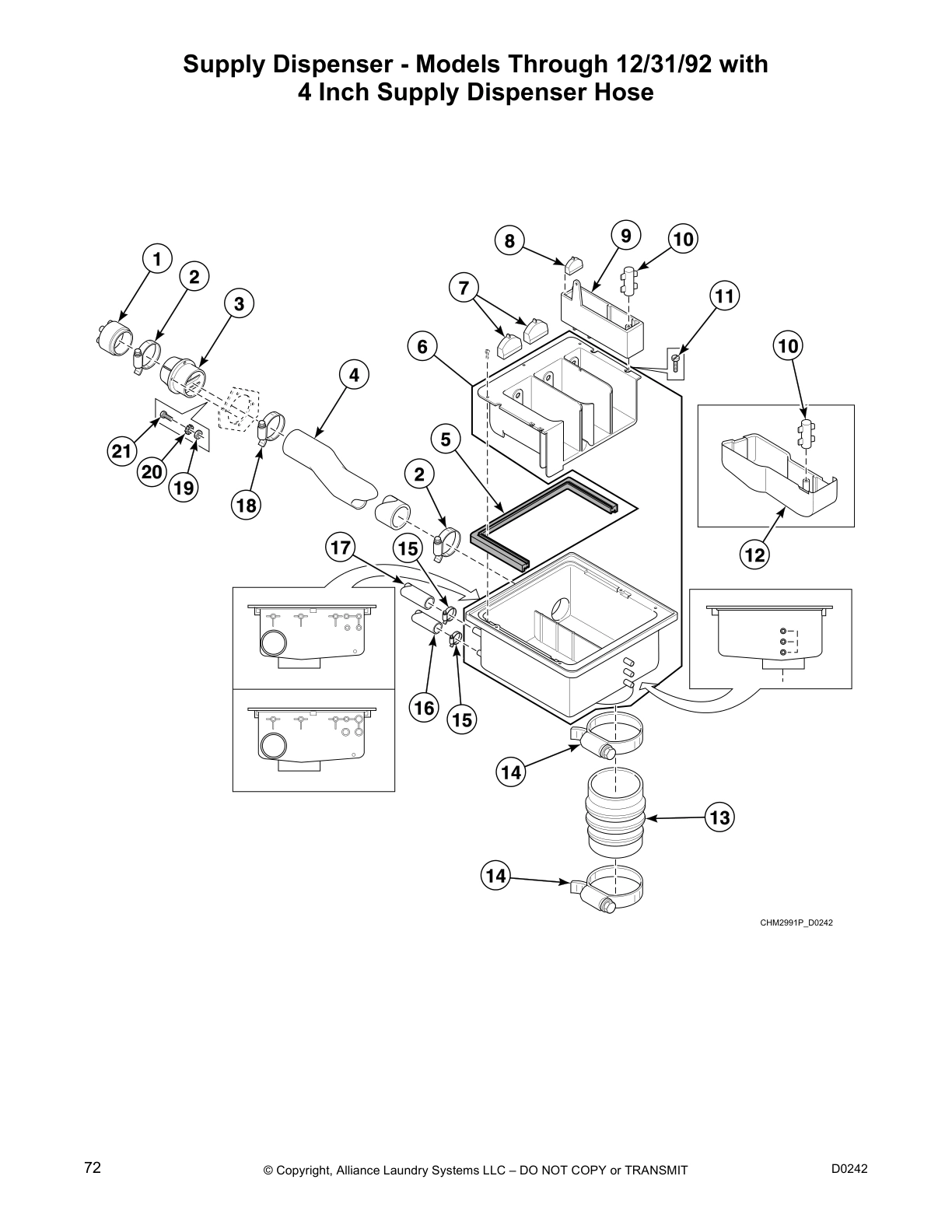

4 Inch Supply Dispenser Hose

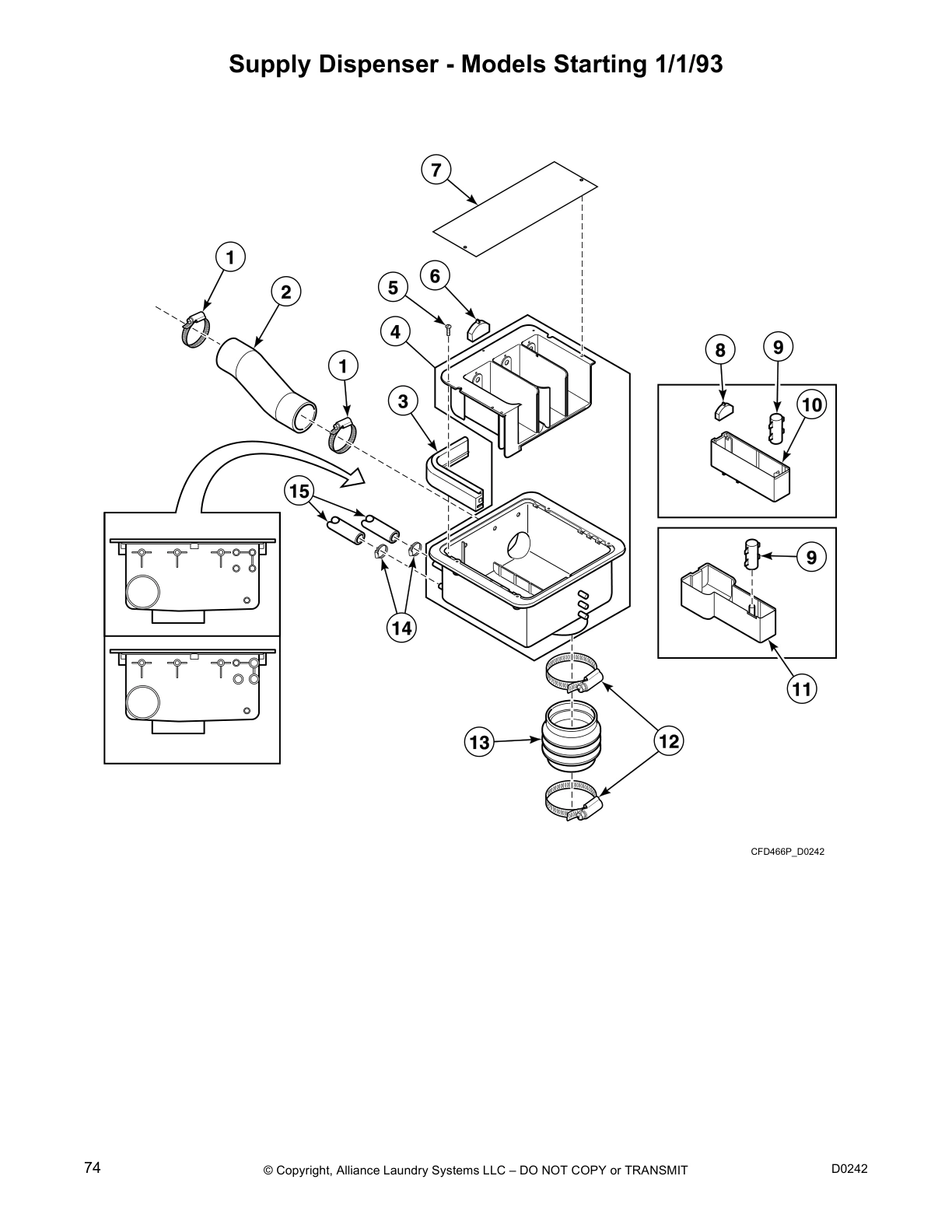

Supply Dispenser - Models Starting 1/1/93

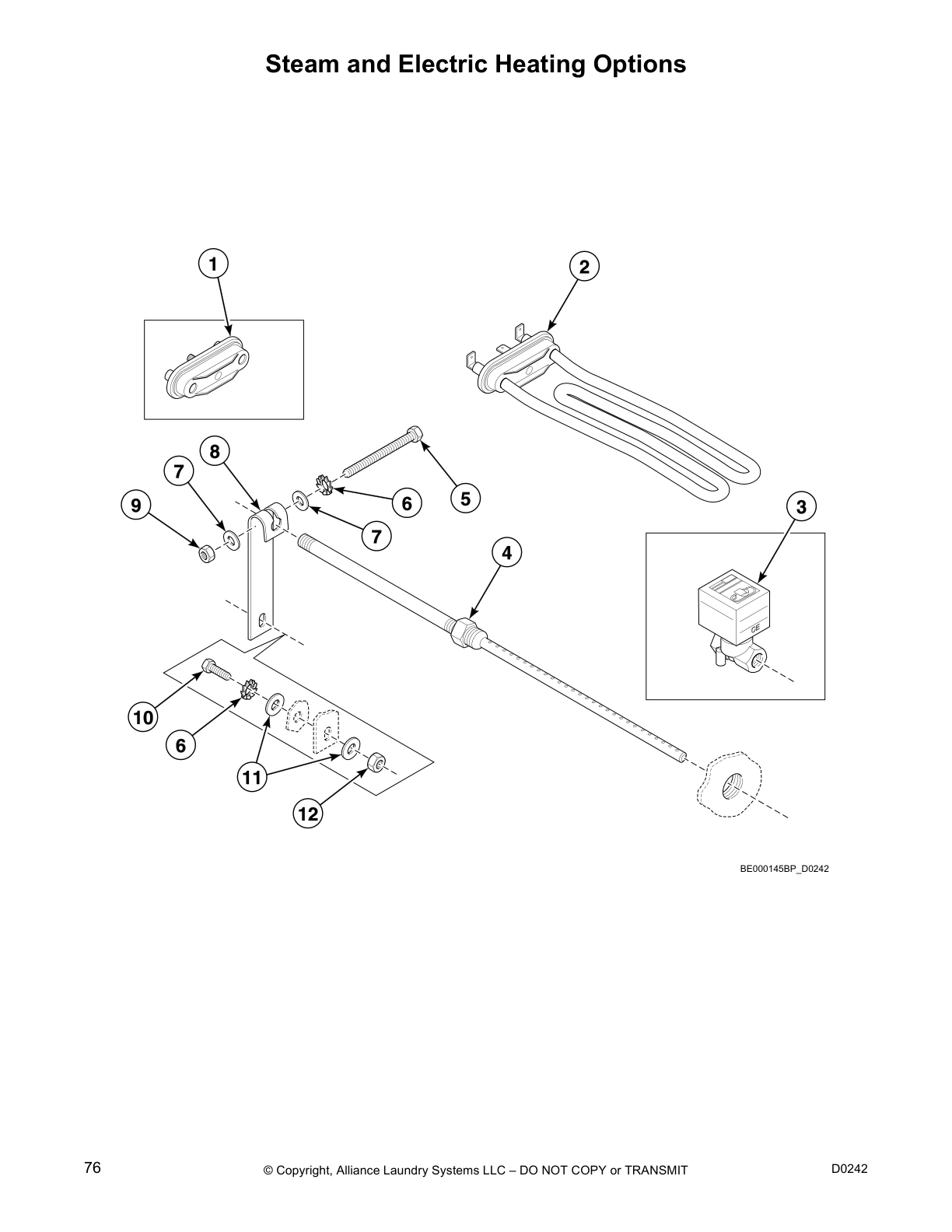

Steam and Electric Heating Options

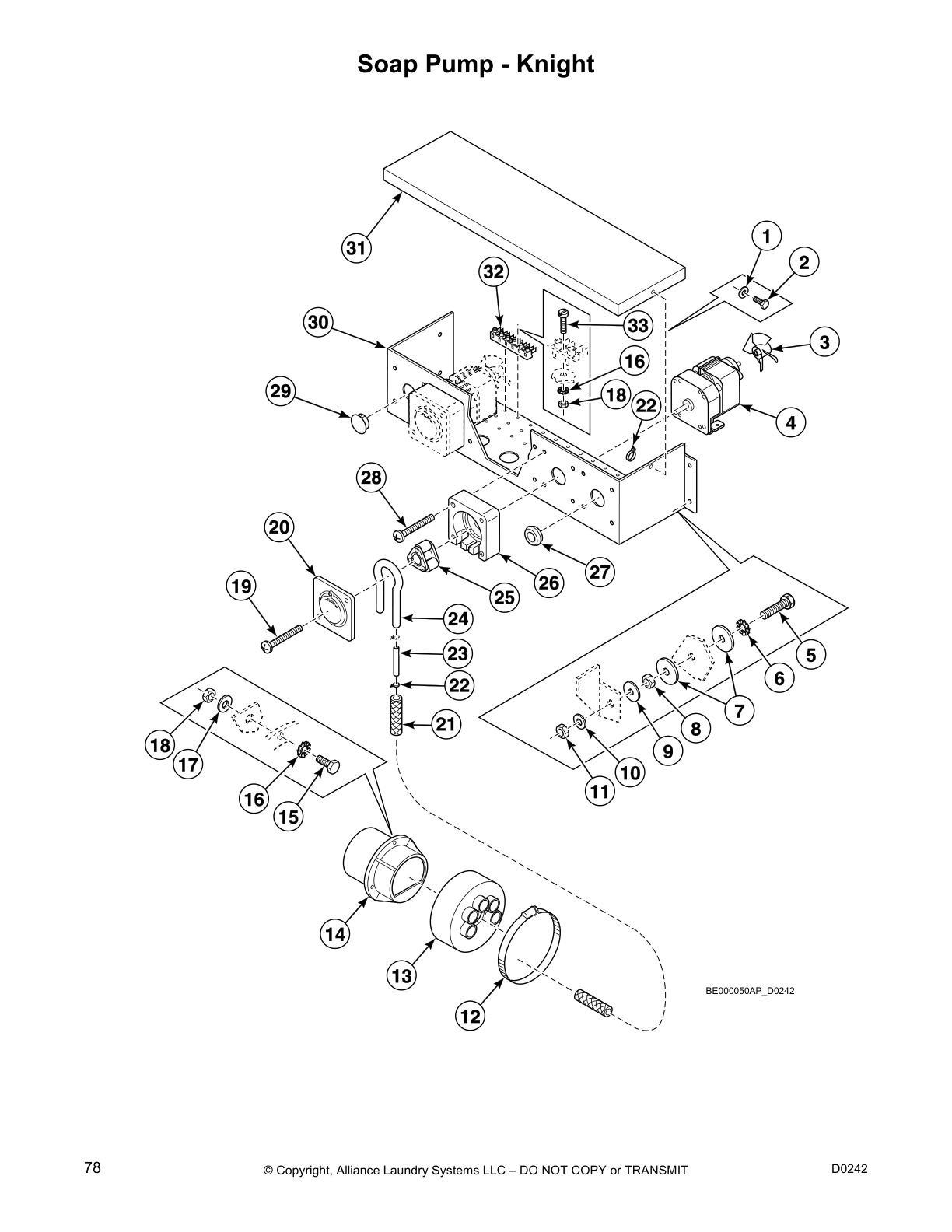

Soap Pump - Knight

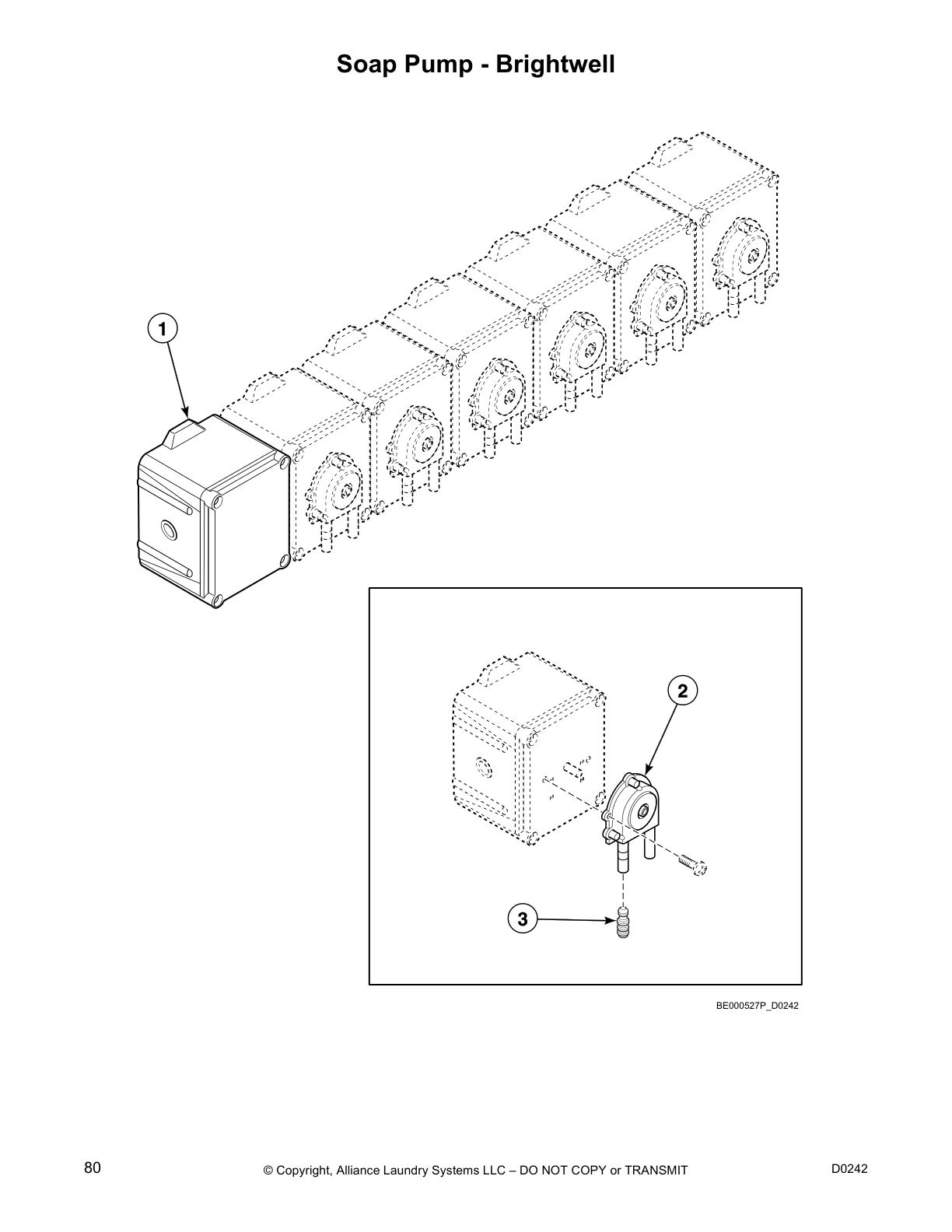

Soap Pump - Brightwell
Common parts from model IPSO IWE095SR2 Washer
SPQ 209/00554/01 SPQ 209/00554/01 Contact Us For Availability
1
Cylinder Assembly SPQ 111/01951/00 Contact Us For Availability
1
Axle SPQ 126/00002/00 Contact Us For Availability
1
Lever Spring SPQ 224/00040/00 Contact Us For Availability
1
Tub Front Gasket SPQ 223/00242/00 Contact Us For Availability
1
Door Glass SPQ B12449701 Contact Us For Availability
1
Circuit Board Cover SPQ 229/00262/00 Contact Us For Availability
1
Bolt SPQ 205/00106/00 Contact Us For Availability
1
Bolt SPQ 207/00131/00 Contact Us For Availability
1
Water Hose SPQ 223/00044/00 Contact Us For Availability
1
Soap Pump Assembly SPQ 209/00554/06 Contact Us For Availability
2
Tub SPQ 206/00001/00 Contact Us For Availability
2
SPQ 202/00003/00 SPQ 202/00003/00 Contact Us For Availability
2
Drum and Axle SPQ 111/01951/50 Contact Us For Availability
2
Bolt SPQ 226/00110/00 Contact Us For Availability
2
Overflow Hose SPQ 223/00100/00 Contact Us For Availability
2
Door Frame SPQ 217/00015/00 Contact Us For Availability
2
Front Panel SPQ 208/00104/00 Contact Us For Availability
2
Plug SPQ 205/00113/00 Contact Us For Availability
2
Soap Dispenser Assembly SPQ 223/00107/02 Contact Us For Availability
2
Heating Element SPQ 209/00563/30 Contact Us For Availability
2
Hose SPQ 209/00554/05 Contact Us For Availability
3
Bolt SPQ 203/00003/00 Contact Us For Availability
3
SPQ 117/00042/00 SPQ 117/00042/00 Contact Us For Availability
3
Tolerance Ring SPQ 215/00004/00 Contact Us For Availability
3
Safety Ring SPQ 206/00056/00 Contact Us For Availability
3
SPQ 126/00009/00 SPQ 126/00009/00 Contact Us For Availability
3
Exhaust Valve SPQ 223/00142/00 Contact Us For Availability
3
Screw SPQ 209/00025/08 Contact Us For Availability
3
Door Hinge Spacer SPQ 118/00046/10 Contact Us For Availability
3
Door Handle Spring SPQ 217/00013/14 Contact Us For Availability
3
Washer SPQ 204/00201/00 Contact Us For Availability
3
Screw SPQ 223/00107/03 Contact Us For Availability
3
Hose Connector SPQ 209/00554/03 Contact Us For Availability
4
O-Ring SPQ 201/00201/00 Contact Us For Availability
4
Pulley SPQ 215/00003/00 Contact Us For Availability
4
Washer SPQ 206/00014/00 Contact Us For Availability
4
SPQ 210/10015/00 SPQ 210/10015/00 Contact Us For Availability
4
Standoff SPQ 211/00122/00 Contact Us For Availability
4
SPQ 203/00005/00 SPQ 203/00005/00 Contact Us For Availability
4
Lid Seal SPQ 201/00002/00 Contact Us For Availability
4
Soap Spray Nozzle SPQ 223/00107/01 Contact Us For Availability
4
Soap Spray Nozzle SPQ 223/00109/00 Contact Us For Availability
4
Steam Injector SPQ 209/00116/00 Contact Us For Availability
4
SPQ 209/00413/06 SPQ 209/00413/06 Contact Us For Availability
5
SPQ 117/00037/00 SPQ 117/00037/00 Contact Us For Availability
5
V-Belt SPQ 226/00033/00 Contact Us For Availability
5
Motor SPQ 226/00007/00 Contact Us For Availability
5
Drain Valve SPQ 223/00116/00 Contact Us For Availability
5
Drain Valve Motor SPQ 209/00025/07 Contact Us For Availability
5
SPQ 209/00025/15 SPQ 209/00025/15 Contact Us For Availability
5
Drain Valve Motor Mounting Plate SPQ 209/00115/04 Contact Us For Availability
5
Door Handle SPQ 217/00013/12 Contact Us For Availability
5
Door Handle Hook SPQ 217/00013/13 Contact Us For Availability
5
Insulating Sticker SPQ 229/00255/00 Contact Us For Availability
5
SPQ 201/00008/00 SPQ 201/00008/00 Contact Us For Availability
5
SPQ 204/00006/00 SPQ 204/00006/00 Contact Us For Availability
5
Mounting Plate SPQ 223/00001/07 Contact Us For Availability
5
Anti-Splash Plate SPQ 223/00102/30 Contact Us For Availability
5
Steam Injector Plate Assembly SPQ 117/00039/00 Contact Us For Availability
5
SPQ 205/00103/00 SPQ 205/00103/00 Contact Us For Availability
6
Shaft Seal SPQ 217/00002/00 Contact Us For Availability
6
SPQ 117/00074/00 SPQ 117/00074/00 Contact Us For Availability
6
SPQ 203/00004/00 SPQ 203/00004/00 Contact Us For Availability
6
Bolt SPQ 206/00004/00 Contact Us For Availability
6
Motor Spring SPQ 201/00010/00 Contact Us For Availability
6
Bolt SPQ 209/00256/00 Contact Us For Availability
6
Drain Valve Motor SPQ 209/00170/05 Contact Us For Availability
6
Coil SPQ 209/00203/11 Contact Us For Availability
6
SPQ 204/00008/00 SPQ 204/00008/00 Contact Us For Availability
6
Door Handle Catch SPQ 217/00051/13 Contact Us For Availability
6
SPQ 111/00002/00 SPQ 111/00002/00 Contact Us For Availability
6
SPQ 208/00009/00 SPQ 208/00009/00 Contact Us For Availability
6
Screw SPQ 223/00003/00 Contact Us For Availability
6
Softener Spray Nozzle SPQ B12347501 Contact Us For Availability
6
SPQ 206/00035/00 SPQ 206/00035/00 Contact Us For Availability
7
Washer SPQ 203/00001/00 Contact Us For Availability
7
SPQ 203/00002/00 SPQ 203/00002/00 Contact Us For Availability
7
SPQ 117/00001/00 SPQ 117/00001/00 Contact Us For Availability
7
Washer SPQ 209/00292/00 Contact Us For Availability
7
SPQ 209/00051/11 SPQ 209/00051/11 Contact Us For Availability
7
SPQ 203/00007/00 SPQ 203/00007/00 Contact Us For Availability
7
SPQ 203/00010/00 SPQ 203/00010/00 Contact Us For Availability
7
SPQ 202/00108/00 SPQ 202/00108/00 Contact Us For Availability
7
SPQ 117/00011/00 SPQ 117/00011/00 Contact Us For Availability
7
SPQ 207/00101/00 SPQ 207/00101/00 Contact Us For Availability
7
Prewash and Mainwash Nozzle SPQ 223/00001/06 Contact Us For Availability
7
Soap Dispenser Rinse Siphon SPQ 223/00102/06 Contact Us For Availability
8
SPQ 204/00003/00 SPQ 204/00003/00 Contact Us For Availability
8
SPQ 217/00003/00 SPQ 217/00003/00 Contact Us For Availability
8
SPQ 204/00005/00 SPQ 204/00005/00 Contact Us For Availability
8
SPQ 206/00006/00 SPQ 206/00006/00 Contact Us For Availability
8
Outlet Pipe Plate Assembly SPQ 206/00015/00 Contact Us For Availability
8
SPQ 209/00203/12 SPQ 209/00203/12 Contact Us For Availability
8
SPQ 117/00010/00 SPQ 117/00010/00 Contact Us For Availability
8
Facia Panel SPQ 111/00180/00 Contact Us For Availability
8
SPQ 206/00016/00 SPQ 206/00016/00 Contact Us For Availability
8
SPQ 111/22132/00 SPQ 111/22132/00 Contact Us For Availability
8
SPQ 207/00014/00 SPQ 207/00014/00 Contact Us For Availability
8
SPQ 123/00107/00 SPQ 123/00107/00 Contact Us For Availability
8
SPQ 202/00002/00 SPQ 202/00002/00 Contact Us For Availability
9
SPQ B12510501 SPQ B12510501 Contact Us For Availability
9
SPQ 209/00025/02 SPQ 209/00025/02 Contact Us For Availability
9
SPQ 207/00009/00 SPQ 207/00009/00 Contact Us For Availability
9
SPQ 207/00125/00 SPQ 207/00125/00 Contact Us For Availability
9
SPQ 225/00289/AOL SPQ 225/00289/AOL Contact Us For Availability
9
SPQ 204/00114/00 SPQ 204/00114/00 Contact Us For Availability
9
SPQ 111/00088/00 SPQ 111/00088/00 Contact Us For Availability
9
SPQ 209/00058/00 SPQ 209/00058/00 Contact Us For Availability
9
SPQ 223/00001/04 SPQ 223/00001/04 Contact Us For Availability
9
SPQ 223/00102/05 SPQ 223/00102/05 Contact Us For Availability
9
SPQ 113/00025/00 SPQ 113/00025/00 Contact Us For Availability
9
SPQ 202/00106/00 SPQ 202/00106/00 Contact Us For Availability
10
Bolt SPQ 206/00005/00 Contact Us For Availability
10
Washer SPQ 205/00104/00 Contact Us For Availability
10
U-Piece SPQ 113/00016/02 Contact Us For Availability
10
Tub Front Panel Clip SPQ 217/00008/00 Contact Us For Availability
10
Drain Valve Spring SPQ 209/00025/03 Contact Us For Availability
10
Drain Valve Spring SPQ 209/00170/02 Contact Us For Availability
10
O-Ring SPQ 217/00021/00 Contact Us For Availability
10
Washer SPQ 201/00018/00 Contact Us For Availability
10
Standoff SPQ 211/00120/00 Contact Us For Availability
10
Washer SPQ 202/00101/00 Contact Us For Availability
10
Door Locking Grip SPQ 217/00013/07 Contact Us For Availability
10
Decal SPQ 225/00403/00 Contact Us For Availability
10
Bolt SPQ 206/00013/00 Contact Us For Availability
10
Injector SPQ 223/00001/05 Contact Us For Availability
10
Rinse Insert SPQ 223/00102/03 Contact Us For Availability
11
Cross SPQ 113/00021/00 Contact Us For Availability
11
Bearing Plate Housing SPQ 113/00016/00 Contact Us For Availability
11
Tub Front SPQ 118/00022/01 Contact Us For Availability
11
Motor Bracket SPQ 126/00013/00 Contact Us For Availability
11
Drain Pipe SPQ 223/00105/00 Contact Us For Availability
11
Screw SPQ 209/00025/09 Contact Us For Availability
11
Drain Valve Shaft SPQ 209/00170/10 Contact Us For Availability
11
Nut SPQ 204/00009/00 Contact Us For Availability
11
Door Axle Roller SPQ 217/00013/05 Contact Us For Availability
11
Washer SPQ 201/00007/00 Contact Us For Availability
11
Central Control Board SPQ 209/00438/00 Contact Us For Availability
11
Screw SPQ 208/00130/00 Contact Us For Availability
11
Separator Plate SPQ 223/00001/03 Contact Us For Availability
11
Liquid Soap Dispenser Insert SPQ 223/00102/08 Contact Us For Availability
12
Washer SPQ 201/00009/00 Contact Us For Availability
12
Screw SPQ 207/00008/00 Contact Us For Availability
12
Pulley SPQ 226/00023/00 Contact Us For Availability
12
Hose Clamp SPQ 223/00014/00 Contact Us For Availability
12
Nut SPQ 101/00007/00 Contact Us For Availability
12
Washer SPQ 209/00025/12 Contact Us For Availability
12
Protection Block SPQ 217/00017/02 Contact Us For Availability
12
Plexi Frame SPQ 225/00316/00 Contact Us For Availability
12
Hook SPQ 111/00001/00 Contact Us For Availability
12
Soap Dispenser SPQ 223/00001/01 Contact Us For Availability
12
Hose SPQ 223/00023/00 Contact Us For Availability
13
Screw SPQ 226/00003/00 Contact Us For Availability
13
Screw SPQ 204/00106/00 Contact Us For Availability
13
Door SPQ 118/00125/00 Contact Us For Availability
13
Metal Disc SPQ 202/00120/00 Contact Us For Availability
13
Terminal SPQ 209/00006/00 Contact Us For Availability
13
Liquid Soap Hose SPQ 223/00160/00 Contact Us For Availability
13
Vent Hose SPQ 223/00115/00 Contact Us For Availability
14
Pulley SPQ 226/00087/00 Contact Us For Availability
14
Screw SPQ 207/00102/00 Contact Us For Availability
14
Rear Panel SPQ 111/00125/00 Contact Us For Availability
14
Soap Dispenser Gasket SPQ 223/00010/00 Contact Us For Availability
14
Hose Vent SPQ 223/00102/07 Contact Us For Availability
14
Hose SPQ 223/00007/00 Contact Us For Availability
15
Tub Front Ring Clamp SPQ 217/00007/00 Contact Us For Availability
15
Solenoid SPQ 217/00017/03 Contact Us For Availability
15
Telem Sticker SPQ 209/00520/00 Contact Us For Availability
15
Bolt SPQ 206/00027/00 Contact Us For Availability
15
Clamp SPQ 223/00009/00 Contact Us For Availability
16
Nut SPQ 204/00002/00 Contact Us For Availability
16
Soap Injector Hose SPQ 203/00006/00 Contact Us For Availability
16
Soap Dispenser Frame SPQ 223/00103/03 Contact Us For Availability
16
Backbridge SPQ 111/01163/95 Contact Us For Availability
16
Water Hose SPQ 223/00059/00 Contact Us For Availability
17
Washer SPQ 201/00005/00 Contact Us For Availability
17
Standoff SPQ 209/00247/00 Contact Us For Availability
17
Fuse SPQ 209/00439/00 Contact Us For Availability
17
Hose SPQ 202/00004/00 Contact Us For Availability
18
Grommet SPQ 204/00007/00 Contact Us For Availability
18
Nut SPQ 223/00013/00 Contact Us For Availability
18
Pin SPQ 217/00020/00 Contact Us For Availability
18
SPQ 208/00025/00 SPQ 208/00025/00 Contact Us For Availability
19
Bolt SPQ 211/00105/00 Contact Us For Availability
19
Washer SPQ 204/00105/00 Contact Us For Availability
20
Door Glass Seal SPQ 217/00019/00 Contact Us For Availability
20
SPQ 206/00101/00 SPQ 206/00101/00 Contact Us For Availability
20
Assembly Plate SPQ 111/00188/03 Contact Us For Availability
21
Plug SPQ B12500101 Contact Us For Availability
21
Soap Dispenser Gasket SPQ 207/00106/00 Contact Us For Availability
21
Connection SPQ 223/00179/00 Contact Us For Availability
23
Interlock Lever SPQ 224/00049/00 Contact Us For Availability
23
Screw SPQ 211/00022/00 Contact Us For Availability
24
Screw SPQ 209/00413/03 Contact Us For Availability
25
Ground Terminal SPQ 224/00043/00 Contact Us For Availability
25
Electrical Connection Cover SPQ 206/00099/00 Contact Us For Availability
26
Door Lock Microswitch SPQ 217/00052/04 Contact Us For Availability
26
Interlock Pin SPQ 217/00038/00 Contact Us For Availability
26
Hose Vent SPQ 208/00001/00 Contact Us For Availability
27
O-Ring SPQ 209/00023/00 Contact Us For Availability
27
Fan Motor SPQ 223/00198/00 Contact Us For Availability
27
Terminal Block SPQ 201/00006/00 Contact Us For Availability
28
Door Hinge SPQ 207/00109/00 Contact Us For Availability
28
SPQ 208/00002/00 SPQ 208/00002/00 Contact Us For Availability
29
SPQ 211/00087/00 SPQ 211/00087/00 Contact Us For Availability
30
SPQ 224/00003/00 SPQ 224/00003/00 Contact Us For Availability
30
SPQ 111/00426/01 SPQ 111/00426/01 Contact Us For Availability
31
SPQ 208/00004/00 SPQ 208/00004/00 Contact Us For Availability
32
SPQ 210/10007/00 SPQ 210/10007/00 Contact Us For Availability
33
SPQ 207/00003/00 SPQ 207/00003/00 Contact Us For Availability
NI
SPQ 204/00004/00 SPQ 204/00004/00 Contact Us For Availability
NI
SPQ 206/00007/00 SPQ 206/00007/00 Contact Us For Availability
NI
SPQ 206/00011/00 SPQ 206/00011/00 Contact Us For Availability
NI
SPQ 201/00004/00 SPQ 201/00004/00 Contact Us For Availability
NI
SPQ 226/00010/00 SPQ 226/00010/00 Contact Us For Availability
NI
SPQ 209/00203/21 SPQ 209/00203/21 Contact Us For Availability
NI
SPQ 209/00052/11 SPQ 209/00052/11 Contact Us For Availability
NI
SPQ 209/00025/06 SPQ 209/00025/06 Contact Us For Availability
NI
SPQ 209/00052/12 SPQ 209/00052/12 Contact Us For Availability
NI
SPQ 217/00009/01 SPQ 217/00009/01 Contact Us For Availability
NI
SPQ 207/00126/00 SPQ 207/00126/00 Contact Us For Availability
NI
SPQ 223/00102/04 SPQ 223/00102/04 Contact Us For Availability
NI
SPQ 209/00554/02 SPQ 209/00554/02 Contact Us For Availability
NI
SPQ 209/00554/98 SPQ 209/00554/98 Contact Us For Availability
NI
SPQ 209/00554/99 SPQ 209/00554/99 Contact Us For Availability
× ![]()
