Model IPSO IWE040MC2 Washer – Common Parts & Diagrams
Frame
Bearing Housing

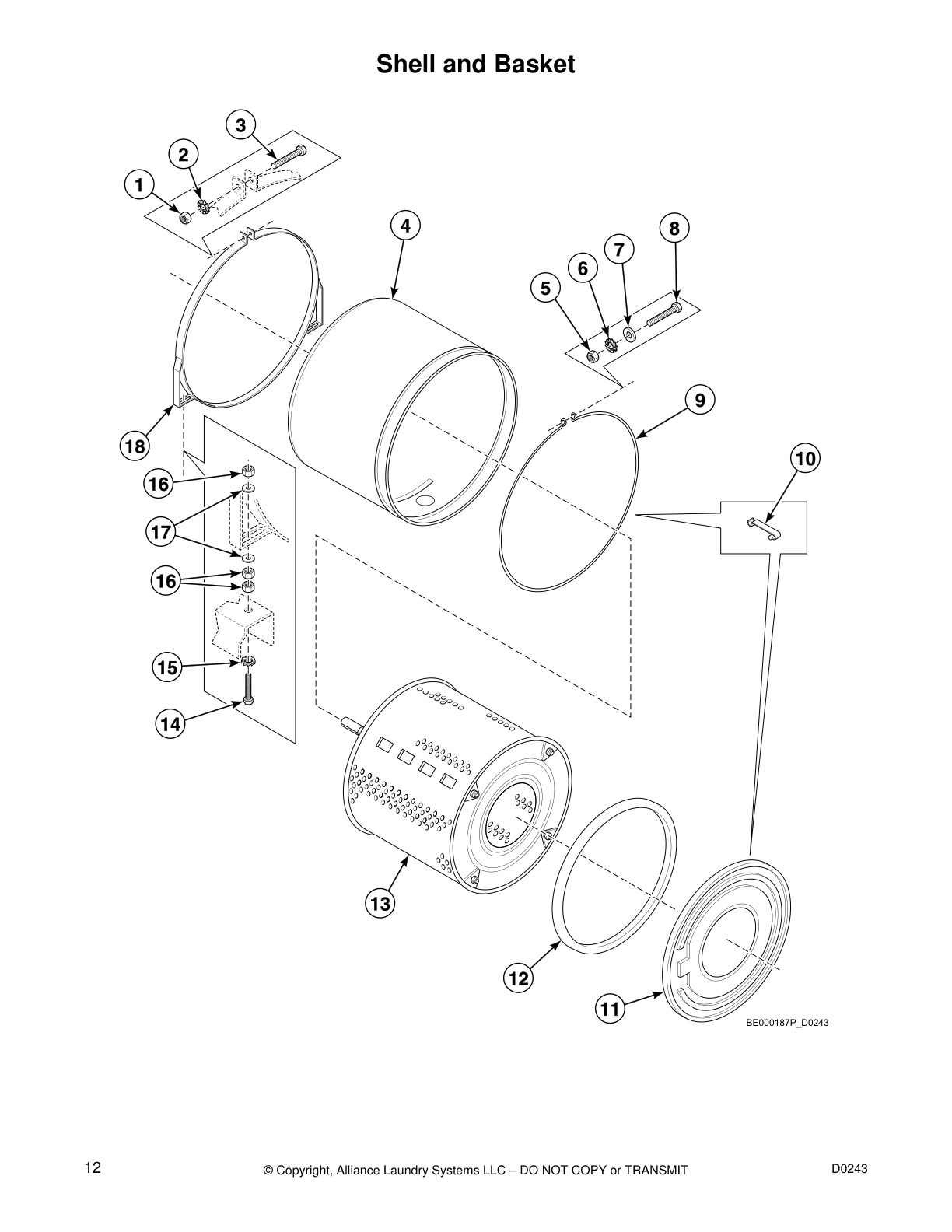

Shell and Basket

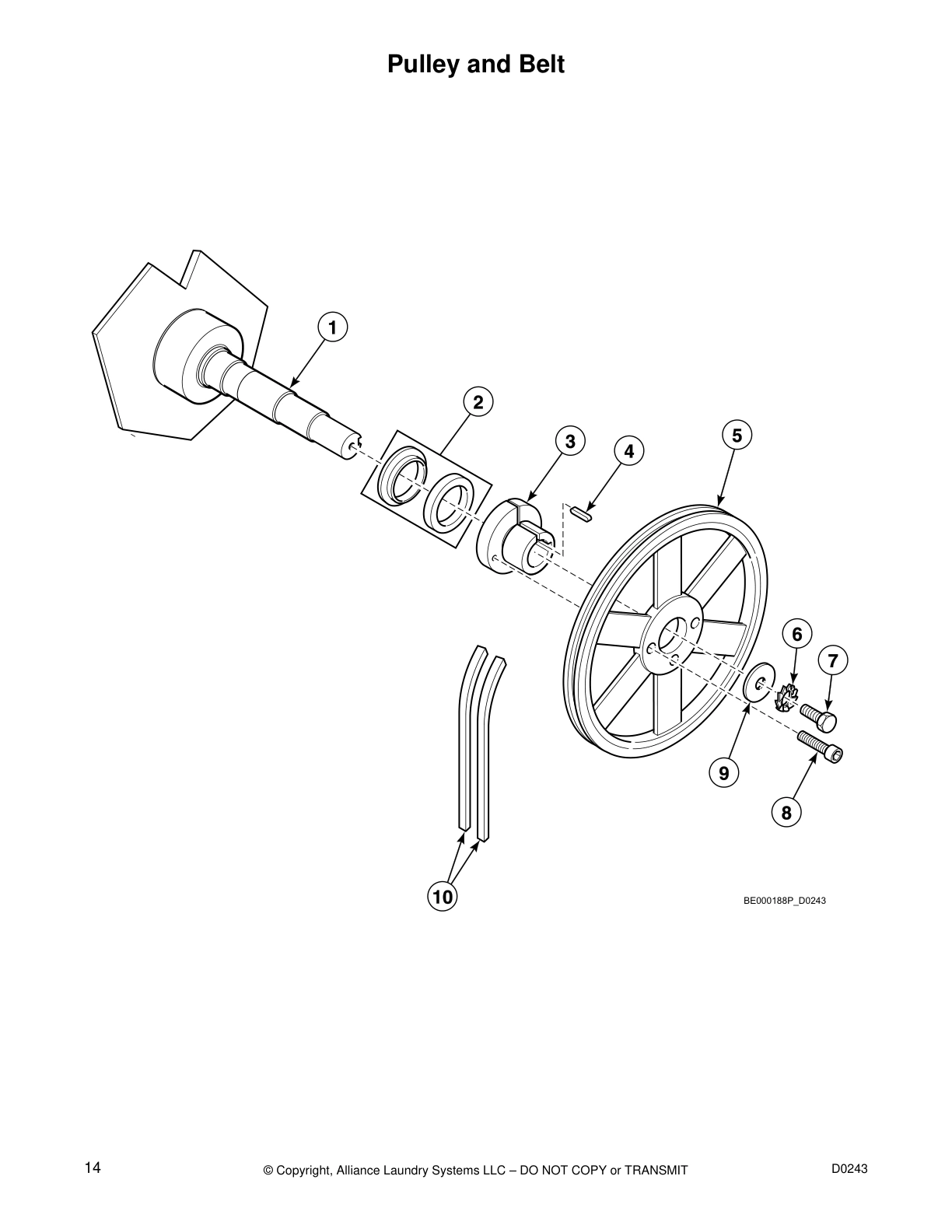

Pulley and Belt

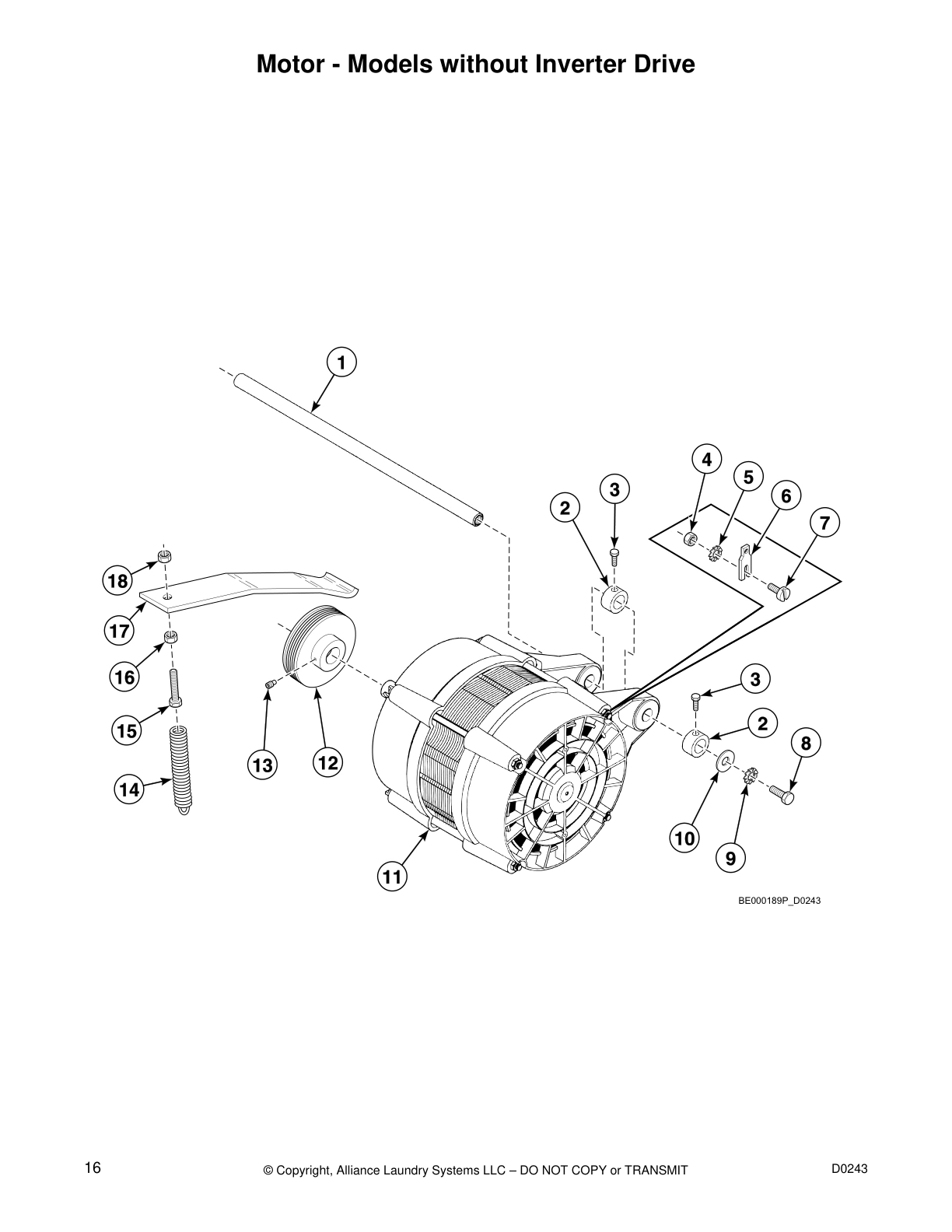

Motor - Models without Inverter Drive

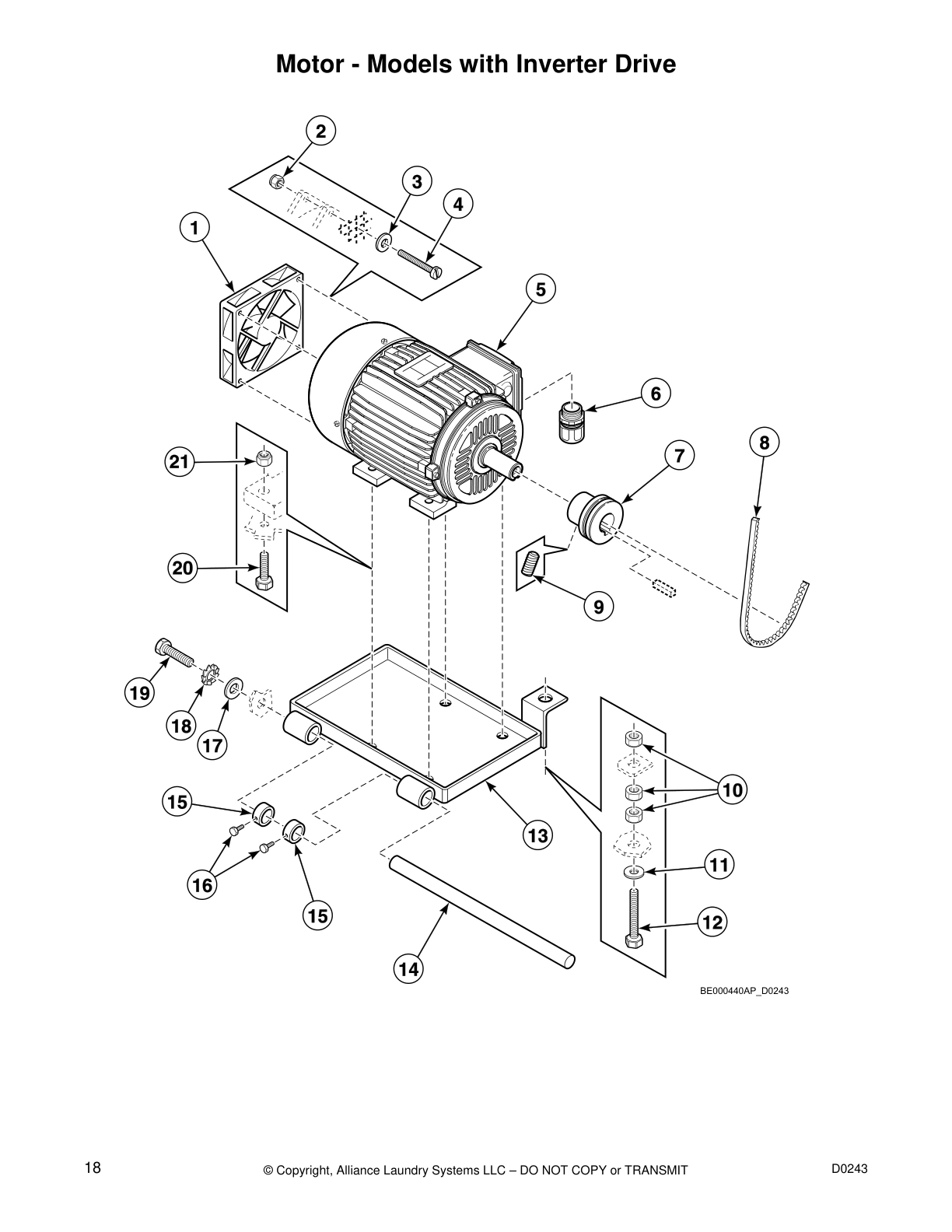

Motor - Models with Inverter Drive

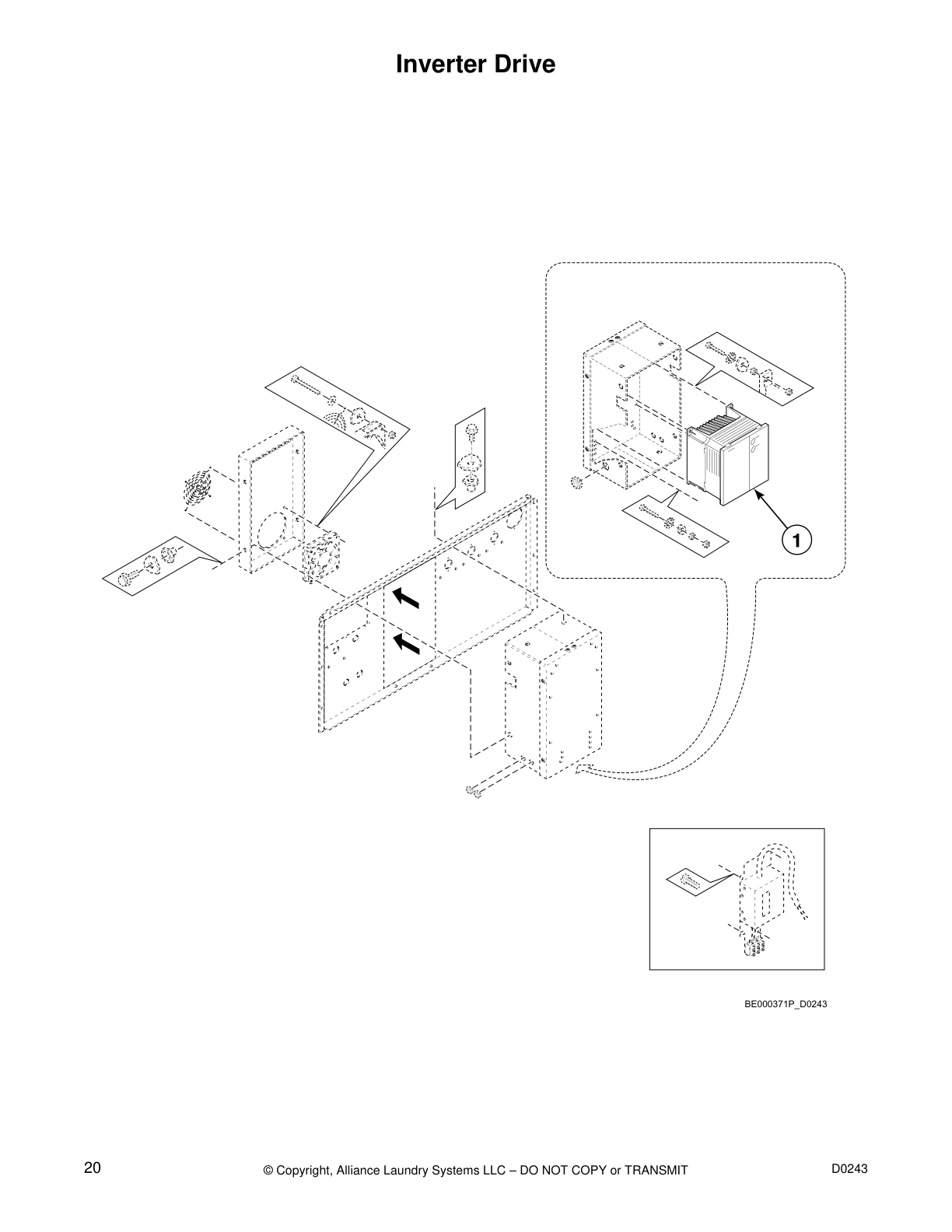

Inverter Drive

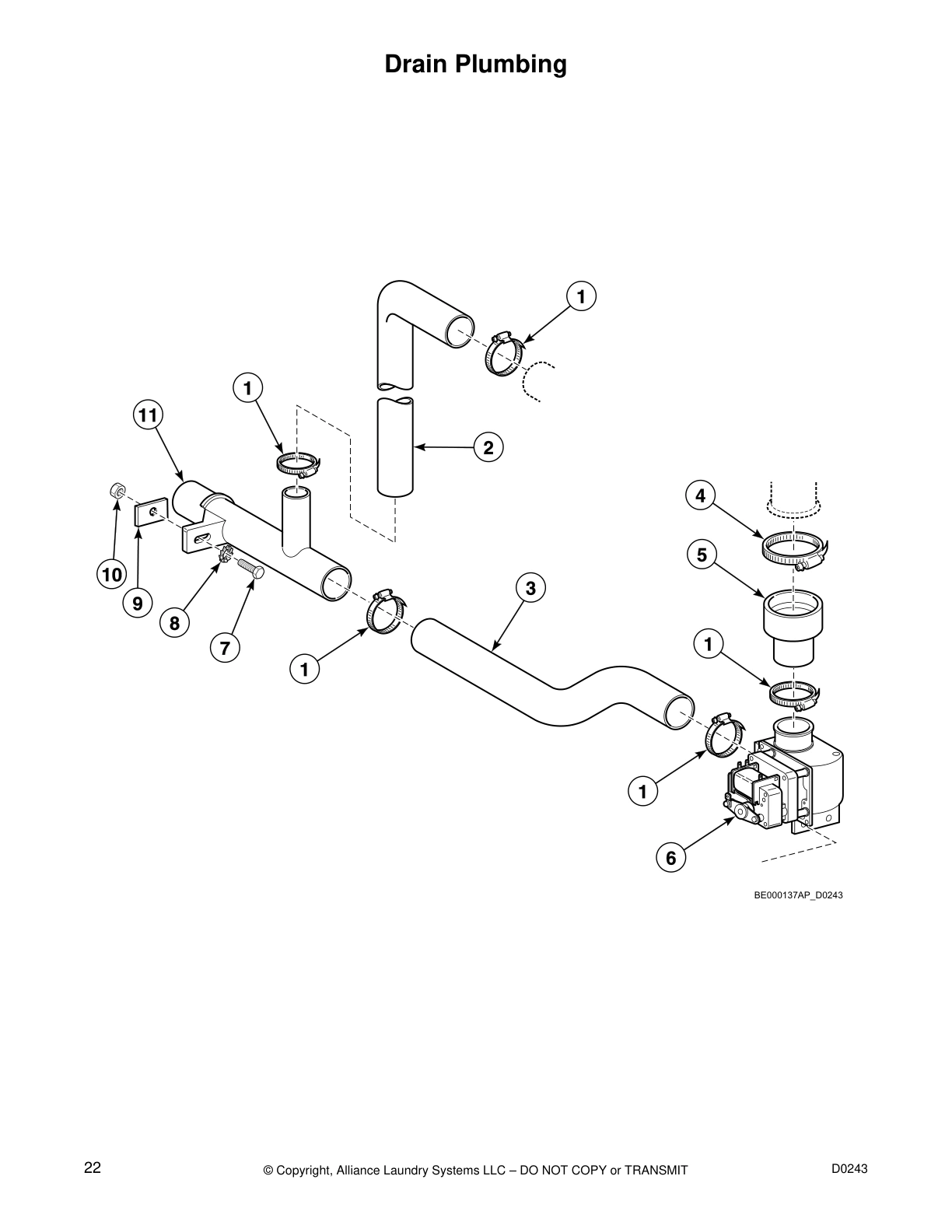

Drain Plumbing

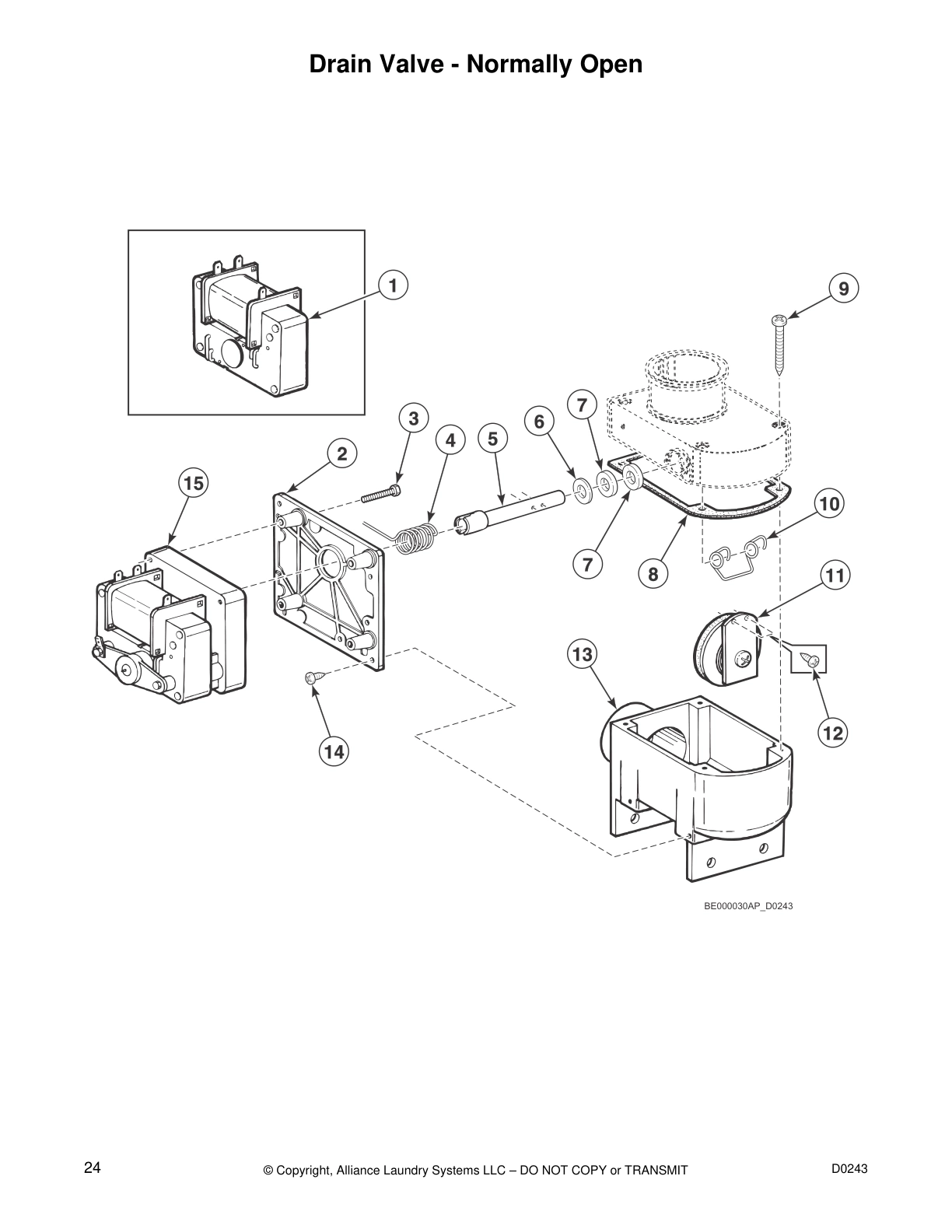

Drain Valve - Normally Open

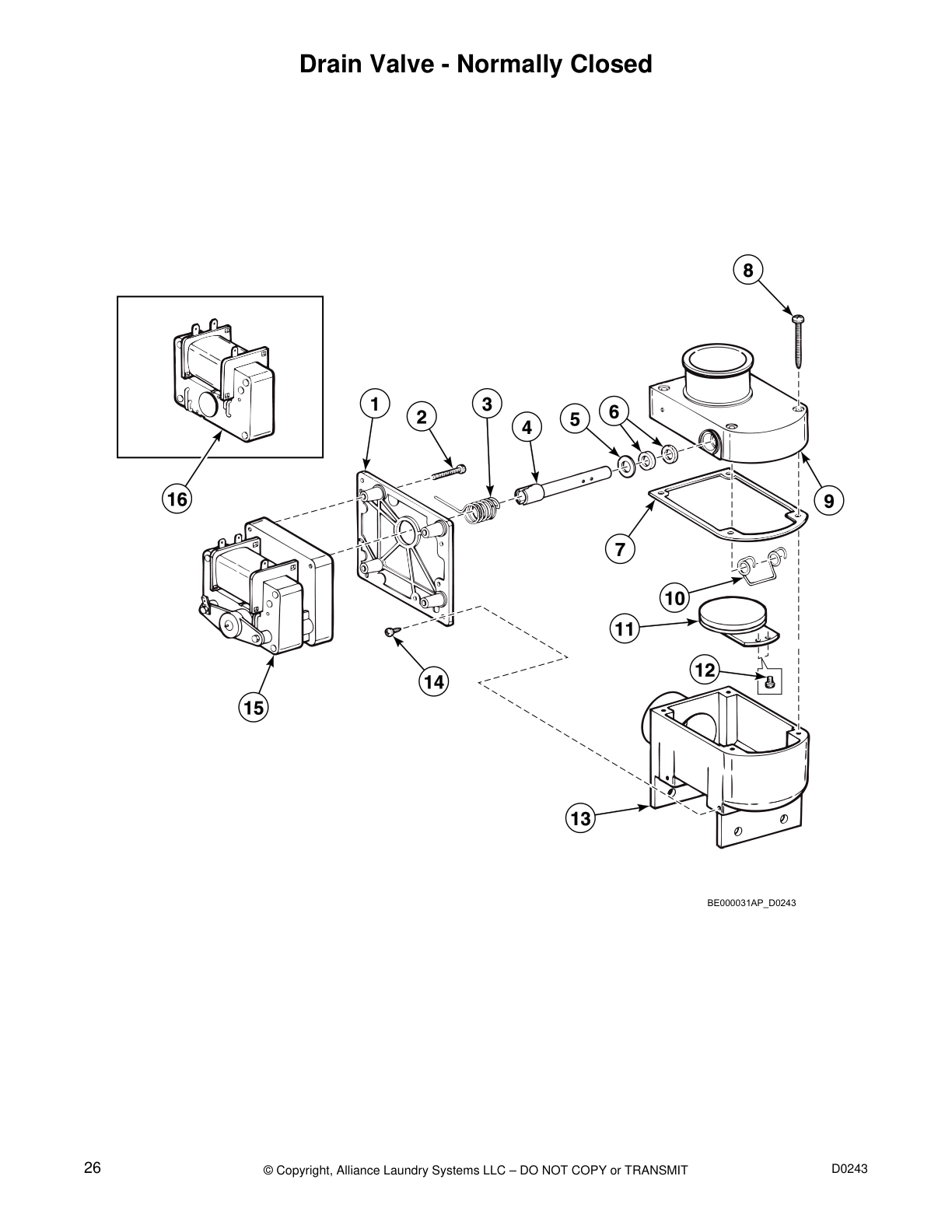

Drain Valve - Normally Closed

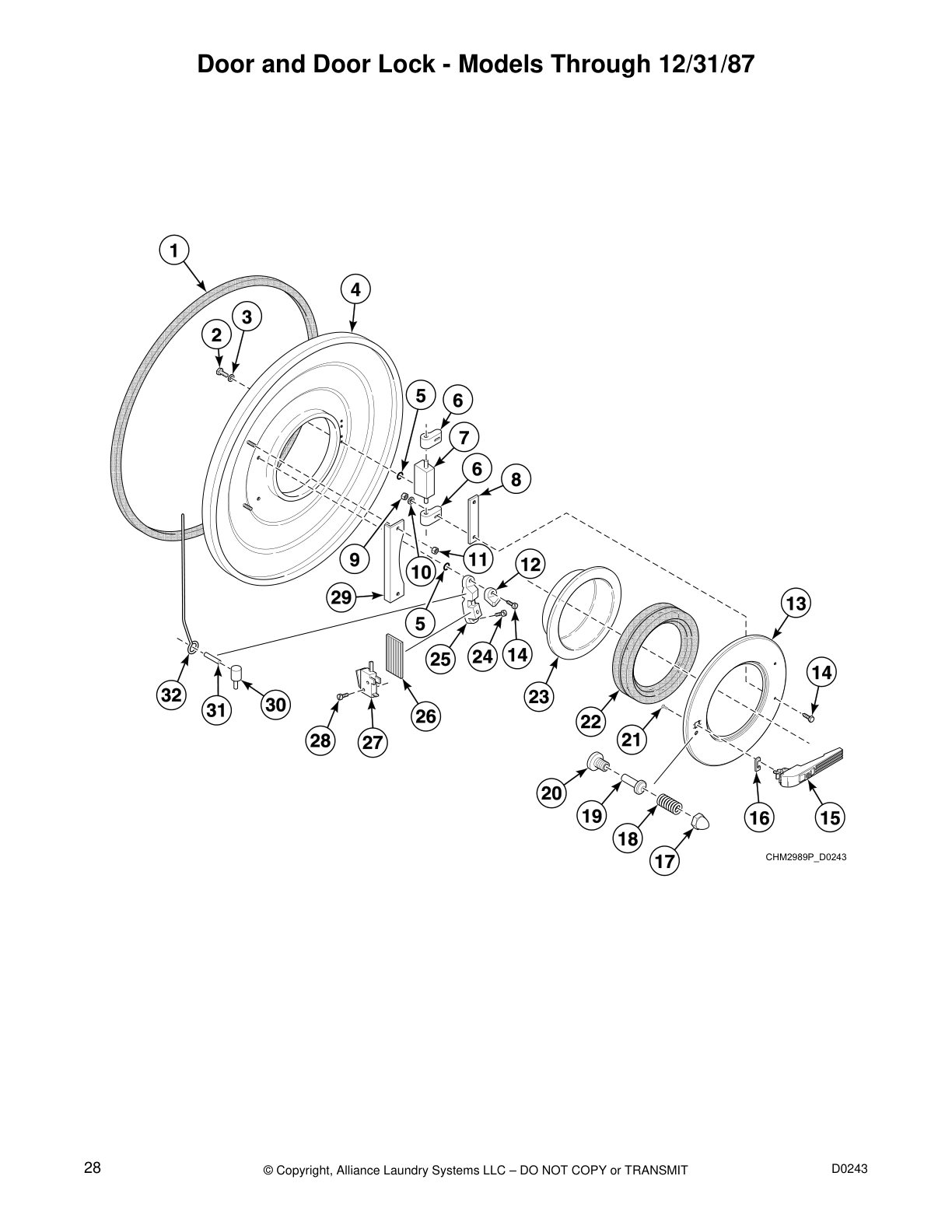

Door and Door Lock - Models Through 12/31/87

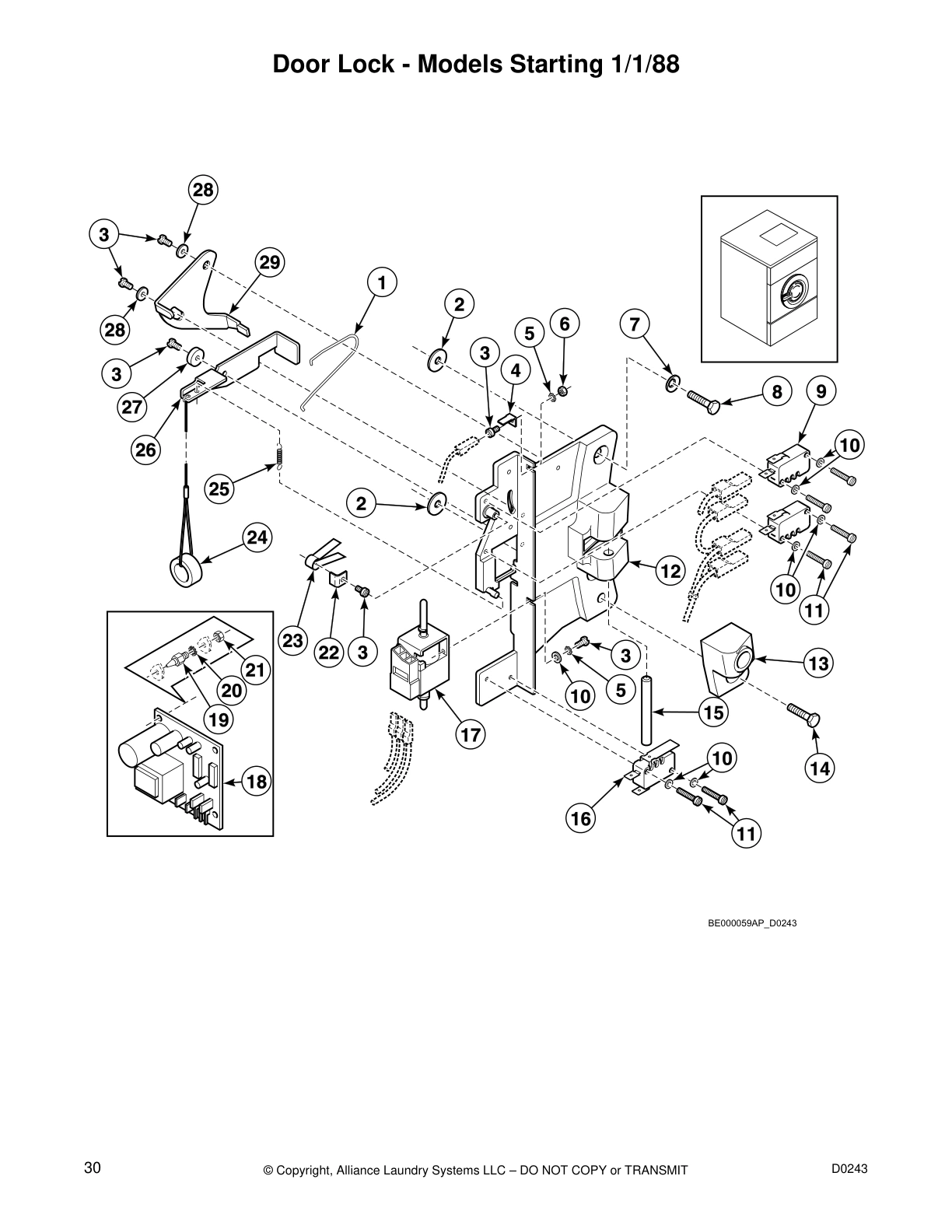

Door Lock - Models Starting 1/1/88

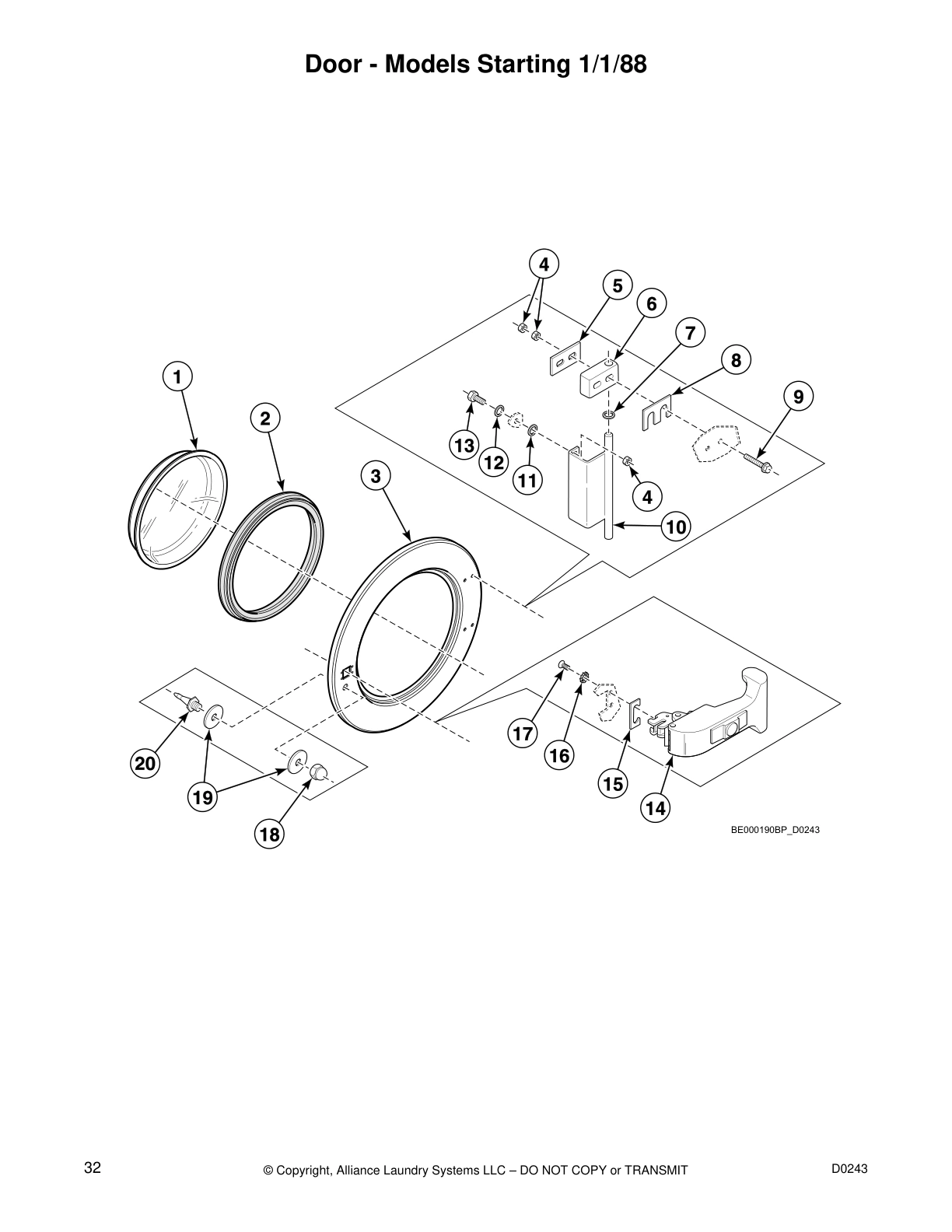

Door - Models Starting 1/1/88

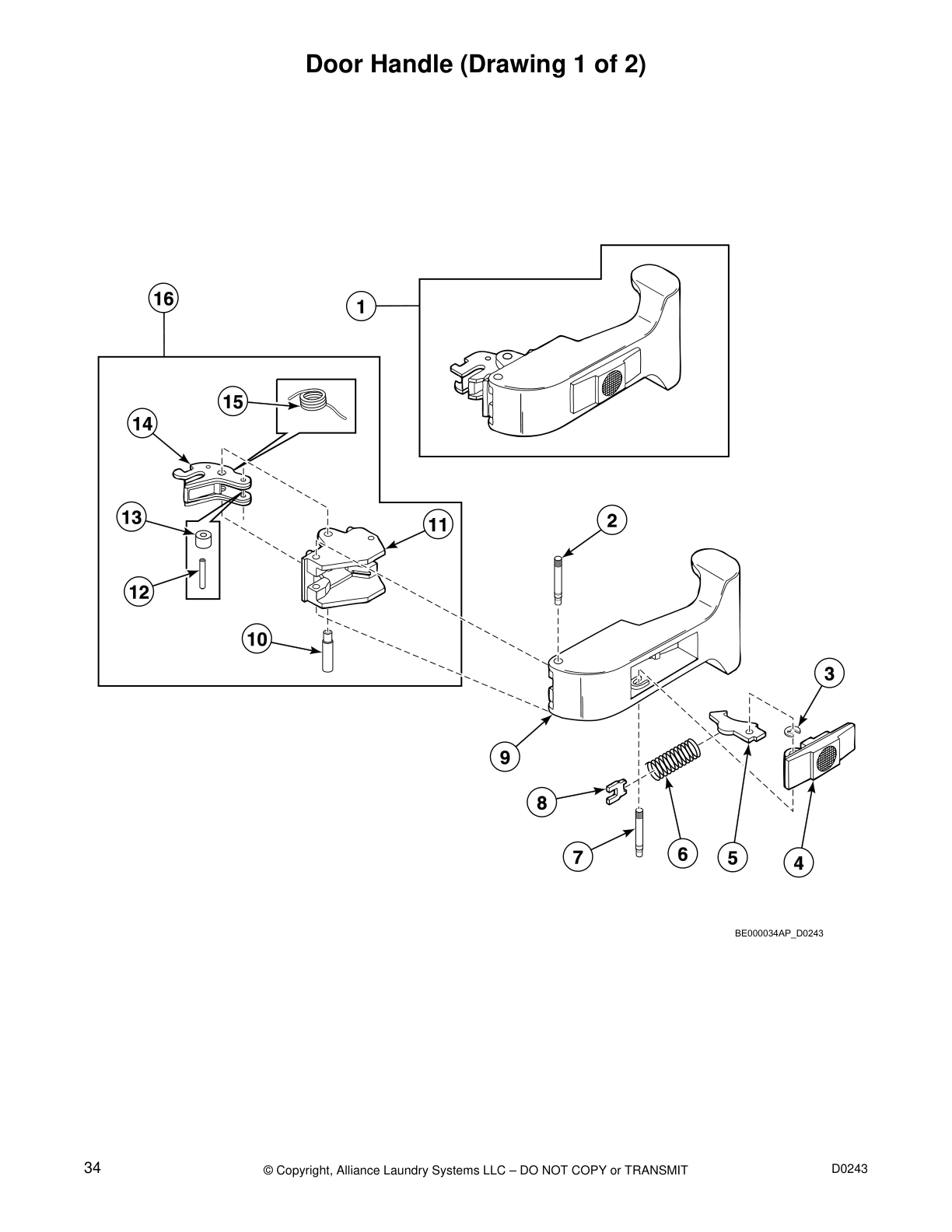

Door Handle (Drawing 1 of 2)

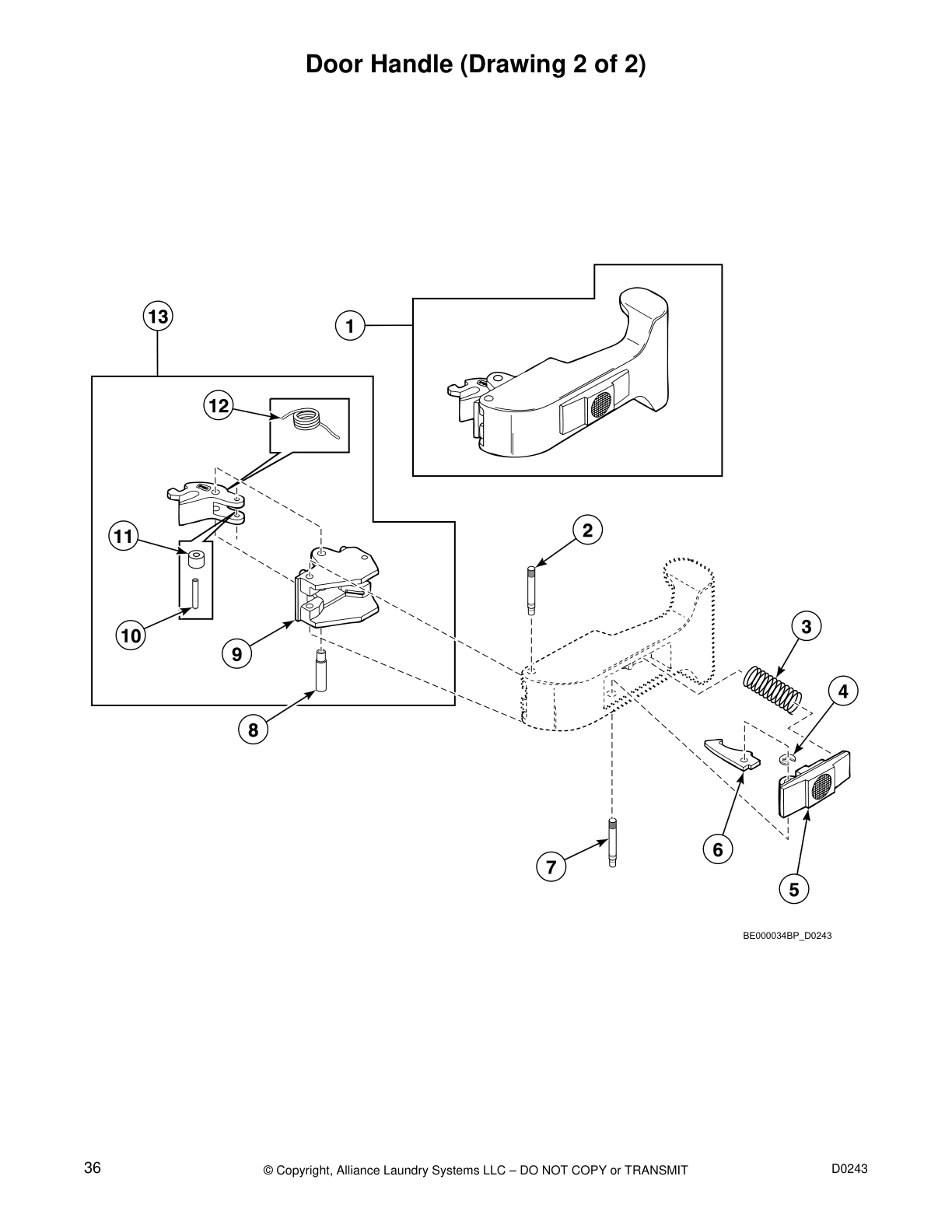

Door Handle (Drawing 2 of 2)

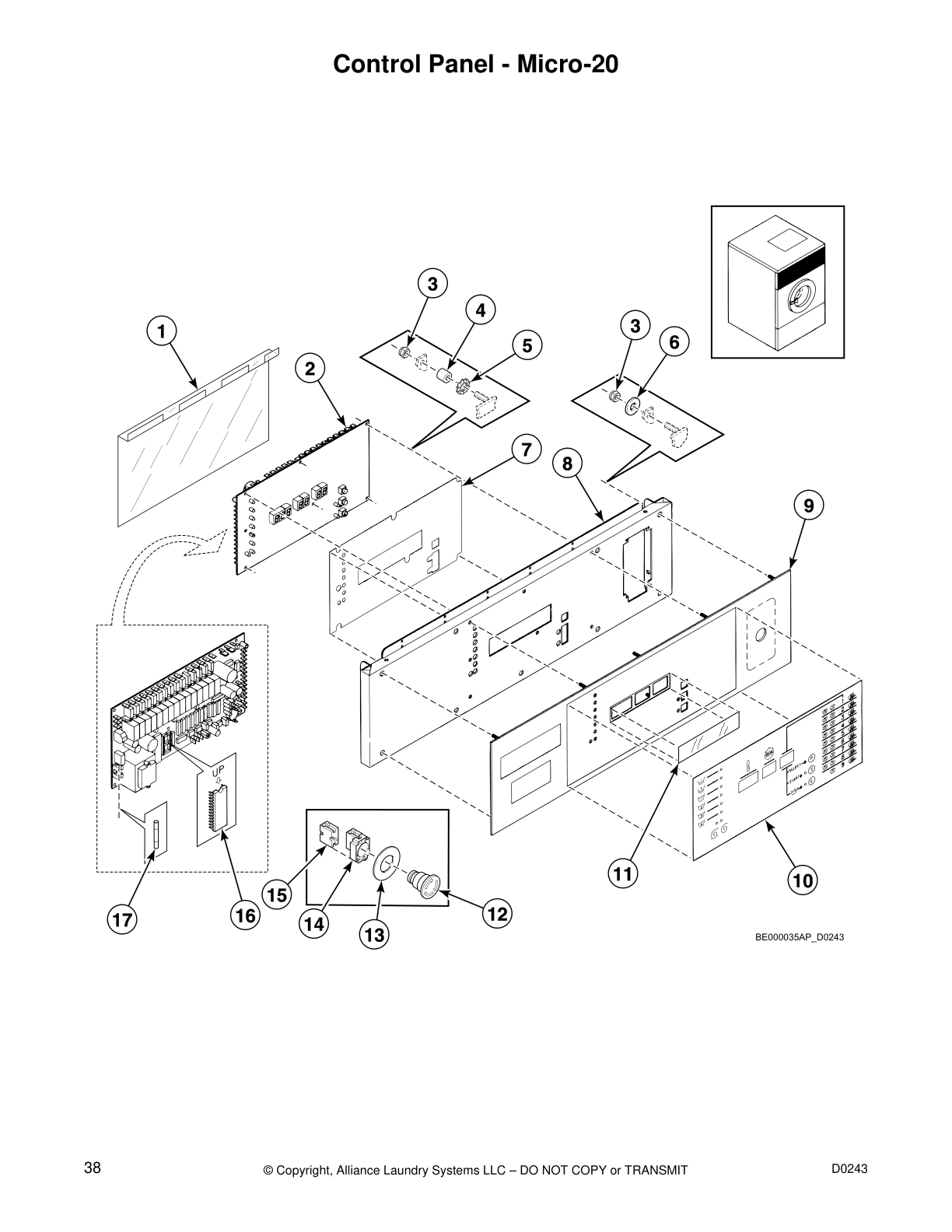

Control Panel - Micro-20

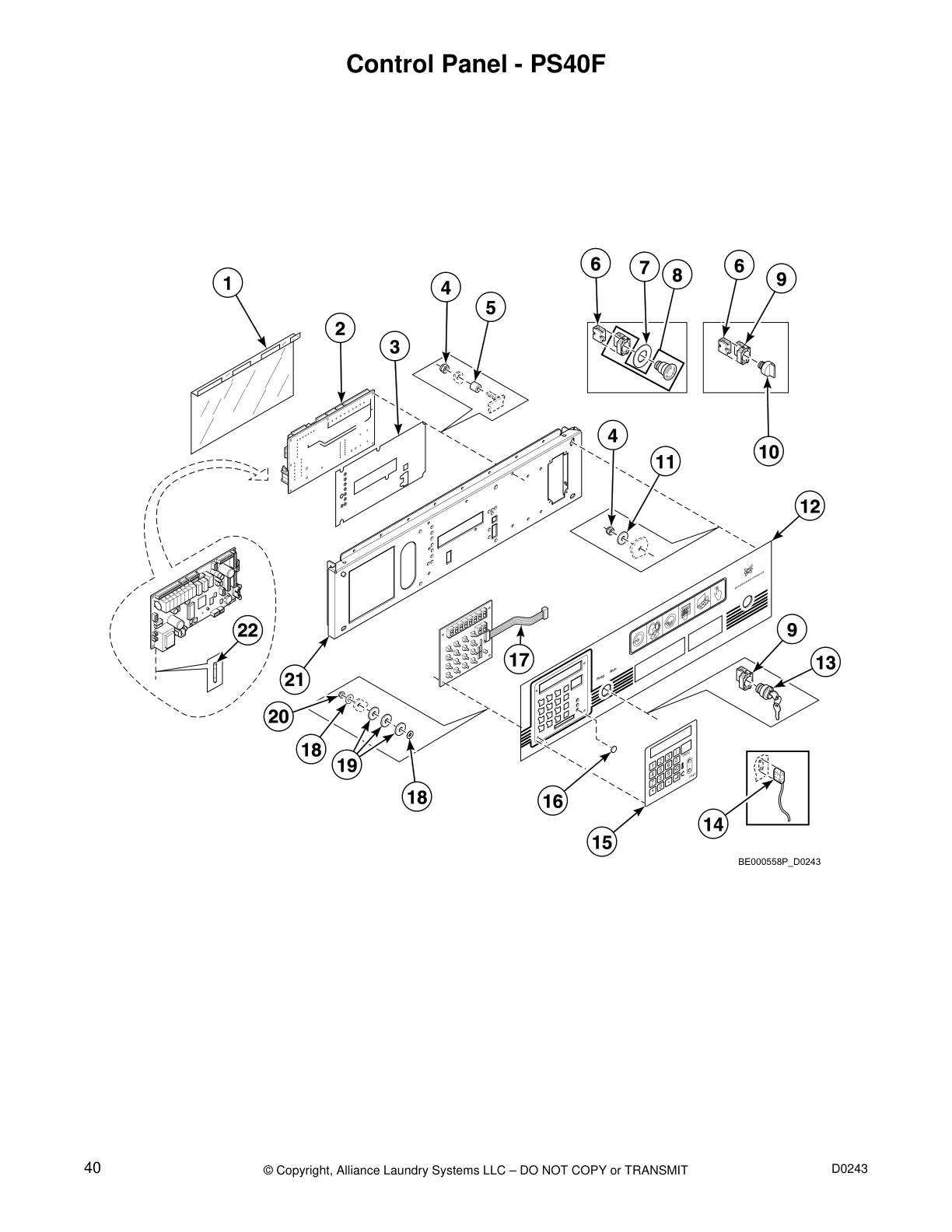

Control Panel - PS40F

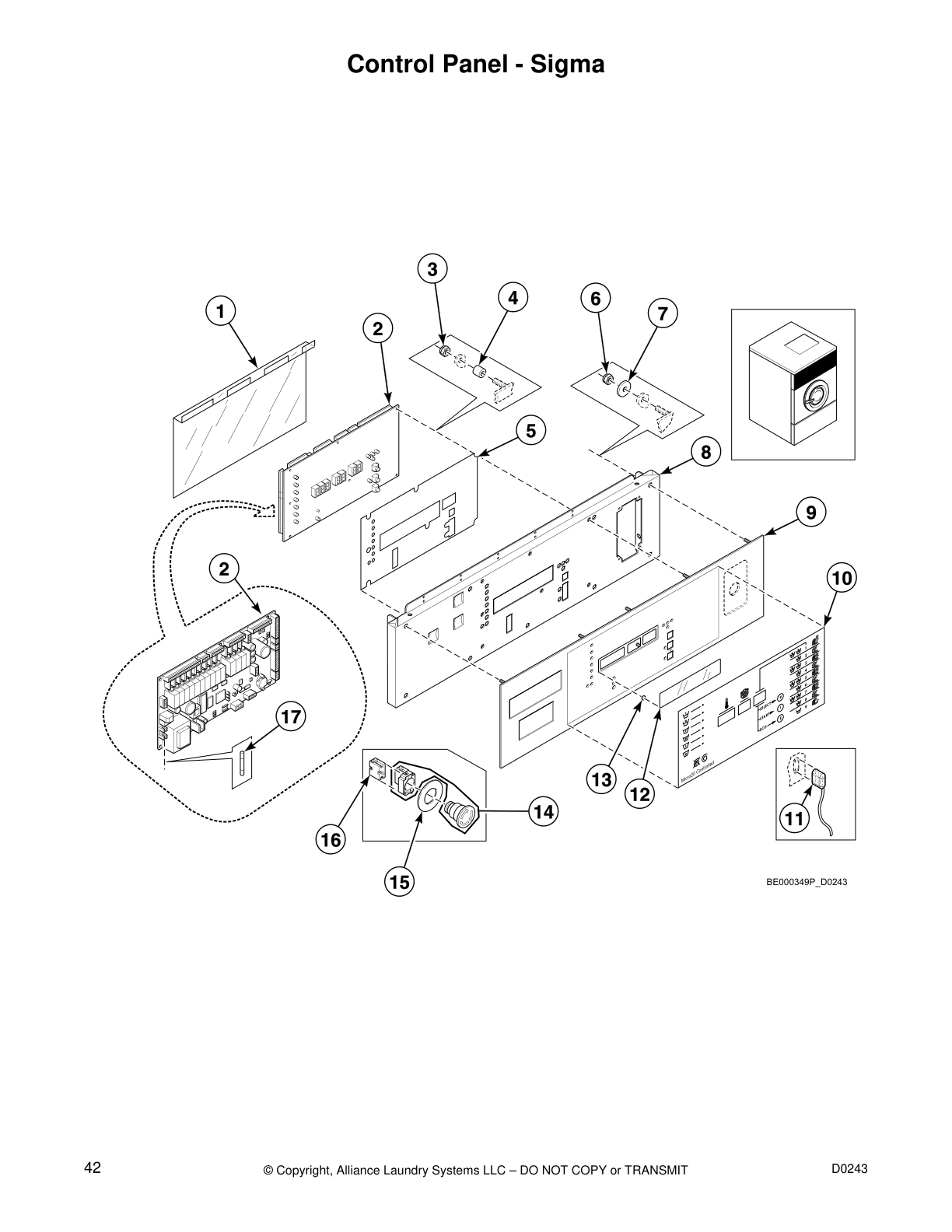

Control Panel - Sigma

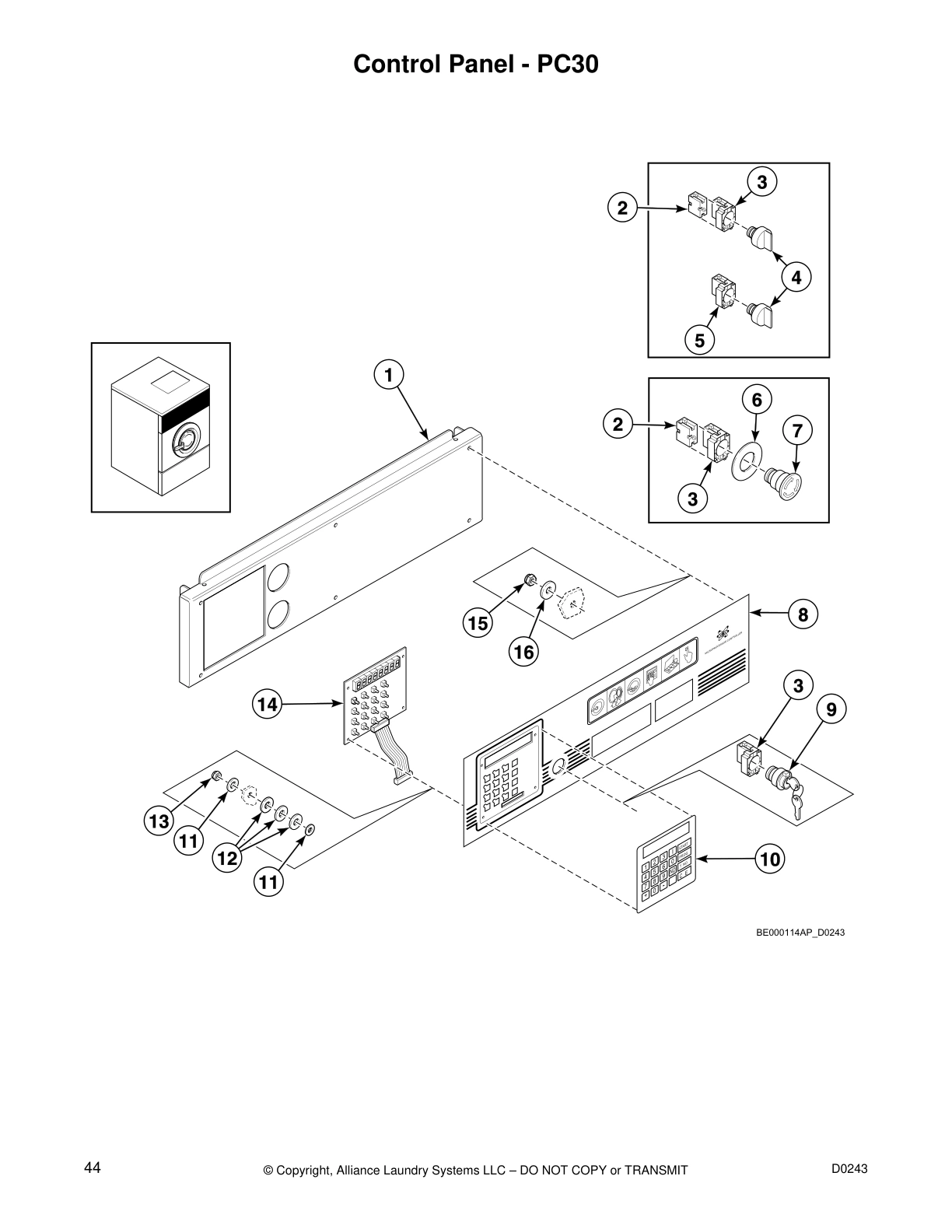

Control Panel - PC30

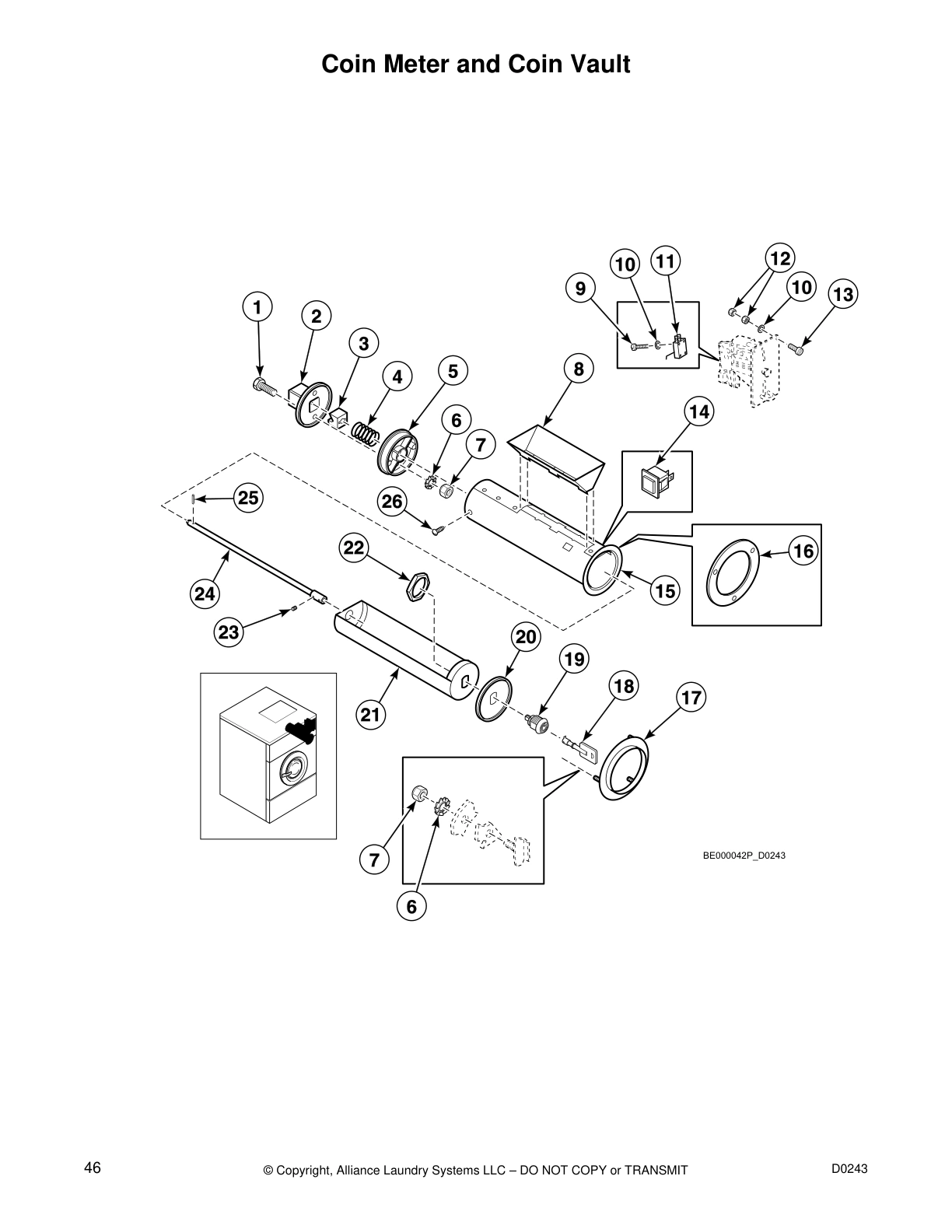

Coin Meter and Coin Vault

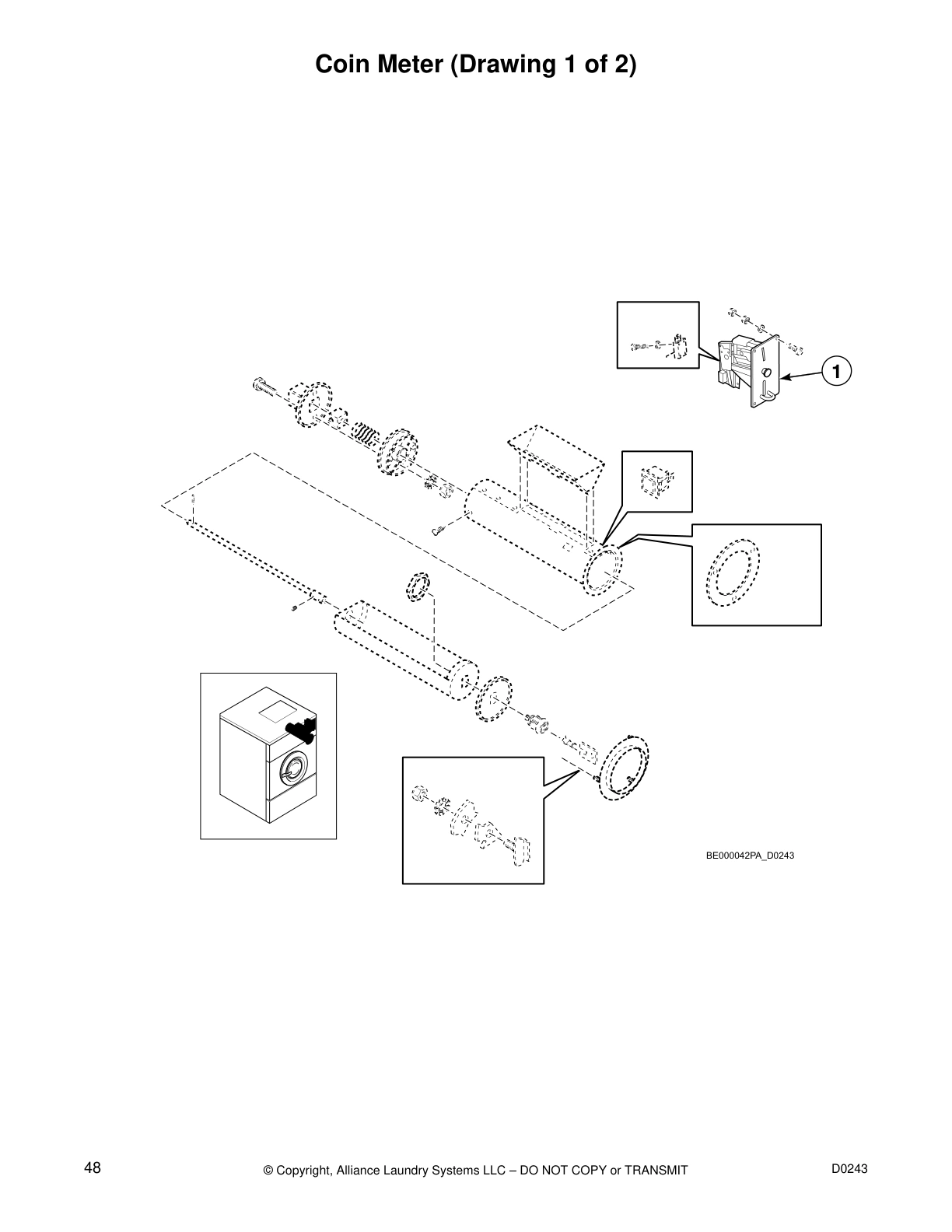

Coin Meter (Drawing 1 of 2)
Coin Meter (Drawing 2 of 2)

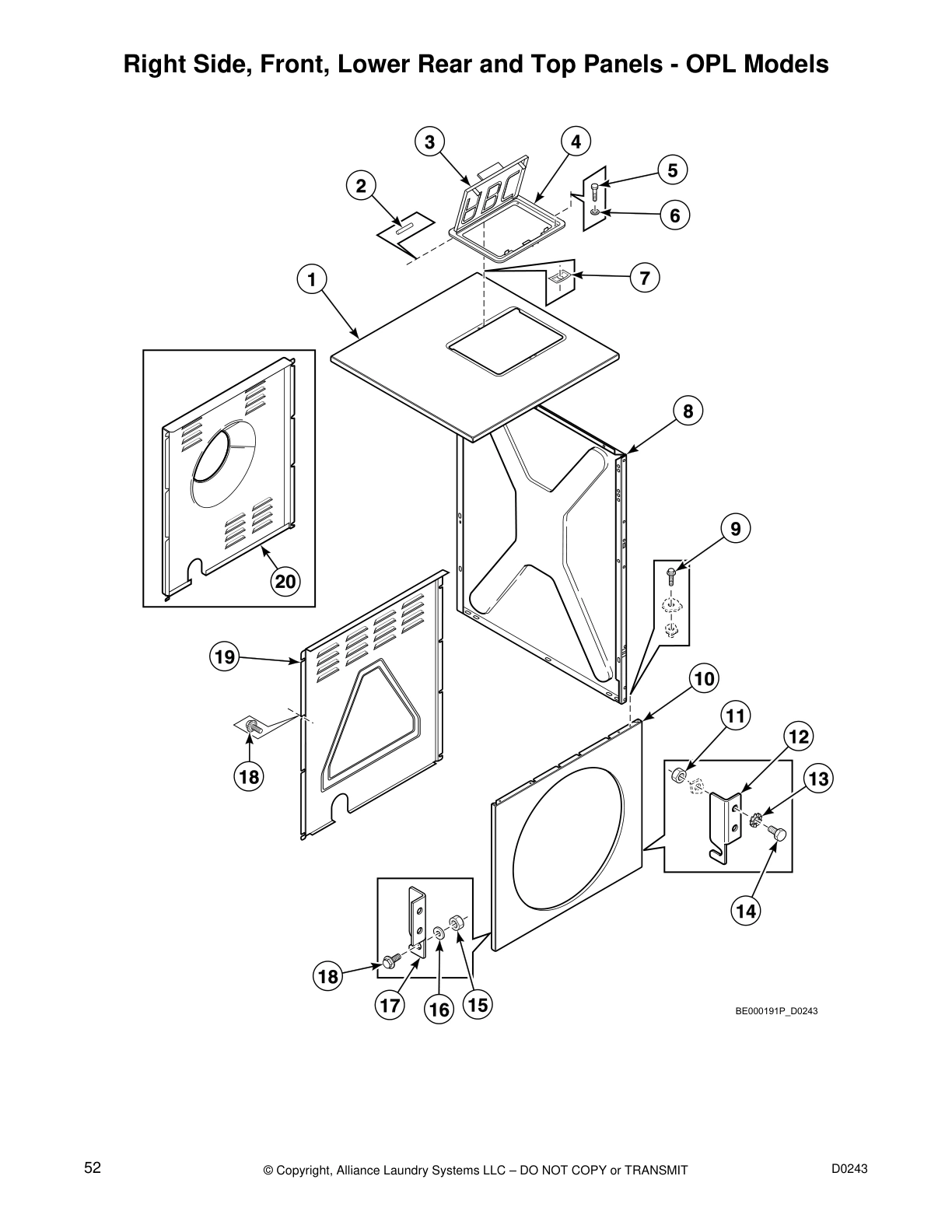

Right Side, Front, Lower Rear and Top Panels - OPL Models

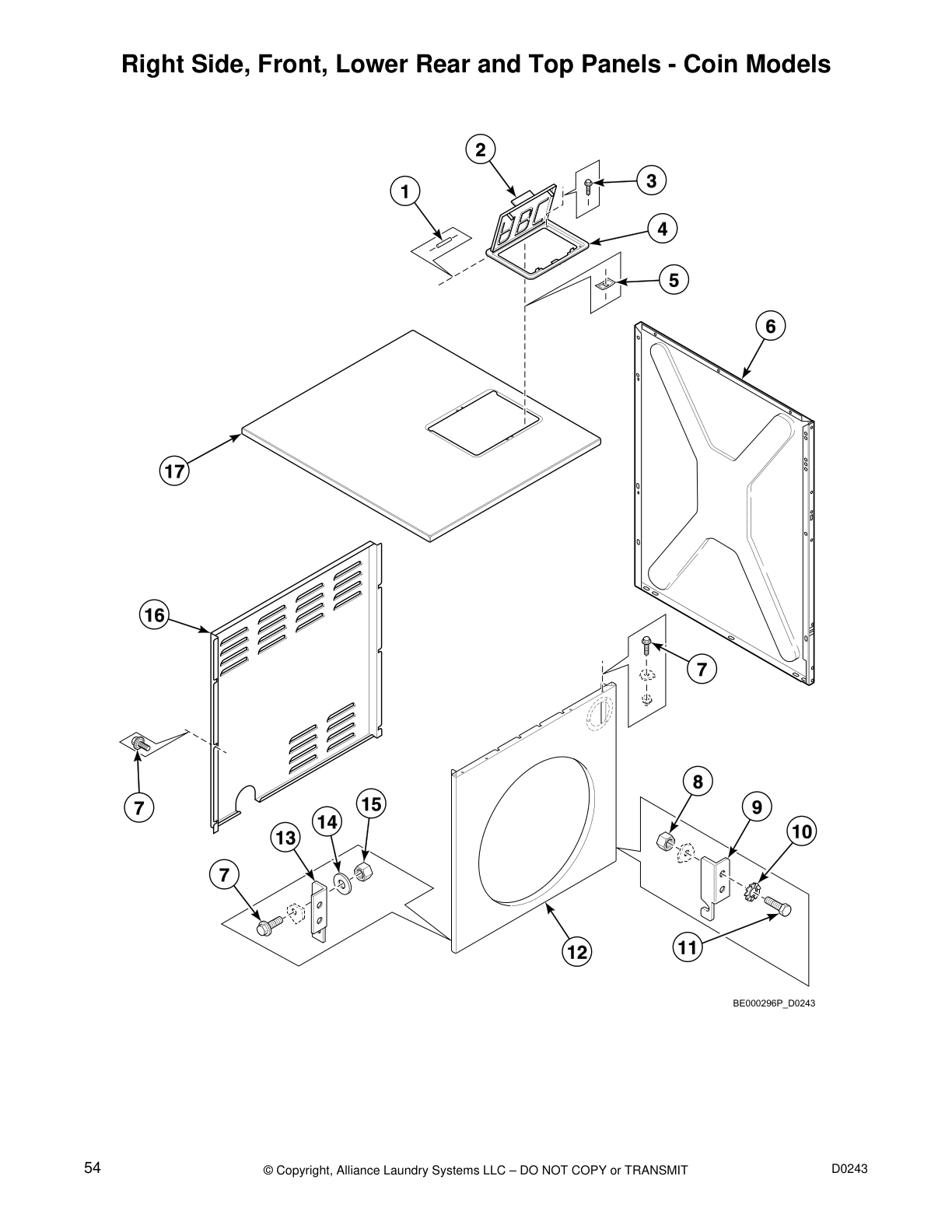

Right Side, Front, Lower Rear and Top Panels - Coin Models

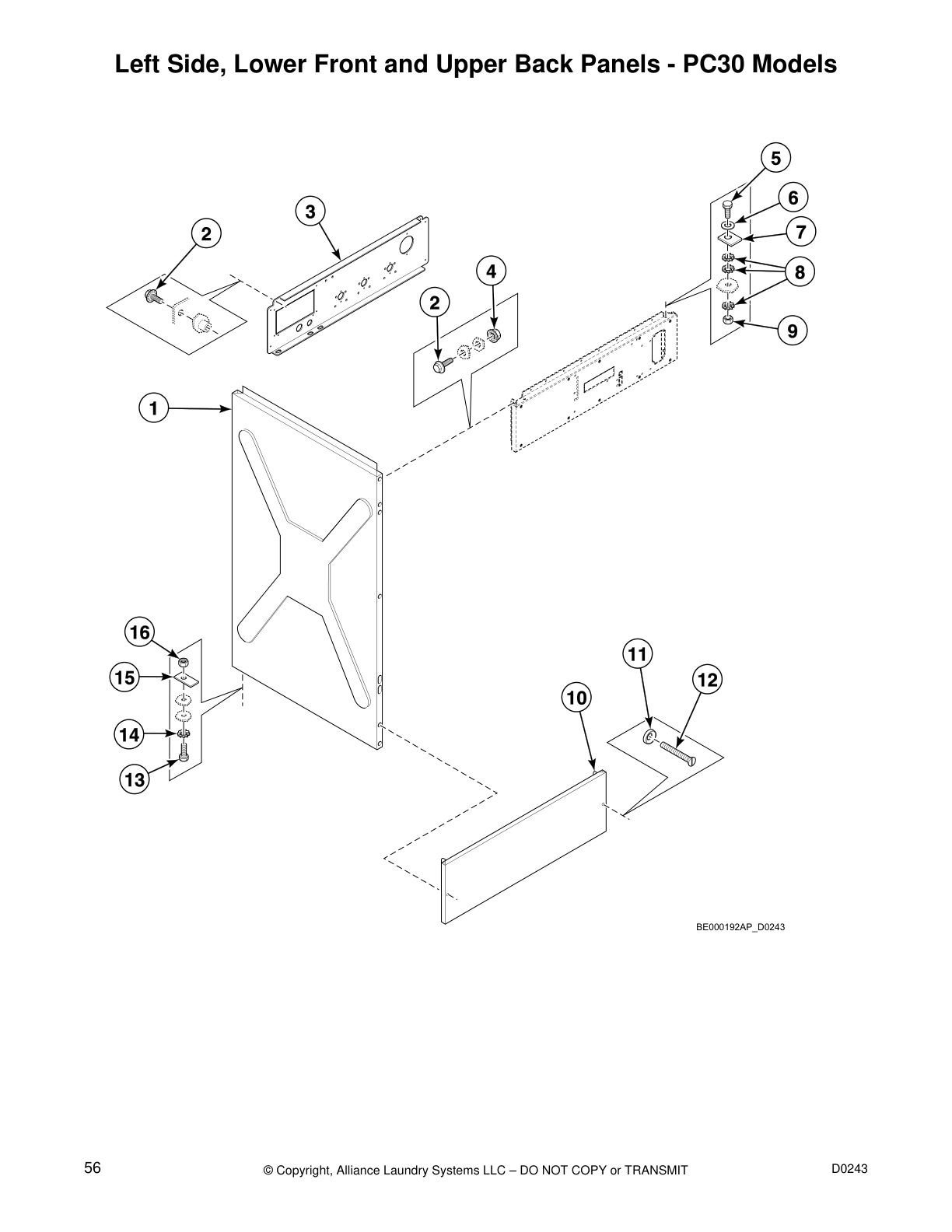

Left Side, Lower Front and Upper Back Panels - PC30 Models

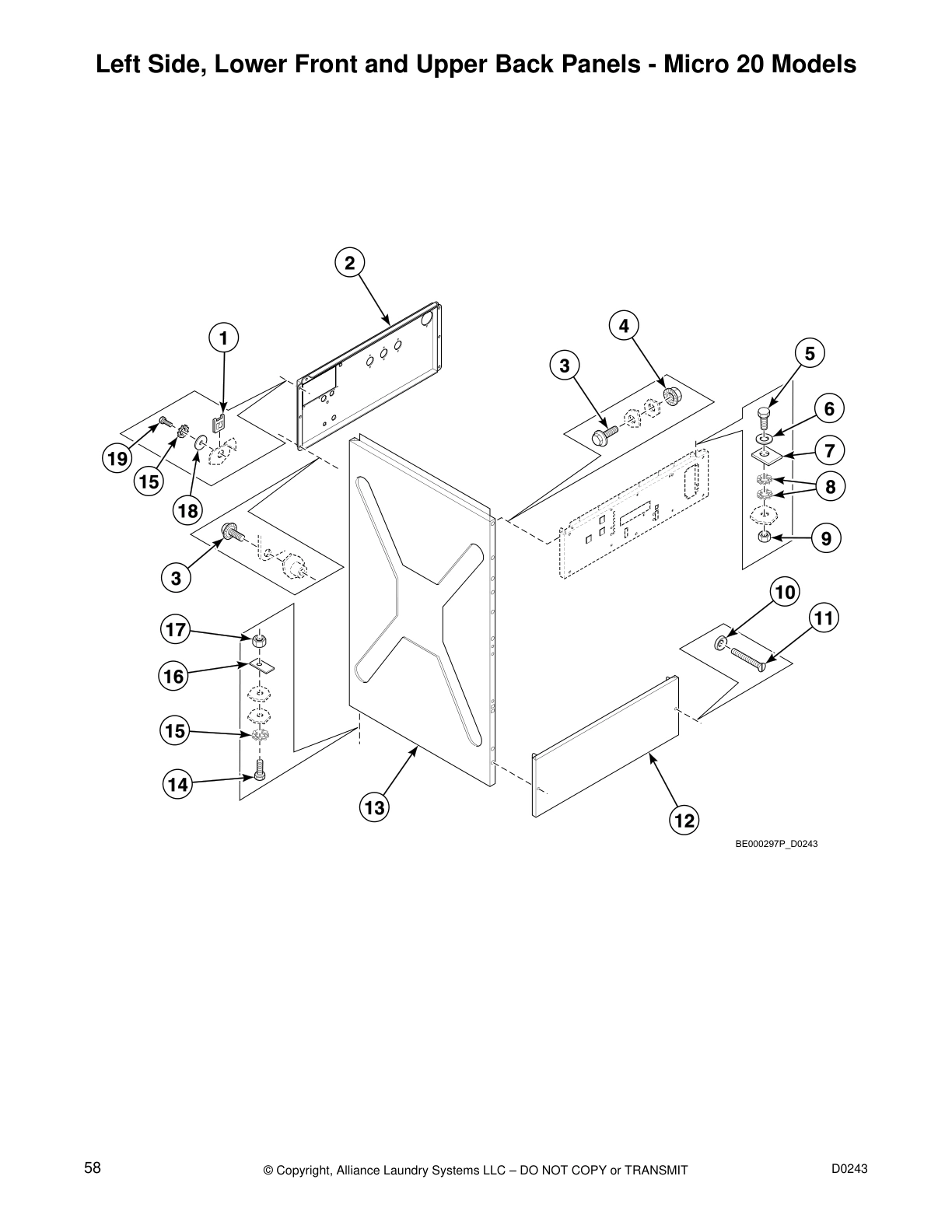

Left Side, Lower Front and Upper Back Panels - Micro 20 Models

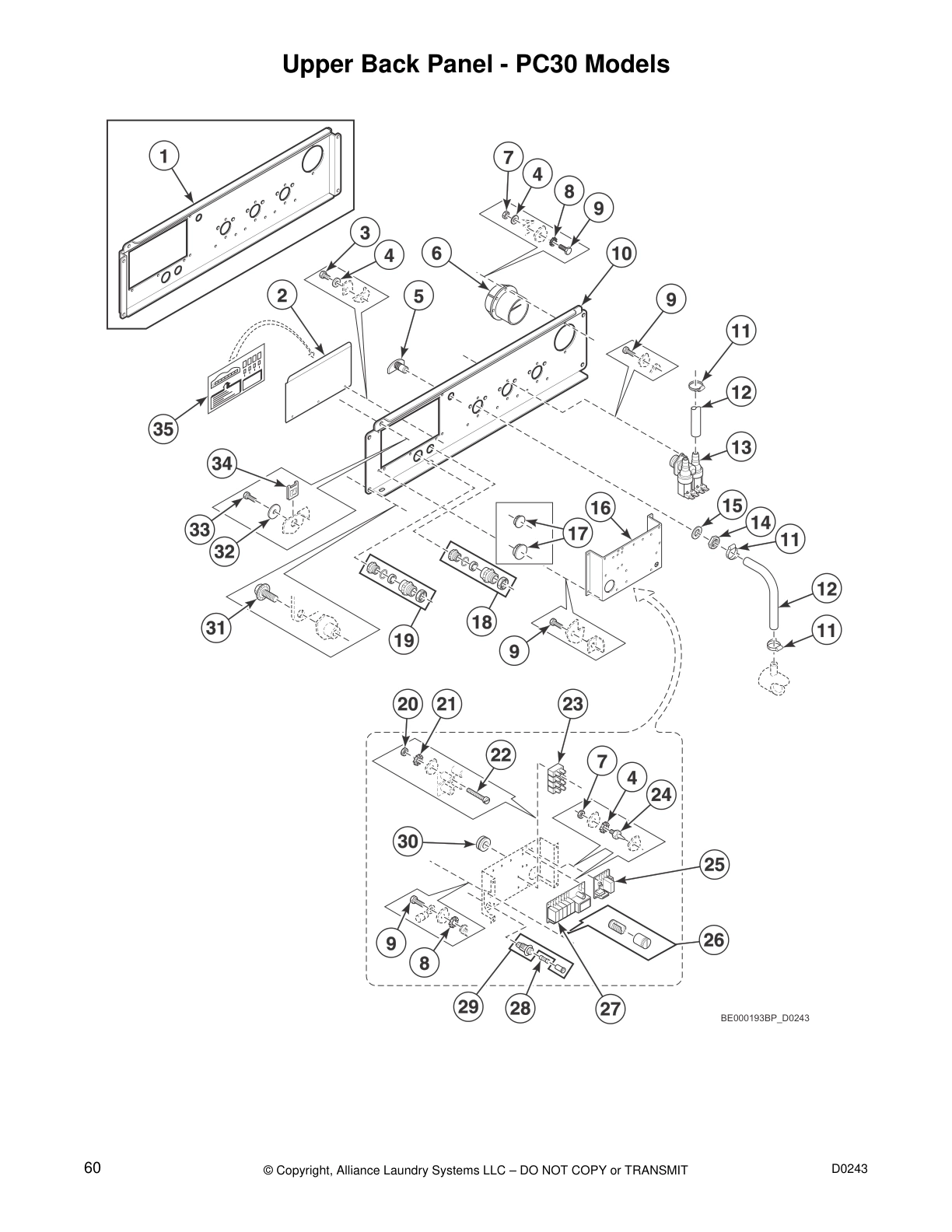

Upper Back Panel - PC30 Models

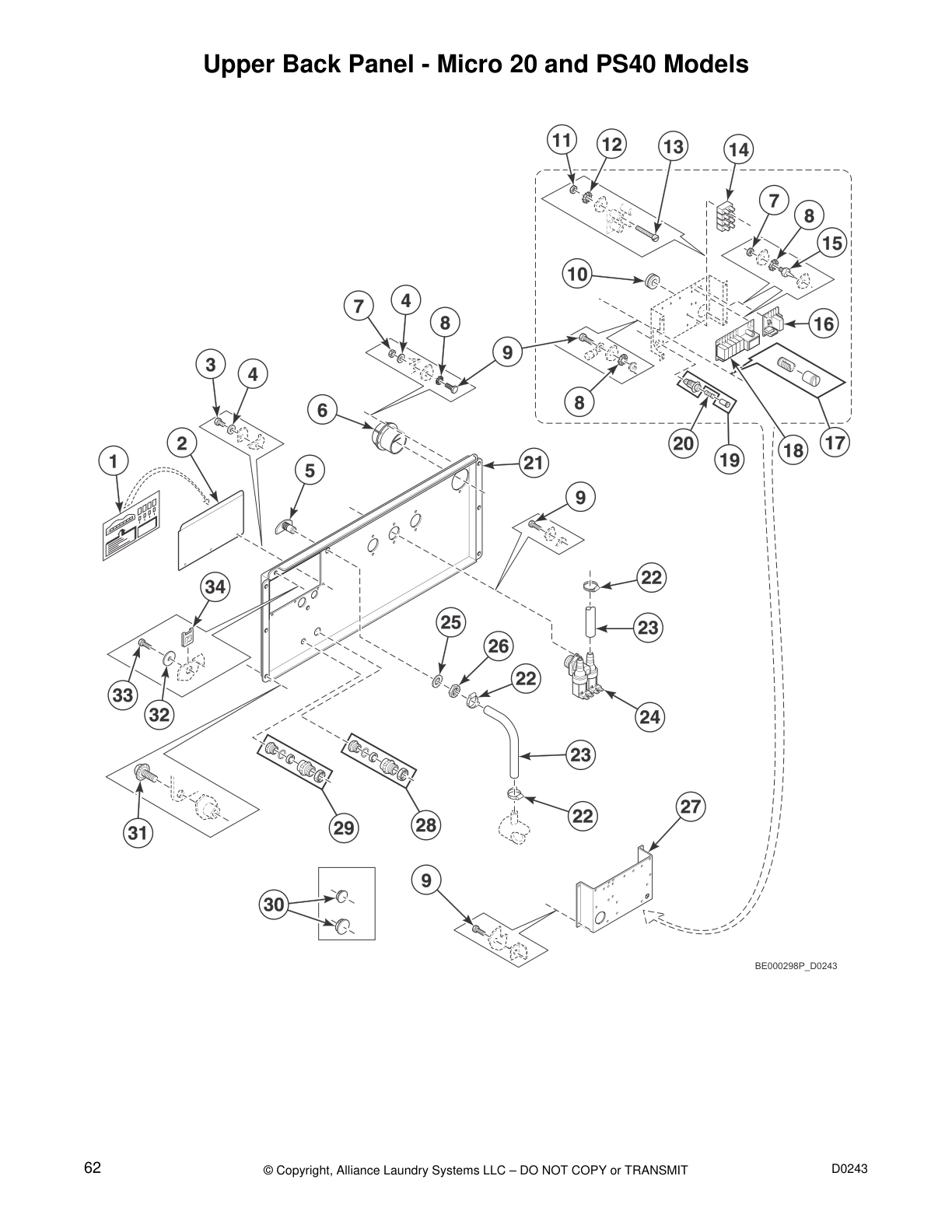

Upper Back Panel - Micro 20 and PS40 Models

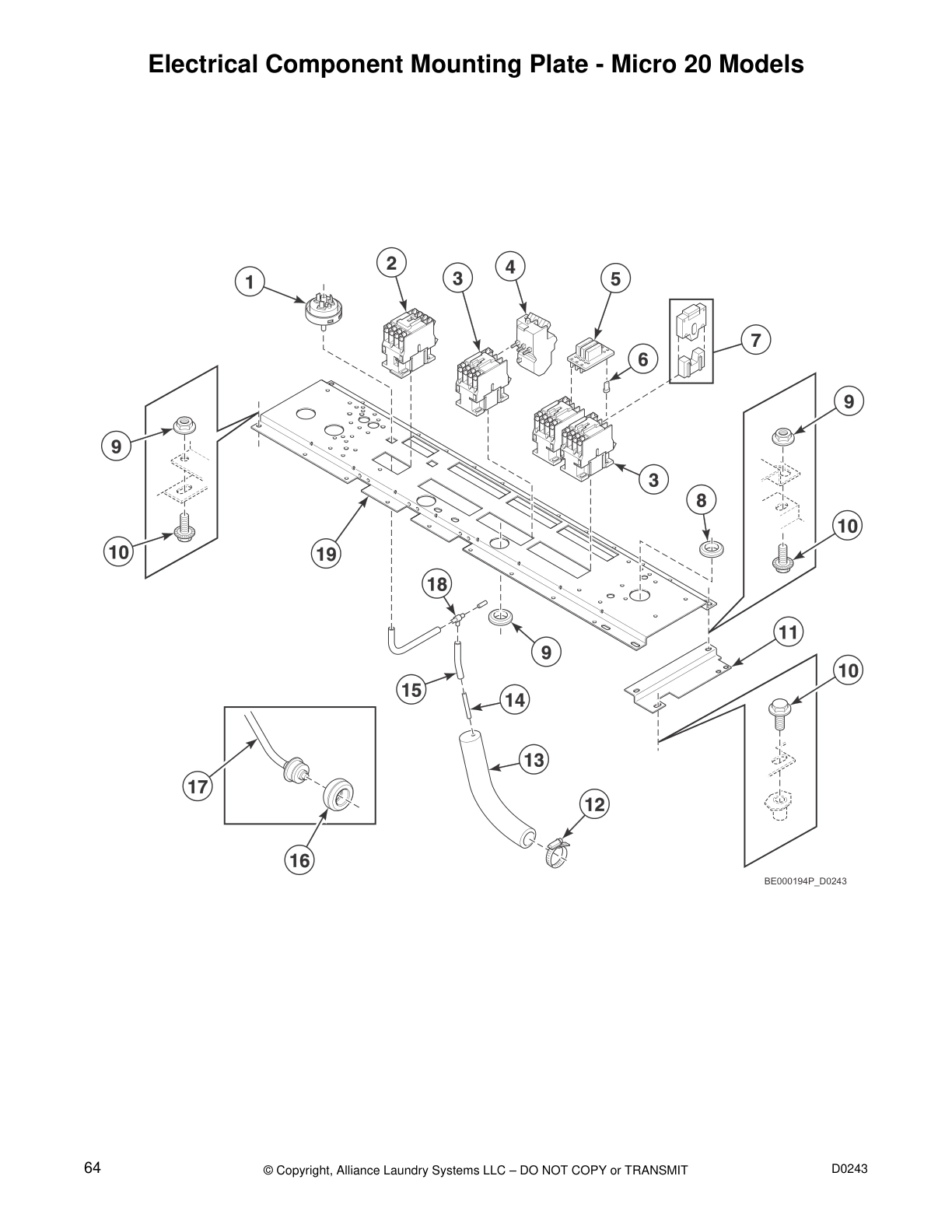

Electrical Component Mounting Plate - Micro 20 Models

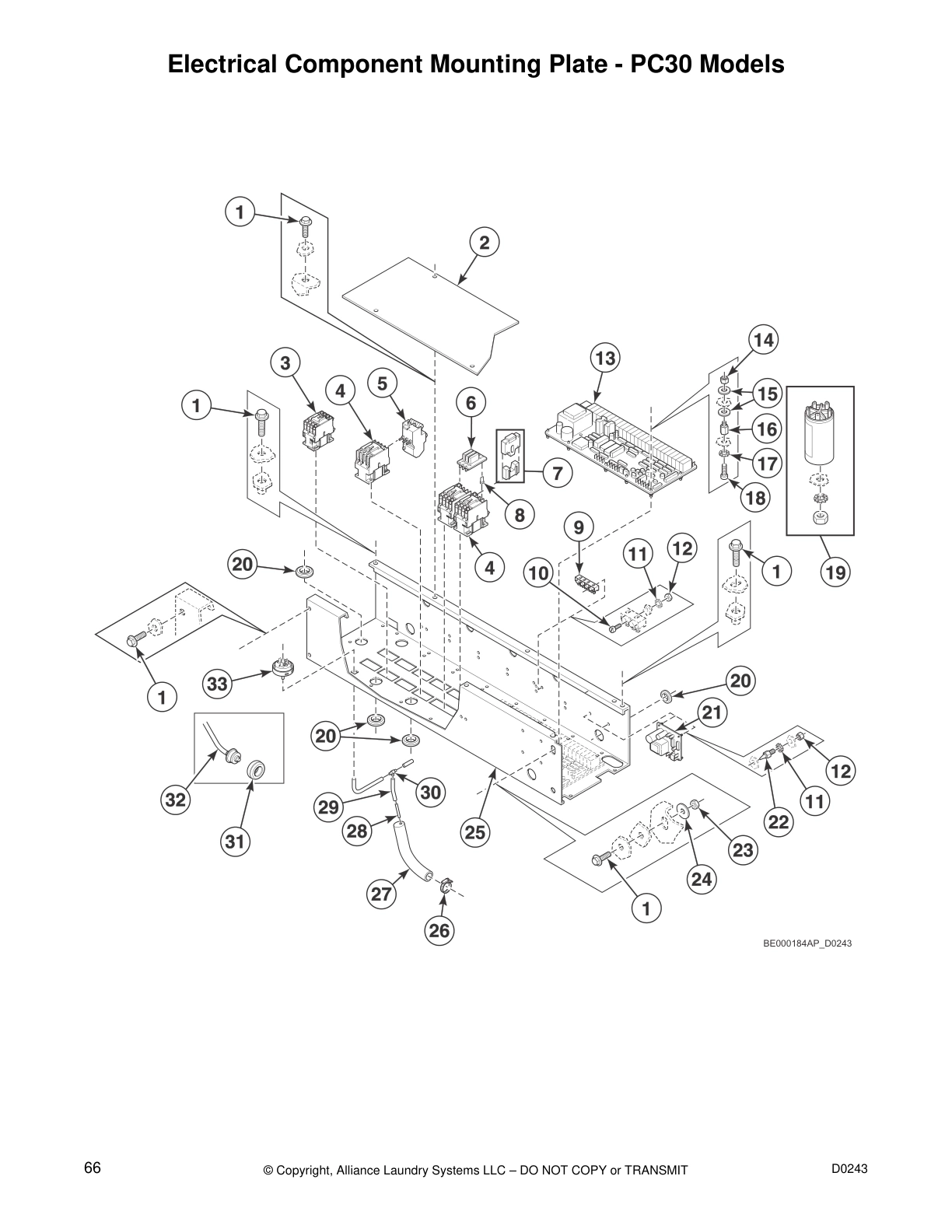

Electrical Component Mounting Plate - PC30 Models

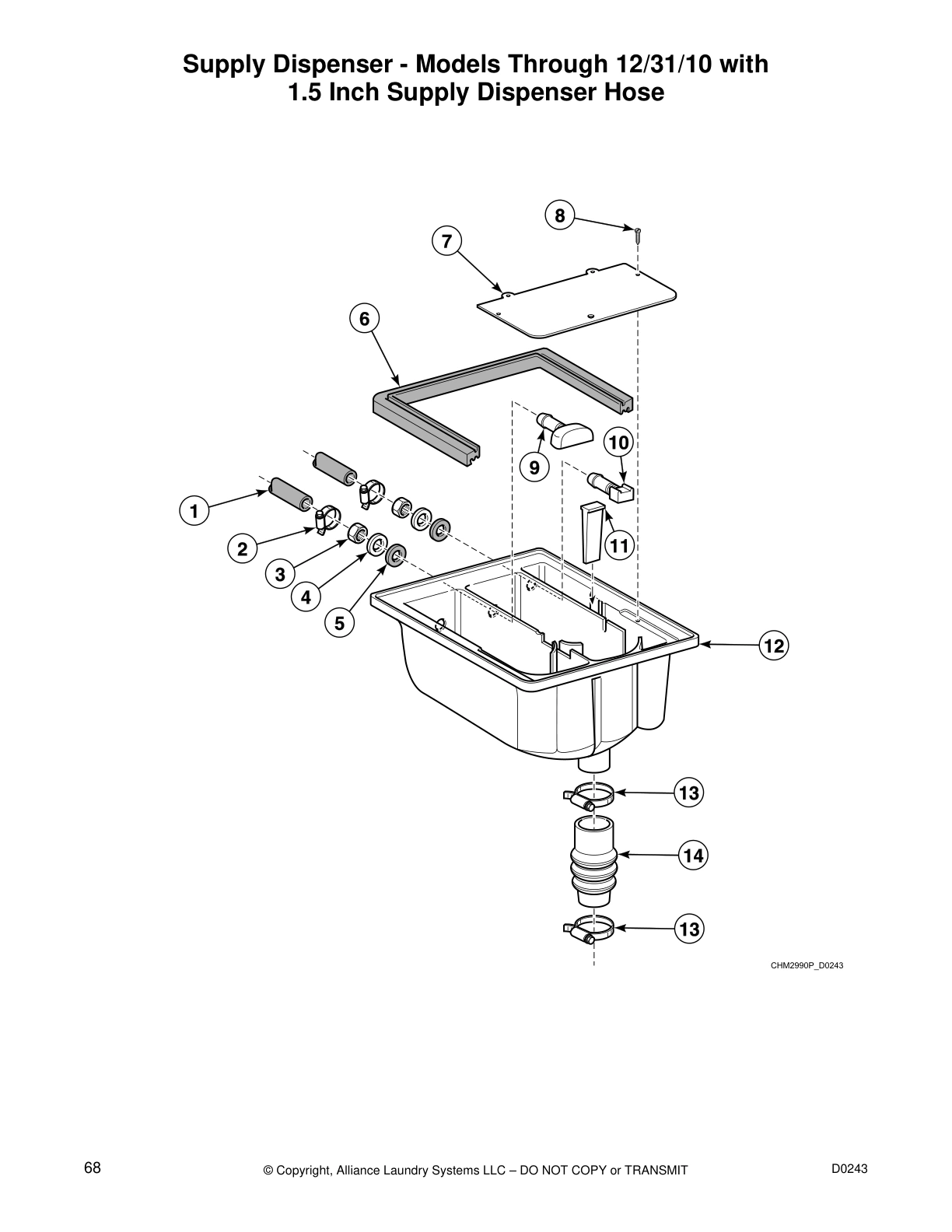

Supply Dispenser - Models Through 12/31/10 with
1.5 Inch Supply Dispenser Hose

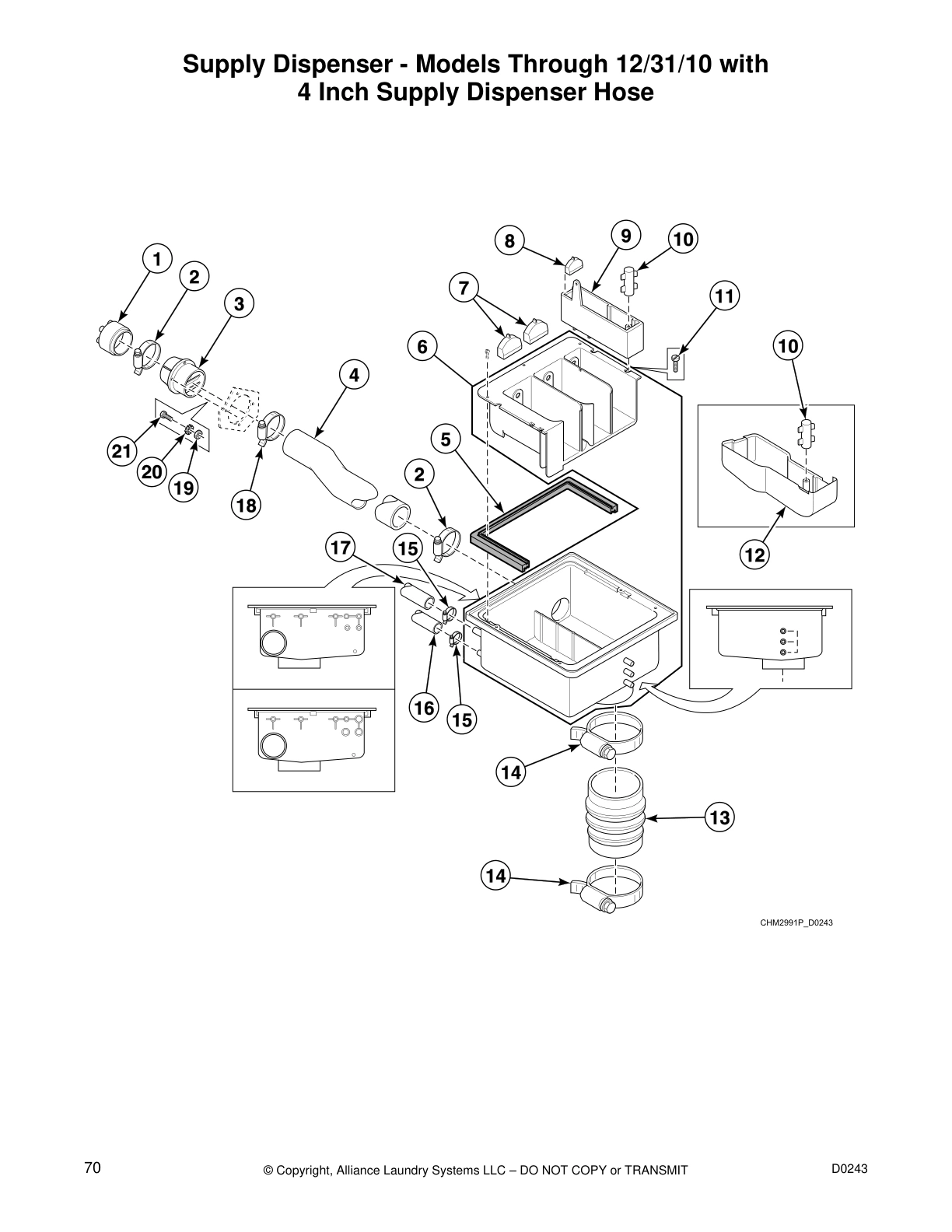

Supply Dispenser - Models Through 12/31/10 with
4 Inch Supply Dispenser Hose

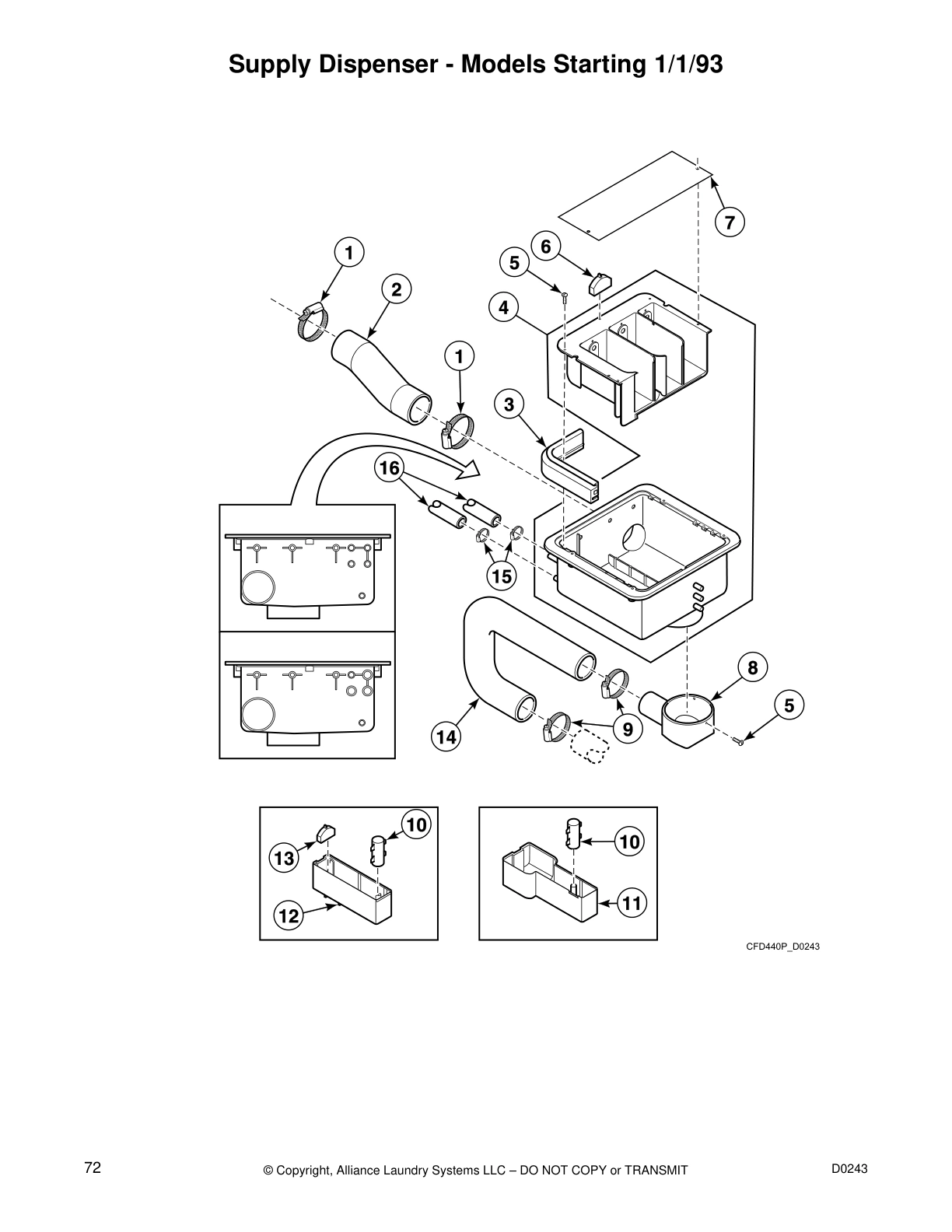

Supply Dispenser - Models Starting 1/1/93

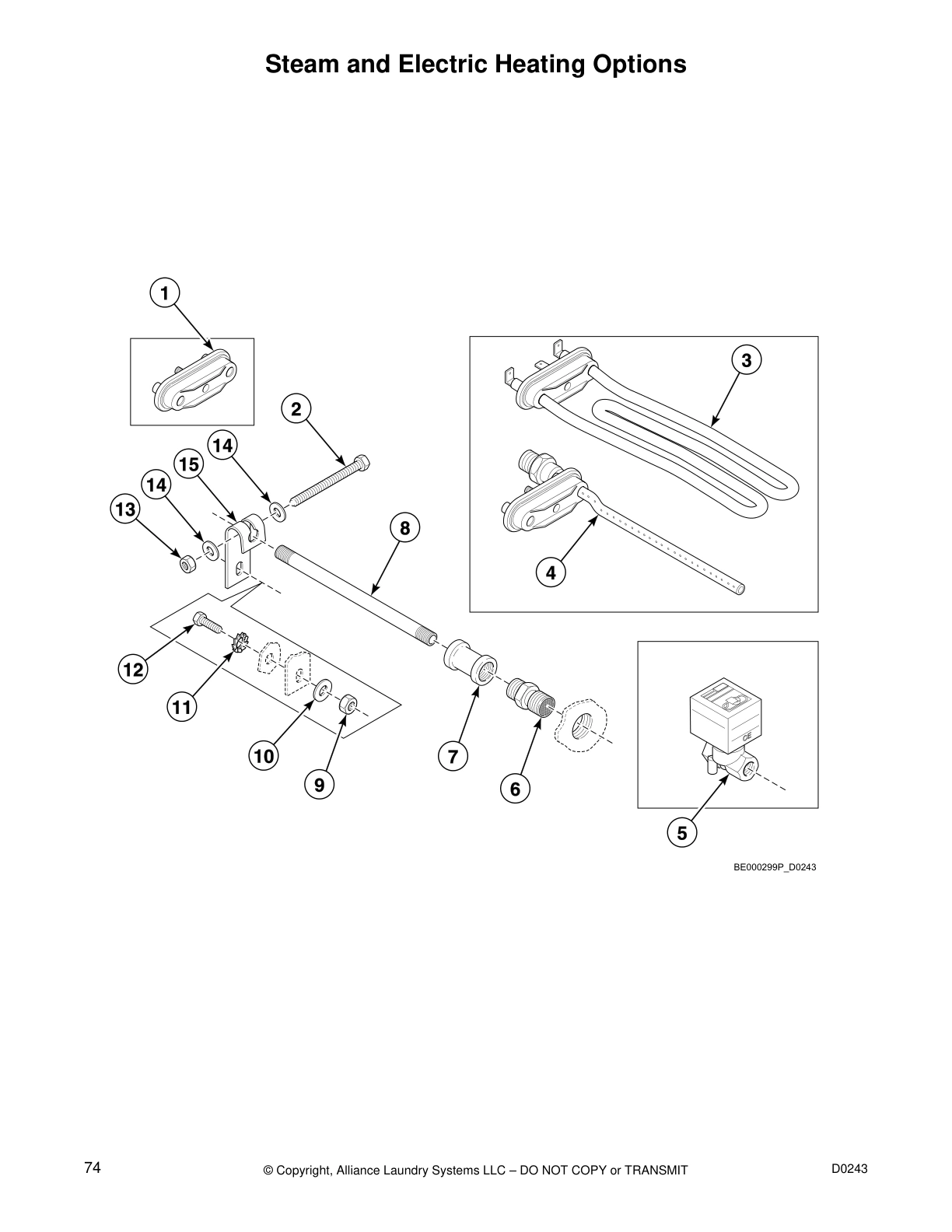

Steam and Electric Heating Options

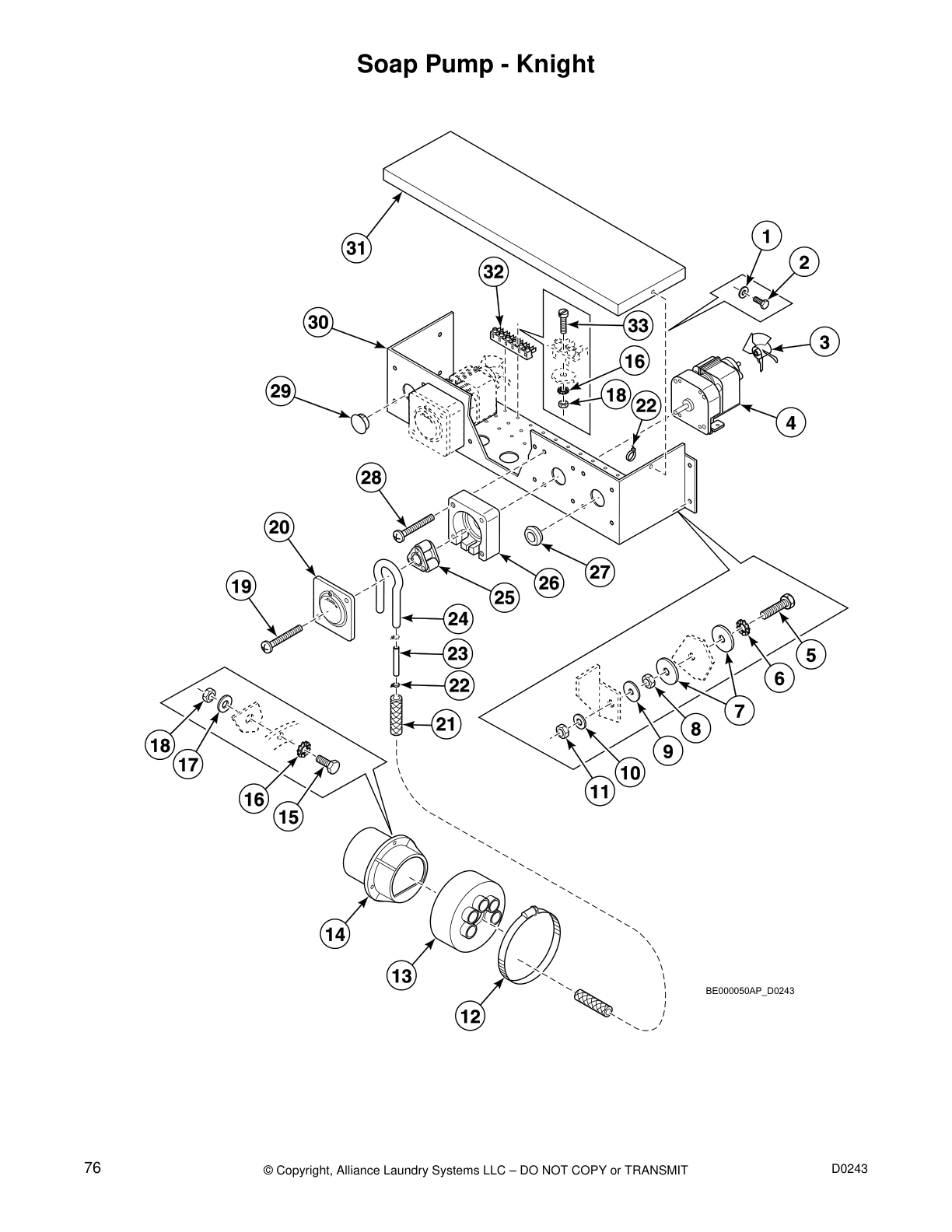

Soap Pump - Knight

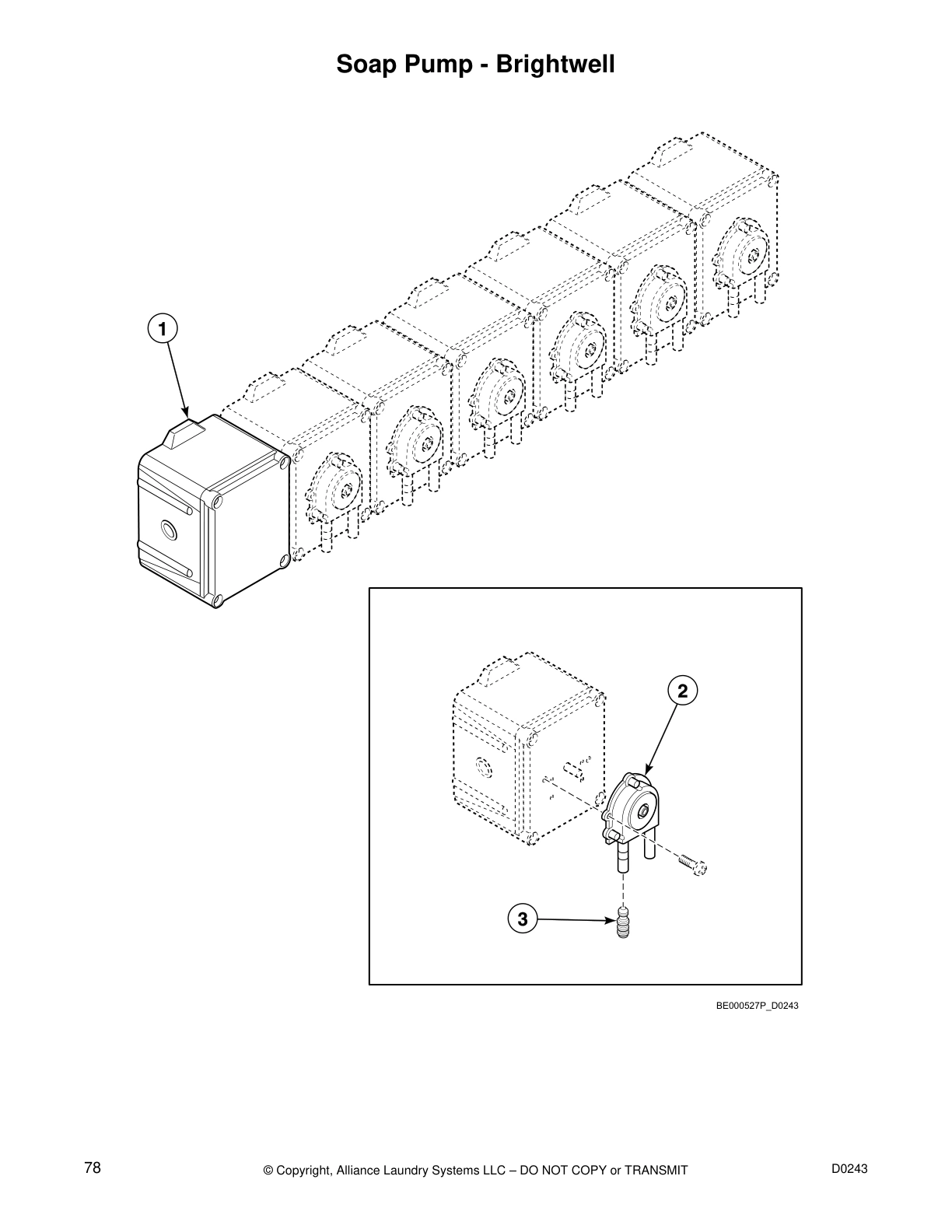

Soap Pump - Brightwell
Common parts from model IPSO IWE040MC2 Washer
SPQ F8421210 SPQ F8421210 Contact Us For Availability
SPQ 209/00402/03 SPQ 209/00402/03 Contact Us For Availability
SPQ 209/00229/00 SPQ 209/00229/00 Contact Us For Availability
SPQ 209/00111/10 SPQ 209/00111/10 Contact Us For Availability
SPQ 209/00576/00 SPQ 209/00576/00 Contact Us For Availability
SPQ 209/00390/00 SPQ 209/00390/00 Contact Us For Availability
SPQ 209/00387/00 SPQ 209/00387/00 Contact Us For Availability
SPQ 209/00064/00 SPQ 209/00064/00 Contact Us For Availability
SPQ 209/00375/00 SPQ 209/00375/00 Contact Us For Availability
SPQ 209/00278/00 SPQ 209/00278/00 Contact Us For Availability
SPQ 209/00156/00 SPQ 209/00156/00 Contact Us For Availability
SPQ 209/00070/00 SPQ 209/00070/00 Contact Us For Availability
SPQ 209/00060/00 SPQ 209/00060/00 Contact Us For Availability
SPQ 209/00061/00 SPQ 209/00061/00 Contact Us For Availability
SPQ 209/00279/00 SPQ 209/00279/00 Contact Us For Availability
SPQ 209/00554/01 SPQ 209/00554/01 Contact Us For Availability
1
Base SPQ 214/00013/60 Contact Us For Availability
1
Motor Axle SPQ 126/00052/00 Contact Us For Availability
1
Inverter Drive SPQ F8421310 Contact Us For Availability
1
Drain Valve Motor Mounting Plate SPQ 209/00025/07 Contact Us For Availability
1
Tub Front Gasket SPQ 223/00242/00 Contact Us For Availability
1
Door Glass SPQ B12449801 Contact Us For Availability
1
Lever Spring SPQ 224/00040/00 Contact Us For Availability
1
Circuit Board Cover SPQ 229/00262/00 Contact Us For Availability
1
Bolt SPQ 206/00033/00 Contact Us For Availability
1
Coin Meter SPQ 209/00442/00 Contact Us For Availability
1
Coin Meter SPQ 209/00553/00 Contact Us For Availability
1
Bolt SPQ 206/00099/00 Contact Us For Availability
1
Soap Pump Assembly SPQ 209/00554/06 Contact Us For Availability
2
Nut SPQ 214/00013/50 Contact Us For Availability
2
Ring Clip SPQ 203/00003/00 Contact Us For Availability
2
Overflow Hose SPQ 223/00150/00 Contact Us For Availability
2
Washer SPQ 209/00203/21 Contact Us For Availability
2
Valve Axle SPQ 209/00051/11 Contact Us For Availability
2
Outer Cabinet Lock SPQ 211/00070/01 Contact Us For Availability
2
Soap Dispenser Frame SPQ 111/22744/00 Contact Us For Availability
2
Electrical Connection Plate SPQ 111/00094/10 Contact Us For Availability
2
Plug SPQ 205/00113/00 Contact Us For Availability
2
Soap Dispenser Gasket SPQ 223/00107/00 Contact Us For Availability
2
SPQ 206/00035/00 SPQ 206/00035/00 Contact Us For Availability
2
Hose SPQ 209/00554/05 Contact Us For Availability
3
Pipe Clip SPQ 226/00057/00 Contact Us For Availability
3
SPQ 206/00015/00 SPQ 206/00015/00 Contact Us For Availability
3
Valve SPQ 223/00145/00 Contact Us For Availability
3
Drain Housing Gasket SPQ 209/00025/08 Contact Us For Availability
3
Door Hinge Block SPQ 118/00125/00 Contact Us For Availability
3
Door Handle Spring SPQ 217/00013/14 Contact Us For Availability
3
SPQ 211/00070/02 SPQ 211/00070/02 Contact Us For Availability
3
Washer SPQ 204/00201/00 Contact Us For Availability
3
Soap Dispenser Assembly SPQ 223/00109/00 Contact Us For Availability
3
Hose Connector SPQ 209/00554/03 Contact Us For Availability
4
SPQ 118/00117/00 SPQ 118/00117/00 Contact Us For Availability
4
Cylinder Shaft Key SPQ 216/00003/04 Contact Us For Availability
4
SPQ 209/00170/02 SPQ 209/00170/02 Contact Us For Availability
4
Door Hinge Spacer SPQ 204/00106/00 Contact Us For Availability
4
SPQ 210/10015/00 SPQ 210/10015/00 Contact Us For Availability
4
Standoff SPQ 211/00122/00 Contact Us For Availability
4
SPQ 211/00070/04 SPQ 211/00070/04 Contact Us For Availability
4
SPQ 205/00108/00 SPQ 205/00108/00 Contact Us For Availability
4
SPQ 208/00002/00 SPQ 208/00002/00 Contact Us For Availability
4
Lid Seal SPQ 201/00002/00 Contact Us For Availability
4
Protector SPQ 223/00179/10 Contact Us For Availability
4
Soap Spray Nozzle SPQ 223/00107/01 Contact Us For Availability
4
Screw SPQ 223/00102/30 Contact Us For Availability
4
SPQ 118/00105/01 SPQ 118/00105/01 Contact Us For Availability
4
SPQ 209/00413/06 SPQ 209/00413/06 Contact Us For Availability
5
Cross SPQ 206/00003/00 Contact Us For Availability
5
SPQ 118/00119/00 SPQ 118/00119/00 Contact Us For Availability
5
Pulley SPQ 216/00002/04 Contact Us For Availability
5
Bolt SPQ 223/00116/00 Contact Us For Availability
5
Washer SPQ 209/00052/11 Contact Us For Availability
5
SPQ 209/00025/15 SPQ 209/00025/15 Contact Us For Availability
5
SPQ 118/00121/00 SPQ 118/00121/00 Contact Us For Availability
5
Door Handle SPQ 217/00013/12 Contact Us For Availability
5
Door Handle Hook SPQ 217/00013/13 Contact Us For Availability
5
Insulating Sticker SPQ 229/00255/00 Contact Us For Availability
5
SPQ 211/00070/03 SPQ 211/00070/03 Contact Us For Availability
5
SPQ 223/00103/03 SPQ 223/00103/03 Contact Us For Availability
5
SPQ 205/00106/00 SPQ 205/00106/00 Contact Us For Availability
5
SPQ 209/00309/02 SPQ 209/00309/02 Contact Us For Availability
5
Mounting Plate SPQ 223/00001/07 Contact Us For Availability
5
Soap Spray Nozzle SPQ B12347501 Contact Us For Availability
5
SPQ 205/00103/00 SPQ 205/00103/00 Contact Us For Availability
6
SPQ 203/00004/00 SPQ 203/00004/00 Contact Us For Availability
6
SPQ 212/00037/00 SPQ 212/00037/00 Contact Us For Availability
6
SPQ 202/00003/00 SPQ 202/00003/00 Contact Us For Availability
6
Washer SPQ 216/00003/00 Contact Us For Availability
6
SPQ 253/00022/00 SPQ 253/00022/00 Contact Us For Availability
6
Door Handle Catch SPQ 217/00051/13 Contact Us For Availability
6
Telem Sticker SPQ 209/00520/00 Contact Us For Availability
6
Screw SPQ 223/00003/00 Contact Us For Availability
6
Soap Box Assembly Plate SPQ 223/00102/06 Contact Us For Availability
7
Bolt SPQ 203/00001/00 Contact Us For Availability
7
SPQ 207/00008/00 SPQ 207/00008/00 Contact Us For Availability
7
SPQ 226/00062/00 SPQ 226/00062/00 Contact Us For Availability
7
Washer SPQ 206/00014/00 Contact Us For Availability
7
SPQ 209/00025/12 SPQ 209/00025/12 Contact Us For Availability
7
SPQ 217/00009/01 SPQ 217/00009/01 Contact Us For Availability
7
SPQ 203/00010/00 SPQ 203/00010/00 Contact Us For Availability
7
SPQ 202/00104/00 SPQ 202/00104/00 Contact Us For Availability
7
SPQ 208/00104/00 SPQ 208/00104/00 Contact Us For Availability
7
SPQ 117/00042/00 SPQ 117/00042/00 Contact Us For Availability
7
SPQ 209/00299/00 SPQ 209/00299/00 Contact Us For Availability
7
Prewash and Mainwash Nozzle SPQ 223/00001/06 Contact Us For Availability
7
Dispenser Drain Funnel SPQ 123/00103/06 Contact Us For Availability
7
SPQ 202/00108/00 SPQ 202/00108/00 Contact Us For Availability
8
SPQ 204/00005/00 SPQ 204/00005/00 Contact Us For Availability
8
SPQ 226/00115/00 SPQ 226/00115/00 Contact Us For Availability
8
SPQ 209/00025/02 SPQ 209/00025/02 Contact Us For Availability
8
SPQ 117/00010/00 SPQ 117/00010/00 Contact Us For Availability
8
SPQ 207/00112/00 SPQ 207/00112/00 Contact Us For Availability
8
SPQ 118/00124/00 SPQ 118/00124/00 Contact Us For Availability
8
Upper Front Panel SPQ 111/00181/00 Contact Us For Availability
8
SPQ 211/00071/00 SPQ 211/00071/00 Contact Us For Availability
8
SPQ 203/00005/00 SPQ 203/00005/00 Contact Us For Availability
8
SPQ 209/00265/00 SPQ 209/00265/00 Contact Us For Availability
8
SPQ 223/00195/00 SPQ 223/00195/00 Contact Us For Availability
9
SPQ 212/00006/00 SPQ 212/00006/00 Contact Us For Availability
9
SPQ 206/00011/00 SPQ 206/00011/00 Contact Us For Availability
9
SPQ 212/00016/02 SPQ 212/00016/02 Contact Us For Availability
9
SPQ 206/00056/00 SPQ 206/00056/00 Contact Us For Availability
9
SPQ 223/00013/00 SPQ 223/00013/00 Contact Us For Availability
9
SPQ 207/00009/00 SPQ 207/00009/00 Contact Us For Availability
9
SPQ 207/00126/00 SPQ 207/00126/00 Contact Us For Availability
9
Door Locking Grip SPQ 217/00013/07 Contact Us For Availability
9
Front Panel SPQ 225/00291/AOL Contact Us For Availability
9
SPQ 204/00107/00 SPQ 204/00107/00 Contact Us For Availability
9
SPQ 204/00006/00 SPQ 204/00006/00 Contact Us For Availability
9
SPQ 223/00001/04 SPQ 223/00001/04 Contact Us For Availability
9
SPQ 202/00106/00 SPQ 202/00106/00 Contact Us For Availability
10
Washer SPQ 201/00201/00 Contact Us For Availability
10
Tub Front Panel Clip SPQ 217/00008/00 Contact Us For Availability
10
Drain Valve Spring SPQ 209/00025/03 Contact Us For Availability
10
Washer SPQ 202/00101/00 Contact Us For Availability
10
Washer SPQ 201/00018/00 Contact Us For Availability
10
Door Axle Roller SPQ 217/00013/05 Contact Us For Availability
10
Sticker SPQ 225/00308/00 Contact Us For Availability
10
Washer SPQ 208/00009/00 Contact Us For Availability
10
Injector SPQ 223/00001/05 Contact Us For Availability
10
Soap Dispenser Rinse Siphon SPQ 223/00102/04 Contact Us For Availability
10
Washer SPQ 201/00007/00 Contact Us For Availability
11
Tub Front Panel SPQ 118/00117/03 Contact Us For Availability
11
Washer SPQ 201/00001/00 Contact Us For Availability
11
Drain Pipe SPQ 223/00105/00 Contact Us For Availability
11
Screw SPQ 209/00025/09 Contact Us For Availability
11
O-Ring SPQ 217/00021/00 Contact Us For Availability
11
Nut SPQ 204/00009/00 Contact Us For Availability
11
Nut SPQ 204/00008/00 Contact Us For Availability
11
Bolt SPQ 206/00016/00 Contact Us For Availability
11
Separator Plate SPQ 223/00001/03 Contact Us For Availability
11
Liquid Soap Dispenser Insert SPQ 223/00102/08 Contact Us For Availability
12
O-Ring SPQ 217/00002/00 Contact Us For Availability
12
Pulley SPQ 226/00058/00 Contact Us For Availability
12
Hose Clamp SPQ 223/00014/00 Contact Us For Availability
12
Protection Block SPQ 217/00017/02 Contact Us For Availability
12
Plexi Frame SPQ 225/00316/00 Contact Us For Availability
12
Lower Front Panel SPQ 111/00282/00 Contact Us For Availability
12
Lower Front Panel SPQ 111/00283/00 Contact Us For Availability
12
Soap Dispenser SPQ 223/00001/01 Contact Us For Availability
12
Rinse Insert SPQ 223/00102/03 Contact Us For Availability
12
Nut SPQ 206/00013/00 Contact Us For Availability
13
Steam Injector Plate Assembly SPQ 204/00004/00 Contact Us For Availability
13
Rivet SPQ 206/00017/00 Contact Us For Availability
13
Motor Mounting Plate SPQ 152/00054/10 Contact Us For Availability
13
Drain Valve SPQ 209/00256/00 Contact Us For Availability
13
Screw SPQ 207/00108/00 Contact Us For Availability
13
Hook SPQ 111/00001/00 Contact Us For Availability
13
Screw SPQ 207/00014/00 Contact Us For Availability
13
Liquid Soap Hose SPQ 223/00160/00 Contact Us For Availability
13
Softener Spray Nozzle SPQ 223/00102/05 Contact Us For Availability
13
Hose SPQ 223/00115/00 Contact Us For Availability
14
Bolt SPQ 205/00104/00 Contact Us For Availability
14
Screw SPQ 206/00001/00 Contact Us For Availability
14
Motor Spring SPQ 226/00010/00 Contact Us For Availability
14
Spindle SPQ 126/00051/00 Contact Us For Availability
14
Drain Valve Motor SPQ 209/00170/05 Contact Us For Availability
14
Lock Shaft SPQ 207/00102/00 Contact Us For Availability
14
Pushbutton SPQ 209/00396/00 Contact Us For Availability
14
Hose Vent SPQ 223/00102/07 Contact Us For Availability
14
Terminal Block SPQ 209/00058/00 Contact Us For Availability
14
Hose SPQ 223/00007/00 Contact Us For Availability
14
Hose Clamp SPQ 223/00023/00 Contact Us For Availability
14
Hose SPQ 223/00191/00 Contact Us For Availability
14
Steam Injector SPQ 202/00002/00 Contact Us For Availability
15
Nut SPQ 206/00045/00 Contact Us For Availability
15
Screw SPQ 206/00007/00 Contact Us For Availability
15
Safety Ring SPQ 226/00054/00 Contact Us For Availability
15
Nut SPQ 204/00114/00 Contact Us For Availability
15
Drain Valve Motor Mounting Plate SPQ 209/00203/11 Contact Us For Availability
15
Coil SPQ 209/00203/12 Contact Us For Availability
15
Standoff SPQ 217/00017/03 Contact Us For Availability
15
Contact Switch SPQ 209/00099/06 Contact Us For Availability
15
Outer Coin Box SPQ 211/00100/00 Contact Us For Availability
15
Water Hose SPQ 223/00010/00 Contact Us For Availability
15
Bolt SPQ 206/00027/00 Contact Us For Availability
15
Clamp SPQ 223/00009/00 Contact Us For Availability
15
SPQ 113/00025/00 SPQ 113/00025/00 Contact Us For Availability
16
Tub Ring SPQ 204/00002/00 Contact Us For Availability
16
Bolt SPQ 206/00004/00 Contact Us For Availability
16
Soap Injector Hose SPQ 203/00006/00 Contact Us For Availability
16
Washer SPQ 201/00008/00 Contact Us For Availability
16
Screw SPQ 101/00007/00 Contact Us For Availability
16
Valve Axle SPQ 209/00052/12 Contact Us For Availability
16
Coin Box Ring Assembly SPQ 111/00100/00 Contact Us For Availability
16
Soap Dispenser Air Breather Hose SPQ 223/00044/00 Contact Us For Availability
16
Central Control Board SPQ 209/00438/00 Contact Us For Availability
16
Water Hose SPQ 223/00059/00 Contact Us For Availability
17
Retainer Ring SPQ 201/00012/00 Contact Us For Availability
17
Outer Tub SPQ 201/00005/00 Contact Us For Availability
17
Cordlock SPQ 201/00010/00 Contact Us For Availability
17
Belt Tensioner SPQ 126/00056/00 Contact Us For Availability
17
Grommet SPQ 203/00007/00 Contact Us For Availability
17
Fuse SPQ 209/00439/00 Contact Us For Availability
17
Coin Box Ring SPQ 111/00066/00 Contact Us For Availability
17
Soap Dispenser Cover SPQ 111/23743/00 Contact Us For Availability
17
Ground Terminal SPQ 209/00006/01 Contact Us For Availability
17
Hose SPQ 202/00004/00 Contact Us For Availability
18
Ball Bearing SPQ 204/00001/00 Contact Us For Availability
18
Bolt SPQ 119/00138/00 Contact Us For Availability
18
Grommet SPQ 204/00007/00 Contact Us For Availability
18
Pulley SPQ 203/00002/00 Contact Us For Availability
18
Pin SPQ 217/00020/00 Contact Us For Availability
19
V-Belt SPQ 206/00006/00 Contact Us For Availability
19
Bolt SPQ 211/00105/00 Contact Us For Availability
19
Coin Box Lock SPQ 211/00065/00 Contact Us For Availability
19
Washer SPQ 204/00105/00 Contact Us For Availability
20
SPQ 206/00005/00 SPQ 206/00005/00 Contact Us For Availability
20
Door Glass Seal SPQ 217/00019/00 Contact Us For Availability
20
Front Plate SPQ 111/00068/00 Contact Us For Availability
20
Fuse SPQ 209/00468/00 Contact Us For Availability
21
SPQ 204/00110/00 SPQ 204/00110/00 Contact Us For Availability
21
Coin Box SPQ 211/00101/00 Contact Us For Availability
21
Soap Dispenser Gasket SPQ 207/00106/00 Contact Us For Availability
21
Connection SPQ 223/00179/00 Contact Us For Availability
22
Elbow SPQ 211/00120/00 Contact Us For Availability
22
Spindle SPQ 211/00065/01 Contact Us For Availability
23
Interlock Lever SPQ 224/00049/00 Contact Us For Availability
23
Roll Pin SPQ 206/00038/00 Contact Us For Availability
24
Spring SPQ 111/00069/00 Contact Us For Availability
24
Thermostat Grommet SPQ 201/00006/00 Contact Us For Availability
24
Screw SPQ 209/00413/03 Contact Us For Availability
25
Ground Terminal SPQ 224/00043/00 Contact Us For Availability
25
Inner Coin Box SPQ 208/00013/00 Contact Us For Availability
26
O-Ring SPQ 217/00038/00 Contact Us For Availability
26
Door Lock Microswitch SPQ 217/00052/04 Contact Us For Availability
26
SPQ 208/00007/00 SPQ 208/00007/00 Contact Us For Availability
26
Thermostat Assembly SPQ 223/00011/00 Contact Us For Availability
27
Door Hinge SPQ 209/00023/00 Contact Us For Availability
27
Bolt SPQ 111/00188/03 Contact Us For Availability
27
Fan Motor SPQ 223/00198/00 Contact Us For Availability
27
Protector SPQ 223/00015/00 Contact Us For Availability
28
Plug SPQ 211/00117/00 Contact Us For Availability
28
Door Hinge Spacer SPQ 207/00109/00 Contact Us For Availability
28
Lock SPQ 223/00210/00 Contact Us For Availability
29
Prewash and Mainwash Nozzle SPQ 211/00138/00 Contact Us For Availability
29
SPQ 211/00087/00 SPQ 211/00087/00 Contact Us For Availability
30
SPQ 224/00003/00 SPQ 224/00003/00 Contact Us For Availability
31
SPQ 208/00004/00 SPQ 208/00004/00 Contact Us For Availability
31
SPQ B12500101 SPQ B12500101 Contact Us For Availability
31
Lug Holder SPQ 223/00016/00 Contact Us For Availability
32
SPQ 225/10004/00 SPQ 225/10004/00 Contact Us For Availability
32
SPQ 210/10007/00 SPQ 210/10007/00 Contact Us For Availability
33
SPQ 207/00003/00 SPQ 207/00003/00 Contact Us For Availability
34
SPQ 208/00001/00 SPQ 208/00001/00 Contact Us For Availability
NI
SPQ 114/00006/00 SPQ 114/00006/00 Contact Us For Availability
NI
SPQ KBRGWE234 SPQ KBRGWE234 Contact Us For Availability
NI
SPQ 219/00008/00 SPQ 219/00008/00 Contact Us For Availability
NI
SPQ 201/00003/00 SPQ 201/00003/00 Contact Us For Availability
NI
Inverter Drive Kit SPQ F8421309 Contact Us For Availability
NI
SPQ F8421209 SPQ F8421209 Contact Us For Availability
NI
SPQ 209/00025/06 SPQ 209/00025/06 Contact Us For Availability
NI
SPQ 209/00414/00 SPQ 209/00414/00 Contact Us For Availability
NI
SPQ 209/00389/00 SPQ 209/00389/00 Contact Us For Availability
NI
SPQ 209/00119/00 SPQ 209/00119/00 Contact Us For Availability
NI
SPQ 209/00065/00 SPQ 209/00065/00 Contact Us For Availability
NI
SPQ 209/00469/00 SPQ 209/00469/00 Contact Us For Availability
NI
SPQ 209/00388/00 SPQ 209/00388/00 Contact Us For Availability
NI
SPQ 209/00120/00 SPQ 209/00120/00 Contact Us For Availability
NI
SPQ 209/00402/01 SPQ 209/00402/01 Contact Us For Availability
NI
SPQ 209/00166/00 SPQ 209/00166/00 Contact Us For Availability
NI
Coin Drop SPQ 209/00522/00 Contact Us For Availability
NI
SPQ 209/00216/00 SPQ 209/00216/00 Contact Us For Availability
NI
SPQ 209/00121/00 SPQ 209/00121/00 Contact Us For Availability
NI
SPQ 209/00062/00 SPQ 209/00062/00 Contact Us For Availability
NI
SPQ 209/00068/00 SPQ 209/00068/00 Contact Us For Availability
NI
SPQ 209/00069/00 SPQ 209/00069/00 Contact Us For Availability
NI
SPQ 209/00072/00 SPQ 209/00072/00 Contact Us For Availability
NI
SPQ 111/00002/00 SPQ 111/00002/00 Contact Us For Availability
NI
SPQ 206/00101/00 SPQ 206/00101/00 Contact Us For Availability
NI
SPQ 209/00263/00 SPQ 209/00263/00 Contact Us For Availability
NI
SPQ 209/00452/02 SPQ 209/00452/02 Contact Us For Availability
NI
SPQ 209/00554/02 SPQ 209/00554/02 Contact Us For Availability
NI
SPQ 209/00554/98 SPQ 209/00554/98 Contact Us For Availability
NI
SPQ 209/00554/99 SPQ 209/00554/99 Contact Us For Availability
× ![]()
