Model Ipso ITT30S Dryer – Common Parts & Diagrams

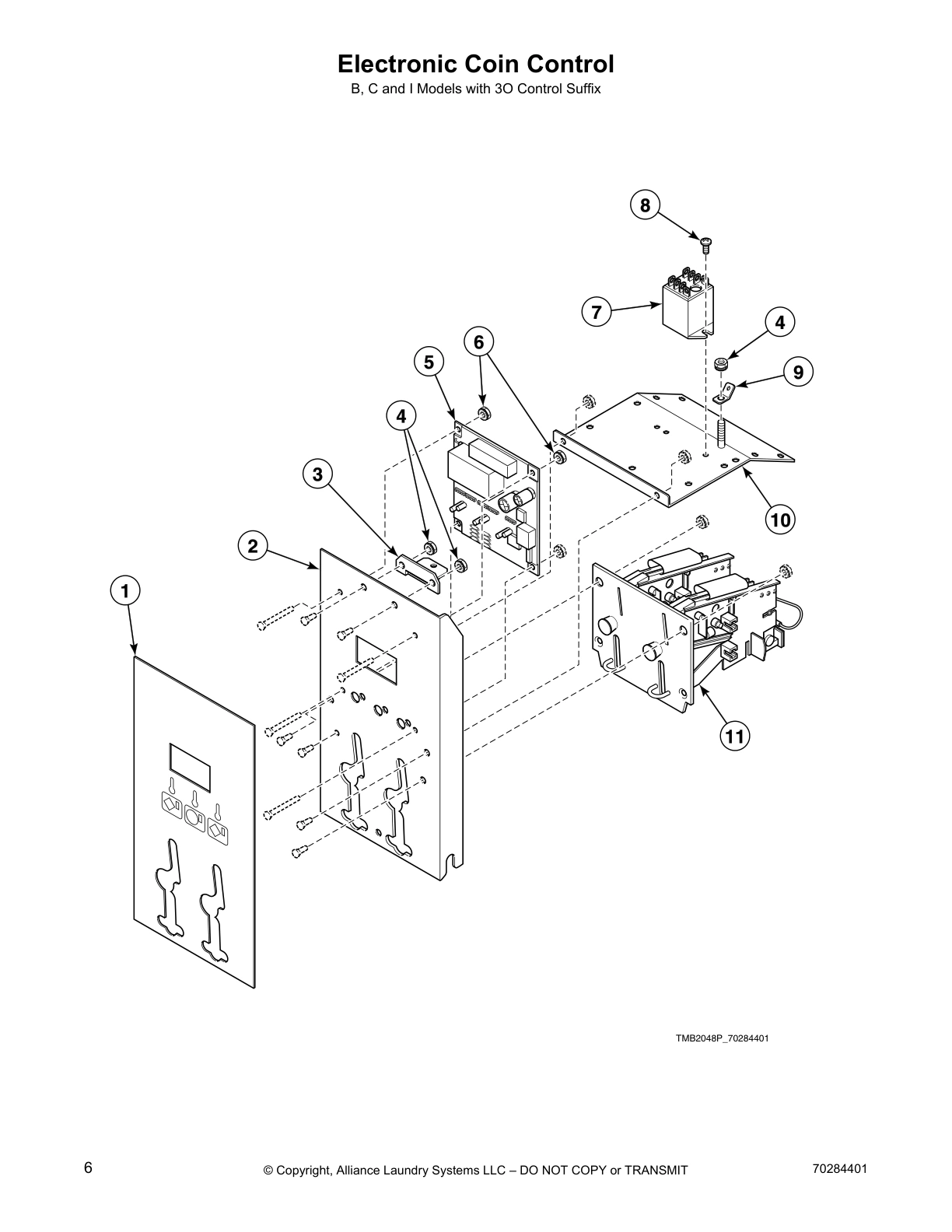

Electronic Coin Control

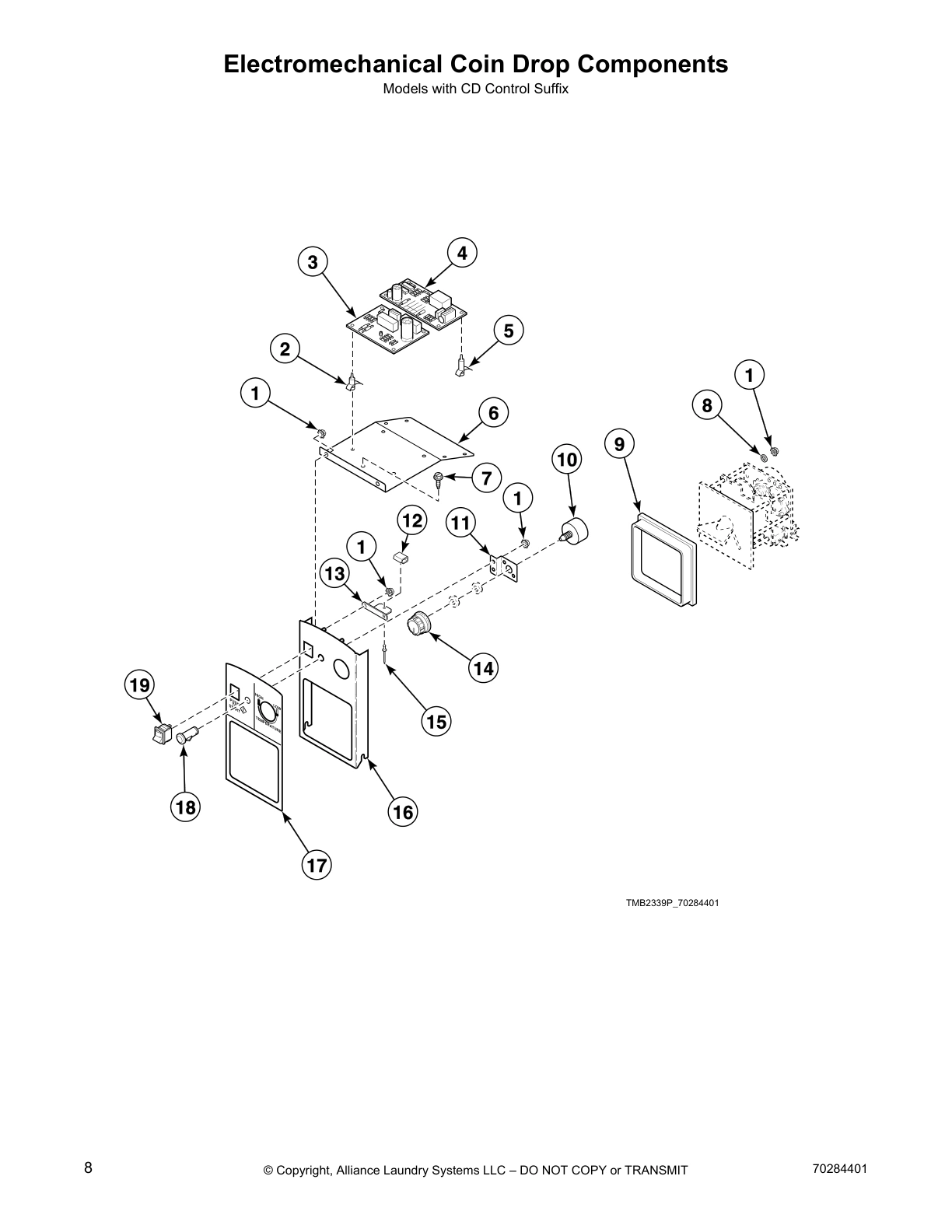

Electromechanical Coin Drop Components

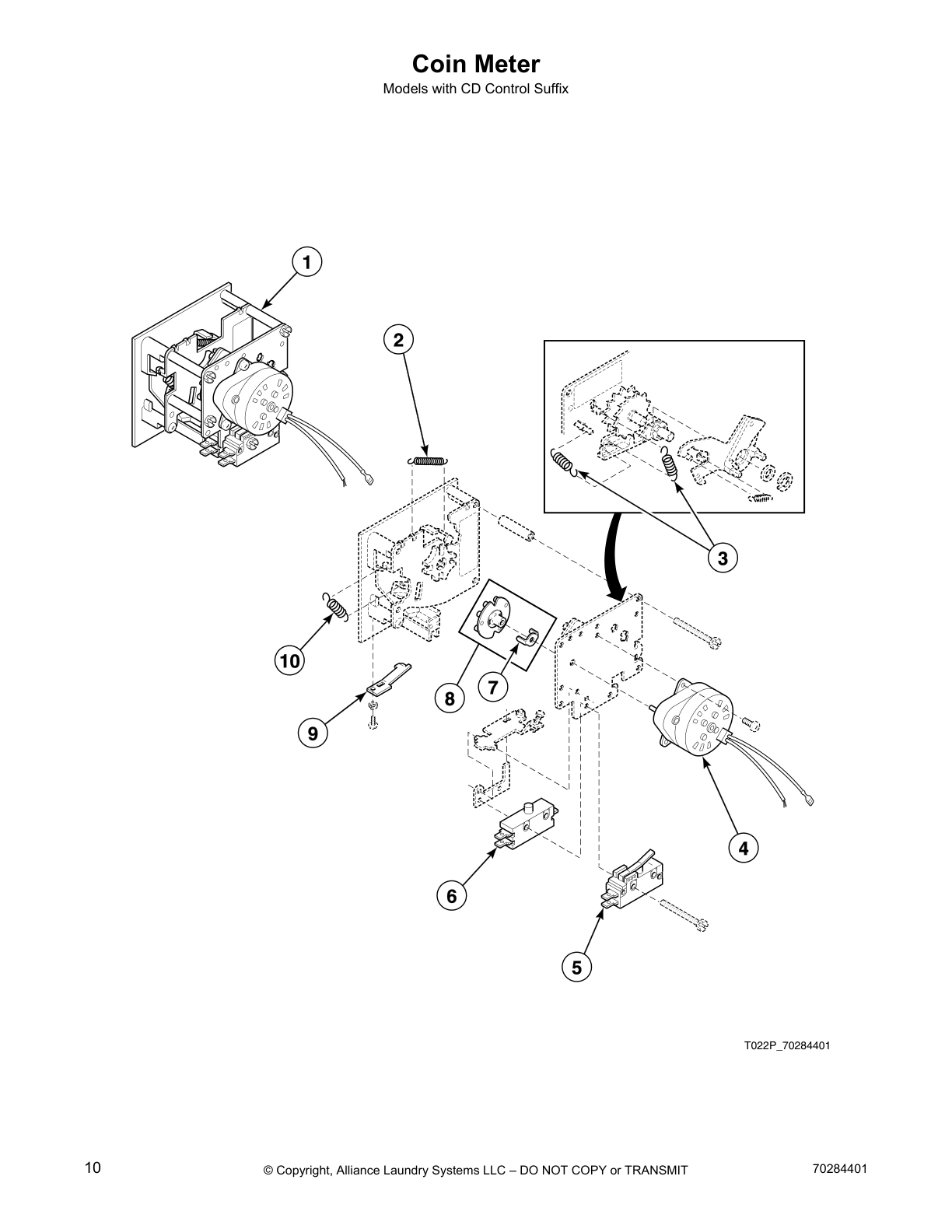

Coin Meter

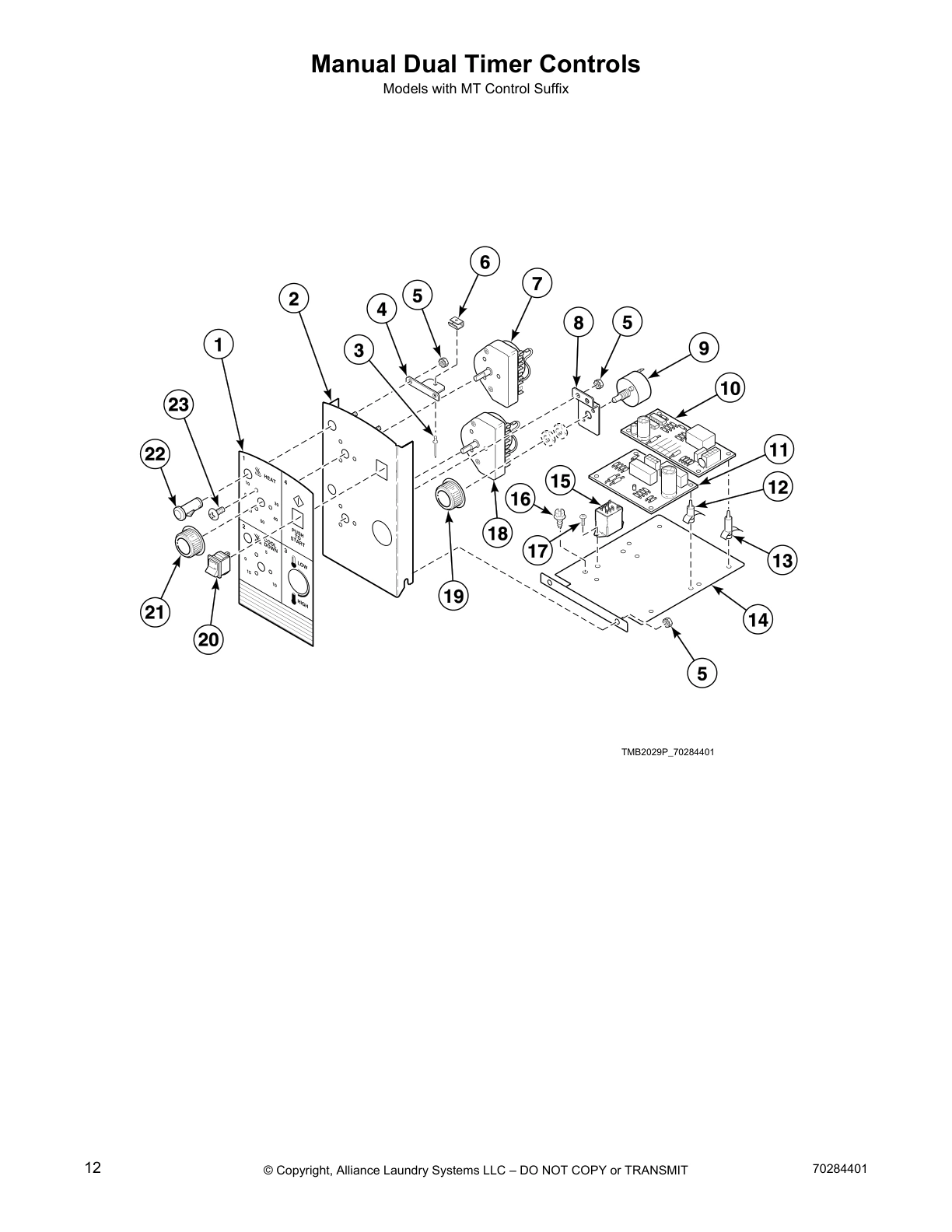

Manual Dual Timer Controls

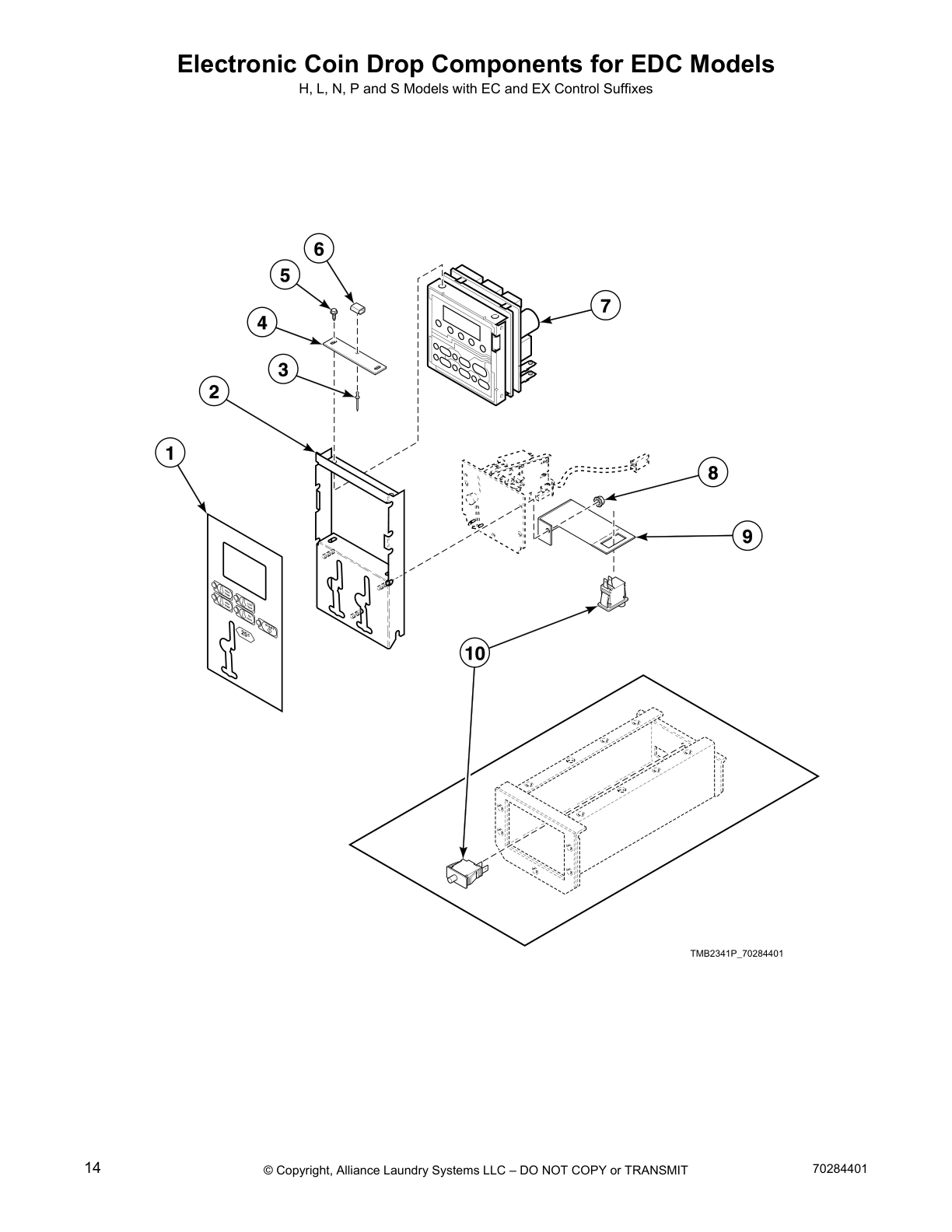

Electronic Coin Drop Components for EDC Models

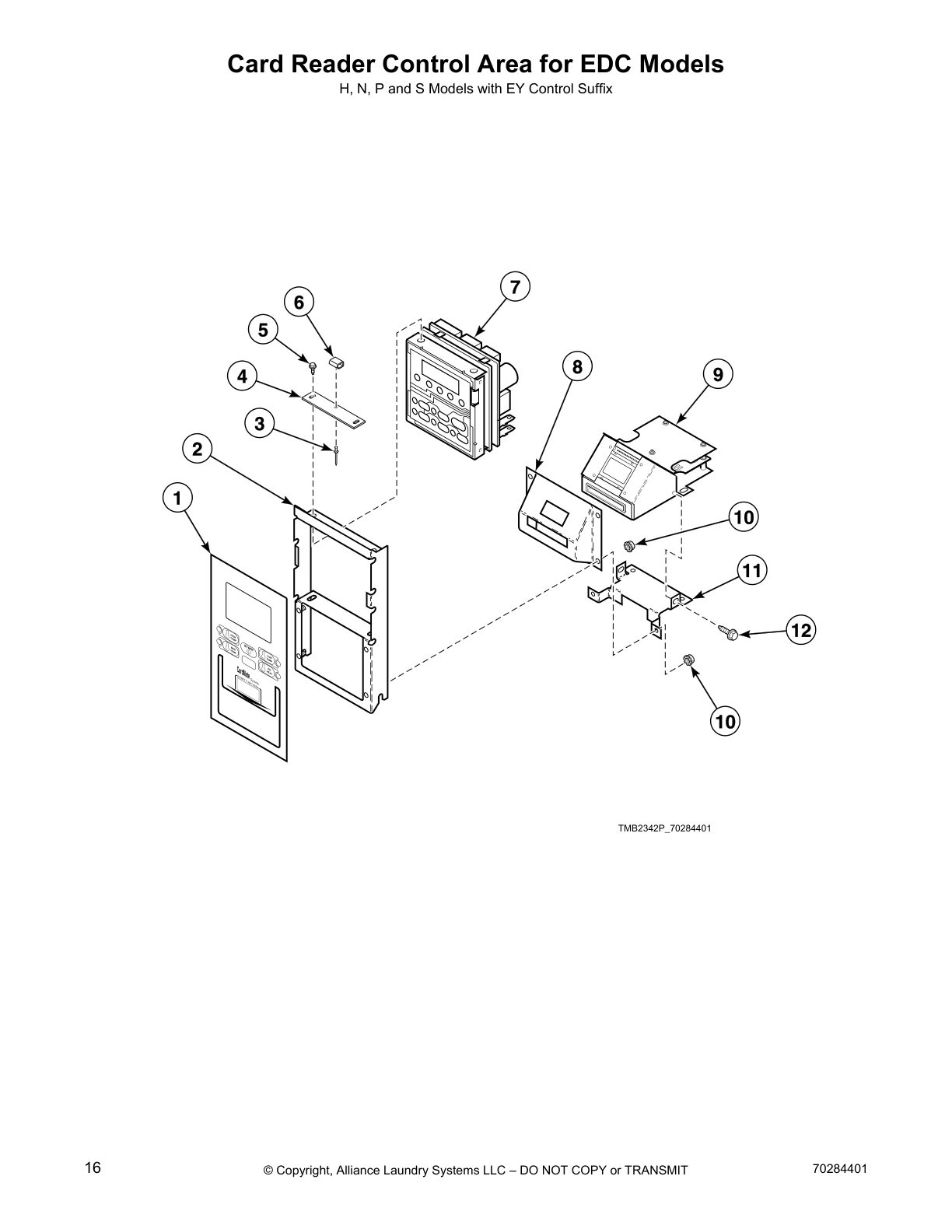

Card Reader Control Area for EDC Models

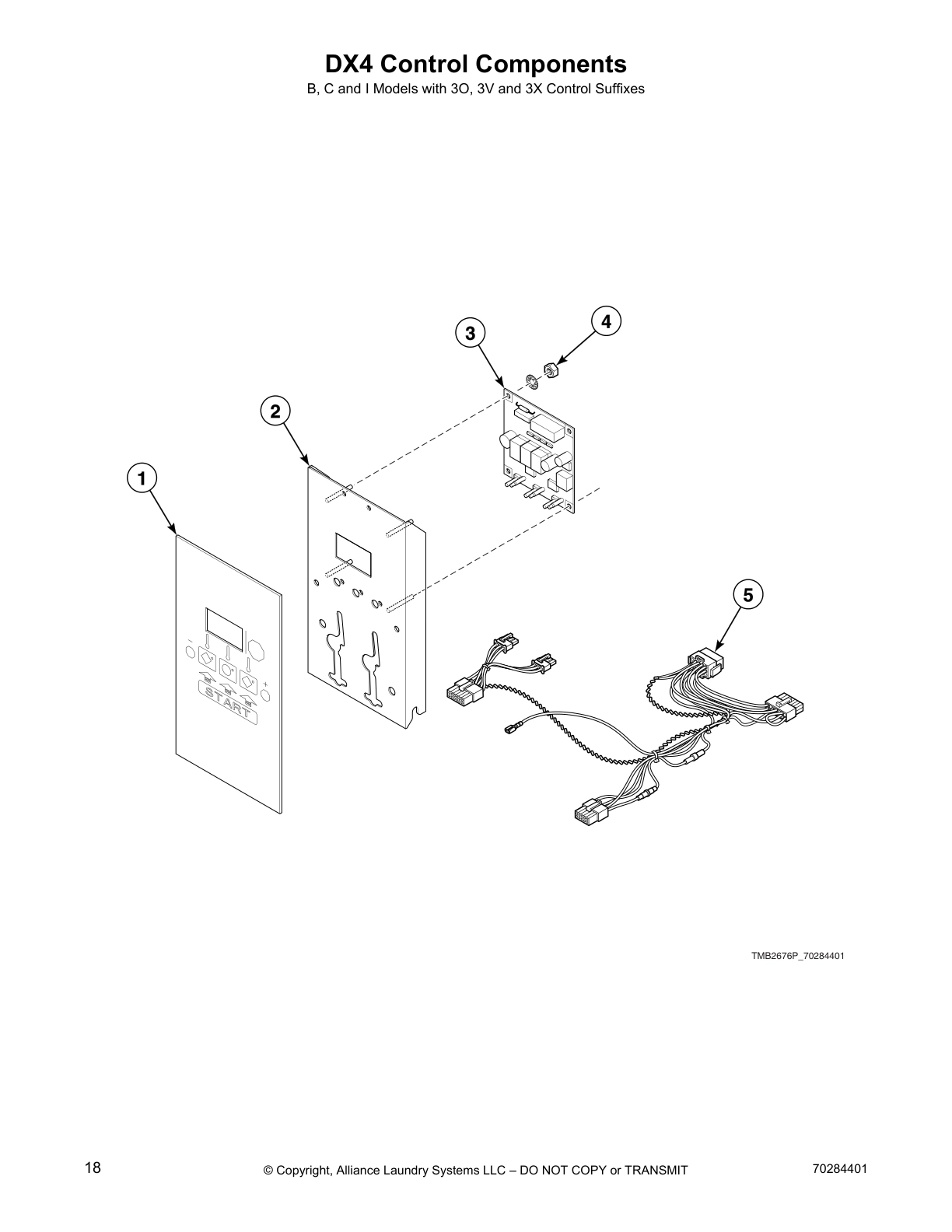

DX4 Control Components

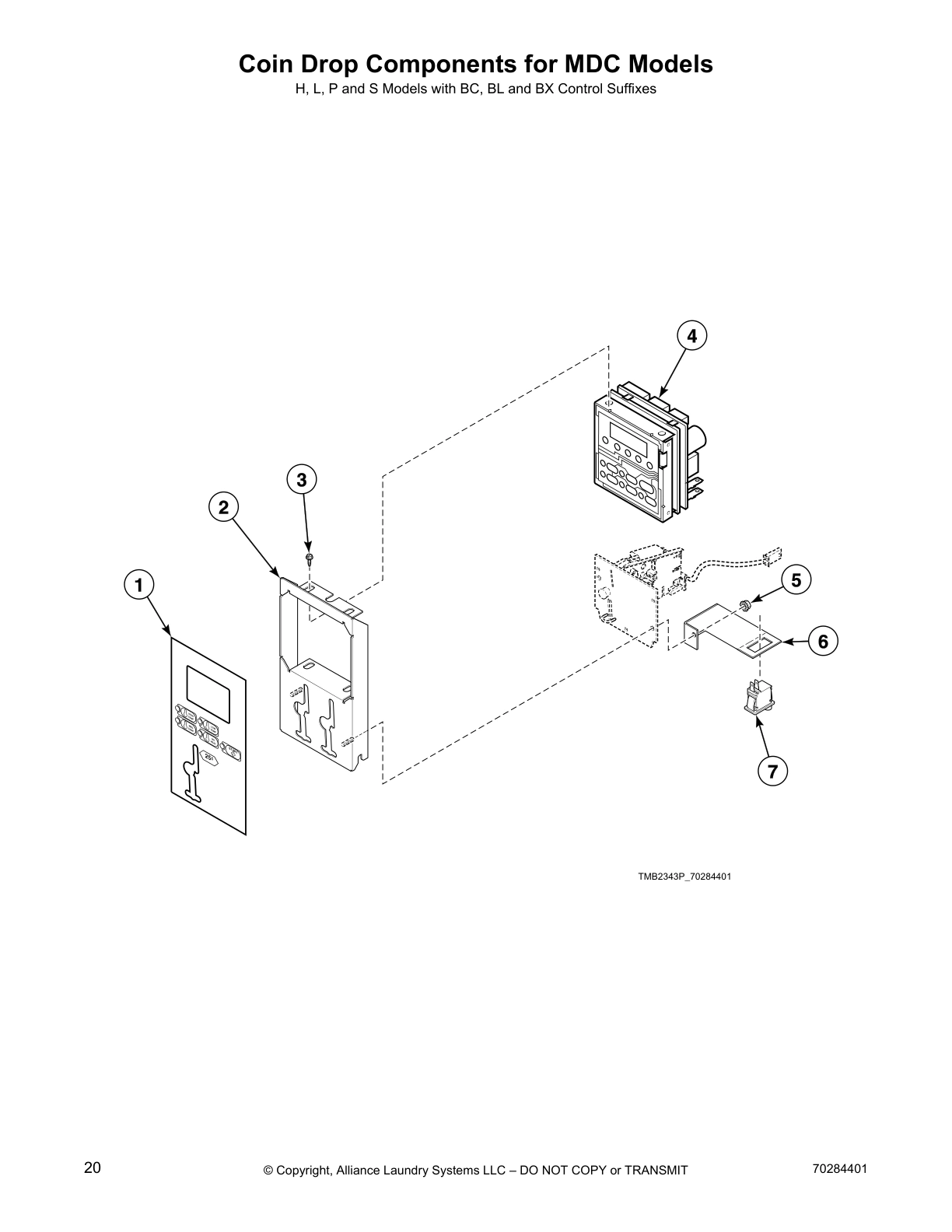

Coin Drop Components for MDC Models

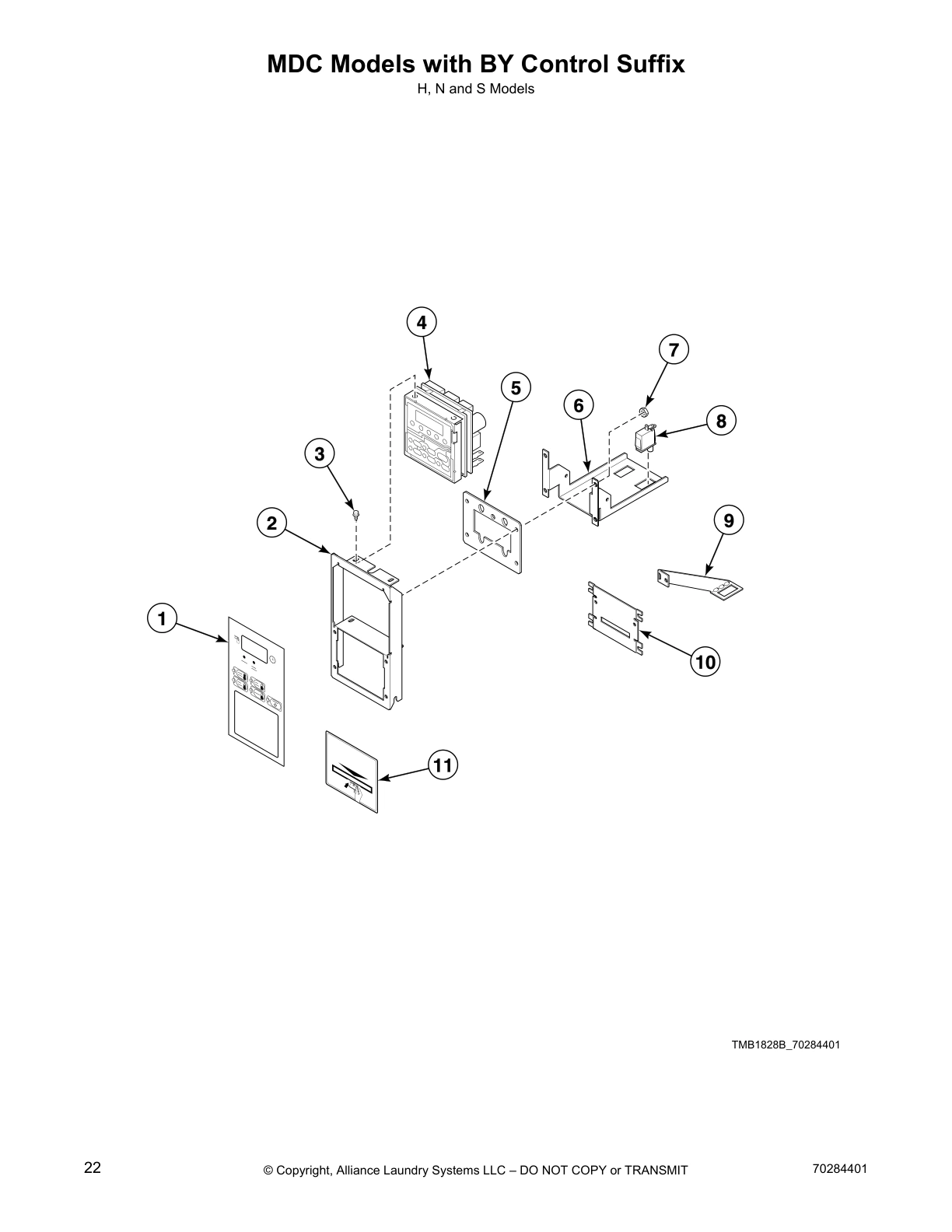

MDC Models with BY Control Suffix

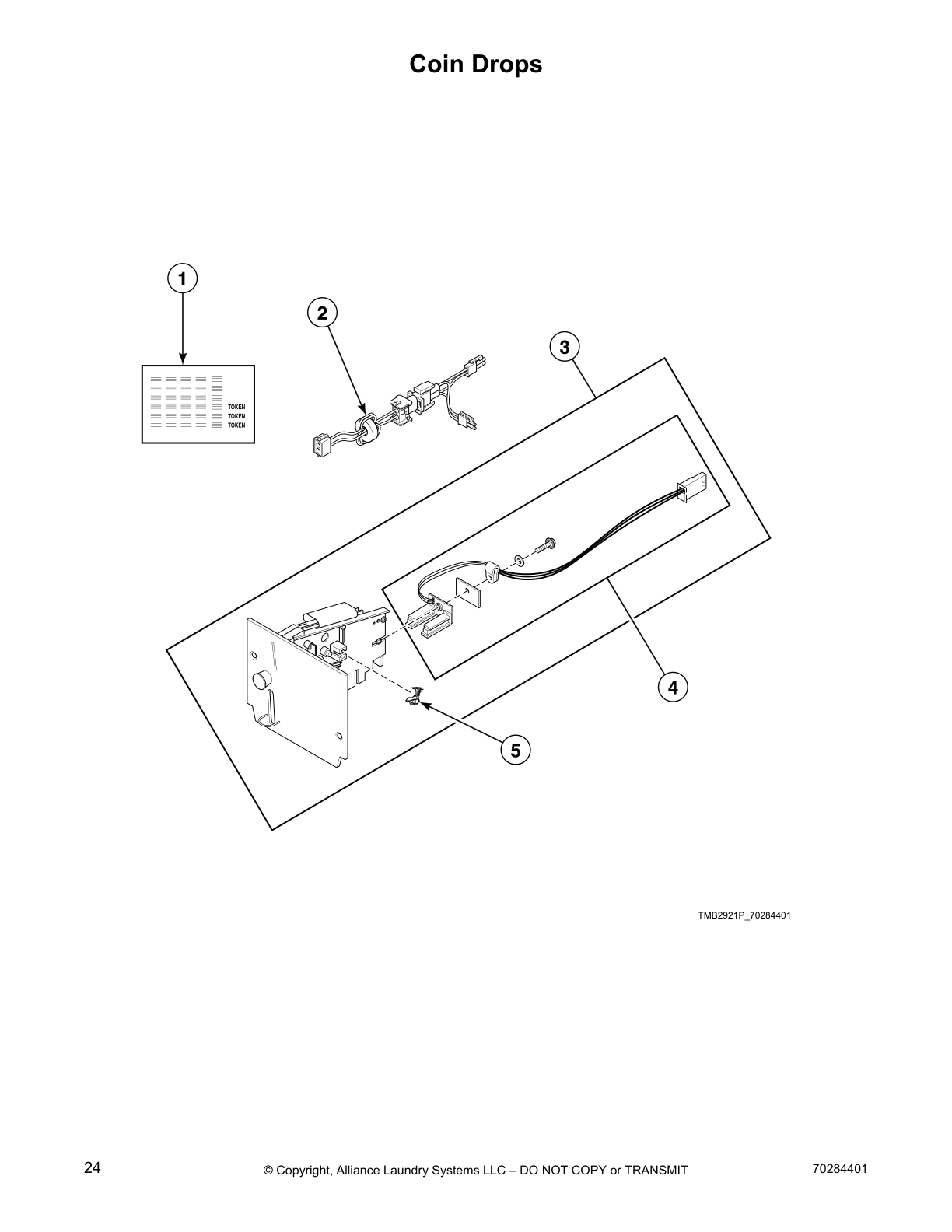

Coin Drops

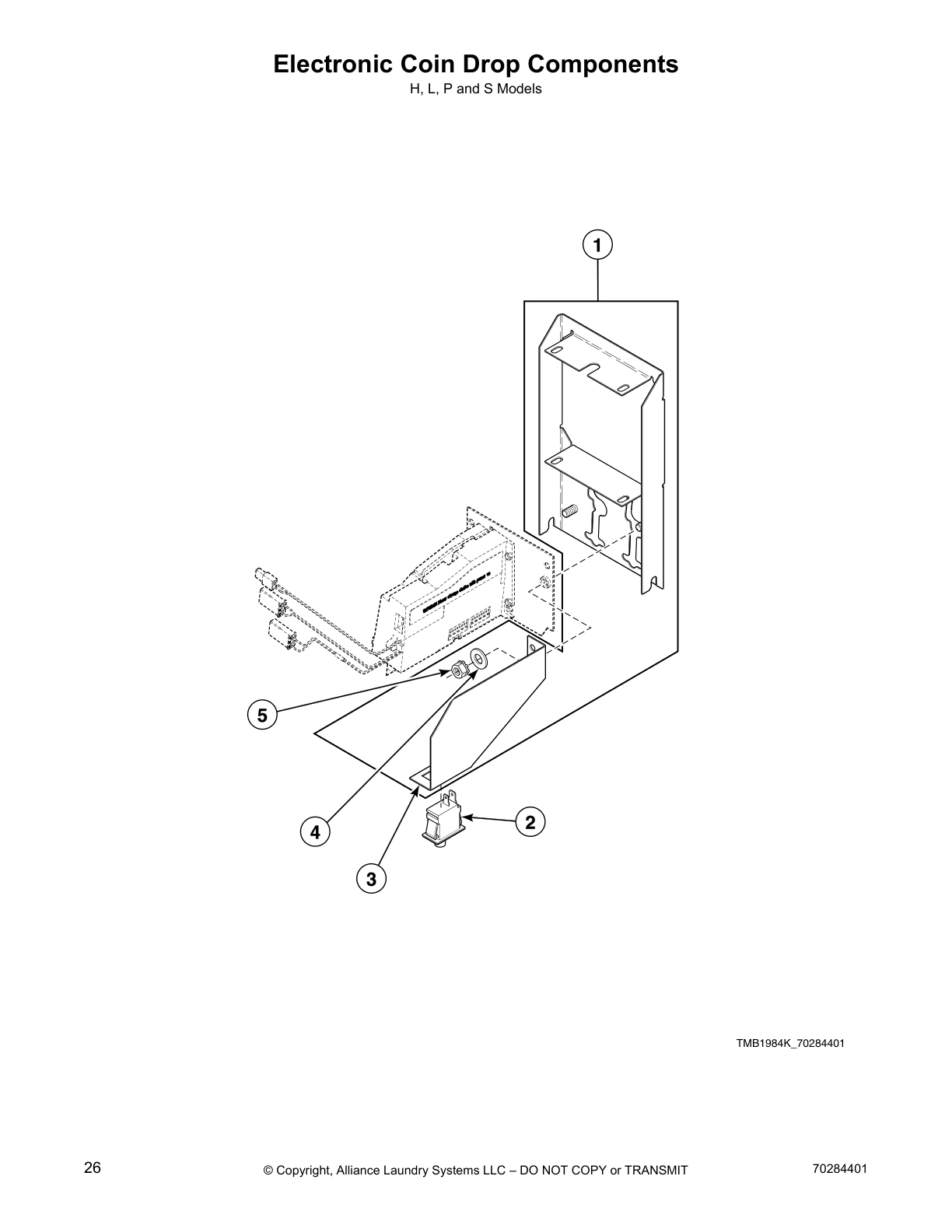

Electronic Coin Drop Components

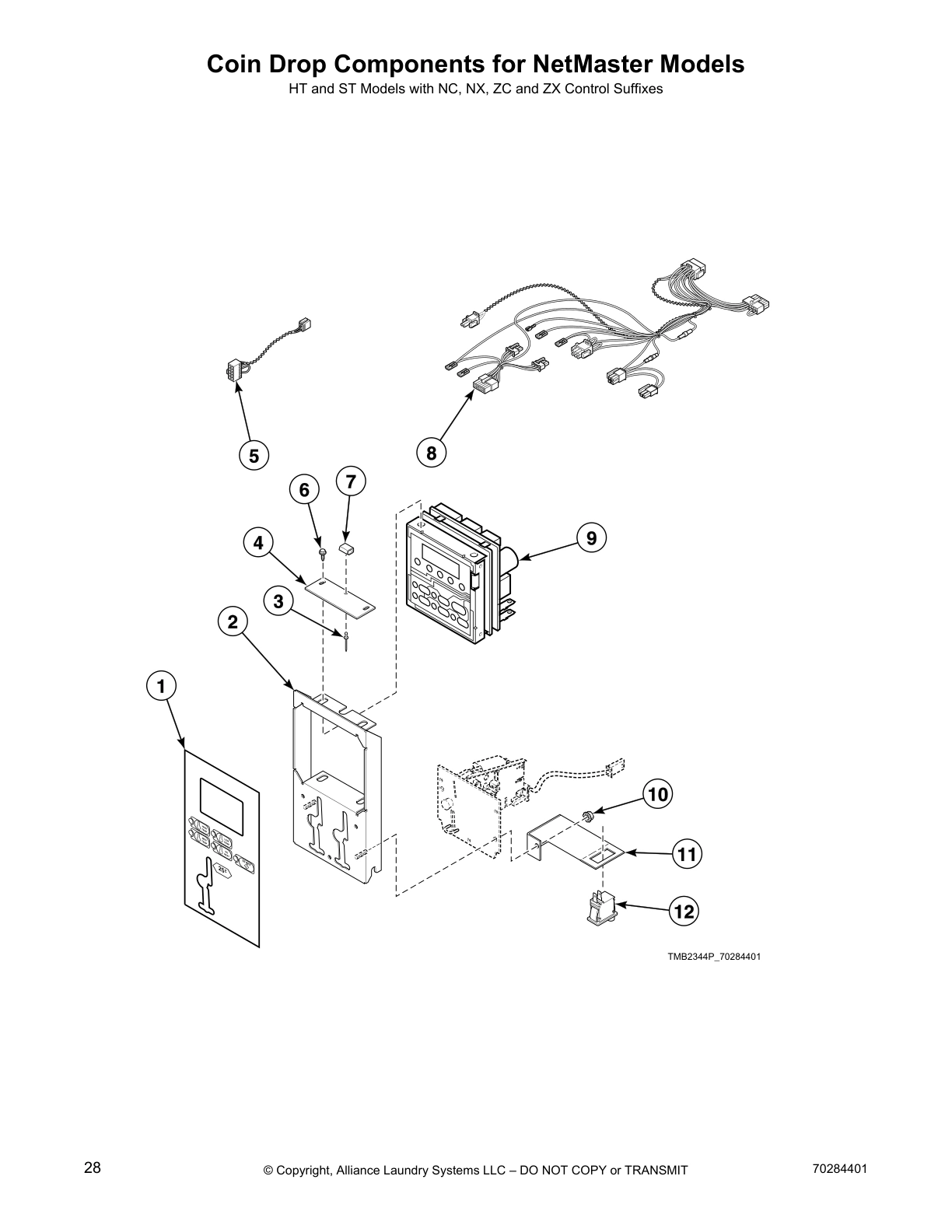

Coin Drop Components for NetMaster Models

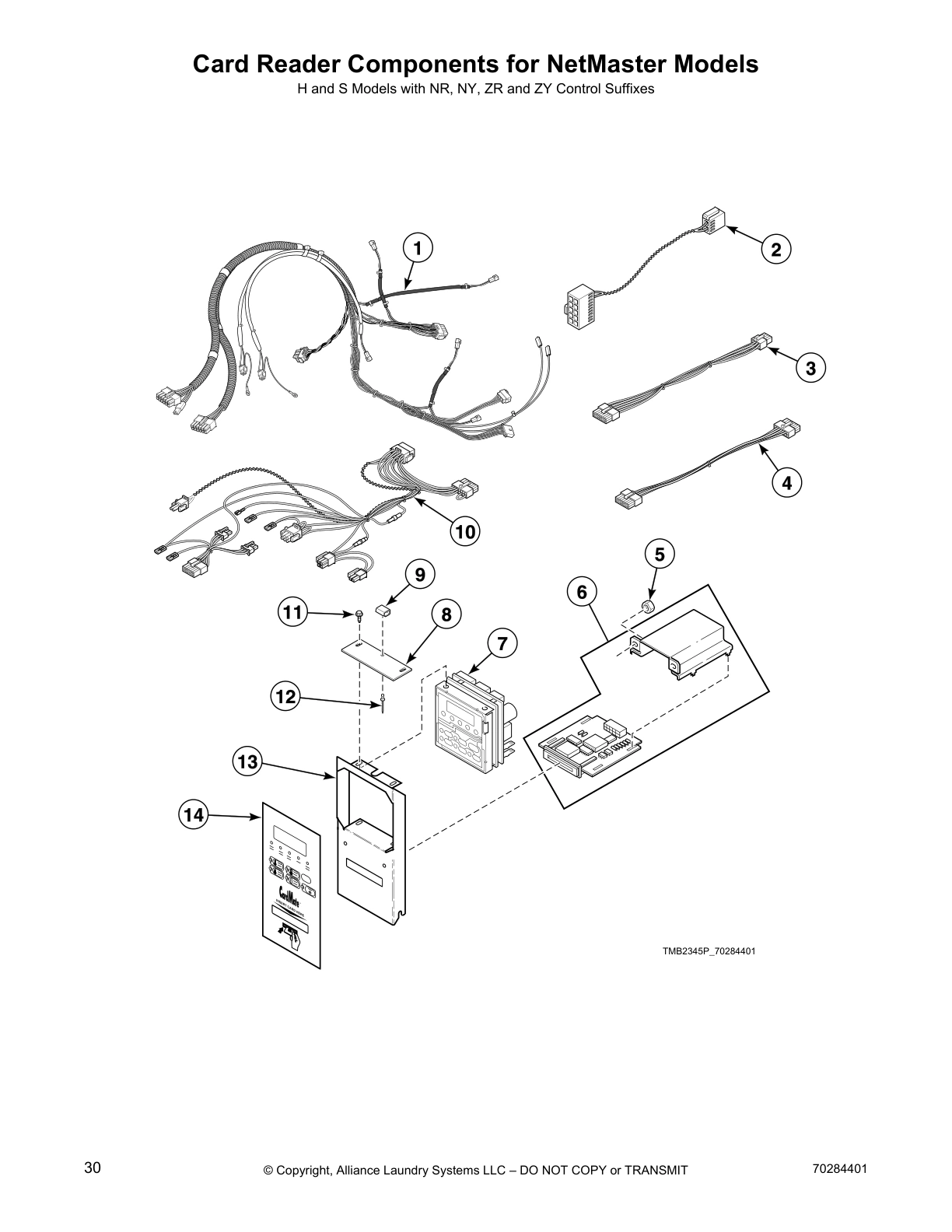

Card Reader Components for NetMaster Models

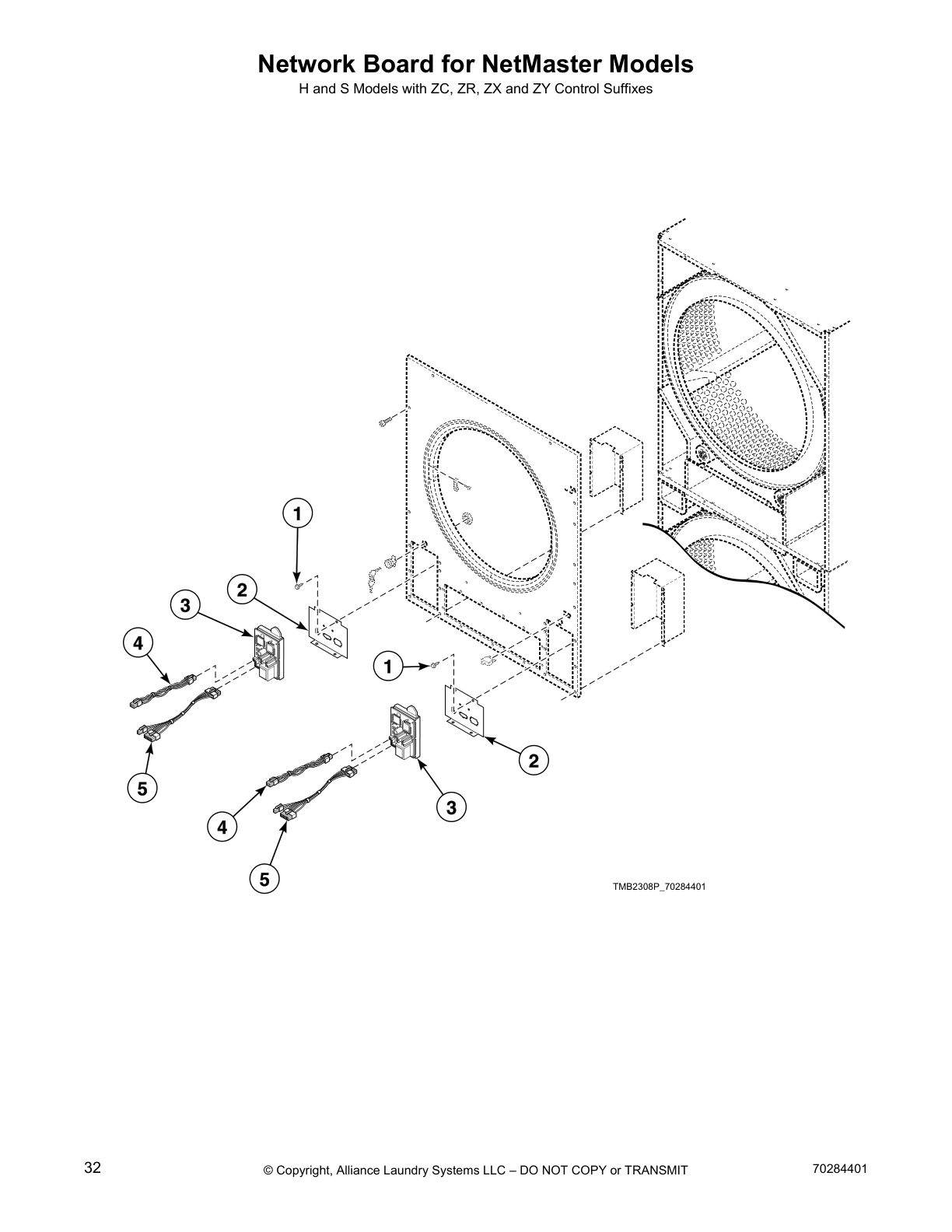

Network Board for NetMaster Models

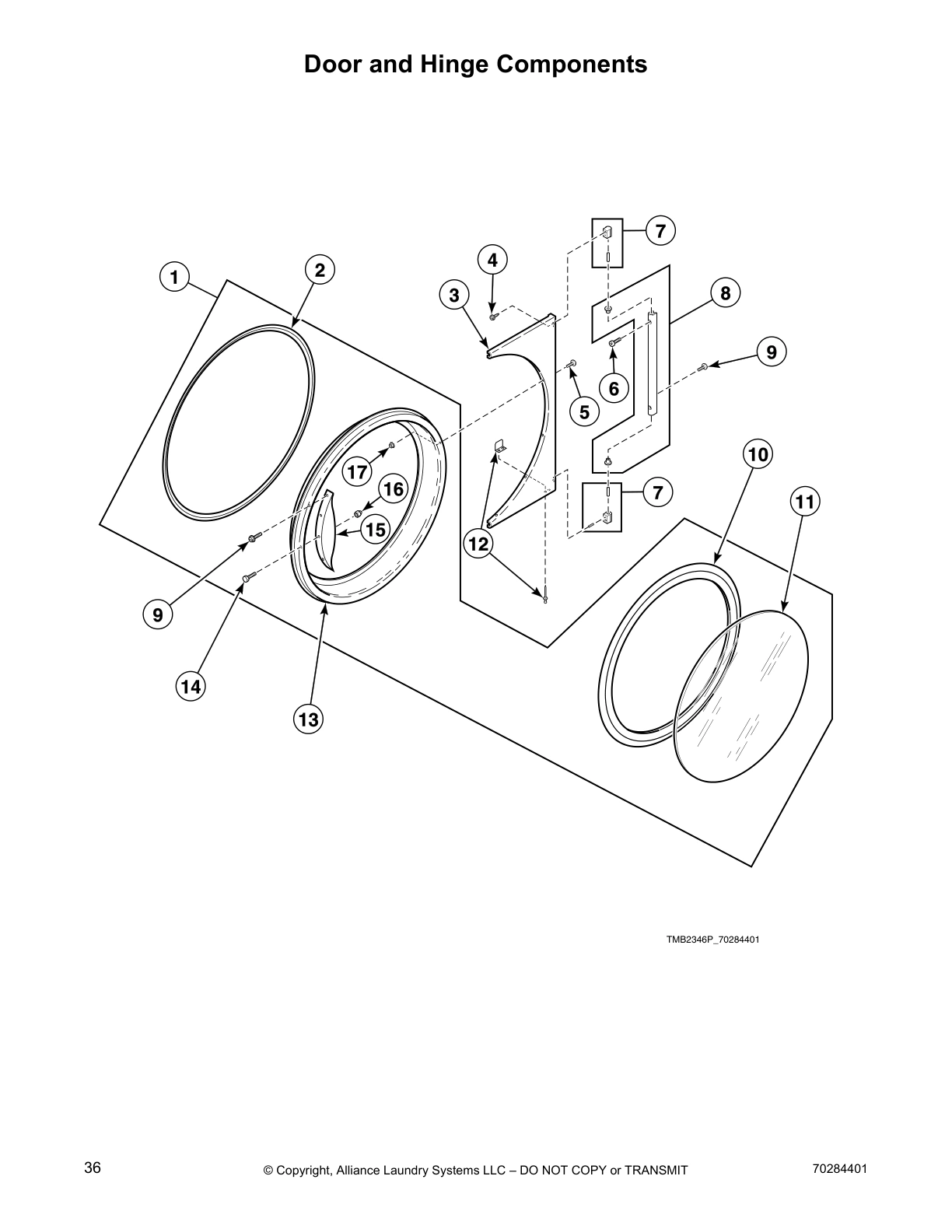

Door and Hinge Components

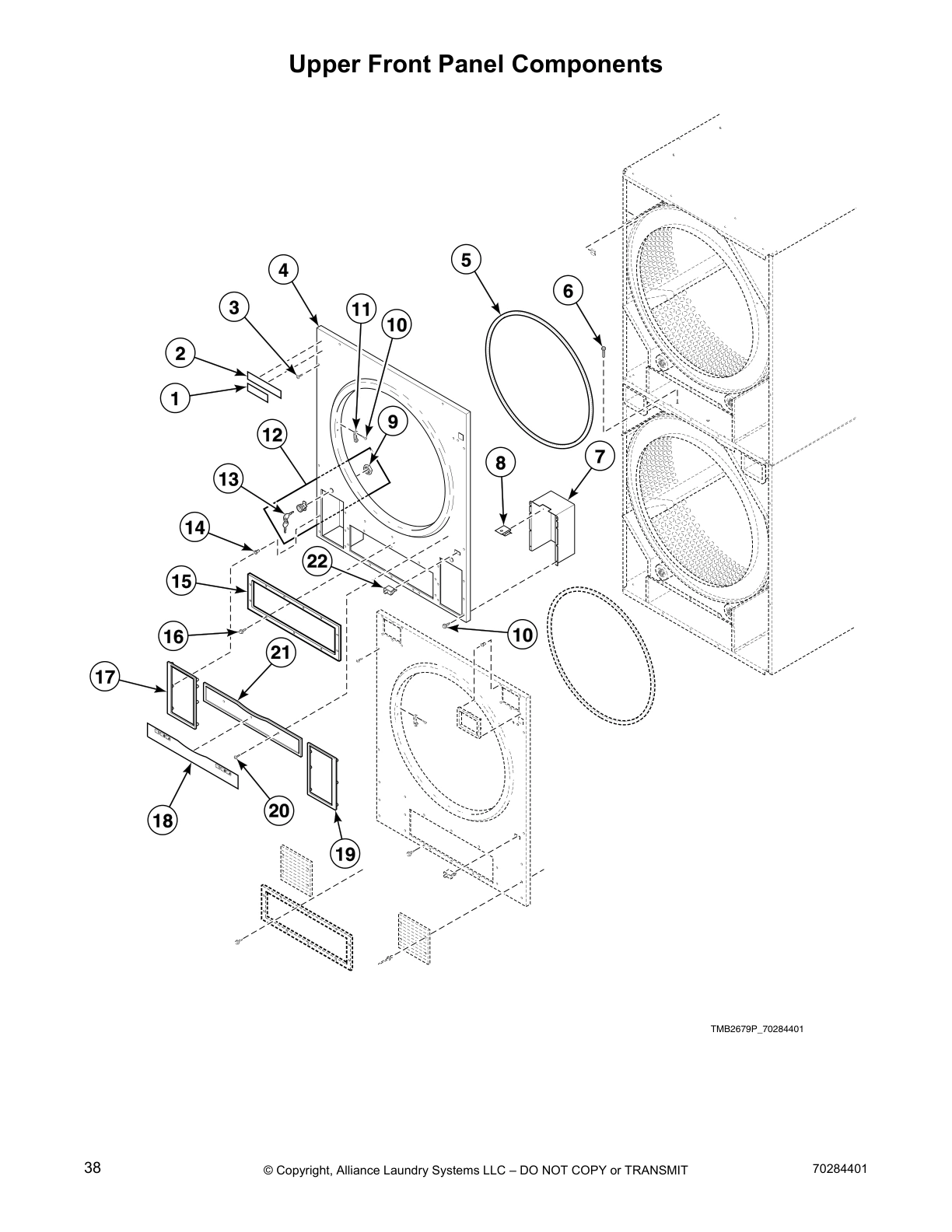

Upper Front Panel Components

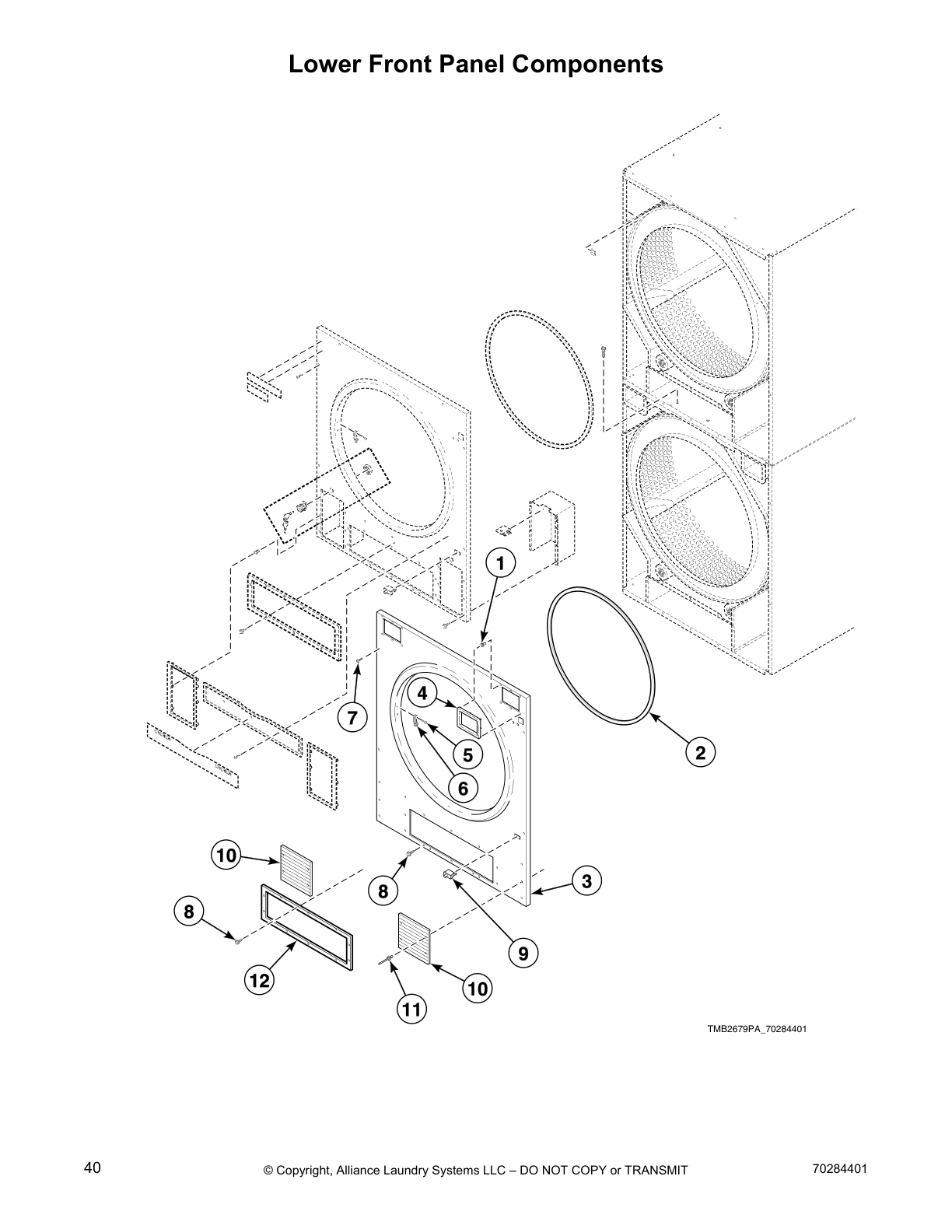

Lower Front Panel Components

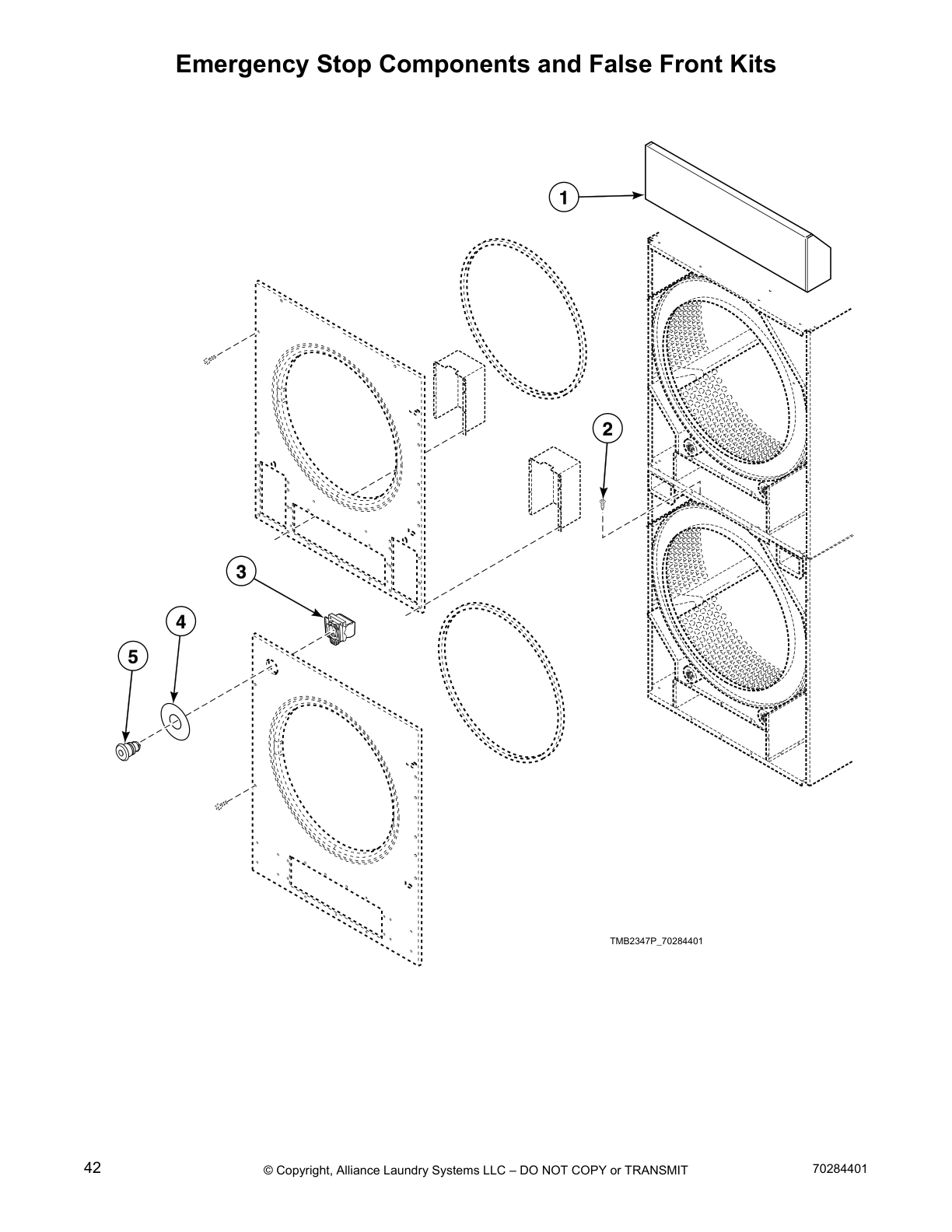

Emergency Stop Components and False Front Kits

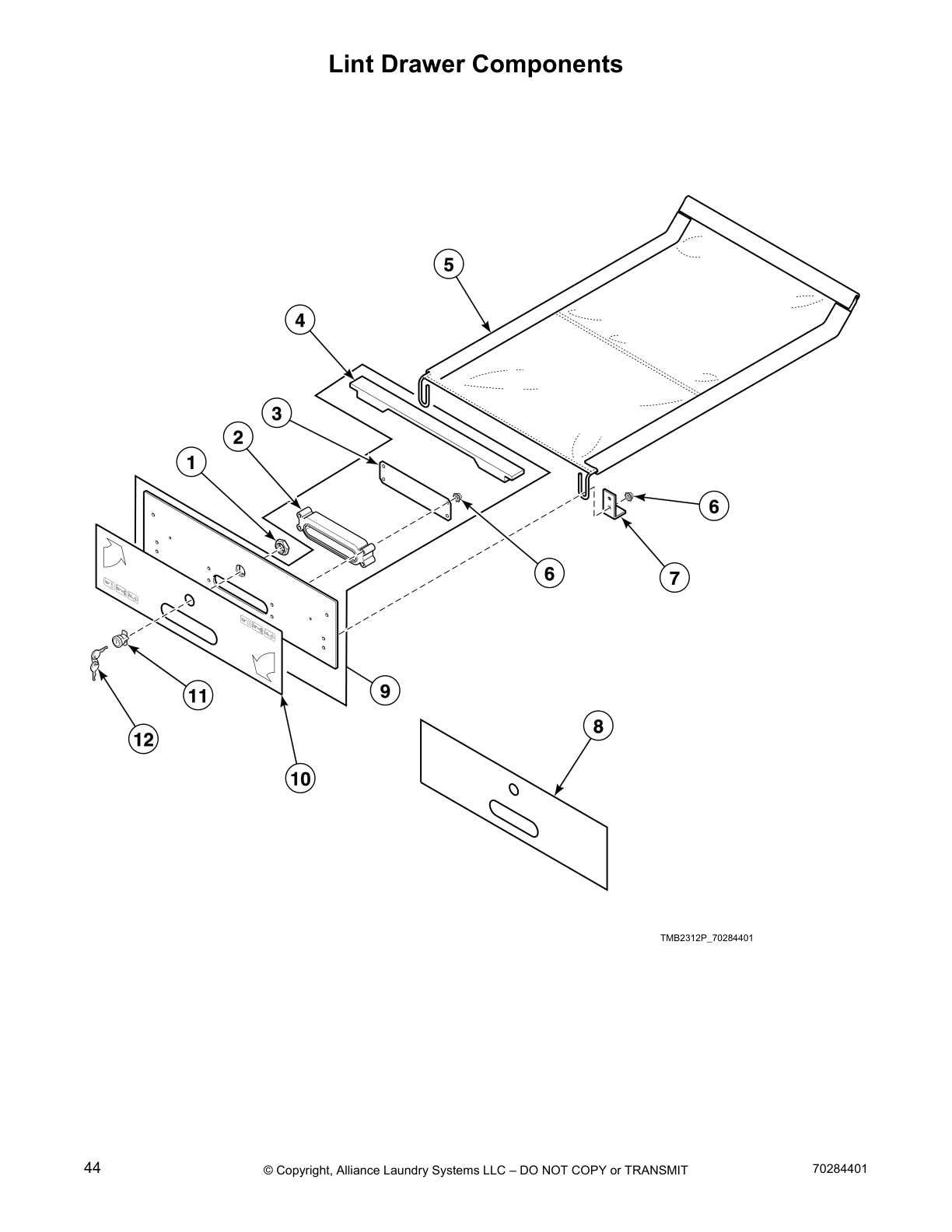

Lint Drawer Components

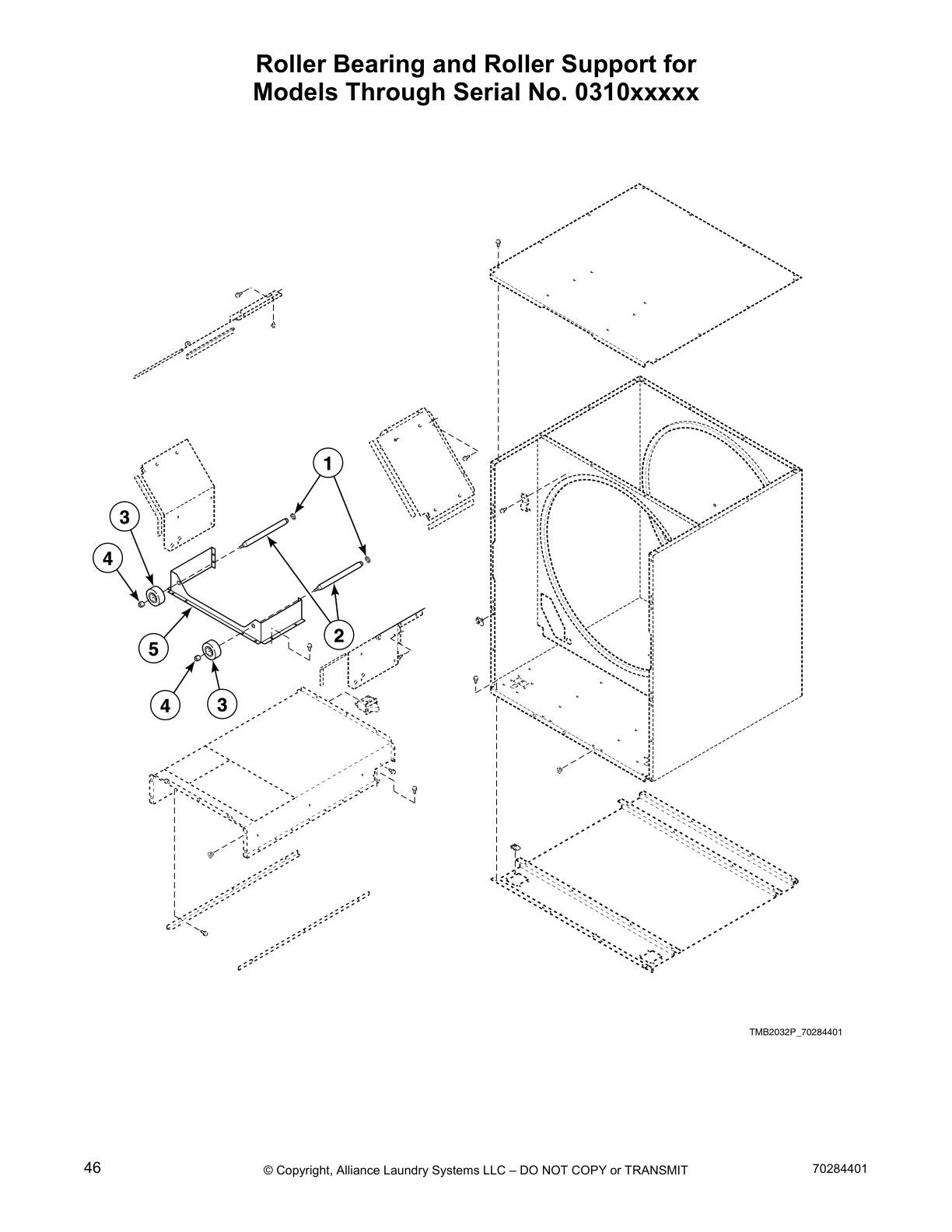

Roller Bearing and Roller Support for
Models Through Serial No. 0310xxxxx

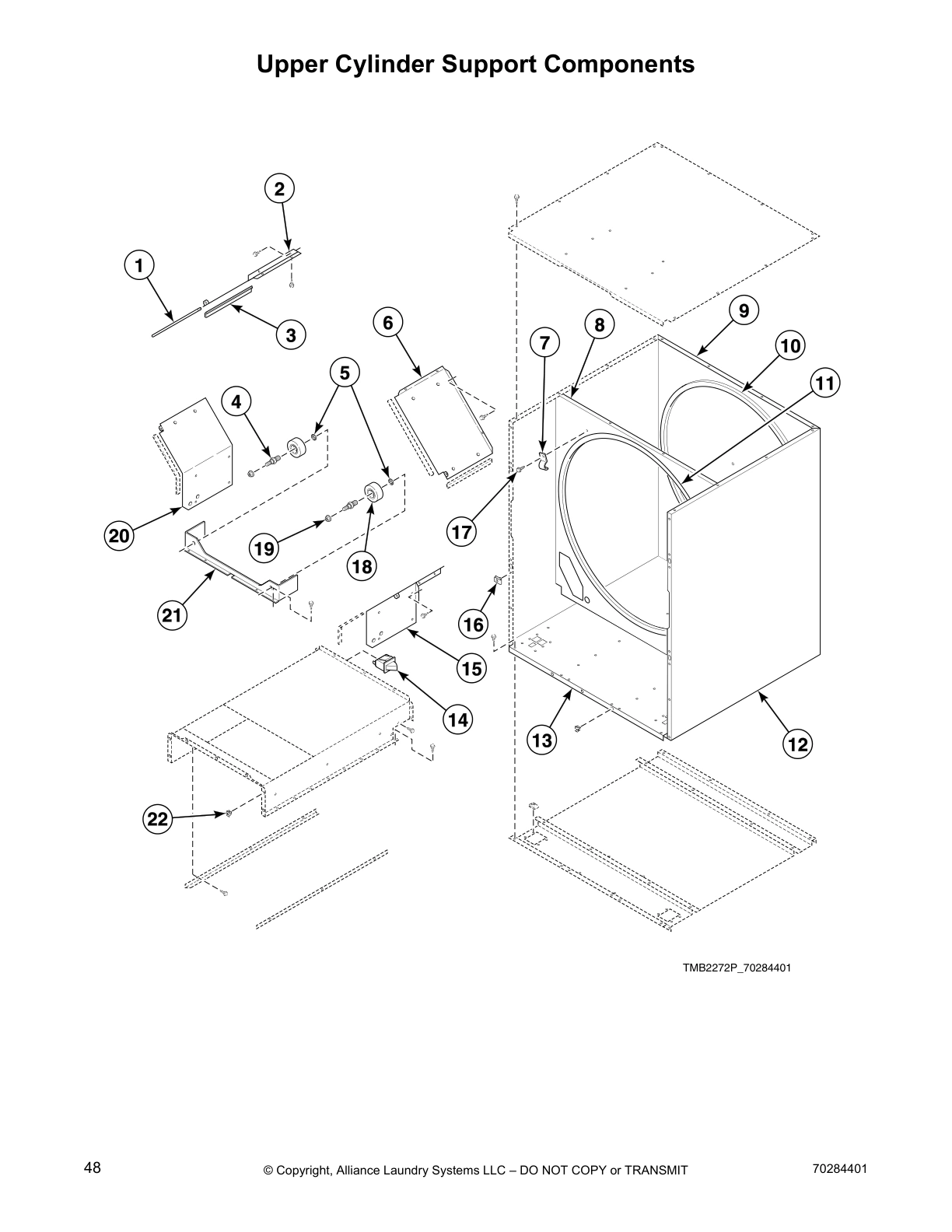

Upper Cylinder Support Components

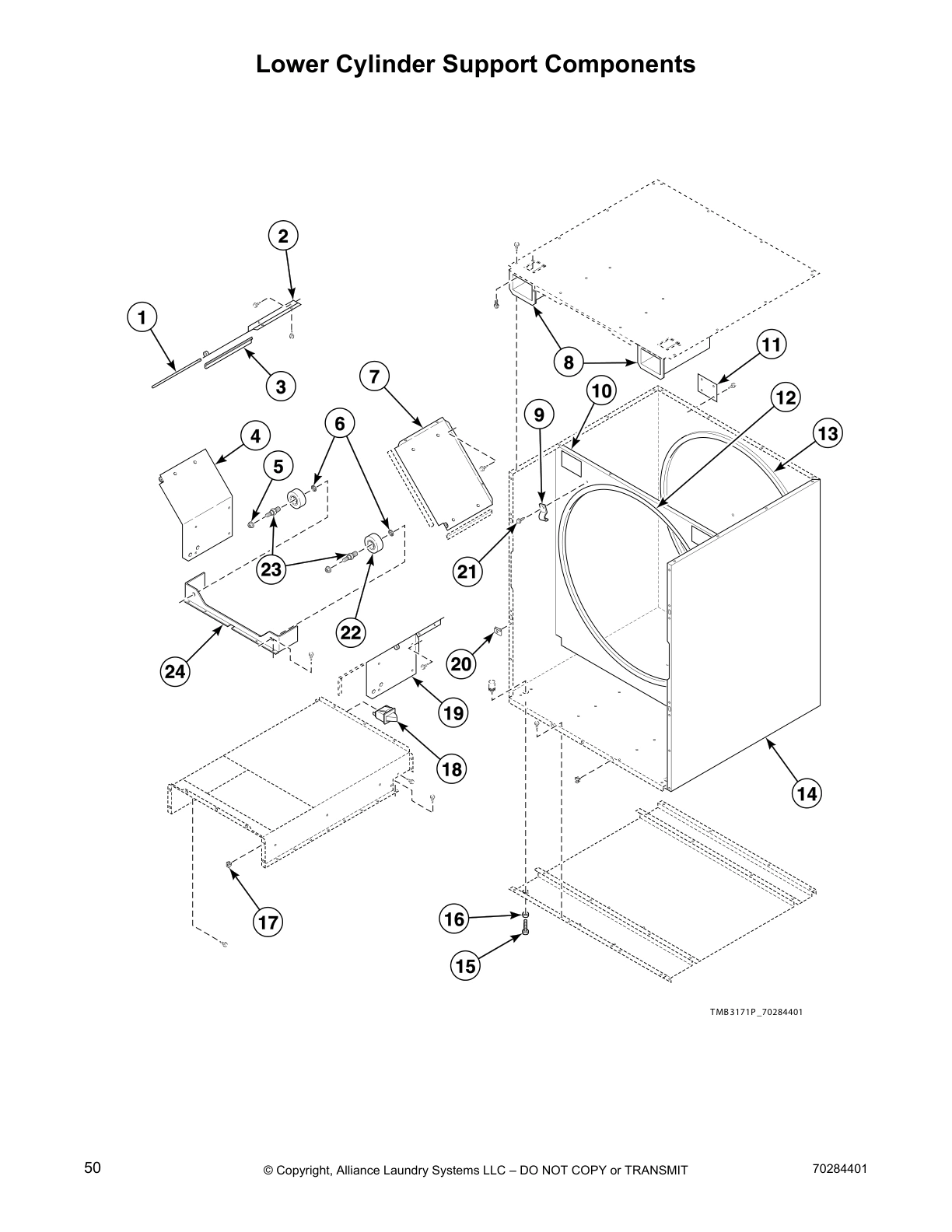

Lower Cylinder Support Components

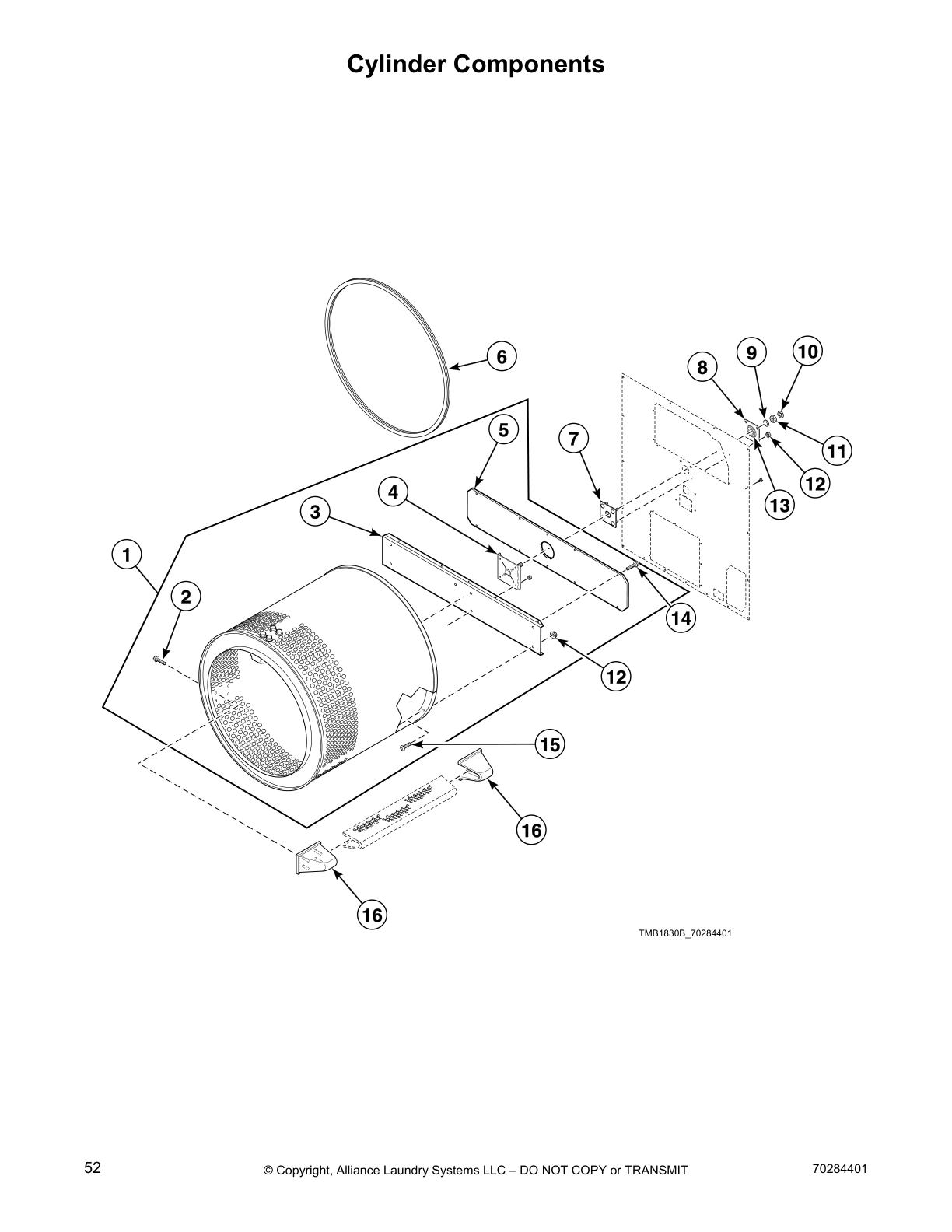

Cylinder Components

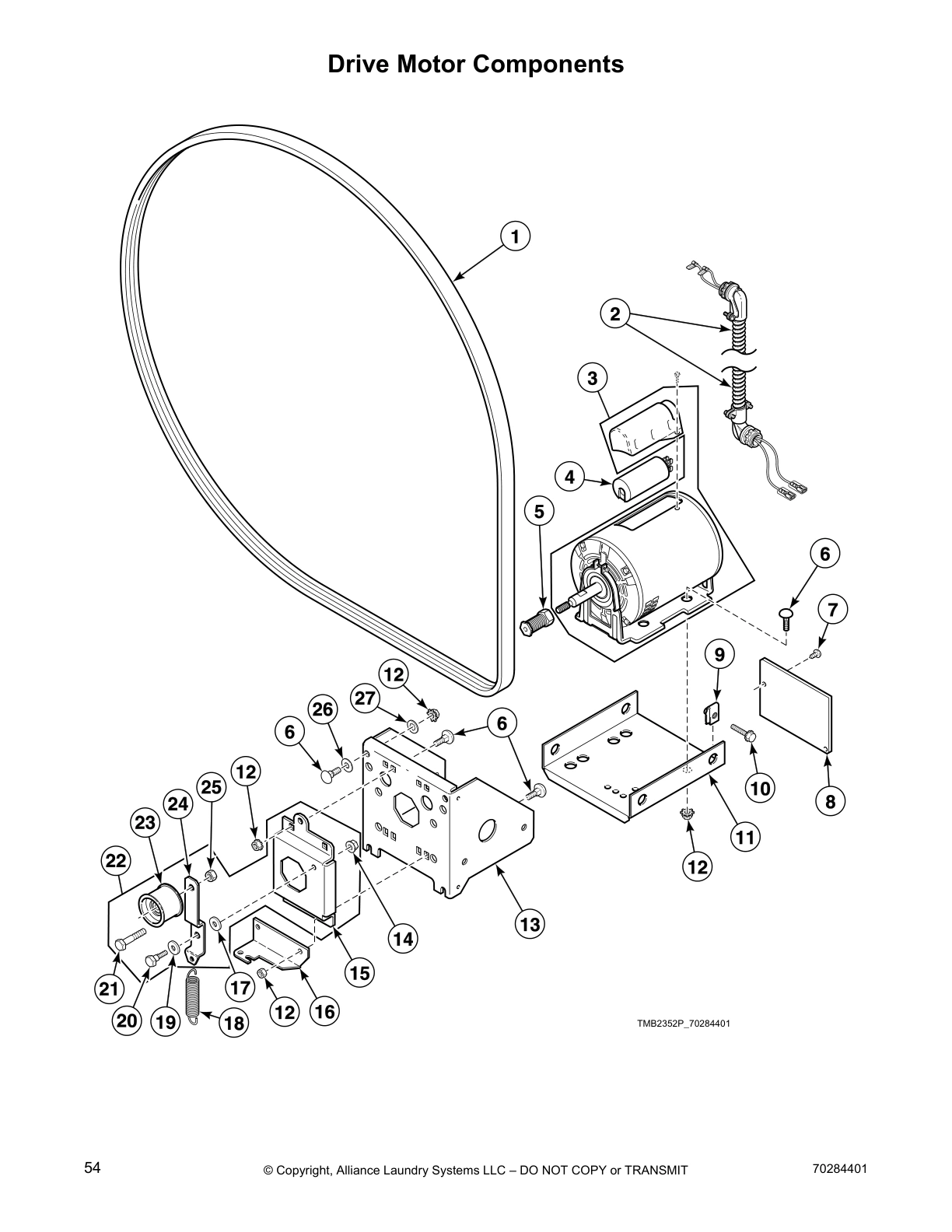

Drive Motor Components

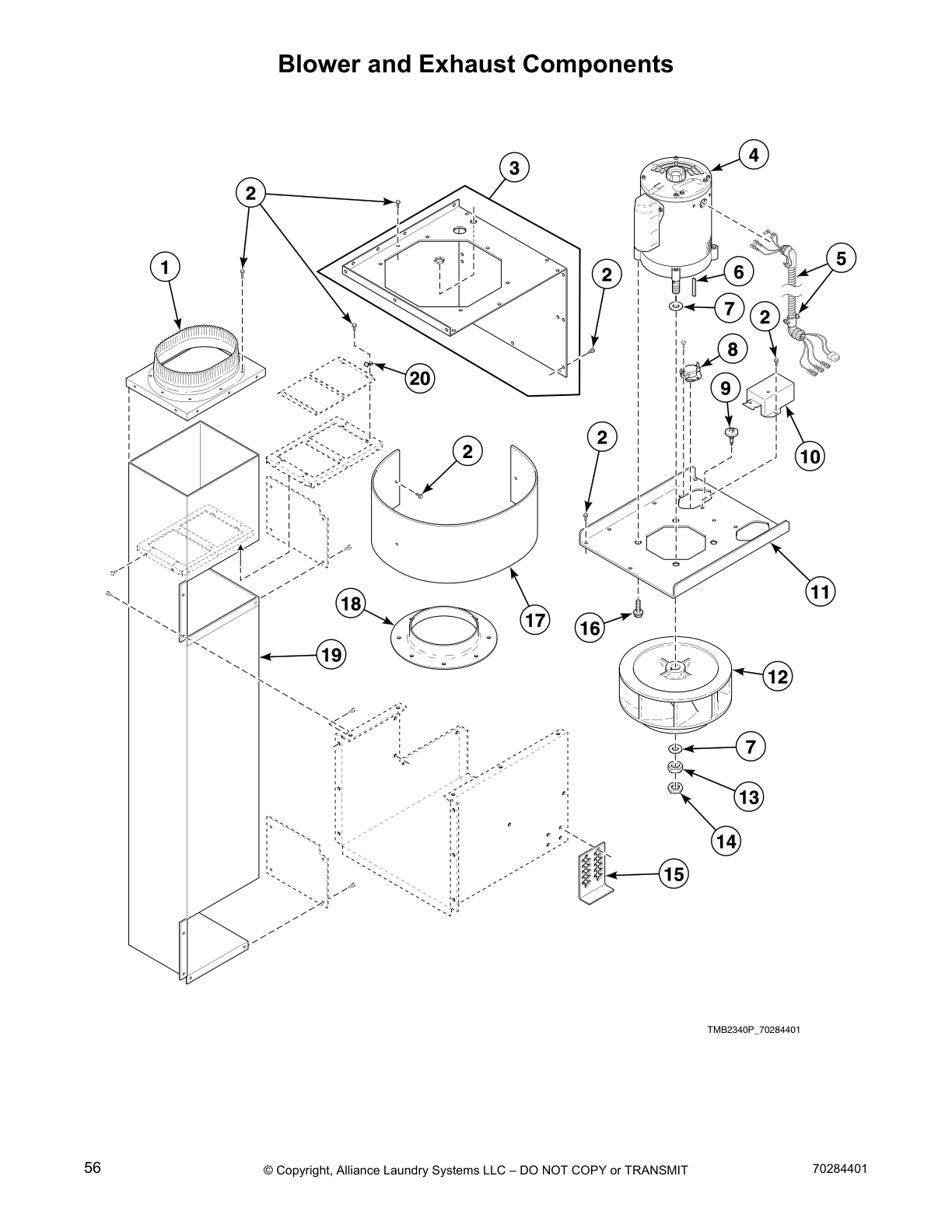

Blower and Exhaust Components

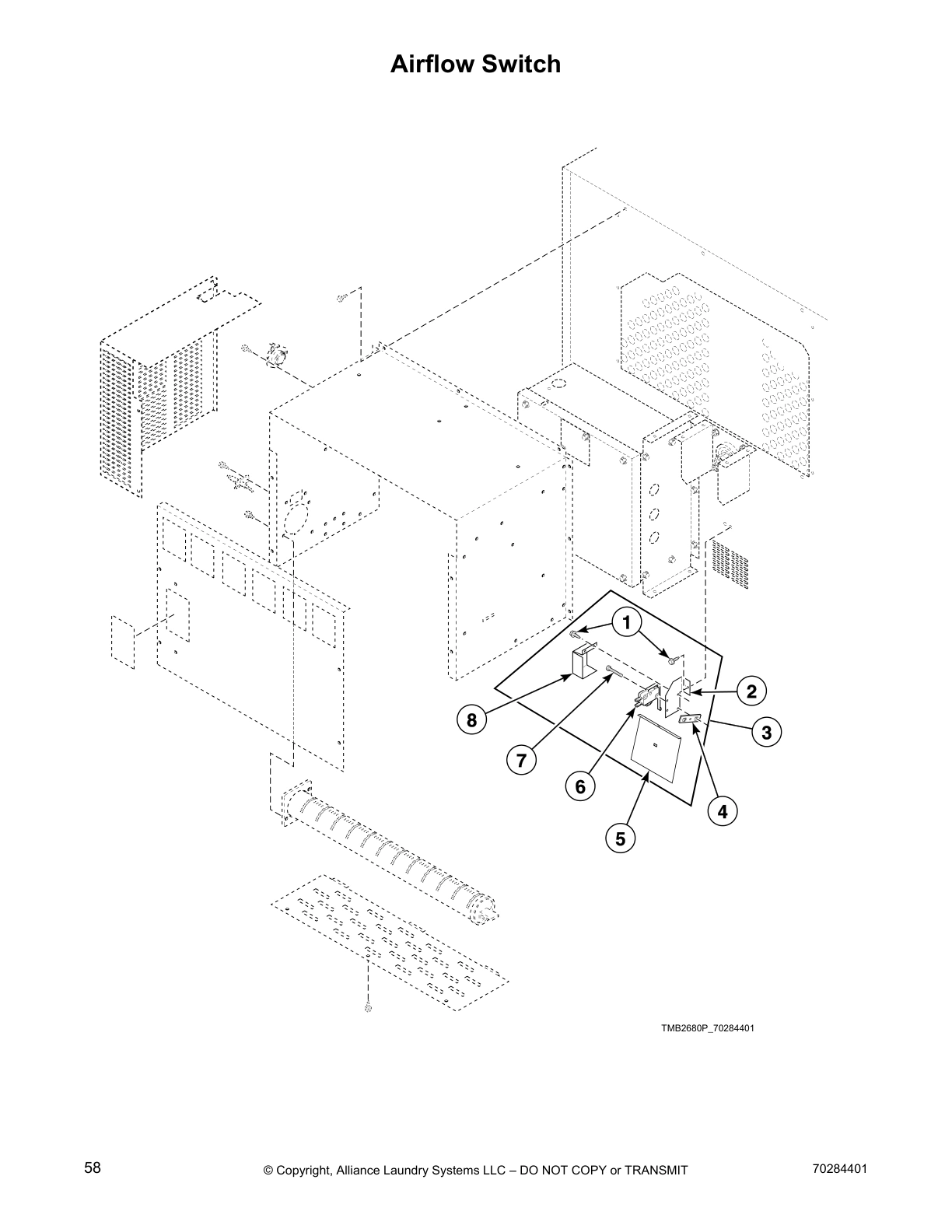

Airflow Switch

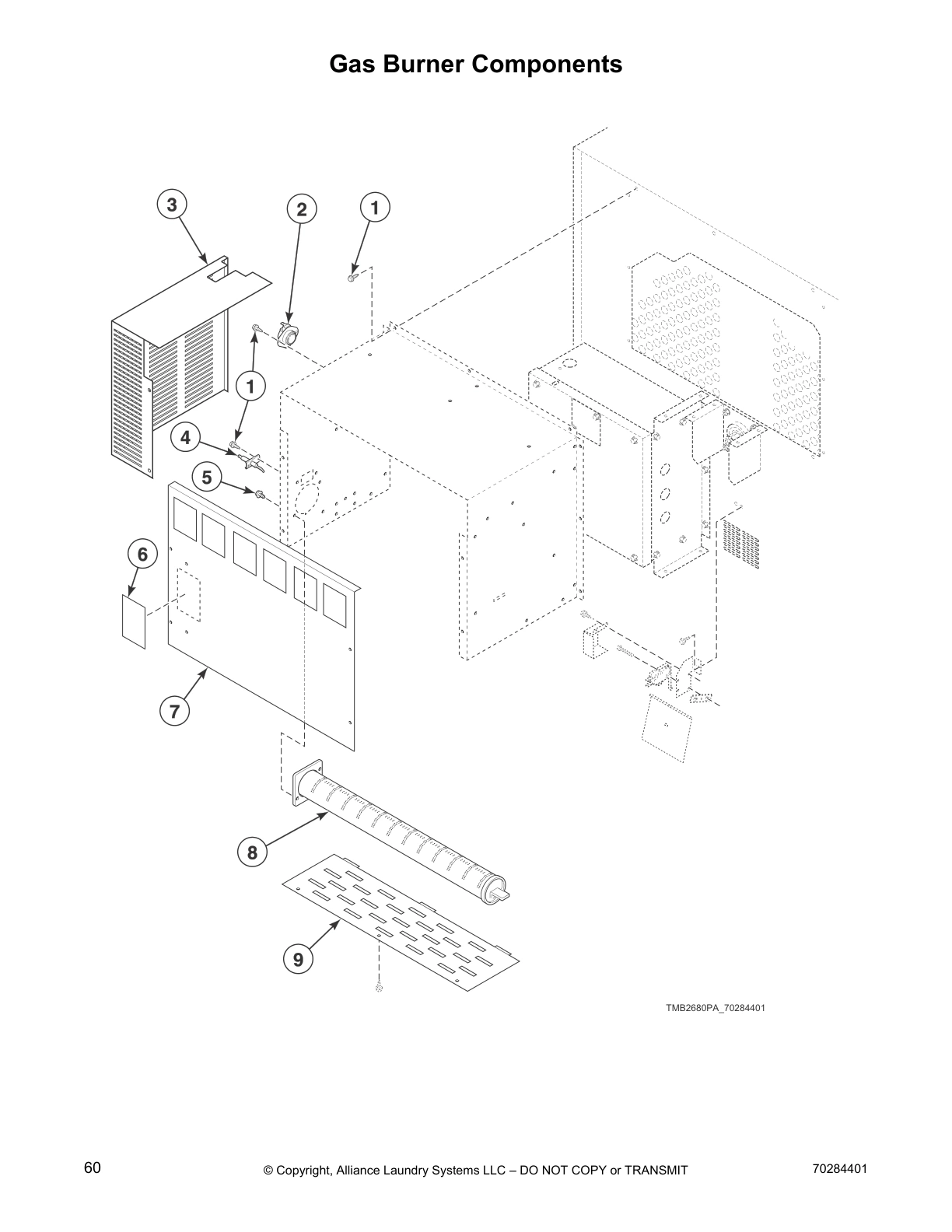

Gas Burner Components

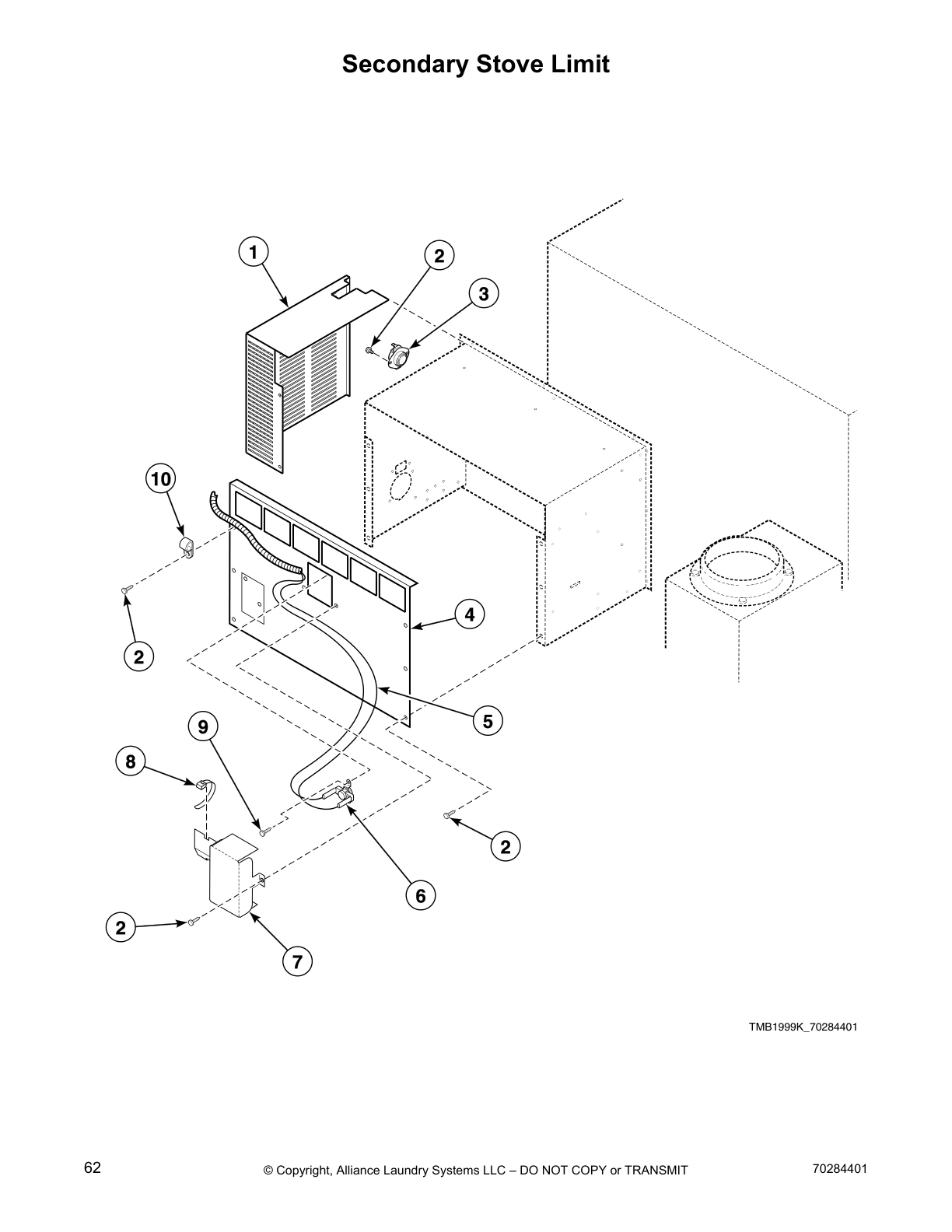

Secondary Stove Limit

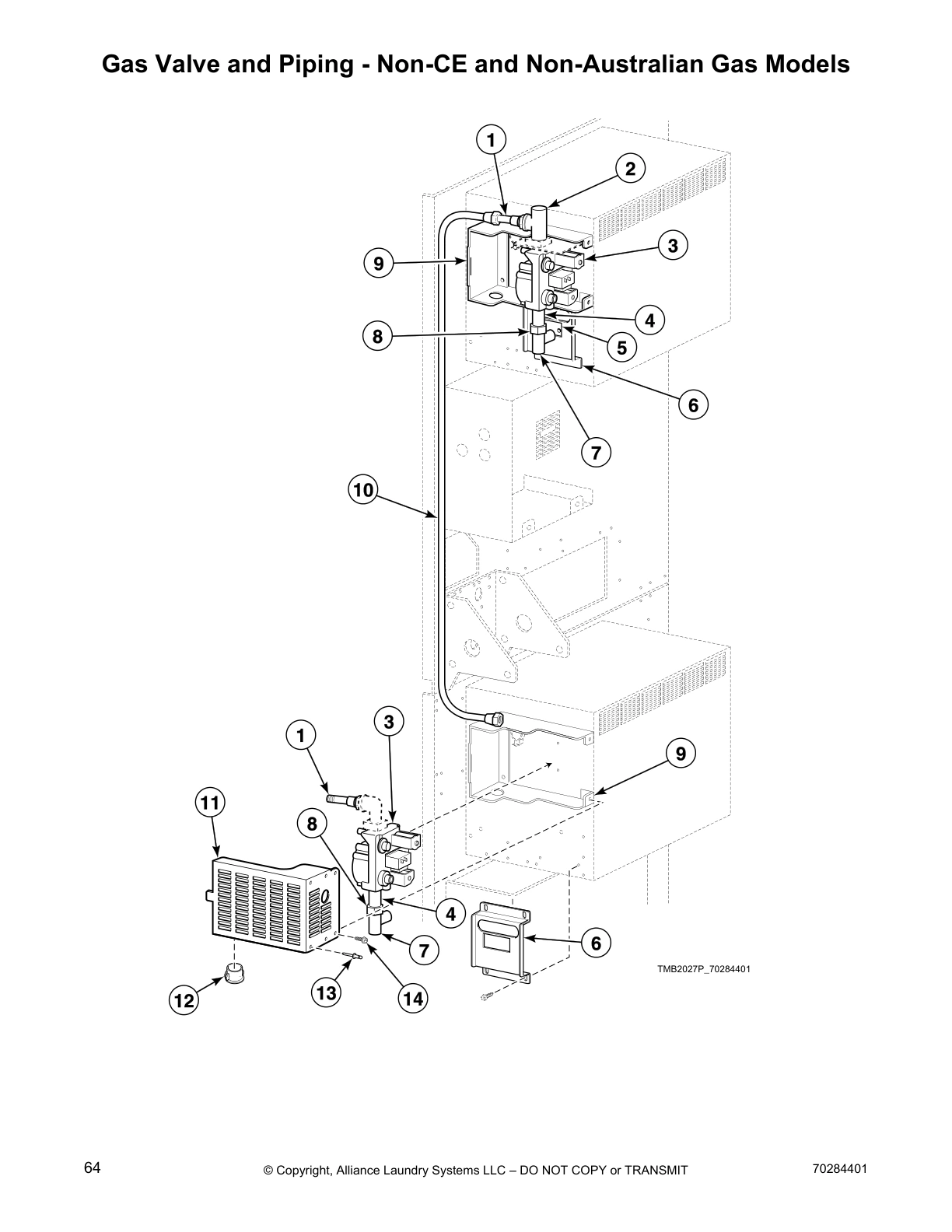

Gas Valve and Piping - Non-CE and Non-Australian Gas Models

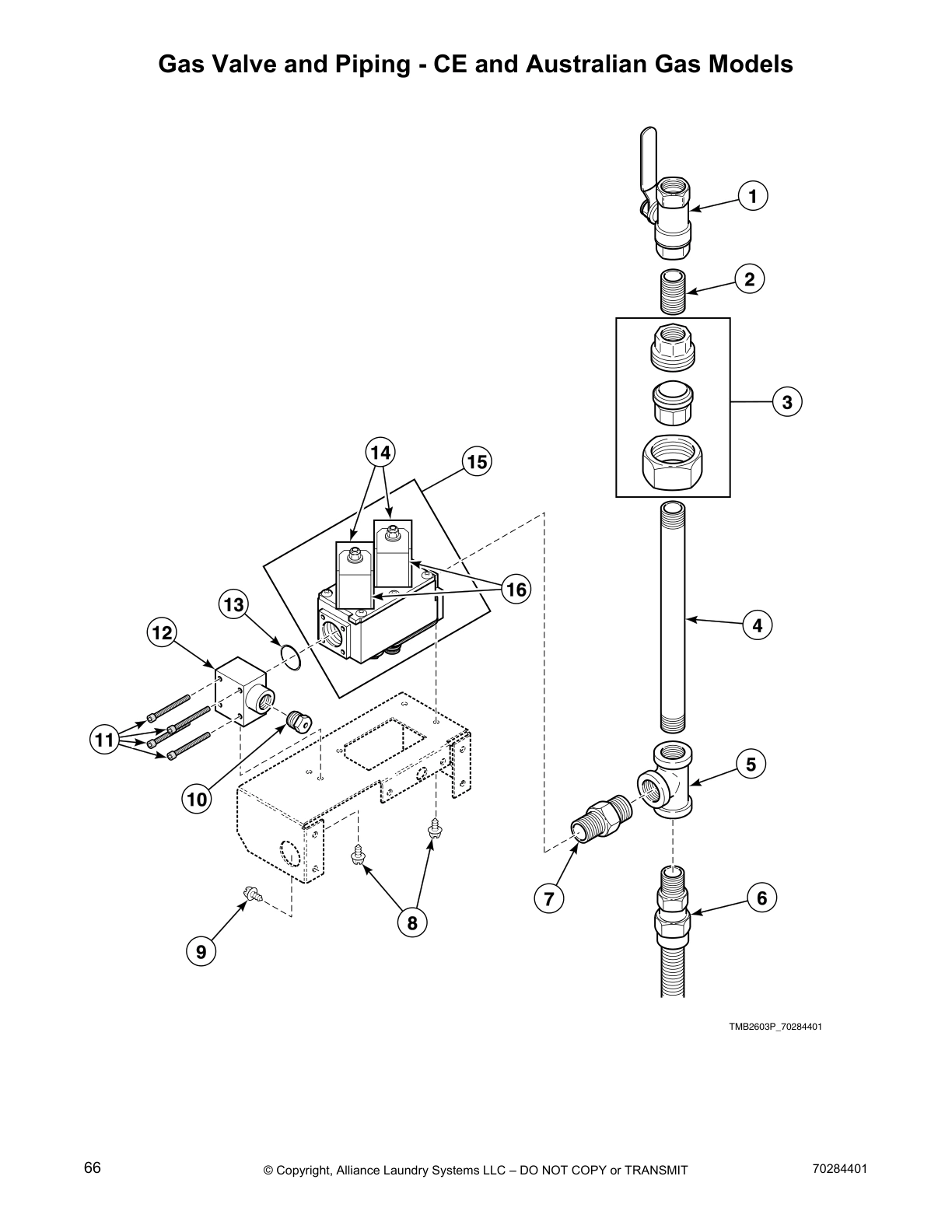

Gas Valve and Piping - CE and Australian Gas Models

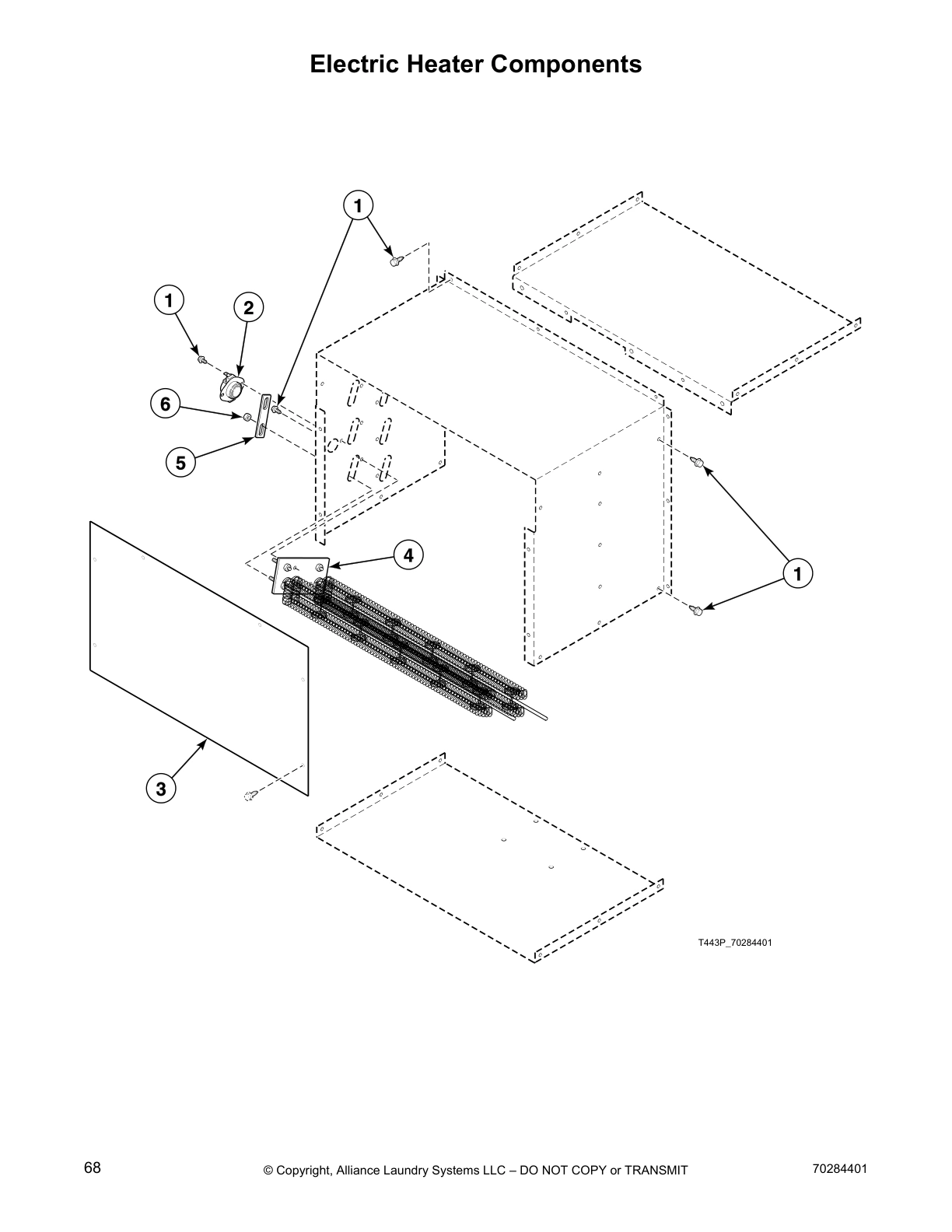

Electric Heater Components

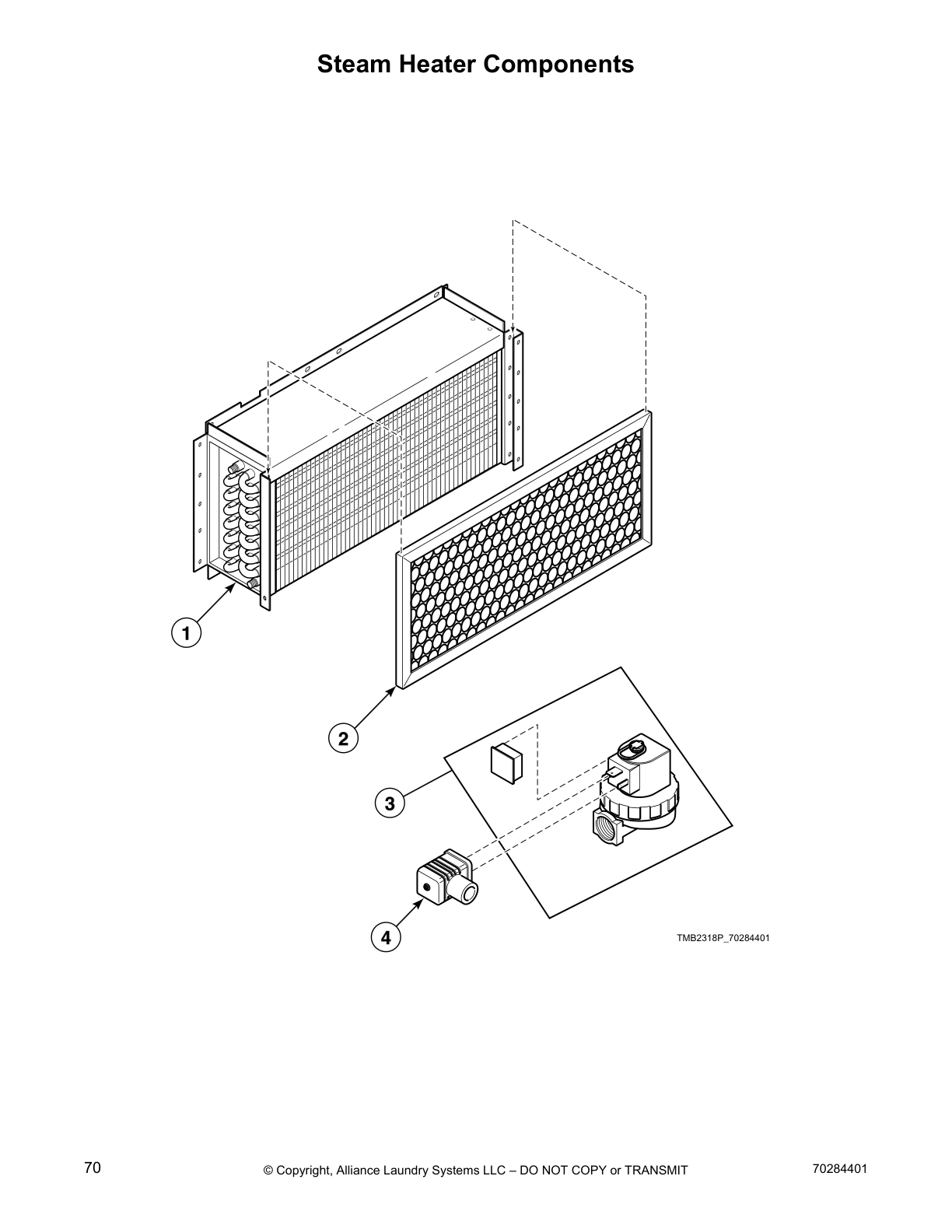

Steam Heater Components

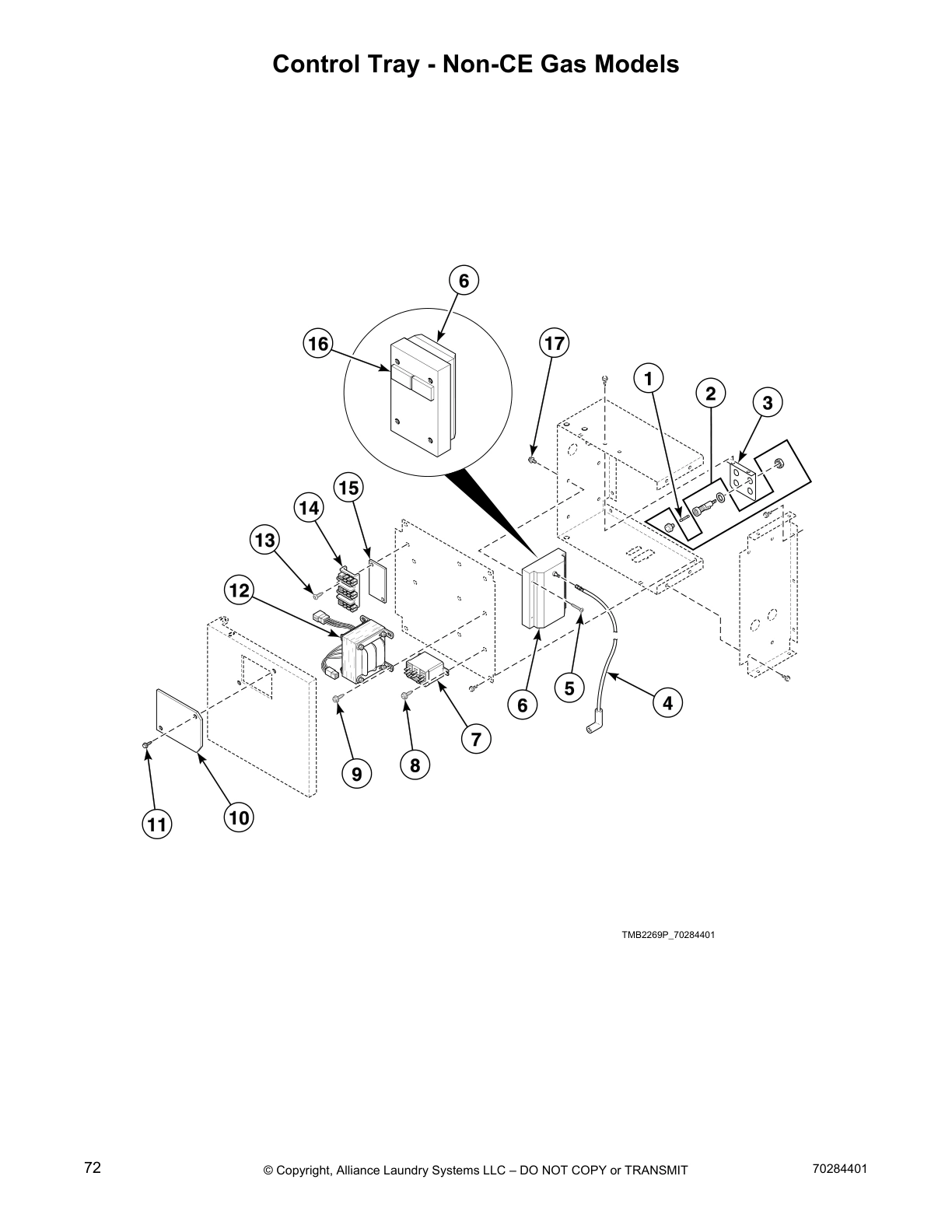

Control Tray - Non-CE Gas Models

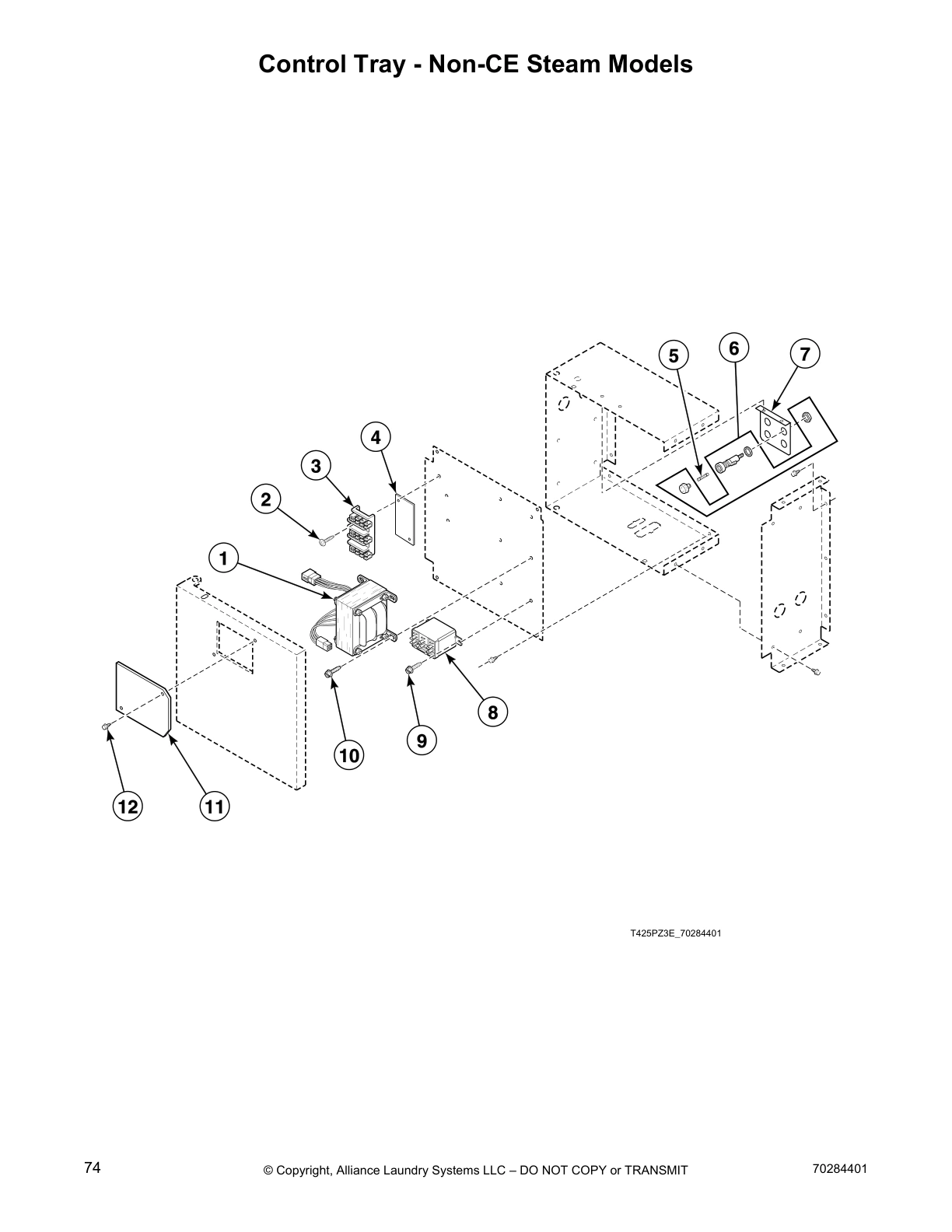

Control Tray - Non-CE Steam Models

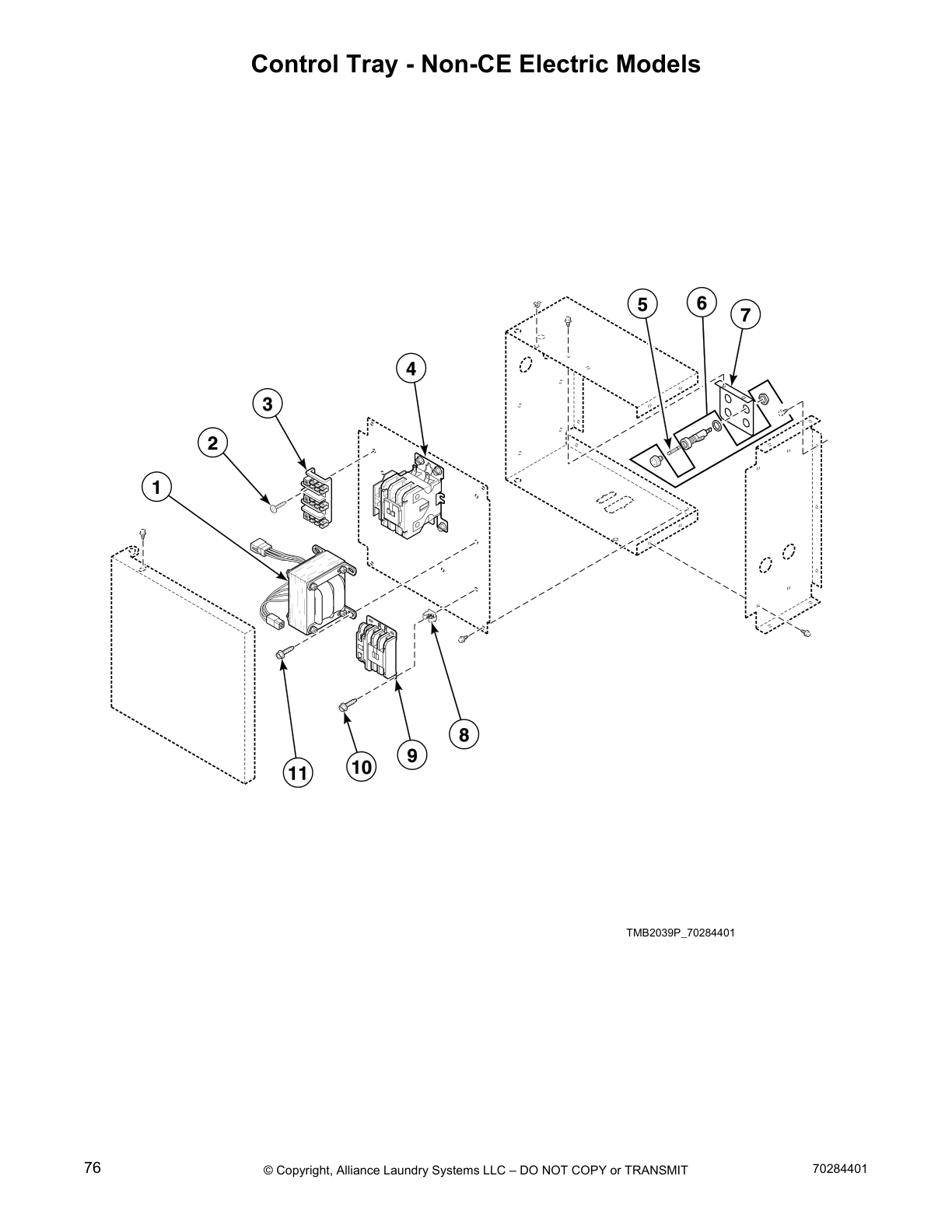

Control Tray - Non-CE Electric Models

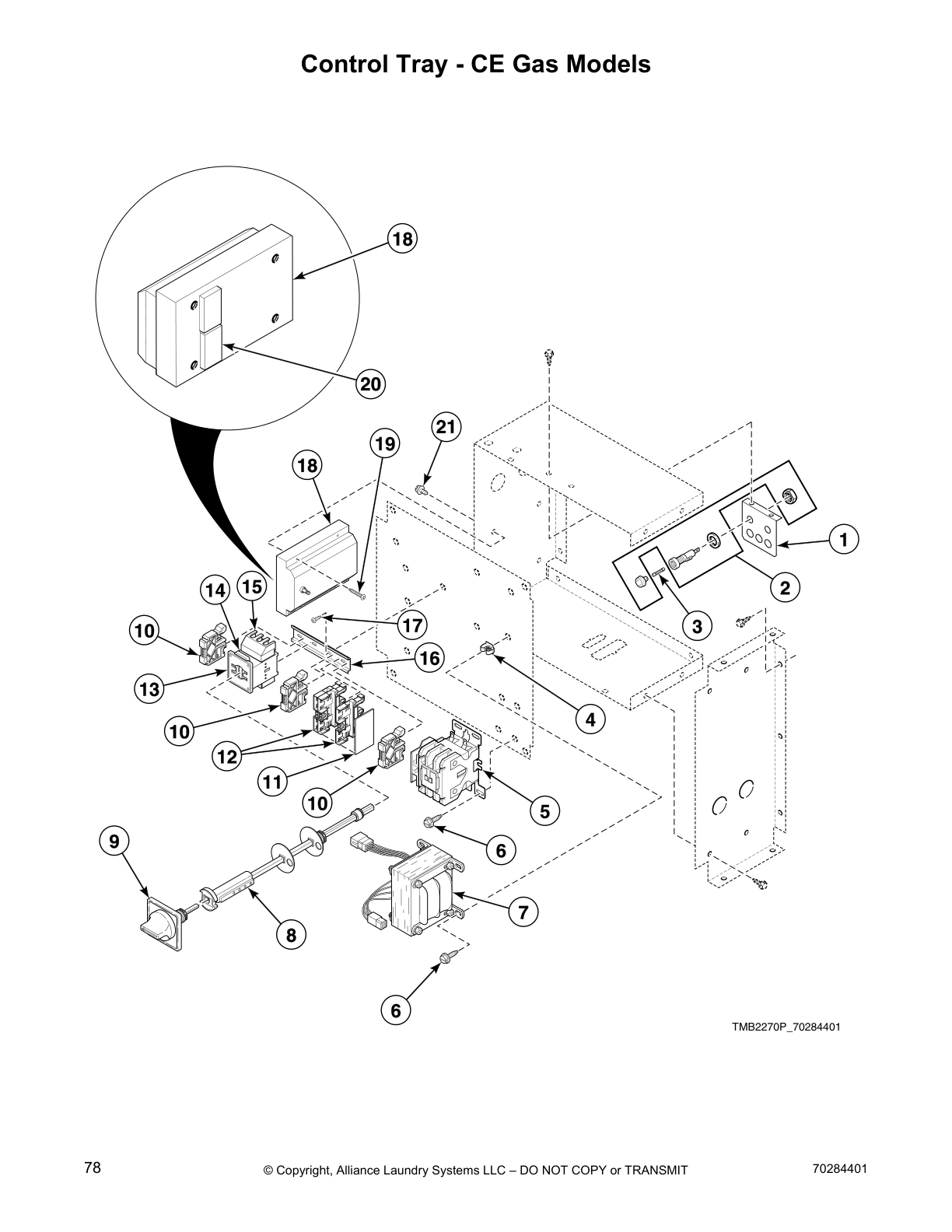

Control Tray - CE Gas Models

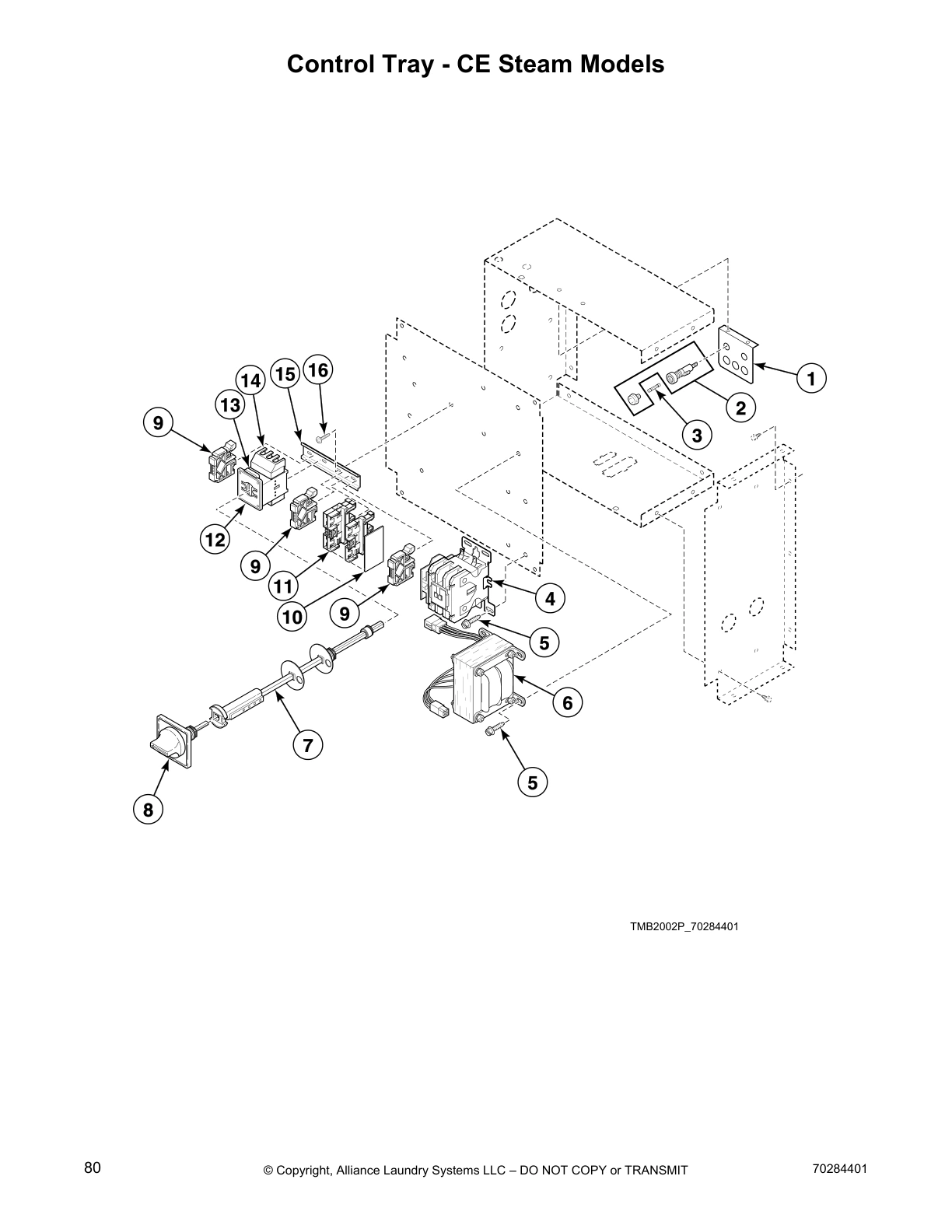

Control Tray - CE Steam Models

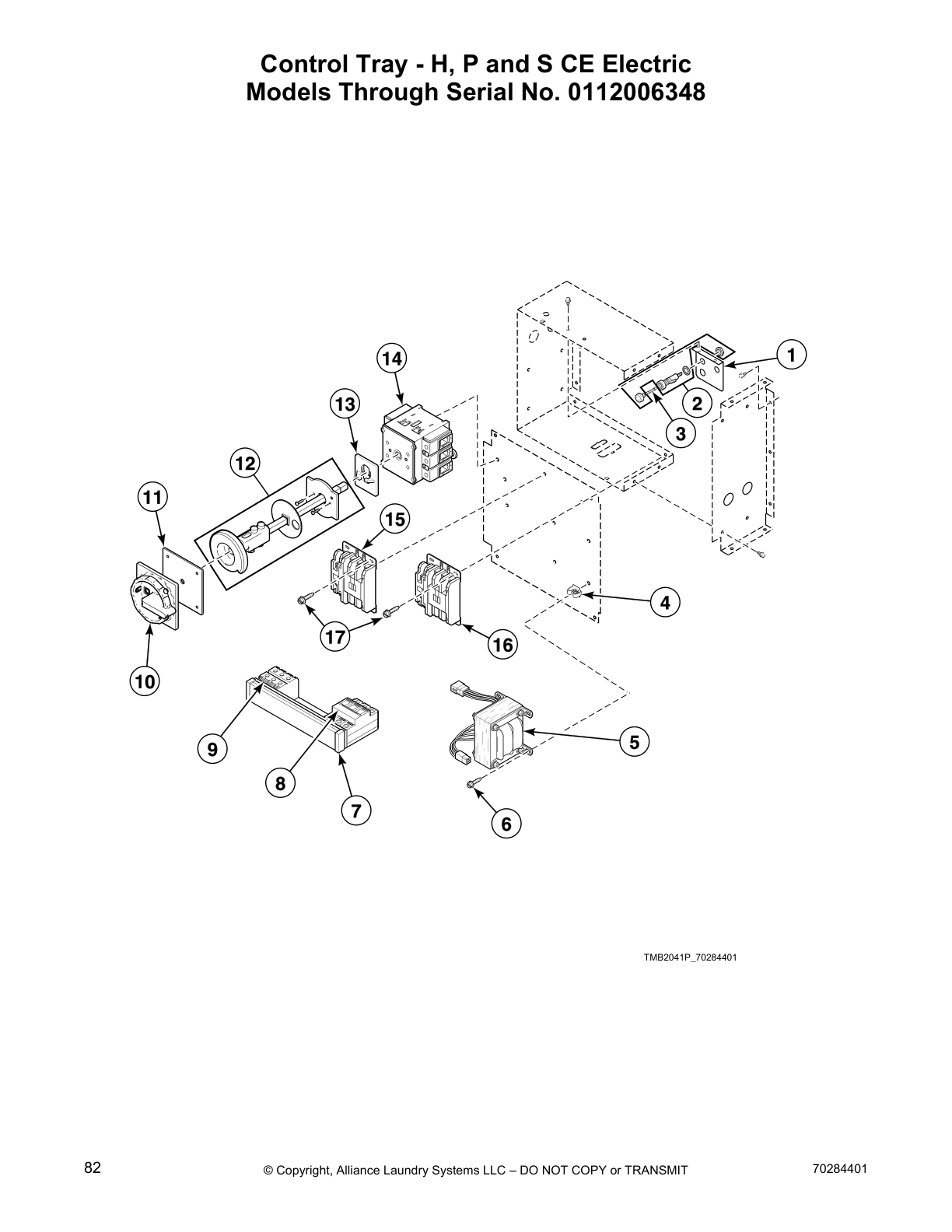

Control Tray - H, P and S CE Electric
Models Through Serial No. 0112006348

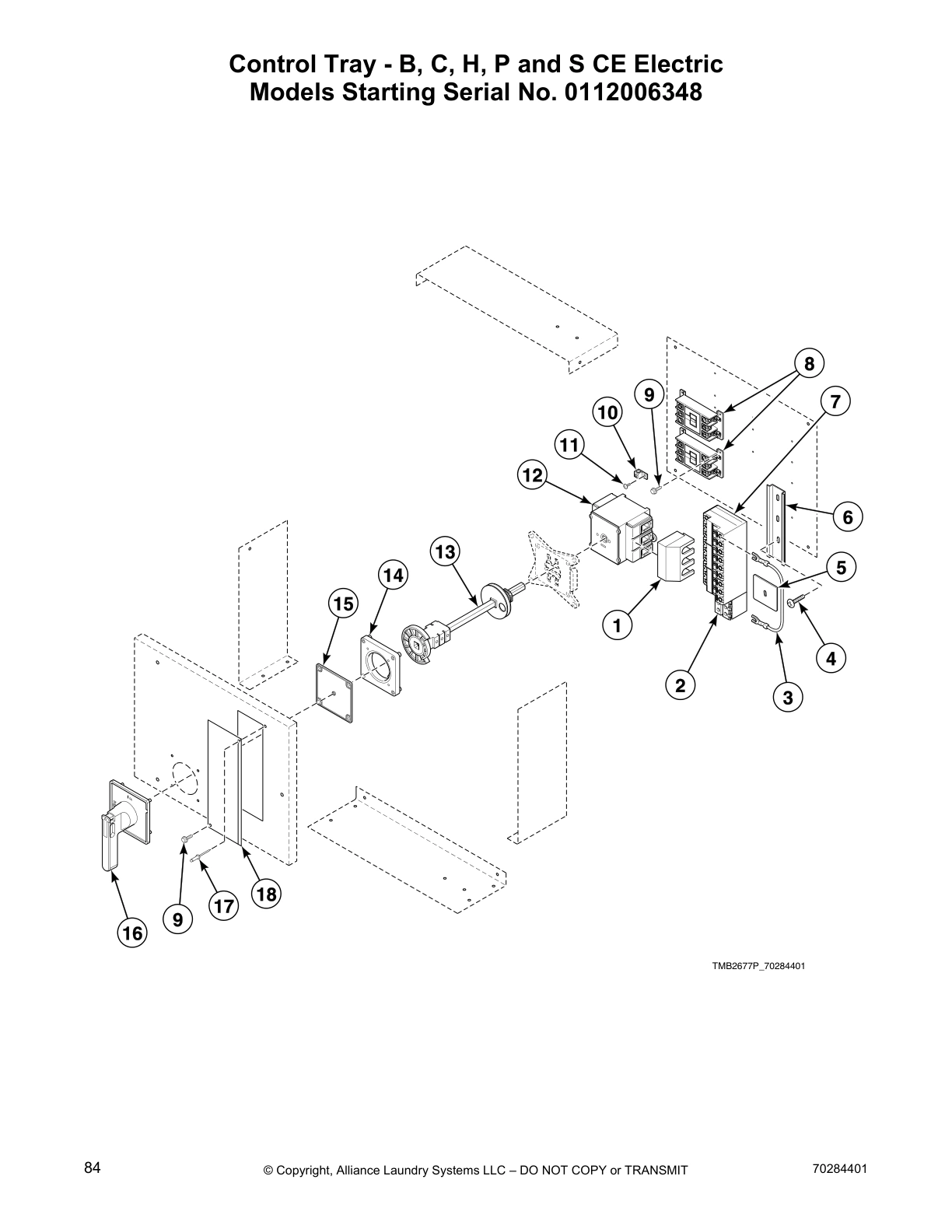

Control Tray - B, C, H, P and S CE Electric
Models Starting Serial No. 0112006348
Common parts from model Ipso ITT30S Dryer
Power Harness Assembly SPQ 70210901P Contact Us For Availability
SPQ 70413301 SPQ 70413301 Contact Us For Availability
Coin Drop SPQ 70294104 Contact Us For Availability
Wire Guard SPQ 70256402P Contact Us For Availability
Electronic Coin Drop Kit SPQ 39157 Contact Us For Availability
SPQ 38519 SPQ 38519 Contact Us For Availability
SPQ 38467 SPQ 38467 Contact Us For Availability
SPQ 210196 SPQ 210196 Contact Us For Availability
SPQ CK108 SPQ CK108 Contact Us For Availability
SPQ CK100 SPQ CK100 Contact Us For Availability
SPQ CK116 SPQ CK116 Contact Us For Availability
SPQ 70204501 SPQ 70204501 Contact Us For Availability
SPQ 70017301 SPQ 70017301 Contact Us For Availability
SPQ 70322901P SPQ 70322901P Contact Us For Availability
SPQ 70342402 SPQ 70342402 Contact Us For Availability
SPQ 70058502 SPQ 70058502 Contact Us For Availability
SPQ 70202501 SPQ 70202501 Contact Us For Availability
SPQ M4853P3 SPQ M4853P3 Contact Us For Availability
Limit Thermostat SPQ M412258 Contact Us For Availability
DIN Valve Adapter Kit SPQ F8379502 Contact Us For Availability
SPQ M413510 SPQ M413510 Contact Us For Availability
SPQ M413504 SPQ M413504 Contact Us For Availability
SPQ 70111701 SPQ 70111701 Contact Us For Availability
SPQ 70204601 SPQ 70204601 Contact Us For Availability
1
Belt SPQ 70276201P Contact Us For Availability
1
Graphic Overlay SPQ 70279201 Contact Us For Availability
1
Door Assembly SPQ 44046701 Contact Us For Availability
1
Nameplate SPQ 44046801 Contact Us For Availability
1
Lock Mounting Clip SPQ 44087401 Contact Us For Availability
1
Baffle Gasket SPQ 70015701 Contact Us For Availability
1
Cylinder Assembly SPQ 70372502P Contact Us For Availability
1
Duct Cover SPQ 70207501 Contact Us For Availability
1
Valve Bracket and Cover Kit SPQ M4746P3 Contact Us For Availability
1
Valve Coil SPQ F8514801 Contact Us For Availability
2
Circuit Board Support SPQ 70108501 Contact Us For Availability
2
Front Panel Seal SPQ 70117901P Contact Us For Availability
2
Lint Drawer Handle SPQ 70155602 Contact Us For Availability
2
Control Plate Kit SPQ 70279301P Contact Us For Availability
2
Electronic Coin Drop Harness SPQ 44065801 Contact Us For Availability
2
Pushbutton Switch SPQ 70286601 Contact Us For Availability
2
Screw SPQ 70069901 Contact Us For Availability
2
Roller Shaft SPQ 70232001 Contact Us For Availability
2
Roller and Seal Kit SPQ 70232602 Contact Us For Availability
2
Trunnion and Seal Kit SPQ 70070101 Contact Us For Availability
2
Screw SPQ 70085201 Contact Us For Availability
2
Airflow Switch Bracket SPQ 70266301 Contact Us For Availability
2
Air Filter SPQ 70036001 Contact Us For Availability
2
Fuse Holder SPQ M413544P Contact Us For Availability
3
Airflow Switch Kit SPQ 70270901P Contact Us For Availability
3
Limit Thermostat SPQ M409219 Contact Us For Availability
3
Lower Front Panel Assembly SPQ 70173401P Contact Us For Availability
3
Hinge Cam Kit SPQ 70296801 Contact Us For Availability
3
Valve Kit SPQ F8521701 Contact Us For Availability
3
Audit Switch Bracket SPQ 70292601 Contact Us For Availability
3
Control Assembly SPQ 70462367P Contact Us For Availability
3
Electronic Coin Drop Assembly SPQ CK099 Contact Us For Availability
3
Lint Drawer Handle Plate SPQ 70320802 Contact Us For Availability
3
Pop Rivet SPQ 70015705 Contact Us For Availability
3
Drive Motor Kit SPQ 70338101P Contact Us For Availability
4
Control Assembly SPQ 70462303P Contact Us For Availability
4
Coin Drop Kit SPQ CK077 Contact Us For Availability
4
Washer SPQ 70292801 Contact Us For Availability
4
Door Hinge Lug Assembly SPQ 70115902 Contact Us For Availability
4
Coin Vault Trim SPQ 70176102P Contact Us For Availability
4
Lint Frame Gasket SPQ 70320801 Contact Us For Availability
4
SPQ 70232801 SPQ 70232801 Contact Us For Availability
4
Rear Cylinder Seal SPQ 70257101 Contact Us For Availability
4
Motor Capacitor SPQ 70338001P Contact Us For Availability
4
Blower Motor Kit SPQ 70342601P Contact Us For Availability
4
Stove Back SPQ 70297401 Contact Us For Availability
4
Steam Valve SPQ F8322903 Contact Us For Availability
5
Airflow Switch Vane SPQ 70266201 Contact Us For Availability
5
Cylinder Bearing Stud Plate Assembly SPQ 70564803 Contact Us For Availability
5
Mounting Plate SPQ 70208801 Contact Us For Availability
5
Hole Plug SPQ 70442101 Contact Us For Availability
5
Nut SPQ 70176002P Contact Us For Availability
5
Door Latch SPQ 70176104P Contact Us For Availability
5
Lint Screen Assembly SPQ 70323201 Contact Us For Availability
5
Roller Support Bracket SPQ 70231901 Contact Us For Availability
5
SPQ 70198801 SPQ 70198801 Contact Us For Availability
5
Motor Pulley SPQ 70337901P Contact Us For Availability
5
Blower Motor Kit SPQ 70337701P Contact Us For Availability
5
Rear Limit Harness SPQ 70297001 Contact Us For Availability
5
Transformer SPQ M414229P Contact Us For Availability
6
Airflow Switch SPQ 70267301 Contact Us For Availability
6
Blower Motor SPQ 70337601P Contact Us For Availability
6
Bolt SPQ 70211502 Contact Us For Availability
6
Chassis Mounting Bracket SPQ 70119001 Contact Us For Availability
6
Jumper Harness Assembly SPQ M411072 Contact Us For Availability
6
Screw SPQ 70117502 Contact Us For Availability
6
Nut SPQ 70333101 Contact Us For Availability
6
Rear Cylinder Bearing Housing SPQ 70257201 Contact Us For Availability
6
Harness Strap SPQ 70299001 Contact Us For Availability
6
Fuse Holder SPQ M414232 Contact Us For Availability
7
Fan Motor Harness Assembly SPQ 70337501P Contact Us For Availability
7
Washer SPQ 70013701P Contact Us For Availability
7
Drive Access Cover SPQ 70211401 Contact Us For Availability
7
Pushbutton Switch SPQ M400003 Contact Us For Availability
7
Lint Screen Bracket SPQ 70290601 Contact Us For Availability
8
SPQ M4772P3 SPQ M4772P3 Contact Us For Availability
8
Latch Mounting Bracket SPQ 70184501 Contact Us For Availability
8
Front Panel Insulation SPQ 70119901 Contact Us For Availability
8
Front Panel Insulation SPQ M401223 Contact Us For Availability
8
SPQ 70288801 SPQ 70288801 Contact Us For Availability
8
Belt Tension Tool Kit SPQ 70284203 Contact Us For Availability
8
Key SPQ 70085101 Contact Us For Availability
8
Screw SPQ 23222 Contact Us For Availability
8
Fuse Receptacle SPQ M413118 Contact Us For Availability
8
Fuse Receptacle SPQ M413862 Contact Us For Availability
9
Pop Rivet SPQ 70013901 Contact Us For Availability
9
SPQ 44035001 SPQ 44035001 Contact Us For Availability
9
Control Door Latch SPQ 431318 Contact Us For Availability
9
Front Panel Baffle Seal SPQ 70182601 Contact Us For Availability
9
SPQ 70180101 SPQ 70180101 Contact Us For Availability
9
Belt and Idler Kit SPQ 70284201 Contact Us For Availability
9
Relay SPQ M414240 Contact Us For Availability
10
Slot Card Plate Assembly SPQ 44089501 Contact Us For Availability
10
Door Glass Seal Kit SPQ 70211901P Contact Us For Availability
10
Kickplate SPQ 70117605 Contact Us For Availability
10
Overlay SPQ 70285001 Contact Us For Availability
10
Screw SPQ 70566401 Contact Us For Availability
10
Pipe Clip SPQ 70203701 Contact Us For Availability
10
Transformer SPQ M414230P Contact Us For Availability
11
Door Glass SPQ M400784P Contact Us For Availability
11
Audit Switch Bracket SPQ 70183901 Contact Us For Availability
11
Pop Rivet SPQ 70126401 Contact Us For Availability
11
Lock, Key and Nut Kit SPQ 70258201 Contact Us For Availability
11
Nut SPQ 70372501P Contact Us For Availability
11
Motor Mount Bracket SPQ 70127301 Contact Us For Availability
11
Screw SPQ M402917 Contact Us For Availability
12
Key SPQ 44089302P Contact Us For Availability
12
Door Switch Actuator Kit SPQ 70215001P Contact Us For Availability
12
Lock, Key and Nut Kit SPQ 44089301P Contact Us For Availability
12
Lint Drawer Gasket SPQ 70126301 Contact Us For Availability
12
Center Cylinder Seal SPQ 70066003 Contact Us For Availability
13
Key SPQ 70155601 Contact Us For Availability
13
Rear Cylinder Seal Support SPQ 70506402 Contact Us For Availability
13
Control Plate Assembly SPQ 70497401 Contact Us For Availability
13
Door Ring and Handle Assembly SPQ 44043501 Contact Us For Availability
13
Center Pan SPQ 70338601 Contact Us For Availability
13
Nut SPQ M400022 Contact Us For Availability
13
Motor Channel SPQ 70261701 Contact Us For Availability
14
Bolt SPQ 70448701 Contact Us For Availability
14
Temperature Knob SPQ 44104601 Contact Us For Availability
14
Screw SPQ M400661 Contact Us For Availability
14
Side Panel SPQ 70231801WP Contact Us For Availability
15
Terminal Block SPQ M414312P Contact Us For Availability
15
Door Handle SPQ 44007902P Contact Us For Availability
15
Screw SPQ 70247701 Contact Us For Availability
15
Rear Stabilizer Bracket SPQ 70200301 Contact Us For Availability
16
Nut SPQ M414215 Contact Us For Availability
16
Rear Cylinder Channel SPQ 70392801 Contact Us For Availability
16
Washer SPQ 70443301 Contact Us For Availability
16
Screw SPQ 70126101 Contact Us For Availability
16
Fan Contactor SPQ M413614P Contact Us For Availability
17
Control Trim SPQ 70116902 Contact Us For Availability
17
Drum Idler Spring SPQ 70270301 Contact Us For Availability
18
Washer SPQ 70045301 Contact Us For Availability
18
Blower Inlet Cone SPQ 70014101 Contact Us For Availability
19
Label SPQ 70116901 Contact Us For Availability
19
Partition Baffle SPQ 70232701 Contact Us For Availability
19
Cylinder Motor Harness Assemb SPQ 70265901 Contact Us For Availability
19
Fuse Holder SPQ M405824 Contact Us For Availability
20
Blower Motor SPQ 70226701 Contact Us For Availability
20
Roller Shaft SPQ 70030401 Contact Us For Availability
21
Idler Wheel Assembly SPQ 430648 Contact Us For Availability
22
Clip SPQ 70616701 Contact Us For Availability
22
Cylinder Idler Arm SPQ 70275501P Contact Us For Availability
23
Jumper Bypass Assembly SPQ 70249501 Contact Us For Availability
23
Drive Motor SPQ 70050401P Contact Us For Availability
24
Drive Motor SPQ 70259901 Contact Us For Availability
NI
SPQ 70211501 SPQ 70211501 Contact Us For Availability
NI
Limit Thermostat SPQ 70144101 Contact Us For Availability
NI
Cylinder Guide Tool SPQ M400991 Contact Us For Availability
NI
SPQ 70482901 SPQ 70482901 Contact Us For Availability
NI
SPQ M4781P3 SPQ M4781P3 Contact Us For Availability
NI
Fan Contactor SPQ 430642 Contact Us For Availability
NI
Control Door Latch Kit SPQ 70559502 Contact Us For Availability
NI
SPQ 70084001 SPQ 70084001 Contact Us For Availability
NI
Fuse SPQ 70406501 Contact Us For Availability
NI
Coin Cover Overlay SPQ 70246301 Contact Us For Availability
NI
Electronic Coin Drop Assembly SPQ 70294110 Contact Us For Availability
NI
Coin Drop SPQ 70294107 Contact Us For Availability
NI
Opto Coupler SPQ 70283102 Contact Us For Availability
NI
Electronic Coin Drop Kit SPQ 39748 Contact Us For Availability
NI
SPQ 38475 SPQ 38475 Contact Us For Availability
NI
SPQ 38464P SPQ 38464P Contact Us For Availability
NI
SPQ 210195 SPQ 210195 Contact Us For Availability
NI
SPQ 70513311 SPQ 70513311 Contact Us For Availability
NI
SPQ CK109 SPQ CK109 Contact Us For Availability
NI
SPQ CK101 SPQ CK101 Contact Us For Availability
NI
SPQ CK117 SPQ CK117 Contact Us For Availability
NI
Door Catch Kit SPQ 70033502 Contact Us For Availability
NI
SPQ 44024201 SPQ 44024201 Contact Us For Availability
NI
Door Catch Kit SPQ 44088801 Contact Us For Availability
NI
Tumbler Dolly Kit SPQ 70204801 Contact Us For Availability
NI
SPQ 70155301 SPQ 70155301 Contact Us For Availability
NI
SPQ M4379P4 SPQ M4379P4 Contact Us For Availability
NI
SPQ 70108401P SPQ 70108401P Contact Us For Availability
NI
Lint Drawer Front Kit SPQ 70026901 Contact Us For Availability
NI
SPQ 70115301 SPQ 70115301 Contact Us For Availability
NI
SPQ 70322902P SPQ 70322902P Contact Us For Availability
NI
SPQ 70342401 SPQ 70342401 Contact Us For Availability
NI
SPQ 70296901 SPQ 70296901 Contact Us For Availability
NI
Adhesive SPQ 70343101P Contact Us For Availability
NI
SPQ 70062401 SPQ 70062401 Contact Us For Availability
NI
Washer SPQ 70080201P Contact Us For Availability
NI
SPQ M411307 SPQ M411307 Contact Us For Availability
NI
SPQ M412997 SPQ M412997 Contact Us For Availability
NI
Solenoid Valve DIN Connector SPQ F8322902 Contact Us For Availability
NI
Steam Valve Coil SPQ 70370301P Contact Us For Availability
NI
Valve Rebuild Kit SPQ M409443 Contact Us For Availability
NI
SPQ 70205701P SPQ 70205701P Contact Us For Availability
NI
SPQ F8382301 SPQ F8382301 Contact Us For Availability
NI
SPQ 51778 SPQ 51778 Contact Us For Availability
NI
SPQ M413508 SPQ M413508 Contact Us For Availability
NI
Jumper Configuration Assembly SPQ M414228P Contact Us For Availability
NI
Jumper Configuration Assembly SPQ 91024P Contact Us For Availability
NI
SPQ M413509 SPQ M413509 Contact Us For Availability
NI
SPQ 70085001P SPQ 70085001P Contact Us For Availability
NI
SPQ 70113101 SPQ 70113101 Contact Us For Availability
× ![]()
