Model LG IS-DVD100121 – Common Parts & Diagrams

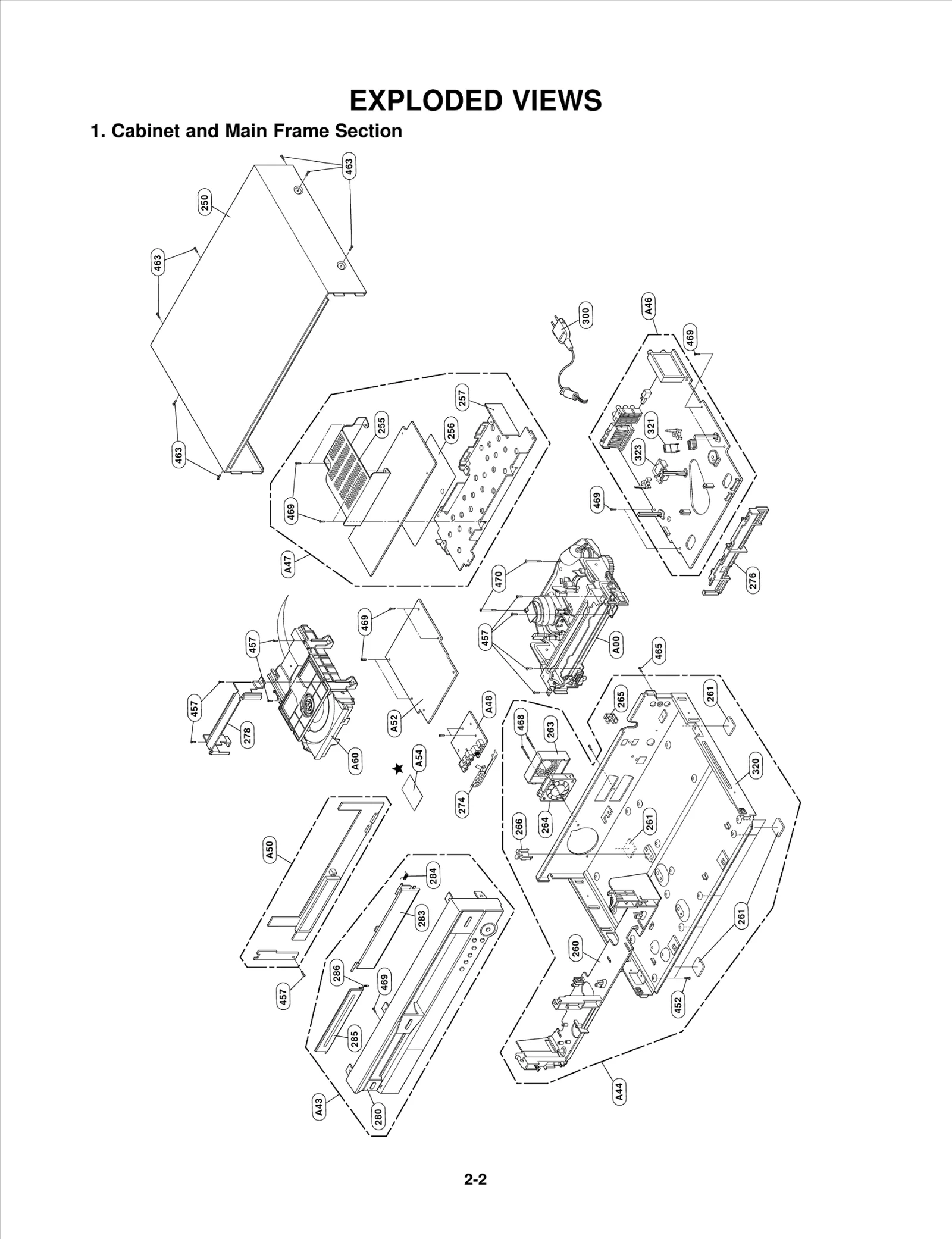

Diagram 0

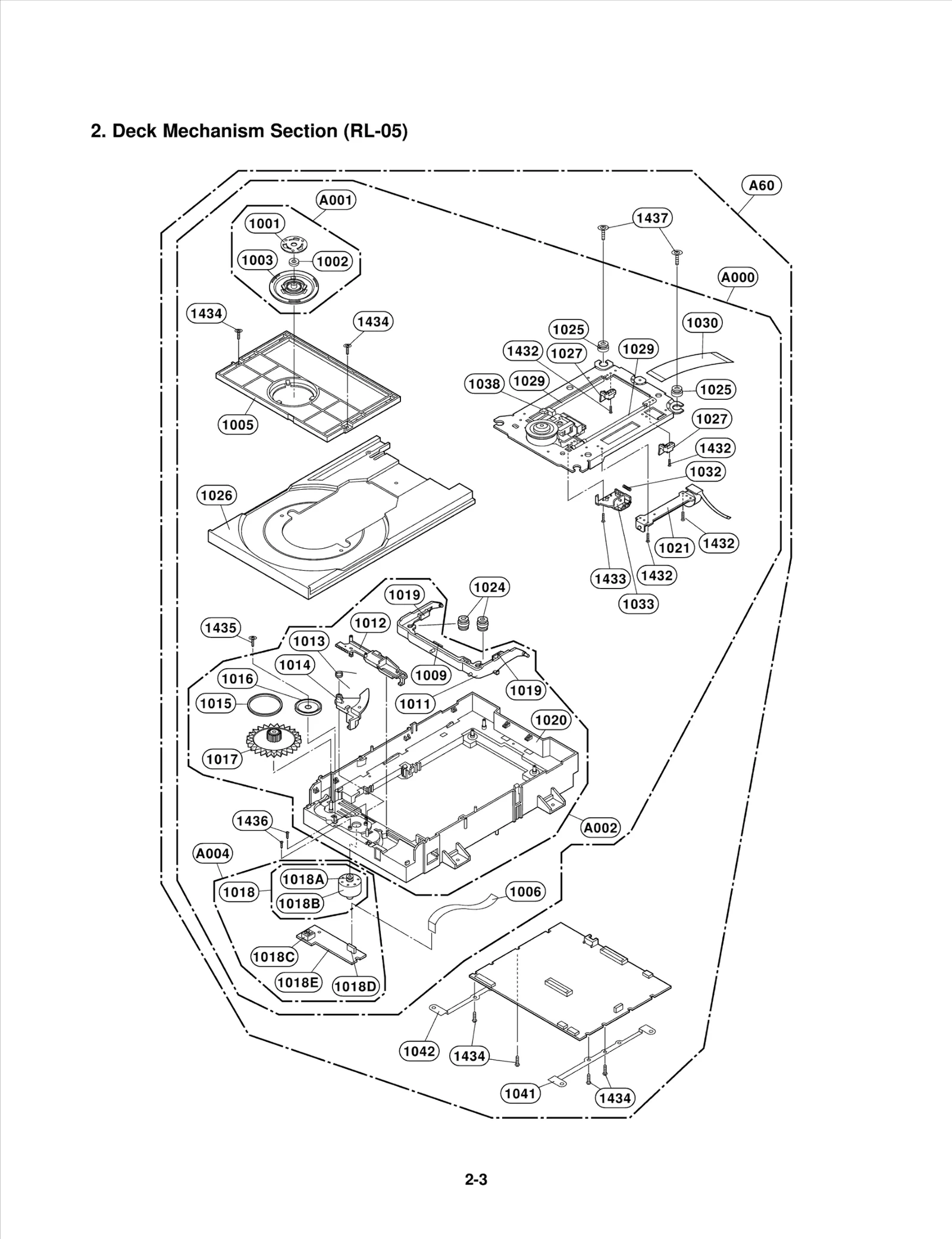

Diagram 1

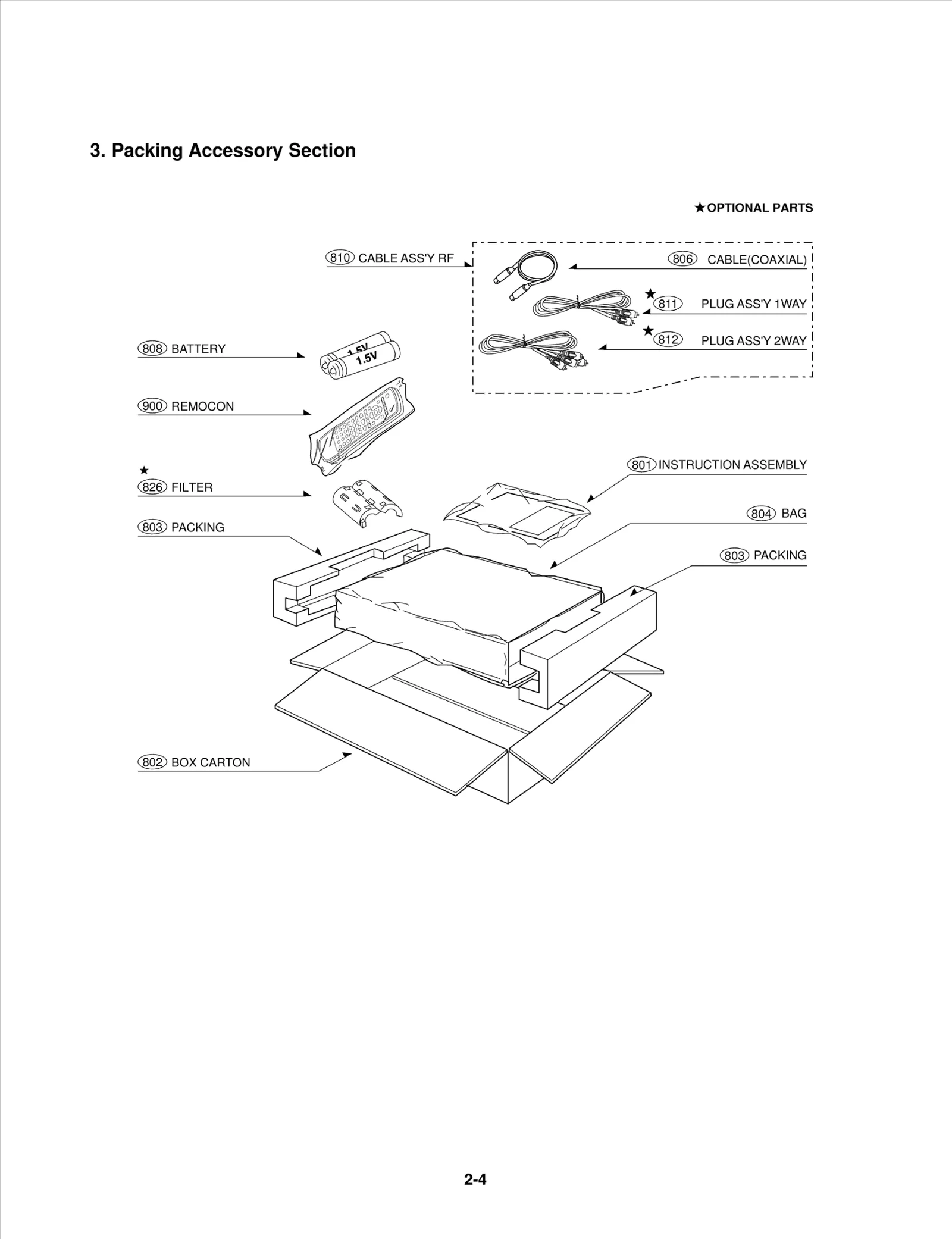

Diagram 2
Diagram 3
Common parts from model LG IS-DVD100121
A44
CHASSIS ASSEMBLY LGE 3141R-D056T Contact Us For Availability
A46
BOARD ASSEMBLY LGE 3501R-1735A Contact Us For Availability
A47
BOARD ASSEMBLY LGE 3501R-3290B Contact Us For Availability
A48
BOARD ASSEMBLY LGE 3501R-3278B Contact Us For Availability
A50
PWB(PCB) ASSEMBLY,TO LGE 6871R-3260A Contact Us For Availability
A52
SUB PWB(PCB) ASSEMBL LGE 6885R-2585C Contact Us For Availability
A60
DECK ASSEMBLY,DVD LGE 6721RFN016G Contact Us For Availability
BC102
COIL LGE 636-004D Contact Us For Availability
BC402
CAPACITOR,FIXED CERA LGE 0CH4222K416 Contact Us For Availability
BC421
Capacitor,Ceramic,Chip LGE 0CH4101K412 Contact Us For Availability
BC423
Capacitor,Ceramic,Chip LGE 0CH4271K412 Contact Us For Availability
BC439
CAPACITOR,FIXED CERAMIC(Temp.c LGE 0CH1104K512 Contact Us For Availability
BC440
CAPACITOR,FIXED CERA LGE 0CH1681K512 Contact Us For Availability
BC442
Capacitor,Ceramic,Chip LGE 0CH4151K412 Contact Us For Availability
BD101
DIODE,RECTIFIERS LGE 0DRVH00060A Contact Us For Availability
C102
CAPACITOR PCX2 275V 0.1UF M (P LGE 624-088F Contact Us For Availability
C102
Capacitor,Film,Box LGE 624-088N Contact Us For Availability
C102
CAPACITOR,DRAWING LGE 624-088L Contact Us For Availability
C102
Capacitor,Ceramic,Chip LGE 0CH4080K112 Contact Us For Availability
C103
Capacitor,Ceramic,Chip LGE 0CH4560K412 Contact Us For Availability
C103
CAPACITOR,FIXED ELEC LGE 0CE277JR6A0 Contact Us For Availability
C104
Capacitor,Ceramic,Chip LGE 0CH4330K412 Contact Us For Availability
C106
Capacitor,Ceramic,Chip LGE 0CH4150K412 Contact Us For Availability
C106
CAPACITOR LGE 624-087B Contact Us For Availability
C108
CAPACITOR,ELECTROLYTIC LGE 0CE336BH638 Contact Us For Availability
C111
CAPACITOR,SEMI CERAM LGE 0CG1020U630 Contact Us For Availability
C112
Capacitor,Ceramic,Axial LGE 0CN2220K518 Contact Us For Availability
C115
CAPACITOR,POLYESTER LGE 0CQ1031Y519 Contact Us For Availability
C116
CAPACITOR,FIXED CERAMIC(High d LGE 624-087G Contact Us For Availability
C118
ELECTROLYTIC 1.0M SRA/ (*NSP) LGE 0CE1054K638 Contact Us For Availability
C120
Capacitor,Ceramic,Axial LGE 0CN1040K948 Contact Us For Availability
C121
Capacitor,Film,DIP LGE 0CQ4732K409 Contact Us For Availability
C122
Capacitor,AL,Radial LGE 0CE108BF630 Contact Us For Availability
C123
Capacitor,AL,Radial LGE 0CE228BF630 Contact Us For Availability
C124
Capacitor,AL,Radial LGE 0CE3376D638 Contact Us For Availability
C125
Capacitor,AL,Radial LGE 624-082H Contact Us For Availability
C126
CAPACITOR,FIXED CERA LGE 0CH4390K442 Contact Us For Availability
C128
Capacitor,AL,Radial LGE 0CE337EK630 Contact Us For Availability
C130
Capacitor,AL,Radial LGE 0CE227CH618 Contact Us For Availability
C132
Capacitor,AL,Radial LGE 624-085D Contact Us For Availability
C133
Capacitor,AL,Radial LGE 0CE2276F638 Contact Us For Availability
C135
Capacitor,AL,Radial LGE 0CE1043K638 Contact Us For Availability
C136
Capacitor,AL,Radial LGE 0CE477BH630 Contact Us For Availability
C139
Capacitor,AL,Radial LGE 0CE108EH610 Contact Us For Availability
C140
Capacitor,AL,Radial LGE 624-082G Contact Us For Availability
C141
Capacitor,Film,DIP LGE 0CQ1042K409 Contact Us For Availability
C142
CAPACITOR LGE 624-087D Contact Us For Availability
C153
Capacitor,Ceramic,Axial LGE 0CN223AK948 Contact Us For Availability
C155
Capacitor,AL,Radial LGE 0CE1074F638 Contact Us For Availability
C201
Capacitor,Ceramic,Chip LGE 0CH4100K412 Contact Us For Availability
C206
Capacitor,Ceramic,Chip LGE 0CH4121K412 Contact Us For Availability
C228
Capacitor,Ceramic,Chip LGE 0CH1473K942 Contact Us For Availability
C303
Capacitor,AL,Radial LGE 0CE3344K638 Contact Us For Availability
C307
Capacitor,Ceramic,Chip LGE 0CH1152K512 Contact Us For Availability
C313
Capacitor,Film,DIP LGE 0CQ2231N409 Contact Us For Availability
C314
Capacitor,AL,Radial LGE 0CE4764F638 Contact Us For Availability
C323
CHIP CAPA CERAMIC M/L T.C F/S LGE 0CH4470K412 Contact Us For Availability
C327
Capacitor,AL,Radial LGE 0CE2254K638 Contact Us For Availability
C336
Capacitor,Ceramic,Chip LGE 0CH1105D942 Contact Us For Availability
C340
Capacitor,AL,Radial LGE 0CE1063F638 Contact Us For Availability
C342
Capacitor,Ceramic,Chip LGE 0CH4331K412 Contact Us For Availability
C349
Capacitor,Ceramic,Radial LGE 0CC0500K015 Contact Us For Availability
C353
Capacitor,AL,Radial LGE 0CE3354K638 Contact Us For Availability
C354
Capacitor,Ceramic,Chip LGE 0CH1472K512 Contact Us For Availability
C356
Capacitor,Ceramic,Chip LGE 0CH1333K562 Contact Us For Availability
C371
CAPACITOR,CHIP[CERAM LGE 0CH1104K942 Contact Us For Availability
C395
CHIP CAPA CERAMIC M/L T.C F/S LGE 0CH4220K412 Contact Us For Availability
C504
Capacitor,Ceramic,Chip LGE 0CH1105F942 Contact Us For Availability
C514
Capacitor,Ceramic,Chip LGE 0CH4240K412 Contact Us For Availability
C526
Capacitor,AL,Radial LGE 0CE4765K618 Contact Us For Availability
C542
Capacitor,Ceramic,Chip LGE 0CH4681K412 Contact Us For Availability
C544
Capacitor,Ceramic,Chip LGE 0CH1473H942 Contact Us For Availability
C546
CAPACITOR,ELECTROLYTIC LGE 0CE4764H638 Contact Us For Availability
C551
Capacitor,Ceramic,Chip LGE 0CH1333K512 Contact Us For Availability
C569
Capacitor,Ceramic,Chip LGE 0CH1102K512 Contact Us For Availability
C571
Capacitor,Ceramic,Chip LGE 0CH4180K412 Contact Us For Availability
C578
Capacitor,AL,Radial LGE 0CE2274C638 Contact Us For Availability
C584
Capacitor,AL,Radial LGE 0CE4764C638 Contact Us For Availability
C585
Capacitor,Ceramic,Chip LGE 0CH1103K562 Contact Us For Availability
C589
Capacitor,Ceramic,Chip LGE 0CH4221K412 Contact Us For Availability
C593
Capacitor,Ceramic,Chip LGE 0CH4471K412 Contact Us For Availability
C603
Capacitor,Ceramic,Chip LGE 0CH1223K942 Contact Us For Availability
C610
Capacitor,AL,Chip LGE 0CE4775C638 Contact Us For Availability
C617
Capacitor,Ceramic,Chip LGE 0CH4101K462 Contact Us For Availability
C638
Capacitor,AL,Radial LGE 0CE2264F638 Contact Us For Availability
C702
Capacitor,Ceramic,Chip LGE 0CH1682K512 Contact Us For Availability
C703
Capacitor,Ceramic,Axial LGE 0CN1020K518 Contact Us For Availability
C706
Capacitor,Ceramic,Chip LGE 0CH4680K412 Contact Us For Availability
C806
C.ELECTROLYTIC 4.7M SRA 50VGVP LGE 0CE4754K638 Contact Us For Availability
C819
Capacitor,AL,Radial LGE 0CE2244K638 Contact Us For Availability
C823
Capacitor,AL,Radial LGE 0CE3364F638 Contact Us For Availability
C833
Capacitor,Ceramic,Chip LGE 0CH1103K512 Contact Us For Availability
C847
Capacitor,Ceramic,Chip LGE 0CH1222K512 Contact Us For Availability
C884
Capacitor,Film,DIP LGE 0CQ2232L559 Contact Us For Availability
CABL130
CABLE,FLAT LGE 6850R-EA13Z Contact Us For Availability
CABLE
CABLE,FLAT LGE 6850R-G007Z Contact Us For Availability
CABLE
CABLE,FLAT LGE 6850R-G409C Contact Us For Availability
CE226
CAPACITOR,CHIP[AL. ELECTROLYTI LGE 0CH8476C611 Contact Us For Availability
CE303
CAPACITOR,CHIP[AL. ELECTROLYTI LGE 0CH8107F611 Contact Us For Availability
CE307
CAPACITOR,CHIP[AL. ELECTROLYTI LGE 0CH8227C621 Contact Us For Availability
CE404
CAPACITOR,CHIP[AL. E LGE 0CH8335K611 Contact Us For Availability
CE428
CAPACITOR,CHIP[AL. E LGE 0CH8476F611 Contact Us For Availability
CE435
CAPACITOR,CHIP[AL. E LGE 0CH8106F611 Contact Us For Availability
CE441
CAPACITOR,CHIP[AL. ELECTROLYTI LGE 0CH8226F611 Contact Us For Availability
CN203
CONNECTOR (CIRC),FFC LGE 6630XA05640 Contact Us For Availability
CONNECTOR
CONNECTOR ASSEMBLY LGE 6631R-E070A Contact Us For Availability
CONNECTOR
CONNECTOR ASSEMBLY LGE 6631R-E070B Contact Us For Availability
CS501
SWITCH,PUSH LGE 6600M000026 Contact Us For Availability
D103
DIODE LGE 0DD221009AA Contact Us For Availability
D121
DIODE,RECTIFIERS LGE 0DRSD00210A Contact Us For Availability
D123
DIODE,SWITCHING LGE 0DSKE00141B Contact Us For Availability
D123
DIODE,SWITCHING LGE 0DSNH00020B Contact Us For Availability
D126
DIODE,SWITCHING LGE 0DSGF00040A Contact Us For Availability
D129
DIODE,RECTIFIER LGE 0DR104009BA Contact Us For Availability
D134
DIODE 1SS133 DETECT, SW TP LGE 0DD133009AA Contact Us For Availability
D606
DIODE,RECTIFIER LGE 0DR104009AB Contact Us For Availability
DIG601
VFD LGE 6302R-V238A Contact Us For Availability
ES502
HOLDER ASSEMBLY LGE 4931R-0085C Contact Us For Availability
F101
FUSE,SLOW BLOW LGE 0FS1601B51D Contact Us For Availability
F602
FILTER(CIRC),EMI LGE 6200HJC901A Contact Us For Availability
F704
Filter,Bead LGE 636-004C Contact Us For Availability
FB403
FILTER(CIRC),EMI LGE 6200HJC102A Contact Us For Availability
FH02
HOLDER FUSE LGE 586-008B Contact Us For Availability
IC101
IC,POWER MANAGEMENT LGE 0IPMGIH005A Contact Us For Availability
IC101
IC,LINEAR LGE 0ILNRCI007A Contact Us For Availability
IC103
IC,MEMORIES LGE 0IMMRHY001G Contact Us For Availability
IC103
IC KEC, KIA431, GVR-C435/R-E4 LGE 0IKE431000A Contact Us For Availability
IC104
IC,POWER MANAGEMENT LGE 0IPMGFF001A Contact Us For Availability
IC107
SENSOR,PHOTO LGE 6500RDB010A Contact Us For Availability
IC107
SENSOR LTV-817B PHOTO COUPLER LGE 657-063A Contact Us For Availability
IC107
IC,PHILIPS LGE 0IPH740400F Contact Us For Availability
IC151
IC,POWER MANAGEMENT LGE 0IPMGKE047A Contact Us For Availability
IC151
IC,POWER MANAGEMENT LGE 0IPMGFA050A Contact Us For Availability
IC154
IC,POWER MANAGEMENT LGE 0IPMGKE022B Contact Us For Availability
IC154
IC,POWER MANAGEMENT LGE 0IPMGFA046A Contact Us For Availability
IC154
IC,POWER MANAGEMENT LGE 0IPMGGM003A Contact Us For Availability
IC157
IC,POWER MANAGEMENT LGE 0IPMGFA031A Contact Us For Availability
IC157
IC,POWER MANAGEMENT LGE 0IPMGKE048A Contact Us For Availability
IC160
IC,POWER MANAGEMENT LGE 0IPMGSH016A Contact Us For Availability
IC201
IC,LINEAR LGE 0ILNRCI008A Contact Us For Availability
IC202
IC,MEMORIES LGE 0IMMRFU016A Contact Us For Availability
IC202
IC,MEMORIES LGE 0IMMRMR024D Contact Us For Availability
IC204
IC MEMORIES LGE 0IMMRHY001E Contact Us For Availability
IC204
IC,MEMORIES LGE 0IMMREB004D Contact Us For Availability
IC205
IC,SAMSUNG ELECTRONICS LGE 0ISS241610B Contact Us For Availability
IC301
IC,LINEAR LGE 0ILNRHI009B Contact Us For Availability
IC302
IC,POWER MANAGEMENT LGE 0IPMGJR012A Contact Us For Availability
IC303
IC,Video Decode LGE 0ILNRTI027A Contact Us For Availability
IC401
IC,STANDARD LOGIC LGE 0ISTLTI071A Contact Us For Availability
IC402
IC,PERIPHERALS LGE 0IPRP00015A Contact Us For Availability
IC403
IC,LINEAR LGE 0ILNRON005A Contact Us For Availability
IC404
IC,PERIPHERALS LGE 0IPRPCI013A Contact Us For Availability
IC501
IC,MICRO CONTROLLER LGE 0IMCR02082A Contact Us For Availability
IC503
IC,CATALYST LGE 0ICS241600B Contact Us For Availability
IC504
IC KEC KIA7031P 3P 3.1V RES LGE 0IKE703100A Contact Us For Availability
IC505
IC KIA7042P SP 4.2V RESET, KE LGE 0IKE704200B Contact Us For Availability
IC601
IC,PERIPHERALS LGE 0IPRPMT008A Contact Us For Availability
IC601
IC,PERIPHERALS LGE 0IPRPPY002A Contact Us For Availability
IC602
IC,JRC LGE 0IJR223400D Contact Us For Availability
IC801
IC,Hi,Fi LGE 0ILNRMA001A Contact Us For Availability
JK601
JACK,RCA LGE 6612J00025E Contact Us For Availability
JK603
JACK,FIBER OPTIC LGE 6612K00003D Contact Us For Availability
JK603
JACK,FIBER OPTIC LGE 6612K00003B Contact Us For Availability
JK761
JACK,DIN LGE 6612B00010A Contact Us For Availability
JK762
JACK,RCA LGE 6612JH002NA Contact Us For Availability
JK763
JACK,RCA LGE 6612JH002NB Contact Us For Availability
JK764
JACK,RCA LGE 6612JH002NC Contact Us For Availability
L102
FILTER(CIRC),EMC LGE 6200JB8013R Contact Us For Availability
L122
COIL,RF LGE 6140R-C011A Contact Us For Availability
L122
Inductor,Wire Wound, LGE 6200J000147 Contact Us For Availability
L123
COIL,RF LGE 6140RCC009A Contact Us For Availability
L127
COIL,CHOKE LGE 633-088G Contact Us For Availability
L202
INDUCTOR,CHIP LGE 0LCCE00004L Contact Us For Availability
L300
INDUCTOR RADIAL LEAD LGE 0LR0392K035 Contact Us For Availability
L301
COIL LGE 6140H-A001A Contact Us For Availability
L303
INDUCTOR,RADIAL LEAD LGE 0LR1500J025 Contact Us For Availability
L307
INDUCTOR,RADIAL LEAD LGE 0LR0122J035 Contact Us For Availability
L311
Inductor,Wire Wound,Radial LGE 0LR1000K035 Contact Us For Availability
L510
INDUCTOR RADIAL LEAD 68M K 6X6 LGE 0LR0682K035 Contact Us For Availability
L601
INDUCTOR RADIAL LEAD LGE 0LR8200J025 Contact Us For Availability
L608
INDUCTOR,RADIAL LEAD LGE 0LR0101K035 Contact Us For Availability
L702
INDUCTOR RADIAL LEAD R-E41M 1U LGE 0LR0102K035 Contact Us For Availability
L705
INDUCTOR AXIAL LEAD * R-V422M LGE 0LA1000K018 Contact Us For Availability
L801
Inductor,Wire Wound,Radial LGE 0LR1000J025 Contact Us For Availability
L801
INDUCTOR,RADIAL LEAD LGE 0LR1000J0N5 Contact Us For Availability
LAR202
Resistor,Array LGE 0RR1500Q621 Contact Us For Availability
LAR303
Resistor,Array LGE 0RRZVTA001F Contact Us For Availability
LAR310
Resistor,Array LGE 0RRZVTA001V Contact Us For Availability
LC212
Capacitor,Ceramic,Chip LGE 0CH4270K412 Contact Us For Availability
LC214
CAPACITOR,FIXED CERA LGE 0CH1221K562 Contact Us For Availability
LC224
Capacitor,Ceramic,Chip LGE 0CH1224F942 Contact Us For Availability
LC230
Capacitor,Ceramic,Chip LGE 0CH1272K512 Contact Us For Availability
LC233
Capacitor,Ceramic,Chip LGE 0CH1331K412 Contact Us For Availability
LC234
Capacitor,Ceramic,Chip LGE 0CK334CH94A Contact Us For Availability
LC235
Capacitor,Ceramic,Chip LGE 0CH1330K412 Contact Us For Availability
LC239
CAPACITOR,FIXED CERA LGE 0CH1561K462 Contact Us For Availability
LC250
Capacitor,Ceramic,Chip LGE 0CH1101K965 Contact Us For Availability
LC254
Capacitor,Ceramic,Chip LGE 0CH1105F946 Contact Us For Availability
LC258
Capacitor,Ceramic,Chip LGE 0CH1475D946 Contact Us For Availability
LC259
Capacitor,Ceramic,Chip LGE 0CH1332K562 Contact Us For Availability
LC264
Capacitor,Ceramic,Chip LGE 0CH1682K562 Contact Us For Availability
LC271
Capacitor,Ceramic,Chip LGE 0CH1182K562 Contact Us For Availability
LC272
Capacitor,Ceramic,Chip LGE 0CH1474K562 Contact Us For Availability
LC273
CAPACITOR,FIXED CERA LGE 0CK106DD64A Contact Us For Availability
LC279
Capacitor,Ceramic,Chip LGE 0CK106EDD7A Contact Us For Availability
LC290
Capacitor,Ceramic,Chip LGE 0CH1471K512 Contact Us For Availability
LC291
Capacitor,Ceramic,Chip LGE 0CH1392K512 Contact Us For Availability
LC324
Capacitor,Ceramic,Chip LGE 0CH1223F512 Contact Us For Availability
LC503
Capacitor,Ceramic,Chip LGE 0CK226FF94A Contact Us For Availability
LC516
CAPACITOR,FIXED CERA LGE 0CK106EF66A Contact Us For Availability
LC541
Capacitor,AL,Chip LGE 0CH8107F621 Contact Us For Availability
LC544
Capacitor,Ceramic,Chip LGE 0CK226ED94A Contact Us For Availability
LC549
Capacitor,TA,Niobium LGE 0CS476HD6DC Contact Us For Availability
LCN201
CONNECTOR (CIRC),FFC LGE 6630HXE440E Contact Us For Availability
LCN301
Connector,FFC/FPC/PIC LGE 6630R-FB06D Contact Us For Availability
LCN302
Connector,Wafer LGE 6630VK20704 Contact Us For Availability
LCN303
CONNECTOR (CIRC),FFC LGE 6630HXE440D Contact Us For Availability
LCN501
CONNECTOR (CIRC),FFC LGE 6630XE00204 Contact Us For Availability
LCN502
Connector,FFC/FPC/PIC LGE 6630R-FB06M Contact Us For Availability
LCN504
Connector,FFC/FPC/PIC LGE 6630R-FB06E Contact Us For Availability
LD301
DIODE,SWITCHING LGE 0DSRM00148A Contact Us For Availability
LD501
HOLDER ASSEMBLY LGE 4931R-0089C Contact Us For Availability
LED601
LED LGE 0DL325319AA Contact Us For Availability
LED603
LED,DIP LGE 0DLLN0038AA Contact Us For Availability
LED605
LED LGE 0DLAU0239AA Contact Us For Availability
LED605
Optic Element,Unclassified LGE 0DL112000AJ Contact Us For Availability
LIC201
IC,LINEAR LGE 0ILNRNE019A Contact Us For Availability
LIC202
IC,Gate LGE 0ISTLKE014A Contact Us For Availability
LIC203
IC,POWER MANAGEMENT LGE 0IPMGTR057A Contact Us For Availability
LIC204
IC,OP Amplifier LGE 0ILNRJR014B Contact Us For Availability
LIC205
IC,Multiplexer LGE 0IPRPFA011A Contact Us For Availability
LIC301
IC,LINEAR LGE 0ILNRNE018A Contact Us For Availability
LIC302
IC,MEMORIES LGE 0IMMR00027A Contact Us For Availability
LIC302
IC,MEMORIES LGE 0IMMR00047A Contact Us For Availability
LIC302
IC,EEPROM LGE 0IMMRAL007A Contact Us For Availability
LIC303
IC,Reset LGE 0IPMGA1007A Contact Us For Availability
LIC304
IC,MEMORIES LGE 0IMMREB006C Contact Us For Availability
LIC304
IC,MEMORIES LGE 0IMMREO002A Contact Us For Availability
LIC501
IC,MEMORIES LGE 0IMMRMR010E Contact Us For Availability
LIC501
IC,NOR Flash Memory LGE 0IMMRMR023F Contact Us For Availability
LIC502
IC,LINEAR LGE 0ILNRRH034A Contact Us For Availability
LIC504
IC,STANDARD LOGIC LGE 0ISTLPH074A Contact Us For Availability
LIC505
IC,LDO Voltage Regulator LGE 0IPMGRH013A Contact Us For Availability
LIC506
IC,STANDARD LOGIC LGE 0ISTLPH062A Contact Us For Availability
LL201
Inductor,Wire Wound,Chip LGE 6140H-B003G Contact Us For Availability
LL302
Filter,Bead LGE 0LCCE00005N Contact Us For Availability
LQ302
TR,Array LGE 0TRRH80059A Contact Us For Availability
LR219
Resistor,Chip LGE 0RH2703C622 Contact Us For Availability
LR220
Resistor,Chip LGE 0RH6201C622 Contact Us For Availability
LR233
Resistor,Chip LGE 0RH4703C622 Contact Us For Availability
LR234
Resistor,Chip LGE 0RH1201C622 Contact Us For Availability
LR319
Resistor,Chip LGE 0RH2202C622 Contact Us For Availability
LR337
RESISTOR,CHIP LGE 0RH0472C622 Contact Us For Availability
LR340
Resistor,Chip LGE 0RH0332C622 Contact Us For Availability
LR351
Resistor,Chip LGE 0RH1003C622 Contact Us For Availability
LR371
Resistor,Chip LGE 0RH0822C622 Contact Us For Availability
LR378
RESISTOR,CHIP LGE 0RH0682C622 Contact Us For Availability
LR527
Resistor,Chip LGE 0RH0181D622 Contact Us For Availability
LR540
Resistor,Chip LGE 0RH4700C622 Contact Us For Availability
LX301
RESONATOR,CERAMIC LGE 6212BB3241A Contact Us For Availability
MS501
SWITCH,MODE LGE 6600JR3002E Contact Us For Availability
MS501
SWITCH,MODE LGE 6600JR3002D Contact Us For Availability
P3D01
CONNECTOR(CIRC),DRAWING LGE 561-234S Contact Us For Availability
P3D02
CONNECTOR(CIRC),DRAW LGE 6630R5S008J Contact Us For Availability
P3D03
Connector,BtoB LGE 561-251B Contact Us For Availability
P6M01
CONNECTOR (CIRC) LGE 561-844L Contact Us For Availability
P6M03
CONNECTOR(CIRC),DRAW LGE 561-844D Contact Us For Availability
P101
Connector,Wafer LGE 561-036N Contact Us For Availability
P103
Connector,Wafer LGE 6630VK20604 Contact Us For Availability
P104
CONNECTOR (CIRC),HOU LGE 561-661B Contact Us For Availability
P6602
Harness,Single LGE 6631R-E001N Contact Us For Availability
P6603
Connector,Wafer LGE 561-036C Contact Us For Availability
PM601
CONNECTOR (CIRC) LGE 561-843L Contact Us For Availability
PM602
CONNECTOR (CIRC) LGE 561-843D Contact Us For Availability
PMC01
CONNECTOR (CIRC),BOA LGE 6630BK01612 Contact Us For Availability
PMD01
CONNECTOR (CIRC),FFC LGE 6630R-FB10O Contact Us For Availability
PMD02
CONNECTOR (CIRC),FFC LGE 6630R-FB104 Contact Us For Availability
PMF01
Connector,Wafer LGE 561-036I Contact Us For Availability
PMP01
Harness,Single LGE 6631R-E035B Contact Us For Availability
PN302
Connector,Wafer LGE 6630R3S006M Contact Us For Availability
PN303
CONNECTOR (CIRC),FFC/FPC LGE 6630XE00115 Contact Us For Availability
PN304
CONNECTOR (CIRC),FFC LGE 6630XE00130 Contact Us For Availability
PN7605
Connector,Wafer LGE 561-711O Contact Us For Availability
PW101
CONNECTOR (CIRC) LGE 561-292B Contact Us For Availability
Q5G2
TRANSISTOR LGE 0TR534409AA Contact Us For Availability
Q120
TRANSISTOR KTD1414(TO220I LGE 0TR141409AA Contact Us For Availability
Q121
TRANSISTOR LGE 0TR220309AF Contact Us For Availability
Q123
TRANSISTOR,BIPOLARS LGE 0TR126809BA Contact Us For Availability
Q125
TRANSISTOR LGE 0TR534309BA Contact Us For Availability
Q125
TRANSISTOR KTC3198-TP-BL(KTC1 LGE 0TR319809AC Contact Us For Availability
Q126
TRANSISTOR KTC3205-TP-Y (KEC2 LGE 0TR320509AB Contact Us For Availability
Q301
TRANSISTOR KTC3203-TP-Y(KTC212 LGE 0TR320309AA Contact Us For Availability
Q301
TRANSISTOR,BIPOLARS LGE 0TR150409AB Contact Us For Availability
Q302
TR,Bipolar LGE 0TR928009AD Contact Us For Availability
Q303
TR,Bipolar LGE 0TR124009AP Contact Us For Availability
Q303
TRANSISTOR,BIPOLARS LGE 0TRAU80002A Contact Us For Availability
Q307
TRANSISTOR KRA103S-T1(PC)22-22 LGE 0TR103009AC Contact Us For Availability
Q503
TRANSISTOR LGE 0TR127309AA Contact Us For Availability
Q504
TR CHIP KTC3875S-GR-T1(ALG) K LGE 0TR387509AC Contact Us For Availability
Q607
TR,Bipolar LGE 0TR103009AA Contact Us For Availability
Q702
TR,Bipolar LGE 0TR150409AC Contact Us For Availability
R5G2
Resistor,Chip LGE 0RH1802C622 Contact Us For Availability
R100
RESISTOR,FIXED CARBON FILM LGE 0RD1504H632 Contact Us For Availability
R101
RESISTOR 2.7/2W CEMENT SMPS V LGE 614-007A Contact Us For Availability
R105
Resistor,Chip LGE 0RH1004C622 Contact Us For Availability
R105
Resistor,Carbon Film LGE 0RD0152F608 Contact Us For Availability
R107
Resistor,Fusible LGE 0RF0200F708 Contact Us For Availability
R109
RESISTOR,FIXED METAL LGE 0RS0600K619 Contact Us For Availability
R114
Resistor,Chip LGE 0RH1500C622 Contact Us For Availability
R115
RESISTOR,FIX METAL FILM OXIDE LGE 0RS5602K619 Contact Us For Availability
R124
Resistor,Metal Film LGE 0RN3301F408 Contact Us For Availability
R125
Resistor,Metal Film LGE 0RN2701F408 Contact Us For Availability
R126
Resistor,Carbon Film LGE 0RD2700F608 Contact Us For Availability
R128
Resistor,Carbon Film LGE 0RD0122F608 Contact Us For Availability
R130
RESISTOR FIXED CARBON FILM 100 LGE 0RD1003F608 Contact Us For Availability
R131
Resistor,Carbon Film LGE 0RD1800F608 Contact Us For Availability
R132
Resistor,Carbon Film LGE 0RD2201F608 Contact Us For Availability
R134
Resistor,Carbon Film LGE 0RD1802F608 Contact Us For Availability
R136
Resistor,Carbon Film LGE 0RD3300F608 Contact Us For Availability
R137
RESISTOR FIXED CARBON FILM 47K LGE 0RD4702F608 Contact Us For Availability
R140
Resistor,Carbon Film LGE 0RD1201F608 Contact Us For Availability
R144
Resistor,Carbon Film LGE 0RD5601F608 Contact Us For Availability
R155
RESISTOR FIX METAL FILM 120 1W LGE 0RS1200J619 Contact Us For Availability
R157
Resistor,Carbon Film LGE 0RD1002F608 Contact Us For Availability
R159
FIXED CARBON FILM 4.7K UG8*NSP LGE 0RD4701F608 Contact Us For Availability
R160
Resistor,Carbon Film LGE 0RD2200F608 Contact Us For Availability
R166
Resistor,Carbon Film LGE 0RD5600F608 Contact Us For Availability
R167
Resistor,Metal Film LGE 0RN3601F408 Contact Us For Availability
R168
Resistor,Metal Film LGE 0RN1801F408 Contact Us For Availability
R203
Resistor,Chip LGE 0RH2201C622 Contact Us For Availability
R208
Resistor,Chip LGE 0RH0752C422 Contact Us For Availability
R226
Resistor,Chip LGE 0RH1000C422 Contact Us For Availability
R237
INDUCTOR,CHIP LGE 0LCCE00005T Contact Us For Availability
R238
Resistor,Chip LGE 0RH0000C622 Contact Us For Availability
R248
Resistor,Chip LGE 0RH5601C622 Contact Us For Availability
R301
Resistor,Chip LGE 0RH1202C622 Contact Us For Availability
R302
Resistor,Chip LGE 0RH3303C622 Contact Us For Availability
R303
Resistor,Chip LGE 0RH1800C622 Contact Us For Availability
R308
Resistor,Chip LGE 0RH7501C622 Contact Us For Availability
R316
Resistor,Chip LGE 0RH2701D622 Contact Us For Availability
R329
Resistor,Chip LGE 0RH3300C622 Contact Us For Availability
R339
Resistor,Chip LGE 0RJ6804C677 Contact Us For Availability
R342
Resistor,Chip LGE 0RH1502C622 Contact Us For Availability
R353
Resistor,Chip LGE 0RH5600C622 Contact Us For Availability
R370
Resistor,Chip LGE 0RH0222C622 Contact Us For Availability
R410
Resistor,Chip LGE 0RH5100C622 Contact Us For Availability
R441
Resistor,Chip LGE 0RH0471C622 Contact Us For Availability
R515
Resistor,Chip LGE 0RH2700C622 Contact Us For Availability
R521
Resistor,Chip LGE 0RH2701C622 Contact Us For Availability
R564
Resistor,Chip LGE 0RH2702C622 Contact Us For Availability
R578
Resistor,Chip LGE 0RH4701C622 Contact Us For Availability
R579
Resistor,Chip LGE 0RH5602C622 Contact Us For Availability
R587
Resistor,Chip LGE 0RH1801C622 Contact Us For Availability
R589
Resistor,Chip LGE 0RH1501C622 Contact Us For Availability
R605
Resistor,Chip LGE 0RH8202C622 Contact Us For Availability
R612
Resistor,Chip LGE 0RH8200C622 Contact Us For Availability
R616
Resistor,Chip LGE 0RH3301C622 Contact Us For Availability
R628
RESISTOR,CHIP LGE 0RH1000C622 Contact Us For Availability
R629
Resistor,Chip LGE 0RH0752C622 Contact Us For Availability
R630
RESISTOR,CHIP LGE 0RH1200C622 Contact Us For Availability
R632
Resistor,Chip LGE 0RH2200C622 Contact Us For Availability
R640
Resistor,Chip LGE 0RH1801D622 Contact Us For Availability
R705
Resistor,Chip LGE 0RH6800C622 Contact Us For Availability
R715
Resistor,Chip LGE 0RH2201D622 Contact Us For Availability
R716
RESISTOR,CHIP LGE 0RH1001C622 Contact Us For Availability
R719
RESISTOR CHIP 4.7K 1/10W 5 D. LGE 0RH4701D622 Contact Us For Availability
R725
RESISTOR,CHIP LGE 0RH1002C622 Contact Us For Availability
R766
Resistor,Carbon Film LGE 0RD0752F608 Contact Us For Availability
R803
Resistor,Chip LGE 0RH6801C622 Contact Us For Availability
R805
RH 47K-J 1/16W GVC-F475,F477 LGE 0RH4702C622 Contact Us For Availability
R812
Resistor,Chip LGE 0RH3302C622 Contact Us For Availability
R822
Resistor,Chip LGE 0RH3902C622 Contact Us For Availability
R825
RESISTOR,METAL GLAZED(CHIP) LGE 0RH1804C622 Contact Us For Availability
RB71
WIRE,JUMP LGE 874-000T Contact Us For Availability
RC601
Receiver Module LGE 6712R1638GA Contact Us For Availability
RC601
REMOTE CONTROLLER RE LGE 6712R1638GB Contact Us For Availability
RS502
SENSOR LGE 6500RAB008A Contact Us For Availability
SW613
SWITCH,TACT LGE 556-219B Contact Us For Availability
SW613
Switch,Tact LGE 556-282C Contact Us For Availability
T101
TRANSFORMER,SMPS[COI LGE 6170RNGW23H Contact Us For Availability
T102
TRANSFORMER,SMPS[COI LGE 6170RNGW23B Contact Us For Availability
TU701
TUNER LGE 6700NFNL05A Contact Us For Availability
V101
VARISTOR LGE 656-004C Contact Us For Availability
X101
CRYSTAL,SMD LGE 6202R-BL01A Contact Us For Availability
X301
RESONATOR,CRYSTAL LGE 6212AB2143C Contact Us For Availability
X301
RESONATOR,CRYSTAL LGE 6212AA2357H Contact Us For Availability
X501
Crystal LGE 617-602F Contact Us For Availability
X501
RESONATOR,CRYSTAL LGE 6202R-DA01B Contact Us For Availability
X502
RESONATOR,CRYSTAL LGE 6212AA2148F Contact Us For Availability
ZD101
DIODE,ZENERS LGE 0DZ200009BB Contact Us For Availability
ZD101
DIODE,ZENER LGE 0DZ202609AA Contact Us For Availability
ZD151
Diode,Zener LGE 0DZ337729AA Contact Us For Availability
ZD152
Diode,Zener LGE 0DZ130009AA Contact Us For Availability
ZD153
Diode,Zener LGE 0DZRM00543A Contact Us For Availability
ZD304
DIODE,ZENERS LGE 0DZPH00088A Contact Us For Availability
ZD504
DIODE,ZENERS LGE 0DZKE00018A Contact Us For Availability
× ![]()
Login and Registration Form
