Model LG IPS277L-PN – Common Parts & Diagrams

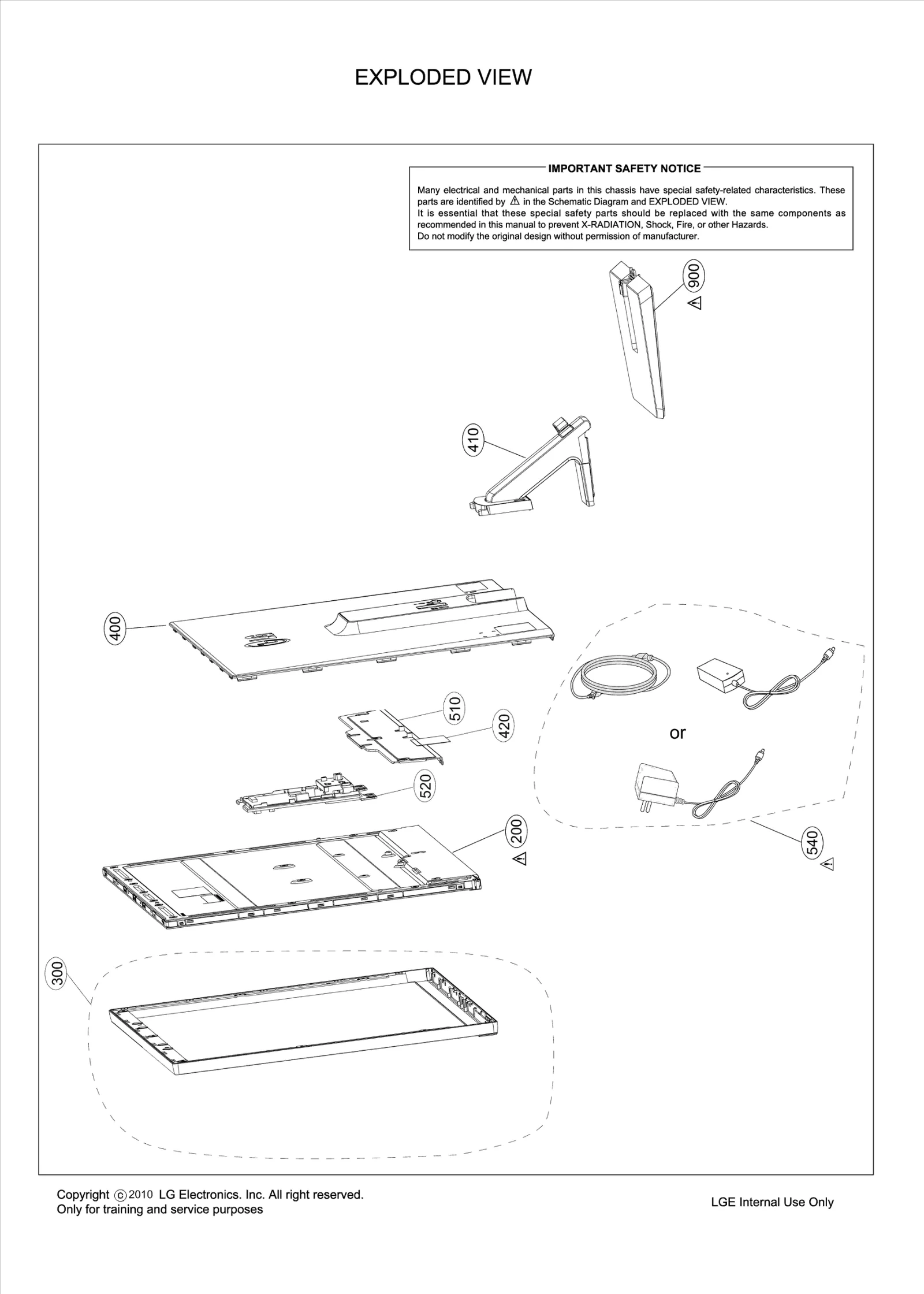

Diagram 0
Diagram 1
Common parts from model LG IPS277L-PN
200
LCD Module LGE EAJ62113201 Contact Us For Availability
400
Cover Assembly LGE ACQ85993701 Contact Us For Availability
410
Base Assembly LGE AAN74112501 Contact Us For Availability
420
Frame Assembly LGE ADV74387101 Contact Us For Availability
510
BPR Total Assembly LGE EBU61922702 Contact Us For Availability
520
Bracket LGE MAZ63493202 Contact Us For Availability
530
PCB Assembly LGE EBR75586004 Contact Us For Availability
540
Adapters LGE EAY62790007 Contact Us For Availability
A1
S/W Package LGE SAB33074524 Contact Us For Availability
A4
Card LGE MBM63822101 Contact Us For Availability
A5
Cable,Assembly LGE EAD57734001 Contact Us For Availability
A6
Cable,Assembly LGE EAD62111305 Contact Us For Availability
A6
Cable,Assembly LGE EAD62111303 Contact Us For Availability
A7
Card LGE MBM63679401 Contact Us For Availability
C2
Capacitor,Ceramic,Chip LGE 0CZZB00042A Contact Us For Availability
C4
CAPACITOR,FIXED CERA LGE 0CK104CF56A Contact Us For Availability
C10
Harness,Single LGE EAD62186008 Contact Us For Availability
C105
Capacitor,Ceramic,Ch LGE EAE32166101 Contact Us For Availability
C107
Capacitor,Ceramic,Ch LGE 0CC100BKF1A Contact Us For Availability
C128
Capacitor,Ceramic,Chip LGE EAE33831901 Contact Us For Availability
C130
Capacitor,AL,Chip LGE EAE62721801 Contact Us For Availability
C131
Capacitor,Ceramic,Chip LGE EAE52158501 Contact Us For Availability
C203
Capacitor,Ceramic,Ch LGE 0CK101BK4EA Contact Us For Availability
C211
Capacitor,Ceramic,Chip LGE EAE60663801 Contact Us For Availability
C212
Capacitor,Ceramic,Chip LGE 0CK105DH56A Contact Us For Availability
C217
Capacitor,Ceramic,Chip LGE 0CK332BK56A Contact Us For Availability
C220
Capacitor,Ceramic,Ch LGE 0CK104BF56A Contact Us For Availability
C230
CAPACITOR,FIXED ELECTROLYTIC LGE 0CE107WF6DC Contact Us For Availability
C234
Capacitor,Ceramic,Chip LGE EAE62772301 Contact Us For Availability
C301
Resistor,Chip LGE 0RJ3303C678 Contact Us For Availability
C306
CAPACITOR,FIXED CERA LGE 0CK475DD56A Contact Us For Availability
C307
CAPACITOR,FIXED CERA LGE 0CK105CD56A Contact Us For Availability
D100
Diode,Schottky LGE EAH61533501 Contact Us For Availability
D203
Diode,TVS LGE EAH42720601 Contact Us For Availability
D308
Diode,Schottky LGE EAH44241601 Contact Us For Availability
D308
DIODE,SWITCHING LGE 0DSON00138A Contact Us For Availability
IC100
Display SOC,Monitor LGE EAN62506901 Contact Us For Availability
IC102
S/W,Firmware LGE SAA36549901 Contact Us For Availability
IC303
IC,Receiver LGE EAN62458601 Contact Us For Availability
LD1
LED,Chip LGE EAV59807201 Contact Us For Availability
LV1
Cable,FFC LGE EAD62122518 Contact Us For Availability
P201
Connector,DSUB LGE EAG55280002 Contact Us For Availability
P202
WAFER LGE 6602T20009E Contact Us For Availability
R10
Resistor,Chip LGE 0RJ0222C678 Contact Us For Availability
R13
Resistor,Chip LGE 0RJ0682C678 Contact Us For Availability
R14
Resistor,Chip LGE EBC32176201 Contact Us For Availability
R105
Resistor,Chip LGE 0RJ4700C678 Contact Us For Availability
R106
Resistor,Chip LGE 0RJ4701C678 Contact Us For Availability
R107
Resistor,Chip LGE 0RJ0332C678 Contact Us For Availability
R109
Resistor,Chip LGE 0RJ0562C478 Contact Us For Availability
R125
Resistor,Chip LGE 0RJ1002C678 Contact Us For Availability
R128
Resistor,Chip LGE 0RJ8201C478 Contact Us For Availability
R143
Resistor,Chip LGE 0RJ2200C678 Contact Us For Availability
R153
Resistor,Chip LGE 0RJ0000C678 Contact Us For Availability
R159
Resistor,Chip LGE 0RJ1503C478 Contact Us For Availability
R160
Resistor,Chip LGE 0RJ1004C478 Contact Us For Availability
R172
RESISTOR,METAL GLAZE LGE 0RJ0752D677 Contact Us For Availability
R203
Resistor,Chip LGE 0RJ2002C678 Contact Us For Availability
R204
Resistor,Chip LGE 0RJ1001C678 Contact Us For Availability
R207
Resistor,Chip LGE 0RJ6802C678 Contact Us For Availability
R211
Resistor,Chip LGE 0RJ1003C678 Contact Us For Availability
R214
Resistor,Chip LGE 0RJ0752C678 Contact Us For Availability
R228
Resistor,Chip LGE 0RJ1801C678 Contact Us For Availability
R238
Resistor,Chip LGE 0RJ2202C678 Contact Us For Availability
R360
Resistor,Chip LGE 0RJ0511C478 Contact Us For Availability
X100
Crystal LGE EAW60658001 Contact Us For Availability
× ![]()
