Model LG IPS234W-PN – Common Parts & Diagrams

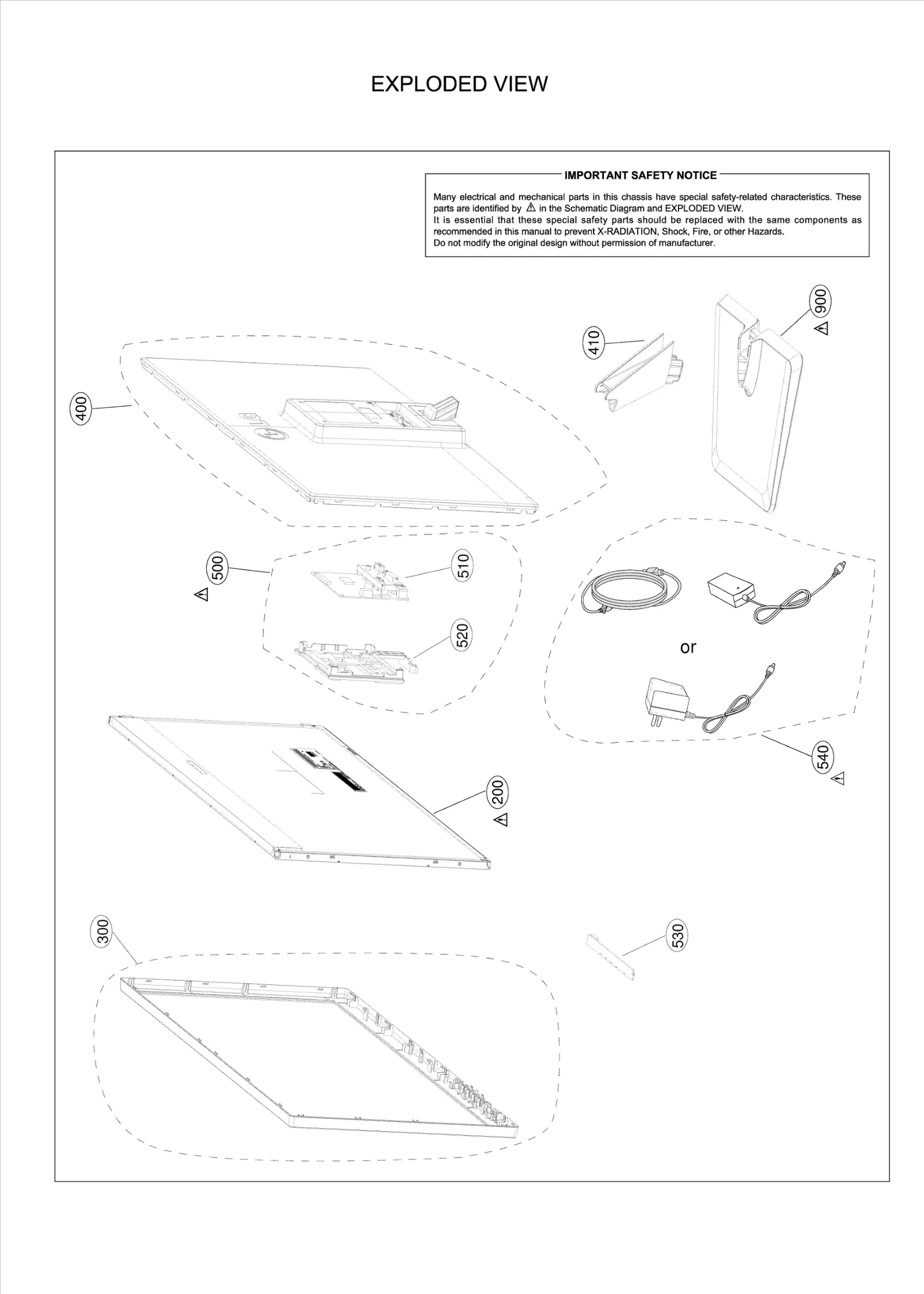

Diagram 0
Diagram 1
Common parts from model LG IPS234W-PN
200
LCD,Module-TFT LGE EAJ62071601 Contact Us For Availability
300
Cabinet Assembly LGE ABJ73790114 Contact Us For Availability
400
Cover Assembly,Rear LGE ACQ85921205 Contact Us For Availability
410
Base Assembly LGE AAN74131901 Contact Us For Availability
500
Package Assembly LGE AGF76411201 Contact Us For Availability
510
BPR Total Assembly LGE EBU61803101 Contact Us For Availability
520
Bracket LGE MAZ63429702 Contact Us For Availability
530
PCB Assembly LGE EBR74906801 Contact Us For Availability
540
Adapters LGE EAY62790005 Contact Us For Availability
540
Adapters LGE EAY62710705 Contact Us For Availability
900
Base Assembly LGE AAN74031701 Contact Us For Availability
A1
S/W Package LGE SAB34965821 Contact Us For Availability
A4
Card LGE MBM63623608 Contact Us For Availability
A5
Cable,Assembly LGE EAD57760001 Contact Us For Availability
A6
Cable,Assembly LGE EAD57734001 Contact Us For Availability
C1
Harness,Single LGE EAD61426313 Contact Us For Availability
C100
Capacitor,Ceramic,Chip LGE EAE62772301 Contact Us For Availability
C104
Capacitor,Ceramic,Chip LGE 0CK225DF56A Contact Us For Availability
C112
CAPACITOR,FIXED CERA LGE 0CK475DD56A Contact Us For Availability
C114
Capacitor,Ceramic,Chip LGE 0CK332BK56A Contact Us For Availability
C121
Capacitor,Ceramic,Ch LGE 0CK104BF56A Contact Us For Availability
C135
Capacitor,Ceramic,Chip LGE 0CC300BKF1A Contact Us For Availability
C138
Capacitor,Ceramic,Ch LGE 0CK101BK4EA Contact Us For Availability
C139
Capacitor,Ceramic,Ch LGE 0CK104BH56A Contact Us For Availability
C141
Capacitor,Ceramic,Chip LGE 0CK105DH56A Contact Us For Availability
C144
CAPACITOR,FIXED CERA LGE 0CK105CD56A Contact Us For Availability
C146
Capacitor,Ceramic,Chip LGE EAE33831901 Contact Us For Availability
C310
CAPACITOR,FIXED ELECTROLYTIC LGE 0CE107WF6DC Contact Us For Availability
D2
Diode,TVS LGE EAH42720601 Contact Us For Availability
D308
DIODE,SWITCHING LGE 0DSON00138A Contact Us For Availability
D308
Diode,Schottky LGE EAH44241601 Contact Us For Availability
IC105
S/W,Firmware LGE SAA36194301 Contact Us For Availability
L303
Filter,Bead LGE EAM61130602 Contact Us For Availability
LV1
Cable,FFC LGE EAD61905271 Contact Us For Availability
P100
WAFER LGE 6602T20009E Contact Us For Availability
P100
Connector,Wafer LGE EAG31366106 Contact Us For Availability
P301
Connector,DSUB LGE 6630TGA005J Contact Us For Availability
Q109
TR,Bipolar LGE 0TR390609DC Contact Us For Availability
Q109
TRANSISTOR LGE 0TR390609FA Contact Us For Availability
R1
RESISTOR,METAL GLAZE LGE 0RJ1001D677 Contact Us For Availability
R4
RESISTOR,METAL GLAZE LGE 0RJ1501D677 Contact Us For Availability
R100
Resistor,Chip LGE 0RJ6802C678 Contact Us For Availability
R100
Resistor,Chip LGE 0RH3300D622 Contact Us For Availability
R111
Resistor,Chip LGE 0RJ8201C478 Contact Us For Availability
R127
Resistor,Chip LGE 0RJ0562C478 Contact Us For Availability
R140
Resistor,Chip LGE 0RJ2002C678 Contact Us For Availability
R142
Resistor,Chip LGE 0RJ1004C478 Contact Us For Availability
R145
Resistor,Chip LGE 0RJ2200C678 Contact Us For Availability
R154
Resistor,Chip LGE 0RJ0000C678 Contact Us For Availability
R155
Resistor,Chip LGE 0RJ2202C678 Contact Us For Availability
R161
Resistor,Chip LGE 0RJ4700C678 Contact Us For Availability
R164
Resistor,Chip LGE 0RJ1503C478 Contact Us For Availability
R167
Resistor,Chip LGE 0RJ1003C678 Contact Us For Availability
R179
Resistor,Chip LGE 0RJ0332C678 Contact Us For Availability
R193
Resistor,Metal Oxide Film LGE EBC62297501 Contact Us For Availability
R306
Resistor,Chip LGE 0RJ0752C678 Contact Us For Availability
R318
Resistor,Chip LGE 0RJ1001C678 Contact Us For Availability
R322
Resistor,Chip LGE 0RJ1002C678 Contact Us For Availability
R333
Resistor,Chip LGE 0RJ4701C678 Contact Us For Availability
X100
Crystal LGE 6212AA2001H Contact Us For Availability
X100
Crystal LGE EAW60658001 Contact Us For Availability
× ![]()
