Model LG IPS234T-PN – Common Parts & Diagrams

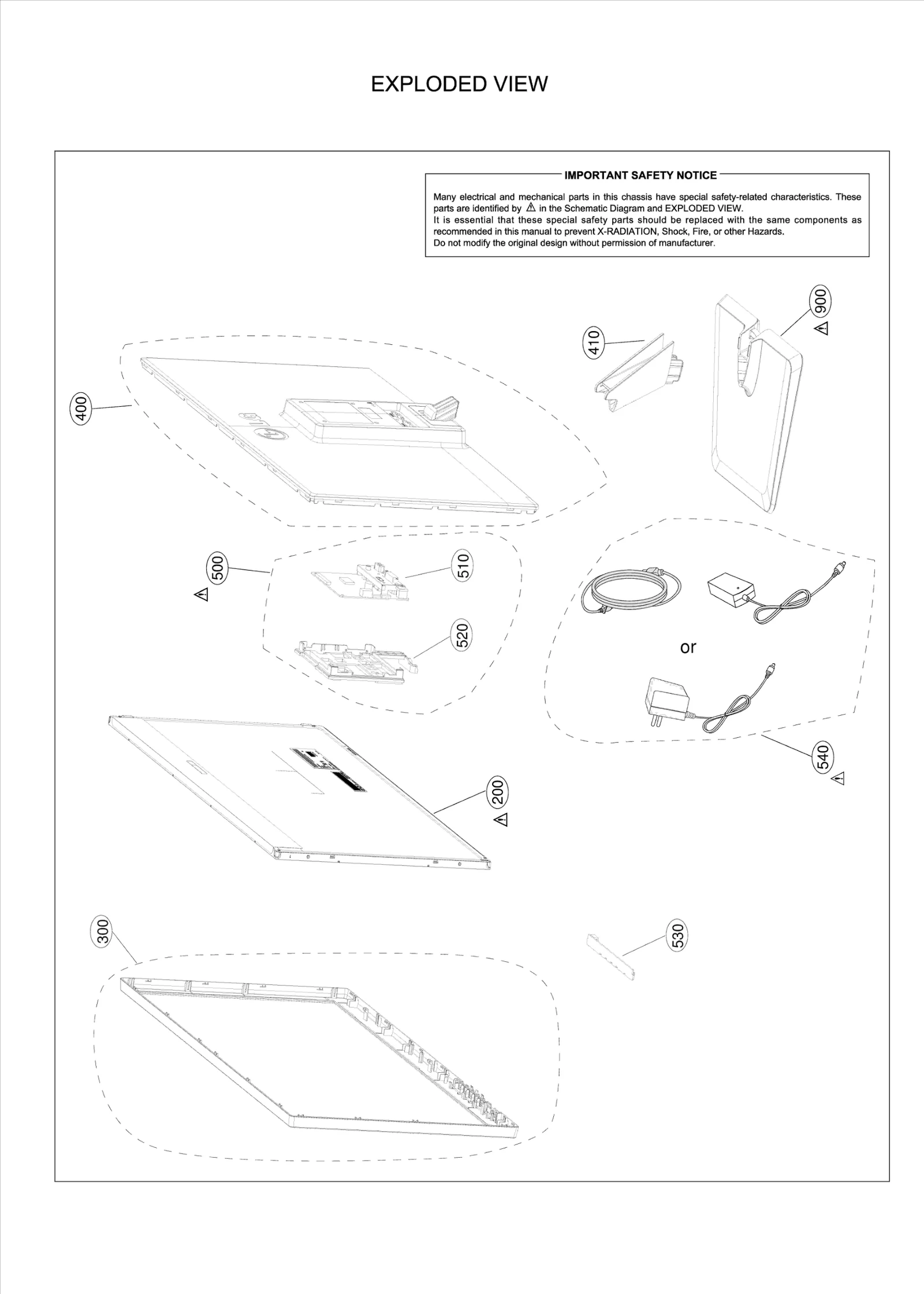

Diagram 0
Diagram 1
Common parts from model LG IPS234T-PN
200
LCD,Module-TFT LGE EAJ62071601 Contact Us For Availability
300
Cabinet Assembly LGE ABJ73790106 Contact Us For Availability
410
Base Assembly LGE AAN74131901 Contact Us For Availability
500
Package Assembly LGE AGF76483201 Contact Us For Availability
510
BPR Total Assembly LGE EBU61864201 Contact Us For Availability
520
Bracket LGE MAZ63429701 Contact Us For Availability
530
PCB Assembly LGE EBR74906801 Contact Us For Availability
540
Adapters LGE EAY62790005 Contact Us For Availability
540
Adapters LGE EAY62790007 Contact Us For Availability
900
Base Assembly LGE AAN74031701 Contact Us For Availability
A1
S/W Package LGE SAB35019021 Contact Us For Availability
A4
Card LGE MBM63623601 Contact Us For Availability
A5
Cable,Assembly LGE EAD57734001 Contact Us For Availability
C1
Harness,Single LGE EAD61426313 Contact Us For Availability
C100
Capacitor,Ceramic,Chip LGE EAE62772301 Contact Us For Availability
C110
CAPACITOR,FIXED ELEC LGE 0CE106WFKDC Contact Us For Availability
C114
Capacitor,Ceramic,Chip LGE 0CK332BK56A Contact Us For Availability
C136
Capacitor,Ceramic,Chip LGE 0CC300BKF1A Contact Us For Availability
C139
Capacitor,Ceramic,Ch LGE 0CK101BK4EA Contact Us For Availability
C140
Capacitor,Ceramic,Ch LGE 0CK104BF56A Contact Us For Availability
C141
Capacitor,Ceramic,Chip LGE 0CK105DH56A Contact Us For Availability
C144
CAPACITOR,FIXED CERA LGE 0CK105CD56A Contact Us For Availability
C145
Capacitor,Ceramic,Chip LGE EAE33831901 Contact Us For Availability
C148
Capacitor,AL,Chip LGE EAE62721801 Contact Us For Availability
C155
Capacitor,Ceramic,Chip LGE 0CK225DF56A Contact Us For Availability
D2
Diode,TVS LGE EAH42720601 Contact Us For Availability
D313
Diode,Schottky LGE EAH44241601 Contact Us For Availability
D313
DIODE,SWITCHING LGE 0DSON00138A Contact Us For Availability
IC104
S/W,Firmware LGE SAA36221701 Contact Us For Availability
JK100
Jack,DC Power LGE EAG35306605 Contact Us For Availability
LV1
Cable,FFC LGE EAD61905276 Contact Us For Availability
P100
WAFER LGE 6602T20009E Contact Us For Availability
P100
Connector,Wafer LGE EAG31366106 Contact Us For Availability
P301
Connector,DSUB LGE 6630TGA005J Contact Us For Availability
Q111
TR,Bipolar LGE 0TR390609DC Contact Us For Availability
R1
RESISTOR,METAL GLAZE LGE 0RJ1001D677 Contact Us For Availability
R4
RESISTOR,METAL GLAZE LGE 0RJ1501D677 Contact Us For Availability
R100
Resistor,Chip LGE 0RJ6802C678 Contact Us For Availability
R100
Resistor,Chip LGE 0RH3300D622 Contact Us For Availability
R121
Resistor,Chip LGE 0RJ0562C478 Contact Us For Availability
R127
Resistor,Chip LGE 0RJ1002C678 Contact Us For Availability
R135
Resistor,Chip LGE 0RJ2002C678 Contact Us For Availability
R141
Resistor,Chip LGE 0RJ1004C478 Contact Us For Availability
R143
Resistor,Chip LGE 0RJ8201C478 Contact Us For Availability
R147
Resistor,Chip LGE 0RJ4700C678 Contact Us For Availability
R151
Resistor,Chip LGE 0RJ0000C678 Contact Us For Availability
R155
Resistor,Chip LGE 0RJ2202C678 Contact Us For Availability
R156
Resistor,Chip LGE 0RJ1001C678 Contact Us For Availability
R157
Resistor,Chip LGE 0RJ4701C678 Contact Us For Availability
R164
Resistor,Chip LGE 0RJ1503C478 Contact Us For Availability
R301
Resistor,Chip LGE 0RJ0752C678 Contact Us For Availability
R316
Resistor,Chip LGE 0RJ0332C678 Contact Us For Availability
R322
Resistor,Chip LGE 0RJ1003C678 Contact Us For Availability
× ![]()
