Model IPSO IP140PMN1 Washer – Common Parts & Diagrams

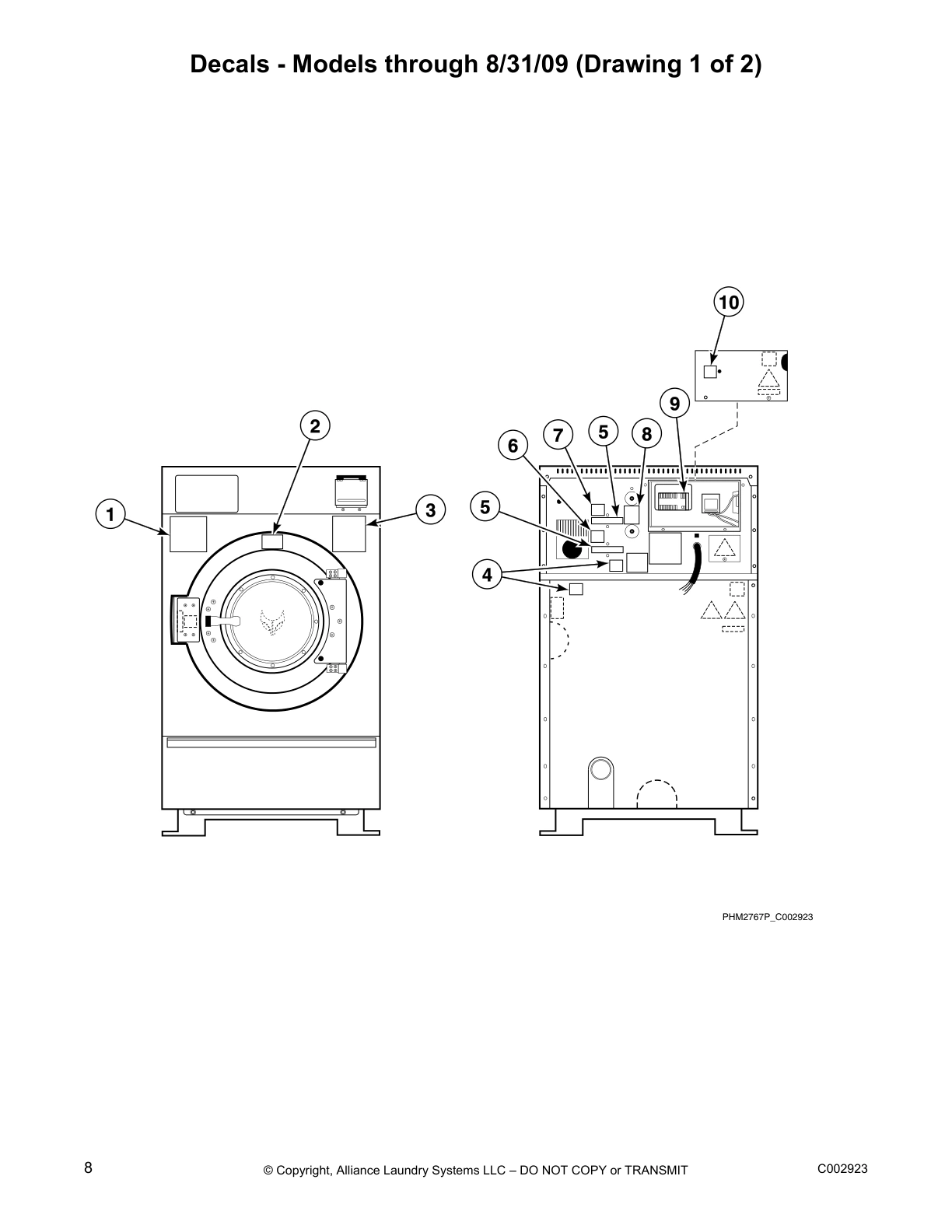

Decals - Models through 8/31/09 (Drawing 1 of 2)

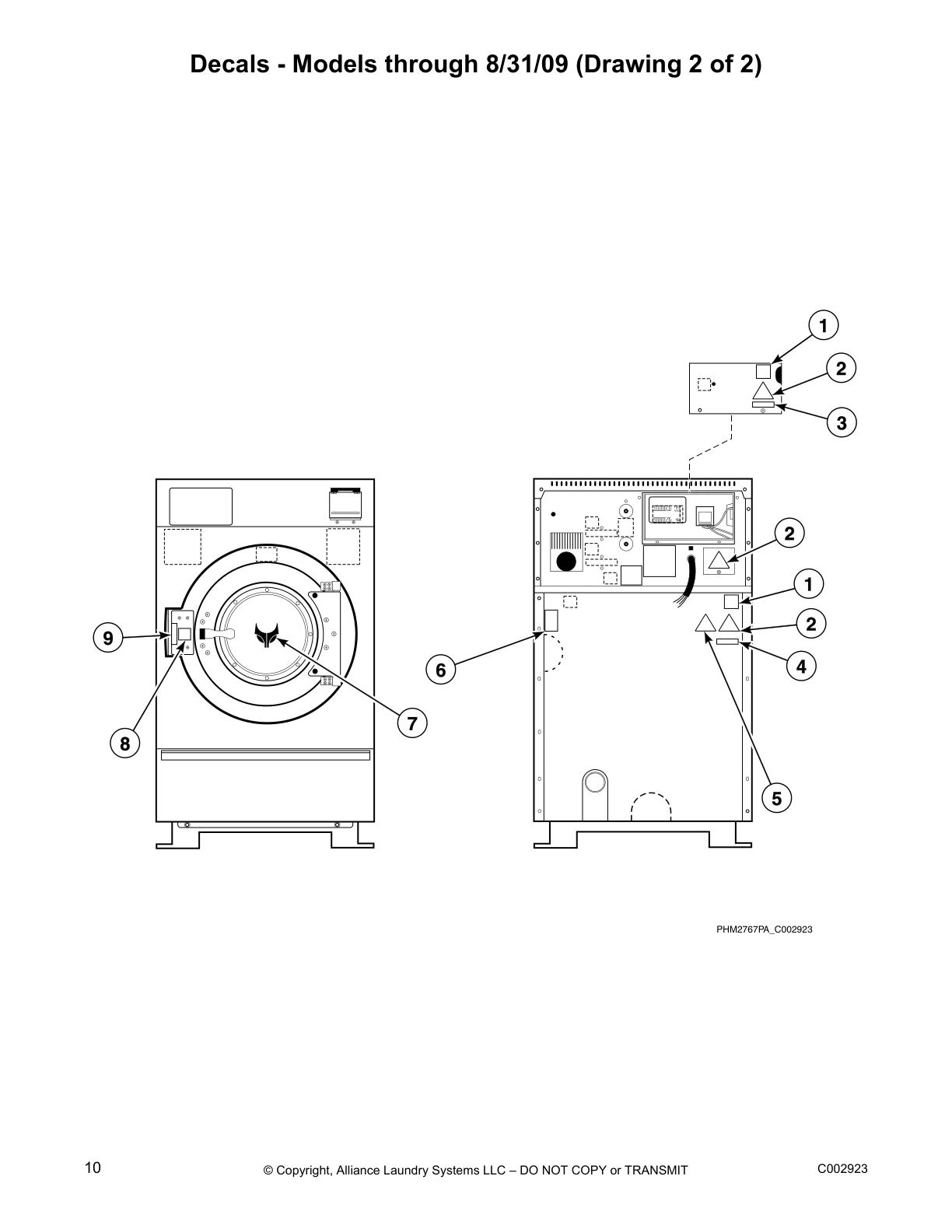

Decals - Models through 8/31/09 (Drawing 2 of 2)
Decals - Models starting 9/1/09
Bearing Housing Assembly (Drawing 1 of 6)
Bearing Housing Assembly (Drawing 2 of 6)
Bearing Housing Assembly (Drawing 3 of 6)
Bearing Housing Assembly (Drawing 4 of 6)
Bearing Housing Assembly (Drawing 5 of 6)
Bearing Housing Assembly (Drawing 6 of 6)
Cabinet Assembly (Drawing 1 of 4)
Cabinet Assembly (Drawing 2 of 4)
Cabinet Assembly (Drawing 3 of 4)
Cabinet Assembly (Drawing 4 of 4)
Cylinder Assembly (Drawing 1 of 2)
Cylinder Assembly (Drawing 2 of 2)
Single Cup Dispenser Assembly
5 Cup Dispenser Assembly
Door Assembly - Models through 2/9/09
Door Assembly - Models starting 2/10/09
Door Lock
Door Lock Assembly with Magnetic Sensor
5 Cup Hot Plumbing Assembly
1 Cup Hot Plumbing Assembly
5 Cup Cold Plumbing Assembly (Drawing 1 of 3)
5 Cup Cold Plumbing Assembly (Drawing 2 of 3)
5 Cup Cold Plumbing Assembly (Drawing 3 of 3)
Single Cup Cold Plumbing Assembly (Drawing 1 of 3)
Single Cup Cold Plumbing Assembly (Drawing 2 of 3)
Single Cup Cold Plumbing Assembly (Drawing 3 of 3)
Auxiliary Plumbing Assembly with Valve
Auxiliary Plumbing Assembly without Valve (Drawing 1 of 2)
Auxiliary Plumbing Assembly without Valve (Drawing 2 of 2)
Hot and Auxiliary Plumbing Assembly with Valve (Drawing 1 of 2)
Hot and Auxiliary Plumbing Assembly with Valve (Drawing 2 of 2)
Steam Heat Assembly
Shell Assembly (Drawing 1 of 2)
Shell Assembly (Drawing 2 of 2)
Control Box Assembly
Drive Box Assembly (Drawing 1 of 2)
Drive Box Assembly (Drawing 2 of 2)
Electric Heat Drive Box Assembly
PowerFlex Drive and EMI Filter (Drawing 1 of 2)
PowerFlex Drive and EMI Filter (Drawing 2 of 2)
Main Assembly (Drawing 1 of 10)
Main Assembly (Drawing 2 of 10)
Main Assembly (Drawing 3 of 10)
Main Assembly (Drawing 4 of 10)
Main Assembly (Drawing 5 of 10)
Main Assembly (Drawing 6 of 10)
Main Assembly (Drawing 7 of 10)
Main Assembly (Drawing 8 of 10)
Main Assembly (Drawing 9 of 10)
Main Assembly (Drawing 10 of 10)
Common parts from model IPSO IP140PMN1 Washer
Hose Clamp SPQ C000554 Contact Us For Availability
Hose SPQ C000555 Contact Us For Availability
Washer SPQ C003007 Contact Us For Availability
Screw SPQ F430910 Contact Us For Availability
Hose SPQ C000567 Contact Us For Availability
SPQ C000568 SPQ C000568 Contact Us For Availability
Hose Clamp SPQ F430920 Contact Us For Availability
Tubing SPQ F200201 Contact Us For Availability
Screw SPQ F430909 Contact Us For Availability
SPQ C000177 SPQ C000177 Contact Us For Availability
Nut SPQ C001236 Contact Us For Availability
SPQ C000601 SPQ C000601 Contact Us For Availability
SPQ C000559 SPQ C000559 Contact Us For Availability
SPQ F8549401 SPQ F8549401 Contact Us For Availability
Screw SPQ C000613 Contact Us For Availability
Nut SPQ C000578 Contact Us For Availability
Bolt SPQ C000572 Contact Us For Availability
SPQ 81398 SPQ 81398 Contact Us For Availability
Vacuum Breaker Hose SPQ C001856 Contact Us For Availability
SPQ C000583 SPQ C000583 Contact Us For Availability
SPQ C001907 SPQ C001907 Contact Us For Availability
Emergency Stop Button Kit SPQ F200233700P Contact Us For Availability
Chemical Supply Harness SPQ F431133 Contact Us For Availability
Screw SPQ C000290 Contact Us For Availability
SPQ C002570 SPQ C002570 Contact Us For Availability
SPQ C002780 SPQ C002780 Contact Us For Availability
SPQ C002424 SPQ C002424 Contact Us For Availability
Motor Cable SPQ F200213 Contact Us For Availability
SPQ C001029 SPQ C001029 Contact Us For Availability
Single Fan Harness SPQ C002861 Contact Us For Availability
SPQ C002617P SPQ C002617P Contact Us For Availability
1
Door Release Decal SPQ C000694 Contact Us For Availability
1
Bearing Housing Assembly SPQ C001946 Contact Us For Availability
1
Front Top Panel Assembly SPQ C002986 Contact Us For Availability
1
Cabinet Stiffener SPQ C002018 Contact Us For Availability
1
Drive Box Assembly SPQ C002524 Contact Us For Availability
1
Washer SPQ C001239 Contact Us For Availability
1
Single Side Dispenser Assembly SPQ C001582 Contact Us For Availability
1
Door Lock Cover SPQ C000688 Contact Us For Availability
1
5 Cup Cold Plumbing Assembly SPQ C002538 Contact Us For Availability
1
Single Cup Cold Plumbing Assembly SPQ C002537 Contact Us For Availability
1
Auxiliary Plumbing Assembly SPQ C002397 Contact Us For Availability
1
Hot Plumbing Assembly SPQ C002539 Contact Us For Availability
1
Steam Option Assembly SPQ C001000 Contact Us For Availability
1
Shell Front Assembly SPQ C002978 Contact Us For Availability
1
Front Electrical Enclosure SPQ C000213 Contact Us For Availability
1
Cylinder Bushing SPQ C000223P Contact Us For Availability
2
Proximity Switch Assembly SPQ C002637P Contact Us For Availability
2
Top Panel Access Cover SPQ C002017 Contact Us For Availability
2
Cylinder Bolt Shroud SPQ C001238 Contact Us For Availability
2
Hinge SPQ C000853 Contact Us For Availability
2
Dispenser Door Handle SPQ C001583 Contact Us For Availability
2
Spring SPQ C000431 Contact Us For Availability
2
Water Valve SPQ C000339P Contact Us For Availability
2
Street Elbow SPQ F421707 Contact Us For Availability
2
Shell Band Weldment SPQ C002943 Contact Us For Availability
2
Chemical Supply Controller SPQ C000371P Contact Us For Availability
2
Circuit Breaker SPQ F350217 Contact Us For Availability
2
EMI Filter SPQ F8054002 Contact Us For Availability
2
Water Inlet Hose SPQ C000808 Contact Us For Availability
3
Hot Water and Chemical Caution Decal SPQ F200085100 Contact Us For Availability
3
Connector SPQ C000154P Contact Us For Availability
3
Rear Top Panel SPQ C000817 Contact Us For Availability
3
Valve Panel Assembly SPQ C002983 Contact Us For Availability
3
Screw SPQ C001093 Contact Us For Availability
3
Hinge SPQ C001788 Contact Us For Availability
3
Door SPQ C000749 Contact Us For Availability
3
Diaphragm and Guide Kit SPQ G582P3 Contact Us For Availability
3
Mounting Flange Weldment SPQ C002164 Contact Us For Availability
3
Reducing Tee SPQ C002165 Contact Us For Availability
3
Coupling SPQ C001143 Contact Us For Availability
3
Steam Injector Tube Assembly SPQ F603132 Contact Us For Availability
3
Shell Front Gasket SPQ C001887 Contact Us For Availability
3
Front Electrical Enclosure Cover SPQ C000348 Contact Us For Availability
3
Power Block Terminal SPQ C0978P3 Contact Us For Availability
3
Drain Assembly SPQ C000972 Contact Us For Availability
4
Drive and Power Enclosure Cover SPQ C002527 Contact Us For Availability
4
Cylinder Assembly Kit SPQ C000883P Contact Us For Availability
4
Supply Dispenser Nozzle SPQ C001787 Contact Us For Availability
4
Door Seal SPQ C000710 Contact Us For Availability
4
Bolt SPQ C000430 Contact Us For Availability
4
Hose Barb SPQ C000899 Contact Us For Availability
4
Adapter SPQ C000424 Contact Us For Availability
4
Nipple SPQ C000894 Contact Us For Availability
4
Street Elbow SPQ F420502 Contact Us For Availability
4
Reducing Coupling SPQ C000978 Contact Us For Availability
4
Shell Assembly SPQ C001876P Contact Us For Availability
4
Air Trap Tube Elbow SPQ C000654 Contact Us For Availability
4
Control Panel Decal SPQ C001276 Contact Us For Availability
4
Mounting Bracket SPQ C003135P Contact Us For Availability
4
Vacuum Breaker Cover SPQ C001772 Contact Us For Availability
5
Hot Surface Warning Label SPQ F200085300 Contact Us For Availability
5
Water Line Caution Decal SPQ F230734 Contact Us For Availability
5
Connector SPQ J1408004 Contact Us For Availability
5
Reducing Connector SPQ C000658 Contact Us For Availability
5
Grease Connector Box SPQ C000539 Contact Us For Availability
5
Front Skirt Panel SPQ C000316 Contact Us For Availability
5
Supply Cup SPQ C000073 Contact Us For Availability
5
Shell Front Gasket Kit SPQ 253/00162/02 Contact Us For Availability
5
Magnetic Door Switch Bracke SPQ C002995 Contact Us For Availability
5
Steam Hose SPQ C000982 Contact Us For Availability
5
Air Trap Tube SPQ C000662 Contact Us For Availability
5
Front Electrical Enclosure Assembly SPQ C000432 Contact Us For Availability
5
Drain Hose SPQ C000411 Contact Us For Availability
5
Shell Support Brace SPQ C000837 Contact Us For Availability
6
Hot Surface Warning Decal SPQ F231380 Contact Us For Availability
6
Mount on Concrete Warning Label SPQ F8614301 Contact Us For Availability
6
Rear Panel SPQ C000818 Contact Us For Availability
6
Lower Front Panel SPQ C003081 Contact Us For Availability
6
Dispenser Door Handle SPQ C000855 Contact Us For Availability
6
Side Dispenser Assembly SPQ C000648 Contact Us For Availability
6
Side Dispenser Door SPQ C000647 Contact Us For Availability
6
Door Glass Gasket SPQ F8513501 Contact Us For Availability
6
Reed Switch Assembly SPQ C003000 Contact Us For Availability
6
Tee SPQ F420403 Contact Us For Availability
6
Steam Hose Insulation SPQ C001003 Contact Us For Availability
6
Transformer SPQ C000370 Contact Us For Availability
6
Circuit Breaker SPQ C001789 Contact Us For Availability
7
Logo Decal SPQ C001038 Contact Us For Availability
7
SPQ F8246401 SPQ F8246401 Contact Us For Availability
7
Side Panel and Stiffener Assembly SPQ C002962 Contact Us For Availability
7
Lower Front Panel SPQ C000819 Contact Us For Availability
7
Screw SPQ C000646 Contact Us For Availability
7
Hinge Block SPQ C000750 Contact Us For Availability
7
Door Lock Plate SPQ C000684 Contact Us For Availability
7
Steam Hose Adapter SPQ C001587 Contact Us For Availability
7
Standoff SPQ C000376 Contact Us For Availability
7
Exhaust Bracket SPQ C000373 Contact Us For Availability
7
Fan SPQ C000317 Contact Us For Availability
7
Thermostat Grommet SPQ 225/10004/00 Contact Us For Availability
7
Single Shroud Assembly SPQ C001201 Contact Us For Availability
8
Nut SPQ C002717 Contact Us For Availability
8
Rub Rail SPQ C001014 Contact Us For Availability
8
Nut SPQ F8549301 Contact Us For Availability
8
Blind Rivet SPQ J1111905 Contact Us For Availability
8
Steam Cord Assembly SPQ C002748P Contact Us For Availability
8
Mounting Bracket SPQ C000375 Contact Us For Availability
8
Cylinder Pulley SPQ C000685 Contact Us For Availability
8
Fan Filter Guard Assembly SPQ C000211 Contact Us For Availability
8
Temperature Probe Assembly SPQ C002636 Contact Us For Availability
9
Supply Signal Decal SPQ C000506 Contact Us For Availability
9
Insert Rail SPQ C001015 Contact Us For Availability
9
Screw SPQ C002718 Contact Us For Availability
9
Door Bumper SPQ C000175 Contact Us For Availability
9
Door Lock Solenoid SPQ F8654101 Contact Us For Availability
9
Steam Valve Mounting Bracket SPQ C000981 Contact Us For Availability
9
Vacuum Breaker Hose SPQ C000599 Contact Us For Availability
9
Main Board Controller Kit SPQ C000281P Contact Us For Availability
9
Nut SPQ C000210 Contact Us For Availability
10
External Supply Connection Decal SPQ F230917-1 Contact Us For Availability
10
External Supply Connection Decal SPQ F8150201 Contact Us For Availability
10
Side Panel Assembly SPQ C002963 Contact Us For Availability
10
Front Panel Assembly SPQ C002973 Contact Us For Availability
10
Door Hinge Bushing SPQ C000176 Contact Us For Availability
10
Door Lock Switch Slide SPQ C000271 Contact Us For Availability
10
Steam Inlet Weldment SPQ C002898 Contact Us For Availability
10
Water Level Transducer SPQ C002104P Contact Us For Availability
10
Terminal Bracket SPQ C001132 Contact Us For Availability
11
Warning Label SPQ F8233501 Contact Us For Availability
11
Door Lock Slide Spring SPQ C000276 Contact Us For Availability
11
Water Valve SPQ C000436P Contact Us For Availability
11
Water Valve Rebuild Kit SPQ C001676P Contact Us For Availability
11
Steam Valve SPQ F8322904P Contact Us For Availability
11
Motor Bracket SPQ C000766 Contact Us For Availability
11
Grease Fitting SPQ C000549 Contact Us For Availability
12
Electric Shock Danger Label SPQ F8115501 Contact Us For Availability
12
Door Hinge SPQ C000752 Contact Us For Availability
12
Door Lock Catch SPQ C000185 Contact Us For Availability
12
Nipple SPQ F421323 Contact Us For Availability
12
Tilt Switch Assembly SPQ C002642P Contact Us For Availability
12
Vacuum Breaker Assembly SPQ C000830 Contact Us For Availability
12
Belt Tension Spring SPQ C001791 Contact Us For Availability
13
Door Glass Retainer SPQ C000751MD Contact Us For Availability
13
Door Latch SPQ C001244 Contact Us For Availability
13
RC Network Assembly SPQ C002999 Contact Us For Availability
13
Circuit Breaker Kit SPQ C0977P3 Contact Us For Availability
13
Motor Pulley SPQ C000884P Contact Us For Availability
14
Door Handle SPQ C001679P Contact Us For Availability
14
Door Lock Spring Cover SPQ C000687 Contact Us For Availability
14
RC Network Filter SPQ F330217P Contact Us For Availability
14
Motor Bushing SPQ C000717 Contact Us For Availability
15
Door Handle Hinge Weldment SPQ C000028P Contact Us For Availability
15
Door Lock Solenoid Bracket SPQ C003022 Contact Us For Availability
16
Door Lock Spring SPQ B12351001 Contact Us For Availability
16
Drain Tee Bracket Weldme SPQ C002070 Contact Us For Availability
17
Pop Rivet SPQ F431215 Contact Us For Availability
18
Door Lock Kit SPQ C002996M Contact Us For Availability
19
Pop Rivet SPQ F431223 Contact Us For Availability
19
Overflow Hose SPQ C000807 Contact Us For Availability
19
Frame Assembly SPQ C000879 Contact Us For Availability
20
Door Magnet Mounting Bracket SPQ F8390801 Contact Us For Availability
20
Cap SPQ C001793 Contact Us For Availability
21
Door Assembly SPQ C002994 Contact Us For Availability
22
Door Glass SPQ C000748P Contact Us For Availability
24
Spring Clip SPQ C000995 Contact Us For Availability
26
Reducing Connector SPQ C001649 Contact Us For Availability
NI
Washer SPQ F430929 Contact Us For Availability
NI
SPQ C000571 SPQ C000571 Contact Us For Availability
NI
SPQ C000552 SPQ C000552 Contact Us For Availability
NI
Screw SPQ C000628P Contact Us For Availability
NI
SPQ C000585 SPQ C000585 Contact Us For Availability
NI
Screw SPQ F431024 Contact Us For Availability
NI
Trim Gasket SPQ C000629 Contact Us For Availability
NI
Screw SPQ F430925 Contact Us For Availability
NI
Hose SPQ C001148 Contact Us For Availability
NI
Screw SPQ C000642 Contact Us For Availability
NI
SPQ C001004 SPQ C001004 Contact Us For Availability
NI
Stud SPQ C001546 Contact Us For Availability
NI
Washer SPQ C001032 Contact Us For Availability
NI
Bolt SPQ C000560 Contact Us For Availability
NI
SPQ 803017 SPQ 803017 Contact Us For Availability
NI
SPQ C000574 SPQ C000574 Contact Us For Availability
NI
SPQ C000561 SPQ C000561 Contact Us For Availability
NI
Screw SPQ C000614 Contact Us For Availability
NI
SPQ C000612 SPQ C000612 Contact Us For Availability
NI
Nut SPQ C000576 Contact Us For Availability
NI
Door Lock Harness SPQ C000867P Contact Us For Availability
NI
Hose SPQ C001011 Contact Us For Availability
NI
Inlet Valve Harness SPQ C002612P Contact Us For Availability
NI
Inlet Valve Harness SPQ C002609P Contact Us For Availability
NI
Nipple SPQ F420107 Contact Us For Availability
NI
SPQ C000273 SPQ C000273 Contact Us For Availability
NI
Nut SPQ C000772 Contact Us For Availability
NI
Bolt SPQ C000590 Contact Us For Availability
NI
SPQ J1001270 SPQ J1001270 Contact Us For Availability
NI
SPQ C000611 SPQ C000611 Contact Us For Availability
NI
Keymode Switch Assembly SPQ C003024P Contact Us For Availability
NI
Control Module Harness SPQ C000865 Contact Us For Availability
NI
Drive Box Harness SPQ F430938 Contact Us For Availability
NI
Nut SPQ C002781 Contact Us For Availability
NI
SPQ C000575 SPQ C000575 Contact Us For Availability
NI
SPQ C002779 SPQ C002779 Contact Us For Availability
NI
Washer SPQ C002526 Contact Us For Availability
NI
SPQ F8054001 SPQ F8054001 Contact Us For Availability
NI
Tie Wrap Mounting Clamp SPQ C001803 Contact Us For Availability
NI
Nut SPQ F140602 Contact Us For Availability
NI
Hose Clamp SPQ F200222 Contact Us For Availability
NI
SPQ C000556 SPQ C000556 Contact Us For Availability
NI
Dual Drain Harness SPQ F430144 Contact Us For Availability
NI
Motor Cable SPQ C002750 Contact Us For Availability
NI
Lower Shell Support Bracket SPQ C000663 Contact Us For Availability
NI
Washer SPQ F430935 Contact Us For Availability
NI
Belt SPQ C001054P Contact Us For Availability
NI
SPQ JA-51516 SPQ JA-51516 Contact Us For Availability
× ![]()
