Model Ipso IP080PMQ2 Washer – Common Parts & Diagrams
Decals - Models through 8/31/09 (Drawing 1 of 2)
Decals - Models through 8/31/09 (Drawing 2 of 2)

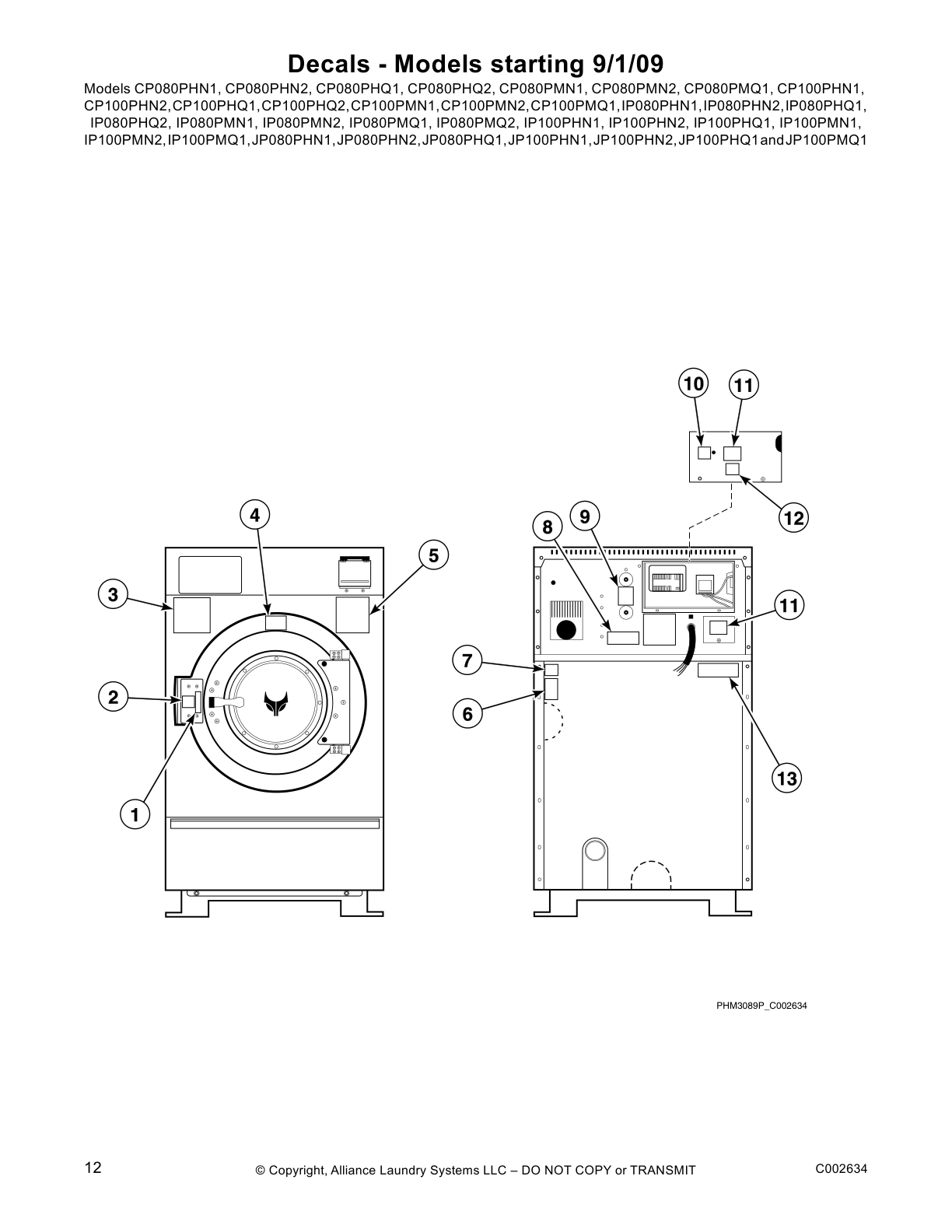

Decals - Models starting 9/1/09

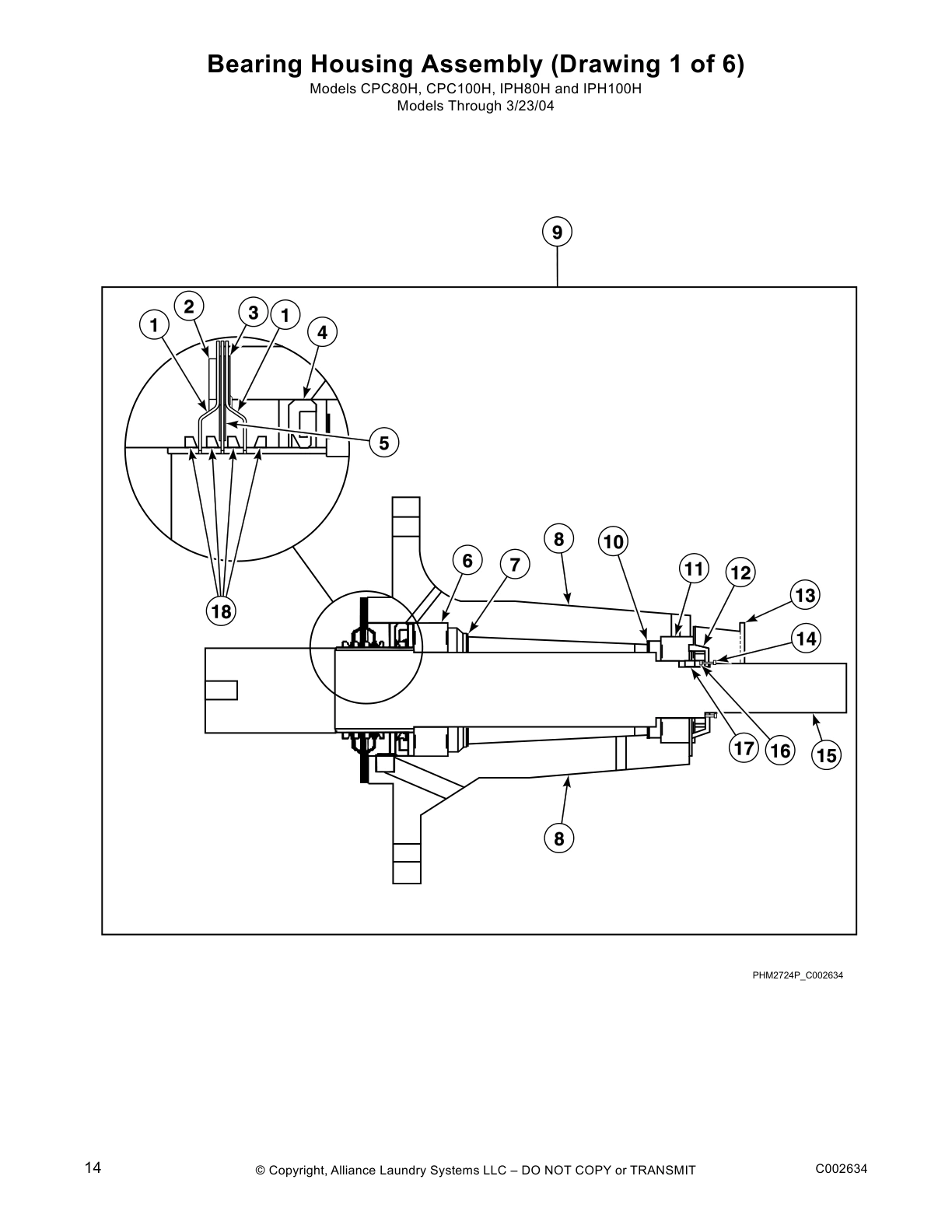

Bearing Housing Assembly (Drawing 1 of 6)

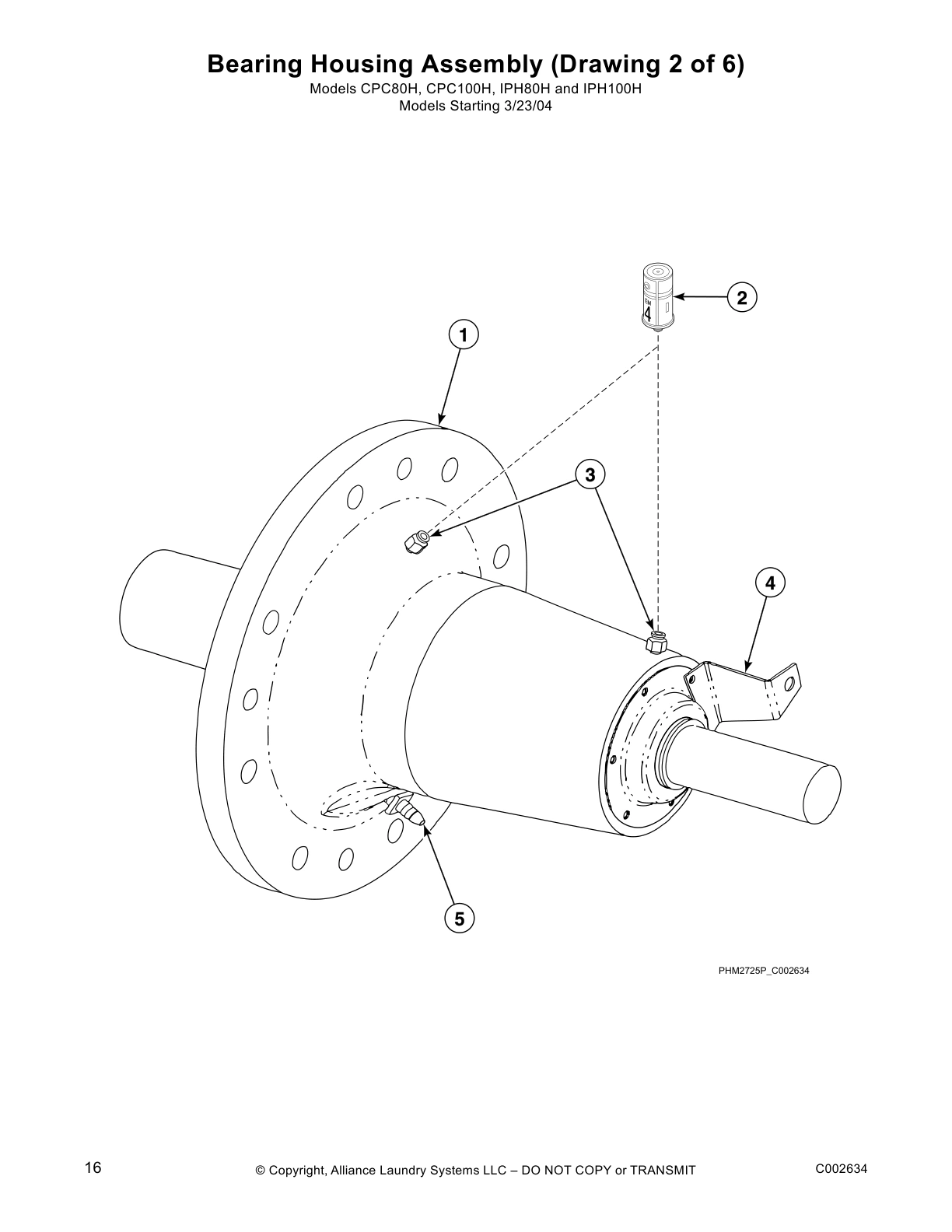

Bearing Housing Assembly (Drawing 2 of 6)

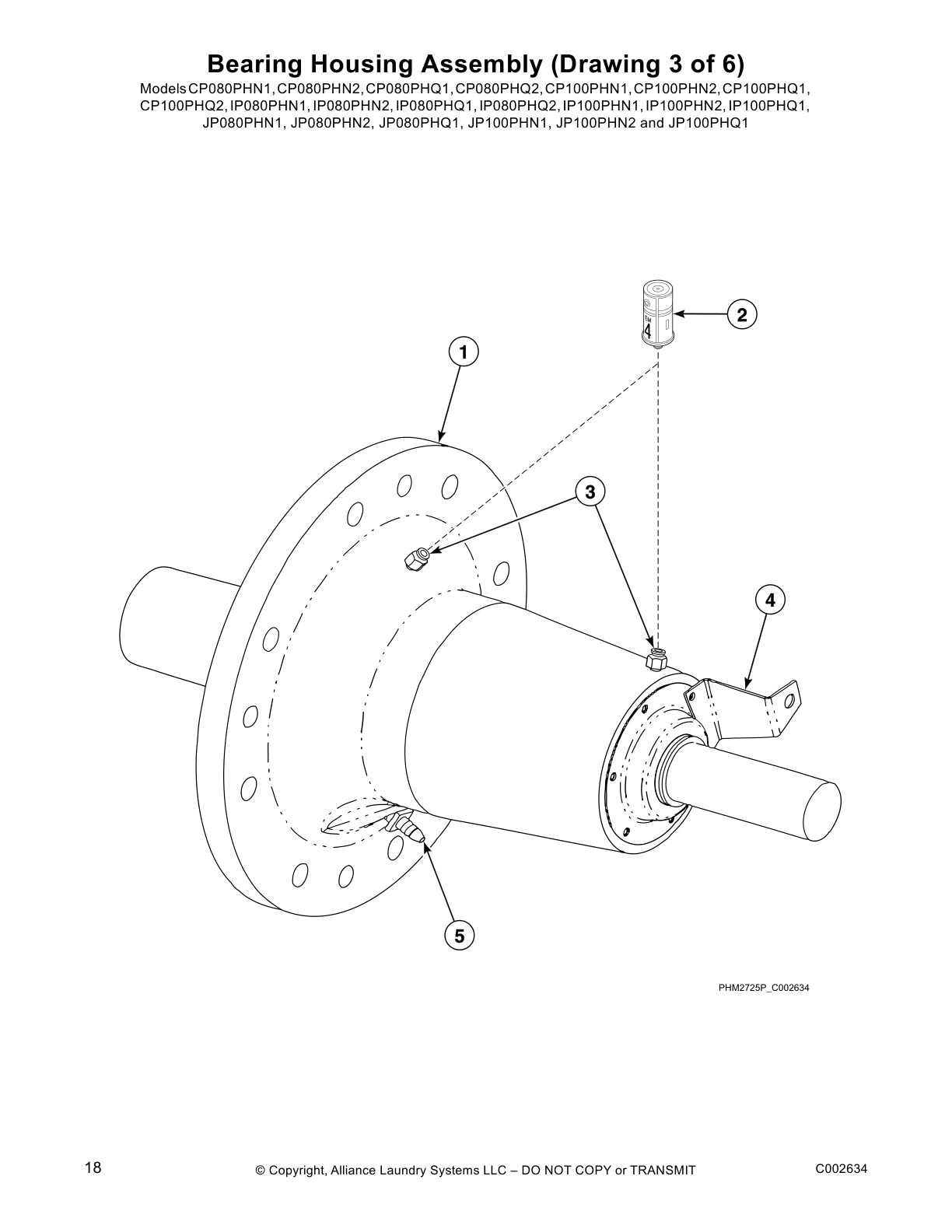

Bearing Housing Assembly (Drawing 3 of 6)

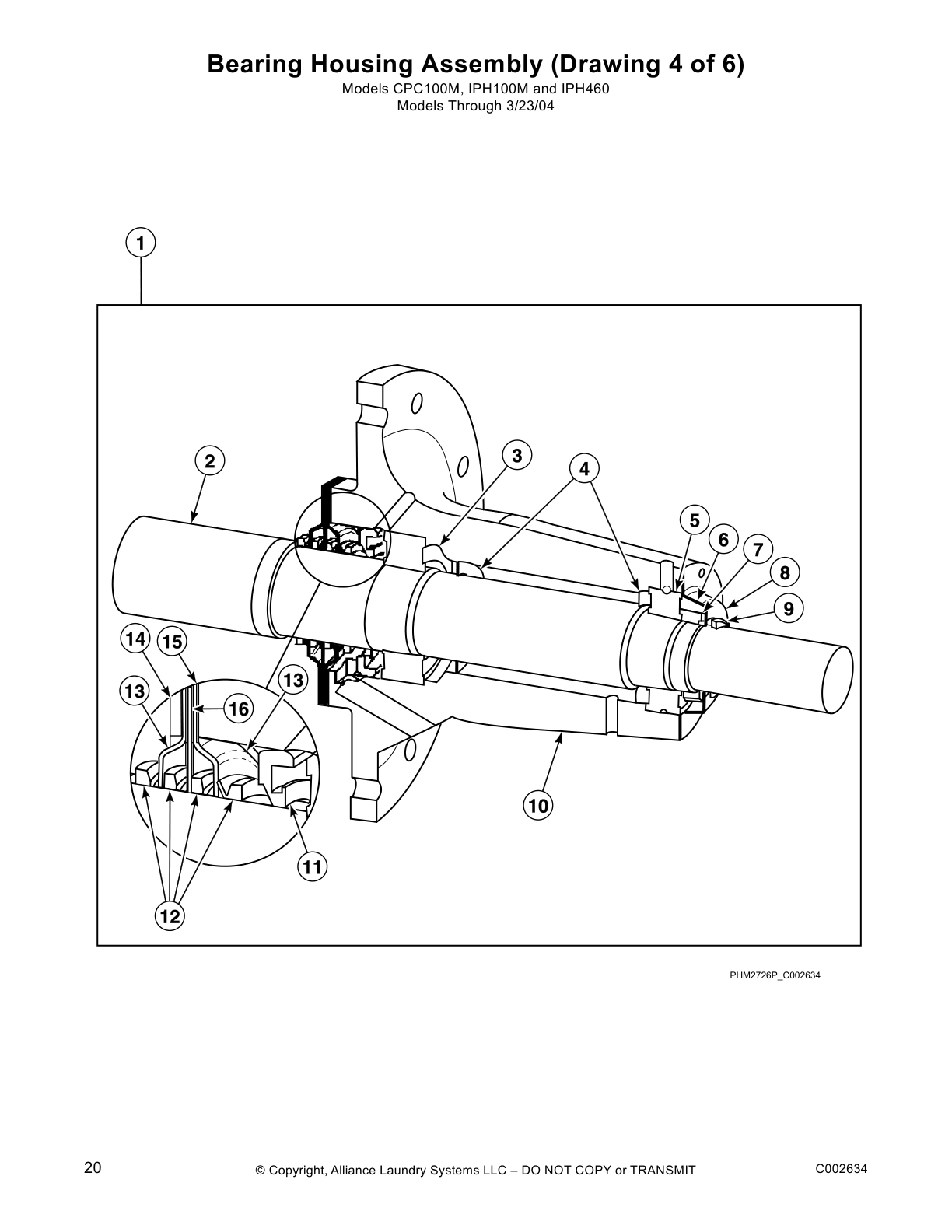

Bearing Housing Assembly (Drawing 4 of 6)

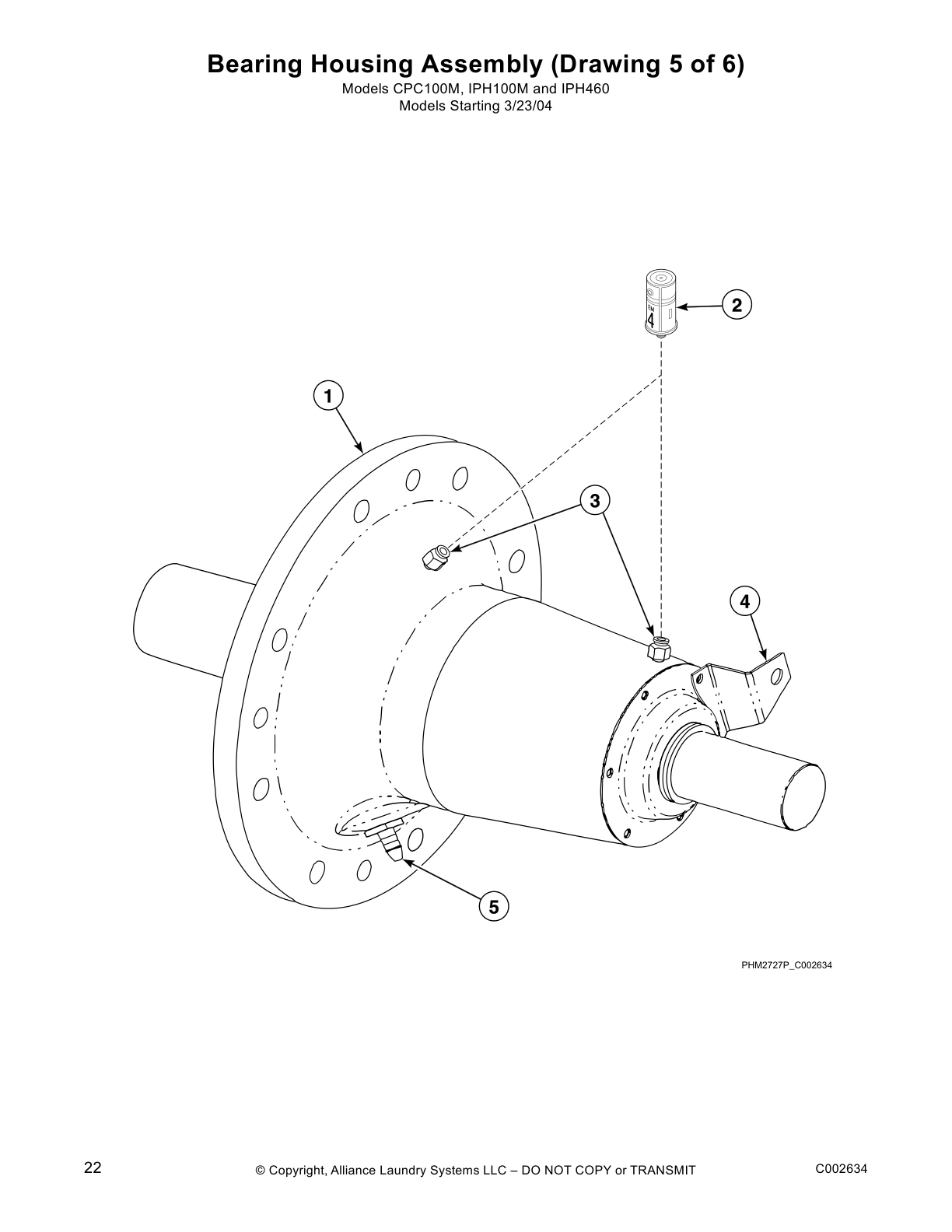

Bearing Housing Assembly (Drawing 5 of 6)

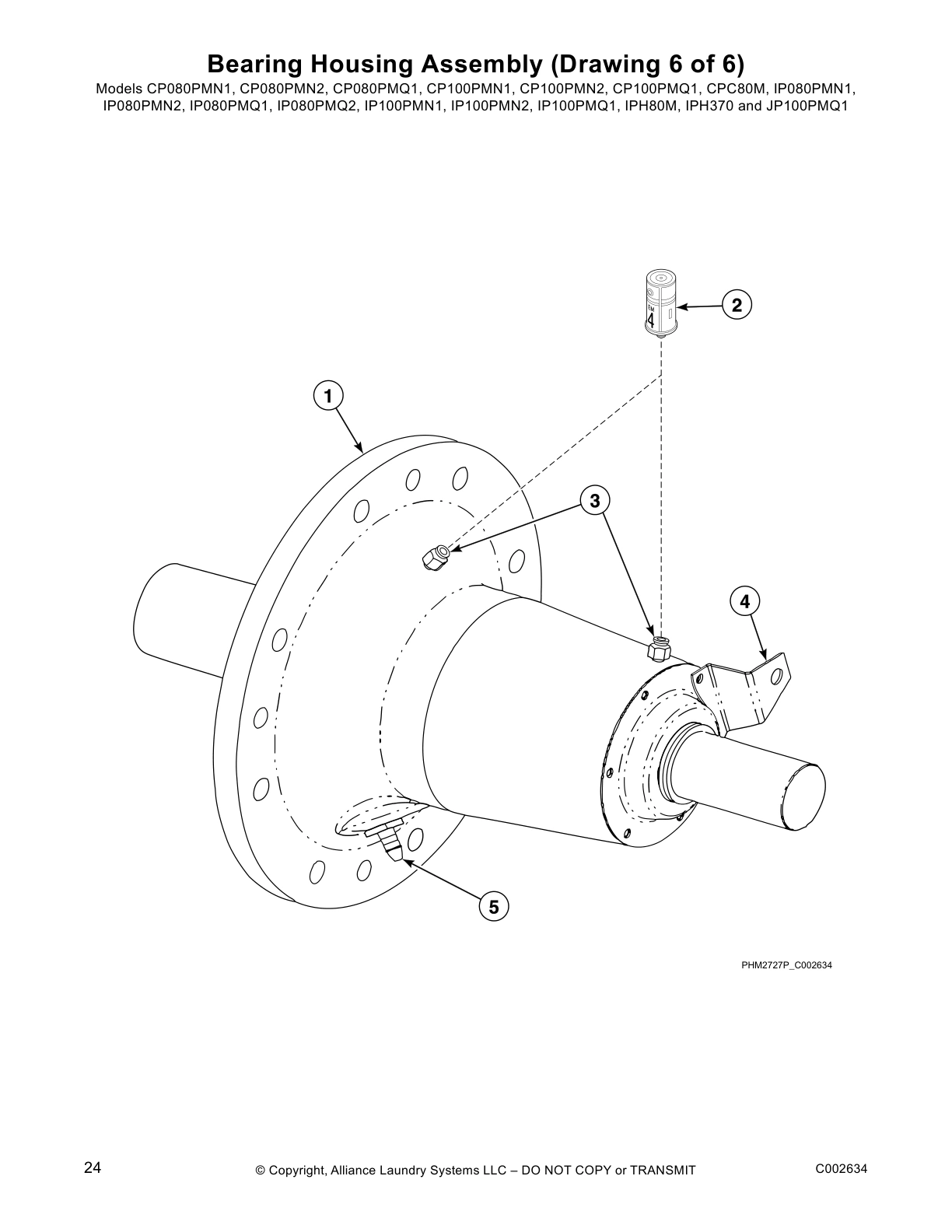

Bearing Housing Assembly (Drawing 6 of 6)

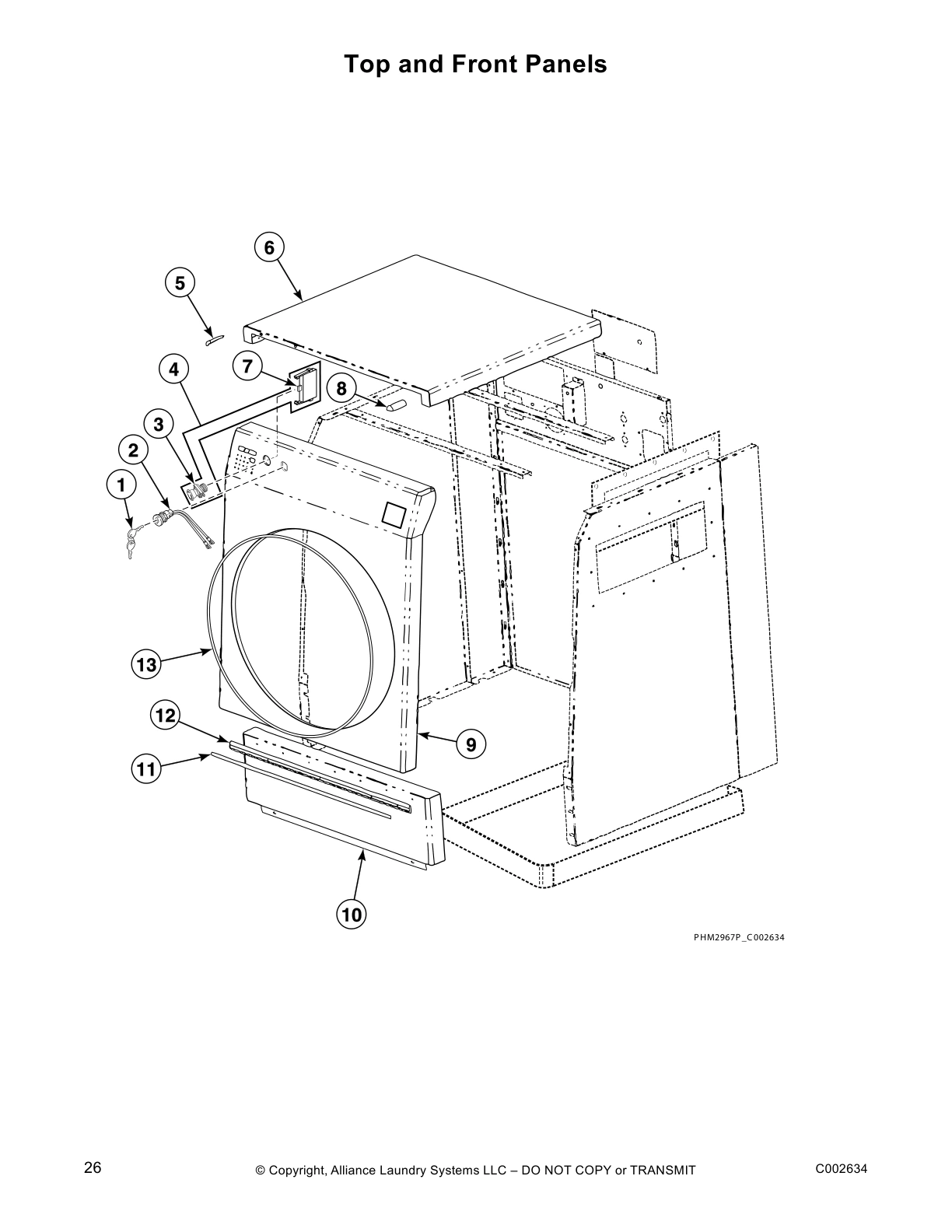

Top and Front Panels

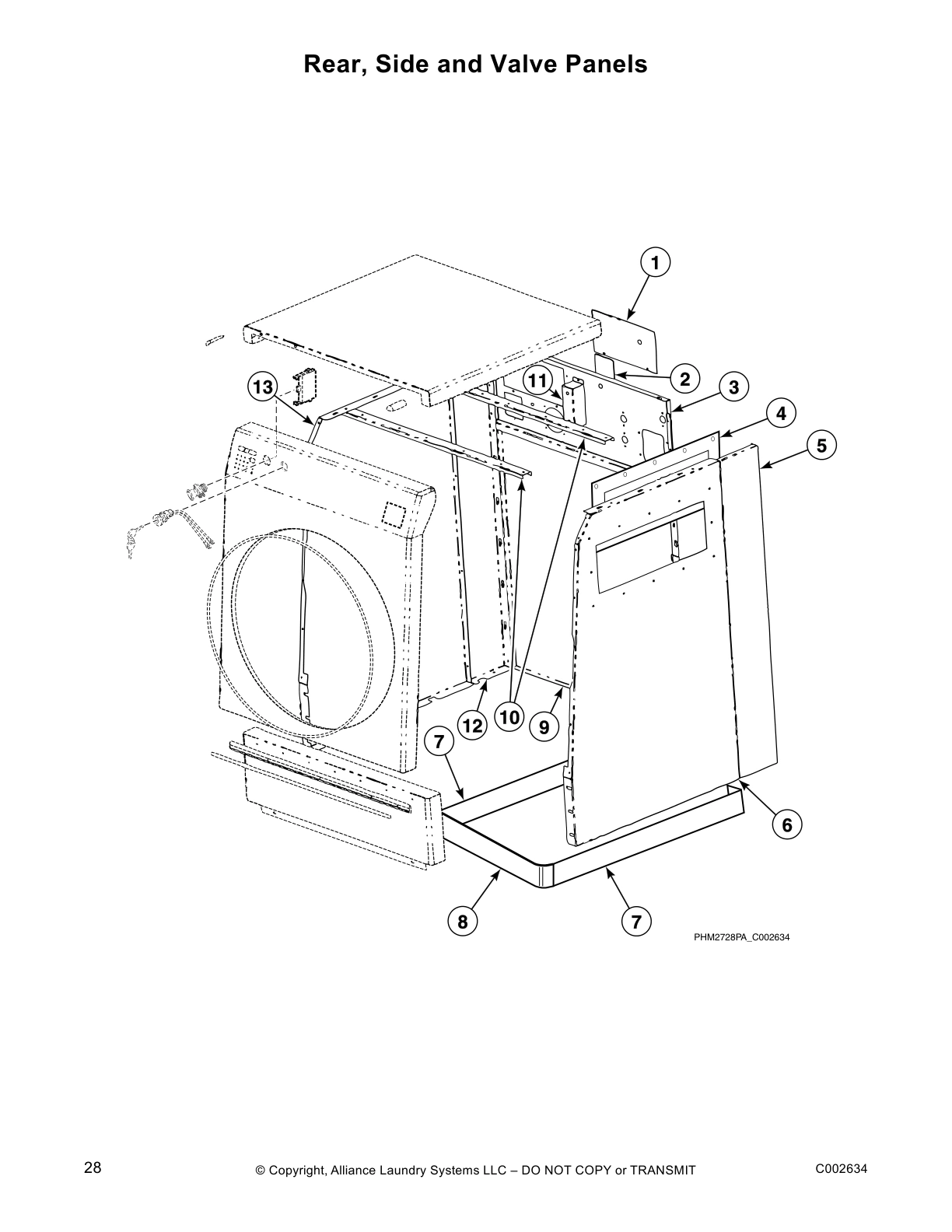

Rear, Side and Valve Panels

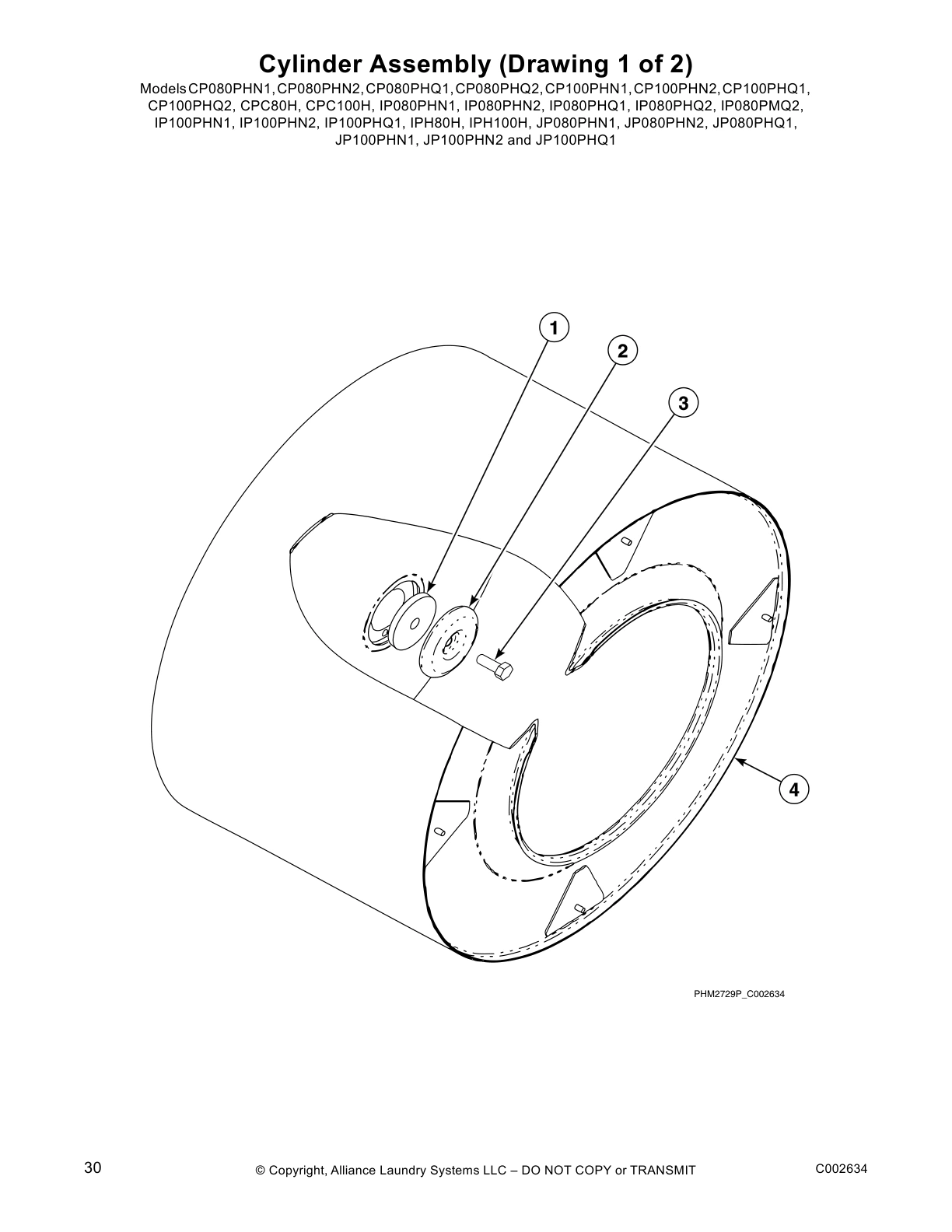

Cylinder Assembly (Drawing 1 of 2)

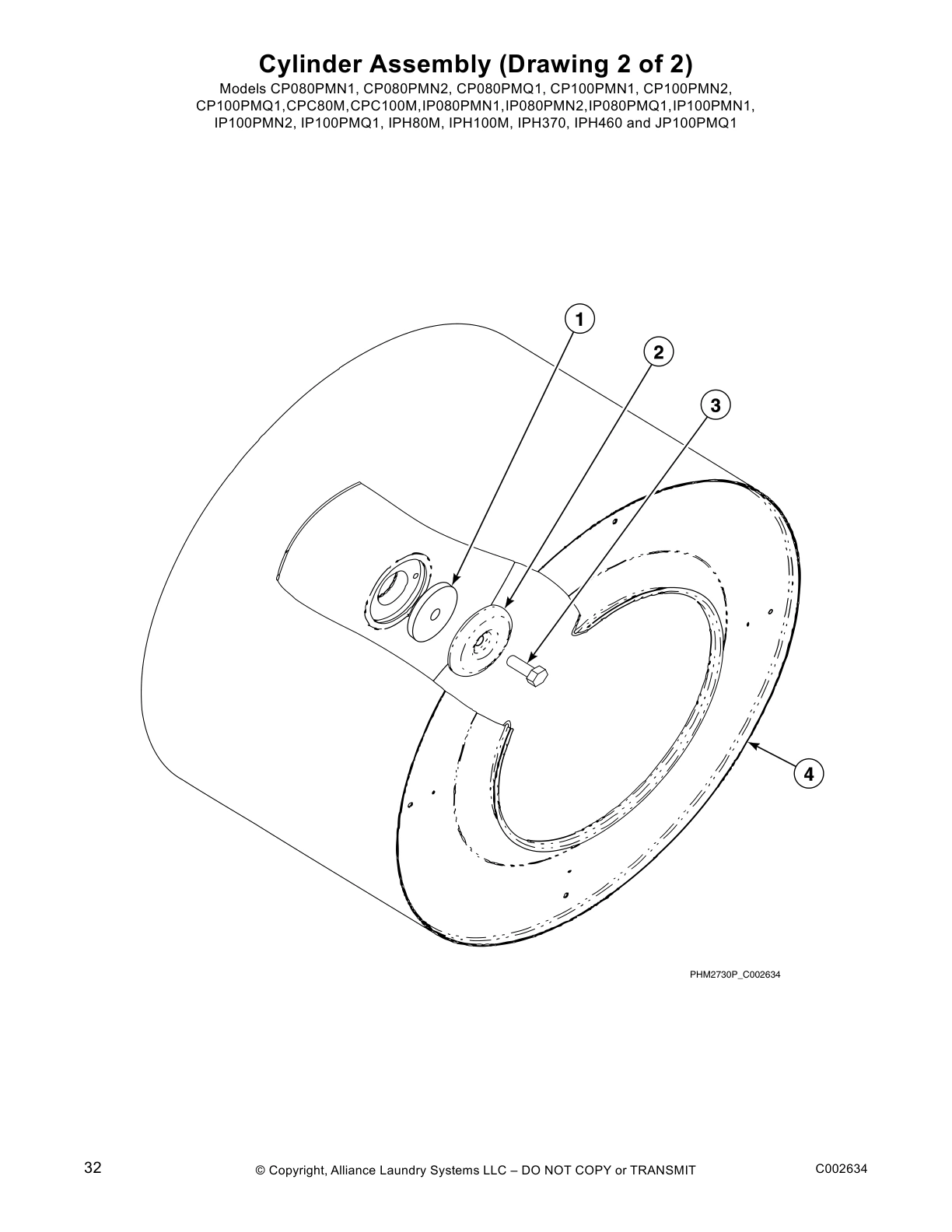

Cylinder Assembly (Drawing 2 of 2)

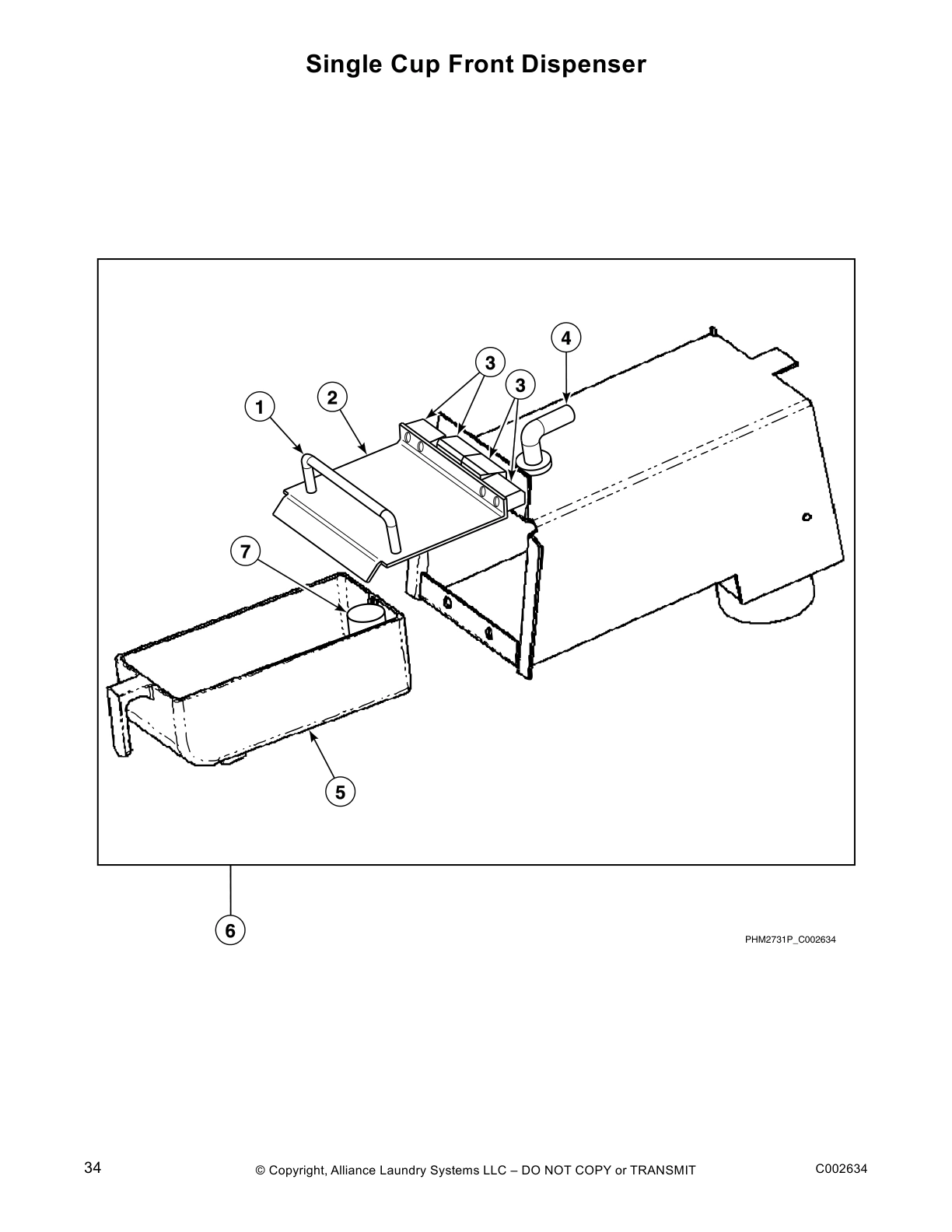

Single Cup Front Dispenser

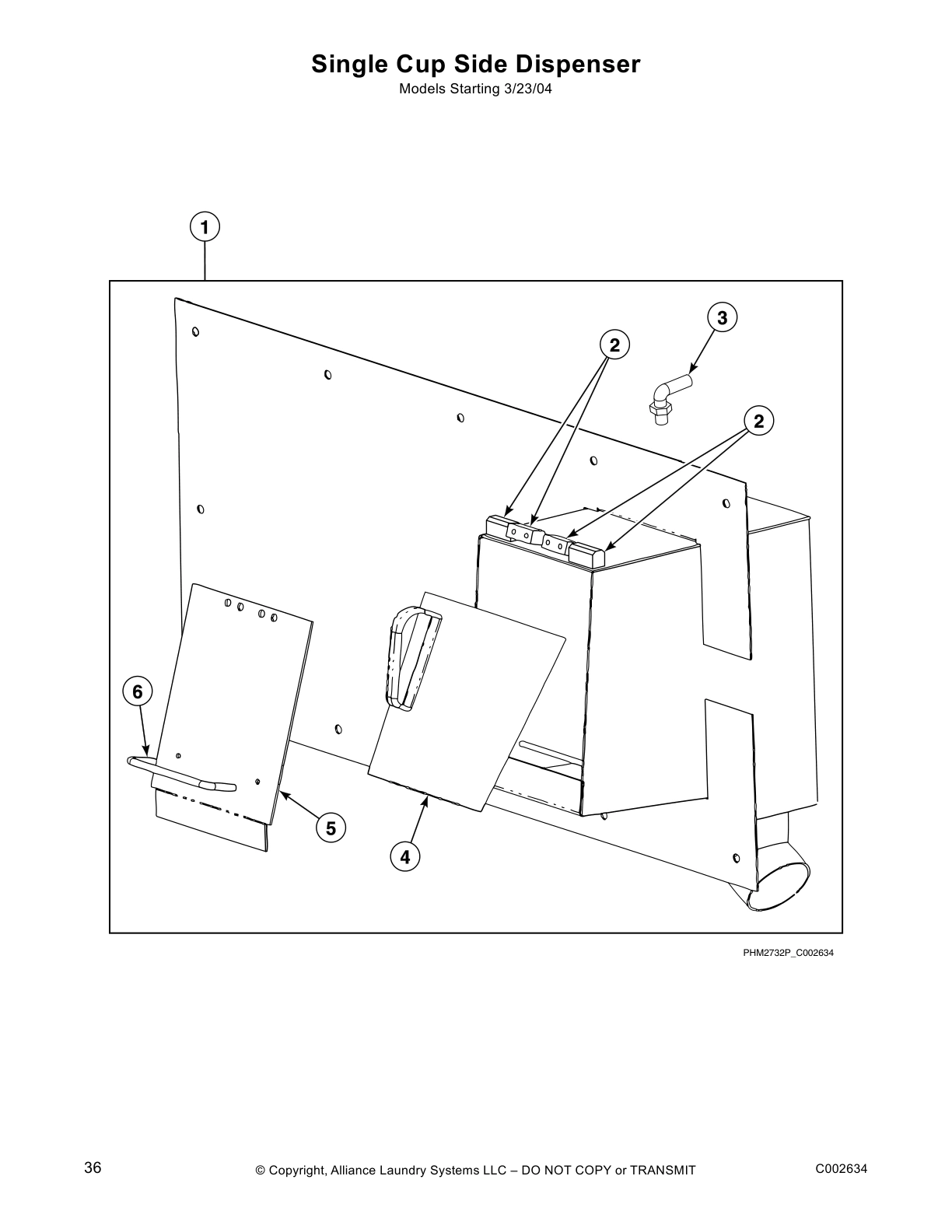

Single Cup Side Dispenser

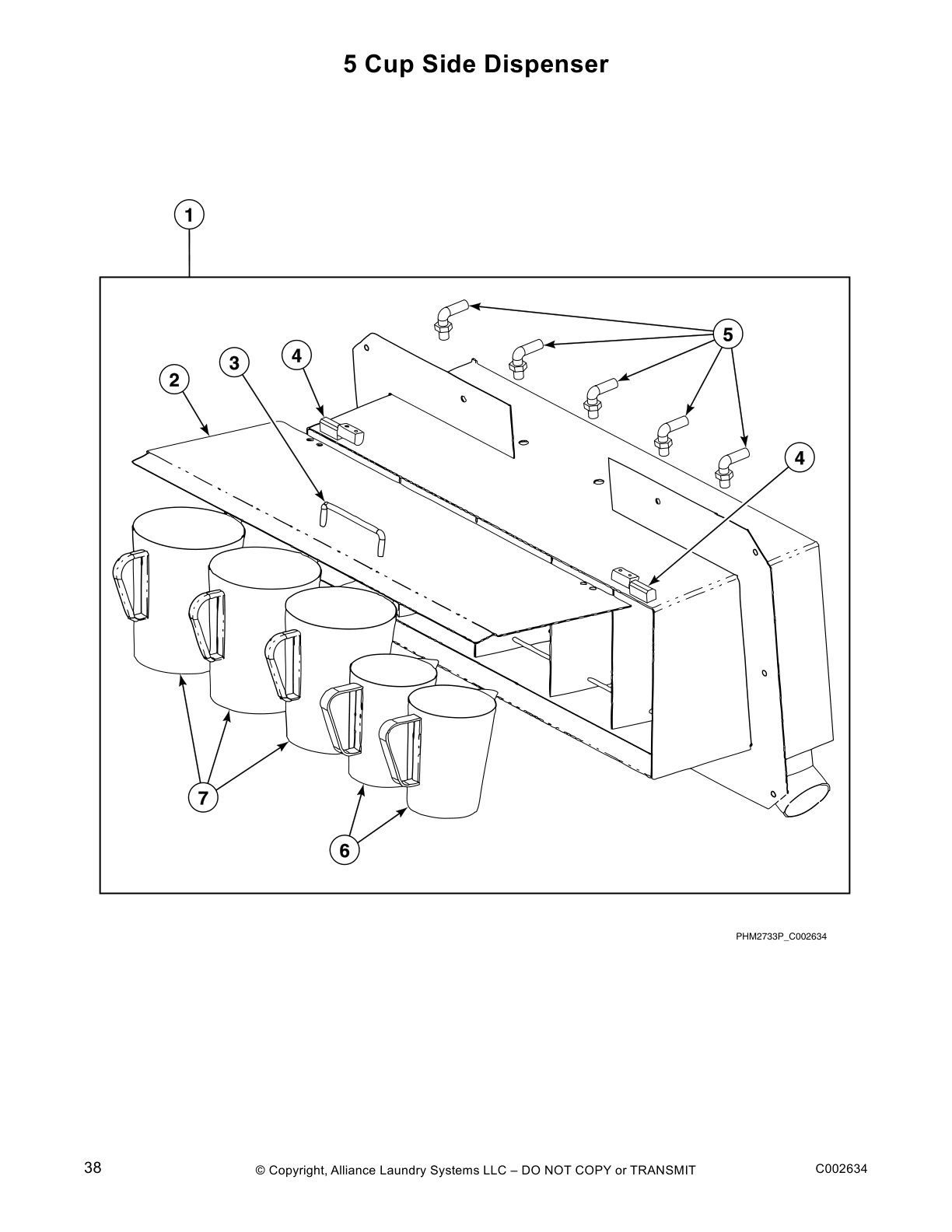

5 Cup Side Dispenser

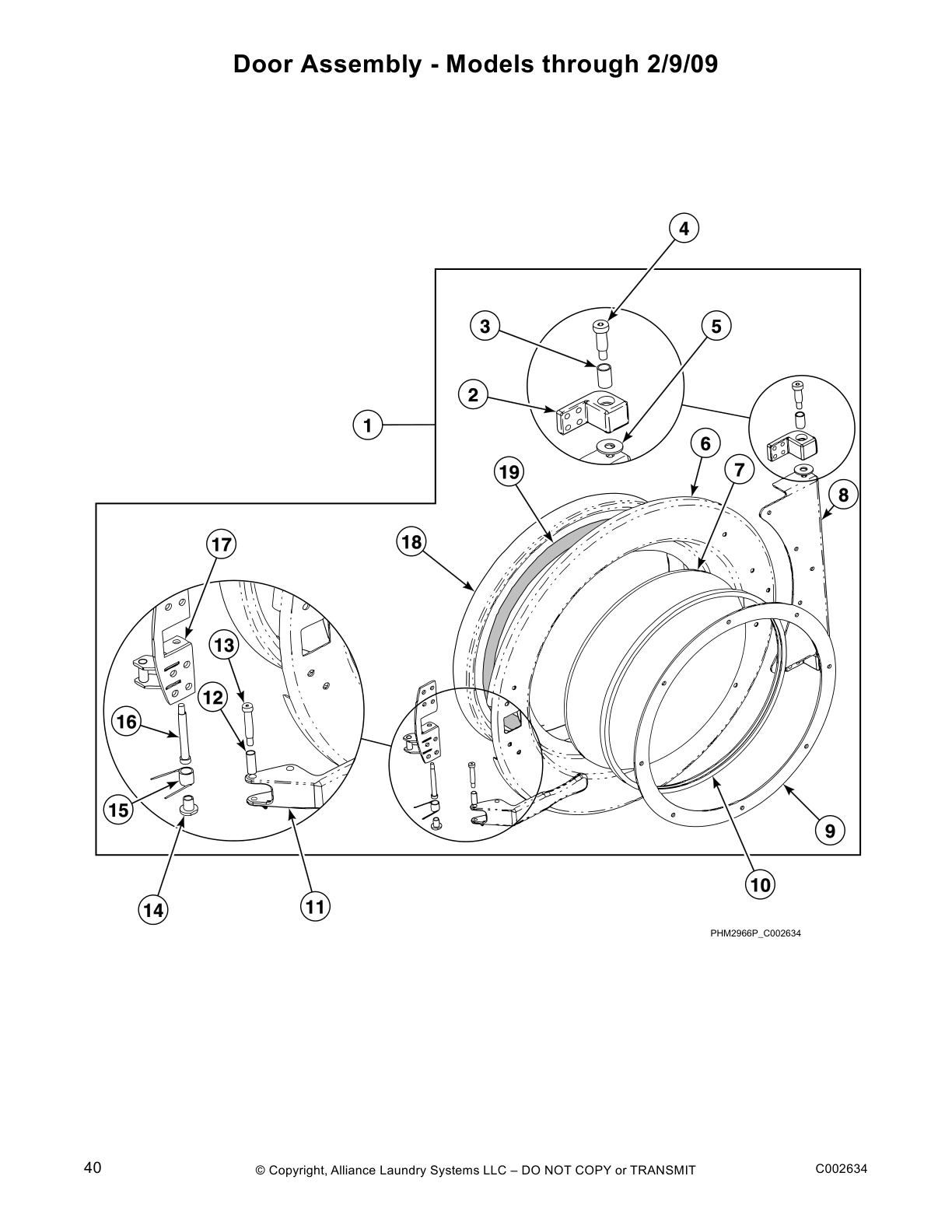

Door Assembly - Models through 2/9/09

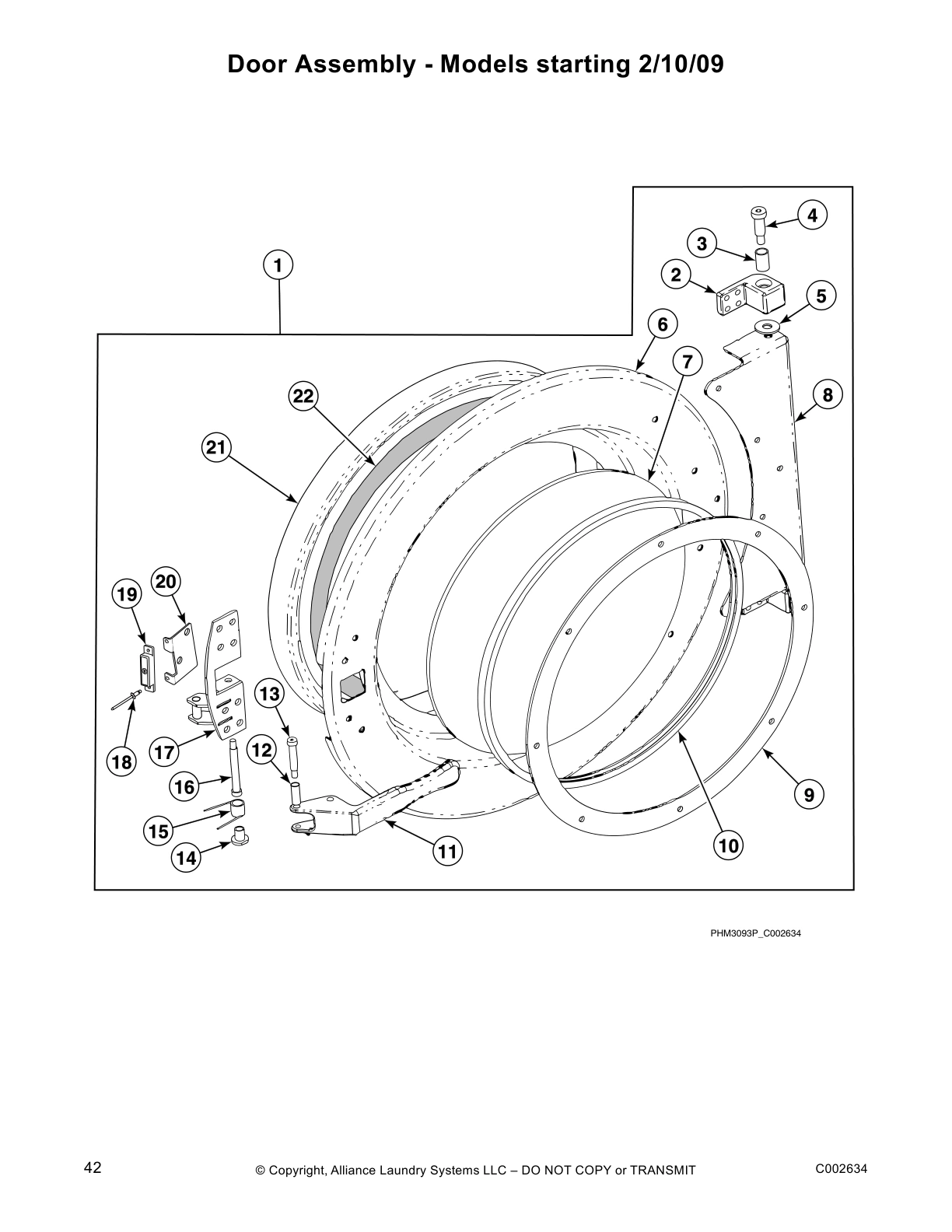

Door Assembly - Models starting 2/10/09

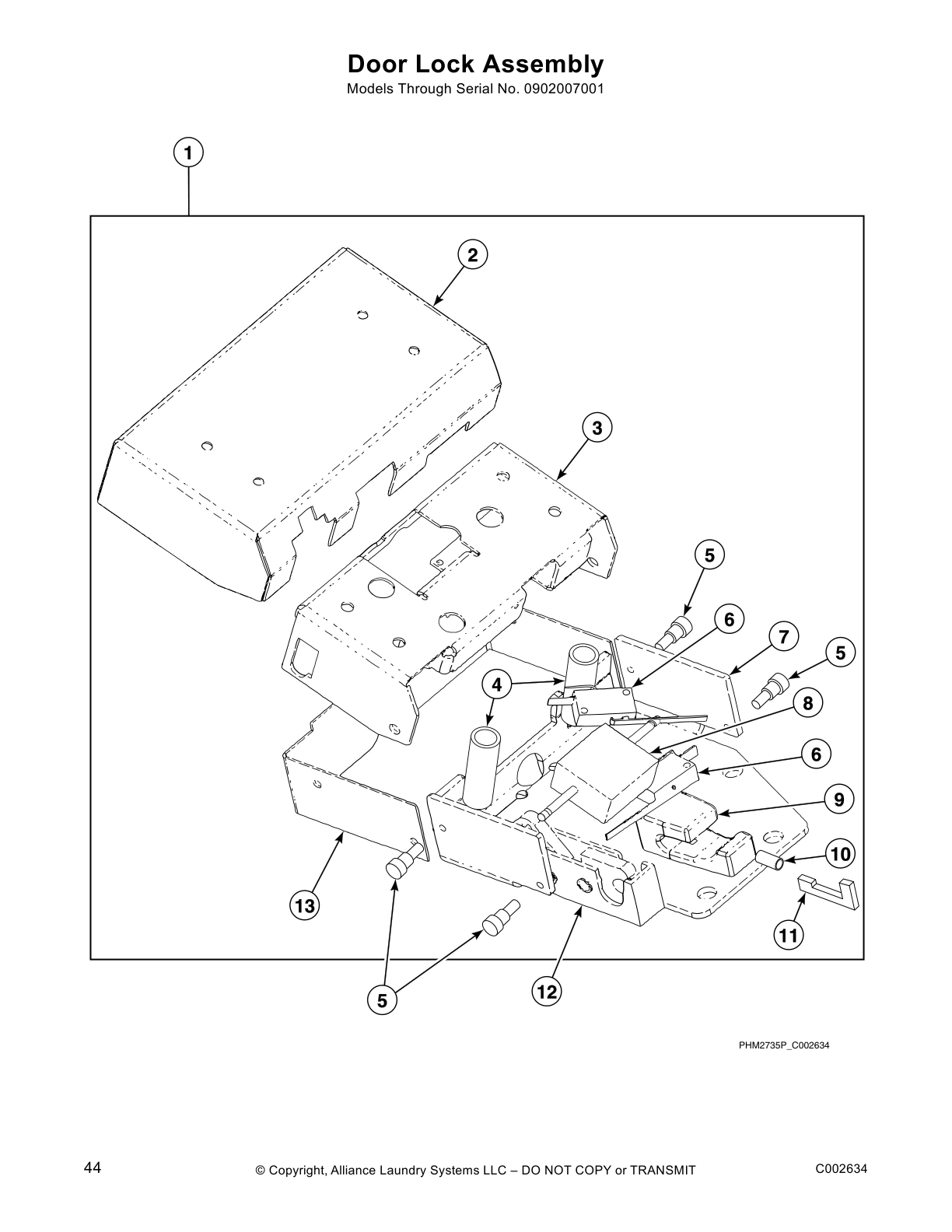

Door Lock Assembly

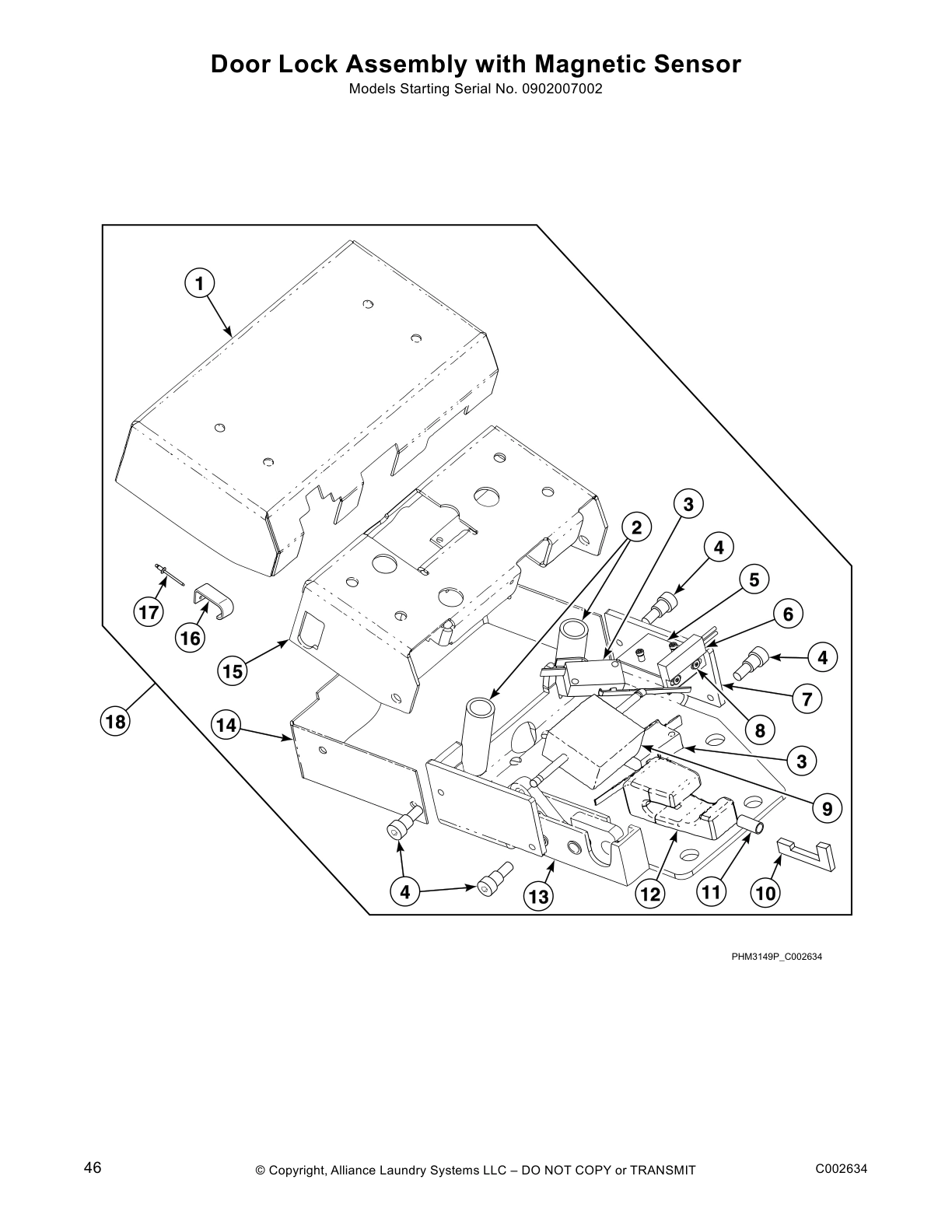

Door Lock Assembly with Magnetic Sensor

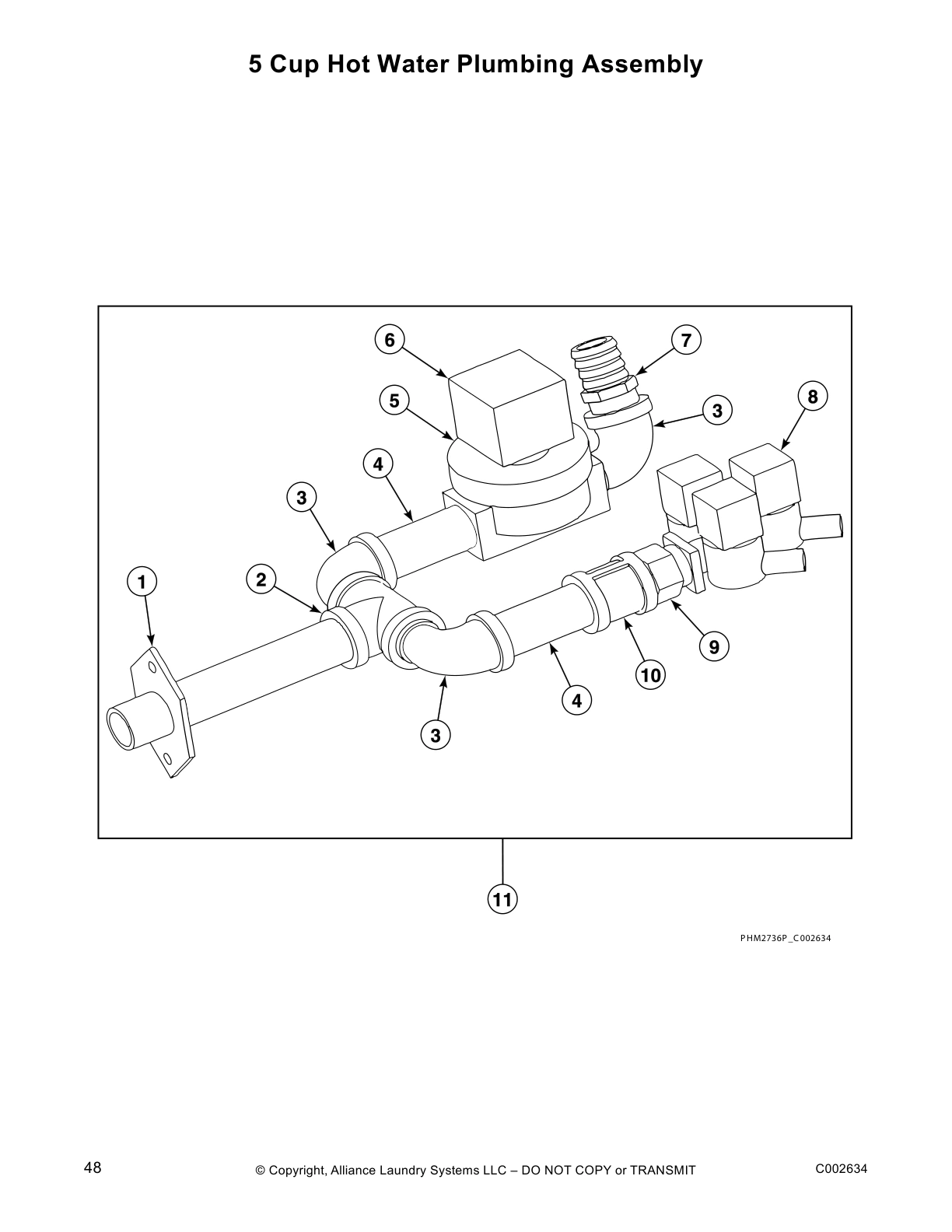

5 Cup Hot Water Plumbing Assembly

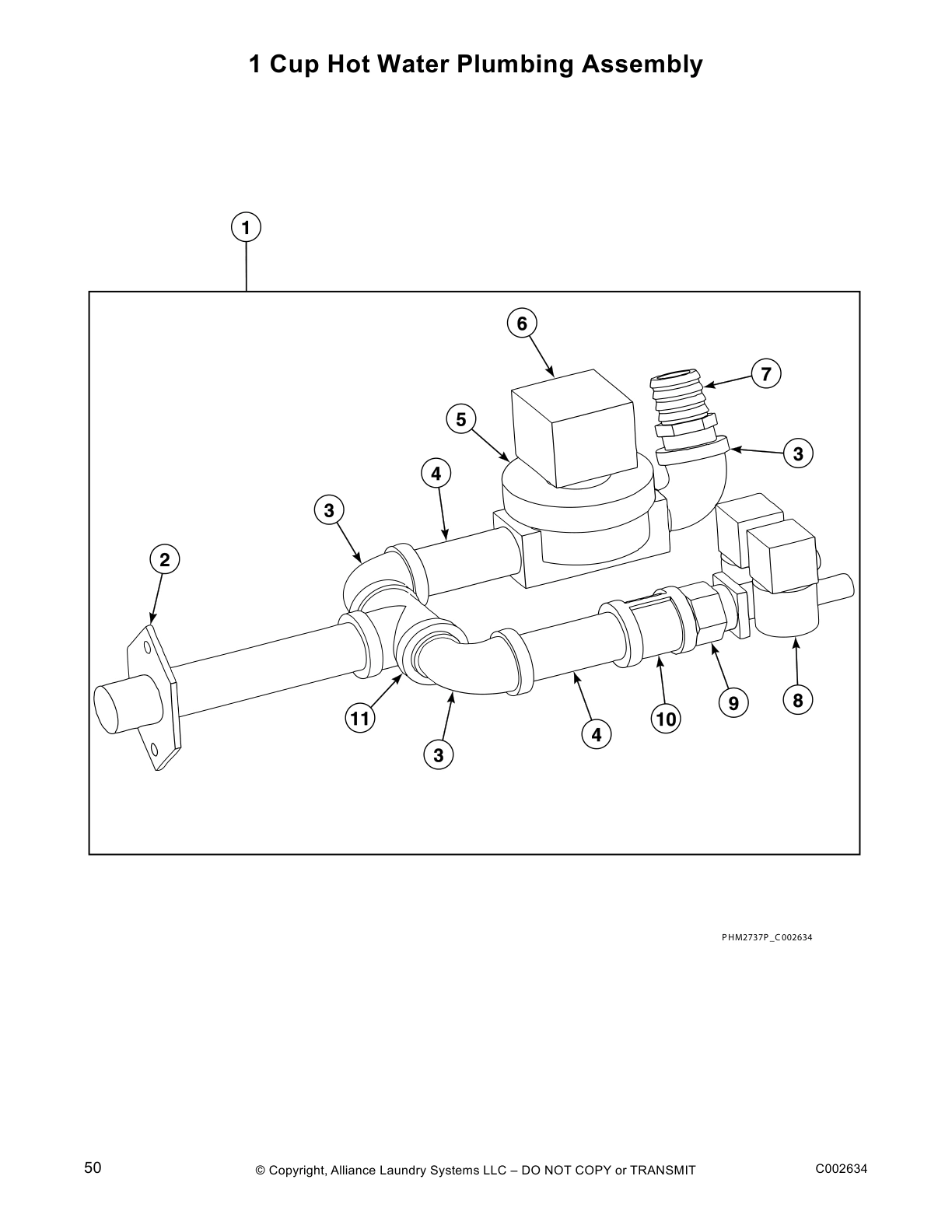

1 Cup Hot Water Plumbing Assembly

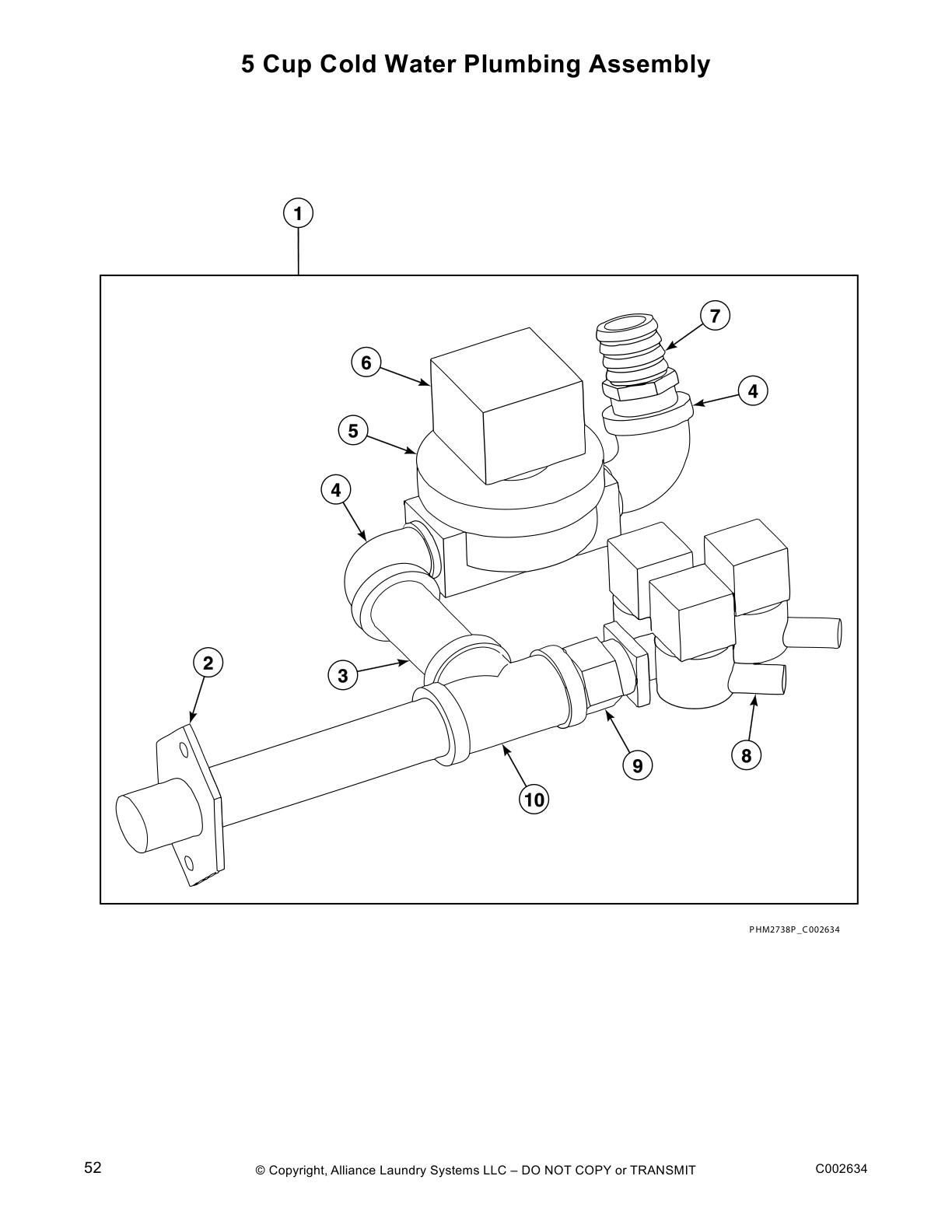

5 Cup Cold Water Plumbing Assembly

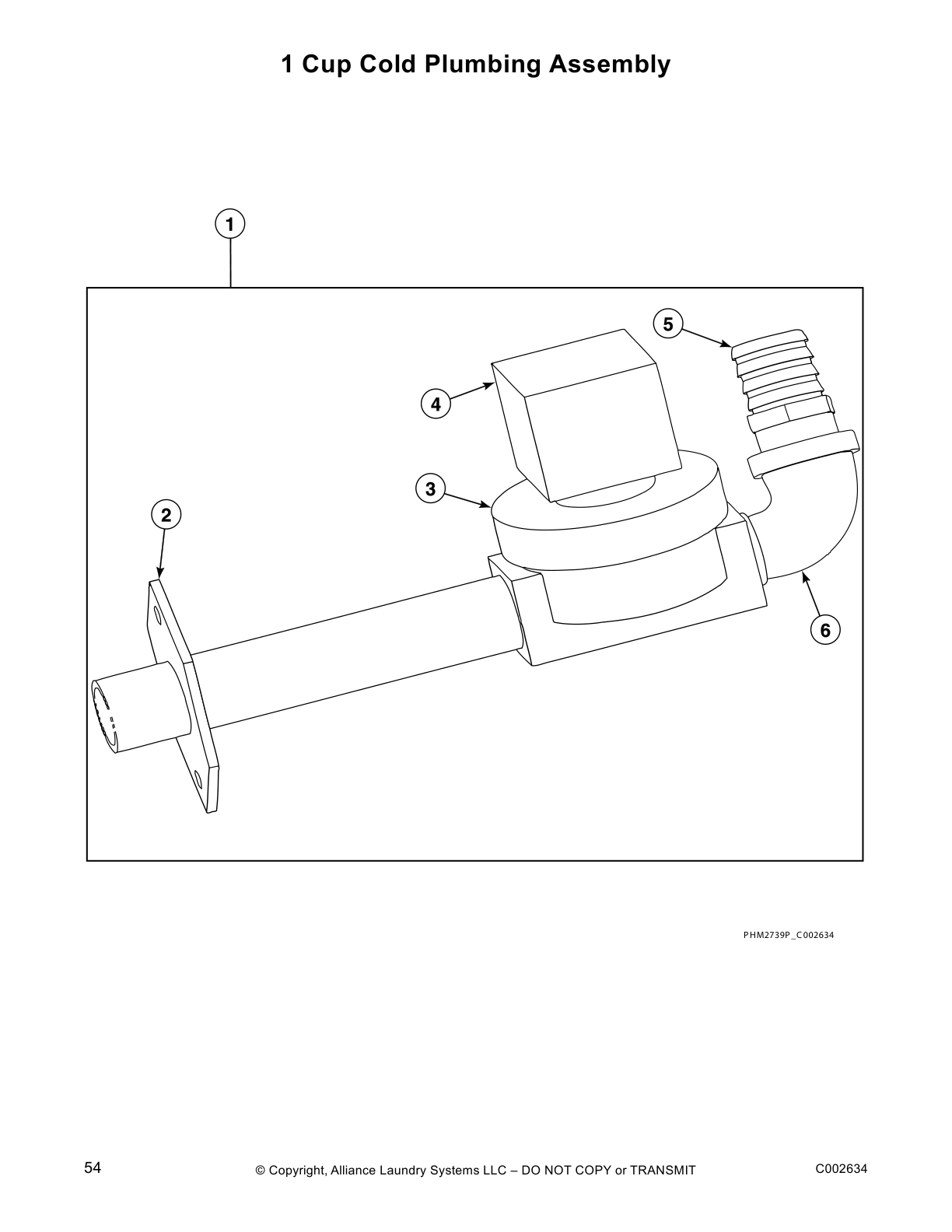

1 Cup Cold Plumbing Assembly

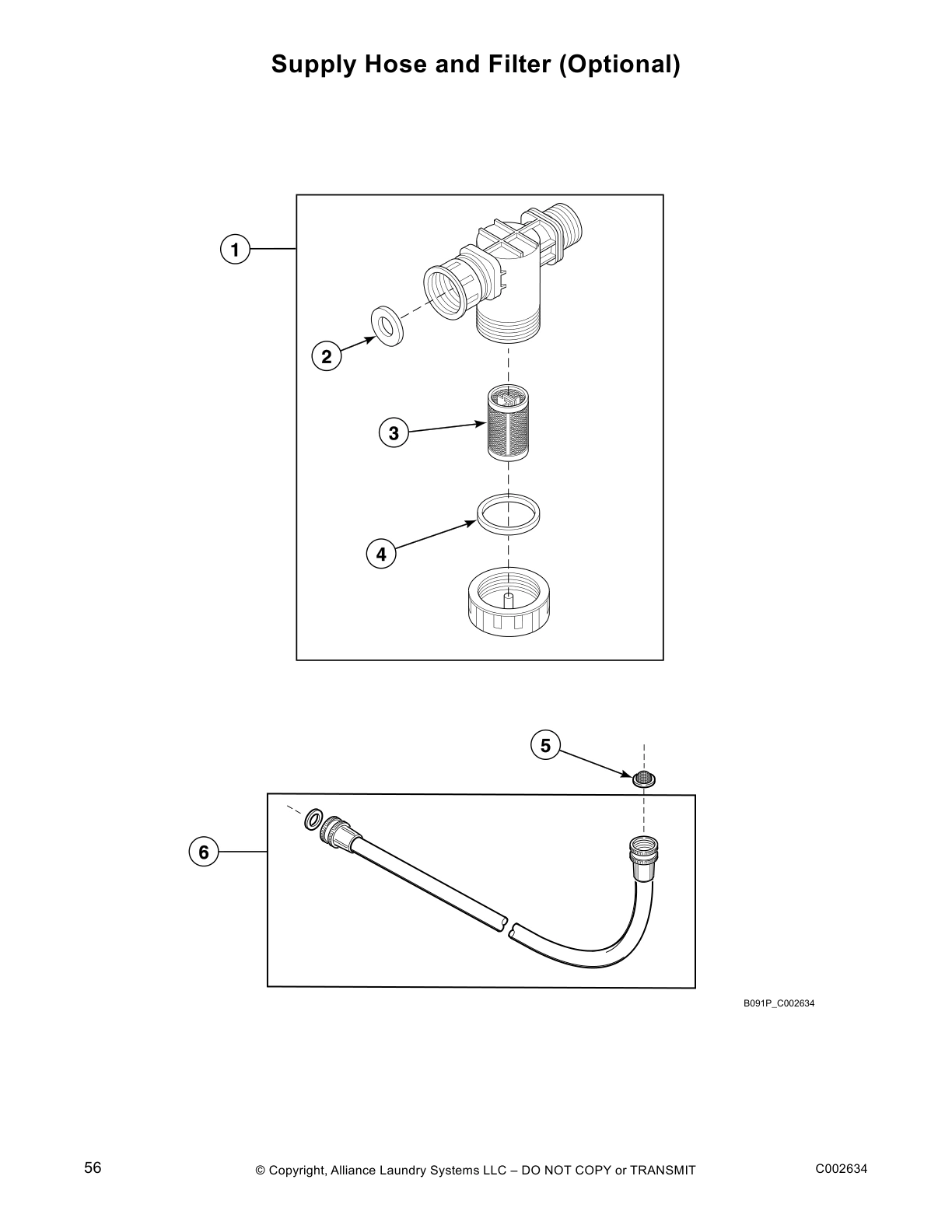

Supply Hose and Filter (Optional)

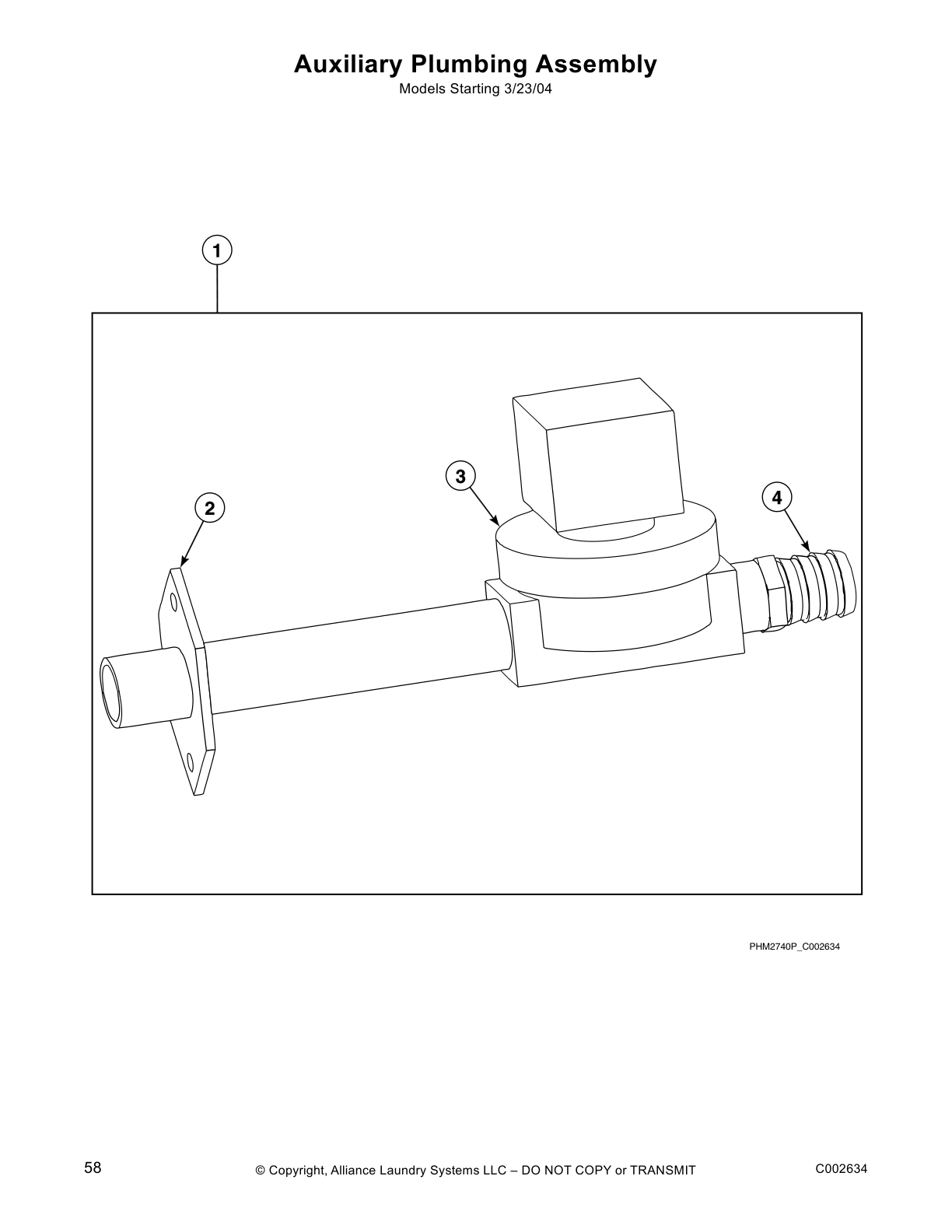

Auxiliary Plumbing Assembly

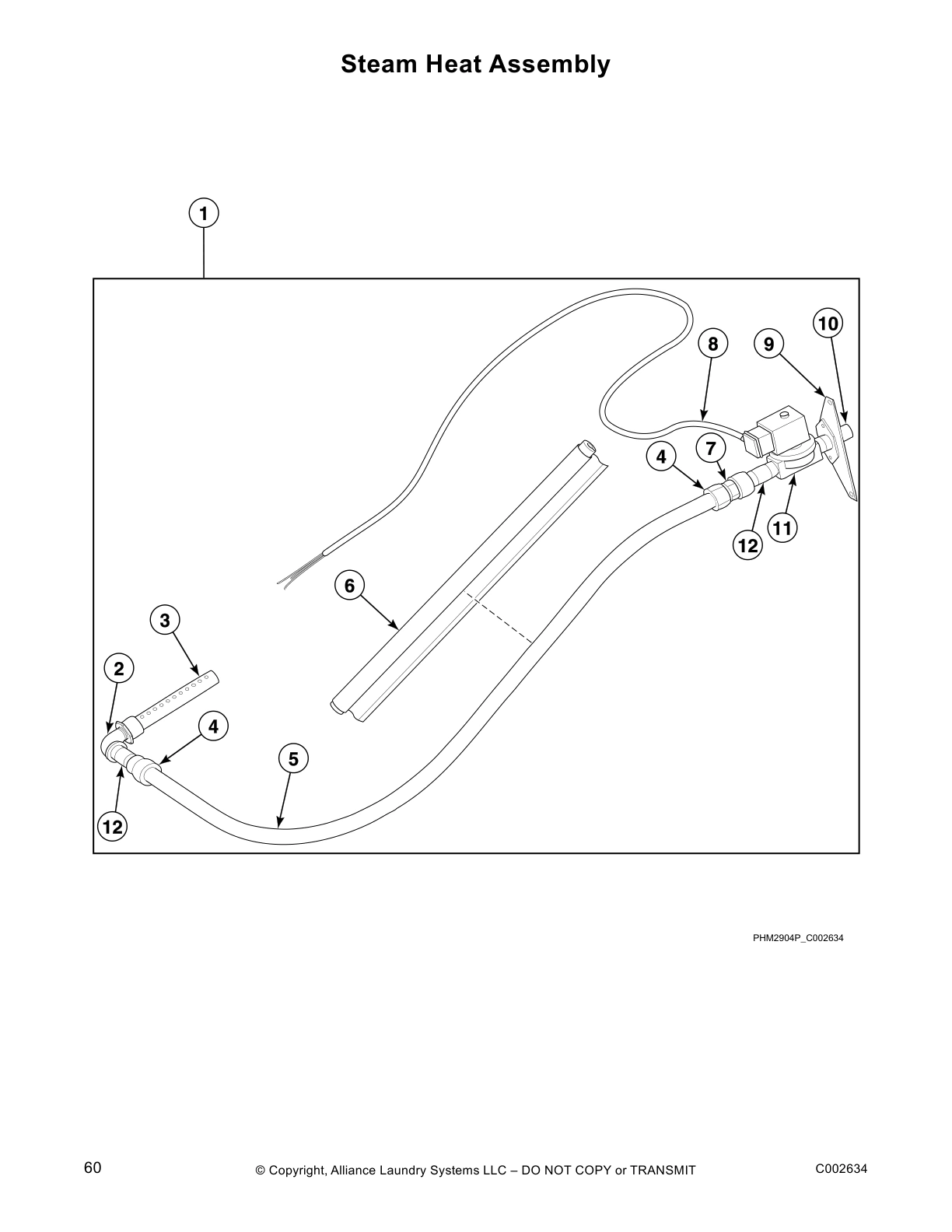

Steam Heat Assembly

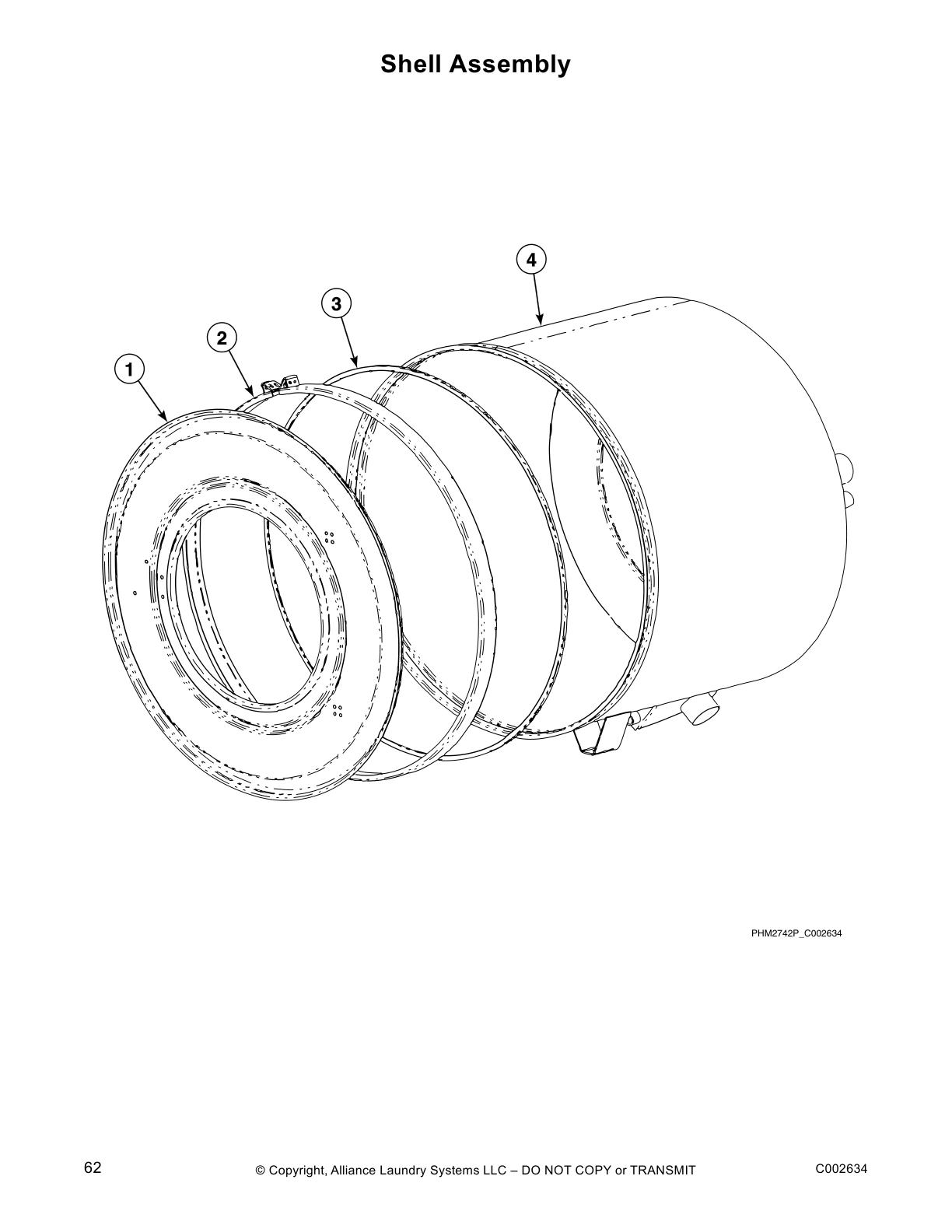

Shell Assembly

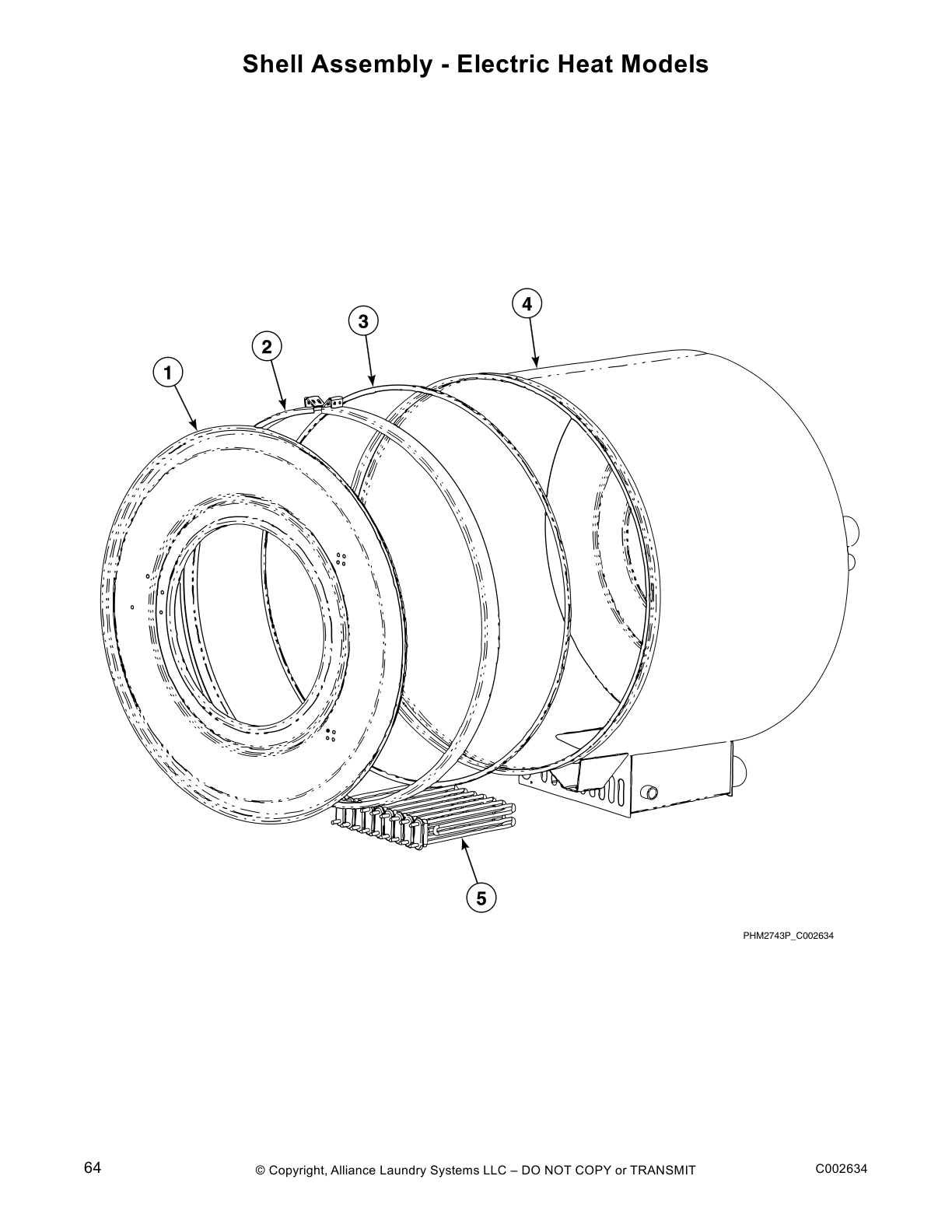

Shell Assembly - Electric Heat Models

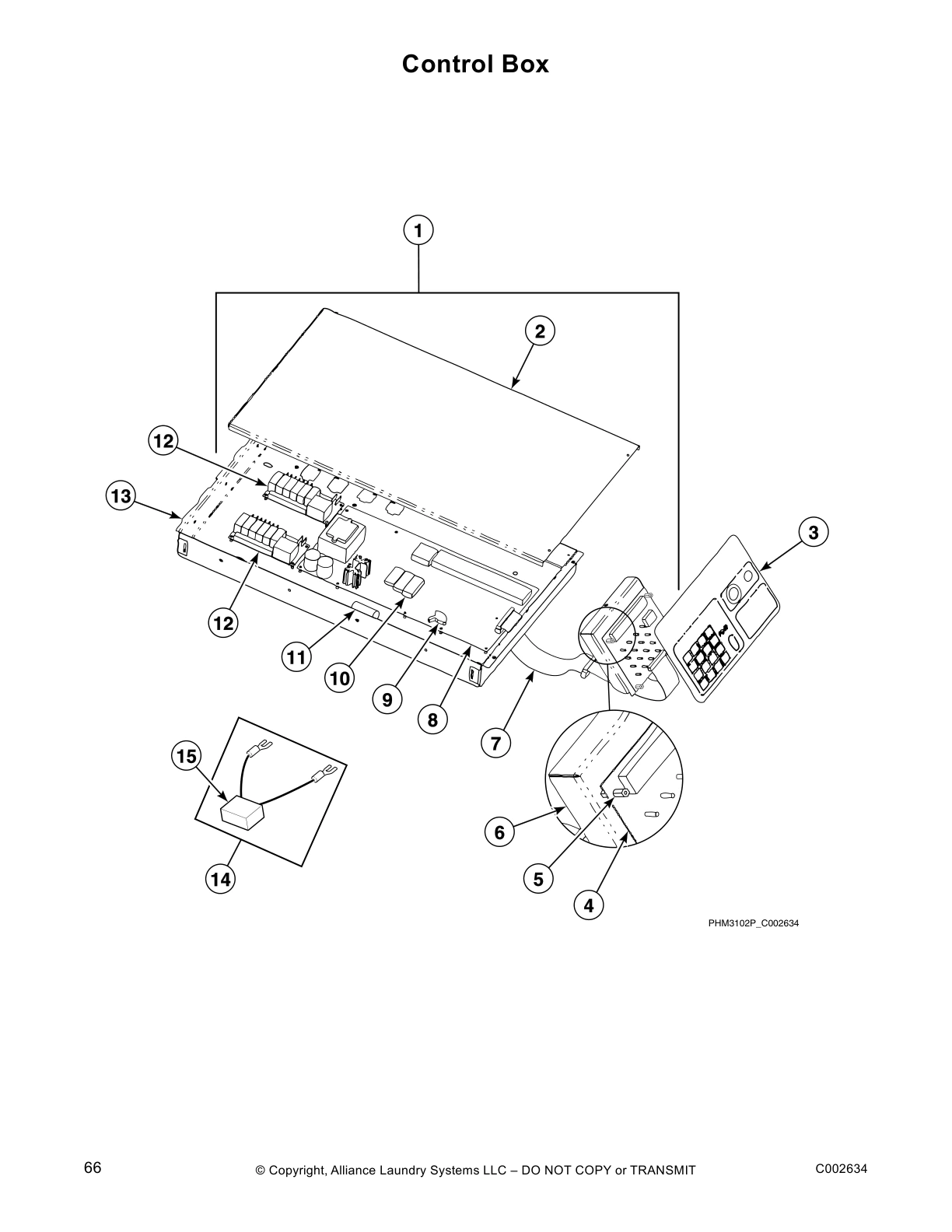

Control Box

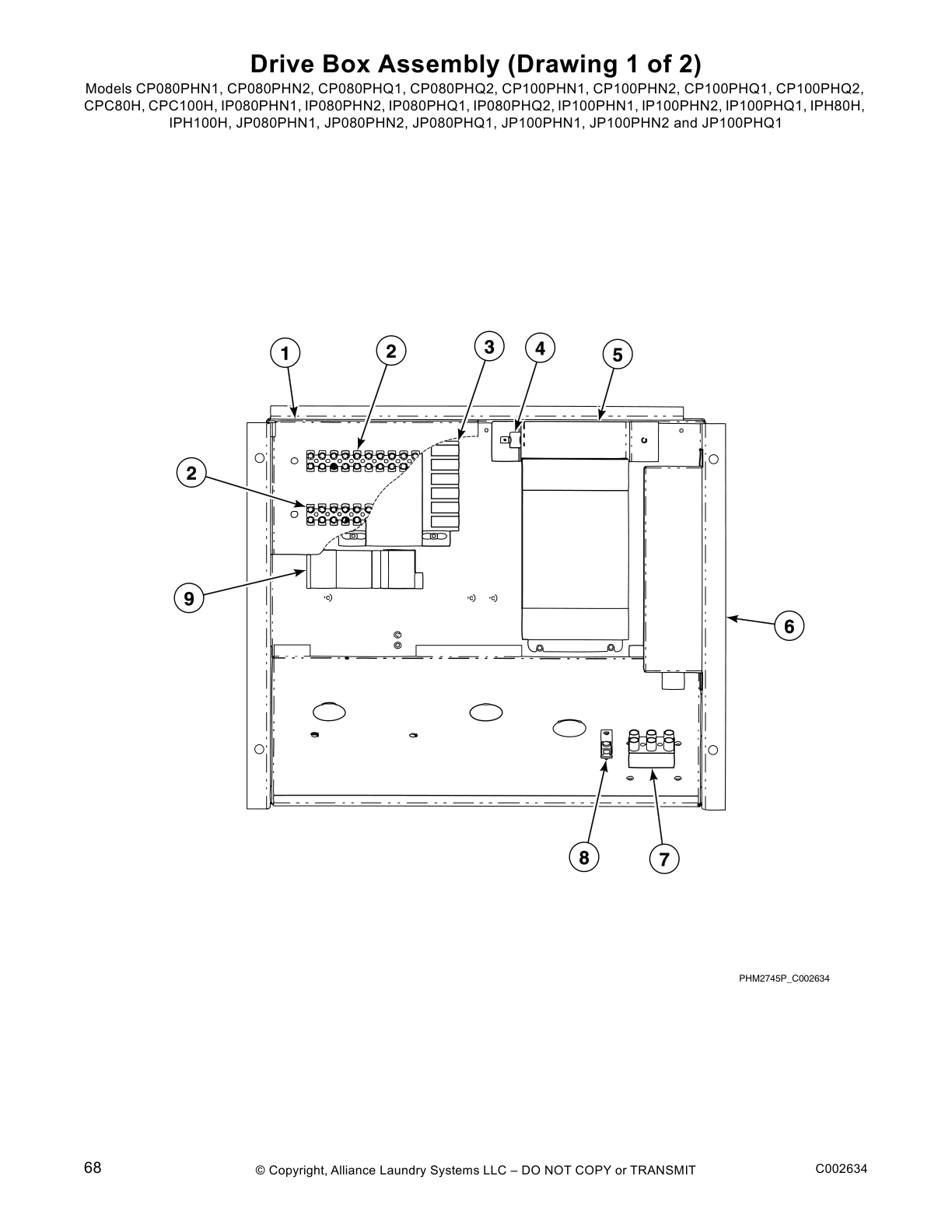

Drive Box Assembly (Drawing 1 of 2)

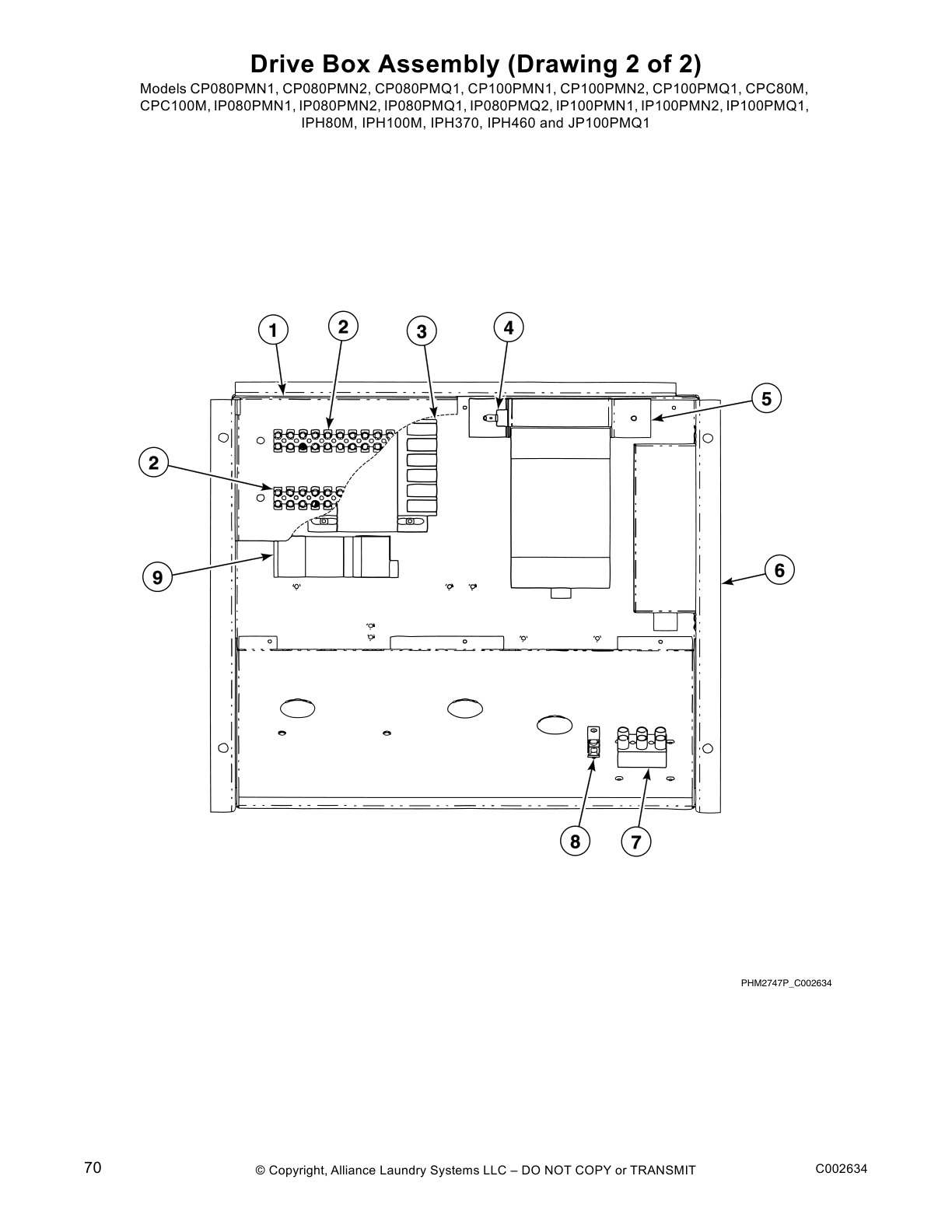

Drive Box Assembly (Drawing 2 of 2)

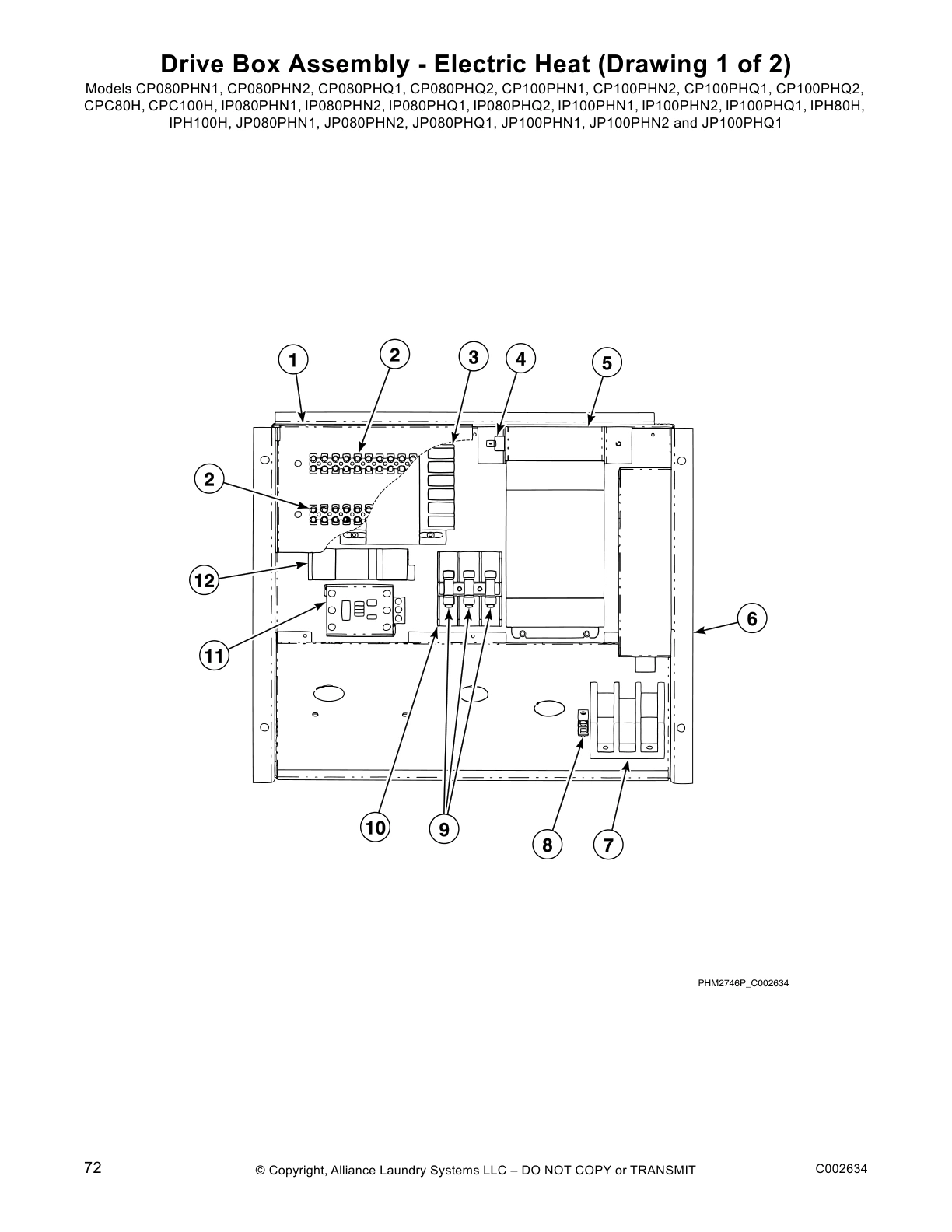

Drive Box Assembly - Electric Heat (Drawing 1 of 2)

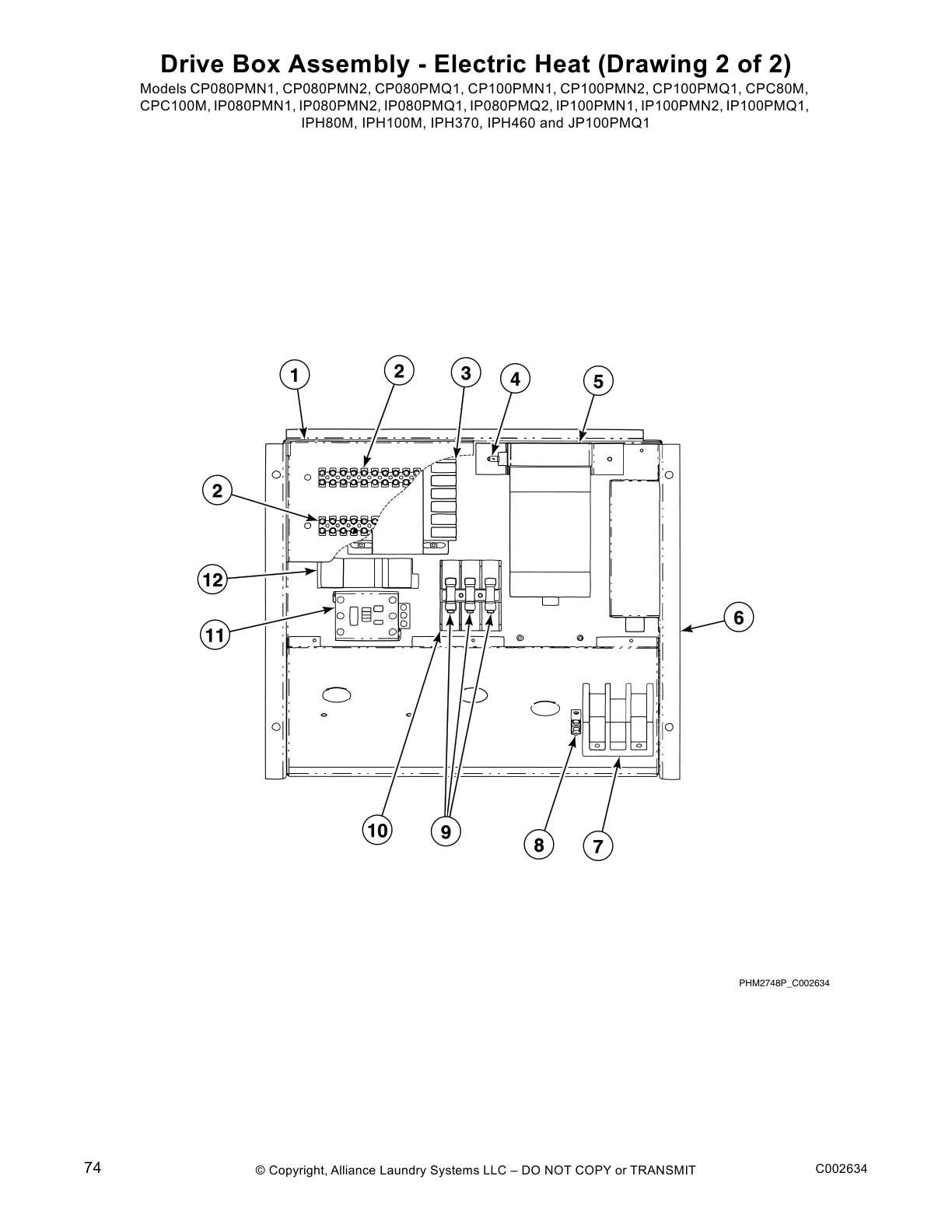

Drive Box Assembly - Electric Heat (Drawing 2 of 2)

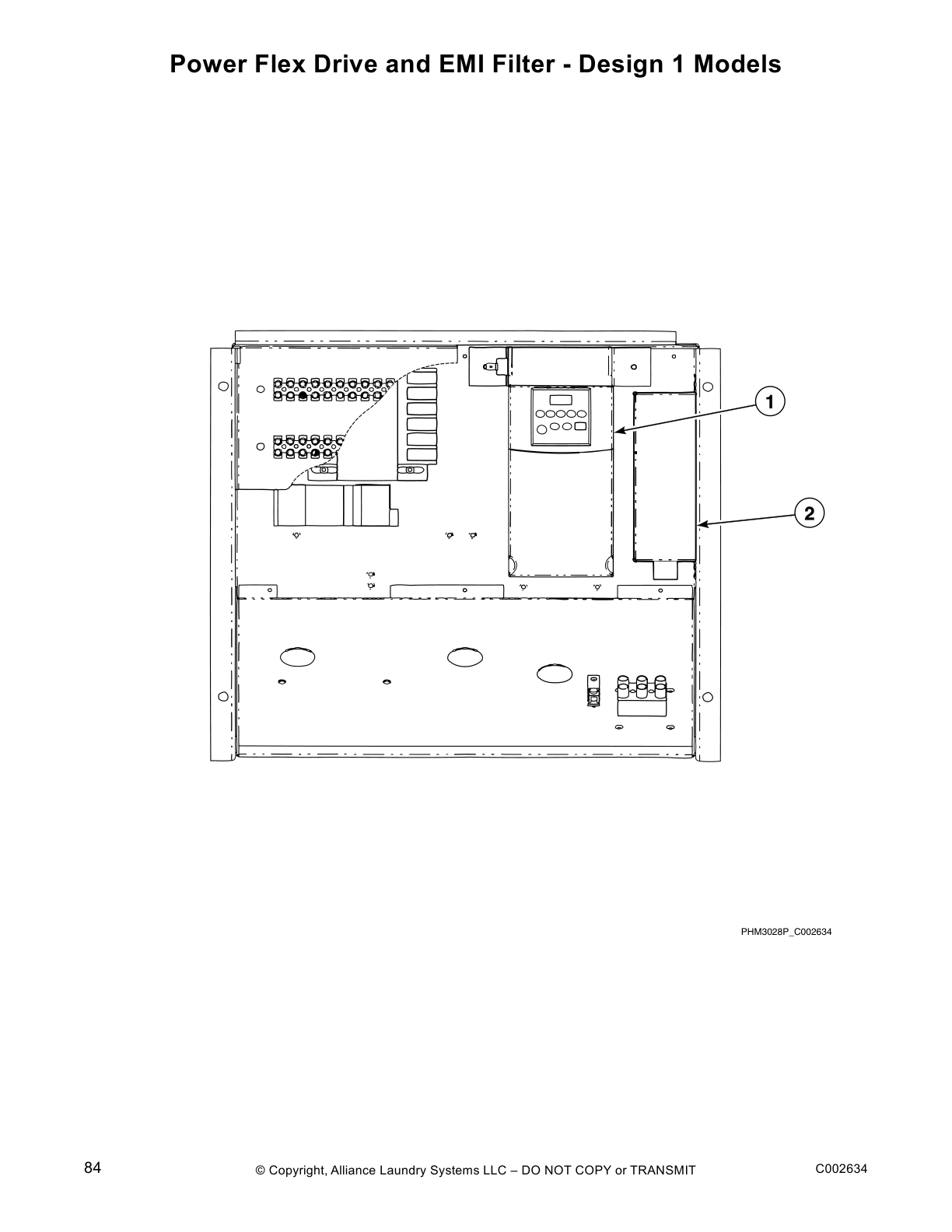

Power Flex Drive and EMI Filter - Design 1 Models
Power Flex Drive and EMI Filter - Design 2 Models

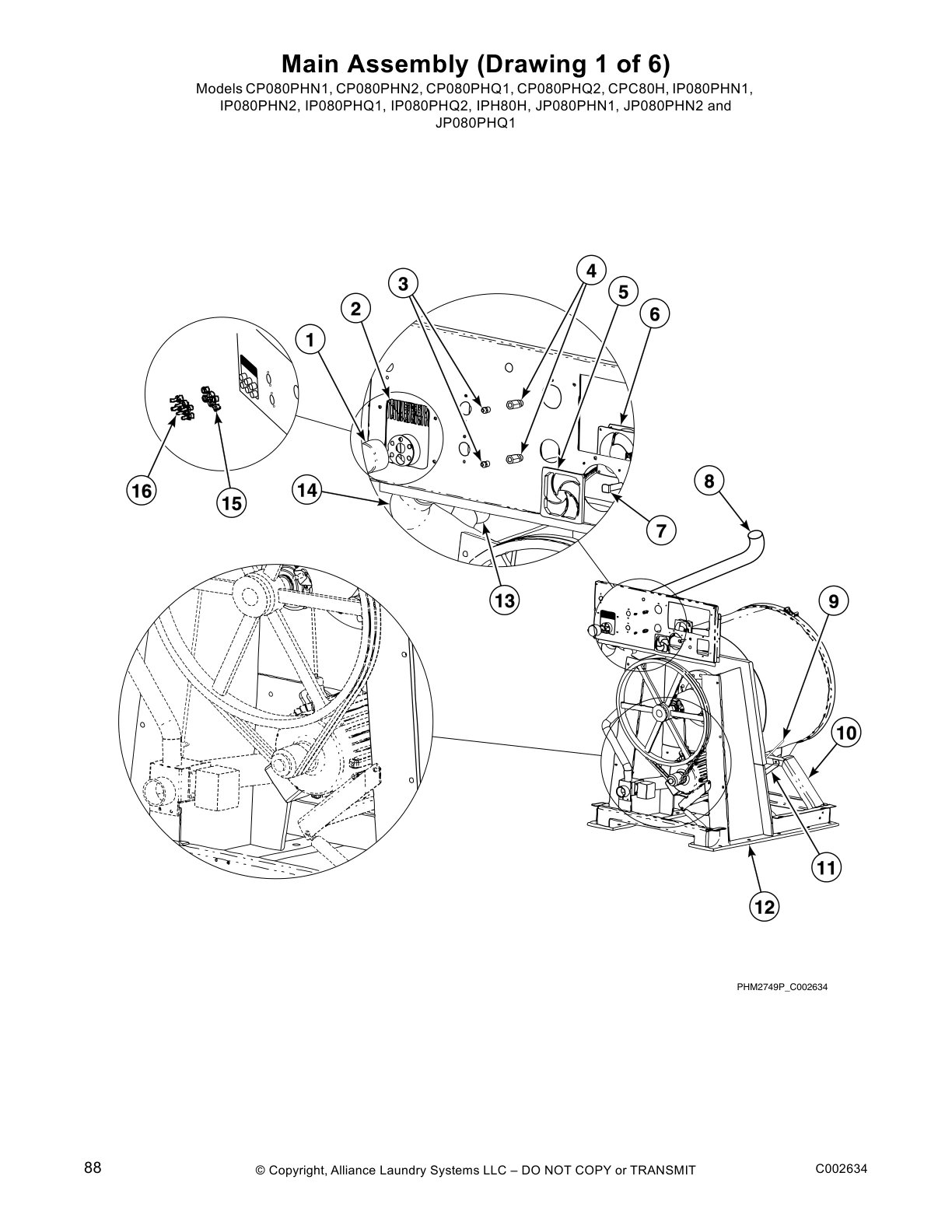

Main Assembly (Drawing 1 of 6)

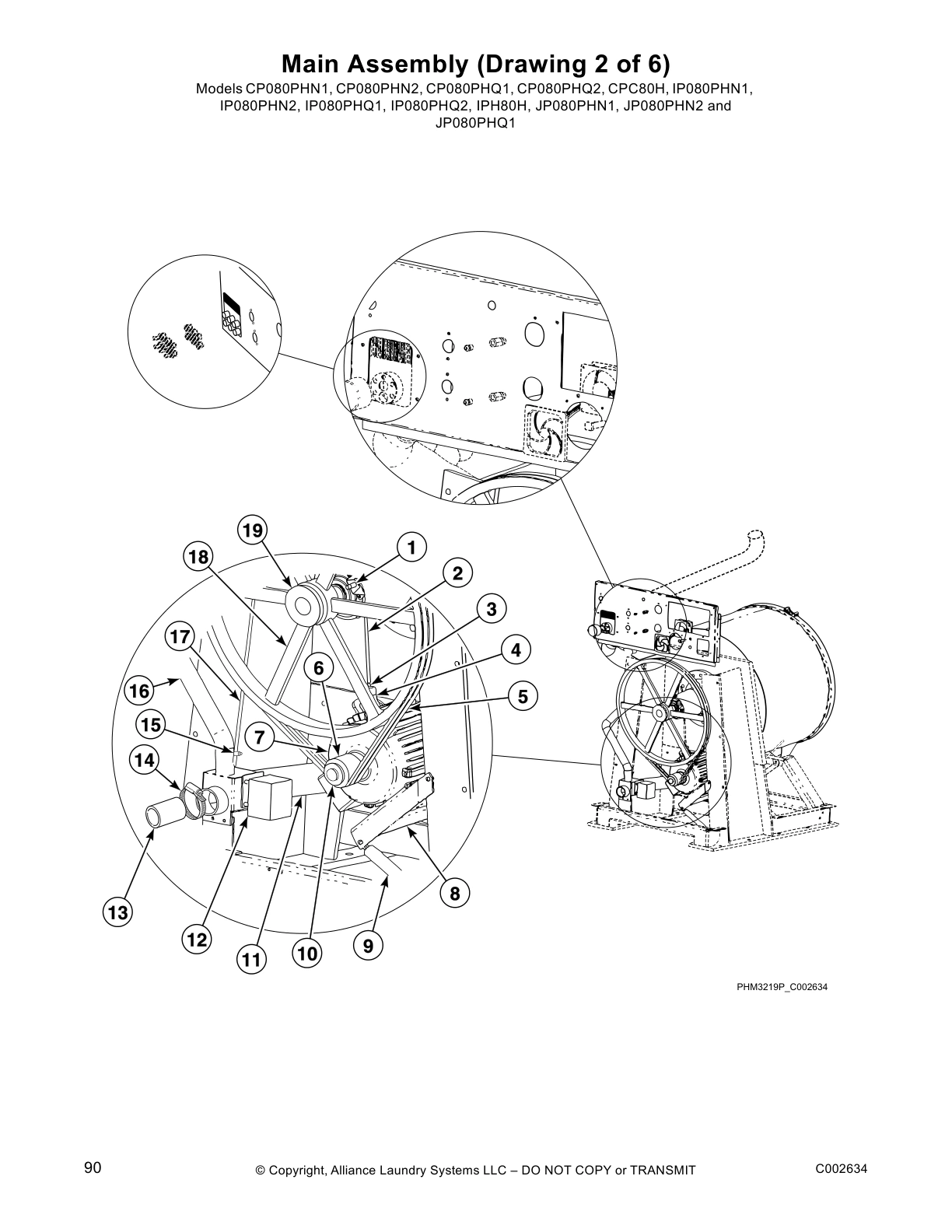

Main Assembly (Drawing 2 of 6)

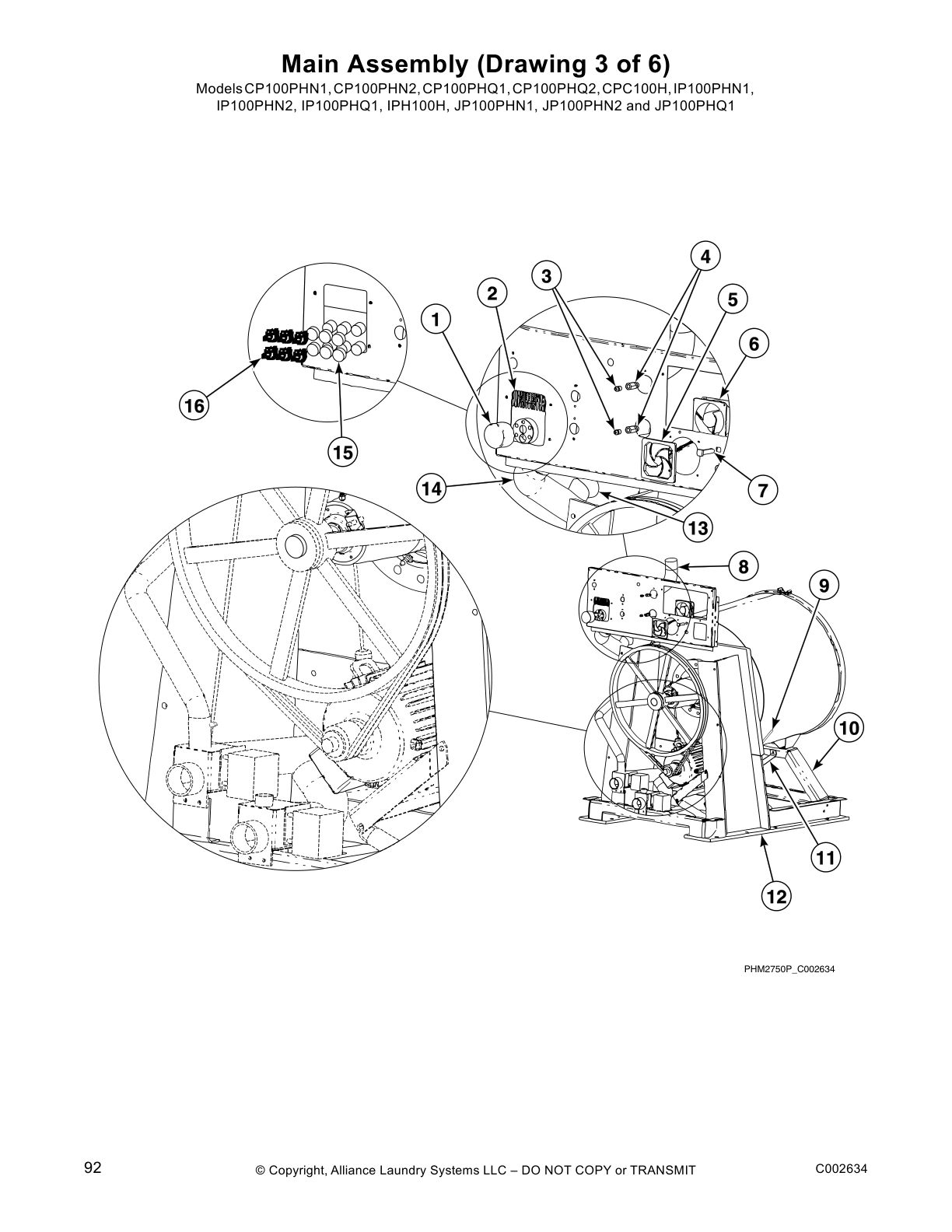

Main Assembly (Drawing 3 of 6)

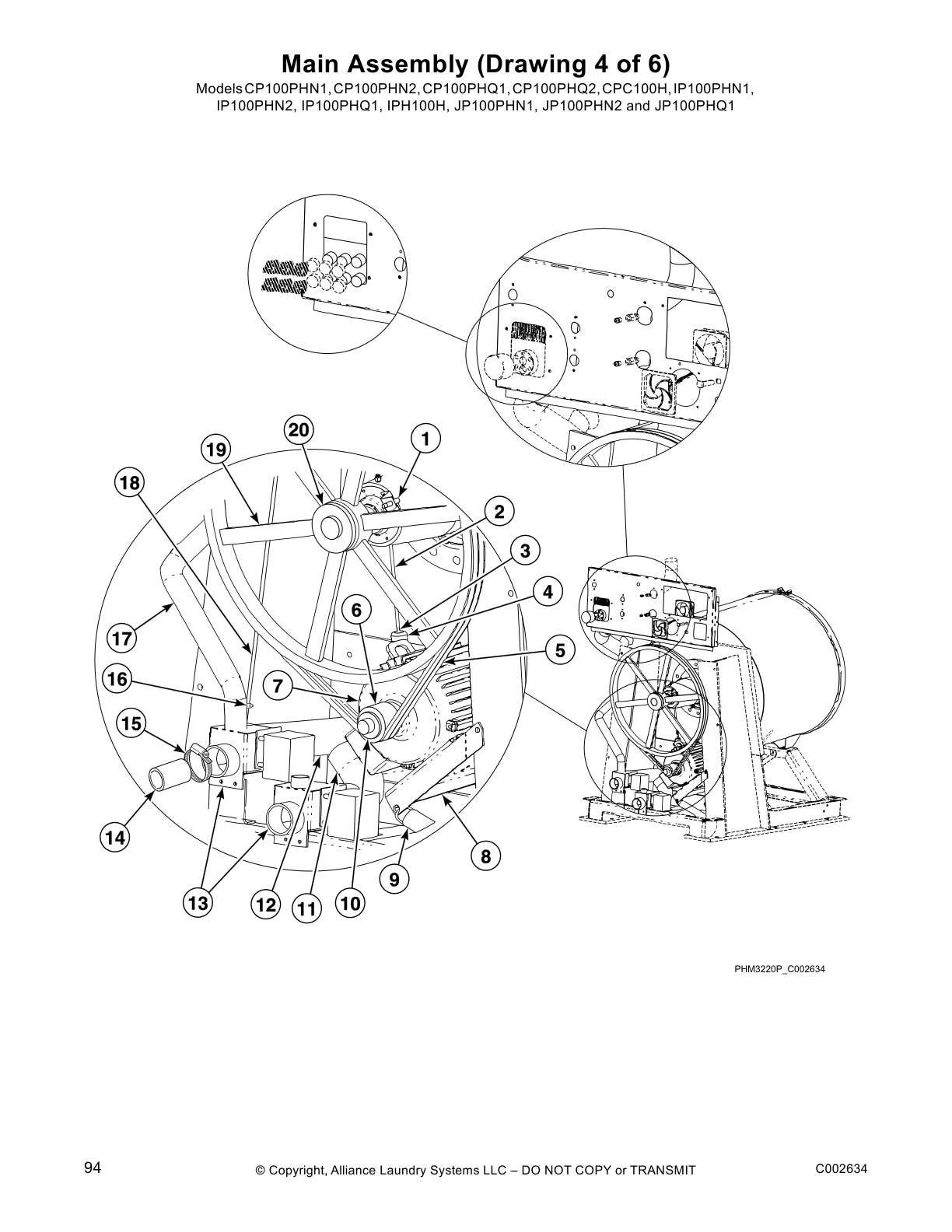

Main Assembly (Drawing 4 of 6)

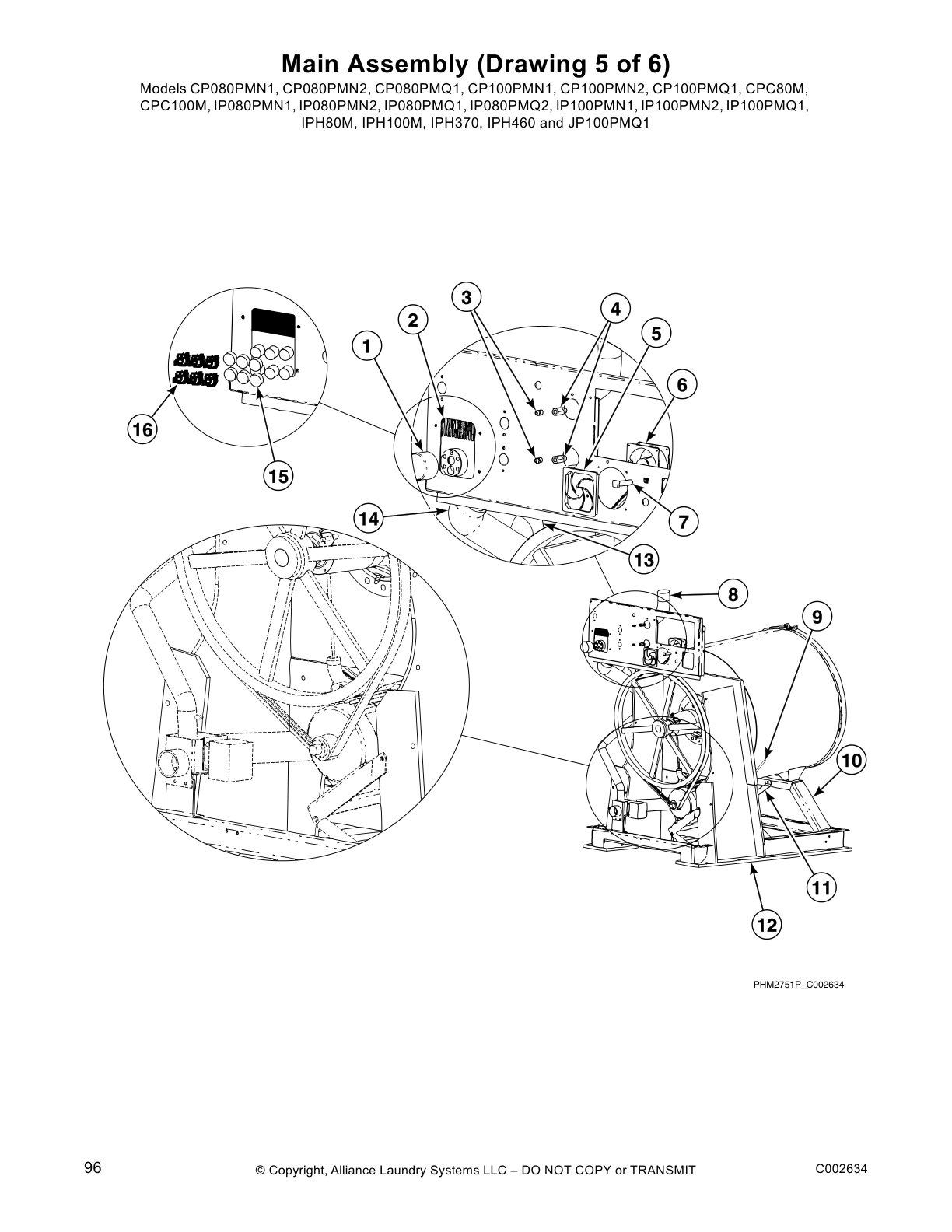

Main Assembly (Drawing 5 of 6)

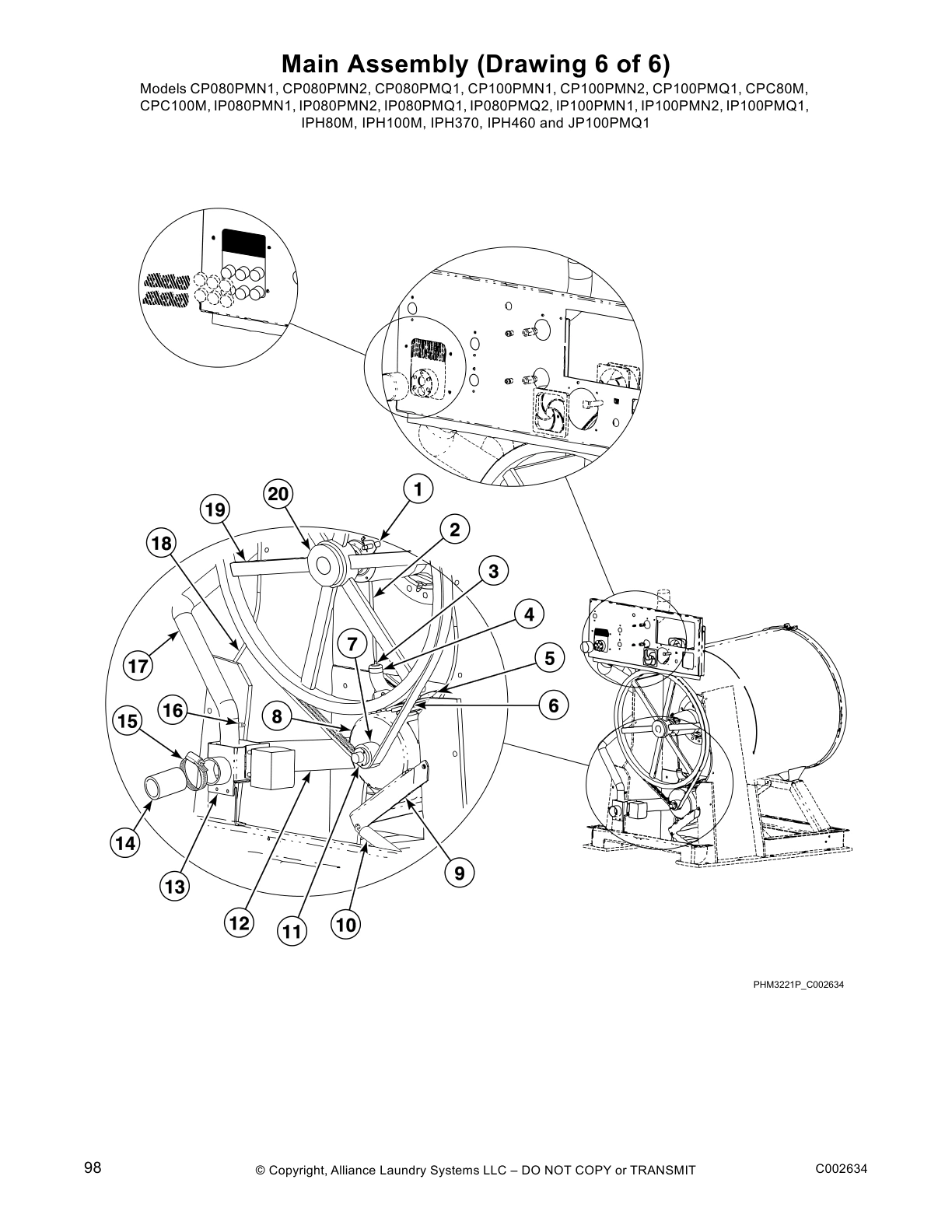

Main Assembly (Drawing 6 of 6)
Common parts from model Ipso IP080PMQ2 Washer
Hardware Kit SPQ C002023 Contact Us For Availability
Triple Lip Seal SPQ 1390-1 Contact Us For Availability
Washer SPQ C000147 Contact Us For Availability
Nut SPQ C000568 Contact Us For Availability
Hose SPQ C001148 Contact Us For Availability
Washer SPQ C001032 Contact Us For Availability
SPQ C000560 SPQ C000560 Contact Us For Availability
SPQ 803017 SPQ 803017 Contact Us For Availability
Nut SPQ C000578 Contact Us For Availability
Jump Wire SPQ C000572 Contact Us For Availability
SPQ C003291 SPQ C003291 Contact Us For Availability
Screw SPQ C000613 Contact Us For Availability
Washer SPQ C000612 Contact Us For Availability
Valve Rebuild Kit SPQ F8379504 Contact Us For Availability
Water Hose SPQ F200222 Contact Us For Availability
SPQ F200165 SPQ F200165 Contact Us For Availability
SPQ C002755 SPQ C002755 Contact Us For Availability
SPQ C002758 SPQ C002758 Contact Us For Availability
Infrared Cable Kit SPQ 210/00902/00P Contact Us For Availability
Screw SPQ F431133 Contact Us For Availability
Nut SPQ C000866 Contact Us For Availability
Spring Clip SPQ C001768 Contact Us For Availability
Motor Cable SPQ F200213 Contact Us For Availability
Nut SPQ C000556 Contact Us For Availability
1
Filter SPQ F270306P Contact Us For Availability
1
Door Release Decal SPQ C000694 Contact Us For Availability
1
Bearing Housing Assembly SPQ C000058P Contact Us For Availability
1
Rear Electrical Enclosure Cover SPQ C000173 Contact Us For Availability
1
Washer SPQ C001239 Contact Us For Availability
1
Single Side Dispenser Assembly SPQ C001582 Contact Us For Availability
1
Side Dispenser Assembly SPQ C000648 Contact Us For Availability
1
Door Lock Cover SPQ C000688 Contact Us For Availability
1
Auxiliary Plumbing Assembly SPQ C001187 Contact Us For Availability
1
Shell Front SPQ C002977 Contact Us For Availability
1
Front Electrical Enclosure Assembly SPQ C000432 Contact Us For Availability
1
Mounting Bracket SPQ C000373 Contact Us For Availability
1
Vacuum Breaker Cover SPQ C001772 Contact Us For Availability
1
Proximity Switch Assembly SPQ C002637P Contact Us For Availability
2
Push Decal SPQ F230303R2 Contact Us For Availability
2
Lubricator SPQ 212/00022/00P Contact Us For Availability
2
Keymode Switch Assembly SPQ C003024P Contact Us For Availability
2
Inlet Power Cover SPQ C001257 Contact Us For Availability
2
Cylinder Bolt Shroud SPQ C001238 Contact Us For Availability
2
Single Front Dispenser Cover SPQ C000605 Contact Us For Availability
2
Side Dispenser Door SPQ C000642 Contact Us For Availability
2
Hinge Block SPQ C000175 Contact Us For Availability
2
Flange and Nipple Assembly SPQ C001366 Contact Us For Availability
2
Street Elbow SPQ F421707 Contact Us For Availability
2
Shell Band Weldment SPQ C000660 Contact Us For Availability
2
Front Electrical Enclosure Cover SPQ C000348 Contact Us For Availability
2
Circuit Breaker SPQ F350217 Contact Us For Availability
2
EMI Filter SPQ F8053902 Contact Us For Availability
2
Vacuum Breaker Assembly SPQ C002872 Contact Us For Availability
2
Cylinder Bushing SPQ C000599 Contact Us For Availability
3
Spin Warning Decal SPQ F200085100 Contact Us For Availability
3
Emergency Stop Pushbutto SPQ F200233500 Contact Us For Availability
3
Valve Panel SPQ C002981 Contact Us For Availability
3
Screw SPQ C001294 Contact Us For Availability
3
Screw SPQ C001093 Contact Us For Availability
3
Dispenser Door Handle SPQ C001788 Contact Us For Availability
3
Door Hinge Bushing SPQ C000176 Contact Us For Availability
3
Nipple SPQ F420107 Contact Us For Availability
3
Steam Injector Tube Assembly SPQ F603132 Contact Us For Availability
3
Shell Gasket Shield SPQ F601216 Contact Us For Availability
3
Control Panel Decal SPQ C001276 Contact Us For Availability
3
Power Block Terminal SPQ C000370 Contact Us For Availability
3
Grease Fitting SPQ C000549 Contact Us For Availability
3
Air Trap Tube Elbow SPQ C000662 Contact Us For Availability
4
Hot Surface Warning Decal SPQ F200085000R1 Contact Us For Availability
4
Mounting Bracket SPQ C000372 Contact Us For Availability
4
Emergency Stop Button Kit SPQ F200233700P Contact Us For Availability
4
Hinge SPQ C001787 Contact Us For Availability
4
Front Supply Dispenser Nozzle SPQ C001017 Contact Us For Availability
4
Washer SPQ F8549301 Contact Us For Availability
4
Bolt SPQ C000430 Contact Us For Availability
4
Hose Barb SPQ F421951 Contact Us For Availability
4
Reducing Coupling SPQ C000978 Contact Us For Availability
4
Shell Front Gasket SPQ C001764P Contact Us For Availability
4
Motor Shroud Assembly SPQ C000654 Contact Us For Availability
5
Hot Water and Chemical Caution Decal SPQ F200085300 Contact Us For Availability
5
Control Panel Insert SPQ C000484 Contact Us For Availability
5
Rear Left Side Panel SPQ C002989 Contact Us For Availability
5
Supply Dispenser Nozzle SPQ C000073 Contact Us For Availability
5
Single Side Dispenser Door SPQ C000855 Contact Us For Availability
5
Magnetic Door Switch Brack SPQ C002995 Contact Us For Availability
5
Hose Barb SPQ F380987P Contact Us For Availability
5
Washer SPQ F270407 Contact Us For Availability
5
Shell Assembly SPQ C000951 Contact Us For Availability
5
Standoff SPQ C000376 Contact Us For Availability
5
Thermostat SPQ C000318 Contact Us For Availability
5
Fan Filter Guard Assembly SPQ C000210 Contact Us For Availability
5
Motor Shroud SPQ C001589 Contact Us For Availability
6
Top Panel SPQ C000209 Contact Us For Availability
6
Single Dispenser Assembly SPQ C000220 Contact Us For Availability
6
Door Hinge SPQ C002725 Contact Us For Availability
6
Reed Switch Assembly SPQ C003000 Contact Us For Availability
6
Steam Hose Insulation SPQ C001003 Contact Us For Availability
6
Mounting Bracket SPQ C000375 Contact Us For Availability
6
Exhaust Bracket SPQ C000323 Contact Us For Availability
6
Fan SPQ C000211 Contact Us For Availability
6
Belt SPQ C000967 Contact Us For Availability
7
Cold Water Valve Decal SPQ F0231368-00R4 Contact Us For Availability
7
Mount on Concrete Warning Label SPQ F8246401 Contact Us For Availability
7
Contact Base SPQ F8538101 Contact Us For Availability
7
Siphon Tube SPQ C001007 Contact Us For Availability
7
Supply Cup SPQ C000646 Contact Us For Availability
7
Door Lock Plate SPQ C000684 Contact Us For Availability
7
Steam Hose Adapter SPQ C001587 Contact Us For Availability
7
Main Board Controller Kit SPQ C000281P Contact Us For Availability
7
Ground Terminal Lug SPQ C000290 Contact Us For Availability
8
Contact Switch SPQ F8069501 Contact Us For Availability
8
Front Skirt Panel SPQ C000316 Contact Us For Availability
8
Door Glass Retainer SPQ C000608 Contact Us For Availability
8
Steam Cord Assembly SPQ C002748P Contact Us For Availability
8
Water Level Transducer SPQ C002104P Contact Us For Availability
8
Supply Dispenser Hose SPQ C000379 Contact Us For Availability
8
Motor SPQ C001708 Contact Us For Availability
9
Supply Signal Decal SPQ C000506 Contact Us For Availability
9
Contact Block Switch SPQ F200233401P Contact Us For Availability
9
Door Bumper SPQ C000607 Contact Us For Availability
9
Door Lock Solenoid SPQ F8654101 Contact Us For Availability
9
Diaphragm and Guide Kit SPQ C000436P Contact Us For Availability
9
Steam Valve Mounting Bracket SPQ C000981 Contact Us For Availability
9
Drive Box Assembly SPQ C001050 Contact Us For Availability
9
Ground Terminal Lug SPQ C001803 Contact Us For Availability
9
Temperature Probe Assembly SPQ C002636 Contact Us For Availability
9
Motor Bracket SPQ C000205 Contact Us For Availability
10
External Supply Connection Decal SPQ F8150201 Contact Us For Availability
10
Lower Front Panel SPQ C000200 Contact Us For Availability
10
Front Electrical Enclosure Rail SPQ C000300 Contact Us For Availability
10
Door Lock Switch Slide SPQ C000271 Contact Us For Availability
10
Tee SPQ F420403 Contact Us For Availability
10
Coupling SPQ C000420 Contact Us For Availability
10
Battery SPQ 209/00505/04P Contact Us For Availability
10
Fuse Holder SPQ C001197 Contact Us For Availability
10
Lower Shell Support Bracket SPQ C000298 Contact Us For Availability
10
Belt Tension Spring SPQ C001791 Contact Us For Availability
11
Grease Connector Box SPQ C000539 Contact Us For Availability
11
Door Handle SPQ C001679P Contact Us For Availability
11
Door Lock Slide Spring SPQ C000276 Contact Us For Availability
11
Steam Valve SPQ F8322904P Contact Us For Availability
11
Tilt Switch Assembly SPQ C002642P Contact Us For Availability
11
Contactor SPQ C000309P Contact Us For Availability
11
Shell Support Brace SPQ C002053 Contact Us For Availability
11
Bushing SPQ F280233P Contact Us For Availability
12
Rub Rail SPQ C000634 Contact Us For Availability
12
Rear Right Side Panel SPQ C002990 Contact Us For Availability
12
Door Lock Catch SPQ C000185 Contact Us For Availability
12
Nipple SPQ F421323 Contact Us For Availability
12
Chemical Supply Controller SPQ C000371P Contact Us For Availability
12
Circuit Breaker Kit SPQ C0977P3 Contact Us For Availability
12
Drain Hose SPQ C000411 Contact Us For Availability
13
Trim Gasket SPQ C000629 Contact Us For Availability
13
Door Latch SPQ C001244 Contact Us For Availability
13
Front Electrical Enclosure SPQ C000213 Contact Us For Availability
13
Drain Assembly SPQ C000962 Contact Us For Availability
14
Door Handle Spring Bushing SPQ C000028P Contact Us For Availability
14
Door Lock Spring Cover SPQ C000687 Contact Us For Availability
14
RC Network Assembly SPQ C002999 Contact Us For Availability
14
Reducing Connector SPQ F200165100 Contact Us For Availability
15
Door Lock Solenoid Bracket SPQ C003022 Contact Us For Availability
15
RC Network Filter SPQ F330217P Contact Us For Availability
15
Vacuum Breaker Plug SPQ C000679 Contact Us For Availability
16
Overflow Hose SPQ C001649 Contact Us For Availability
16
Door Lock Spring SPQ B12351001 Contact Us For Availability
16
Adapter SPQ C000680 Contact Us For Availability
17
Pop Rivet SPQ F431215 Contact Us For Availability
17
Hose SPQ C000415 Contact Us For Availability
18
Cylinder Pulley SPQ C000552 Contact Us For Availability
18
Pop Rivet SPQ F431223 Contact Us For Availability
18
Door Lock Kit SPQ C002996M Contact Us For Availability
19
Magnet SPQ F8390801 Contact Us For Availability
19
Vacuum Breaker Hose SPQ C000685 Contact Us For Availability
20
Door Magnet Mounting Bracket SPQ C002994 Contact Us For Availability
20
Air Trap Tube SPQ C000223P Contact Us For Availability
22
Shell Front Gasket Kit SPQ F8513501 Contact Us For Availability
NI
Screw SPQ F430929 Contact Us For Availability
NI
SPQ C000571 SPQ C000571 Contact Us For Availability
NI
Tubing SPQ C000628P Contact Us For Availability
NI
Bearing Housing Puller Kit SPQ 1390P Contact Us For Availability
NI
Washer SPQ C002959 Contact Us For Availability
NI
Screw SPQ C000145 Contact Us For Availability
NI
Front Panel SPQ C000483 Contact Us For Availability
NI
Screw SPQ C002970 Contact Us For Availability
NI
Screw SPQ F430910 Contact Us For Availability
NI
Hose SPQ C000567 Contact Us For Availability
NI
SPQ C001293 SPQ C001293 Contact Us For Availability
NI
Washer SPQ C000583 Contact Us For Availability
NI
Screw SPQ F430925 Contact Us For Availability
NI
Screw SPQ F430920 Contact Us For Availability
NI
Screw SPQ C001236 Contact Us For Availability
NI
Nut SPQ C000601 Contact Us For Availability
NI
SPQ C000559 SPQ C000559 Contact Us For Availability
NI
SPQ F8549401 SPQ F8549401 Contact Us For Availability
NI
Drain T SPQ C000177 Contact Us For Availability
NI
Nut SPQ C001546 Contact Us For Availability
NI
SPQ C000574 SPQ C000574 Contact Us For Availability
NI
Screw SPQ C000614 Contact Us For Availability
NI
Door Lock Harness SPQ C000867P Contact Us For Availability
NI
Nut SPQ C000576 Contact Us For Availability
NI
Screw SPQ F200128P Contact Us For Availability
NI
Water Valve Repair Kit SPQ F420502 Contact Us For Availability
NI
DIN Coil SPQ F380986P Contact Us For Availability
NI
Adapter SPQ G582P3 Contact Us For Availability
NI
Water Valve Repair Kit SPQ C000424 Contact Us For Availability
NI
Coil SPQ F8514701 Contact Us For Availability
NI
SPQ F200166 SPQ F200166 Contact Us For Availability
NI
SPQ F200164 SPQ F200164 Contact Us For Availability
NI
Shell Assembly SPQ C000105 Contact Us For Availability
NI
Screw SPQ C001856 Contact Us For Availability
NI
Bolt SPQ C000590 Contact Us For Availability
NI
Nut SPQ C000273 Contact Us For Availability
NI
SPQ C000611 SPQ C000611 Contact Us For Availability
NI
Heating Element SPQ 209/00562/30 Contact Us For Availability
NI
SPQ C002724 SPQ C002724 Contact Us For Availability
NI
Control Module Harness SPQ C000865 Contact Us For Availability
NI
Screw SPQ F430938 Contact Us For Availability
NI
Rear Enclosure Harness SPQ F140602 Contact Us For Availability
NI
Washer SPQ C000575 Contact Us For Availability
NI
Washer SPQ C001194 Contact Us For Availability
NI
Fuse SPQ C001196 Contact Us For Availability
NI
SPQ C003295 SPQ C003295 Contact Us For Availability
NI
Screw SPQ C000330 Contact Us For Availability
NI
Hose Clamp SPQ F430144 Contact Us For Availability
NI
Weep Hole Drain Kit SPQ C002423 Contact Us For Availability
NI
Screw SPQ C000994 Contact Us For Availability
× ![]()
