Model Ipso IP060PMN2 Washer – Common Parts & Diagrams
Decals - Models through 8/31/09 (Drawing 1 of 2)
Decals - Models through 8/31/09 (Drawing 2 of 2)

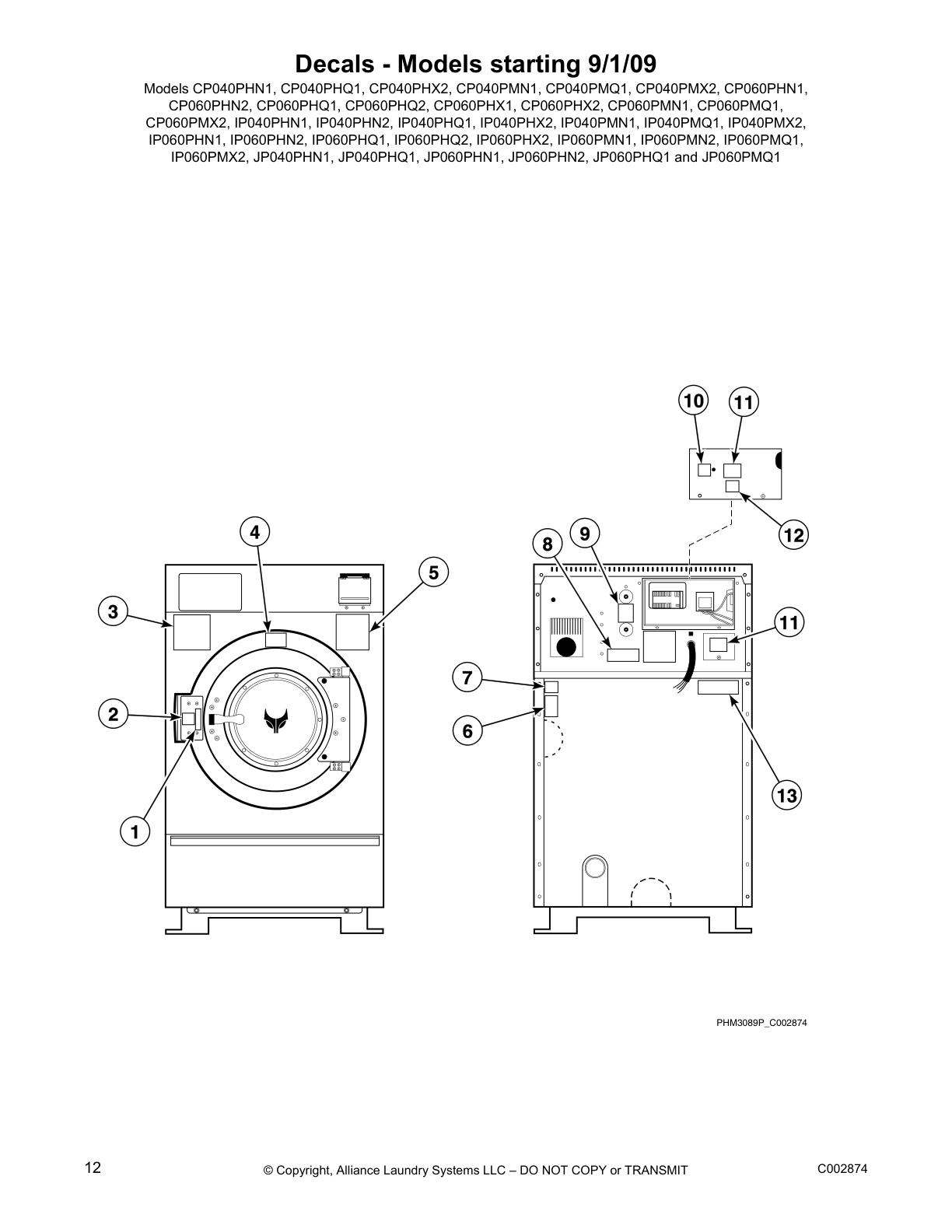

Decals - Models starting 9/1/09

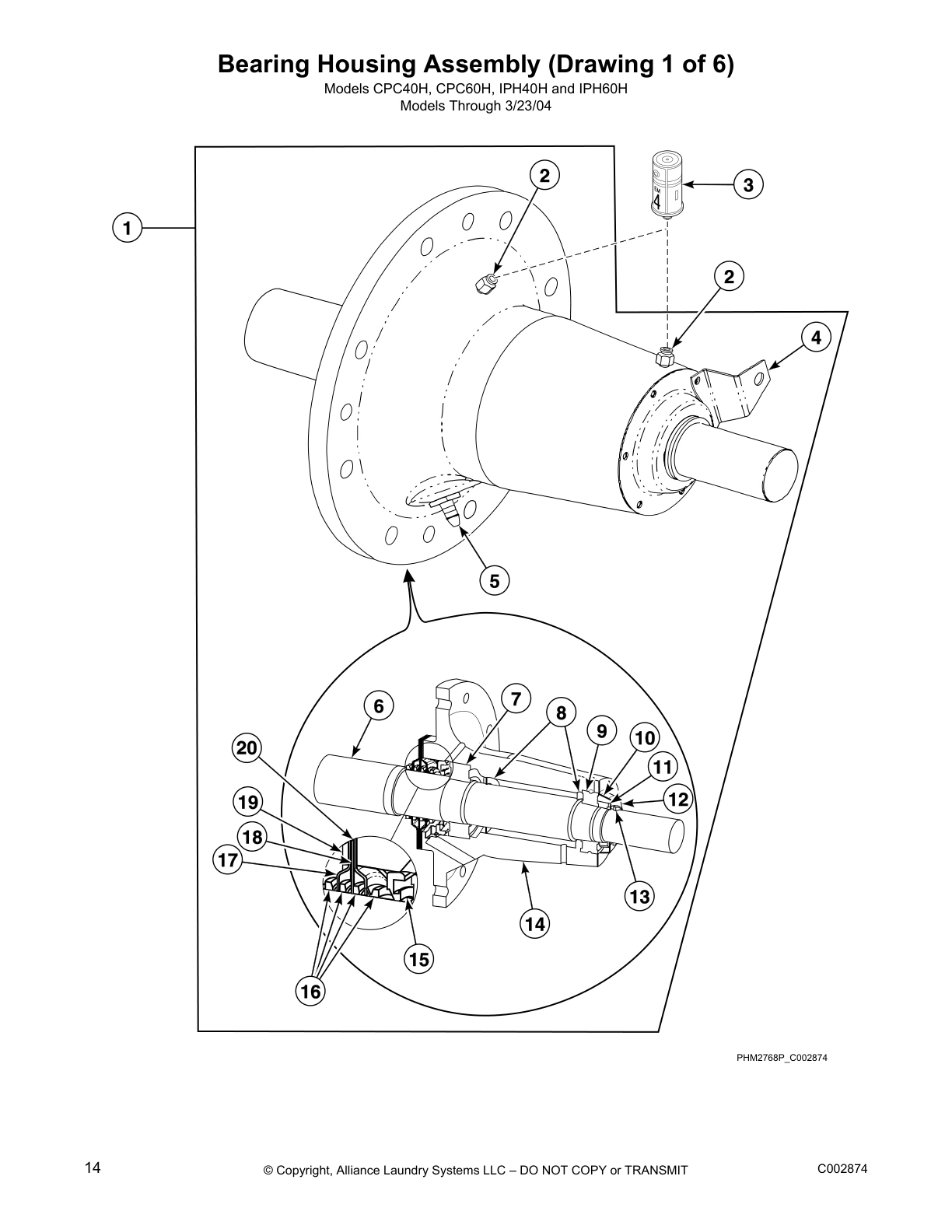

Bearing Housing Assembly (Drawing 1 of 6)

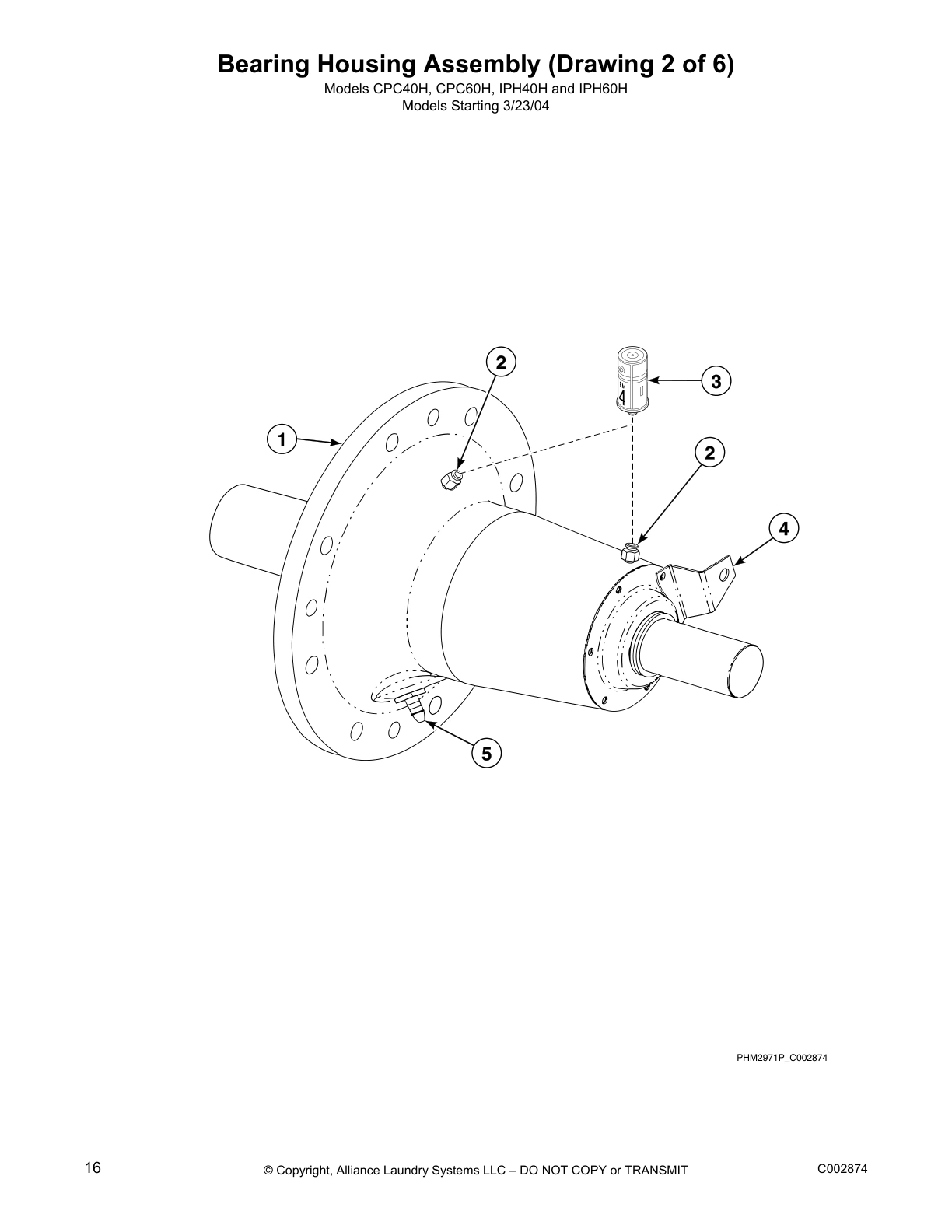

Bearing Housing Assembly (Drawing 2 of 6)

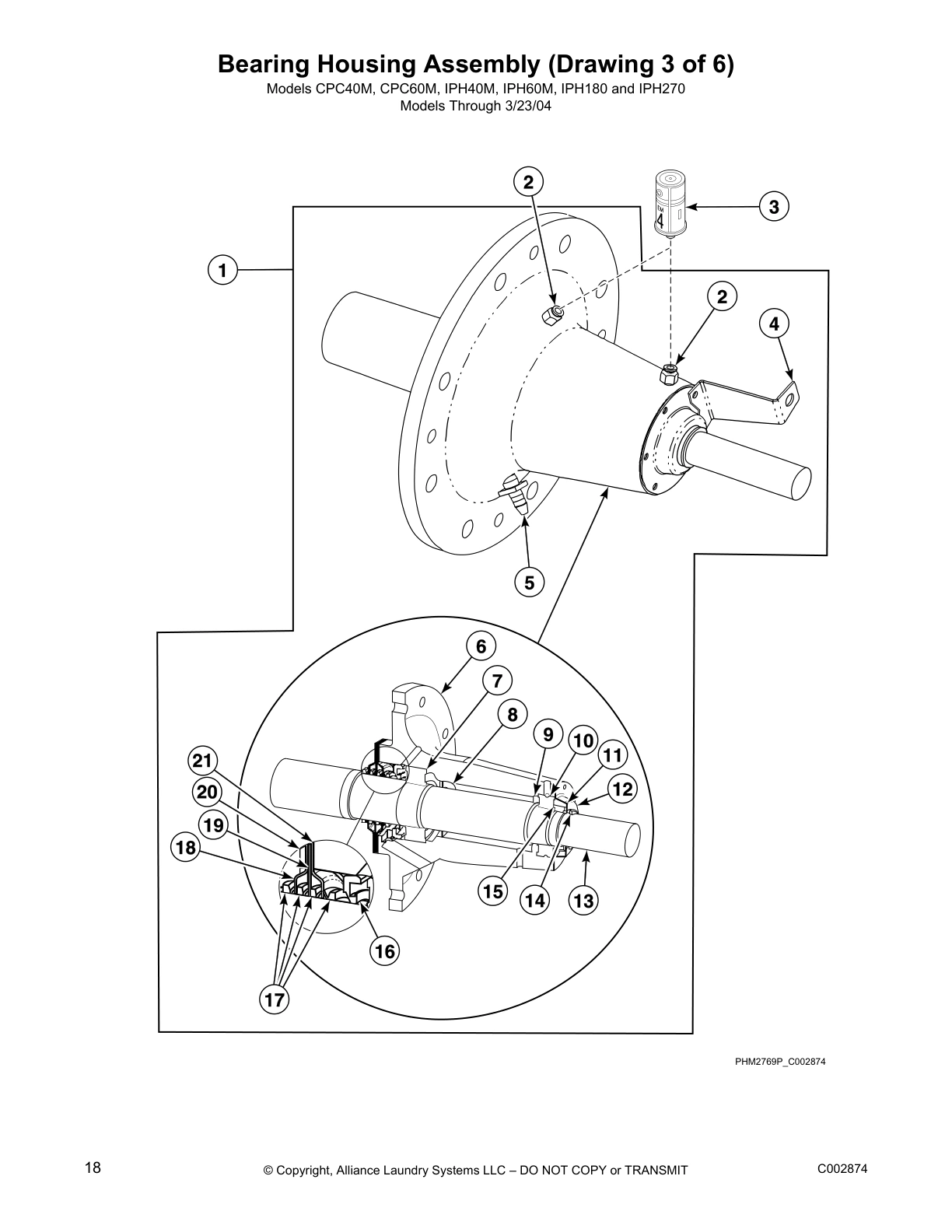

Bearing Housing Assembly (Drawing 3 of 6)

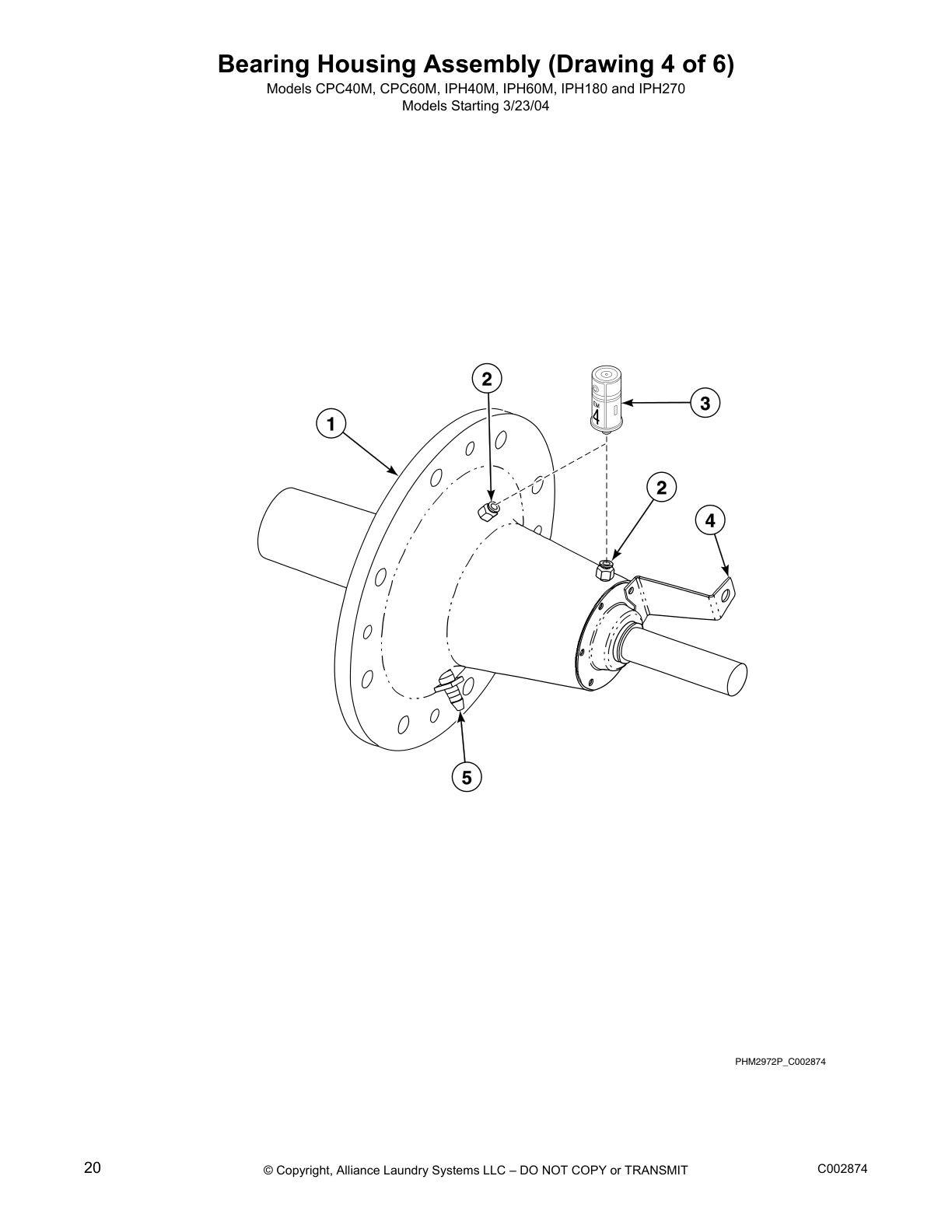

Bearing Housing Assembly (Drawing 4 of 6)

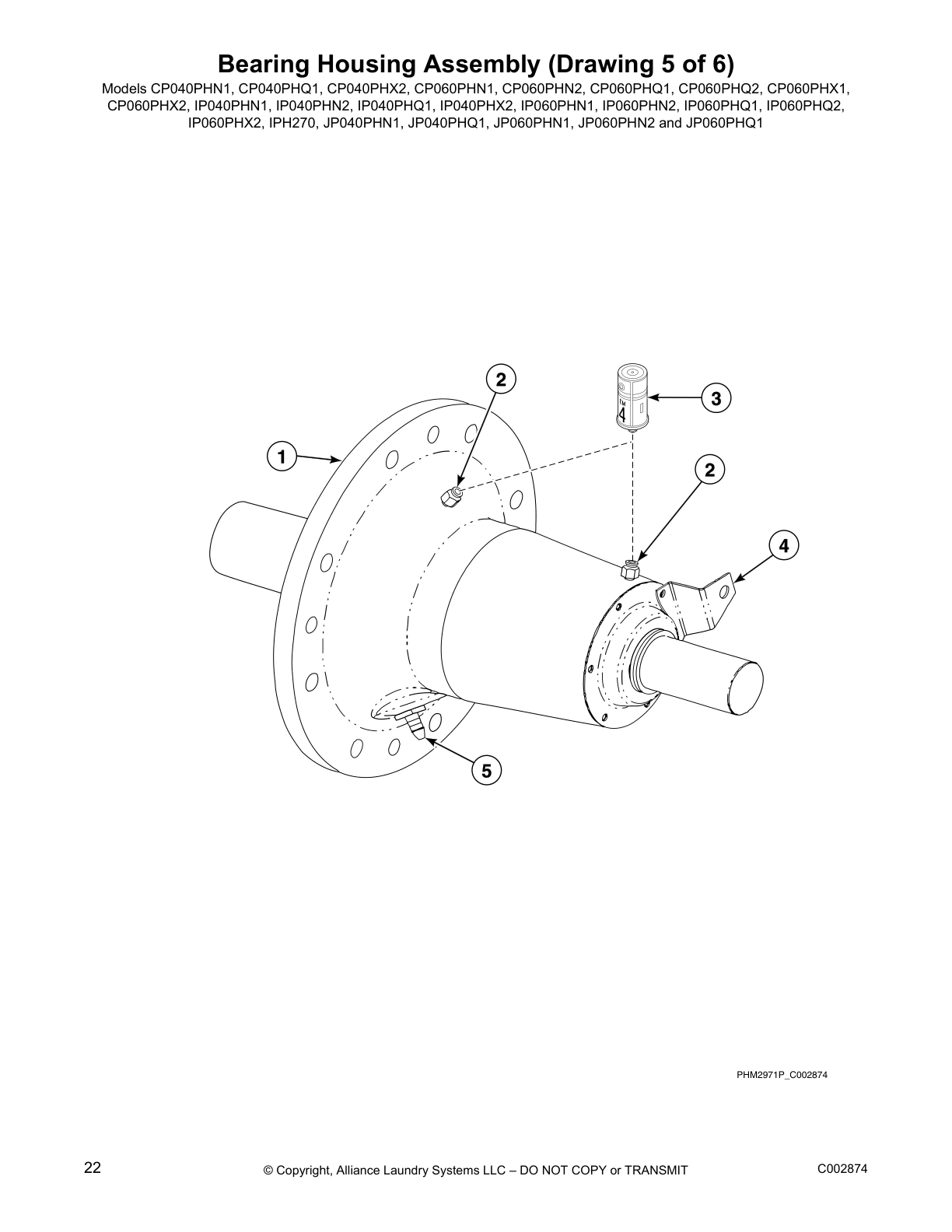

Bearing Housing Assembly (Drawing 5 of 6)

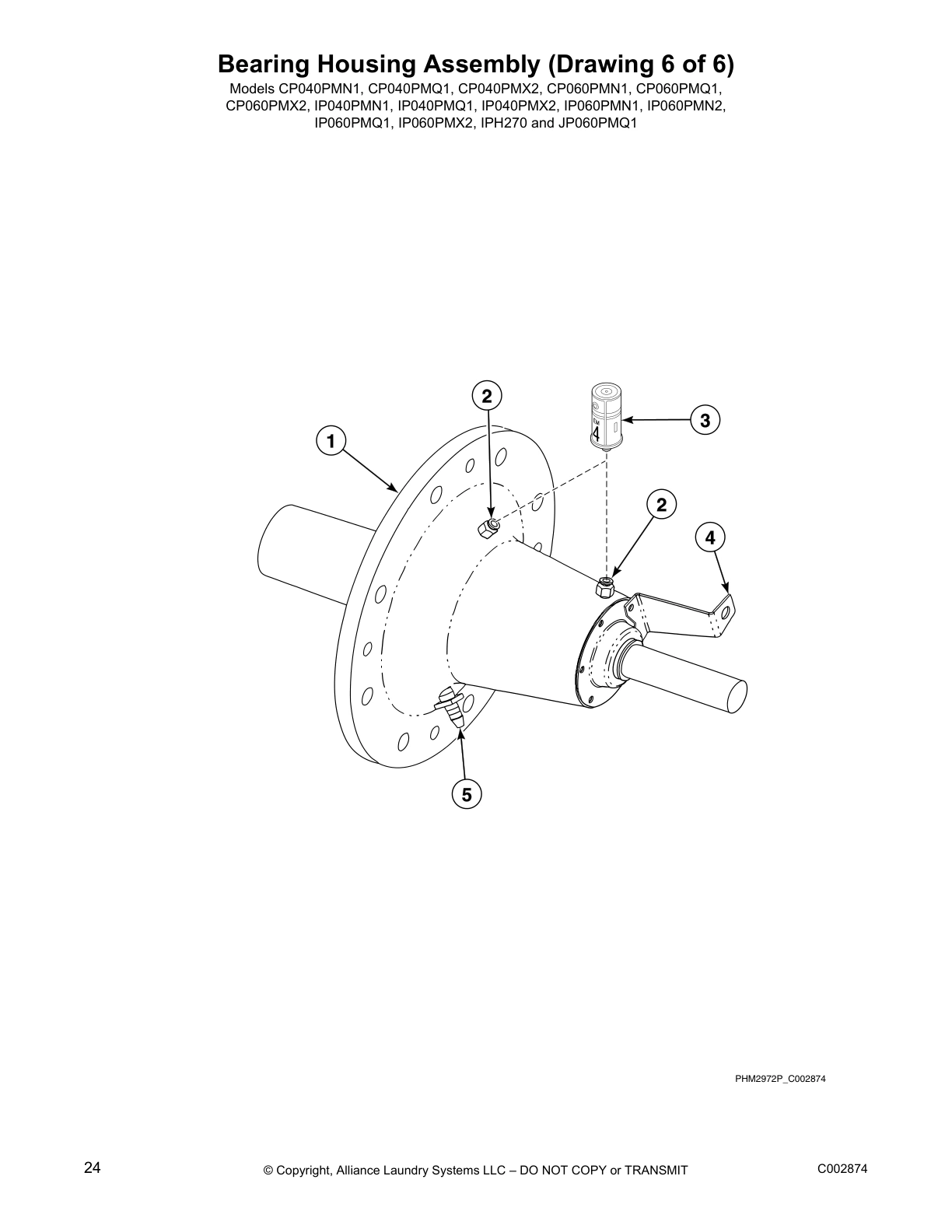

Bearing Housing Assembly (Drawing 6 of 6)

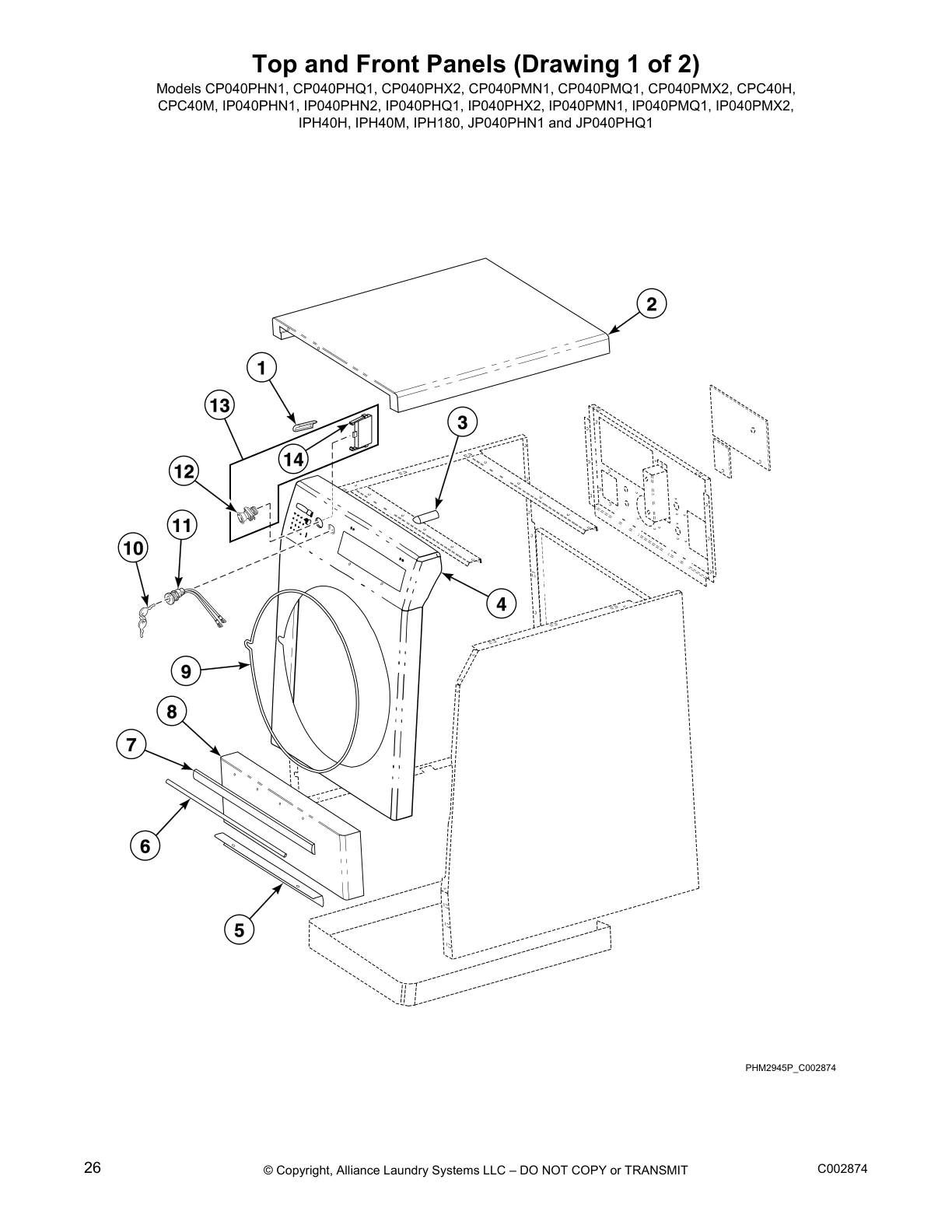

Top and Front Panels (Drawing 1 of 2)

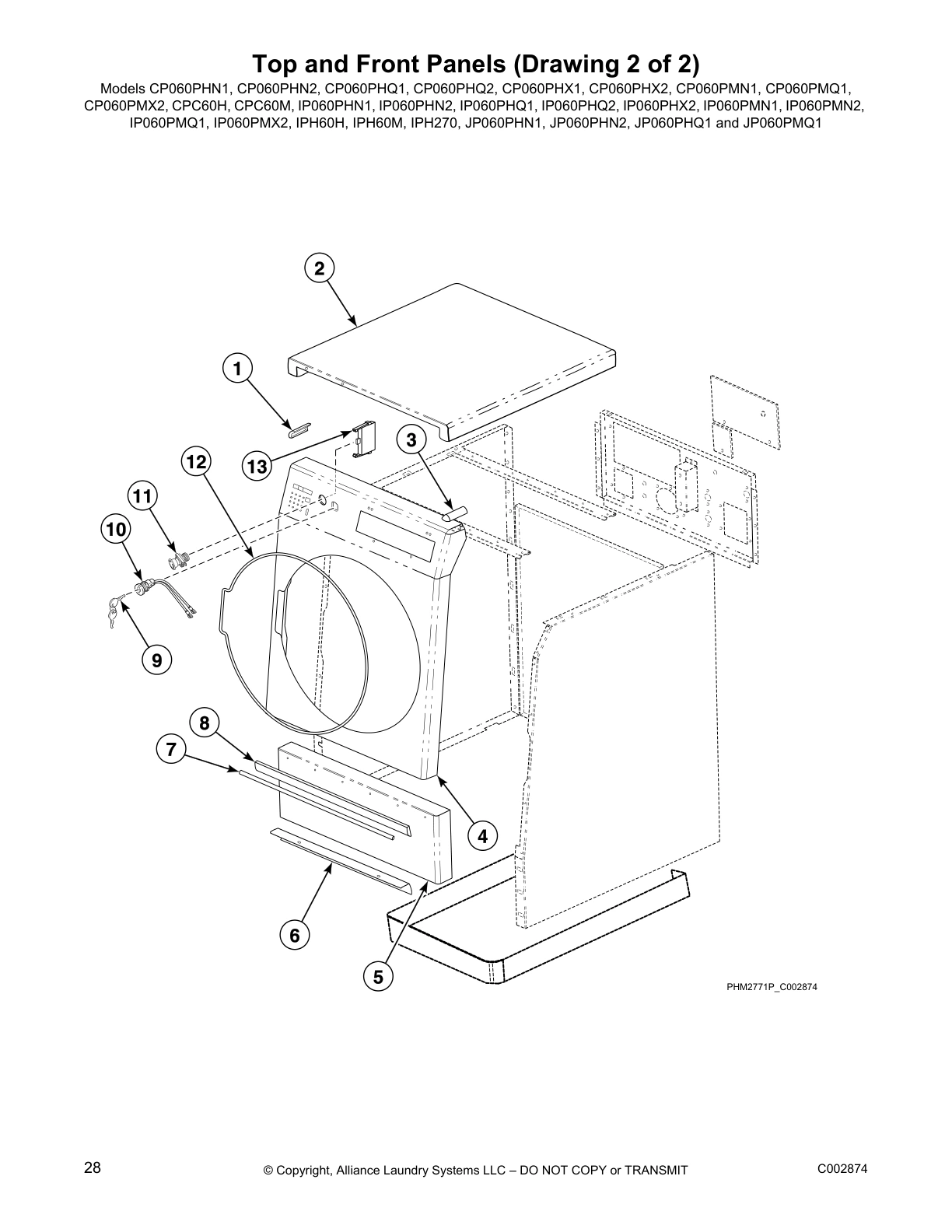

Top and Front Panels (Drawing 2 of 2)

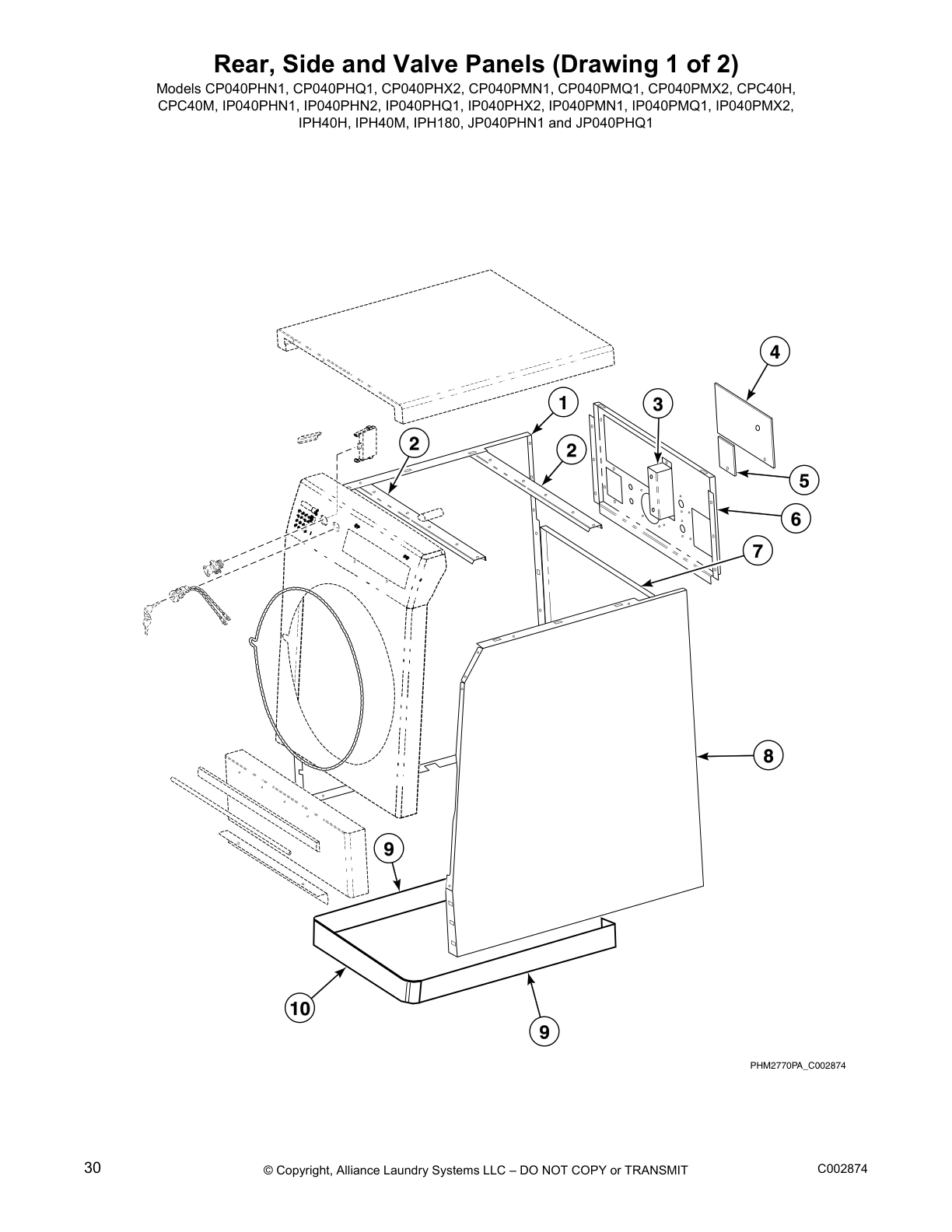

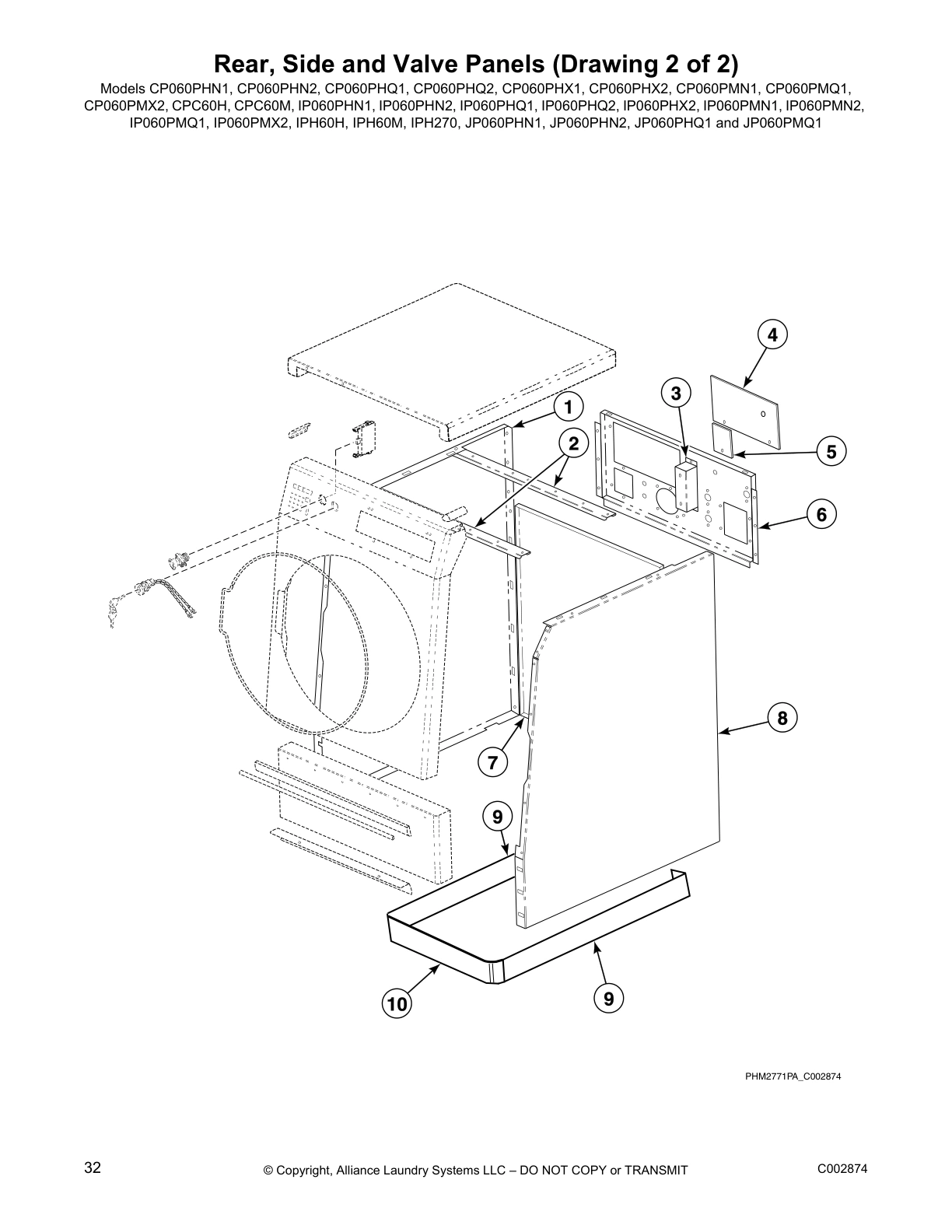

Rear, Side and Valve Panels (Drawing 1 of 2)
Rear, Side and Valve Panels (Drawing 2 of 2)

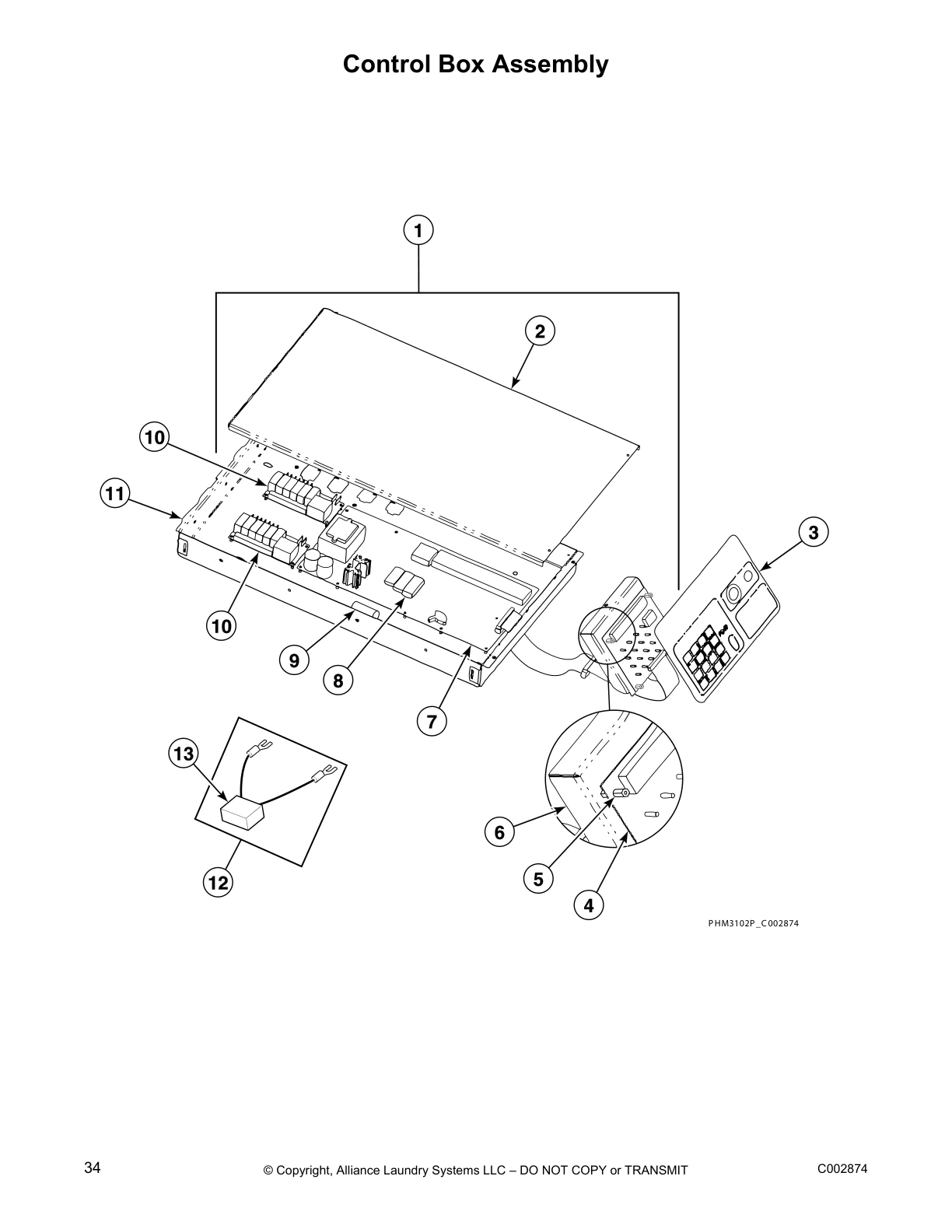

Control Box Assembly

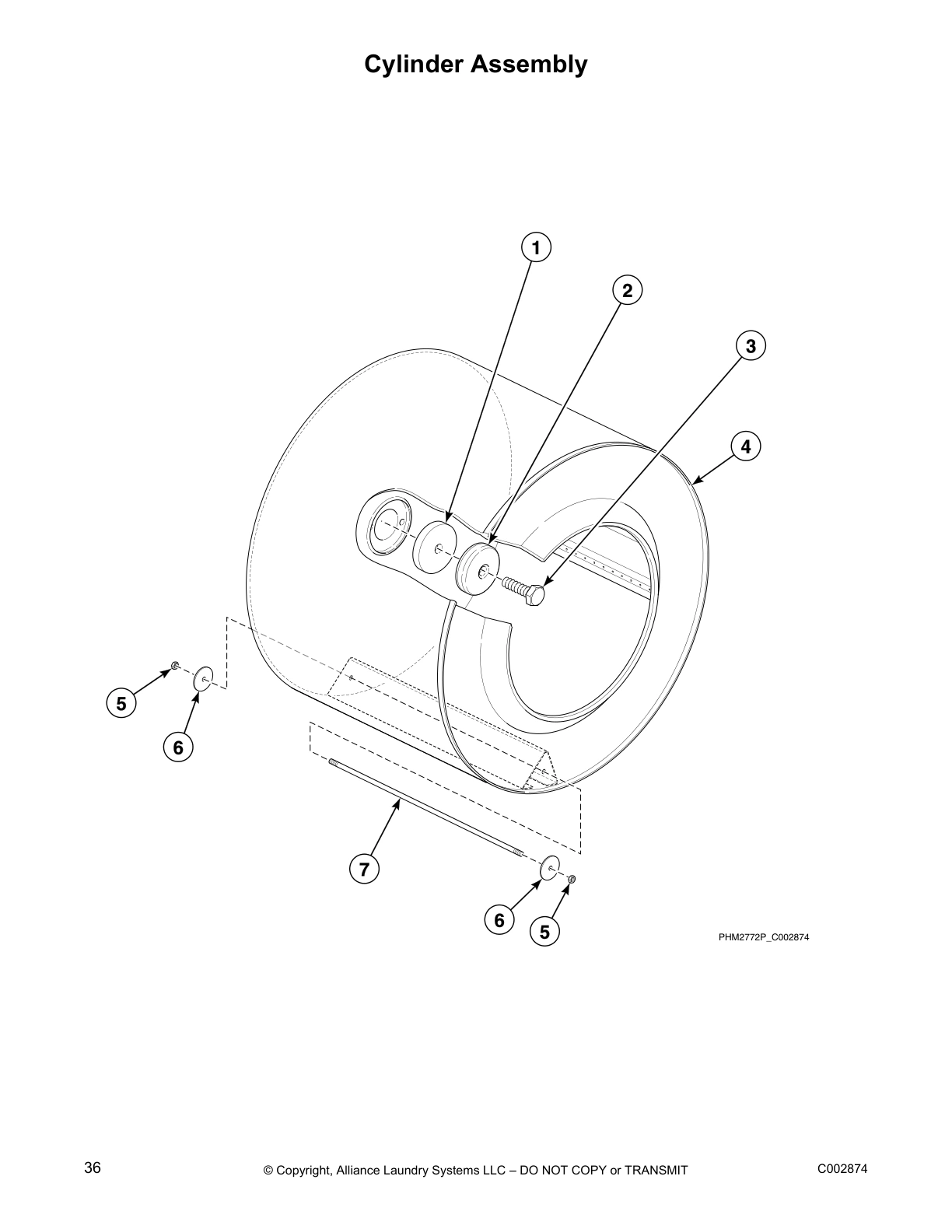

Cylinder Assembly

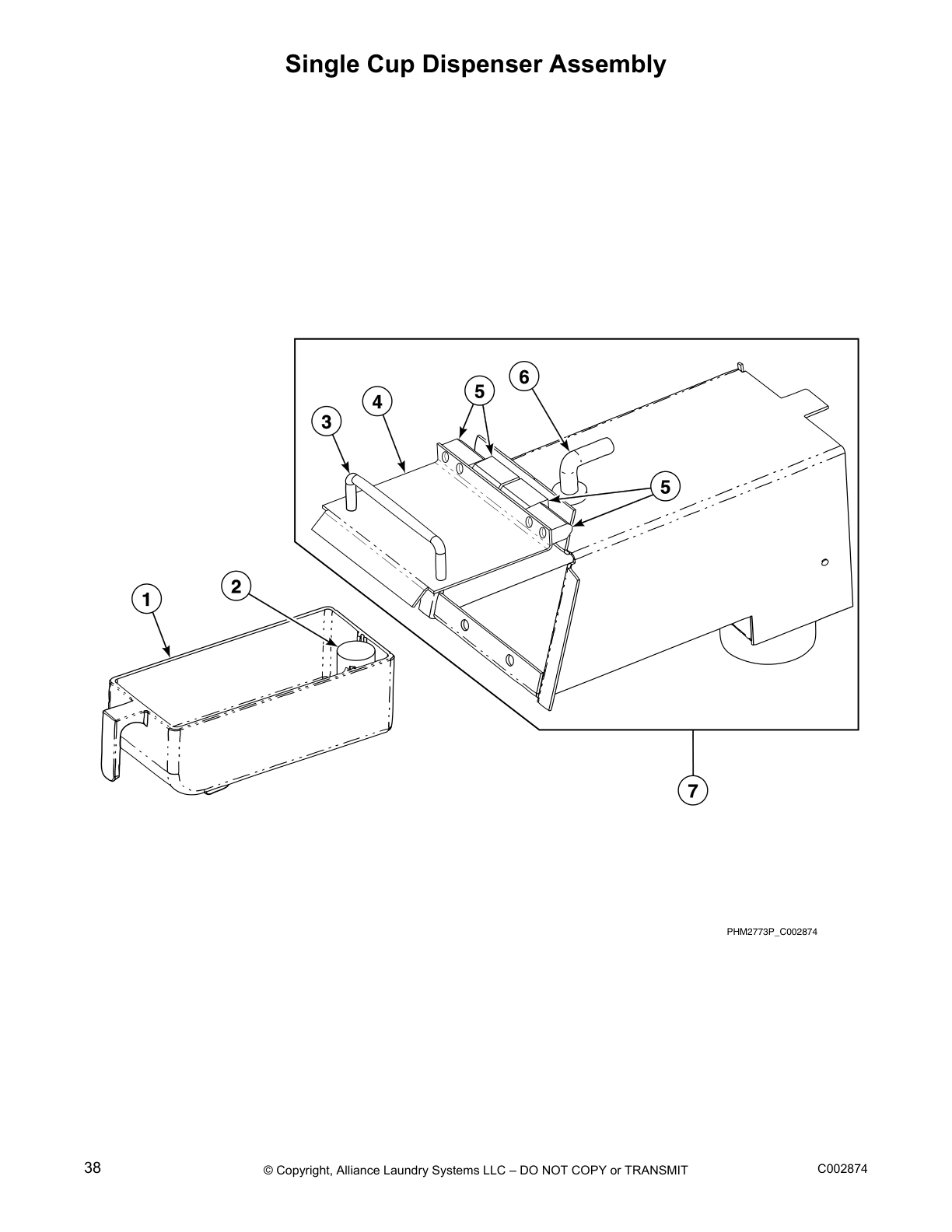

Single Cup Dispenser Assembly

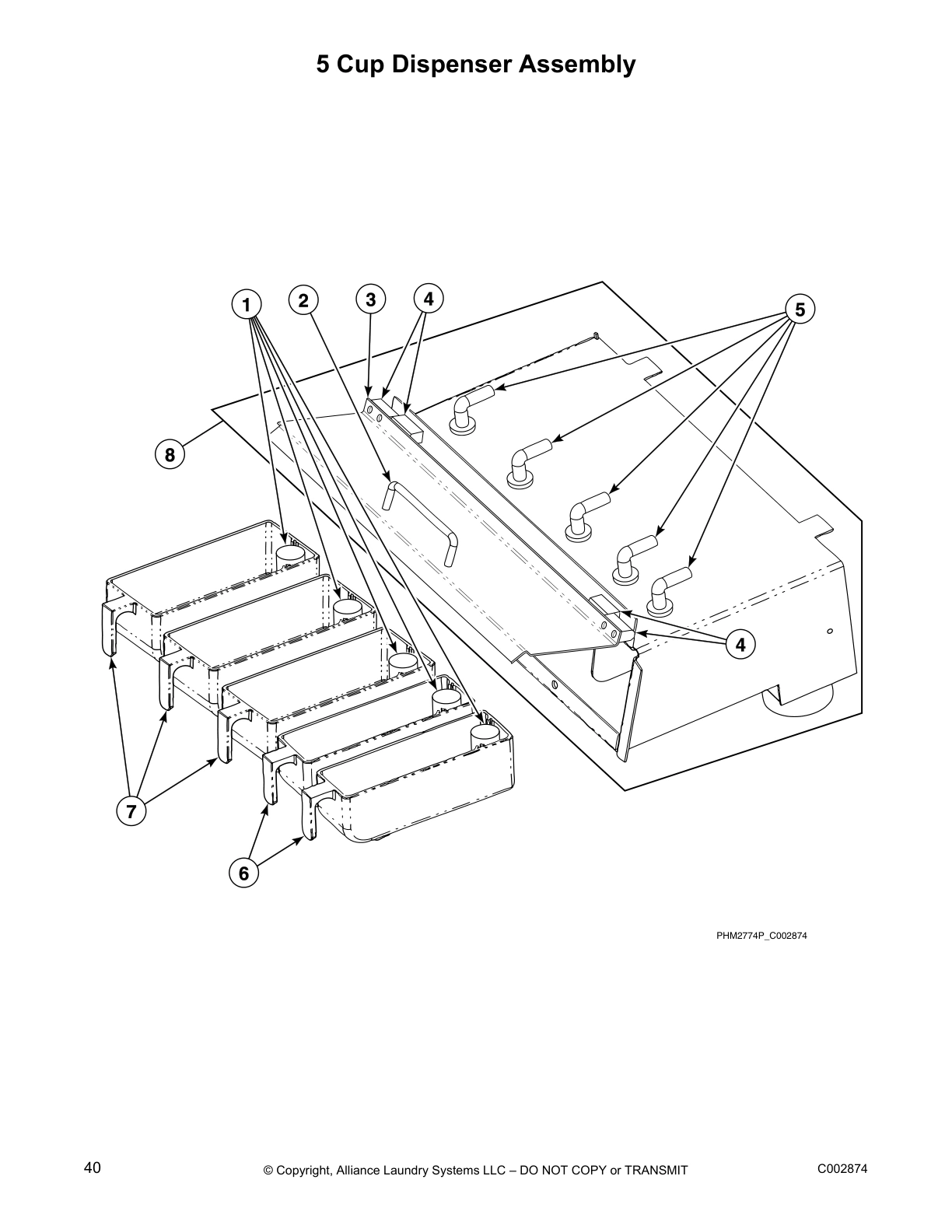

5 Cup Dispenser Assembly

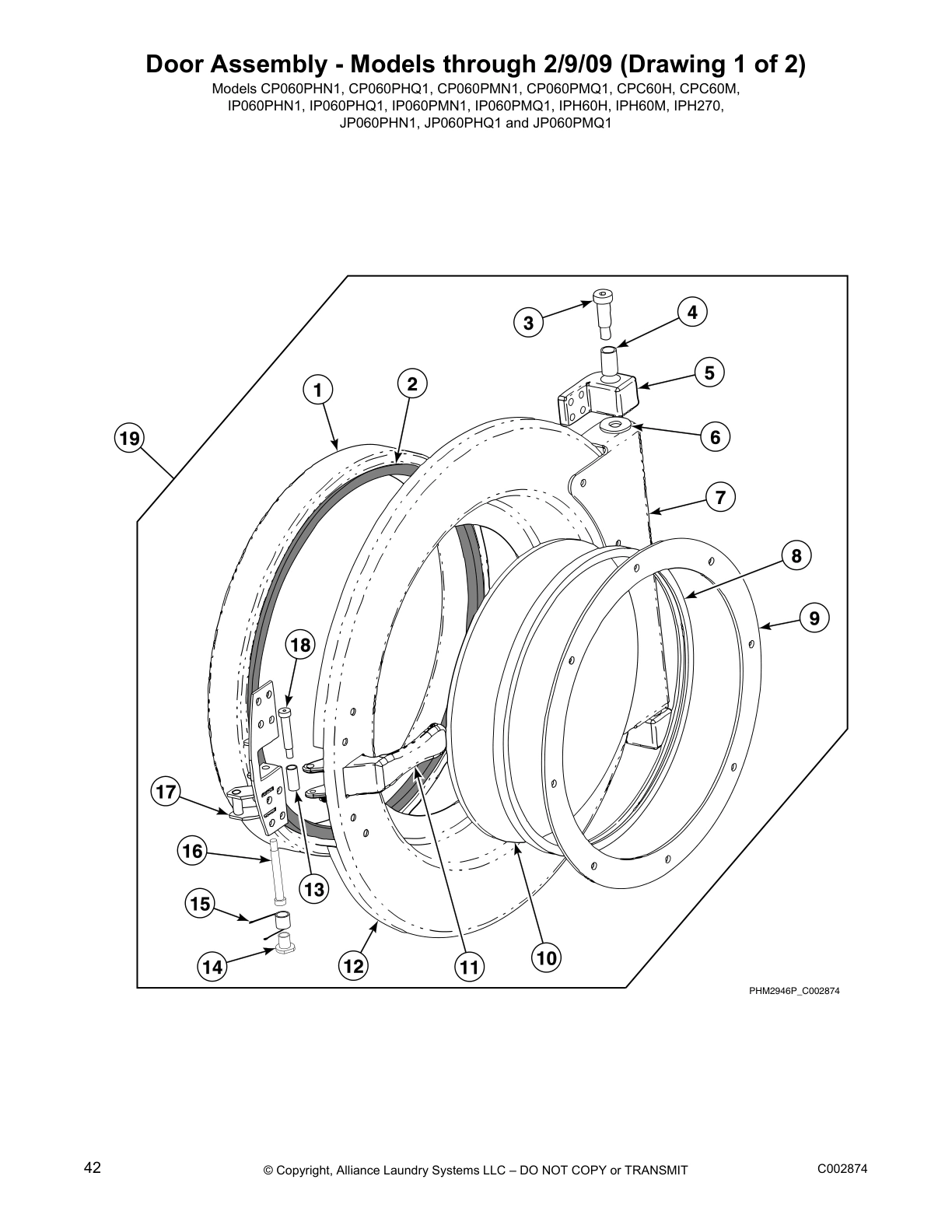

Door Assembly - Models through 2/9/09 (Drawing 1 of 2)

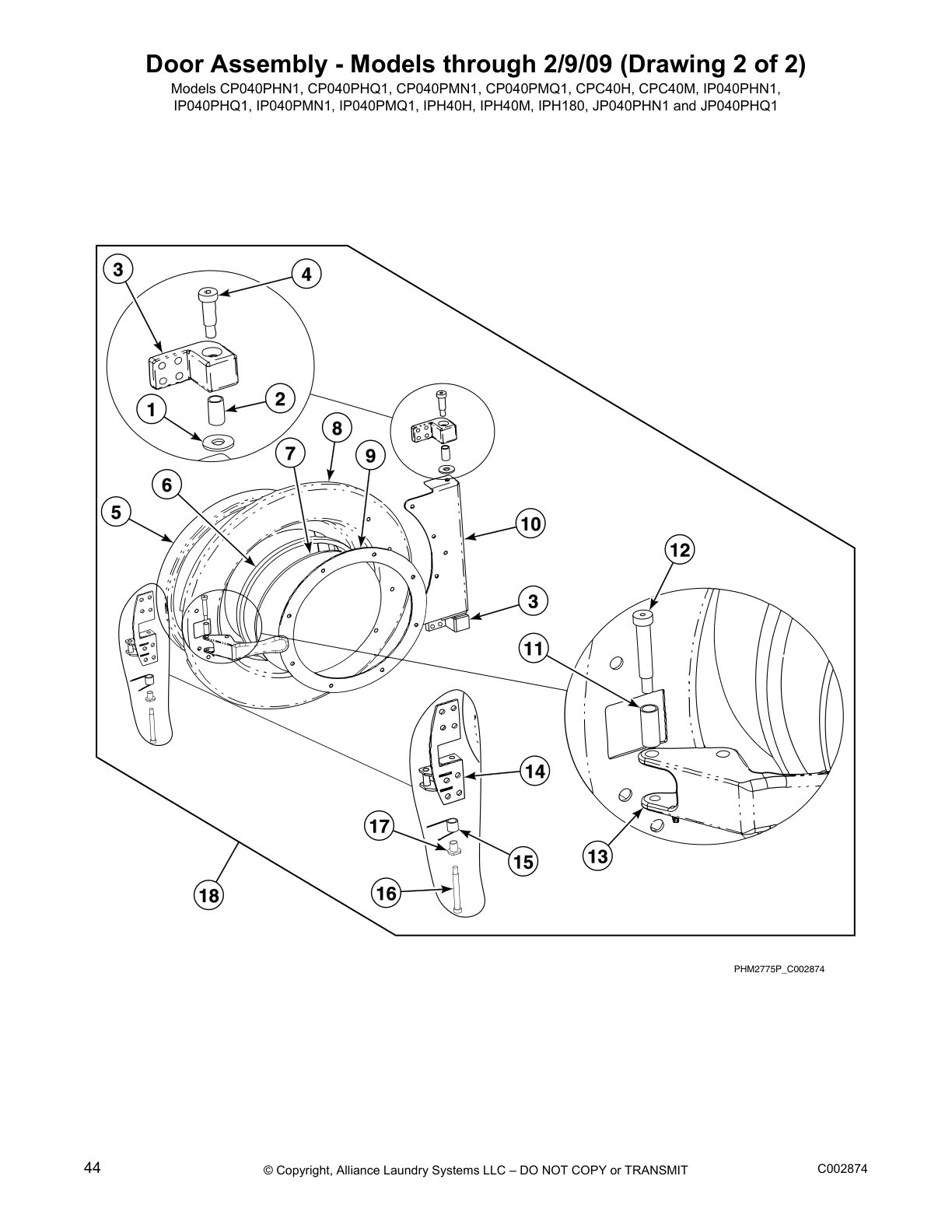

Door Assembly - Models through 2/9/09 (Drawing 2 of 2)

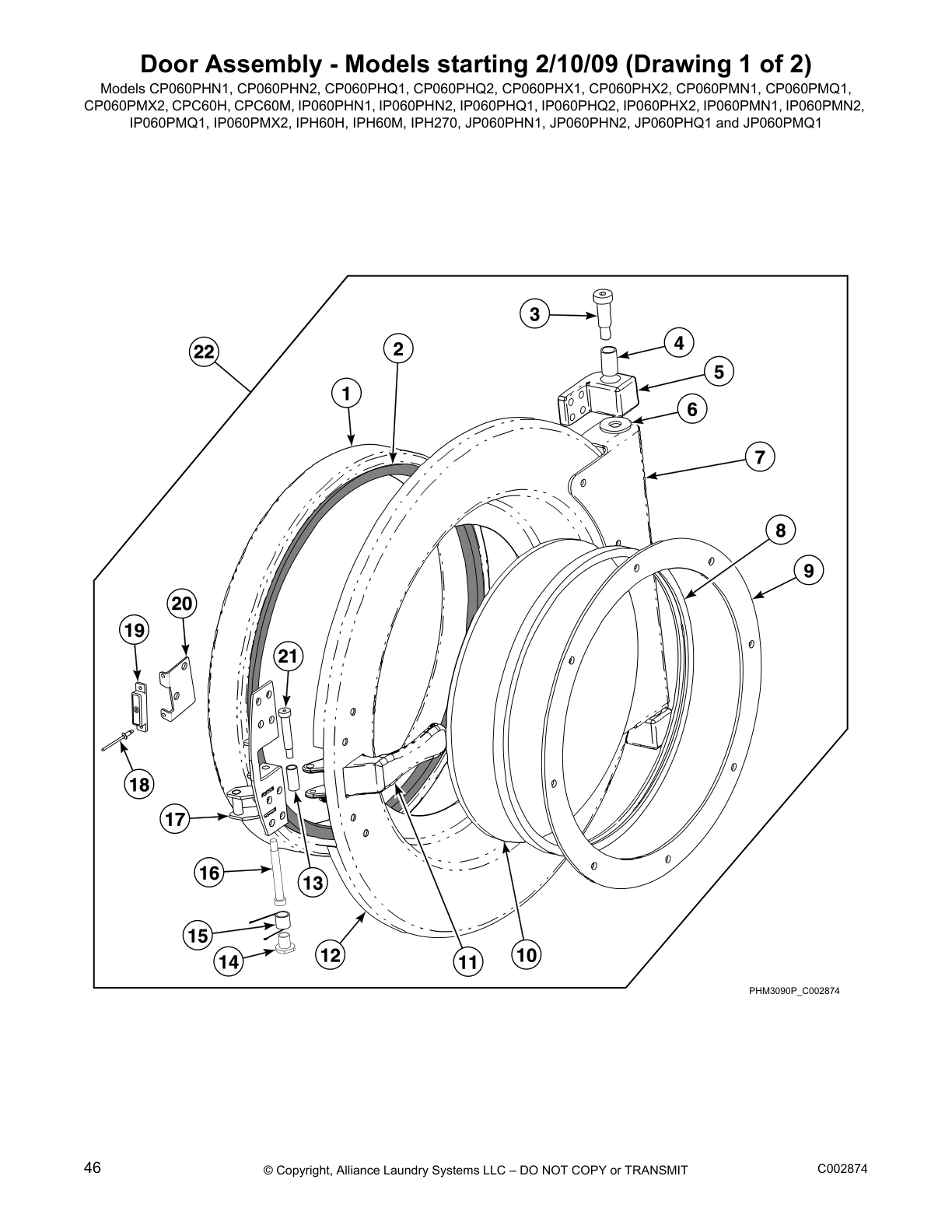

Door Assembly - Models starting 2/10/09 (Drawing 1 of 2)

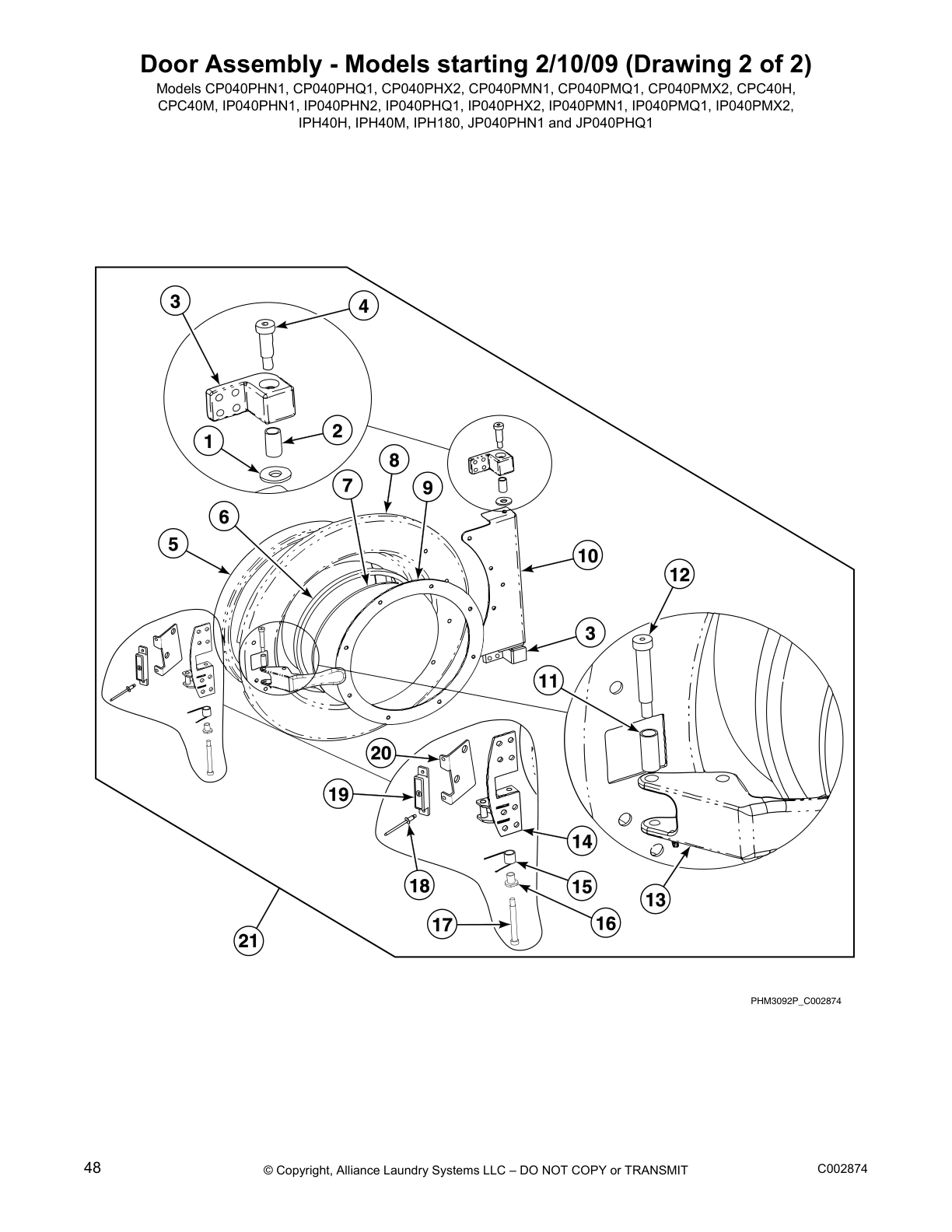

Door Assembly - Models starting 2/10/09 (Drawing 2 of 2)

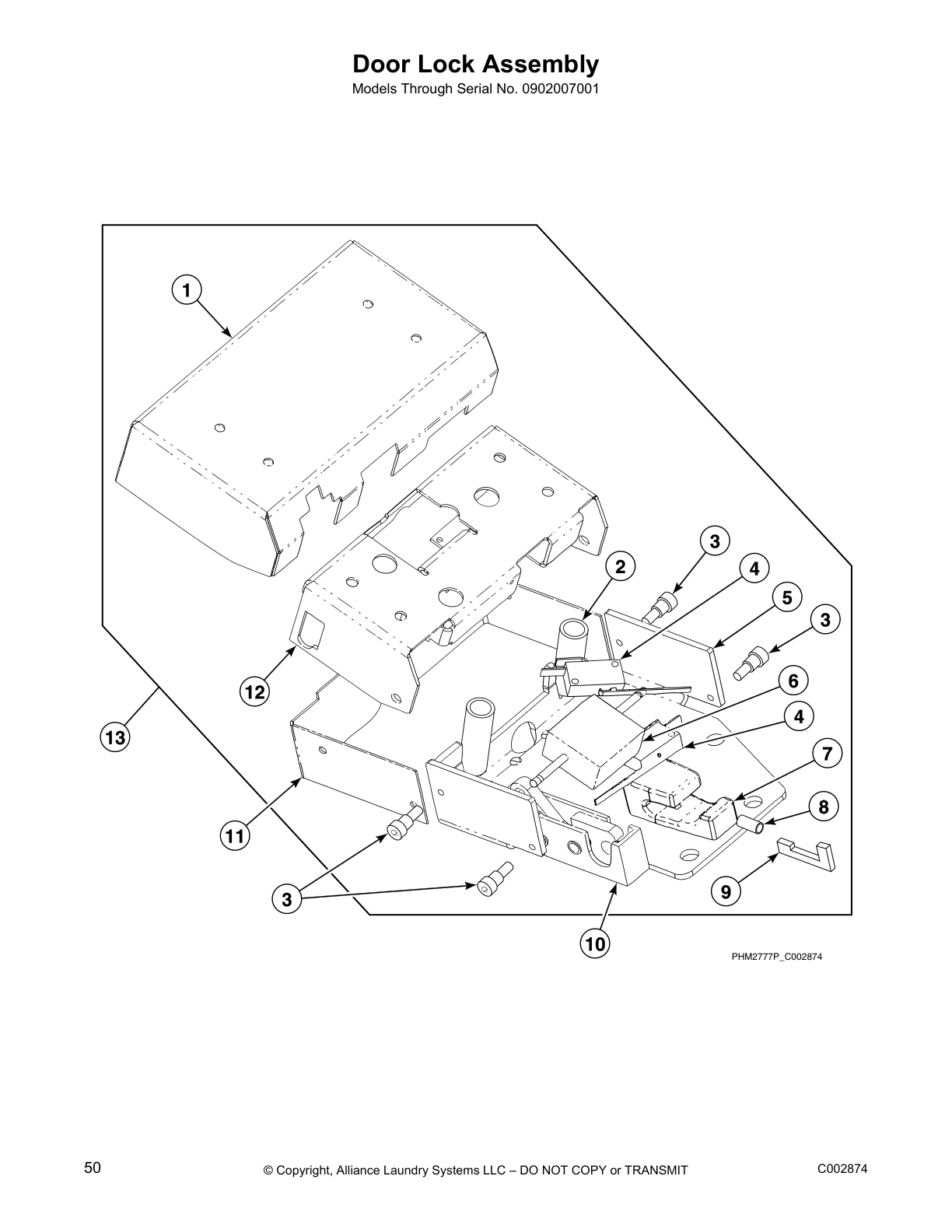

Door Lock Assembly

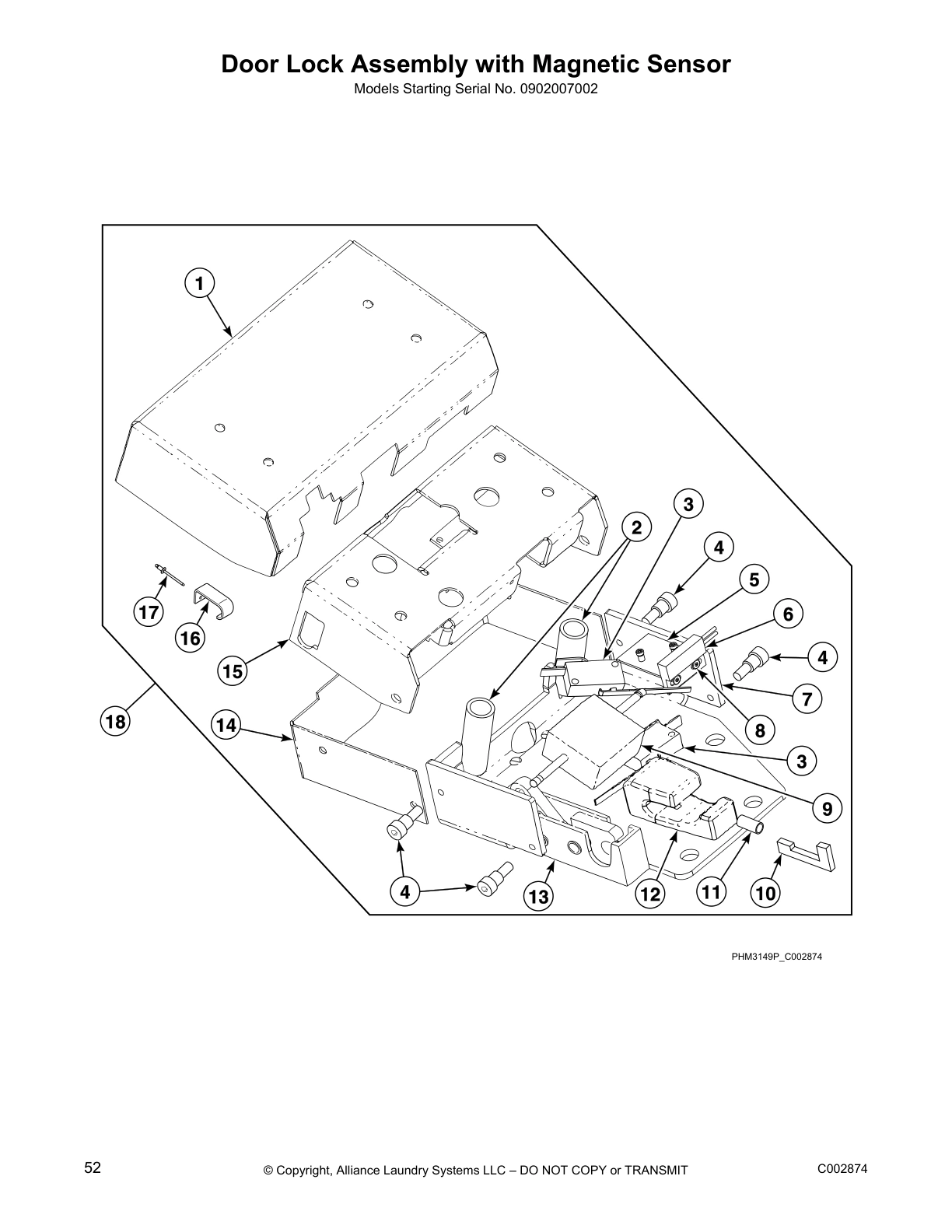

Door Lock Assembly with Magnetic Sensor

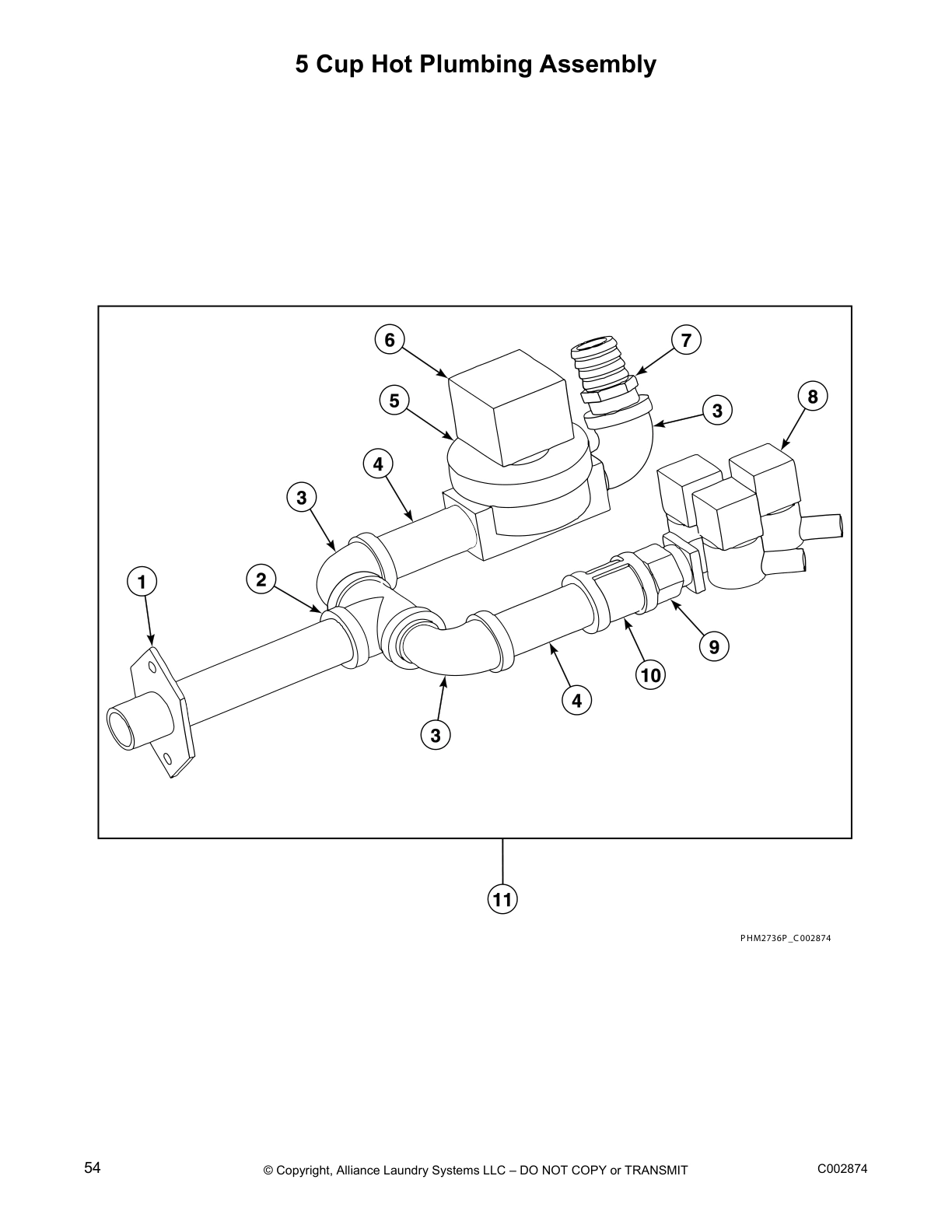

5 Cup Hot Plumbing Assembly

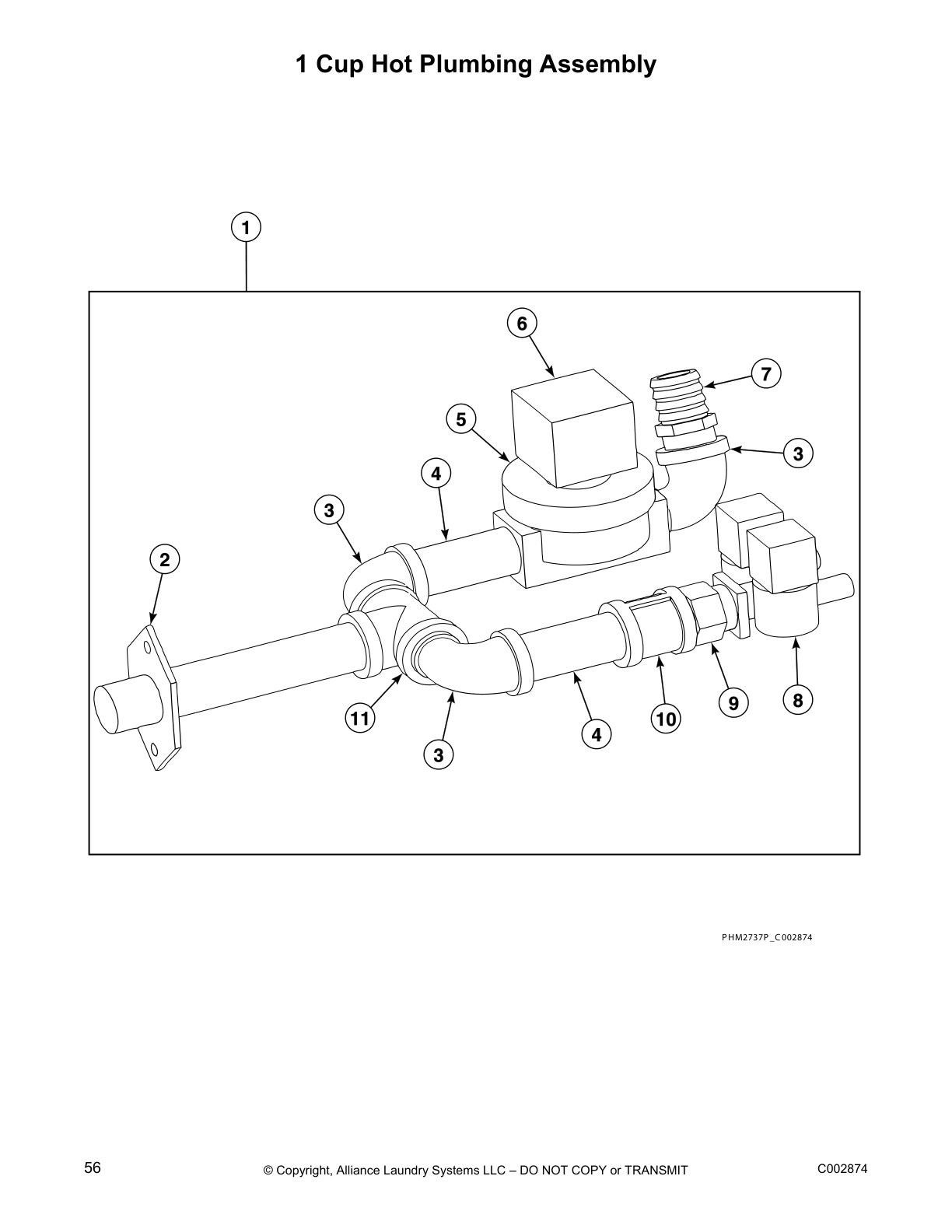

1 Cup Hot Plumbing Assembly

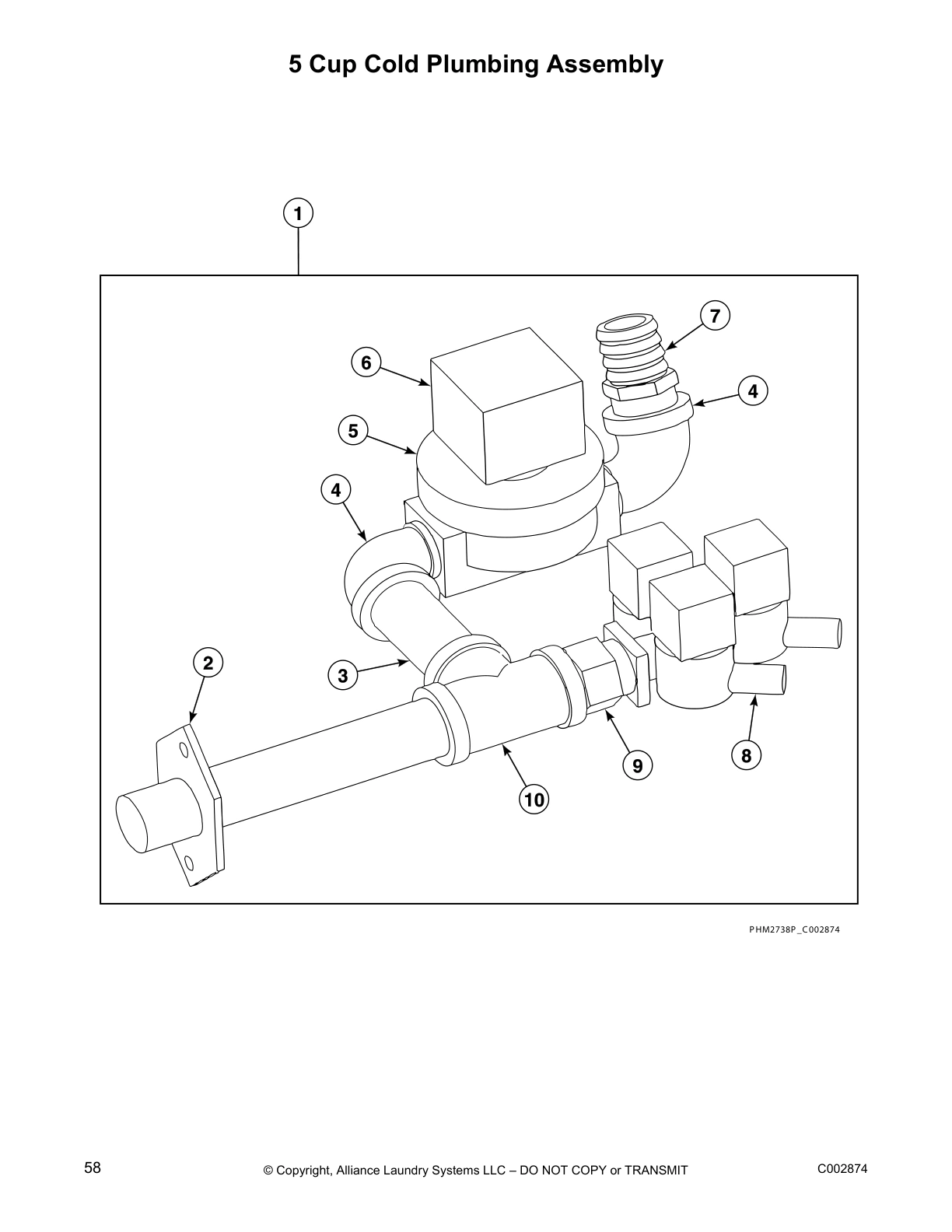

5 Cup Cold Plumbing Assembly

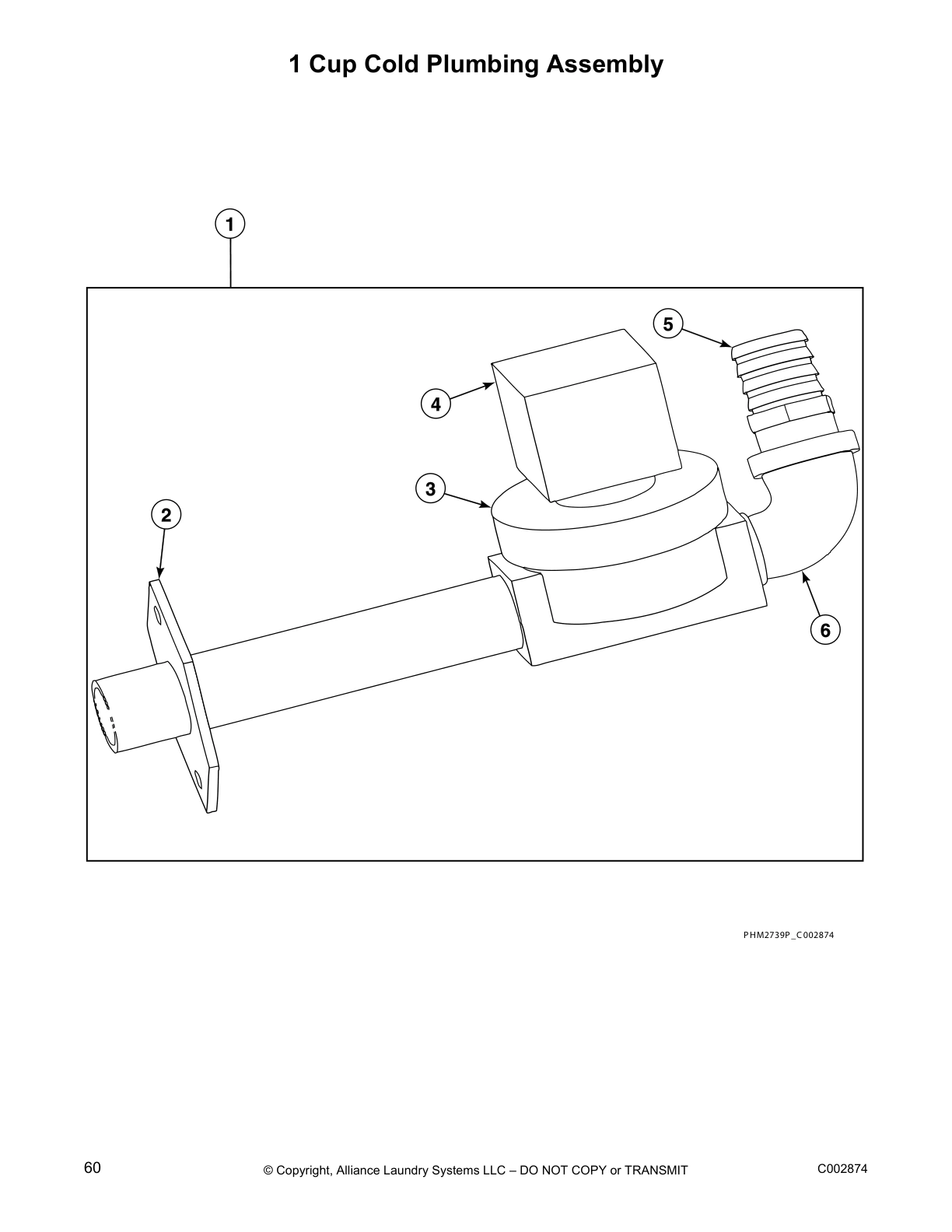

1 Cup Cold Plumbing Assembly

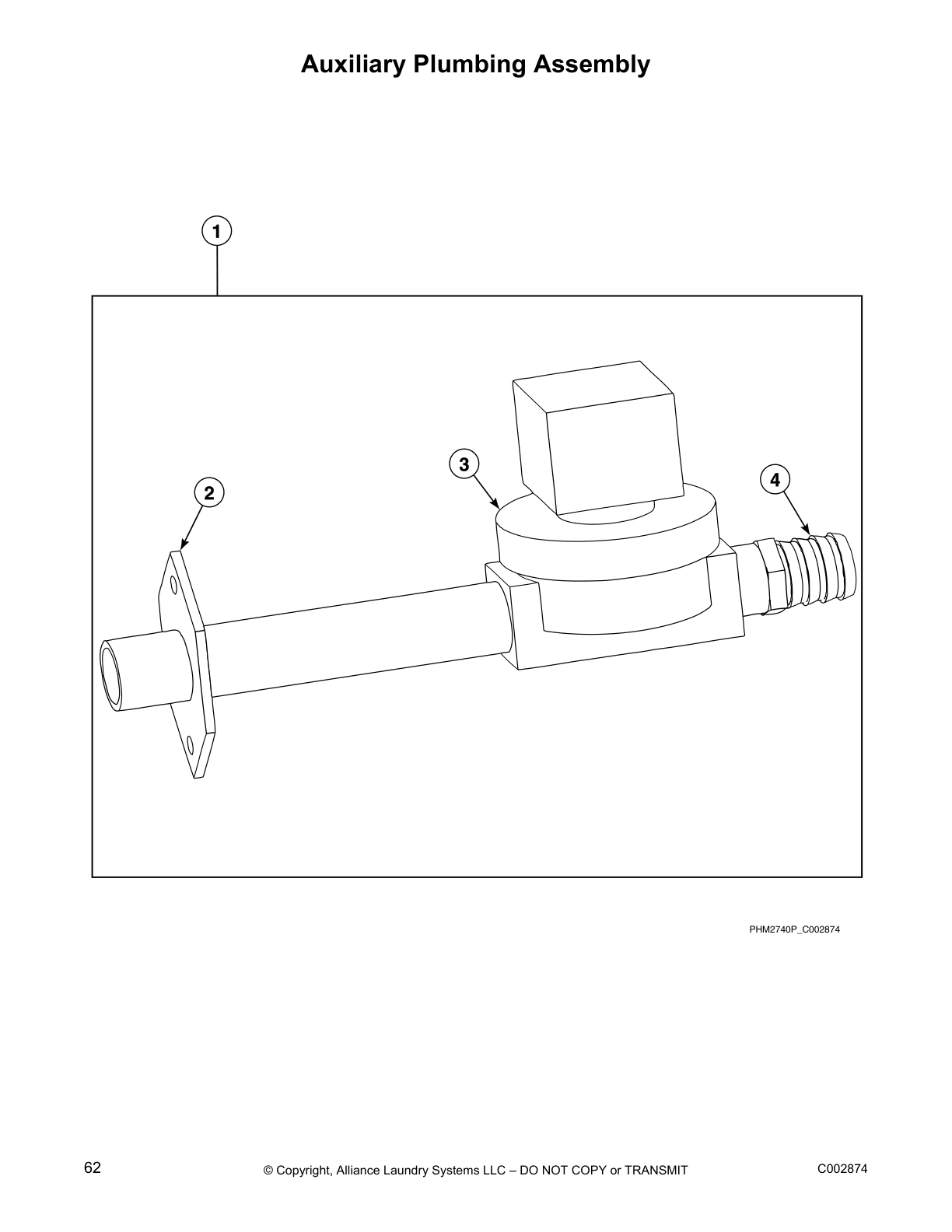

Auxiliary Plumbing Assembly

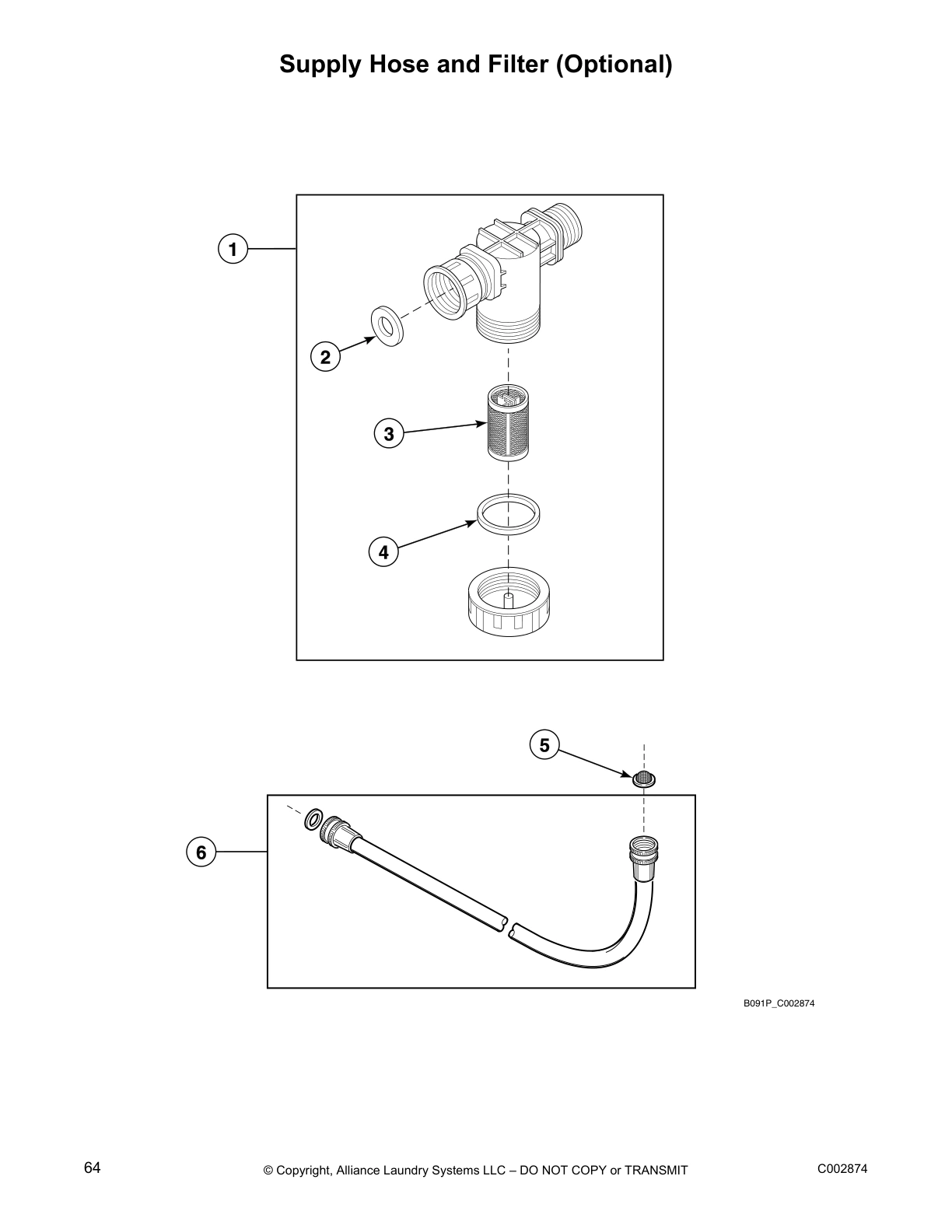

Supply Hose and Filter (Optional)

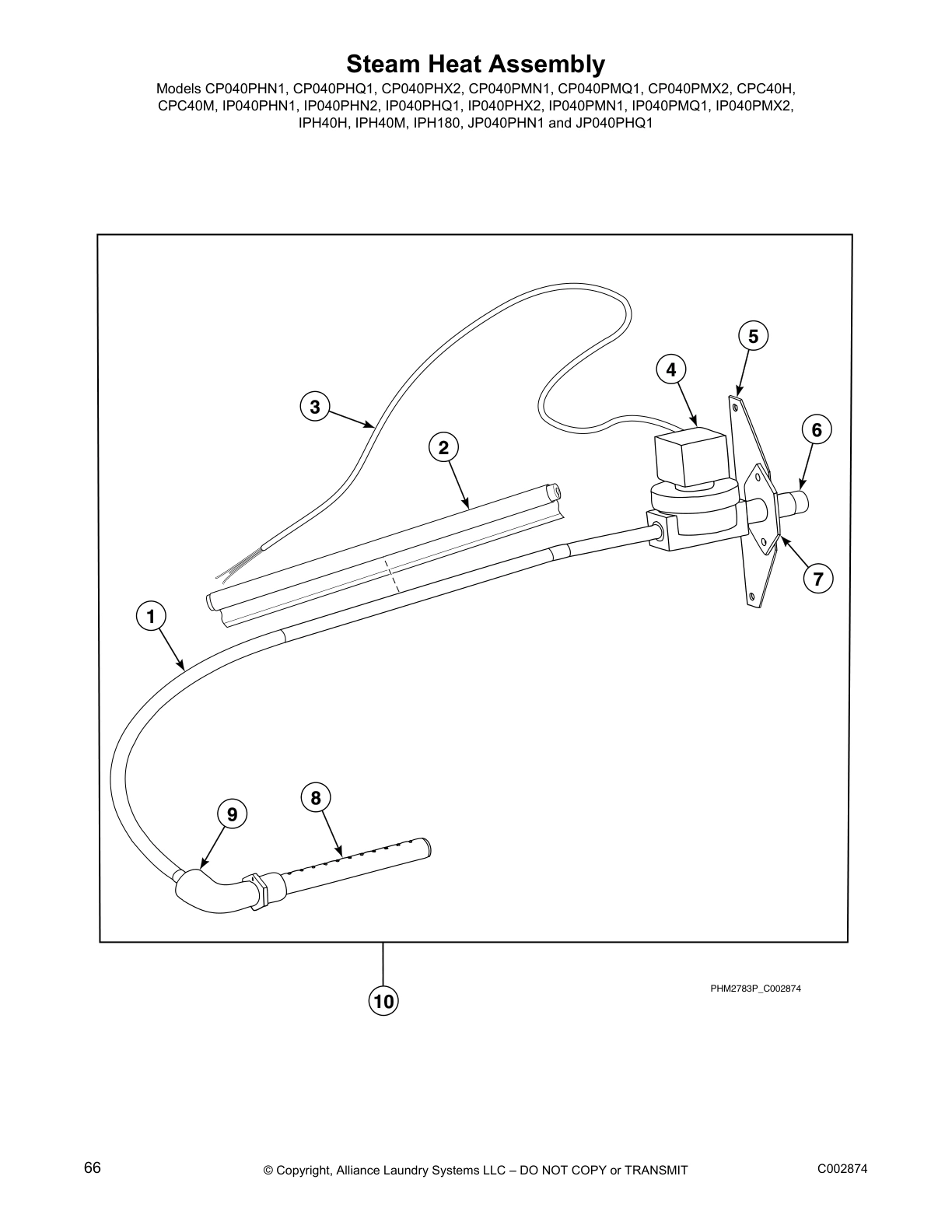

Steam Heat Assembly

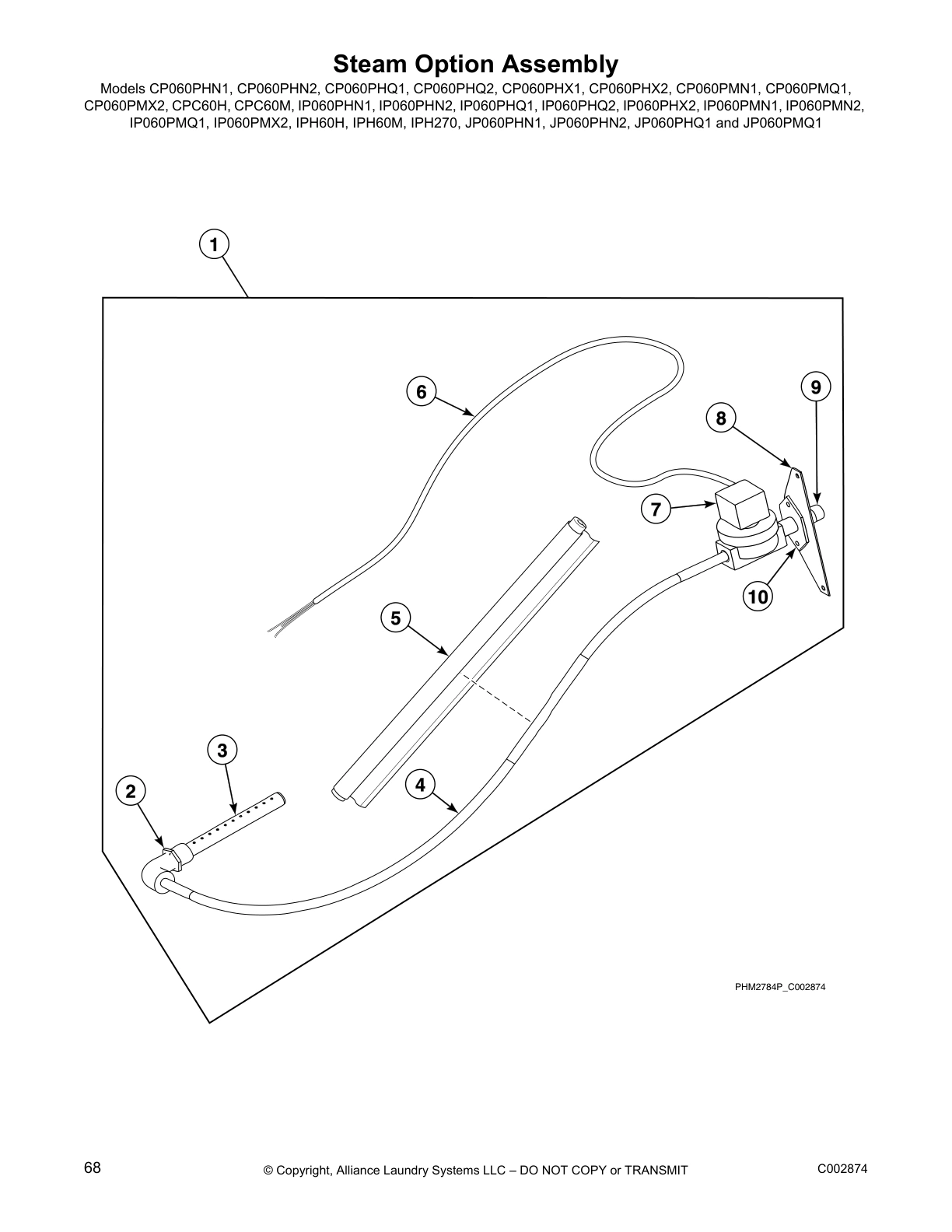

Steam Option Assembly

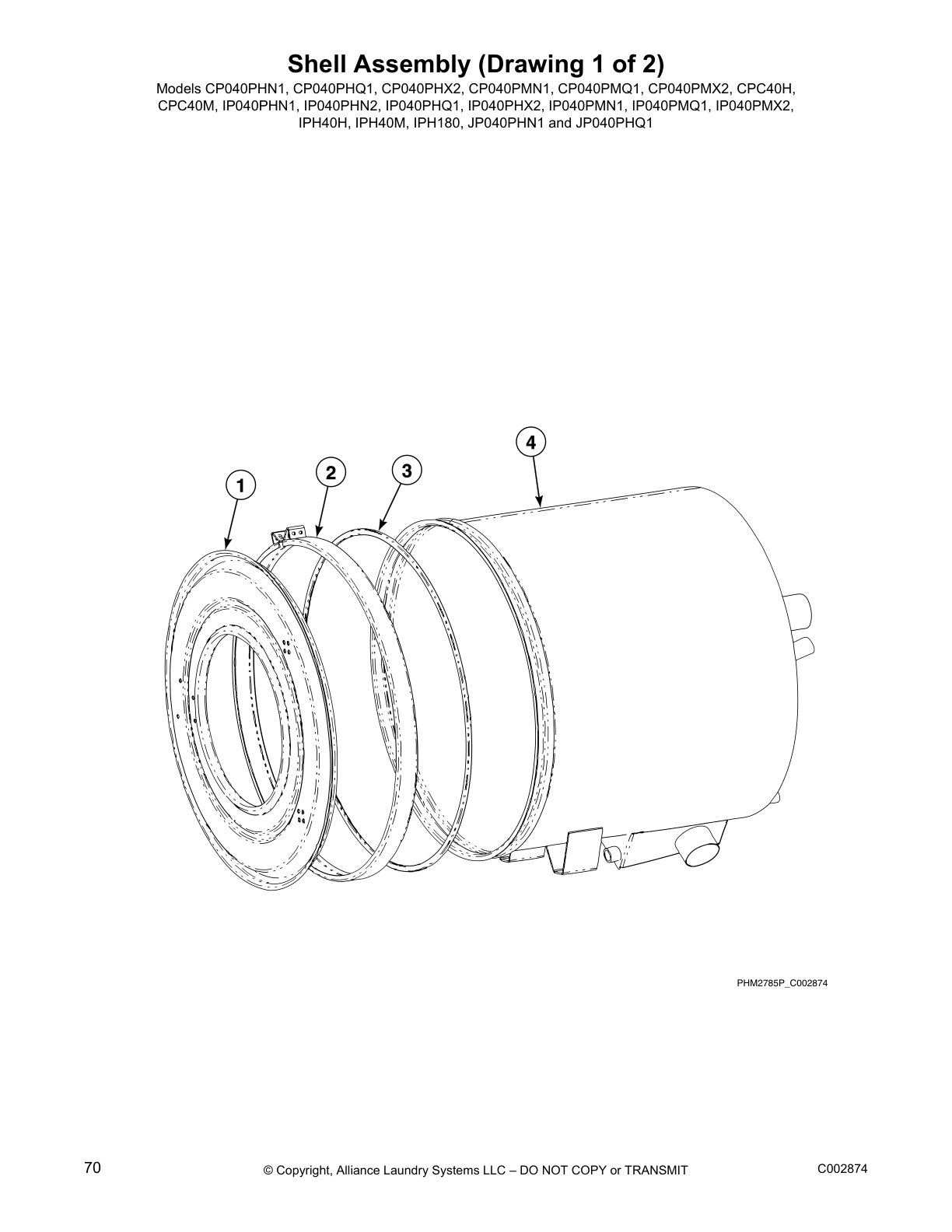

Shell Assembly (Drawing 1 of 2)

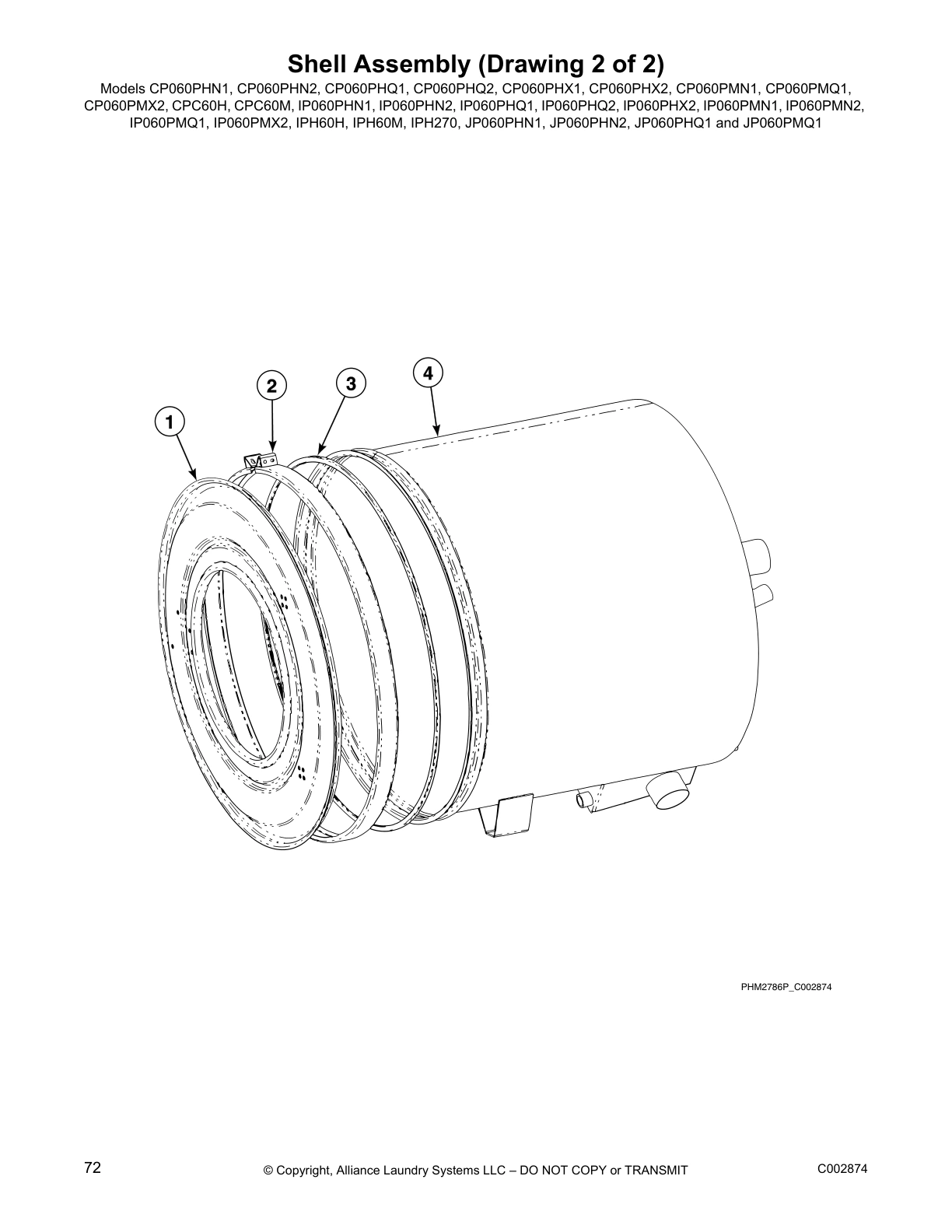

Shell Assembly (Drawing 2 of 2)

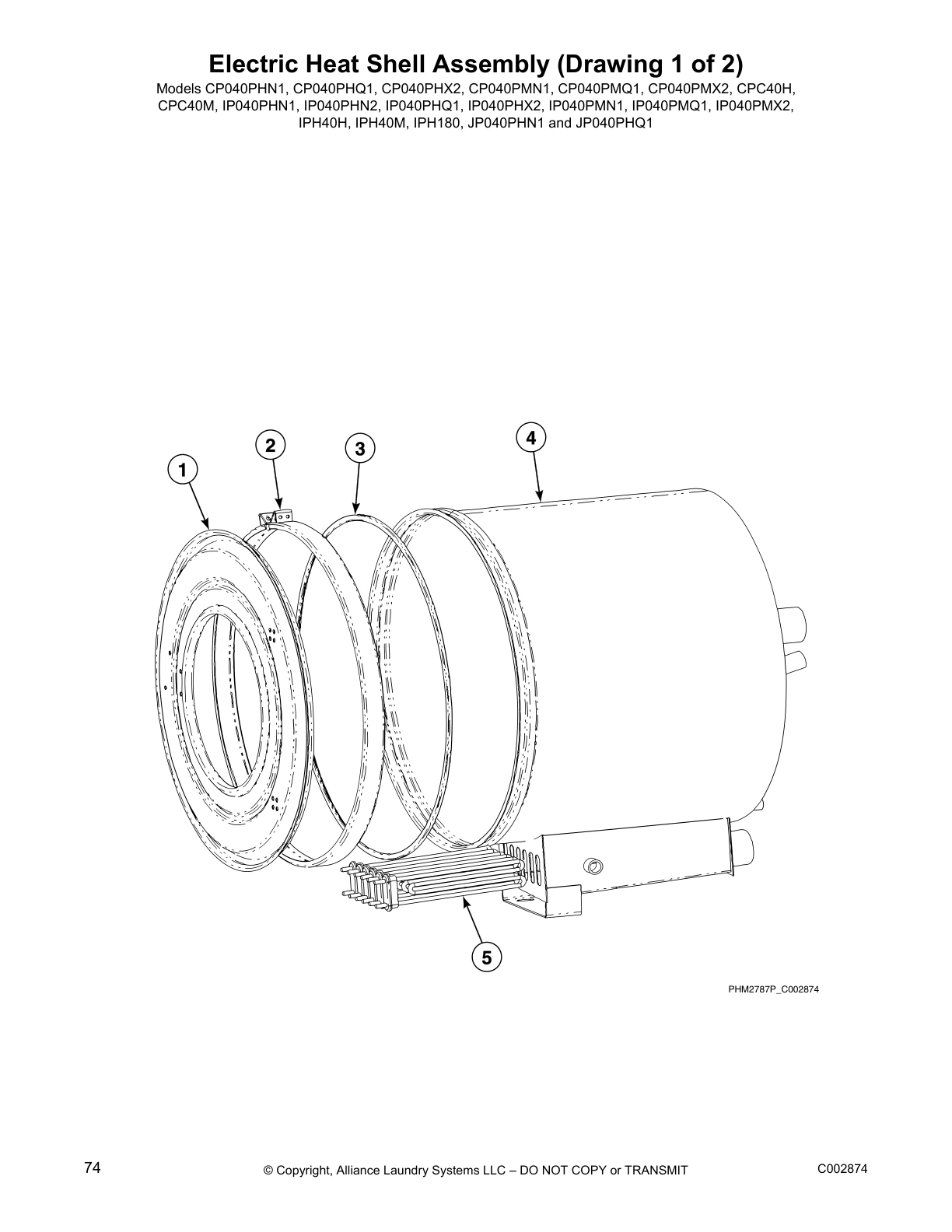

Electric Heat Shell Assembly (Drawing 1 of 2)

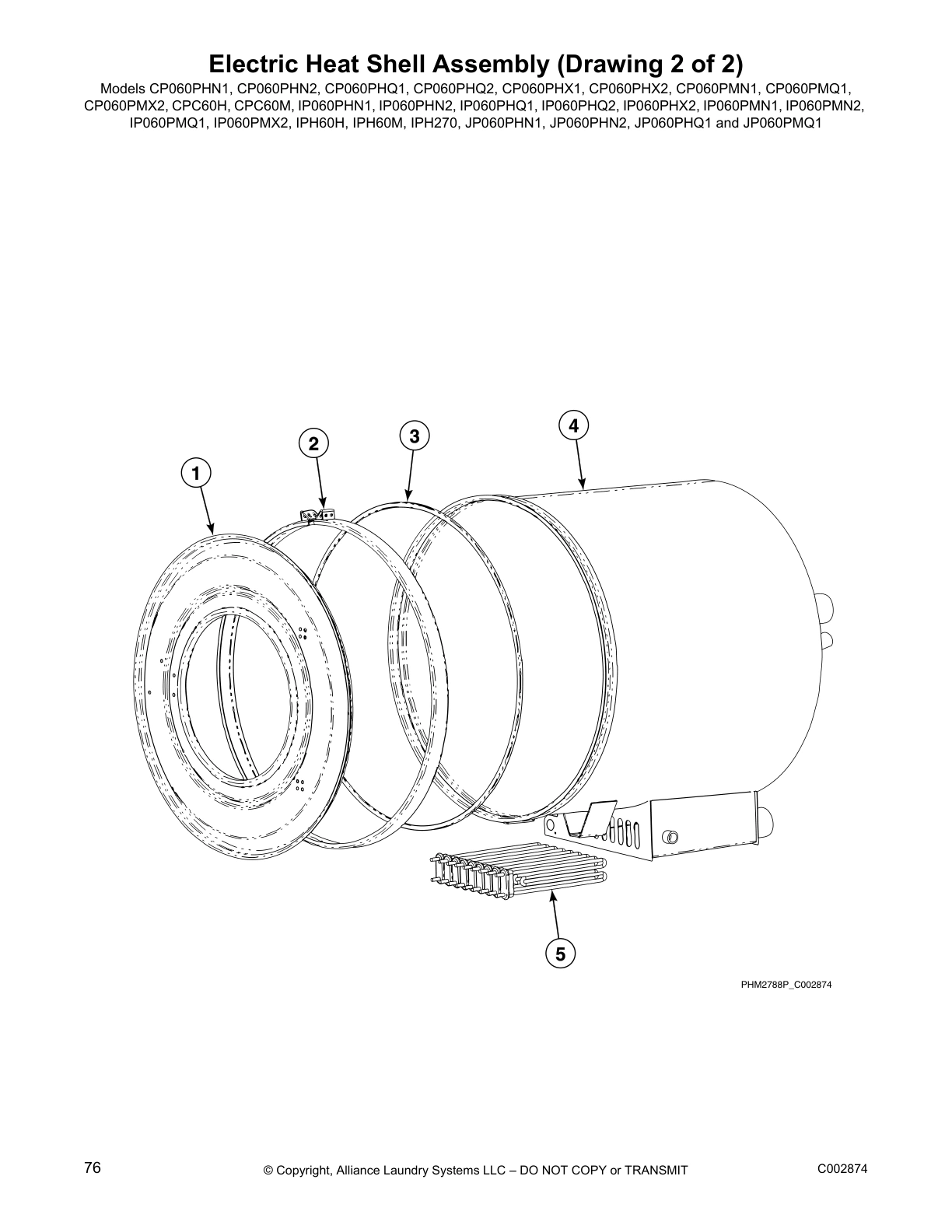

Electric Heat Shell Assembly (Drawing 2 of 2)

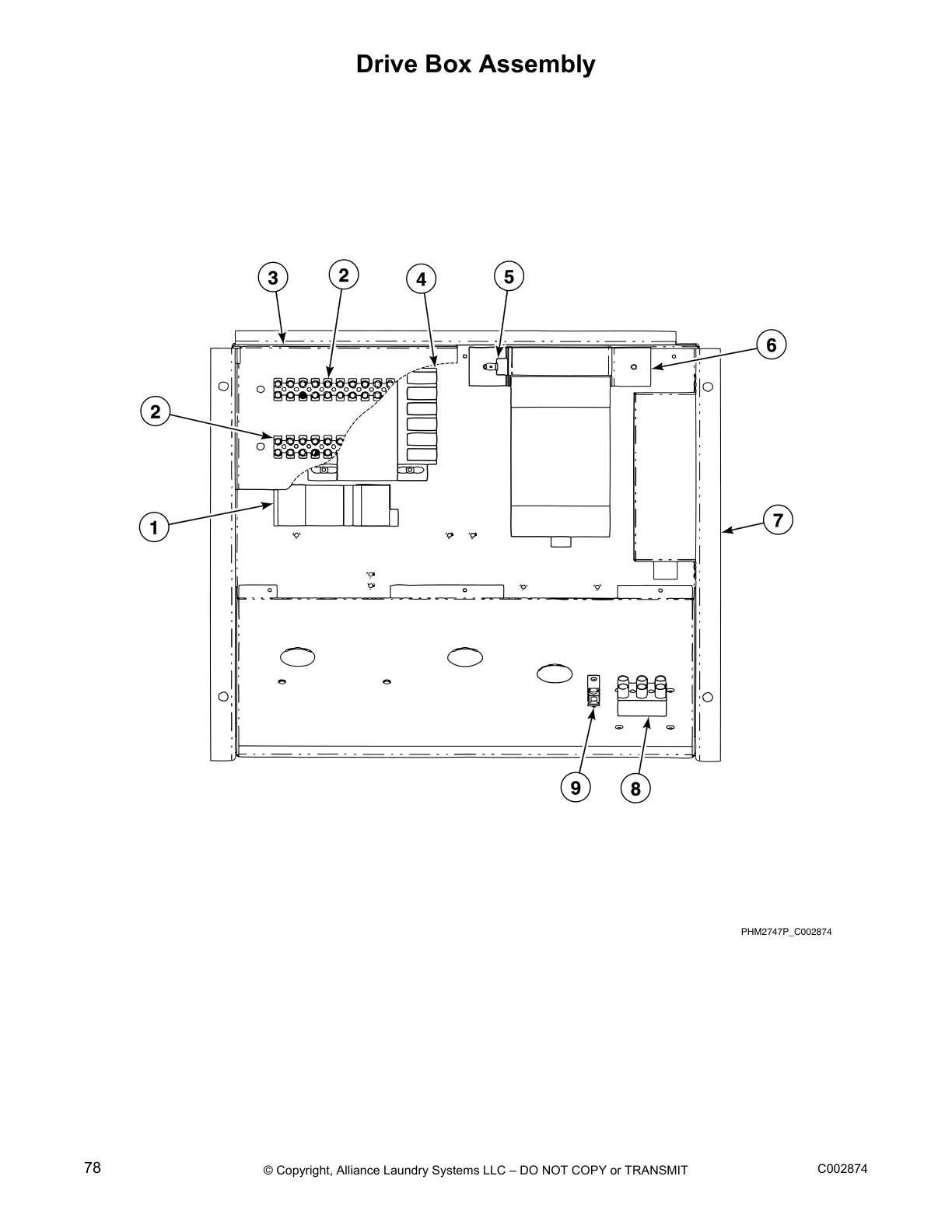

Drive Box Assembly

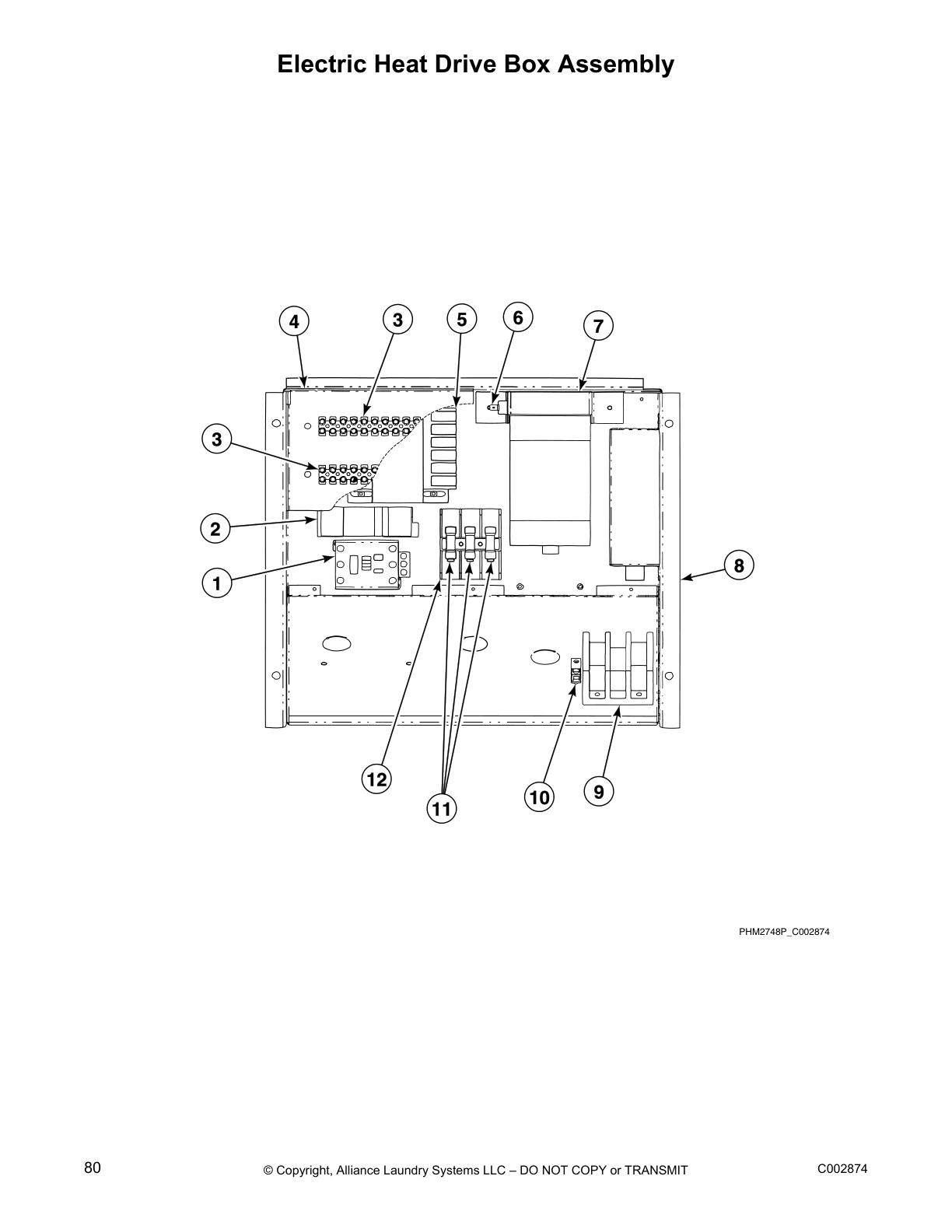

Electric Heat Drive Box Assembly

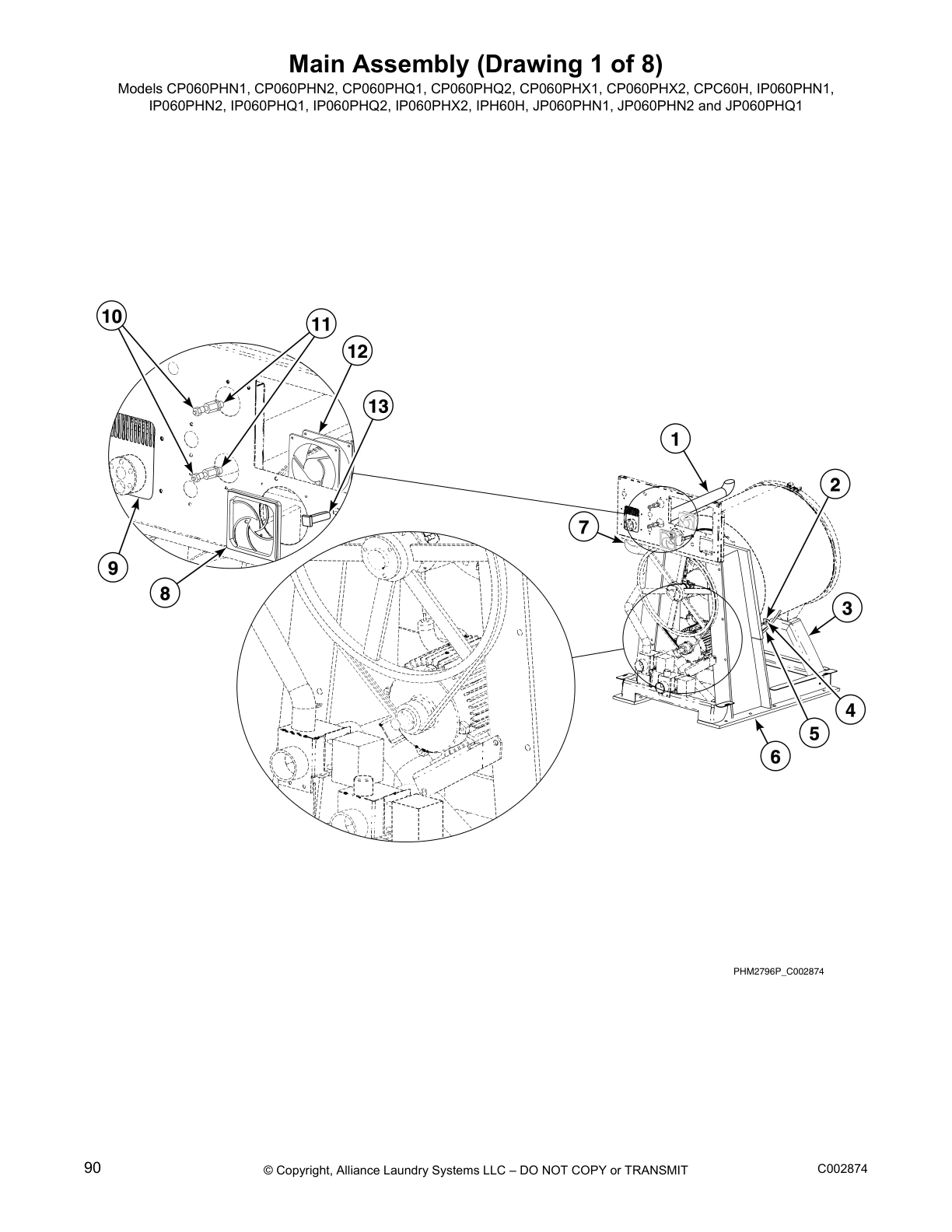

Main Assembly (Drawing 1 of 8)

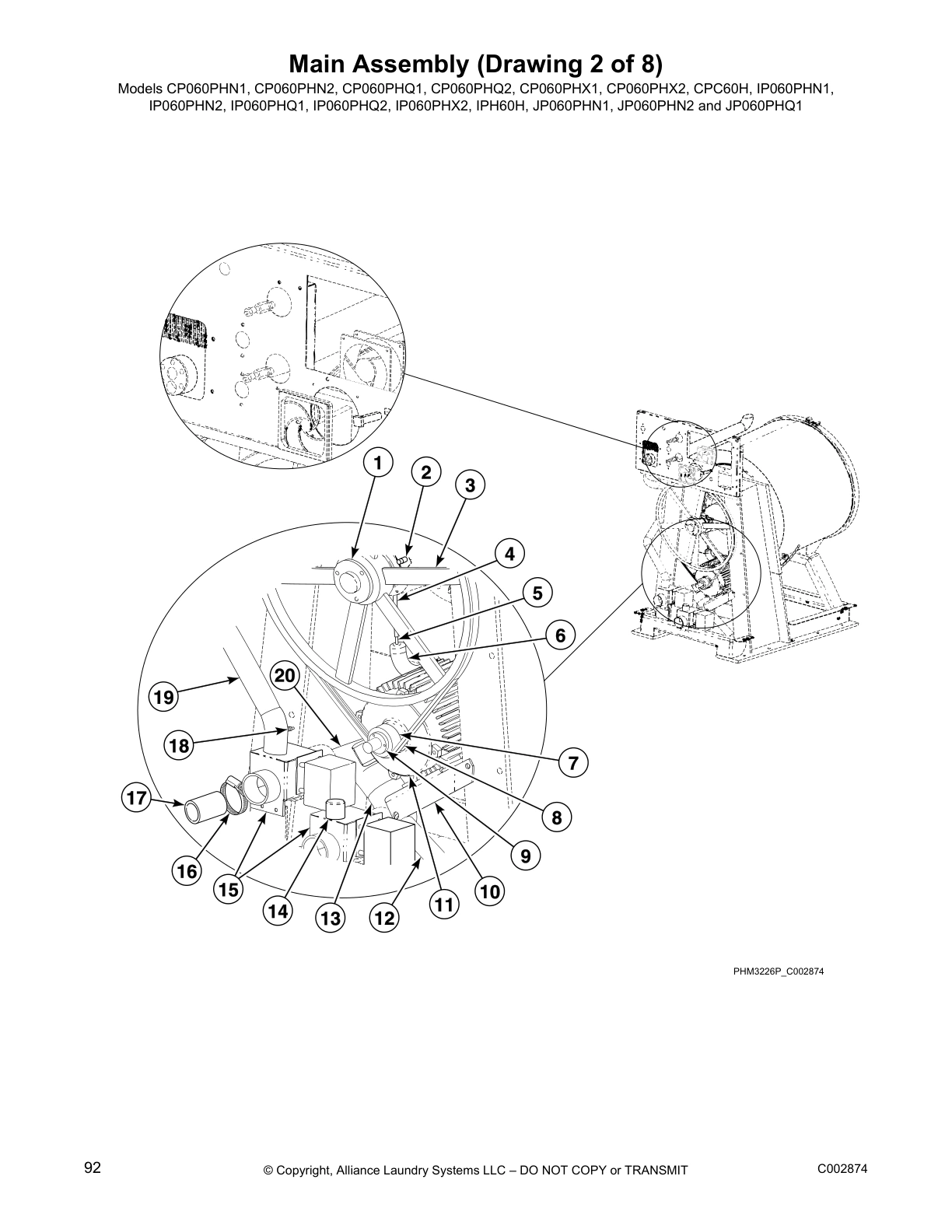

Main Assembly (Drawing 2 of 8)

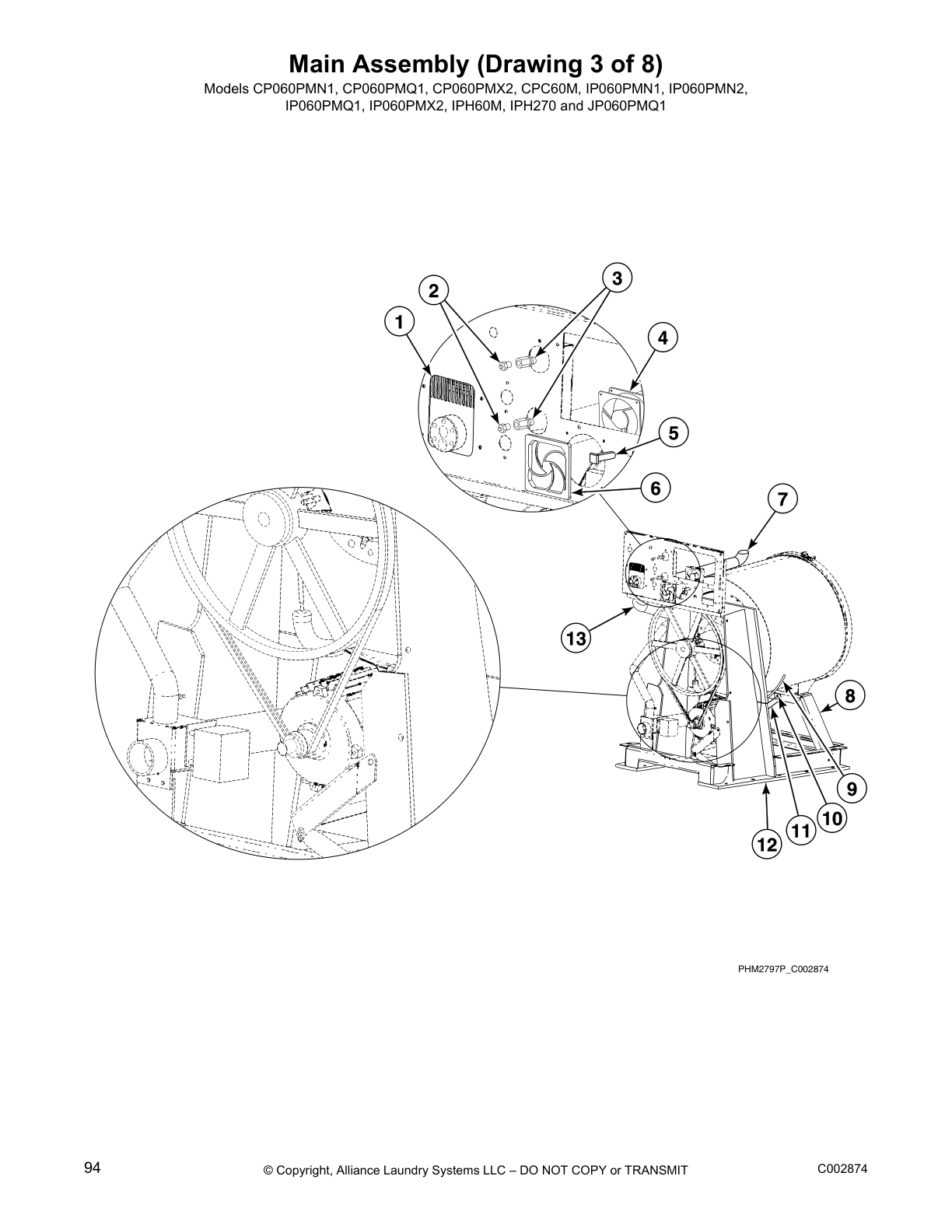

Main Assembly (Drawing 3 of 8)

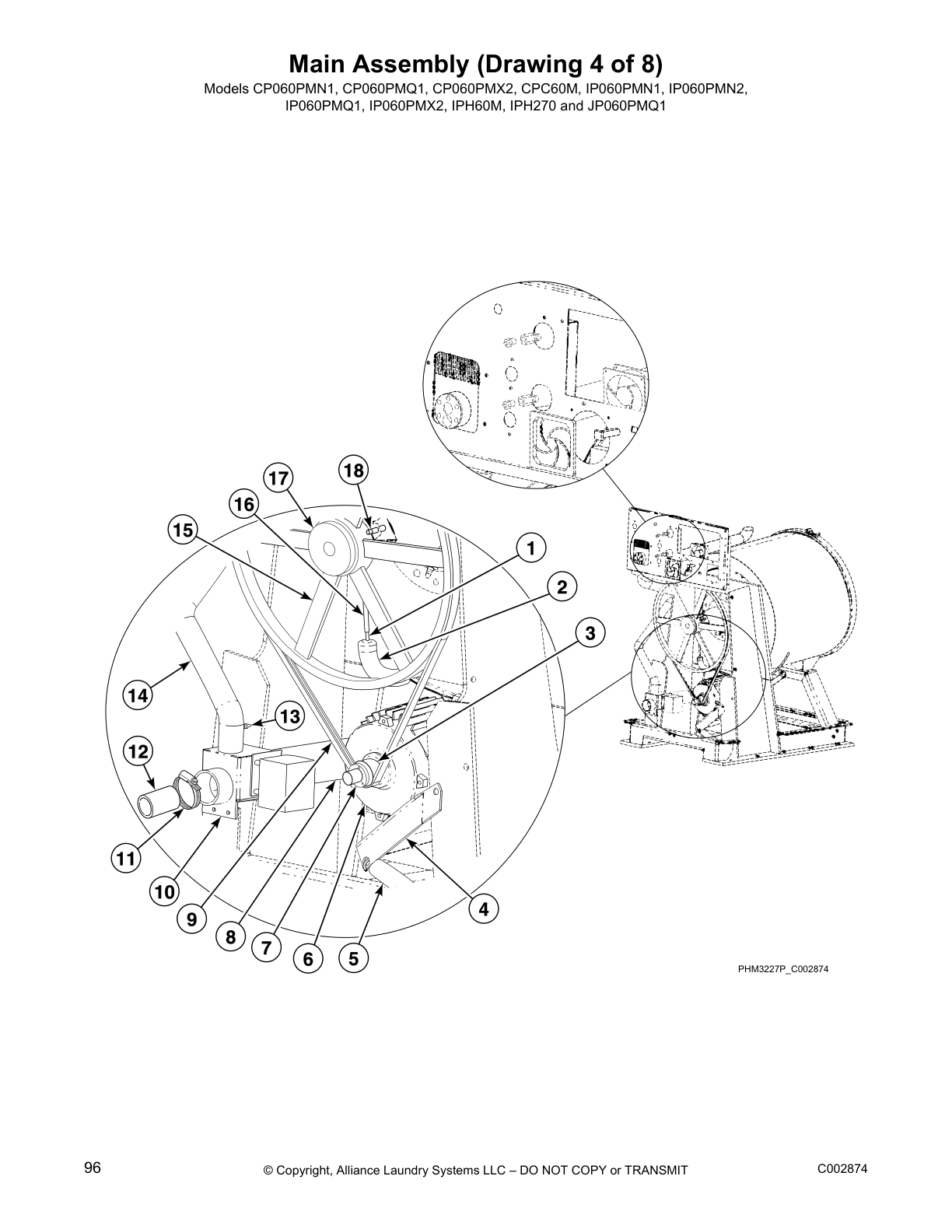

Main Assembly (Drawing 4 of 8)

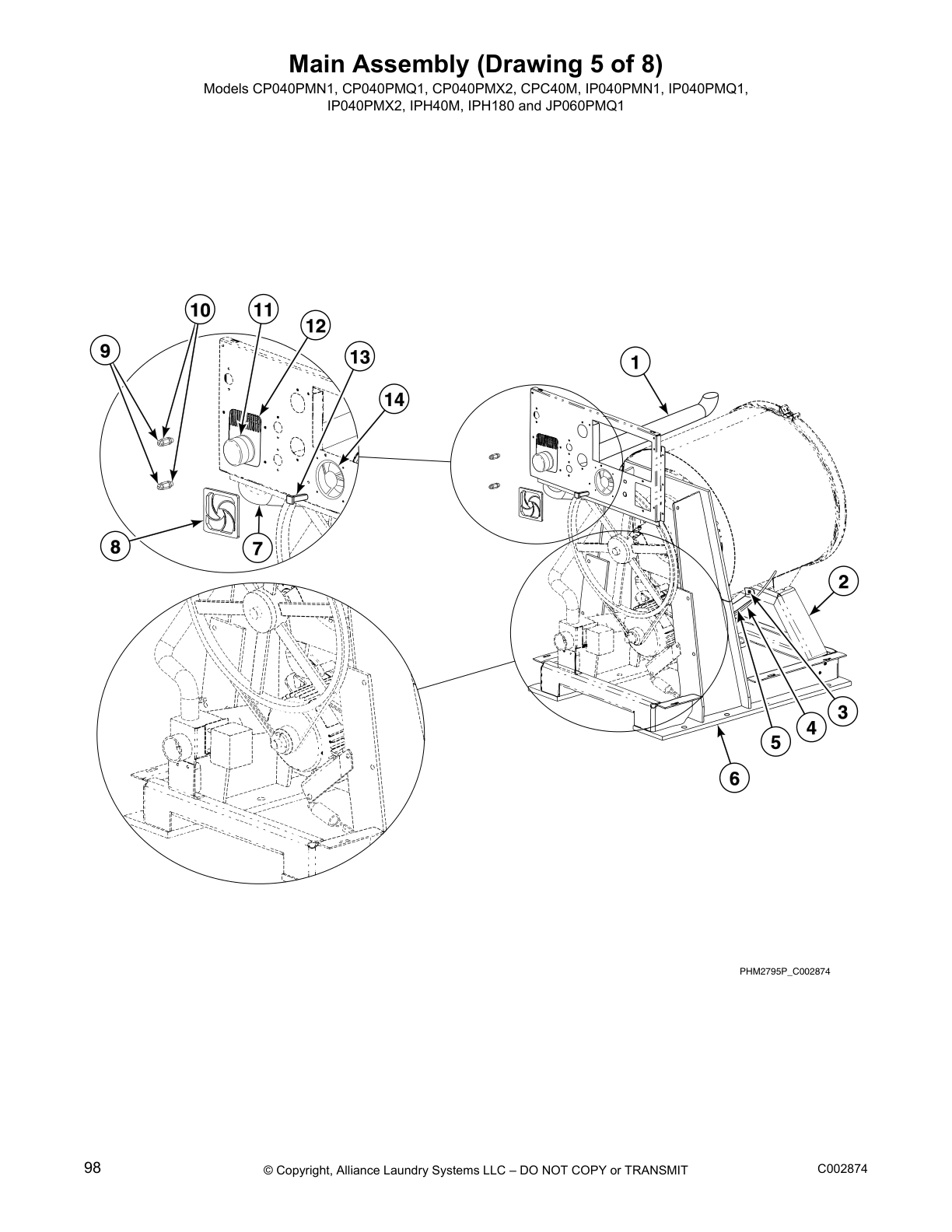

Main Assembly (Drawing 5 of 8)

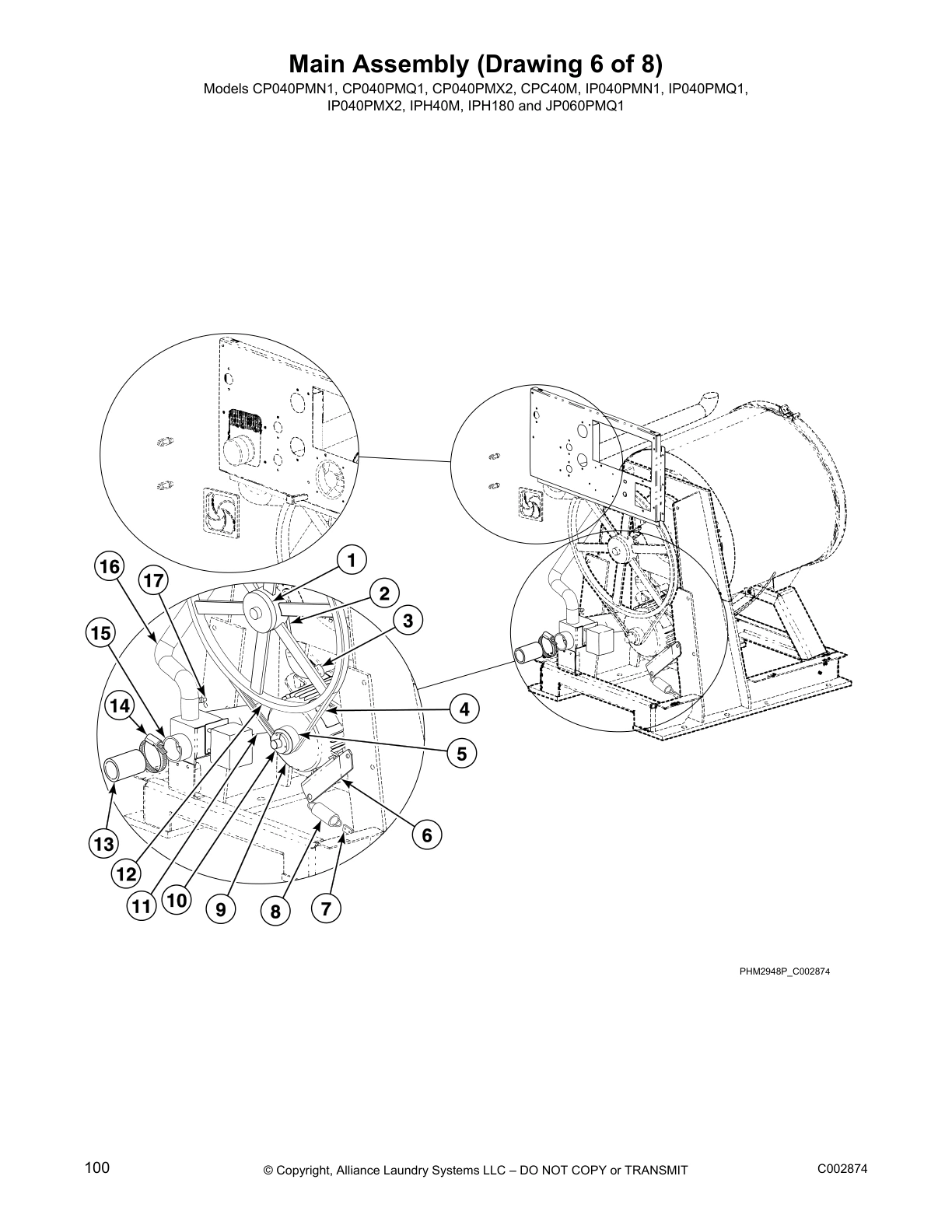

Main Assembly (Drawing 6 of 8)

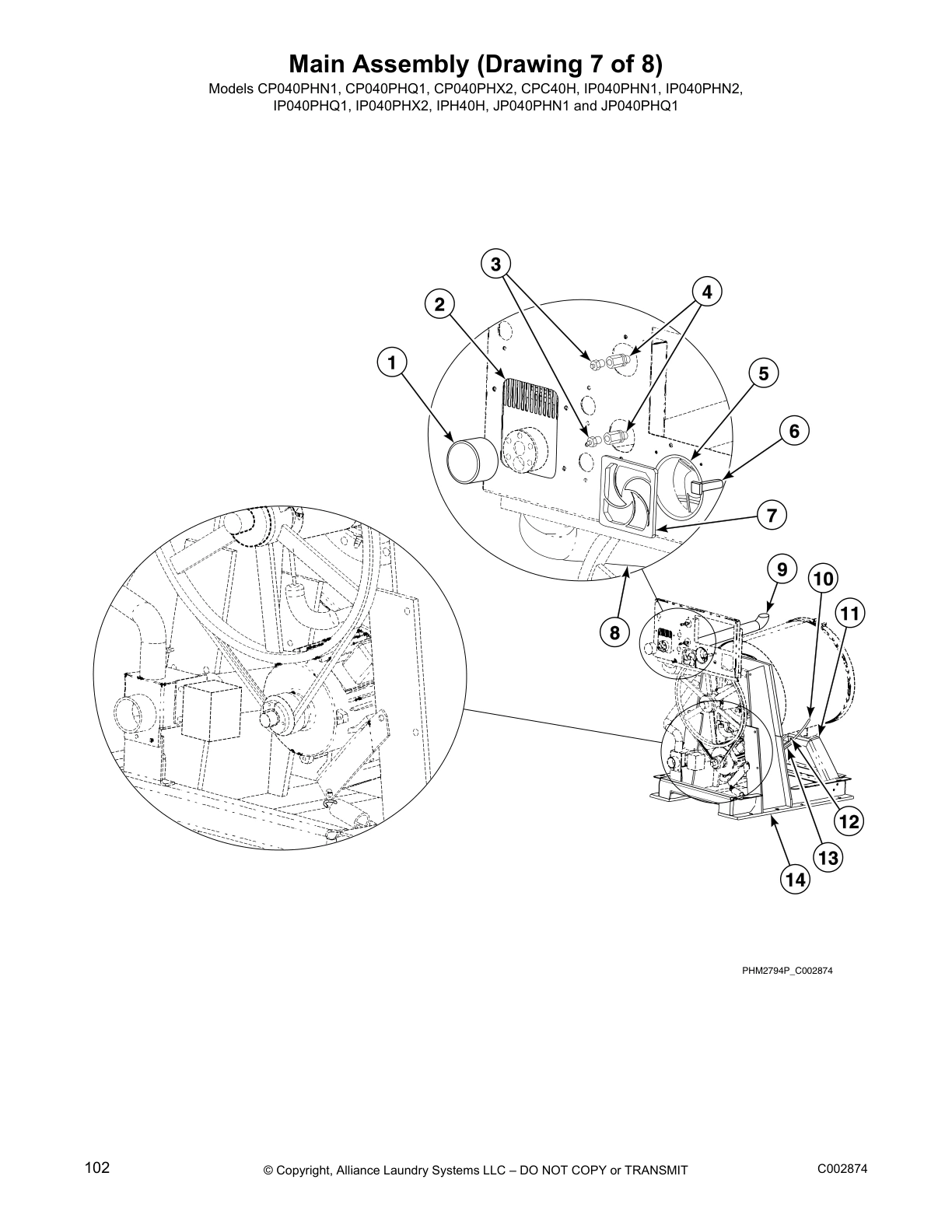

Main Assembly (Drawing 7 of 8)

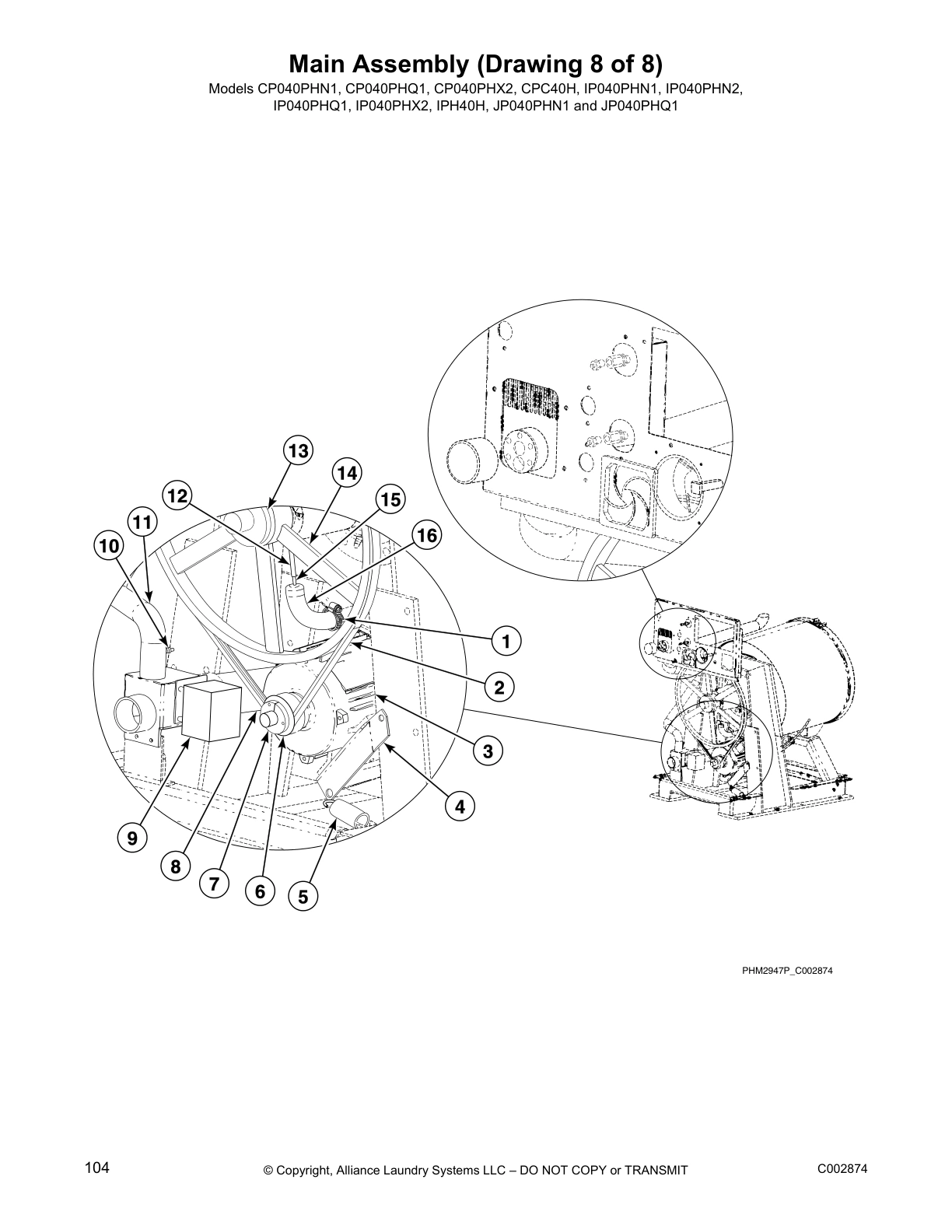

Main Assembly (Drawing 8 of 8)
Common parts from model Ipso IP060PMN2 Washer
Hose Clamp SPQ C000147 Contact Us For Availability
Hose Clamp SPQ F200201 Contact Us For Availability
Bearing Housing Puller Kit SPQ C002023 Contact Us For Availability
Washer SPQ 1390-1 Contact Us For Availability
Screw SPQ F430910 Contact Us For Availability
Bolt SPQ C000567 Contact Us For Availability
Hose Clamp SPQ C001148 Contact Us For Availability
Nut SPQ C001236 Contact Us For Availability
SPQ C000601 SPQ C000601 Contact Us For Availability
SPQ C000559 SPQ C000559 Contact Us For Availability
SPQ F8549401 SPQ F8549401 Contact Us For Availability
Nut SPQ C000177 Contact Us For Availability
Screw SPQ C001032 Contact Us For Availability
SPQ 803017 SPQ 803017 Contact Us For Availability
SPQ C000574 SPQ C000574 Contact Us For Availability
Screw SPQ C000613 Contact Us For Availability
Nut SPQ C000578 Contact Us For Availability
Bolt SPQ C000572 Contact Us For Availability
Washer SPQ 81398 Contact Us For Availability
Screw SPQ C000612 Contact Us For Availability
Nut SPQ C000424 Contact Us For Availability
Screw SPQ F430935 Contact Us For Availability
Coil SPQ F8514701 Contact Us For Availability
Water Hose SPQ F200128P Contact Us For Availability
Coil SPQ F8379504 Contact Us For Availability
SPQ F200164 SPQ F200164 Contact Us For Availability
Screw SPQ C001856 Contact Us For Availability
Hose SPQ C000611 Contact Us For Availability
Screw SPQ F430938 Contact Us For Availability
Electric Heat Control Harness SPQ F140602 Contact Us For Availability
Rear Enclosure Harness SPQ C002781 Contact Us For Availability
Screw SPQ C000575 Contact Us For Availability
Washer SPQ C000679 Contact Us For Availability
Drain Harness SPQ C002858 Contact Us For Availability
Screw SPQ C002422 Contact Us For Availability
Washer SPQ C000556 Contact Us For Availability
SPQ C003315P SPQ C003315P Contact Us For Availability
1
Filter SPQ F270306P Contact Us For Availability
1
Bearing Housing Assembly SPQ C000728P Contact Us For Availability
1
Control Panel Insert SPQ C000484 Contact Us For Availability
1
Front Electrical Enclosure Assem SPQ C000432 Contact Us For Availability
1
Washer SPQ C001239 Contact Us For Availability
1
Siphon Tube SPQ C001007 Contact Us For Availability
1
Door Lock Cover SPQ C000688 Contact Us For Availability
1
Auxiliary Plumbing Assembly SPQ C001187 Contact Us For Availability
1
Steam Option Assembly SPQ C001002 Contact Us For Availability
1
Contactor SPQ C000309P Contact Us For Availability
1
Vacuum Breaker Cover SPQ C001772 Contact Us For Availability
1
Cylinder Bushing SPQ C000746 Contact Us For Availability
2
Push Decal SPQ F230303R2 Contact Us For Availability
2
Connector SPQ C002032P Contact Us For Availability
2
Top Panel SPQ C000050 Contact Us For Availability
2
Front Electrical Enclosure Rail SPQ C000218 Contact Us For Availability
2
Front Electrical Enclosure Cover SPQ C000348 Contact Us For Availability
2
Cylinder Bolt Shroud SPQ C001238 Contact Us For Availability
2
Dispenser Door Handle SPQ C001788 Contact Us For Availability
2
Shell Front Gasket Kit SPQ F8513501 Contact Us For Availability
2
Door Magnet Mounting Bracket SPQ C000176 Contact Us For Availability
2
Spring SPQ C000431 Contact Us For Availability
2
Flange and Nipple Assembly SPQ C001366 Contact Us For Availability
2
Street Elbow SPQ F421703 Contact Us For Availability
2
Air Trap Tube Elbow SPQ C000599 Contact Us For Availability
2
Shell Band and Clamp Weldment SPQ C000659 Contact Us For Availability
2
Circuit Breaker Kit SPQ C0977P3 Contact Us For Availability
2
Vacuum Breaker Assembly SPQ C000390 Contact Us For Availability
3
Spin Warning Decal SPQ F200085100 Contact Us For Availability
3
Lubricator SPQ J1408004 Contact Us For Availability
3
Front Panel Assembly SPQ C000483 Contact Us For Availability
3
Grease Connector Box SPQ C000539 Contact Us For Availability
3
Control Panel Decal SPQ C001276 Contact Us For Availability
3
Screw SPQ C001294 Contact Us For Availability
3
Front Cover SPQ C000606 Contact Us For Availability
3
Nut SPQ C000175 Contact Us For Availability
3
Nipple SPQ F420107 Contact Us For Availability
3
Circuit Breaker SPQ F350217 Contact Us For Availability
3
Grease Fitting SPQ C000549 Contact Us For Availability
3
Motor Pulley SPQ C000791P Contact Us For Availability
3
Motor SPQ C000204 Contact Us For Availability
4
Mounting Bracket SPQ 212/00022/00P Contact Us For Availability
4
Front Panel SPQ C002969 Contact Us For Availability
4
Rear Electrical Enclosure Cover SPQ C000173 Contact Us For Availability
4
Cylinder Assembly Kit SPQ C001093 Contact Us For Availability
4
Single Front Dispenser Cover SPQ C000605 Contact Us For Availability
4
Hinge SPQ C001787 Contact Us For Availability
4
Door Bumper SPQ F8549301 Contact Us For Availability
4
Bolt SPQ C000430 Contact Us For Availability
4
Valve SPQ F8322909P Contact Us For Availability
4
Steam Hose SPQ C000736 Contact Us For Availability
4
Shell Gasket Shield SPQ F601216 Contact Us For Availability
4
Power Block Terminal SPQ C000370 Contact Us For Availability
4
Motor Bracket SPQ C000130 Contact Us For Availability
5
Hot Water and Chemical Caution Decal SPQ F200085300 Contact Us For Availability
5
Reducing Connector SPQ C001037 Contact Us For Availability
5
Lower Front Adjustment Bracket Assembly SPQ C002968 Contact Us For Availability
5
Inlet Power Cover SPQ C001257 Contact Us For Availability
5
Standoff SPQ C000376 Contact Us For Availability
5
Nut SPQ C000792P Contact Us For Availability
5
Front Supply Dispenser Nozzle SPQ C001017 Contact Us For Availability
5
Magnetic Door Switch Bracke SPQ C002995 Contact Us For Availability
5
Water Hose SPQ F270407 Contact Us For Availability
5
Steam Hose Insulation SPQ C001003 Contact Us For Availability
5
Electric Heat Shell Assembly SPQ C000950 Contact Us For Availability
5
Mounting Bracket SPQ C000373 Contact Us For Availability
5
Fan SPQ C000211 Contact Us For Availability
5
Belt Tension Spring SPQ C001790 Contact Us For Availability
6
Filter SPQ F200318900P Contact Us For Availability
6
Rub Rail SPQ C001248 Contact Us For Availability
6
Valve Panel Assembly SPQ C002980 Contact Us For Availability
6
Mounting Bracket SPQ C000375 Contact Us For Availability
6
Washer SPQ F431011 Contact Us For Availability
6
Supply Dispenser Cup SPQ C000053 Contact Us For Availability
6
Reed Switch Assembly SPQ C003000 Contact Us For Availability
6
Hose Barb SPQ F380987P Contact Us For Availability
6
SPQ F200166 SPQ F200166 Contact Us For Availability
6
Steam Cord Assembly SPQ C002748P Contact Us For Availability
7
Mount On Concrete Warning Label SPQ F8246401 Contact Us For Availability
7
Rear Panel SPQ C000051 Contact Us For Availability
7
Main Board Controller Kit SPQ C000281P Contact Us For Availability
7
Cylinder Lifter Rod SPQ F0431159-00 Contact Us For Availability
7
Single Dispenser Assembly SPQ C000220 Contact Us For Availability
7
Door Glass Retainer SPQ C000604 Contact Us For Availability
7
Door Lock Plate SPQ C000684 Contact Us For Availability
7
Valve SPQ F8322802 Contact Us For Availability
7
Thermostat SPQ C000318 Contact Us For Availability
8
Nut SPQ C002985 Contact Us For Availability
8
Side Panel and Stiffener Assembly SPQ C002707 Contact Us For Availability
8
Dispenser Assembly SPQ C000107 Contact Us For Availability
8
Nut SPQ C000190 Contact Us For Availability
8
Blind Rivet SPQ J1111905 Contact Us For Availability
8
DIN Valve Kit SPQ F8521601 Contact Us For Availability
8
Exhaust Bracket SPQ C000323 Contact Us For Availability
8
Drain Hose SPQ C000411 Contact Us For Availability
9
Tilt Switch Assembly SPQ C002642P Contact Us For Availability
9
Door Bumper SPQ C000603 Contact Us For Availability
9
Door Lock Solenoid SPQ F8654101 Contact Us For Availability
9
Steam Valve Mounting Bracket SPQ C000981 Contact Us For Availability
9
Drive Box Assembly SPQ C001050 Contact Us For Availability
9
Lower Shell Support Bracket SPQ C000079 Contact Us For Availability
9
Fan Filter Guard Assembly SPQ C000210 Contact Us For Availability
9
Screw SPQ C001264 Contact Us For Availability
10
External Supply Connection Decal SPQ F8150201 Contact Us For Availability
10
Reducing Connector SPQ C001649 Contact Us For Availability
10
Keymode Switch Assembly SPQ C003024P Contact Us For Availability
10
Front Skirt Panel SPQ C000314 Contact Us For Availability
10
Chemical Supply Controller SPQ C000371P Contact Us For Availability
10
Door Glass SPQ C000191 Contact Us For Availability
10
Door Lock Switch Slide SPQ C000271 Contact Us For Availability
10
Tee SPQ F420403 Contact Us For Availability
10
Coupling SPQ C000420 Contact Us For Availability
10
Steam Valve Mounting Flange SPQ C000733 Contact Us For Availability
10
Temperature Probe Assembly SPQ C002636 Contact Us For Availability
10
Bushing SPQ F280233P Contact Us For Availability
11
Emergency Stop Pushbutton SPQ F200233500 Contact Us For Availability
11
Front Electrical Enclosure SPQ C000213 Contact Us For Availability
11
Door Lock Slide Spring SPQ C000276 Contact Us For Availability
11
Fuse SPQ C001196 Contact Us For Availability
11
Shell Support Brace SPQ C002054 Contact Us For Availability
12
Hose SPQ C000552 Contact Us For Availability
12
Trim Gasket SPQ C000629 Contact Us For Availability
12
RC Network Assembly SPQ C002999 Contact Us For Availability
12
Door Assembly SPQ C002726 Contact Us For Availability
12
Door Lock Catch SPQ C000185 Contact Us For Availability
12
Fuse Holder SPQ C001197 Contact Us For Availability
12
Thermostat Grommet SPQ 225/10004/00 Contact Us For Availability
13
Contact Block Switch SPQ F200233401P Contact Us For Availability
13
RC Network Filter SPQ F330217P Contact Us For Availability
13
Door Handle SPQ C001679P Contact Us For Availability
13
Door Latch SPQ C001244 Contact Us For Availability
13
Water Inlet Hose SPQ C000378 Contact Us For Availability
13
Hose Clamp SPQ F200165100 Contact Us For Availability
14
Door Lock Spring Cover SPQ C000687 Contact Us For Availability
14
Cylinder Pulley SPQ C000222 Contact Us For Availability
14
Overflow Hose SPQ C000377 Contact Us For Availability
15
Door Lock Solenoid Bracket SPQ C003022 Contact Us For Availability
15
Air Trap Tube SPQ C000662 Contact Us For Availability
16
Door Lock Spring SPQ B12351001 Contact Us For Availability
16
Air Trap Tube Elbow SPQ C000654 Contact Us For Availability
17
Pop Rivet SPQ F431215 Contact Us For Availability
18
Proximity Switch Assembly SPQ C002637P Contact Us For Availability
18
Magnet SPQ F431223 Contact Us For Availability
18
Door Lock Kit SPQ C002996M Contact Us For Availability
19
Magnet SPQ F8390801 Contact Us For Availability
20
Hinge Block SPQ C002994 Contact Us For Availability
NI
Power Distribution Block SPQ M413865 Contact Us For Availability
NI
SPQ C000571 SPQ C000571 Contact Us For Availability
NI
Hose SPQ C002959 Contact Us For Availability
NI
Screw SPQ F430929 Contact Us For Availability
NI
Washer SPQ C000628P Contact Us For Availability
NI
Triple Lip Seal SPQ 1390P Contact Us For Availability
NI
Nut SPQ C000568 Contact Us For Availability
NI
Nut SPQ F431024 Contact Us For Availability
NI
Screw SPQ C000633 Contact Us For Availability
NI
Washer SPQ F431133 Contact Us For Availability
NI
Screw SPQ F430909 Contact Us For Availability
NI
Control Module Harness SPQ C000865 Contact Us For Availability
NI
SPQ C001327 SPQ C001327 Contact Us For Availability
NI
Washer SPQ C000583 Contact Us For Availability
NI
Screw SPQ F430925 Contact Us For Availability
NI
Screw SPQ F430920 Contact Us For Availability
NI
Stud SPQ C001546 Contact Us For Availability
NI
SPQ C000560 SPQ C000560 Contact Us For Availability
NI
Door Lock Harness SPQ C000867P Contact Us For Availability
NI
Screw SPQ C000614 Contact Us For Availability
NI
Nut SPQ C000576 Contact Us For Availability
NI
SPQ C003291 SPQ C003291 Contact Us For Availability
NI
Nut SPQ F420502 Contact Us For Availability
NI
DIN Coil SPQ F380986P Contact Us For Availability
NI
Hose Barb SPQ F421951 Contact Us For Availability
NI
Diaphragm and Guide Kit SPQ C000436P Contact Us For Availability
NI
Adapter SPQ G582P3 Contact Us For Availability
NI
DIN Valve Adapter Kit SPQ F8382301 Contact Us For Availability
NI
SPQ F200165 SPQ F200165 Contact Us For Availability
NI
Nipple SPQ C000999 Contact Us For Availability
NI
Valve Kit SPQ F8379501P Contact Us For Availability
NI
Washer SPQ C000590 Contact Us For Availability
NI
Nut SPQ C000273 Contact Us For Availability
NI
Shell Support SPQ C000093 Contact Us For Availability
NI
Heating Element SPQ 209/00562/30 Contact Us For Availability
NI
Air Trap Tube SPQ C001232 Contact Us For Availability
NI
Washer SPQ C000290 Contact Us For Availability
NI
Screw SPQ C000866 Contact Us For Availability
NI
Hose Clamp SPQ F200222 Contact Us For Availability
NI
Vacuum Breaker Plug SPQ C000680 Contact Us For Availability
NI
Supply Dispenser Hose SPQ C000379 Contact Us For Availability
NI
Motor Cable SPQ C000304 Contact Us For Availability
NI
Screw SPQ F430144 Contact Us For Availability
NI
Hose Clamp SPQ F200213 Contact Us For Availability
NI
Drain Harness SPQ C002613 Contact Us For Availability
NI
SPQ C003295 SPQ C003295 Contact Us For Availability
× ![]()
