Model Whirlpool INT21D8 REFRIGERATOR – Common Parts & Diagrams

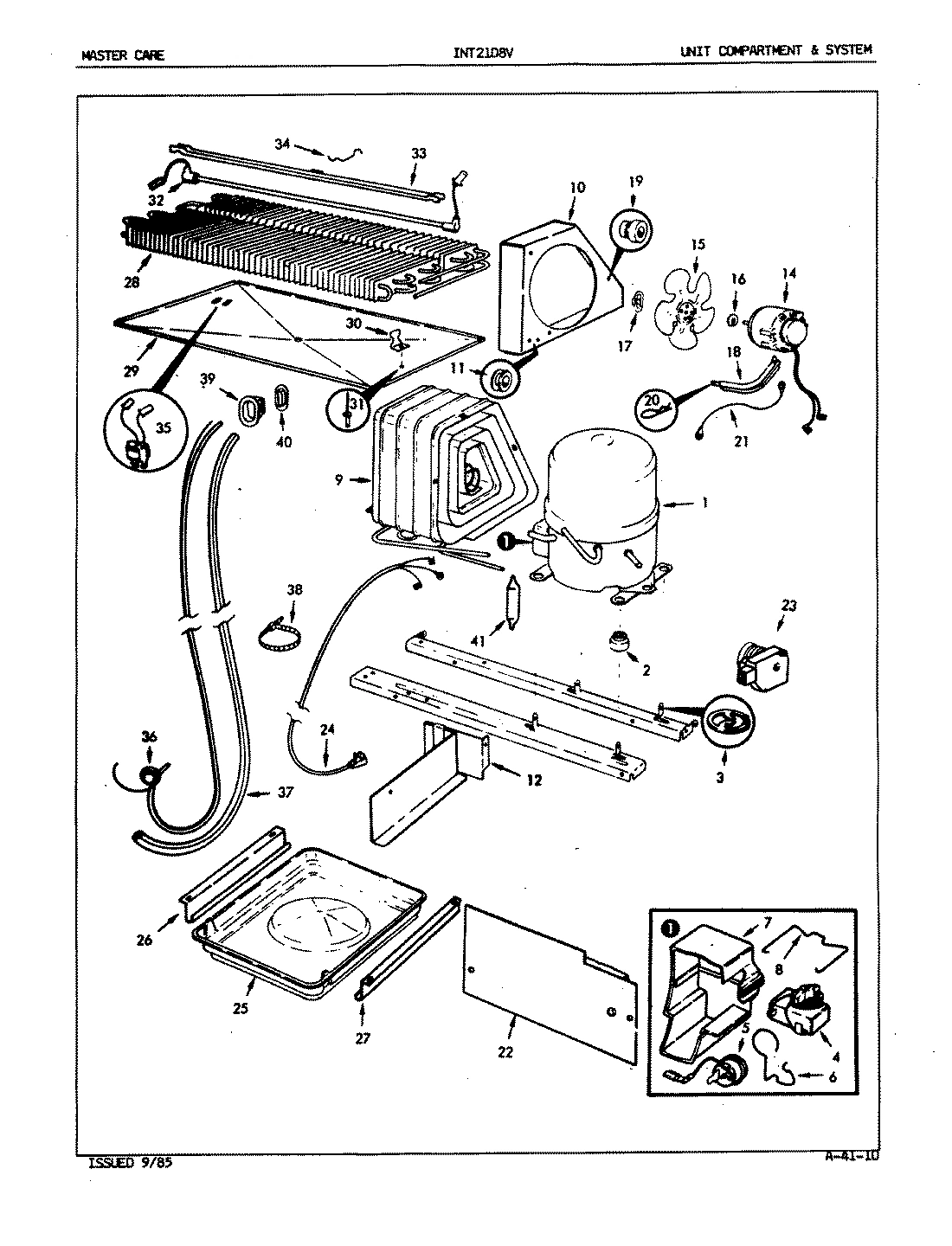

03 - UNIT COMPARTMENT & SYSTEM

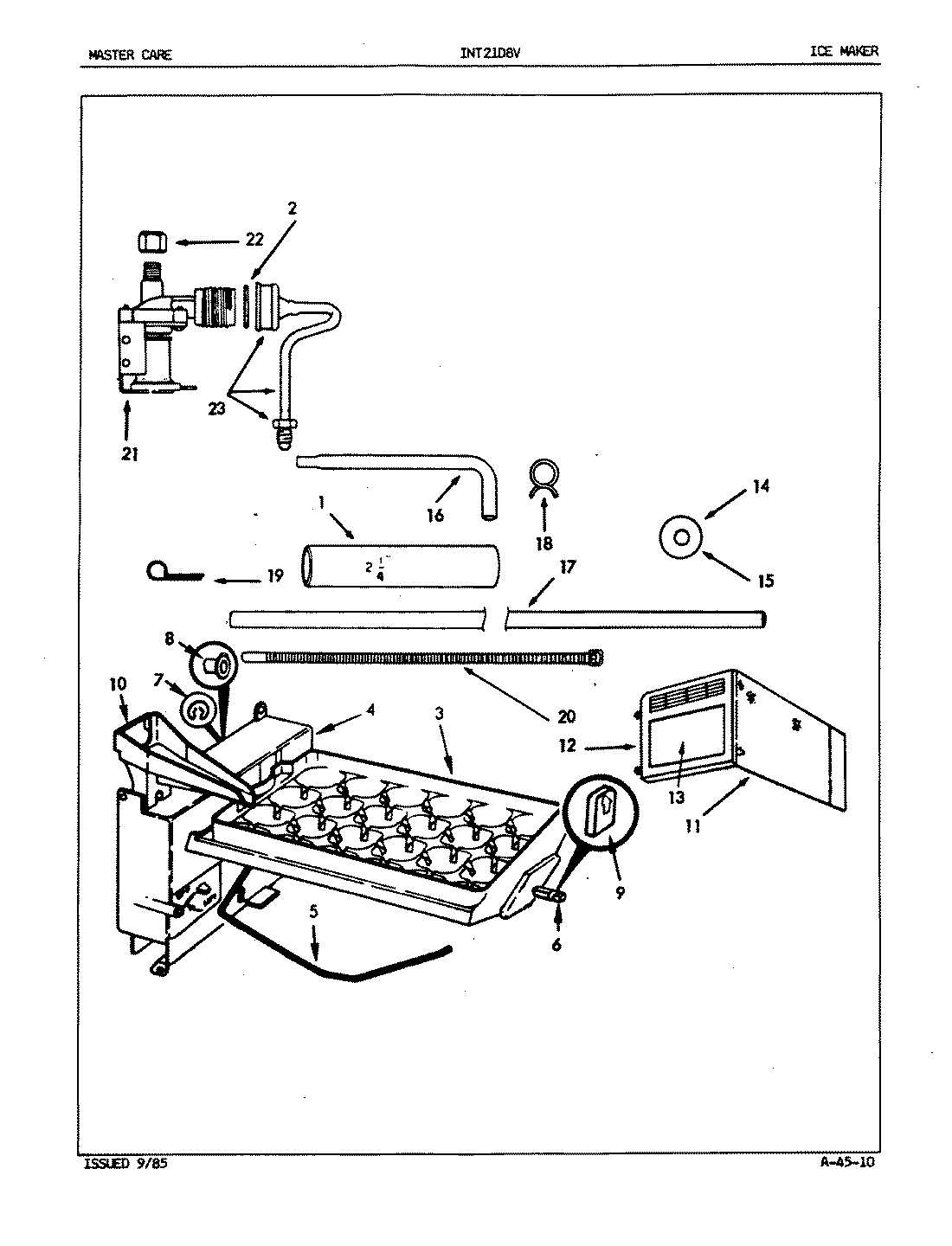

02 - ICE MAKER

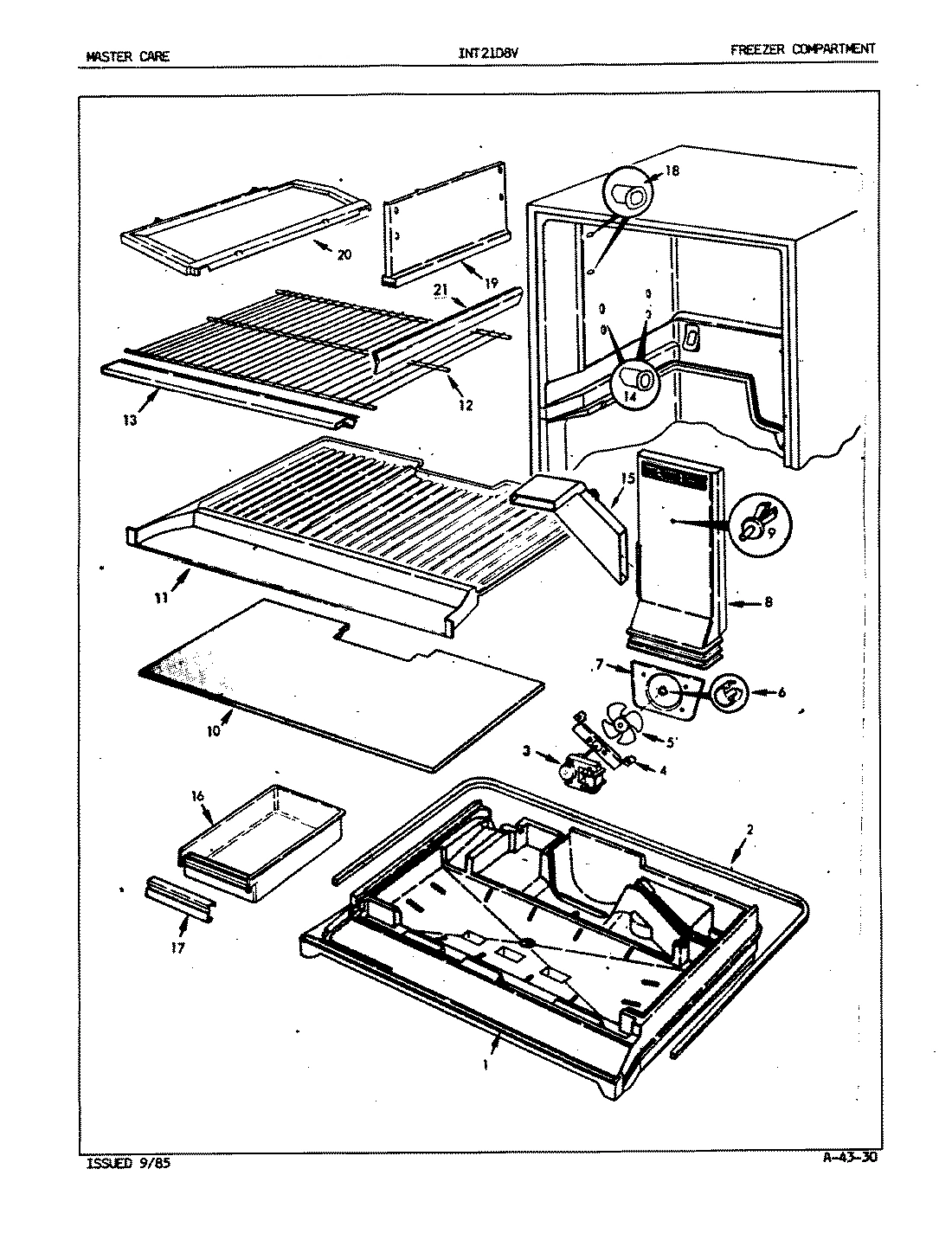

01 - FREEZER COMPARTMENT
Common parts from model Whirlpool INT21D8 REFRIGERATOR
1
SCREW WPL 4000221 Contact Us For Availability
1
TUBE, FILL WPL 584613 Contact Us For Availability
1
TRAY, DIVIDER WPL 605763 Contact Us For Availability
2
GROMMET, COMPRESSOR WPL 172454 Contact Us For Availability
2
WASHER, INLET TUBING NUT WPL 246855 Contact Us For Availability
2
SEAL WPL 655183 Contact Us For Availability
3
SCREW WPL 4140011 Contact Us For Availability
3
CLIP WPL 621651 Contact Us For Availability
3
TRAY, ICE WPL 596881 Contact Us For Availability
3
SCREW WPL 4060621 Contact Us For Availability
3
MOTOR, EVAPORATOR FAN WPL 5448210 Contact Us For Availability
4
RELAY, START WPL 632932 Contact Us For Availability
4
MECHANISM, ICE MAKER WPL RA437148 Contact Us For Availability
4
GROUND WIRE WPL 2967530 Contact Us For Availability
4
SCREW WPL 40001512 Contact Us For Availability
4
WIRE HARNESS WPL 605651 Contact Us For Availability
4
BRACKET, FAN MOTOR WPL 648561 Contact Us For Availability
5
OVERLOAD WPL 632942 Contact Us For Availability
5
SENSOR ARM WPL 606191 Contact Us For Availability
5
BLADE, EVAPORATOR FAN WPL 643591 Contact Us For Availability
6
CLIP WPL 632951 Contact Us For Availability
6
SHAFT, DRIVE WPL 653191 Contact Us For Availability
6
WASHER, SPRING WPL 420092900 Contact Us For Availability
7
COVER WPL 632962 Contact Us For Availability
7
RING, RETAINER WPL 587061 Contact Us For Availability
7
ORIFICE, FAN BLADE WPL 606082 Contact Us For Availability
8
CLIP WPL 632971 Contact Us For Availability
8
SPACER WPL 653171 Contact Us For Availability
8
TUNNEL, AIR WPL 660443 Contact Us For Availability
9
U-NUT, CONDENSER WPL 604081 Contact Us For Availability
9
CONDENSER WPL RA438711 Contact Us For Availability
9
CLIP, DRIVE SHAFT WPL 653181 Contact Us For Availability
9
PIN, AIR TUNNEL MTG. WPL 660451 Contact Us For Availability
10
CONDENSER SHROUD WPL 600212 Contact Us For Availability
10
SCREW WPL 400024103 Contact Us For Availability
10
SCREW WPL 405009103 Contact Us For Availability
10
SPOUT, FILL WPL 537481 Contact Us For Availability
10
COVER, EVAPORATOR----NA WPL 605572 Contact Us For Availability
11
GROMMET, CONDENSER TUBING WPL 533511 Contact Us For Availability
11
SIDE, ICE MAKER ENCLOSURE WPL 604261 Contact Us For Availability
11
BOTTOM, FRZ. WPL 604743 Contact Us For Availability
12
AIR DIVIDER WPL 606393 Contact Us For Availability
12
FRONT, ICE MAKER ENCLOSURE WPL 650701 Contact Us For Availability
12
SHELF WPL 6032327 Contact Us For Availability
13
SCREW WPL 400018103 Contact Us For Availability
13
SCREW WPL 402019103 Contact Us For Availability
13
TRIM WPL 604212 Contact Us For Availability
13
TRIM WPL 6041410 Contact Us For Availability
14
FAN MOTOR WPL 2805613 Contact Us For Availability
14
SCREW WPL 4030141 Contact Us For Availability
14
WASHER WPL 420051900 Contact Us For Availability
14
PLUG WPL 603211 Contact Us For Availability
14
FREEZER SHELF CUP WPL 655701 Contact Us For Availability
15
BLADE, CONDENSER FAN WPL 604851 Contact Us For Availability
15
WASHER WPL 420052900 Contact Us For Availability
15
IM DUCT ASM WPL 657591 Contact Us For Availability
16
WASHER WPL 199134 Contact Us For Availability
16
TUBE WPL 561254 Contact Us For Availability
16
PAN, STORAGE WPL 605881 Contact Us For Availability
17
CLIP WPL 199140 Contact Us For Availability
17
TUBING 62`` WPL 5560222 Contact Us For Availability
17
INSERT WPL 606141 Contact Us For Availability
18
BRACKET WPL 600361 Contact Us For Availability
18
CLAMP, SPRING WPL 603331 Contact Us For Availability
18
CUP, SHELF WPL 603131 Contact Us For Availability
19
GROMMET, BRACKET WPL 569331 Contact Us For Availability
19
SCREW WPL 4000161 Contact Us For Availability
19
CLAMP, TUBING WPL 535168 Contact Us For Availability
19
DIVIDER WPL 601166 Contact Us For Availability
20
CLIP, MOTOR BRACKET WPL 570511 Contact Us For Availability
20
WIRE TIE WPL 575763 Contact Us For Availability
20
ICE DIRECTOR WPL 606151 Contact Us For Availability
21
GROUND WIRE WPL 296753 Contact Us For Availability
21
VALVE, WATER WPL 601841 Contact Us For Availability
21
ICE DEFLECTOR WPL 634911 Contact Us For Availability
22
COVER WPL 660322 Contact Us For Availability
22
SCREW WPL 998645 Contact Us For Availability
22
NUT, COMPRESSION (1/4``) WPL 554191 Contact Us For Availability
23
SCREW WPL 4050071 Contact Us For Availability
23
TIMER, DEFROST WPL 653221 Contact Us For Availability
23
SCREW WPL 4010181 Contact Us For Availability
23
INLET TUBING ASSEMBLY WPL 602191 Contact Us For Availability
23
INSTALATION KIT WPL 634592 Contact Us For Availability
23
TUBING WPL 6500114 Contact Us For Availability
24
CORD, POWER WPL 528902 Contact Us For Availability
25
PAN, DRAIN WPL 298394 Contact Us For Availability
26
RAIL, DRAIN PAN (RT) WPL 605551 Contact Us For Availability
27
SCREW WPL 4000171 Contact Us For Availability
27
RAIL, DRAIN PAN (LT) WPL 605552 Contact Us For Availability
28
EVAPORATOR WPL RA4362011 Contact Us For Availability
29
TRAY, DRIP WPL 601018 Contact Us For Availability
30
BRACKET, COIL TO TRAY WPL 601081 Contact Us For Availability
31
RIVET WPL 263979 Contact Us For Availability
32
HEATER, DEFROST WPL 6010635 Contact Us For Availability
33
SHIELD, DEFROST HEATER WPL 601095 Contact Us For Availability
34
CLIP, DEFROST HEATER WPL 602631 Contact Us For Availability
35
THERMOSTAT, DEFROST WPL 5208524 Contact Us For Availability
36
HEAT EXCHANGER WPL RA4364514 Contact Us For Availability
37
COVER, HEAT EXCHANGER WPL 653981 Contact Us For Availability
39
GROMMET, TUBE ENTRY WPL 600681 Contact Us For Availability
40
RETAINER, ENTRY GROMMET WPL 600691 Contact Us For Availability
41
COVER WPL 600673 Contact Us For Availability
41
COVER, WIRE HARNESS WPL 601102 Contact Us For Availability
41
RETAINER, MAIN WIRE HARNESS WPL 601772 Contact Us For Availability
41
WIRE HARNESS WPL 6056713 Contact Us For Availability
× ![]()
