Model Maytag IMP2800A REFRIGERATOR – Common Parts & Diagrams

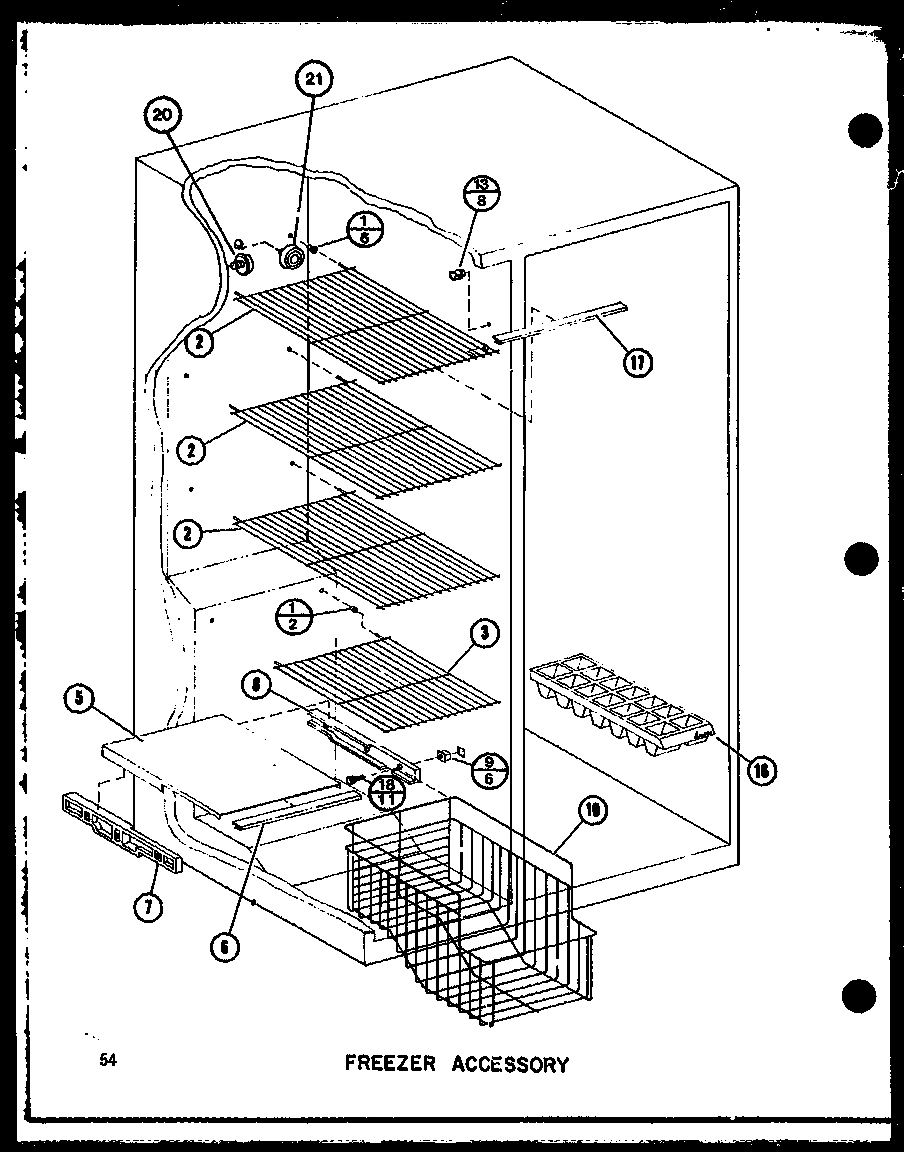

01 - FZ ACCESSORY

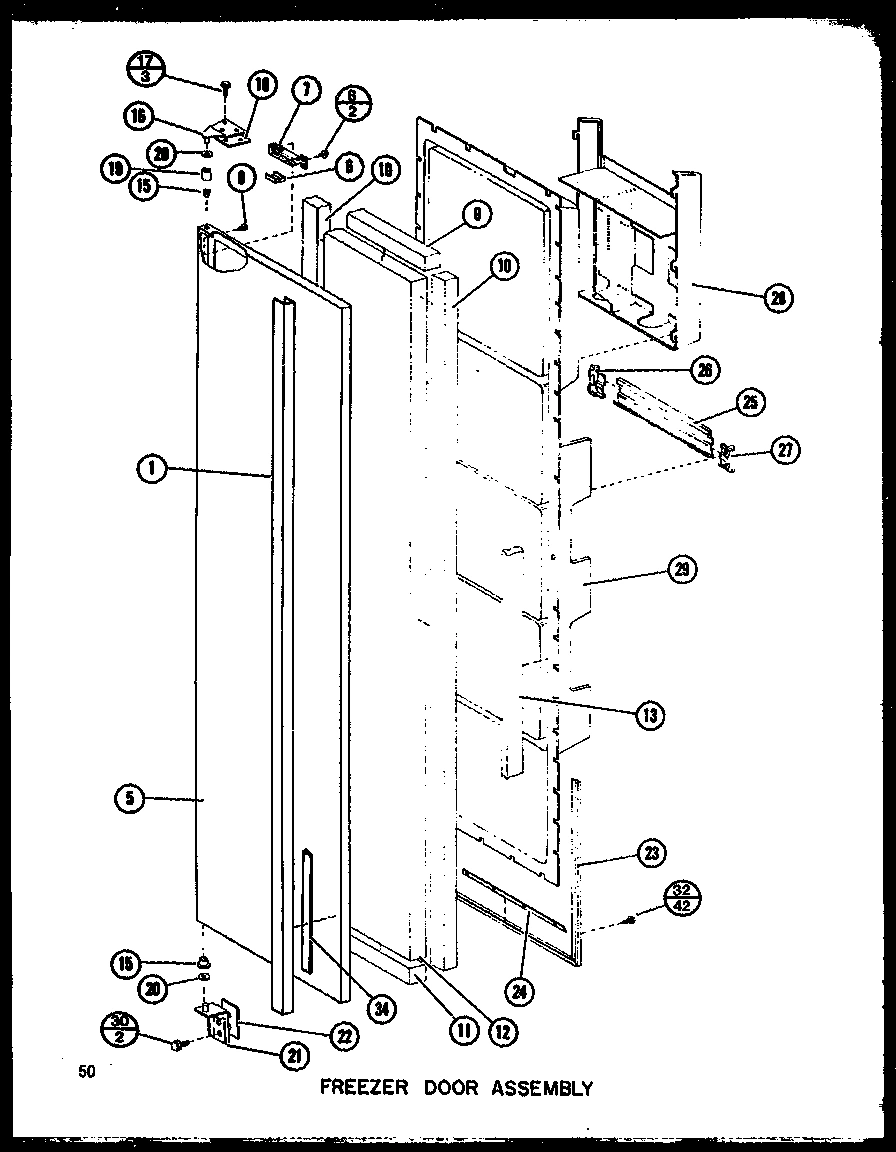

02 - FZ DOOR ASSY

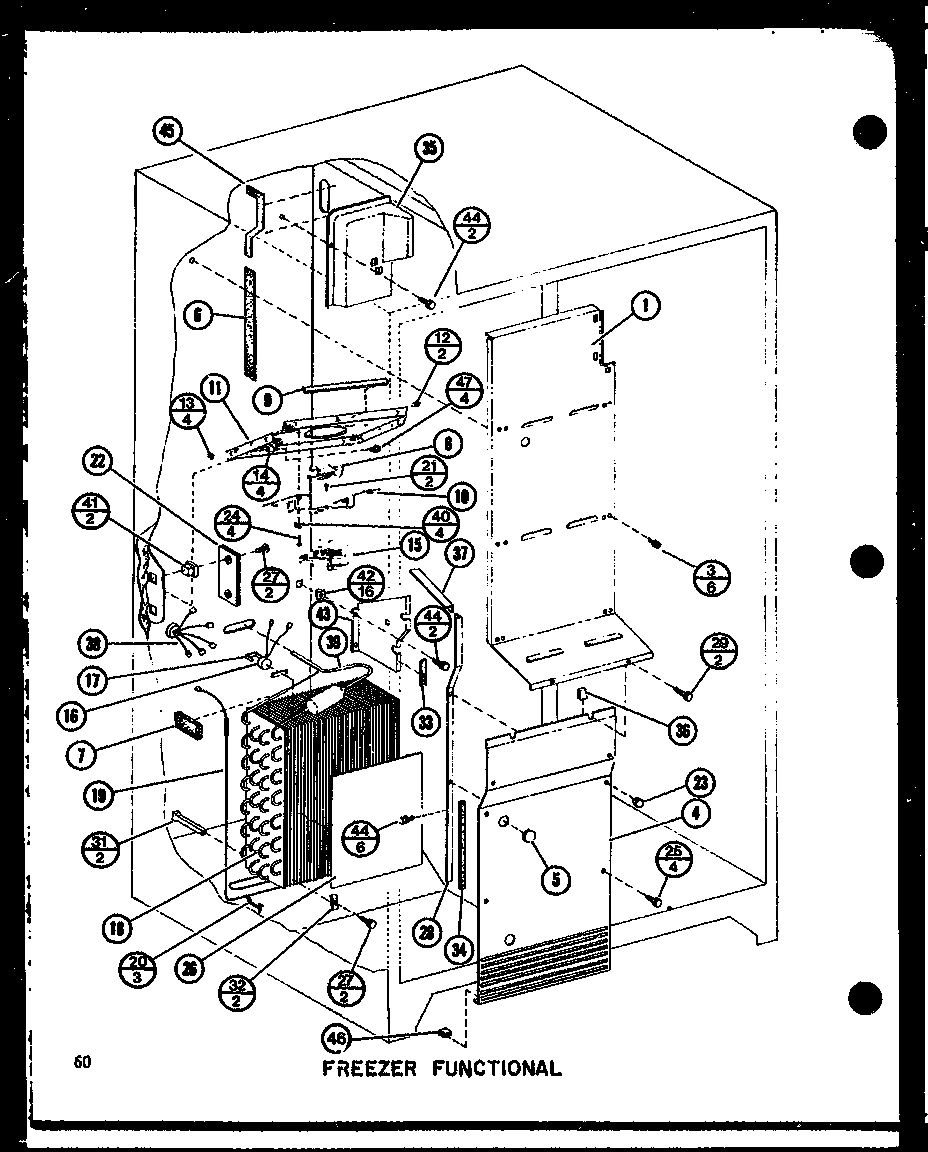

03 - FZ FUNCTIONAL

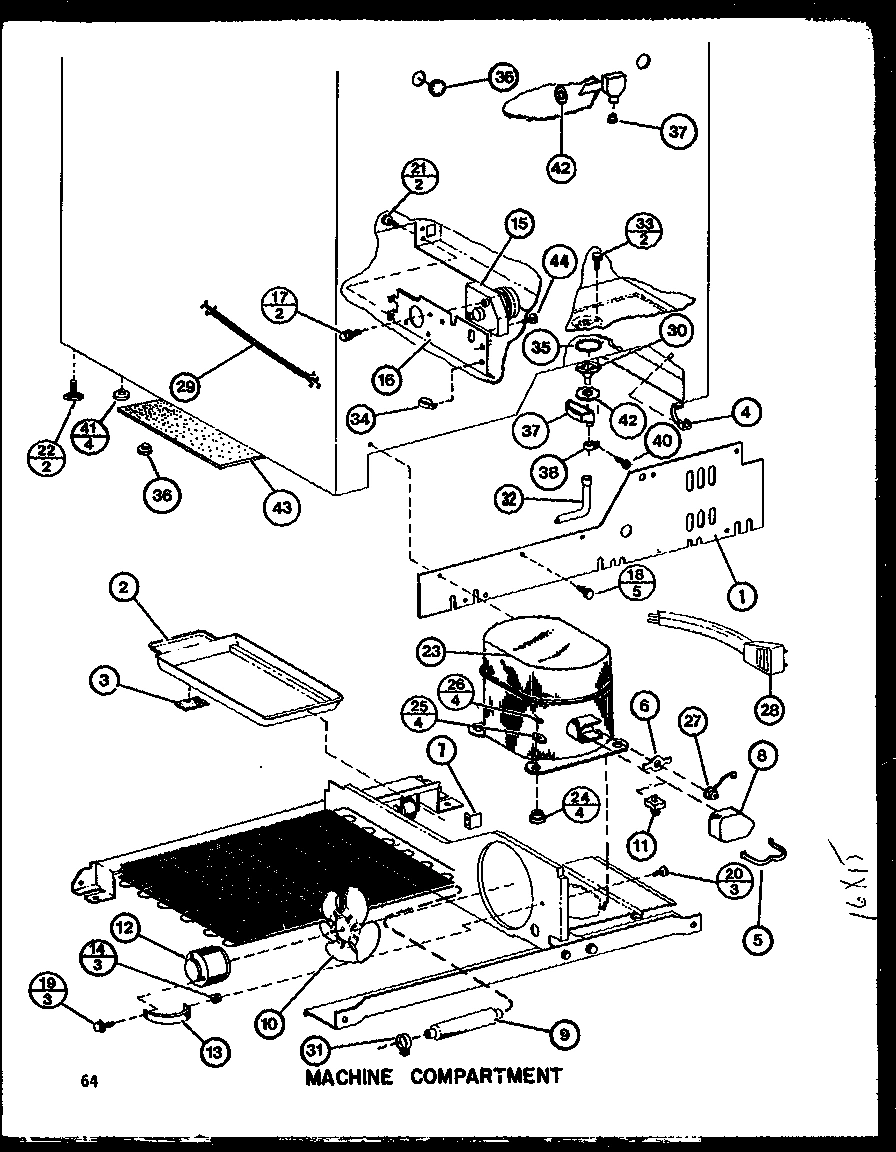

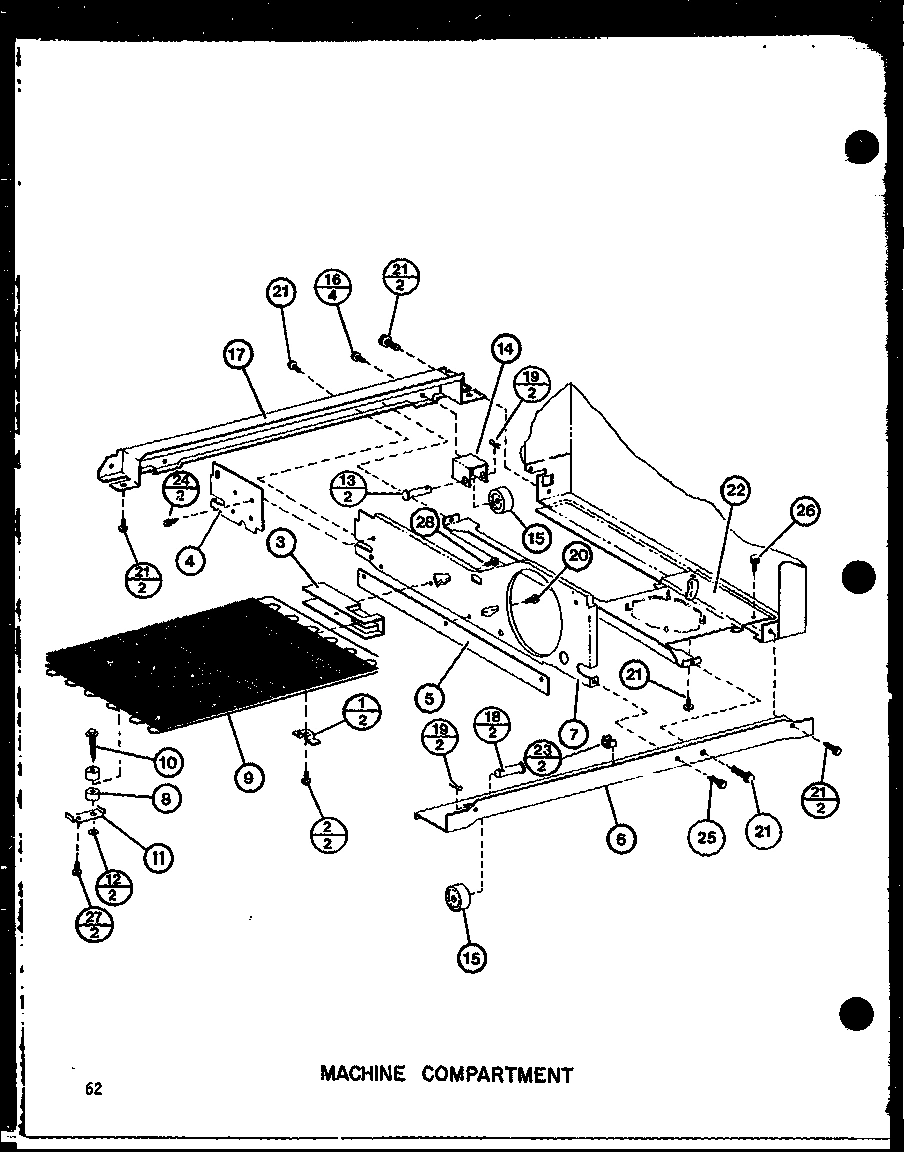

04 - MACHINE COMPARTMENT
05 - MACHINE COMPARTMENT

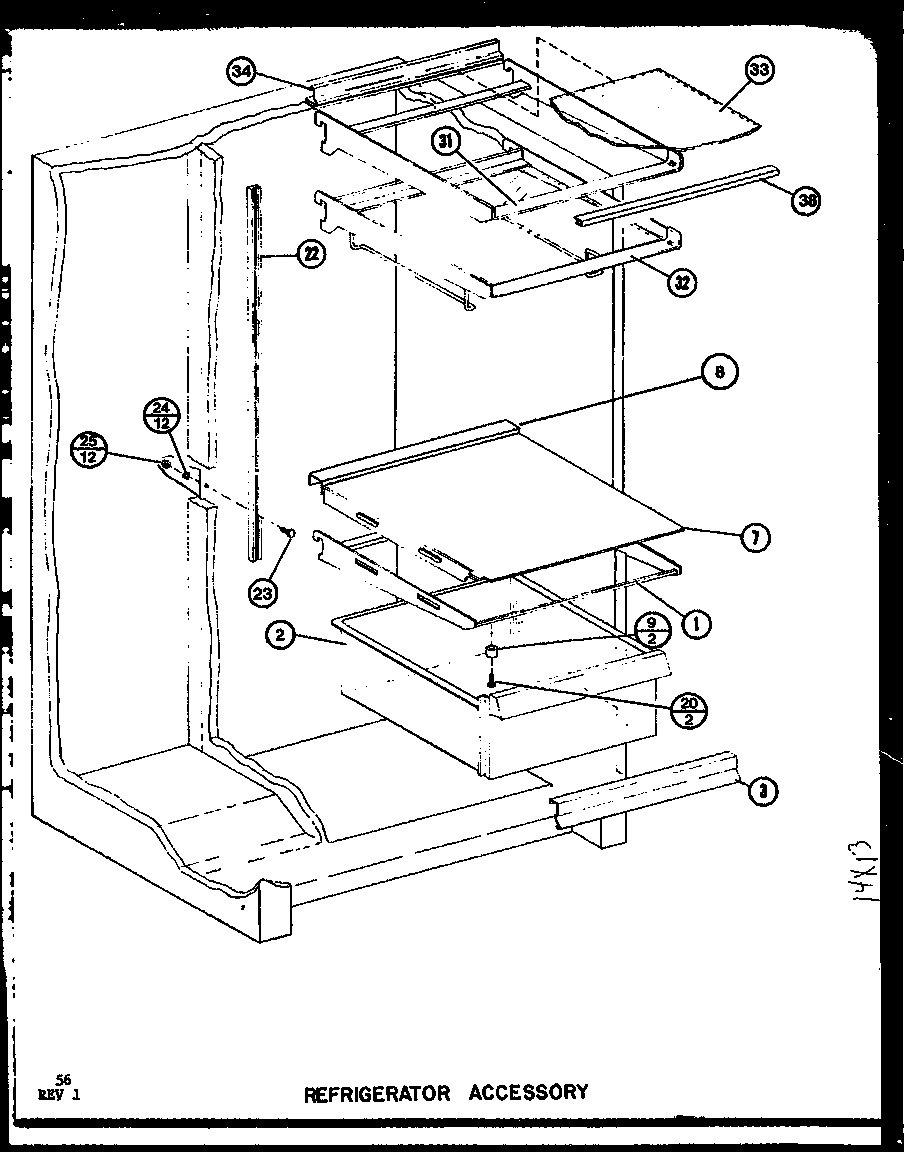

06 - REF ACCESSORY

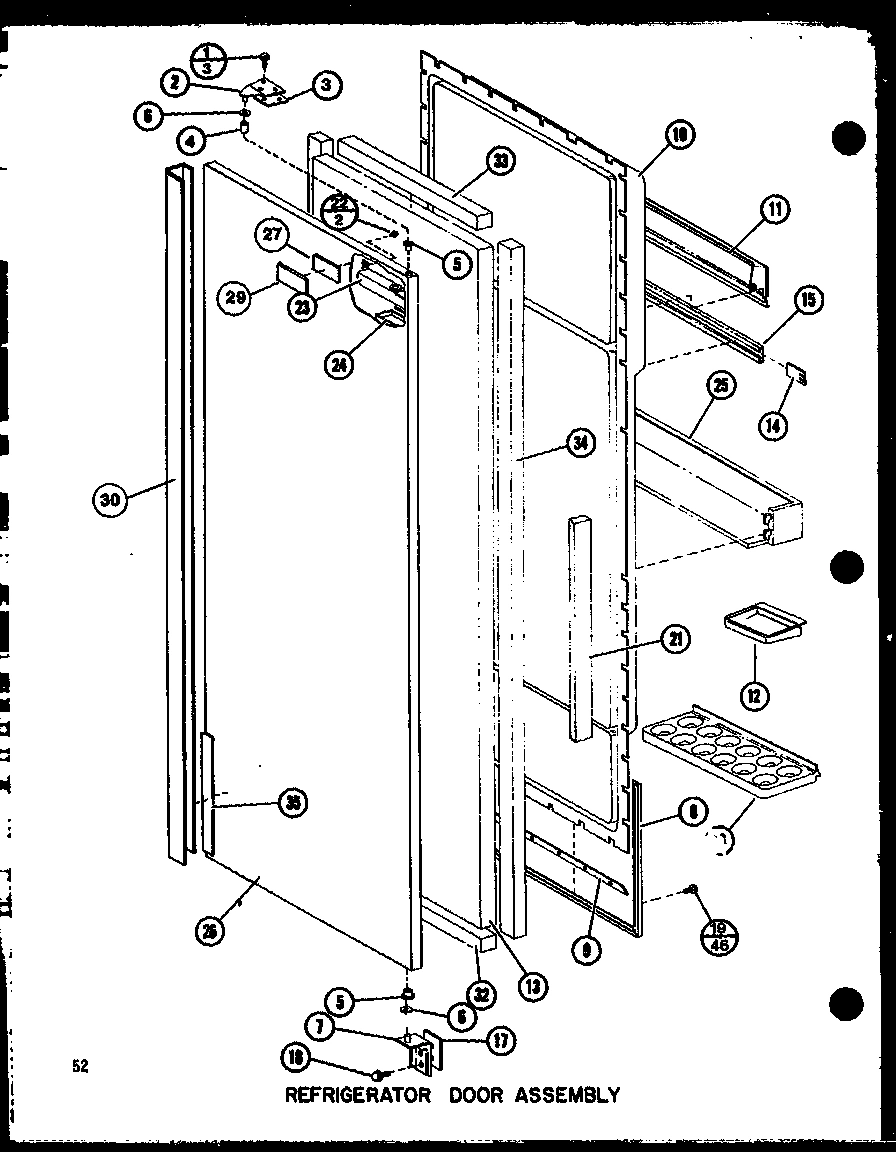

07 - REF DOOR ASSY

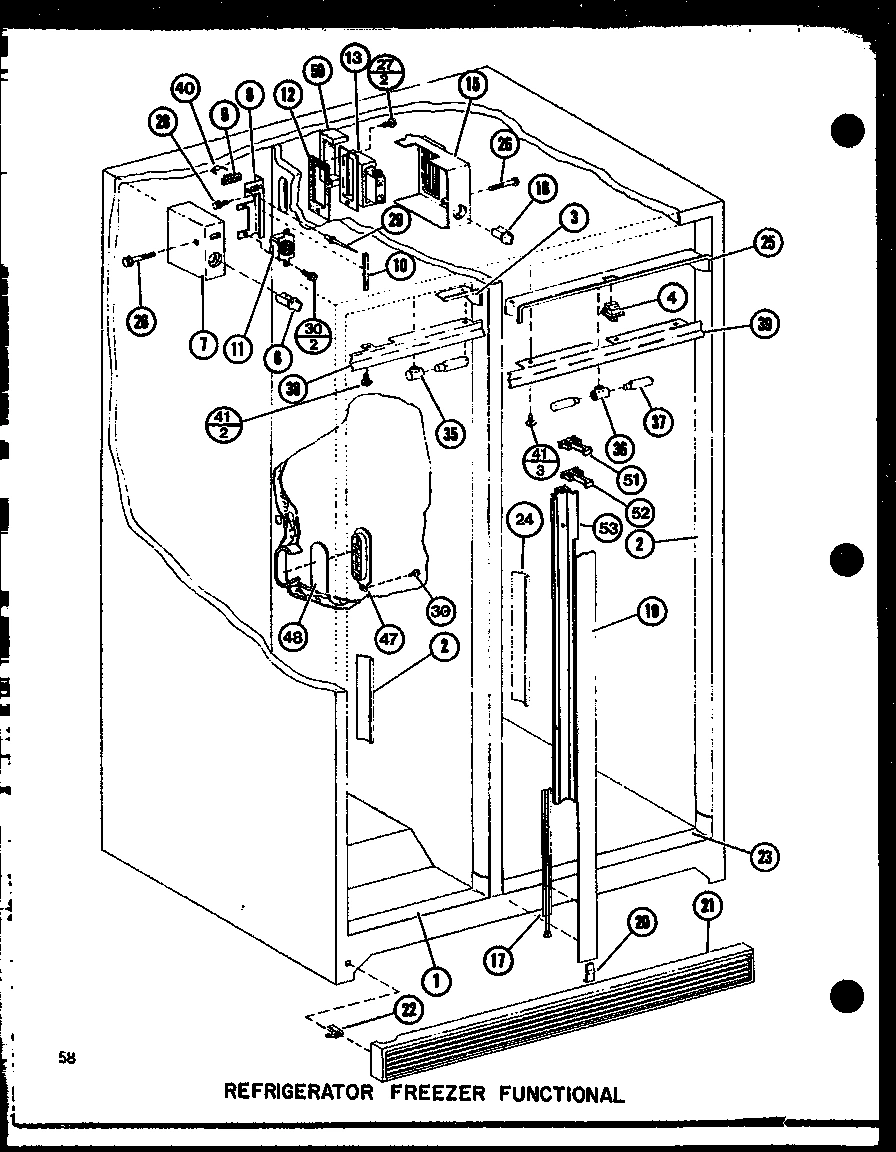

08 - REF FZ FUNCTIONAL
Common parts from model Maytag IMP2800A REFRIGERATOR
1
MAY A0387302 MAY A0387302 Contact Us For Availability
1
MAY M0257244 MAY M0257244 Contact Us For Availability
1
MAY D7482201 MAY D7482201 Contact Us For Availability
1
CLIP-COND MAY A3054502 Contact Us For Availability
1
MAY C3655004 MAY C3655004 Contact Us For Availability
1
MAY D7599701 MAY D7599701 Contact Us For Availability
1
BREAKER FRAME MAY D3952402 Contact Us For Availability
2
MAY D7549803 MAY D7549803 Contact Us For Availability
2
MAY C8816602 MAY C8816602 Contact Us For Availability
2
MAY M0211030 MAY M0211030 Contact Us For Availability
2
MAY D7001001 MAY D7001001 Contact Us For Availability
2
MAY D7298809 MAY D7298809 Contact Us For Availability
2
MAY D7510802 MAY D7510802 Contact Us For Availability
3
MAY D7549801 MAY D7549801 Contact Us For Availability
3
MAY A3270303 MAY A3270303 Contact Us For Availability
3
MAY M0230923 MAY M0230923 Contact Us For Availability
3
MAY B0544102 MAY B0544102 Contact Us For Availability
3
MAY B5691701 MAY B5691701 Contact Us For Availability
3
MAY C8831713 MAY C8831713 Contact Us For Availability
3
MAY D3953105 MAY D3953105 Contact Us For Availability
4
MAY A3132401 MAY A3132401 Contact Us For Availability
4
COVER/GASKET ASSY MAY D7484702 Contact Us For Availability
4
EXTENSION MAY B5619802 Contact Us For Availability
4
MAY A0319703 MAY A0319703 Contact Us For Availability
4
MAY C3680304 MAY C3680304 Contact Us For Availability
5
MAY B8303802 MAY B8303802 Contact Us For Availability
5
MAY D7624720 MAY D7624720 Contact Us For Availability
5
MAY D7624721 MAY D7624721 Contact Us For Availability
5
BEARING-HINGE MAY C8852201 Contact Us For Availability
5
BEARING, HINGE MAY C8852202 Contact Us For Availability
5
PLUG MAY A3069103 Contact Us For Availability
5
MAY B8314101 MAY B8314101 Contact Us For Availability
5
MAY A3041801 MAY A3041801 Contact Us For Availability
6
MAY B0596602 MAY B0596602 Contact Us For Availability
6
MAY M0274013 MAY M0274013 Contact Us For Availability
6
MAY M0274014 MAY M0274014 Contact Us For Availability
6
GASKET BAFFLE MAY B8328101 Contact Us For Availability
6
MAY C3611308 MAY C3611308 Contact Us For Availability
6
MAY C8916701 MAY C8916701 Contact Us For Availability
6
MAY D7009801 MAY D7009801 Contact Us For Availability
7
GLIDE BASKET-L K MAY D7442901 Contact Us For Availability
7
MAY B8314701 MAY B8314701 Contact Us For Availability
7
MAY D7641702 MAY D7641702 Contact Us For Availability
7
MAY A3125701 MAY A3125701 Contact Us For Availability
7
MAY D3951406 MAY D3951406 Contact Us For Availability
7
MAY D7250103 MAY D7250103 Contact Us For Availability
7
MAY D7345503 MAY D7345503 Contact Us For Availability
8
GLIDE BASKET-R K MAY D7442902 Contact Us For Availability
8
FAN-EVAP MAY C8795501 Contact Us For Availability
8
MAY B8346301 MAY B8346301 Contact Us For Availability
8
MAY B8346302 MAY B8346302 Contact Us For Availability
8
MAY B0551801 MAY B0551801 Contact Us For Availability
8
MAY C3613005 MAY C3613005 Contact Us For Availability
8
MAY D7092608 MAY D7092608 Contact Us For Availability
8
MAY C8850501 MAY C8850501 Contact Us For Availability
9
MAY B5629006 MAY B5629006 Contact Us For Availability
9
MAY D7025101 MAY D7025101 Contact Us For Availability
9
MAY B5757702 MAY B5757702 Contact Us For Availability
9
MAY D7455101 MAY D7455101 Contact Us For Availability
9
MAY B5715001 MAY B5715001 Contact Us For Availability
9
GLIDE PAN MAY A3213402 Contact Us For Availability
9
RETAINER GASKET MAY D7025102 Contact Us For Availability
9
MAY M0341201 MAY M0341201 Contact Us For Availability
10
MAY D7527002 MAY D7527002 Contact Us For Availability
10
BRACKET-EVAP MOTOR MAY C8829701 Contact Us For Availability
10
MAY M0257023 MAY M0257023 Contact Us For Availability
10
MAY M0257025 MAY M0257025 Contact Us For Availability
10
MAY B5742601 MAY B5742601 Contact Us For Availability
10
MAY D7698601 MAY D7698601 Contact Us For Availability
10
MAY A3030335 MAY A3030335 Contact Us For Availability
11
MAY B5629003 MAY B5629003 Contact Us For Availability
11
PLATE, FAN MOTOR MAY D7371506 Contact Us For Availability
11
MAY A3085401 MAY A3085401 Contact Us For Availability
11
RELAY K MAY C3689202 Contact Us For Availability
11
MAY D7511308 MAY D7511308 Contact Us For Availability
11
MAY C3615018 MAY C3615018 Contact Us For Availability
12
MAY B5612004 MAY B5612004 Contact Us For Availability
12
MAY M0292002 MAY M0292002 Contact Us For Availability
12
MAY M0286003 MAY M0286003 Contact Us For Availability
12
MAY D7584001 MAY D7584001 Contact Us For Availability
12
MAY D3799802 MAY D3799802 Contact Us For Availability
12
MAY B8315901 MAY B8315901 Contact Us For Availability
13
MAY B0595101 MAY B0595101 Contact Us For Availability
13
MAY YA0381501 MAY YA0381501 Contact Us For Availability
13
MAY M1205302 MAY M1205302 Contact Us For Availability
13
MAY C8938501 MAY C8938501 Contact Us For Availability
13
MAY B5612005 MAY B5612005 Contact Us For Availability
13
MAY C3643113 MAY C3643113 Contact Us For Availability
14
MAY A0381401 MAY A0381401 Contact Us For Availability
14
BRACKET, ROLLER MAY C8836305 Contact Us For Availability
14
MAY M0500107 MAY M0500107 Contact Us For Availability
14
MAY B0530006 MAY B0530006 Contact Us For Availability
15
MAY D7241412 MAY D7241412 Contact Us For Availability
15
MAY M0520102 MAY M0520102 Contact Us For Availability
15
TIMER MAY D7004112 Contact Us For Availability
15
MAY B8302618 MAY B8302618 Contact Us For Availability
15
MAY D7417303 MAY D7417303 Contact Us For Availability
16
ICE TRAY MAY D7725402 Contact Us For Availability
16
THERMOSTAT K MAY C8871201 Contact Us For Availability
16
MAY M0236230 MAY M0236230 Contact Us For Availability
16
MAY C3647902 MAY C3647902 Contact Us For Availability
16
MAY D7466605 MAY D7466605 Contact Us For Availability
16
MAY D7009802 MAY D7009802 Contact Us For Availability
17
MAY C8795201 MAY C8795201 Contact Us For Availability
17
MAY A3143602 MAY A3143602 Contact Us For Availability
17
MAY A3143603 MAY A3143603 Contact Us For Availability
17
CLIP THERMOSTAT K MAY B8325201 Contact Us For Availability
17
MAY D7003306 MAY D7003306 Contact Us For Availability
17
MAY M0230017 MAY M0230017 Contact Us For Availability
17
MULLION HEATER, 115V MAY C8867001 Contact Us For Availability
18
MAY M0246258 MAY M0246258 Contact Us For Availability
18
MAY R0170012 MAY R0170012 Contact Us For Availability
18
PIVOT PIN K MAY M1210001 Contact Us For Availability
18
MAY M0241118 MAY M0241118 Contact Us For Availability
19
MAY M0219717 MAY M0219717 Contact Us For Availability
19
HEATER-EVAP MAY D7479703 Contact Us For Availability
19
COTTER PIN K MAY M1200001 Contact Us For Availability
19
MAY M0220101 MAY M0220101 Contact Us For Availability
19
MAY C8810401 MAY C8810401 Contact Us For Availability
19
MULLION (ALMOND) MAY C8810405 Contact Us For Availability
20
MAY M0211018 MAY M0211018 Contact Us For Availability
20
MAY B5636301 MAY B5636301 Contact Us For Availability
20
CLIP-HEATER MAY B8324701 Contact Us For Availability
20
MAY M0221332 MAY M0221332 Contact Us For Availability
20
MAY M0230727 MAY M0230727 Contact Us For Availability
20
KEY MAY A3120801 Contact Us For Availability
21
MAY B5631801 MAY B5631801 Contact Us For Availability
21
MAY B0523561 MAY B0523561 Contact Us For Availability
21
MAY D7250104 MAY D7250104 Contact Us For Availability
21
MAY M0258055 MAY M0258055 Contact Us For Availability
21
MAY M0233844 MAY M0233844 Contact Us For Availability
21
MAY M0211530 MAY M0211530 Contact Us For Availability
21
MAY D7415414 MAY D7415414 Contact Us For Availability
22
MAY M1252001 MAY M1252001 Contact Us For Availability
22
TERM BOARD MAY B8326801 Contact Us For Availability
22
WELD COMP SUPT PNTD MAY C8820402 Contact Us For Availability
22
MAY M0266510 MAY M0266510 Contact Us For Availability
22
MAY D7103701 MAY D7103701 Contact Us For Availability
22
MAY M0117301 MAY M0117301 Contact Us For Availability
23
MAY D7022901 MAY D7022901 Contact Us For Availability
23
MAY D7251020 MAY D7251020 Contact Us For Availability
23
MAY M0310316 MAY M0310316 Contact Us For Availability
23
MAY M0110505 MAY M0110505 Contact Us For Availability
23
MAY D7672301 MAY D7672301 Contact Us For Availability
23
MAY M0258801 MAY M0258801 Contact Us For Availability
23
BREAKER FRAME MAY D3952603 Contact Us For Availability
24
MAY B5644001 MAY B5644001 Contact Us For Availability
24
MAY D7025103 MAY D7025103 Contact Us For Availability
24
MAY M0211020 MAY M0211020 Contact Us For Availability
24
MAY A3026101 MAY A3026101 Contact Us For Availability
24
MAY M0270508 MAY M0270508 Contact Us For Availability
24
BREAKER FRAME MAY D7510902 Contact Us For Availability
25
MAY D7415728 MAY D7415728 Contact Us For Availability
25
MAY M0216529 MAY M0216529 Contact Us For Availability
25
MAY M0590101 MAY M0590101 Contact Us For Availability
25
MAY M0281003 MAY M0281003 Contact Us For Availability
25
MAY D7511404 MAY D7511404 Contact Us For Availability
25
BREAKER FRAME MAY D3952505 Contact Us For Availability
26
MAY B5631705 MAY B5631705 Contact Us For Availability
26
GASKET, EVAP. MAY B8327901 Contact Us For Availability
26
MAY M0227147 MAY M0227147 Contact Us For Availability
26
MAY A3140801 MAY A3140801 Contact Us For Availability
26
MAY D7624702 MAY D7624702 Contact Us For Availability
26
MAY D7624706 MAY D7624706 Contact Us For Availability
26
MAY M0230926 MAY M0230926 Contact Us For Availability
27
MAY B5631706 MAY B5631706 Contact Us For Availability
27
MAY M0230917 MAY M0230917 Contact Us For Availability
27
MAY M0241132 MAY M0241132 Contact Us For Availability
27
MAY C3689105 MAY C3689105 Contact Us For Availability
27
MAY C8958901 MAY C8958901 Contact Us For Availability
28
MAY D7466205 MAY D7466205 Contact Us For Availability
28
ANGLE, EVAPORATOR COVER, LEFT MAY D7393501 Contact Us For Availability
28
ANGLE-EVAP COVER MAY D7393502 Contact Us For Availability
28
MAY M0237032 MAY M0237032 Contact Us For Availability
28
MAY R0157154 MAY R0157154 Contact Us For Availability
29
MAY D7020604 MAY D7020604 Contact Us For Availability
29
MAY M0226960 MAY M0226960 Contact Us For Availability
29
MAY D7655401 MAY D7655401 Contact Us For Availability
29
MAY C8959001 MAY C8959001 Contact Us For Availability
29
MAY M0010202 MAY M0010202 Contact Us For Availability
30
MAY D7573707 MAY D7573707 Contact Us For Availability
30
MAY M0211016 MAY M0211016 Contact Us For Availability
30
DRAIN CUP MAY C8820601 Contact Us For Availability
31
MAY C8830701 MAY C8830701 Contact Us For Availability
31
MAY M0104002 MAY M0104002 Contact Us For Availability
31
FRAME, CANTILEVER MAY D7601401 Contact Us For Availability
32
CLIP-HEATER MAY B5784101 Contact Us For Availability
32
MAY D7384701 MAY D7384701 Contact Us For Availability
32
MAY B5629008 MAY B5629008 Contact Us For Availability
33
MAY B5757703 MAY B5757703 Contact Us For Availability
33
MAY B5780703 MAY B5780703 Contact Us For Availability
33
MAY B0534409 MAY B0534409 Contact Us For Availability
34
MAY B5629002 MAY B5629002 Contact Us For Availability
34
MAY B5759608 MAY B5759608 Contact Us For Availability
34
MAY M0321401 MAY M0321401 Contact Us For Availability
34
MAY C8831802 MAY C8831802 Contact Us For Availability
35
MAY R0195021 MAY R0195021 Contact Us For Availability
35
AIR TUNNEL MAY D7484901 Contact Us For Availability
35
MAY M0275535 MAY M0275535 Contact Us For Availability
35
MAY B5637601 MAY B5637601 Contact Us For Availability
36
MAY B8324801 MAY B8324801 Contact Us For Availability
36
MAY B5637701 MAY B5637701 Contact Us For Availability
37
ANGLE-FR BAFFLE MAY B5795201 Contact Us For Availability
37
MAY M0310319 MAY M0310319 Contact Us For Availability
37
MAY A3079001 MAY A3079001 Contact Us For Availability
38
MAY D7565502 MAY D7565502 Contact Us For Availability
38
MAY M0102303 MAY M0102303 Contact Us For Availability
38
MAY C8774503 MAY C8774503 Contact Us For Availability
38
MAY D3954208 MAY D3954208 Contact Us For Availability
39
MAY D7646501 MAY D7646501 Contact Us For Availability
39
MAY D3954210 MAY D3954210 Contact Us For Availability
40
MAY A4573802 MAY A4573802 Contact Us For Availability
40
MAY M0305301 MAY M0305301 Contact Us For Availability
41
MAY M0580002 MAY M0580002 Contact Us For Availability
41
MAY A3080001 MAY A3080001 Contact Us For Availability
41
MAY M0211001 MAY M0211001 Contact Us For Availability
42
MAY M0580009 MAY M0580009 Contact Us For Availability
43
BLOCK AIR COIL MAY C8868301 Contact Us For Availability
43
MAY D7525101 MAY D7525101 Contact Us For Availability
44
MAY M0233103 MAY M0233103 Contact Us For Availability
45
GASKET AIR TUNNEL MAY B8320501 Contact Us For Availability
46
MAY M0117802 MAY M0117802 Contact Us For Availability
47
MAY M0211019 MAY M0211019 Contact Us For Availability
47
MAY C3588305 MAY C3588305 Contact Us For Availability
48
MAY B8344402 MAY B8344402 Contact Us For Availability
50
MAY C8860701 MAY C8860701 Contact Us For Availability
51
MAY B0594201 MAY B0594201 Contact Us For Availability
52
SUPPORT MULLION MAY B5608001 Contact Us For Availability
53
MAY B5626901 MAY B5626901 Contact Us For Availability
NI
MAY B5752408 MAY B5752408 Contact Us For Availability
NI
RETURN AIR ASSEMBLY MAY B8344901 Contact Us For Availability
× ![]()
