Model Whirlpool IME28300 24`` ELECTRIC FREESTANDING RANGE STANDARD CLEAN OV – Common Parts & Diagrams

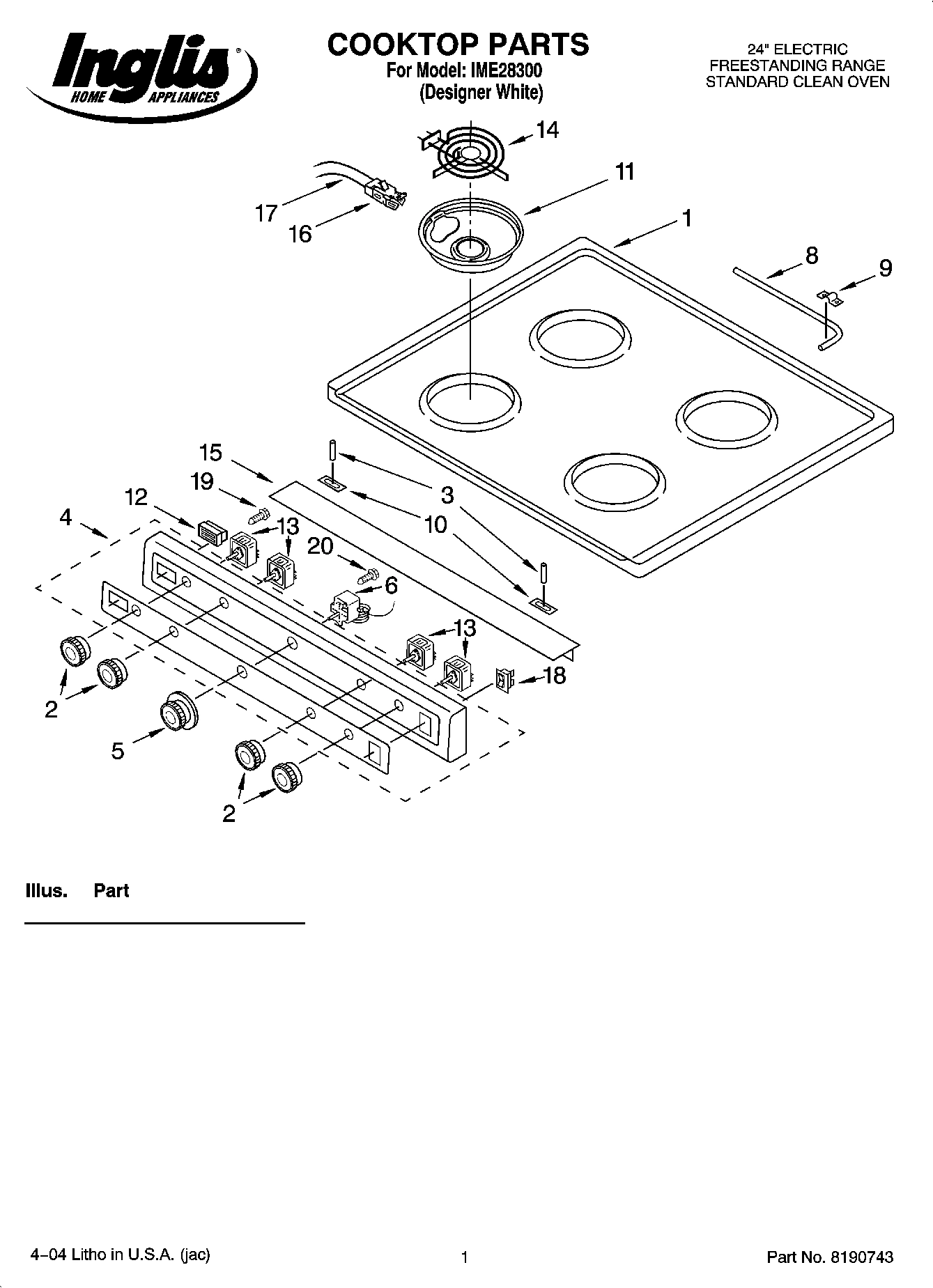

01 - COOKTOP PARTS

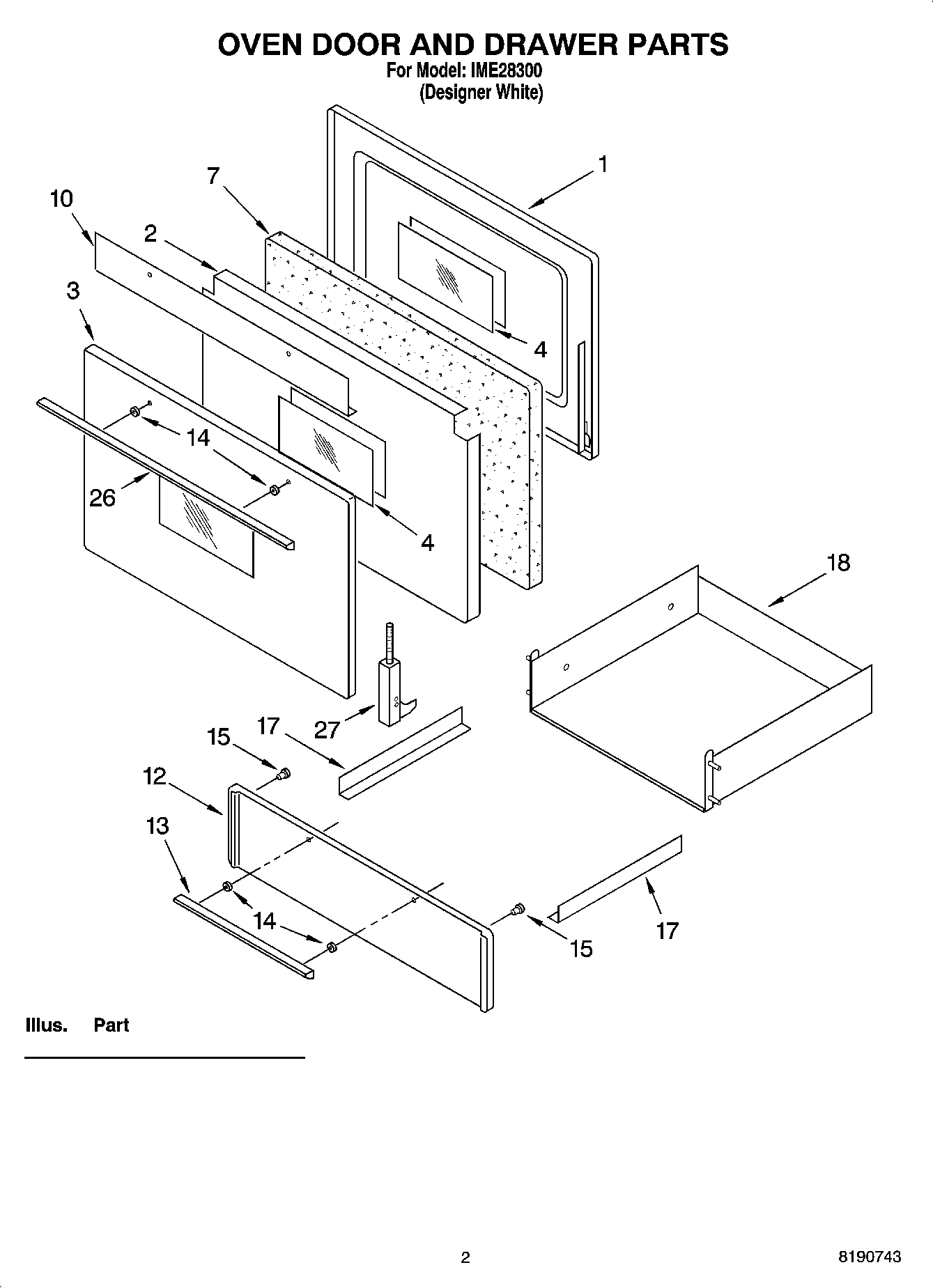

02 - OVEN DOOR AND DRAWER PARTS
03 - CHASSIS PARTS
04 - BACKGUARD PARTS, MISCELLANEOUS PARTS
Common parts from model Whirlpool IME28300 24`` ELECTRIC FREESTANDING RANGE STANDARD CLEAN OV
Harness, Wire (14 Ga. Blk Jumpr) WPL 8190704 Contact Us For Availability
Harness, Wire (18 GA Blk Jumper) WPL 8190705 Contact Us For Availability
Harness, Wire (14 Ga Red Jumper) WPL 8190706 Contact Us For Availability
Wire, Black Bake WPL 8190707 Contact Us For Availability
Wire, Yellow Brlr WPL 8190708 Contact Us For Availability
Wire, Blue Switch WPL 8190709 Contact Us For Availability
Wire, Orange Ind. WPL 8190710 Contact Us For Availability
Wire, Red Ind. WPL 8190711 Contact Us For Availability
Harness, Wire (L1 to Term Block) WPL 8190712 Contact Us For Availability
Harness, Wire (Red Bake/Broil) WPL 8190713 Contact Us For Availability
Harness, Wire Lmt Swtch/Term Blk WPL 8190714 Contact Us For Availability
Template, Anti-tip WPL 8190751 Contact Us For Availability
Cord, Power WPL 8190754 Contact Us For Availability
Relief, Strain (Power Cord) WPL 8190755 Contact Us For Availability
Screw (Strain Relief) WPL 8190756 Contact Us For Availability
Use & Care Guide WPL 9757962 Contact Us For Availability
Inst Instructions WPL 9758159 Contact Us For Availability
WIRING HARNESS PARTS WPL ARI76317A2 Contact Us For Availability
LITERATURE PARTS WPL ARI76318A4 Contact Us For Availability
1
Liner, Door WPL 8190729 Contact Us For Availability
1
CLIP, THERMOBULB WPL 4364130 Contact Us For Availability
1
Trim, Top WPL 8190715 Contact Us For Availability
2
Knob, Burner (4) WPL 4364484 Contact Us For Availability
2
Retainer, Insul WPL 8190728 Contact Us For Availability
2
Endcap (Left) WPL 8190716 Contact Us For Availability
2
Endcap (Right) WPL 8190717 Contact Us For Availability
3
Panel, Oven Door WPL 8190727 Contact Us For Availability
4
Glass, Window WPL 4364327 Contact Us For Availability
4
Support, Backguard WPL 8190718 Contact Us For Availability
5
Knob, Thermostat WPL 4364482 Contact Us For Availability
5
Bottom, Upper Box WPL 8190686 Contact Us For Availability
5
Cover, Rear Bkgd WPL 8190719 Contact Us For Availability
6
Thermostat WPL 8190613 Contact Us For Availability
6
Screw, 10 x 1/2 WPL 4364255 Contact Us For Availability
6
Bottom, Lower Box WPL 8190687 Contact Us For Availability
6
Glass, Backguard WPL 8190720 Contact Us For Availability
7
Insulation, Door WPL 4364230 Contact Us For Availability
7
Screw, 8 x 1/2 WPL 4364246 Contact Us For Availability
7
Bottom, Main WPL 4364457 Contact Us For Availability
7
Backsplash WPL 8190721 Contact Us For Availability
8
Cover, Rear WPL 8190688 Contact Us For Availability
8
Timer-Clock WPL 4364488 Contact Us For Availability
9
Panel, Side WPL 8190689 Contact Us For Availability
9
Outlet, Electrical WPL 8190722 Contact Us For Availability
10
Shield, Heat WPL 8190733 Contact Us For Availability
10
Back, Main WPL 8190690 Contact Us For Availability
10
Button, Timer WPL 8190723 Contact Us For Availability
11
Breaker, Circuit WPL 8190724 Contact Us For Availability
12
Indicator, Surf/Ov WPL 4364345 Contact Us For Availability
12
Panel, Drawer WPL 8190698 Contact Us For Availability
12
Insulation, Wrap WPL 4364205 Contact Us For Availability
12
Harness, Backguard WPL 8190725 Contact Us For Availability
13
Switch, Infinite (Use W/6`` Element) WPL 4364179 Contact Us For Availability
13
Handle, Drawer WPL 8190699 Contact Us For Availability
13
Baffle, Heat WPL 4364135 Contact Us For Availability
13
Relief, Strain WPL 4364342 Contact Us For Availability
14
Element, Surface (8`` (1)) WPL 4364175 Contact Us For Availability
14
Screw, 10-24 x 3/8 WPL 4364057 Contact Us For Availability
14
Spacer, Handle WPL 4364465 Contact Us For Availability
14
Leg, Leveler WPL 4364080 Contact Us For Availability
14
Pin, Hinge WPL 4364102 Contact Us For Availability
15
Cover, Switch WPL 8190685 Contact Us For Availability
15
Bumper, Drawer WPL 4364305 Contact Us For Availability
15
Vent, Oven Tube WPL 4364207 Contact Us For Availability
16
Screw, 6-32 x 1/4 WPL 4364043 Contact Us For Availability
16
Brkt, Receptacle WPL 4364177 Contact Us For Availability
16
Sleeve, Harness WPL 4364344 Contact Us For Availability
17
Receptacle, Elmnt (Includes Wires) (Yellow (R WPL 8190747 Contact Us For Availability
17
Receptacle, Elmnt (Includes Wires) (Blue (Lef WPL 8190748 Contact Us For Availability
17
Receptacle, Elmnt (Includes Wires) (Black (Rt WPL 8190749 Contact Us For Availability
17
Receptacle, Elmnt (Includes Wires) (Red (Left WPL 8190750 Contact Us For Availability
17
Broiler Drawer (Right) WPL 4364364 Contact Us For Availability
17
Gasket, Oven Top WPL 4364461 Contact Us For Availability
17
Wire, Jumper WPL 8190726 Contact Us For Availability
18
Switch, Oven Light WPL 8190703 Contact Us For Availability
18
Body, Drawer WPL 8190700 Contact Us For Availability
18
Gasket, Oven Side WPL 4364208 Contact Us For Availability
19
Screw WPL 8190702 Contact Us For Availability
19
Frame, Front WPL 8190695 Contact Us For Availability
20
Rack, Oven WPL 4364462 Contact Us For Availability
21
Bottom, Oven WPL 8190696 Contact Us For Availability
22
Element, Broil WPL 4364185 Contact Us For Availability
23
Element, Bake WPL 4364186 Contact Us For Availability
23
Screw, 8-18 x 3/8 WPL 4364151 Contact Us For Availability
25
Screw, 8A x 1 WPL 4364256 Contact Us For Availability
25
Hex Nut, 10-32 WPL 4364257 Contact Us For Availability
26
Handle, Oven Door WPL 8190730 Contact Us For Availability
26
Screw, Handle WPL 8190731 Contact Us For Availability
26
Insulation, Bottom WPL 4364459 Contact Us For Availability
27
Hinge, Oven Door WPL 8190732 Contact Us For Availability
27
Retainer, Bottom WPL 8190697 Contact Us For Availability
29
Screw, 10-12 x 1/2 WPL 4364153 Contact Us For Availability
29
Brace, Back WPL 4364133 Contact Us For Availability
31
Support, Rt. Rear WPL 4364090 Contact Us For Availability
32
Support, Lt. Rear WPL 4364089 Contact Us For Availability
33
Grill, Broiler WPL 4364065 Contact Us For Availability
34
Pan, Broiler WPL 4364216 Contact Us For Availability
36
Receptacle, Light WPL 4364091 Contact Us For Availability
37
Ring, Oven Light WPL 4364093 Contact Us For Availability
38
Guard, Oven Light WPL 4364350 Contact Us For Availability
39
Screw, Shoulder WPL 8190701 Contact Us For Availability
× ![]()
