Model Electrolux IM5 ICE MAKER – Common Parts & Diagrams

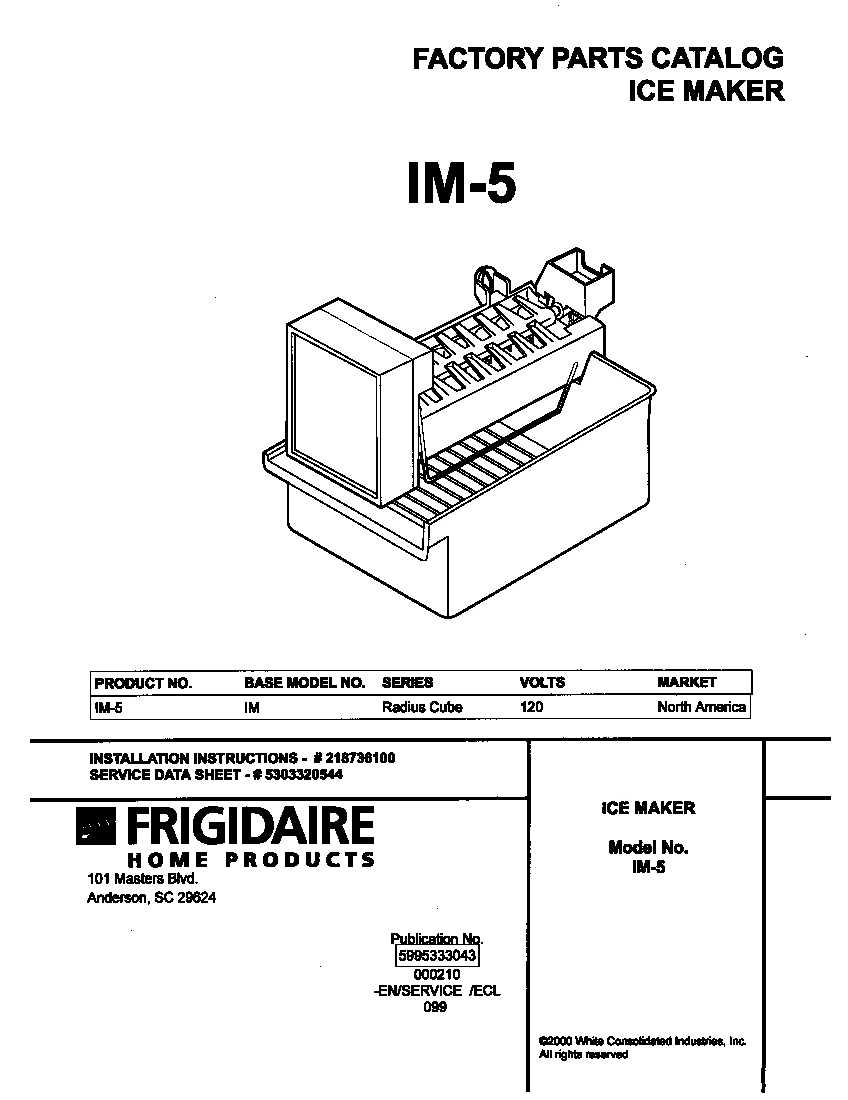

01 - COVER

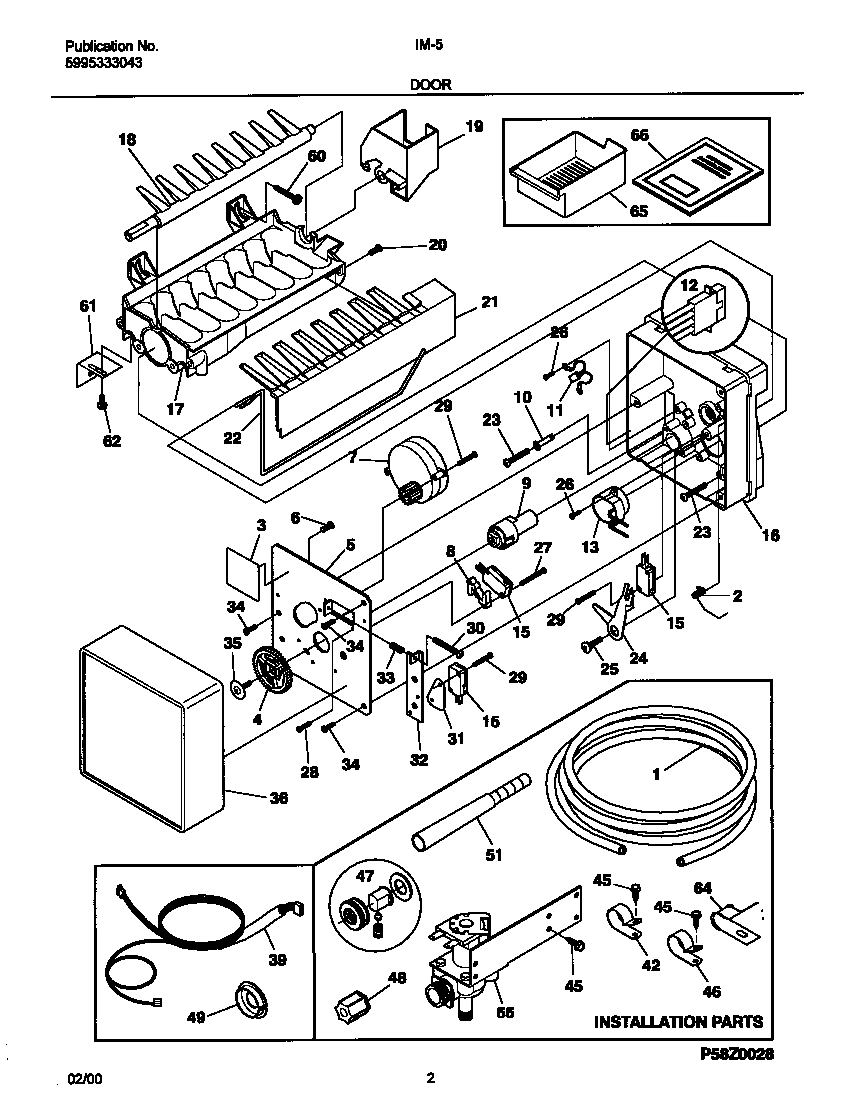

02 - DOOR
Common parts from model Electrolux IM5 ICE MAKER
*80960
CONNECTOR PLUG,WIRING HARNE WCI 3206321 Contact Us For Availability
*80961
TUBE-WATER,ICE MOLD FILL,ELBO WCI 215454600 Contact Us For Availability
12
WIRING HARNESS,ICE MAKER,INTE WCI 3206349 Contact Us For Availability
13
Thermostat Assy,ice maker WCI 3206322 Contact Us For Availability
18
EJECTOR-ICE,18,MID-SOUTH ELEC WCI 3206328 Contact Us For Availability
19
BEARING & INLET,19,MID-SOUTH WCI 3206330 Contact Us For Availability
20
SCREW,8-32 X 0.375,20,MID-SOU + WCI 5304408581 Contact Us For Availability
21
ICE STRIPPER,21,MID-SOUTH ELE WCI 3206332 Contact Us For Availability
22
SHUT-OFF ARM,22,MID-SOUTH ELE WCI 3206333 Contact Us For Availability
23
SCREW,8-32 X 0.875,MOLD-TO-SU WCI 5304408582 Contact Us For Availability
25
SCREW,8-18 X 0.562,LEVER ARM WCI 3206336 Contact Us For Availability
26
SCREW-THERMO/SPRT,4-24 X 0.37 WCI 3206337 Contact Us For Availability
27
SCREW,4-40 X 1.000,HOLD SWITC WCI 3206338 Contact Us For Availability
28
SCREW-TIMING STOP,4-40 X 0.37 WCI 3206339 Contact Us For Availability
29
SCREW,4-24 X 0.750,(6),29,MID WCI 3206323 Contact Us For Availability
30
SCREW-TIMING ADJ,8-32 X 1.000 WCI 3206341 Contact Us For Availability
31
INSULATOR,31,MID-SOUTH ELEC WCI 3206342 Contact Us For Availability
32
PLATE-VALVE SWITCH,32,MID-SOU WCI 3206343 Contact Us For Availability
33
SPRING-TIMING ADJ,33,MID-SOUT WCI 5304408583 Contact Us For Availability
35
SCREW,35,MID-SOUTH ELEC,75107 WCI 5304408585 Contact Us For Availability
36
COVER-ICE MAKER,36,MID-SOUTH WCI 3206347 Contact Us For Availability
39
WIRING HARNESS,ICE MAKER,EXTE WCI 5303289065 Contact Us For Availability
47
WCI 3206360 WCI 3206360 Contact Us For Availability
48
WCI 5308000200 WCI 5308000200 Contact Us For Availability
51
WCI 215811600 WCI 215811600 Contact Us For Availability
66
WCI 218736100 WCI 218736100 Contact Us For Availability
× ![]()
