Model Ipso IHZ065Z Washer – Common Parts & Diagrams
Frame
Bearing Housing

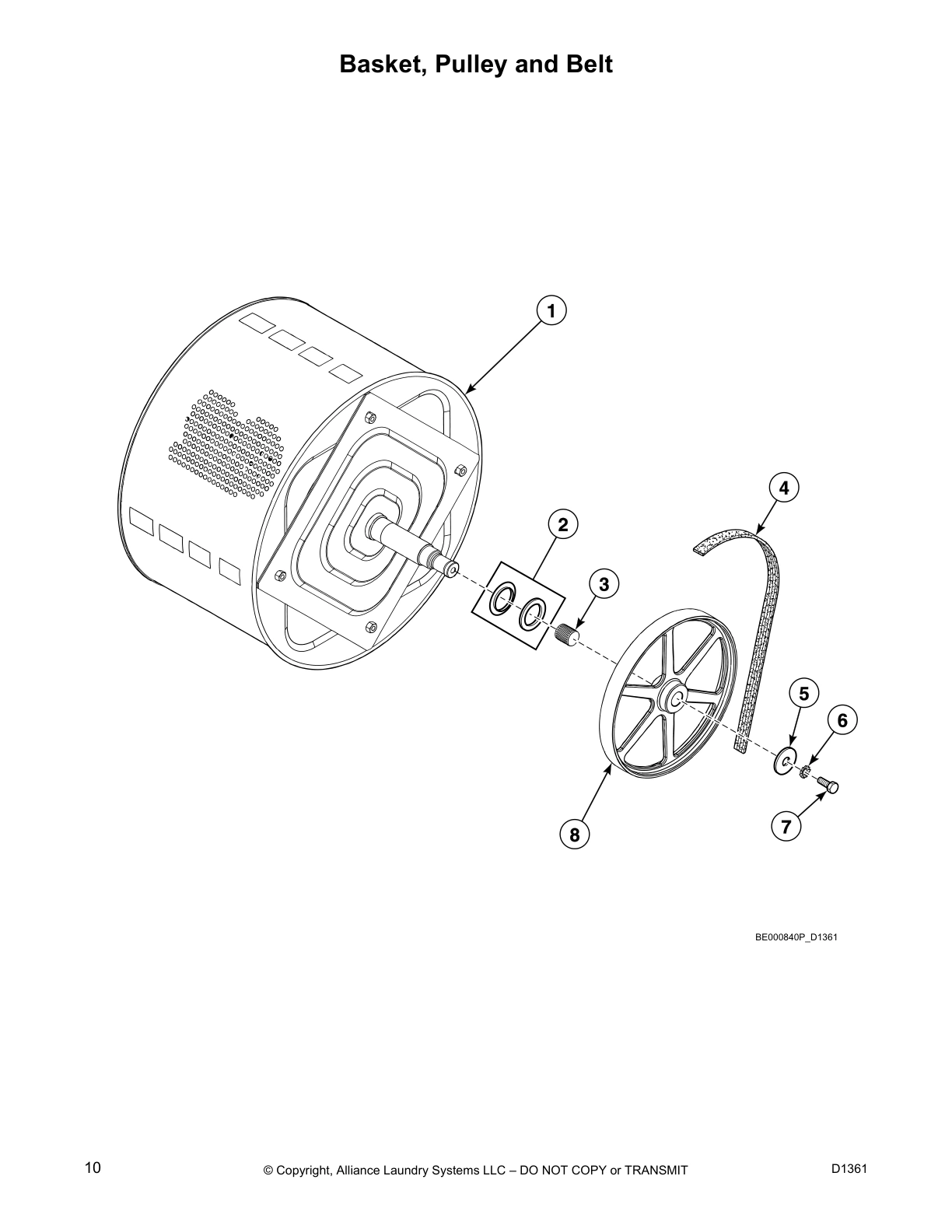

Basket, Pulley and Belt

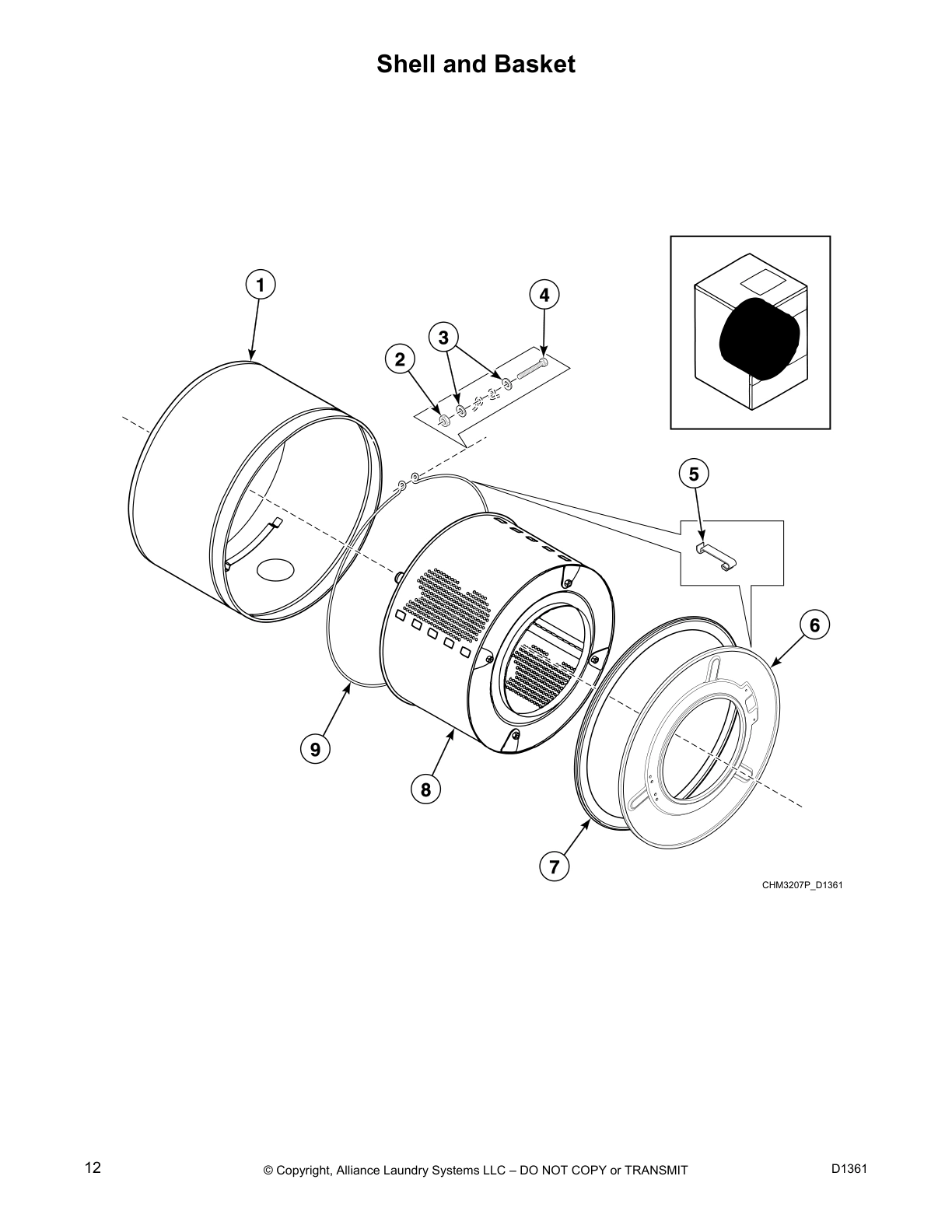

Shell and Basket

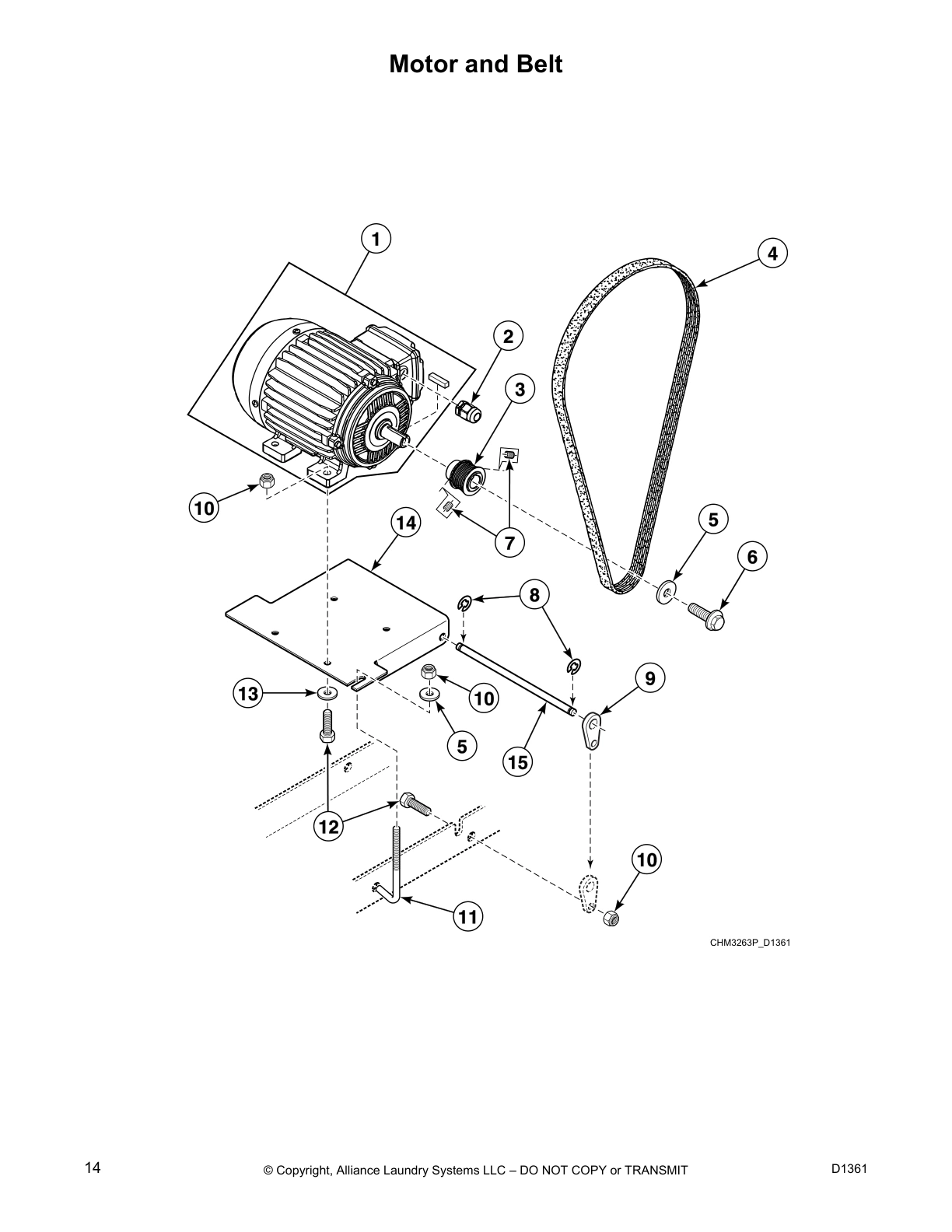

Motor and Belt
Drain Plumbing

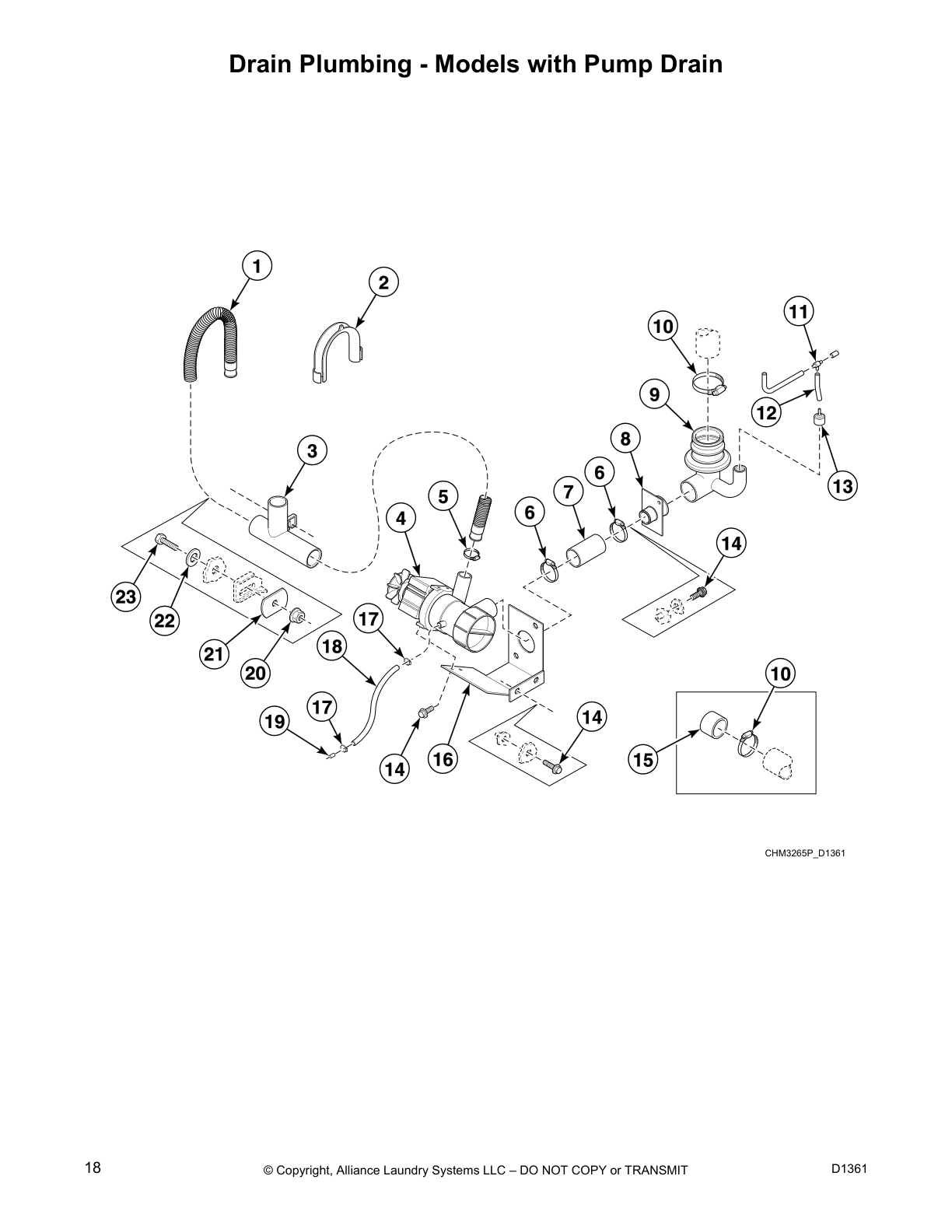

Drain Plumbing - Models with Pump Drain

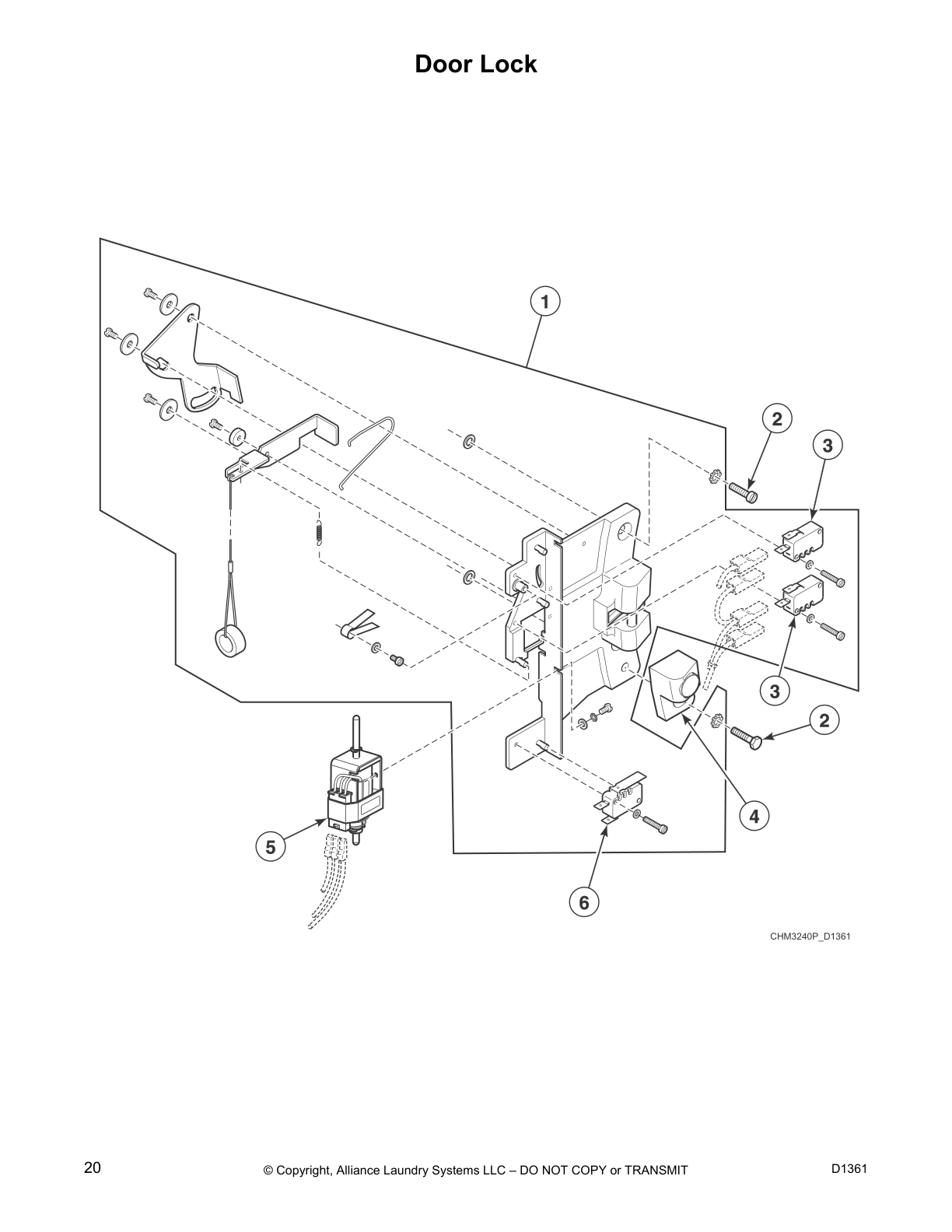

Door Lock

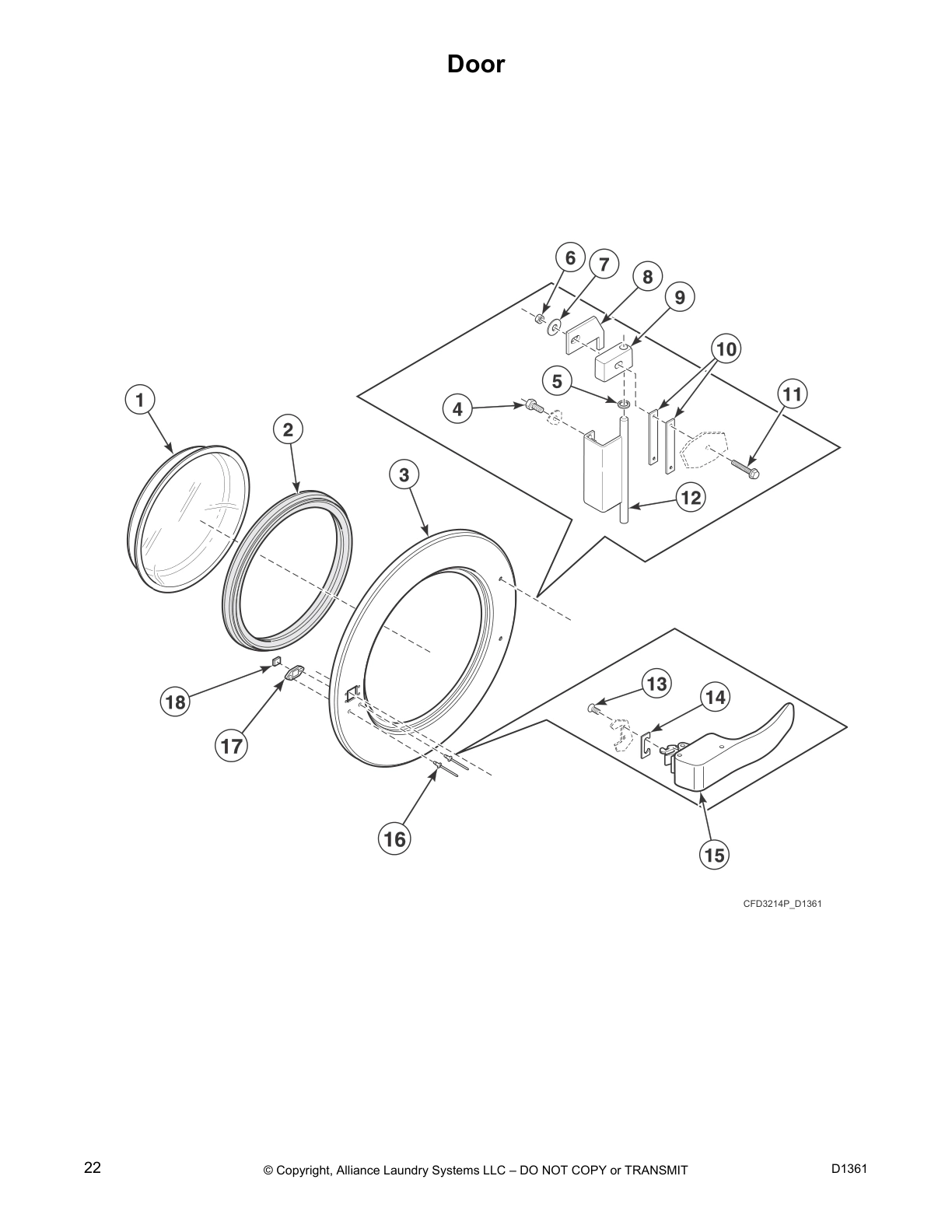

Door

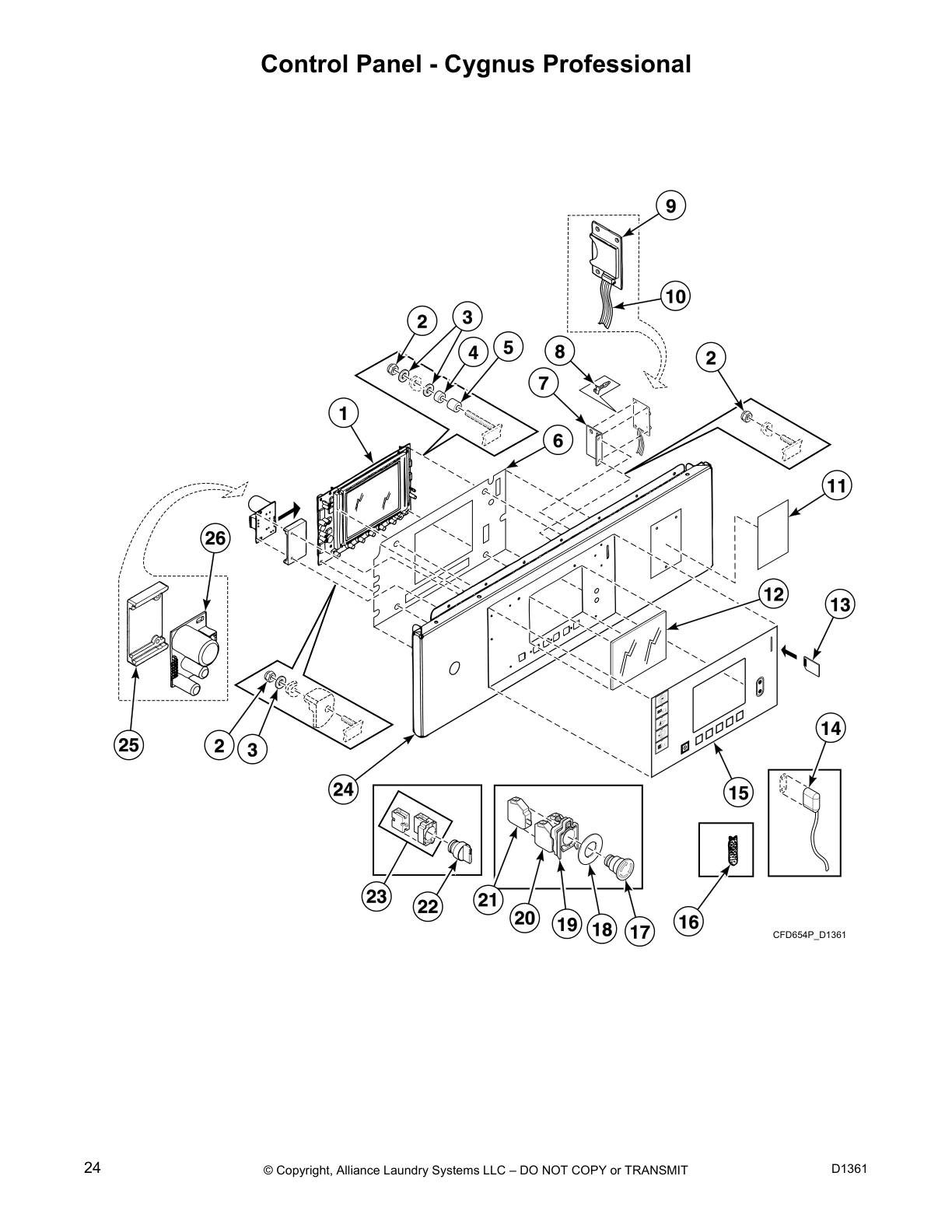

Control Panel - Cygnus Professional

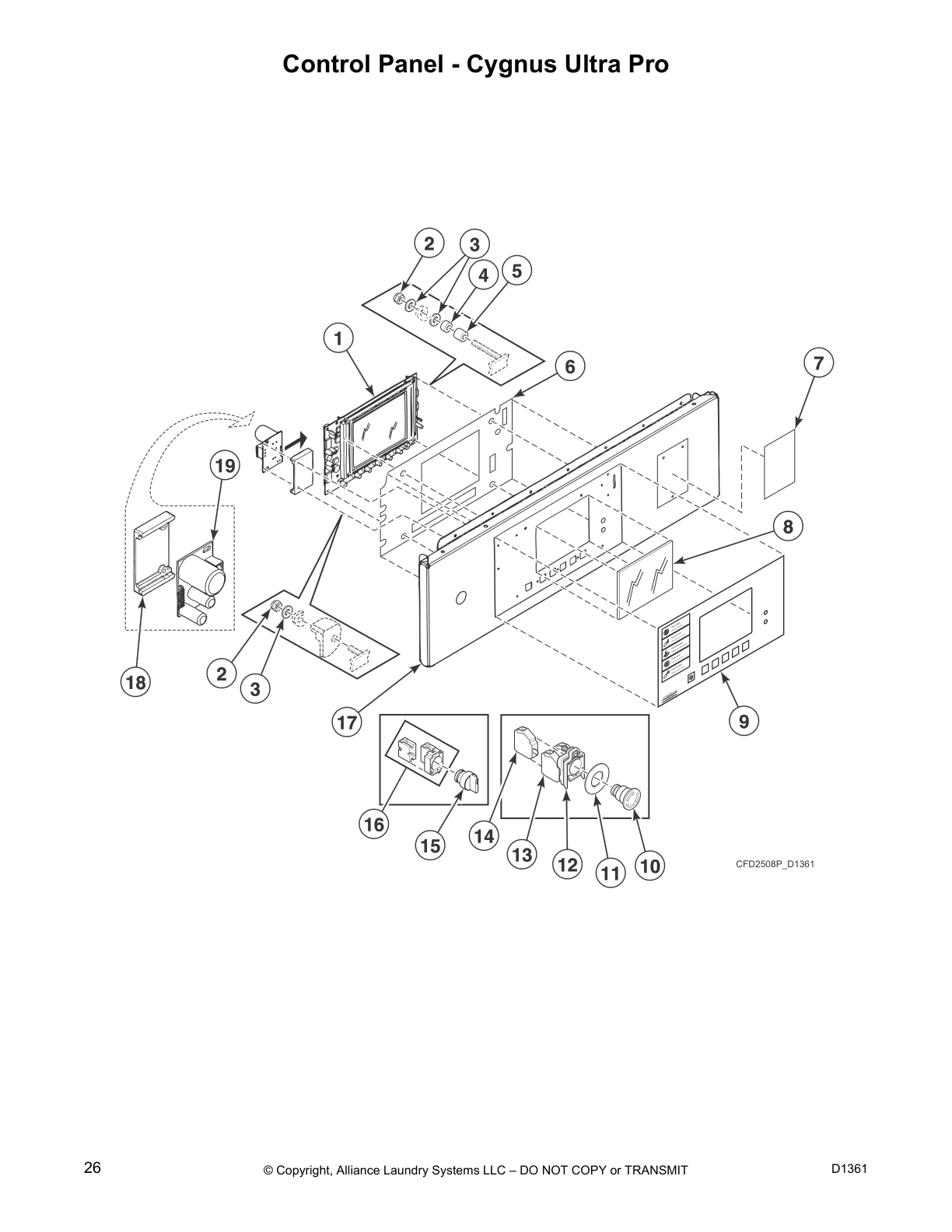

Control Panel - Cygnus Ultra Pro
Control Panel - Cygnus Premium OPL and Ultra

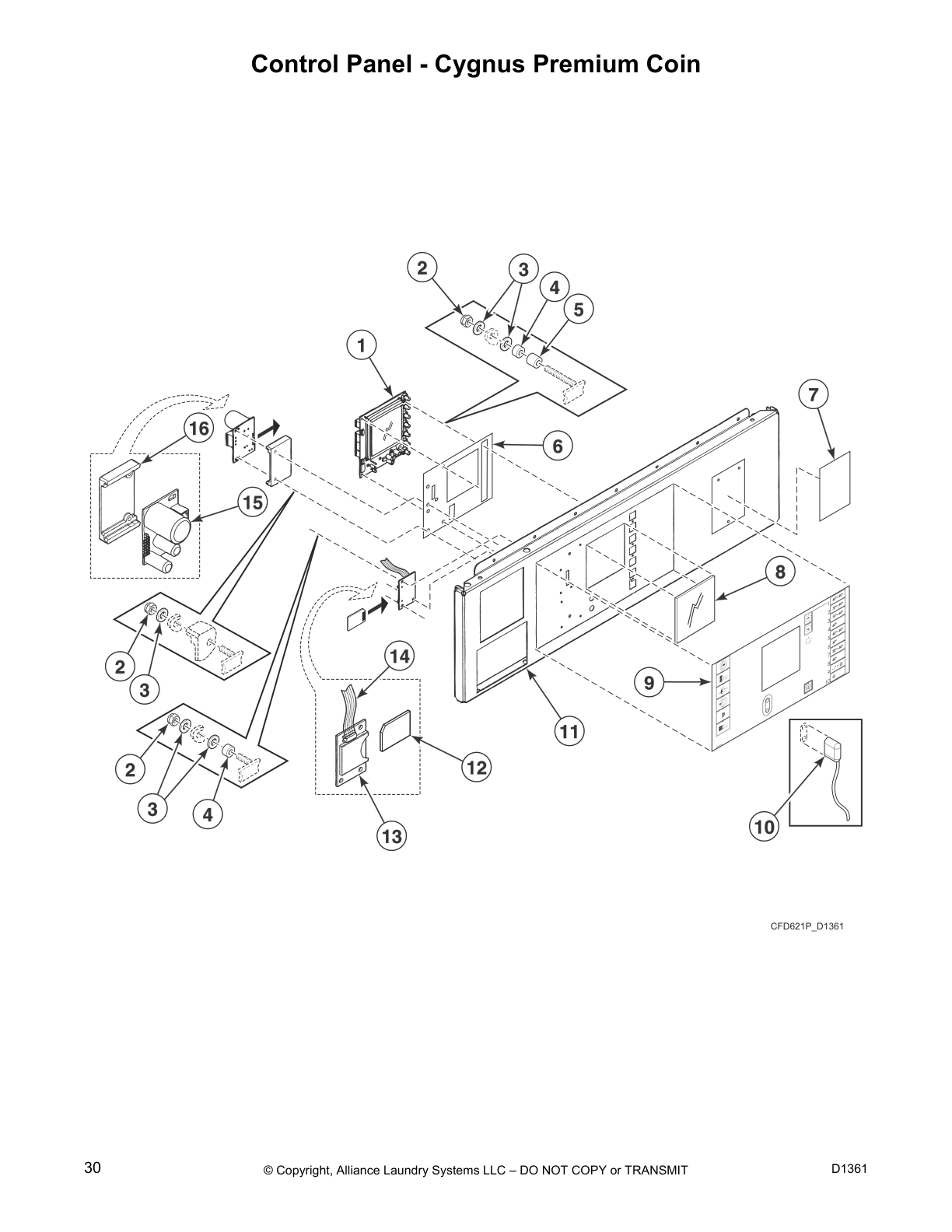

Control Panel - Cygnus Premium Coin

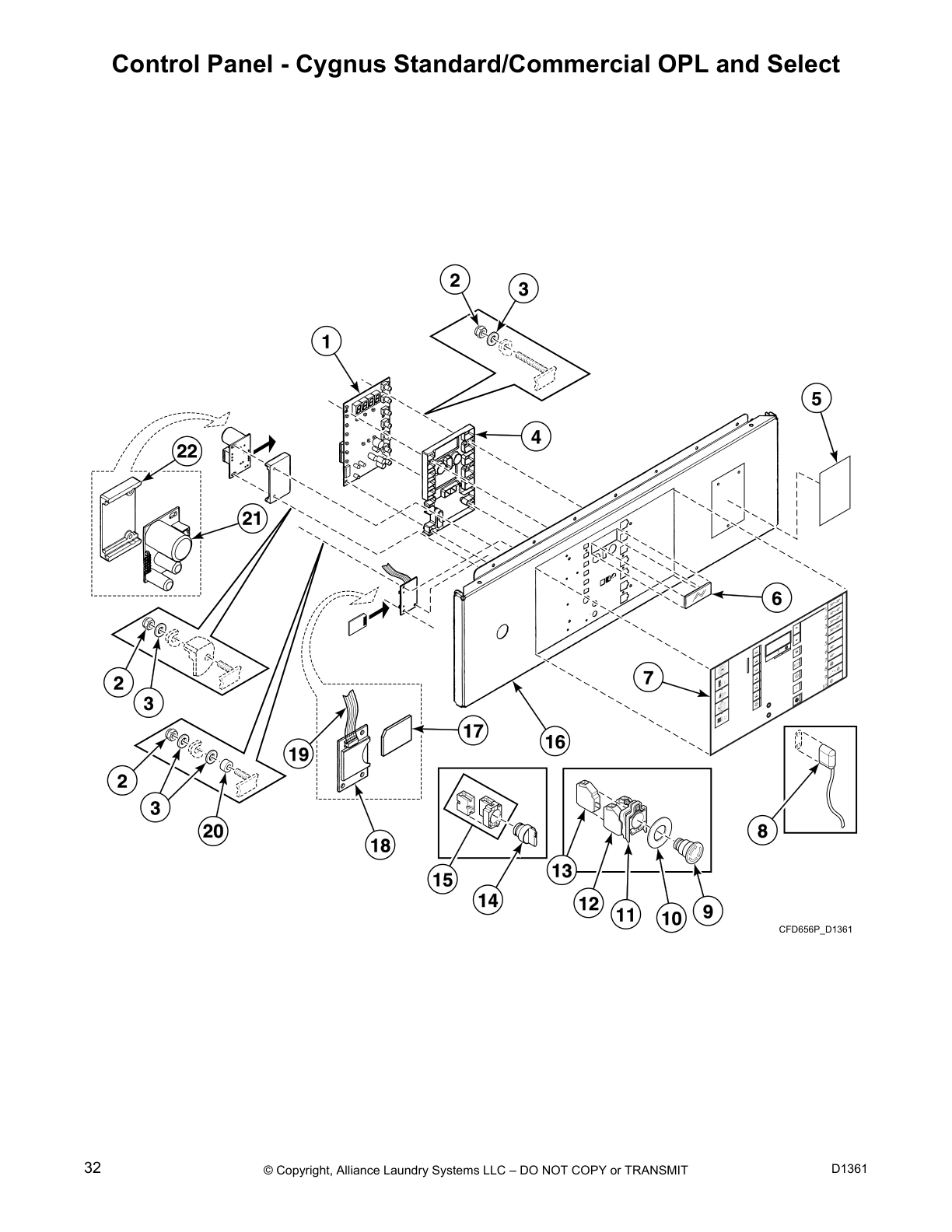

Control Panel - Cygnus Standard/Commercial OPL and Select

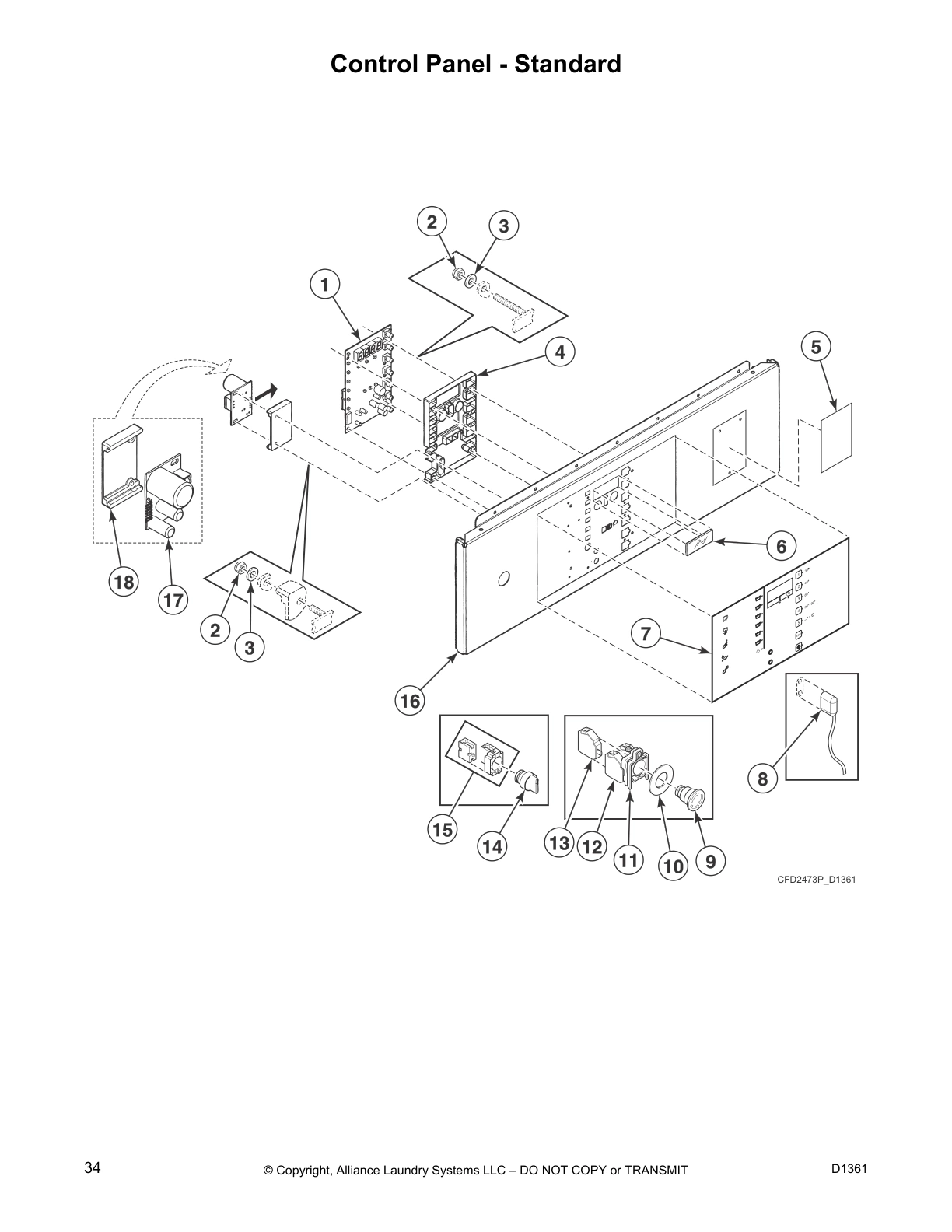

Control Panel - Standard

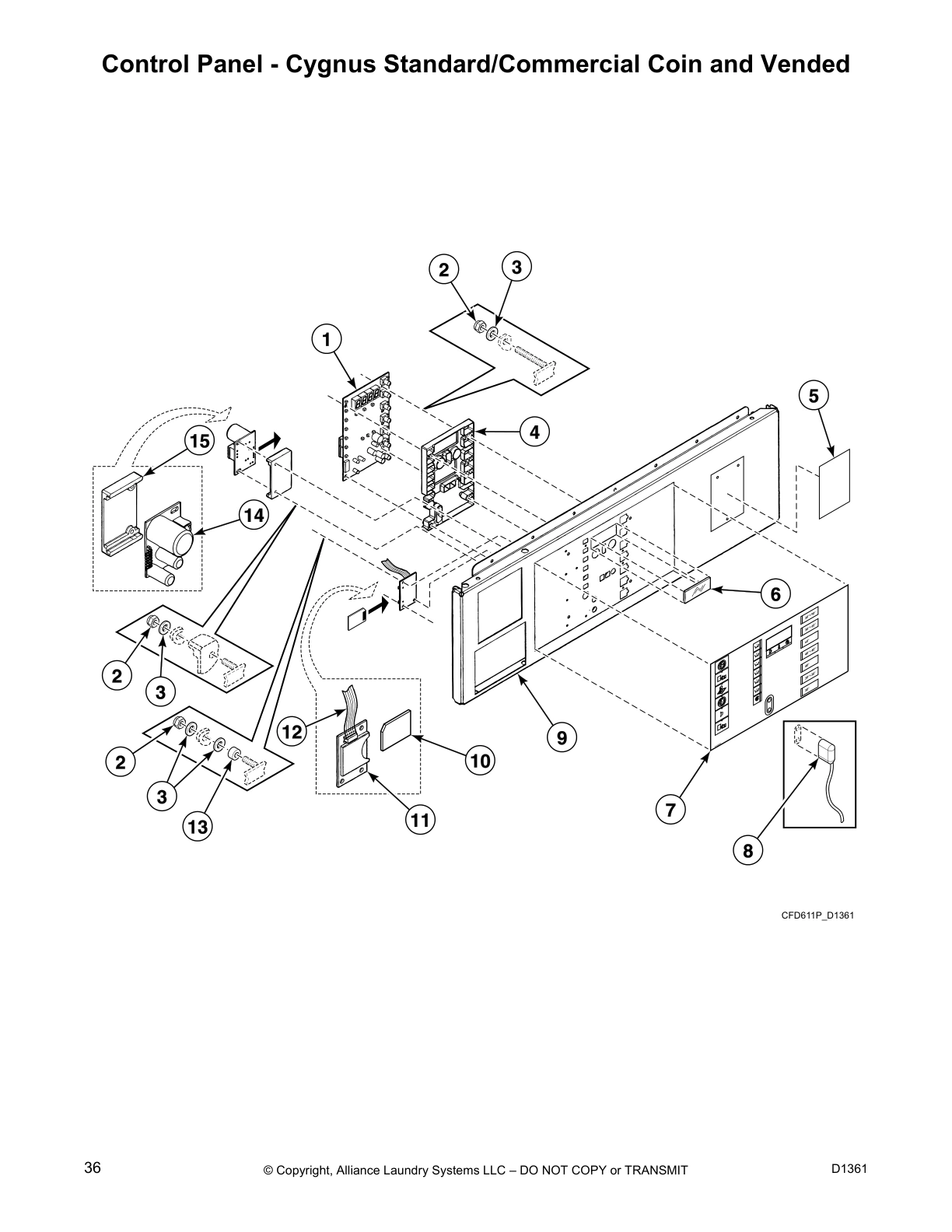

Control Panel - Cygnus Standard/Commercial Coin and Vended

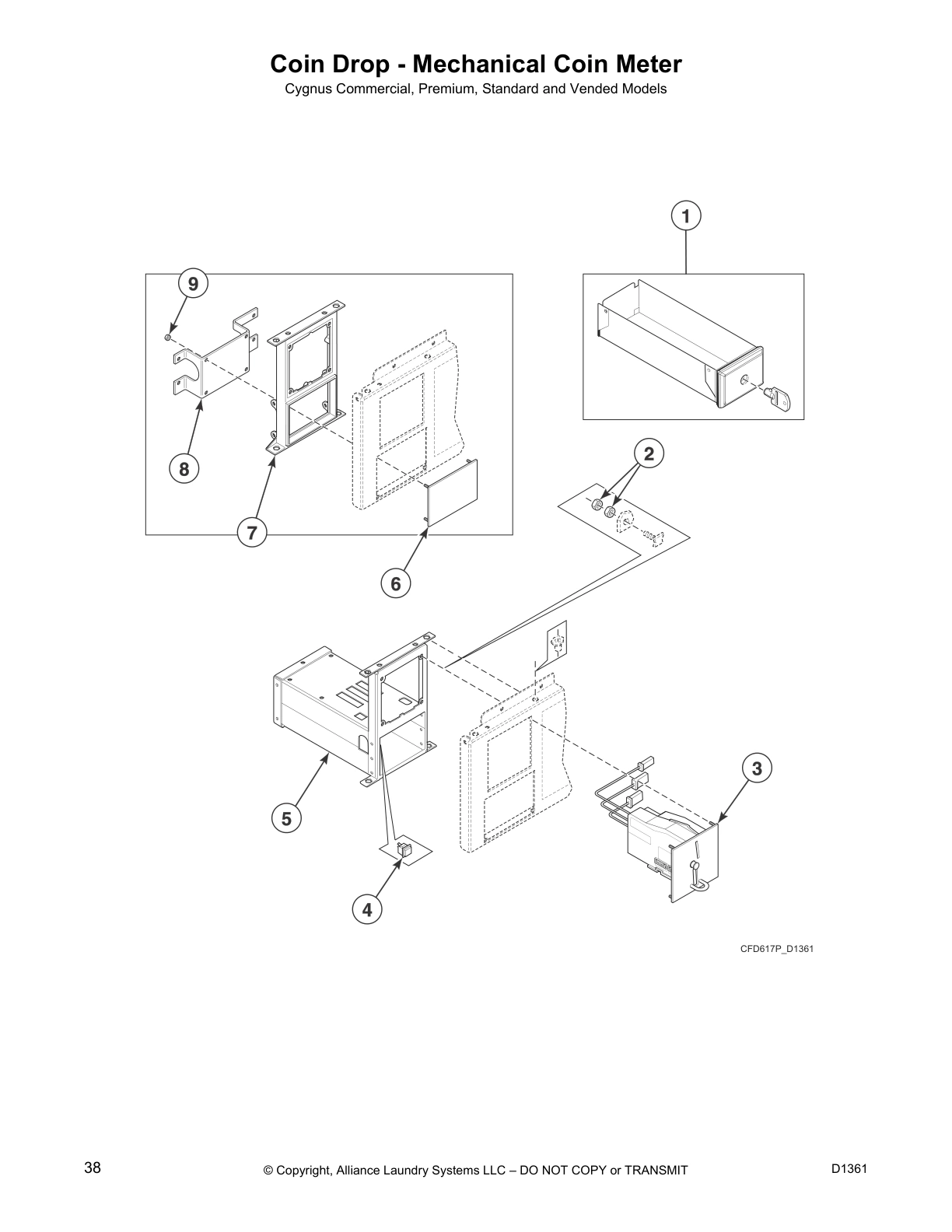

Coin Drop - Mechanical Coin Meter
Coin Drop - Electronic Coin Meter

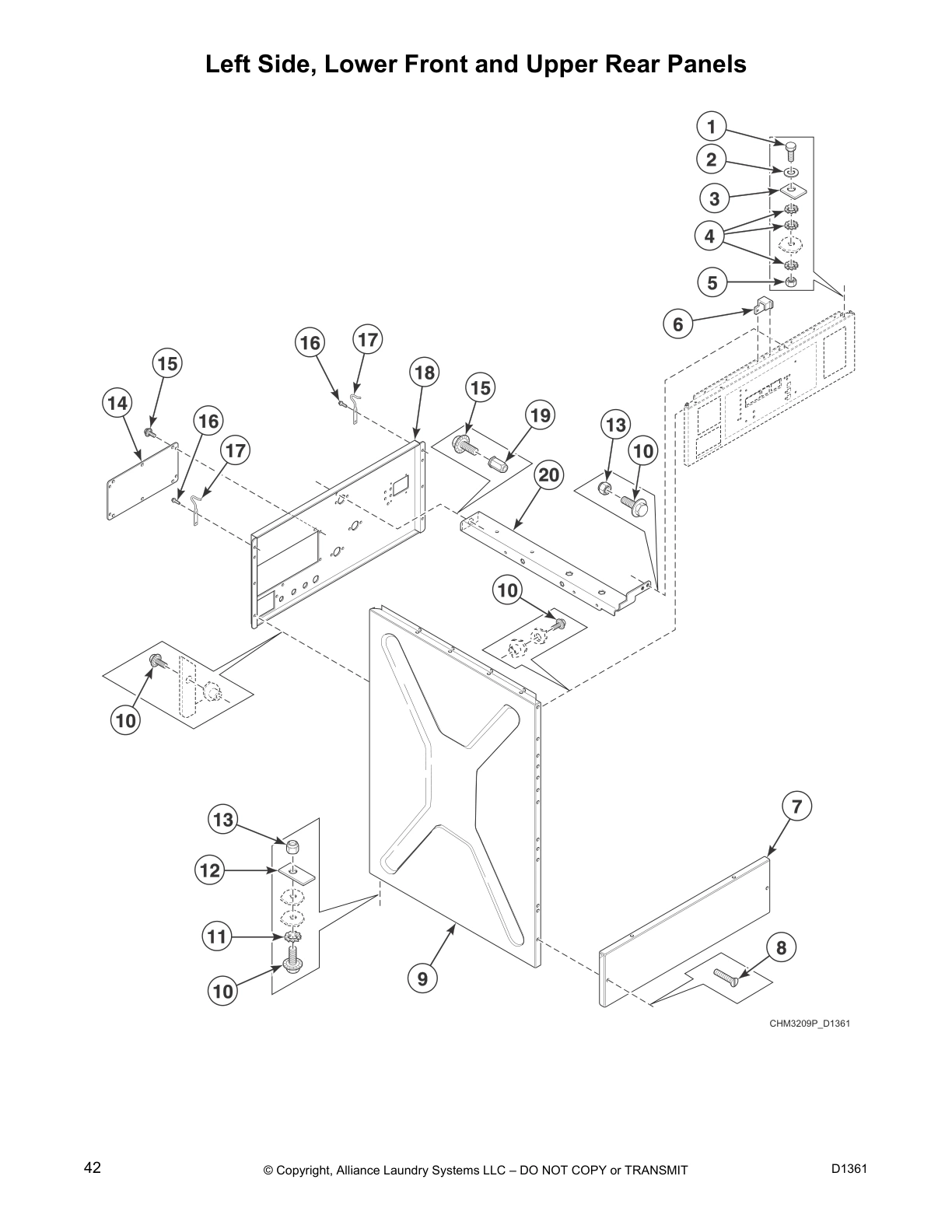

Left Side, Lower Front and Upper Rear Panels

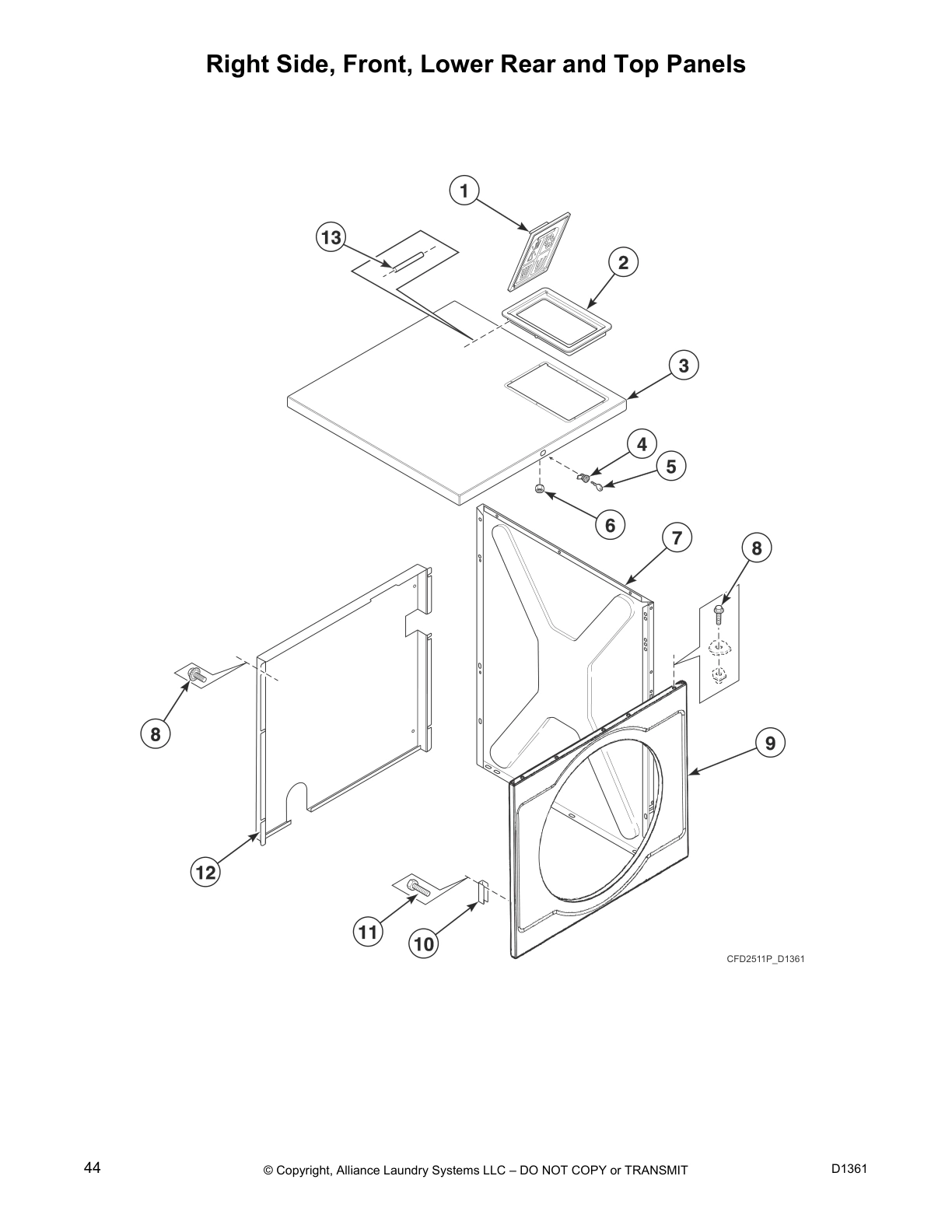

Right Side, Front, Lower Rear and Top Panels
Inverter Drive

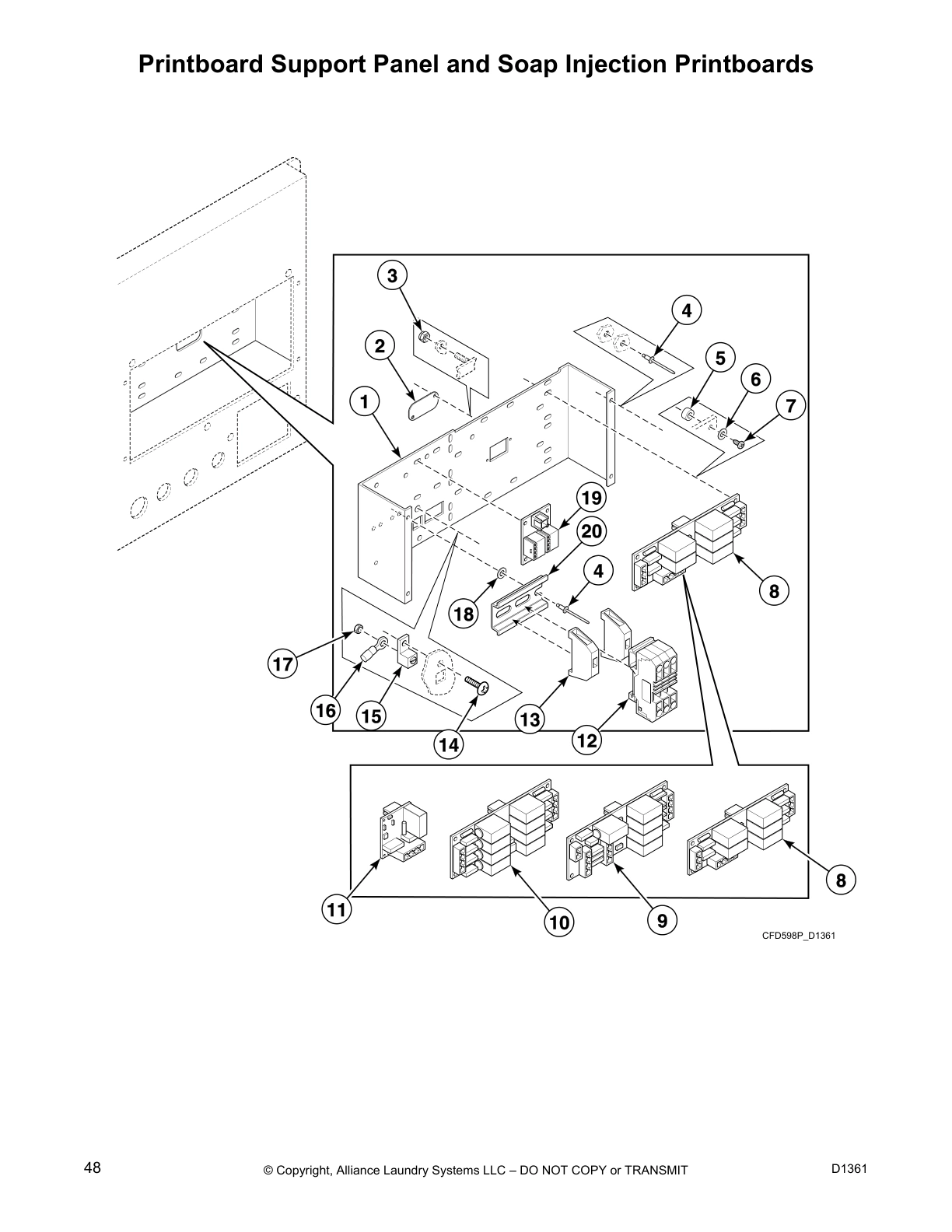

Printboard Support Panel and Soap Injection Printboards

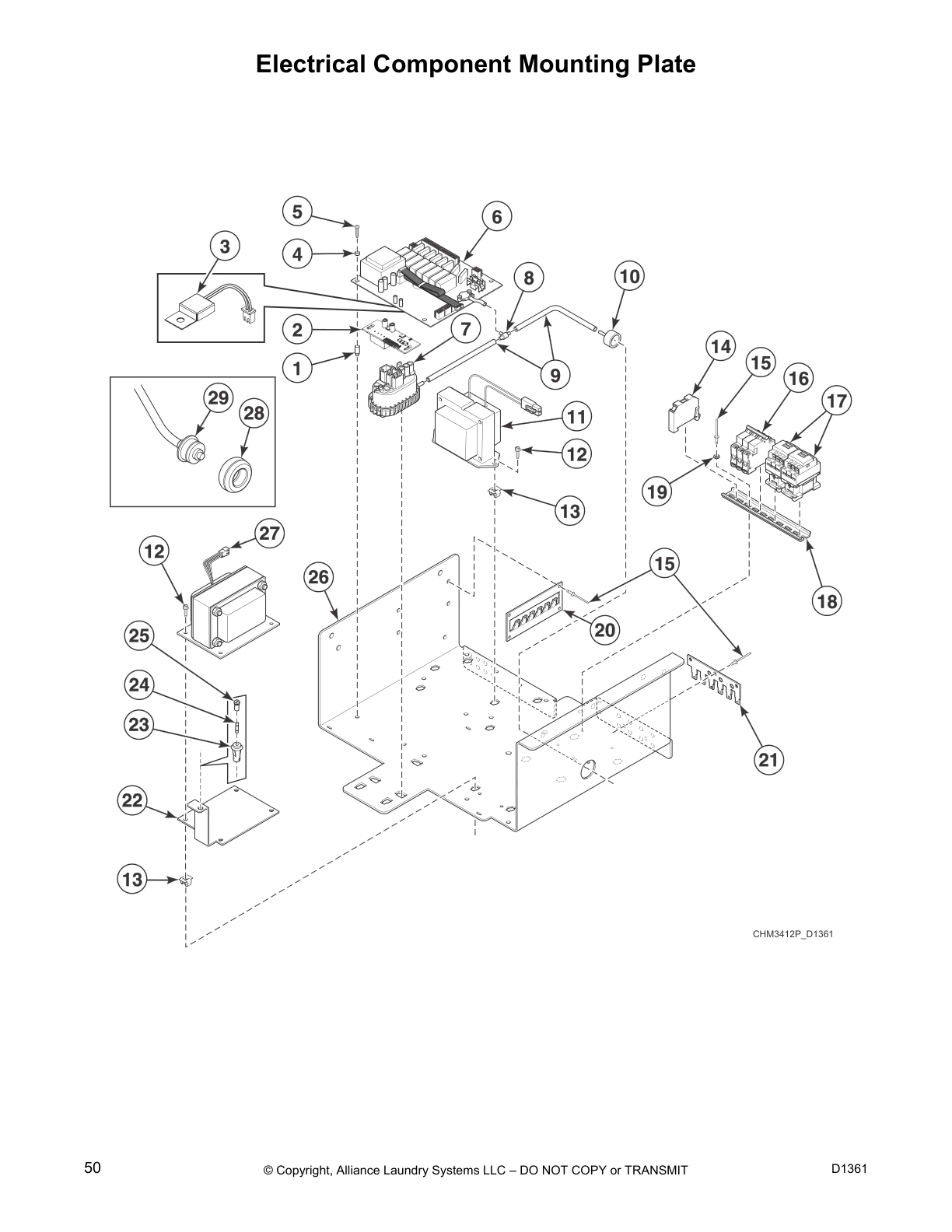

Electrical Component Mounting Plate

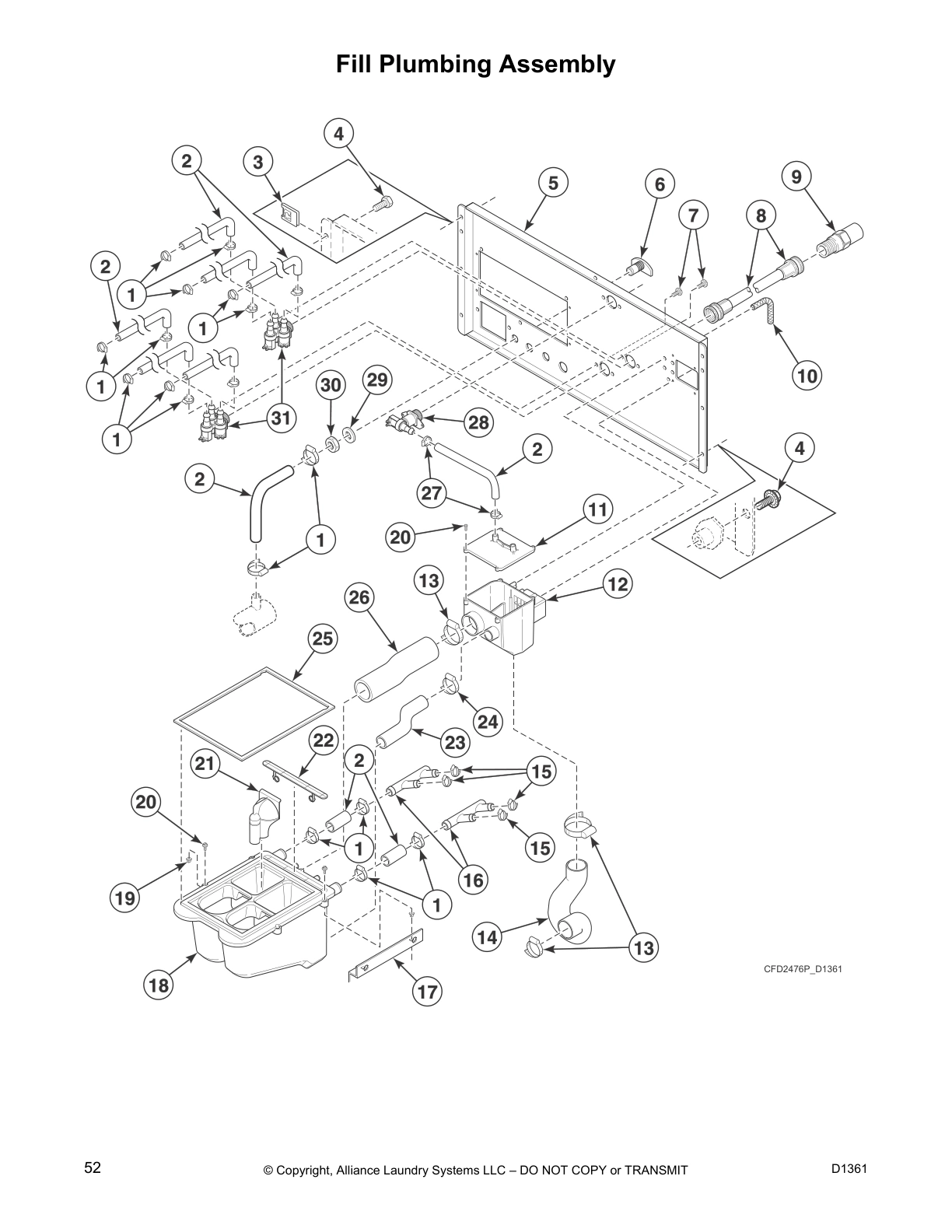

Fill Plumbing Assembly

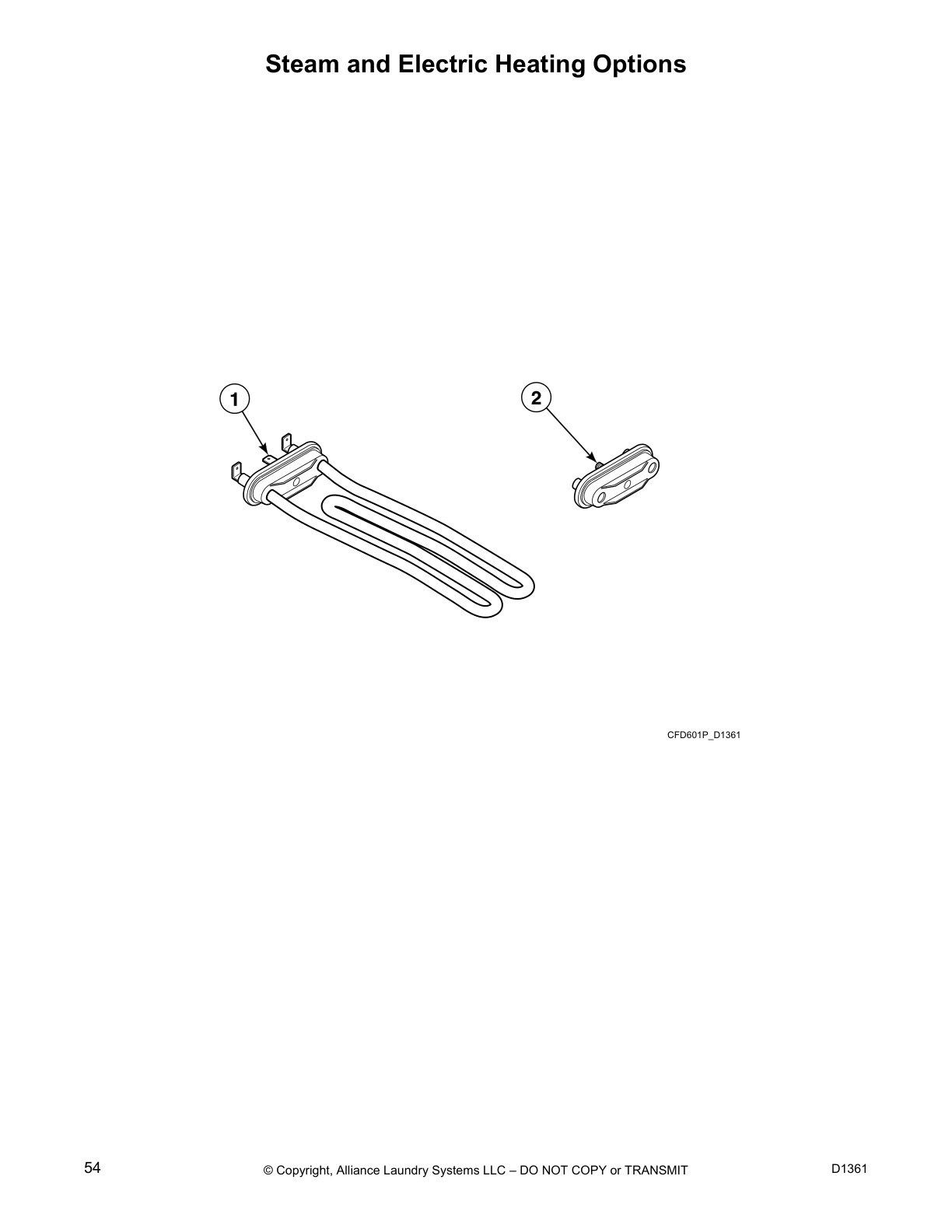

Steam and Electric Heating Options
Common parts from model Ipso IHZ065Z Washer
SPQ 380P3P SPQ 380P3P Contact Us For Availability
SPQ B12348301 SPQ B12348301 Contact Us For Availability
Steam Heat Harness SPQ B12381202 Contact Us For Availability
Steam Valve Harness SPQ B12348504 Contact Us For Availability
Electric Heat Harness SPQ B12382302 Contact Us For Availability
SPQ B12349603 SPQ B12349603 Contact Us For Availability
1
Bearing SPQ F100136P Contact Us For Availability
1
Outer Tub SPQ B12328101 Contact Us For Availability
1
Motor SPQ B12510501 Contact Us For Availability
1
Bolt SPQ 205/00106/00 Contact Us For Availability
1
Nut SPQ 204/00014/00 Contact Us For Availability
1
Heating Element SPQ 209/00562/20 Contact Us For Availability
2
Speed Detector Bracket SPQ 212/00028/00 Contact Us For Availability
2
Lower Front Panel SPQ 202/00003/00 Contact Us For Availability
2
Siphon Cover SPQ 223/00044/00 Contact Us For Availability
2
Screw SPQ 207/00102/00 Contact Us For Availability
2
Bolt SPQ 217/00015/00 Contact Us For Availability
2
Supply Dispenser Cover Frame SPQ B12597501 Contact Us For Availability
2
Fuse SPQ 203/00006/00 Contact Us For Availability
2
Heating Element Plug SPQ F360202 Contact Us For Availability
3
Hardware Kit SPQ 212/00100/00 Contact Us For Availability
3
Tolerance Ring SPQ 215/00004/00 Contact Us For Availability
3
Motor Pulley SPQ 226/00154/00 Contact Us For Availability
3
Pump SPQ 223/00146/00 Contact Us For Availability
3
Rivet SPQ 204/00116/00 Contact Us For Availability
3
Side Panel SPQ 117/00042/00 Contact Us For Availability
3
E-Stop Drive Fan Harness SPQ 209/00468/00 Contact Us For Availability
3
Pressure Switch Hose Tee SPQ 209/02020/00 Contact Us For Availability
4
Panel Lock SPQ 44089303P Contact Us For Availability
4
Tub Fastening Ring SPQ 206/00052/00 Contact Us For Availability
4
Bearing Kit SPQ 201/00201/00 Contact Us For Availability
4
Bolt SPQ 206/00032/00 Contact Us For Availability
4
Tub to Drain Valve Hose SPQ 209/00646/00 Contact Us For Availability
4
Pressure Hose SPQ 223/00123/00 Contact Us For Availability
4
SPQ 227/00242/00 SPQ 227/00242/00 Contact Us For Availability
5
Out-of-Balance Bypass Harness SPQ 212/00114/00 Contact Us For Availability
5
Washer SPQ 201/00003/00 Contact Us For Availability
5
Tub Front Panel Clip SPQ 217/00008/00 Contact Us For Availability
5
SPQ 209/00647/00 SPQ 209/00647/00 Contact Us For Availability
5
Nut SPQ 202/00104/00 Contact Us For Availability
5
Standoff SPQ 211/00122/00 Contact Us For Availability
5
Nameplate SPQ B12389801 Contact Us For Availability
5
SPQ 204/00107/00 SPQ 204/00107/00 Contact Us For Availability
5
Key SPQ 70155603 Contact Us For Availability
6
SPQ 204/00002/00 SPQ 204/00002/00 Contact Us For Availability
6
Bolt SPQ 203/00001/00 Contact Us For Availability
6
SPQ 206/00006/00 SPQ 206/00006/00 Contact Us For Availability
6
SPQ 204/00201/00 SPQ 204/00201/00 Contact Us For Availability
6
SPQ 204/00106/00 SPQ 204/00106/00 Contact Us For Availability
6
Insulating Sticker SPQ 229/00268/00 Contact Us For Availability
6
SPQ F8201001 SPQ F8201001 Contact Us For Availability
6
Nut SPQ B12509101 Contact Us For Availability
7
SPQ 201/00005/00 SPQ 201/00005/00 Contact Us For Availability
7
SPQ 206/00014/00 SPQ 206/00014/00 Contact Us For Availability
7
Drum Pulley SPQ 206/00004/00 Contact Us For Availability
7
SPQ 206/00058/00 SPQ 206/00058/00 Contact Us For Availability
7
SPQ 209/00463/00 SPQ 209/00463/00 Contact Us For Availability
7
SPQ 223/00001/04 SPQ 223/00001/04 Contact Us For Availability
7
SPQ 202/00110/00 SPQ 202/00110/00 Contact Us For Availability
7
SPQ 111/01803/00 SPQ 111/01803/00 Contact Us For Availability
7
Side Panel SPQ 111/10089/00 Contact Us For Availability
8
SPQ 226/00141/00 SPQ 226/00141/00 Contact Us For Availability
8
SPQ F200133600 SPQ F200133600 Contact Us For Availability
8
SPQ 223/00012/00 SPQ 223/00012/00 Contact Us For Availability
8
Memory Card PC-Board SPQ 211/00145/00 Contact Us For Availability
8
Plexi Frame SPQ 225/00321/00 Contact Us For Availability
8
SPQ B12339301 SPQ B12339301 Contact Us For Availability
8
SPQ 206/00027/00 SPQ 206/00027/00 Contact Us For Availability
9
SPQ 206/00079/00 SPQ 206/00079/00 Contact Us For Availability
9
SPQ 152/00055/00 SPQ 152/00055/00 Contact Us For Availability
9
Tub Front Ring Clamp SPQ 219/00007/00 Contact Us For Availability
9
SPQ 223/00190/00 SPQ 223/00190/00 Contact Us For Availability
9
SPQ 155/00155/00 SPQ 155/00155/00 Contact Us For Availability
9
Front Panel SPQ 111/60031/00 Contact Us For Availability
9
SPQ 209/02014/00 SPQ 209/02014/00 Contact Us For Availability
10
Nut SPQ 204/00110/00 Contact Us For Availability
10
Pressure Switch Cap SPQ 223/00035/02 Contact Us For Availability
10
Door Hinge Spacer SPQ 117/00010/00 Contact Us For Availability
10
Telem Sticker SPQ 209/00520/00 Contact Us For Availability
10
Washer SPQ 205/00105/00 Contact Us For Availability
10
Pressure Hose SPQ 223/00179/10 Contact Us For Availability
11
Outlet Pipe Plate Assembly SPQ 203/00004/00 Contact Us For Availability
11
Retaining Ring SPQ F100137P Contact Us For Availability
11
Screw SPQ 207/00126/00 Contact Us For Availability
11
Memory Card PC-Board SPQ B12305201 Contact Us For Availability
11
Relay PC-Board SPQ 209/02016/00 Contact Us For Availability
12
Strain Relief Connector SPQ 211/00181/00 Contact Us For Availability
12
Bolt SPQ 206/00119/00 Contact Us For Availability
12
Nut SPQ 101/00007/00 Contact Us For Availability
12
Hinge SPQ 221/00003/00 Contact Us For Availability
12
Data Card Ribbon Assembly SPQ B12538301 Contact Us For Availability
12
Vacuum Breaker Assembly SPQ F8048601 Contact Us For Availability
13
Top Cover Hinge SPQ 204/00009/00 Contact Us For Availability
13
Washer SPQ 202/00002/00 Contact Us For Availability
13
Hose Clamp SPQ 223/00014/00 Contact Us For Availability
13
Printboard Separator SPQ 211/00128/00 Contact Us For Availability
14
Nut SPQ 206/00105/00 Contact Us For Availability
14
Switch Knob SPQ 209/00099/29 Contact Us For Availability
14
Door Lock PC-Board SPQ B12388201 Contact Us For Availability
15
U-Piece Assembly SPQ 206/00093/00 Contact Us For Availability
15
Motor Mounting Rod SPQ B12363001 Contact Us For Availability
15
Overflow Hose SPQ 223/00150/00 Contact Us For Availability
15
Manifold SPQ 223/00011/00 Contact Us For Availability
15
Drain Pipe Cap SPQ 223/00294/00 Contact Us For Availability
15
Datacard Cover SPQ 223/00348/00 Contact Us For Availability
15
Mounting Plate SPQ 223/00374/00 Contact Us For Availability
15
Parameter Unit Program Cable SPQ 227/00171/10 Contact Us For Availability
15
Rivet SPQ 208/00017/00 Contact Us For Availability
15
Ground Lug Connector SPQ M411283 Contact Us For Availability
16
Washer SPQ 113/00065/00 Contact Us For Availability
16
Inverter Drive SPQ F8645001P Contact Us For Availability
16
Circuit Breaker SPQ B12487101 Contact Us For Availability
16
Dispenser Assembly SPQ F8333201 Contact Us For Availability
17
Nut SPQ 206/00101/00 Contact Us For Availability
17
Clamp SPQ 223/00009/00 Contact Us For Availability
17
Door Glass Seal SPQ B12389701 Contact Us For Availability
17
Retaining Ring SPQ F8258601 Contact Us For Availability
17
Inverter Drive SPQ F8644901P Contact Us For Availability
17
Heating Harness SPQ B12381301 Contact Us For Availability
18
Bearing Housing Assembly SPQ 201/00001/00 Contact Us For Availability
18
Pipe SPQ 223/00159/00 Contact Us For Availability
18
Washer SPQ 204/00114/00 Contact Us For Availability
18
Water Hose SPQ F8047401 Contact Us For Availability
19
Stopper SPQ 223/00162/00 Contact Us For Availability
19
Washer SPQ 202/00004/00 Contact Us For Availability
21
Pressure Switch Cap SPQ 209/00051/11 Contact Us For Availability
21
Access Cover SPQ F8047901 Contact Us For Availability
22
Bolt SPQ 201/00007/00 Contact Us For Availability
22
Rivet SPQ 211/00170/00 Contact Us For Availability
22
Dispenser Gasket SPQ F8047801 Contact Us For Availability
23
Drain Piece SPQ 206/00033/00 Contact Us For Availability
23
Fuse Holder Body SPQ 70329401P Contact Us For Availability
24
Fuse SPQ 802492 Contact Us For Availability
24
Water Valve Adapter SPQ 223/00223/00 Contact Us For Availability
25
Air Duct SPQ 204/00011/00 Contact Us For Availability
25
Fuse Holder Cap SPQ 70329501 Contact Us For Availability
25
Washer SPQ F8308301 Contact Us For Availability
27
3-Way Valve SPQ 223/00013/00 Contact Us For Availability
27
Thermostat Grommet SPQ F8401301 Contact Us For Availability
28
ID Chip SPQ 225/10004/00 Contact Us For Availability
28
Nut SPQ 223/00050/01 Contact Us For Availability
29
Prewash and Mainwash Nozzle SPQ 201/00002/00 Contact Us For Availability
30
Bolt SPQ F8286402P Contact Us For Availability
NI
SPQ B12349904 SPQ B12349904 Contact Us For Availability
NI
SPQ F407P4 SPQ F407P4 Contact Us For Availability
NI
SPQ 380P3-1 SPQ 380P3-1 Contact Us For Availability
NI
SPQ 255/00010/00 SPQ 255/00010/00 Contact Us For Availability
NI
Door Lock Harness SPQ B12495001 Contact Us For Availability
NI
E-Stop Harness SPQ B12348901 Contact Us For Availability
NI
SPQ 111/00290/00 SPQ 111/00290/00 Contact Us For Availability
NI
SPQ B12551301 SPQ B12551301 Contact Us For Availability
NI
SPQ B12501501 SPQ B12501501 Contact Us For Availability
NI
SPQ B12529201 SPQ B12529201 Contact Us For Availability
NI
SPQ B12388301 SPQ B12388301 Contact Us For Availability
NI
Control Supply Harness SPQ B12392701 Contact Us For Availability
NI
SPQ B12348801 SPQ B12348801 Contact Us For Availability
NI
SPQ B12381402 SPQ B12381402 Contact Us For Availability
NI
SPQ B12348101 SPQ B12348101 Contact Us For Availability
NI
SPQ F200166 SPQ F200166 Contact Us For Availability
NI
SPQ F200164 SPQ F200164 Contact Us For Availability
NI
Heat Harness SPQ B12455901 Contact Us For Availability
NI
Power Jumper Harness SPQ B12455801 Contact Us For Availability
NI
Branch Harness SPQ B12349703 Contact Us For Availability
NI
Dual Heat Harness SPQ B12381204 Contact Us For Availability
NI
Relay SPQ B12349803 Contact Us For Availability
NI
SPQ B12308001 SPQ B12308001 Contact Us For Availability
× ![]()
