Model IPSO IHW035ANH Washer – Common Parts & Diagrams

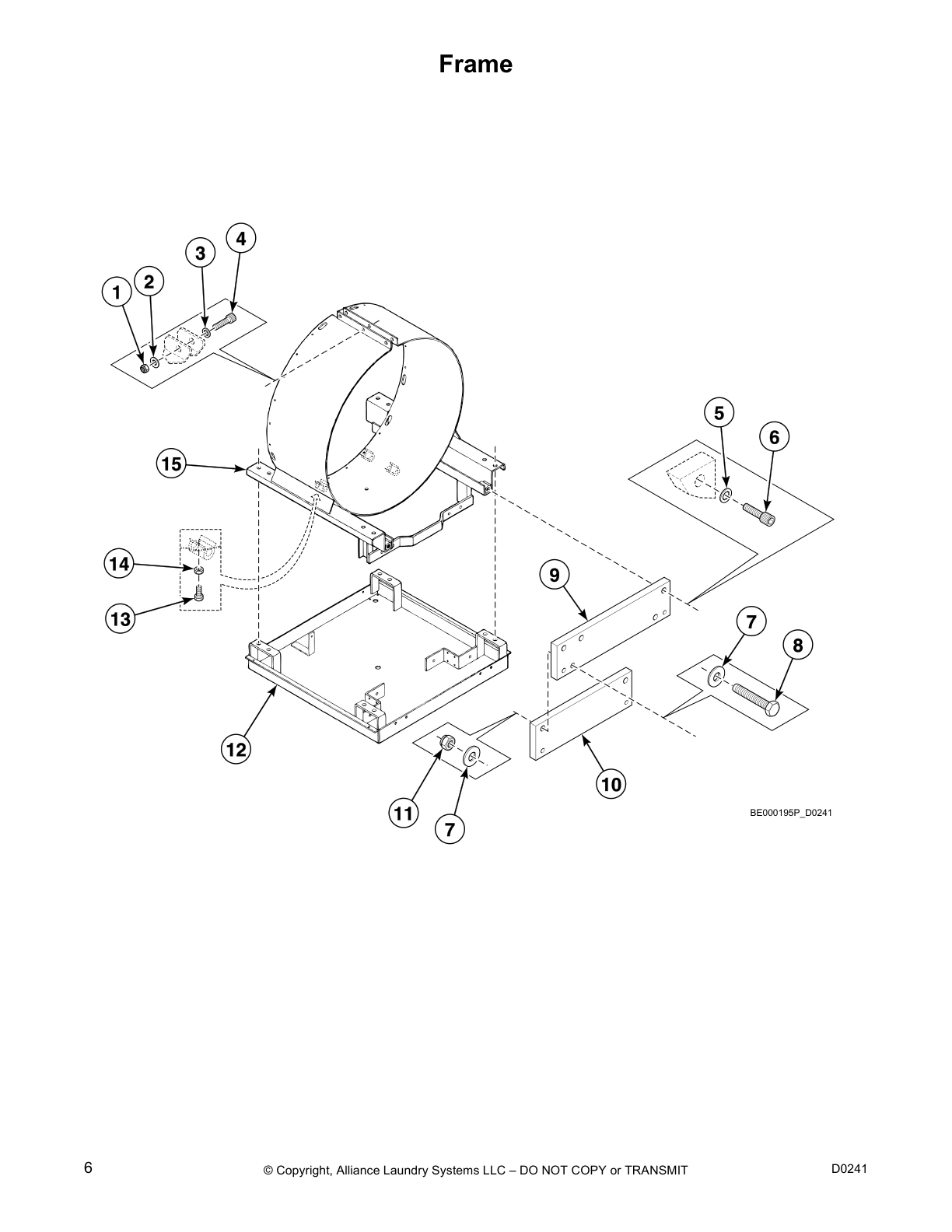

Frame

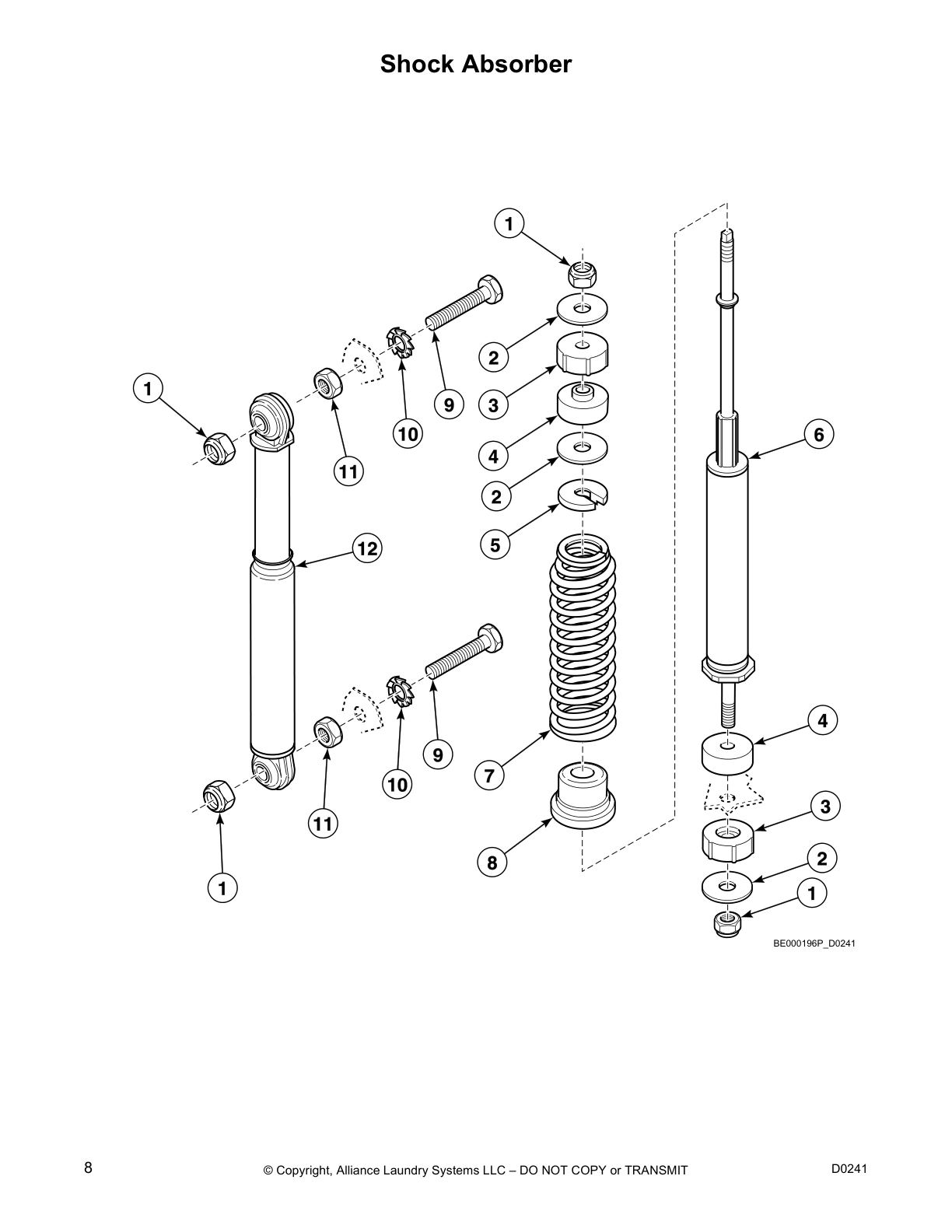

Shock Absorber

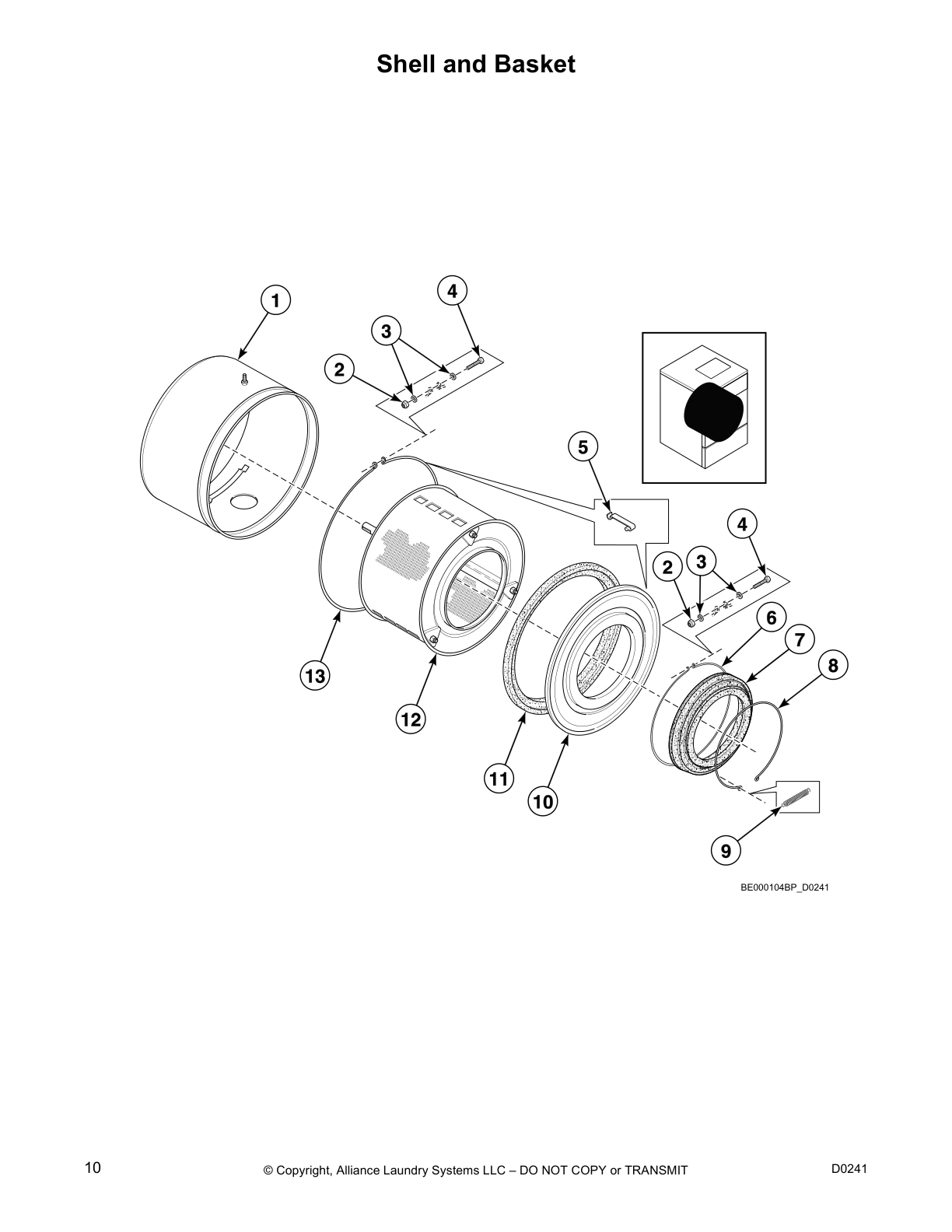

Shell and Basket

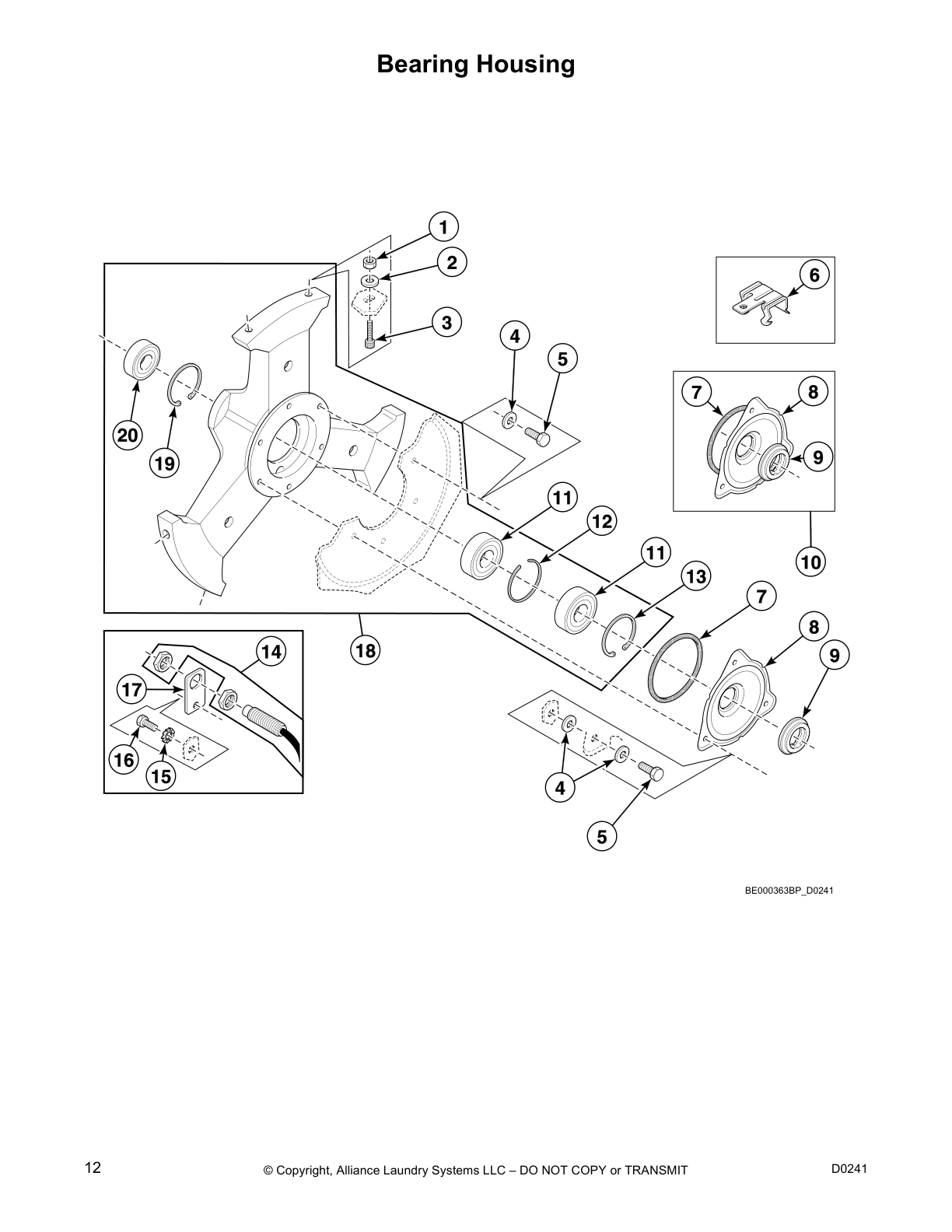

Bearing Housing

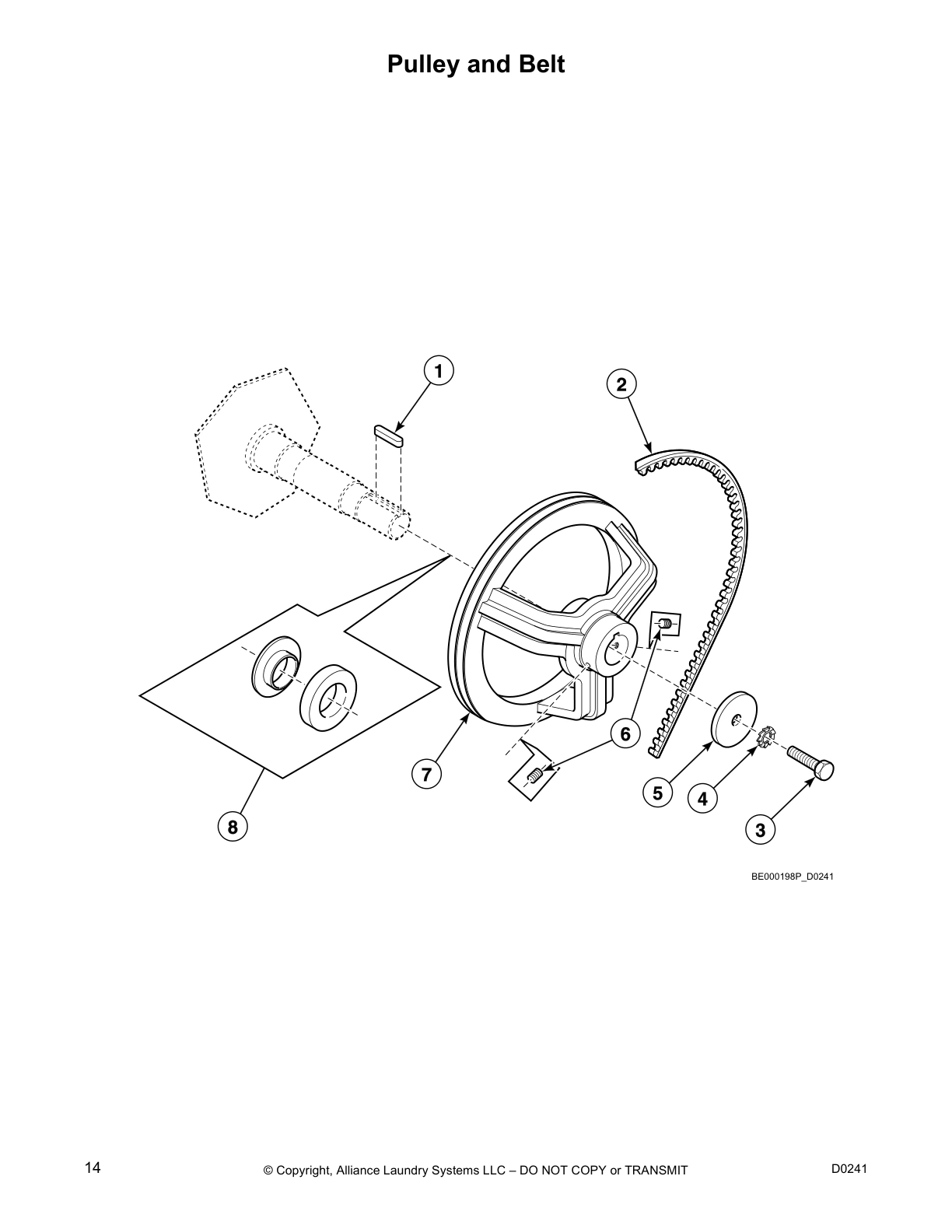

Pulley and Belt

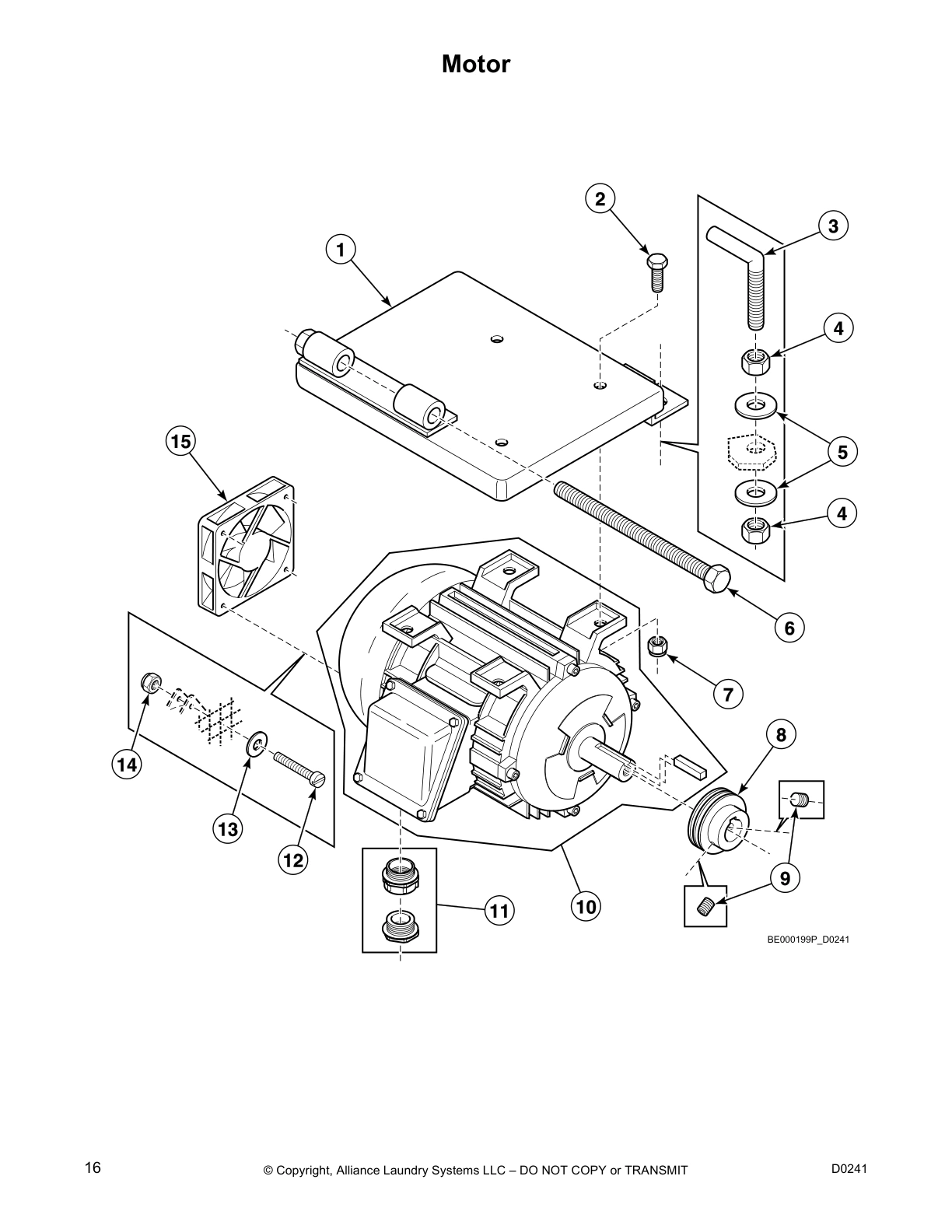

Motor

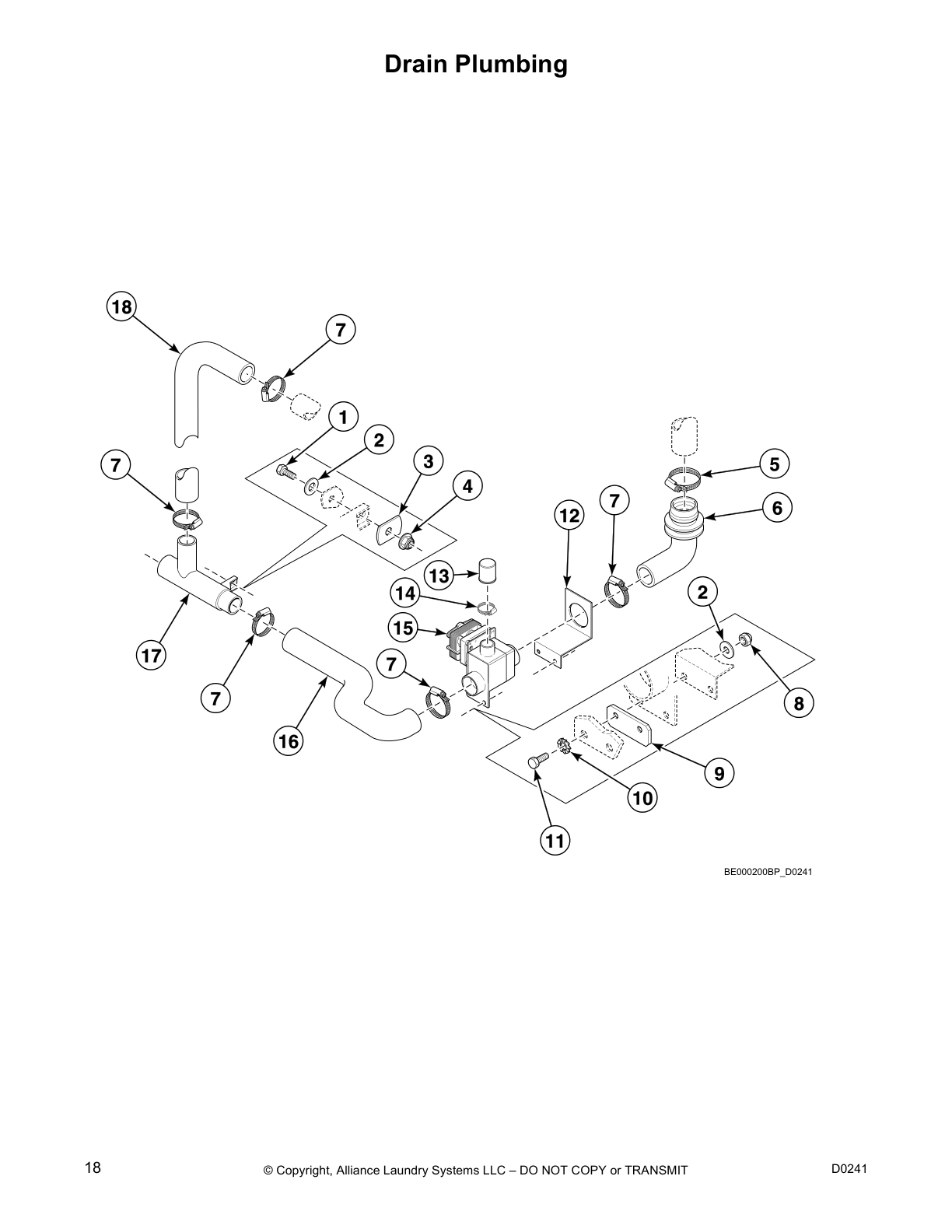

Drain Plumbing

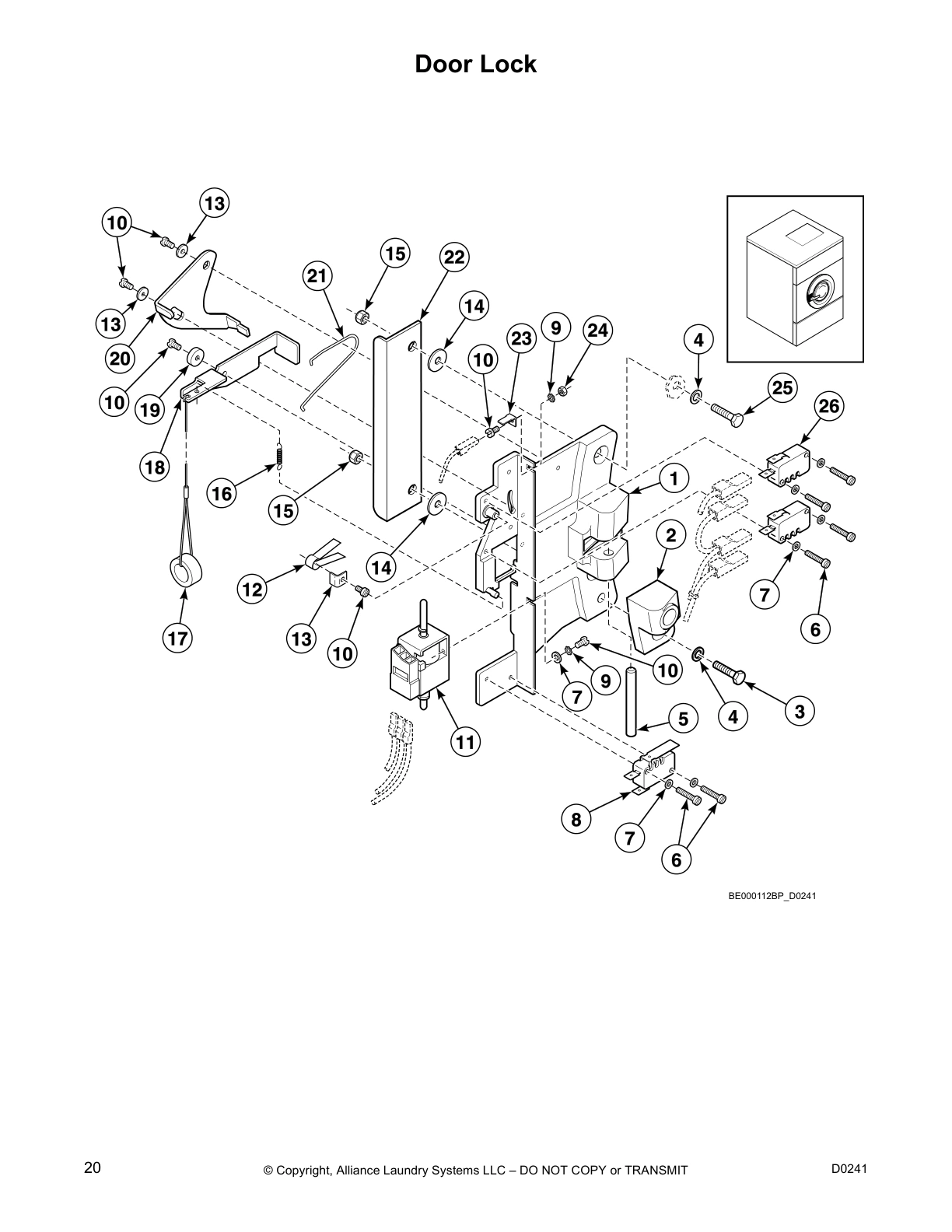

Door Lock

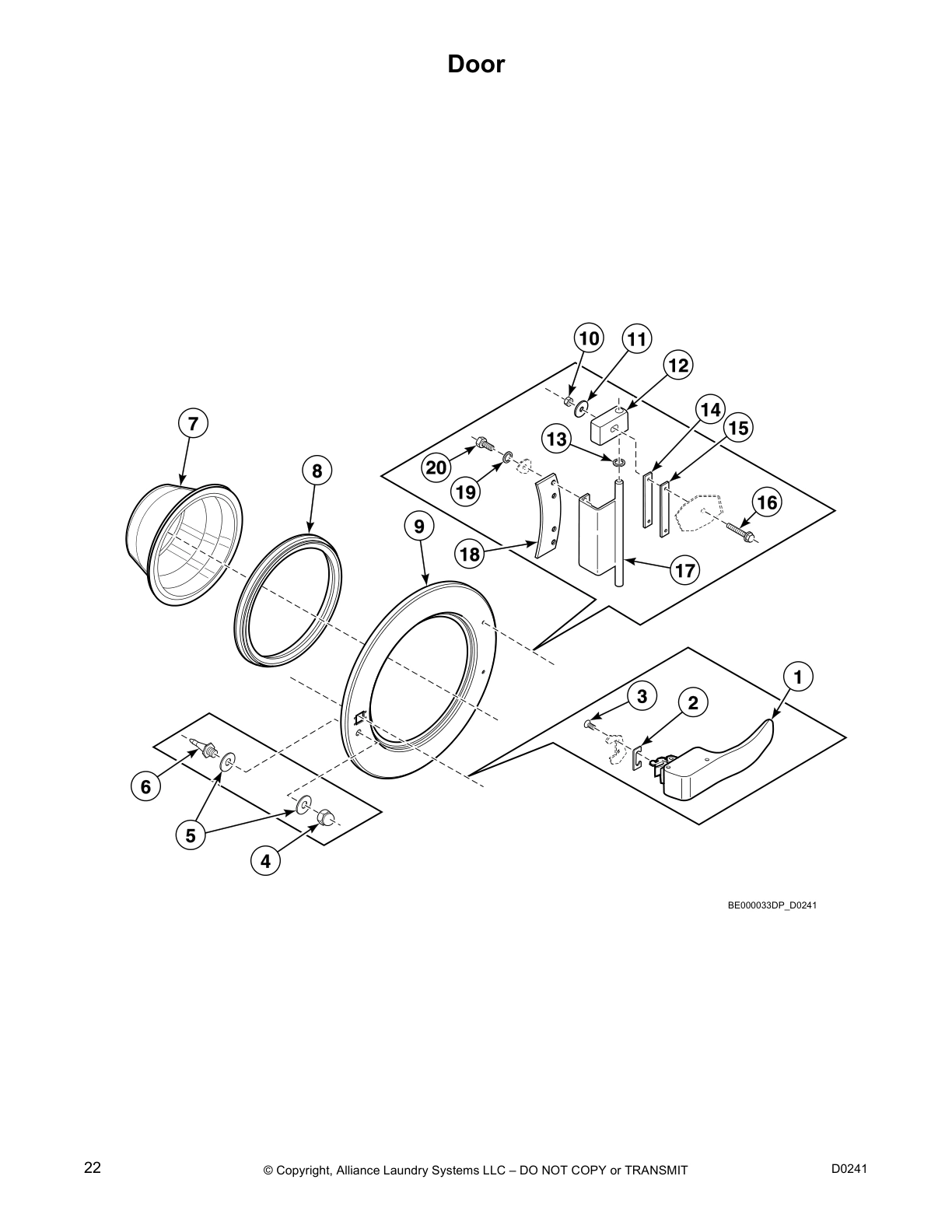

Door

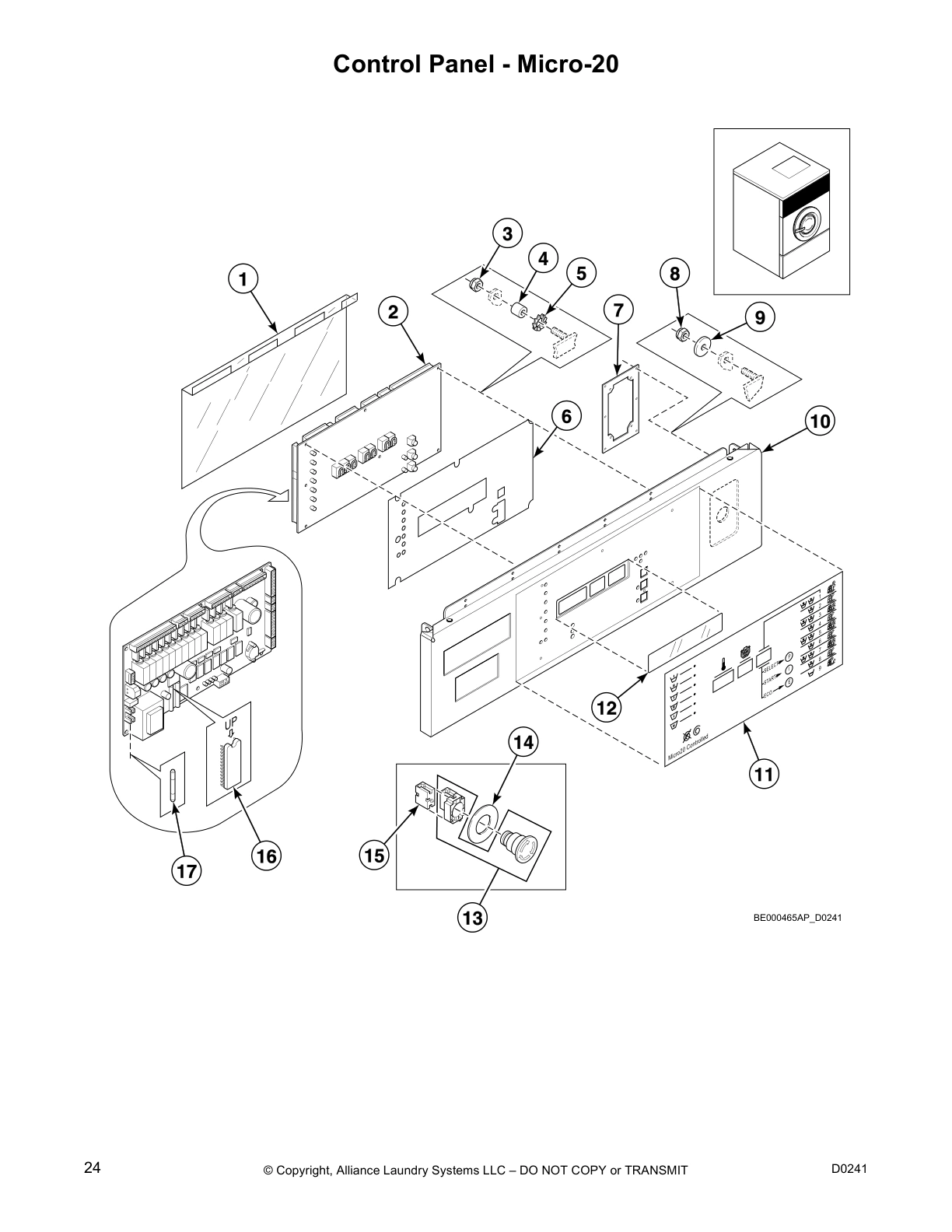

Control Panel - Micro-20

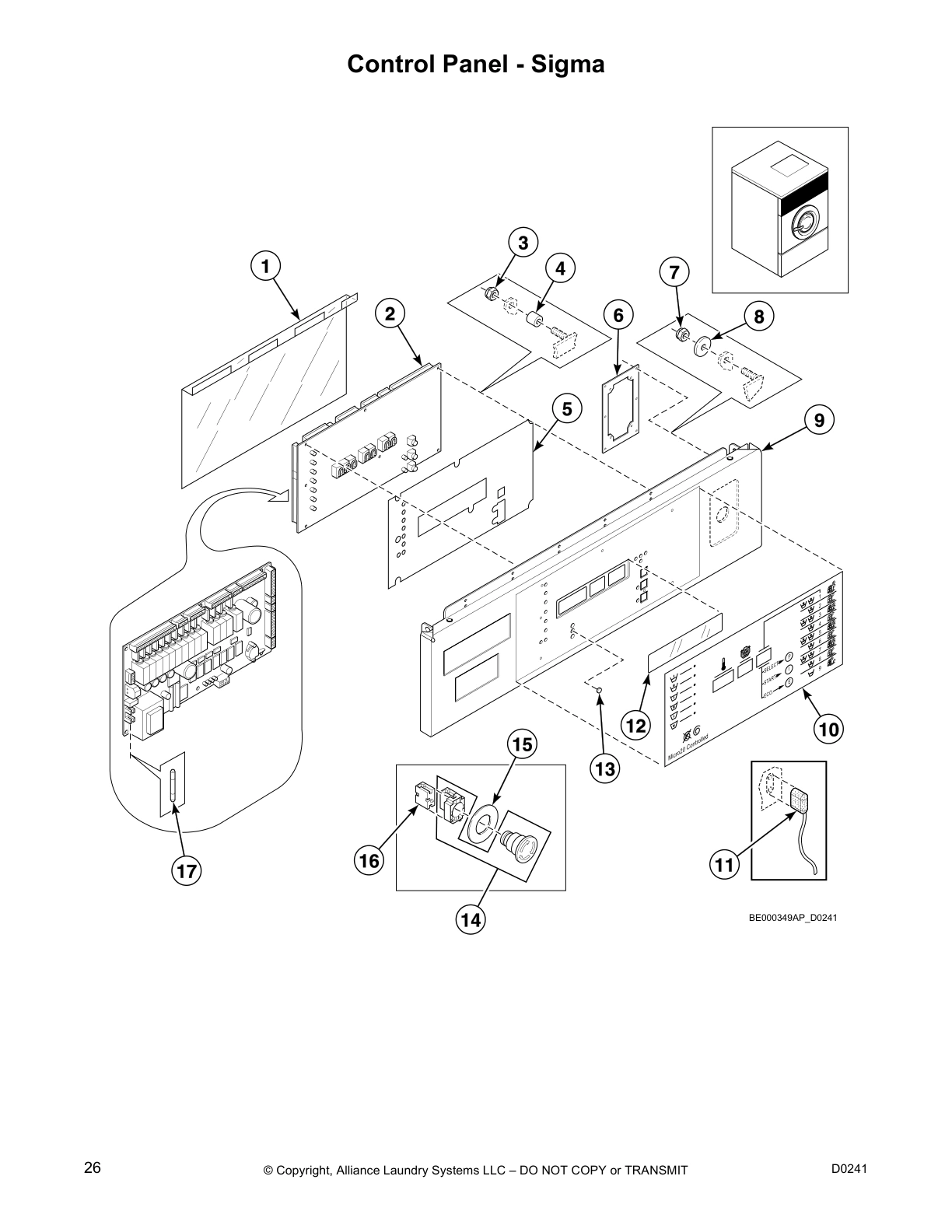

Control Panel - Sigma

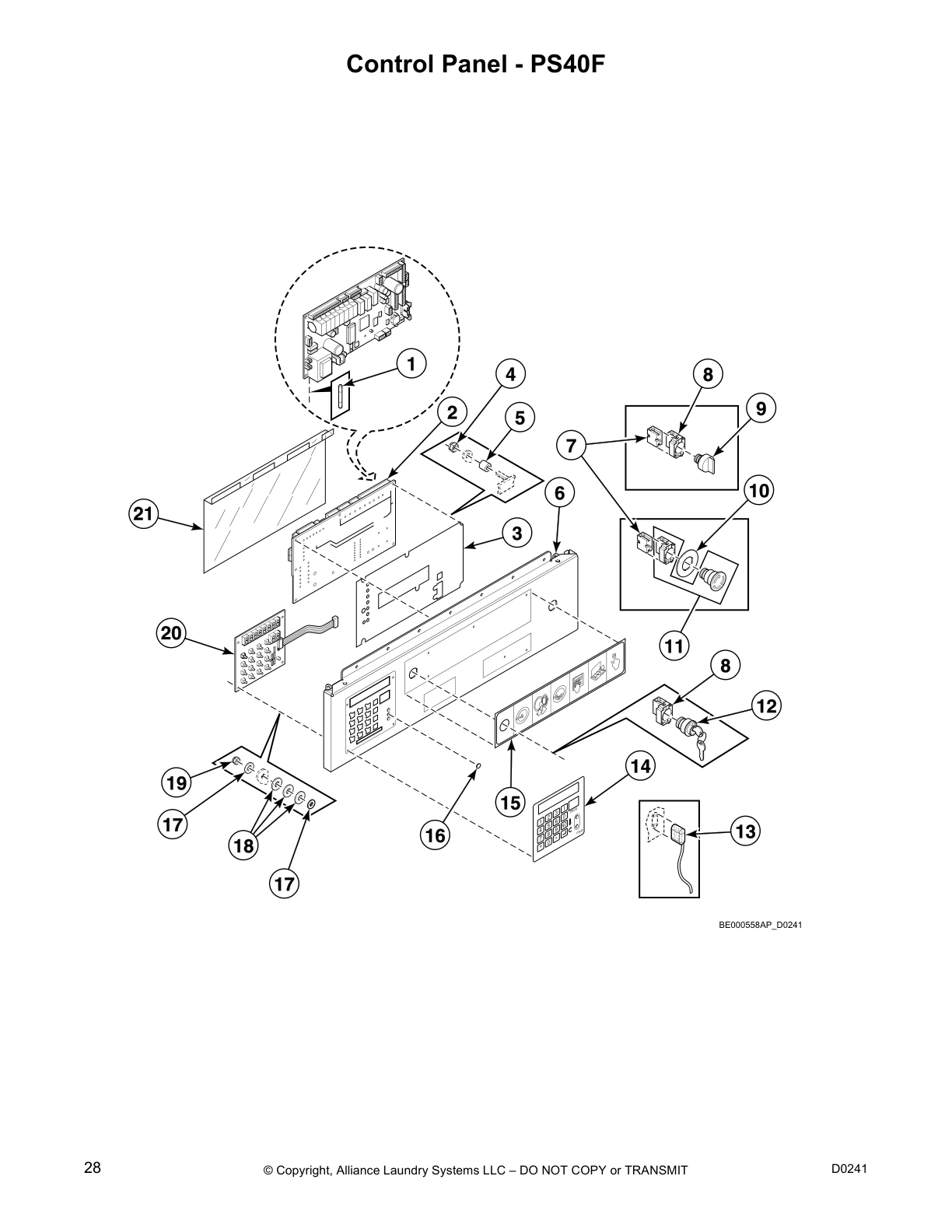

Control Panel - PS40F

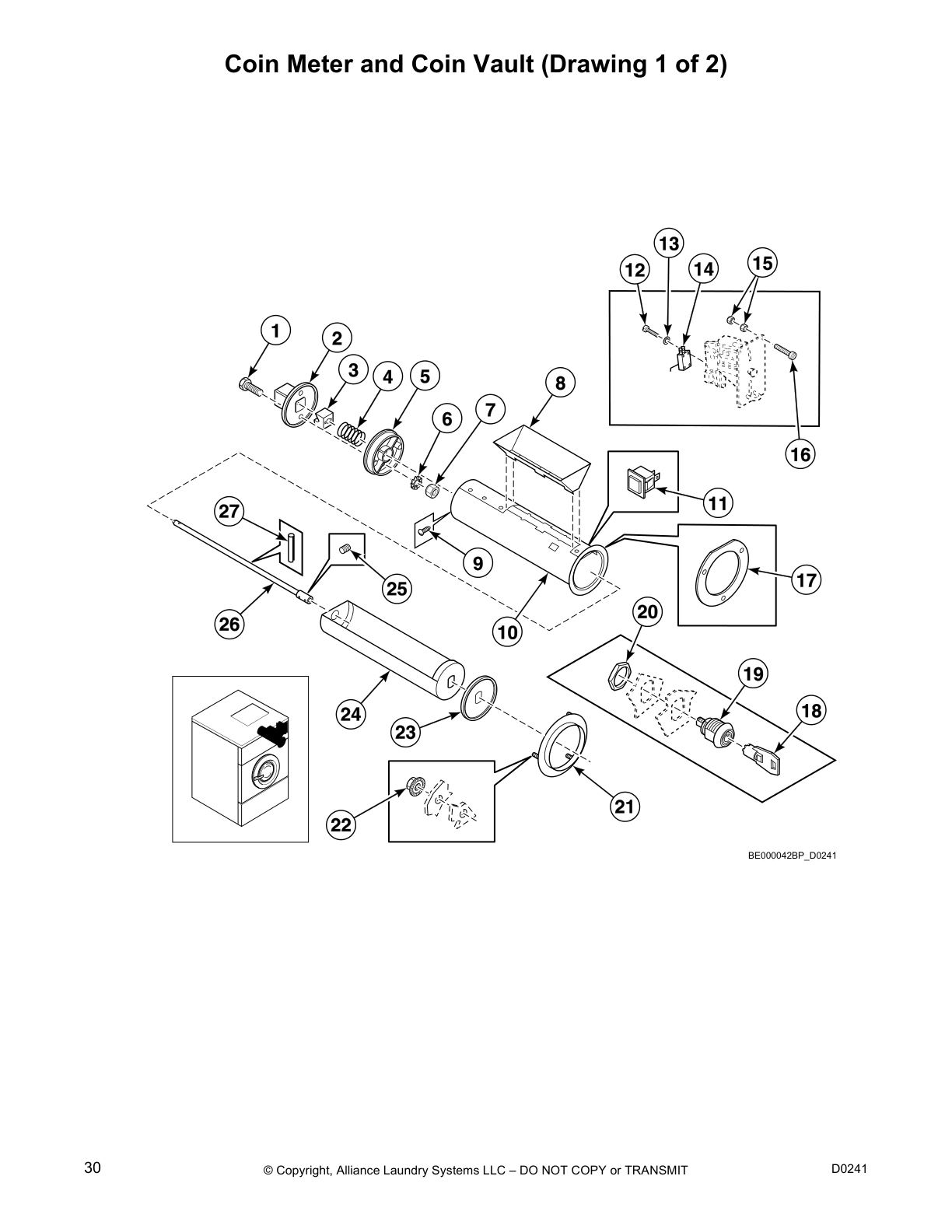

Coin Meter and Coin Vault (Drawing 1 of 2)

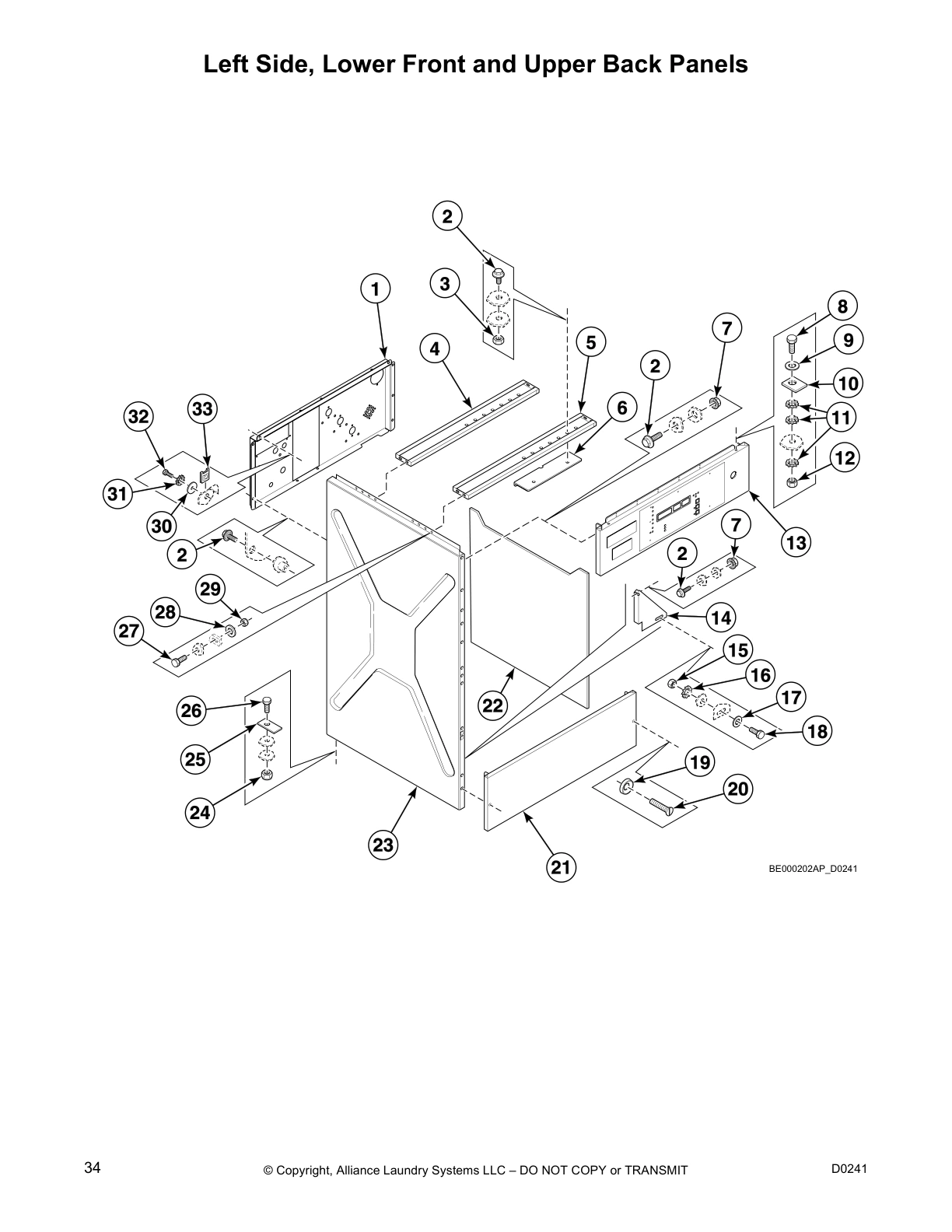

Left Side, Lower Front and Upper Back Panels

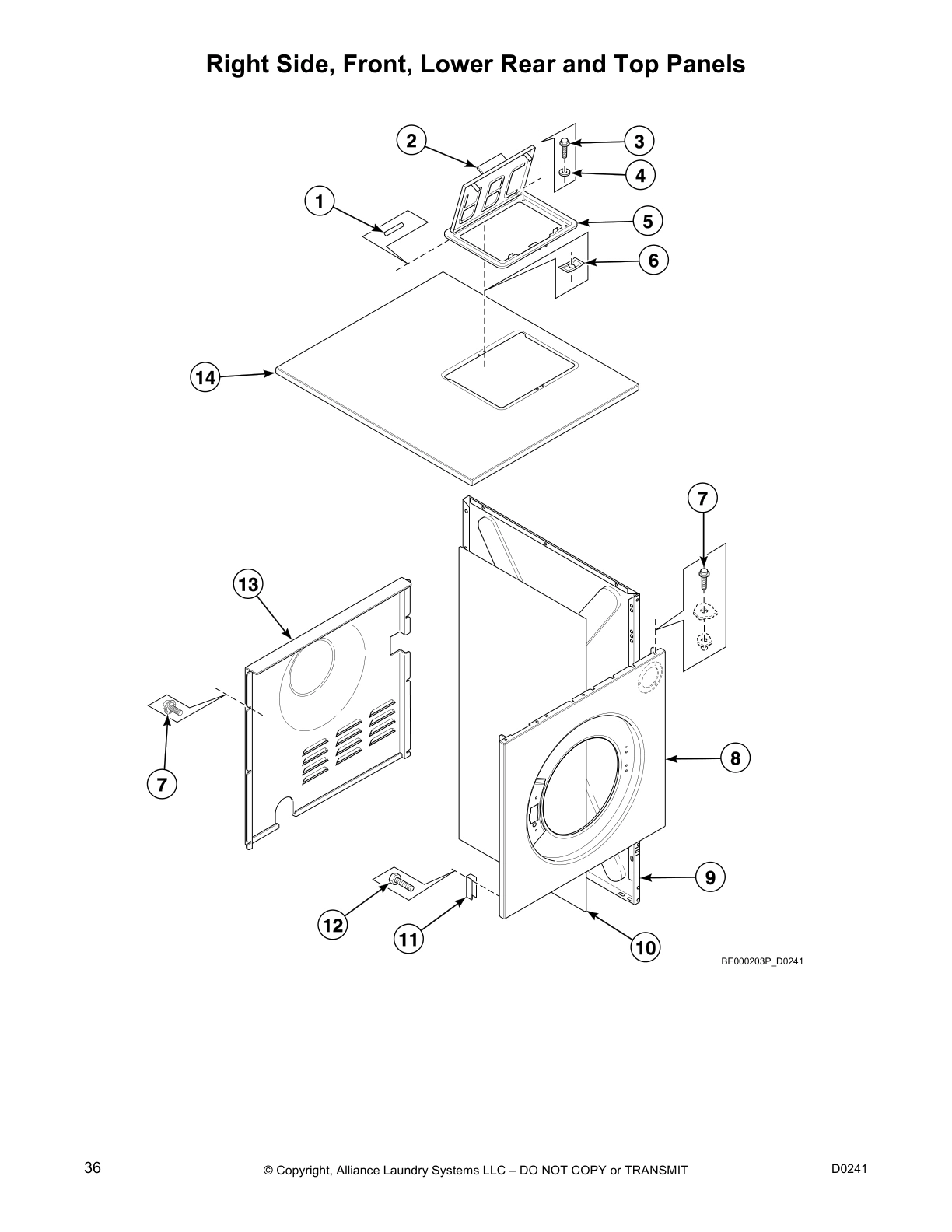

Right Side, Front, Lower Rear and Top Panels

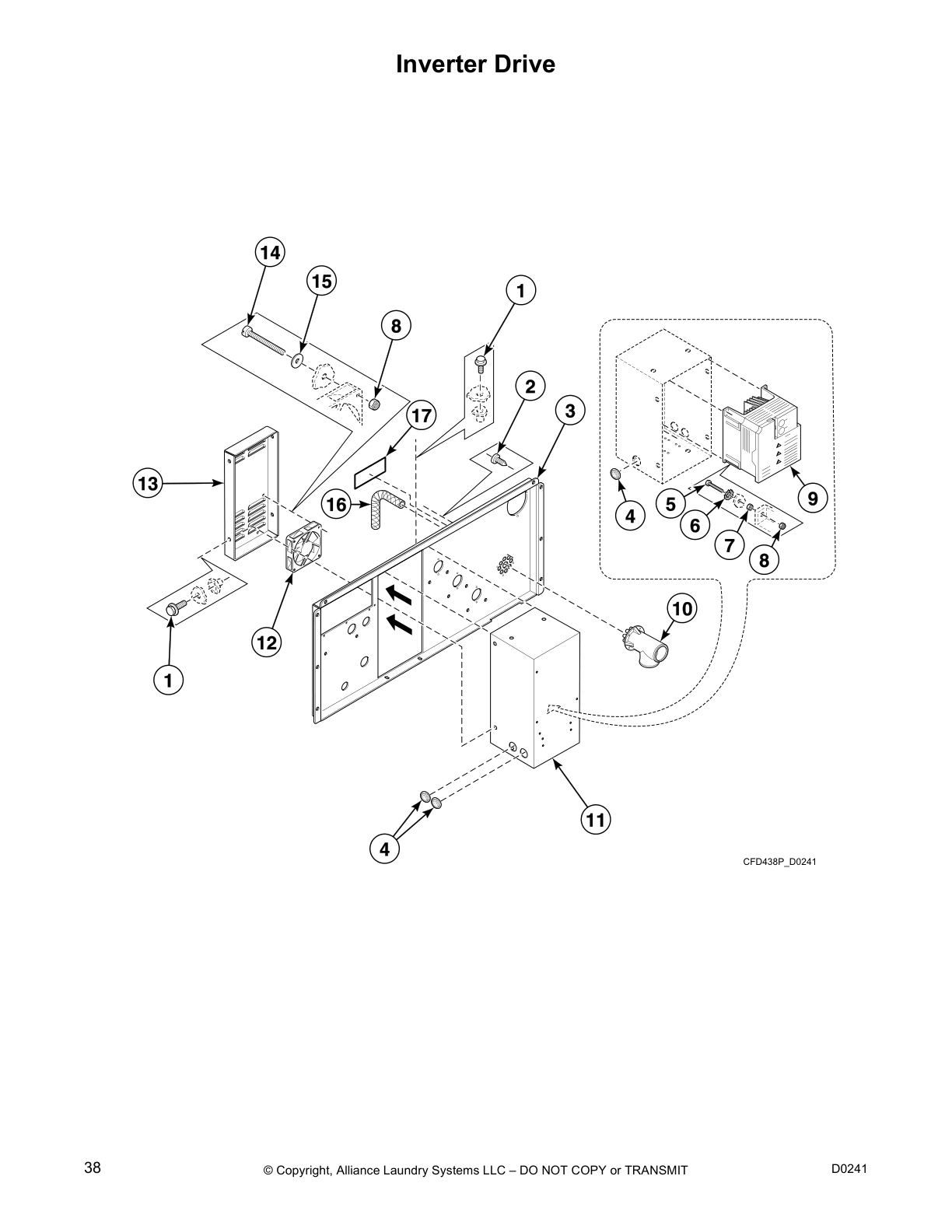

Inverter Drive

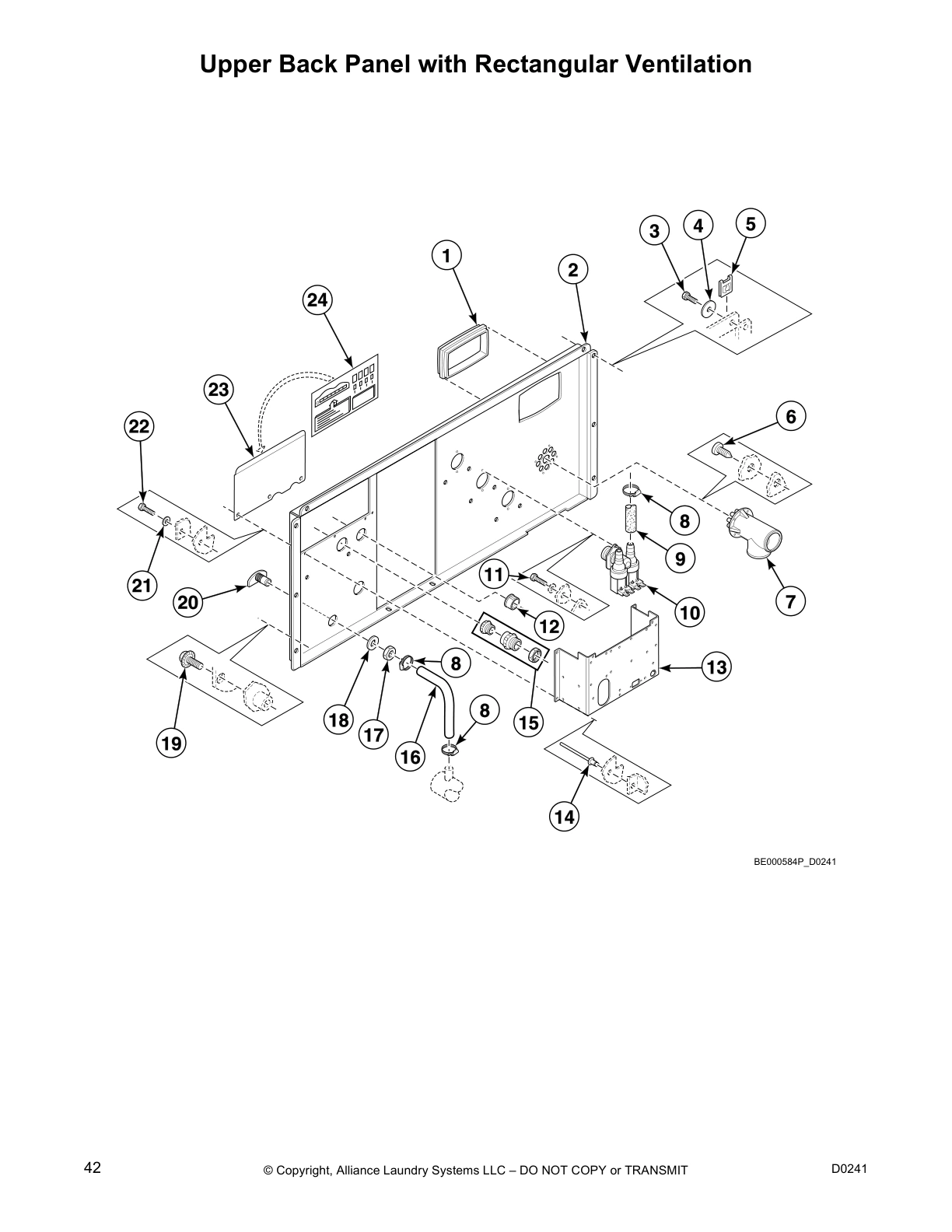

Upper Back Panel with Rectangular Ventilation

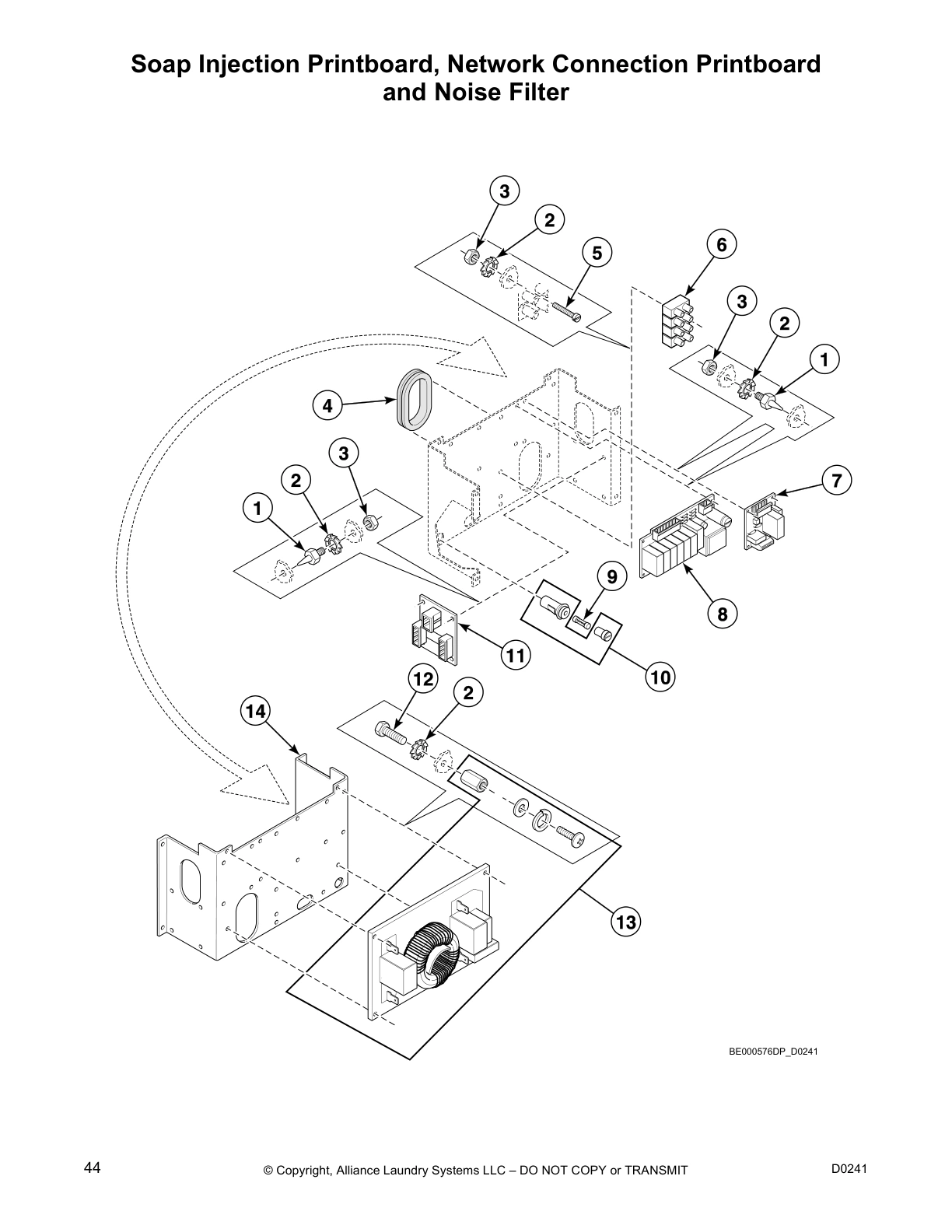

Soap Injection Printboard, Network Connection Printboard
and Noise Filter

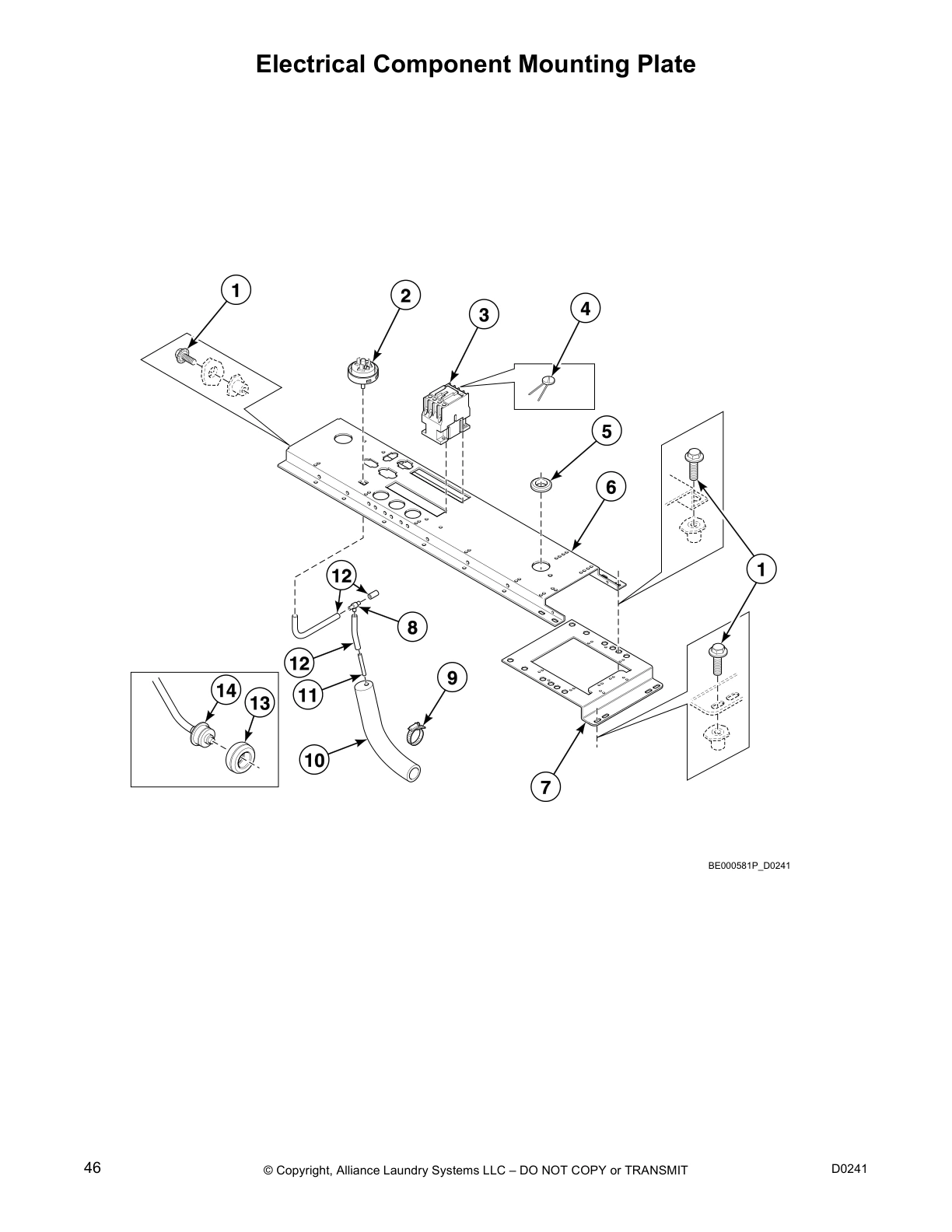

Electrical Component Mounting Plate

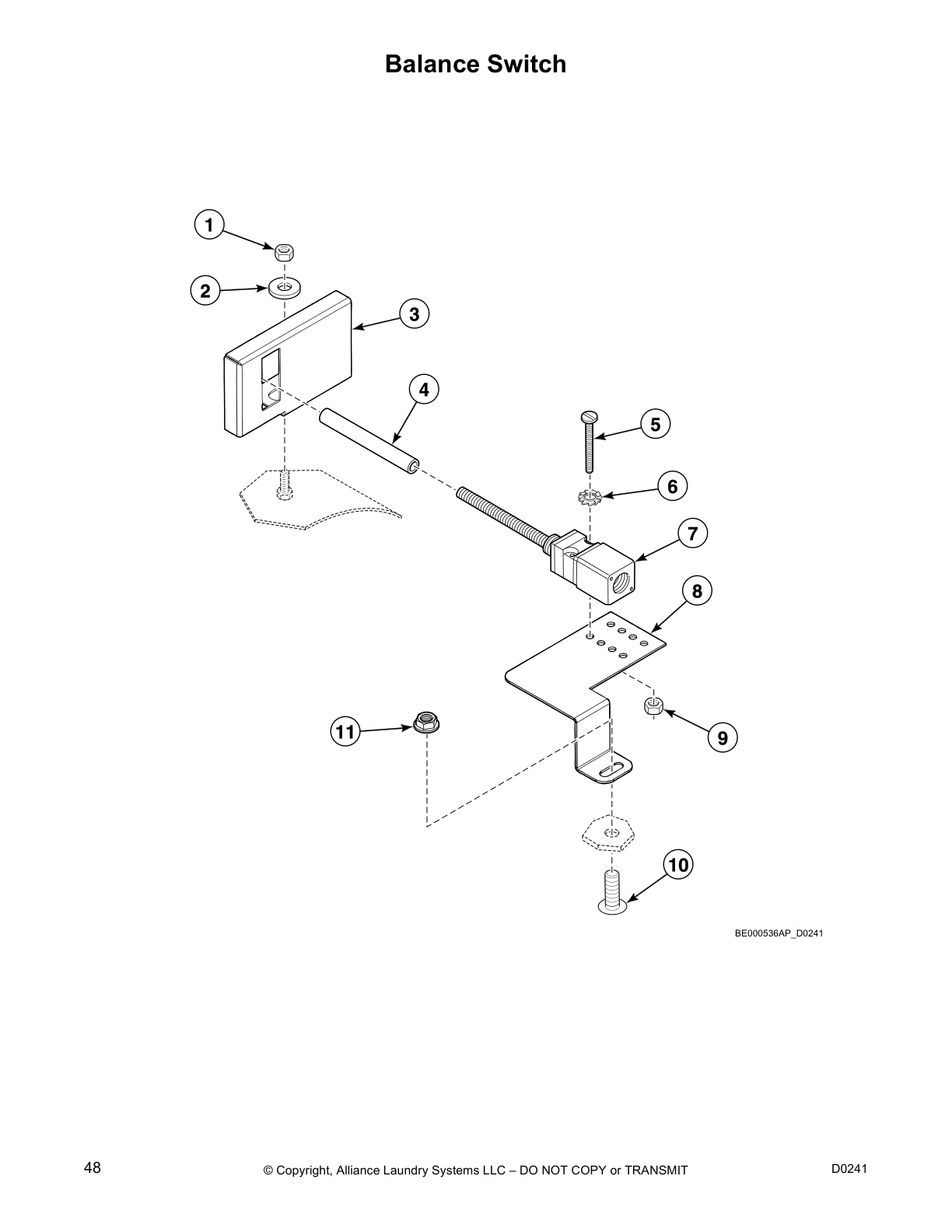

Balance Switch

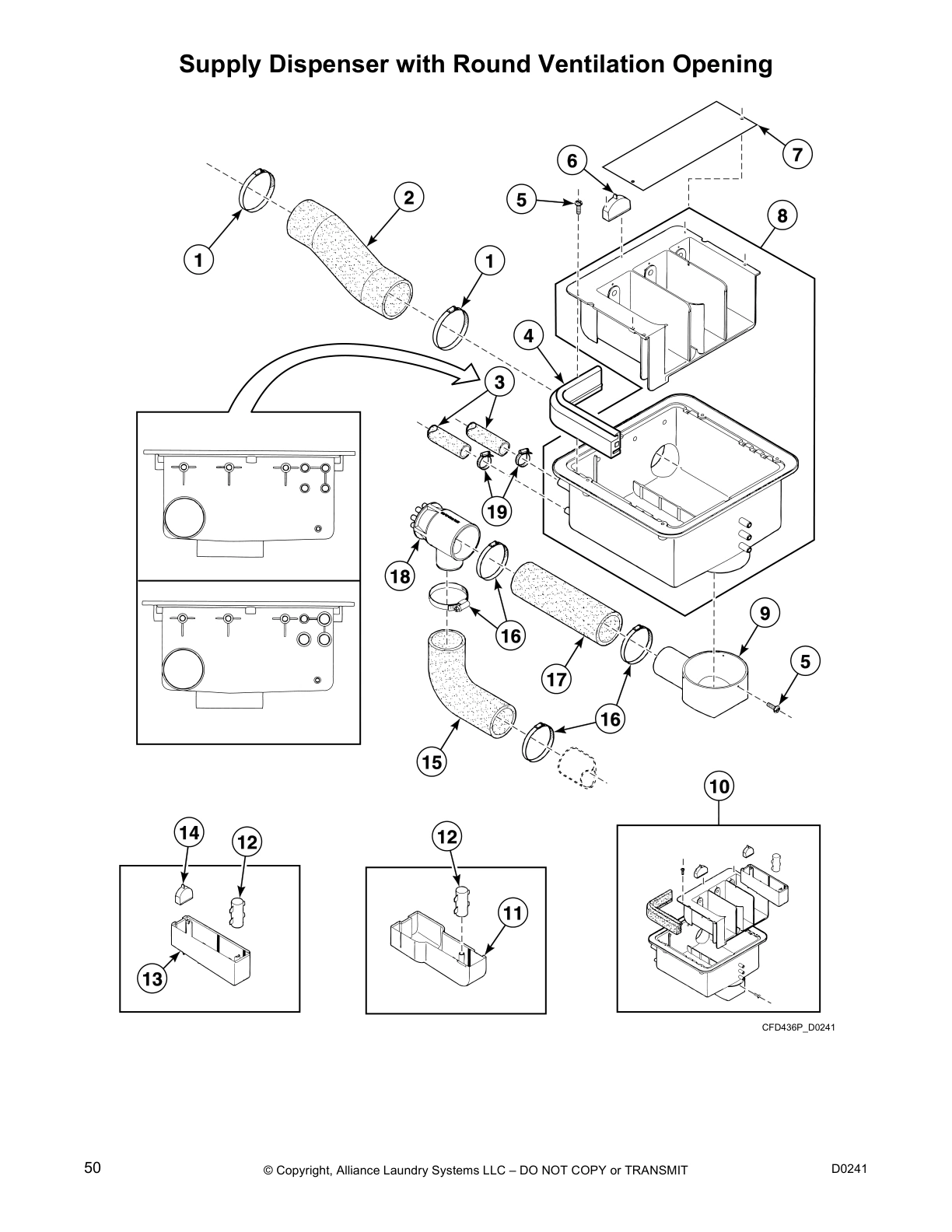

Supply Dispenser with Round Ventilation Opening

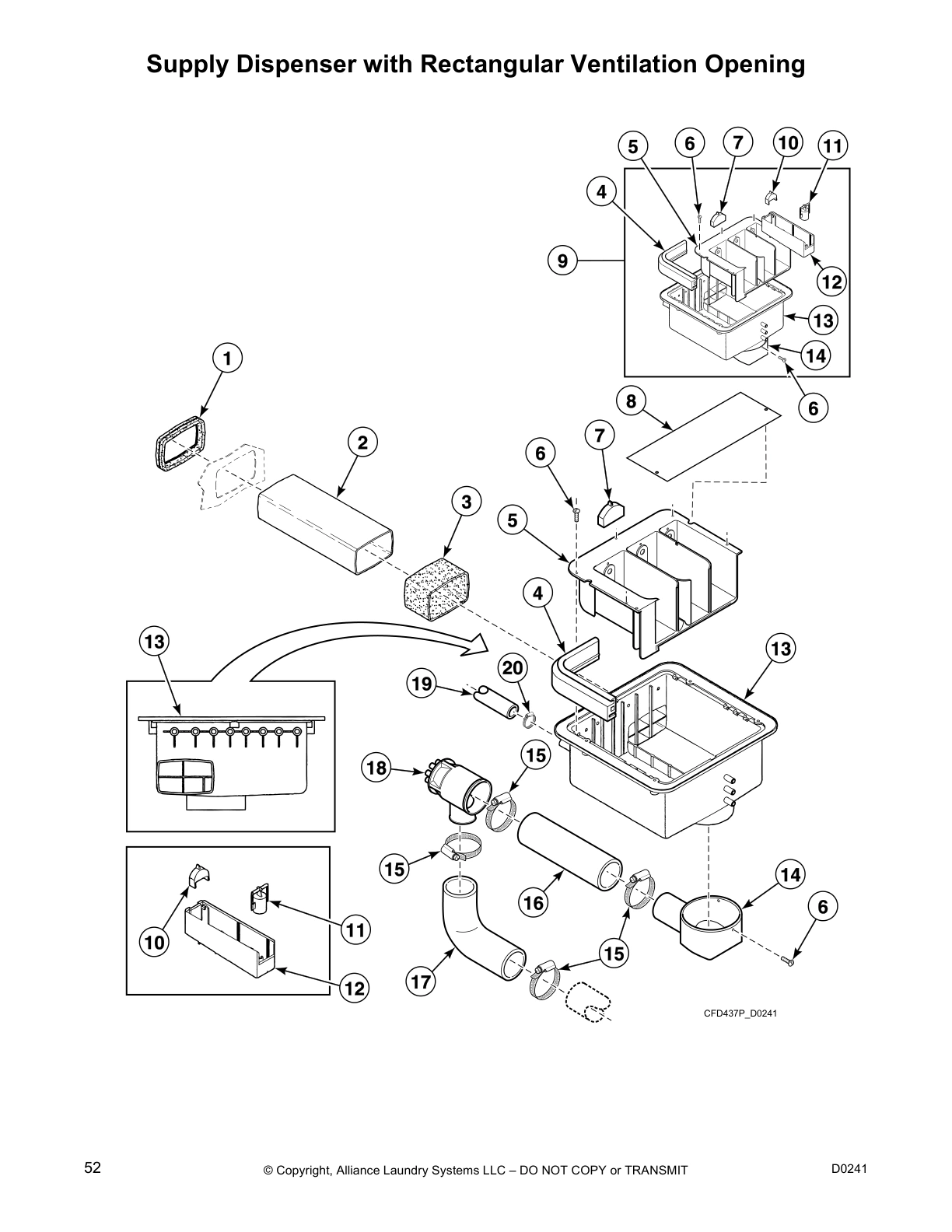

Supply Dispenser with Rectangular Ventilation Opening

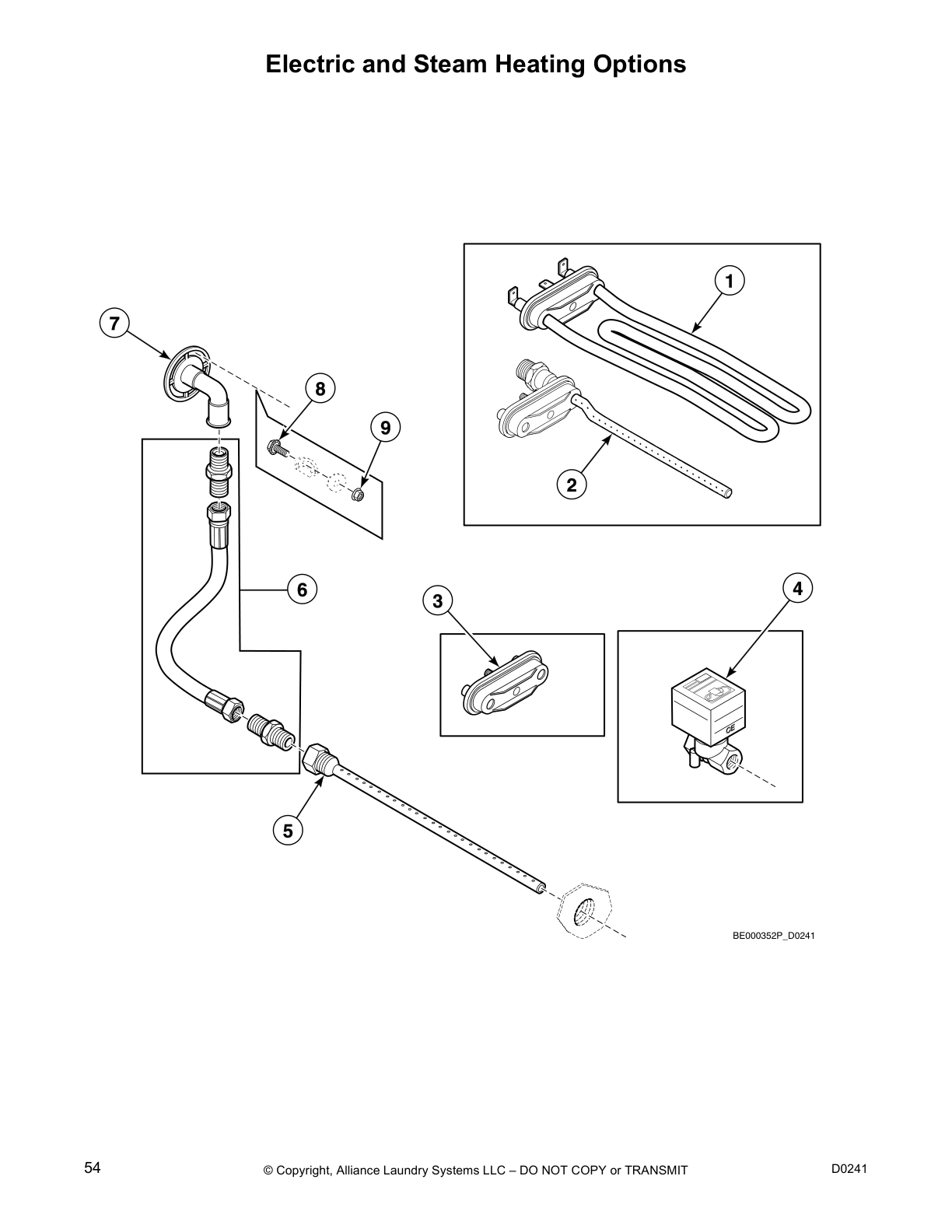

Electric and Steam Heating Options

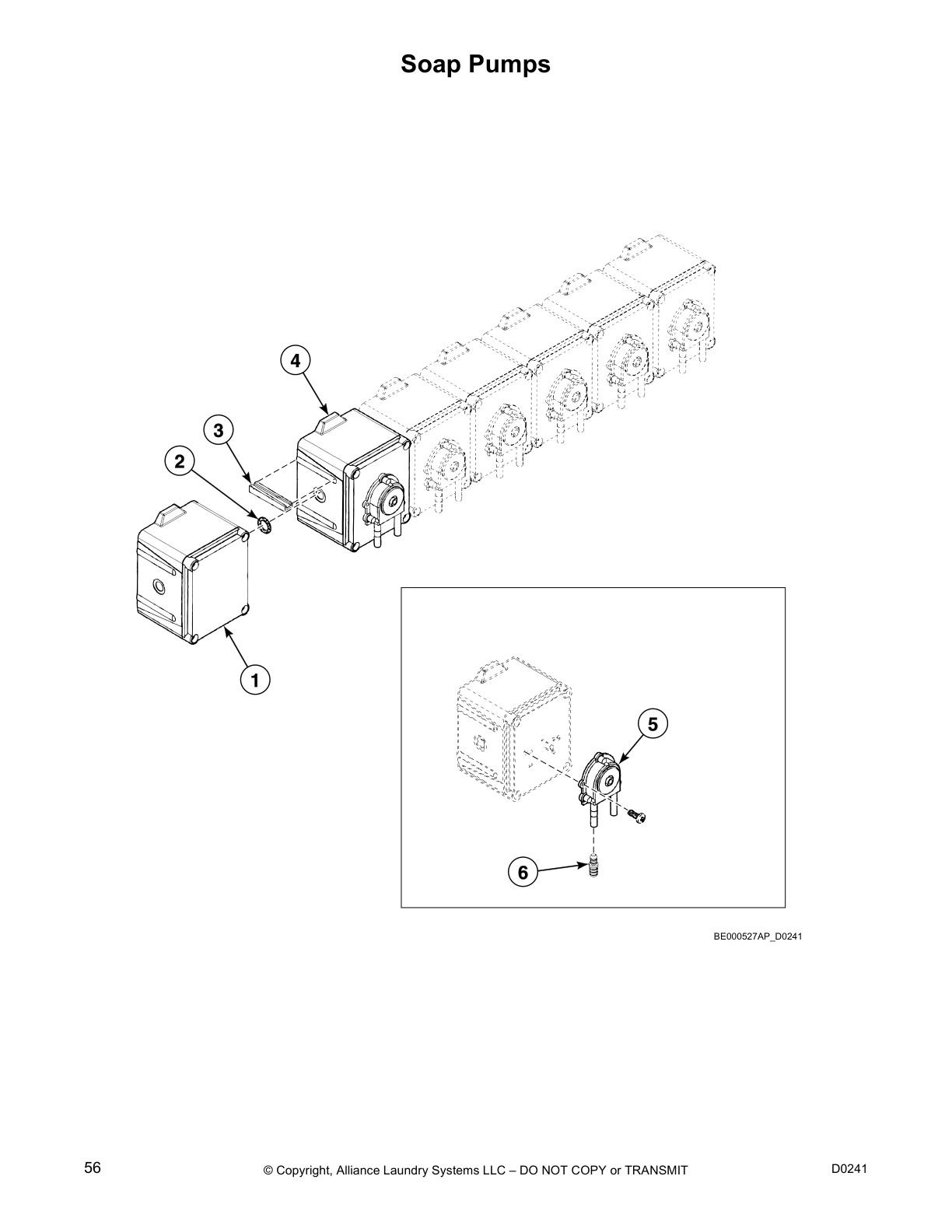

Soap Pumps
Common parts from model IPSO IHW035ANH Washer
SPQ 206/00099/00 SPQ 206/00099/00 Contact Us For Availability
SPQ 111/10095/10 SPQ 111/10095/10 Contact Us For Availability
SPQ F8420611 SPQ F8420611 Contact Us For Availability
SPQ 209/00554/01 SPQ 209/00554/01 Contact Us For Availability
SPQ 209/00554/98 SPQ 209/00554/98 Contact Us For Availability
1
Nut SPQ 204/00110/00 Contact Us For Availability
1
Tub SPQ 118/10073/00 Contact Us For Availability
1
Nut SPQ 204/00112/00 Contact Us For Availability
1
Cylinder Shaft Key SPQ 216/00002/04 Contact Us For Availability
1
Motor Plate SPQ 152/00054/00 Contact Us For Availability
1
Bolt SPQ 206/00033/00 Contact Us For Availability
1
Hose Clamp SPQ 223/00014/00 Contact Us For Availability
1
Fuse SPQ 209/00372/01 Contact Us For Availability
1
Standoff SPQ 211/00120/00 Contact Us For Availability
1
Vent Tube SPQ 223/00226/00 Contact Us For Availability
1
Heating Element SPQ 209/00563/20 Contact Us For Availability
1
Feeding Liquid Soap D SPQ 209/00554/51 Contact Us For Availability
2
SPQ 201/00005/00 SPQ 201/00005/00 Contact Us For Availability
2
Spring Holder Top SPQ 201/00015/00 Contact Us For Availability
2
Caddy Bracket SPQ 201/00012/00 Contact Us For Availability
2
Belt SPQ 226/00114/00 Contact Us For Availability
2
SPQ 206/00005/00 SPQ 206/00005/00 Contact Us For Availability
2
Outlet Pipe Plate Assembly SPQ 201/00007/00 Contact Us For Availability
2
Tilt Detector Plate SPQ 201/00010/00 Contact Us For Availability
2
Soap Dispenser Cover SPQ 111/22744/00 Contact Us For Availability
2
Filter SPQ 227/00180/00 Contact Us For Availability
2
Screw SPQ 223/00107/00 Contact Us For Availability
2
Shrink Fit SPQ 223/00229/00 Contact Us For Availability
2
Steam Injector SPQ 209/00562/20 Contact Us For Availability
2
Soap Pump Assembly SPQ 209/00554/06 Contact Us For Availability
3
Suspension Spring SPQ 247/00007/00 Contact Us For Availability
3
O-Ring SPQ 206/00057/00 Contact Us For Availability
3
Bolt SPQ 206/00003/00 Contact Us For Availability
3
Belt Rod SPQ 113/00038/00 Contact Us For Availability
3
SPQ 205/00115/00 SPQ 205/00115/00 Contact Us For Availability
3
SPQ 205/00107/00 SPQ 205/00107/00 Contact Us For Availability
3
Insulating Sticker SPQ 229/00255/00 Contact Us For Availability
3
Backbridge SPQ 111/01164/90 Contact Us For Availability
3
Washer SPQ 227/00179/00 Contact Us For Availability
3
Out-of-Balance Switch Boot SPQ 111/00108/01 Contact Us For Availability
3
Outer and Inner Box Kit SPQ 223/00245/00 Contact Us For Availability
4
Washer SPQ 203/00001/00 Contact Us For Availability
4
SPQ 206/00053/00 SPQ 206/00053/00 Contact Us For Availability
4
Shock Absorber SPQ 247/00006/00 Contact Us For Availability
4
Bolt SPQ 206/00011/00 Contact Us For Availability
4
SPQ 201/00201/00 SPQ 201/00201/00 Contact Us For Availability
4
Standoff SPQ 211/00122/00 Contact Us For Availability
4
Washer SPQ 205/00108/00 Contact Us For Availability
4
Grommet SPQ 223/00174/00 Contact Us For Availability
4
Noise Suppressor SPQ 209/00356/00 Contact Us For Availability
4
Out-of-Balance Switch SPQ 223/00246/00 Contact Us For Availability
4
Screw SPQ 223/00109/00 Contact Us For Availability
5
SPQ 201/00014/00 SPQ 201/00014/00 Contact Us For Availability
5
Screw SPQ 201/00001/00 Contact Us For Availability
5
Spring Seat Bottom SPQ 247/00001/04 Contact Us For Availability
5
Tub Front Panel Clip SPQ 217/00008/00 Contact Us For Availability
5
Screw SPQ 203/00011/00 Contact Us For Availability
5
Soap Dispenser Frame SPQ 202/00101/00 Contact Us For Availability
5
SPQ 217/00017/03 SPQ 217/00017/03 Contact Us For Availability
5
Front Panel SPQ 111/01705/00 Contact Us For Availability
5
Grommet SPQ 223/00198/00 Contact Us For Availability
5
Tilt Switch Bracket SPQ 207/00018/00 Contact Us For Availability
5
Soap Spray Nozzle SPQ 223/00222/60 Contact Us For Availability
5
Steam Inlet SPQ 209/00581/10 Contact Us For Availability
5
Liquid Soap Dosing Pu SPQ 209/00554/05 Contact Us For Availability
6
SPQ 247/00002/02 SPQ 247/00002/02 Contact Us For Availability
6
SPQ 206/00055/00 SPQ 206/00055/00 Contact Us For Availability
6
Clamp SPQ 238/00017/00 Contact Us For Availability
6
SPQ 224/00052/00 SPQ 224/00052/00 Contact Us For Availability
6
SPQ 203/00004/00 SPQ 203/00004/00 Contact Us For Availability
6
SPQ 206/00127/00 SPQ 206/00127/00 Contact Us For Availability
6
SPQ 223/00189/00 SPQ 223/00189/00 Contact Us For Availability
6
SPQ 203/00006/00 SPQ 203/00006/00 Contact Us For Availability
6
Switch Base SPQ 209/00099/25 Contact Us For Availability
6
Nut SPQ 223/00103/03 Contact Us For Availability
6
Soap Box Assembly Plate SPQ 208/00130/00 Contact Us For Availability
6
Hose SPQ 209/00554/03 Contact Us For Availability
7
SPQ 247/00002/01 SPQ 247/00002/01 Contact Us For Availability
7
Door Boot SPQ 223/00122/00 Contact Us For Availability
7
SPQ 224/00051/00 SPQ 224/00051/00 Contact Us For Availability
7
SPQ 226/00070/00 SPQ 226/00070/00 Contact Us For Availability
7
SPQ 201/00018/00 SPQ 201/00018/00 Contact Us For Availability
7
SPQ 208/00001/00 SPQ 208/00001/00 Contact Us For Availability
7
Lower Front Panel SPQ 208/00104/00 Contact Us For Availability
7
Soap Dispenser SPQ 223/00102/06 Contact Us For Availability
7
Bolt SPQ 209/00564/20 Contact Us For Availability
8
SPQ 206/00047/00 SPQ 206/00047/00 Contact Us For Availability
8
SPQ 247/00001/01 SPQ 247/00001/01 Contact Us For Availability
8
Fastening Ring SPQ 238/00013/00 Contact Us For Availability
8
SPQ 226/00062/00 SPQ 226/00062/00 Contact Us For Availability
8
Front Panel SPQ 201/00008/00 Contact Us For Availability
8
Inverter Drive Kit SPQ 204/00114/00 Contact Us For Availability
8
SPQ 217/00022/00 SPQ 217/00022/00 Contact Us For Availability
8
Switch Knob SPQ 209/00099/29 Contact Us For Availability
8
SPQ 208/00025/00 SPQ 208/00025/00 Contact Us For Availability
8
Hose Clamp SPQ 223/00011/00 Contact Us For Availability
8
SPQ 111/00107/01 SPQ 111/00107/01 Contact Us For Availability
8
SPQ 123/00103/06 SPQ 123/00103/06 Contact Us For Availability
8
SPQ 223/00102/30 SPQ 223/00102/30 Contact Us For Availability
8
Nut SPQ 118/00105/01 Contact Us For Availability
9
SPQ 113/00036/00 SPQ 113/00036/00 Contact Us For Availability
9
Spring SPQ 238/00014/00 Contact Us For Availability
9
SPQ 206/00056/00 SPQ 206/00056/00 Contact Us For Availability
9
SPQ 217/00015/00 SPQ 217/00015/00 Contact Us For Availability
9
SPQ 204/00007/00 SPQ 204/00007/00 Contact Us For Availability
9
Parameter Unit Assembly SPQ F8420710 Contact Us For Availability
9
Central Control Board SPQ 209/00058/00 Contact Us For Availability
9
Pressure Switch Elbow SPQ 223/00210/00 Contact Us For Availability
9
SPQ 223/00222/00 SPQ 223/00222/00 Contact Us For Availability
9
SPQ 119/00082/00 SPQ 119/00082/00 Contact Us For Availability
10
Counterweight SPQ 113/00035/00 Contact Us For Availability
10
Tub Front Panel SPQ 119/00049/00 Contact Us For Availability
10
Nut SPQ 204/00106/00 Contact Us For Availability
10
Telem Sticker SPQ 209/00520/00 Contact Us For Availability
10
Retaining Ring SPQ 117/00042/00 Contact Us For Availability
10
Side Panel Gasket SPQ 246/00079/00 Contact Us For Availability
10
Fuse Holder SPQ 209/00202/01 Contact Us For Availability
10
Hose Barb SPQ 223/00016/00 Contact Us For Availability
10
Screw SPQ 208/00120/00 Contact Us For Availability
10
Soap Dispenser Assembly SPQ 223/00102/50 Contact Us For Availability
10
Softener Spray Nozzle SPQ 223/00222/03 Contact Us For Availability
11
Frame SPQ 204/00113/00 Contact Us For Availability
11
Tub Front Gasket SPQ 223/00242/00 Contact Us For Availability
11
Cordlock SPQ 211/00117/00 Contact Us For Availability
11
Screw SPQ 206/00086/00 Contact Us For Availability
11
Washer SPQ 202/00108/00 Contact Us For Availability
11
Washer SPQ 203/00005/00 Contact Us For Availability
11
Reinforcement Plate SPQ 111/10089/01 Contact Us For Availability
11
Inverter Drive Box SPQ 111/01174/00 Contact Us For Availability
11
Network Connection Printboard SPQ 209/00540/00 Contact Us For Availability
11
Liquid Soap Dispenser Insert SPQ 223/00102/08 Contact Us For Availability
11
Siphon Break SPQ 223/00222/04 Contact Us For Availability
12
Bolt SPQ 152/00050/50 Contact Us For Availability
12
Fastening Rubber SPQ 247/00004/00 Contact Us For Availability
12
Cylinder and Trunnion Assemb SPQ 111/01962/00 Contact Us For Availability
12
Retainer Ring SPQ 212/00031/00 Contact Us For Availability
12
Screw SPQ 207/00009/00 Contact Us For Availability
12
Door Lock Spring SPQ 224/00049/00 Contact Us For Availability
12
Programming Key Contact Switch SPQ 209/00326/20 Contact Us For Availability
12
Nut SPQ 204/00006/00 Contact Us For Availability
12
Bolt SPQ 206/00027/00 Contact Us For Availability
12
Soap Dispenser Rinse Siphon SPQ 223/00102/04 Contact Us For Availability
12
Rinsing Box SPQ 223/00222/05 Contact Us For Availability
13
Tub Support SPQ 206/00014/00 Contact Us For Availability
13
Tub Front Ring Clamp SPQ 219/00007/00 Contact Us For Availability
13
Washer SPQ 212/00029/00 Contact Us For Availability
13
Drain Valve Overflow Plug SPQ 223/00086/00 Contact Us For Availability
13
Washer SPQ 203/00007/00 Contact Us For Availability
13
Door Hinge Spacer SPQ 202/00104/00 Contact Us For Availability
13
Front Panel SPQ 111/01704/00 Contact Us For Availability
13
Inverter Box Cover SPQ 111/01174/01 Contact Us For Availability
13
Noise Filter SPQ 227/00242/00 Contact Us For Availability
13
Thermostat Assembly SPQ 209/00309/02 Contact Us For Availability
13
Rinse Insert SPQ 223/00102/03 Contact Us For Availability
14
Hose Clamp SPQ 223/00012/00 Contact Us For Availability
14
Bolt SPQ 117/00011/00 Contact Us For Availability
14
Triangle Support SPQ 111/01703/00 Contact Us For Availability
14
Label SPQ 225/00397/00 Contact Us For Availability
14
Top Panel SPQ 111/23743/00 Contact Us For Availability
14
Thermostat Seal SPQ 225/10004/00 Contact Us For Availability
14
Dispenser Drain Funnel SPQ 223/00195/00 Contact Us For Availability
14
Softener Spray Nozzle SPQ 223/00102/05 Contact Us For Availability
15
Screw SPQ 152/00047/00 Contact Us For Availability
15
Hose Clamp SPQ 223/00013/00 Contact Us For Availability
15
Screw SPQ 117/00010/00 Contact Us For Availability
15
Nut SPQ 204/00116/00 Contact Us For Availability
15
Operating Sticker SPQ 225/00400/00 Contact Us For Availability
15
Washer SPQ 202/00004/00 Contact Us For Availability
15
Bolt SPQ 111/00118/00 Contact Us For Availability
16
Drain Valve Hose SPQ 223/00190/00 Contact Us For Availability
16
Interlock Lever SPQ 224/00043/00 Contact Us For Availability
16
Door Hinge SPQ 207/00125/00 Contact Us For Availability
16
Metal Disc SPQ 202/00120/00 Contact Us For Availability
16
Lower Front Panel SPQ 111/00109/00 Contact Us For Availability
16
Pressure Hose SPQ 223/00179/10 Contact Us For Availability
16
Siphon Break Dispenser Hose SPQ 223/00262/00 Contact Us For Availability
17
Side Panel Gasket SPQ 204/00003/00 Contact Us For Availability
17
Bearing Assembly SPQ 152/00055/00 Contact Us For Availability
17
Drain Pipe SPQ 223/00105/00 Contact Us For Availability
17
Door Hinge Plate Assembly SPQ 207/00126/00 Contact Us For Availability
17
Washer SPQ 223/00123/00 Contact Us For Availability
17
Voltage Discharge Decal SPQ B12355001 Contact Us For Availability
17
Siphon Break Hose SPQ 223/00266/00 Contact Us For Availability
17
Liquid Soap Manifold SPQ 223/00260/00 Contact Us For Availability
18
Outlet Pipe Plate Assembly SPQ 203/00002/00 Contact Us For Availability
18
Retaining Ring SPQ 116/00301/01 Contact Us For Availability
18
Overflow Hose SPQ 223/00100/00 Contact Us For Availability
18
Lever Spring SPQ 217/00052/04 Contact Us For Availability
18
Door Handle Stop SPQ 221/00005/00 Contact Us For Availability
18
Liquid Soap Manifold SPQ 223/00250/00 Contact Us For Availability
19
Door Glass SPQ 118/00065/00 Contact Us For Availability
19
Water Hose SPQ 223/00044/00 Contact Us For Availability
20
Soap Dispenser Gasket SPQ 223/00010/00 Contact Us For Availability
21
Lock Protection Plate SPQ 224/00040/00 Contact Us For Availability
21
Circuit Board Cover SPQ 229/00262/00 Contact Us For Availability
21
SPQ 208/00009/00 SPQ 208/00009/00 Contact Us For Availability
22
Ground Terminal SPQ 117/00052/08 Contact Us For Availability
23
Bolt SPQ 210/10015/00 Contact Us For Availability
24
Door Lock Microswitch SPQ 204/00008/00 Contact Us For Availability
24
SPQ 111/23731/00 SPQ 111/23731/00 Contact Us For Availability
25
Lock Shaft SPQ 205/00103/00 Contact Us For Availability
26
SPQ 204/00009/00 SPQ 204/00009/00 Contact Us For Availability
27
SPQ 101/00007/00 SPQ 101/00007/00 Contact Us For Availability
28
SPQ 205/00104/00 SPQ 205/00104/00 Contact Us For Availability
32
SPQ 204/00005/00 SPQ 204/00005/00 Contact Us For Availability
33
SPQ 201/00006/00 SPQ 201/00006/00 Contact Us For Availability
NI
SPQ 247/00002/00 SPQ 247/00002/00 Contact Us For Availability
NI
SPQ 247/00001/03 SPQ 247/00001/03 Contact Us For Availability
NI
SPQ 202/00003/00 SPQ 202/00003/00 Contact Us For Availability
NI
SPQ 217/00002/00 SPQ 217/00002/00 Contact Us For Availability
NI
SPQ 206/00101/00 SPQ 206/00101/00 Contact Us For Availability
NI
SPQ 118/00046/10 SPQ 118/00046/10 Contact Us For Availability
NI
SPQ 205/00106/00 SPQ 205/00106/00 Contact Us For Availability
NI
SPQ 111/10095/00 SPQ 111/10095/00 Contact Us For Availability
NI
SPQ 111/10094/00 SPQ 111/10094/00 Contact Us For Availability
NI
SPQ F8420610 SPQ F8420610 Contact Us For Availability
NI
SPQ F8420711 SPQ F8420711 Contact Us For Availability
NI
SPQ F8410901 SPQ F8410901 Contact Us For Availability
NI
Fuse SPQ 209/00438/50 Contact Us For Availability
NI
SPQ 209/00468/00 SPQ 209/00468/00 Contact Us For Availability
NI
SPQ 118/01063/00 SPQ 118/01063/00 Contact Us For Availability
NI
Hose Connector SPQ 209/00554/02 Contact Us For Availability
NI
SPQ 209/00554/52 SPQ 209/00554/52 Contact Us For Availability
NI
SPQ 209/00554/99 SPQ 209/00554/99 Contact Us For Availability
× ![]()
